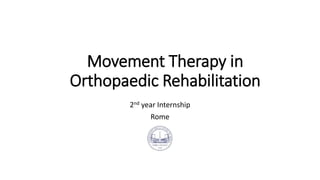

1. Movement Therapy in
Orthopaedic Rehabilitation
2nd year Internship
Rome

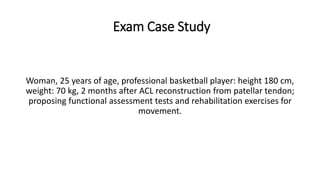

2. Exam Case Study
Woman, 25 years of age, professional basketball player: height 180 cm,
weight: 70 kg, 2 months after ACL reconstruction from patellar tendon;
proposing functional assessment tests and rehabilitation exercises for
movement.

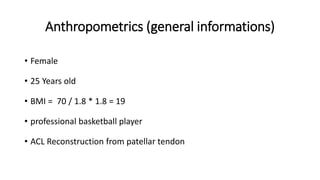

3. Anthropometrics (general informations)
• Female
• 25 Years old
• BMI = 70 / 1.8 * 1.8 = 19
• professional basketball player
• ACL Reconstruction from patellar tendon

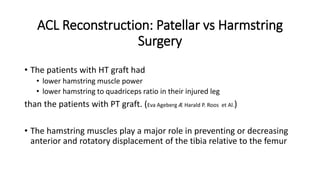

4. ACL Reconstruction: Patellar vs Harmstring
Surgery
• The patients with HT graft had
• lower hamstring muscle power
• lower hamstring to quadriceps ratio in their injured leg
than the patients with PT graft. (Eva Ageberg Æ Harald P. Roos et Al.)
• The hamstring muscles play a major role in preventing or decreasing
anterior and rotatory displacement of the tibia relative to the femur

5. Return to Performance
Purpose: To prevent quadriceps femoris weakness. Deficit in QF > 15%
negetively affects performance.
Factors influencing RTP (Sue D. Barber-Westin et Al.)
• Muscle strength
• General knee examination
• Dynamic function
• Stability

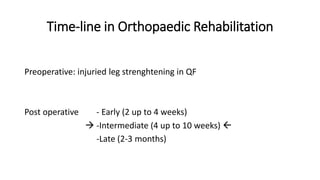

6. Time-line in Orthopaedic Rehabilitation
Preoperative: injuried leg strenghtening in QF
Post operative - Early (2 up to 4 weeks)
 -Intermediate (4 up to 10 weeks) 
-Late (2-3 months)

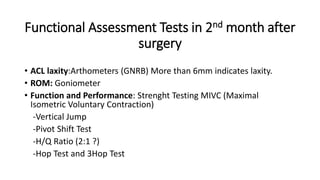

7. Functional Assessment Tests in 2nd month after
surgery
• ACL laxity:Arthometers (GNRB) More than 6mm indicates laxity.
• ROM: Goniometer
• Function and Performance: Strenght Testing MIVC (Maximal
Isometric Voluntary Contraction)
-Vertical Jump
-Pivot Shift Test
-H/Q Ratio (2:1 ?)
-Hop Test and 3Hop Test

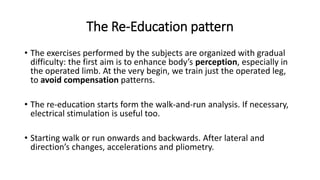

8. The Re-Education pattern
• The exercises performed by the subjects are organized with gradual
difficulty: the first aim is to enhance body’s perception, especially in
the operated limb. At the very begin, we train just the operated leg,
to avoid compensation patterns.
• The re-education starts form the walk-and-run analysis. If necessary,
electrical stimulation is useful too.
• Starting walk or run onwards and backwards. After lateral and
direction’s changes, accelerations and pliometry.

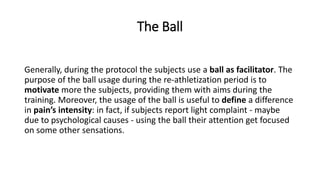

9. The Ball
Generally, during the protocol the subjects use a ball as facilitator. The
purpose of the ball usage during the re-athletization period is to
motivate more the subjects, providing them with aims during the
training. Moreover, the usage of the ball is useful to define a difference
in pain’s intensity: in fact, if subjects report light complaint - maybe
due to psychological causes - using the ball their attention get focused
on some other sensations.

10. Rehabilitation Exercises for Movement
• hydrokinesis were implemented. Exercises in water involved cycling,
walking, and stepping movements.
• Open and Closed Kinetic Chain exercises. Sets3x10 reps
• Step ups and down
• Calf raises
• Lunges with weight
• Squat in device

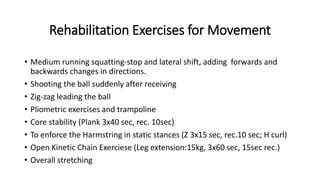

11. Rehabilitation Exercises for Movement
• Medium running squatting-stop and lateral shift, adding forwards and
backwards changes in directions.
• Shooting the ball suddenly after receiving
• Zig-zag leading the ball
• Pliometric exercises and trampoline
• Core stability (Plank 3x40 sec, rec. 10sec)
• To enforce the Harmstring in static stances (Z 3x15 sec, rec.10 sec; H curl)
• Open Kinetic Chain Exerciese (Leg extension:15kg, 3x60 sec, 15sec rec.)
• Overall stretching

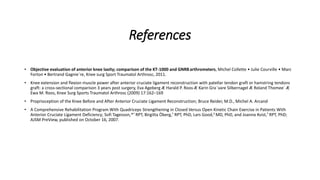

12. References
• Objective evaluation of anterior knee laxity; comparison of the KT-1000 and GNRBarthrometers, Michel Collette • Julie Courville • Marc
Forton • Bertrand Gagnie`re, Knee surg Sport Traumatol Arthrosc, 2011.
• Knee extension and flexion muscle power after anterior cruciate ligament reconstruction with patellar tendon graft or hamstring tendons
graft: a cross-sectional comparison 3 years post surgery, Eva Ageberg Æ Harald P. Roos Æ Karin Gra¨vare Silbernagel Æ Roland Thomee´ Æ
Ewa M. Roos, Knee Surg Sports Traumatol Arthrosc (2009) 17:162–169
• Proprioception of the Knee Before and After Anterior Cruciate Ligament Reconstruction; Bruce Reider, M.D., Michel A. Arcand
• A Comprehensive Rehabilitation Program With Quadriceps Strengthening in Closed Versus Open Kinetic Chain Exercise in Patients With
Anterior Cruciate Ligament Deficiency; Sofi Tagesson,*† RPT, Birgitta Öberg,† RPT, PhD, Lars Good,‡ MD, PhD, and Joanna Kvist,† RPT, PhD;
AJSM PreView, published on October 16, 2007.
