This document summarizes two common searching algorithms: linear search and binary search. Linear search sequentially checks each element of an array to find a target value, making it suitable for unsorted data. Binary search divides a sorted array in half at each step to quickly locate a value. Pseudocode is provided for implementations of both search types. Key differences are that linear search has O(n) time complexity while binary search has O(log n) time for sorted data. Visualizations are included to illustrate how each search approach works.

1. Government Polytechnic Lucknow
INFORMATION
TECHNOLOGY 2ND YEAR
Presented by : Krishnanand Mishra, Sumit Shukla , Ankur Kumar , Utkarsh Tiwari

2. Data structure using C
Searching
Linear
search
Binary
search

3. Searching

4. Searching in Array
Searching in array
means to find
whether a
particular value is
present in array or
not.
If the desired value is
present in the array,
then searching is said to
be successful. And the
searching process gives
the location of that
value in the array.
If the desired
value is not
present in the
array, then
searching is said
to be
unsuccessful.
There are two
popular methods
for searching the
array elements.
Linear
search
Binary
search

5. Linear Search
It is a very basic and simple search algorithm.
In linear search we search an element in given array by traversing the array from the
starting till the desired element is found.
Linear search is mostly used to search an unordered list of elements.
like : A[ ] = { 10,8,4,7,6,2,5,1,9};

6. Algorithm
Step 1 - Read the search element from the user.
Step 2 - Compare the search element with the first element in the list.
Step 3 - If both are matched, then display "given element is found!!!" And terminate the function
Step 4 - If both are not matched, then compare search element with the next element in the list.
Step 5 - Repeat steps 3 and 4 until search element is compared with last element in the list.
Step 6 - If last element in the list also doesn't match, then display "element is not found!!!" And terminate the

7. Example

8. Code
Int linear_search ( a[ ], LB, UB, item ) // LB= Lower bound, UB= upper bound,
{
int k;
for (k = LB ; k <= UB; K++)
{
if ( a [k] == item )
{
return k ;
}
}
return LB -1;
}

9. Binary search
Binary search is the search technique that works efficiently on sorted lists.
To search an element into some list using the binary search technique, we must ensure that
the list is sorted.
Binary search follows the divide and conquer approach in which the list is divided into two
halves, and the item is compared with the middle element of the list.
If the match is found then, the location of the middle element is returned. Otherwise, we
search into either of the halves depending upon the result produced through the match.

10. Algorithm
Step 1 - Start searching data from middle of the list.
Step 2 – If it is a match, return the index of the item, and exit.
Step 3 – If it is not a match, probe position.
Step 4 – Divide the list and find the new middle.
Step 5 – If data is greater than middle, search in higher sub-list.
Step 6 – If data is smaller than middle, search in lower sub-list.
Step 7 – Repeat until match

11. Example
.

12. Code
Int binary_ search ( A[ ], LB, UB, item ) // LB= Lower bound, UB= Upper bound,
{ int low=LB, high=UB;
int mid=(low + high) / 2;
while( (A[mid]!= item) && ( low<=high ) )
{ if( item<A[mid] )
high = mid -1 ;
else
low = mid +1 ;
mid = (low + high ) / 2;
}
if( A[ mid ]= item )
return min ;
else
return LB -1 ;
}

13. Linear search vs Binary search
Linear search Binary search
1. Data can be in any order. 1. Data should be in sorted order.
2. Multi dimensional array also can 2. Only single dimensional array is
be used. used.
3. Time complexity O(n). 3. Time complexity O log (n).
4. Not an efficient method to be used 4. Efficient for large inputs also.
if there is a large item.

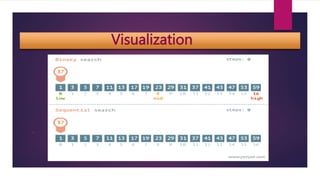

14. Visualization
,

15. Thank you
