Presentation on Function in C Programming
1. Dhaka International University
1
Presentation Name: Function in C Language
Presented To
Mr. Tahzib Ul Islam
Assistant Professor of CSE
Dhaka International University
Presented By
Group: Quiet Fools
Name: Shuvongkor Barman Roll: 38
Name: Minhaj Uddin Roll: 22
Name: Mostofa Kamal Roll: 20
Batch: 59 (Eve)
Department: CSE
2. 2
1. What is C function?
2.Types of C functions
3. Uses of C functions
4. Advantage of C functions
5. C function declaration, function call and definition
6. Simple Example Program for C Function
7. How to call C functions in a program?
8. Overview
Outline
3. 3
1.What is C Function?
In short: A function is a group of statements that together
perform a task.
C functions are basic building blocks in a program.
Long Answer: A large C program is divided into basic
building blocks called C function. C function contains set of
instructions enclosed by “{ }” which performs specific
operation in a C program. Actually, Collection of these
functions creates a C program

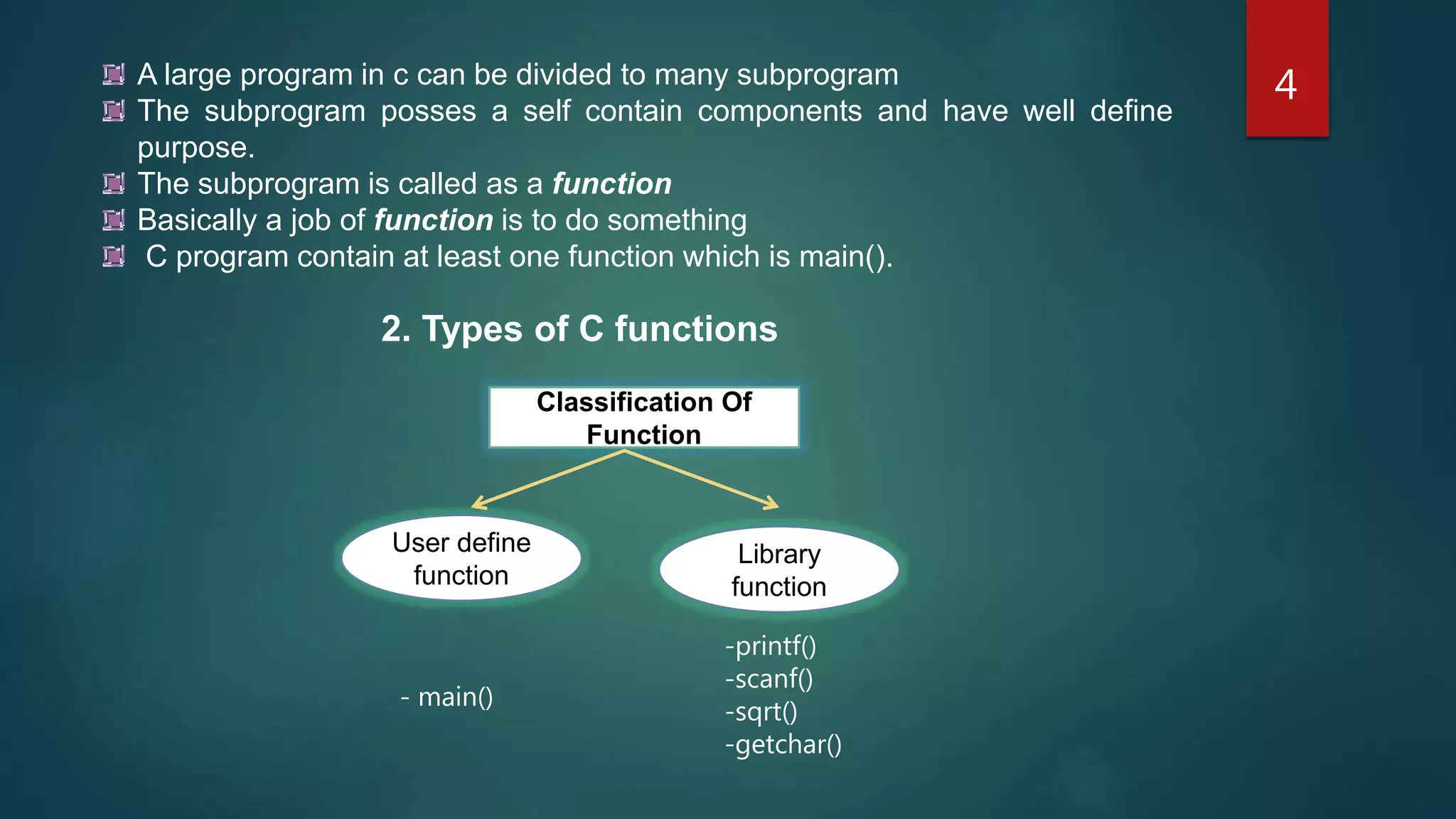

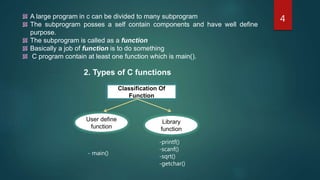

4. Classification Of
Function
Library
function
User define
function
- main()
-printf()
-scanf()
-sqrt()
-getchar()
4A large program in c can be divided to many subprogram
The subprogram posses a self contain components and have well define
purpose.
The subprogram is called as a function
Basically a job of function is to do something
C program contain at least one function which is main().
2. Types of C functions

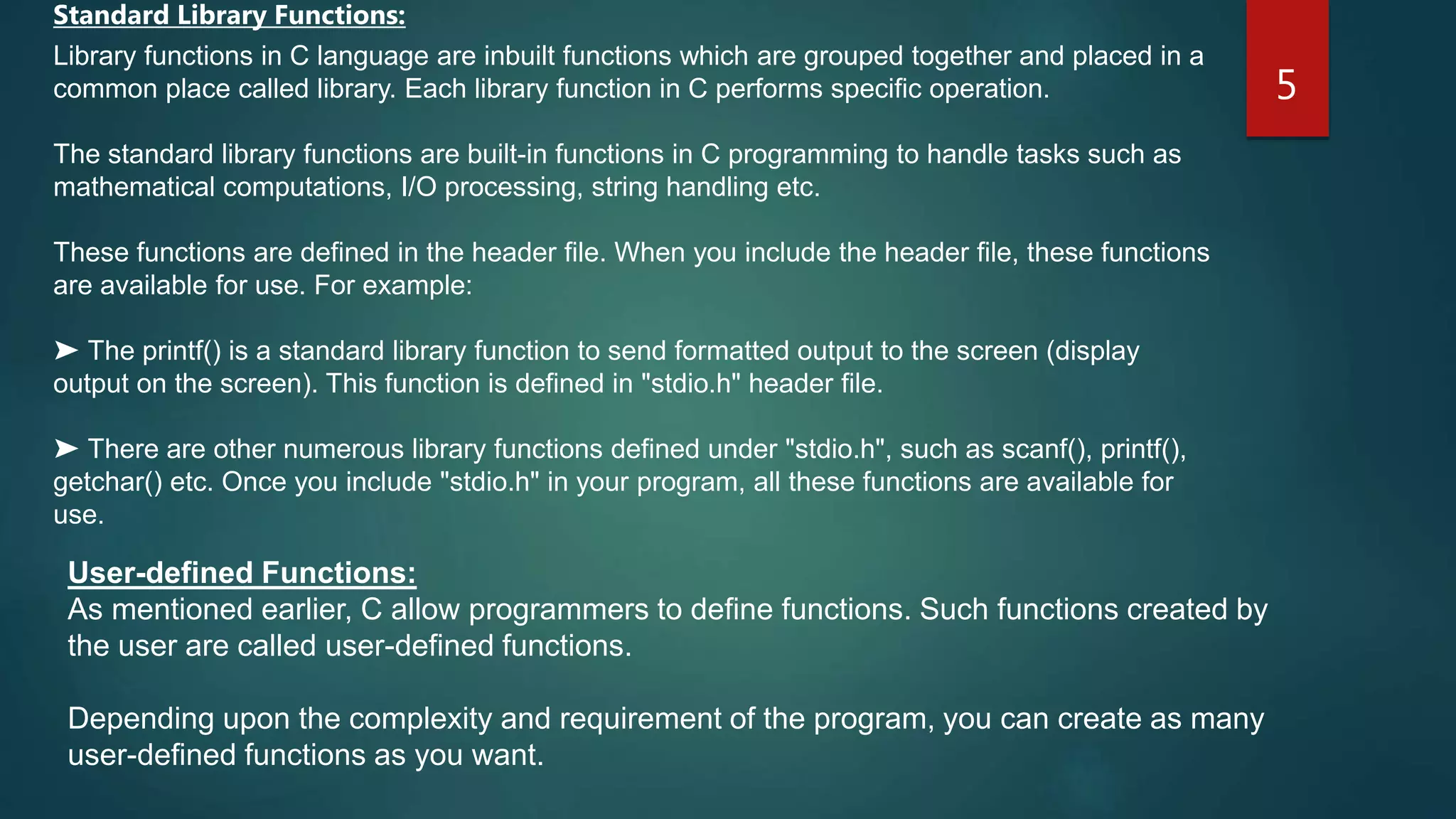

5. 5
Standard Library Functions:
Library functions in C language are inbuilt functions which are grouped together and placed in a
common place called library. Each library function in C performs specific operation.
The standard library functions are built-in functions in C programming to handle tasks such as
mathematical computations, I/O processing, string handling etc.
These functions are defined in the header file. When you include the header file, these functions
are available for use. For example:
➤ The printf() is a standard library function to send formatted output to the screen (display
output on the screen). This function is defined in "stdio.h" header file.
➤ There are other numerous library functions defined under "stdio.h", such as scanf(), printf(),
getchar() etc. Once you include "stdio.h" in your program, all these functions are available for
use.
User-defined Functions:
As mentioned earlier, C allow programmers to define functions. Such functions created by
the user are called user-defined functions.
Depending upon the complexity and requirement of the program, you can create as many
user-defined functions as you want.

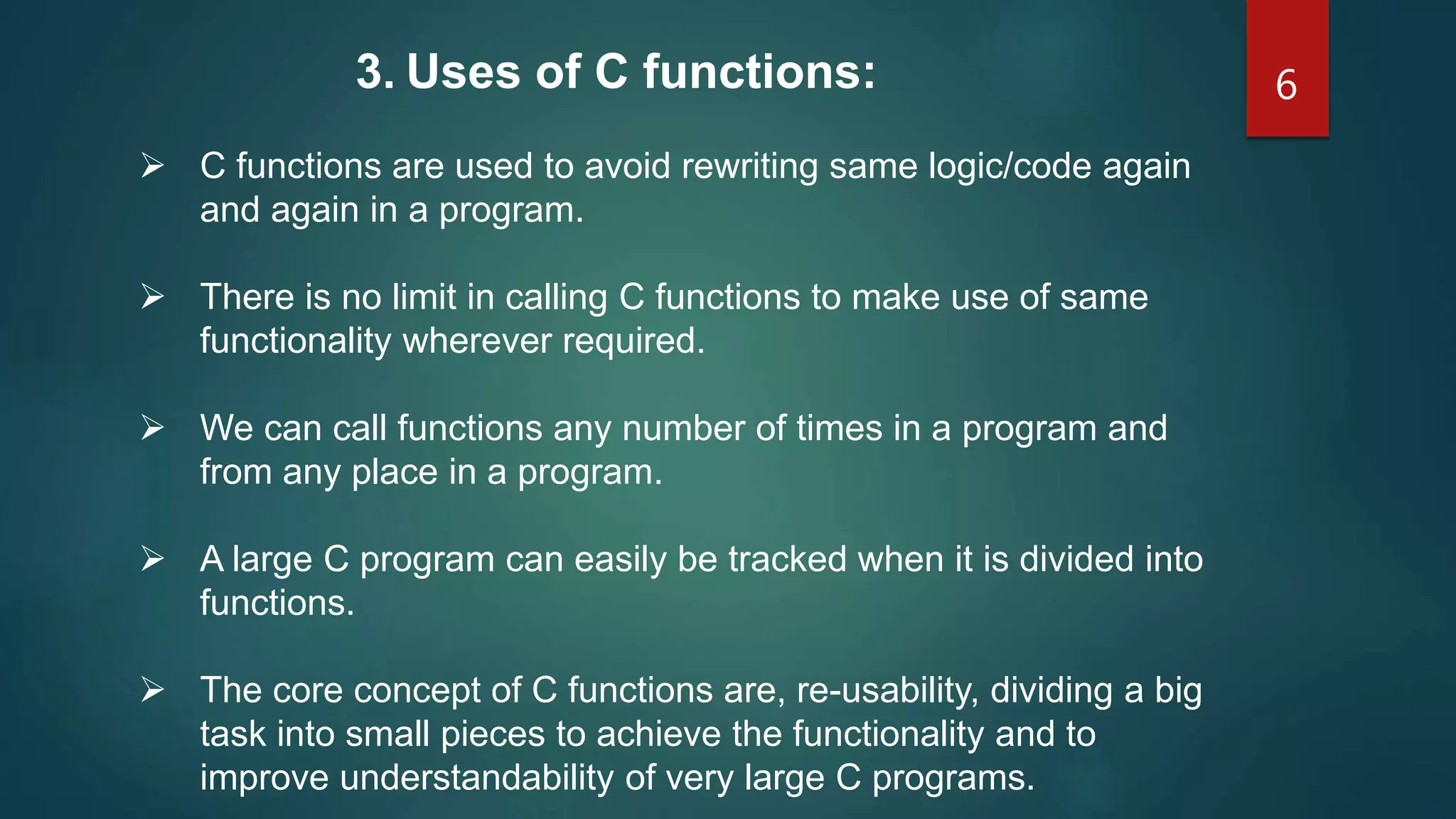

6. 6
C functions are used to avoid rewriting same logic/code again
and again in a program.
There is no limit in calling C functions to make use of same
functionality wherever required.
We can call functions any number of times in a program and
from any place in a program.
A large C program can easily be tracked when it is divided into
functions.
The core concept of C functions are, re-usability, dividing a big
task into small pieces to achieve the functionality and to
improve understandability of very large C programs.
3. Uses of C functions:

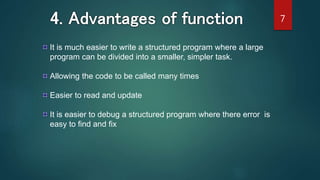

7. It is much easier to write a structured program where a large
program can be divided into a smaller, simpler task.
Allowing the code to be called many times
Easier to read and update
It is easier to debug a structured program where there error is
easy to find and fix
7

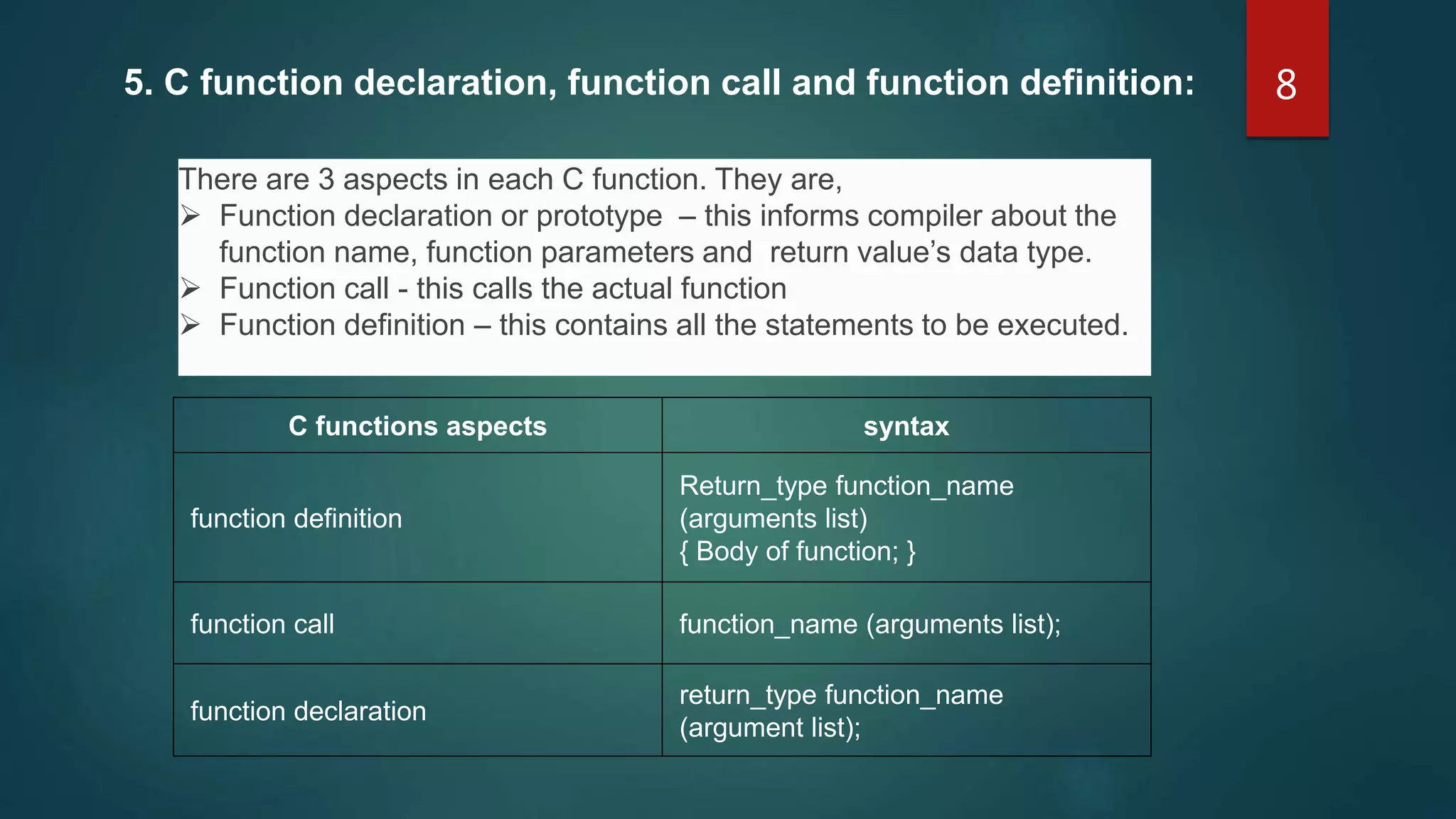

8. 8
C functions aspects syntax
function definition
Return_type function_name
(arguments list)
{ Body of function; }
function call function_name (arguments list);
function declaration
return_type function_name
(argument list);
There are 3 aspects in each C function. They are,
Function declaration or prototype – this informs compiler about the
function name, function parameters and return value’s data type.
Function call - this calls the actual function
Function definition – this contains all the statements to be executed.
5. C function declaration, function call and function definition:

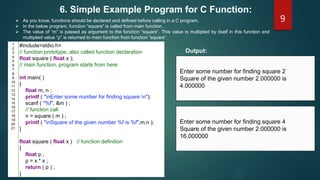

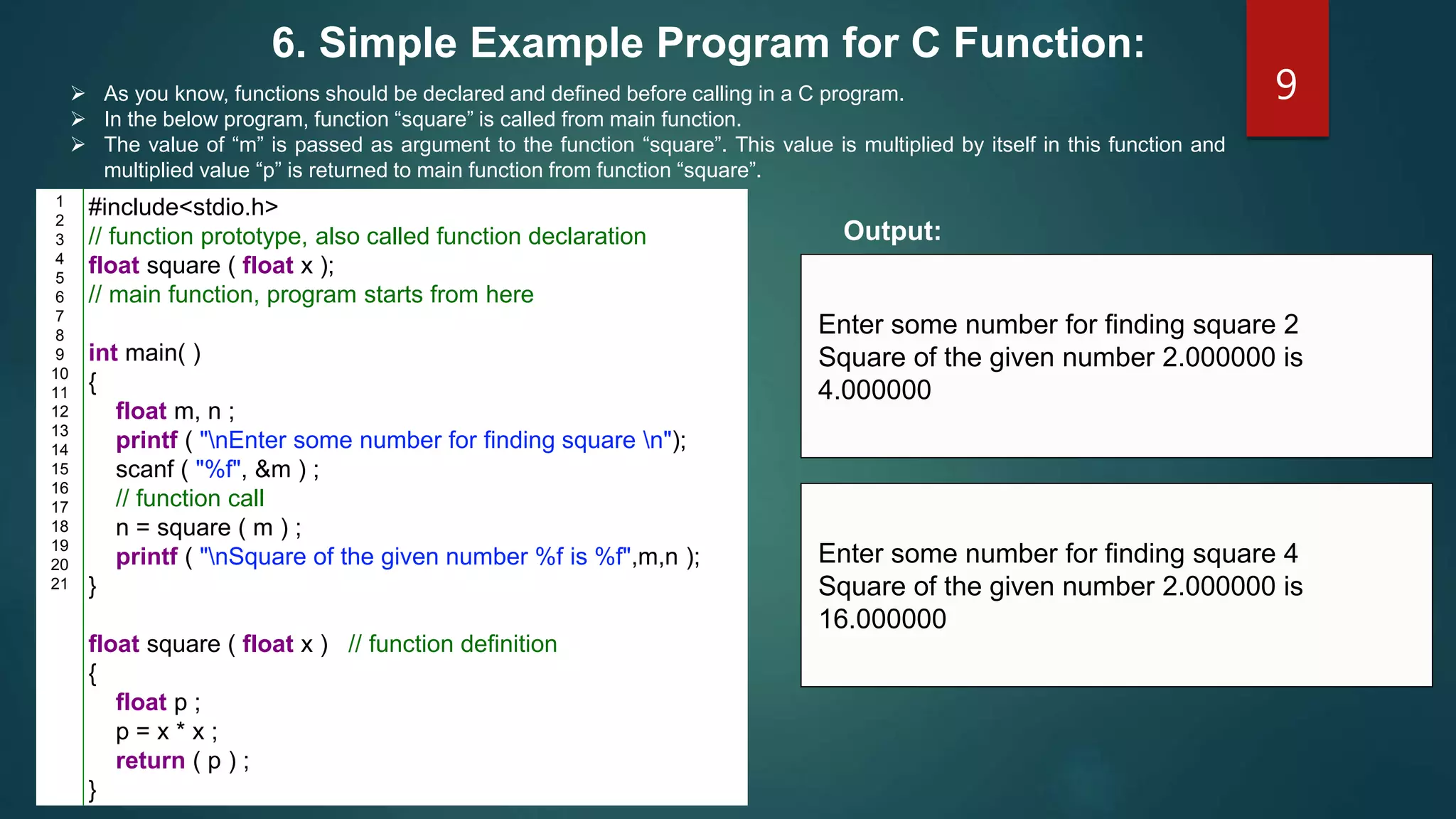

9. 9 As you know, functions should be declared and defined before calling in a C program.
In the below program, function “square” is called from main function.
The value of “m” is passed as argument to the function “square”. This value is multiplied by itself in this function and
multiplied value “p” is returned to main function from function “square”.
6. Simple Example Program for C Function:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
#include<stdio.h>
// function prototype, also called function declaration
float square ( float x );
// main function, program starts from here
int main( )
{
float m, n ;
printf ( "nEnter some number for finding square n");
scanf ( "%f", &m ) ;
// function call
n = square ( m ) ;
printf ( "nSquare of the given number %f is %f",m,n );
}
float square ( float x ) // function definition
{
float p ;
p = x * x ;
return ( p ) ;
}
Enter some number for finding square 2
Square of the given number 2.000000 is
4.000000
Output:
Enter some number for finding square 4
Square of the given number 2.000000 is
16.000000

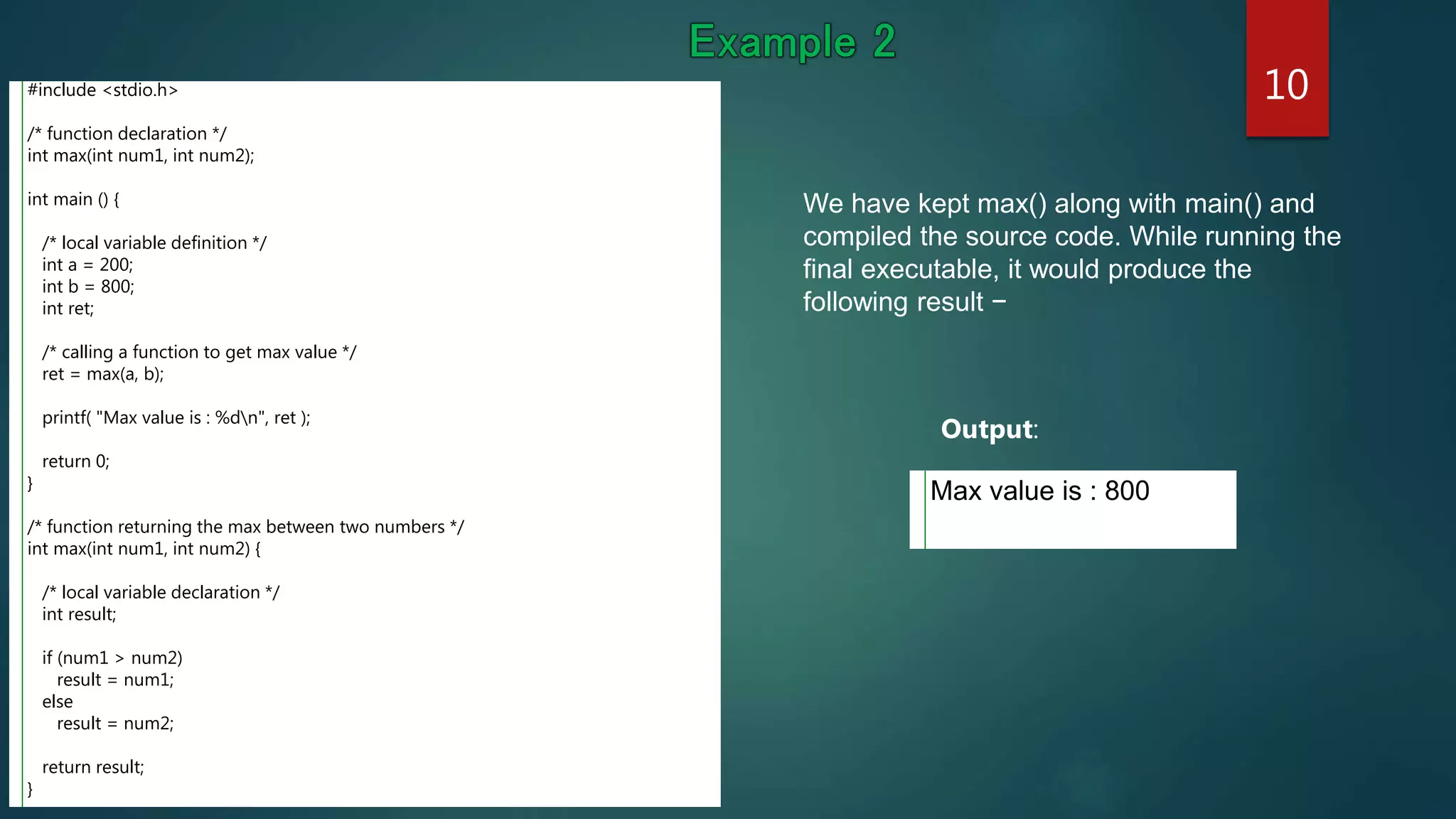

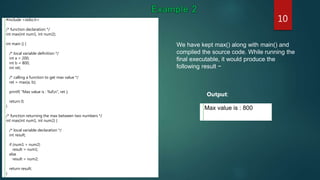

10. 10#include <stdio.h>
/* function declaration */
int max(int num1, int num2);
int main () {
/* local variable definition */
int a = 200;
int b = 800;
int ret;
/* calling a function to get max value */
ret = max(a, b);
printf( "Max value is : %dn", ret );
return 0;
}
/* function returning the max between two numbers */
int max(int num1, int num2) {
/* local variable declaration */
int result;
if (num1 > num2)
result = num1;
else
result = num2;
return result;
}
We have kept max() along with main() and
compiled the source code. While running the
final executable, it would produce the
following result −
Max value is : 800
Output:

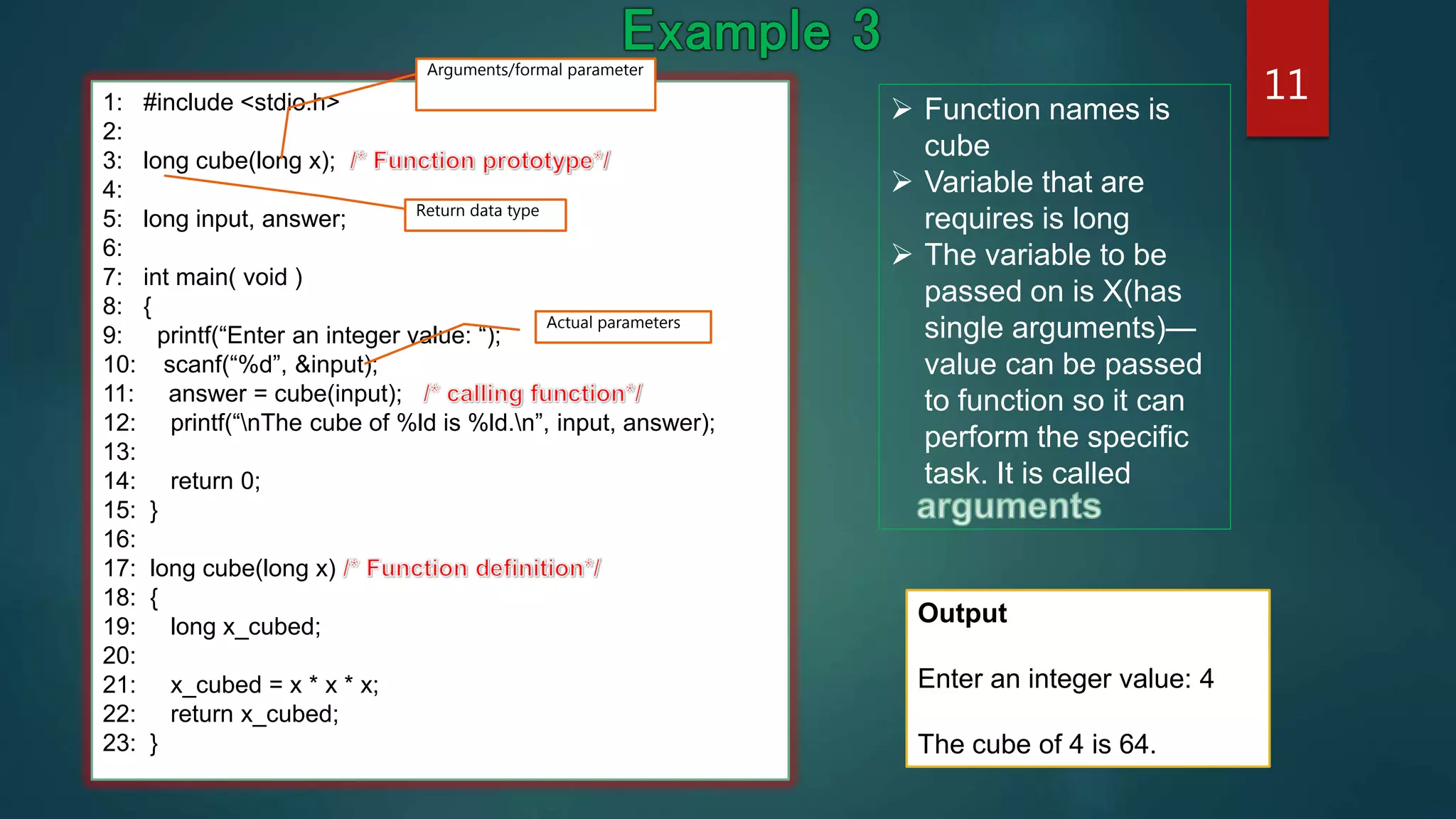

11. 1: #include <stdio.h>
2:
3: long cube(long x);
4:
5: long input, answer;
6:
7: int main( void )
8: {
9: printf(“Enter an integer value: “);
10: scanf(“%d”, &input);
11: answer = cube(input);
12: printf(“nThe cube of %ld is %ld.n”, input, answer);
13:
14: return 0;
15: }
16:
17: long cube(long x)
18: {
19: long x_cubed;
20:
21: x_cubed = x * x * x;
22: return x_cubed;
23: }
Function names is
cube
Variable that are
requires is long
The variable to be
passed on is X(has
single arguments)—
value can be passed
to function so it can
perform the specific
task. It is called
Output
Enter an integer value: 4
The cube of 4 is 64.
Return data type
Arguments/formal parameter
Actual parameters
11

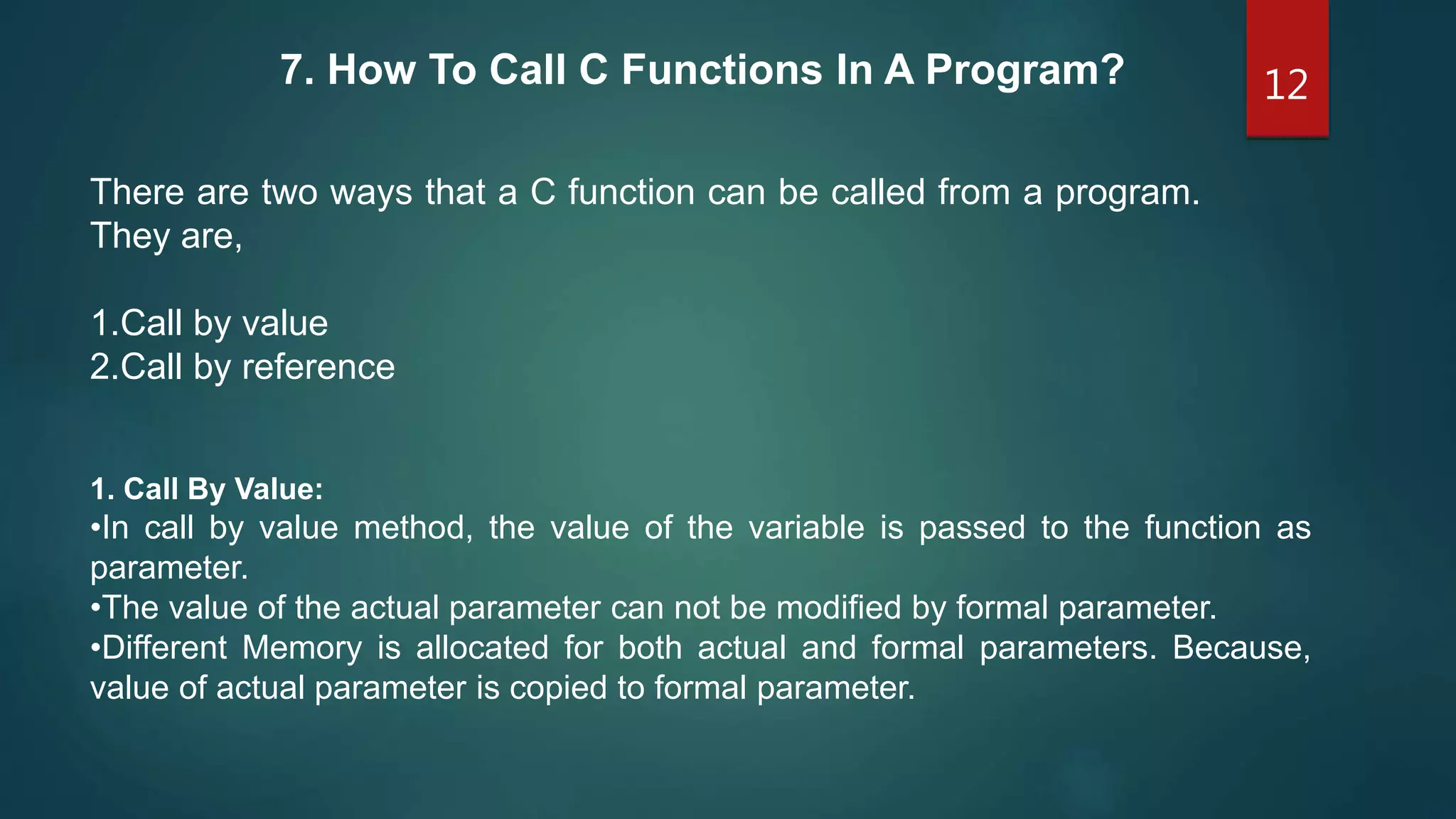

12. 127. How To Call C Functions In A Program?
There are two ways that a C function can be called from a program.
They are,
1.Call by value
2.Call by reference
1. Call By Value:
•In call by value method, the value of the variable is passed to the function as
parameter.
•The value of the actual parameter can not be modified by formal parameter.
•Different Memory is allocated for both actual and formal parameters. Because,
value of actual parameter is copied to formal parameter.

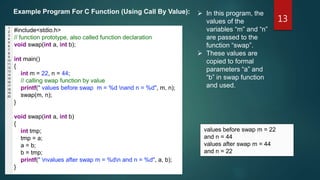

13. 13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
#include<stdio.h>
// function prototype, also called function declaration
void swap(int a, int b);
int main()
{
int m = 22, n = 44;
// calling swap function by value
printf(" values before swap m = %d nand n = %d", m, n);
swap(m, n);
}
void swap(int a, int b)
{
int tmp;
tmp = a;
a = b;
b = tmp;
printf(" nvalues after swap m = %dn and n = %d", a, b);
}
values before swap m = 22
and n = 44
values after swap m = 44
and n = 22
In this program, the
values of the
variables “m” and “n”
are passed to the
function “swap”.
These values are
copied to formal
parameters “a” and
“b” in swap function
and used.
Example Program For C Function (Using Call By Value):

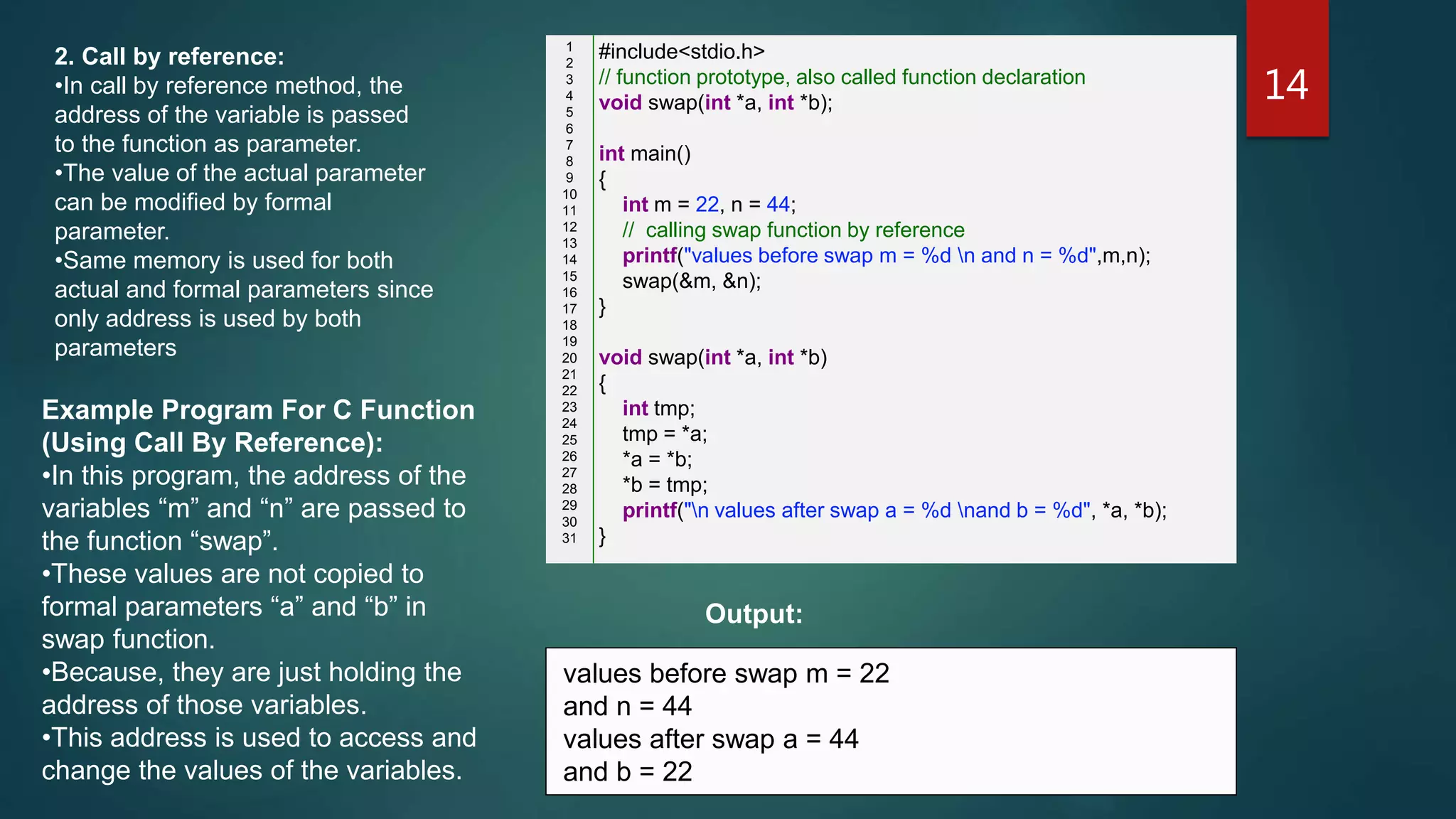

14. 14
2. Call by reference:
•In call by reference method, the
address of the variable is passed
to the function as parameter.
•The value of the actual parameter
can be modified by formal
parameter.
•Same memory is used for both
actual and formal parameters since
only address is used by both
parameters
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
#include<stdio.h>
// function prototype, also called function declaration
void swap(int *a, int *b);
int main()
{
int m = 22, n = 44;
// calling swap function by reference
printf("values before swap m = %d n and n = %d",m,n);
swap(&m, &n);
}
void swap(int *a, int *b)
{
int tmp;
tmp = *a;
*a = *b;
*b = tmp;
printf("n values after swap a = %d nand b = %d", *a, *b);
}
Example Program For C Function
(Using Call By Reference):
•In this program, the address of the
variables “m” and “n” are passed to
the function “swap”.
•These values are not copied to
formal parameters “a” and “b” in
swap function.
•Because, they are just holding the
address of those variables.
•This address is used to access and
change the values of the variables.
values before swap m = 22
and n = 44
values after swap a = 44
and b = 22
Output:

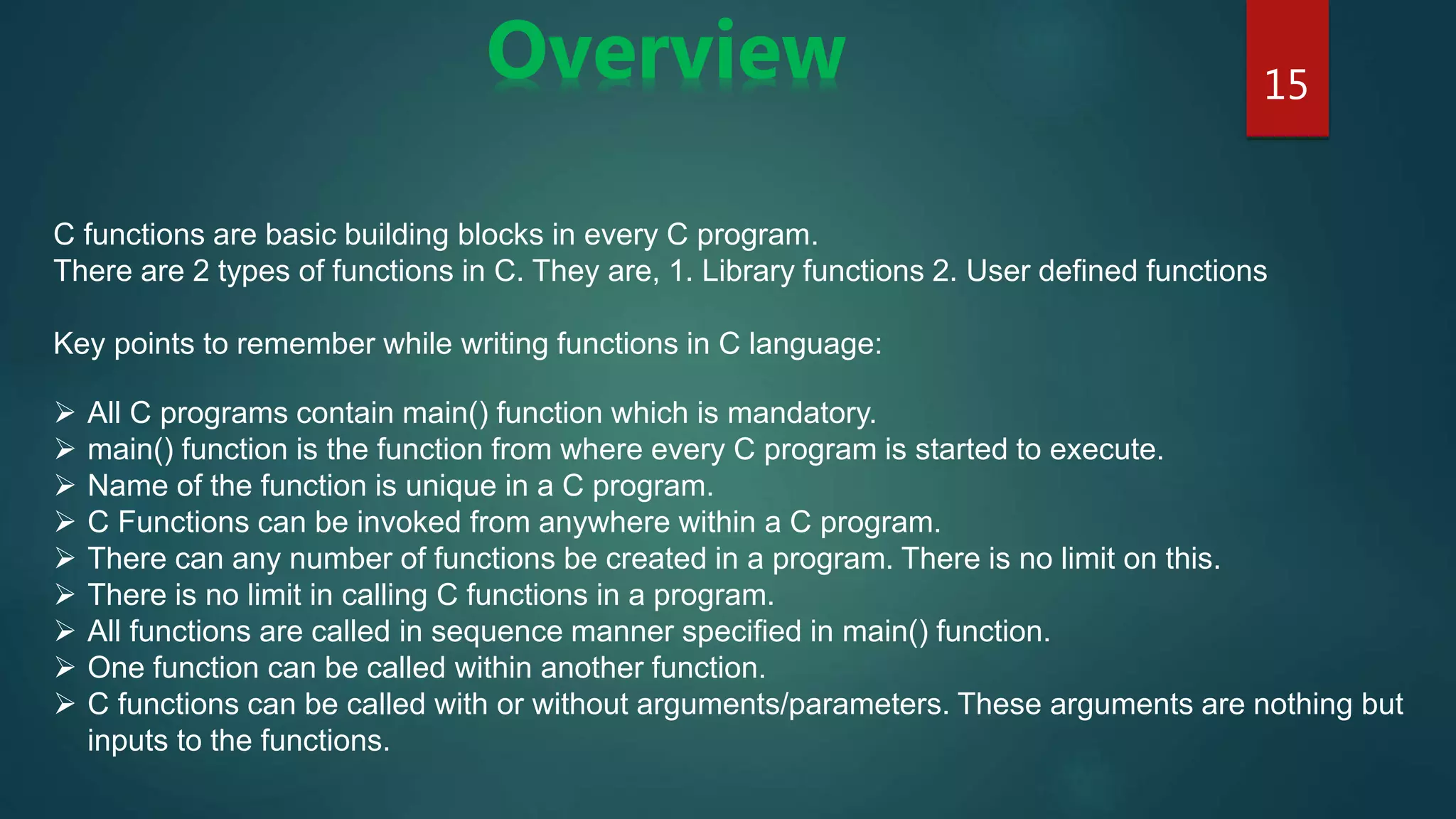

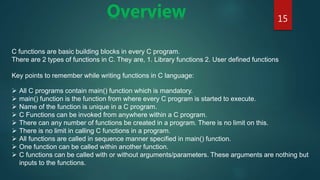

15. 15Overview
C functions are basic building blocks in every C program.
There are 2 types of functions in C. They are, 1. Library functions 2. User defined functions
Key points to remember while writing functions in C language:
All C programs contain main() function which is mandatory.
main() function is the function from where every C program is started to execute.
Name of the function is unique in a C program.
C Functions can be invoked from anywhere within a C program.
There can any number of functions be created in a program. There is no limit on this.
There is no limit in calling C functions in a program.
All functions are called in sequence manner specified in main() function.
One function can be called within another function.
C functions can be called with or without arguments/parameters. These arguments are nothing but
inputs to the functions.

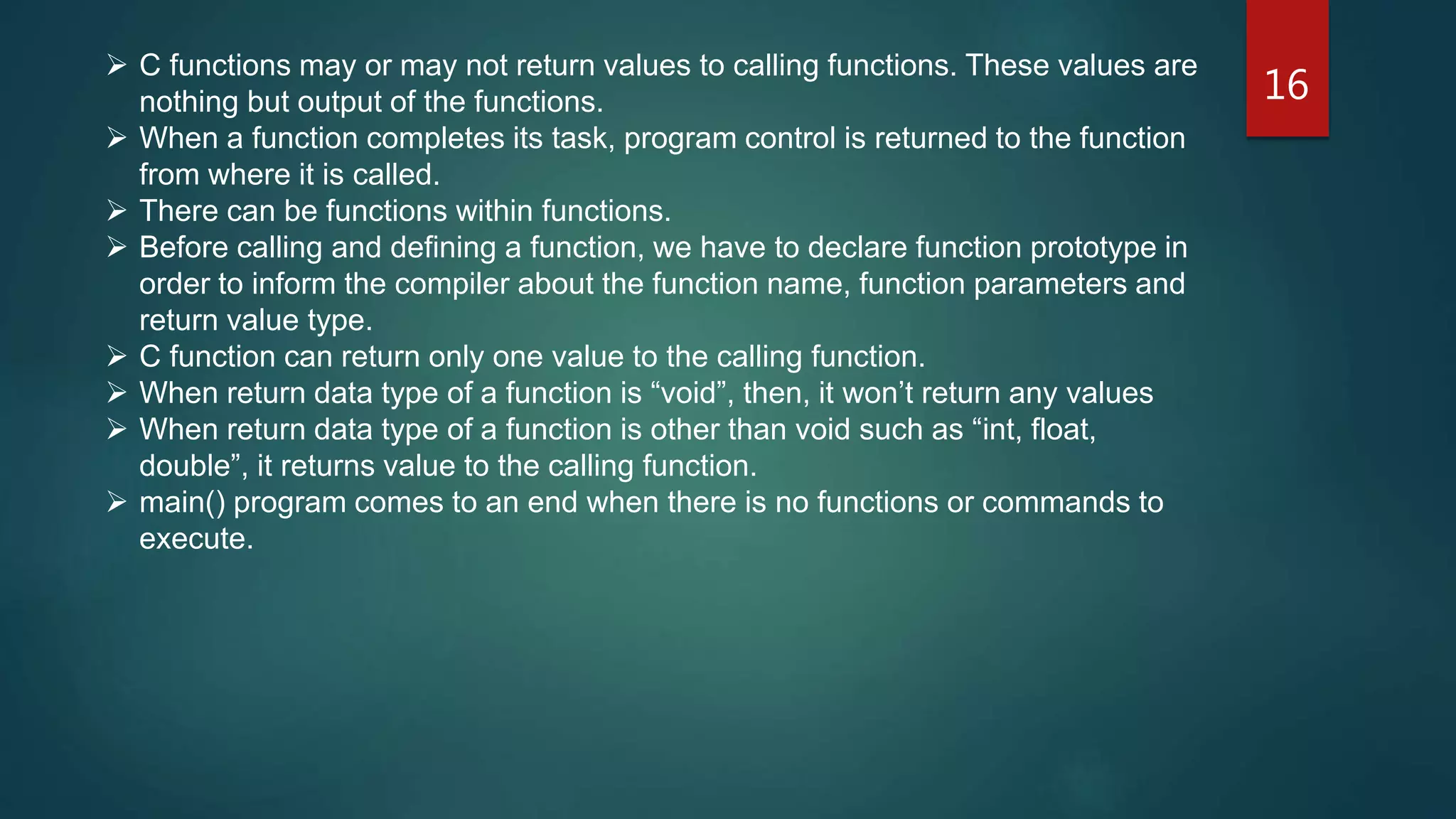

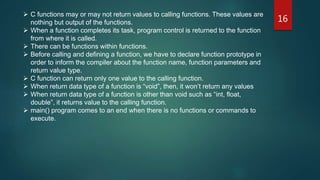

16. 16
C functions may or may not return values to calling functions. These values are
nothing but output of the functions.
When a function completes its task, program control is returned to the function
from where it is called.
There can be functions within functions.
Before calling and defining a function, we have to declare function prototype in
order to inform the compiler about the function name, function parameters and
return value type.
C function can return only one value to the calling function.
When return data type of a function is “void”, then, it won’t return any values
When return data type of a function is other than void such as “int, float,
double”, it returns value to the calling function.
main() program comes to an end when there is no functions or commands to
execute.
