1. Welcome to Our
presentation
Group Members are:
1. Abu Bakkar
2. MD. Ibrahim
3. Mahmudur Sakib
4. MD. Rabiul Islam
5. MD. Mahabur Rahman
6. MD. Polash Islam
7. Proshanta Das
1

2. Our presentation topic is :
Power in a balanced system
 This topic is under the Three-Phase System.
We will discuss it consistently in our presentation .
Fig: Balance three phase AC power
2

3. Learning Objects:
After this presentation we will be able to know:
Single Phase Power System
Three Phase Power System
Balanced three phase system
Unbalanced three phase system
Compute reactive power necessary to correct power factor in a
three-phase system.
3

4. ❑ What is single phase power System ?
➢ Single phase power is a two-wire alternating
current (ac) power circuit.
Typically, consist two types of wire
1. Power wire
2. Neutral wire
4

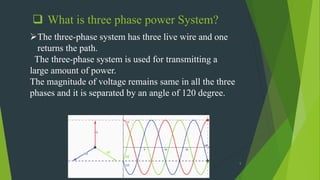

5. ❑ What is three phase power System?
➢The three-phase system has three live wire and one
returns the path.
The three-phase system is used for transmitting a
large amount of power.
The magnitude of voltage remains same in all the three
phases and it is separated by an angle of 120 degree.
5

6. ❖ Power in Balance System
6
➢ In a balanced system, the total active/reactive/apparent powers are
simply the sum of their respective phase powers.

7. 7

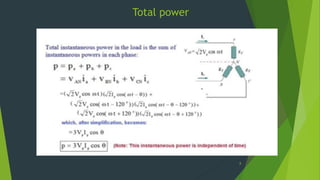

8. Total power
8
