1. 3/25/2015 This is a project for the CS7930 Class
-Distributed Systems Development with Research
1
An Infectious Disease
Surveillance Simulation
(IDSS) in the Cloud
Prepared by: Jorge Edison Lascano
edison_lascano@yahoo.com
PhD student at Utah State University
Associate Professor at Universidad de las Fuerzas Armadas ESPE-Ecuador
Presented in the Industry Day at Utah State University
Computer Science Department

2. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]
Introduction
• Objective
– Understand the behavior of Vector Timestamps in a
Distributed System Deployed in the Cloud.
• Results
– Infectious Disease Surveillance System
• Implemented and tested
• Setup for automated deployment to the cloud
(AWS EC2 instances with S3 storage)
• Demonstrated effective use of Vector
Timestamps
2

3. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]
Agenda
• Project Overview
• Tasks Details
• Technology
• Outstanding Risks and Issues
• Demo (github available)
• Results
• Conclusion
3

4. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]

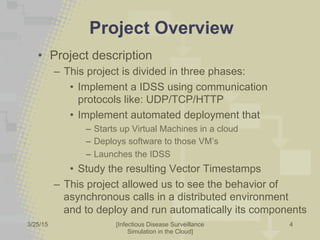

Project Overview
• Project description
– This project is divided in three phases:
• Implement a IDSS using communication
protocols like: UDP/TCP/HTTP
• Implement automated deployment that
– Starts up Virtual Machines in a cloud
– Deploys software to those VM’s
– Launches the IDSS
• Study the resulting Vector Timestamps
– This project allowed us to see the behavior of
asynchronous calls in a distributed environment
and to deploy and run automatically its components
4

5. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]

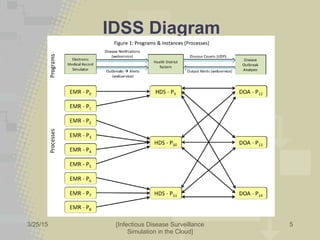

IDSS Diagram
5

6. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]

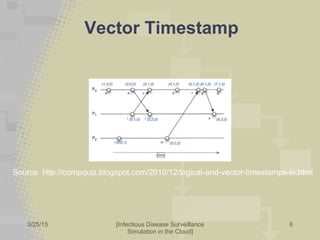

Vector Timestamp
6
Source http://compquiz.blogspot.com/2010/12/logical-and-vector-timestamps-in.html

7. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]
7
Tasks Details
Ord. Task Description
1 Implement HDS A Health District System collects infectious disease
information from EMRs and keeps track of diseases,
also sends information to every DOA; DOA1: Influenza,
DOA2: Chicken pox; and, DOA3: Measles.
Saves its Vector Timestamp to the log file
2 Implement EMR The Electronical Medical Record Simulator sends
information about diseases periodically to its HDS
Saves its Vector Timestamp to the log file.
3 Implement DOA Every DOA keeps track of a disease rate, if a threshold
is reached, it sends a notification to every HDS.
Saves its Vector Timestamp to the log file.
4 Local Tests EMR – HDS – DOA are generating traffic and Vector
Timestamps locally

8. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]
8
Tasks Details
Ord. Task Description
5 Launching /
starting
Instances
A number of EC2 instances are launched, these
instances will host the EMRs, HDSs and DOAs
processes.
6 Name
Resolution
A shell script that registers the corresponding 9 EMRs, 3
HDs and 3 DOAs is implemented and updates the hosts
file in every EC2 instance. The number of launched
instances vary from 1 to 15. A simple Round Robin
algorithm is implement in case of less than 15 instances
were launched
7 Deployment A script that allows the update of changes and automatic
distribution of the system in the EC2 instances is created
8 Execution After the system was deployed, a script that runs every
process based on the name resolution will execute every
one of the 15 processes

9. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]
Technology
• Framework: node.js
• IDE: Webstorm
• Cloud Provision: AWS: S3+EC2+EBS
• Languages
– Javascript (node.js)
– shell script (bash, awk, sed)
• Communication Protocols
– UDP, HTTP
– ssh, aws cli
• Partial Ordering Algorithm: Vector Timestamps
9

10. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]

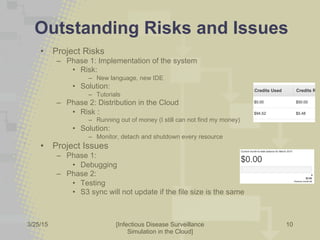

Outstanding Risks and Issues
• Project Risks
– Phase 1: Implementation of the system
• Risk:
– New language, new IDE
• Solution:
– Tutorials
– Phase 2: Distribution in the Cloud
• Risk :
– Running out of money (I still can not find my money)
• Solution:
– Monitor, detach and shutdown every resource
• Project Issues
– Phase 1:
• Debugging
– Phase 2:
• Testing
• S3 sync will not update if the file size is the same
10

11. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]

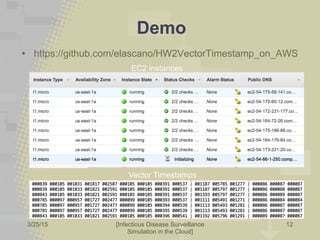

Demo
• https://github.com/elascano/HW2VectorTimestamp_on_AWS
11
EC2 instances
Vector Timestamps

12. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]

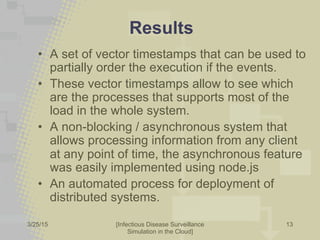

Results
12
• A set of vector timestamps that can be used to
partially order the execution if the events.
• These vector timestamps allow to see which
are the processes that supports most of the
load in the whole system.
• A non-blocking / asynchronous system that
allows processing information from any client
at any point of time, the asynchronous feature
was easily implemented using node.js
• An automated process for deployment of
distributed systems.

13. 3/25/2015 [Infectious Disease Surveillance
Simulation in the Cloud]
Conclusion
• This project helped understand the order/
disorder of how the processes and their events
are executed based on the communication
model in a real distributed environment.
• If there is not direct or indirect connection
(communications) between process x and y,
then the y-th element of x's timestamp doesn't
get updated.
edison_lascano@yahoo.com
13
