1. Cyber Physical Systems –
Solutions for Design Challenges
Part 1- Energy and Architecture
Sumanth Bhat
7th July 2015

2. Recap: Design Challenges for CPS
1. Abstraction issues
2. Timing issues
3. Architecture models
4. Miniaturization and Energy efficiency
5. Precision
6. Security & Privacy
7. Standardization

3. Low Power Designs for CPS
• Can be optimized at various layers
• Low energy VLSI design techniques - Near threshold Vdd operation

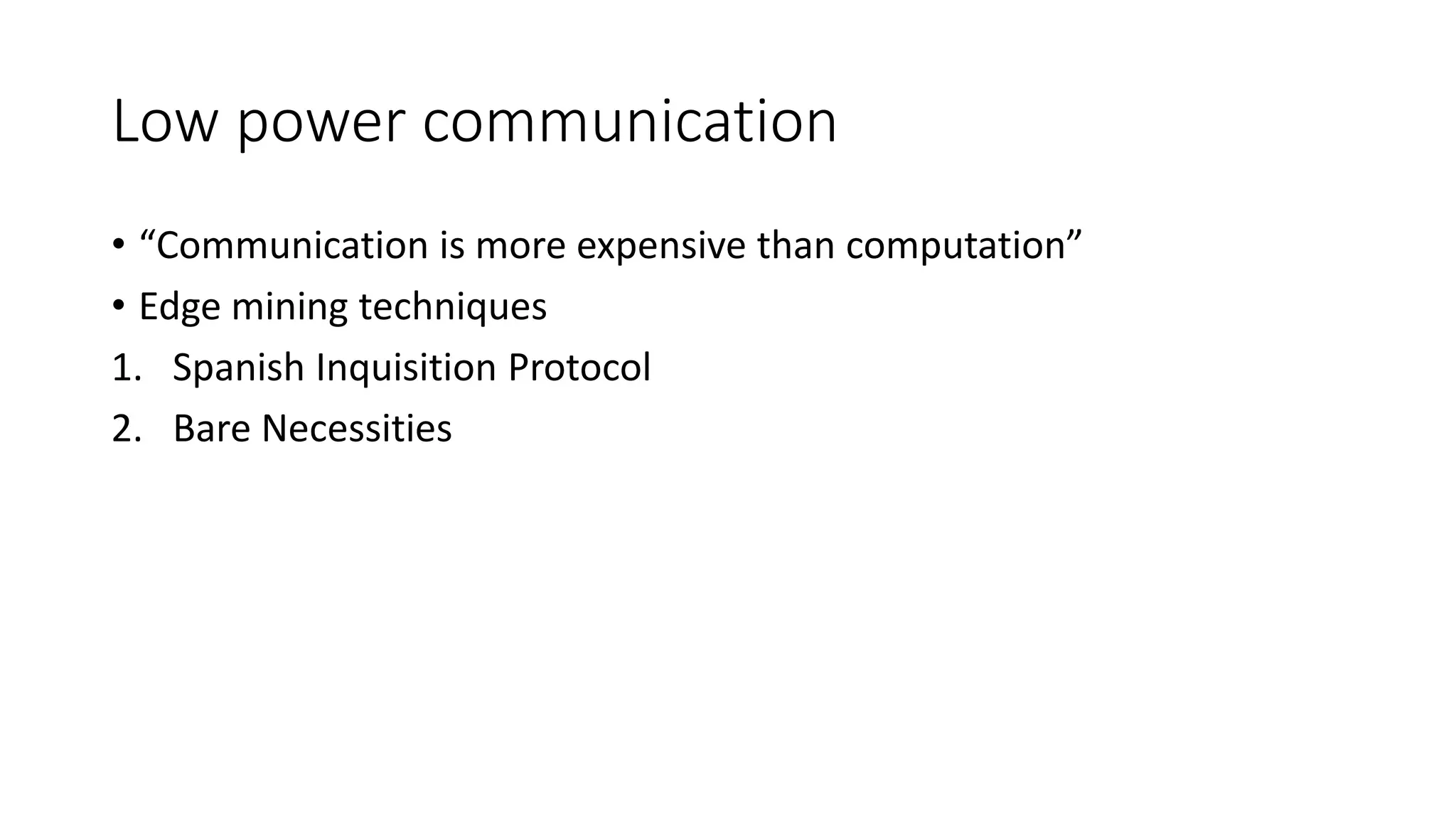

4. Low power communication
• “Communication is more expensive than computation”
• Edge mining techniques
1. Spanish Inquisition Protocol
2. Bare Necessities

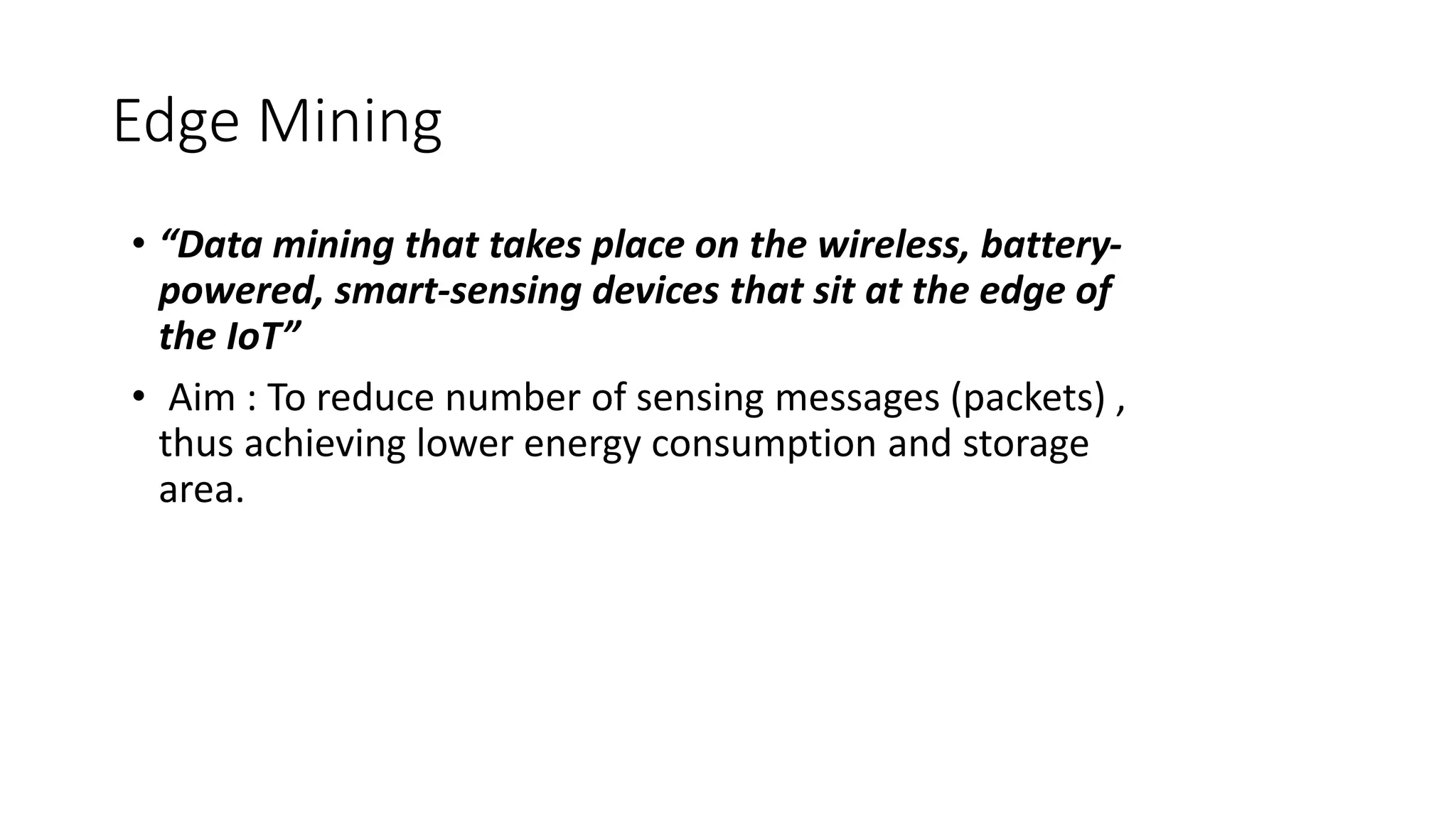

5. Edge Mining
• “Data mining that takes place on the wireless, battery-
powered, smart-sensing devices that sit at the edge of
the IoT”
• Aim : To reduce number of sensing messages (packets) ,
thus achieving lower energy consumption and storage
area.

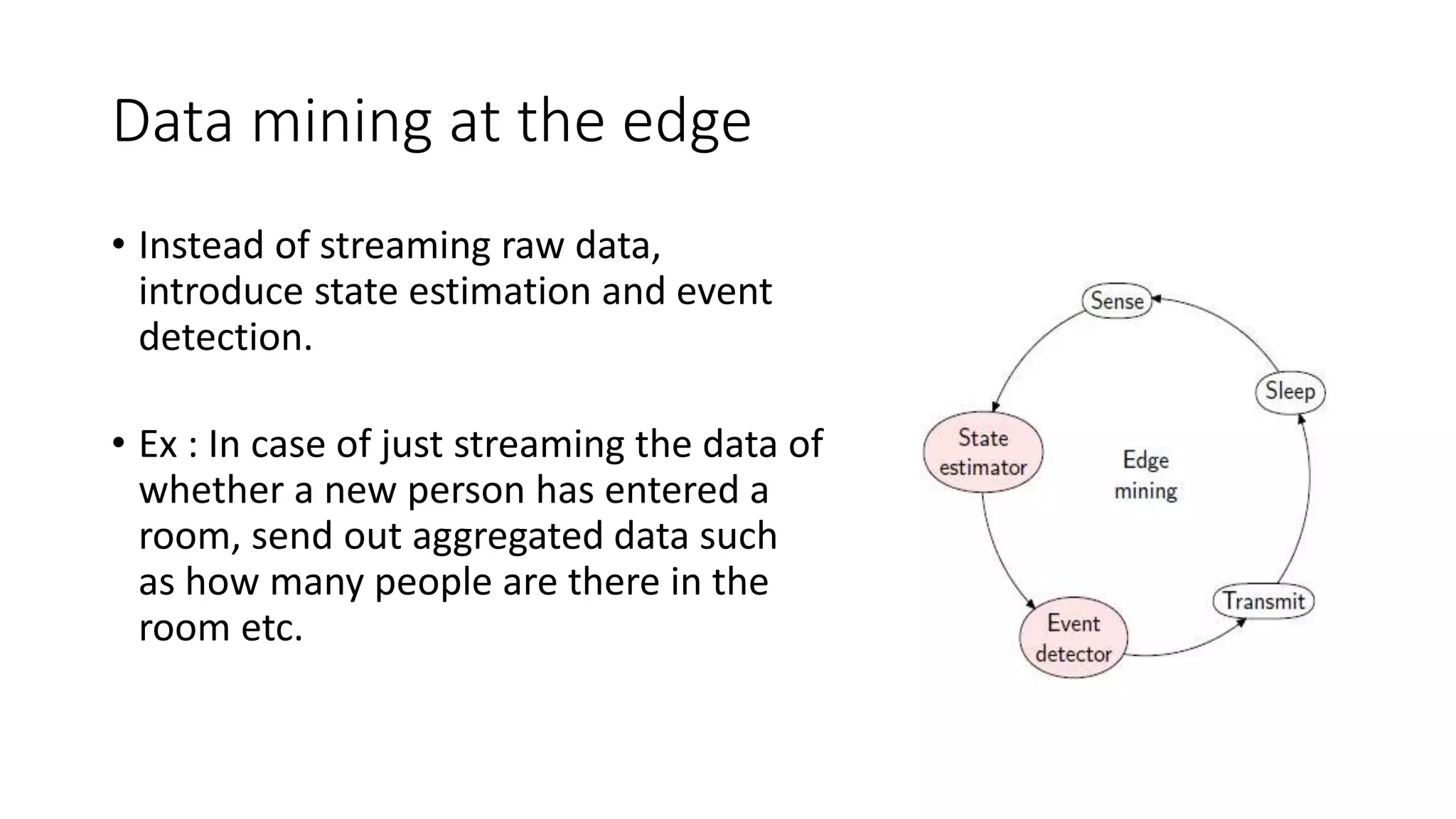

6. Data mining at the edge
• Instead of streaming raw data,
introduce state estimation and event
detection.
• Ex : In case of just streaming the data of
whether a new person has entered a
room, send out aggregated data such
as how many people are there in the
room etc.

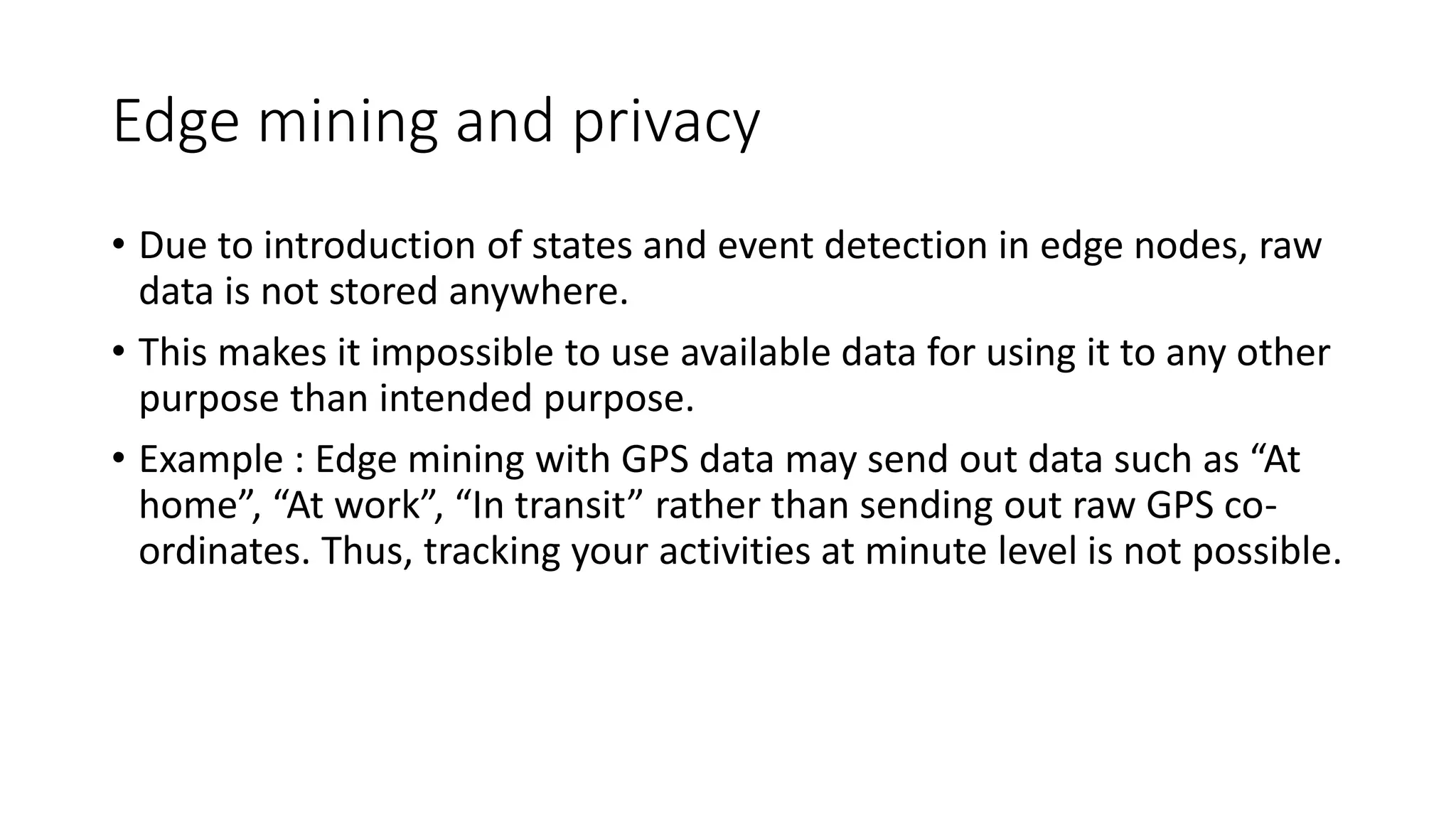

7. Edge mining and privacy
• Due to introduction of states and event detection in edge nodes, raw
data is not stored anywhere.
• This makes it impossible to use available data for using it to any other
purpose than intended purpose.
• Example : Edge mining with GPS data may send out data such as “At
home”, “At work”, “In transit” rather than sending out raw GPS co-
ordinates. Thus, tracking your activities at minute level is not possible.

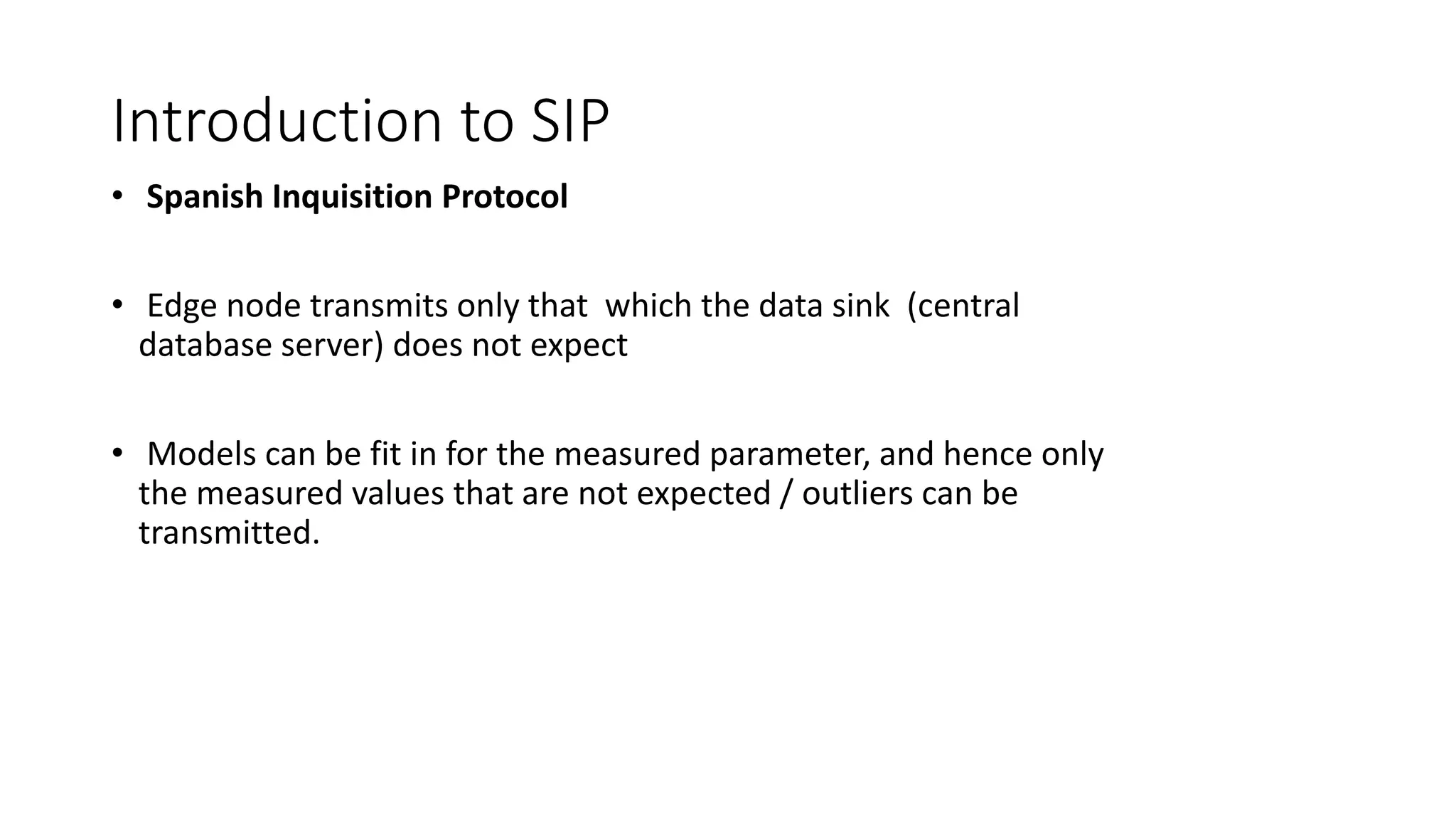

8. Introduction to SIP
• Spanish Inquisition Protocol
• Edge node transmits only that which the data sink (central
database server) does not expect
• Models can be fit in for the measured parameter, and hence only
the measured values that are not expected / outliers can be
transmitted.

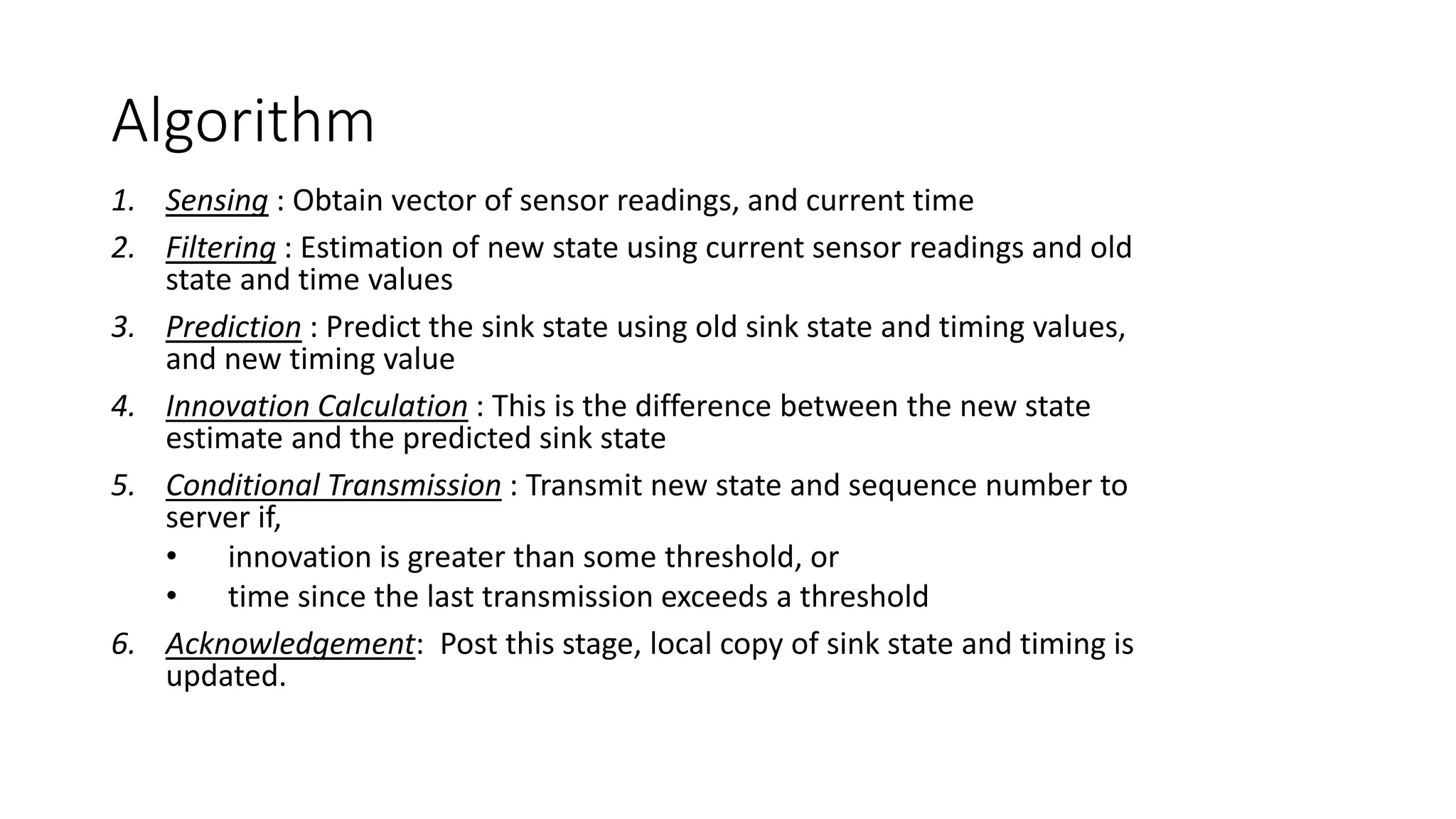

9. Algorithm
1. Sensing : Obtain vector of sensor readings, and current time
2. Filtering : Estimation of new state using current sensor readings and old
state and time values
3. Prediction : Predict the sink state using old sink state and timing values,
and new timing value
4. Innovation Calculation : This is the difference between the new state
estimate and the predicted sink state
5. Conditional Transmission : Transmit new state and sequence number to
server if,
• innovation is greater than some threshold, or
• time since the last transmission exceeds a threshold
6. Acknowledgement: Post this stage, local copy of sink state and timing is
updated.

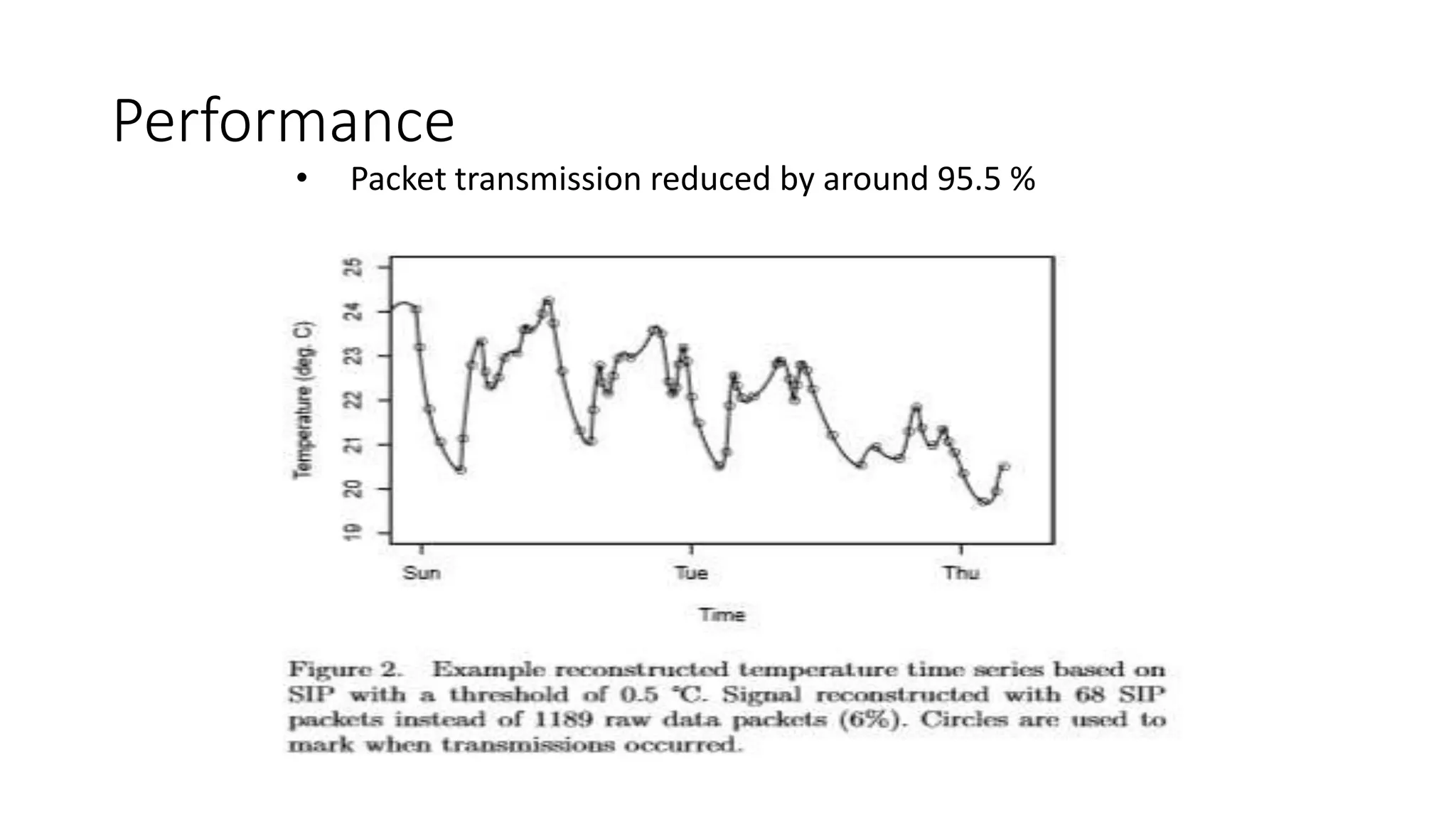

10. Performance
• Packet transmission reduced by around 95.5 %

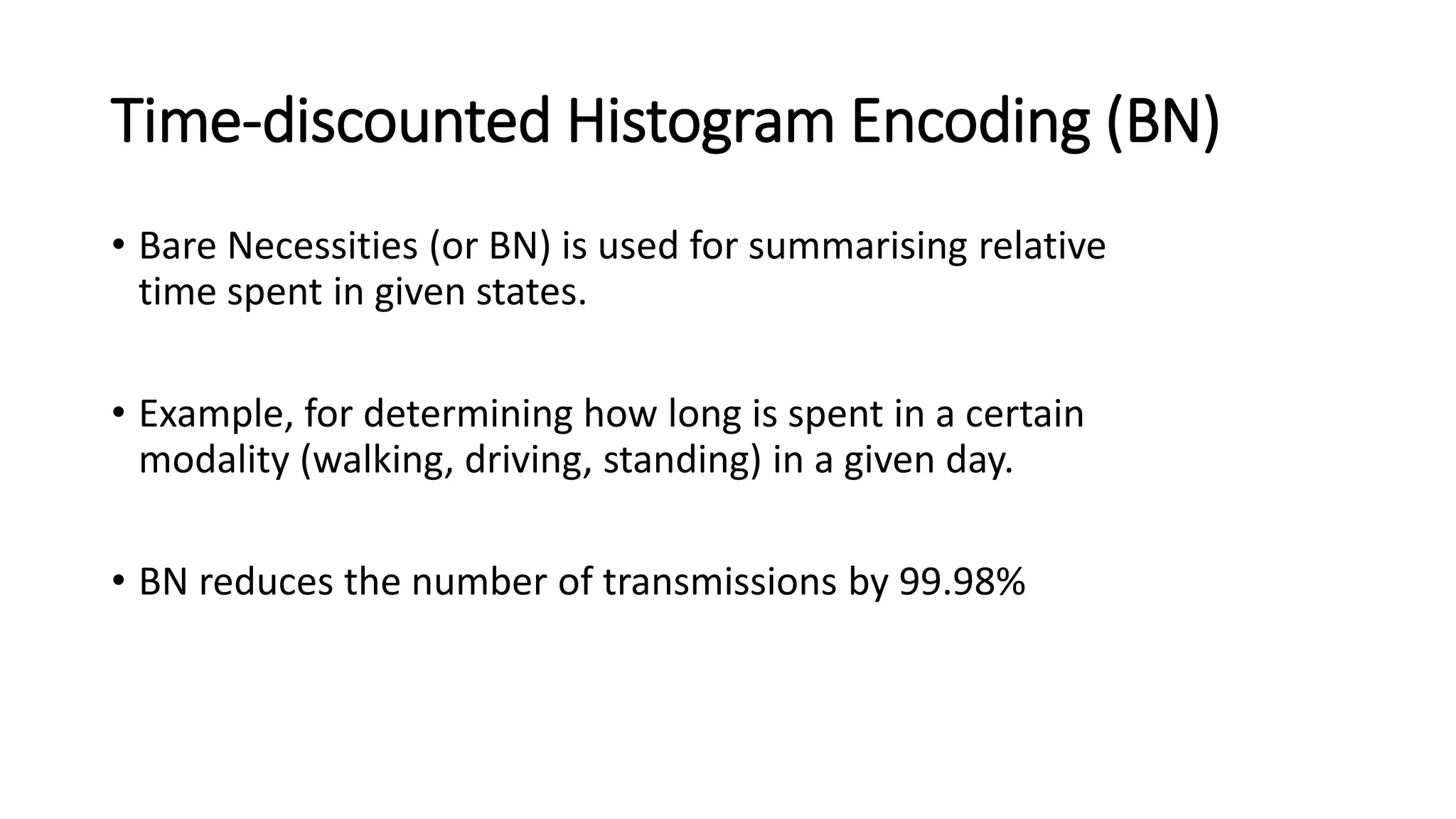

11. Time-discounted Histogram Encoding (BN)
• Bare Necessities (or BN) is used for summarising relative
time spent in given states.
• Example, for determining how long is spent in a certain
modality (walking, driving, standing) in a given day.
• BN reduces the number of transmissions by 99.98%

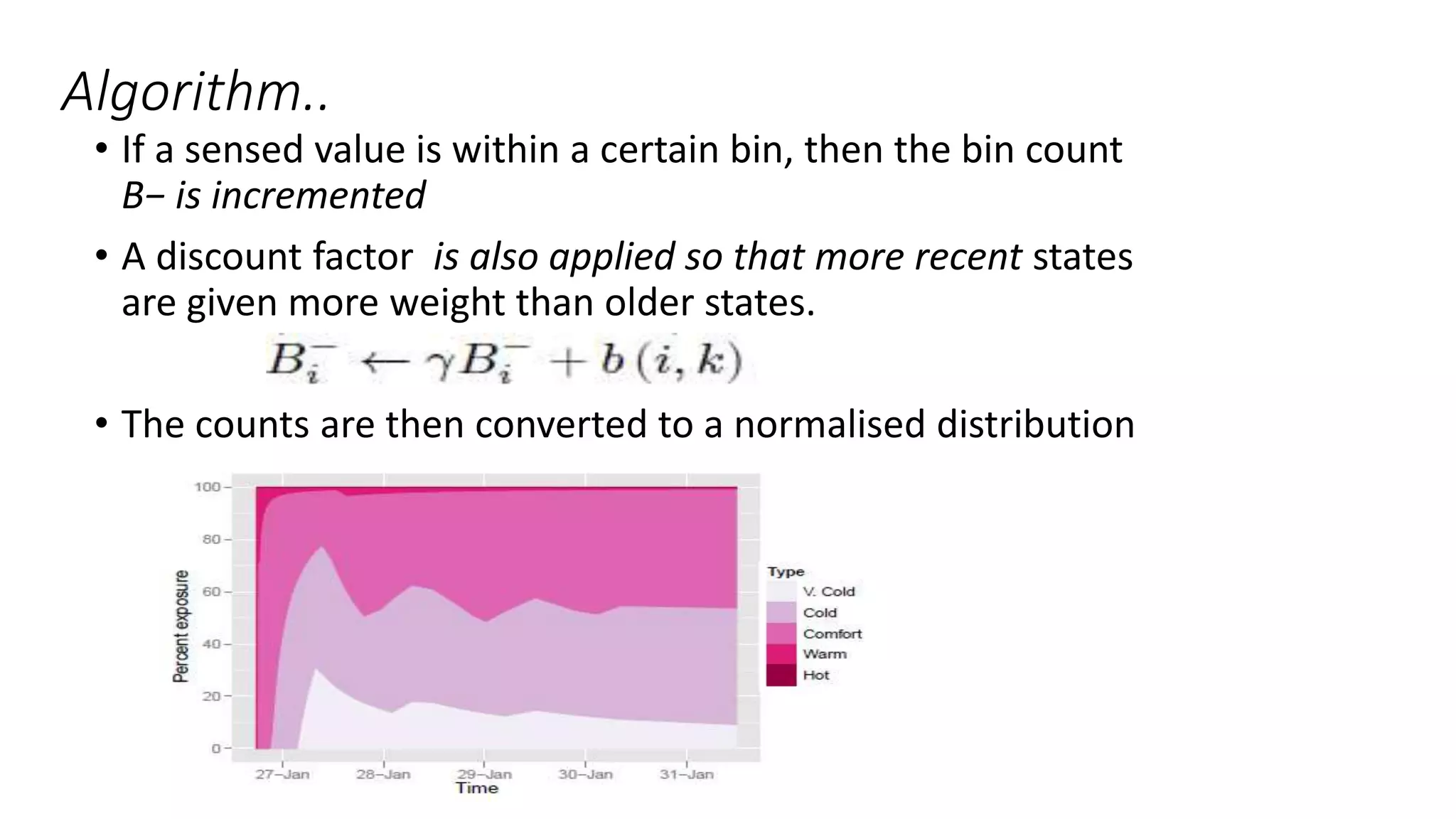

12. Algorithm..
• If a sensed value is within a certain bin, then the bin count
B− is incremented
• A discount factor is also applied so that more recent states
are given more weight than older states.
• The counts are then converted to a normalised distribution

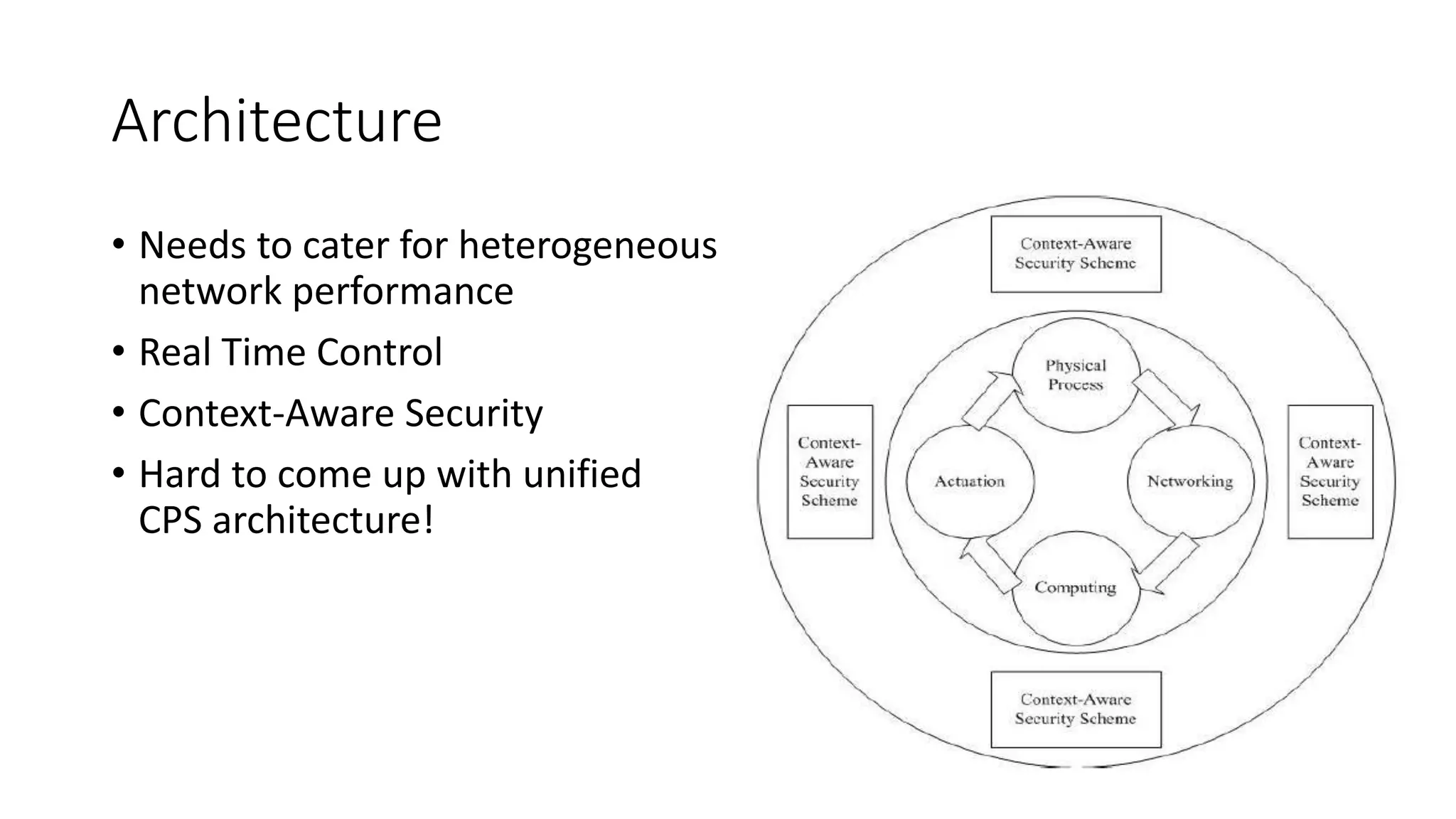

13. Architecture
• Needs to cater for heterogeneous
network performance
• Real Time Control
• Context-Aware Security
• Hard to come up with unified
CPS architecture!

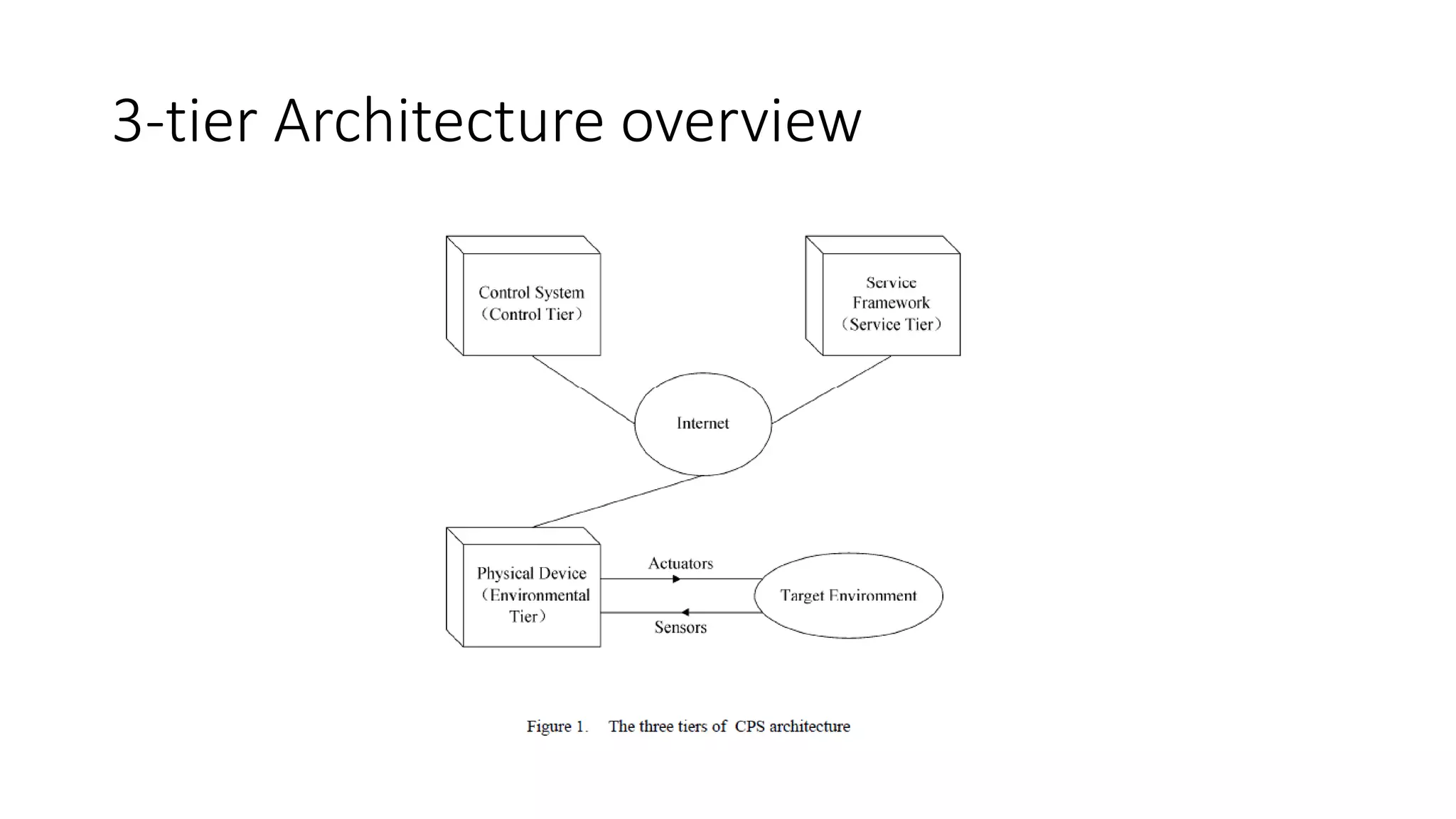

14. 3-tier Architecture overview

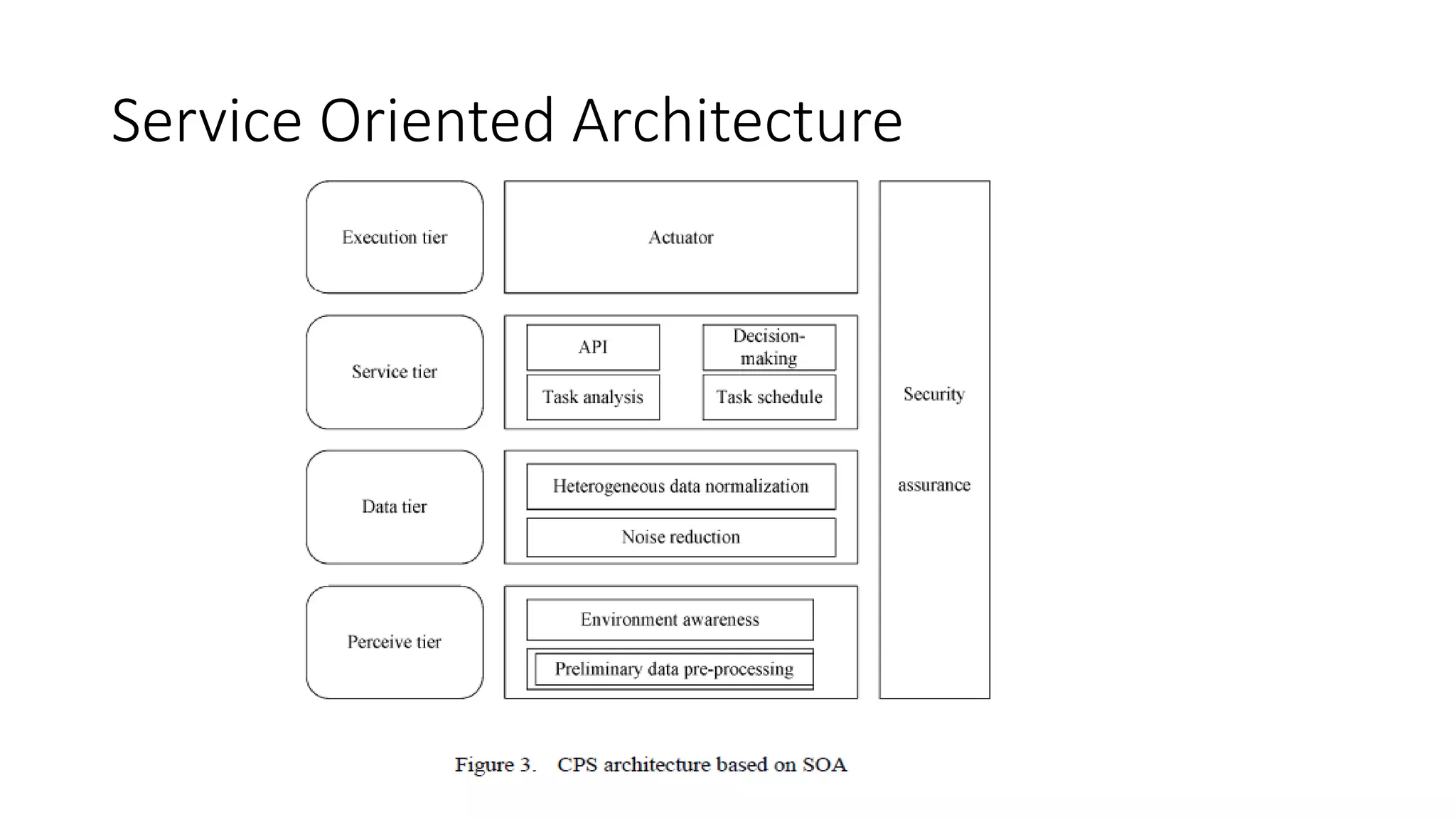

15. Service Oriented Architecture
