1. PRESENTATION A FINAL PROJECT
The group is composed by:
-Kevin Bau Lozano.
-Marcos Luzón Alarcón.
-Jose Vicente Saiz Checa.

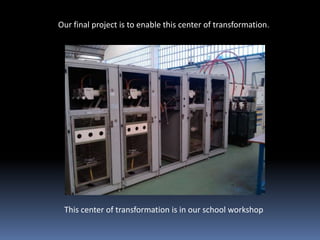

2. Our final project is to enable this center of transformation.
This center of transformation is in our school workshop

3. INDEX
The points that we are going to talk about are:
- PARTS OF A CENTER TRANSFORMATION.
- MOUNTING PROCESS.
- SECURITY IN A CENTER OF TRANSFORMATION.

4. PARTS OF A CENTER TRANSFORMATION
The center of transformation is composed of five cells, a
transformer and a low voltage box.
LINE CELL (INPUT)

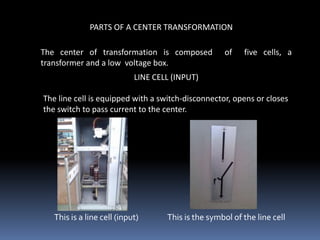

The line cell is equipped with a switch-disconnector, opens or closes
the switch to pass current to the center.
This is a line cell (input) This is the symbol of the line cell

5. LINE CELL (OUTPUT)

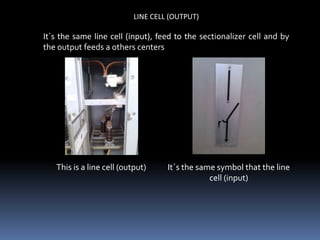

It´s the same line cell (input), feed to the sectionalizer cell and by
the output feeds a others centers
This is a line cell (output) It´s the same symbol that the line
cell (input)

6. SECTIONALIZER CELL
This sectionalizer cell lets pass the current to protection cell, it just
lets pass without electric charge because it breaks the mechanism.
This cell protects the transformer cutting the electrical supply.

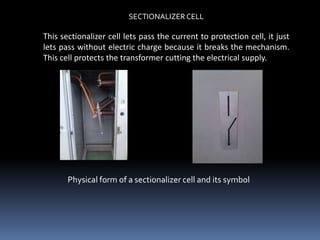

Physical form of a sectionalizer cell and its symbol

7. PROTECT CELL

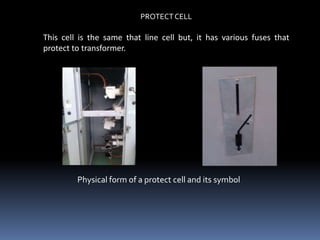

This cell is the same that line cell but, it has various fuses that
protect to transformer.
Physical form of a protect cell and its symbol

8. MEASURING CELL

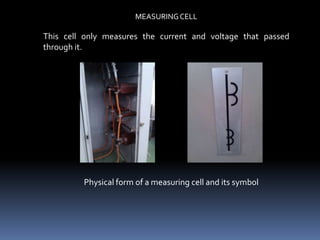

This cell only measures the current and voltage that passed
through it.
Physical form of a measuring cell and its symbol

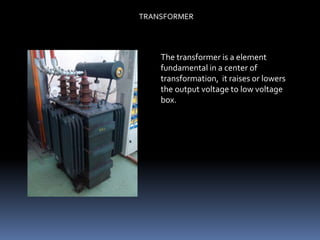

9. TRANSFORMER
The transformer is a element
fundamental in a center of
transformation, it raises or lowers
the output voltage to low voltage
box.

10. LOW VOLTAGE BOX
Low voltage box is a element that
has various fuses and connects the
center of transformation high
tension to low tension for give
electricity to houses.

11. MOUNTING PROCESS.

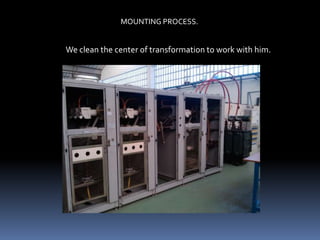

We clean the center of transformation to work with him.

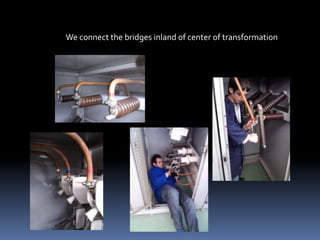

12. We connect the bridges inland of center of transformation

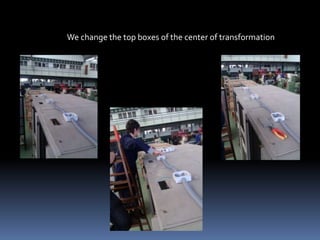

13. We change the top boxes of the center of transformation

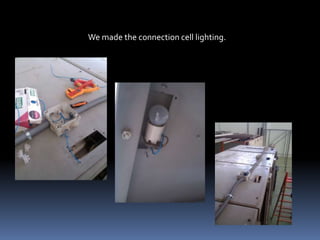

14. We made the connection cell lighting.

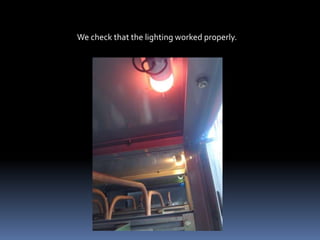

15. We check that the lighting worked properly.

16. We did the box protection

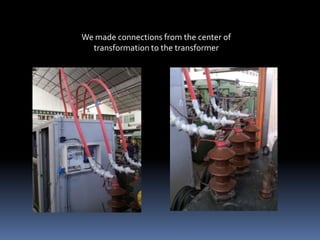

17. We made connections from the center of
transformation to the transformer

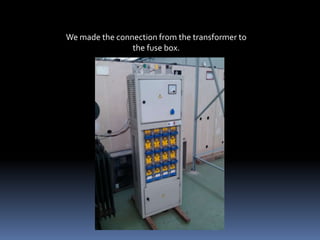

18. We made the connection from the transformer to
the fuse box.

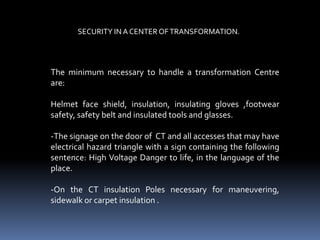

19. SECURITY IN A CENTER OF TRANSFORMATION.
The minimum necessary to handle a transformation Centre
are:
Helmet face shield, insulation, insulating gloves ,footwear
safety, safety belt and insulated tools and glasses.
-The signage on the door of CT and all accesses that may have
electrical hazard triangle with a sign containing the following
sentence: High Voltage Danger to life, in the language of the
place.
-On the CT insulation Poles necessary for maneuvering,
sidewalk or carpet insulation .

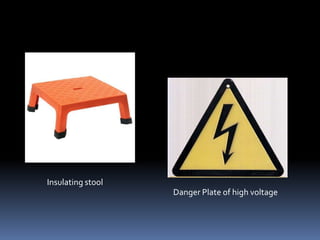

20. Insulating stool
Danger Plate of high voltage
