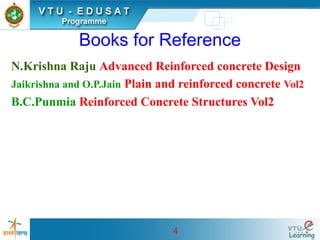

Books for Reference
N.Krishna Raju Advanced Reinforced concrete Design
Jaikrishna and O.P.Jain Plain and reinforced concrete Vol2
B.C.Punmia Reinforced Concrete Structures Vol2

5. 5

6. 6

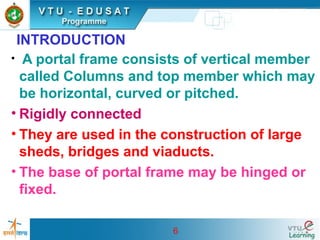

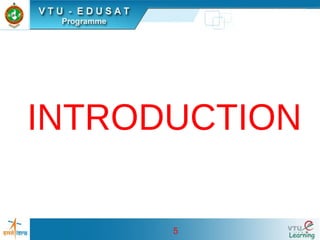

INTRODUCTION
• A portal frame consists of vertical member
called Columns and top member which may
be horizontal, curved or pitched.
• Rigidly connected
• They are used in the construction of large
sheds, bridges and viaducts.
• The base of portal frame may be hinged or
fixed.

7. 7

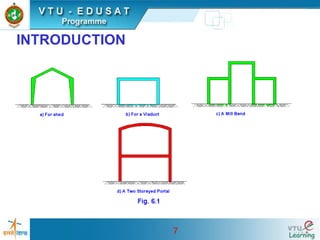

INTRODUCTION

8. 8

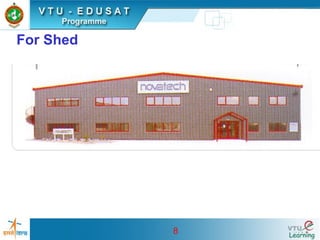

For Shed

9. 9

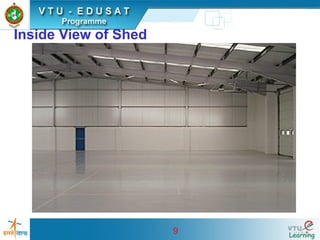

Inside View of Shed

10. 10
For Rectangular Buildings

11. 11

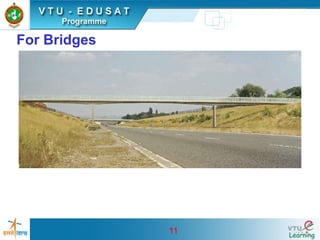

For Bridges

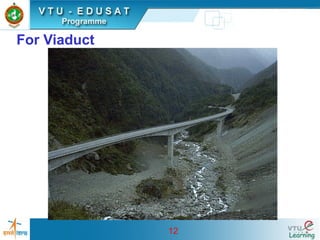

12. 12
For Viaduct

13. 13
INTRODUCTION
• The portal frames have high stability
against lateral forces
• A portal frame is a statically indeterminate
structure.
• In the case of buildings, the portal frames
are generally spaced at intervals of 3 to 4m
• Reinforced concrete slab cast
monolithically between the frames

14. 14

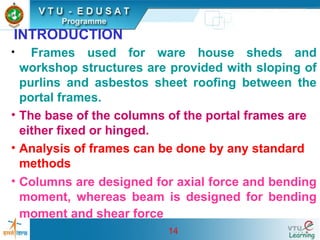

INTRODUCTION
• Frames used for ware house sheds and
workshop structures are provided with sloping of
purlins and asbestos sheet roofing between the
portal frames.
• The base of the columns of the portal frames are
either fixed or hinged.
• Analysis of frames can be done by any standard
methods
• Columns are designed for axial force and bending
moment, whereas beam is designed for bending
moment and shear force

15. 15

16. 16

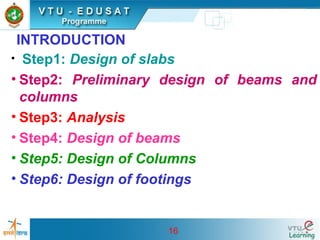

INTRODUCTION
• Step1: Design of slabs
• Step2: Preliminary design of beams and
columns
• Step3: Analysis
• Step4: Design of beams
• Step5: Design of Columns
• Step6: Design of footings

17. 17

18. 18

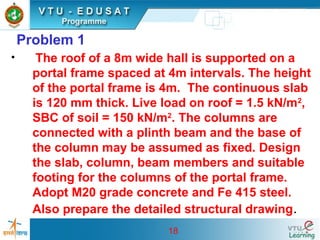

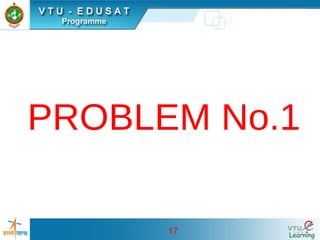

Problem 1
• The roof of a 8m wide hall is supported on a
portal frame spaced at 4m intervals. The height
of the portal frame is 4m. The continuous slab
is 120 mm thick. Live load on roof = 1.5 kN/m2
,
SBC of soil = 150 kN/m2
. The columns are
connected with a plinth beam and the base of
the column may be assumed as fixed. Design
the slab, column, beam members and suitable
footing for the columns of the portal frame.
Adopt M20 grade concrete and Fe 415 steel.
Also prepare the detailed structural drawing.

19. 19

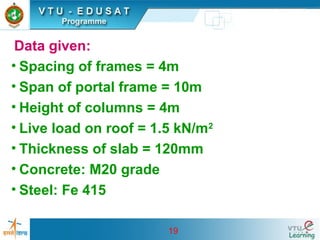

Data given:
• Spacing of frames = 4m
• Span of portal frame = 10m
• Height of columns = 4m
• Live load on roof = 1.5 kN/m2
• Thickness of slab = 120mm
• Concrete: M20 grade
• Steel: Fe 415

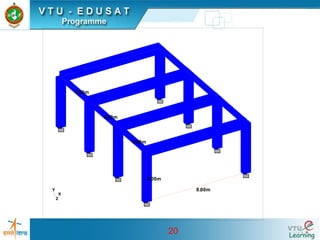

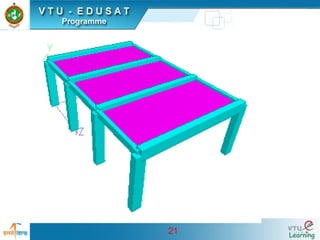

20. 20
8.00m
4.00m
4.00m
4.00m
4.00m
X
Y
Z

21. 21

22. 22

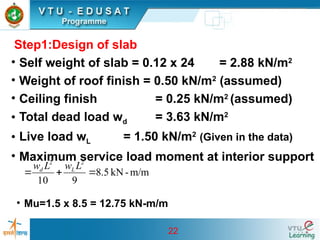

Step1:Design of slab
• Self weight of slab = 0.12 x 24 = 2.88 kN/m2
• Weight of roof finish = 0.50 kN/m2
(assumed)
• Ceiling finish = 0.25 kN/m2
(assumed)
• Total dead load wd = 3.63 kN/m2
• Live load wL = 1.50 kN/m2
(Given in the data)
• Maximum service load moment at interior support
m/m
-
kN
5
.
8
9
10
2
2



L
w
L
w L
d
• Mu=1.5 x 8.5 = 12.75 kN-m/m

23. 23

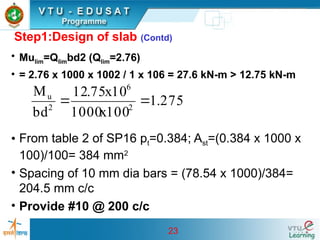

Step1:Design of slab (Contd)
• Mulim=Qlimbd2 (Qlim=2.76)
• = 2.76 x 1000 x 1002 / 1 x 106 = 27.6 kN-m > 12.75 kN-m
• From table 2 of SP16 pt=0.384; Ast=(0.384 x 1000 x
100)/100= 384 mm2
• Spacing of 10 mm dia bars = (78.54 x 1000)/384=
204.5 mm c/c
• Provide #10 @ 200 c/c
275
.
1
100
x
1000
10
x
75
.
12
bd
M
2
6
2
u



24. 24

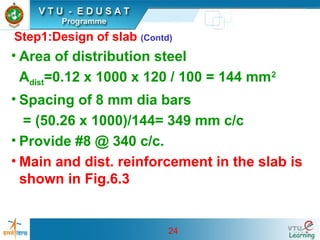

Step1:Design of slab (Contd)
• Area of distribution steel
Adist=0.12 x 1000 x 120 / 100 = 144 mm2
• Spacing of 8 mm dia bars
= (50.26 x 1000)/144= 349 mm c/c
• Provide #8 @ 340 c/c.

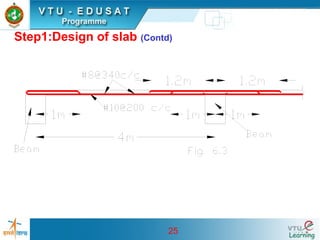

• Main and dist. reinforcement in the slab is
shown in Fig.6.3

25. 25
Step1:Design of slab (Contd)

26. 26

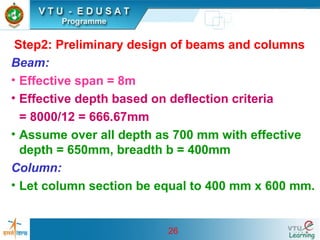

Step2: Preliminary design of beams and columns
Beam:
• Effective span = 8m
• Effective depth based on deflection criteria
= 8000/12 = 666.67mm
• Assume over all depth as 700 mm with effective
depth = 650mm, breadth b = 400mm
Column:
• Let column section be equal to 400 mm x 600 mm.

27. 27
Step3: Analysis

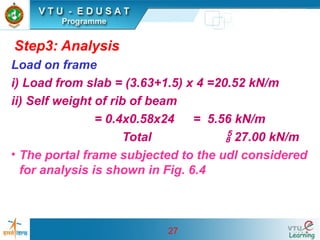

Load on frame
i) Load from slab = (3.63+1.5) x 4 =20.52 kN/m
ii) Self weight of rib of beam
= 0.4x0.58x24 = 5.56 kN/m
Total  27.00 kN/m

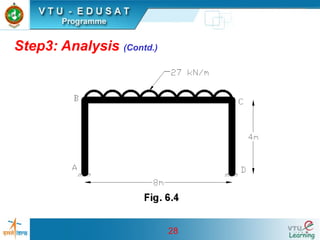

• The portal frame subjected to the udl considered
for analysis is shown in Fig. 6.4

28. 28
Step3: Analysis (Contd.)

29. 29

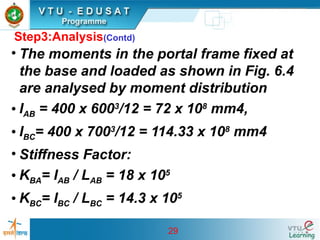

Step3:Analysis(Contd)
• The moments in the portal frame fixed at
the base and loaded as shown in Fig. 6.4
are analysed by moment distribution
• IAB = 400 x 6003
/12 = 72 x 108
mm4,
• IBC= 400 x 7003
/12 = 114.33 x 108
mm4
• Stiffness Factor:
• KBA= IAB / LAB = 18 x 105
• KBC= IBC / LBC = 14.3 x 105

30. 30
Step3:Analysis(Contd)

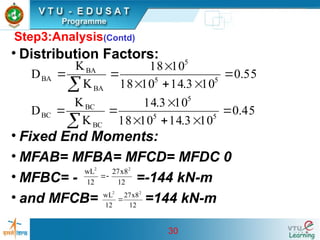

• Distribution Factors:
• Fixed End Moments:
• MFAB= MFBA= MFCD= MFDC 0
• MFBC= - =-144 kN-m
• and MFCB= =144 kN-m
55
.
0
10
3
.
14
10
18
10
18
K
K
D 5
5
5
BA
BA
BA 







45
.
0
10
3
.
14
10
18
10
3
.
14
K
K
D 5
5
5
BC
BC
BC 







12
8
x
27
12
wL 2
2


12
8
x
27
12
wL 2
2


31. 31

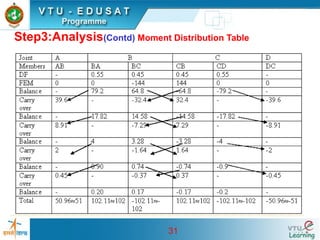

Step3:Analysis(Contd) Moment Distribution Table

32. 32

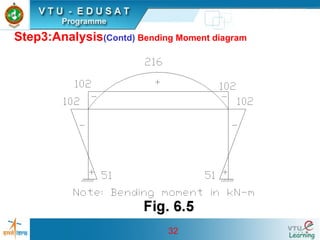

Step3:Analysis(Contd) Bending Moment diagram

33. 33

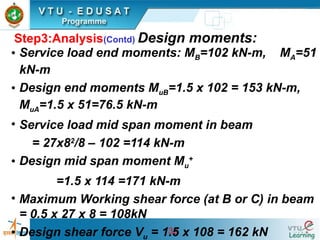

Step3:Analysis(Contd) Design moments:
• Service load end moments: MB=102 kN-m, MA=51
kN-m
• Design end moments MuB=1.5 x 102 = 153 kN-m,
MuA=1.5 x 51=76.5 kN-m
• Service load mid span moment in beam
= 27x82
/8 – 102 =114 kN-m
• Design mid span moment Mu
+
=1.5 x 114 =171 kN-m
• Maximum Working shear force (at B or C) in beam
= 0.5 x 27 x 8 = 108kN
• Design shear force Vu = 1.5 x 108 = 162 kN

34. 34

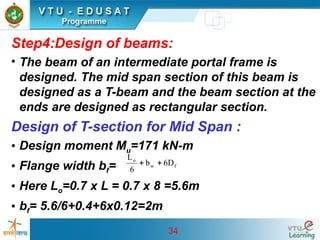

Step4:Design of beams:
• The beam of an intermediate portal frame is
designed. The mid span section of this beam is
designed as a T-beam and the beam section at the
ends are designed as rectangular section.
Design of T-section for Mid Span :
• Design moment Mu=171 kN-m
• Flange width bf=
• Here Lo=0.7 x L = 0.7 x 8 =5.6m
• bf= 5.6/6+0.4+6x0.12=2m
f
w
o
D
6
b
6
L



35. 35

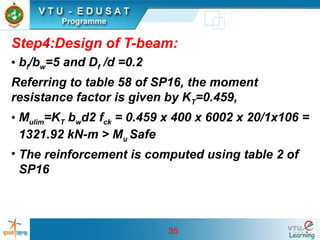

Step4:Design of T-beam:
• bf/bw=5 and Df /d =0.2
Referring to table 58 of SP16, the moment
resistance factor is given by KT=0.459,
• Mulim=KT bwd2 fck = 0.459 x 400 x 6002 x 20/1x106 =
1321.92 kN-m > Mu Safe
• The reinforcement is computed using table 2 of
SP16

36. 36

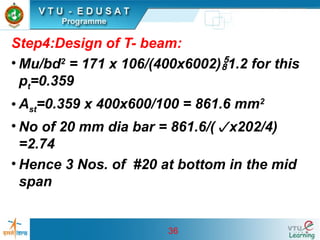

Step4:Design of T- beam:
• Mu/bd2
= 171 x 106/(400x6002)1.2 for this
pt=0.359
• Ast=0.359 x 400x600/100 = 861.6 mm2
• No of 20 mm dia bar = 861.6/(x202/4)
=2.74
• Hence 3 Nos. of #20 at bottom in the mid
span

37. 37

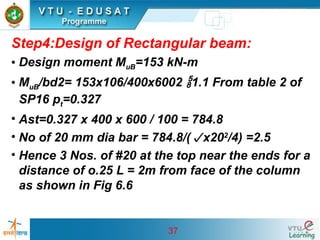

Step4:Design of Rectangular beam:
• Design moment MuB=153 kN-m
• MuB/bd2= 153x106/400x6002 1.1 From table 2 of
SP16 pt=0.327
• Ast=0.327 x 400 x 600 / 100 = 784.8
• No of 20 mm dia bar = 784.8/(x202
/4) =2.5
• Hence 3 Nos. of #20 at the top near the ends for a
distance of o.25 L = 2m from face of the column
as shown in Fig 6.6

38. 38

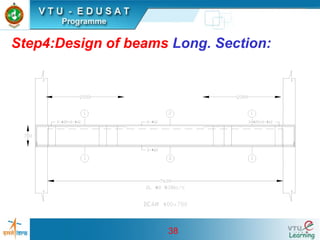

Step4:Design of beams Long. Section:

39. 39

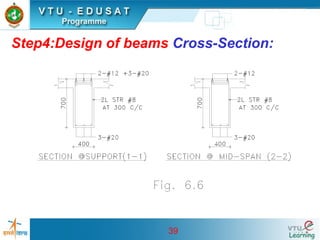

Step4:Design of beams Cross-Section:

40. 40

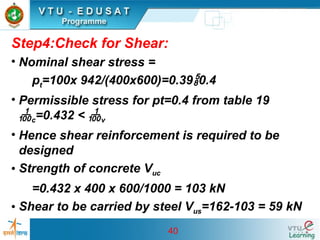

Step4:Check for Shear:
• Nominal shear stress =
pt=100x 942/(400x600)=0.390.4
• Permissible stress for pt=0.4 from table 19
c=0.432 < v
• Hence shear reinforcement is required to be
designed
• Strength of concrete Vuc
=0.432 x 400 x 600/1000 = 103 kN
• Shear to be carried by steel Vus=162-103 = 59 kN

41. 41

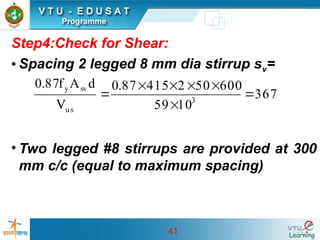

Step4:Check for Shear:
• Spacing 2 legged 8 mm dia stirrup sv=
• Two legged #8 stirrups are provided at 300
mm c/c (equal to maximum spacing)
367
10
59
600
50
2
415
87
.
0
V
d
A
f
87
.
0
3
us
sv
y








42. 42
