Laser engraving machine

1. PORTABLE LASER ENGRAVING
MACHINE

2. BRANCH:- MECHANICAL ENGINEERING
GUIDE:- GANESH WAFELKAR
INSTITUTE:- SHREE L.R. TIWARI COLLEGE OF
ENGINEERING
ACADEMIC YEAR:- 2024-25
SELF INTRODUCTION
TEAM MEMBERS
1. SHAIKH MUSTAFA JAHANGIR
2. DASAV ARVIND

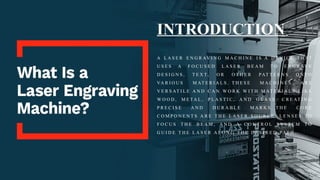

3. INTRODUCTION
A L A S E R E N G R AV I N G M A C H I N E I S A D E V I C E T H AT
U S E S A F O C U S E D L A S E R B E A M T O E N G R AV E
D E S I G N S , T E X T, O R O T H E R PAT T E R N S O N T O
VA R I O U S M AT E R I A L S . T H E S E M A C H I N E S A R E
V E R S AT I L E A N D C A N W O R K W I T H M AT E R I A L S L I K E
W O O D , M E TA L , P L A S T I C , A N D G L A S S , C R E AT I N G
P R E C I S E A N D D U R A B L E M A R K S . T H E C O R E
C O M P O N E N T S A R E T H E L A S E R S O U R C E , L E N S E S T O
F O C U S T H E B E A M , A N D A C O N T R O L S Y S T E M T O
G U I D E T H E L A S E R A L O N G T H E D E S I R E D PAT H .

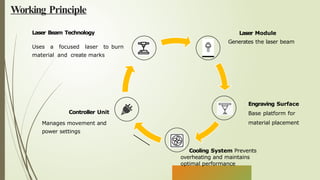

4. Working Principle
Laser Beam Technology
Uses a focused laser to burn
material and create marks
Controller Unit
Manages movement and
power settings
Laser Module
Generates the laser beam
Engraving Surface
Base platform for
material placement
Cooling System Prevents
overheating and maintains
optimal performance

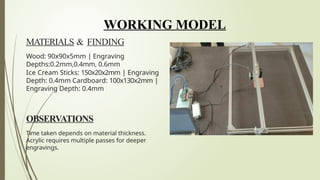

5. WORKING MODEL
MATERIALS & FINDING
Wood: 90x90x5mm | Engraving
Depths:0.2mm,0.4mm, 0.6mm
Ice Cream Sticks: 150x20x2mm | Engraving
Depth: 0.4mm Cardboard: 100x130x2mm |
Engraving Depth: 0.4mm
OBSERVATIONS
Time taken depends on material thickness.
Acrylic requires multiple passes for deeper
engravings.

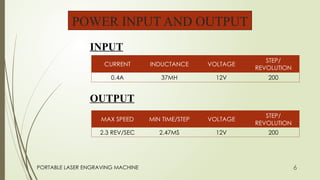

6. POWER INPUT AND OUTPUT
CURRENT INDUCTANCE VOLTAGE
STEP/
REVOLUTION
0.4A 37MH 12V 200
PORTABLE LASER ENGRAVING MACHINE 6
OUTPUT
MAX SPEED MIN TIME/STEP VOLTAGE
STEP/
REVOLUTION
2.3 REV/SEC 2.47MS 12V 200
INPUT

7. PORTABLE LASER ENGRAVING MACHINE

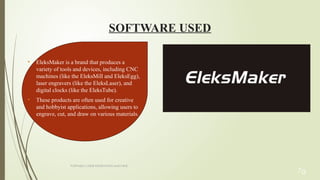

SOFTWARE USED
7g
• EleksMaker is a brand that produces a
variety of tools and devices, including CNC
machines (like the EleksMill and EleksEgg),
laser engravers (like the EleksLaser), and
digital clocks (like the EleksTube).
• These products are often used for creative
and hobbyist applications, allowing users to
engrave, cut, and draw on various materials.

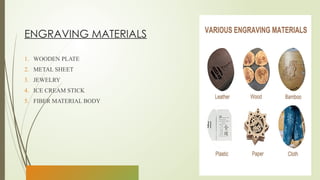

8. ENGRAVING MATERIALS
1. WOODEN PLATE
2. METAL SHEET
3. JEWELRY
4. ICE CREAM STICK
5. FIBER MATERIAL BODY

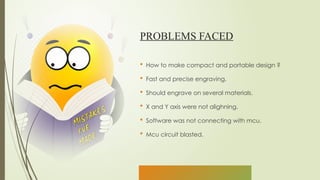

9. PROBLEMS FACED
 How to make compact and portable design ?
 Fast and precise engraving.
 Should engrave on several materials.
 X and Y axis were not alighning.
 Software was not connecting with mcu.
 Mcu circuit blasted.

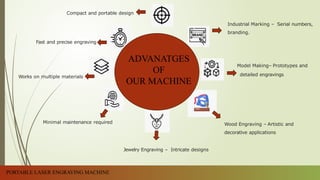

10. PORTABLE LASER ENGRAVING MACHINE
Model Making– Prototypes and
detailed engravings
Wood Engraving – Artistic and
decorative applications
Jewelry Engraving – Intricate designs
Fast and precise engraving
Works on multiple materials
Minimal maintenance required
Compact and portable design
Industrial Marking – Serial numbers,
branding.
ADVANATGES
OF
OUR MACHINE

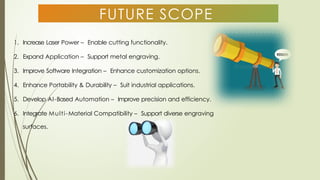

11. FUTURE SCOPE
1. Increase Laser Power – Enable cutting functionality.
2. Expand Application – Support metal engraving.
3. Improve Software Integration – Enhance customization options.
4. Enhance Portability & Durability – Suit industrial applications.
5. Develop AI-Based Automation – Improve precision and efficiency.
6. Integrate Multi-Material Compatibility – Support diverse engraving
surfaces.

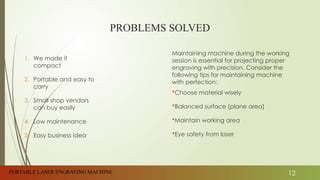

12. PROBLEMS SOLVED
1. We made it
compact
2. Portable and easy to
carry
3. Small shop vendors
can buy easily
4. Low maintenance
5. Easy business idea
Maintaining machine during the working
session is essential for projecting proper
engraving with precision. Consider the
following tips for maintaining machine
with perfection:
Choose material wisely
Balanced surface [plane area]
Maintain working area
Eye safety from laser
PORTABLE LASER ENGRAVING MACHINE 12

13. THANK YOU
