The Sony PMW-200 is a 3-CMOS sensor HD422 camcorder that records to SxS memory cards. It supports the 50 Mbps MPEG HD422 codec and has two SxS memory card slots to record up to 4 hours of footage. It has a 14x optical zoom lens and records HD or SD footage in either UDF or FAT file formats that are compatible with other Sony XDCAM systems. The PMW-200 is a successor to the PMW-EX1 and is positioned as a companion camera to the PMW-500 shoulder mount camcorder.

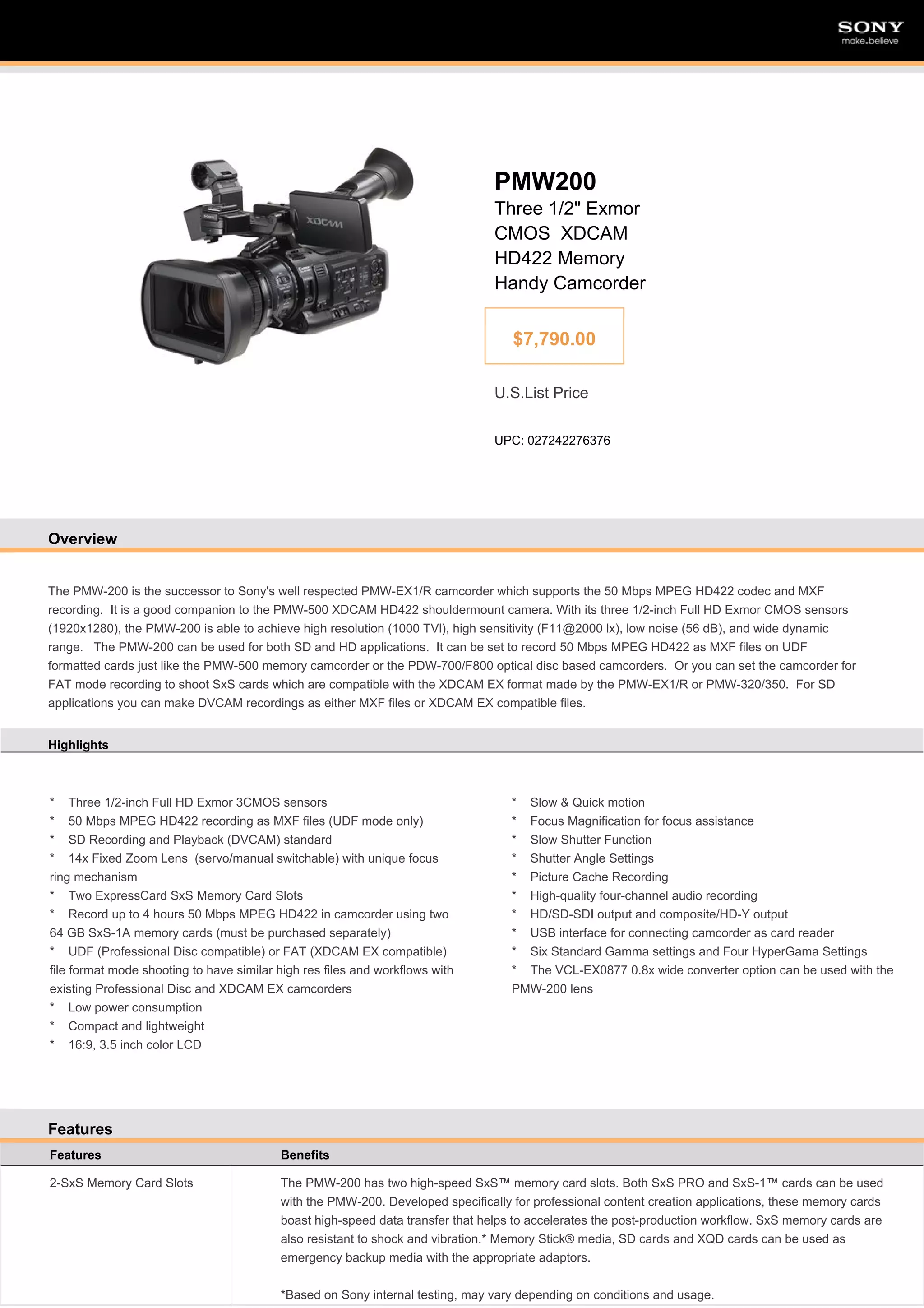

1. SONY
SONY
PMW200
Three 1/2" Exmor
CMOS XDCAM
HD422 Memory
Handy Camcorder
$7,790.00
U.S.List Price
UPC: 027242276376
Overview
The PMW-200 is the successor to Sony's well respected PMW-EX1/R camcorder which supports the 50 Mbps MPEG HD422 codec and MXF
recording. It is a good companion to the PMW-500 XDCAM HD422 shouldermount camera. With its three 1/2-inch Full HD Exmor CMOS sensors
(1920x1280), the PMW-200 is able to achieve high resolution (1000 TVl), high sensitivity (F11@2000 lx), low noise (56 dB), and wide dynamic
range. The PMW-200 can be used for both SD and HD applications. It can be set to record 50 Mbps MPEG HD422 as MXF files on UDF
formatted cards just like the PMW-500 memory camcorder or the PDW-700/F800 optical disc based camcorders. Or you can set the camcorder for
FAT mode recording to shoot SxS cards which are compatible with the XDCAM EX format made by the PMW-EX1/R or PMW-320/350. For SD
applications you can make DVCAM recordings as either MXF files or XDCAM EX compatible files.
Highlights
* Three 1/2-inch Full HD Exmor 3CMOS sensors
* 50 Mbps MPEG HD422 recording as MXF files (UDF mode only)
* SD Recording and Playback (DVCAM) standard
* 14x Fixed Zoom Lens (servo/manual switchable) with unique focus
ring mechanism
* Two ExpressCard SxS Memory Card Slots
* Record up to 4 hours 50 Mbps MPEG HD422 in camcorder using two
64 GB SxS-1A memory cards (must be purchased separately)
* UDF (Professional Disc compatible) or FAT (XDCAM EX compatible)
file format mode shooting to have similar high res files and workflows with
existing Professional Disc and XDCAM EX camcorders
* Low power consumption
* Compact and lightweight
* 16:9, 3.5 inch color LCD
* Slow & Quick motion
* Focus Magnification for focus assistance
* Slow Shutter Function
* Shutter Angle Settings
* Picture Cache Recording
* High-quality four-channel audio recording
* HD/SD-SDI output and composite/HD-Y output
* USB interface for connecting camcorder as card reader
* Six Standard Gamma settings and Four HyperGama Settings
* The VCL-EX0877 0.8x wide converter option can be used with the
PMW-200 lens
Features
Features
Benefits
2-SxS Memory Card Slots
The PMW-200 has two high-speed SxS™ memory card slots. Both SxS PRO and SxS-1™ cards can be used
with the PMW-200. Developed specifically for professional content creation applications, these memory cards
boast high-speed data transfer that helps to accelerates the post-production workflow. SxS memory cards are
also resistant to shock and vibration.* Memory Stick® media, SD cards and XQD cards can be used as
emergency backup media with the appropriate adaptors.
*Based on Sony internal testing, may vary depending on conditions and usage.

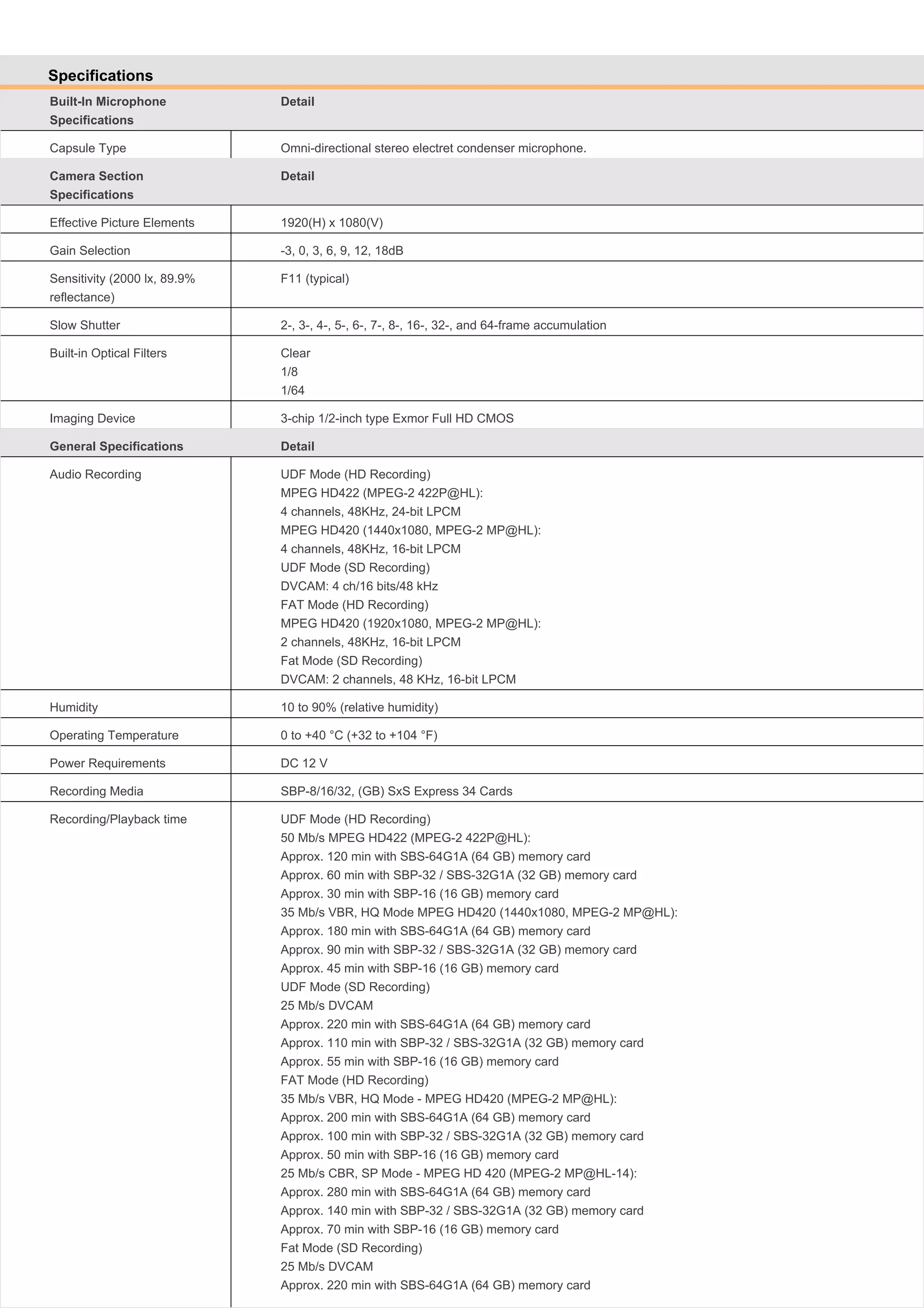

2. Specifications
Built-In Microphone
Specifications
Detail
Capsule Type
Omni-directional stereo electret condenser microphone.
Camera Section
Specifications
Detail
Effective Picture Elements
1920(H) x 1080(V)
Gain Selection
-3, 0, 3, 6, 9, 12, 18dB
Sensitivity (2000 lx, 89.9%
reflectance)
F11 (typical)
Slow Shutter
2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-, 32-, and 64-frame accumulation
Built-in Optical Filters
Clear
1/8
1/64
Imaging Device
3-chip 1/2-inch type Exmor Full HD CMOS
General Specifications
Detail
Audio Recording
UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL):
4 channels, 48KHz, 24-bit LPCM
MPEG HD420 (1440x1080, MPEG-2 MP@HL):
4 channels, 48KHz, 16-bit LPCM
UDF Mode (SD Recording)
DVCAM: 4 ch/16 bits/48 kHz
FAT Mode (HD Recording)
MPEG HD420 (1920x1080, MPEG-2 MP@HL):
2 channels, 48KHz, 16-bit LPCM
Fat Mode (SD Recording)
DVCAM: 2 channels, 48 KHz, 16-bit LPCM
Humidity
10 to 90% (relative humidity)
Operating Temperature
0 to +40 °C (+32 to +104 °F)
Power Requirements
DC 12 V
Recording Media
SBP-8/16/32, (GB) SxS Express 34 Cards
Recording/Playback time
UDF Mode (HD Recording)
50 Mb/s MPEG HD422 (MPEG-2 422P@HL):
Approx. 120 min with SBS-64G1A (64 GB) memory card
Approx. 60 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 30 min with SBP-16 (16 GB) memory card
35 Mb/s VBR, HQ Mode MPEG HD420 (1440x1080, MPEG-2 MP@HL):
Approx. 180 min with SBS-64G1A (64 GB) memory card
Approx. 90 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 45 min with SBP-16 (16 GB) memory card
UDF Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card
FAT Mode (HD Recording)
35 Mb/s VBR, HQ Mode - MPEG HD420 (MPEG-2 MP@HL):
Approx. 200 min with SBS-64G1A (64 GB) memory card
Approx. 100 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card
25 Mb/s CBR, SP Mode - MPEG HD 420 (MPEG-2 MP@HL-14):
Approx. 280 min with SBS-64G1A (64 GB) memory card
Approx. 140 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card
Fat Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card

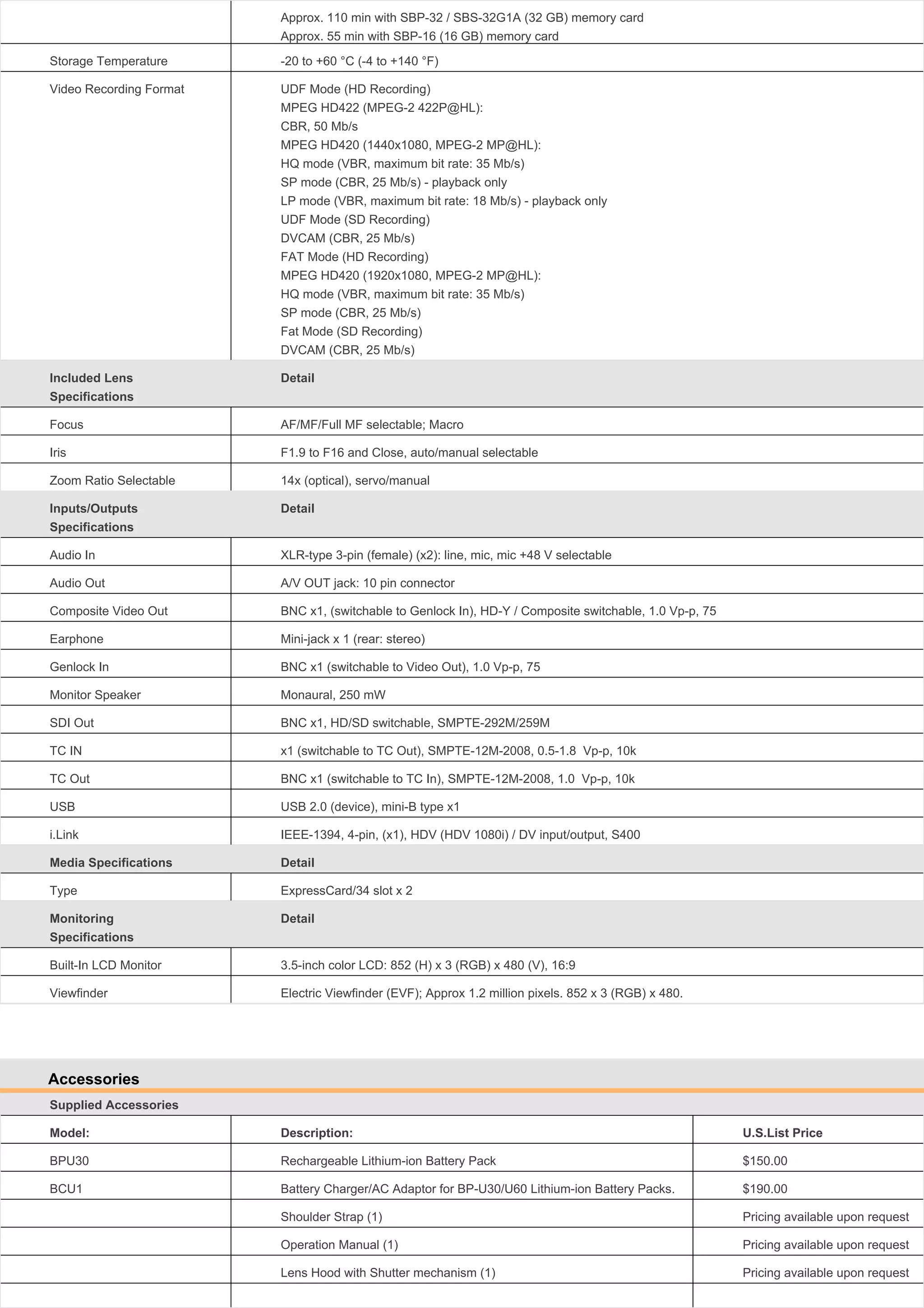

3. Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card
Storage Temperature
-20 to +60 °C (-4 to +140 °F)
Video Recording Format
UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL):
CBR, 50 Mb/s
MPEG HD420 (1440x1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s) - playback only
LP mode (VBR, maximum bit rate: 18 Mb/s) - playback only
UDF Mode (SD Recording)
DVCAM (CBR, 25 Mb/s)
FAT Mode (HD Recording)
MPEG HD420 (1920x1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)
Fat Mode (SD Recording)
DVCAM (CBR, 25 Mb/s)
Included Lens
Specifications
Detail
Focus
AF/MF/Full MF selectable; Macro
Iris
F1.9 to F16 and Close, auto/manual selectable
Zoom Ratio Selectable
14x (optical), servo/manual
Inputs/Outputs
Specifications
Detail
Audio In
XLR-type 3-pin (female) (x2): line, mic, mic +48 V selectable
Audio Out
A/V OUT jack: 10 pin connector
Composite Video Out
BNC x1, (switchable to Genlock In), HD-Y / Composite switchable, 1.0 Vp-p, 75
Earphone
Mini-jack x 1 (rear: stereo)
Genlock In
BNC x1 (switchable to Video Out), 1.0 Vp-p, 75
Monitor Speaker
Monaural, 250 mW
SDI Out
BNC x1, HD/SD switchable, SMPTE-292M/259M
TC IN
x1 (switchable to TC Out), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10k
TC Out
BNC x1 (switchable to TC In), SMPTE-12M-2008, 1.0 Vp-p, 10k
USB
USB 2.0 (device), mini-B type x1
i.Link
IEEE-1394, 4-pin, (x1), HDV (HDV 1080i) / DV input/output, S400
Media Specifications
Detail
Type
ExpressCard/34 slot x 2
Monitoring
Specifications
Detail
Built-In LCD Monitor
3.5-inch color LCD: 852 (H) x 3 (RGB) x 480 (V), 16:9
Viewfinder
Electric Viewfinder (EVF); Approx 1.2 million pixels. 852 x 3 (RGB) x 480.
Accessories
Supplied Accessories
Model:
Description:
U.S.List Price
BPU30
Rechargeable Lithium-ion Battery Pack
$150.00
BCU1
Battery Charger/AC Adaptor for BP-U30/U60 Lithium-ion Battery Packs.
$190.00
Shoulder Strap (1)
Pricing available upon request
Operation Manual (1)
Pricing available upon request
Lens Hood with Shutter mechanism (1)
Pricing available upon request

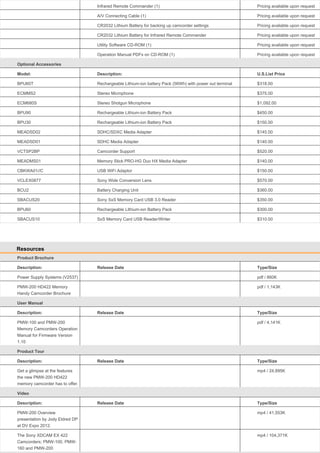

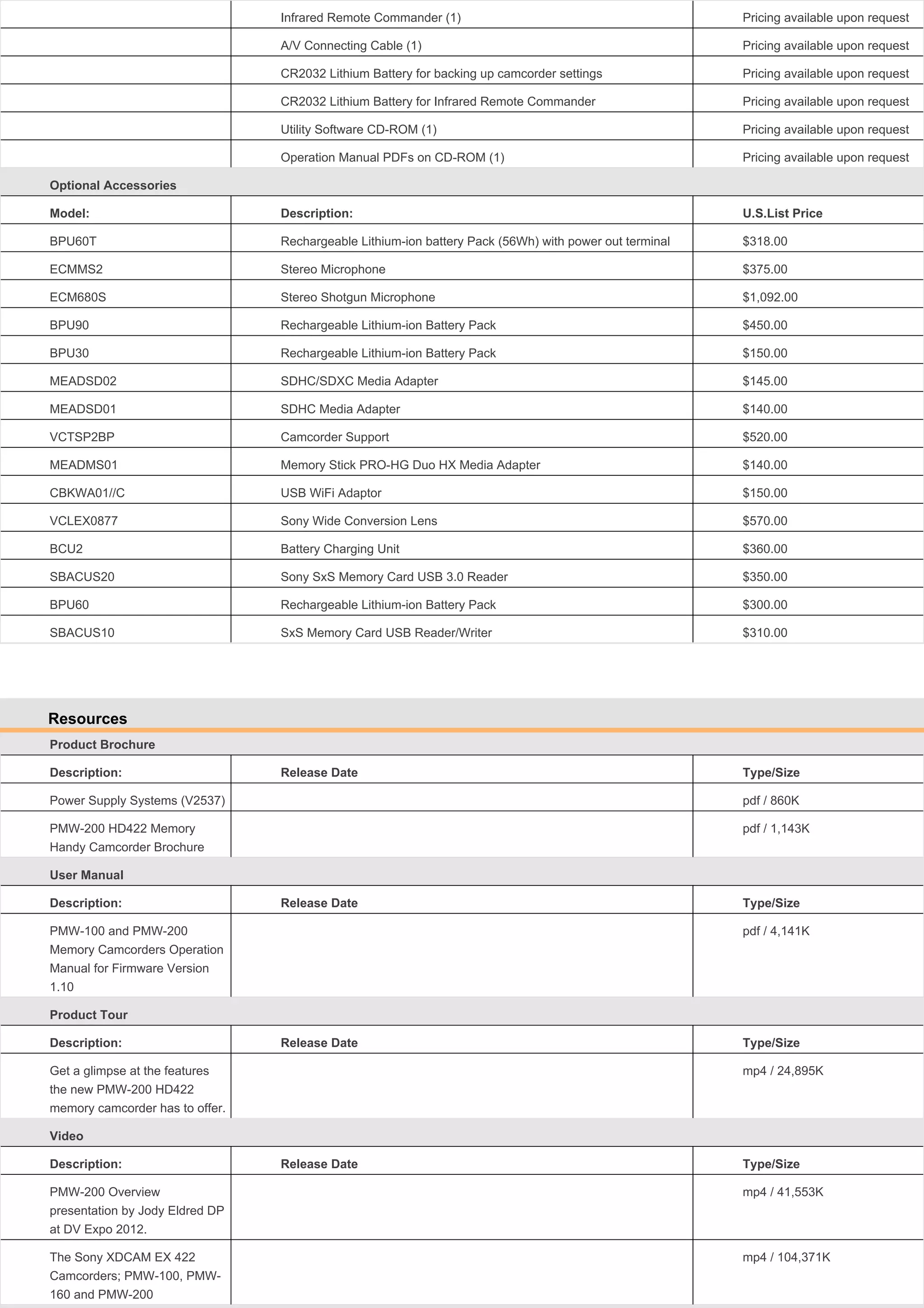

4. Infrared Remote Commander (1)
Pricing available upon request
A/V Connecting Cable (1)
Pricing available upon request
CR2032 Lithium Battery for backing up camcorder settings
Pricing available upon request
CR2032 Lithium Battery for Infrared Remote Commander
Pricing available upon request
Utility Software CD-ROM (1)
Pricing available upon request
Operation Manual PDFs on CD-ROM (1)
Pricing available upon request
Model:
Description:
U.S.List Price
BPU60T
Rechargeable Lithium-ion battery Pack (56Wh) with power out terminal
$318.00
ECMMS2
Stereo Microphone
$375.00
ECM680S
Stereo Shotgun Microphone
$1,092.00
BPU90
Rechargeable Lithium-ion Battery Pack
$450.00
BPU30
Rechargeable Lithium-ion Battery Pack
$150.00
MEADSD02
SDHC/SDXC Media Adapter
$145.00
MEADSD01
SDHC Media Adapter
$140.00
VCTSP2BP
Camcorder Support
$520.00
MEADMS01
Memory Stick PRO-HG Duo HX Media Adapter
$140.00
CBKWA01//C
USB WiFi Adaptor
$150.00
VCLEX0877
Sony Wide Conversion Lens
$570.00
BCU2
Battery Charging Unit
$360.00
SBACUS20
Sony SxS Memory Card USB 3.0 Reader
$350.00
BPU60
Rechargeable Lithium-ion Battery Pack
$300.00
SBACUS10
SxS Memory Card USB Reader/Writer
$310.00
Release Date
Type/Size
Optional Accessories
Resources
Product Brochure
Description:
Power Supply Systems (V2537)
pdf / 860K
PMW-200 HD422 Memory
Handy Camcorder Brochure
pdf / 1,143K
User Manual
Description:
Release Date
PMW-100 and PMW-200
Memory Camcorders Operation
Manual for Firmware Version
1.10
Type/Size
pdf / 4,141K
Product Tour
Description:
Release Date
Get a glimpse at the features
the new PMW-200 HD422
memory camcorder has to offer.
Type/Size
mp4 / 24,895K
Video
Description:
Release Date
Type/Size
PMW-200 Overview
presentation by Jody Eldred DP
at DV Expo 2012.
mp4 / 41,553K
The Sony XDCAM EX 422
Camcorders; PMW-100, PMW160 and PMW-200
mp4 / 104,371K

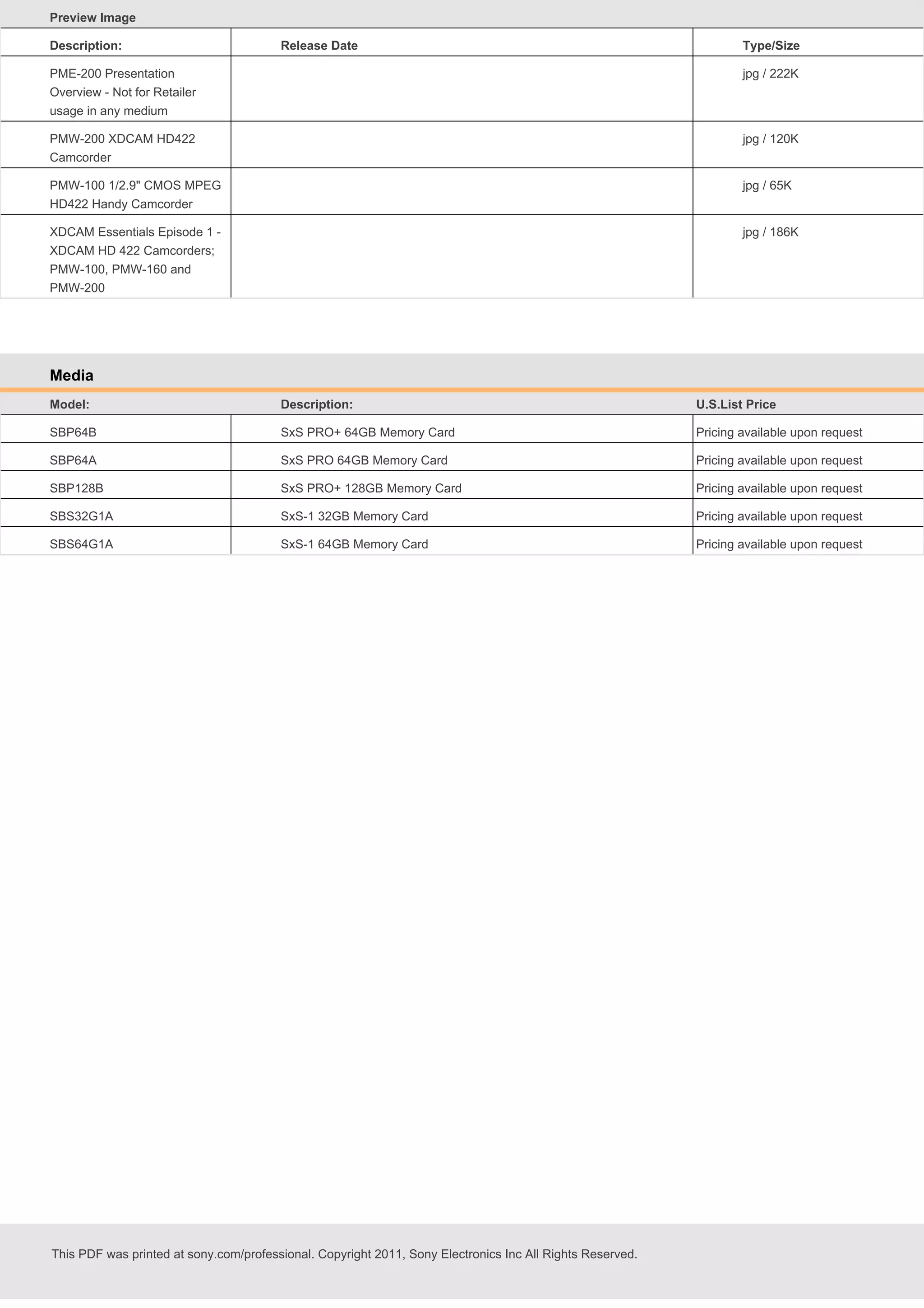

5. Preview Image
Description:
Release Date
Type/Size
PME-200 Presentation
Overview - Not for Retailer
usage in any medium
jpg / 222K
PMW-200 XDCAM HD422
Camcorder
jpg / 120K
PMW-100 1/2.9" CMOS MPEG
HD422 Handy Camcorder
jpg / 65K
XDCAM Essentials Episode 1 XDCAM HD 422 Camcorders;
PMW-100, PMW-160 and
PMW-200
jpg / 186K
Media
Model:
Description:
U.S.List Price
SBP64B
SxS PRO+ 64GB Memory Card
Pricing available upon request
SBP64A
SxS PRO 64GB Memory Card
Pricing available upon request
SBP128B
SxS PRO+ 128GB Memory Card
Pricing available upon request
SBS32G1A
SxS-1 32GB Memory Card
Pricing available upon request
SBS64G1A
SxS-1 64GB Memory Card
Pricing available upon request
