The document describes the Infra Red Pistol Mounted Camera System (IR PMCS) produced by Tactical Video Solutions. The system includes a highly sensitive video camera with 4 IR illuminators mounted on a pistol's magazine via a Picatinny rail. It also includes a wrist-mounted monitor. The system was designed with input from law enforcement and allows officers to observe situations without exposing themselves to danger in any light conditions from daylight to complete darkness. Field testing involved over 50 law enforcement and military personnel, with 87% providing positive feedback.

1. Tactical Video Solutions,Tactical Video Solutions,
LLCLLC
5473 S. Sedalia St5473 S. Sedalia St
Centennial CO 80015Centennial CO 80015
303-875-5411303-875-5411
www.tactical-video.comwww.tactical-video.com
Protecting Through Technology

2. Infra Red Pistol Mounted Camera System
(IR PMCS)
Protecting Through Technology
Highly sensitive video camera
with 4 powerful IR illuminators
Picatinny Rail mounted
on the pistol magazine
Complete system with camera mounted
on the pistol and all wires connected
Wrist-mounted monitor
with Velcro strip.
The system may be also used
with helmet mounted monocular
or video glasses, e.g. EyeTop™
Examples of using IR PMCS, including pole-mounted application

3. Infra Red Pistol Mounted Camera System
(IR PMCS)
Protecting Through Technology
• Designed to be used by and with input from
Law Enforcement Officers
• Designed to be affordable for
Law Enforcement Officers
• Was evaluated by
Law Enforcement Officers
• Is currently used by
Law Enforcement Officers

4. Infra Red Pistol Mounted Camera System
(IR PMCS)
Protecting Through Technology
Basic System Specification
• Working Light conditions …………….. from sunshine
to complete darkness
• Effective IR Illumination range ………. more than 25 ft (7.5 m)
• Video Camera Horizontal Resolution .. 420 lines
• Angle of view ……………………………. 78 deg
• System video output …………………… standard NTSC
• Video Monitor Screen ………………….. 1.8” TFT LCD
• Video Monitor Resolution ……………... 116160 pixel
• May be used with any type of NTSC head mounted display

5. Infra Red Pistol Mounted Camera System
(IR PMCS)
Protecting Through Technology
• The first and the only affordable gun mounted camera system
on the market
• The only pistol mounted camera that does not change the
gun’s balance
• Allows officer to observe the situation without exposing self to
danger
• Can be used in any light conditions from sunshine to complete
darkness
• Can be mounted on any Military Standard 1913 (Picatinny) rail

6. Field testing was performed by
• 23 Patrol Officers
• 4 Police Sergeants
• 12 SWAT Operators from five different teams
• 5 former Special Forces Operators
• 2 members of security contracting companies
Feedback from Law EnforcementFeedback from Law Enforcement
Protecting Through Technology
Negative
(13%)
Positive (87%)

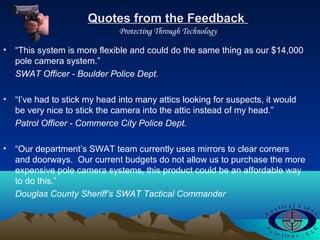

7. Quotes from the FeedbackQuotes from the Feedback
Protecting Through Technology
• “This system is more flexible and could do the same thing as our $14,000
pole camera system.”
SWAT Officer - Boulder Police Dept.
• “I’ve had to stick my head into many attics looking for suspects, it would
be very nice to stick the camera into the attic instead of my head.”
Patrol Officer - Commerce City Police Dept.
• “Our department’s SWAT team currently uses mirrors to clear corners
and doorways. Our current budgets do not allow us to purchase the more
expensive pole camera systems, this product could be an affordable way
to do this.”
Douglas County Sheriff’s SWAT Tactical Commander

8. IR PMCS: Problem SolvingIR PMCS: Problem Solving
Protecting Through Technology
• Saves lives of both Law Enforcement Officers and civilians
• Increases reliability of decision-making in critical situations
• Gives Officers night vision tool combined with their primary weapon
• Decreases losses due to wrong use of deadly force
• Provides Officers with the ability to use their weapon from safe position

9. IR PMCS: Social AspectsIR PMCS: Social Aspects
Protecting Through Technology
• Decrease in Police and civilian losses
• Potential for improving public relations through
▪ Decrease in life losses
▪ More reliable decision making
▪ More trust between Police and public
▪ Less tension between Police and minorities
• Combining IR PMCS with miniature recording device serves to
▪ Monitor and document use of deadly force
▪ Avoid false accusations of police brutality
▪ Provide Officers with better training

10. Tactical Video: Looking into the FutureTactical Video: Looking into the Future
Protecting Through Technology
• Small and affordable head-mounted monocular
• Wireless/network IR PMCS complex
• “Video Witness” for both Police and civilian markets
• Miniature and affordable unmanned reconnaissance
vehicles (including aerial) for police applications
