1. Please be advised that there are four (4) programs just like this
one that are required. Please follow the instructions listed in
each word document. The programs build upon one another and
need to be saved to a zip file just like the zip file labeled
"CIS247_WK2_Lab_Rosado.zip". Zip file
CIS247_WK2_Lab_Rosado.zip is the program from which you
start to build from.
STEP 1: Understand the UML Diagram
Analyze and understand the object UML diagram, which models
the structure of the program.
There are no design changes to the Presentation Tier from the
previous project and InputUtilities and ApplicationsUtilities
classes are used without modification (except for changing the
Application Information).
The default values for each of the attributres have been declared
as a constants, which is indicated by the ALL_CAPS in the
name, and the attributes are then set using the default values
Each of the attributes have been specified as private.
The accessors (get) and mutators (set) are not shown on the
class diagram, but it is
ASSUMED
that each private attribute has a corresponding property that
contains the get and set methods.
The "static" modifier for the numEmployees attribute means
that there is only one copy of the variable that is then shared by
all the objects of the class.
There is a second CalculatePay method that overloads the
existing CalculatePay method
While not shown on the class diagram, the property for
numEmployees will only have a get method, which means it will
be a "read only" method. (A property with only and set method
is a "write-only" property).
Image Description
What is depicted is a single column table with 3 rows. In the

2. first row is the large word "Employee".
In the row beneath this is a list of private parameters, indicated
with a "minus" symbol before them (but no space after). These
are:
-MIN_DEPENDENTS int =0
-MAX_DEPENDENTS int = 10
-MIN_SALARY double = 20000
MAX_SALARY double = 20000
DEFAULT_NAME string = "Not given"
DEFAULT_GENDER char = 'U'
-firstName : String
-lastName : string
-gender : char
-dependents : int
-annualSalary : double
-static numEmployees: int = 0
In the third and final row beneath this is another list of public
parameters, indicated with a "plus" symbol before them (but no
space after). These are:
+Employee()
+Employee(in first : string, in last : string, in gen : char, in dep
: int, in salary : double)
+ToString : string
+CalculateWeeklyPay() : double
+CalcuateWeeklyPay(modifiedSalary double)
Press the ESC key to close the image description and return to
lecture.
STEP 2: Create the Project
You will want to use the Week 2 project as the starting point for
the lab. To do this, you will want to create a new project by
following these steps:
Create a new project named "CIS247_WK3_Lab_LASTNAME".
An empty project will then be created.
Delete the default Program.cs file that is created.
Click on Project->Add Existing Item…. Select the .cs files

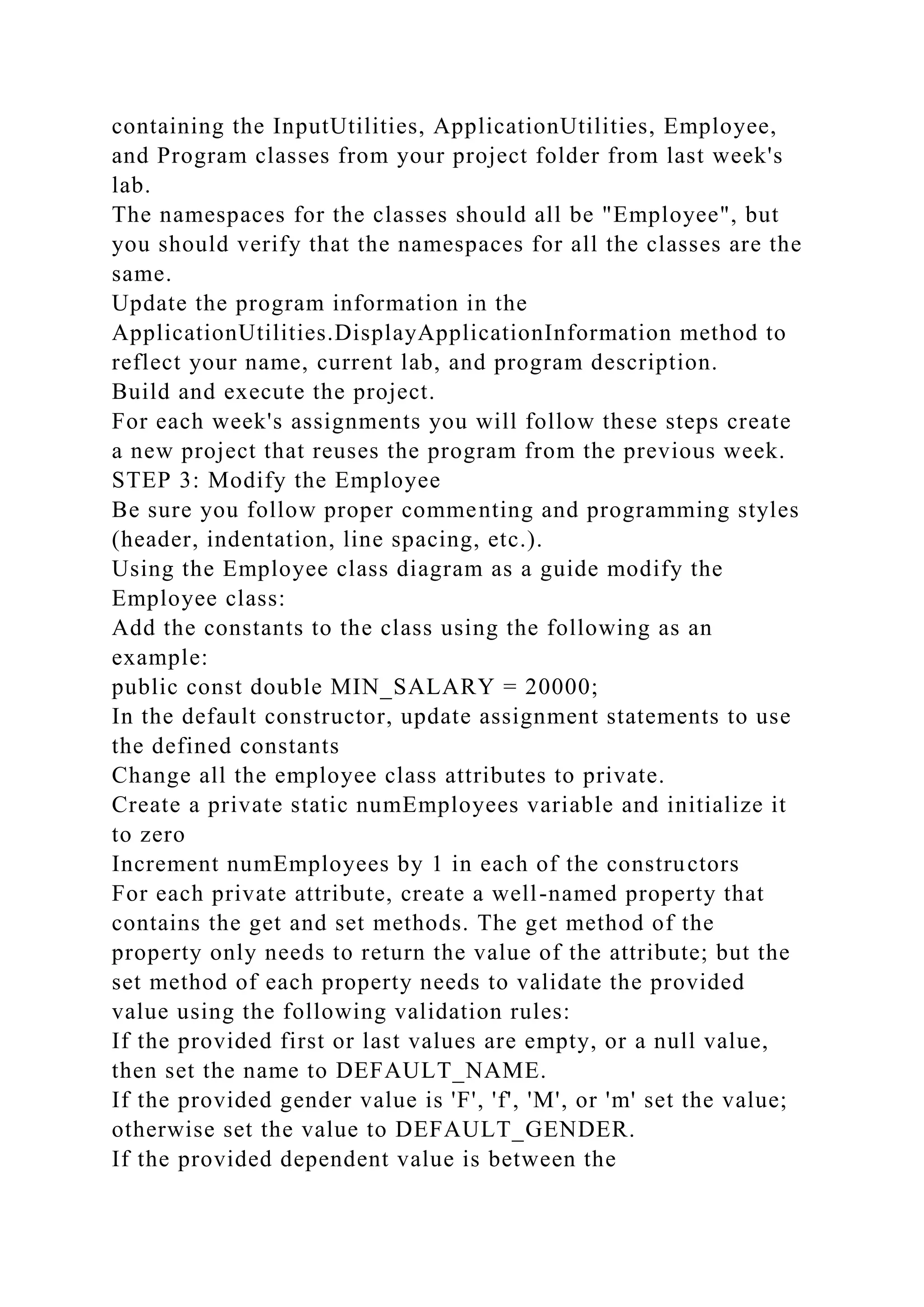

3. containing the InputUtilities, ApplicationUtilities, Employee,
and Program classes from your project folder from last week's
lab.
The namespaces for the classes should all be "Employee", but
you should verify that the namespaces for all the classes are the
same.
Update the program information in the
ApplicationUtilities.DisplayApplicationInformation method to
reflect your name, current lab, and program description.
Build and execute the project.
For each week's assignments you will follow these steps create
a new project that reuses the program from the previous week.
STEP 3: Modify the Employee
Be sure you follow proper commenting and programming styles
(header, indentation, line spacing, etc.).
Using the Employee class diagram as a guide modify the
Employee class:
Add the constants to the class using the following as an
example:
public const double MIN_SALARY = 20000;
In the default constructor, update assignment statements to use
the defined constants
Change all the employee class attributes to private.
Create a private static numEmployees variable and initialize it
to zero
Increment numEmployees by 1 in each of the constructors
For each private attribute, create a well-named property that
contains the get and set methods. The get method of the
property only needs to return the value of the attribute; but the
set method of each property needs to validate the provided
value using the following validation rules:
If the provided first or last values are empty, or a null value,
then set the name to DEFAULT_NAME.
If the provided gender value is 'F', 'f', 'M', or 'm' set the value;
otherwise set the value to DEFAULT_GENDER.
If the provided dependent value is between the

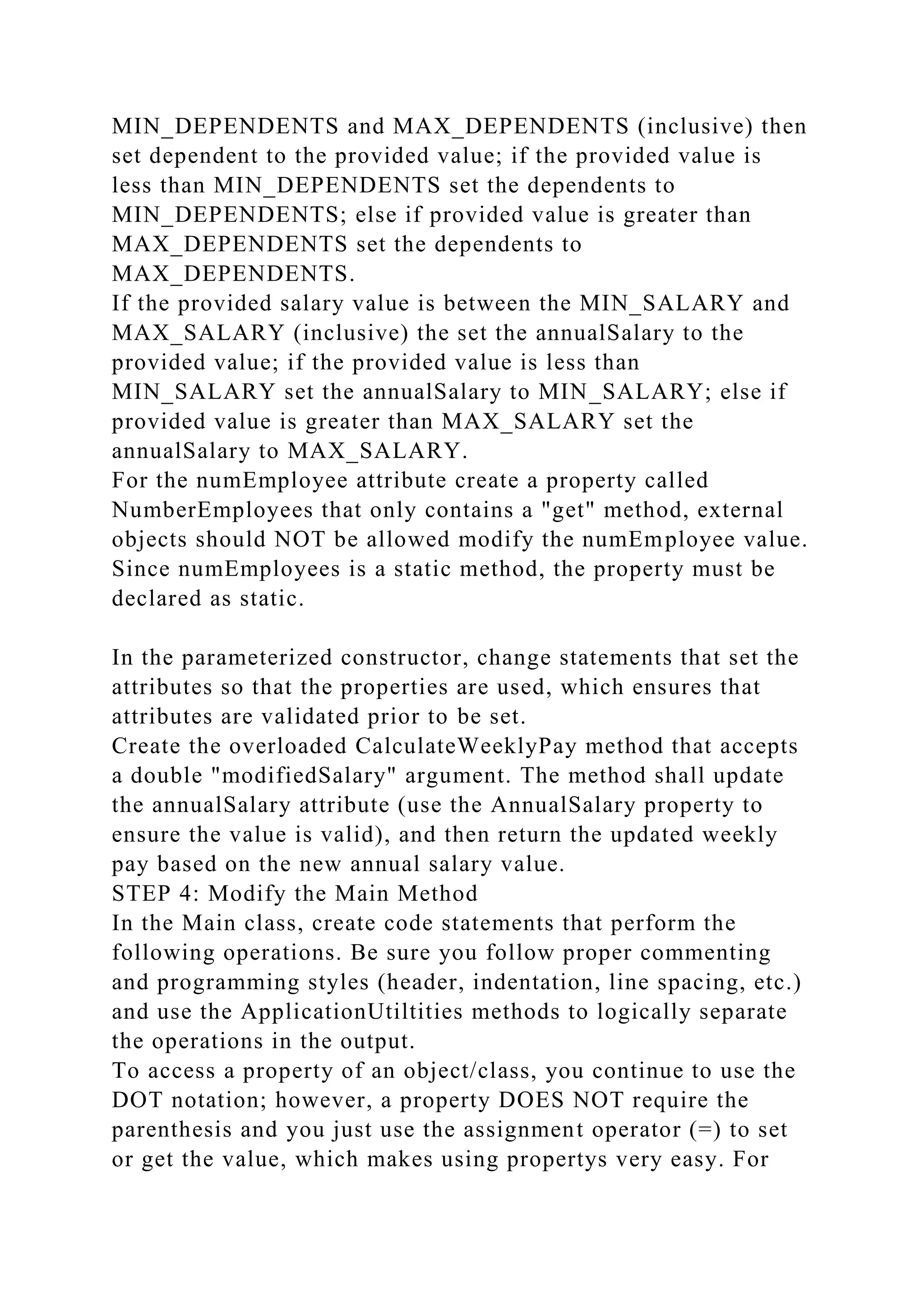

4. MIN_DEPENDENTS and MAX_DEPENDENTS (inclusive) then
set dependent to the provided value; if the provided value is
less than MIN_DEPENDENTS set the dependents to
MIN_DEPENDENTS; else if provided value is greater than
MAX_DEPENDENTS set the dependents to
MAX_DEPENDENTS.
If the provided salary value is between the MIN_SALARY and
MAX_SALARY (inclusive) the set the annualSalary to the
provided value; if the provided value is less than
MIN_SALARY set the annualSalary to MIN_SALARY; else if
provided value is greater than MAX_SALARY set the
annualSalary to MAX_SALARY.
For the numEmployee attribute create a property called
NumberEmployees that only contains a "get" method, external
objects should NOT be allowed modify the numEmployee value.
Since numEmployees is a static method, the property must be
declared as static.
In the parameterized constructor, change statements that set the
attributes so that the properties are used, which ensures that
attributes are validated prior to be set.
Create the overloaded CalculateWeeklyPay method that accepts
a double "modifiedSalary" argument. The method shall update
the annualSalary attribute (use the AnnualSalary property to
ensure the value is valid), and then return the updated weekly
pay based on the new annual salary value.
STEP 4: Modify the Main Method
In the Main class, create code statements that perform the
following operations. Be sure you follow proper commenting
and programming styles (header, indentation, line spacing, etc.)
and use the ApplicationUtiltities methods to logically separate
the operations in the output.
To access a property of an object/class, you continue to use the
DOT notation; however, a property DOES NOT require the
parenthesis and you just use the assignment operator (=) to set
or get the value, which makes using propertys very easy. For

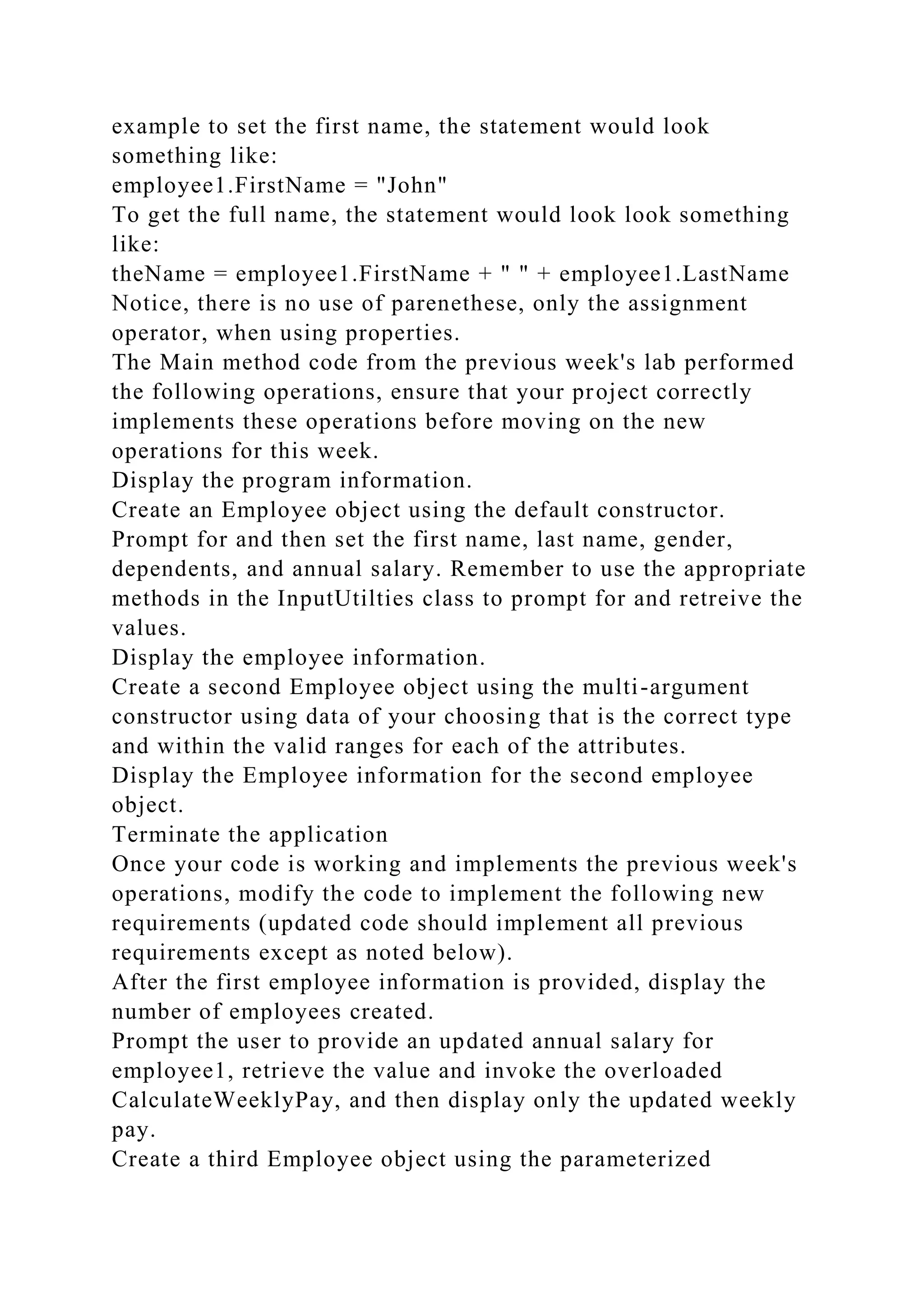

5. example to set the first name, the statement would look
something like:
employee1.FirstName = "John"
To get the full name, the statement would look look something
like:
theName = employee1.FirstName + " " + employee1.LastName
Notice, there is no use of parenethese, only the assignment
operator, when using properties.
The Main method code from the previous week's lab performed
the following operations, ensure that your project correctly
implements these operations before moving on the new
operations for this week.
Display the program information.
Create an Employee object using the default constructor.
Prompt for and then set the first name, last name, gender,
dependents, and annual salary. Remember to use the appropriate
methods in the InputUtilties class to prompt for and retreive the
values.
Display the employee information.
Create a second Employee object using the multi-argument
constructor using data of your choosing that is the correct type
and within the valid ranges for each of the attributes.
Display the Employee information for the second employee
object.
Terminate the application
Once your code is working and implements the previous week's
operations, modify the code to implement the following new
requirements (updated code should implement all previous
requirements except as noted below).
After the first employee information is provided, display the
number of employees created.
Prompt the user to provide an updated annual salary for
employee1, retrieve the value and invoke the overloaded
CalculateWeeklyPay, and then display only the updated weekly
pay.
Create a third Employee object using the parameterized

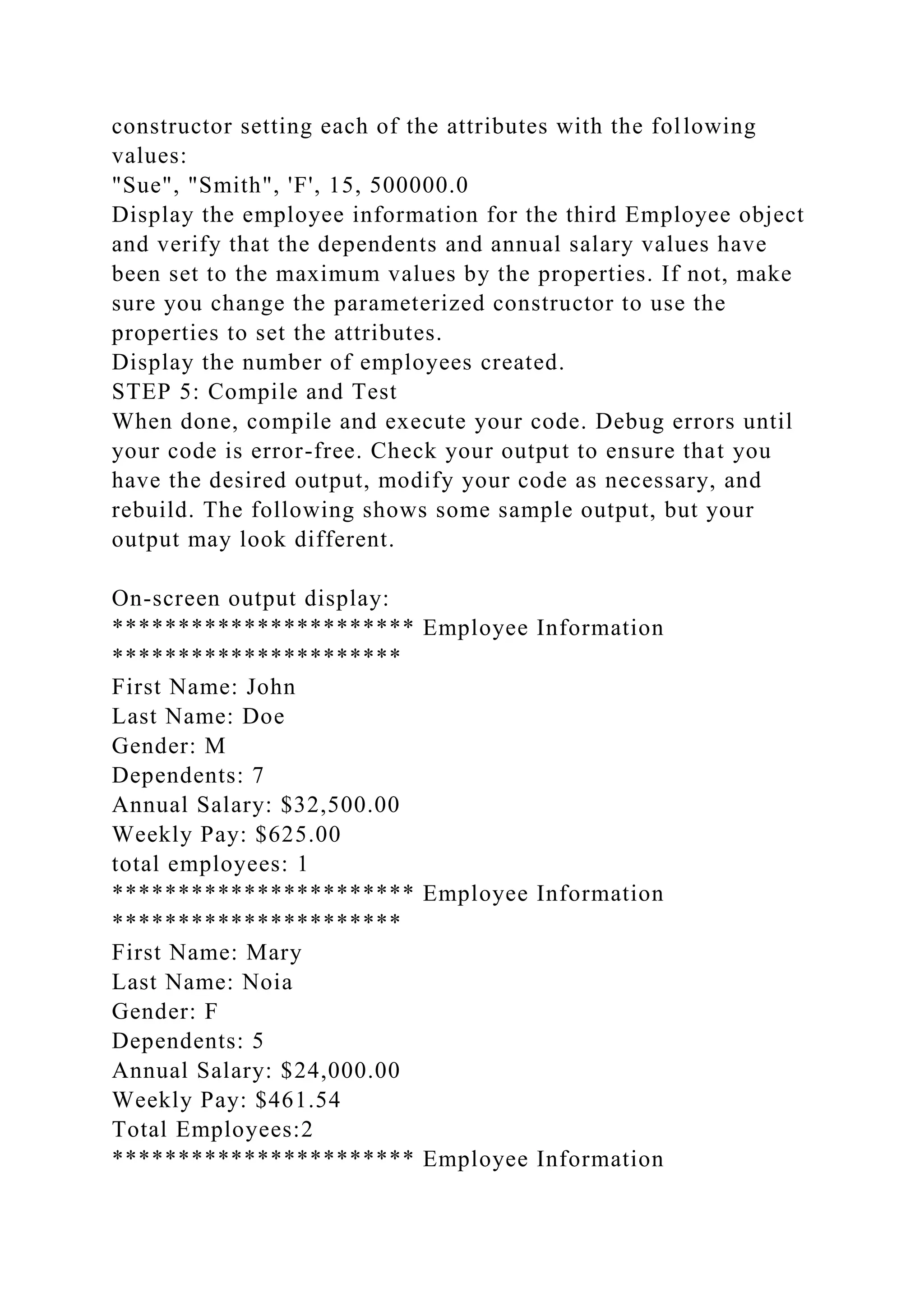

6. constructor setting each of the attributes with the following
values:
"Sue", "Smith", 'F', 15, 500000.0
Display the employee information for the third Employee object
and verify that the dependents and annual salary values have
been set to the maximum values by the properties. If not, make
sure you change the parameterized constructor to use the
properties to set the attributes.
Display the number of employees created.
STEP 5: Compile and Test
When done, compile and execute your code. Debug errors until
your code is error-free. Check your output to ensure that you
have the desired output, modify your code as necessary, and
rebuild. The following shows some sample output, but your
output may look different.
On-screen output display:
*********************** Employee Information
**********************
First Name: John
Last Name: Doe
Gender: M
Dependents: 7
Annual Salary: $32,500.00
Weekly Pay: $625.00
total employees: 1
*********************** Employee Information
**********************
First Name: Mary
Last Name: Noia
Gender: F
Dependents: 5
Annual Salary: $24,000.00
Weekly Pay: $461.54
Total Employees:2
*********************** Employee Information

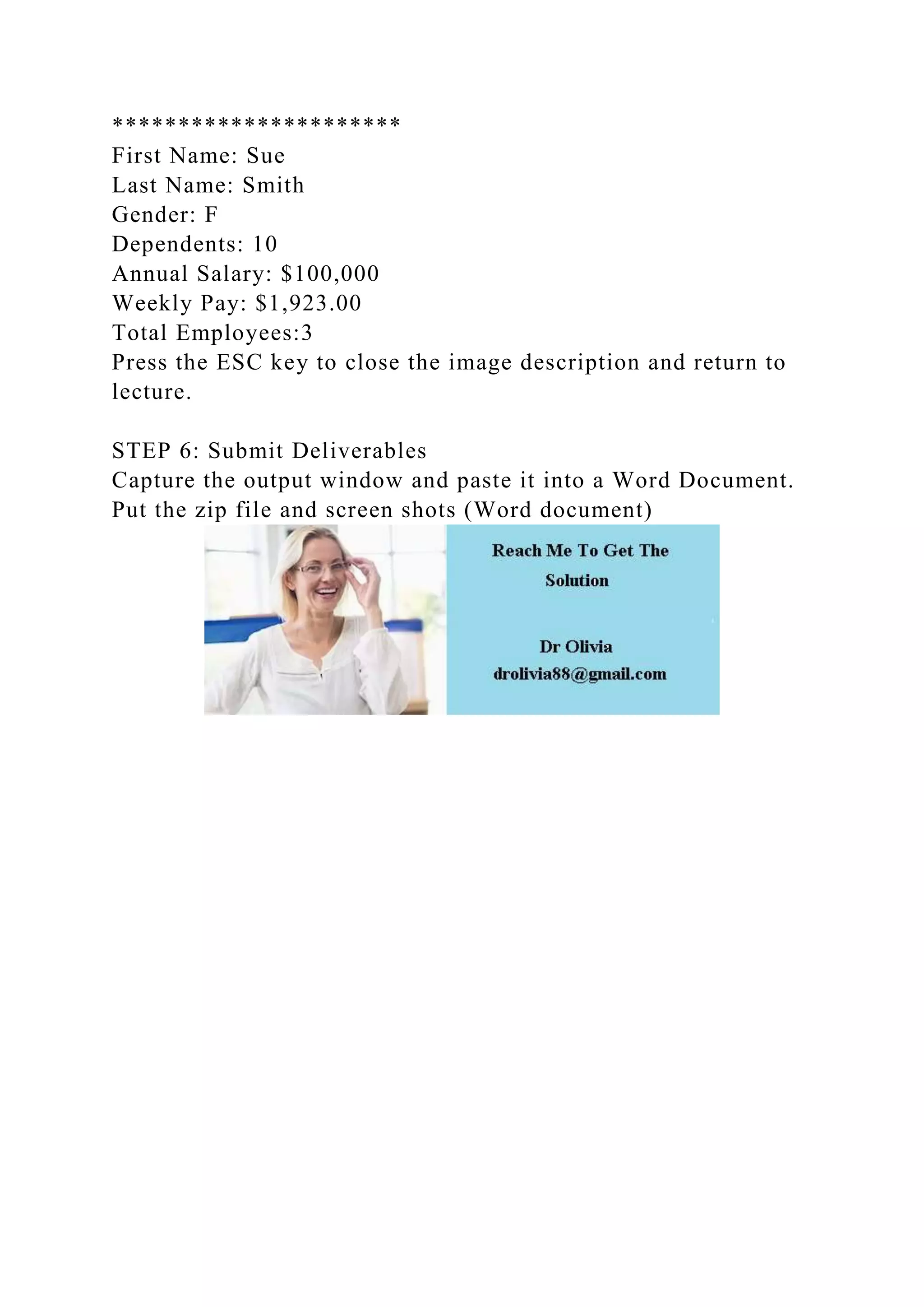

7. **********************
First Name: Sue
Last Name: Smith
Gender: F
Dependents: 10
Annual Salary: $100,000
Weekly Pay: $1,923.00
Total Employees:3
Press the ESC key to close the image description and return to
lecture.
STEP 6: Submit Deliverables
Capture the output window and paste it into a Word Document.
Put the zip file and screen shots (Word document)
