You are requested to install the PLC Ladder Simulator app from the Google Play Store to your android phone to simulate logic gates like OR, NOT, NAND, NOR, AND and XOR gates. You can watch tutorial videos and create the logic in the app or online at https://www.plcfiddle.com by making an account. The goal is to simulate 6 different logic gates - OR, NOT, NAND, NOR, AND and XOR.

1. PLC M10
S.S.P 1
PLC Ladder Simulator
You all are requested to install PLC LADDER SIMULATOR
APPs on your android phones.
You can install it from Google Play Store.
After installing PLC LADDER SIMULATOR
Watch these videos
 https://www.youtube.com/watch?v=mPsHQ4AwLK0
 https://www.youtube.com/watch?v=I9X7u_z0JCA
 https://www.youtube.com/watch?v=ziQZPXDaoIo
Create the following LADDER LOGICS and do the simulations.
1 OR GATE

2. PLC M10
S.S.P 2
2 NOT GATE
3 NAND GATE
4 NOR GATE
5 AND GATE
6 XOR GATE

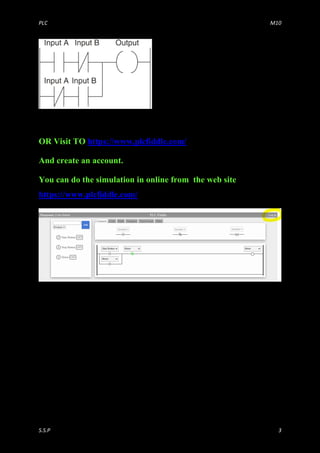

3. PLC M10
S.S.P 3
OR Visit TO https://www.plcfiddle.com/
And create an account.
You can do the simulation in online from the web site
https://www.plcfiddle.com/
