1. Manufacturer of parallel corrugated flexible metal hose and
metal hose assemblies

2. Opening
Welcome to PlatinfleX
Beginnings are both exciting and challenging.
It is difficult because it is new and will need some times
and effort to get used to.In this case,we knowwhat awaitedus.Positive and
negative sides and we know how to solve adifficulty we face.Familiar and safe.
We are happy to introduce our self to you
Platinflex Managment

3. Who we are ?
PlatinGroup Mach. Manufacturing Int. Co Ltd. Thecompany was founded in
2006 and managingpartners are located in the sector since 2000.We areleading
manufacturers of flexible metalliccomponents, such as metal hoses, metal
hoseassemblies, metal hoses for marine, metal hoses forRailway, Vibration
hoses and Custom specific metalhose assemblies.

4. Our Applications
« Engineering. Surveying. Solutions. »

5. Our Applications
«When you need experience, we have it covered.»

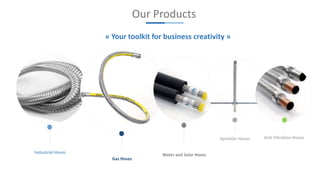

6. Gas Hoses
Water and Solar Hoses
Sprinkler Hoses
Our Products
Anti Vibration Hoses
« Your toolkit for business creativity »

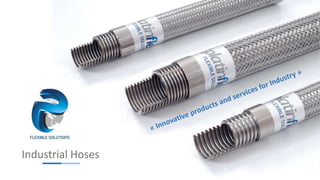

7. Industrial Hoses

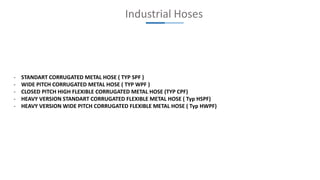

8. Industrial Hoses
- STANDART CORRUGATED METAL HOSE ( TYP SPF )
- WIDE PITCH CORRUGATED METAL HOSE ( TYP WPF )
- CLOSED PITCH HIGH FLEXIBLE CORRUGATED METAL HOSE (TYP CPF)
- HEAVY VERSION STANDART CORRUGATED FLEXIBLE METAL HOSE ( Typ HSPF)
- HEAVY VERSION WIDE PITCH CORRUGATED FLEXIBLE METAL HOSE ( Typ HWPF)

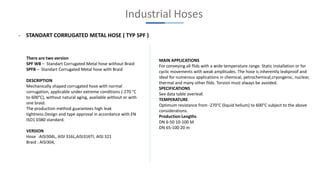

9. Industrial Hoses
- STANDART CORRUGATED METAL HOSE ( TYP SPF )
There are two version
SPF WB – Standart Corrugated Metal hose without Braid
SPFB – Standart Corrugated Metal hose with Braid
DESCRIPTION
Mechanically shaped corrugated hose with normal
corrugation, applicable under extreme conditions (-270 °C
to 600°C), without natural aging, available without or with
one braid.
The production method guarantees high leak
tightness.Design and type approval in accordance with EN
ISO1 0380 standard.
VERSION
Hose :AISI304L, AISI 316L,AISI316TI, AISI 321
Braid : AISI304,
MAIN APPLICATIONS
For conveying all flids with a wide temperature range. Static installation or for
cyclic movements with weak amplitudes. The hose is inherently leakproof and
ideal for numerous applications in chemical, petrochemical,cryongenic, nuclear,
thermal and many other filds. Torsion must always be avoided.
SPECIFICATIONS
See data table overleaf.
TEMPERATURE
Optimum resistance from -270°C (liquid helium) to 600°C subject to the above
considerations.
Production Lengths
DN 6-50 10-100 M
DN 65-100 20 m

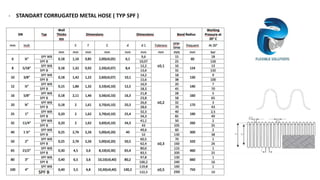

10. - STANDART CORRUGATED METAL HOSE ( TYP SPF )

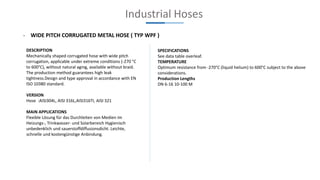

11. Industrial Hoses
- WIDE PITCH CORRUGATED METAL HOSE ( TYP WPF )
DESCRIPTION
Mechanically shaped corrugated hose with wide pitch
corrugation, applicable under extreme conditions (-270 °C
to 600°C), without natural aging, available without braid.
The production method guarantees high leak
tightness.Design and type approval in accordance with EN
ISO 10380 standard.
VERSION
Hose :AISI304L, AISI 316L,AISI316TI, AISI 321
MAIN APPLICATIONS
Flexible Lösung für das Durchleiten von Medien im
Heizungs-, Trinkwasser- und Solarbereich Hygienisch
unbedenklich und sauerstoffdiffusionsdicht. Leichte,
schnelle und kostengünstige Anbindung.
SPECIFICATIONS
See data table overleaf.
TEMPERATURE
Optimum resistance from -270°C (liquid helium) to 600°C subject to the above
considerations.
Production Lengths
DN 6-16 10-100 M

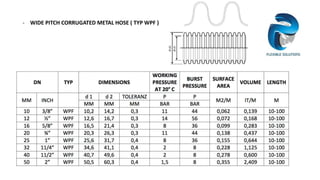

12. - WIDE PITCH CORRUGATED METAL HOSE ( TYP WPF )

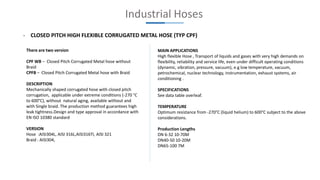

13. Industrial Hoses
- CLOSED PITCH HIGH FLEXIBLE CORRUGATED METAL HOSE (TYP CPF)
There are two version
CPF WB – Closed Pitch Corrugated Metal hose without
Braid
CPFB – Closed Pitch Corrugated Metal hose with Braid
DESCRIPTION
Mechanically shaped corrugated hose with closed pitch
corrugation, applicable under extreme conditions (-270 °C
to 600°C), without natural aging, available without and
with Single braid. The production method guarantees high
leak tightness.Design and type approval in accordance with
EN ISO 10380 standard
VERSION
Hose :AISI304L, AISI 316L,AISI316TI, AISI 321
Braid : AISI304,
MAIN APPLICATIONS
High flexible Hose , Transport of liquids and gases with very high demands on
flexibility, reliability and service life, even under difficult operating conditions
(dynamic, vibration, pressure, vacuum), e.g low temperature, vacuum,
petrochemical, nuclear technology, instrumentation, exhaust systems, air
conditioning .
SPECIFICATIONS
See data table overleaf.
TEMPERATURE
Optimum resistance from -270°C (liquid helium) to 600°C subject to the above
considerations.
Production Lengths
DN 6-32 10-70M
DN40-50 10-20M
DN65-100 7M

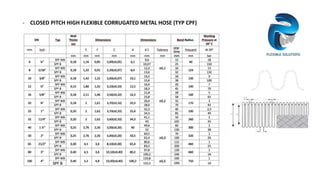

14. - CLOSED PITCH HIGH FLEXIBLE CORRUGATED METAL HOSE (TYP CPF)

15. Industrial Hoses
- HEAVY VERSION STANDART CORRUGATED FLEXIBLE METAL HOSE ( Typ HSPF)
There are two version
HSPF WB – Heavy Standart Corrugated Metal hose without
Braid
HSPFB – Heavy Standart Corrugated Metal hose with Braid
DESCRIPTION
Mechanically shaped corrugated hose with standart
corrugation and with applicable under extreme conditions(-
270 °C to 600°C), without natural aging, available without or
with one braid.
The production method guarantees high leak
tightness.Design and type approval in accordance with EN
ISO1 0380 standard.
VERSION
Hose :AISI304L, AISI 316L,AISI316TI, AISI 321
Braid : AISI304,
MAIN APPLICATIONS
Transport of liquid or gaseous media, which make high demands on pressure
resistance, flexibility and durability in harsh environments: transfer of industrial
gases, steam engines, turbines, plate presses …
SPECIFICATIONS
See data table overleaf.
TEMPERATURE
Optimum resistance from -270°C (liquid helium) to 600°C subject to the above
considerations.
Production Lengths
DN 6-16 10-100 M
DN 20-50 10 m

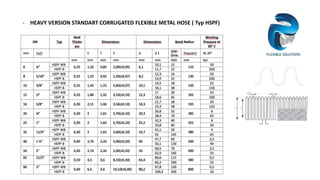

16. - HEAVY VERSION STANDART CORRUGATED FLEXIBLE METAL HOSE ( Typ HSPF)

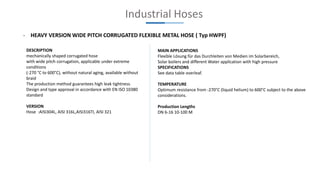

17. Industrial Hoses
- HEAVY VERSION WIDE PITCH CORRUGATED FLEXIBLE METAL HOSE ( Typ HWPF)
DESCRIPTION
mechanically shaped corrugated hose
with wide pitch corrugation, applicable under extreme
conditions
(-270 °C to 600°C), without natural aging, available without
braid
The production method guarantees high leak tightness.
Design and type approval in accordance with EN ISO 10380
standard
VERSION
Hose :AISI304L, AISI 316L,AISI316TI, AISI 321
MAIN APPLICATIONS
Flexible Lösung für das Durchleiten von Medien im Solarbereich,
Solar boilers and different Water application with high pressure
SPECIFICATIONS
See data table overleaf.
TEMPERATURE
Optimum resistance from -270°C (liquid helium) to 600°C subject to the above
considerations.
Production Lengths
DN 6-16 10-100 M

18. - HEAVY VERSION WIDE PITCH CORRUGATED FLEXIBLE METAL HOSE ( Typ HWPF)

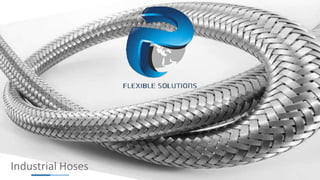

19. Industrial Hoses

20. Closing Factory1 Millet Cad. No: 16/2 OrhanlıBeldesi TUZLA/İSTANBUL
Factory2 GörükleSanayii Bölgesi Nilüfer / BURSA
Headquarter DAP RoyalCenter AltayçeşmeMh.Çamsok. No:16 D
Blok/43Maltepe/İstanbul
Contact Info
Phone: +90 216 541 43 41Fax: +90 216 541 99 73
Email: information@platinflex.com
Web: www.platinflex.com
Netherland
PlatinOrange Group B.V.
Ugchelseweg81 E7335J5 Apeldoorn
RussiaOfficeMalaya MitrophanievskoyeStreet, No:6 St.Petersburg
