The document summarizes a presentation about piloting a hybrid cloud solution for science. It discusses ramping up the pilot phase, commercializing the solution by extending the service portfolio and security certifications, and addressing challenges. A key focus is providing flexible, secure access to distributed data across public and private clouds for open innovation, science and research organizations. Example use cases are processing large datasets for CERN and providing cloud services for the Copernicus program.

1. hybrid cloud for
science
Kickoff Phase 3 – Pilot
FeBRUARY, 6th / 7th 2018
Team T-Systems/Huawei/Cyfronet/Divia

2. Helix Nebula Science CLOUD
Vision T-Systems
2
“Helix nebula will be tHe leading european
hybrid cloud platform for open innovation, open
science, and open to the world, for
organizations and individual researchers.
And open Telekom cloud will be a key partner and
resource contributor.”
Team T-Systems.
06.02.2018Open Telekom Cloud for HNSciCloud Pilot

3. T-Systems HNSCICLOUD-Team
06.02.2018 3Open Telekom Cloud for HNSciCloud Pilot

4. Agenda
06.02.2018 4
 Ramp up
 COMMERCIALISATION
 Challenges
PILOT
03.04.2017Open Telekom Cloud for HNSciCloud Pilot 4

5. HNSCICLOUD PILOT – T-Systems Hybrid Cloud solution
06.02.2018Open Telekom Cloud for HNSciCloud Pilot 5
 Multiple Service Payment Options
 Enterprise Agreements
 Choice of access and interfaces
 New HPC service options
 Onedata Data Management
(High-Performance / Shared-Service)
 6 * 10G connectivity

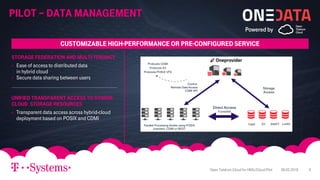

6. PILOT – Data Management
06.02.2018Open Telekom Cloud for HNSciCloud Pilot 6
Storage federation and multi-tenancy
• Ease of access to distributed data
in hybrid cloud
• Secure data sharing between users
Customizable High-performance or pre-configured service
Unified transparent access to hybrid-
cloud storage resources
• Transparent data access across hybrid-cloud
deployment based on POSIX and CDMI
Powered by

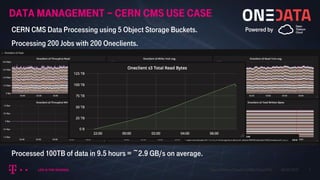

7. Data Management – CERN CMS Use Case
06.02.2018 7Open Telekom Cloud for HNSciCloud Pilot
CERN CMS Data Processing using 5 Object Storage Buckets.
Processing 200 Jobs with 200 Oneclients.
Processed 100TB of data in 9.5 hours = ~2.9 GB/s on average.
Powered by

8. Agenda
06.02.2018 8
 Prototype
 Commercialisation
 Challenges
Ramp Up
03.04.2017Open Telekom Cloud for HNSciCloud Pilot 8

9. Ramp up
PHASE 3 Pilot
06.02.2018Open Telekom Cloud for HNSciCloud Pilot 9

10. Agenda
06.02.2018 10
 Prototype
 RAMP-UP
 Challenges
Commercialisation
03.04.2017Open Telekom Cloud for HNSciCloud Pilot 10

11. HNSCICLOUD pILOT - Commercialisation
extending Service Portfolio
06.02.2018Open Telekom Cloud for HNSciCloud Pilot 11
ECS = Elastic Cloud Server, DeH =Dedicated Host, AS= Auto Scaling, IMS = Image Mgmt System,
OBS = Object Storage. EVS = Elastic Volume Storage, VBS = Volume Backup Service, SFS = Scalable File Service, CSBS = Cloud Server Backup Service
Elastic
IP
Virtual Private
Cloud
Unified & Elastic
Load Balancer
Domain Name
Service
Content Delivery
Network
Container
Engine
Relational
DB
OBS EVS VBSECS IMS DeHAS
PAAS
Management
Compute
Network
Storage
Security
Federation
Anti-DDoS
Identity Mgmt.
Key Mgmt.
Data
Encryption
SAAS Big Data
Bare
Metal
Firewall Marketplace
Cloud
Eye
Price
Online
Display
HEAT
Templates
Tag Mgmt.
Service
Cloud
TraceMigration
Financial Dashboard
SFS CSBS
New 11/2017Enhanced 11/2017
Distributed
Cache
Data
Warehouse
Enterprise Agreement

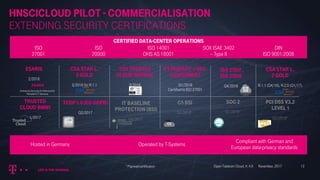

12. Compliant with German and
European data-privacy standards
Certified data-center operations
Hosted in Germany Operated by T-Systems
HNSCICLOUD pILOT - Commercialisation
extending Security Certifications
ISO
27001
ISO
20000
ISO 14001
OHS AS 18001
SOX ISAE 3402
– Type II
DIN
ISO 9001:2008
ESARIS
EnterpriseSecurityArchitecturefor
ReliableICT Services
CSA Star L.
2 Gold
3/2016 für R.1.1
tÜV Trusted
Cloud Service
3/2016
ESARIS
2/2016
DT Privacy + Sec.
assessment
Q1/2016
Certified to ISO 27001
CSA Star L.
2 Gold
R.1.1 (Q4/16), R.2.0 (Q1/17)
Trusted
Cloud BMWI
1/2017
ISO 27017,
ISO 27018
Q4/2016
IT Baseline
protection (BSI)
Q4/2017*
C5 BSI
Q1/2018*
SOC 2
Q1/2018*
PCI DSS V3.2
Level 1
Q2/2018*
TCDP 1.0 (EU GDPR)
Q2/2017
12Open Telekom Cloud, V. 4.0 November, 2017* Planned certification

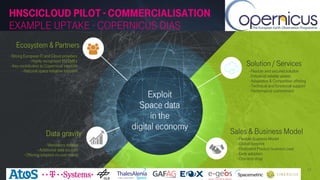

13. HNSCICLOUD pILOT - Commercialisation
example UPTAKE - Copernicus DIAS
13
Solution / Services
Sales & Business Model
Ecosystem & Partners
Data gravity
- Flexible and secured solution
- Industrial reliable assets
- Adaptative & Competitive offering
- Technical and functional support
- Performance commitment
- Flexible Business Model
- Global footprint
- Dedicated Product business case
- Early adopters
- One-stop shop
- Strong European IT and Cloud providers
- Highly recognized EU SMEs
- Key contributors to Copernicus services
- National space initiative footprint
- Mandatory dataset
- Additional data sources
- Offering adapted on user needs
Exploit
Space data
in the
digital economy

14. Agenda
06.02.2018 14
 Prototype
 RAMP-UP
 Commercialisation
Challenges
03.04.2017Open Telekom Cloud for HNSciCloud Pilot 14

15. Challenges
HNSciCloud Phase 3
 Managing the Use Case Diversity
 Integration of existing on-premise data sets
 Extending the Service Payment options for Science
06.02.2018Open Telekom Cloud for HNSciCloud Pilot 15

16. Thank You!
