Photography involves recording light or electromagnetic radiation using a camera to create durable images. The first photograph was taken in 1826 by Joseph Nicéphore Niépce using a camera obscura. Early cameras were later invented and improved upon, with the first color photograph taken in 1861. Key parts of the camera include the lens, viewfinder, aperture ring, and shutter speed dial. The camera lens focuses light beams using its focal length and different types of lenses like wide-angle, normal, telephoto, and zoom lenses serve various purposes.

1. PHOTOGRAPHY,
CAMERA,
LENSES

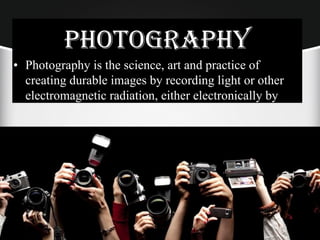

2. PHOTOGRAPHY
• Photography is the science, art and practice of
creating durable images by recording light or other
electromagnetic radiation, either electronically by

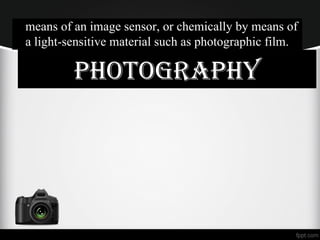

3. means of an image sensor, or chemically by means of
a light-sensitive material such as photographic film.
PHOTOGRAPHY

4. • Comes from the Greek word “phōtos” which
means light and “graphé” which means
“drawing”.
• Together they mean drawing with light

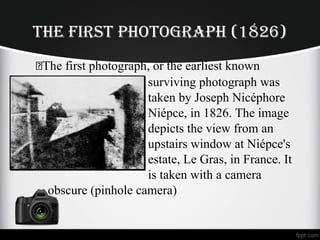

5. THE FIRST PHOTOGRAPH (1826)
The first photograph, or the earliest known
surviving photograph was
taken by Joseph Nicéphore
Niépce, in 1826. The image
depicts the view from an
upstairs window at Niépce's
estate, Le Gras, in France. It
is taken with a camera
obscure (pinhole camera)

6. THE EARLIEST CAMERA (1840)
The first camera invented was mad by
Alexander Wolcott - his camera design
was patented on May 8th, 1840. His
invention made it possible for candid
photos to be taken and not fade away with
time. He also has the distinction of
opening the earliest photography shop –
that was known as a dagurran parlor – in
New York City.
THE FIRST PHOTOGRAPH
OF A HuMAn

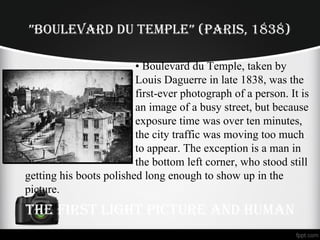

7. ”BOuLEvARd du TEMPLE” (PARIS, 1838)
• Boulevard du Temple, taken by
Louis Daguerre in late 1838, was the
first-ever photograph of a person. It is
an image of a busy street, but because
exposure time was over ten minutes,
the city traffic was moving too much
to appear. The exception is a man in
the bottom left corner, who stood still
getting his boots polished long enough to show up in the
picture.
THE FIRST LIGHT PICTuRE And HuMAn

8. POTRAIT EvER TAkEn [OCT,nOv 1839]
Robert Cornelius, self-portrait,
Oct. or Nov. 1839, approximate
quarter plate daguerreotype
which is a procedure invented in
1839 using silver on a copper
plate. The back reads, “The first
light picture ever taken.” This
self-portrait is the first
photographic portrait image of a
human ever produced.

9. First Color PhotograPh [1861]
Although color photography was
explored throughout the 19th
century, initial experiments in color
resulted in projected temporary
images, rather than permanent color
images. Moreover until the 1870s
the emulsions available were not
sensitive to red or green light.The
first color photo, an additive
projected image of a tartan ribbon,
was taken in 1861 by the Scottish
physicist James Clerk Maxwell.
First high sPeed PhotograPh

10. [1878]
In 1887, using a series of trip wires,
Eadweard Muybridge created the first
high speed photo series which can be
run together to give the effect of
motion pictures. High speed
photography is the science of taking
pictures of very fast phenomena. In
1948, the Society of Motion Picture
and Television Engineers (SMPTE)
defined high-speed photography as
any set of photographs captured by a
camera capable of 128 frames per
second or greater, and of at least three
consecutive frames.
•

12. iNtrodUCtioN
A CAMERA is a device that records images, either as a
still photograph or as moving images known as videos
or movies.
A device for taking photographs by letting light from an
image fall briefly onto sensitized film, usually by
means of a lens-and-shutter mechanism.
The term camera comes from the word camera obscura
(Latin for "dark chamber")
An early mechanism of projecting images where an
entire room functioned as a real-time imaging system
The modern camera evolved from the camera
obscura.

13. historY
Alhazen (Ibn Al-Haytham) invented the Camera
Obscura in AD 1021 and explained why the images
were upside down.
The first camera that was small and portable enough
for practical use was built by Johann Zahn in 1685.
The first permanent photograph was made in 1826 by
Joseph Nicéphore Niépce.
The first colour photograph was made by Scottish
physicist James Clerk Maxwell.

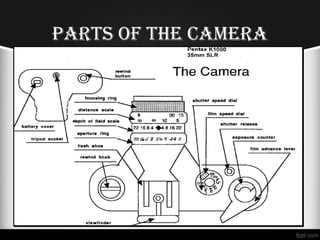

14. Parts oF the CaMera

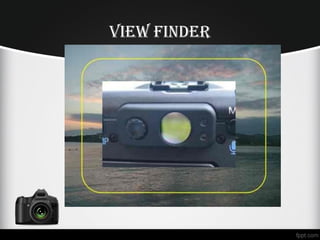

15. View FiNder

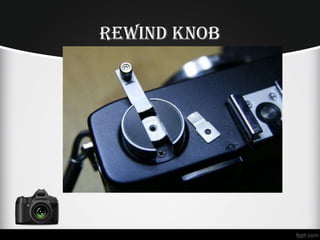

16. Rewind Knob

17. FLASHSHoe
ApeRtuRe Ring

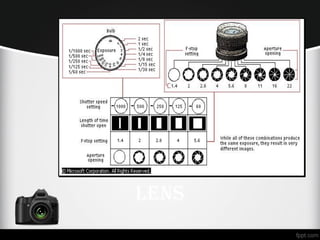

18. LenS

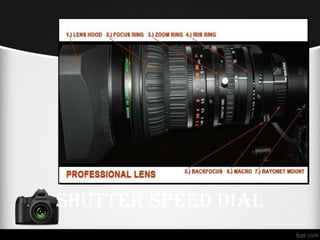

19. SHutteR Speed diAL

20. woRKing oF CAMeRA

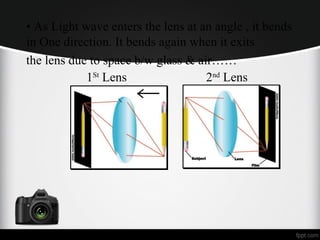

21. • As Light wave enters the lens at an angle , it bends
in One direction. It bends again when it exits
the lens due to space b/w glass & air……
1St
Lens 2nd
Lens

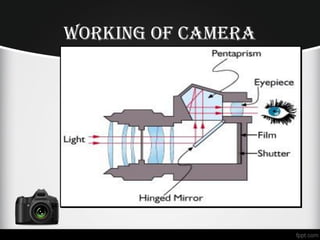

22. woRKing oF CAMeRA

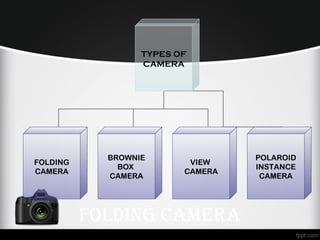

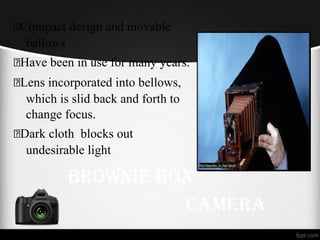

23. Folding Camera

24. Compact design and movable
bellows
Have been in use for many years.
Lens incorporated into bellows,
which is slid back and forth to
change focus.
Dark cloth blocks out
undesirable light
BroWnie BoX
Camera

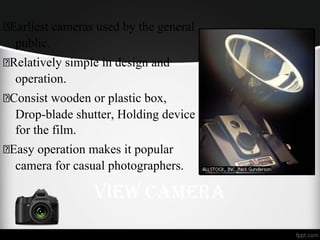

25. Earliest cameras used by the general
public.
Relatively simple in design and
operation.
Consist wooden or plastic box,
Drop-blade shutter, Holding device
for the film.
Easy operation makes it popular
camera for casual photographers.
VieW Camera

26. Used for portrait and still-life
photography.
Geared track, precision
lenses,long bellows make the
camera fairly complicated.
Capture difficult subjects such as
buildings with a minimum of
distortion.

27. Camera lenSeS

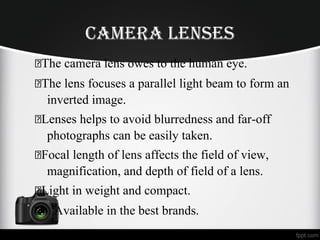

28. Camera lenSeS
The camera lens owes to the human eye.
The lens focuses a parallel light beam to form an
inverted image.
Lenses helps to avoid blurredness and far-off
photographs can be easily taken.
Focal length of lens affects the field of view,
magnification, and depth of field of a lens.
Light in weight and compact.
Available in the best brands.

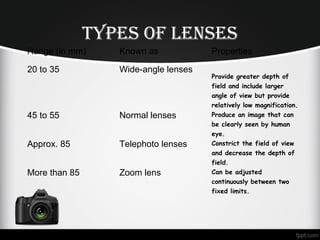

29. TYPeS oF lenSeS
Range (in mm) Known as Properties
20 to 35 Wide-angle lenses
Provide greater depth of
field and include larger
angle of view but provide
relatively low magnification.
45 to 55 Normal lenses Produce an image that can
be clearly seen by human
eye.
Approx. 85 Telephoto lenses Constrict the field of view
and decrease the depth of
field.
More than 85 Zoom lens Can be adjusted
continuously between two
fixed limits.
