1. AMITY

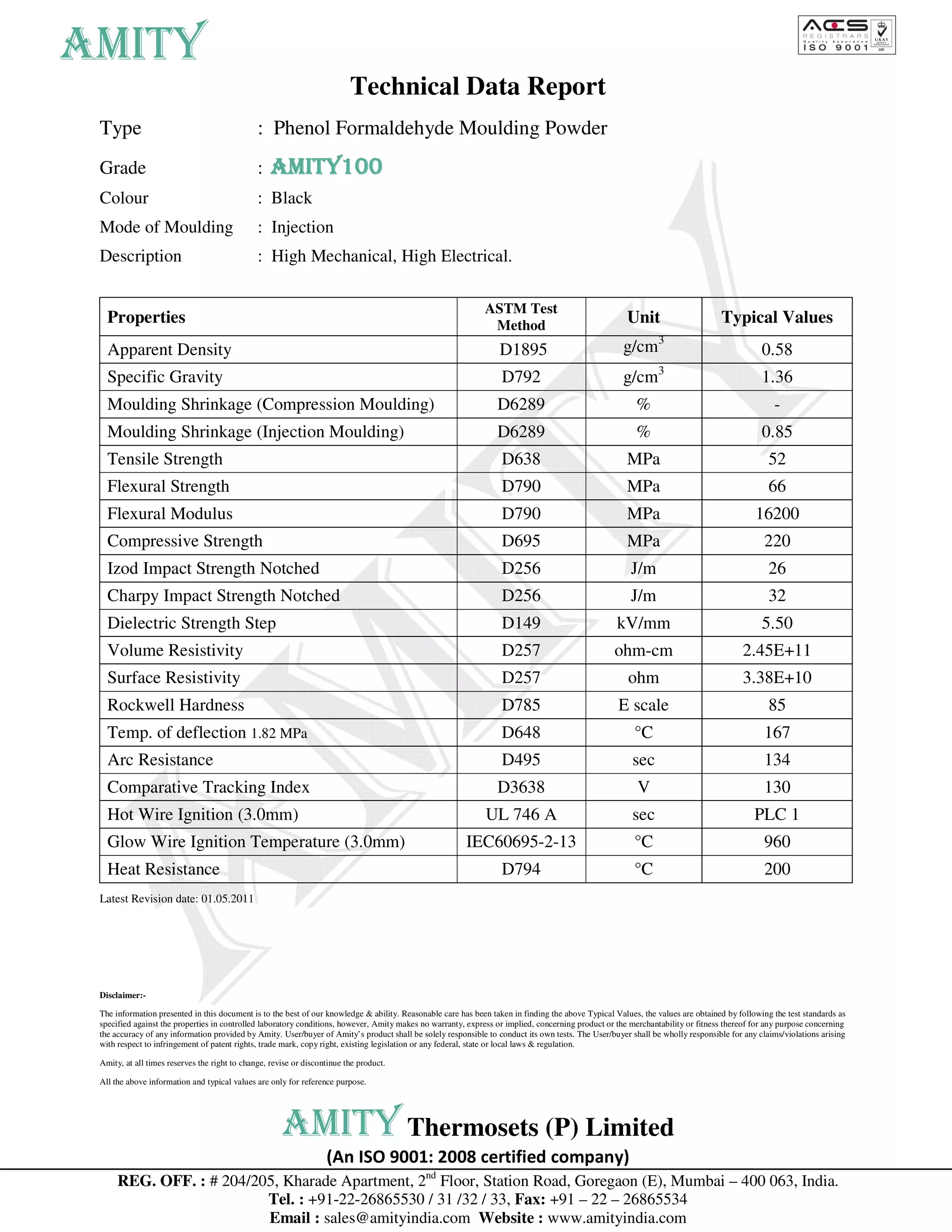

Technical Data Report
Type : Phenol Formaldehyde Moulding Powder
Grade : AMITY100
AMITY100
Colour : Black
Mode of Moulding : Injection
Description : High Mechanical, High Electrical.
ASTM Test
Properties Method Unit Typical Values
Apparent Density D1895 g/cm3 0.58
3
Specific Gravity D792 g/cm 1.36
Moulding Shrinkage (Compression Moulding) D6289 % -
Moulding Shrinkage (Injection Moulding) D6289 % 0.85
Tensile Strength D638 MPa 52
Flexural Strength D790 MPa 66
Flexural Modulus D790 MPa 16200
Compressive Strength D695 MPa 220
Izod Impact Strength Notched D256 J/m 26
Charpy Impact Strength Notched D256 J/m 32
Dielectric Strength Step D149 kV/mm 5.50
Volume Resistivity D257 ohm-cm 2.45E+11
Surface Resistivity D257 ohm 3.38E+10
Rockwell Hardness D785 E scale 85
Temp. of deflection 1.82 MPa D648 °C 167
Arc Resistance D495 sec 134
Comparative Tracking Index D3638 V 130
Hot Wire Ignition (3.0mm) UL 746 A sec PLC 1
Glow Wire Ignition Temperature (3.0mm) IEC60695-2-13 °C 960
Heat Resistance D794 °C 200
Latest Revision date: 01.05.2011
Disclaimer:-
The information presented in this document is to the best of our knowledge & ability. Reasonable care has been taken in finding the above Typical Values, the values are obtained by following the test standards as
specified against the properties in controlled laboratory conditions, however, Amity makes no warranty, express or implied, concerning product or the merchantability or fitness thereof for any purpose concerning
the accuracy of any information provided by Amity. User/buyer of Amity’s product shall be solely responsible to conduct its own tests. The User/buyer shall be wholly responsible for any claims/violations arising
with respect to infringement of patent rights, trade mark, copy right, existing legislation or any federal, state or local laws & regulation.
Amity, at all times reserves the right to change, revise or discontinue the product.
All the above information and typical values are only for reference purpose.
