Petronas Twin Towers
Mateusz Gryglak

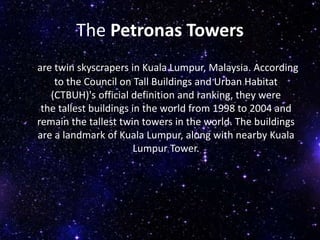

The Petronas Towers
are twin skyscrapers in Kuala Lumpur, Malaysia. According
to the Council on Tall Buildings and Urban Habitat
(CTBUH)'s official definition and ranking, they were
the tallest buildings in the world from 1998 to 2004 and
remain the tallest twin towers in the world. The buildings
are a landmark of Kuala Lumpur, along with nearby Kuala
Lumpur Tower.

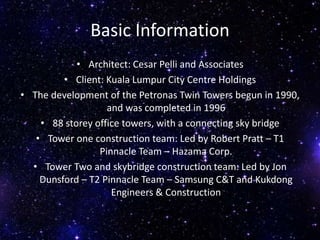

Basic Information
• Architect: Cesar Pelli and Associates
• Client: Kuala Lumpur City Centre Holdings
• The development of the Petronas Twin Towers begun in 1990,
and was completed in 1996
• 88 storey office towers, with a connecting sky bridge
• Tower one construction team: Led by Robert Pratt – T1
Pinnacle Team – Hazama Corp.
• Tower Two and skybridge construction team: Led by Jon
Dunsford – T2 Pinnacle Team – Samsung C&T and Kukdong
Engineers & Construction

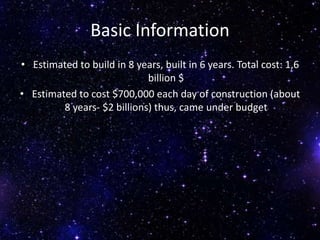

Basic Information
• Estimated to build in 8 years, built in 6 years. Total cost: 1,6
billion $
• Estimated to cost $700,000 each day of construction (about
8 years- $2 billions) thus, came under budget

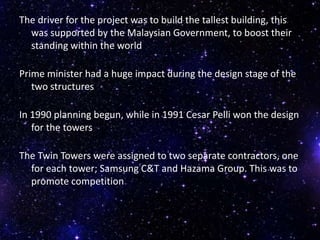

The driver for the project was to build the tallest building, this
was supported by the Malaysian Government, to boost their
standing within the world
Prime minister had a huge impact during the design stage of the
two structures
In 1990 planning begun, while in 1991 Cesar Pelli won the design
for the towers
The Twin Towers were assigned to two separate contractors, one
for each tower; Samsung C&T and Hazama Group. This was to
promote competition

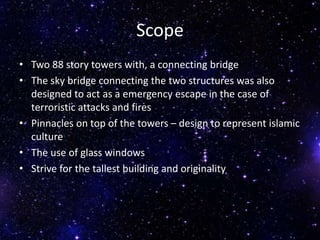

Scope
• Two 88 story towers with, a connecting bridge
• The sky bridge connecting the two structures was also
designed to act as a emergency escape in the case of
terroristic attacks and fires
• Pinnacles on top of the towers – design to represent islamic
culture
• The use of glass windows
• Strive for the tallest building and originality
Time
• The construction was estimated to take 8
years, however there was an eight month
delay
• It was completed in 6 years, two years under
what was predicted
• It was vital that the building was constructed
to the management plan, as it would cost
$700,000 per day after the deadline
Planning
• The Construction site was chosen: Kuala Lumpur Race Track
Cesar Pelli’s designs for the towers were rejected by the Prime
Minister, as they weren’t „Malaysian enough”, meaning that
they didn’t represent Islam sufficiently
• The Prime Minister begun to re-design the floor plan for the
building, changing it to two interlocking squares, creating a
shape of eight-pointed stars, which symbolize the islamic
principles of „unity within unity, harmony, stability, and
rationality”
• During the planning stage the cost estimation is determined. The
Malaysian budget only allowed for 6 years of construction
• Additionaly, the planning stage is the final „green light” for the
project to commence
Execution

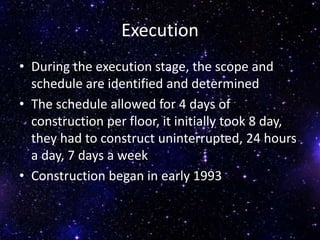

• During the execution stage, the scope and
schedule are identified and determined
• The schedule allowed for 4 days of
construction per floor, it initially took 8 day,
they had to construct uninterrupted, 24 hours
a day, 7 days a week
• Construction began in early 1993
Execution

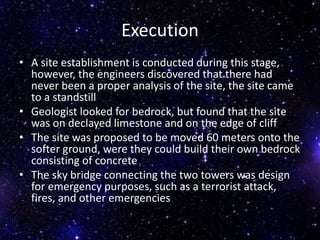

• A site establishment is conducted during this stage,
however, the engineers discovered that there had
never been a proper analysis of the site, the site came
to a standstill

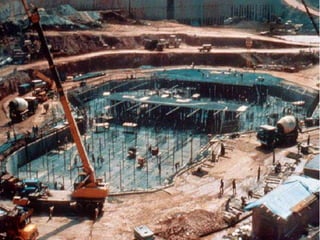

• Geologist looked for bedrock, but found that the site
was on declayed limestone and on the edge of cliff
• The site was proposed to be moved 60 meters onto the
softer ground, were they could build their own bedrock
consisting of concrete
• The sky bridge connecting the two towers was design
for emergency purposes, such as a terrorist attack,
fires, and other emergencies

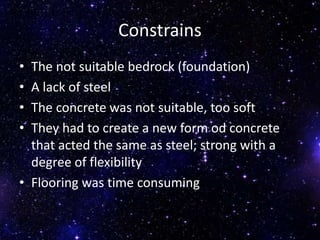

Constrains
• The not suitable bedrock (foundation)
• A lack of steel
• The concrete was not suitable, too soft
• They had to create a new form od concrete
that acted the same as steel; strong with a
degree of flexibility
• Flooring was time consuming
Issues during construction
• Issue One – The foundation slab
If the concrete dried unevenly, the slab would crack,
thus seriously weaken the ability to support the
building above. Therefore, they decided to pour the
concrete all at the once, scheduling concrete trucks to
arrive every 2,5 minutes for 52 hours, without a break
Issues during construction

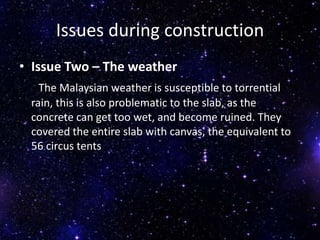

• Issue Two – The weather
The Malaysian weather is susceptible to torrential
rain, this is also problematic to the slab, as the
concrete can get too wet, and become ruined. They
covered the entire slab with canvas, the equivalent to
56 circus tents

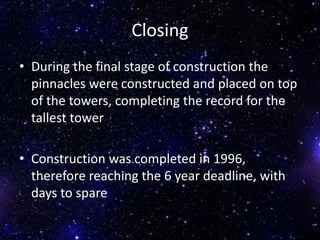

Closing
• During the final stage of construction the
pinnacles were constructed and placed on top
of the towers, completing the record for the
tallest tower
• Construction was completed in 1996,
therefore reaching the 6 year deadline, with
days to spare

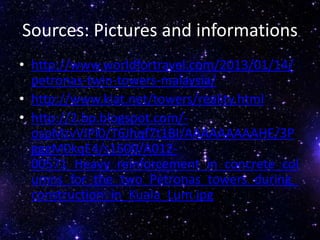

Sources: Pictures and informations
• http://www.worldfortravel.com/2013/01/14/
petronas-twin-towers-malaysia/
• http://www.kiat.net/towers/reality.html
• http://2.bp.blogspot.com/-
ospMzvVIPl0/T6Jhqf7t1BI/AAAAAAAAAHE/3P
gggM0kqE4/s1600/A012-
00571_Heavy_reinforcement_in_concrete_col
umns_for_the_two_Petronas_towers_during_
Sources: Pictures and informations
• https://prezi.com/weeiw2lccw68/the-
petronas-twin-towers-project-lifecycle/#
• http://www.abc.net.au/news/2012-01-
01/fireworks-explode-above-petronas-
towers/3754088

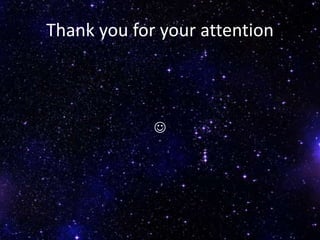

Thank you for your attention


More Related Content

What's hot

Petronas towers kula lampur
Petronas towers kula lampurPetronas towers kula lampur
Petronas towers kula lampur
HamzaAhmad91

Burj khalifa-mode of construction
Burj khalifa-mode of constructionBurj khalifa-mode of construction
Burj khalifa-mode of construction
Joji Mathew

CT Assignment Written Report
CT Assignment Written ReportCT Assignment Written Report
CT Assignment Written Report
Yap Xin

Emirates towers
Emirates towersEmirates towers
Emirates towers
Palak Khandelwal

Design, Structure, Construction and Analysis of Burj Al Arab, Dubai
Design, Structure, Construction and Analysis of Burj Al Arab, DubaiDesign, Structure, Construction and Analysis of Burj Al Arab, Dubai
Design, Structure, Construction and Analysis of Burj Al Arab, Dubai
Ar. Md Shahroz Alam

Petronas tower
Petronas towerPetronas tower
Petronas tower
Mohammad Alamin

klcc
klccklcc
A brief background & development history on klcc
A brief background & development history on klccA brief background & development history on klcc
A brief background & development history on klcc
SyahDa_96

DOCUMENTATION OF STADIUM NEGARA
DOCUMENTATION OF STADIUM NEGARADOCUMENTATION OF STADIUM NEGARA
DOCUMENTATION OF STADIUM NEGARA
Yen Min Khor

Petronas towers
Petronas towersPetronas towers
Petronas towers
Palak Khandelwal

Cayan tower
Cayan towerCayan tower
Cayan tower
Rajat Nainwal

Burj al Arab Constuction
Burj al Arab ConstuctionBurj al Arab Constuction
Burj al arab
Burj al arabBurj al arab
Burj al arab
Rajat Nainwal

Hcm721 fms railway station in ipoh&kl awatif 300615
Hcm721 fms railway station in ipoh&kl awatif 300615Hcm721 fms railway station in ipoh&kl awatif 300615
Hcm721 fms railway station in ipoh&kl awatif 300615
Umairah Alias

Menara Dayabumi Analysis Report
Menara Dayabumi Analysis ReportMenara Dayabumi Analysis Report
Menara Dayabumi Analysis Report
jolynnTJL

London aquatic center Case study
London aquatic center Case studyLondon aquatic center Case study
London aquatic center Case study
rohan joshi

kkr 2
kkr 2kkr 2
[ARC2513] Building construction2 project 2
[ARC2513] Building construction2 project 2[ARC2513] Building construction2 project 2
[ARC2513] Building construction2 project 2
Baddy Peigun

Taipei 101
Taipei 101 Taipei 101
Taipei 101
Shivani Nandgowle

Ipoh railway station - Scientific Poster
Ipoh railway station - Scientific Poster Ipoh railway station - Scientific Poster
Ipoh railway station - Scientific Poster
Lin Hui


What's hot (20)

Petronas towers kula lampur
Petronas towers kula lampurPetronas towers kula lampur
Petronas towers kula lampur

Burj khalifa-mode of construction
Burj khalifa-mode of constructionBurj khalifa-mode of construction
Burj khalifa-mode of construction

CT Assignment Written Report
CT Assignment Written ReportCT Assignment Written Report
CT Assignment Written Report

Emirates towers
Emirates towersEmirates towers
Emirates towers

Design, Structure, Construction and Analysis of Burj Al Arab, Dubai
Design, Structure, Construction and Analysis of Burj Al Arab, DubaiDesign, Structure, Construction and Analysis of Burj Al Arab, Dubai
Design, Structure, Construction and Analysis of Burj Al Arab, Dubai

Petronas tower
Petronas towerPetronas tower
Petronas tower

klcc
klccklcc
klcc

A brief background & development history on klcc
A brief background & development history on klccA brief background & development history on klcc
A brief background & development history on klcc

DOCUMENTATION OF STADIUM NEGARA
DOCUMENTATION OF STADIUM NEGARADOCUMENTATION OF STADIUM NEGARA
DOCUMENTATION OF STADIUM NEGARA

Petronas towers
Petronas towersPetronas towers
Petronas towers

Cayan tower
Cayan towerCayan tower
Cayan tower

Burj al Arab Constuction
Burj al Arab ConstuctionBurj al Arab Constuction
Burj al Arab Constuction

Burj al arab
Burj al arabBurj al arab
Burj al arab

Hcm721 fms railway station in ipoh&kl awatif 300615
Hcm721 fms railway station in ipoh&kl awatif 300615Hcm721 fms railway station in ipoh&kl awatif 300615
Hcm721 fms railway station in ipoh&kl awatif 300615

Menara Dayabumi Analysis Report
Menara Dayabumi Analysis ReportMenara Dayabumi Analysis Report
Menara Dayabumi Analysis Report

London aquatic center Case study
London aquatic center Case studyLondon aquatic center Case study
London aquatic center Case study

kkr 2
kkr 2kkr 2
kkr 2

[ARC2513] Building construction2 project 2
[ARC2513] Building construction2 project 2[ARC2513] Building construction2 project 2
[ARC2513] Building construction2 project 2

Taipei 101
Taipei 101 Taipei 101
Taipei 101

Ipoh railway station - Scientific Poster
Ipoh railway station - Scientific Poster Ipoh railway station - Scientific Poster
Ipoh railway station - Scientific Poster


Similar to Petronas Twin Towers

PETRONAS TWIN TOWERS.pptx
PETRONAS TWIN TOWERS.pptxPETRONAS TWIN TOWERS.pptx
PETRONAS TWIN TOWERS.pptx
kavishka11

PETRONAS TWIN TOWER.pptx
PETRONAS TWIN TOWER.pptxPETRONAS TWIN TOWER.pptx
PETRONAS TWIN TOWER.pptx
kavishka11

KINGDOM TOWER JEDDAH TOWER
KINGDOM TOWER JEDDAH TOWERKINGDOM TOWER JEDDAH TOWER
KINGDOM TOWER JEDDAH TOWER
MOHAMMED JIRUWALA

ANSHU PPT NARDEY SIR.pptx
ANSHU PPT NARDEY SIR.pptxANSHU PPT NARDEY SIR.pptx
ANSHU PPT NARDEY SIR.pptx
AnshuBarmase

HIGH RISE BUILDINGS.pptx
HIGH RISE BUILDINGS.pptxHIGH RISE BUILDINGS.pptx
HIGH RISE BUILDINGS.pptx
goreshsaini2

Shanghai tower
Shanghai towerShanghai tower
Shanghai tower
Amnarao3

Project Management - Marina bay Sands
Project Management - Marina bay SandsProject Management - Marina bay Sands
Project Management - Marina bay Sands
Bimenpreet Kaur

CAPITAL GATE, ABU DHABI
CAPITAL GATE, ABU DHABICAPITAL GATE, ABU DHABI
CAPITAL GATE, ABU DHABI
Self employed

Marina barrage (09/10s2)
Marina barrage (09/10s2)Marina barrage (09/10s2)
Marina barrage (09/10s2)
gn022010sem1

Sky tower by Michael & Callum B
Sky tower by Michael & Callum BSky tower by Michael & Callum B
Sky tower by Michael & Callum B
room2lis

Aadil final presentation
Aadil final presentationAadil final presentation
Aadil final presentation
Amir Amdani

foundation and structural system of the shard building
foundation and structural system  of the shard buildingfoundation and structural system  of the shard building
foundation and structural system of the shard building
BirukYared3

CV Presentation May16
CV Presentation May16CV Presentation May16
CV Presentation May16
Iain Cameron

Burj khalifa Dubai
Burj khalifa DubaiBurj khalifa Dubai
Burj khalifa Dubai
abhaykumar619

Group8 empire state building
Group8 empire state buildingGroup8 empire state building
Group8 empire state building
Gaurav Jhunjhunwala

25 years of Projects in a Nutshell
25 years of Projects in a Nutshell25 years of Projects in a Nutshell
25 years of Projects in a Nutshell
YusufDawood4

Burj Khalifa
Burj KhalifaBurj Khalifa
Burj Khalifa
khaledalshami93

SA SEMINAR.pptx
SA SEMINAR.pptxSA SEMINAR.pptx
SA SEMINAR.pptx
Dhanush325858

Suspension bridge (modern const. tech)
Suspension bridge (modern const. tech)Suspension bridge (modern const. tech)
Suspension bridge (modern const. tech)
Vivek Chauhan

Statue of unity case study
Statue of unity case studyStatue of unity case study
Statue of unity case study
bhagyashreekandoi


Similar to Petronas Twin Towers (20)

PETRONAS TWIN TOWERS.pptx
PETRONAS TWIN TOWERS.pptxPETRONAS TWIN TOWERS.pptx
PETRONAS TWIN TOWERS.pptx

PETRONAS TWIN TOWER.pptx
PETRONAS TWIN TOWER.pptxPETRONAS TWIN TOWER.pptx
PETRONAS TWIN TOWER.pptx

KINGDOM TOWER JEDDAH TOWER
KINGDOM TOWER JEDDAH TOWERKINGDOM TOWER JEDDAH TOWER
KINGDOM TOWER JEDDAH TOWER

ANSHU PPT NARDEY SIR.pptx
ANSHU PPT NARDEY SIR.pptxANSHU PPT NARDEY SIR.pptx
ANSHU PPT NARDEY SIR.pptx

HIGH RISE BUILDINGS.pptx
HIGH RISE BUILDINGS.pptxHIGH RISE BUILDINGS.pptx
HIGH RISE BUILDINGS.pptx

Shanghai tower
Shanghai towerShanghai tower
Shanghai tower

Project Management - Marina bay Sands
Project Management - Marina bay SandsProject Management - Marina bay Sands
Project Management - Marina bay Sands

CAPITAL GATE, ABU DHABI
CAPITAL GATE, ABU DHABICAPITAL GATE, ABU DHABI
CAPITAL GATE, ABU DHABI

Marina barrage (09/10s2)
Marina barrage (09/10s2)Marina barrage (09/10s2)
Marina barrage (09/10s2)

Sky tower by Michael & Callum B
Sky tower by Michael & Callum BSky tower by Michael & Callum B
Sky tower by Michael & Callum B

Aadil final presentation
Aadil final presentationAadil final presentation
Aadil final presentation

foundation and structural system of the shard building
foundation and structural system  of the shard buildingfoundation and structural system  of the shard building
foundation and structural system of the shard building

CV Presentation May16
CV Presentation May16CV Presentation May16
CV Presentation May16

Burj khalifa Dubai
Burj khalifa DubaiBurj khalifa Dubai
Burj khalifa Dubai

Group8 empire state building
Group8 empire state buildingGroup8 empire state building
Group8 empire state building

25 years of Projects in a Nutshell
25 years of Projects in a Nutshell25 years of Projects in a Nutshell
25 years of Projects in a Nutshell

Burj Khalifa
Burj KhalifaBurj Khalifa
Burj Khalifa

SA SEMINAR.pptx
SA SEMINAR.pptxSA SEMINAR.pptx
SA SEMINAR.pptx

Suspension bridge (modern const. tech)
Suspension bridge (modern const. tech)Suspension bridge (modern const. tech)
Suspension bridge (modern const. tech)

Statue of unity case study
Statue of unity case studyStatue of unity case study
Statue of unity case study


Recently uploaded

Computational Engineering IITH Presentation
Computational Engineering IITH PresentationComputational Engineering IITH Presentation
Computational Engineering IITH Presentation
co23btech11018

International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...
gerogepatton

BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdfBPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
MIGUELANGEL966976

Unit-III-ELECTROCHEMICAL STORAGE DEVICES.ppt
Unit-III-ELECTROCHEMICAL STORAGE DEVICES.pptUnit-III-ELECTROCHEMICAL STORAGE DEVICES.ppt
Unit-III-ELECTROCHEMICAL STORAGE DEVICES.ppt
KrishnaveniKrishnara1

Material for memory and display system h
Material for memory and display system hMaterial for memory and display system h
Material for memory and display system h
gowrishankartb2005

哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
insn4465

Introduction to AI Safety (public presentation).pptx
Introduction to AI Safety (public presentation).pptxIntroduction to AI Safety (public presentation).pptx
Introduction to AI Safety (public presentation).pptx
MiscAnnoy1

Hematology Analyzer Machine - Complete Blood Count
Hematology Analyzer Machine - Complete Blood CountHematology Analyzer Machine - Complete Blood Count
Hematology Analyzer Machine - Complete Blood Count
shahdabdulbaset

Literature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptxLiterature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptx
Dr Ramhari Poudyal

2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf
Yasser Mahgoub

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样
171ticu

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
gerogepatton

Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...
IJECEIAES

Textile Chemical Processing and Dyeing.pdf
Textile Chemical Processing and Dyeing.pdfTextile Chemical Processing and Dyeing.pdf
Textile Chemical Processing and Dyeing.pdf
NazakatAliKhoso2

官方认证美国密歇根州立大学毕业证学位证书原版一模一样
官方认证美国密歇根州立大学毕业证学位证书原版一模一样官方认证美国密歇根州立大学毕业证学位证书原版一模一样
官方认证美国密歇根州立大学毕业证学位证书原版一模一样
171ticu

ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024
Rahul

Certificates - Mahmoud Mohamed Moursi Ahmed
Certificates - Mahmoud Mohamed Moursi AhmedCertificates - Mahmoud Mohamed Moursi Ahmed
Certificates - Mahmoud Mohamed Moursi Ahmed
Mahmoud Morsy

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content
Hitesh Mohapatra

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Sinan KOZAK

Curve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods RegressionCurve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods Regression
Nada Hikmah


Recently uploaded (20)

Computational Engineering IITH Presentation
Computational Engineering IITH PresentationComputational Engineering IITH Presentation
Computational Engineering IITH Presentation

International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...

BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdfBPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf
BPV-GUI-01-Guide-for-ASME-Review-Teams-(General)-10-10-2023.pdf

Unit-III-ELECTROCHEMICAL STORAGE DEVICES.ppt
Unit-III-ELECTROCHEMICAL STORAGE DEVICES.pptUnit-III-ELECTROCHEMICAL STORAGE DEVICES.ppt
Unit-III-ELECTROCHEMICAL STORAGE DEVICES.ppt

Material for memory and display system h
Material for memory and display system hMaterial for memory and display system h
Material for memory and display system h

哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样

Introduction to AI Safety (public presentation).pptx
Introduction to AI Safety (public presentation).pptxIntroduction to AI Safety (public presentation).pptx
Introduction to AI Safety (public presentation).pptx

Hematology Analyzer Machine - Complete Blood Count
Hematology Analyzer Machine - Complete Blood CountHematology Analyzer Machine - Complete Blood Count
Hematology Analyzer Machine - Complete Blood Count

Literature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptxLiterature Review Basics and Understanding Reference Management.pptx
Literature Review Basics and Understanding Reference Management.pptx

2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf
2008 BUILDING CONSTRUCTION Illustrated - Ching Chapter 02 The Building.pdf

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样

DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODELDEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL
DEEP LEARNING FOR SMART GRID INTRUSION DETECTION: A HYBRID CNN-LSTM-BASED MODEL

Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...Advanced control scheme of doubly fed induction generator for wind turbine us...
Advanced control scheme of doubly fed induction generator for wind turbine us...

Textile Chemical Processing and Dyeing.pdf
Textile Chemical Processing and Dyeing.pdfTextile Chemical Processing and Dyeing.pdf
Textile Chemical Processing and Dyeing.pdf

官方认证美国密歇根州立大学毕业证学位证书原版一模一样
官方认证美国密歇根州立大学毕业证学位证书原版一模一样官方认证美国密歇根州立大学毕业证学位证书原版一模一样
官方认证美国密歇根州立大学毕业证学位证书原版一模一样

ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024ACEP Magazine edition 4th launched on 05.06.2024
ACEP Magazine edition 4th launched on 05.06.2024

Certificates - Mahmoud Mohamed Moursi Ahmed
Certificates - Mahmoud Mohamed Moursi AhmedCertificates - Mahmoud Mohamed Moursi Ahmed
Certificates - Mahmoud Mohamed Moursi Ahmed

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024

Curve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods RegressionCurve Fitting in Numerical Methods Regression
Curve Fitting in Numerical Methods Regression


Petronas Twin Towers

  • 2. The Petronas Towers are twin skyscrapers in Kuala Lumpur, Malaysia. According to the Council on Tall Buildings and Urban Habitat (CTBUH)'s official definition and ranking, they were the tallest buildings in the world from 1998 to 2004 and remain the tallest twin towers in the world. The buildings are a landmark of Kuala Lumpur, along with nearby Kuala Lumpur Tower.
  • 3.
  • 4. Basic Information • Architect: Cesar Pelli and Associates • Client: Kuala Lumpur City Centre Holdings • The development of the Petronas Twin Towers begun in 1990, and was completed in 1996 • 88 storey office towers, with a connecting sky bridge • Tower one construction team: Led by Robert Pratt – T1 Pinnacle Team – Hazama Corp. • Tower Two and skybridge construction team: Led by Jon Dunsford – T2 Pinnacle Team – Samsung C&T and Kukdong Engineers & Construction
  • 5. Basic Information • Estimated to build in 8 years, built in 6 years. Total cost: 1,6 billion $ • Estimated to cost $700,000 each day of construction (about 8 years- $2 billions) thus, came under budget
  • 6. The driver for the project was to build the tallest building, this was supported by the Malaysian Government, to boost their standing within the world Prime minister had a huge impact during the design stage of the two structures In 1990 planning begun, while in 1991 Cesar Pelli won the design for the towers The Twin Towers were assigned to two separate contractors, one for each tower; Samsung C&T and Hazama Group. This was to promote competition
  • 7.
  • 8. Scope • Two 88 story towers with, a connecting bridge • The sky bridge connecting the two structures was also designed to act as a emergency escape in the case of terroristic attacks and fires • Pinnacles on top of the towers – design to represent islamic culture • The use of glass windows • Strive for the tallest building and originality
  • 9.
  • 10.
  • 11. Time • The construction was estimated to take 8 years, however there was an eight month delay • It was completed in 6 years, two years under what was predicted • It was vital that the building was constructed to the management plan, as it would cost $700,000 per day after the deadline
  • 12. Planning • The Construction site was chosen: Kuala Lumpur Race Track Cesar Pelli’s designs for the towers were rejected by the Prime Minister, as they weren’t „Malaysian enough”, meaning that they didn’t represent Islam sufficiently • The Prime Minister begun to re-design the floor plan for the building, changing it to two interlocking squares, creating a shape of eight-pointed stars, which symbolize the islamic principles of „unity within unity, harmony, stability, and rationality” • During the planning stage the cost estimation is determined. The Malaysian budget only allowed for 6 years of construction • Additionaly, the planning stage is the final „green light” for the project to commence

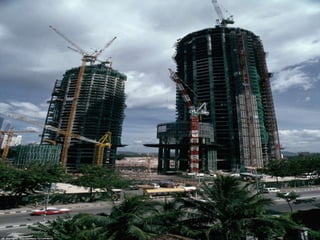

  • 13. Execution • During the execution stage, the scope and schedule are identified and determined • The schedule allowed for 4 days of construction per floor, it initially took 8 day, they had to construct uninterrupted, 24 hours a day, 7 days a week • Construction began in early 1993
  • 14.
  • 15.

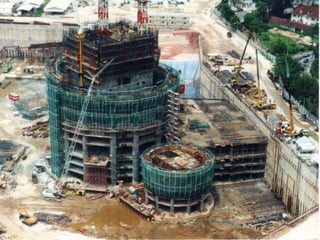

  • 16. Execution • A site establishment is conducted during this stage, however, the engineers discovered that there had never been a proper analysis of the site, the site came to a standstill • Geologist looked for bedrock, but found that the site was on declayed limestone and on the edge of cliff • The site was proposed to be moved 60 meters onto the softer ground, were they could build their own bedrock consisting of concrete • The sky bridge connecting the two towers was design for emergency purposes, such as a terrorist attack, fires, and other emergencies
  • 17. Constrains • The not suitable bedrock (foundation) • A lack of steel • The concrete was not suitable, too soft • They had to create a new form od concrete that acted the same as steel; strong with a degree of flexibility • Flooring was time consuming
  • 18.
  • 19.

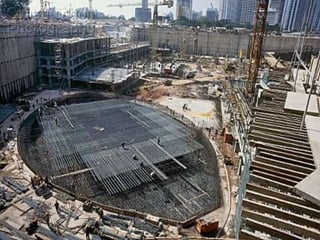

  • 20. Issues during construction • Issue One – The foundation slab If the concrete dried unevenly, the slab would crack, thus seriously weaken the ability to support the building above. Therefore, they decided to pour the concrete all at the once, scheduling concrete trucks to arrive every 2,5 minutes for 52 hours, without a break
  • 21. Issues during construction • Issue Two – The weather The Malaysian weather is susceptible to torrential rain, this is also problematic to the slab, as the concrete can get too wet, and become ruined. They covered the entire slab with canvas, the equivalent to 56 circus tents
  • 22.
  • 23.

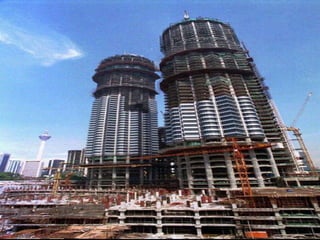

  • 24. Closing • During the final stage of construction the pinnacles were constructed and placed on top of the towers, completing the record for the tallest tower • Construction was completed in 1996, therefore reaching the 6 year deadline, with days to spare
  • 25.
  • 26. Sources: Pictures and informations • http://www.worldfortravel.com/2013/01/14/ petronas-twin-towers-malaysia/ • http://www.kiat.net/towers/reality.html • http://2.bp.blogspot.com/- ospMzvVIPl0/T6Jhqf7t1BI/AAAAAAAAAHE/3P gggM0kqE4/s1600/A012- 00571_Heavy_reinforcement_in_concrete_col umns_for_the_two_Petronas_towers_during_ construction_in_Kuala_Lum.jpg

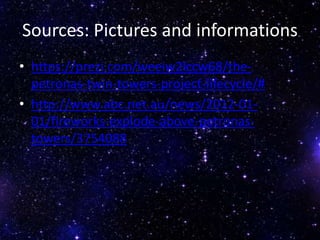

  • 27. Sources: Pictures and informations • https://prezi.com/weeiw2lccw68/the- petronas-twin-towers-project-lifecycle/# • http://www.abc.net.au/news/2012-01- 01/fireworks-explode-above-petronas- towers/3754088
  • 28. Thank you for your attention 
