Persistence of memory: In-memory Is Not Often the Answer

On
the
Persistence
of
Memory
(in
Database
Systems)
i

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

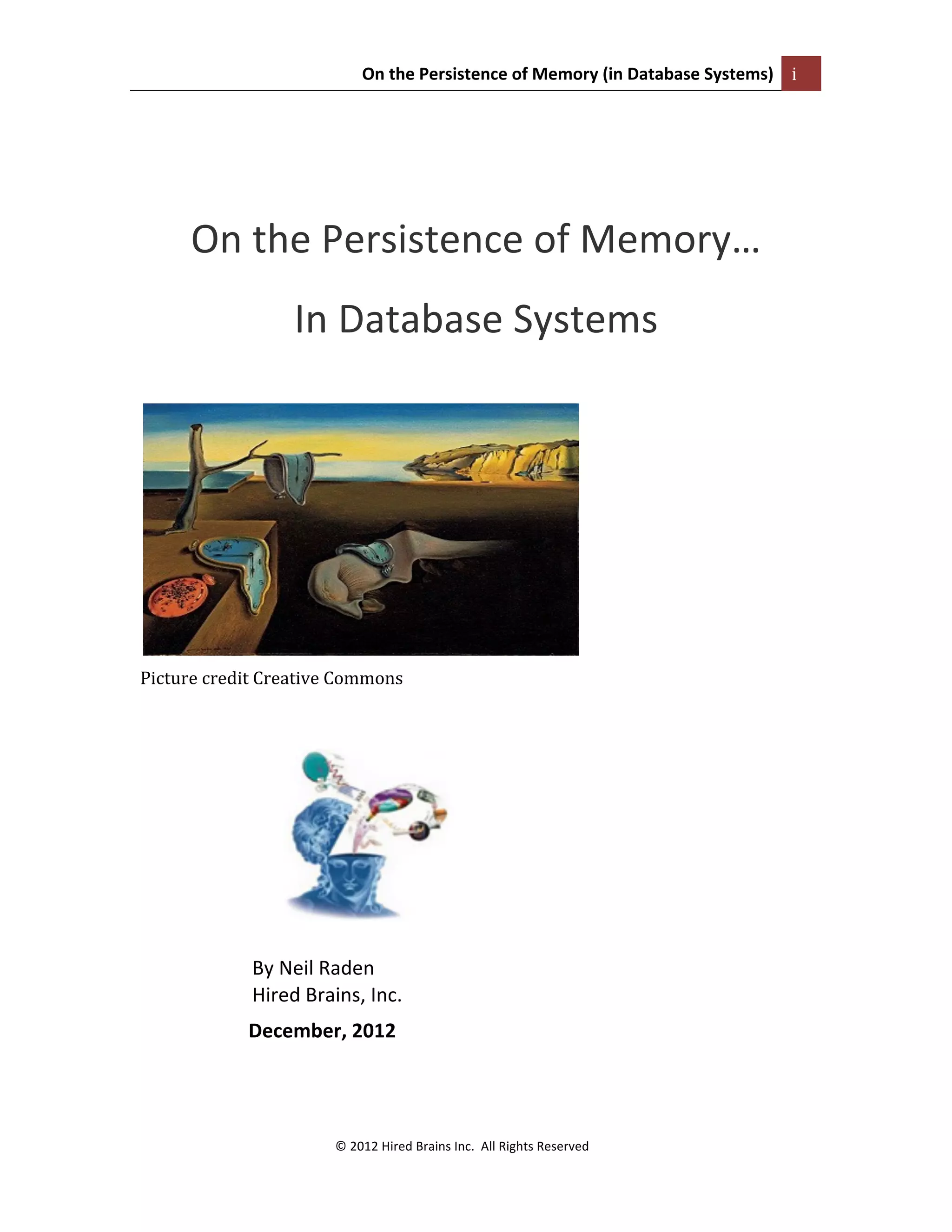

On
the
Persistence
of
Memory…

In
Database
Systems

credit
Creative
Commons

By
Neil
Raden

Hired
Brains,
Inc.

December,
2012

On
the
Persistence
of
Memory
(in
Database
Systems)
ii

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

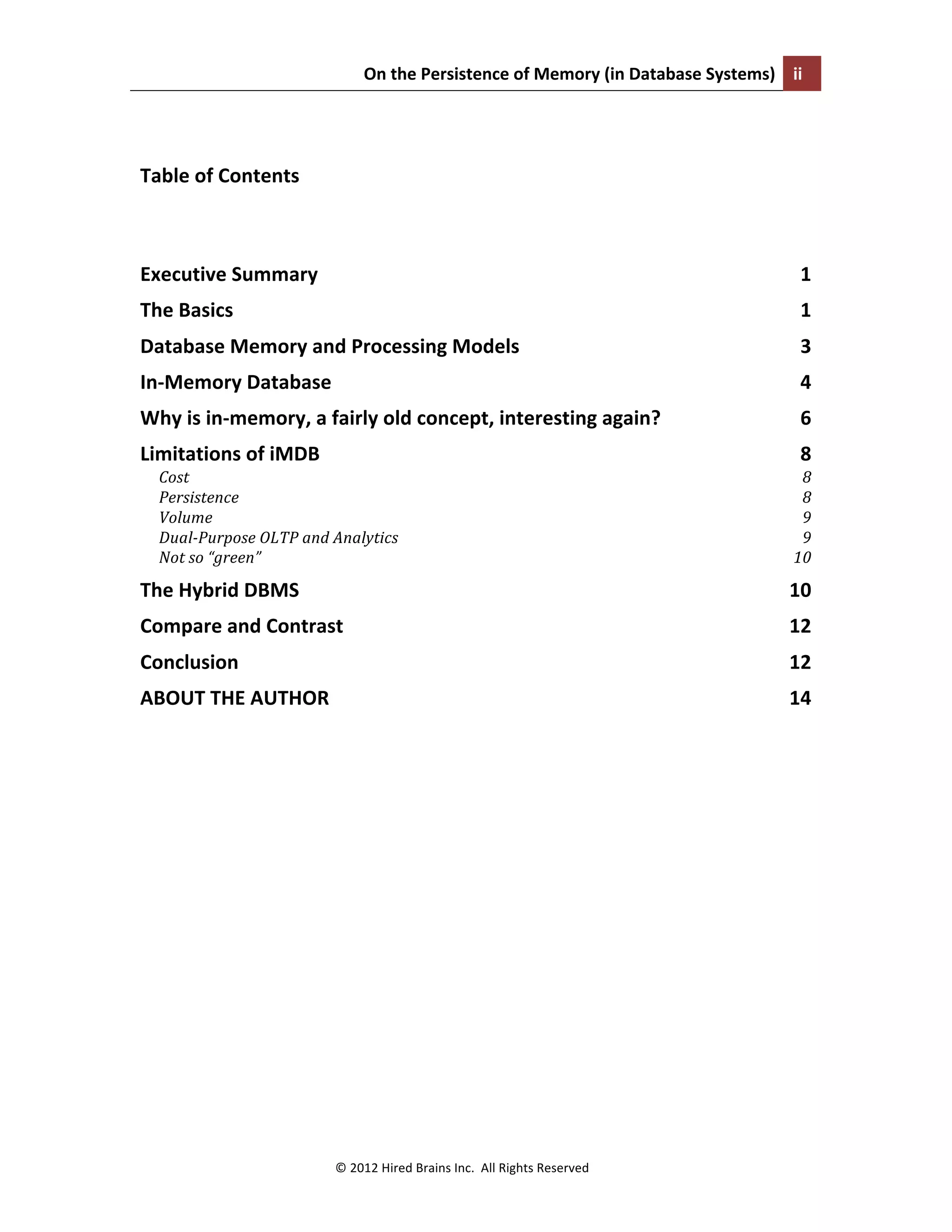

Table
of
Contents

Executive
Summary
1

The
Basics
1

Database
Memory
and
Processing
Models
3

In-‐Memory
Database
4

Why
is
in-‐memory,
a
fairly
old
concept,
interesting
again?
6

Limitations
of
iMDB
8

Cost
8

Persistence
8

Volume
9

Dual-Purpose
OLTP
and
Analytics
9

Not
so
“green”
10

The
Hybrid
DBMS
10

Compare
and
Contrast
12

Conclusion
12

ABOUT
THE
AUTHOR
14

On
the
Persistence
of
Memory
(in
Database
Systems)
1

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

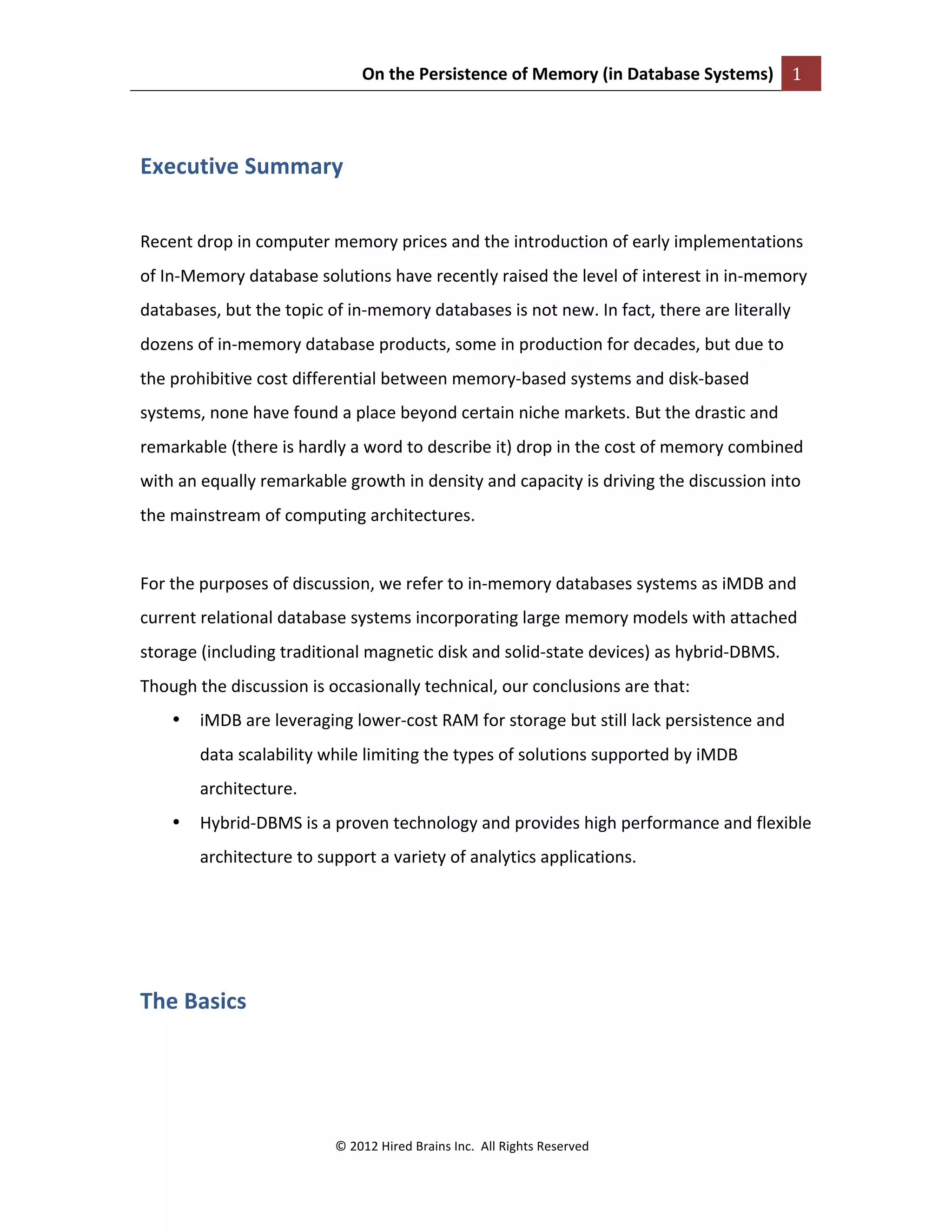

Executive
Summary

Recent
drop
in
computer
memory
prices
and
the
introduction
of
early
implementations

of
In-‐Memory
database
solutions
have
recently
raised
the
level
of
interest
in
in-‐memory

databases,
but
the
topic
of
in-‐memory
databases
is
not
new.
In
fact,
there
are
literally

dozens
of
in-‐memory
database
products,
some
in
production
for
decades,
but
due
to

the
prohibitive
cost
differential
between
memory-‐based
systems
and
disk-‐based

systems,
none
have
found
a
place
beyond
certain
niche
markets.
But
the
drastic
and

remarkable
(there
is
hardly
a
word
to
describe
it)
drop
in
the
cost
of
memory
combined

with
an
equally
remarkable
growth
in
density
and
capacity
is
driving
the
discussion
into

the
mainstream
of
computing
architectures.

For
the
purposes
of
discussion,
we
refer
to
in-‐memory
databases
systems
as
iMDB
and

current
relational
database
systems
incorporating
large
memory
models
with
attached

storage
(including
traditional
magnetic
disk
and
solid-‐state
devices)
as
hybrid-‐DBMS.

Though
the
discussion
is
occasionally
technical,
our
conclusions
are
that:

• iMDB
are
leveraging
lower-‐cost
RAM
for
storage
but
still
lack
persistence
and

data
scalability
while
limiting
the
types
of
solutions
supported
by
iMDB

architecture.

• Hybrid-‐DBMS
is
a
proven
technology
and
provides
high
performance
and
flexible

architecture
to
support
a
variety
of
analytics
applications.

The
Basics

On
the
Persistence
of
Memory
(in
Database
Systems)
2

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

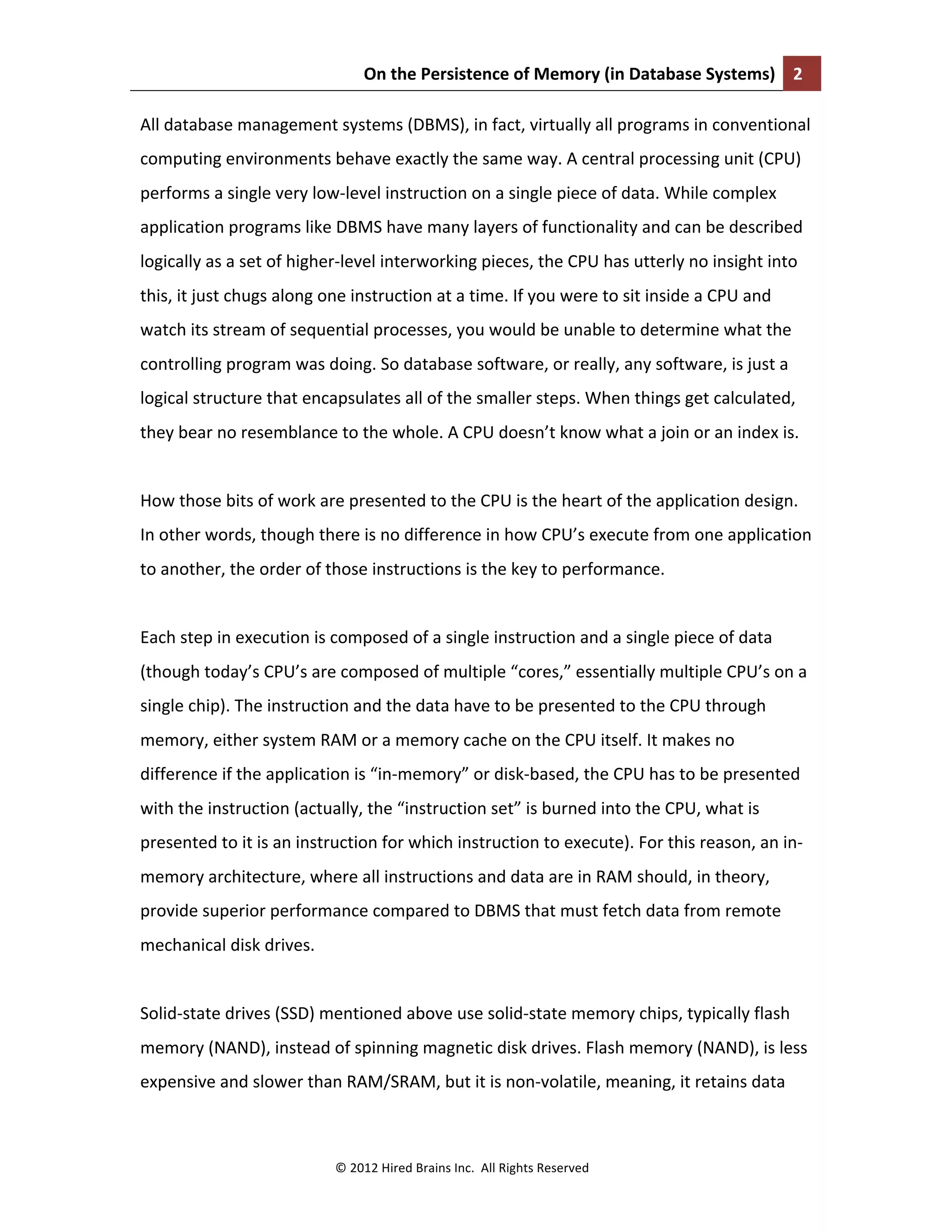

All
database
management
systems
(DBMS),
in
fact,
virtually
all
programs
in
conventional

computing
environments
behave
exactly
the
same
way.
A
central
processing
unit
(CPU)

performs
a
single
very
low-‐level
instruction
on
a
single
piece
of
data.
While
complex

application
programs
like
DBMS
have
many
layers
of
functionality
and
can
be
described

logically
as
a
set
of
higher-‐level
interworking
pieces,
the
CPU
has
utterly
no
insight
into

this,
it
just
chugs
along
one
instruction
at
a
time.
If
you
were
to
sit
inside
a
CPU
and

watch
its
stream
of
sequential
processes,
you
would
be
unable
to
determine
what
the

controlling
program
was
doing.
So
database
software,
or
really,
any
software,
is
just
a

logical
structure
that
encapsulates
all
of
the
smaller
steps.
When
things
get
calculated,

they
bear
no
resemblance
to
the
whole.
A
CPU
doesn’t
know
what
a
join
or
an
index
is.

How
those
bits
of
work
are
presented
to
the
CPU
is
the
heart
of
the
application
design.

In
other
words,
though
there
is
no
difference
in
how
CPU’s
execute
from
one
application

to
another,
the
order
of
those
instructions
is
the
key
to
performance.

Each
step
in
execution
is
composed
of
a
single
instruction
and
a
single
piece
of
data

(though
today’s
CPU’s
are
composed
of
multiple
“cores,”
essentially
multiple
CPU’s
on
a

single
chip).
The
instruction
and
the
data
have
to
be
presented
to
the
CPU
through

memory,
either
system
RAM
or
a
memory
cache
on
the
CPU
itself.
It
makes
no

difference
if
the
application
is
“in-‐memory”
or
disk-‐based,
the
CPU
has
to
be
presented

with
the
instruction
(actually,
the
“instruction
set”
is
burned
into
the
CPU,
what
is

presented
to
it
is
an
instruction
for
which
instruction
to
execute).
For
this
reason,
an
in-‐
memory
architecture,
where
all
instructions
and
data
are
in
RAM
should,
in
theory,

provide
superior
performance
compared
to
DBMS
that
must
fetch
data
from
remote

mechanical
disk
drives.

Solid-‐state
drives
(SSD)
mentioned
above
use
solid-‐state
memory
chips,
typically
flash

memory
(NAND),
instead
of
spinning
magnetic
disk
drives.
Flash
memory
(NAND),
is
less

expensive
and
slower
than
RAM/SRAM,
but
it
is
non-‐volatile,
meaning,
it
retains
data

On
the
Persistence
of
Memory
(in
Database
Systems)
3

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

without
power.
It
does
not
lose
data
in
the
case
of
a
system
shutdown.
RAM
is
volatile

and
must
be
powered
continuously
and
requires
backup,
typically
conventional
disk

drives
for
reliability.

One
could
say
that
a
DBMS
with
SSD
instead
of
traditional
disks
could
be
an
in-‐memory

device,
but
there
are
two
fundamental
differences.
First,
the
“memory”
chips
of
an
SSD

are
part
of
a
disk
drive
“card”
or
assembly
that
uses
the
same
block
addressing
as
the

disks
it
replaces.
In
other
words,
even
though
the
seek
time
finding
data
on
an
SSD
is
at

least
an
order
of
magnitude
greater
than
a
spinning
magnetic
disk
(this
is
a

generalization),
there
is
still
a
call
for
external
data,
handled
by
the
disk
controller
and

passed
to
RAM.
An
interesting
arrangement,
typically
used
for
add-‐on
accelerators,
not

primary
database
operations
are
SSD’s
constructed
from
SRAM,
boosting
the
seek
time

on
the
drives.
This
is
a
special-‐purpose
architecture
and
very
expensive
and
not
further

considered
here.

Database
Memory
and
Processing
Models

To
clear
up
confusion
between
various
models
for
memory
in
databases,
it’s
useful
to

describe
the
predominant
versions.
There
is
a
difference
between
memory
models
in

database
systems
for
processing.
The
two
predominant
memory
models
for
the
most

common
database
systems
are
shared
memory
and
shared
nothing.
In
both,
memory
is

used
only
for
processing,
not
for
persistent
storage.
This
is
the
essential
difference

between
today’s
iMDBs
and
more
conventional
on-‐disk
or
hybrid
systems.

In
the
shared
memory
model,
all
database
operations
use
the
same
single
aggregation

of
memory
and
the
system
allocates
its
memory
and
processing
tasks.
All
memory
is

available
to
every
processor.
In
a
shared
nothing
system,
each
separate
node
of

processors
and
memory
do
their
own
work
in
parallel
and
are,
typically,
controlled
by
a

On
the
Persistence
of
Memory
(in
Database
Systems)
4

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

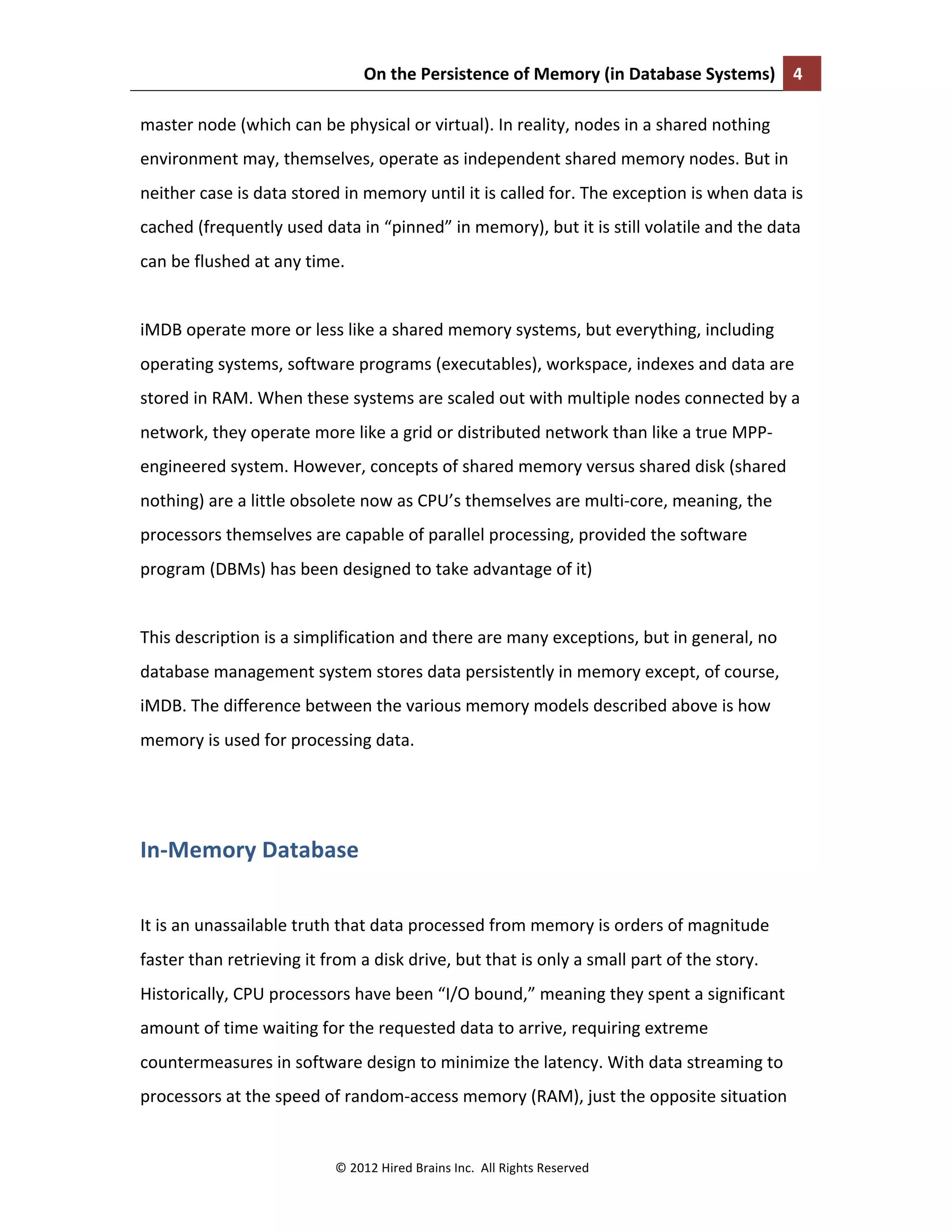

master
node
(which
can
be
physical
or
virtual).
In
reality,
nodes
in
a
shared
nothing

environment
may,
themselves,
operate
as
independent
shared
memory
nodes.
But
in

neither
case
is
data
stored
in
memory
until
it
is
called
for.
The
exception
is
when
data
is

cached
(frequently
used
data
in
“pinned”
in
memory),
but
it
is
still
volatile
and
the
data

can
be
flushed
at
any
time.

iMDB
operate
more
or
less
like
a
shared
memory
systems,
but
everything,
including

operating
systems,
software
programs
(executables),
workspace,
indexes
and
data
are

stored
in
RAM.
When
these
systems
are
scaled
out
with
multiple
nodes
connected
by
a

network,
they
operate
more
like
a
grid
or
distributed
network
than
like
a
true
MPP-‐
engineered
system.
However,
concepts
of
shared
memory
versus
shared
disk
(shared

nothing)
are
a
little
obsolete
now
as
CPU’s
themselves
are
multi-‐core,
meaning,
the

processors
themselves
are
capable
of
parallel
processing,
provided
the
software

program
(DBMs)
has
been
designed
to
take
advantage
of
it)

This
description
is
a
simplification
and
there
are
many
exceptions,
but
in
general,
no

database
management
system
stores
data
persistently
in
memory
except,
of
course,

iMDB.
The
difference
between
the
various
memory
models
described
above
is
how

memory
is
used
for
processing
data.

In-‐Memory
Database

It
is
an
unassailable
truth
that
data
processed
from
memory
is
orders
of
magnitude

faster
than
retrieving
it
from
a
disk
drive,
but
that
is
only
a
small
part
of
the
story.

Historically,
CPU
processors
have
been
“I/O
bound,”
meaning
they
spent
a
significant

amount
of
time
waiting
for
the
requested
data
to
arrive,
requiring
extreme

countermeasures
in
software
design
to
minimize
the
latency.
With
data
streaming
to

processors
at
the
speed
of
random-‐access
memory
(RAM),
just
the
opposite
situation

On
the
Persistence
of
Memory
(in
Database
Systems)
5

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

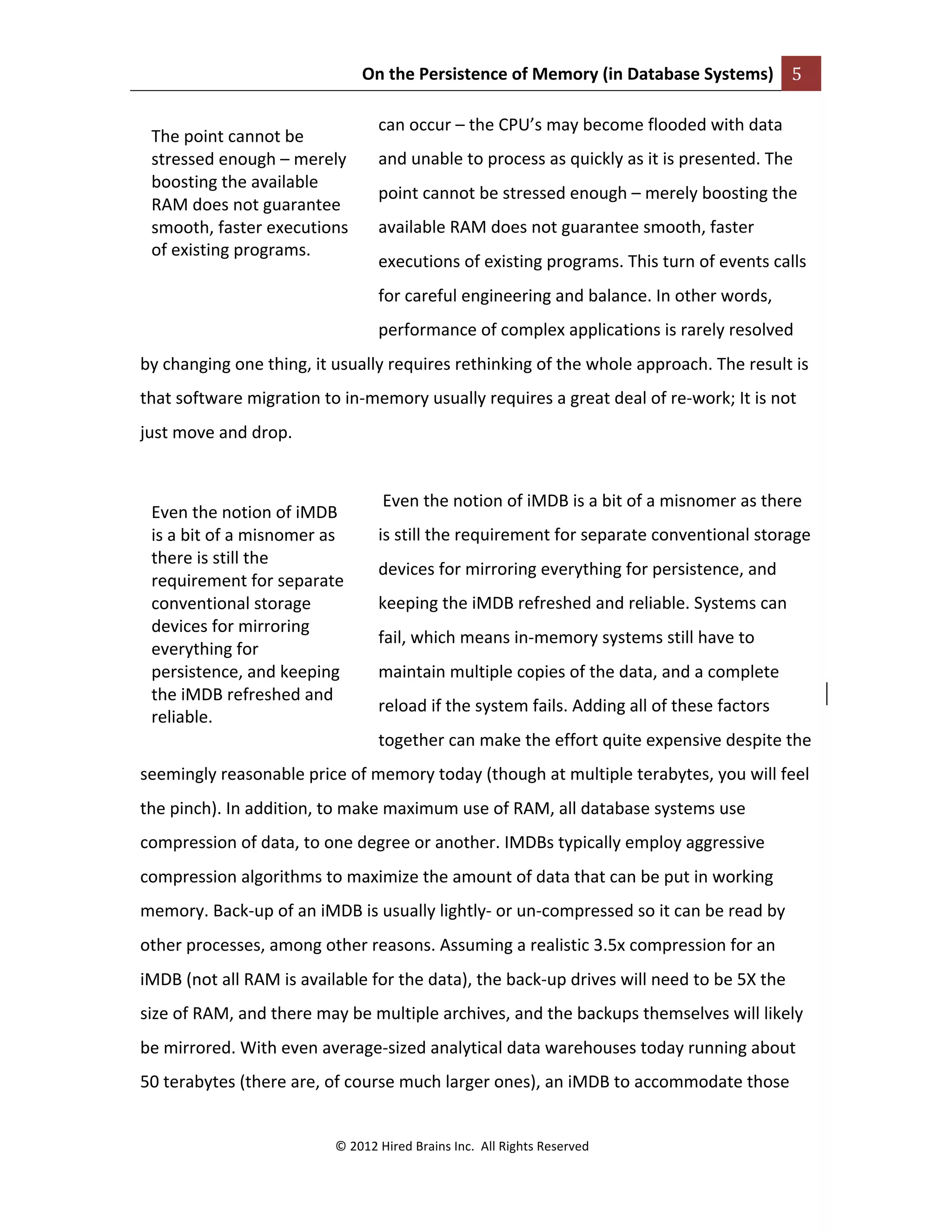

can
occur
–
the
CPU’s
may
become
flooded
with
data

and
unable
to
process
as
quickly
as
it
is
presented.
The

point
cannot
be
stressed
enough
–
merely
boosting
the

available
RAM
does
not
guarantee
smooth,
faster

executions
of
existing
programs.
This
turn
of
events
calls

for
careful
engineering
and
balance.
In
other
words,

performance
of
complex
applications
is
rarely
resolved

by
changing
one
thing,
it
usually
requires
rethinking
of
the
whole
approach.
The
result
is

that
software
migration
to
in-‐memory
usually
requires
a
great
deal
of
re-‐work;
It
is
not

just
move
and
drop.

Even
the
notion
of
iMDB
is
a
bit
of
a
misnomer
as
there

is
still
the
requirement
for
separate
conventional
storage

devices
for
mirroring
everything
for
persistence,
and

keeping
the
iMDB
refreshed
and
reliable.
Systems
can

fail,
which
means
in-‐memory
systems
still
have
to

maintain
multiple
copies
of
the
data,
and
a
complete

reload
if
the
system
fails.
Adding
all
of
these
factors

together
can
make
the
effort
quite
expensive
despite
the

seemingly
reasonable
price
of
memory
today
(though
at
multiple
terabytes,
you
will
feel

the
pinch).
In
addition,
to
make
maximum
use
of
RAM,
all
database
systems
use

compression
of
data,
to
one
degree
or
another.
IMDBs
typically
employ
aggressive

compression
algorithms
to
maximize
the
amount
of
data
that
can
be
put
in
working

memory.
Back-‐up
of
an
iMDB
is
usually
lightly-‐
or
un-‐compressed
so
it
can
be
read
by

other
processes,
among
other
reasons.
Assuming
a
realistic
3.5x
compression
for
an

iMDB
(not
all
RAM
is
available
for
the
data),
the
back-‐up
drives
will
need
to
be
5X
the

size
of
RAM,
and
there
may
be
multiple
archives,
and
the
backups
themselves
will
likely

be
mirrored.
With
even
average-‐sized
analytical
data
warehouses
today
running
about

50
terabytes
(there
are,
of
course
much
larger
ones),
an
iMDB
to
accommodate
those

The
point
cannot
be

stressed
enough
–
merely

boosting
the
available

RAM
does
not
guarantee

smooth,
faster
executions

of
existing
programs.

Even
the
notion
of
iMDB

is
a
bit
of
a
misnomer
as

there
is
still
the

requirement
for
separate

conventional
storage

devices
for
mirroring

everything
for

persistence,
and
keeping

the
iMDB
refreshed
and

reliable.

On
the
Persistence
of
Memory
(in
Database
Systems)
6

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

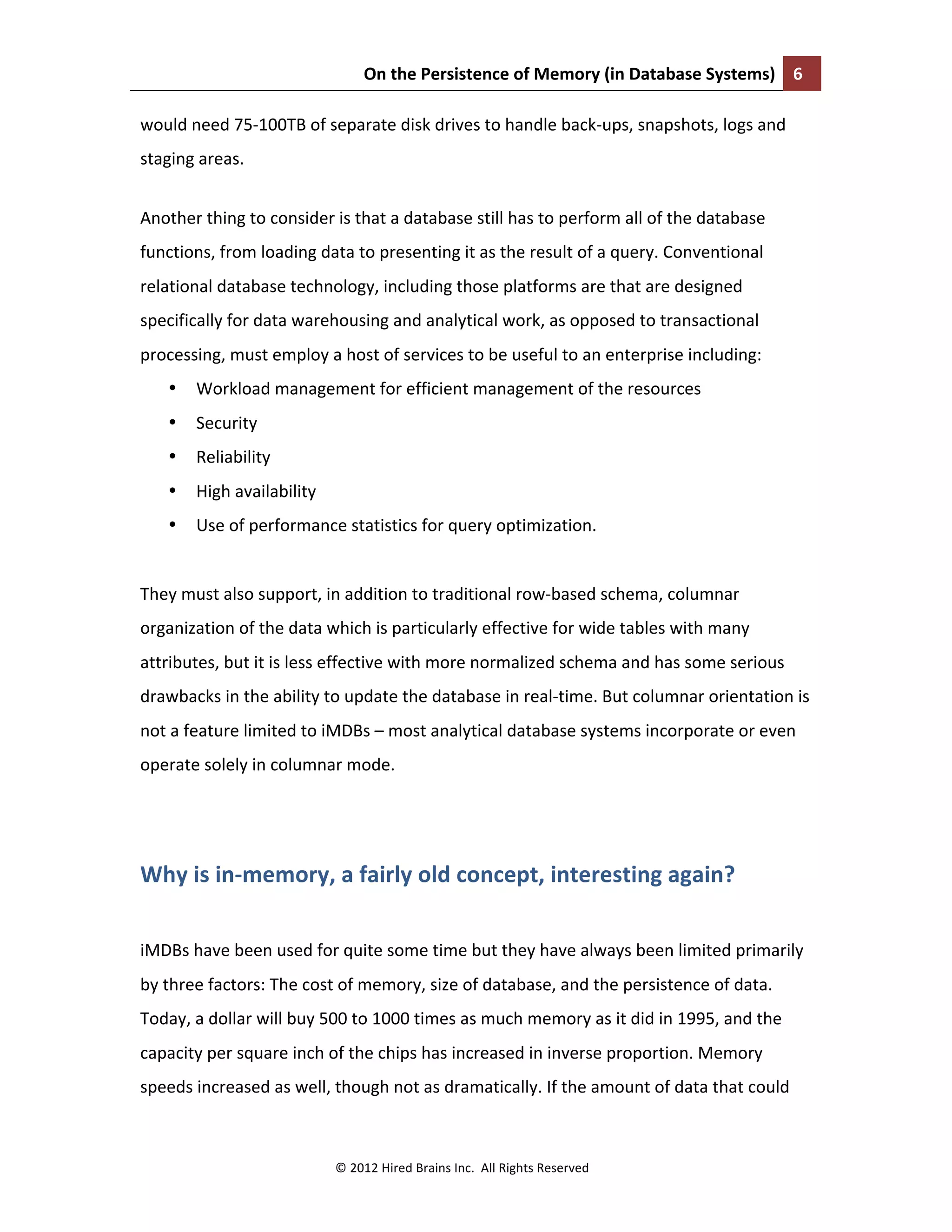

would
need
75-‐100TB
of
separate
disk
drives
to
handle
back-‐ups,
snapshots,
logs
and

staging
areas.

Another
thing
to
consider
is
that
a
database
still
has
to
perform
all
of
the
database

functions,
from
loading
data
to
presenting
it
as
the
result
of
a
query.
Conventional

relational
database
technology,
including
those
platforms
are
that
are
designed

specifically
for
data
warehousing
and
analytical
work,
as
opposed
to
transactional

processing,
must
employ
a
host
of
services
to
be
useful
to
an
enterprise
including:

• Workload
management
for
efficient
management
of
the
resources

• Security

• Reliability

• High
availability

• Use
of
performance
statistics
for
query
optimization.

They
must
also
support,
in
addition
to
traditional
row-‐based
schema,
columnar

organization
of
the
data
which
is
particularly
effective
for
wide
tables
with
many

attributes,
but
it
is
less
effective
with
more
normalized
schema
and
has
some
serious

drawbacks
in
the
ability
to
update
the
database
in
real-‐time.
But
columnar
orientation
is

not
a
feature
limited
to
iMDBs
–
most
analytical
database
systems
incorporate
or
even

operate
solely
in
columnar
mode.

Why
is
in-‐memory,
a
fairly
old
concept,
interesting
again?

iMDBs
have
been
used
for
quite
some
time
but
they
have
always
been
limited
primarily

by
three
factors:
The
cost
of
memory,
size
of
database,
and
the
persistence
of
data.

Today,
a
dollar
will
buy
500
to
1000
times
as
much
memory
as
it
did
in
1995,
and
the

capacity
per
square
inch
of
the
chips
has
increased
in
inverse
proportion.
Memory

speeds
increased
as
well,
though
not
as
dramatically.
If
the
amount
of
data
that
could

On
the
Persistence
of
Memory
(in
Database
Systems)
7

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

be
stored
in
early
in-‐memory
systems
was
too
small
for
most
applications,
1000
times

more
memory
might
be
enough
for
in-‐memory
to
be
feasible.

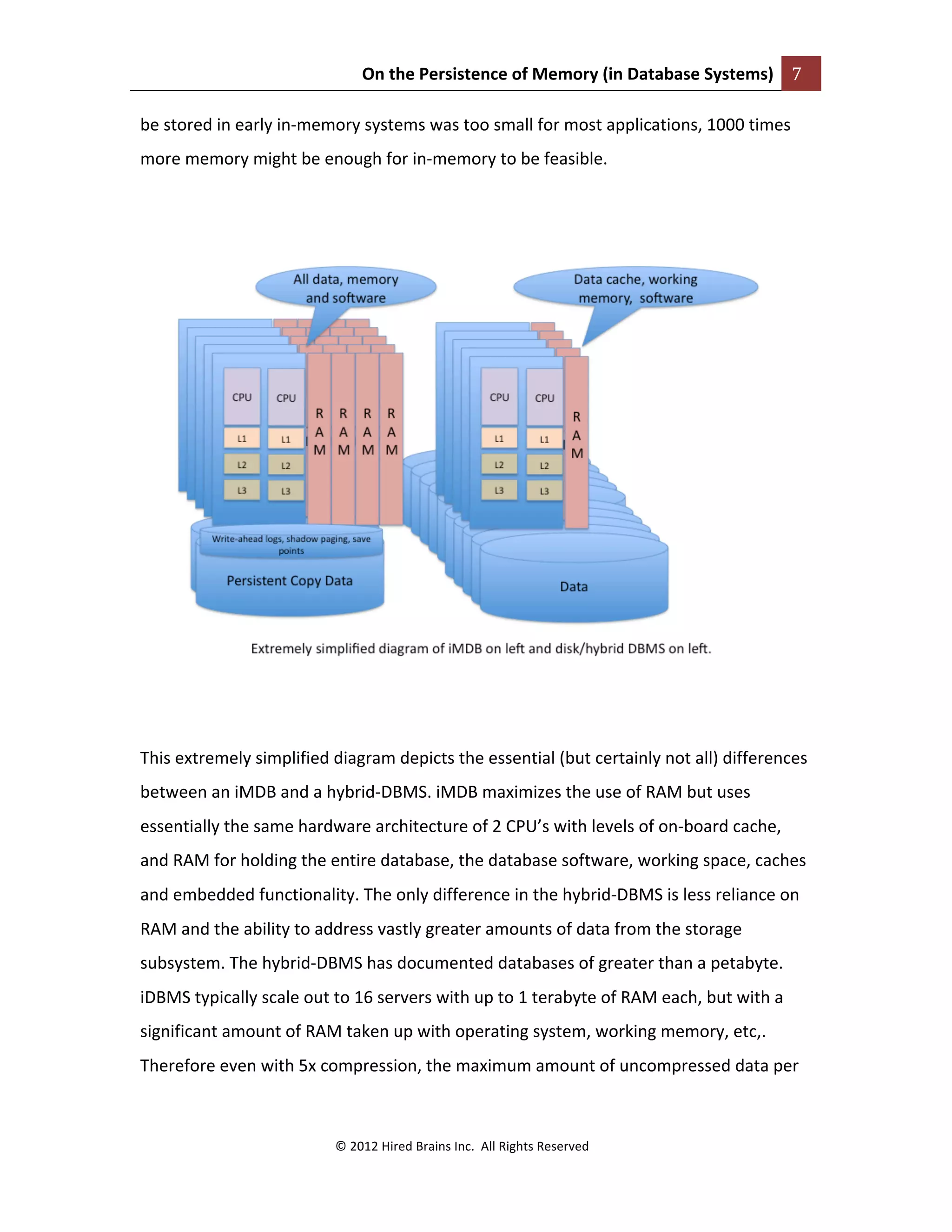

This
extremely
simplified
diagram
depicts
the
essential
(but
certainly
not
all)
differences

between
an
iMDB
and
a
hybrid-‐DBMS.
iMDB
maximizes
the
use
of
RAM
but
uses

essentially
the
same
hardware
architecture
of
2
CPU’s
with
levels
of
on-‐board
cache,

and
RAM
for
holding
the
entire
database,
the
database
software,
working
space,
caches

and
embedded
functionality.
The
only
difference
in
the
hybrid-‐DBMS
is
less
reliance
on

RAM
and
the
ability
to
address
vastly
greater
amounts
of
data
from
the
storage

subsystem.
The
hybrid-‐DBMS
has
documented
databases
of
greater
than
a
petabyte.

iDBMS
typically
scale
out
to
16
servers
with
up
to
1
terabyte
of
RAM
each,
but
with
a

significant
amount
of
RAM
taken
up
with
operating
system,
working
memory,
etc,.

Therefore
even
with
5x
compression,
the
maximum
amount
of
uncompressed
data
per

On
the
Persistence
of
Memory
(in
Database
Systems)
8

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

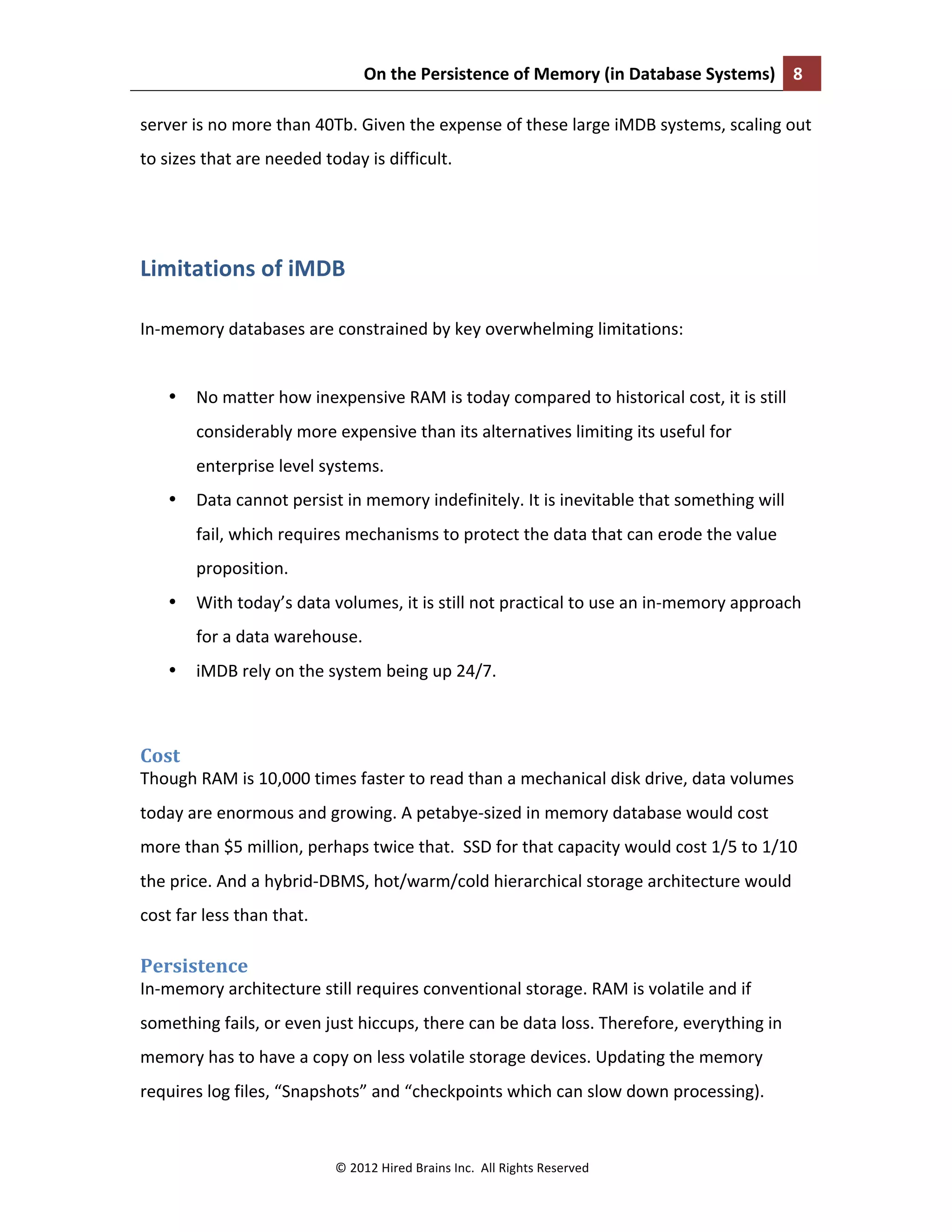

server
is
no
more
than
40Tb.
Given
the
expense
of
these
large
iMDB
systems,
scaling
out

to
sizes
that
are
needed
today
is
difficult.

Limitations
of
iMDB

In-‐memory
databases
are
constrained
by
key
overwhelming
limitations:

• No
matter
how
inexpensive
RAM
is
today
compared
to
historical
cost,
it
is
still

considerably
more
expensive
than
its
alternatives
limiting
its
useful
for

enterprise
level
systems.

• Data
cannot
persist
in
memory
indefinitely.
It
is
inevitable
that
something
will

fail,
which
requires
mechanisms
to
protect
the
data
that
can
erode
the
value

proposition.

• With
today’s
data
volumes,
it
is
still
not
practical
to
use
an
in-‐memory
approach

for
a
data
warehouse.

• iMDB
rely
on
the
system
being
up
24/7.

Cost

Though
RAM
is
10,000
times
faster
to
read
than
a
mechanical
disk
drive,
data
volumes

today
are
enormous
and
growing.
A
petabye-‐sized
in
memory
database
would
cost

more
than
$5
million,
perhaps
twice
that.

SSD
for
that
capacity
would
cost
1/5
to
1/10

the
price.
And
a
hybrid-‐DBMS,
hot/warm/cold
hierarchical
storage
architecture
would

cost
far
less
than
that.

Persistence

In-‐memory
architecture
still
requires
conventional
storage.
RAM
is
volatile
and
if

something
fails,
or
even
just
hiccups,
there
can
be
data
loss.
Therefore,
everything
in

memory
has
to
have
a
copy
on
less
volatile
storage
devices.
Updating
the
memory

requires
log
files,
“Snapshots”
and
“checkpoints
which
can
slow
down
processing).

On
the
Persistence
of
Memory
(in
Database
Systems)
9

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

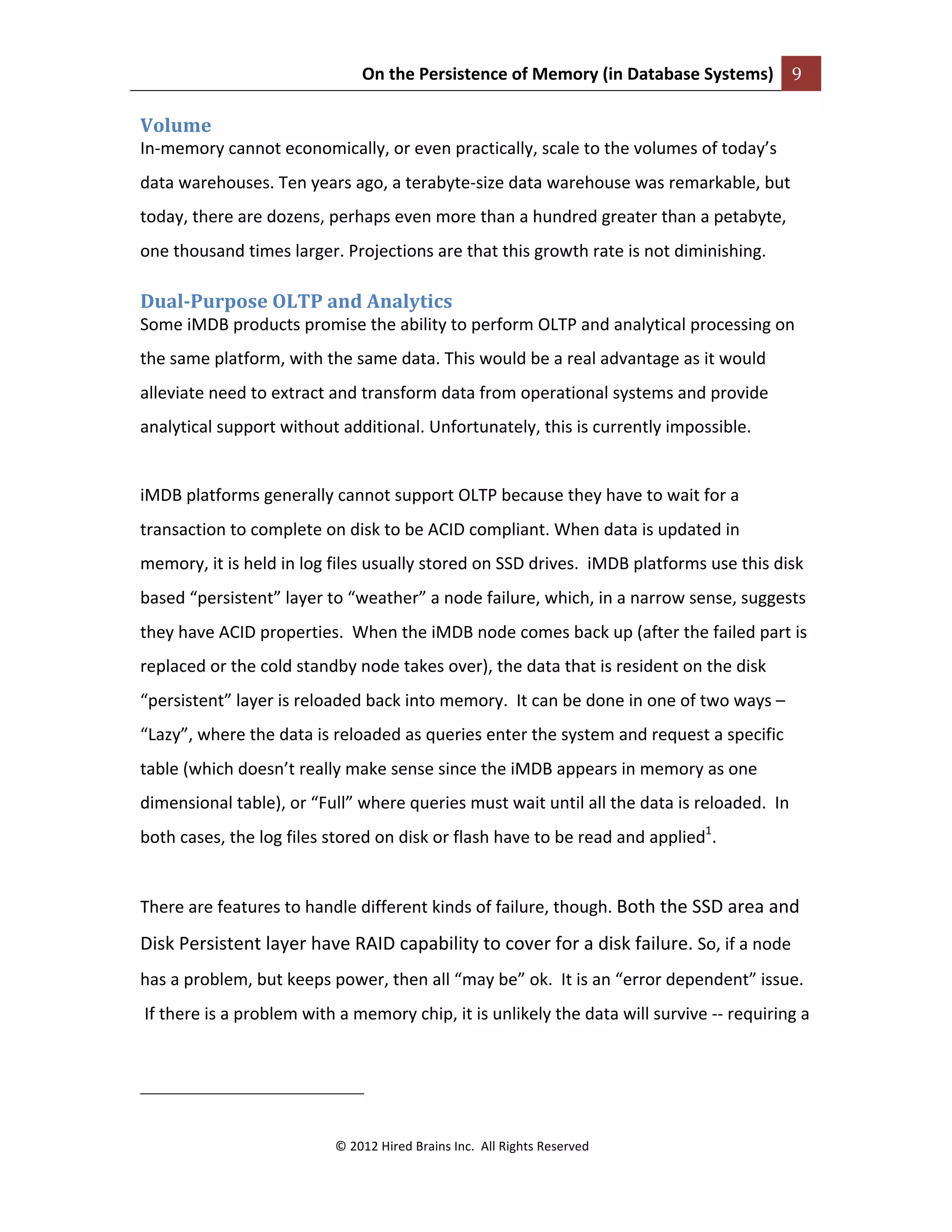

Volume

In-‐memory
cannot
economically,
or
even
practically,
scale
to
the
volumes
of
today’s

data
warehouses.
Ten
years
ago,
a
terabyte-‐size
data
warehouse
was
remarkable,
but

today,
there
are
dozens,
perhaps
even
more
than
a
hundred
greater
than
a
petabyte,

one
thousand
times
larger.
Projections
are
that
this
growth
rate
is
not
diminishing.

Dual-Purpose
OLTP
and
Analytics

Some
iMDB
products
promise
the
ability
to
perform
OLTP
and
analytical
processing
on

the
same
platform,
with
the
same
data.
This
would
be
a
real
advantage
as
it
would

alleviate
need
to
extract
and
transform
data
from
operational
systems
and
provide

analytical
support
without
additional.
Unfortunately,
this
is
currently
impossible.

iMDB
platforms
generally
cannot
support
OLTP
because
they
have
to
wait
for
a

transaction
to
complete
on
disk
to
be
ACID
compliant.
When
data
is
updated
in

memory,
it
is
held
in
log
files
usually
stored
on
SSD
drives.

iMDB
platforms
use
this
disk

based
“persistent”
layer
to
“weather”
a
node
failure,
which,
in
a
narrow
sense,
suggests

they
have
ACID
properties.

When
the
iMDB
node
comes
back
up
(after
the
failed
part
is

replaced
or
the
cold
standby
node
takes
over),
the
data
that
is
resident
on
the
disk

“persistent”
layer
is
reloaded
back
into
memory.

It
can
be
done
in
one
of
two
ways
–

“Lazy”,
where
the
data
is
reloaded
as
queries
enter
the
system
and
request
a
specific

table
(which
doesn’t
really
make
sense
since
the
iMDB
appears
in
memory
as
one

dimensional
table),
or
“Full”
where
queries
must
wait
until
all
the
data
is
reloaded.

In

both
cases,
the
log
files
stored
on
disk
or
flash
have
to
be
read
and
applied1
.

There
are
features
to
handle
different
kinds
of
failure,
though.
Both
the
SSD
area
and

Disk
Persistent
layer
have
RAID
capability
to
cover
for
a
disk
failure.
So,
if
a
node

has
a
problem,
but
keeps
power,
then
all
“may
be”
ok.

It
is
an
“error
dependent”
issue.

If
there
is
a
problem
with
a
memory
chip,
it
is
unlikely
the
data
will
survive
-‐-‐
requiring
a

On
the
Persistence
of
Memory
(in
Database
Systems)
10

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

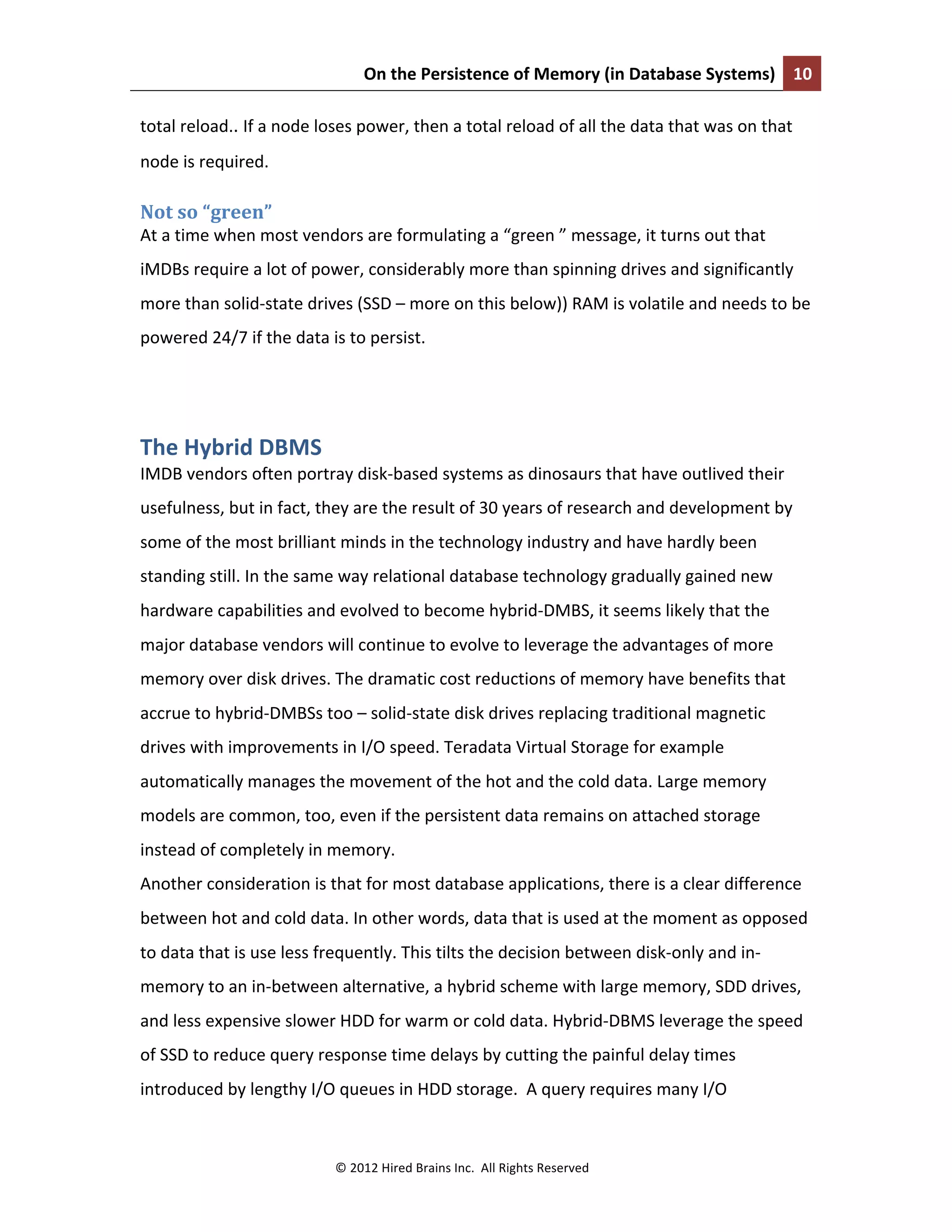

total
reload..
If
a
node
loses
power,
then
a
total
reload
of
all
the
data
that
was
on
that

node
is
required.

Not
so
“green”

At
a
time
when
most
vendors
are
formulating
a
“green
”
message,
it
turns
out
that

iMDBs
require
a
lot
of
power,
considerably
more
than
spinning
drives
and
significantly

more
than
solid-‐state
drives
(SSD
–
more
on
this
below))
RAM
is
volatile
and
needs
to
be

powered
24/7
if
the
data
is
to
persist.

The
Hybrid
DBMS

IMDB
vendors
often
portray
disk-‐based
systems
as
dinosaurs
that
have
outlived
their

usefulness,
but
in
fact,
they
are
the
result
of
30
years
of
research
and
development
by

some
of
the
most
brilliant
minds
in
the
technology
industry
and
have
hardly
been

standing
still.
In
the
same
way
relational
database
technology
gradually
gained
new

hardware
capabilities
and
evolved
to
become
hybrid-‐DMBS,
it
seems
likely
that
the

major
database
vendors
will
continue
to
evolve
to
leverage
the
advantages
of
more

memory
over
disk
drives.
The
dramatic
cost
reductions
of
memory
have
benefits
that

accrue
to
hybrid-‐DMBSs
too
–
solid-‐state
disk
drives
replacing
traditional
magnetic

drives
with
improvements
in
I/O
speed.
Teradata
Virtual
Storage
for
example

automatically
manages
the
movement
of
the
hot
and
the
cold
data.
Large
memory

models
are
common,
too,
even
if
the
persistent
data
remains
on
attached
storage

instead
of
completely
in
memory.

Another
consideration
is
that
for
most
database
applications,
there
is
a
clear
difference

between
hot
and
cold
data.
In
other
words,
data
that
is
used
at
the
moment
as
opposed

to
data
that
is
use
less
frequently.
This
tilts
the
decision
between
disk-‐only
and
in-‐
memory
to
an
in-‐between
alternative,
a
hybrid
scheme
with
large
memory,
SDD
drives,

and
less
expensive
slower
HDD
for
warm
or
cold
data.
Hybrid-‐DBMS
leverage
the
speed

of
SSD
to
reduce
query
response
time
delays
by
cutting
the
painful
delay
times

introduced
by
lengthy
I/O
queues
in
HDD
storage.

A
query
requires
many
I/O

On
the
Persistence
of
Memory
(in
Database
Systems)
11

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

operations
to
complete
so
the
time
spent
with
I/O
requests
in
storage
queues
has
a

direct
impact.
Not
only
does
the
speed
and
parallel
channel
capability
of
SSD
result
in

40X
faster
I/O
completions,
but
the
queue
in
the
HDD
are
shortened
by
aiming
80%
of

I/O
at
the
SSD,
this
can
result
up
to
a
60X
improvement
in
average
response
times.

A
Hybrid
scheme
requires
not
only
a
physical
assemblage
of
devices,
but
also
an

intelligent
data
manager
that
continually
and
transparently
optimizes
the
architecture

by
moving
data
to
its
best
location.

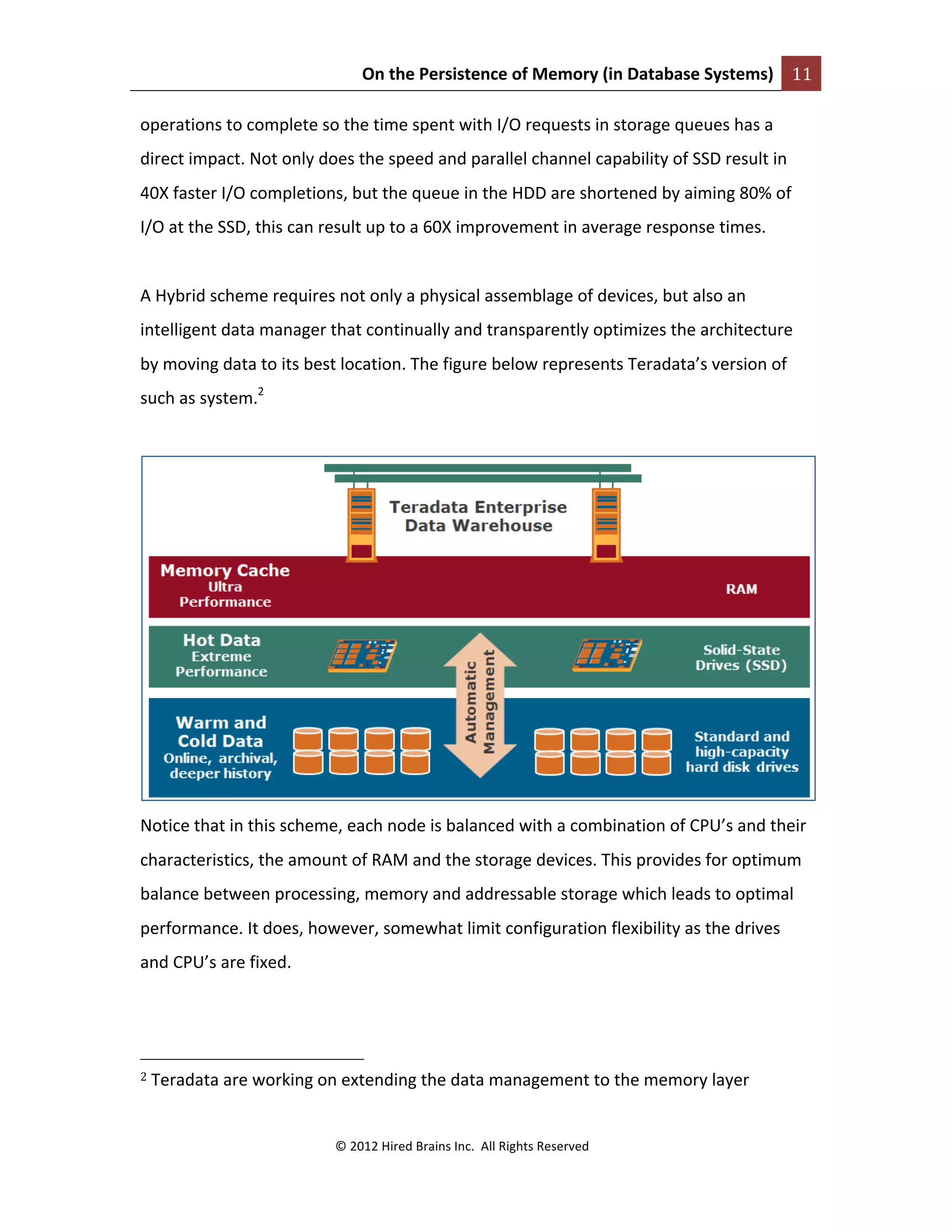

The
figure
below
represents
Teradata’s
version
of

such
as
system.2

Notice
that
in
this
scheme,
each
node
is
balanced
with
a
combination
of
CPU’s
and
their

characteristics,
the
amount
of
RAM
and
the
storage
devices.
This
provides
for
optimum

balance
between
processing,
memory
and
addressable
storage
which
leads
to
optimal

performance.
It
does,
however,
somewhat
limit
configuration
flexibility
as
the
drives

and
CPU’s
are
fixed.

2
Teradata
are
working
on
extending
the
data
management
to
the
memory
layer

On
the
Persistence
of
Memory
(in
Database
Systems)
12

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

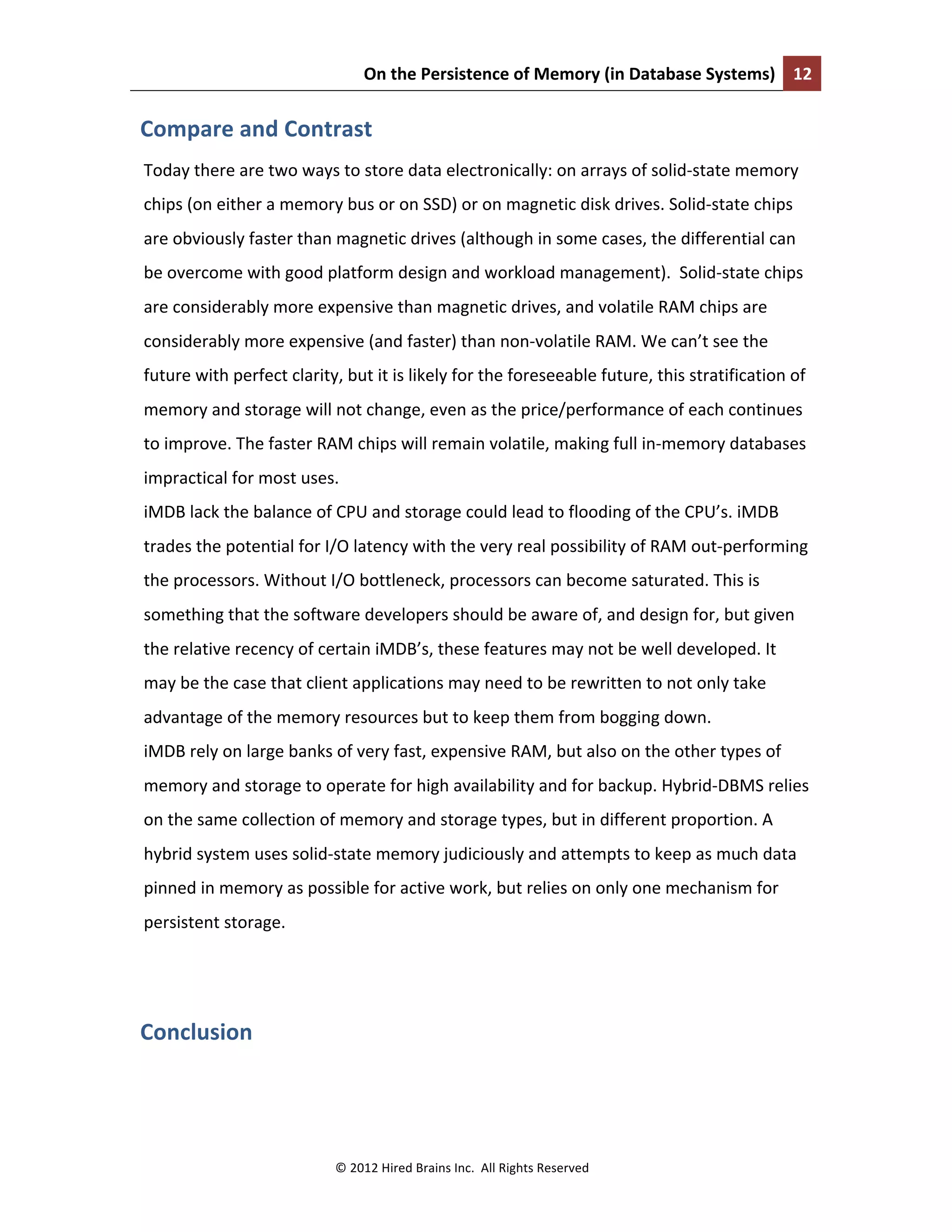

Compare
and
Contrast

Today
there
are
two
ways
to
store
data
electronically:
on
arrays
of
solid-‐state
memory

chips
(on
either
a
memory
bus
or
on
SSD)
or
on
magnetic
disk
drives.
Solid-‐state
chips

are
obviously
faster
than
magnetic
drives
(although
in
some
cases,
the
differential
can

be
overcome
with
good
platform
design
and
workload
management).

Solid-‐state
chips

are
considerably
more
expensive
than
magnetic
drives,
and
volatile
RAM
chips
are

considerably
more
expensive
(and
faster)
than
non-‐volatile
RAM.
We
can’t
see
the

future
with
perfect
clarity,
but
it
is
likely
for
the
foreseeable
future,
this
stratification
of

memory
and
storage
will
not
change,
even
as
the
price/performance
of
each
continues

to
improve.
The
faster
RAM
chips
will
remain
volatile,
making
full
in-‐memory
databases

impractical
for
most
uses.

iMDB
lack
the
balance
of
CPU
and
storage
could
lead
to
flooding
of
the
CPU’s.
iMDB

trades
the
potential
for
I/O
latency
with
the
very
real
possibility
of
RAM
out-‐performing

the
processors.
Without
I/O
bottleneck,
processors
can
become
saturated.
This
is

something
that
the
software
developers
should
be
aware
of,
and
design
for,
but
given

the
relative
recency
of
certain
iMDB’s,
these
features
may
not
be
well
developed.
It

may
be
the
case
that
client
applications
may
need
to
be
rewritten
to
not
only
take

advantage
of
the
memory
resources
but
to
keep
them
from
bogging
down.

iMDB
rely
on
large
banks
of
very
fast,
expensive
RAM,
but
also
on
the
other
types
of

memory
and
storage
to
operate
for
high
availability
and
for
backup.
Hybrid-‐DBMS
relies

on
the
same
collection
of
memory
and
storage
types,
but
in
different
proportion.
A

hybrid
system
uses
solid-‐state
memory
judiciously
and
attempts
to
keep
as
much
data

pinned
in
memory
as
possible
for
active
work,
but
relies
on
only
one
mechanism
for

persistent
storage.

Conclusion

On
the
Persistence
of
Memory
(in
Database
Systems)
13

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

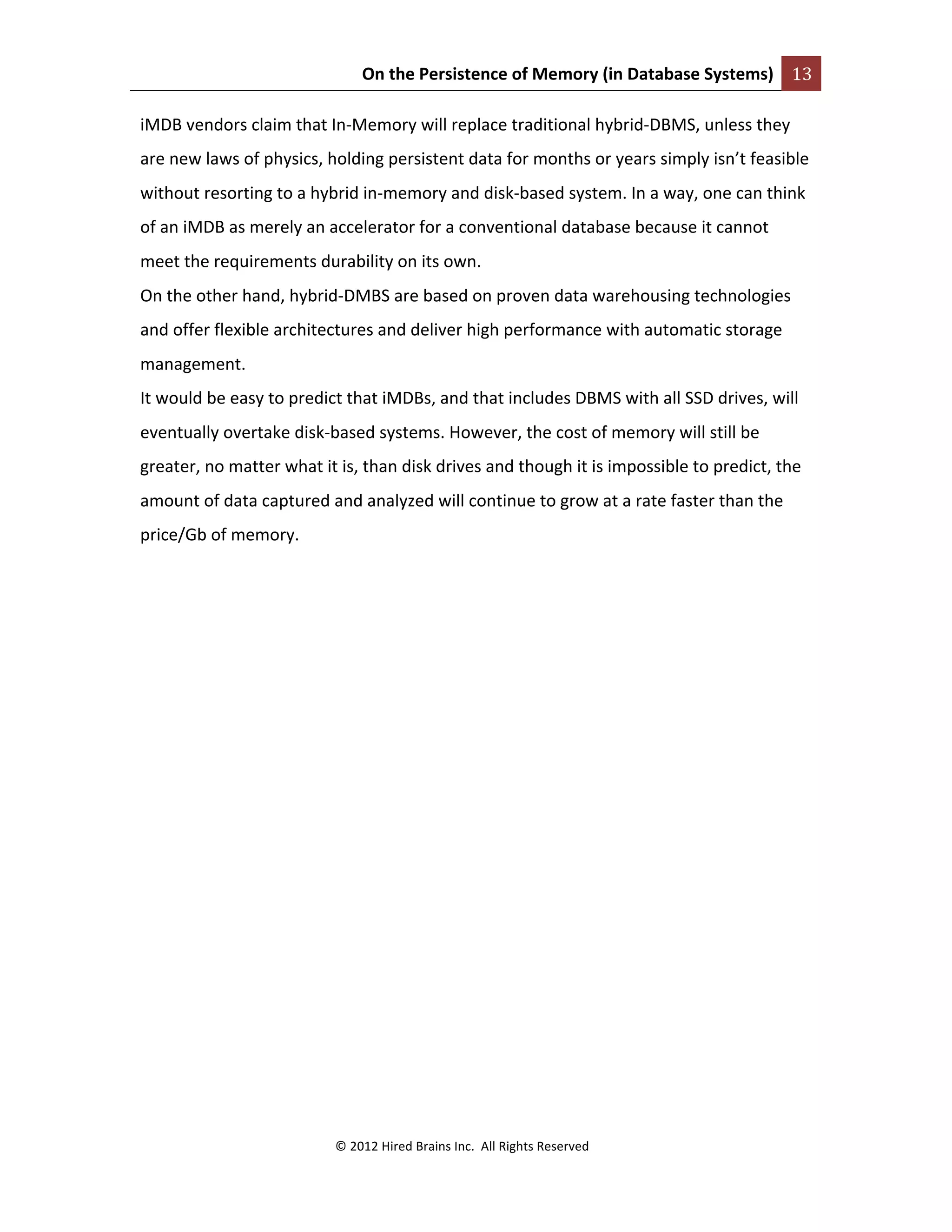

iMDB
vendors
claim
that
In-‐Memory
will
replace
traditional
hybrid-‐DBMS,
unless
they

are
new
laws
of
physics,
holding
persistent
data
for
months
or
years
simply
isn’t
feasible

without
resorting
to
a
hybrid
in-‐memory
and
disk-‐based
system.
In
a
way,
one
can
think

of
an
iMDB
as
merely
an
accelerator
for
a
conventional
database
because
it
cannot

meet
the
requirements
durability
on
its
own.

On
the
other
hand,
hybrid-‐DMBS
are
based
on
proven
data
warehousing
technologies

and
offer
flexible
architectures
and
deliver
high
performance
with
automatic
storage

management.

It
would
be
easy
to
predict
that
iMDBs,
and
that
includes
DBMS
with
all
SSD
drives,
will

eventually
overtake
disk-‐based
systems.
However,
the
cost
of
memory
will
still
be

greater,
no
matter
what
it
is,
than
disk
drives
and
though
it
is
impossible
to
predict,
the

amount
of
data
captured
and
analyzed
will
continue
to
grow
at
a
rate
faster
than
the

price/Gb
of
memory.

On
the
Persistence
of
Memory
(in
Database
Systems)
14

©
2012
Hired
Brains
Inc.

All
Rights
Reserved

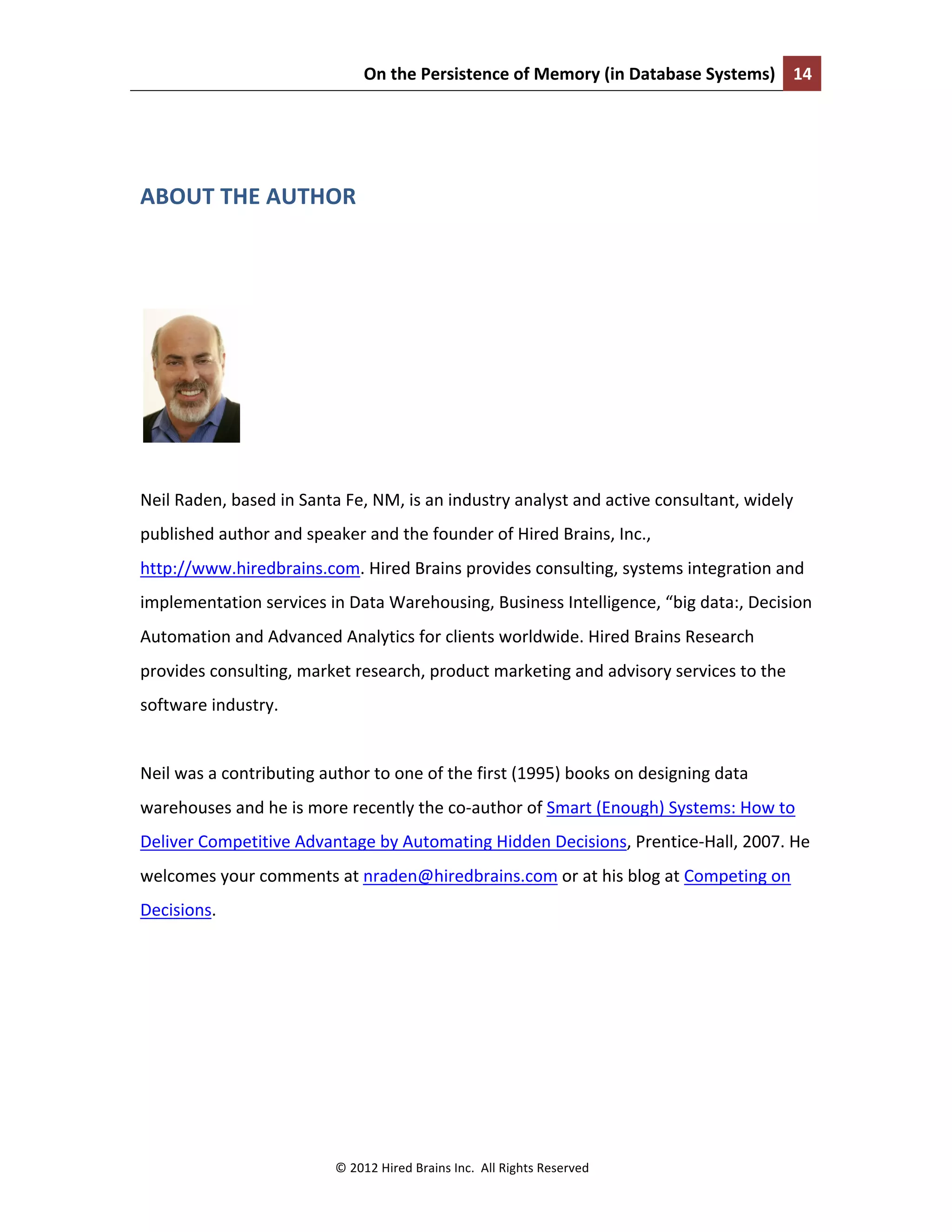

ABOUT
THE
AUTHOR

Neil
Raden,
based
in
Santa
Fe,
NM,
is
an
industry
analyst
and
active
consultant,
widely

published
author
and
speaker
and
the
founder
of
Hired
Brains,
Inc.,

http://www.hiredbrains.com.
Hired
Brains
provides
consulting,
systems
integration
and

implementation
services
in
Data
Warehousing,
Business
Intelligence,
“big
data:,
Decision

Automation
and
Advanced
Analytics
for
clients
worldwide.
Hired
Brains
Research

provides
consulting,
market
research,
product
marketing
and
advisory
services
to
the

software
industry.

Neil
was
a
contributing
author
to
one
of
the
first
(1995)
books
on
designing
data

warehouses
and
he
is
more
recently
the
co-‐author
of
Smart
(Enough)
Systems:
How
to

Deliver
Competitive
Advantage
by
Automating
Hidden
Decisions,
Prentice-‐Hall,
2007.
He

welcomes
your
comments
at
nraden@hiredbrains.com
or
at
his
blog
at
Competing
on

Decisions.

Persistence of memory: In-memory Is Not Often the Answer

More Related Content

What's hot

Similar to Persistence of memory: In-memory Is Not Often the Answer

More from Neil Raden

Recently uploaded

Persistence of memory: In-memory Is Not Often the Answer
