This document defines C code for analyzing network traffic packets captured from a live network interface. It includes functions to parse packet headers, identify TCP packets on port 80, track unique hostnames and visit counts, and handle memory management. The main function initializes packet capture, calls functions to process each packet, and handles program termination including printing statistics.

1. #include <stdio.h>
#include <stdlib.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <pcap.h>
#include <signal.h>
#include <time.h>
#define ETHERNET_HEADER_SIZE 14
#define INTERNET_HEADER_SIZE 20
#define TCP_HEADER_SIZE 20
char **hosts; // unique host space //
int *visits; // visit count space //
int sent = 0; // bytes sent //
int received = 0; // bytes received //
int k = 0; // unique host count //
int size = 20; // the size of our current host space //
int depth = 25; // the depth of our current host space //
int y = 0; // page counter //
time_t start; // start time of our program //
time_t end; // end time of our program //
double timer; // store the time our program ran //
struct internet_header // define the structure of the internet header
as given in the specification //
{
unsigned char version:4;
unsigned char IHL:4;
char type;
unsigned char length[2];
unsigned char identification[2];
unsigned char flags:3;
unsigned short fragment:13;
char time;
char proto;
unsigned char checksum[2];
unsigned char source[4];
unsigned char dest[4];
};
struct tcp_header // define all parts of tcp layer, without taking the
data into consideration //
{
unsigned short source;
unsigned short dest;
unsigned long sequence;
unsigned long acknowledge;
unsigned char offset:4;
unsigned char reserved:6;
unsigned char flags1:1;
unsigned char flags2:1;
unsigned char flags3:1;
unsigned char flags4:1;

2. unsigned char flags5:1;
unsigned char flags6:1;
unsigned short window;
unsigned short checksum;
unsigned short pointer;
};
int tcp_test(const unsigned char *data_packet) // test if our input
packet is a tcp packet, using 1 as a true value if it is //
{
const struct internet_header *iheader;
iheader = (const struct internet_header *)data_packet;
if((iheader->proto) == 6)
{
return 1;
}
else
return 0;
}
int port_test(const unsigned char *data_packet) // test if our input
packet is sent through port 80, using 1 as a value if it is received,
using 2 as a value if it is sent and 0 if it uses another port //
{
const struct tcp_header *theader;
theader = (const struct tcp_header *)data_packet;
int i = ntohs(theader->source);
int j = ntohs(theader->dest);
if (i == 80)
{
return 1;
}
if (j == 80)
{
return 2;
}
else
{
return 0;
}
}
void expand() // expand our packet by increasing the number of
unique hosts we have available to us //
{
char **temp = realloc(hosts, (2*size)*sizeof(char*)); // reallocate
hosts to a new space of double the size //
int i;
if(temp != NULL)

3. {

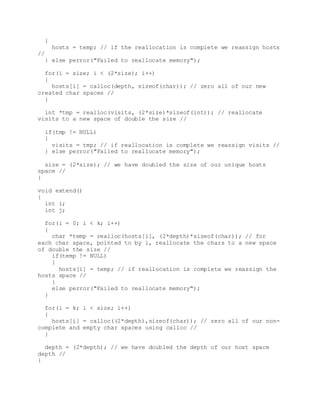

hosts = temp; // if the reallocation is complete we reassign hosts
//
} else perror("Failed to reallocate memory");
for(i = size; i < (2*size); i++)
{
hosts[i] = calloc(depth, sizeof(char)); // zero all of our new
created char spaces //
}
int *tmp = realloc(visits, (2*size)*sizeof(int)); // reallocate
visits to a new space of double the size //
if(tmp != NULL)
{
visits = tmp; // if reallocation is complete we reassign visits //
} else perror("Failed to reallocate memory");
size = (2*size); // we have doubled the size of our unique hosts
space //
}
void extend()
{
int i;
int j;
for(i = 0; i < k; i++)
{
char *temp = realloc(hosts[i], (2*depth)*sizeof(char)); // for
each char space, pointed to by i, reallocate the chars to a new space
of double the size //
if(temp != NULL)
{
hosts[i] = temp; // if reallocation is complete we reassign the
hosts space //
}
else perror("Failed to reallocate memory");
}
for(i = k; i < size; i++)
{
hosts[i] = calloc((2*depth),sizeof(char)); // zero all of our non-
complete and empty char spaces using calloc //
}
depth = (2*depth); // we have doubled the depth of our host space
depth //
}

4. void find_host(const unsigned char *data, int length) // find the host
name in our data packet //
{
unsigned char byte;
unsigned int i,j,x;
j = 0;
if(length > 3) // if packet is large enough to submit to our tests
//
{
for(i = 0; i < (length-4); i++) // iterate i until we cannot
consider the next 5 characters //
{
if(((int)data[i] == 72) && ((int)data[i+1] == 111) &&
((int)data[i+2] == 115) && ((int)data[i+3] == 116) && ((int)data[i+4]
== 58)) // if we find the ascii representation of 'Host:'
{
y++; // we have a new host, address found, so we know we have a
new page connection. Iterate y, our page counter //
if(k >= size) // if we have a unique host that exceeds our host
space, expand the host space before we add the value //
{
expand();
}
if(k == 0) // if this is our first entry, input the host without
tests //
{
do
{
byte = data[i + 6 + j];;
hosts[k][j] = byte; // store the char form of our host in our
host space //
j++;
if(j >= depth) // if we have a host name exceeding the depth
of our host space, we extend the depth //
{
extend();
j = 0; // to ensure the data is not lost from this
incomplete form being reallocated, we zero the entire entry and start
again by resetting j //
}
} while((int)data[i + 6 + j] != 10); // when we find the space
character at the end of the host name, stop adding to the host space
//
visits[k] = 1; // set visits for this host to 1 //
k++; // increase number of unique hosts //
}
else
{
x = match(data,i); // search for the value of a match to the
host name, if one exists //

5. if(x < (k+1)) // if we have found a valid host point, we have a
match //
{
visits[x] = visits[x] + 1; // at the match point, increase
our number of visits by one //
}
else // if no match has been found //
{
do
{
byte = data[i + 6 + j];
hosts[k][j] = byte; // store the char form of our host in
our host space //
j++;
if(j >= depth) // if we have a host name exceeding the
depth of our host space, we extend the depth //
{
extend();
j = 0; // to ensure the data is not lost from this
incomplete form being reallocated, we zero the entire entry and start
again by resetting j //
}
} while((int)data[i + 6 + j] != 10); // when we find the
space character at the end of the host name, stop adding to the host
space //
visits[k] = 1; // set visits for this host to 1 //
k++; // increase number of unique hosts //
}
}
}
}
}
}
int match(const unsigned char *data, int position) // test if we find
a match for the host name //
{
unsigned char byte;
int j,i,x;
int *test = calloc(k,sizeof(int)); // set an array to represent each
unique host, defaulted to zero using calloc //
for(i = 0; i < k; i++) // test for each of our unique hosts //
{
j = 0;
x = 0;
do
{
byte = data[position + 6 + j]; // iterate across our input host
name //
j++;

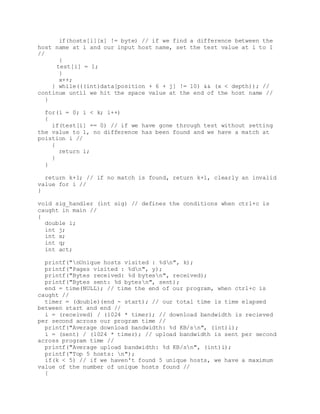

6. if(hosts[i][x] != byte) // if we find a difference between the
host name at i and our input host name, set the test value at i to 1
//
{
test[i] = 1;
}
x++;
} while(((int)data[position + 6 + j] != 10) && (x < depth)); //
continue until we hit the space value at the end of the host name //
}
for(i = 0; i < k; i++)
{
if(test[i] == 0) // if we have gone through test without setting
the value to 1, no difference has been found and we have a match at
poistion i //
{
return i;
}
}
return k+1; // if no match is found, return k+1, clearly an invalid
value for i //
}
void sig_handler (int sig) // defines the conditions when ctrl+c is
caught in main //
{
double i;
int j;
int x;
int q;
int act;
printf("nUnique hosts visited : %dn", k);
printf("Pages visited : %dn", y);
printf("Bytes received: %d bytesn", received);
printf("Bytes sent: %d bytesn", sent);
end = time(NULL); // time the end of our program, when ctrl+c is
caught //
timer = (double)(end - start); // our total time is time elapsed
between start and end //
i = (received) / (1024 * timer); // download bandwidth is recieved
per second across our program time //
printf("Average download bandwidth: %d KB/sn", (int)i);
i = (sent) / (1024 * timer); // upload bandwidth is sent per second
across program time //
printf("Average upload bandwidth: %d KB/sn", (int)i);
printf("Top 5 hosts: n");
if(k < 5) // if we haven't found 5 unique hosts, we have a maximum
value of the number of unique hosts found //
{

7. act = k;
}
else // if we have 5 or more unique hosts, we set our maximum value
to 5 //
{
act = 5;
}
for( j = 0; j < act; j++) // we find our top visits for our maximum
value //
{
q = 0;
for( x = 1; x < k; x++) // iterate across our list until we are
out of unique hosts to test //
{
if(visits[x] > visits[q]) // if we find a value with more visits
later in the list, we set this as our current high value, defined to
be q //
{
q = x;
}
}
visits[q] = 0; // we zero this value to ensure it is not picked
again //
x = 0; // reset x to start iteration later on //
printf("t");
while(hosts[q][x] != 0) // until we hit a value that is unchanged,
set to zero by our inital calloc call //
{
printf("%c", hosts[q][x]);// print the name of the most visited
host found //
x++;
}
printf("n");
}
free(hosts); // free the memory from both of hosts and visits upon
exit //
free(visits);
exit(0); // exit the program //
}
int* build_visits() // build our visits array //
{
int *tmp = (int*) calloc(20, sizeof(int));
return tmp;
}
char** build_hosts() // build our hosts array //
{
int i;

8. char **tmp = (char**) calloc(20, sizeof(char*));
for (i = 0; i < size; i++)
{
tmp[i] = (char*) calloc(25, sizeof(char)); // at each pointer in
*tmp, create an array of chars //
}
return tmp;
}
int main(int argc, char *argv[])
{
struct pcap_pkthdr header;
const unsigned char *packet;
char errbuf[PCAP_ERRBUF_SIZE];
char *device;
pcap_t *pcap_handle;
int i;
start = time(NULL); // take our start time //
device = pcap_lookupdev(errbuf); // lookup a device to sniff //
visits = build_visits(); // build our visits array //
hosts = build_hosts(); // build our hosts array //
if (device == NULL) perror("pcap_lookupdev failed");
printf("Sniffing on device %sn", device);
pcap_handle = pcap_open_live(device, 4096, 1, 0, errbuf); // open
the connection to the device //
if (pcap_handle == NULL) perror("pcap_open_live failed");
signal(SIGINT, sig_handler); // search for our ctrl+c call,
deferring to sig_handler when we receive it //
while (1) {
packet = pcap_next(pcap_handle, &header);// continue to move along
the packets in consideration //
if((tcp_test(packet + ETHERNET_HEADER_SIZE)) == 1) // if we have a
tcp packet from our test defined above //
{
if((port_test(packet + ETHERNET_HEADER_SIZE +
INTERNET_HEADER_SIZE)) == 2) // if we have sent the packet //
{
sent = sent + header.len; // increase the number of bytes sent //
find_host(packet + ETHERNET_HEADER_SIZE + INTERNET_HEADER_SIZE +
TCP_HEADER_SIZE, header.len - ETHERNET_HEADER_SIZE -
INTERNET_HEADER_SIZE - TCP_HEADER_SIZE); // find the host of our sent
packet //
}
else if((port_test(packet + ETHERNET_HEADER_SIZE +
INTERNET_HEADER_SIZE)) == 1) // if packet has been received //

9. {
received = received + header.len; // increase number of bytes
received //
}
}
}
}
