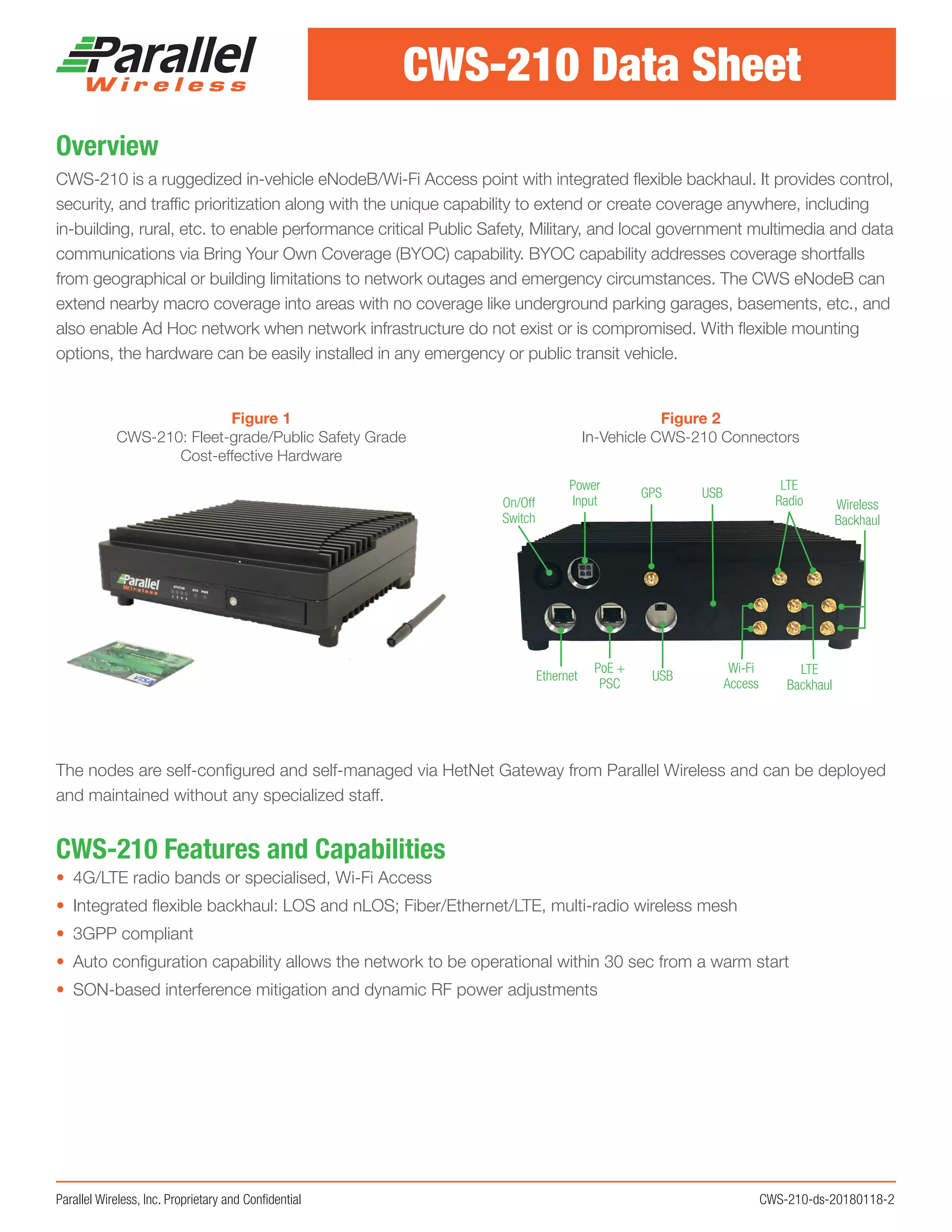

1. Parallel Wireless, Inc. Proprietary and Confidential CWS-210-ds-20180118-2
Overview
CWS-210 is a ruggedized in-vehicle eNodeB/Wi-Fi Access point with integrated flexible backhaul. It provides control,
security, and traffic prioritization along with the unique capability to extend or create coverage anywhere, including
in-building, rural, etc. to enable performance critical Public Safety, Military, and local government multimedia and data
communications via Bring Your Own Coverage (BYOC) capability. BYOC capability addresses coverage shortfalls
from geographical or building limitations to network outages and emergency circumstances. The CWS eNodeB can
extend nearby macro coverage into areas with no coverage like underground parking garages, basements, etc., and
also enable Ad Hoc network when network infrastructure do not exist or is compromised. With flexible mounting
options, the hardware can be easily installed in any emergency or public transit vehicle.
The nodes are self-configured and self-managed via HetNet Gateway from Parallel Wireless and can be deployed
and maintained without any specialized staff.
CWS-210 Features and Capabilities
• 4G/LTE radio bands or specialised, Wi-Fi Access
• Integrated flexible backhaul: LOS and nLOS; Fiber/Ethernet/LTE, multi-radio wireless mesh
• 3GPP compliant
• Auto configuration capability allows the network to be operational within 30 sec from a warm start
• SON-based interference mitigation and dynamic RF power adjustments
CWS-210 Data Sheet
Figure 1
CWS-210: Fleet-grade/Public Safety Grade
Cost-effective Hardware
Figure 2
In-Vehicle CWS-210 Connectors
On/Off
Switch
Power
Input
GPS USB
LTE
Radio Wireless
Backhaul
LTE
Backhaul
Wi-Fi
Access
USB
PoE +
PSC
Ethernet

2. Parallel Wireless, Inc. Proprietary and Confidential CWS-210-ds-20180118-2

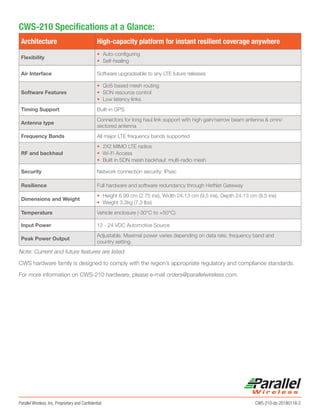

CWS-210 Specifications at a Glance:
Architecture High-capacity platform for instant resilient coverage anywhere
Flexibility
• Auto-configuring
• Self-healing
Air Interface Software upgradeable to any LTE future releases
Software Features
• QoS based mesh routing
• SON resource control
• Low latency links
Timing Support Built-in GPS
Antenna type
Connectors for long haul link support with high gain/narrow beam antenna & omni/
sectored antenna
Frequency Bands All major LTE frequency bands supported
RF and backhaul
• 2X2 MIMO LTE radios
• Wi-Fi Access
• Built in SDN mesh backhaul: multi-radio mesh
Security Network connection security: IPsec
Resilience Full hardware and software redundancy through HetNet Gateway
Dimensions and Weight
• Height 6.99 cm (2.75 ins), Width 24.13 cm (9.5 ins), Depth 24.13 cm (9.5 ins)
• Weight 3.3kg (7.3 lbs)
Temperature Vehicle enclosure (-30°C to +50°C)
Input Power 12 - 24 VDC Automotive Source
Peak Power Output
Adjustable. Maximal power varies depending on data rate, frequency band and
country setting.
Note: Current and future features are listed
CWS hardware family is designed to comply with the region’s appropriate regulatory and compliance standards.
For more information on CWS-210 hardware, please e-mail orders@parallelwireless.com.
