This session is sponsored by Fortinet. Chair: Frances Burton, security services group manager, Jisc. Cybersecurity has long been an area of activity for those responsible for providing, protecting and supporting digital services in research and education, but recent events have focused public and media attention on the scale of the threat. Our security thread at this year’s conference is picking up on some of these themes and we have sessions covering a number of cybersecurity areas. There will be presentations on organisation experiences of email phishing and the results of our RPZ trial. Accreditation of services is being requested more often by project funders and will have a case study presentation on experience of obtaining ISO27001. Running order of talks: 11:30-11:55 - RPZ trial Speaker: Peter Dorey, Spamhaus 11:55-12:20 - Addressing the skills shortage in cybersecurity Speaker: Debbie Tunstall, Cyber Security Challenge. 12:20-12:45 - Institutional issues with Bitcoin Speaker: Jethro Perkins, London School of Economics and Political Science (LSE).

1. Parallel session G: Security
Chair: Frances Burton
SPONSORED BY

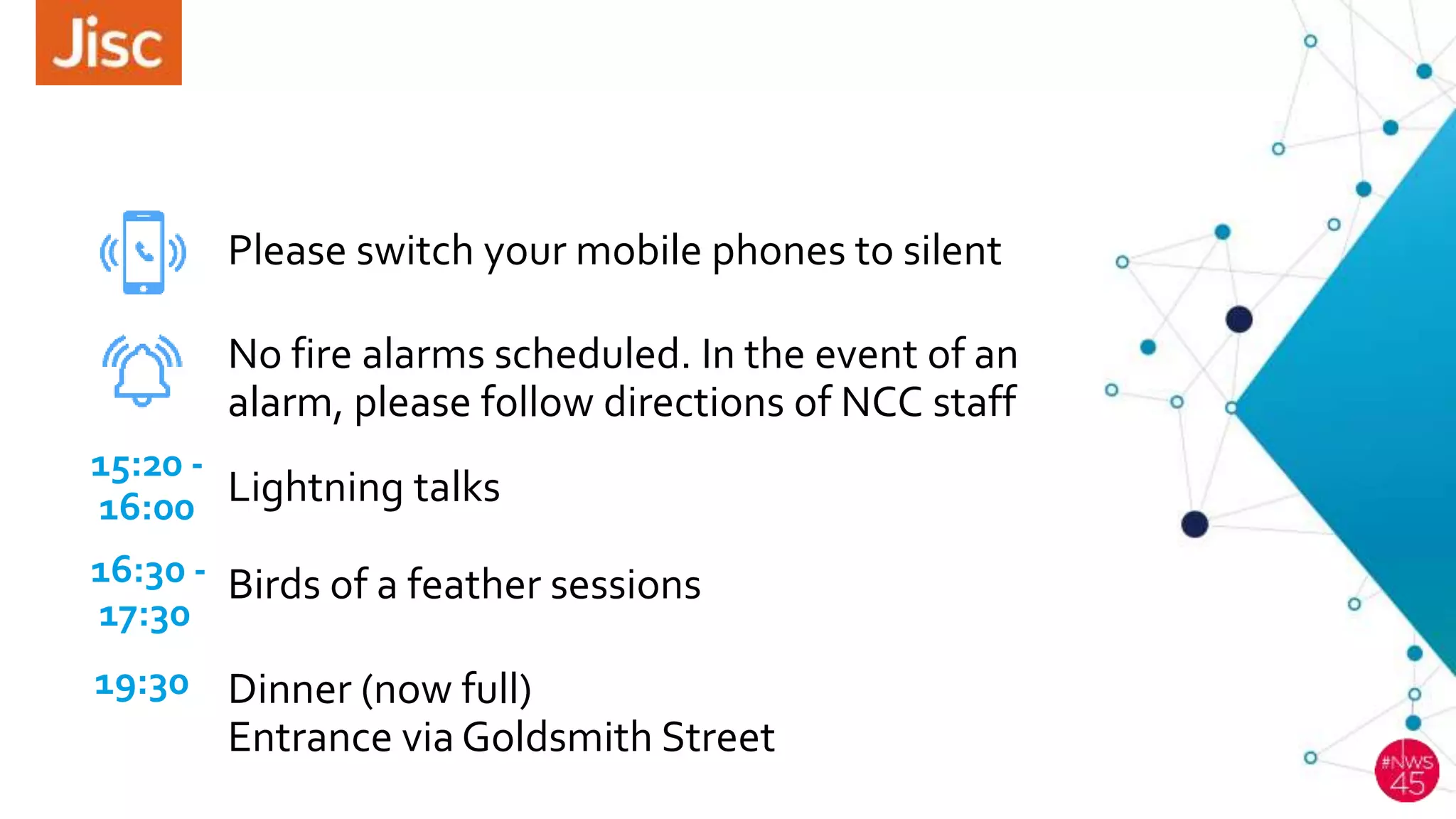

2. Please switch your mobile phones to silent
19:30
No fire alarms scheduled. In the event of an
alarm, please follow directions of NCC staff
Dinner (now full)
Entrance via Goldsmith Street
16:30 -
17:30
Birds of a feather sessions
15:20 -
16:00 Lightning talks

3. University of Kent and Spamhaus
Response Policy Zone Trial
David Hayling - University of Kent
Peter Dorey - Spamhaus Technology

4. The UK’s European university
RPZ
David Hayling

5. RPZ Response Policy Zone
• Basically ‘real time blocking lists’ for DNS lookups
• Developed by ISC
• In BIND since ver 9.8
• Load a zone from <some-source>
• Full transfer (AXFR)
• Incremental (IXFR)
• DNS server check RPZ zone for each resolve request
• If negative then resolve name as normal
• If positive then return a pre-configured IP address (‘walled garden’), or
return ‘non-existent domain’ (NXDOMAIN)
simples

6. ‘Normal levels’ of malware
RPZ | David Hayling

7. ‘Normal levels’ of malware – what is ‘normal’?
RPZ | David Hayling

8. ‘Normal levels’ of malware – term time in full swing
RPZ | David Hayling

9. ‘Normal levels’ of malware – we’re ready to start blocking
RPZ | David Hayling

10. ‘Normal levels’ of malware – it works!
RPZ | David Hayling

11. ‘Normal levels’ of malware – Christmas break
RPZ | David Hayling

12. ‘Normal levels’ of malware – spring term – the ‘New Normal’
RPZ | David Hayling

13. Don’t just take RPZ’s word for it …
• Suricata Intrusion Detection System
• Log file analysis by Splunk
RPZ | David Hayling

14. Don’t just take RPZ’s word for it …
• Suricata Intrusion Detection System
• Log file analysis by Splunk
RPZ | David Hayling

15. RPZ Response Policy Zone - issues
• Load a zone from <some-source>
• Incremental (IXFR) after long gap causes BIND to ’barth’
• Full transfer (AXFR)
• False positives
• No reports
• but …blocking Twitter isn’t popular
• Whitelists
• Blacklists
• Google DNS (et al)
• Should we block?
• or redirect the query to local DNS
• or do nothing
RPZ | David Hayling

16. RPZ Response Policy Zone
“The greatest improvement in our malware defense,
in one easy step”
RPZ | David Hayling
Networks Team, Server Infrastructure Team, and
Operations
https://blogs.kent.ac.uk/unseenit/?s=rpz
With thanks to Matthew Trump

17. www.kent.ac.uk

18. RPZ Trial12/04/2017
Spamhaus Technology
» What we do
90% of the world’s email
traffic is spam…still
100 spam operations in North
America and Europe account
for 80% of spam
Protecting 3 billion mailboxes world-wide

19. RPZ Trial12/04/2017
Spamhaus Technology

20. RPZ Trial12/04/2017
» What it is - Domain Based Threat Intelligence
Response Policy Zones

21. RPZ Trial12/04/2017
Response Policy Zones
» Standard
• bad-nameservers.zone ~18,000 entries
• dbl.zone ~1,400,00 entries
• dblsr.zone ~2,500,000 entries
» Malware
• botnetcc.zone ~ 500 entries
• dga-domains.zone ~1,200,000 entries
• malware.zone ~ 67,000 entries
• malware-aggressive.zone ~ 4,000
entries
• malware-adware.zone ~ 4,000 entries
» Abused
• abused-legit.zone ~35,000 entries
• adservers.zone ~18,000 entries
• bogon.zone ~ 6,000 entries
» Diverse
• sbl.zone ~ 550,000 entries
• tor-exit-nodes.zone ~1,000 entries
» DROP & eDROP ~1,000 entries

22. RPZ Trial12/04/2017
» How it works
Response Policy Zones
DNS resolver
DNS root server
DNS .com TLD
DNS example.com

23. RPZ Trial12/04/2017
Response Policy Zones
DNS resolver
DNS root server
DNS .com TLD
DNS example.com
» How it works
» Distribution via IXFR
•8 Core CPU with at least a 2.4 gHz clock speed
•8 GB of RAM
•Servers should be bare metal - not virtualized

24. RPZ Trial12/04/2017
Hosting environment result
»Tips for implementation
Botnet C&C
C&C other
Outbound
Inbound

25. RPZ Trial12/04/2017
The Results
»Tips for implementation
1. Testing & Implementation
2. Whitelists
3. Tracking and metrics (log re-writes)

26. RPZ Trial12/04/2017
What next
»Sign up for DROP &eDROP
www.spamhaus.org www.spamhaustech.com
@spamteq
Search Groups ‘Spamhaus Technology’

27. jisc.ac.uk
David Hayling, University of Kent
Peter Dorey, Spamhaus

28. Addressing the skills shortage
in Cyber Security
DebbieTunstall,Cyber Security challenge

29. Debbie Tunstall
Education Team Manager - Cyber Security
Challenge UK
Ensuring We Have The Cyber Skills for Tomorrow
12 April 2017

30. Cyber Security
Cyber security has become prominent in recent years,
moving from a back-office ‘techie’ activity to an
industry that is at the heart of Britain’s business
success and its protection from major online criminals
and terrorists.

31. Current Picture
»The eight annual (ISC2) Global Workforce Survey
predicts there will be a shortage of
1.8 million Information Security
Professionals by 2022
»The Government will invest £1.9 billion in a
National Cyber Security Strategy to ensure
government, businesses, law enforcement and UK
citizens have the right skills and knowledge

32. But: are we doing enough as a nation?

34. Why is there a skills shortage?
• Profession is relatively new
• Understanding of the nature of the jobs is poor
• The pathways into it are ill defined
• Lacking diversity: we recruit from half the
population -7% women
• Our education system was not delivering for us.
Peter Clarke, Nov 2015
Masterclass winner
Ben Jackson (18), Nov 2016
Masterclass winner

35. The world is your oyster
»The UK cyber security industry contributes
over £17 billion to the UK economy
» Tens of thousands of home-grown experts are
working to protect UK businesses
»Globally, the rise in online crime is outpacing
the supply of cyber defenders
»Exports of UK cyber products and services are
growing by over 15% a year

36. Employers Need You!
Attributes:
Quick thinkers
 Strong communicators
 Have an inquisitive and analytical mind
 Problem solvers
 Good at thinking outside the box
 Creative – can stay one step ahead

37. Introduction to Cyber Security Challenge UK
 Cyber Security Challenge UK was set up to support
the National Cyber Security Strategy and to help
address the critical skills gap
 A not-for-profit organisation attracting
government and commercial sponsorship
 Over 80 Sponsors of all sizes
Cyber Education and
Skills: High on the list of
UK Governmental
Priorities

38. What is on Offer
From The Challenge ?
Competitions for all – National and
European
University Competitions
Schools Competitions – Cyber Games
CyberCenturion
Online Gaming – PoD – MMOGE Cyphinx
Toolkits
Virtuals
Cyber Camps
Face-to-Face learning and competitions
Masterclass and Finals
Prizes
Mentoring
Careers
Alumni Group - Whitehatters
2015 Schools Final
Winners at
Cheltenham
Science Festival

39. .
Education – Schools
• Schools Programme
• Lesson Plans and
Activities
• CyberCenturion
• Online Gaming – PoD
• CyPhinx
• Cyber Extended Project
Qualification [EPQ]
CyberCenturion finals – TNMOC Bletchley Park 2015, 2016

40. Education - Universities
• FE – HE - Universities
• Insight Camps
• Capture the Flags
• Careers Events
Kane Small – Greenwich Camp
The Cyber Security Challenge camp was such an
enlightening event and the amount of information that I
absorbed in just three days was phenomenal. Before the
event I had no idea I even wanted to pursue a career in
Cyber Security, but after the event I literally didn't know
why I hadn't looked into the field sooner! Having industry
experts attend and provide such rich and engaging talks,
not only about their own experiences but the threats that
exist now and are constantly evolving and adapting, was
an absolute eye-opener. I really would encourage anyone
who is interested in cyber security even in the slightest to
attend, you will not regret it for a second!

41. Education - Universities
Jessica Williams – Development Camp, Student
Ambassador, Masterclass Finalist, European Team,
speaker.
Cyber Security gave me the opportunity to attend loads of cyber
networking events. I meet many prospective employers and ended up
getting loads of interviews and eventually my job at BT, this was all
before I'd even finished my degree. I also got to work with the National
Grid on my final year project.
I had so much fun meeting all these great people, its also given me a
great bit of PR that I'm still getting contacted about! Cyber Security
Challenge gave me the confidence to do all these things, really
recognised my achievements even when sometimes my university
didn't.
Cyber Security Challenge has literally changed my life.

42. Education – Career
Transitioners My first experience of the
Cyber Security Challenge UK
came at the end of a 6 year
career in the Royal Marines.
Looking for a career change
and with zero technical
background, the challenge
gave me hands on
experience into an exciting
and challenging industry.
Tim Carrington,
Masterclass Finalist,
European Team,
Whitehatters

43. Switzerland October 2015:
European Cyber Security Challenge

44. Careers – Find out more
Inspired Careers
http://www.inspiredcareers.org/browse-
careers/cyber-security/

46. jisc.ac.uk
Thank you
DebbieTunstall
Cyber SecurityChallenge
dtunstall@Cybersecuritychallenge.org.uk
12/04/2017 Title of presentation (Insert > Header & Footer > Slide > Footer > Apply to all)

47. “It started with a phish...”
Or, how we got
USED for Bitcoin
Jethro Perkins
Information Security Manager, LSE

48. It was 15.52 on a Friday afternoon...
• ...and I was due to go on holiday the next day
• I was contacted by the (physical) Security Office
• Someone thinks they’ve been hacked
• “[John], below, claims his computer was hacked
when he corresponded with someone purporting
to be from LSE. It would seem that the
perpetrator was using LSE website/credentials (or
is he LSE).”

49. We have a problem...
• Victim suspected:
– he had fallen for an elaborate scam perpetrated by
“Professor Zhai”
• (who is in no way a criminal mastermind from a film)
– Prof Zhai claimed to the victim he was researching bitcoin
exchanges…
– …but was really hacking bitcoin exchanges…
– …using malware packaged as GoToMeeting binaries…
– Downloaded from learningresources.lse.ac.uk

50. Uh oh…
• We don’t have a Professor Howard Zhai
• But we do have a postgraduate student in another
Department with the referenced email address
• We don’t use (or distribute) GoToMeeting binaries
• What the hell is learningresources.lse.ac.uk?
– Is it some fake resource lurking on our network?
– Or a cunning redirect to something somewhere else?

51. We’ve been hacked! – Oh, wait...
• Is this a scam being run by a postgrad student masquerading as a professor?
• Or is it a compromised account being used for nefarious purposes?
• (Or is it an evil genius from a film trying to take over the universe?)
• We disable the account
– Was this a mistake?
– Did it alert the attacker?
• Is learningresources.lse.ac.uk a real thing?
• Turns out it is. How has it been hacked?
• Turns out – it hasn’t
• Anyone can create an account and upload stuff
• This is its function by design
• <headdesk>

52. Learningresources.lse.ac.uk
• Built long ago for lecturers to be able to upload and share resources
• Before formal Project reviews and Solution Design Authorities existed – so no
identification of the potential issue in the functionality
• Little used, but not decommissioned because “there’s some good stuff on it”
• It was patched
• We guessed pretty quickly that the upload facility had been abused, but we
couldn’t be sure...
• So we spent quite a lot of time trying to work out whether someone had root
privileges...
• ...and if so, then we would have a bigger problem on our hands
• At the same time, the attacker realised something was up (the disabled AD
account?) and deleted all their stuff from the server
– as we were looking at it

53. Learningresources.lse.ac.uk II
• In the end, we took all three related servers down for the weekend, just to
play it safe
• Learningresources was never switched back on again
• There was no indication of compromise
• They just used learningresources as it was meant to be used (kind of)
• We checked the firewall logs for any hint of the attacker going after other
targets
– It took a long time, as our logs are huge
– And our SIEM capabilities are, ahem, *not perfect*
• They had been sniffing around other departmental systems – we alerted
the administrators

54. What had happened
• “It started with a phish...”
• Two compromised postgraduate accounts
• Were they spear-phished, or were the accounts
just bought from a pool?
– (interestingly, later, one of the students reset his
password to the one that was compromised and his
account started sending out spam – indicating maybe
the latter)

55. Making a Professor of Economics
• Being a Professor of Economics is easy
• You need:
– a phished account
– Learningresources.lse.ac.uk
– A nice fake CV you can upload to it
• You give the account a name that fits the email account
• Then you can email bitcoin exchanges asking for them to participate in your classes
• You can direct them to your fake CV on the ambiguously-named learningresources.lse.ac.uk
– Authentic, huh?
• And chat with your buddy on the other compromised @lse.ac.uk address, for added
authenticity
• If asked why you’re not on the LSE website, you say you’re new, and it’s only updated in
September, ready for the new year

56. Talking to the Bitcoin exchanges
• “Professor Zhai” contacted several
• Same story each time:
• “We pay special attention to the development of digital
currencies and Blockchain technology, and we consider
that these technologies can have a significant impact
on the development of the world economy. Our
University is interested in cooperation with people who
can share some practical experience in this area.”

57. Next...
• For anyone who fell for this, the next stage was:
• “We regularly run webinars with directors of major companies,
government experts and entertainers. Students and teachers can
ask any questions online and discuss burning issues in the field of
digital currencies”
• This was followed up with a Skype conversation
• And then Bitcoin exchanges log into the “lecture” using...
• ...You guessed it...
• ...the malware hosted on learningresources.lse.ac.uk, masquerading
as GoToMeeting

58. Next II
• “Professor Zhai” then claims there have been some technical issues,
and he’ll get back in contact when these have been resolved
• Meanwhile, the malware is hunting around for whatever it is
hunting around for, and is talking back to a server in France
• He tries to string the exchanges along for as long as possible, to give
the attackers a chance to try what they’ve got
• Some get a bit angry and give up.
• Only one realises the game and has the presence of mind to get in
contact with us

59. Mopping up
• We contacted all of the Bitcoin exchanges
“Professor Zhai” had emailed, in order to let
them know it was fake
• We hardened the remaining servers that ran the
same system as learningresources
• No more creating user accounts, logging in and
uploading any old thing!

60. What we learned
• Authenticity is hard – faking it is easy
• A victim who’s willing to help makes all the difference to an investigation
• Everything still starts with a phish. All it took were two careless postgraduate students
• The attackers took the easiest route in - forgotten legacy services
• The scam was elaborate and carefully planned, but...
• …the only sophisticated technical aspect was the malware
– (and that was probably purchased)
– (and we don’t know if it actually worked)
• The rest was achieved by a combination of social engineering and opportunism
• LSE press releases and “chatty” website information give attackers plenty of “insider information”
• …which they relentlessly leverage
• Don’t go on holiday

61. Any questions?

62. jisc.ac.uk
Jethro Perkins
Information Security Manager, LSE

63. Thank you
