This document details the development and validation of a new Bridgestone/Firestone soil model aimed at predicting the net traction of agricultural tires on tilled soil. The study outlines challenges in modeling soil mechanics and presents methodologies, including the use of a continuum approach to increase accuracy in predicting tire performance under various loading conditions. The results show successful traction predictions for rigid wheels and different types of agricultural tires, providing a solid foundation for future developments in tire technology.

1. 12/20/2013
Predicting Net Traction on Soil Using a
Continuum Approach
Anoop Varghese1, John Turner1, Thomas Way2, Clarence
Johnson3, Brian Steenwyk1
1
Bridgestone Americas Tire Operations
National Soil Dynamics Lab
3 Auburn University
2
1

2. 12/20/2013

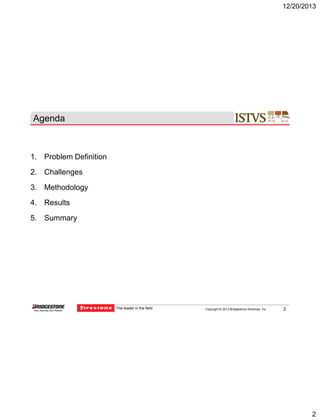

Agenda
1. Problem Definition
2. Challenges
3. Methodology
4. Results
5. Summary
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
2
AGV – 04/30/2012
2

3. 12/20/2013
Problem Definition
Problem: Predict net traction of an
AG tire in agricultural soil
Tilled Soil
- Loose soil
- Somewhat controlled
Sod Soil
- Organic content
- uncontrolled
Benefit of the study




Improve mechanistic understanding of tire traction performance
Improve product performance
Find the balance between compaction & traction
Reduce development cycle time
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
3
AGV – 04/30/2012
3

4. 12/20/2013

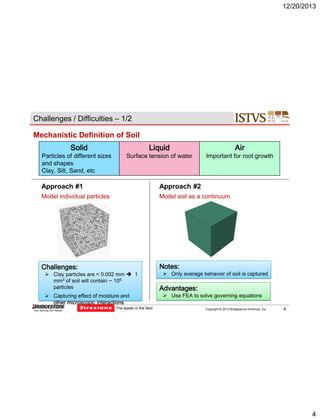

Challenges / Difficulties – 1/2
Mechanistic Definition of Soil
Solid
Particles of different sizes
and shapes
Clay, Silt, Sand, etc
Liquid
Surface tension of water
Air
Important for root growth
Approach #1
Approach #2
Model individual particles
Model soil as a continuum
Challenges:
Notes:
 Clay particles are < 0.002 mm  1
mm3 of soil will contain ~ 106
particles
 Capturing effect of moisture and
other microscopic interactions
The leader in the field
 Only average behavior of soil is captured
Advantages:
 Use FEA to solve governing equations
Copyright © 2013 Bridgestone Americas, Inc.
4
4

5. 12/20/2013
Challenges / Difficulties – 2/2
New Bridgestone/Firestone soil model for agricultural soil
1-D Soil Model based on Plasticity
Definition of slider
- When does it start to slide (yield function)
Spring
Non-linear
slider
- How does it slide (flow potential)
Notes about Bridgestone/Firestone model
- Satisfies consistency condition all the time
- Uses non-associated flow rule
- Enhancement of Drucker-Prager model
Other Challenges
Very large & permanent deformations
Instabilities in material
R. Hill, The Mathematical Theory of Plasticity, 1950, Oxford University Press, Oxford
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
5
5

6. 12/20/2013
Methodology / Approach
Objective: Predict net traction of an AG
tire in tilled agricultural soil
Developed New
VDP Soil Model:
New soil model for
improving physics
2R
F
1

h
v
X 2 , x2
3
X 1 , x1
H
X 3 , x3
W
L
Triaxial Loading
Rigid Wheel Rolling on Soil
(NSDL Test)
The leader in the field
Plain Tread Rolling on Soil
Copyright © 2013 Bridgestone Americas, Inc.
6
6

7. 12/20/2013

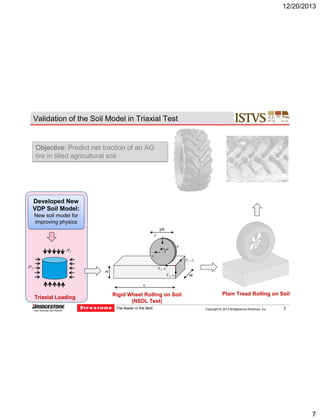

Validation of the Soil Model in Triaxial Test
Objective: Predict net traction of an AG
tire in tilled agricultural soil
Developed New
VDP Soil Model:
New soil model for
improving physics
2R
F
1

h
v
X 2 , x2
3
X 1 , x1
H
X 3 , x3
W
L
Triaxial Loading
Rigid Wheel Rolling on Soil
(NSDL Test)
The leader in the field
Plain Tread Rolling on Soil
Copyright © 2013 Bridgestone Americas, Inc.
7
7

8. 12/20/2013

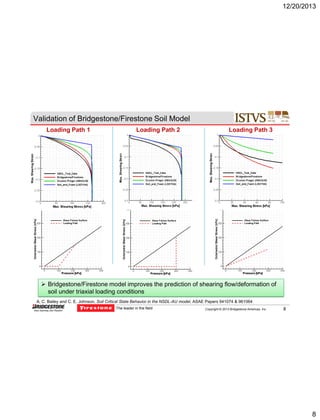

Validation of Bridgestone/Firestone Soil Model
Loading Path 1
Loading Path 2
Loading Path 3
 Bridgestone/Firestone model improves the prediction of shearing flow/deformation of
soil under triaxial loading conditions
A. C. Bailey and C. E. Johnson, Soil Critical State Behavior in the NSDL-AU model, ASAE Papers 941074 & 961064
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
8
8

9. 12/20/2013

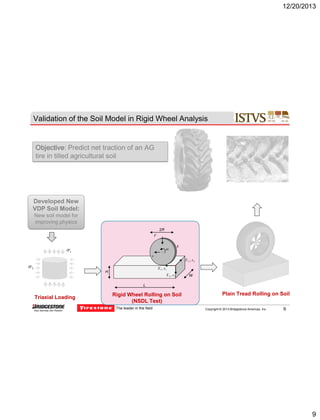

Validation of the Soil Model in Rigid Wheel Analysis
Objective: Predict net traction of an AG
tire in tilled agricultural soil
Developed New
VDP Soil Model:
New soil model for
improving physics
2R
F
1

h
v
X 2 , x2
3
X 1 , x1
H
X 3 , x3
W
L
Triaxial Loading
Rigid Wheel Rolling on Soil
(NSDL Test)
The leader in the field
Plain Tread Rolling on Soil
Copyright © 2013 Bridgestone Americas, Inc.
9
9

10. 12/20/2013

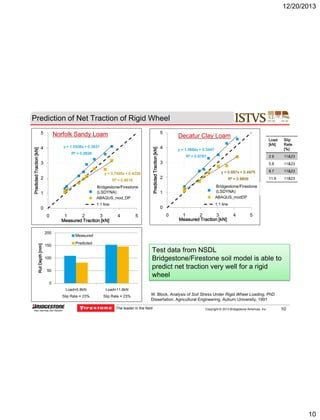

Prediction of Net Traction of Rigid Wheel
5
Norfolk Sandy Loam
y = 1.0506x + 0.3631
4
R² = 0.9826
3
y = 0.7495x + 0.4226
2
R² = 0.9618
Bridgestone/Firestone
LSDYNA_VDP
(LSDYNA)
ABAQUS_mod_DP
1
1:1 line
0
0
200
Rut Depth [mm]
Predicted Traction [kN]
Predicted Traction [kN]
5
150
1
2
3
Measured Traction [kN]
Decatur Clay Loam
11&23
11&23
y = 0.697x + 0.4975
8.7
11&23
R² = 0.9809
11.6
11&23
R² = 0.9787
3
2
Bridgestone/Firestone
LSDYNA_VDP
(LSDYNA)
ABAQUS_modDP
1
1:1 line
0
5
2.9
y = 1.0664x + 0.3447
0
4
Slip
Rate
[%]
5.8
4
Load
[kN]
1
2
3
Measured Traction [kN]
4
5
Measured
Predicted
Test data from NSDL
Bridgestone/Firestone soil model is able to
predict net traction very well for a rigid
wheel
100
50
0
Load=5.8kN
Load=11.6kN
Slip Rate = 23%
Slip Rate = 23%
W. Block, Analysis of Soil Stress Under Rigid Wheel Loading, PhD
Dissertation, Agricultural Engineering, Auburn University, 1991
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
10
AGV – 04/30/2012
10

11. 12/20/2013

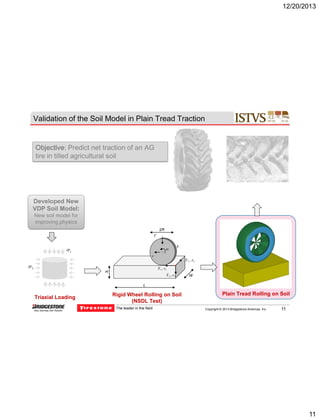

Validation of the Soil Model in Plain Tread Traction
Objective: Predict net traction of an AG
tire in tilled agricultural soil
Developed New
VDP Soil Model:
New soil model for
improving physics
2R
F
1

h
v
X 2 , x2
3
X 1 , x1
H
X 3 , x3
W
L
Triaxial Loading
Rigid Wheel Rolling on Soil
(NSDL Test)
The leader in the field
Plain Tread Rolling on Soil
Copyright © 2013 Bridgestone Americas, Inc.
11
11

12. 12/20/2013

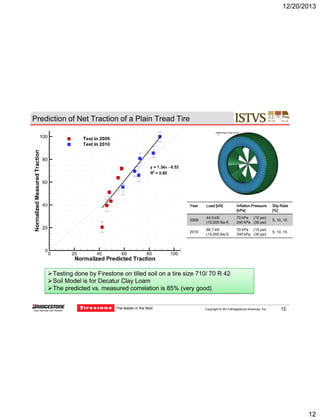

Prediction of Net Traction of a Plain Tread Tire
Year
Load [kN]
Inflation Pressure
[kPa]
Slip Rate
[%]
2009
44.5 kN
(10,000 lbs-f)
70 kPa (10 psi)
240 kPa (35 psi)
5, 10, 15
2010
66.7 kN
(15,000 lbs-f)
70 kPa (10 psi)
240 kPa (35 psi)
5, 10, 15
Testing done by Firestone on tilled soil on a tire size 710/ 70 R 42
Soil Model is for Decatur Clay Loam
The predicted vs. measured correlation is 85% (very good)
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
12
AGV – 04/30/2012
12

13. 12/20/2013

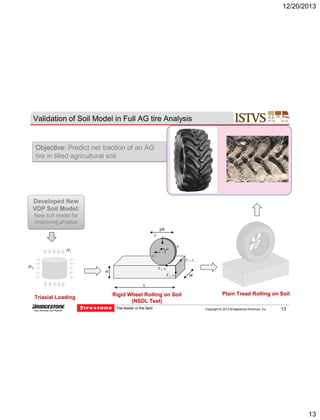

Validation of Soil Model in Full AG tire Analysis
Objective: Predict net traction of an AG
tire in tilled agricultural soil
Developed New
VDP Soil Model:
New soil model for
improving physics
2R
F
1

h
v
X 2 , x2
3
X 1 , x1
H
X 3 , x3
W
L
Triaxial Loading
Rigid Wheel Rolling on Soil
(NSDL Test)
The leader in the field
Plain Tread Rolling on Soil
Copyright © 2013 Bridgestone Americas, Inc.
13
13

14. 12/20/2013
120
Measured
Predicted
100
Normalized Net Traction
Index Measured Net Traction [kN]

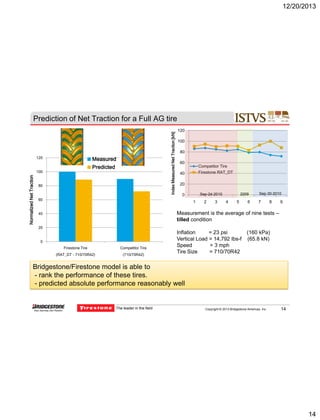

Prediction of Net Traction for a Full AG tire
80
60
120
100
80
60
Competitor Tire
Firestone RAT_DT
40
20
0
2009
Sep-24-2010
1
2
3
4
5
6
Sep-30-2010
7
8
9
Measurement is the average of nine tests –
tilled condition
40
20
0
Firestone Tire
Competitor Tire
(RAT_DT - 710/70R42)
(710/70R42)
Inflation
= 23 psi
(160 kPa)
Vertical Load = 14,792 lbs-f (65.8 kN)
Speed
= 3 mph
Tire Size
= 710/70R42
Bridgestone/Firestone model is able to
- rank the performance of these tires.
- predicted absolute performance reasonably well
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
14
14

15. 12/20/2013

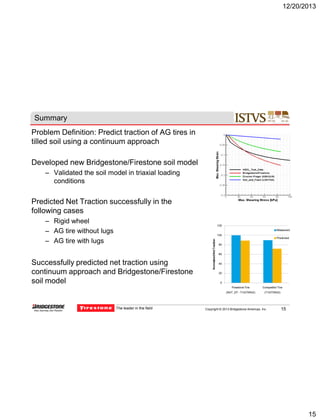

Summary
Problem Definition: Predict traction of AG tires in
tilled soil using a continuum approach
Developed new Bridgestone/Firestone soil model
– Validated the soil model in triaxial loading
conditions
Predicted Net Traction successfully in the
following cases
– Rigid wheel
– AG tire without lugs
– AG tire with lugs
Successfully predicted net traction using
continuum approach and Bridgestone/Firestone
soil model
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
15
AGV – 04/30/2012
15

16. 12/20/2013

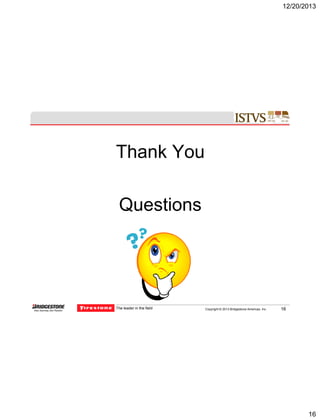

Thank You
Questions
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
16
AGV – 04/30/2012
16

17. 12/20/2013

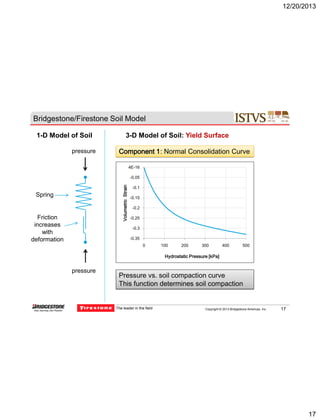

Bridgestone/Firestone Soil Model
1-D Model of Soil
pressure
3-D Model of Soil: Yield Surface
Component 1: Normal Consolidation Curve
4E-16
Volumetric Strain
-0.05
Spring
Friction
increases
with
deformation
-0.1
-0.15
-0.2
-0.25
-0.3
-0.35
0
100
200
300
400
500
Hydrostatic Pressure [kPa]
pressure
Pressure vs. soil compaction curve
This function determines soil compaction
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
17
AGV – 04/30/2012
17

18. 12/20/2013
Bridgestone/Firestone Soil Model
1-D Model of Soil
shear
3-D Model of Soil: Yield Surface
Component 2: Shear Failure Surface
Shear Stress [kPa]
400
Spring
Friction is
a function
of pressure
and shear
stress
Shear Failure Surface
300
200
100
0
0
shear
100
200
300
Pressure [kPa]
400
500
 Determines when soil fails (flows like a
liquid)
 Direct influence on traction
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
18
AGV – 04/30/2012
18

19. 12/20/2013

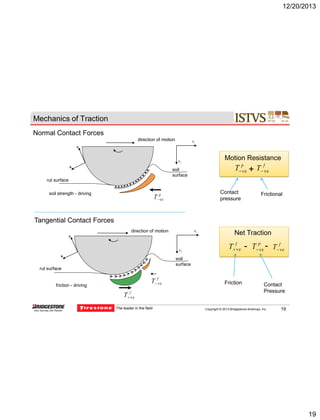

Mechanics of Traction
Normal Contact Forces
direction of motion
x1
e
Motion Resistance
x2
n
Tpve + Tfve
soil
surface
rut surface
soil strength - driving
Contact
pressure
Tpve
Frictional
Tangential Contact Forces
direction of motion
x1
e
x2
n
Net Traction
Tfve
- Tpve -
Tfve
soil
surface
rut surface
Tfve
friction - driving
Friction
Tfve
The leader in the field
Contact
Pressure
Copyright © 2013 Bridgestone Americas, Inc.
19
AGV – 04/30/2012
19

20. 12/20/2013

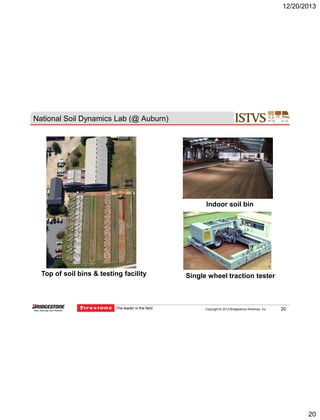

National Soil Dynamics Lab (@ Auburn)
Indoor soil bin
Top of soil bins & testing facility
The leader in the field
Single wheel traction tester
Copyright © 2013 Bridgestone Americas, Inc.
20
AGV – 04/30/2012
20

21. 12/20/2013

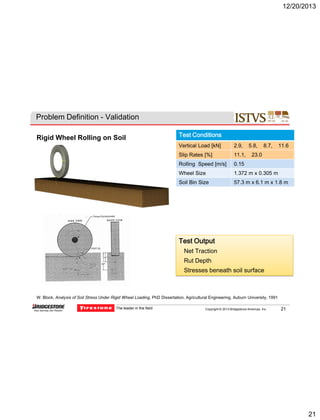

Problem Definition - Validation
Rigid Wheel Rolling on Soil
Test Conditions
Vertical Load [kN]
2.9,
5.8,
8.7,
11.6
Slip Rates [%]
11.1,
Rolling Speed [m/s]
0.15
Wheel Size
1.372 m x 0.305 m
Soil Bin Size
57.3 m x 6.1 m x 1.8 m
23.0
Test Output
Net Traction
Rut Depth
Stresses beneath soil surface
W. Block, Analysis of Soil Stress Under Rigid Wheel Loading, PhD Dissertation, Agricultural Engineering, Auburn University, 1991
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
21
AGV – 04/30/2012
21

22. 12/20/2013

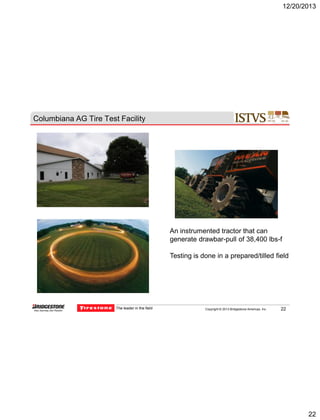

Columbiana AG Tire Test Facility
An instrumented tractor that can
generate drawbar-pull of 38,400 lbs-f
Testing is done in a prepared/tilled field
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
22
22

23. 12/20/2013

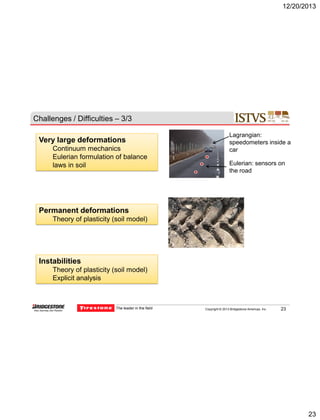

Challenges / Difficulties – 3/3
Very large deformations
Continuum mechanics
Eulerian formulation of balance
laws in soil
Lagrangian:
speedometers inside a
car
Eulerian: sensors on
the road
Permanent deformations
Theory of plasticity (soil model)
Instabilities
Theory of plasticity (soil model)
Explicit analysis
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
23
23

24. 12/20/2013

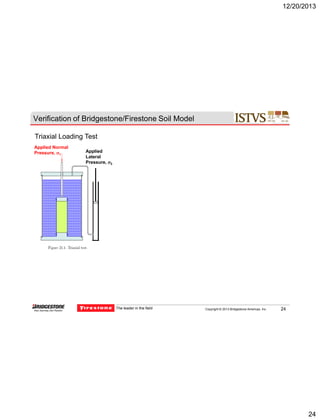

Verification of Bridgestone/Firestone Soil Model
Triaxial Loading Test
Applied Normal
Pressure, 1
Applied
Lateral
Pressure, 3
The leader in the field
Copyright © 2013 Bridgestone Americas, Inc.
24
AGV – 04/30/2012
24
