This document provides an introduction to using Perl's pack and unpack functions to manipulate binary data. It uses the ID3v2 metadata header format as an example, demonstrating how to parse the header fields using various format specifiers and handle issues like endianness. Key points covered include parsing hexadecimal, ASCII, integer fields of different sizes, and bit strings, as well as replacing bytes using substr. The goal is to make Perl a capable tool for manipulating binary data.

1. Pack/Unpack
Become a Deft Manipulator of Binary Data
Presented by
Lambert Lum

2. What is this?
● Perl becomes a deft manipulator of bytes
● Albeit slow, relative to C.

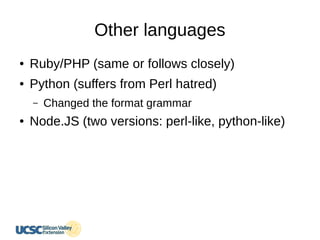

3. Other languages
● Ruby/PHP (same or follows closely)
● Python (suffers from Perl hatred)
– Changed the format grammar
● Node.JS (two versions: perl-like, python-like)

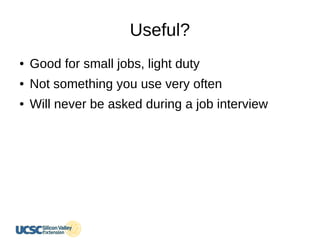

4. Useful?
● Good for small jobs, light duty
● Not something you use very often
● Will never be asked during a job interview

5. My story
● Worked at SOLiD Technology
● Proprietary protocol that ran over serial
● Same data frame was used in the socket
communication as well.

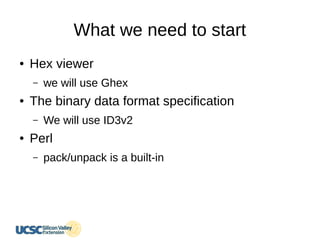

6. What we need to start
● Hex viewer
– we will use Ghex
● The binary data format specification
– We will use ID3v2
● Perl
– pack/unpack is a built-in

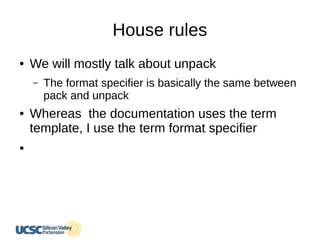

7. House rules
● We will mostly talk about unpack
– The format specifier is basically the same between
pack and unpack
● Whereas the documentation uses the term
template, I use the term format specifier
●

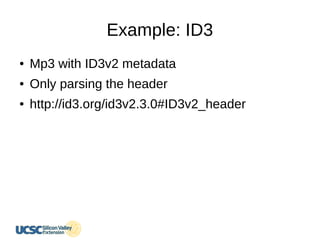

8. Example: ID3
● Mp3 with ID3v2 metadata
● Only parsing the header
● http://id3.org/id3v2.3.0#ID3v2_header

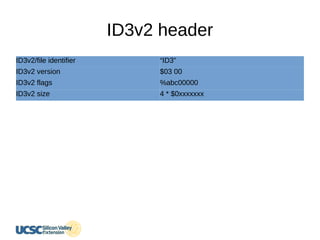

9. ID3v2 header
ID3v2/file identifier “ID3”
ID3v2 version $03 00
ID3v2 flags %abc00000
ID3v2 size 4 * $0xxxxxxx

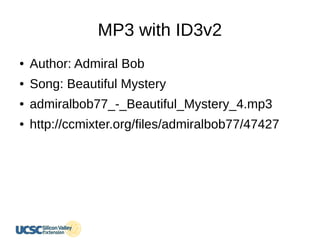

10. MP3 with ID3v2
● Author: Admiral Bob
● Song: Beautiful Mystery
● admiralbob77_-_Beautiful_Mystery_4.mp3
● http://ccmixter.org/files/admiralbob77/47427

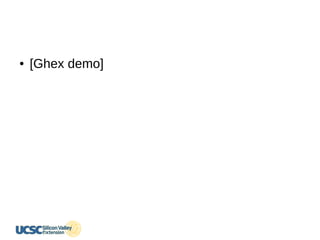

11. ● [Ghex demo]

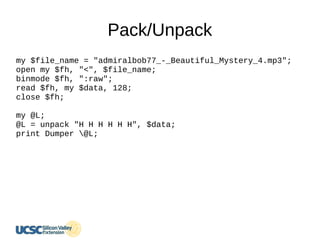

12. Pack/Unpack
my $file_name = "admiralbob77_-_Beautiful_Mystery_4.mp3";
open my $fh, "<", $file_name;
binmode $fh, ":raw";
read $fh, my $data, 128;
close $fh;
my @L;
@L = unpack "H H H H H H", $data;
print Dumper @L;

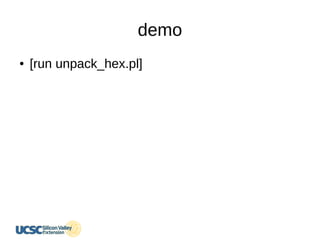

13. demo
● [run unpack_hex.pl]

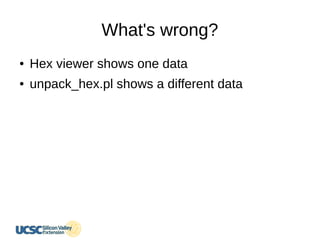

14. What's wrong?
● Hex viewer shows one data
● unpack_hex.pl shows a different data

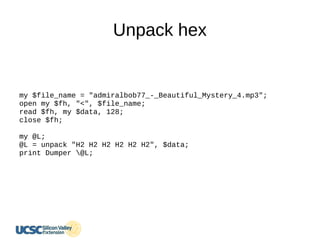

15. Unpack hex
my $file_name = "admiralbob77_-_Beautiful_Mystery_4.mp3";
open my $fh, "<", $file_name;
read $fh, my $data, 128;
close $fh;
my @L;
@L = unpack "H2 H2 H2 H2 H2 H2", $data;
print Dumper @L;

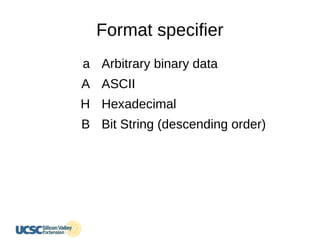

16. Format specifier
a
A
H
B
Arbitrary binary data
ASCII
Hexadecimal
Bit String (descending order)

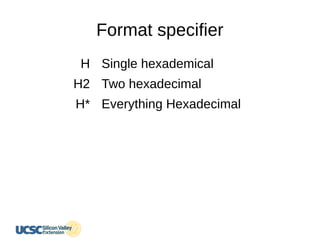

17. Format specifier
H
H2
H*
Single hexademical
Two hexadecimal
Everything Hexadecimal

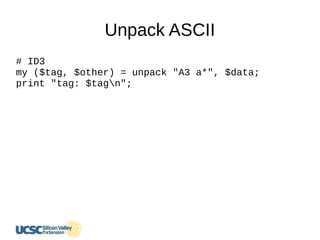

18. Unpack ASCII
# ID3
my ($tag, $other) = unpack "A3 a*", $data;
print "tag: $tagn";

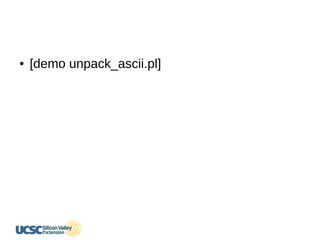

19. ● [demo unpack_ascii.pl]

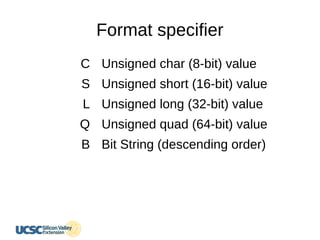

20. Format specifier
C
S
L
Q
B
Unsigned char (8-bit) value
Unsigned short (16-bit) value
Unsigned long (32-bit) value
Unsigned quad (64-bit) value
Bit String (descending order)

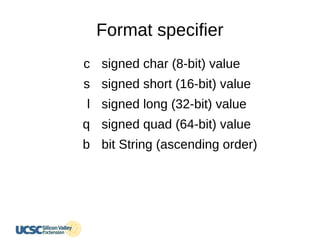

21. Format specifier
c
s
l
q
b
signed char (8-bit) value
signed short (16-bit) value
signed long (32-bit) value
signed quad (64-bit) value
bit String (ascending order)

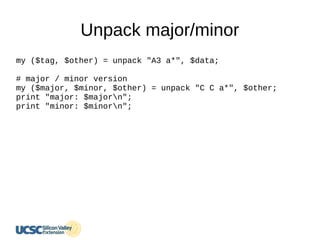

22. Unpack major/minor
my ($tag, $other) = unpack "A3 a*", $data;
# major / minor version
my ($major, $minor, $other) = unpack "C C a*", $other;
print "major: $majorn";
print "minor: $minorn";

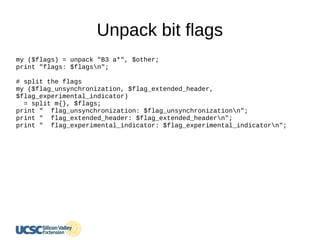

23. Unpack bit flags
my ($flags) = unpack "B3 a*", $other;
print "flags: $flagsn";
# split the flags
my ($flag_unsynchronization, $flag_extended_header,
$flag_experimental_indicator)
= split m{}, $flags;
print " flag_unsynchronization: $flag_unsynchronizationn";
print " flag_extended_header: $flag_extended_headern";
print " flag_experimental_indicator: $flag_experimental_indicatorn";

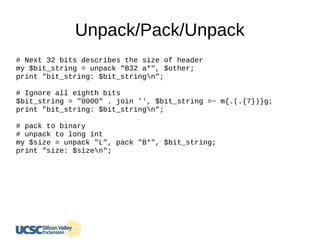

24. Unpack/Pack/Unpack
# Next 32 bits describes the size of header
my $bit_string = unpack "B32 a*", $other;
print "bit_string: $bit_stringn";
# Ignore all eighth bits
$bit_string = "0000" . join '', $bit_string =~ m{.(.{7})}g;
print "bit_string: $bit_stringn";
# pack to binary
# unpack to long int
my $size = unpack "L", pack "B*", $bit_string;
print "size: $sizen";

25. ● [run unpack_pack_unpack.pl]

26. Something is wrong

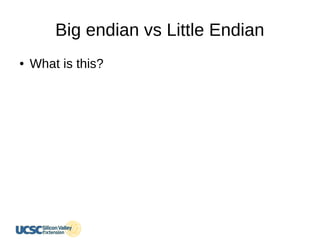

27. Big endian vs Little Endian
● What is this?

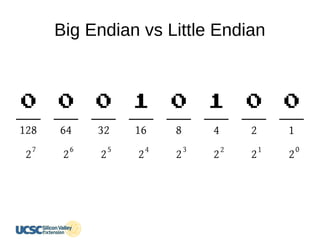

28. Big Endian vs Little Endian

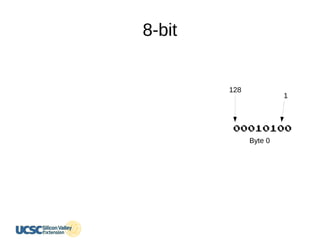

29. 8-bit
00010100
Byte 0
128
1

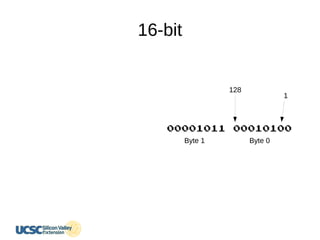

30. 16-bit
00010100
Byte 0
00001011
Byte 1
128
1

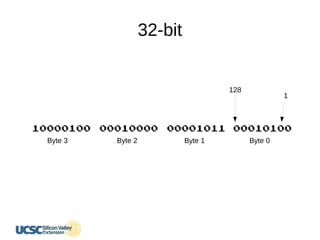

31. 32-bit
00010100
Byte 0
000010110001000010000100
Byte 1Byte 2Byte 3
128
1

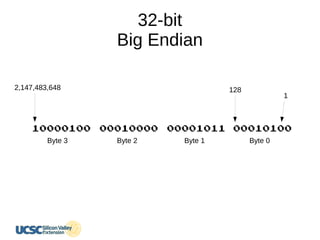

32. 32-bit
Big Endian
00010100
Byte 0
000010110001000010000100
Byte 1Byte 2Byte 3
2,147,483,648 128
1

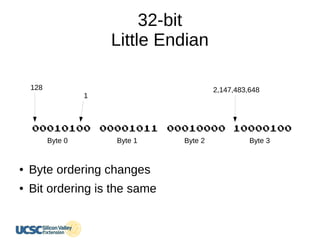

33. 32-bit
Little Endian
10000100
Byte 3
000100000000101100010100
Byte 2Byte 1Byte 0
128 2,147,483,648
1
● Byte ordering changes
● Bit ordering is the same

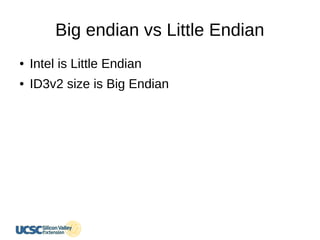

34. Big endian vs Little Endian
● Intel is Little Endian
● ID3v2 size is Big Endian

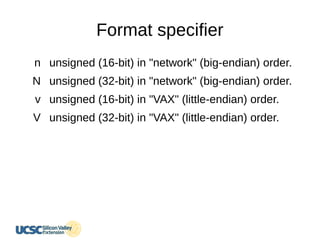

35. Format specifier
n
N
v
V
unsigned (16-bit) in "network" (big-endian) order.
unsigned (32-bit) in "network" (big-endian) order.
unsigned (16-bit) in "VAX" (little-endian) order.
unsigned (32-bit) in "VAX" (little-endian) order.

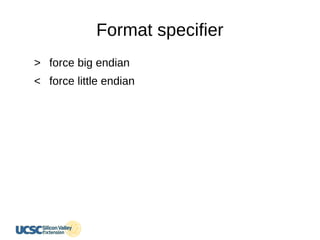

36. Format specifier
>
<
force big endian
force little endian

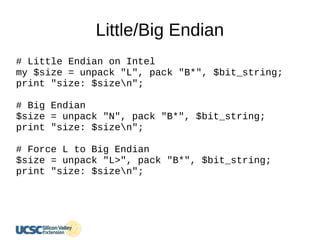

37. Little/Big Endian
# Little Endian on Intel
my $size = unpack "L", pack "B*", $bit_string;
print "size: $sizen";
# Big Endian
$size = unpack "N", pack "B*", $bit_string;
print "size: $sizen";
# Force L to Big Endian
$size = unpack "L>", pack "B*", $bit_string;
print "size: $sizen";

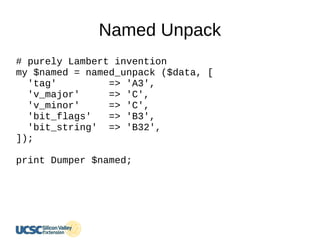

38. Named Unpack
# purely Lambert invention
my $named = named_unpack ($data, [
'tag' => 'A3',
'v_major' => 'C',
'v_minor' => 'C',
'bit_flags' => 'B3',
'bit_string' => 'B32',
]);
print Dumper $named;

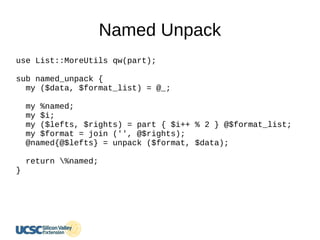

39. Named Unpack
use List::MoreUtils qw(part);
sub named_unpack {
my ($data, $format_list) = @_;
my %named;
my $i;
my ($lefts, $rights) = part { $i++ % 2 } @$format_list;
my $format = join ('', @$rights);
@named{@$lefts} = unpack ($format, $data);
return %named;
}

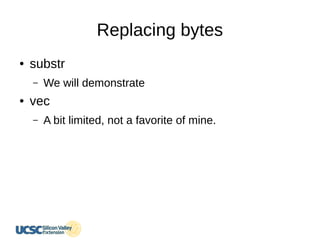

40. Replacing bytes
● substr
– We will demonstrate
● vec
– A bit limited, not a favorite of mine.

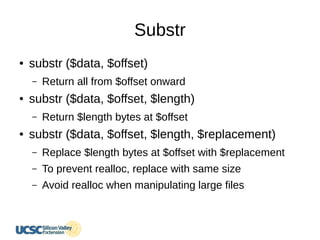

41. Substr
● substr ($data, $offset)
– Return all from $offset onward
● substr ($data, $offset, $length)
– Return $length bytes at $offset
● substr ($data, $offset, $length, $replacement)
– Replace $length bytes at $offset with $replacement
– To prevent realloc, replace with same size
– Avoid realloc when manipulating large files

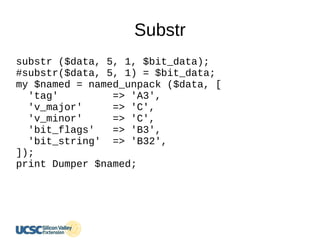

42. Substr
substr ($data, 5, 1, $bit_data);
#substr($data, 5, 1) = $bit_data;
my $named = named_unpack ($data, [
'tag' => 'A3',
'v_major' => 'C',
'v_minor' => 'C',
'bit_flags' => 'B3',
'bit_string' => 'B32',
]);
print Dumper $named;

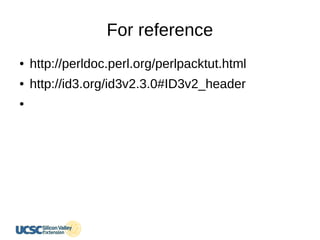

43. For reference
● http://perldoc.perl.org/perlpacktut.html
● http://id3.org/id3v2.3.0#ID3v2_header
●
