This document defines interfaces for common abstract data types (ADTs) like collections, lists, and queues. It also provides an implementation of an array-based queue and unit tests for that implementation. The interfaces define common methods for the ADTs, like adding/removing elements, checking for emptiness, and retrieving sizes. The array queue implementation and tests demonstrate how the queue ADT can be constructed using an array to store elements.

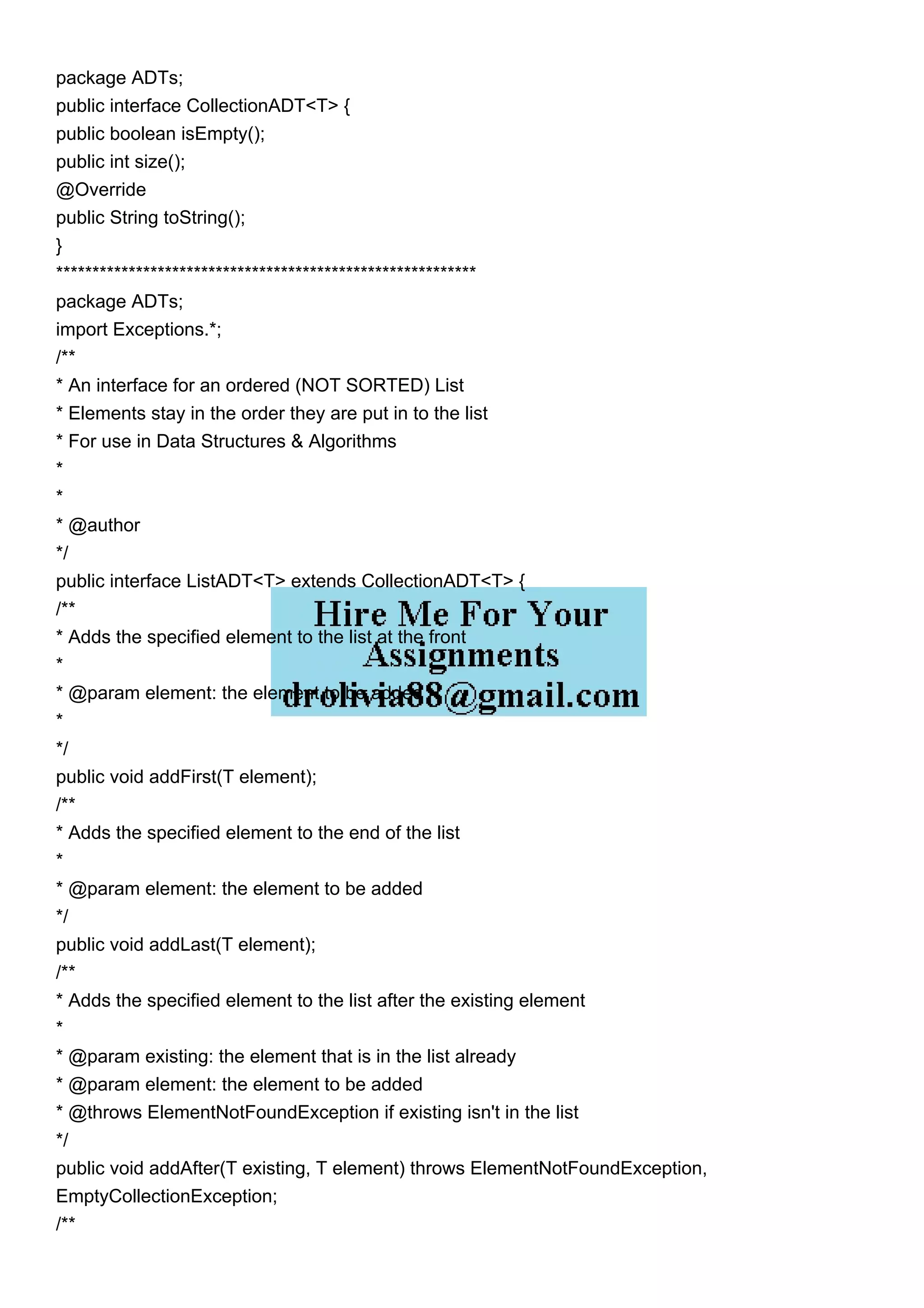

1. package ADTs;
public interface CollectionADT<T> {
public boolean isEmpty();
public int size();
@Override
public String toString();
}
**********************************************************
package ADTs;
import Exceptions.*;
/**
* An interface for an ordered (NOT SORTED) List
* Elements stay in the order they are put in to the list
* For use in Data Structures & Algorithms
*
*
* @author
*/
public interface ListADT<T> extends CollectionADT<T> {
/**
* Adds the specified element to the list at the front
*
* @param element: the element to be added
*
*/
public void addFirst(T element);
/**
* Adds the specified element to the end of the list
*
* @param element: the element to be added
*/
public void addLast(T element);
/**
* Adds the specified element to the list after the existing element
*
* @param existing: the element that is in the list already
* @param element: the element to be added
* @throws ElementNotFoundException if existing isn't in the list
*/
public void addAfter(T existing, T element) throws ElementNotFoundException,
EmptyCollectionException;
/**

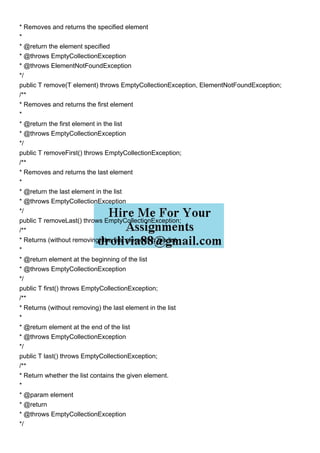

2. * Removes and returns the specified element
*
* @return the element specified
* @throws EmptyCollectionException
* @throws ElementNotFoundException
*/
public T remove(T element) throws EmptyCollectionException, ElementNotFoundException;
/**
* Removes and returns the first element
*
* @return the first element in the list
* @throws EmptyCollectionException
*/
public T removeFirst() throws EmptyCollectionException;
/**
* Removes and returns the last element
*
* @return the last element in the list
* @throws EmptyCollectionException
*/
public T removeLast() throws EmptyCollectionException;
/**
* Returns (without removing) the first element in the list
*
* @return element at the beginning of the list
* @throws EmptyCollectionException
*/
public T first() throws EmptyCollectionException;
/**
* Returns (without removing) the last element in the list
*
* @return element at the end of the list
* @throws EmptyCollectionException
*/
public T last() throws EmptyCollectionException;
/**
* Return whether the list contains the given element.
*
* @param element
* @return
* @throws EmptyCollectionException
*/

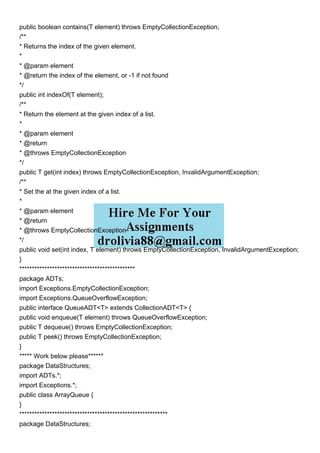

3. public boolean contains(T element) throws EmptyCollectionException;
/**
* Returns the index of the given element.
*
* @param element
* @return the index of the element, or -1 if not found
*/
public int indexOf(T element);
/**
* Return the element at the given index of a list.
*
* @param element
* @return
* @throws EmptyCollectionException
*/
public T get(int index) throws EmptyCollectionException, InvalidArgumentException;
/**
* Set the at the given index of a list.
*
* @param element
* @return
* @throws EmptyCollectionException
*/
public void set(int index, T element) throws EmptyCollectionException, InvalidArgumentException;
}
**********************************************
package ADTs;
import Exceptions.EmptyCollectionException;
import Exceptions.QueueOverflowException;
public interface QueueADT<T> extends CollectionADT<T> {
public void enqueue(T element) throws QueueOverflowException;
public T dequeue() throws EmptyCollectionException;
public T peek() throws EmptyCollectionException;
}
***** Work below please******
package DataStructures;
import ADTs.*;
import Exceptions.*;
public class ArrayQueue {
}
***********************************************************
package DataStructures;

4. import Exceptions.*;
import org.junit.Test;
import static org.junit.Assert.*;
public class ArrayQueueTest {
ArrayQueue<Integer> list = new ArrayQueue<Integer>(10);
@Test
public void testArrayQueue() {
// LinkedList
assertEquals(0, list.size());
list = new ArrayQueue<Integer>();
assertEquals(0, list.size());
}
@Test
public void testIsEmpty() {
assertTrue(list.isEmpty());
}
@Test
public void testSize() {
assertEquals(0, list.size());
try {
list.enqueue(1);
assertEquals(1, list.size());
list.enqueue(2);
assertEquals(2, list.size());
} catch (Exception e) {
fail("Shoud not throw exception here: " + e.toString());
}
try {
list.dequeue();
assertEquals(1, list.size());
list.dequeue();
assertEquals(0, list.size());
} catch (EmptyCollectionException e) {
fail("EmptyCollectionException should not be thrown here.");
}
}
@Test
public void testEnqueue() {
try {
list.enqueue(1);
} catch (Exception e) {
fail("Exception should not be thrown here: " + e.toString());

5. }
assertEquals(1, list.size());
try {
assertEquals(1, list.peek().intValue());
} catch (Exception e) {
fail("Exception should not be thrown here.");
}
try {
list.enqueue(2);
} catch (Exception e) {
fail("Exception should not be thrown here: " + e.toString());
}
assertEquals(2, list.size());
try {
assertEquals(1, list.peek().intValue());
} catch (Exception e) {
fail("Exception should not be thrown here: " + e.toString());
}
}
@Test
public void testDequeue() {
try {
list.enqueue(1);
list.enqueue(2);
list.enqueue(3);
} catch (Exception e) {
fail("Exception should not be thrown here: " + e.toString());
}
try {
assertEquals(3, list.size());
Integer out = list.dequeue();
assertEquals(1, out.intValue());
assertEquals(2, list.size());
} catch (Exception e) {
fail("Exception should not be thrown here.");
}
try {
assertEquals(2, list.size());
Integer out = list.dequeue();
assertEquals(2, out.intValue());
assertEquals(1, list.size());
} catch (Exception e) {

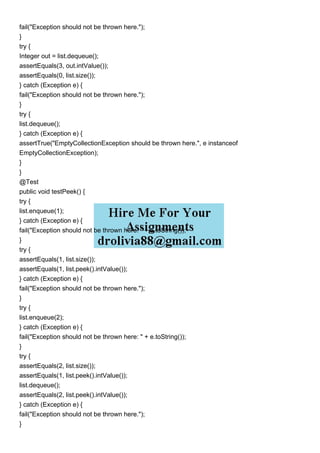

6. fail("Exception should not be thrown here.");
}
try {
Integer out = list.dequeue();
assertEquals(3, out.intValue());
assertEquals(0, list.size());
} catch (Exception e) {
fail("Exception should not be thrown here.");
}
try {
list.dequeue();
} catch (Exception e) {
assertTrue("EmptyCollectionException should be thrown here.", e instanceof
EmptyCollectionException);
}
}
@Test
public void testPeek() {
try {
list.enqueue(1);
} catch (Exception e) {
fail("Exception should not be thrown here: " + e.toString());
}
try {
assertEquals(1, list.size());
assertEquals(1, list.peek().intValue());
} catch (Exception e) {
fail("Exception should not be thrown here.");
}
try {
list.enqueue(2);
} catch (Exception e) {
fail("Exception should not be thrown here: " + e.toString());
}
try {
assertEquals(2, list.size());
assertEquals(1, list.peek().intValue());
list.dequeue();
assertEquals(2, list.peek().intValue());
} catch (Exception e) {
fail("Exception should not be thrown here.");
}

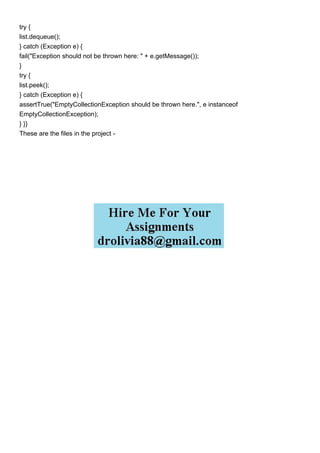

7. try {
list.dequeue();
} catch (Exception e) {
fail("Exception should not be thrown here: " + e.getMessage());
}
try {
list.peek();
} catch (Exception e) {
assertTrue("EmptyCollectionException should be thrown here.", e instanceof
EmptyCollectionException);
} }}
These are the files in the project -
