Outage Analysis: March 5th/6th 2024 Meta, Comcast, and LinkedIn
The document provides a summary of three outages that occurred on March 5th and 6th, 2024: 1. A Meta outage from 15:00-19:27 UTC on March 5th that affected Facebook, Instagram, Messenger and other services due to backend authentication system failures. 2. A Comcast outage from 19:45-21:40 UTC on March 5th that caused increased latency and connectivity issues within Comcast's Texas backbone network, impacting applications like Webex, Salesforce and AWS. 3. A LinkedIn outage from 20:45-21:50 UTC on March 6th where the application was inaccessible due to backend service errors, though network connectivity was unaffected
More Related Content
Similar to Outage Analysis: March 5th/6th 2024 Meta, Comcast, and LinkedIn
Outage Analysis: March 5th/6th 2024 Meta, Comcast, and LinkedIn
- 1. Outage Analysis: March 5th/6th2024 © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential 1 Meta, Comcast, and LinkedIn
- 2. Featured speakers Brian Tobia TechnicalMarketing Engineer Kemal Sanjta Principal Internet Analyst © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved.
- 3. • If youhave any questions, please type them in the Questions window. • If you have any audio problems, please chat us for help. • A recording of this presentation will be sent to you in a few days. • Interested in more outage analysis and Internet insights? Check out the ThousandEyes blog and The Internet Report podcast. Before We Begin…
- 4. Meta Started ~ 15:00UTC and resolved at 19:27 UTC (4+ hour outage) Affected multiple Meta services (Facebook, Instagram, Messenger, Threads) Network connectivity was un- interrupted Root cause was backend authentication system failures causing the application to be unavailable March 5, 2024 Started at 19:45 UTC and was resolved at 21:40 UTC (2 hour outage) ThousandEyes saw increased network latency and timeouts/loss of connectivity within the Comcast backbone network (Texas) Affected routing/connectivity to multiple applications such as Webex, Salesforce, and AWS March 5, 2024 Started at 20:45 UTC and resolved at 21:50 UTC (1 hour outage) Network connectivity was unaffected Application/HTTP service errors were seen, making the service inaccessible No ramp up/ramp down, indicating a possible back-end failure March 6, 2024 Outages Summary
- 5. Meta Outage March 5th,2024 5

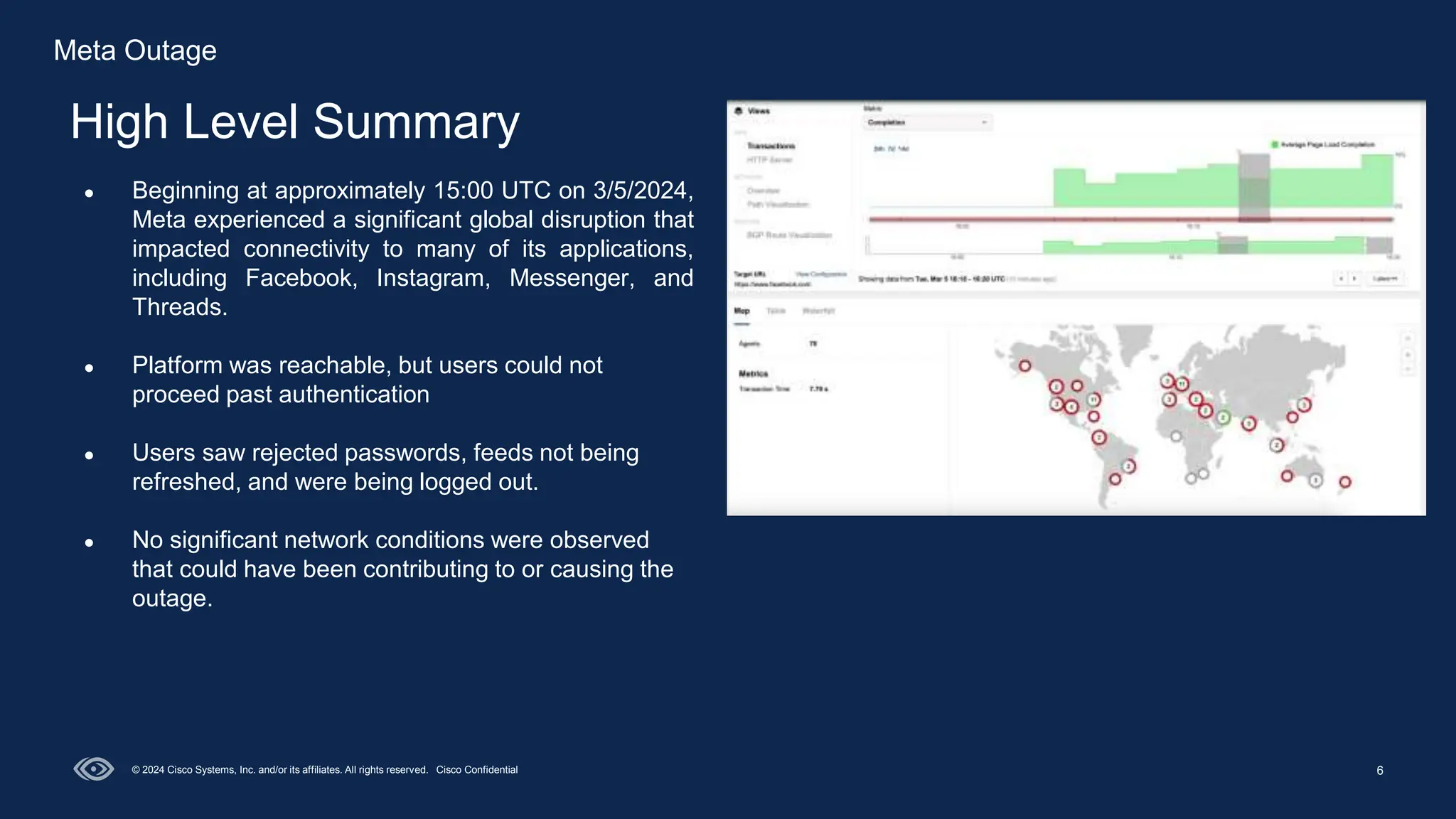

- 6. 6 High Level Summary ©2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● Beginning at approximately 15:00 UTC on 3/5/2024, Meta experienced a significant global disruption that impacted connectivity to many of its applications, including Facebook, Instagram, Messenger, and Threads. ● Platform was reachable, but users could not proceed past authentication ● Users saw rejected passwords, feeds not being refreshed, and were being logged out. ● No significant network conditions were observed that could have been contributing to or causing the outage. Meta Outage

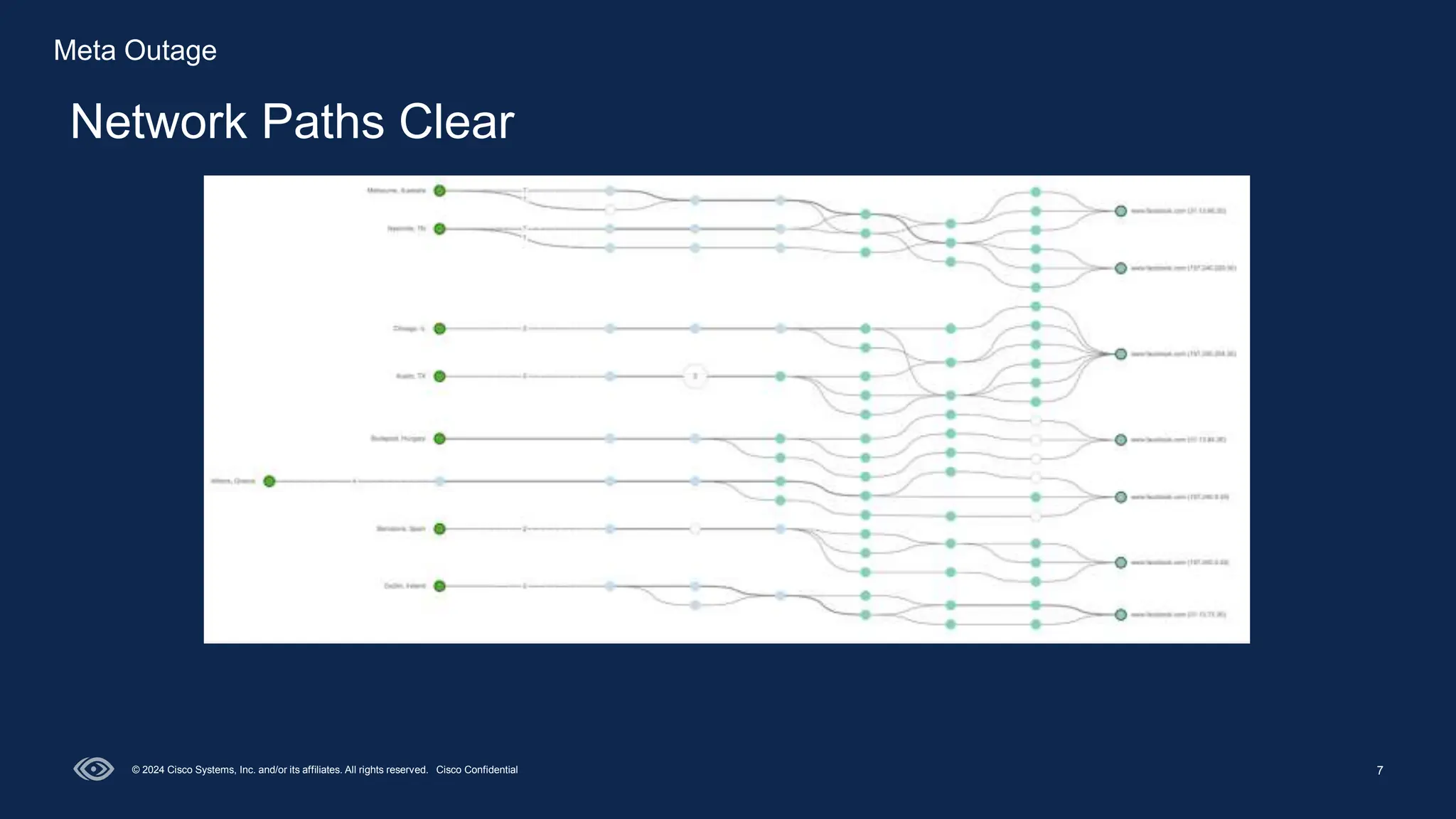

- 7. 7 Network Paths Clear ©2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential Meta Outage

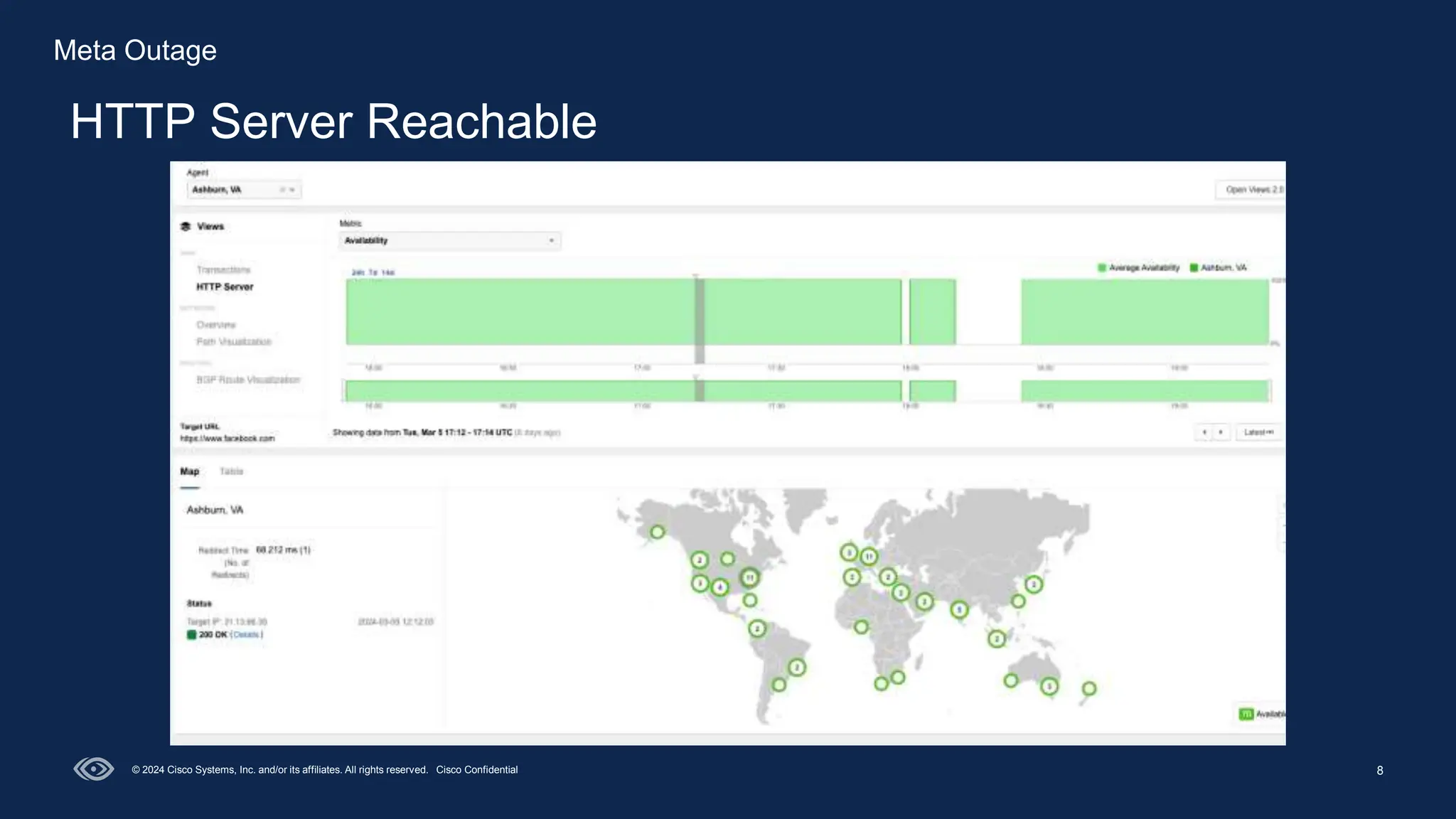

- 8. 8 HTTP Server Reachable ©2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential Meta Outage

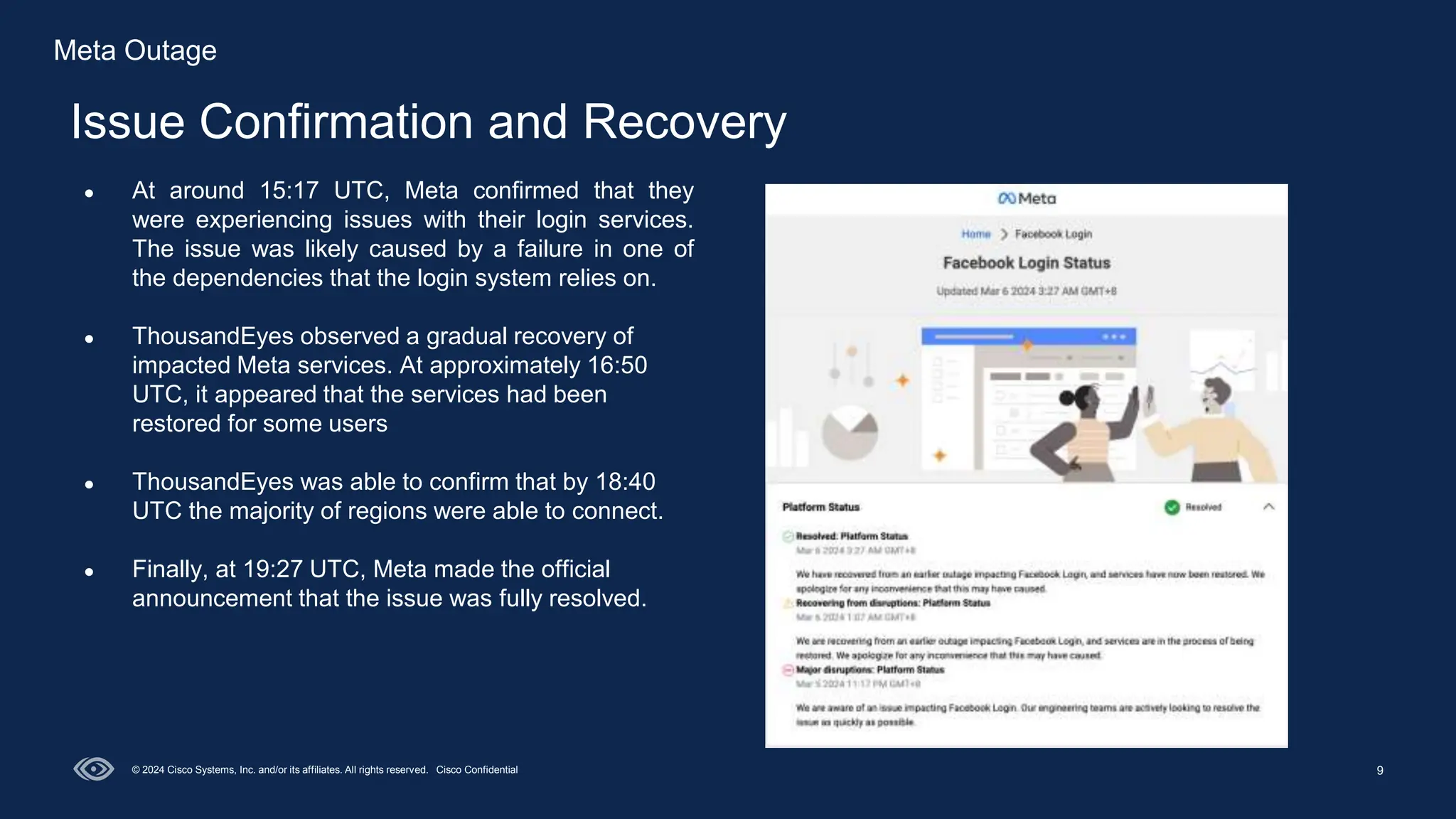

- 9. 9 Issue Confirmation andRecovery © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● At around 15:17 UTC, Meta confirmed that they were experiencing issues with their login services. The issue was likely caused by a failure in one of the dependencies that the login system relies on. ● ThousandEyes observed a gradual recovery of impacted Meta services. At approximately 16:50 UTC, it appeared that the services had been restored for some users ● ThousandEyes was able to confirm that by 18:40 UTC the majority of regions were able to connect. ● Finally, at 19:27 UTC, Meta made the official announcement that the issue was fully resolved. Meta Outage
- 10.
- 11. Comcast Outage March 5th,2024 11

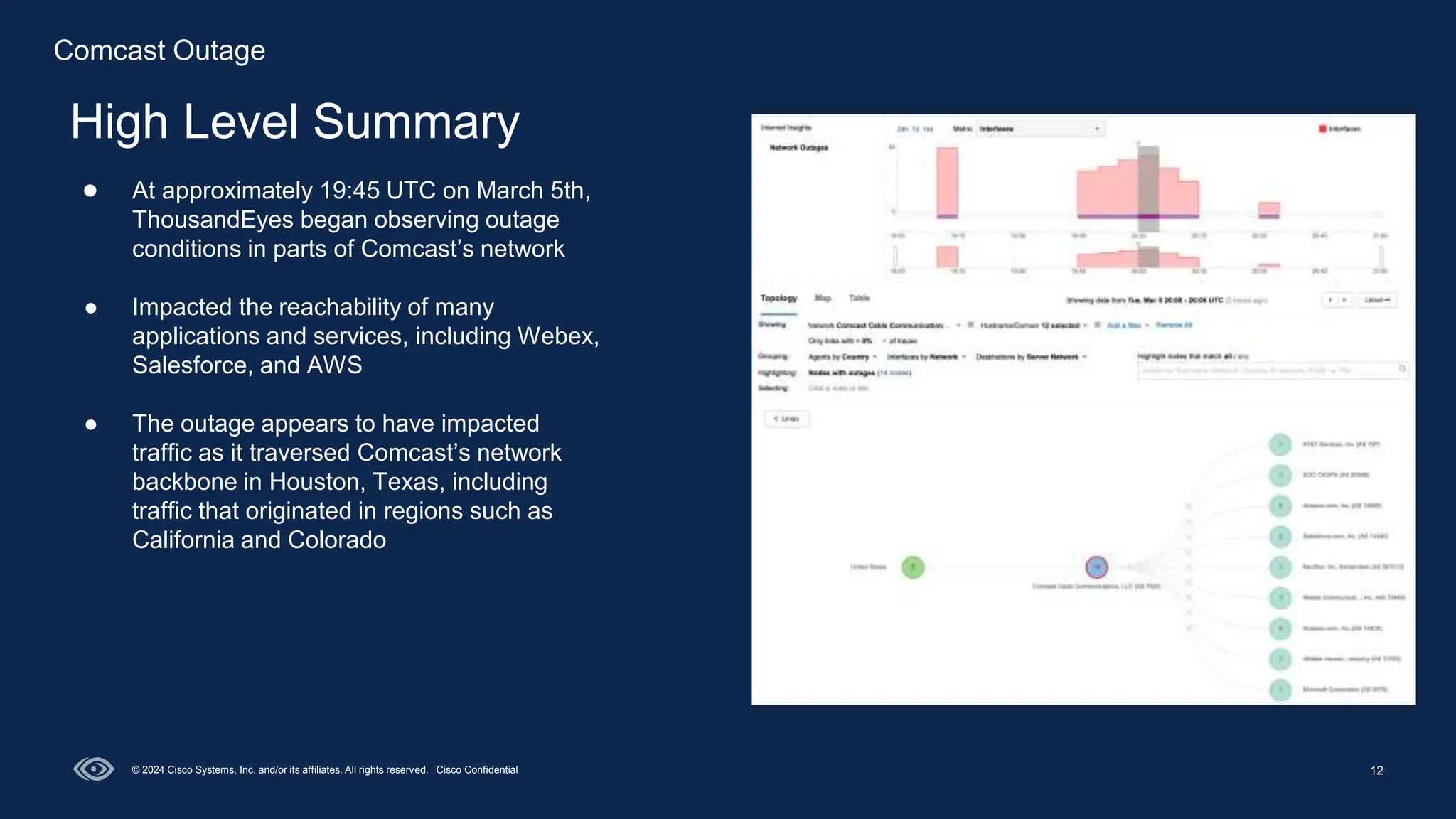

- 12. 12 High Level Summary ©2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● At approximately 19:45 UTC on March 5th, ThousandEyes began observing outage conditions in parts of Comcast’s network ● Impacted the reachability of many applications and services, including Webex, Salesforce, and AWS ● The outage appears to have impacted traffic as it traversed Comcast’s network backbone in Houston, Texas, including traffic that originated in regions such as California and Colorado Comcast Outage

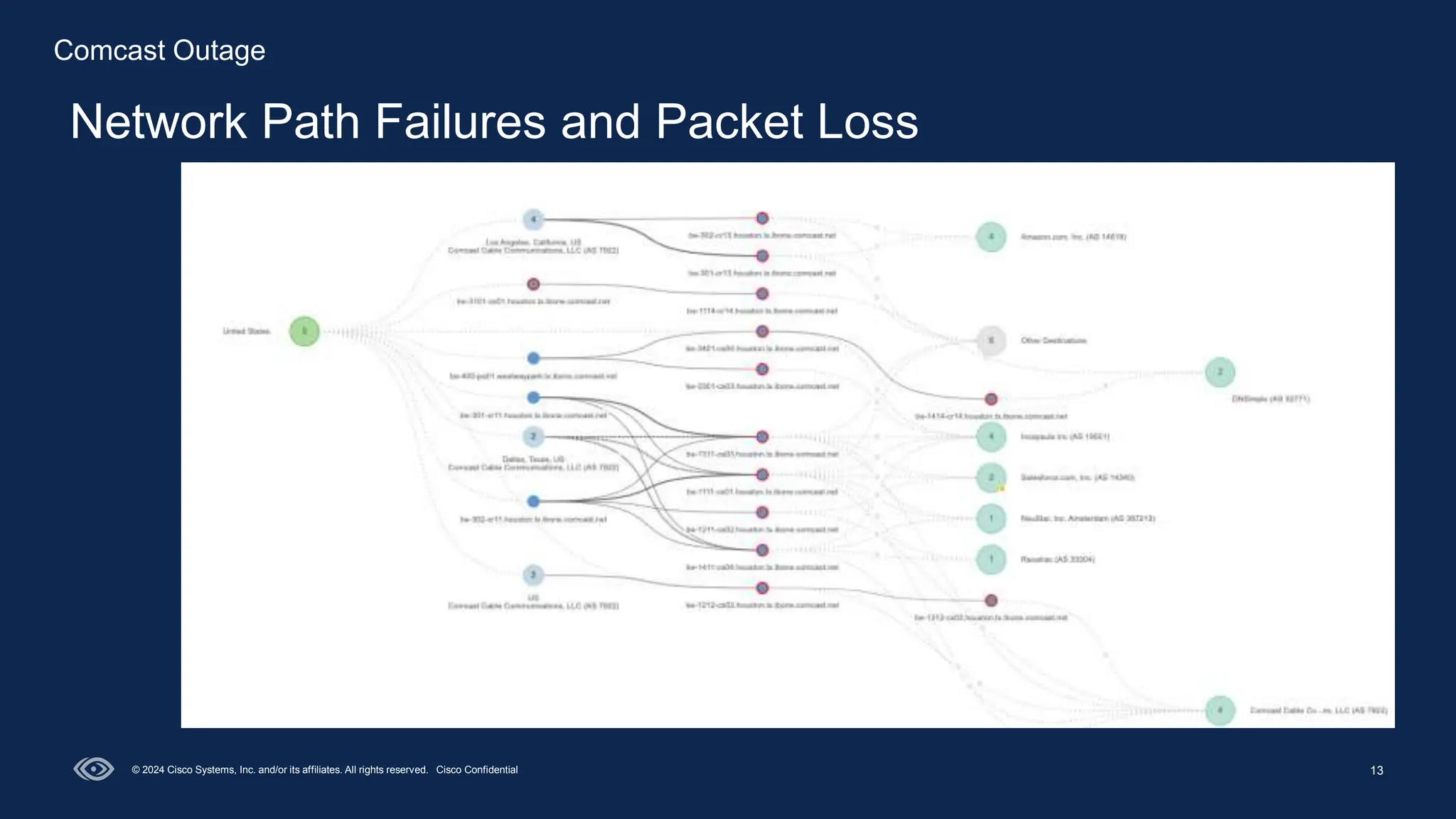

- 13. 13 Network Path Failuresand Packet Loss © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential Comcast Outage

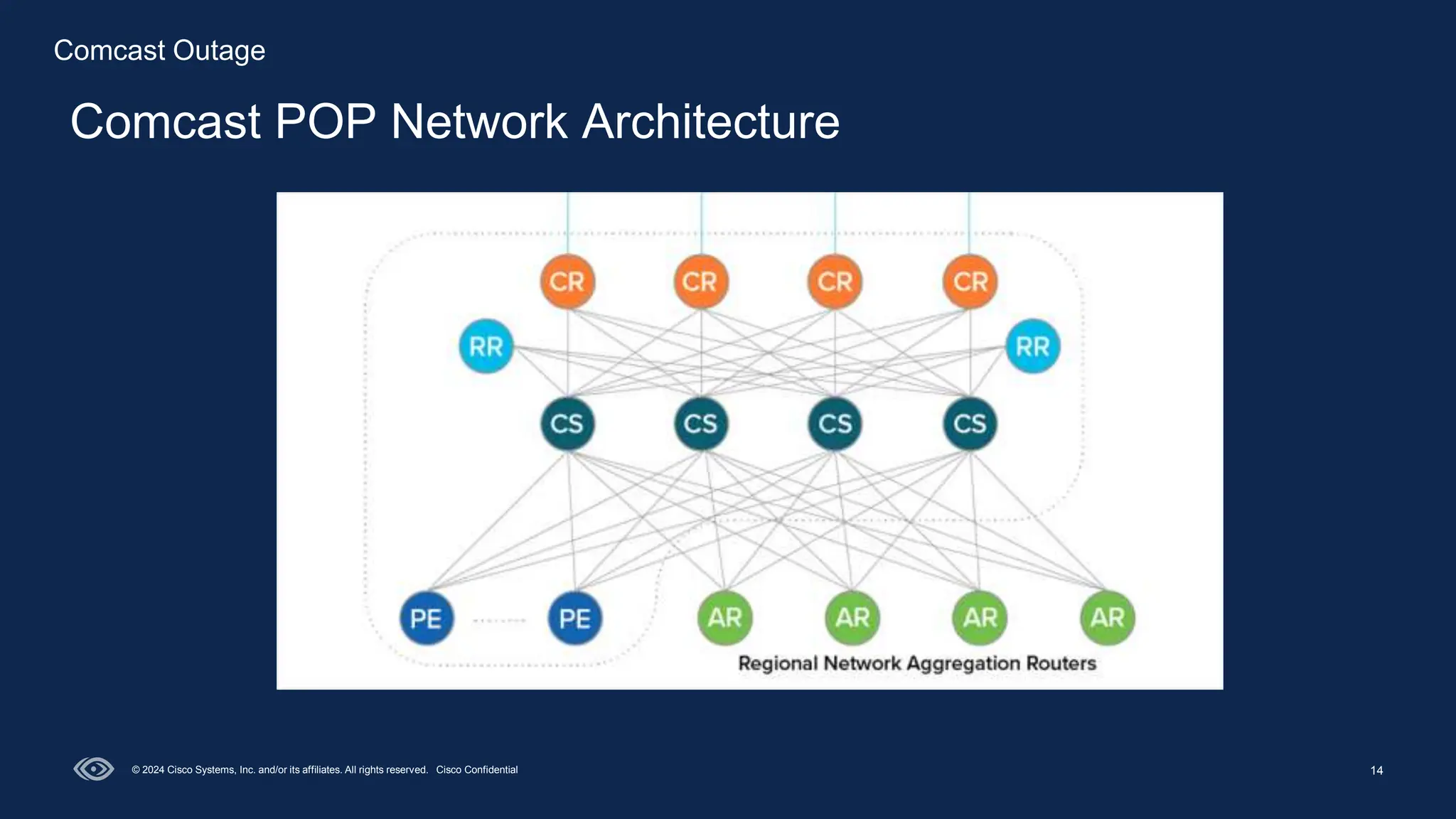

- 14. 14 Comcast POP NetworkArchitecture © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential Comcast Outage

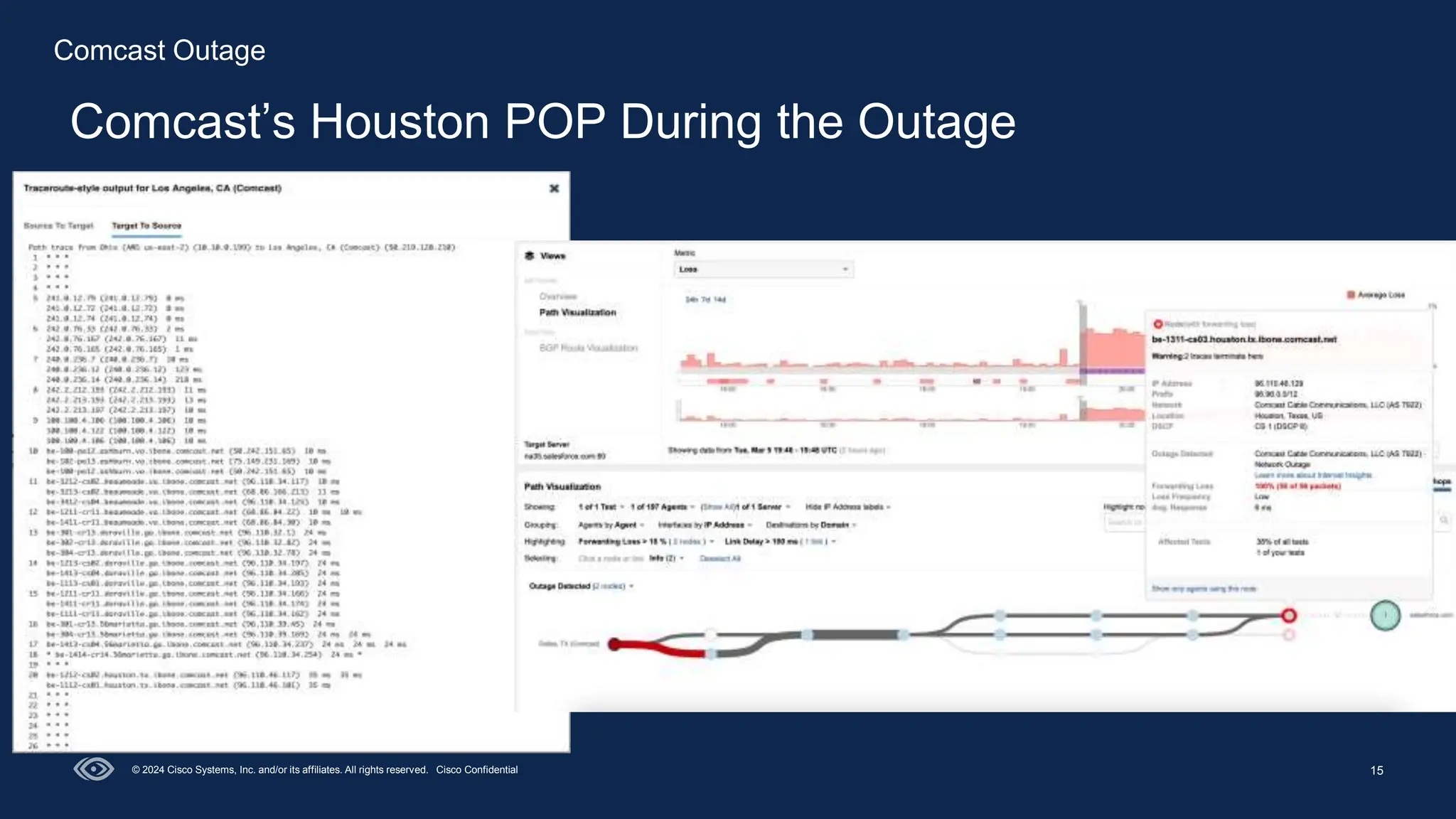

- 15. 15 Comcast’s Houston POPDuring the Outage © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential Comcast Outage

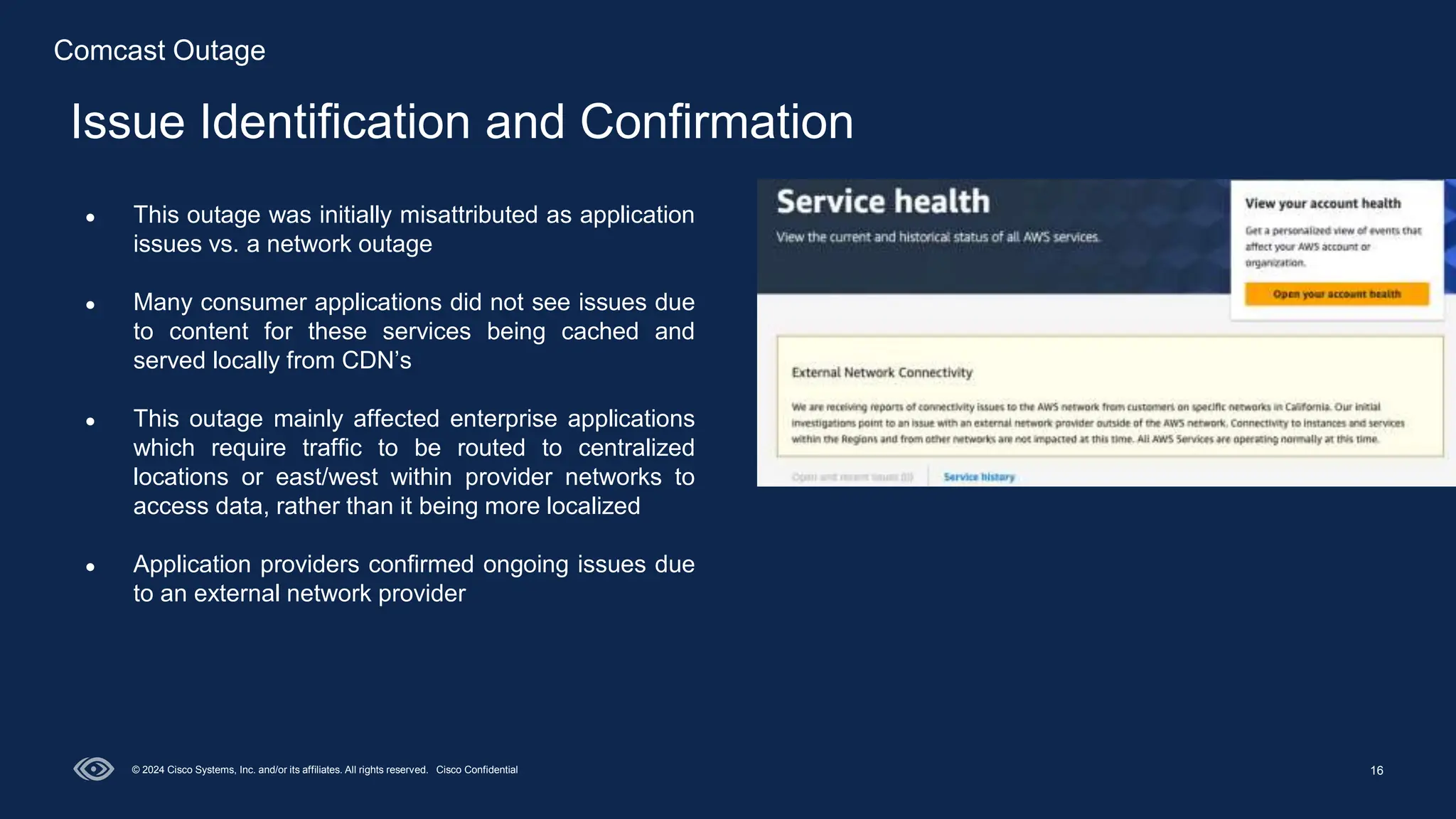

- 16. 16 Issue Identification andConfirmation © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● This outage was initially misattributed as application issues vs. a network outage ● Many consumer applications did not see issues due to content for these services being cached and served locally from CDN’s ● This outage mainly affected enterprise applications which require traffic to be routed to centralized locations or east/west within provider networks to access data, rather than it being more localized ● Application providers confirmed ongoing issues due to an external network provider Comcast Outage

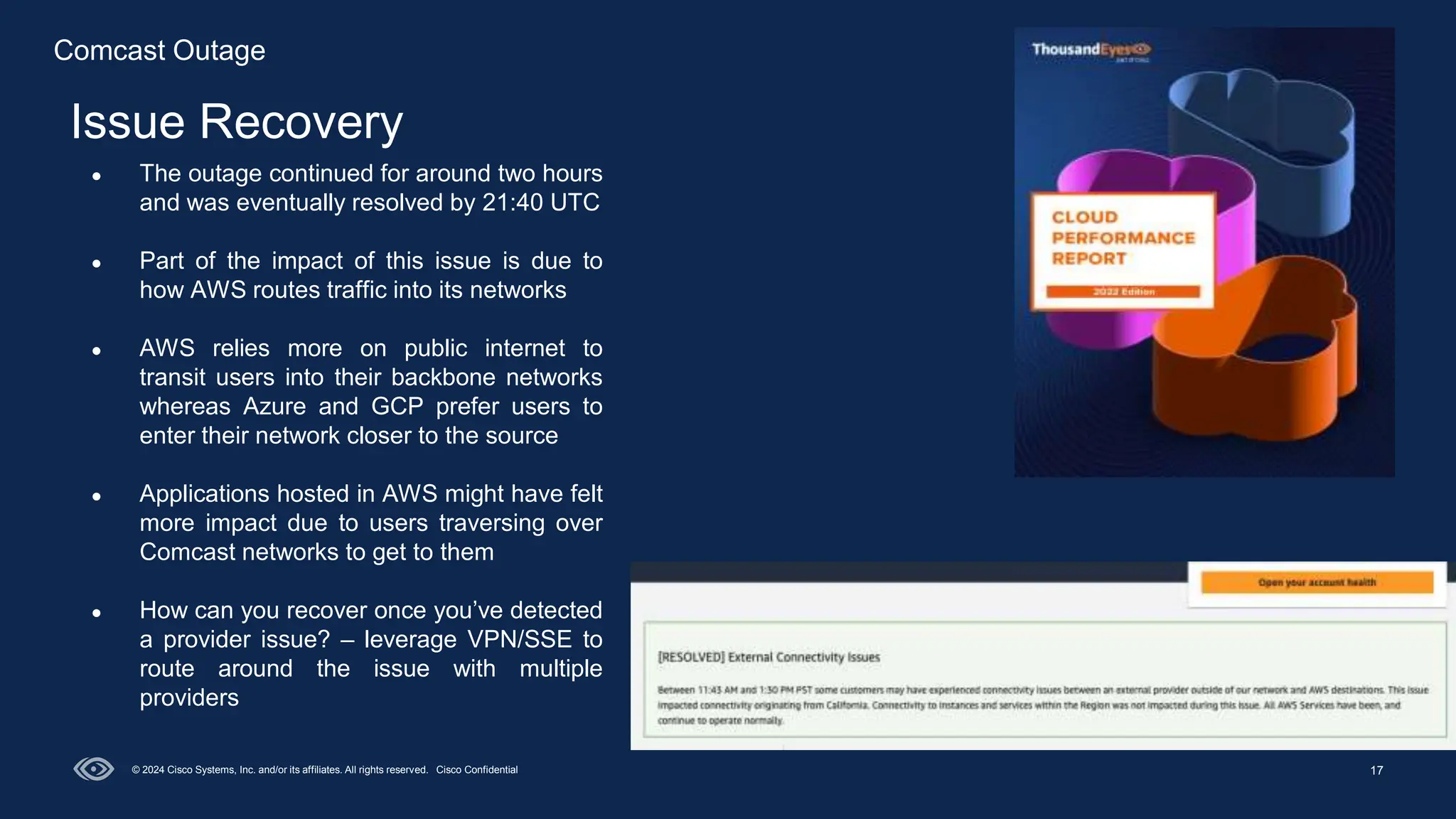

- 17. 17 Issue Recovery © 2024Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● The outage continued for around two hours and was eventually resolved by 21:40 UTC ● Part of the impact of this issue is due to how AWS routes traffic into its networks ● AWS relies more on public internet to transit users into their backbone networks whereas Azure and GCP prefer users to enter their network closer to the source ● Applications hosted in AWS might have felt more impact due to users traversing over Comcast networks to get to them ● How can you recover once you’ve detected a provider issue? – leverage VPN/SSE to route around the issue with multiple providers Comcast Outage
- 18.
- 19. LinkedIn Outage March 6th,2024 19

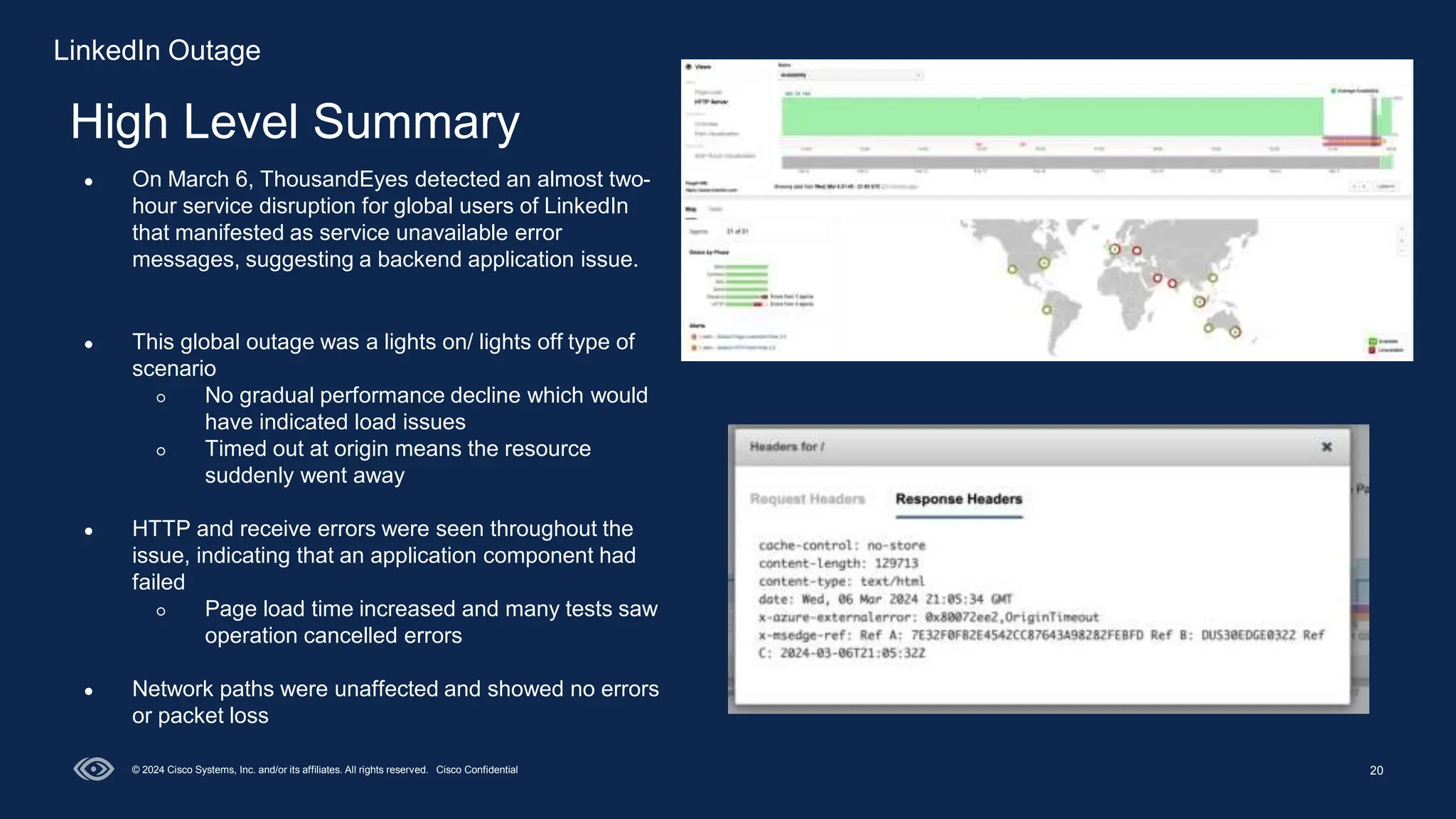

- 20. 20 High Level Summary ©2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● On March 6, ThousandEyes detected an almost two- hour service disruption for global users of LinkedIn that manifested as service unavailable error messages, suggesting a backend application issue. ● This global outage was a lights on/ lights off type of scenario ○ No gradual performance decline which would have indicated load issues ○ Timed out at origin means the resource suddenly went away ● HTTP and receive errors were seen throughout the issue, indicating that an application component had failed ○ Page load time increased and many tests saw operation cancelled errors ● Network paths were unaffected and showed no errors or packet loss LinkedIn Outage

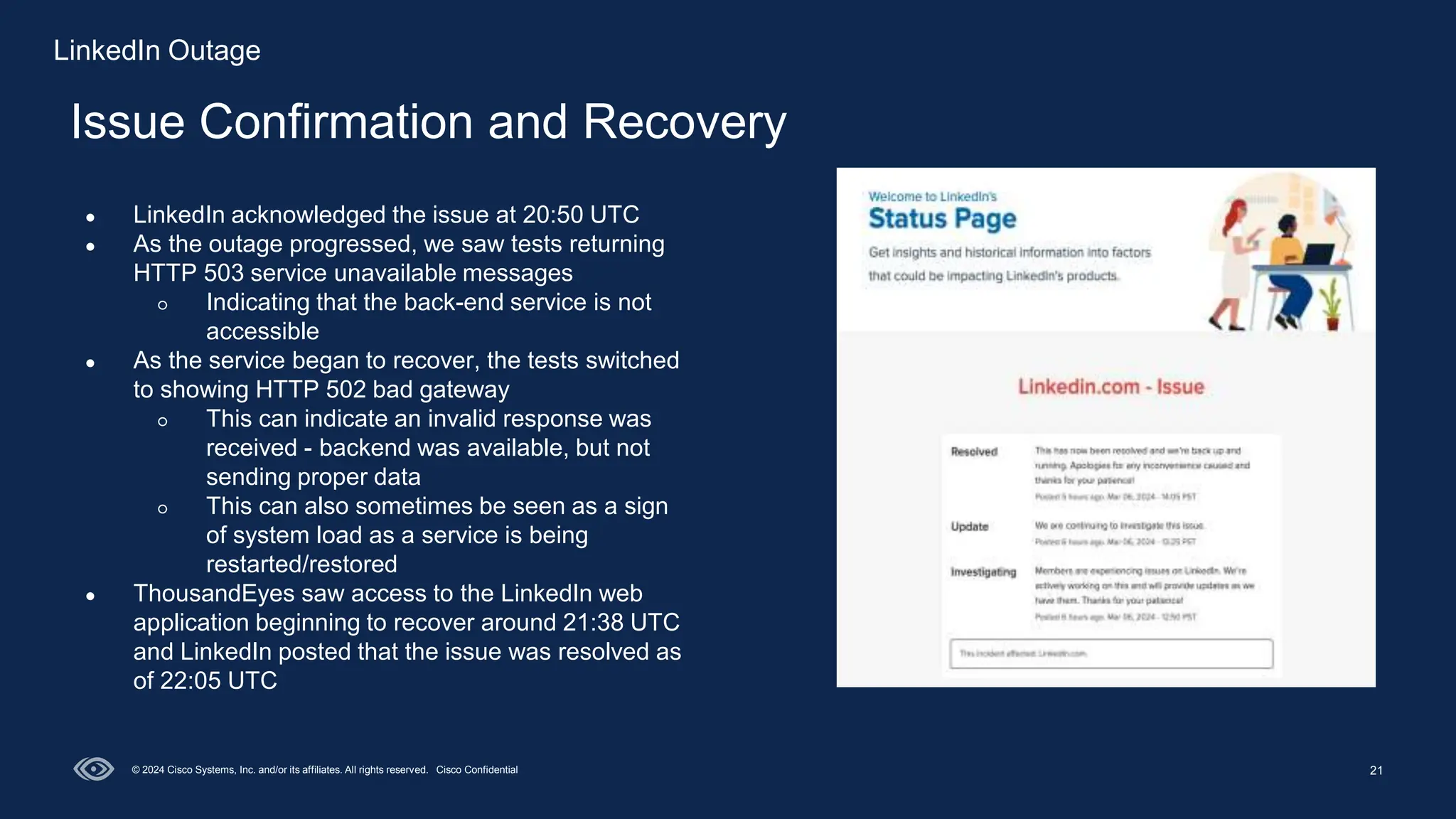

- 21. 21 Issue Confirmation andRecovery © 2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● LinkedIn acknowledged the issue at 20:50 UTC ● As the outage progressed, we saw tests returning HTTP 503 service unavailable messages ○ Indicating that the back-end service is not accessible ● As the service began to recover, the tests switched to showing HTTP 502 bad gateway ○ This can indicate an invalid response was received - backend was available, but not sending proper data ○ This can also sometimes be seen as a sign of system load as a service is being restarted/restored ● ThousandEyes saw access to the LinkedIn web application beginning to recover around 21:38 UTC and LinkedIn posted that the issue was resolved as of 22:05 UTC LinkedIn Outage
- 22.

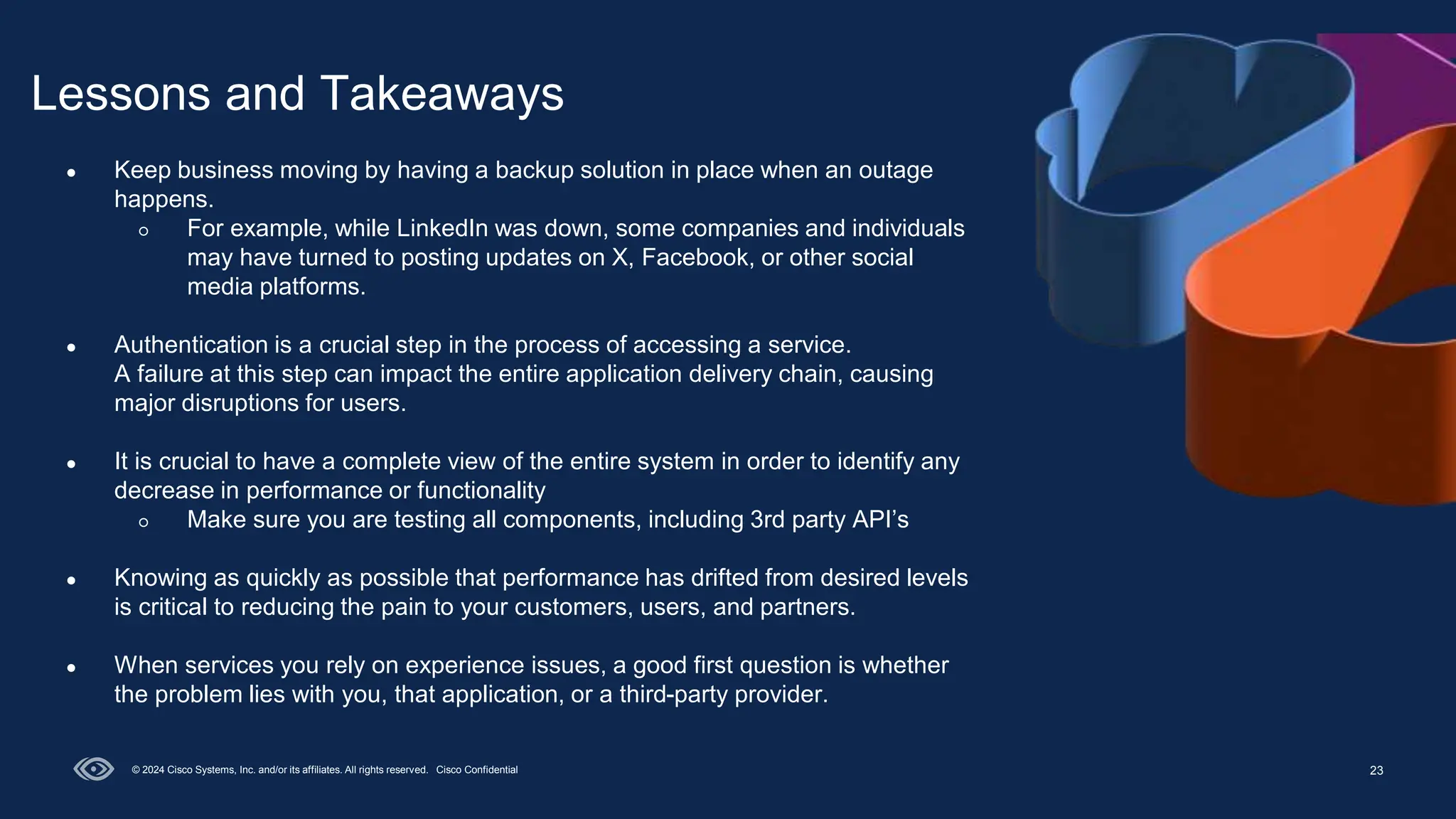

- 23. 23 Lessons and Takeaways ©2024 Cisco Systems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential ● Keep business moving by having a backup solution in place when an outage happens. ○ For example, while LinkedIn was down, some companies and individuals may have turned to posting updates on X, Facebook, or other social media platforms. ● Authentication is a crucial step in the process of accessing a service. A failure at this step can impact the entire application delivery chain, causing major disruptions for users. ● It is crucial to have a complete view of the entire system in order to identify any decrease in performance or functionality ○ Make sure you are testing all components, including 3rd party API’s ● Knowing as quickly as possible that performance has drifted from desired levels is critical to reducing the pain to your customers, users, and partners. ● When services you rely on experience issues, a good first question is whether the problem lies with you, that application, or a third-party provider.

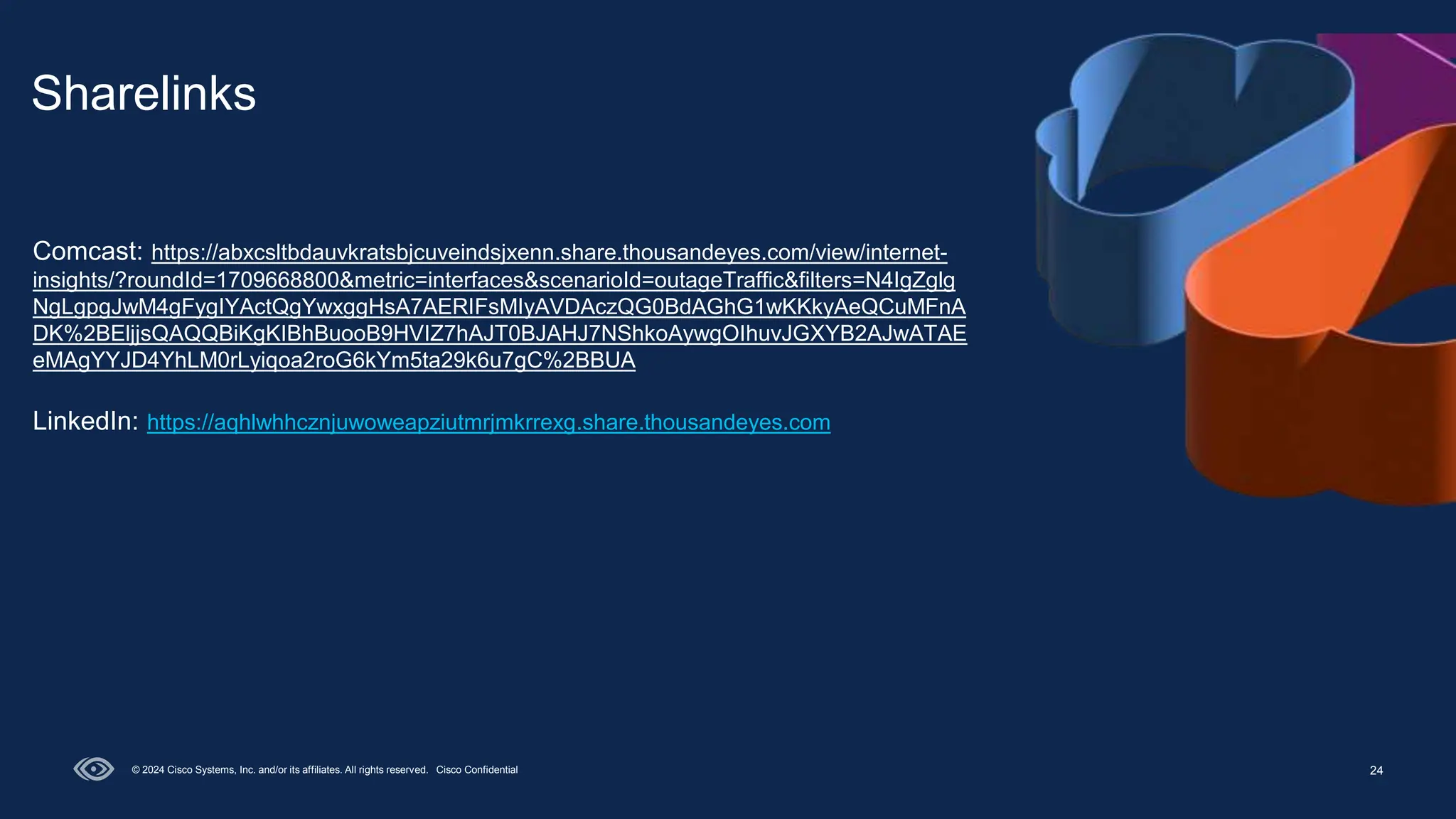

- 24. 24 Sharelinks © 2024 CiscoSystems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential Comcast: https://abxcsltbdauvkratsbjcuveindsjxenn.share.thousandeyes.com/view/internet- insights/?roundId=1709668800&metric=interfaces&scenarioId=outageTraffic&filters=N4IgZglg NgLgpgJwM4gFygIYActQgYwxggHsA7AERIFsMIyAVDAczQG0BdAGhG1wKKkyAeQCuMFnA DK%2BEljjsQAQQBiKgKIBhBuooB9HVIZ7hAJT0BJAHJ7NShkoAywgOIhuvJGXYB2AJwATAE eMAgYYJD4YhLM0rLyiqoa2roG6kYm5ta29k6u7gC%2BBUA LinkedIn: https://aqhlwhhcznjuwoweapziutmrjmkrrexg.share.thousandeyes.com
- 25. Next Steps Subscribe toour blog to keep up-to-date! thousandeyes.com/blog/ Tune in to The Internet Report Podcast. thousandeyes.com/the-internet-report/ Check out the in-depth Comcast Outage Analysis: thousandeyes.com/blog/comcast-outage- analysis-march-5-2024 New tutorial videos on our features thousandeyes.com/resources/?cat=tutorial New Getting Started Guides docs.thousandeyes.com/product- documentation/getting-started Blog & Podcast Learning Resources
- 26. 26 © 2024 CiscoSystems, Inc. and/or its affiliates. All rights reserved. Cisco Confidential
