1. The enterprise class monitoring solution
for everyone

2. The enterprise class monitoring solution for everyone

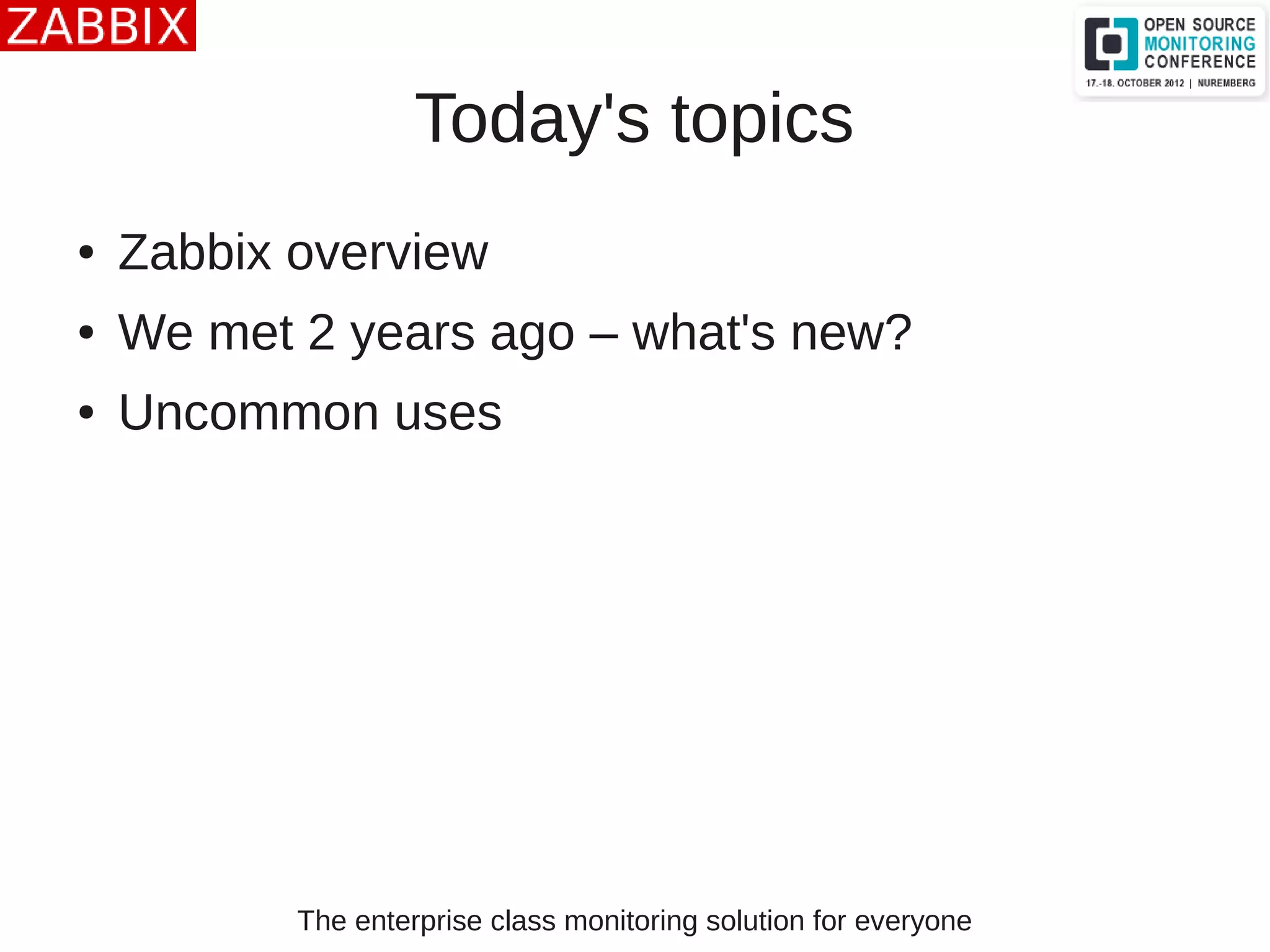

Today's topics
● Zabbix overview
● We met 2 years ago – what's new?
● Uncommon uses

3. The enterprise class monitoring solution for everyone

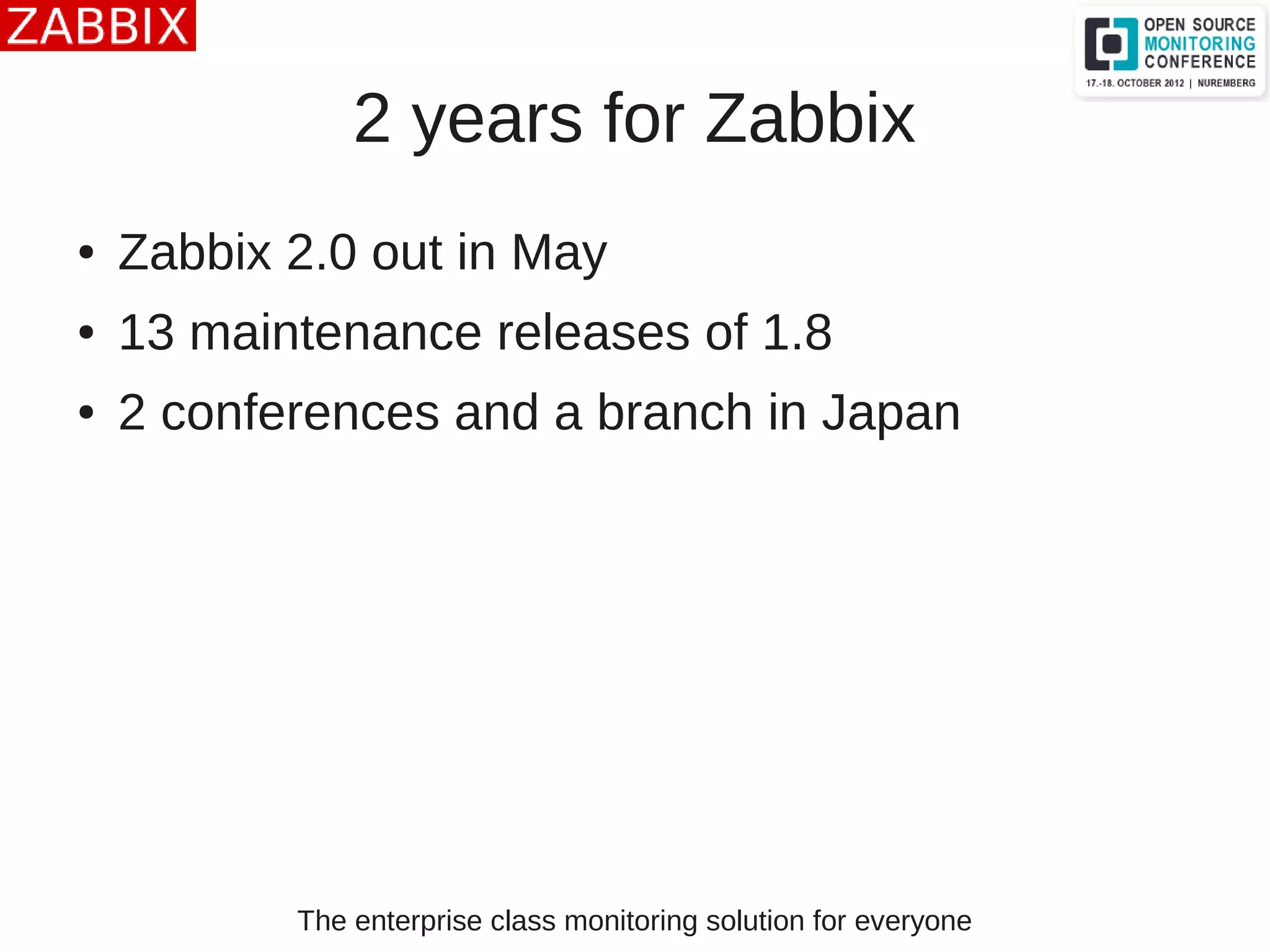

2 years for Zabbix
● Zabbix 2.0 out in May
● 13 maintenance releases of 1.8
● 2 conferences and a branch in Japan

4. The enterprise class monitoring solution for everyone

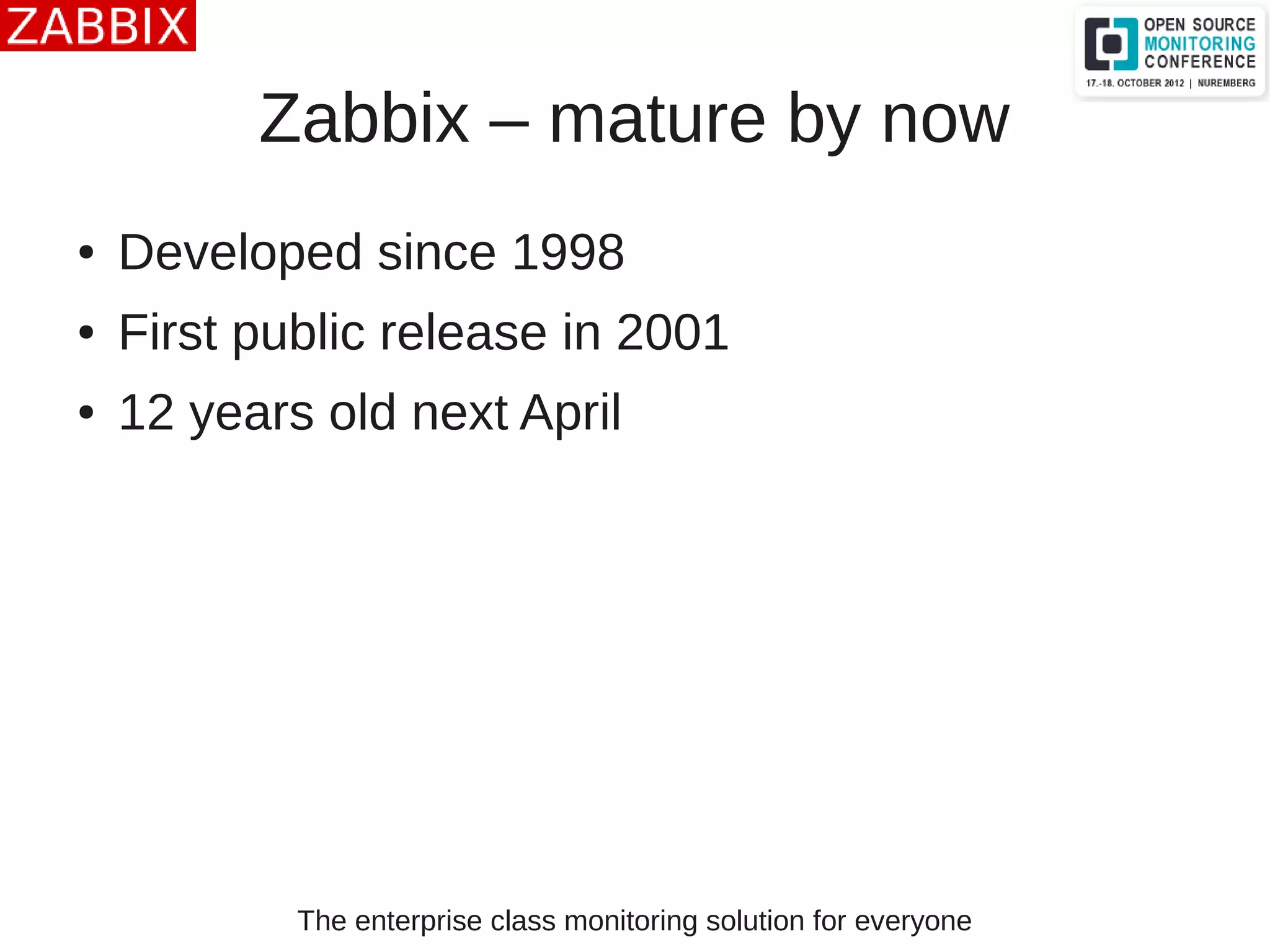

Zabbix – mature by now
● Developed since 1998
● First public release in 2001
● 12 years old next April

5. The enterprise class monitoring solution for everyone
True open source
Open
Core

6. The enterprise class monitoring solution for everyone

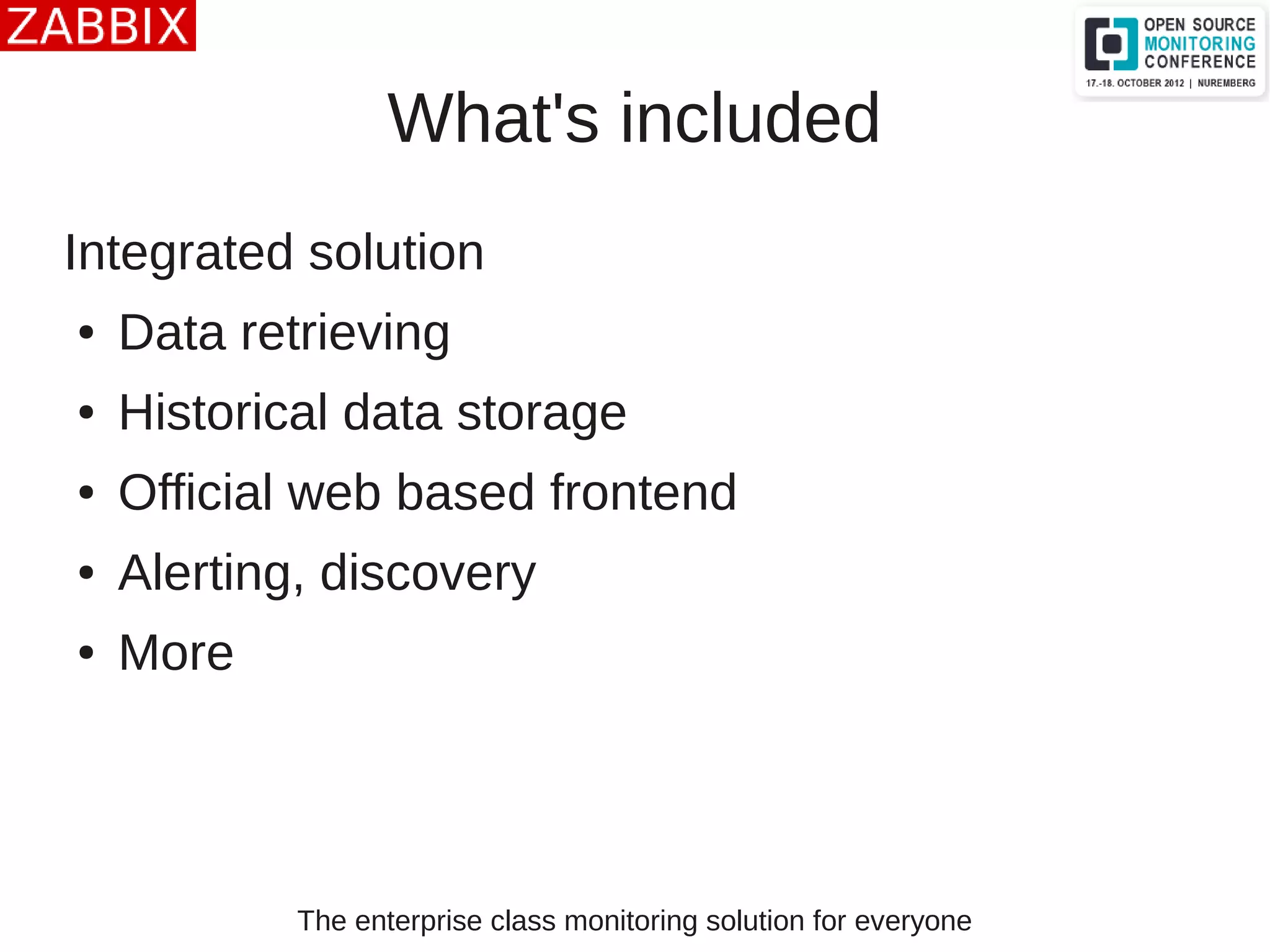

What's included
Integrated solution
● Data retrieving
● Historical data storage
● Official web based frontend
● Alerting, discovery
● More

7. The enterprise class monitoring solution for everyone
Components
Server
Database Frontend

8. The enterprise class monitoring solution for everyone

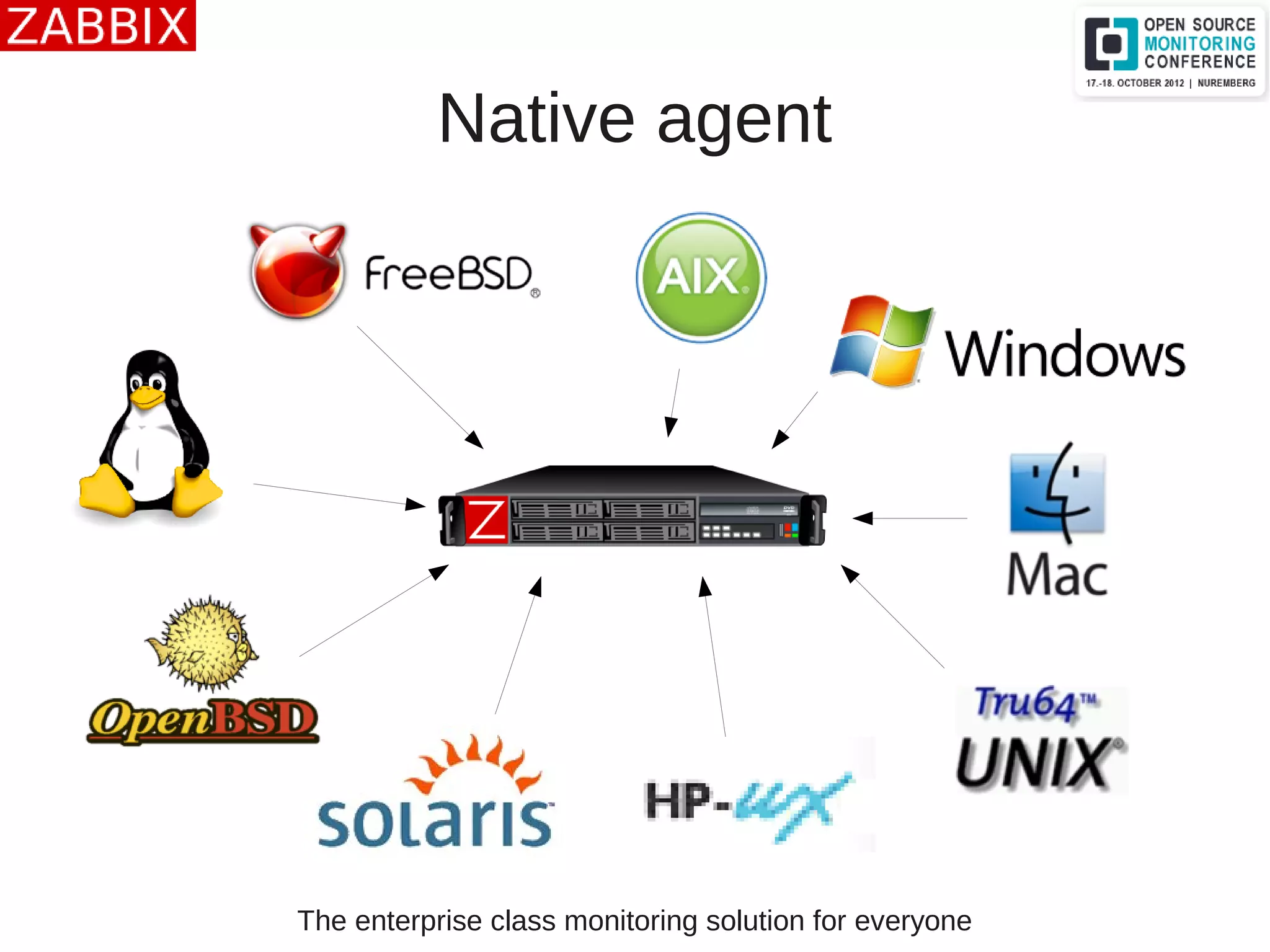

Native agent

9. The enterprise class monitoring solution for everyone

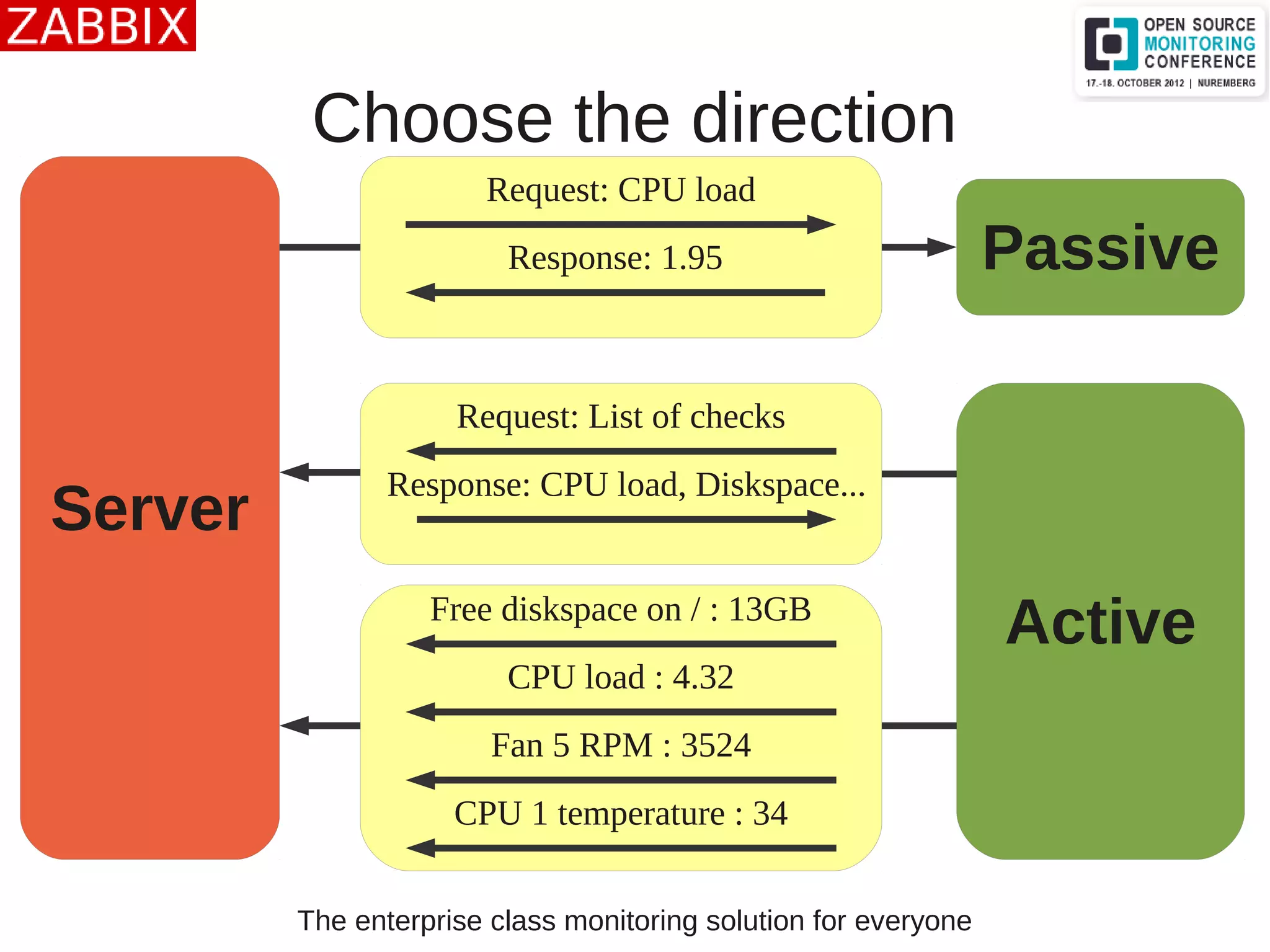

Choose the direction
Server
Active
Passive
Request: CPU load
Response: 1.95
Request: List of checks
Response: CPU load, Diskspace...
Free diskspace on / : 13GB
CPU load : 4.32
Fan 5 RPM : 3524
CPU 1 temperature : 34

10. The enterprise class monitoring solution for everyone

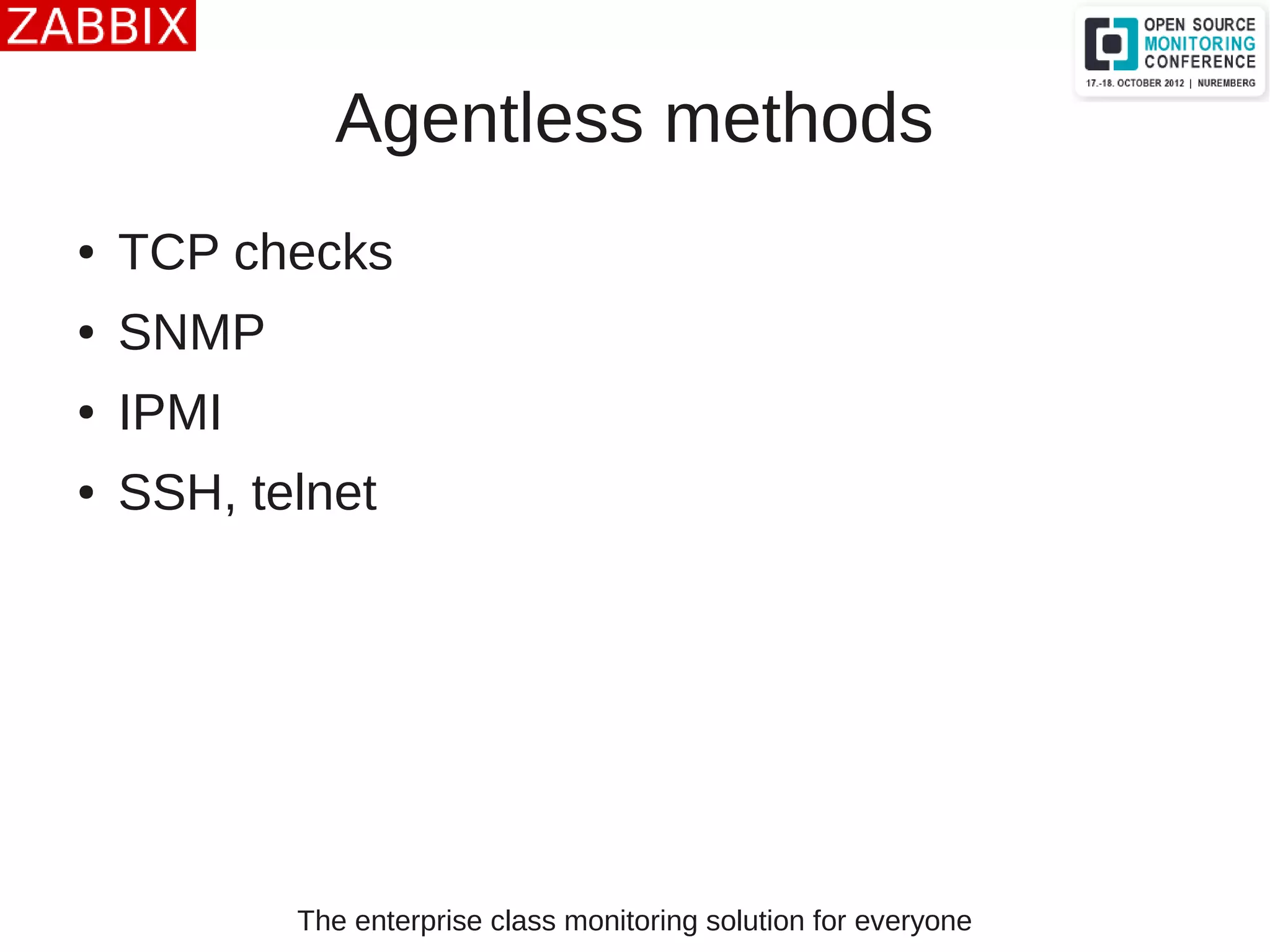

Agentless methods
● TCP checks
● SNMP
● IPMI
● SSH, telnet

11. The enterprise class monitoring solution for everyone
Advanced methods
● Calculated
Total – free = used
● Aggregate
Total free diskspace for all fileservers
Average qps for all database servers
5000qps 1000qps 9000qps
Aggregate value = 5000 qps

12. The enterprise class monitoring solution for everyone

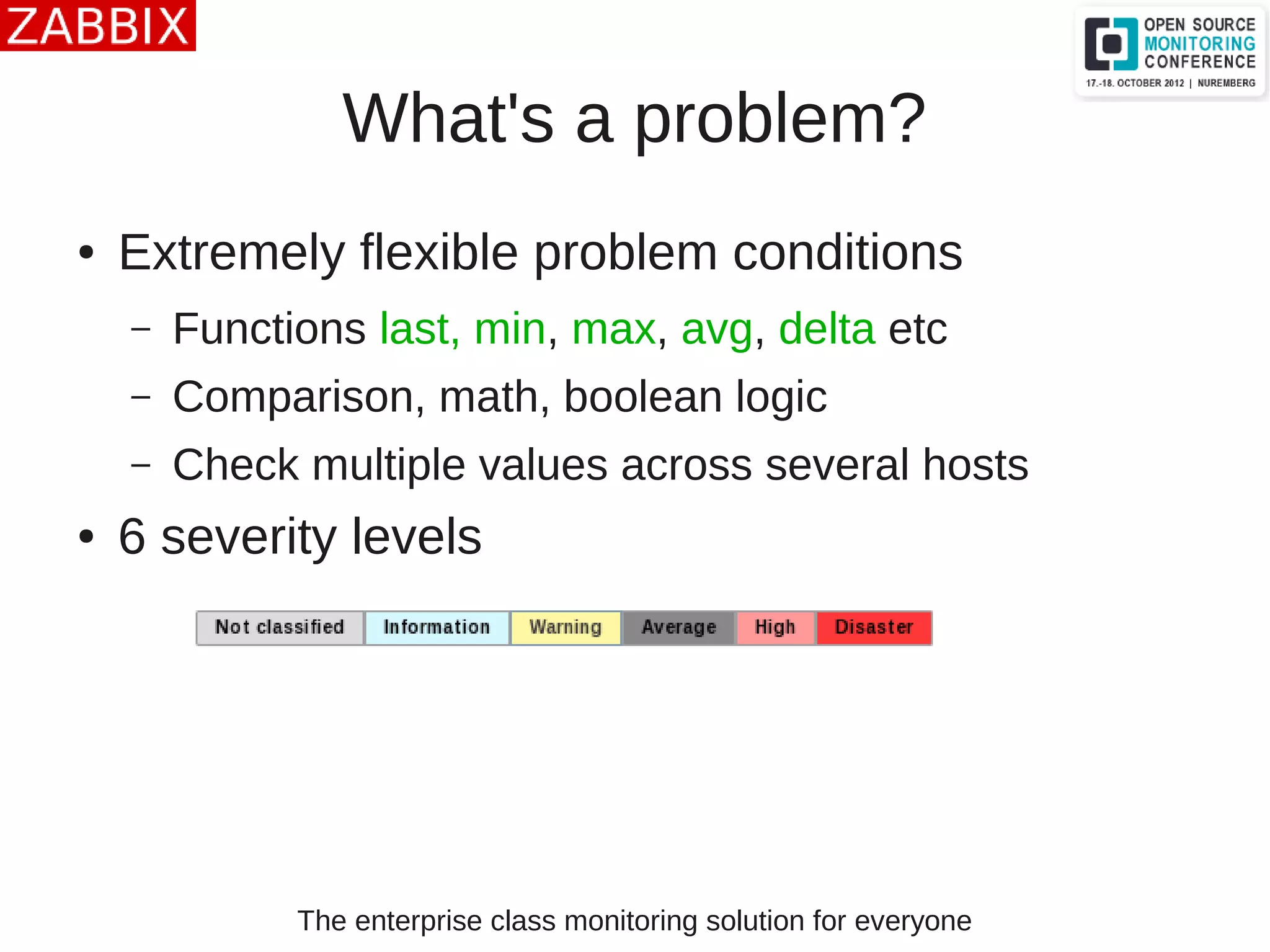

What's a problem?
● Extremely flexible problem conditions
– Functions last, min, max, avg, delta etc
– Comparison, math, boolean logic
– Check multiple values across several hosts
● 6 severity levels

13. The enterprise class monitoring solution for everyone

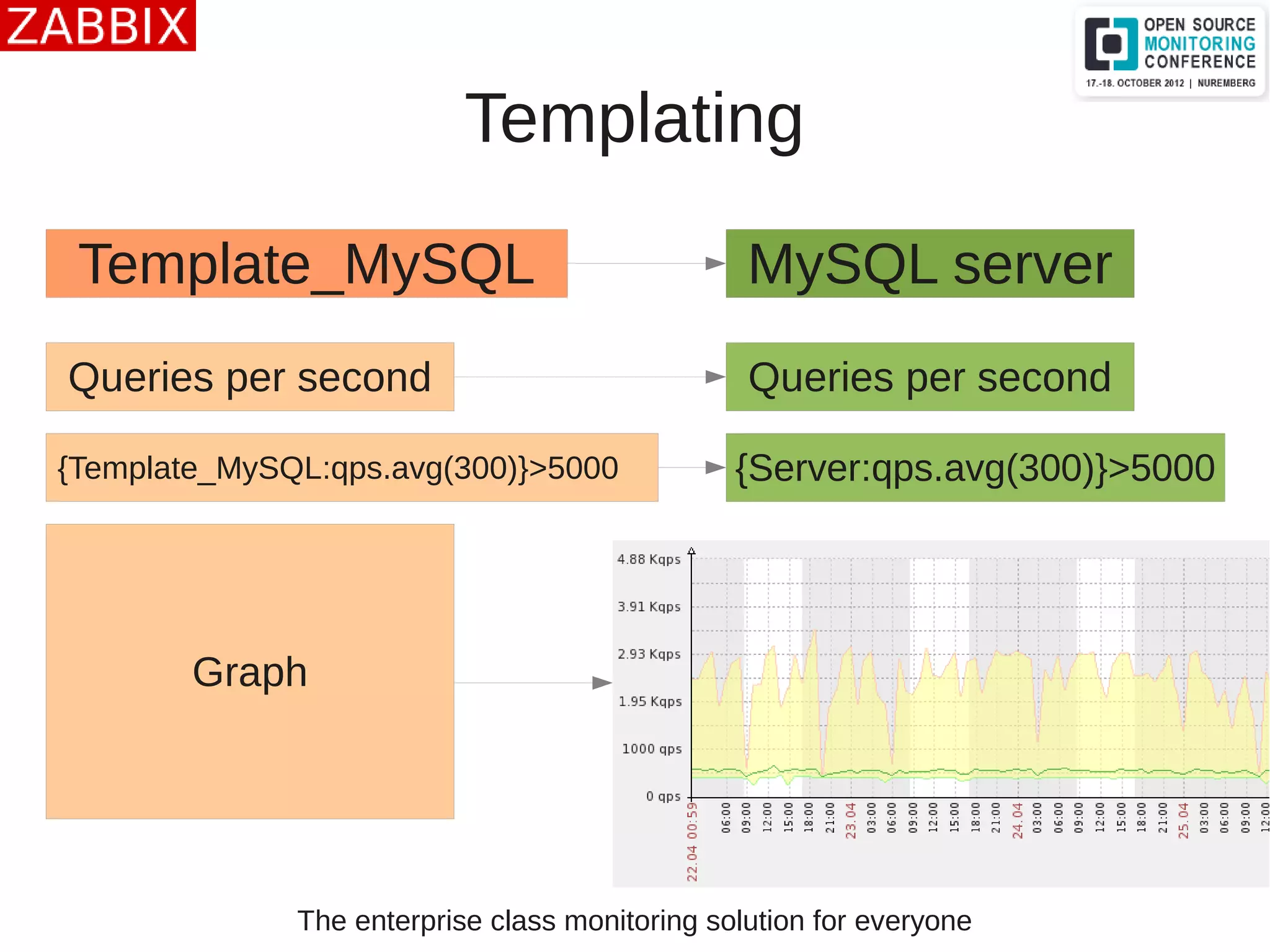

Templating
Template_MySQL MySQL server
Queries per second
{Template_MySQL:qps.avg(300)}>5000 {Server:qps.avg(300)}>5000
Graph
Queries per second

14. The enterprise class monitoring solution for everyone

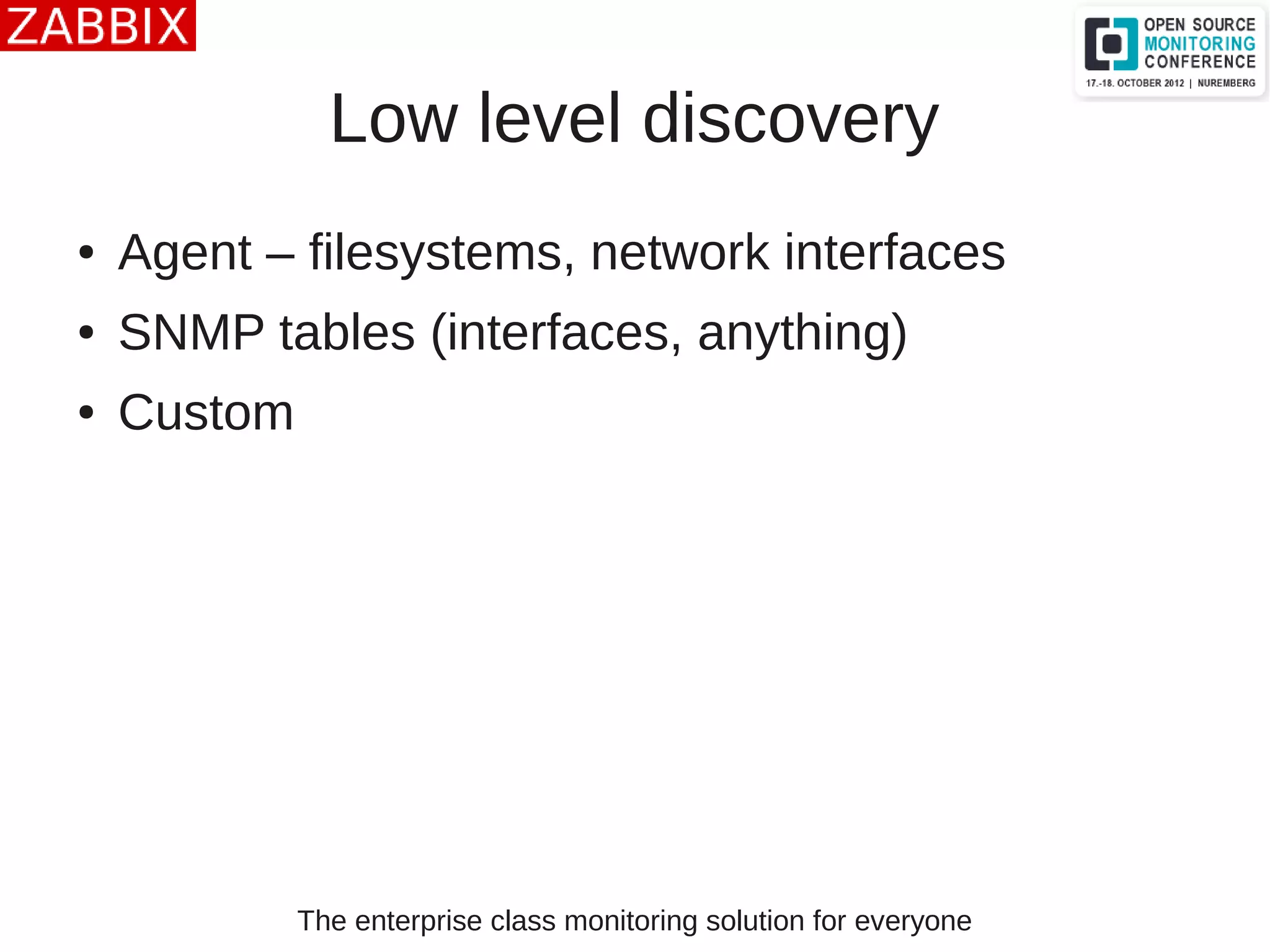

Low level discovery
● Agent – filesystems, network interfaces
● SNMP tables (interfaces, anything)
● Custom

15. The enterprise class monitoring solution for everyone

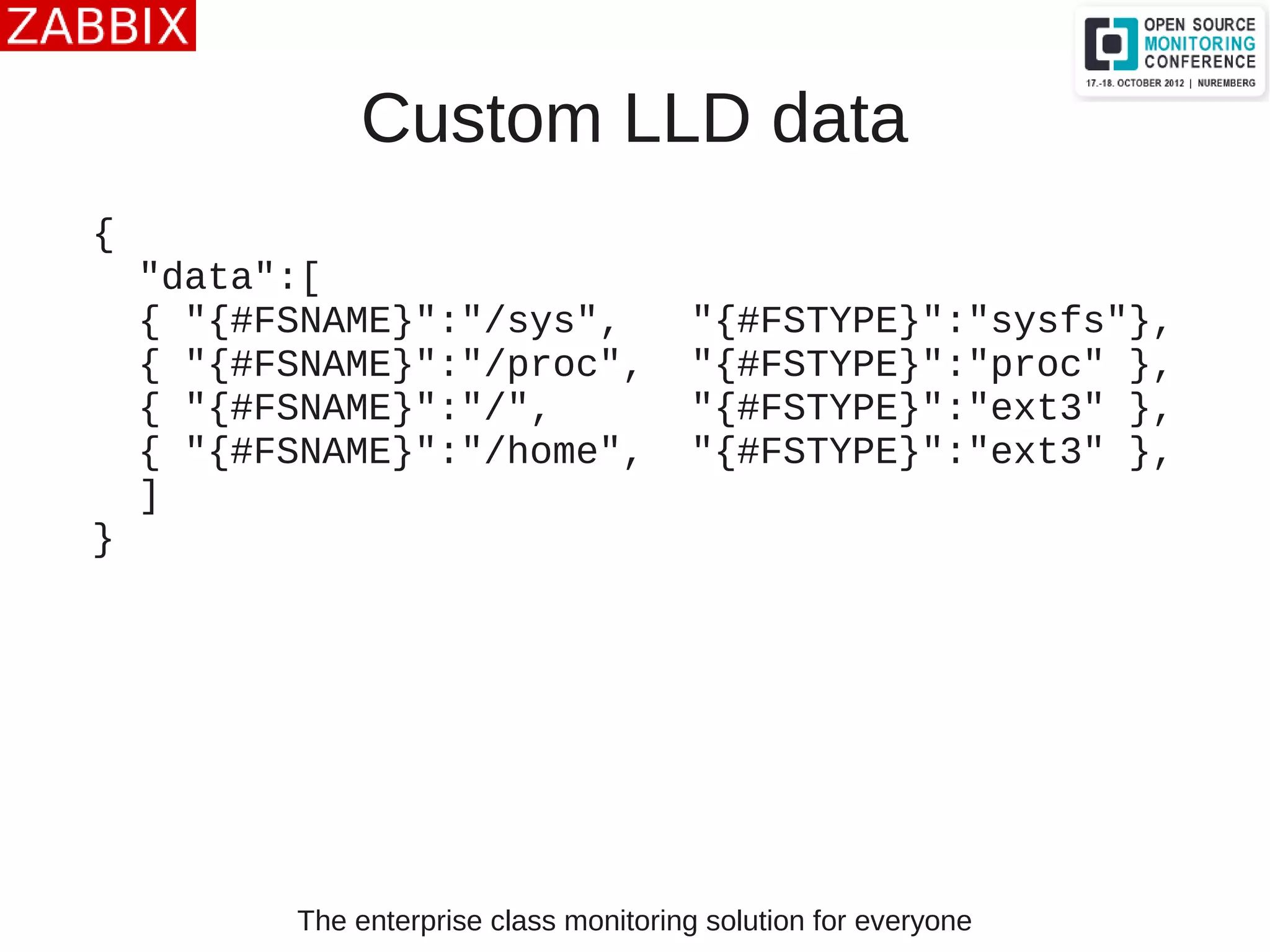

Custom LLD data
{
"data":[
{ "{#FSNAME}":"/sys", "{#FSTYPE}":"sysfs"},
{ "{#FSNAME}":"/proc", "{#FSTYPE}":"proc" },
{ "{#FSNAME}":"/", "{#FSTYPE}":"ext3" },
{ "{#FSNAME}":"/home", "{#FSTYPE}":"ext3" },
]
}

16. The enterprise class monitoring solution for everyone

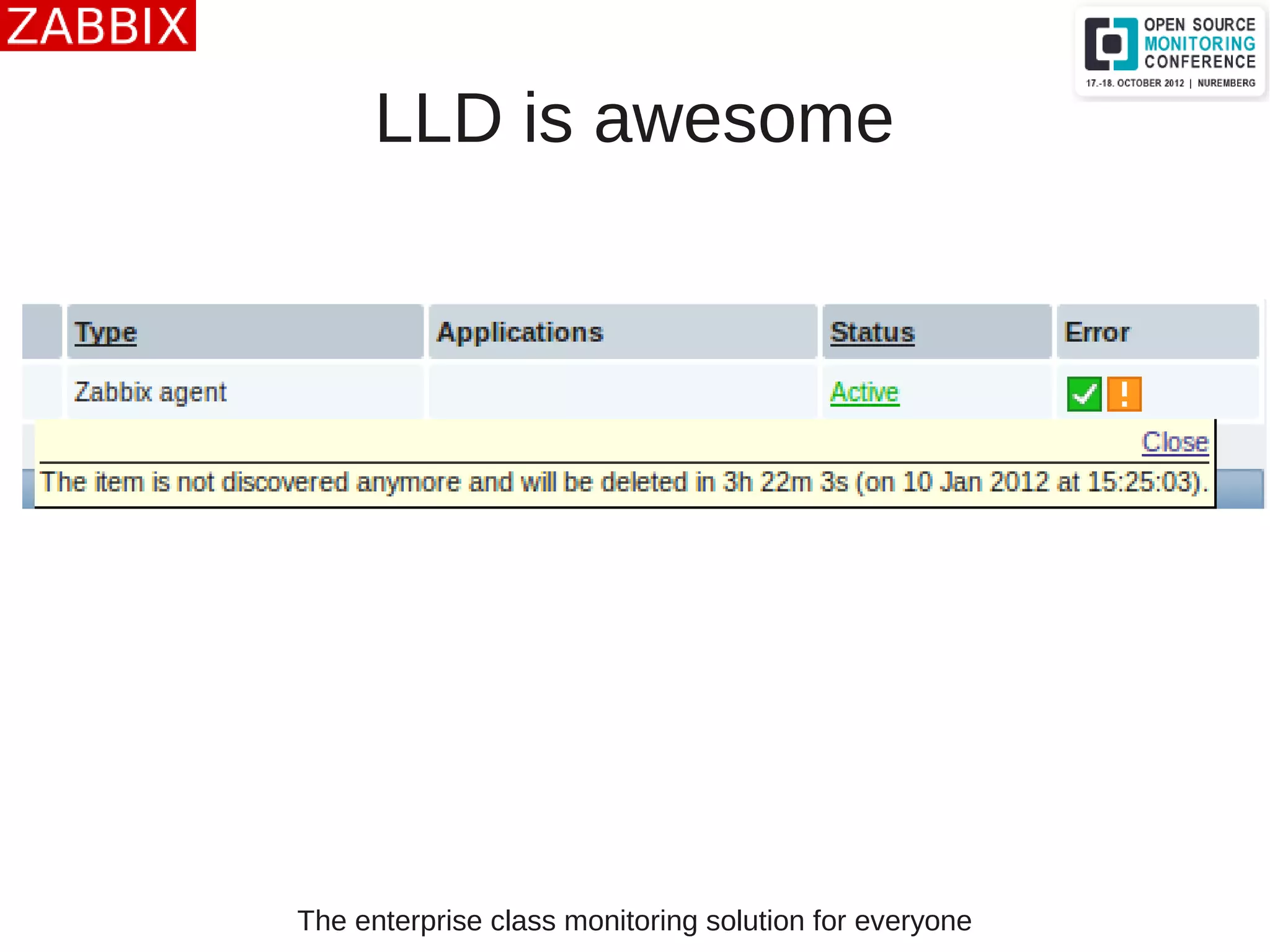

LLD is awesome

17. The enterprise class monitoring solution for everyone

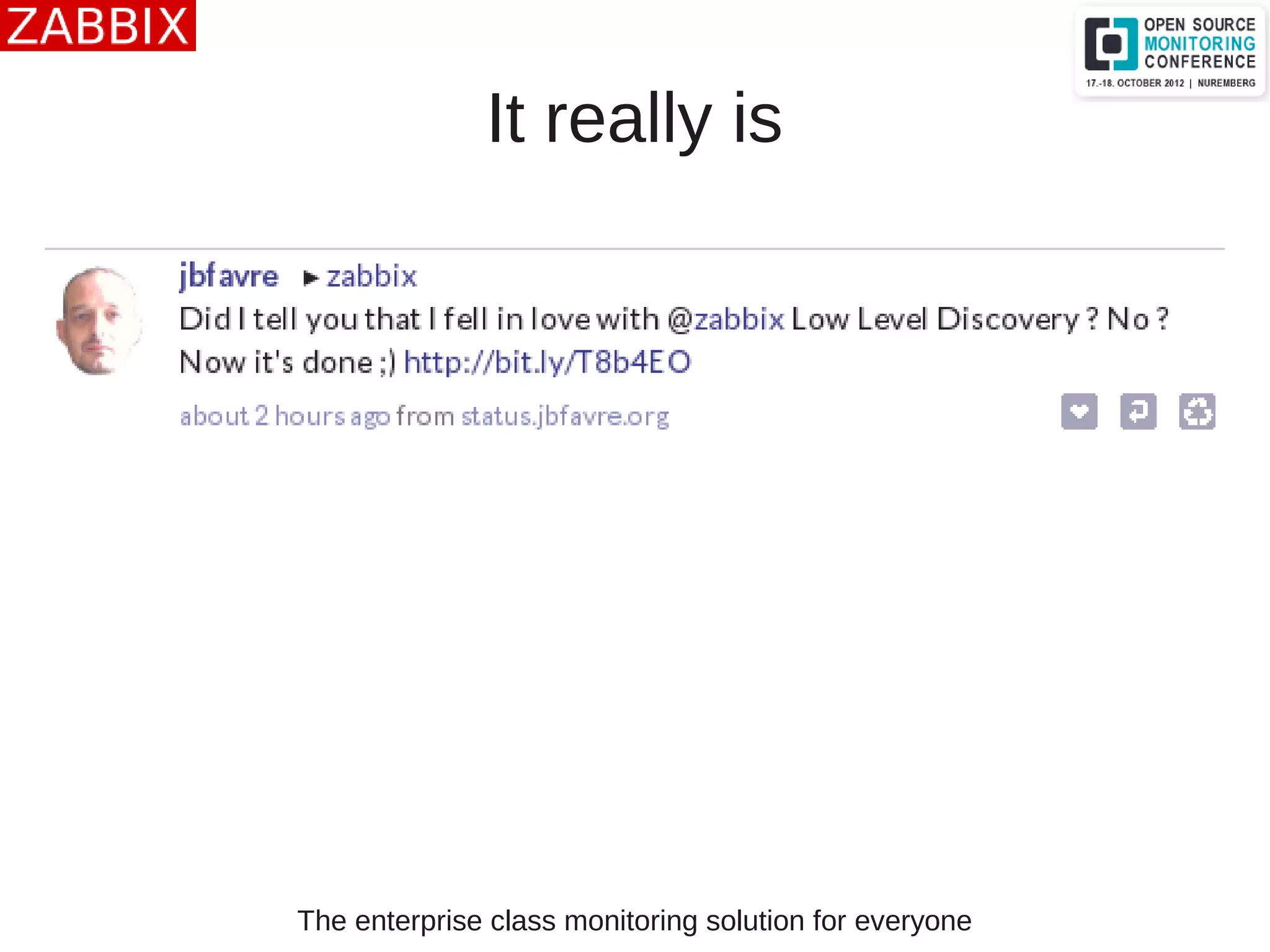

It really is

18. The enterprise class monitoring solution for everyone

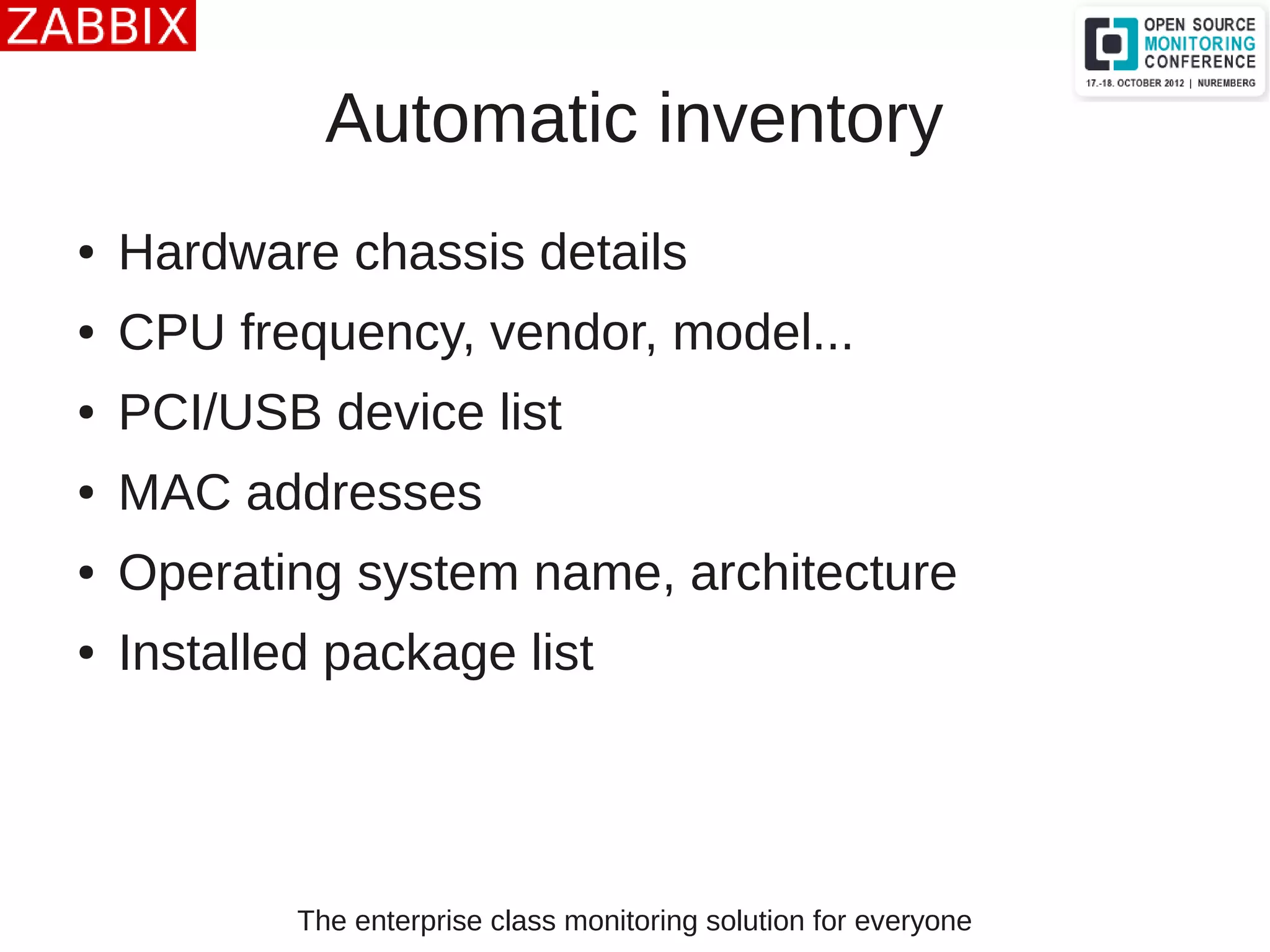

Automatic inventory
● Hardware chassis details
● CPU frequency, vendor, model...
● PCI/USB device list
● MAC addresses
● Operating system name, architecture
● Installed package list

19. The enterprise class monitoring solution for everyone

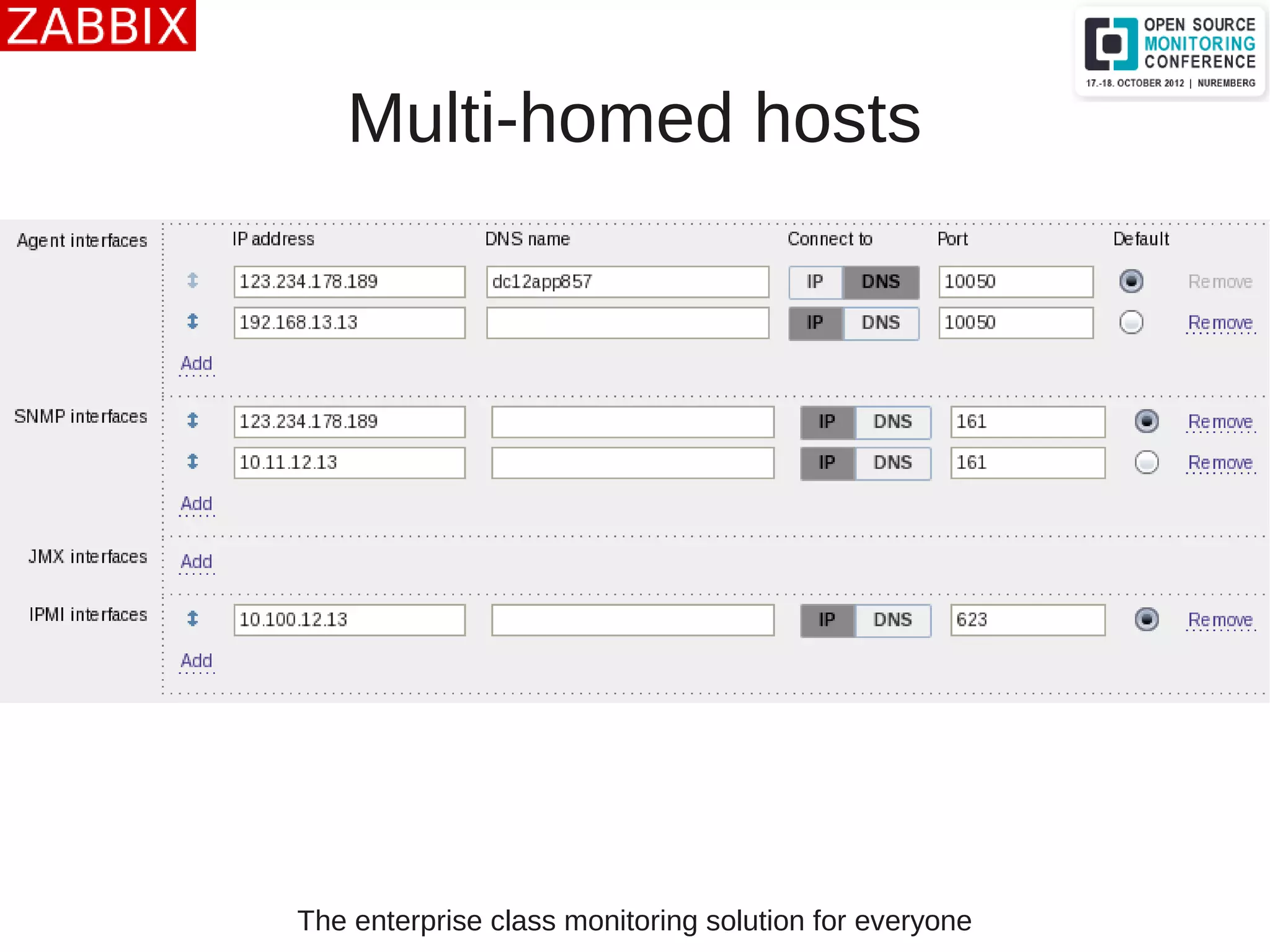

Multi-homed hosts

20. The enterprise class monitoring solution for everyone

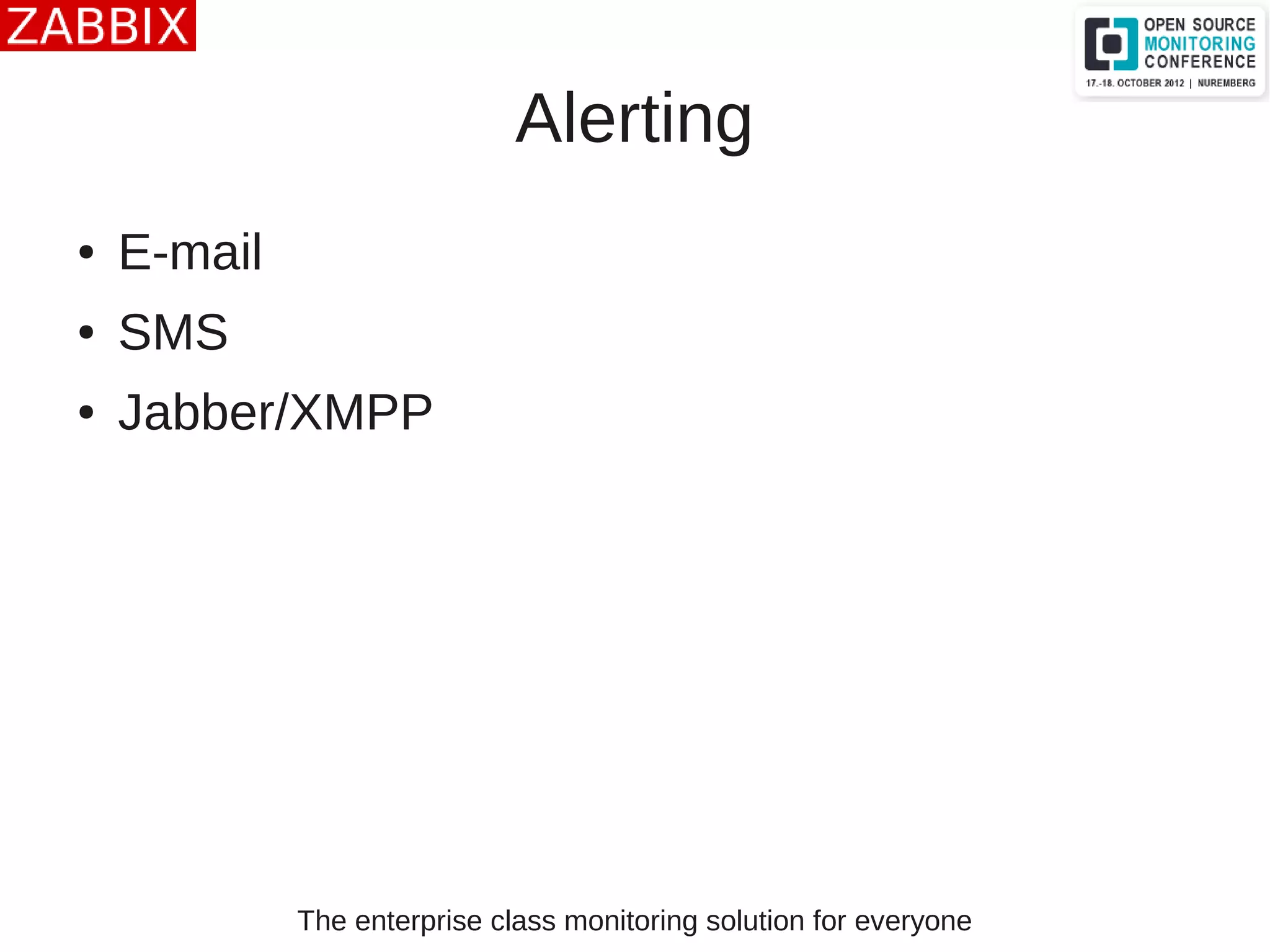

Alerting
● E-mail
● SMS
● Jabber/XMPP

21. The enterprise class monitoring solution for everyone

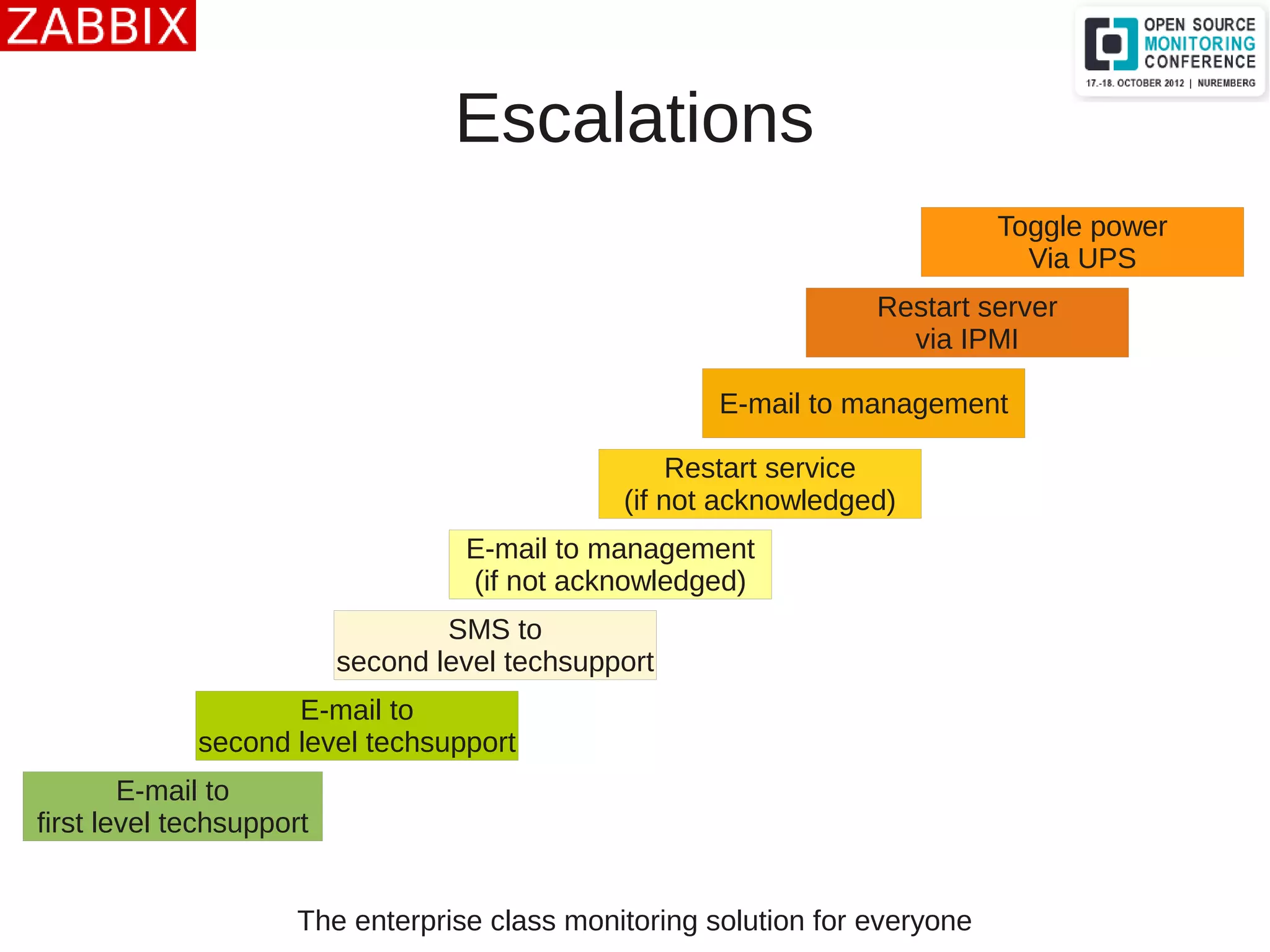

Escalations
E-mail to
first level techsupport
SMS to
second level techsupport
E-mail to
second level techsupport
E-mail to management
(if not acknowledged)
E-mail to management
Restart service
(if not acknowledged)
Restart server
via IPMI
Toggle power
Via UPS

22. The enterprise class monitoring solution for everyone

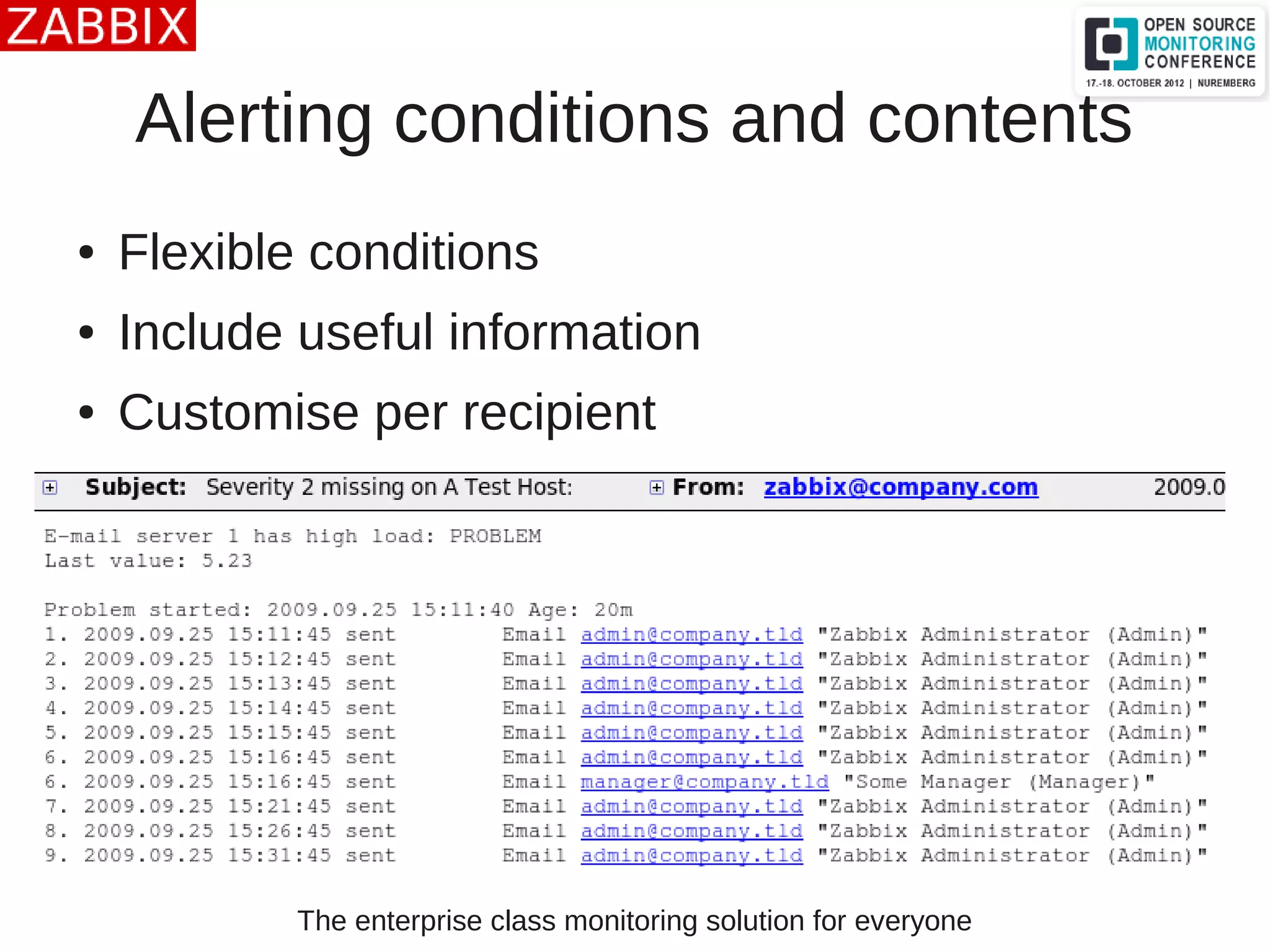

Alerting conditions and contents
● Flexible conditions
● Include useful information
● Customise per recipient

23. The enterprise class monitoring solution for everyone

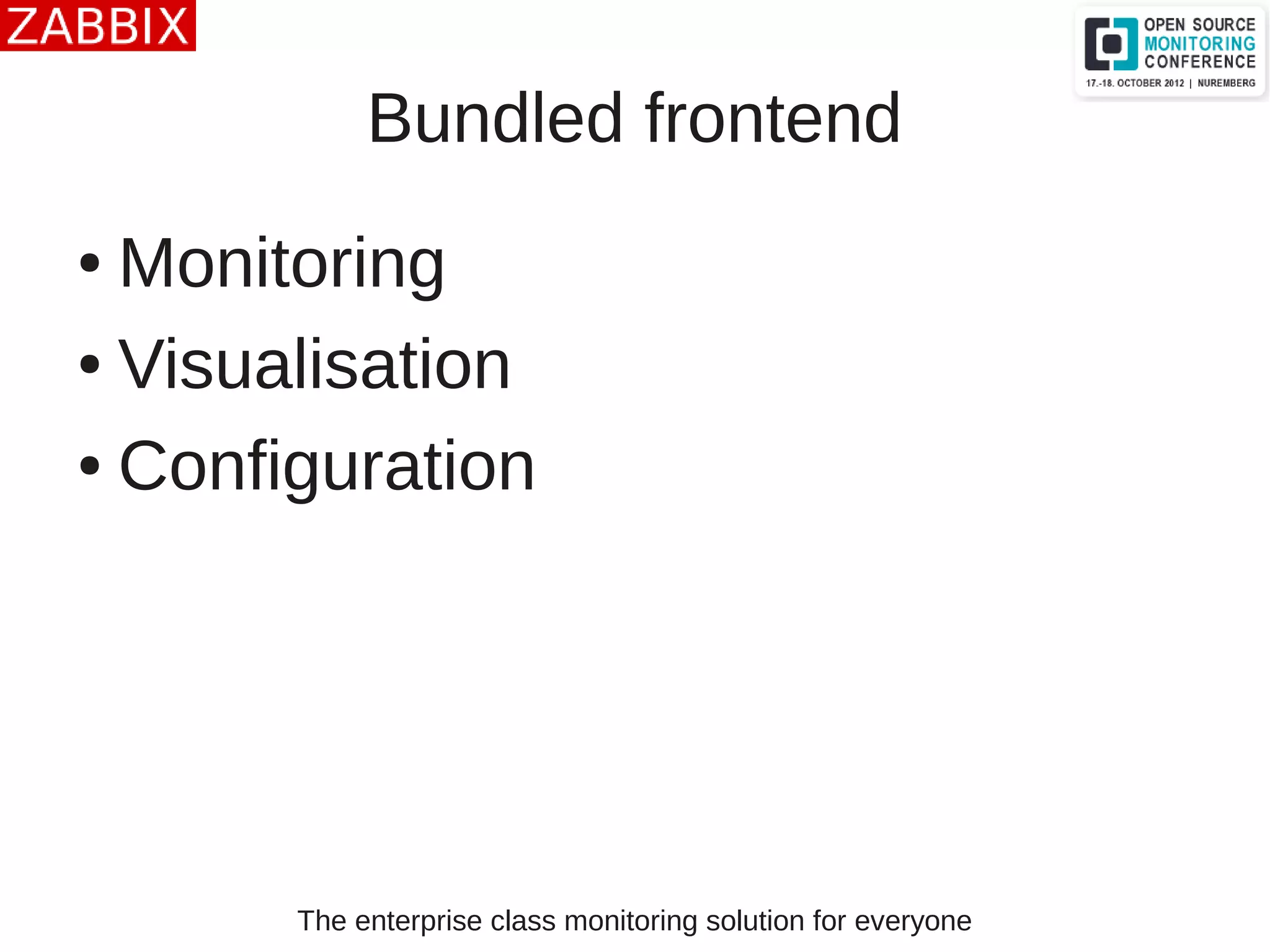

Bundled frontend
● Monitoring
● Visualisation
● Configuration

24. © Teresa Watts

25. The enterprise class monitoring solution for everyone

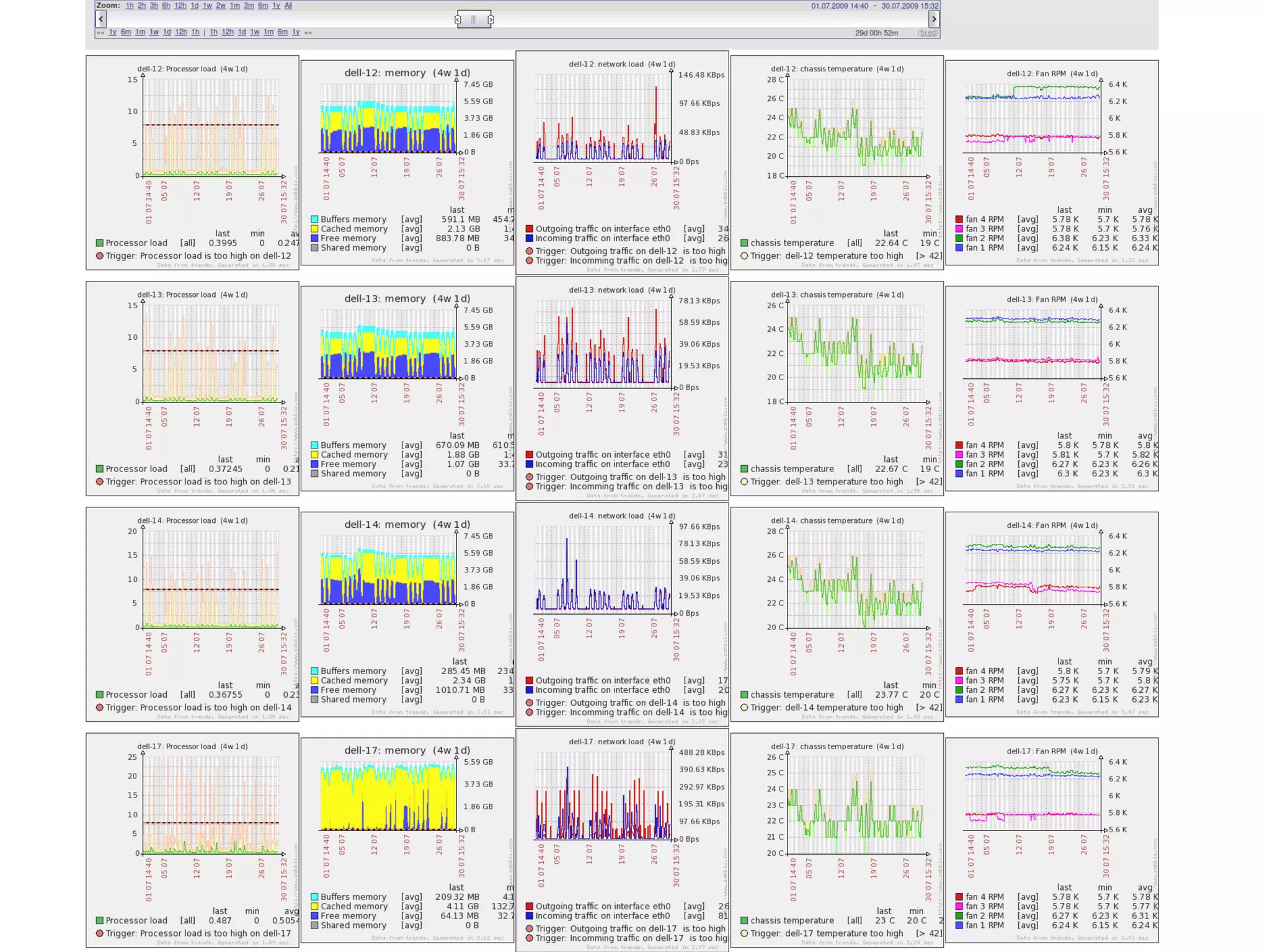

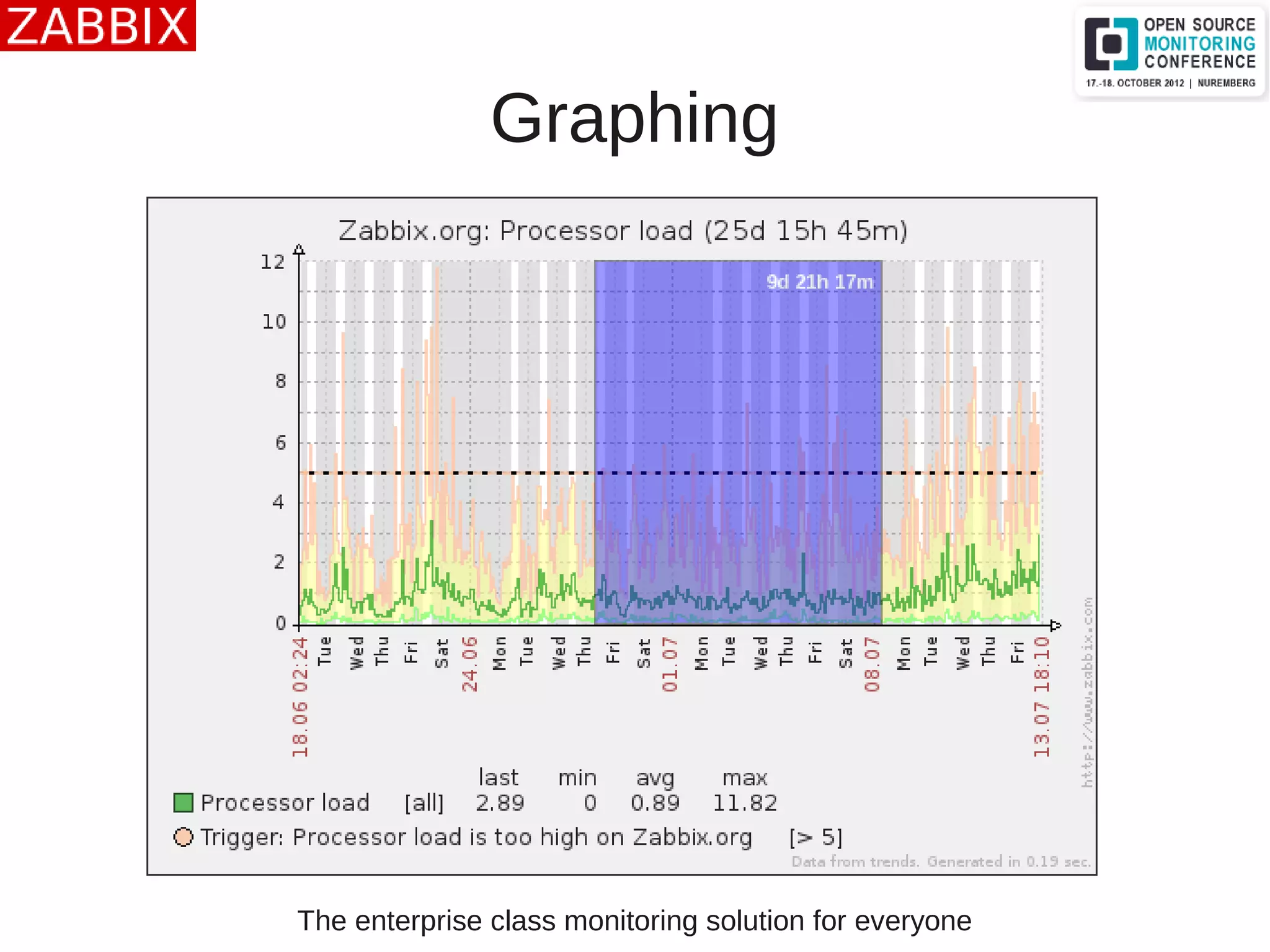

Graphing

26. The enterprise class monitoring solution for everyone

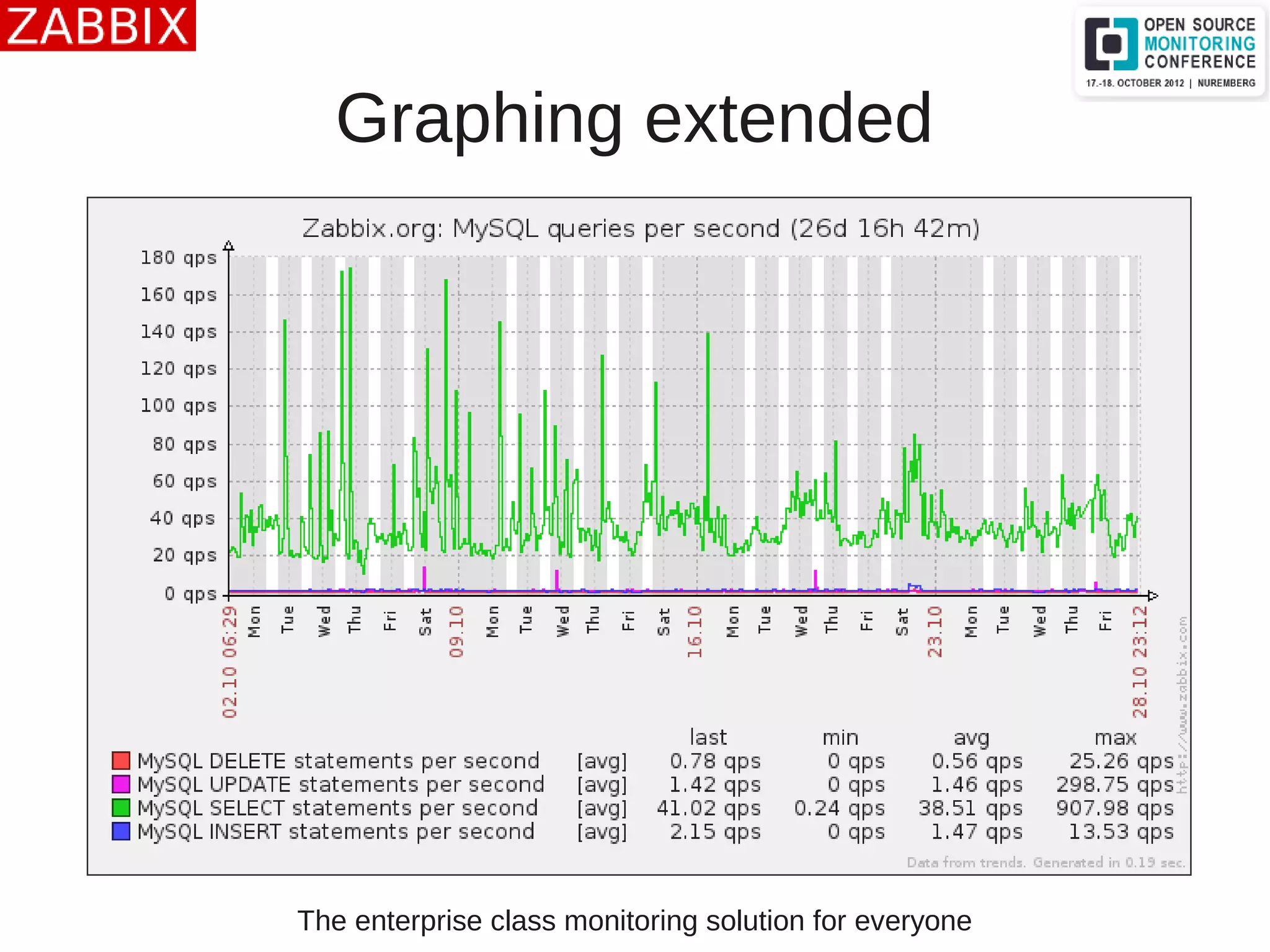

Graphing extended

27. The enterprise class monitoring solution for everyone

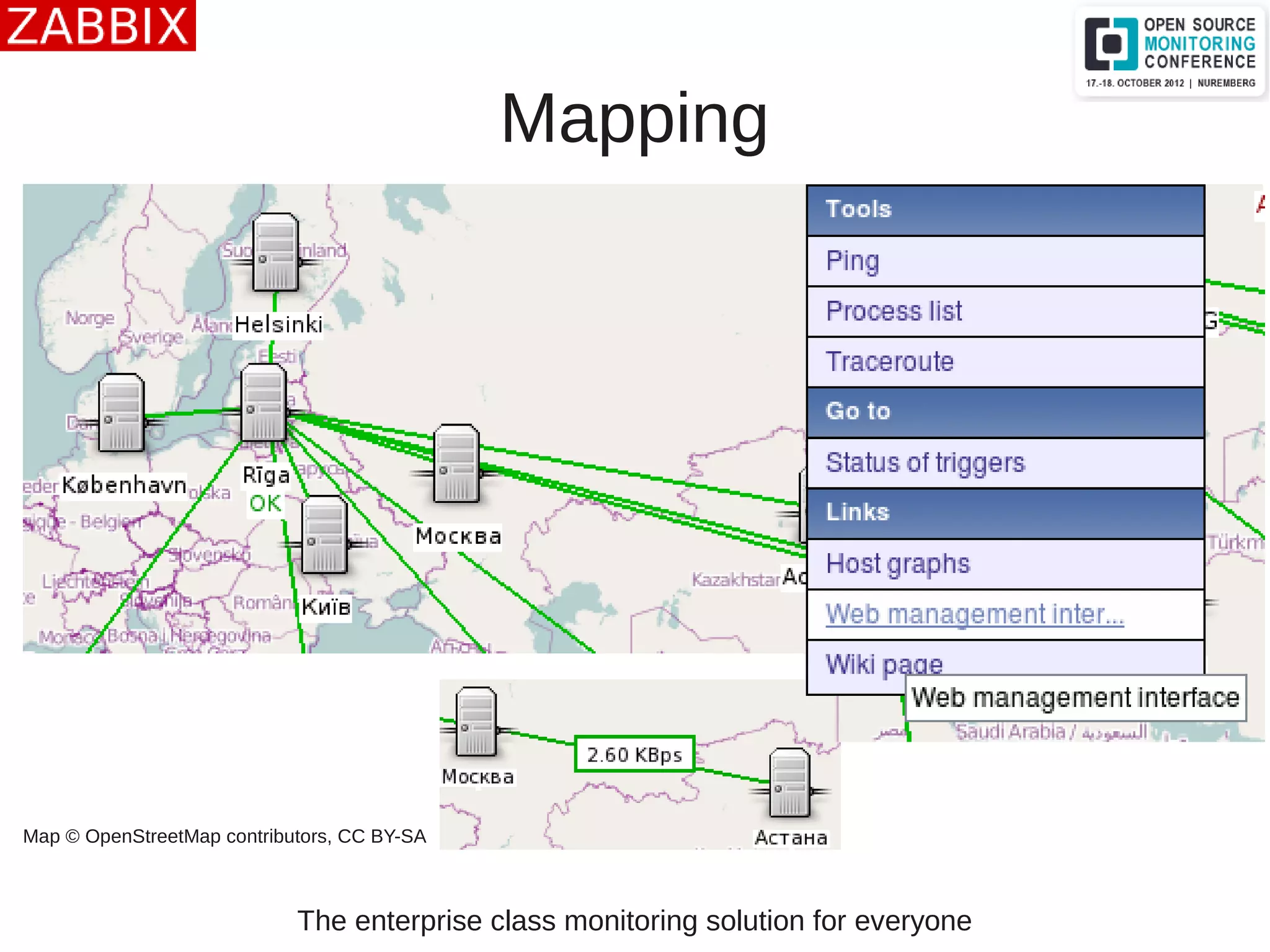

Mapping
Map © OpenStreetMap contributors, CC BY-SA

28. The enterprise class monitoring solution for everyone

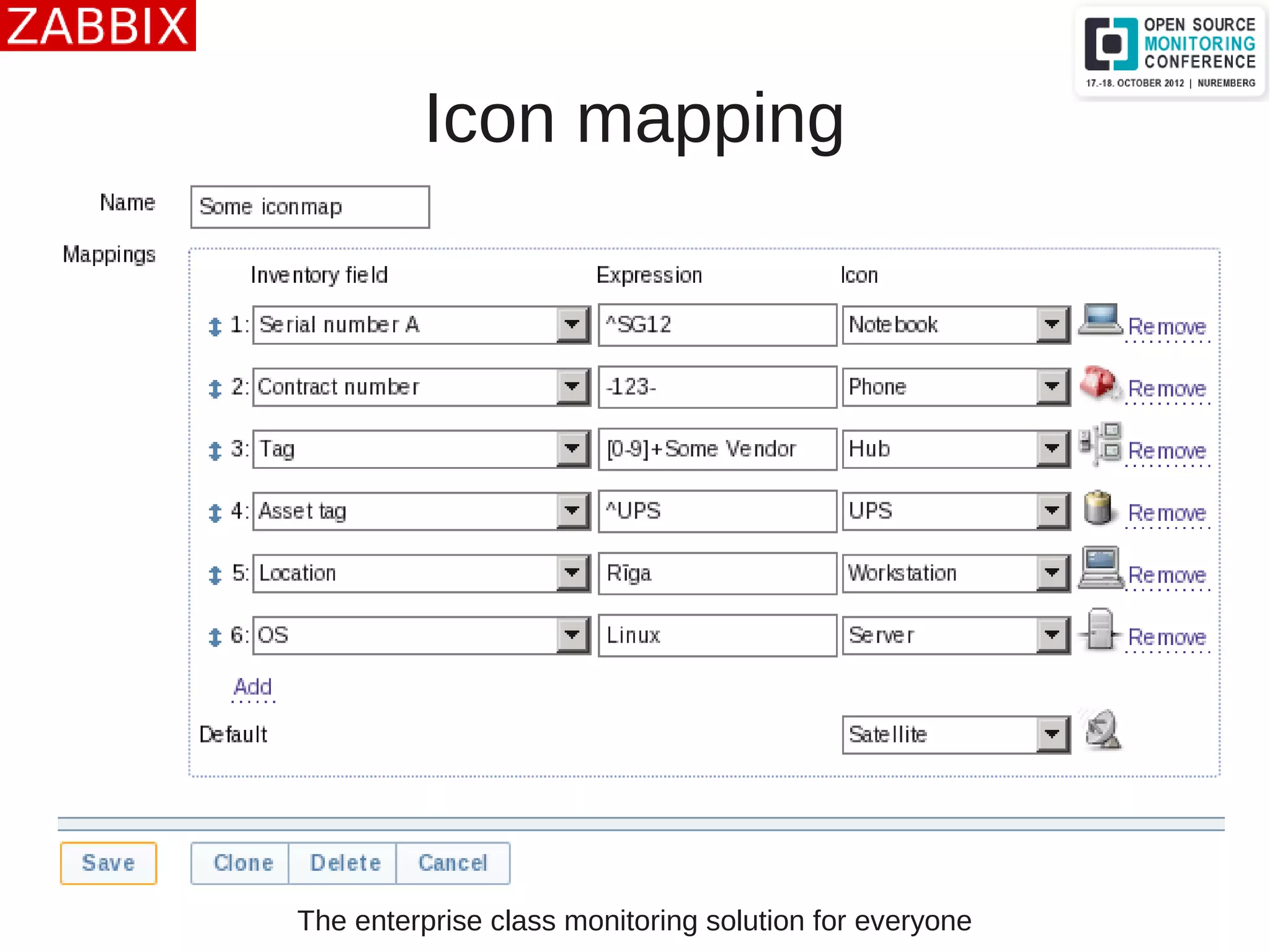

Icon mapping

29. The enterprise class monitoring solution for everyone

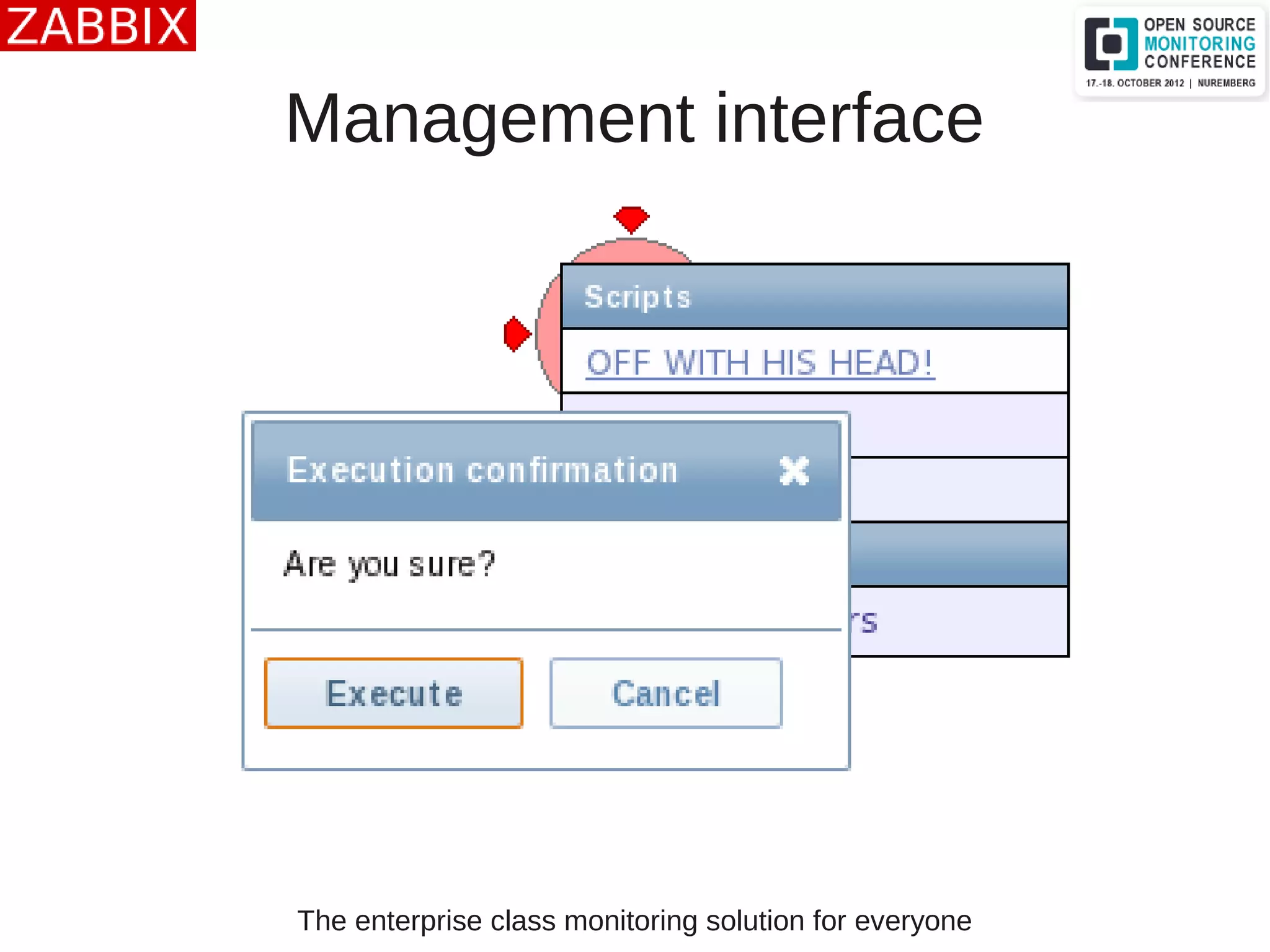

Management interface

31. The enterprise class monitoring solution for everyone

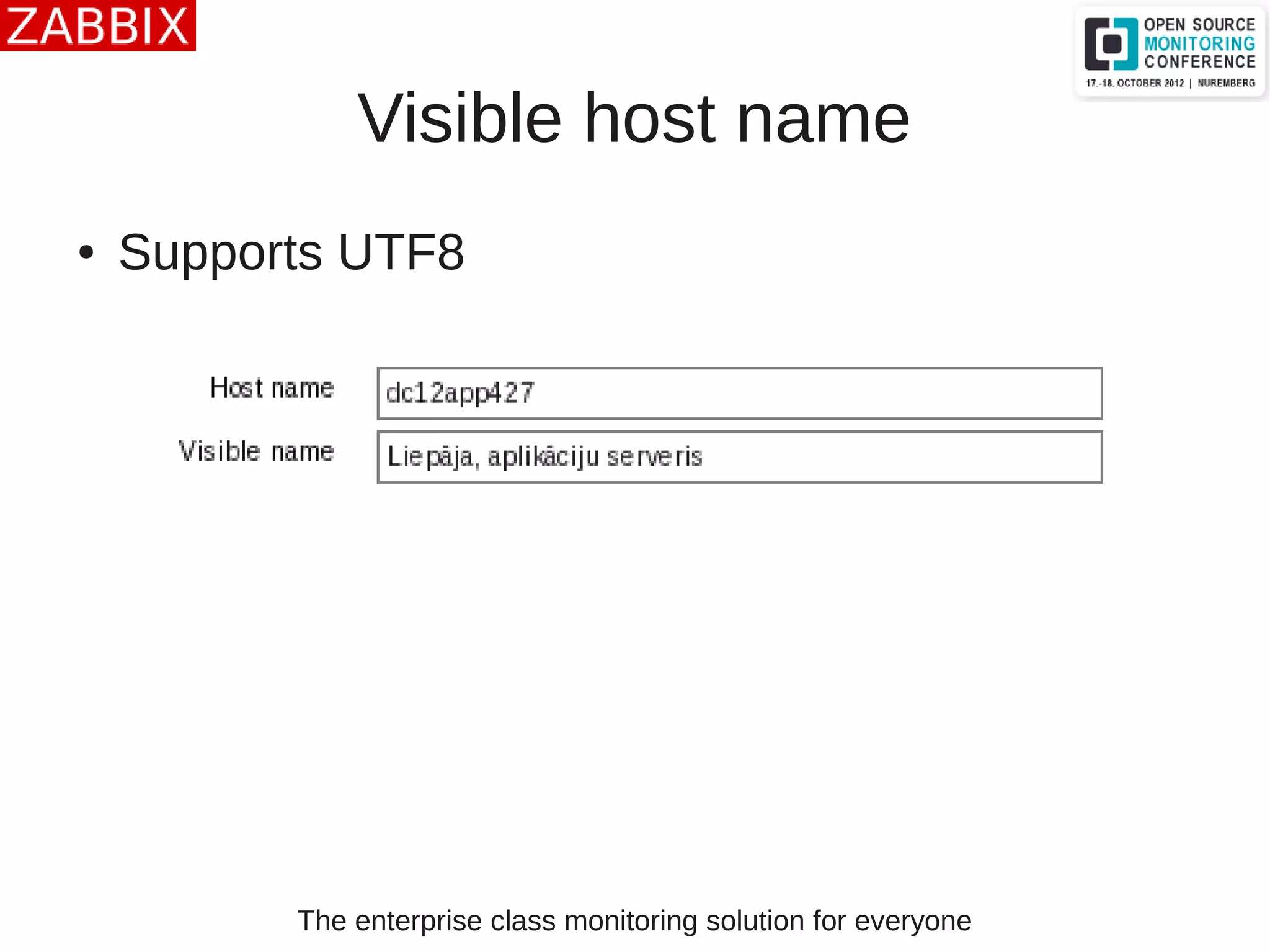

Visible host name
● Supports UTF8

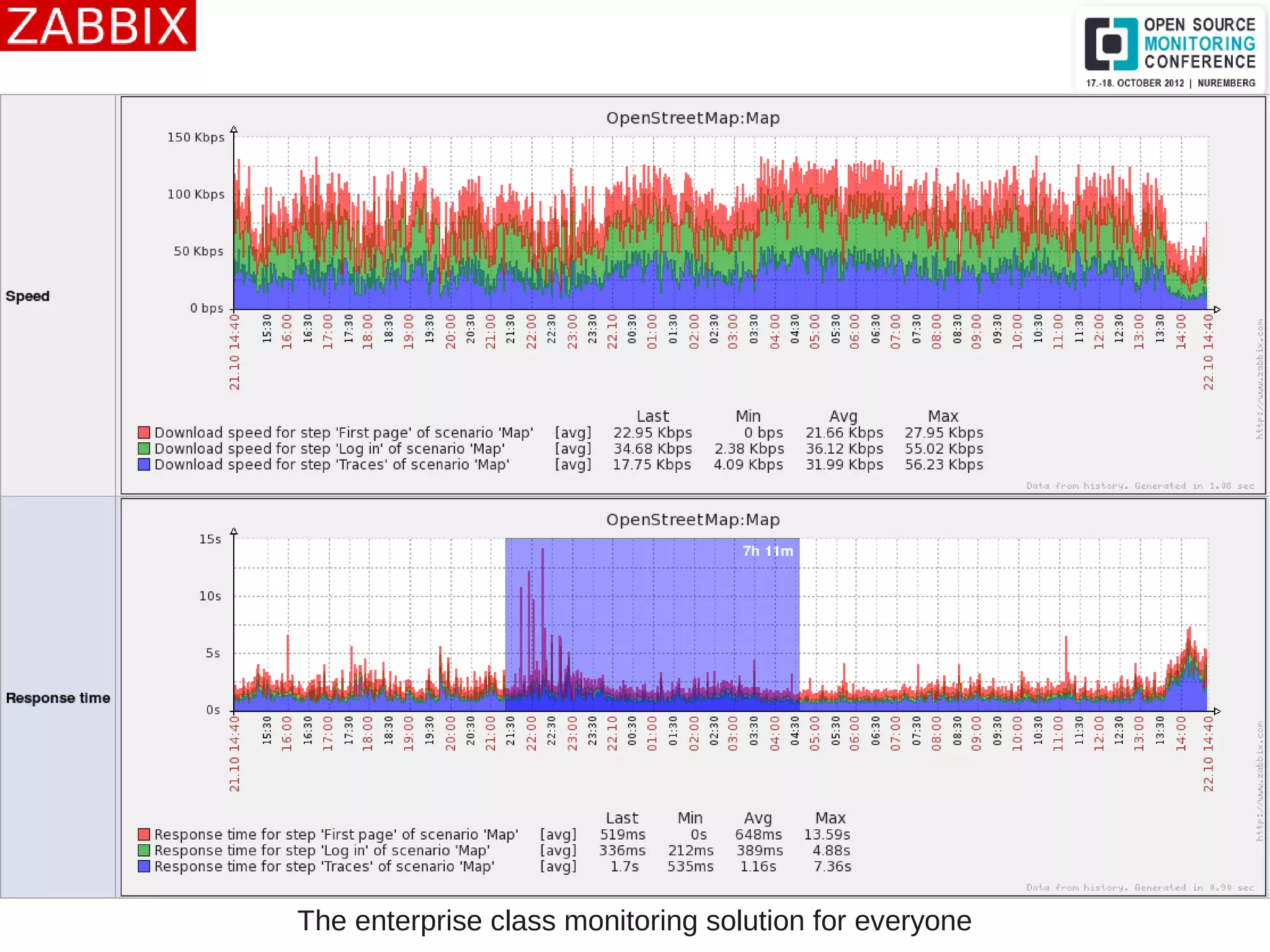

32. The enterprise class monitoring solution for everyone

33. The enterprise class monitoring solution for everyone

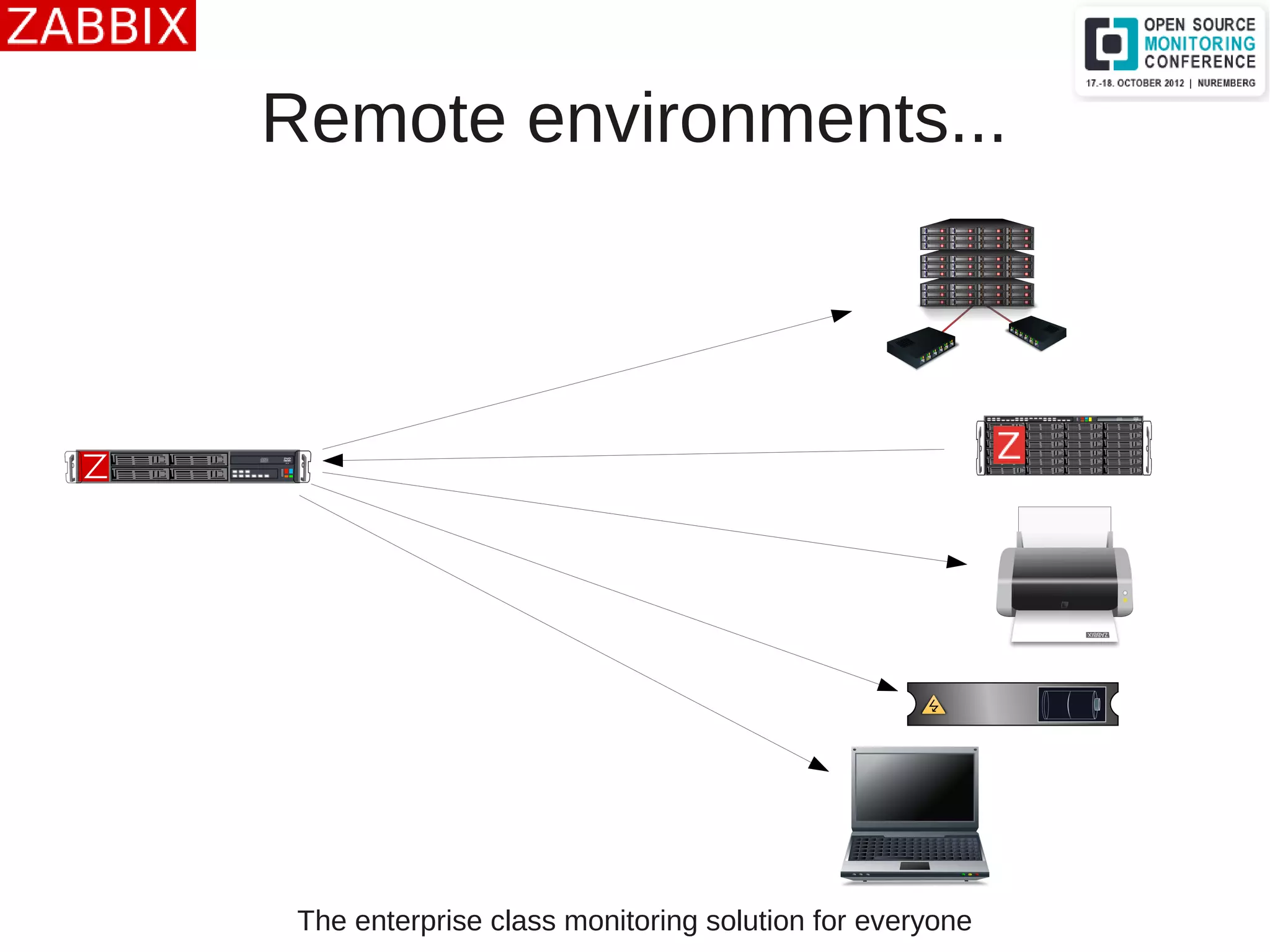

Remote environments...

34. The enterprise class monitoring solution for everyone

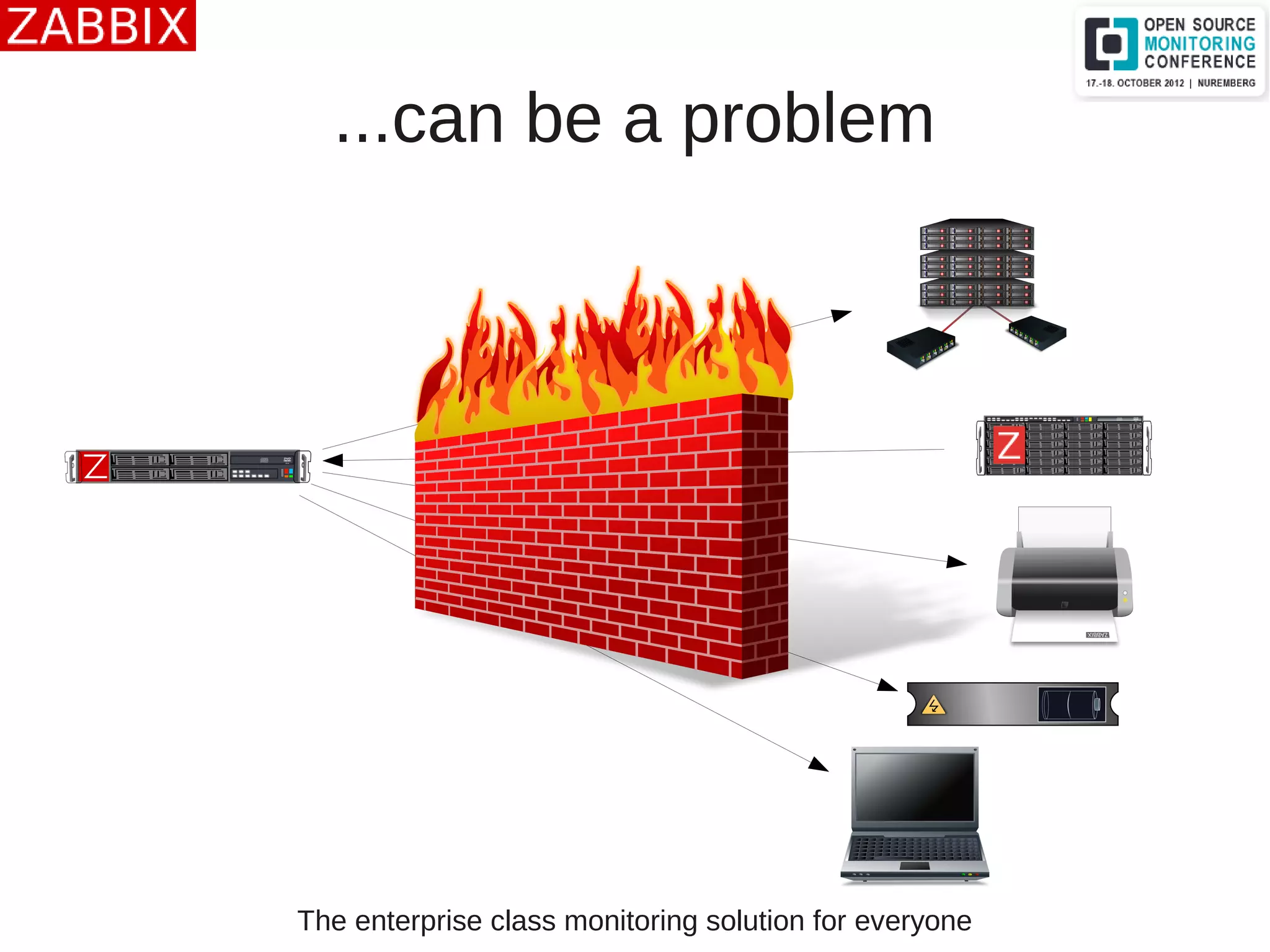

...can be a problem

35. The enterprise class monitoring solution for everyone

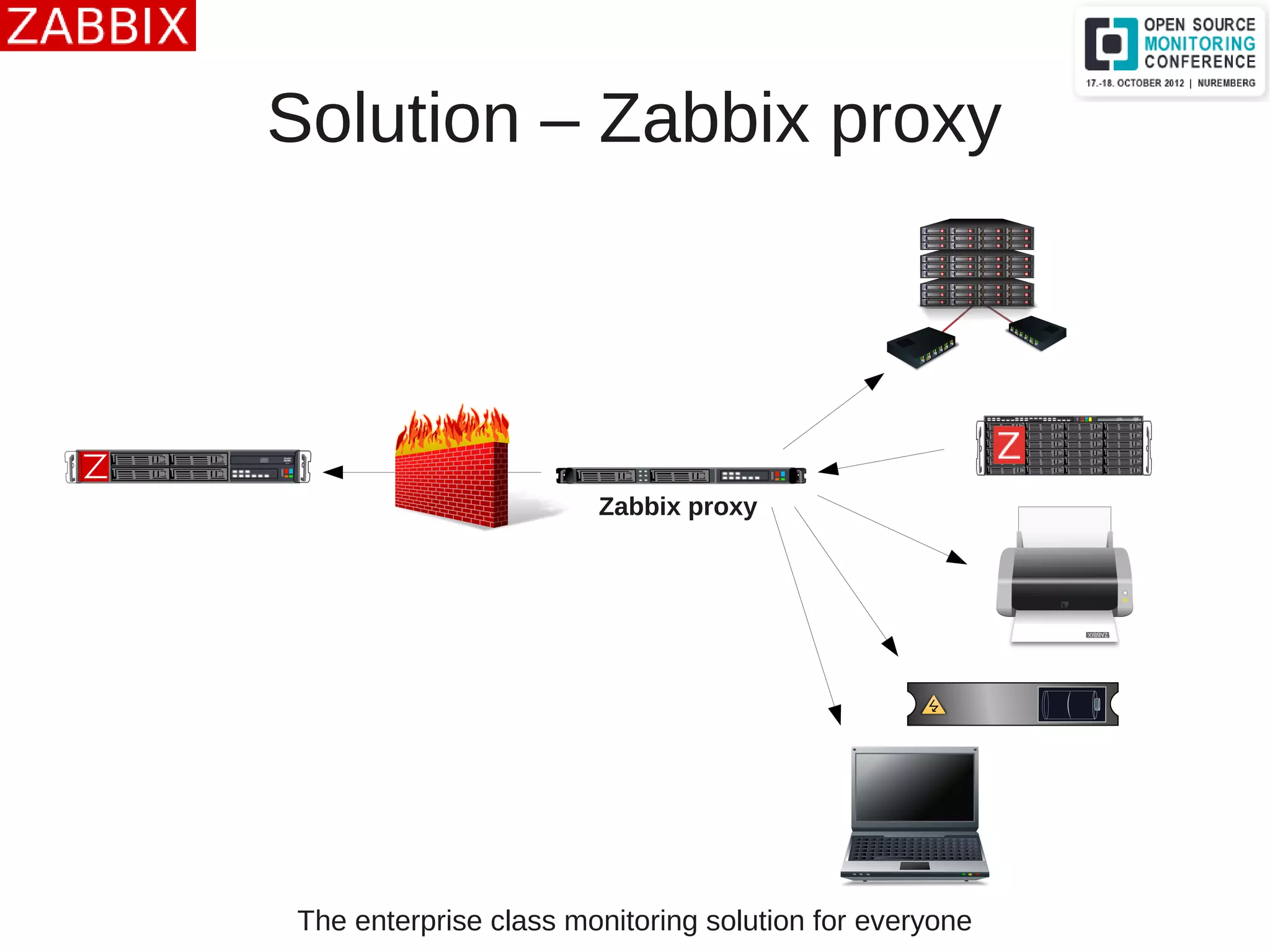

Solution – Zabbix proxy
Zabbix proxy

36. The enterprise class monitoring solution for everyone
DMZ – passive proxy
Zabbix proxy

37. The enterprise class monitoring solution for everyone

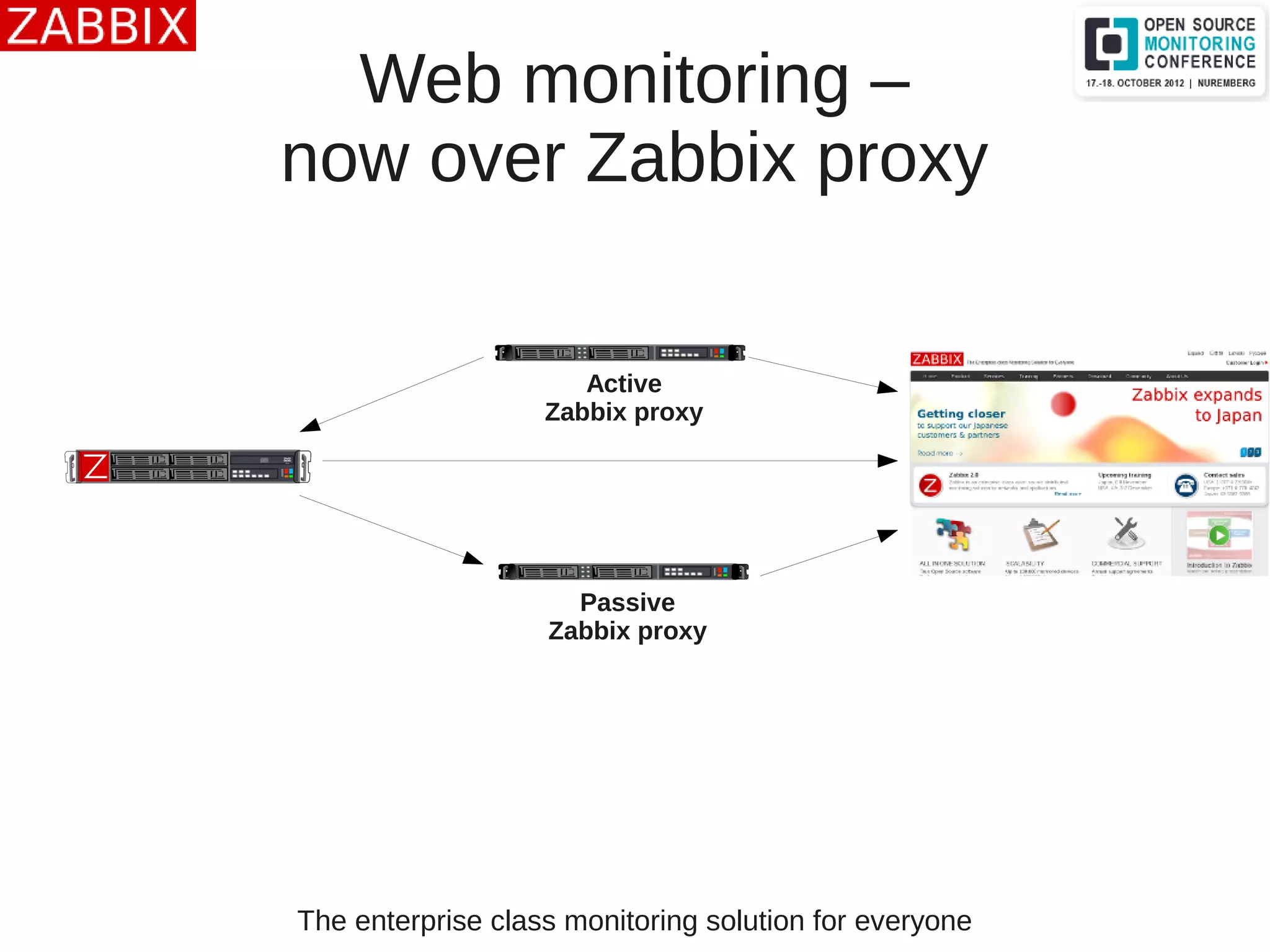

Web monitoring –
now over Zabbix proxy
Active
Zabbix proxy
Passive
Zabbix proxy

38. The enterprise class monitoring solution for everyone

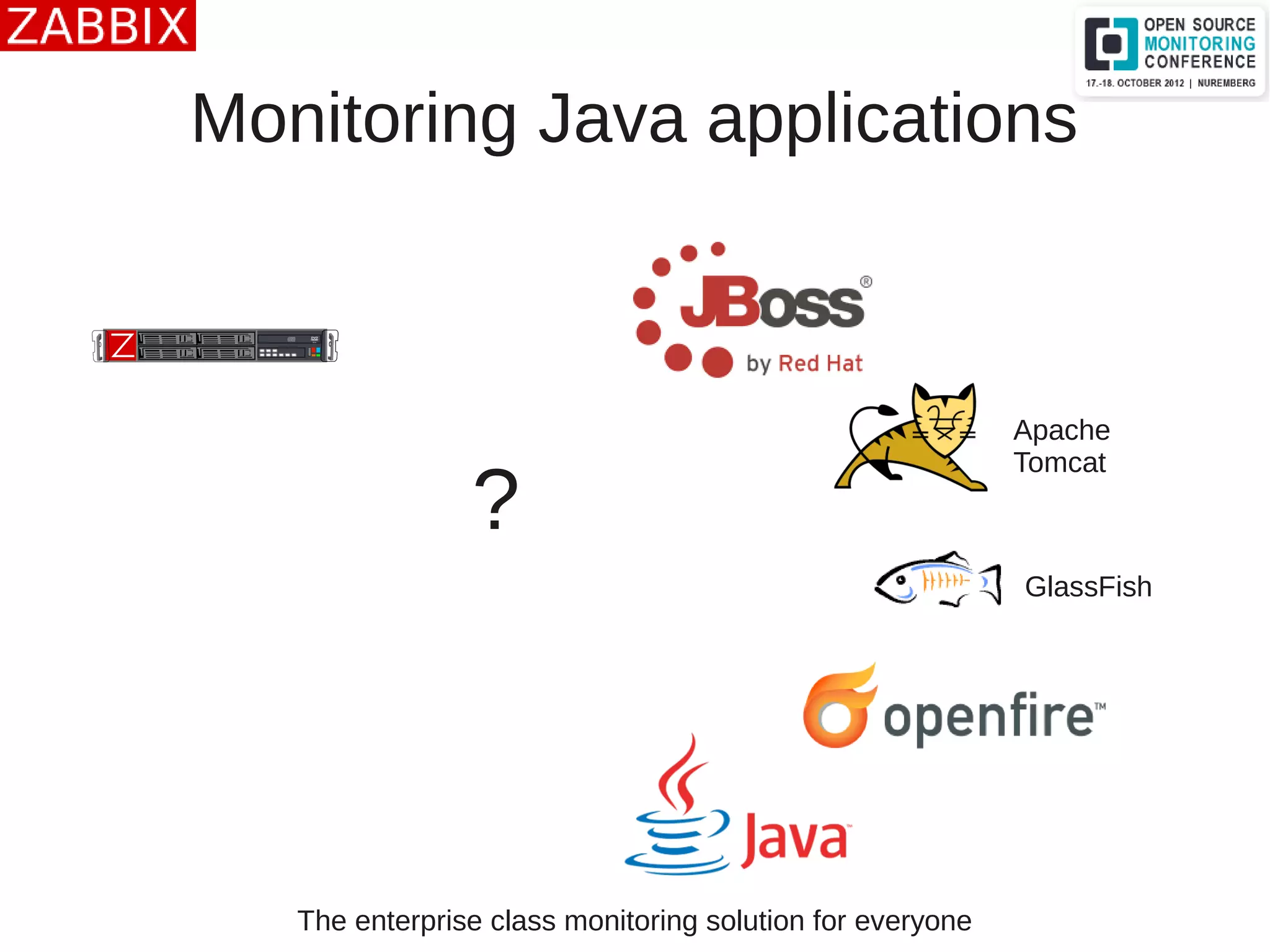

Monitoring Java applications
Apache
Tomcat
GlassFish
?

39. The enterprise class monitoring solution for everyone

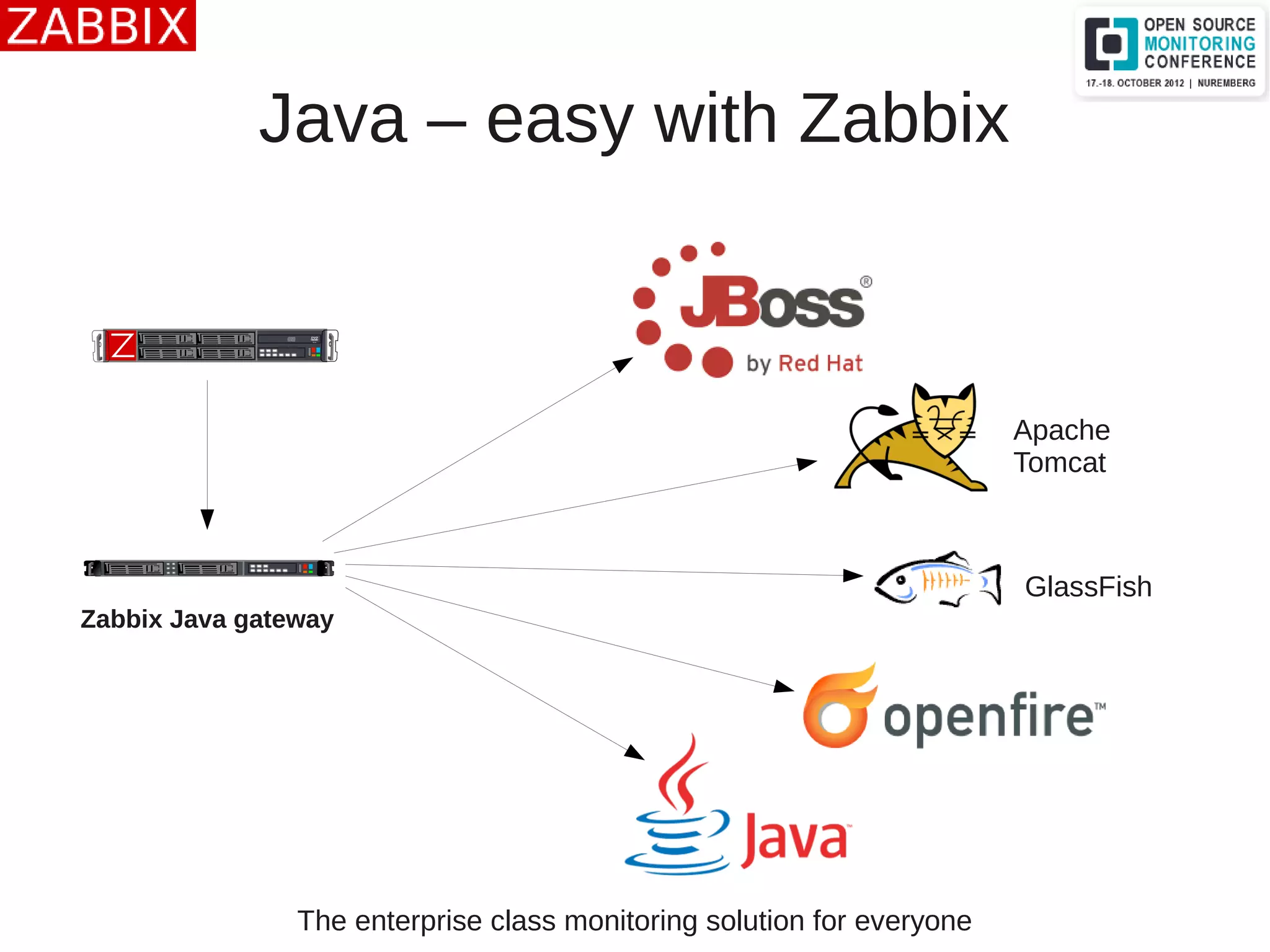

Java – easy with Zabbix
Zabbix Java gateway
Apache
Tomcat
GlassFish

40. The enterprise class monitoring solution for everyone

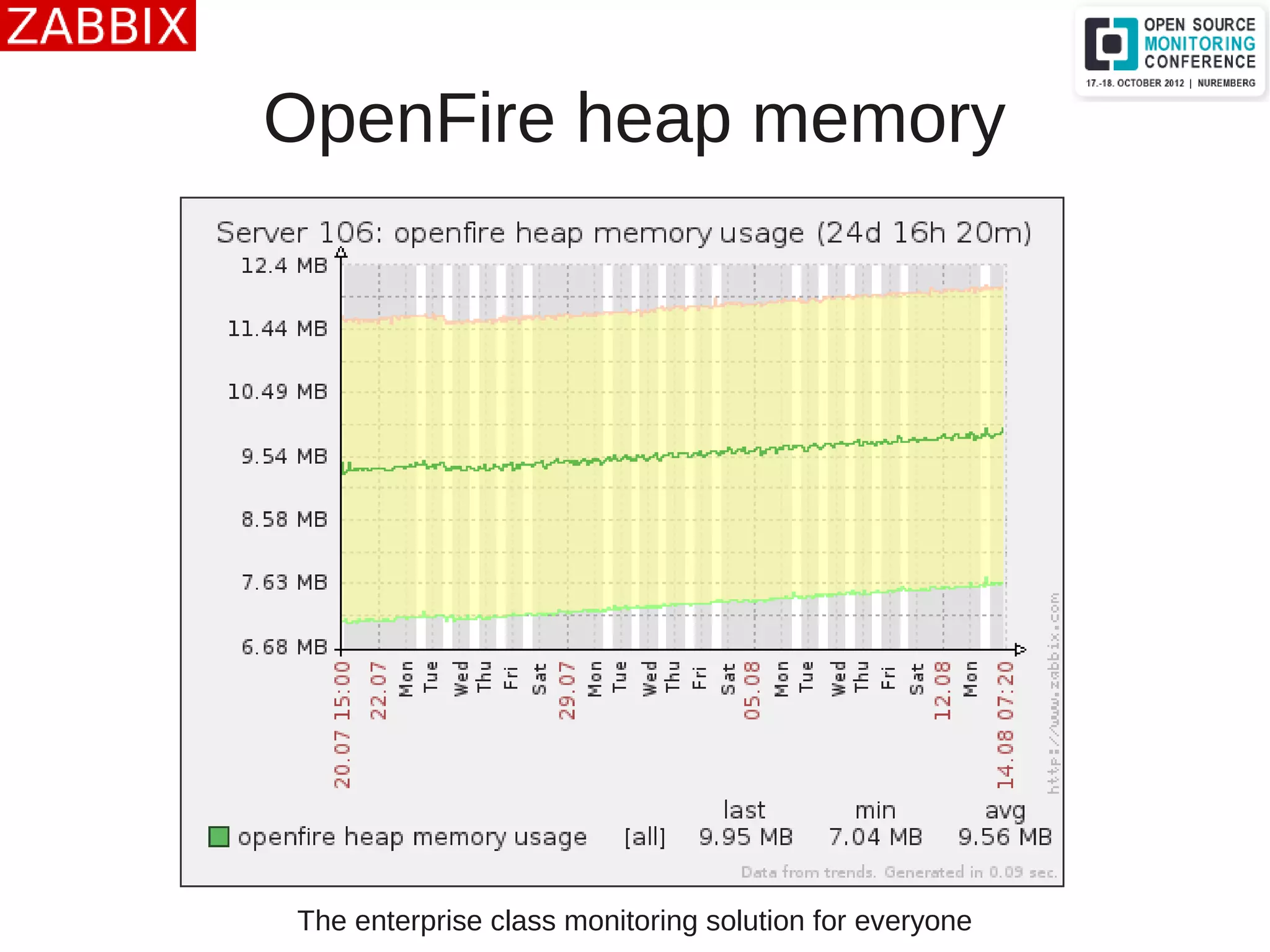

OpenFire heap memory

41. The enterprise class monitoring solution for everyone

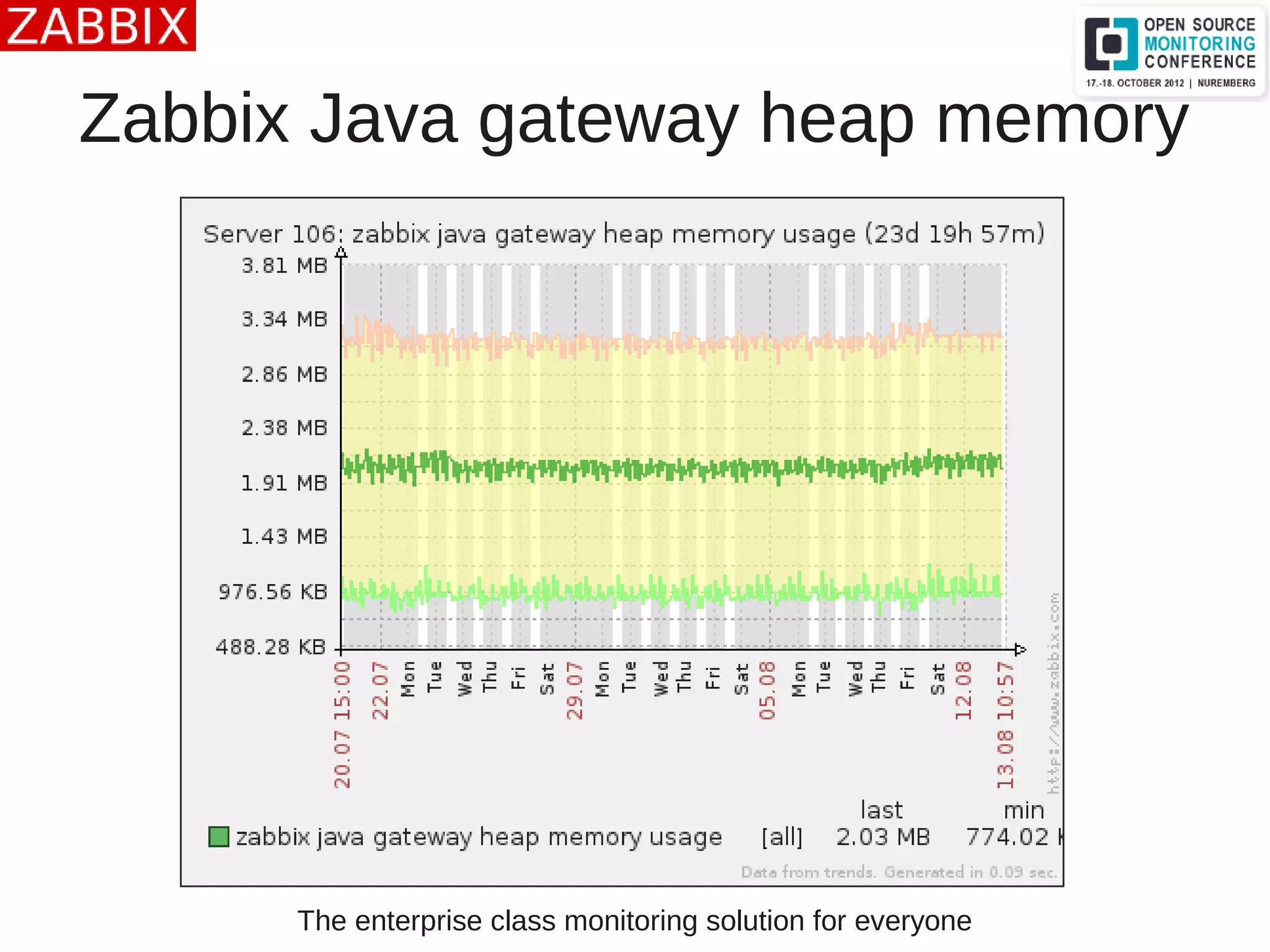

Zabbix Java gateway heap memory

42. The enterprise class monitoring solution for everyone

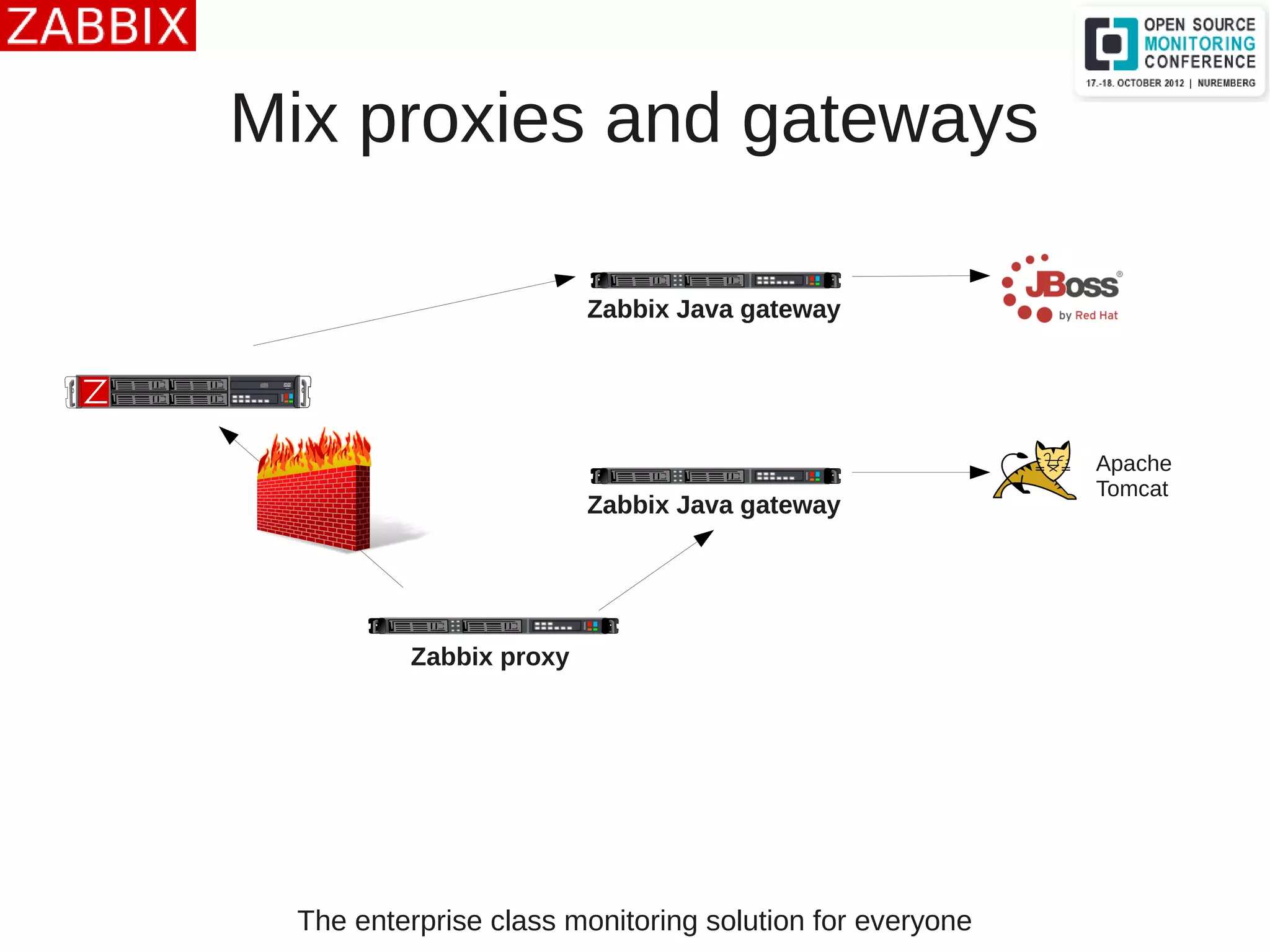

Mix proxies and gateways
Zabbix proxy
Zabbix Java gateway
Apache
Tomcat
Zabbix Java gateway

43. The enterprise class monitoring solution for everyone

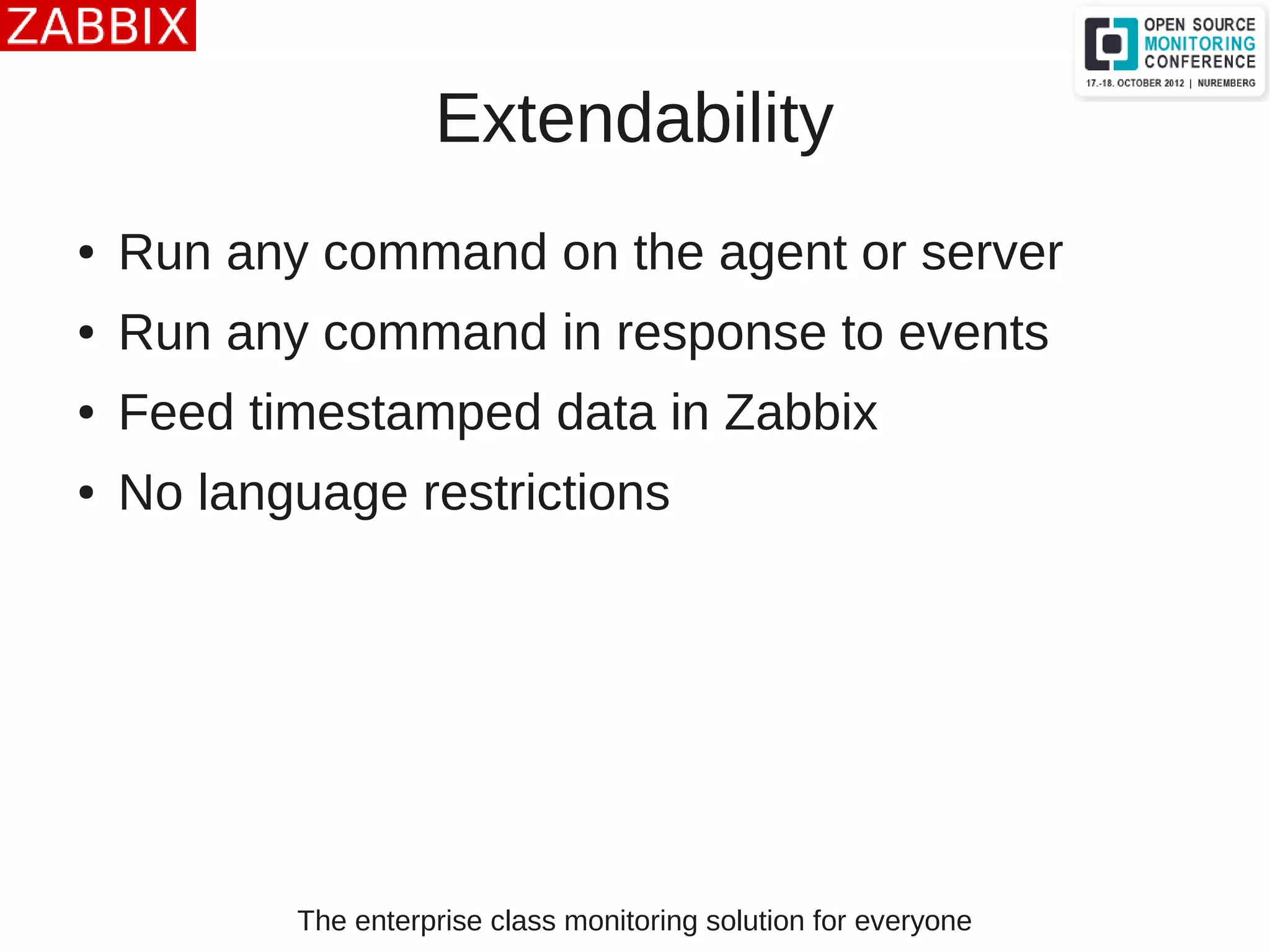

Extendability
● Run any command on the agent or server
● Run any command in response to events
● Feed timestamped data in Zabbix
● No language restrictions

44. The enterprise class monitoring solution for everyone

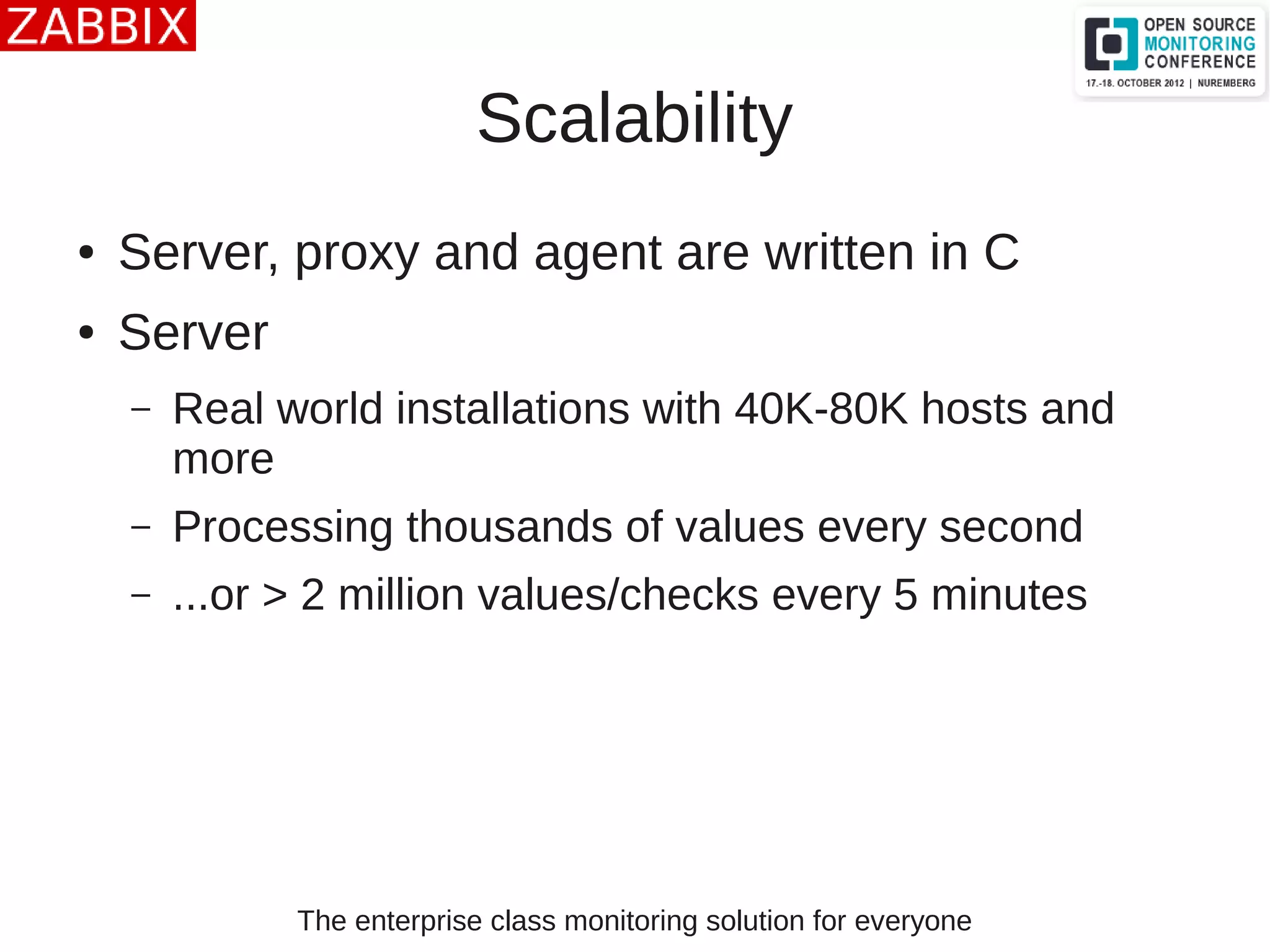

Scalability
● Server, proxy and agent are written in C
● Server
– Real world installations with 40K-80K hosts and
more
– Processing thousands of values every second
– ...or > 2 million values/checks every 5 minutes

45. The enterprise class monitoring solution for everyone

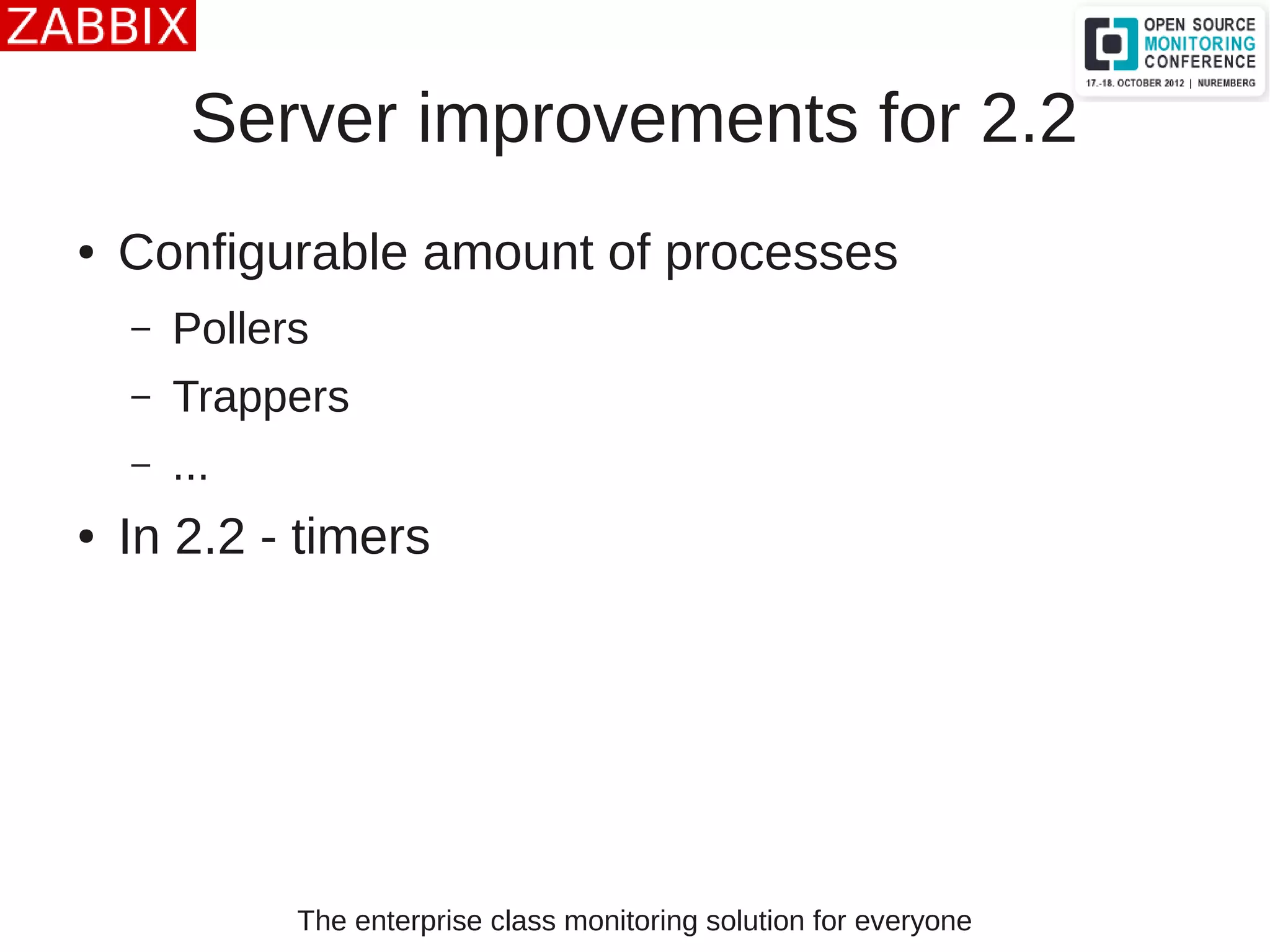

Server improvements for 2.2
● Configurable amount of processes
– Pollers
– Trappers
– ...
● In 2.2 - timers

46. The enterprise class monitoring solution for everyone

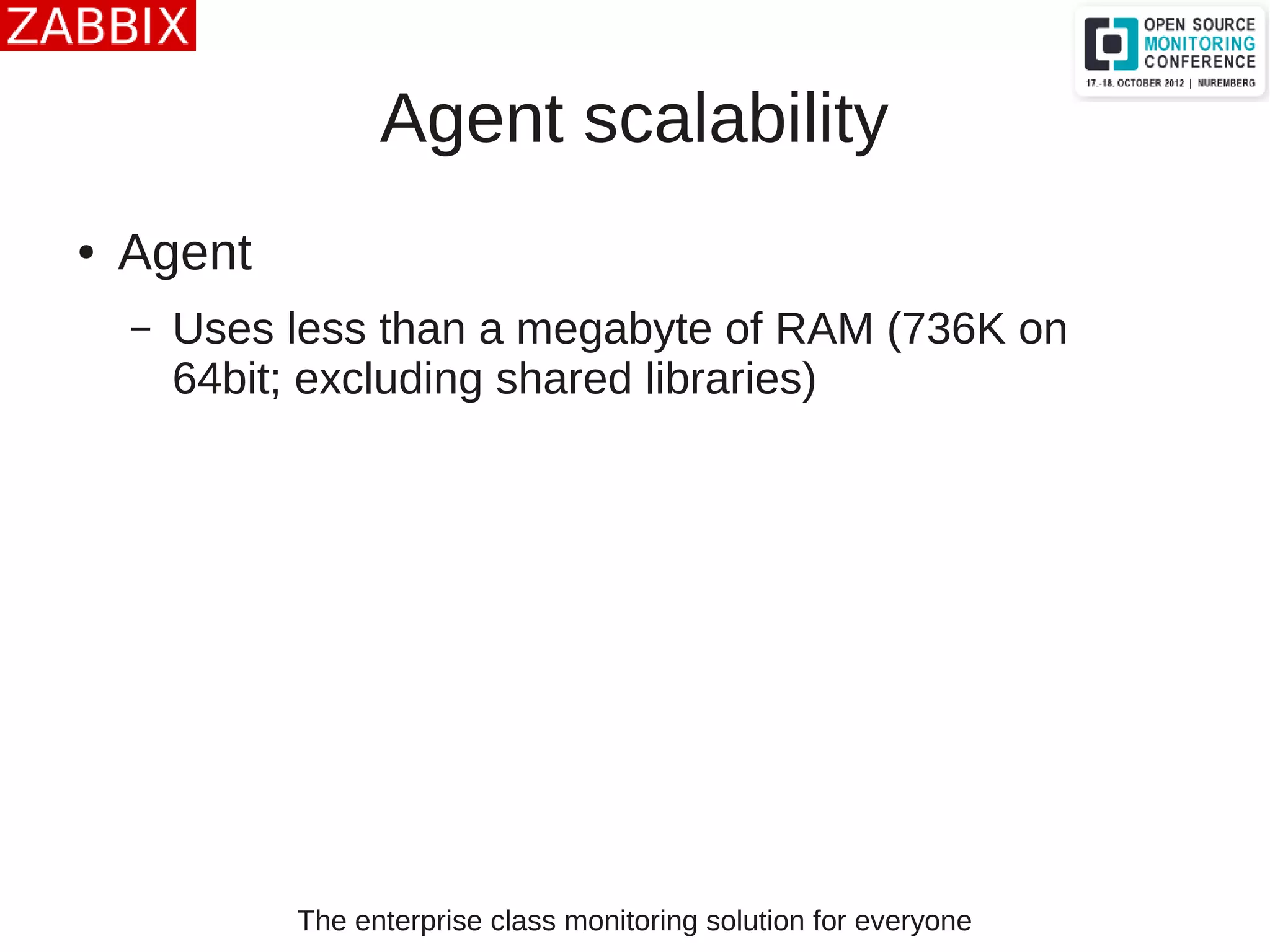

Agent scalability
● Agent
– Uses less than a megabyte of RAM (736K on
64bit; excluding shared libraries)

47. The enterprise class monitoring solution for everyone

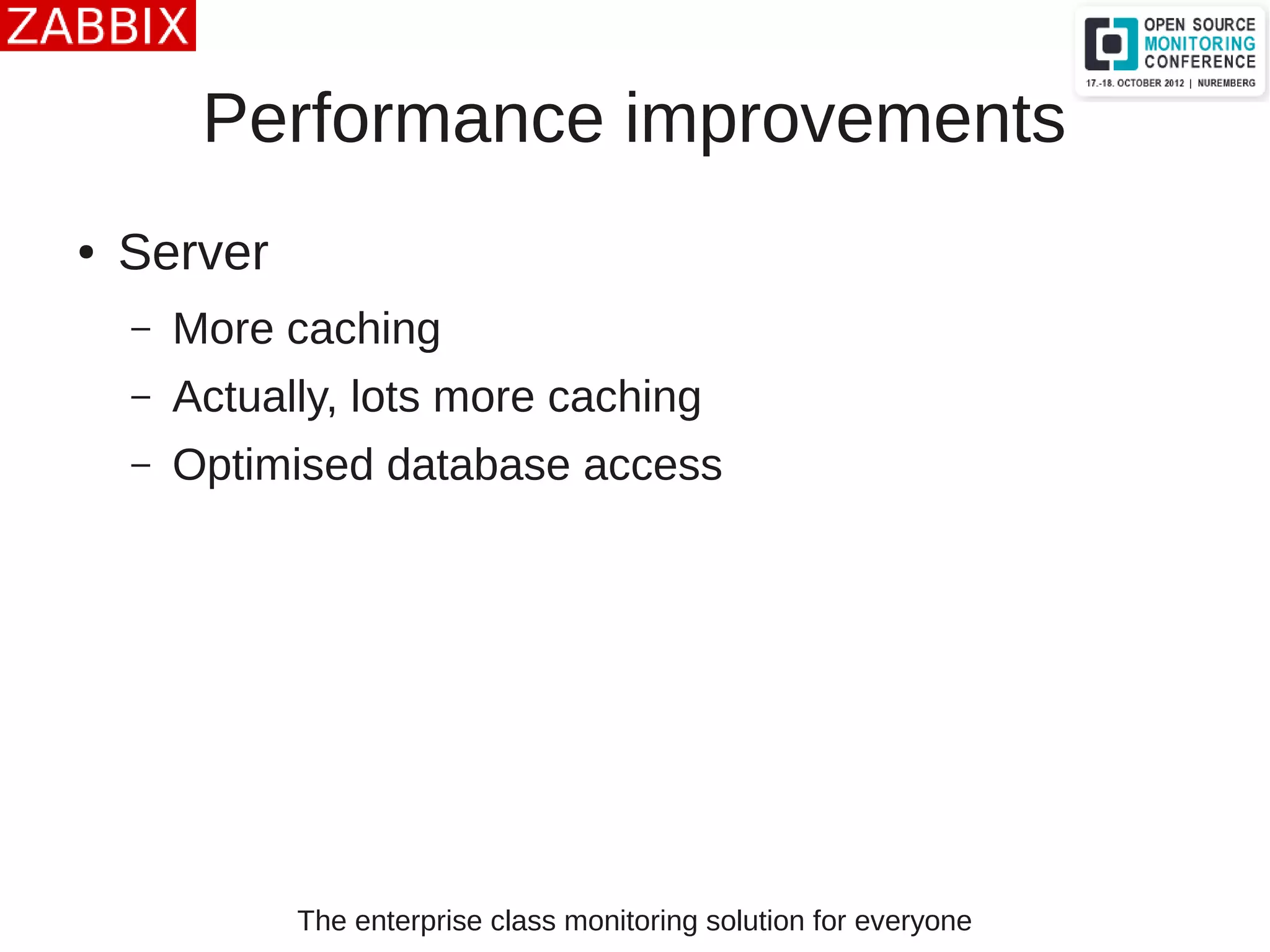

Performance improvements
● Server
– More caching
– Actually, lots more caching
– Optimised database access

48. The enterprise class monitoring solution for everyone

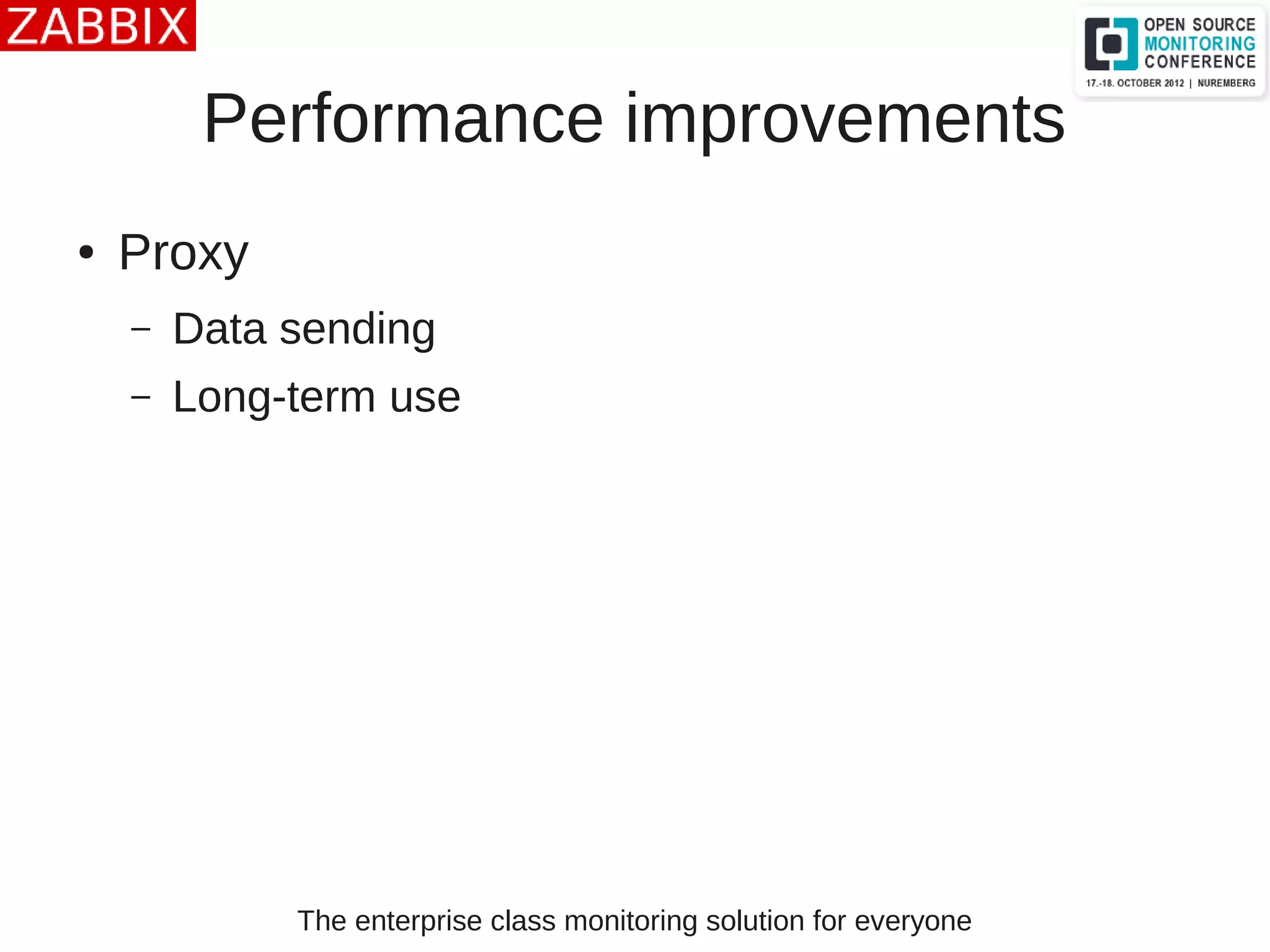

Performance improvements
● Proxy
– Data sending
– Long-term use

49. The enterprise class monitoring solution for everyone

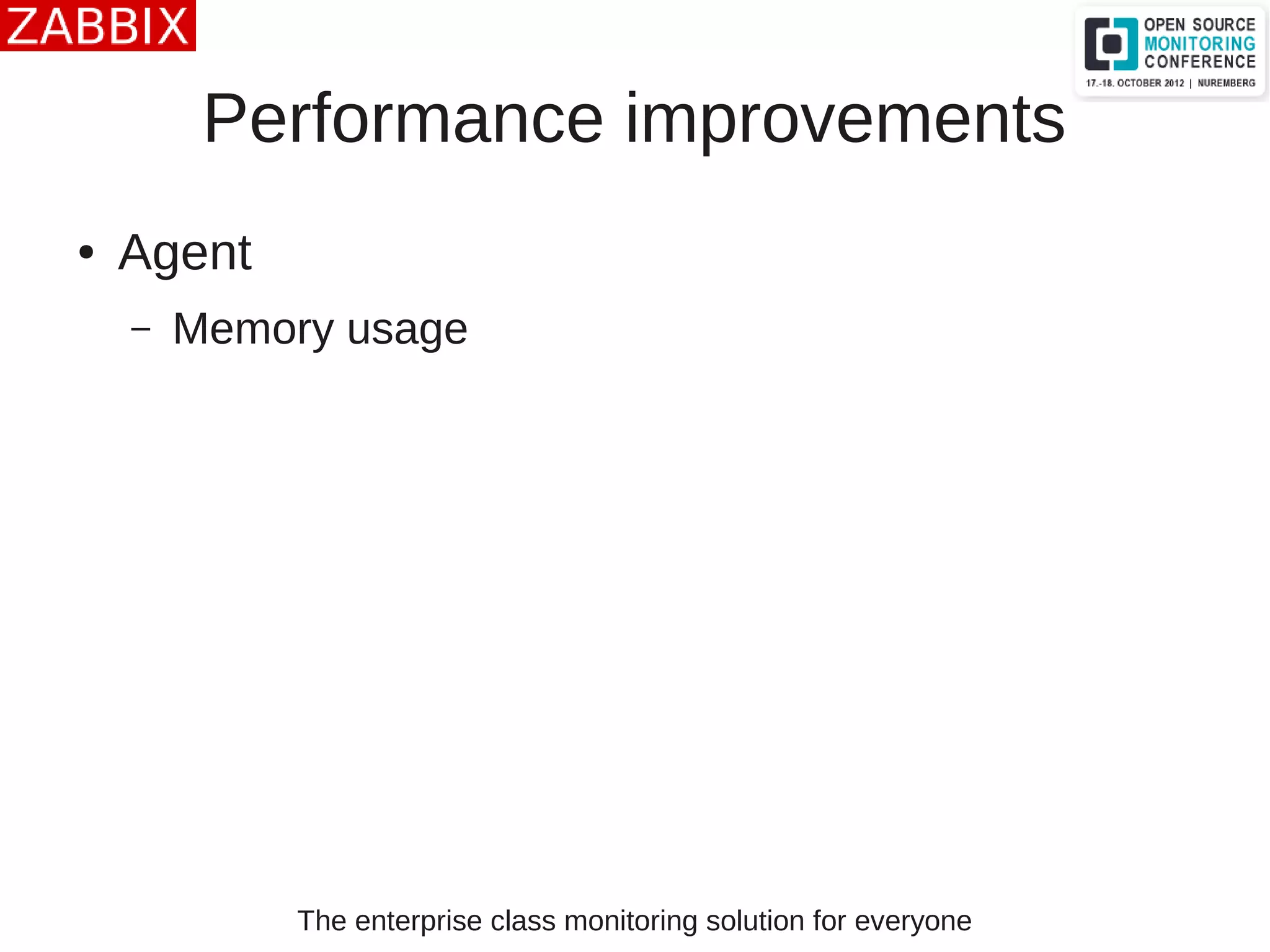

Performance improvements
● Agent
– Memory usage

50. The enterprise class monitoring solution for everyone

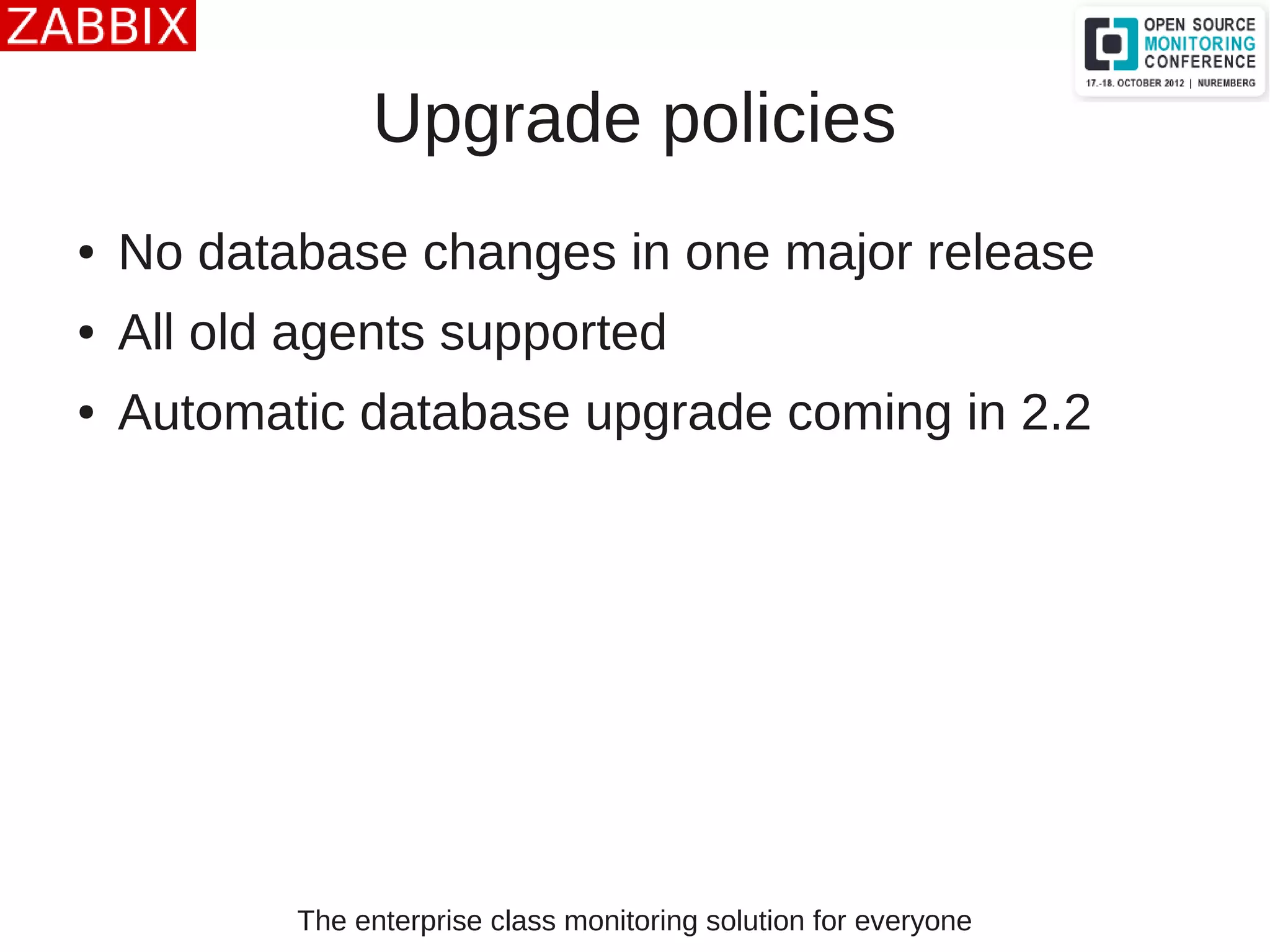

Upgrade policies
● No database changes in one major release
● All old agents supported
● Automatic database upgrade coming in 2.2

51. The enterprise class monitoring solution for everyone
Popularity
● Japan, Russia, Brazil...
● Financial, ISP, government,
manufacturing...
● Other open source projects

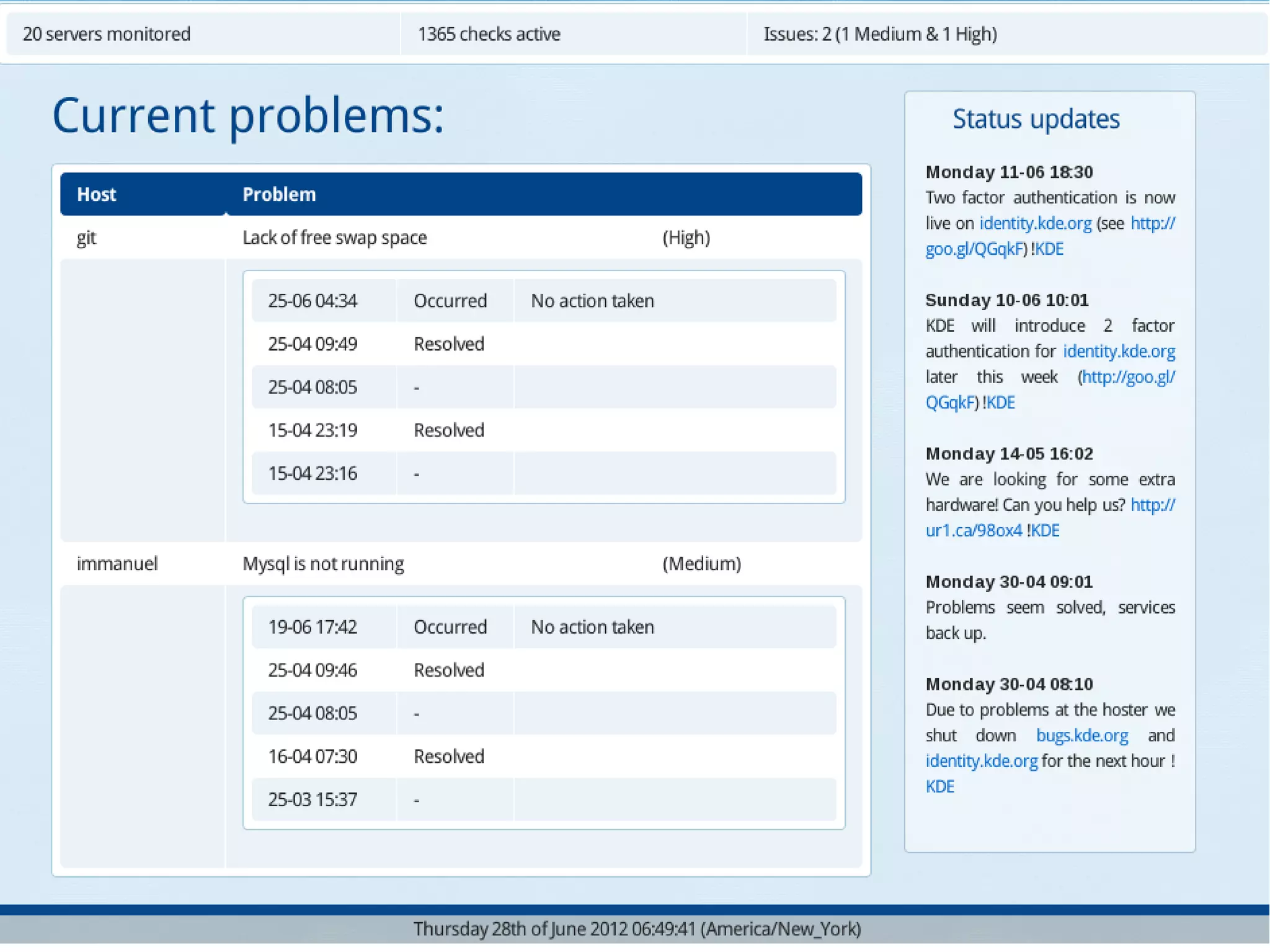

52. The enterprise class monitoring solution for everyone

54. The enterprise class monitoring solution for everyone

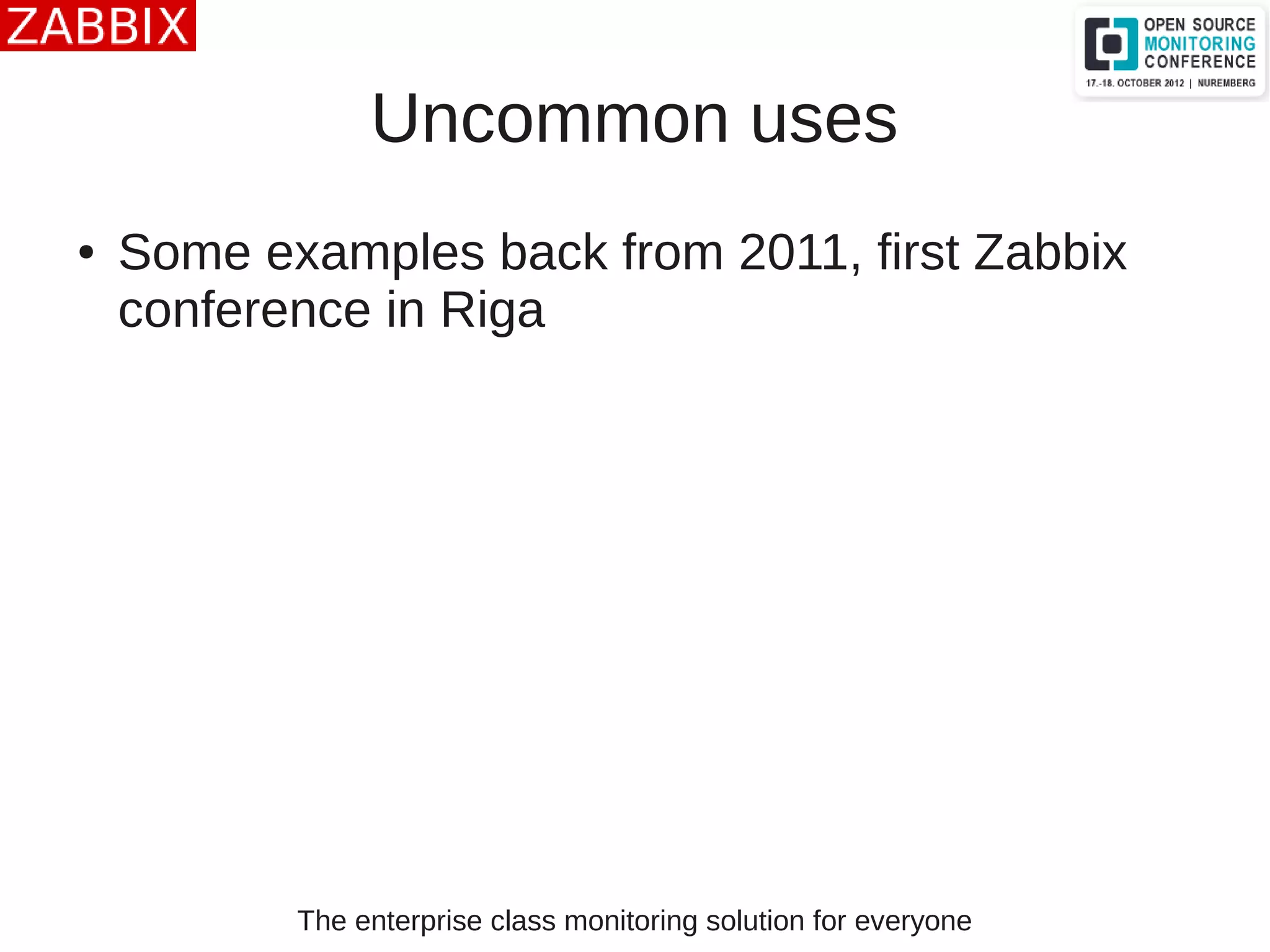

Uncommon uses
● Some examples back from 2011, first Zabbix
conference in Riga

55. The enterprise class monitoring solution for everyone

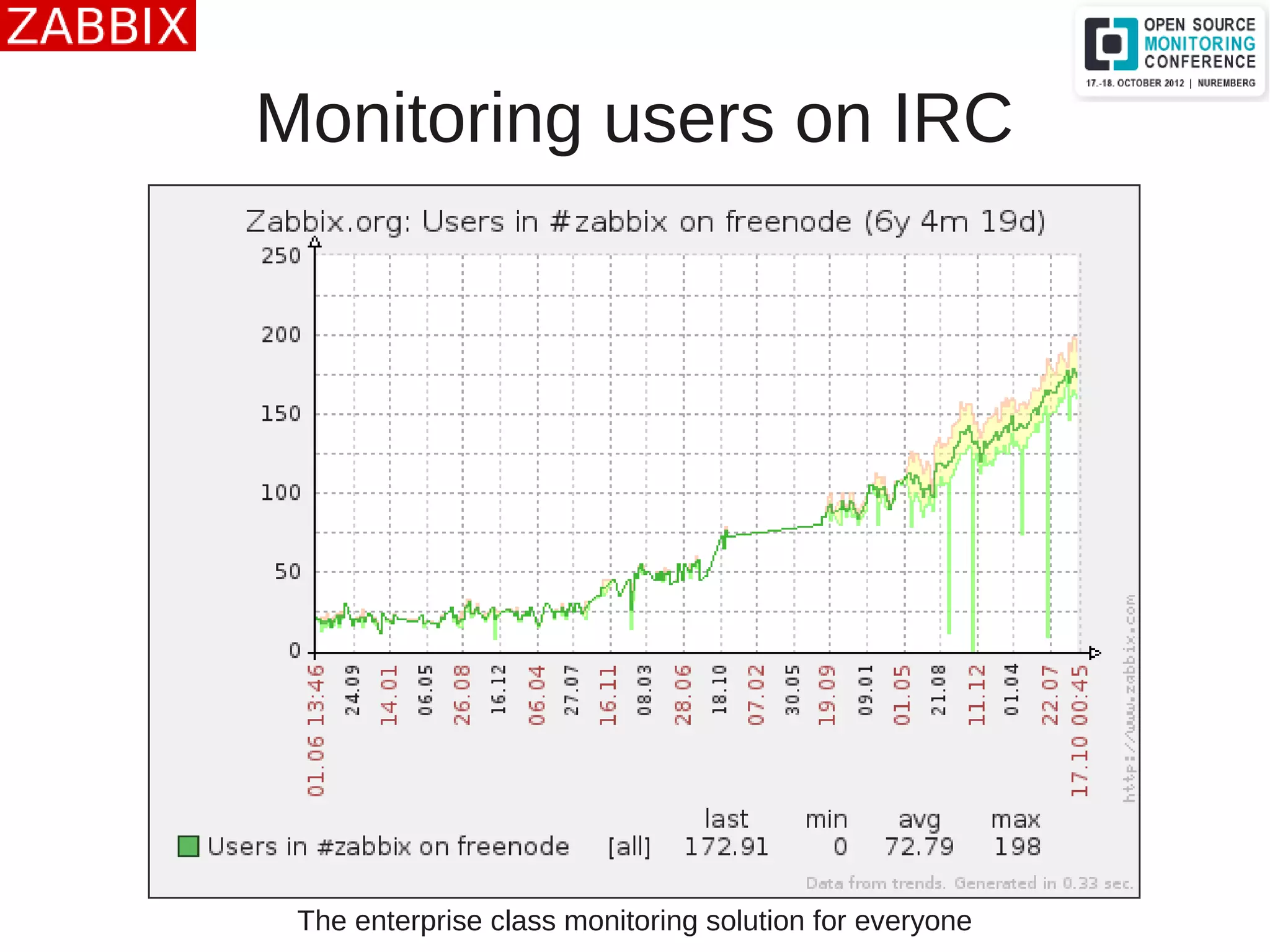

Monitoring users on IRC

56. The enterprise class monitoring solution for everyone

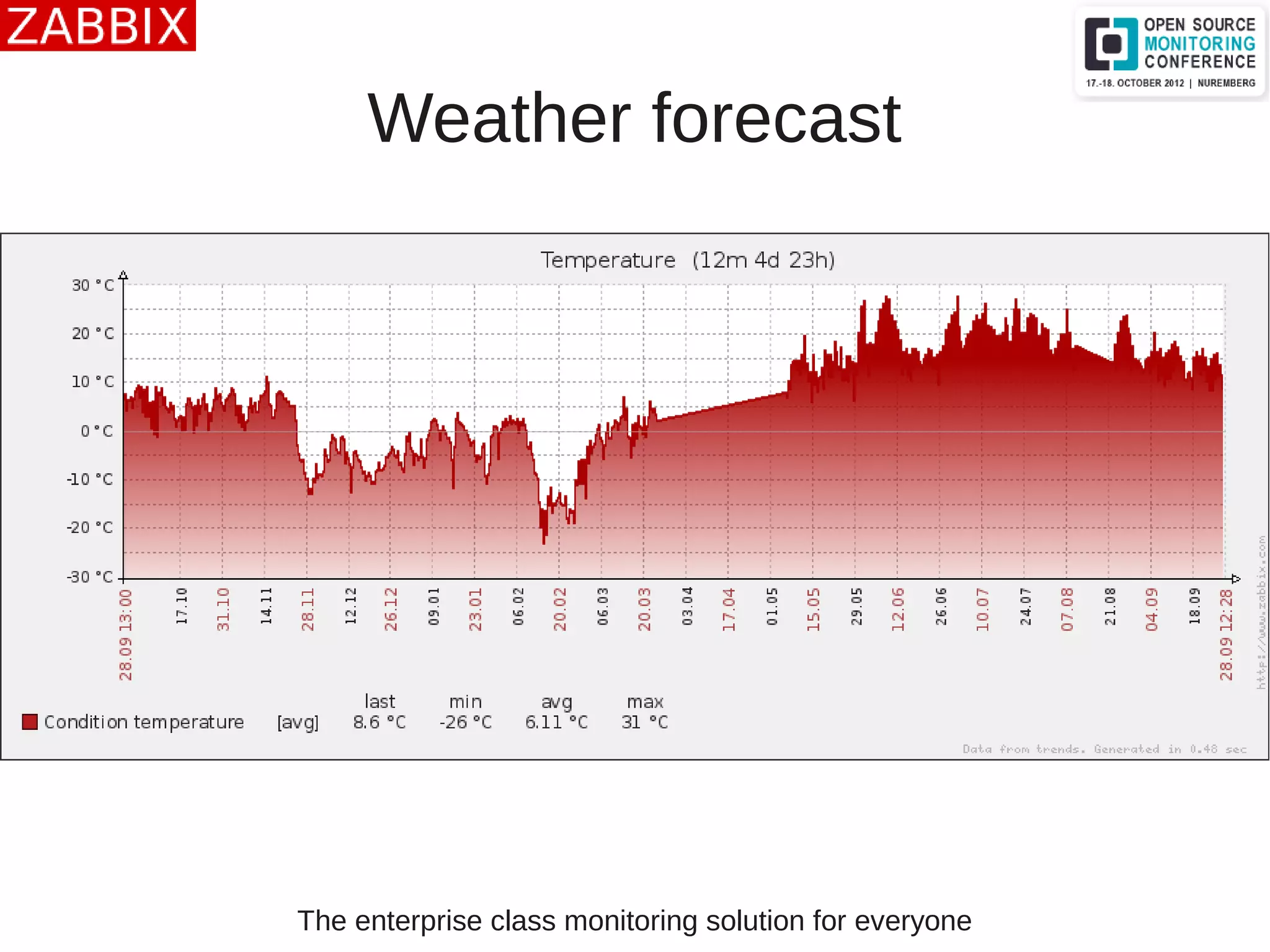

Weather forecast

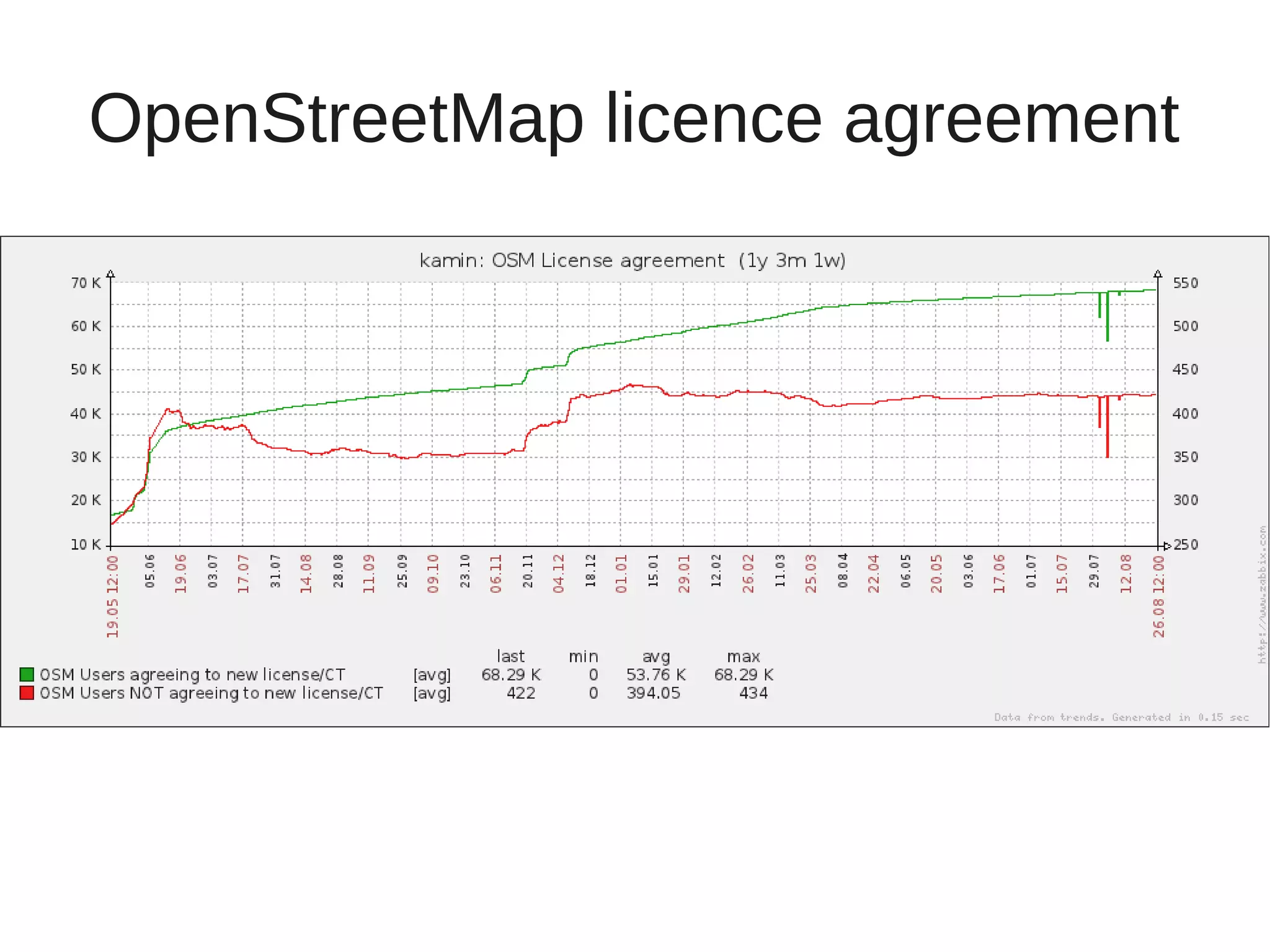

58. OpenStreetMap licence agreement

59. The enterprise class monitoring solution for everyone
Serious bug

60. The enterprise class monitoring solution for everyone

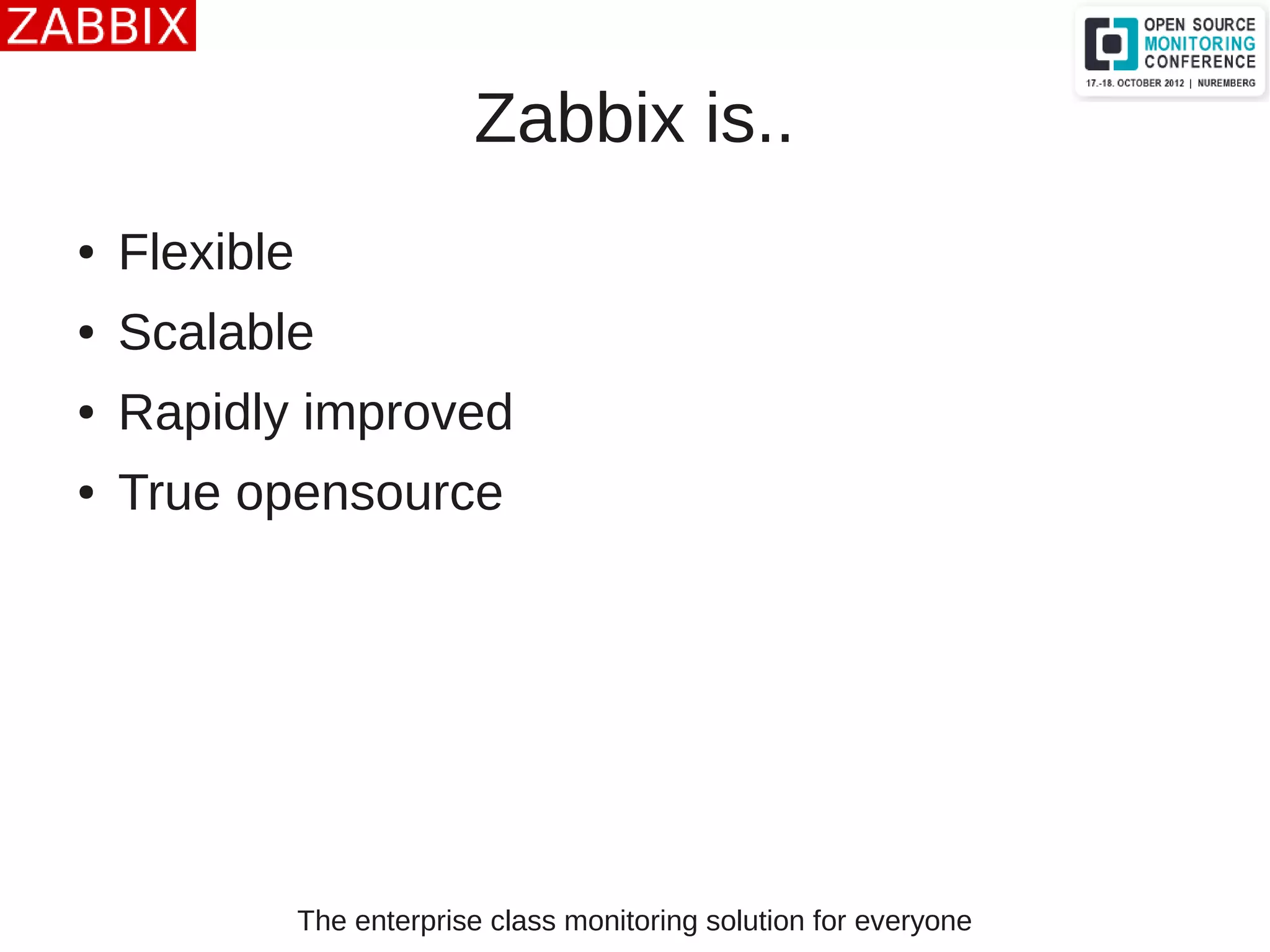

Zabbix is..
● Flexible
● Scalable
● Rapidly improved
● True opensource

61. The enterprise class monitoring solution for everyone

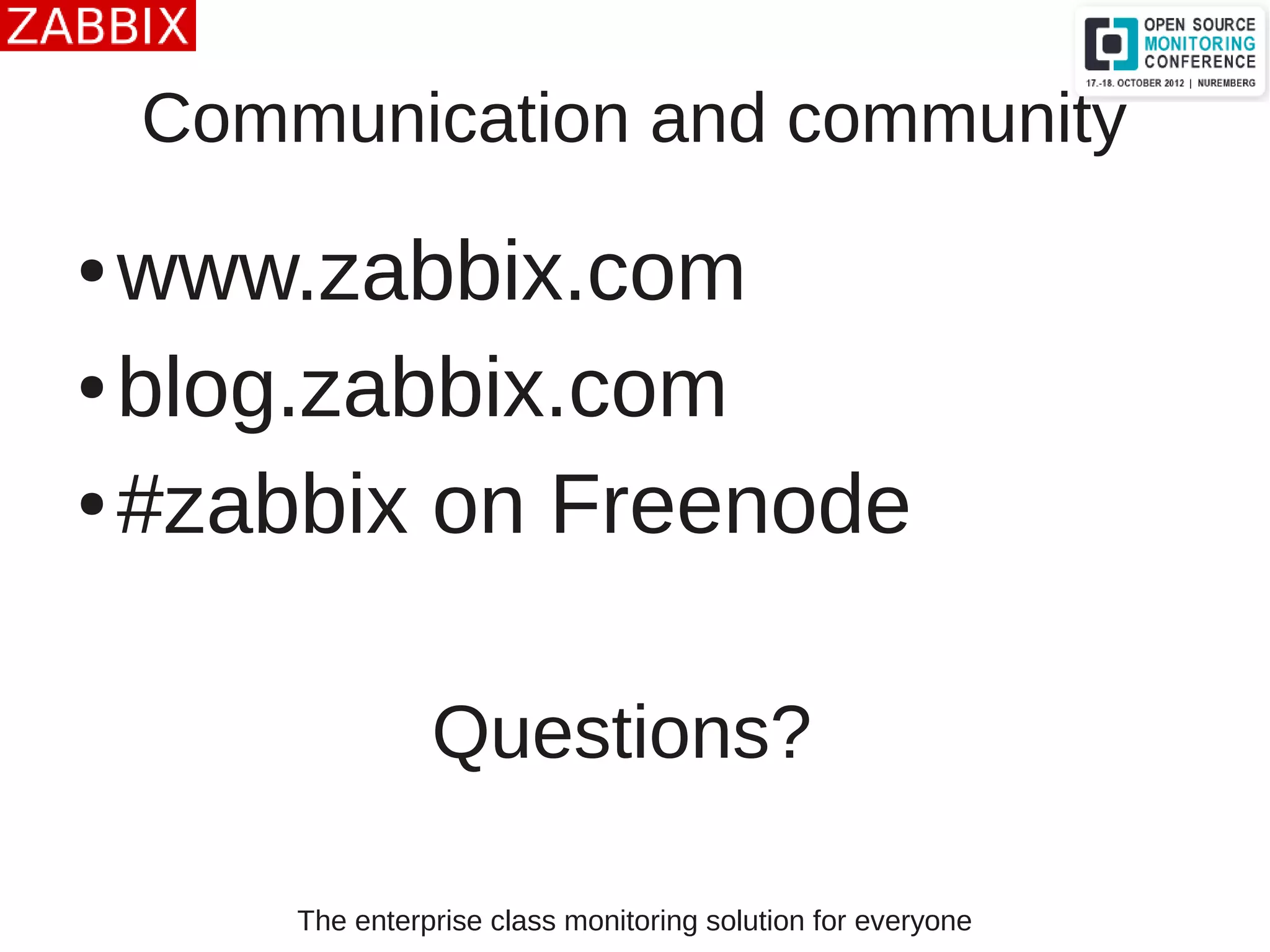

Communication and community
● www.zabbix.com
● blog.zabbix.com
● #zabbix on Freenode
Questions?
