This document provides information about different types of sewing machine needles: - Flat shank needles are the standard needle type for most home sewing machines. Variations include needles for stretch fabrics, embroidery, leather, and chain stitch machines. - Needle sizes and point types available are listed for each needle type. Prices per hundred needles are provided. - The document also lists needle types and sizes compatible with specific sewing machine brands and models.

1. FSN/10
60 Commerce Rd. - Carlstadt, NJ 07072
tel: (201) 507-1717 - 800-221-5818
fax: (201) 507-1715 - 800-833-3363
November, 2010 email: info@DiamondNeedle.com 1

2. GUIDE TO SELECTING THE RIGHT NEEDLE
FLAT SHANK NEEDLES
15x1: HAx1, 130/705H, SY2020, SY2031, 206x15, PFx130,
canu 22:15; This is the standard needle with a flat shank and
a regular size eye for most home sewing machines and home
sewer based embroidery and quilting machines. It has one
groove and a regular scarf. It is available in many sizes with a
sharp or a ball point and a chrome or PD/titanium finish.
15x1SP: HAx1SP, HAx1KN; This is a special version of the
15x1 for stretch or elastic materials or tightly woven knits .
It is made to higher standards, it has a 'snake's head' shape
due to a combination of a slightly bulged eye and a slightly
reduced blade above the eye.
The bulged eye opens a slightly larger space in the material
and the thinner blade above the eye reduces contact between
the material and the needle. This reduces friction and needle
heating and prevents skipped stitches. It is available in regular
(sharp) and ball point.
15x1ST: HAx1ST, 130/705H-E; This is a special version of
the 15x1 for embroidery and decorative stitching . It is
made to higher standards for smoother sewing. It has an
oversized eye to reduce the stress and tension on delicate
embroidery thread. It also accommodates metallic threads
and makes needle threading easier. It is available in regular
(sharp) or ball point and with chrome or PD/titanium longer
wearing finish.
HAx130 EBBR: This needle was developed for use in the
Brother PR-600 and Babylock EMB6 machines and the new
10 needle models (probably called PR-1000 and EMB10). It is
an industrial quality needle with a flat shank, reinforced blade,
light Ball Point and an oversized eye. It is available in a wide
range of sizes with a hard chrome finish.
HAx130N: 130N; This special needle has a very long,
almost double length, eye. It is made for Top-Stitching or
Decorative stitching and will accept heavy or multiple
threads. It can also be used for embroidery with heavy,
metallic threads . It is availble in chrome or PD/titanium
finish.
60 Commerce Rd. - Carlstadt, NJ 07072
tel: (201) 507-1717 - 800-221-5818
fax: (201) 507-1715 - 800-833-3363
2 email: info@DiamondNeedle.com November, 2010

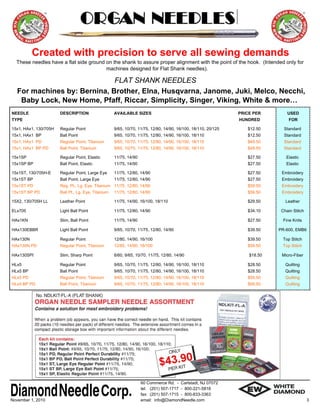

3. Created with precision to serve all sewing demands
These needles have a flat side ground on the shank to assure proper alignment with the point of the hook. (Intended only for
machines designed for Flat Shank needles).
FLAT SHANK NEEDLES
For machines by: Bernina, Brother, Elna, Husqvarna, Janome, Juki, Melco, Necchi,
Baby Lock, New Home, Pfaff, Riccar, Simplicity, Singer, Viking, White & more…
NEEDLE DESCRIPTION AVAILABLE SIZES PRICE PER USED
TYPE HUNDRED FOR
15x1, HAx1, 130/705H Regular Point 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110, 20/125 $12.50 Standard
15x1, HAx1 BP Ball Point 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110 $12.50 Standard
15x1, HAx1 PD Regular Point, Titanium 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110 $49.50 Standard
15x1, HAx1 BP PD Ball Point, Titanium 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110 $49.50 Standard
15x1SP Regular Point, Elastic 11/75, 14/90 $27.50 Elastic
15x1SP BP Ball Point, Elastic 11/75, 14/90 $27.50 Elastic
15x1ST, 130/705H-E Regular Point, Large Eye 11/75, 12/80, 14/90 $27.50 Embroidery
15x1ST BP Ball Point, Large Eye 11/75, 12/80, 14/90 $27.50 Embroidery
15x1ST PD Reg. Pt., Lg. Eye, Titanium 11/75, 12/80, 14/90 $59.50 Embroidery
15x1ST BP PD Ball Pt., Lg. Eye, Titanium 11/75, 12/80, 14/90 $59.50 Embroidery
15X2, 130/705H LL Leather Point 11/75, 14/90, 16/100, 18/110 $29.50 Leather
ELx705 Light Ball Point 11/75, 12/80, 14/90 $34.10 Chain Stitch
HAx1KN Slim, Ball Point 11/75, 14/90 $27.50 Fine Knits
HAx130EBBR Light Ball Point 9/65, 10/70, 11/75, 12/80, 14/90 $39.50 PR-600, EMB6
HAx130N Regular Point 12/80, 14/90, 16/100 $39.50 Top Stitch
HAx130N PD Regular Point, Titanium 12/80, 14/90, 16/100 $59.50 Top Stitch
HAx130SPI Slim, Sharp Point 8/60, 9/65, 10/70, 11/75, 12/80, 14/90 $18.50 Micro-Fiber
HLx5 Regular Point 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110 $28.50 Quilting
HLx5 BP Ball Point 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110 $28.50 Quilting
HLx5 PD Regular Point, Titanium 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110 $59.50 Quilting
HLx5 BP PD Ball Point, Titanium 9/65, 10/70, 11/75, 12/80, 14/90, 16/100, 18/110 $59.50 Quilting
60 Commerce Rd. - Carlstadt, NJ 07072
tel: (201) 507-1717 - 800-221-5818
fax: (201) 507-1715 - 800-833-3363
November 1, 2010 email: info@DiamondNeedle.com 3

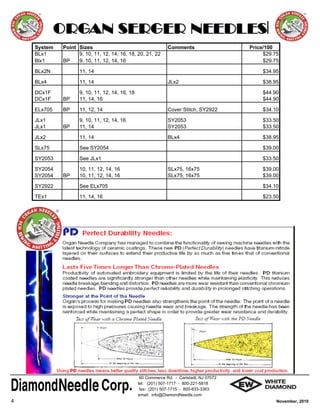

4. System Point Sizes Comments Price/100
BLx1 9, 10, 11, 12, 14, 16, 18, 20, 21, 22 $29.75
Blx1 BP 9, 10, 11, 12, 14, 16 $29.75
BLx2N 11, 14 $34.95
BLx4 11, 14 JLx2 $38.95
DCx1F 9, 10, 11, 12, 14, 16, 18 $44.90
DCx1F BP 11, 14, 16 $44.90
ELx705 BP 11, 12, 14 Cover Stitch, SY2922 $34.10
JLx1 9, 10, 11, 12, 14, 16 SY2053 $33.50
JLx1 BP 11, 14 SY2053 $33.50
JLx2 11, 14 BLx4 $38.95
SLx75 See SY2054 $39.00
SY2053 See JLx1 $33.50
SY2054 10, 11, 12, 14, 16 SLx75, 16x75 $39.00
SY2054 BP 10, 11, 12, 14, 16 SLx75, 16x75 $39.00
SY2922 See ELx705 $34.10
TEx1 11, 14, 16 $23.50
60 Commerce Rd. - Carlstadt, NJ 07072
tel: (201) 507-1717 - 800-221-5818
fax: (201) 507-1715 - 800-833-3363
email: info@DiamondNeedle.com
4 November, 2010
