Orchestration vs Choreography - A Guide To Composing Your Monolith
The document compares orchestration and choreography as strategies for managing workflows in software systems, highlighting their respective advantages and challenges. It discusses the impact of complexity, coupling, and the need for proper tooling and processes, emphasizing that orchestration is preferable for complex workflows while choreography is better for scalability and responsiveness. The author also shares insights on managing change and maintaining system quality amidst evolving requirements.
More Related Content
Similar to Orchestration vs Choreography - A Guide To Composing Your Monolith
Orchestration vs Choreography - A Guide To Composing Your Monolith
- 1. Orchestration vs Choreography AGuide To Composing Your Monolith Ian Thomas www.ian-thomas.net | @anatomic | linkedin.com/in/anatomic 2023
- 2.
- 3.
- 5.
- 6. Hi 👋, I’mIan I’m a software engineer from the UK, currently building work products at Meta as part of Reality Labs. Previously, I was VP of Web Architecture for Genesis and Chief Digital Technology Architect for PokerStars. www.ian-thomas.net | @anatomic | linkedin.com/in/anatomic

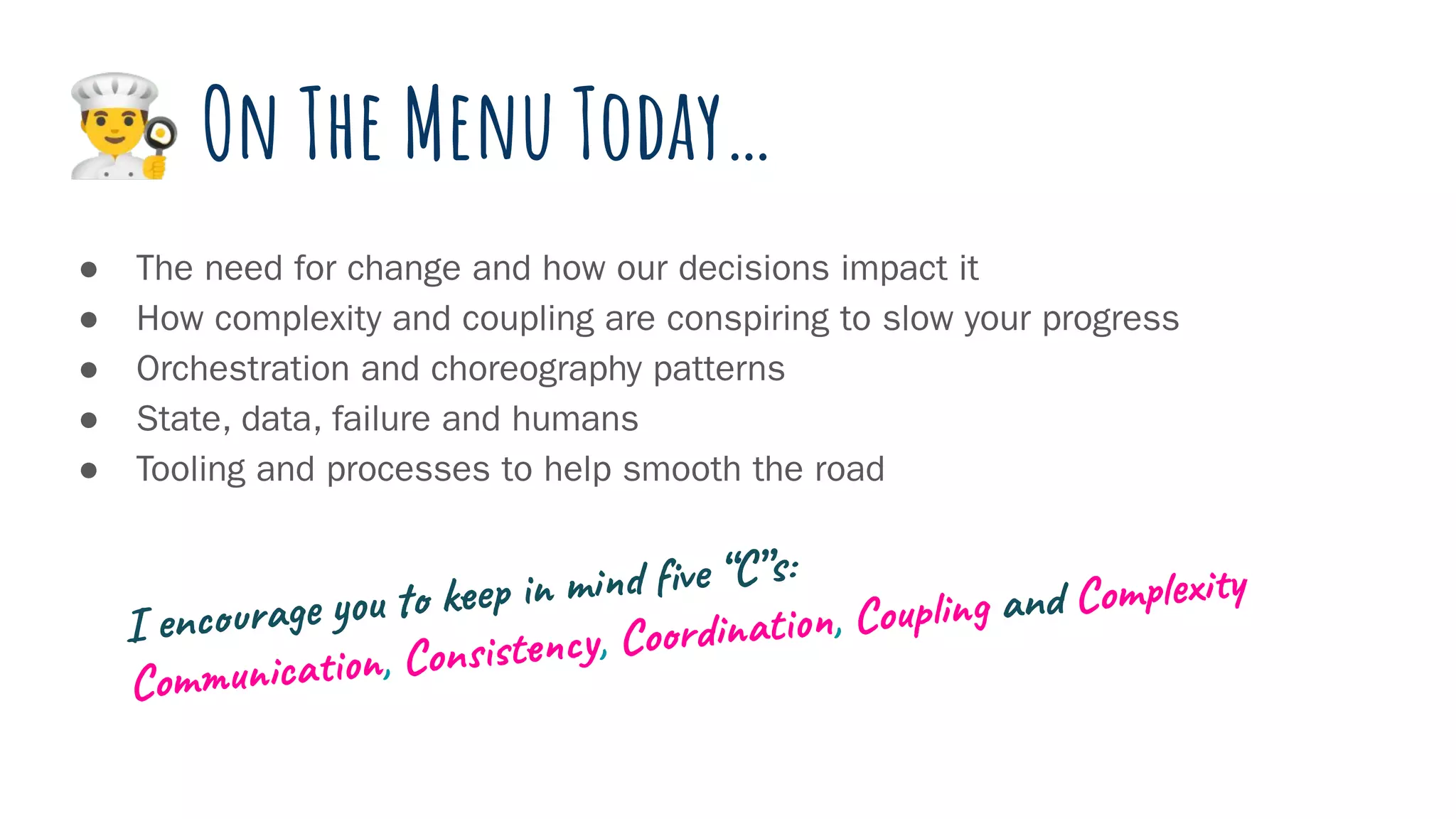

- 7. On TheMenu Today… ● The need for change and how our decisions impact it ● How complexity and coupling are conspiring to slow your progress ● Orchestration and choreography patterns ● State, data, failure and humans ● Tooling and processes to help smooth the road I encourage you to keep in mind five “C”s: Communication, Consistency, Coordination, Coupling and Complexity
- 8. Lehman’s Laws of Software Evolution Programs,Life Cycles and Laws of Software Evolution

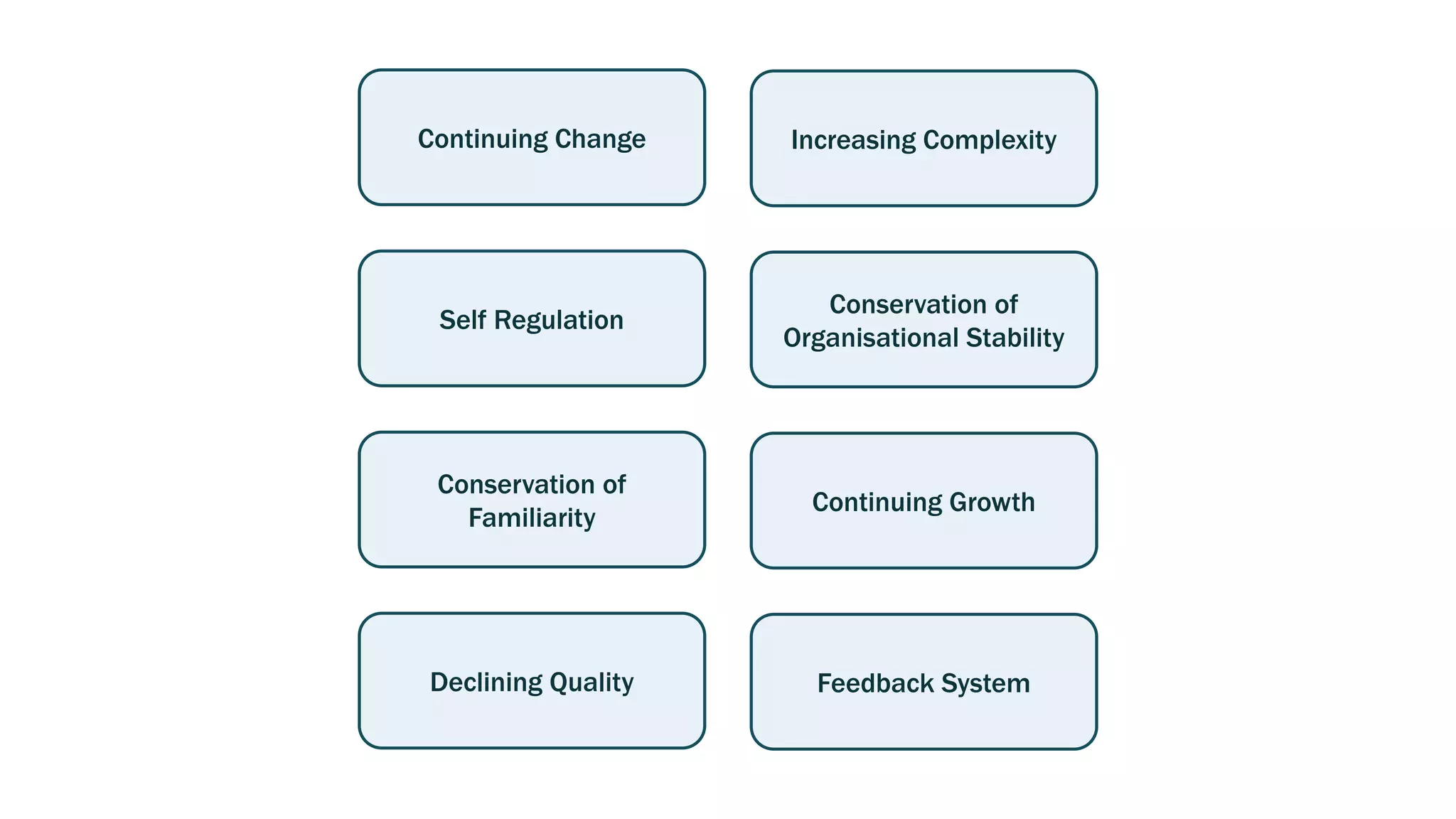

- 9. Continuing Change Self Regulation Conservationof Familiarity Declining Quality Increasing Complexity Conservation of Organisational Stability Continuing Growth Feedback System

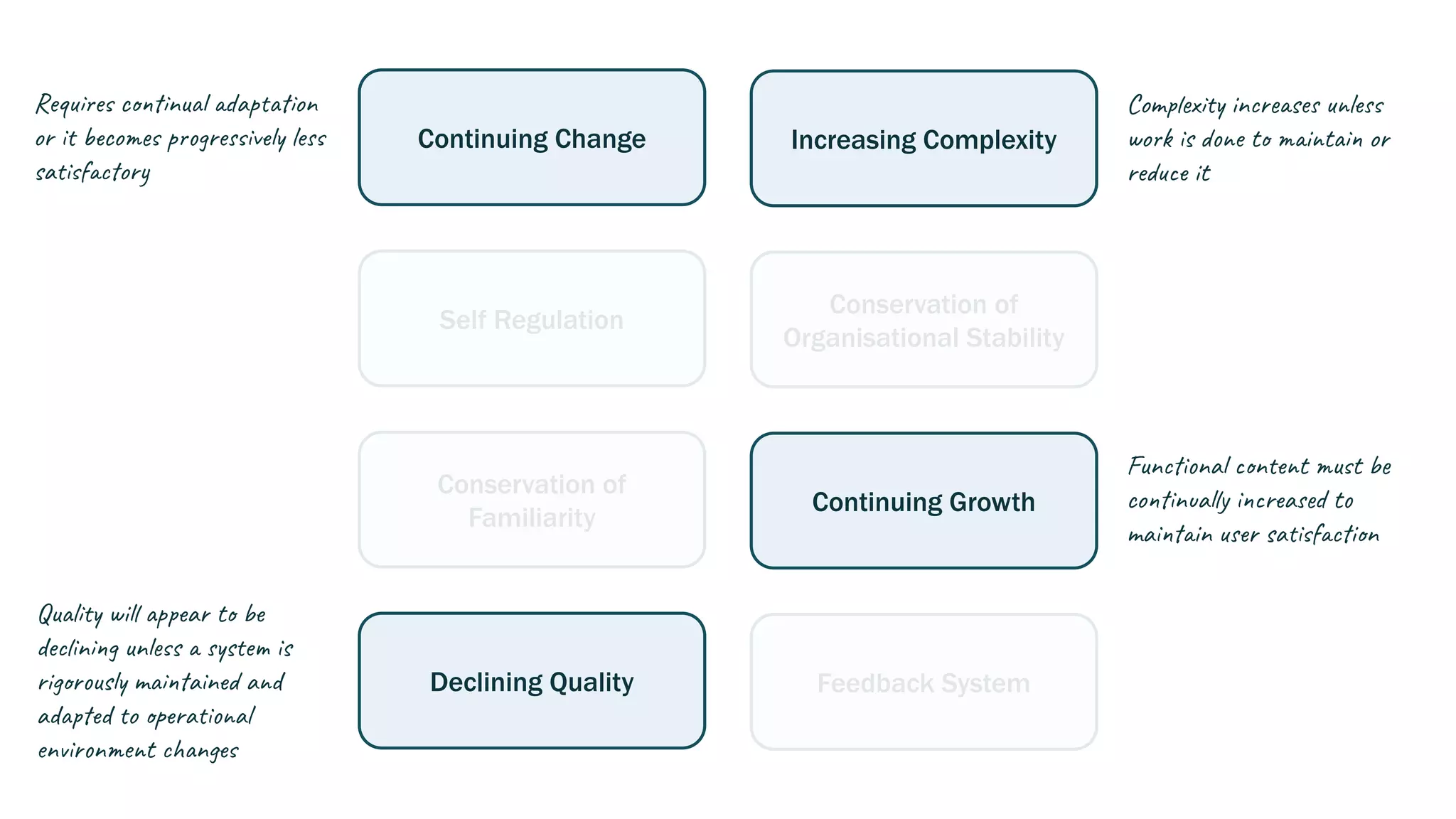

- 10. Continuing Change Self Regulation Conservationof Familiarity Declining Quality Increasing Complexity Conservation of Organisational Stability Continuing Growth Feedback System Requires continual adaptation or it becomes progressively less satisfactory Complexity increases unless work is done to maintain or reduce it Functional content must be continually increased to maintain user satisfaction Quality will appear to be declining unless a system is rigorously maintained and adapted to operational environment changes

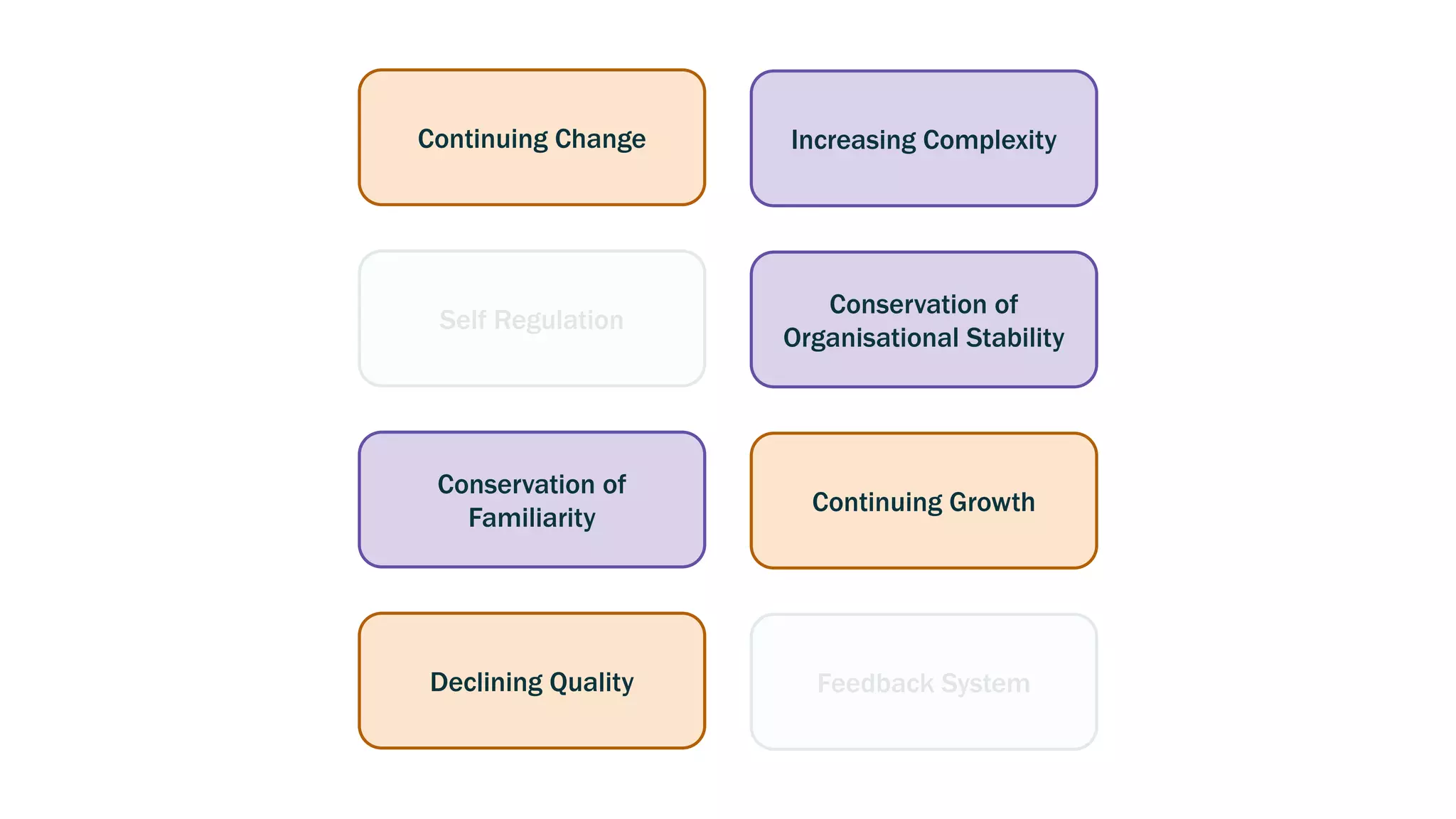

- 11. Continuing Change Self Regulation Conservationof Familiarity Declining Quality Increasing Complexity Conservation of Organisational Stability Continuing Growth Feedback System

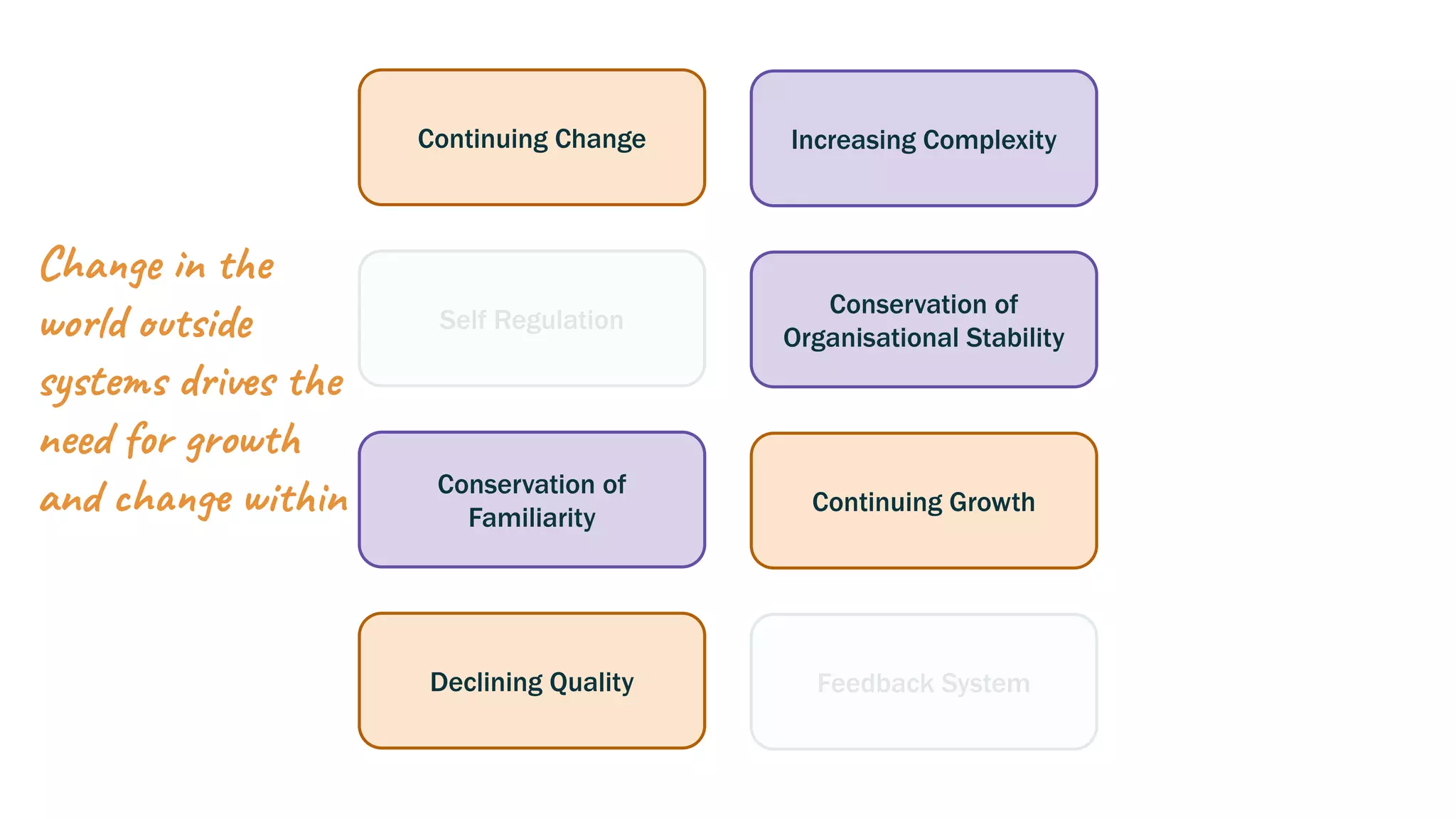

- 12. Continuing Change Self Regulation Conservationof Familiarity Declining Quality Increasing Complexity Conservation of Organisational Stability Continuing Growth Feedback System Change in the world outside systems drives the need for growth and change within

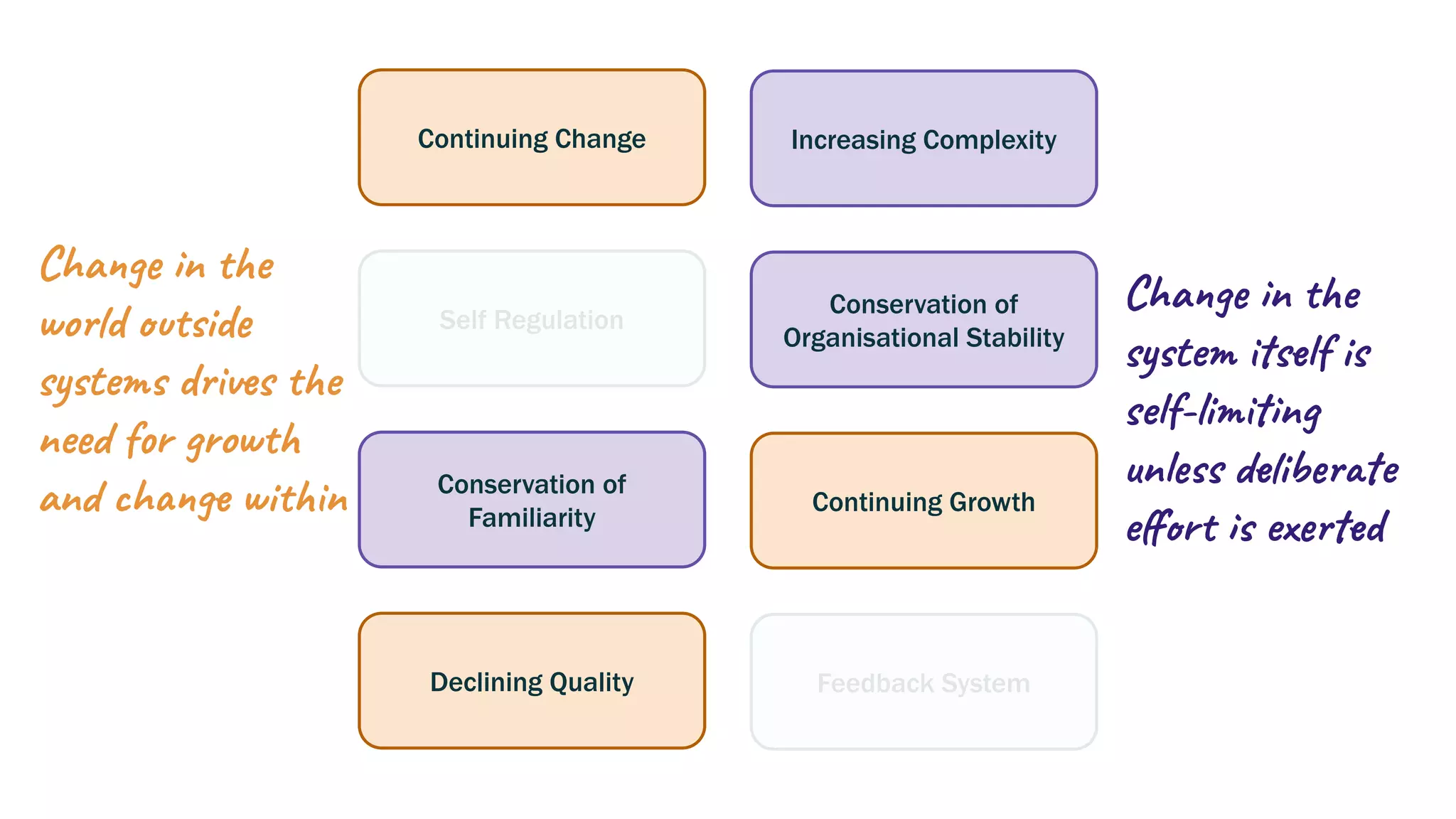

- 13. Continuing Change Self Regulation Conservationof Familiarity Declining Quality Increasing Complexity Conservation of Organisational Stability Continuing Growth Feedback System Change in the world outside systems drives the need for growth and change within Change in the system itself is self-limiting unless deliberate effort is exerted

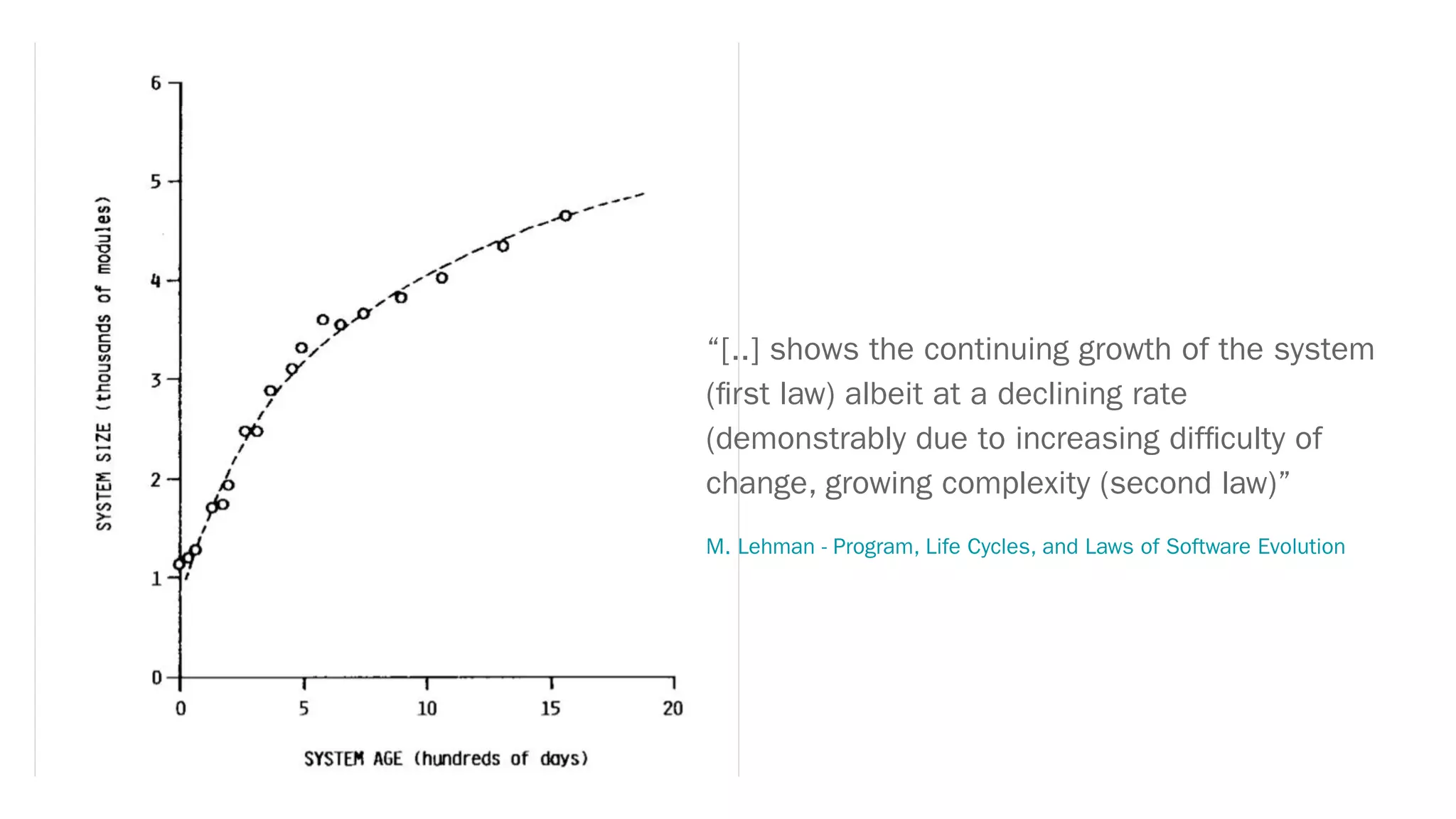

- 14. “[..] shows thecontinuing growth of the system (first law) albeit at a declining rate (demonstrably due to increasing difficulty of change, growing complexity (second law)” M. Lehman - Program, Life Cycles, and Laws of Software Evolution

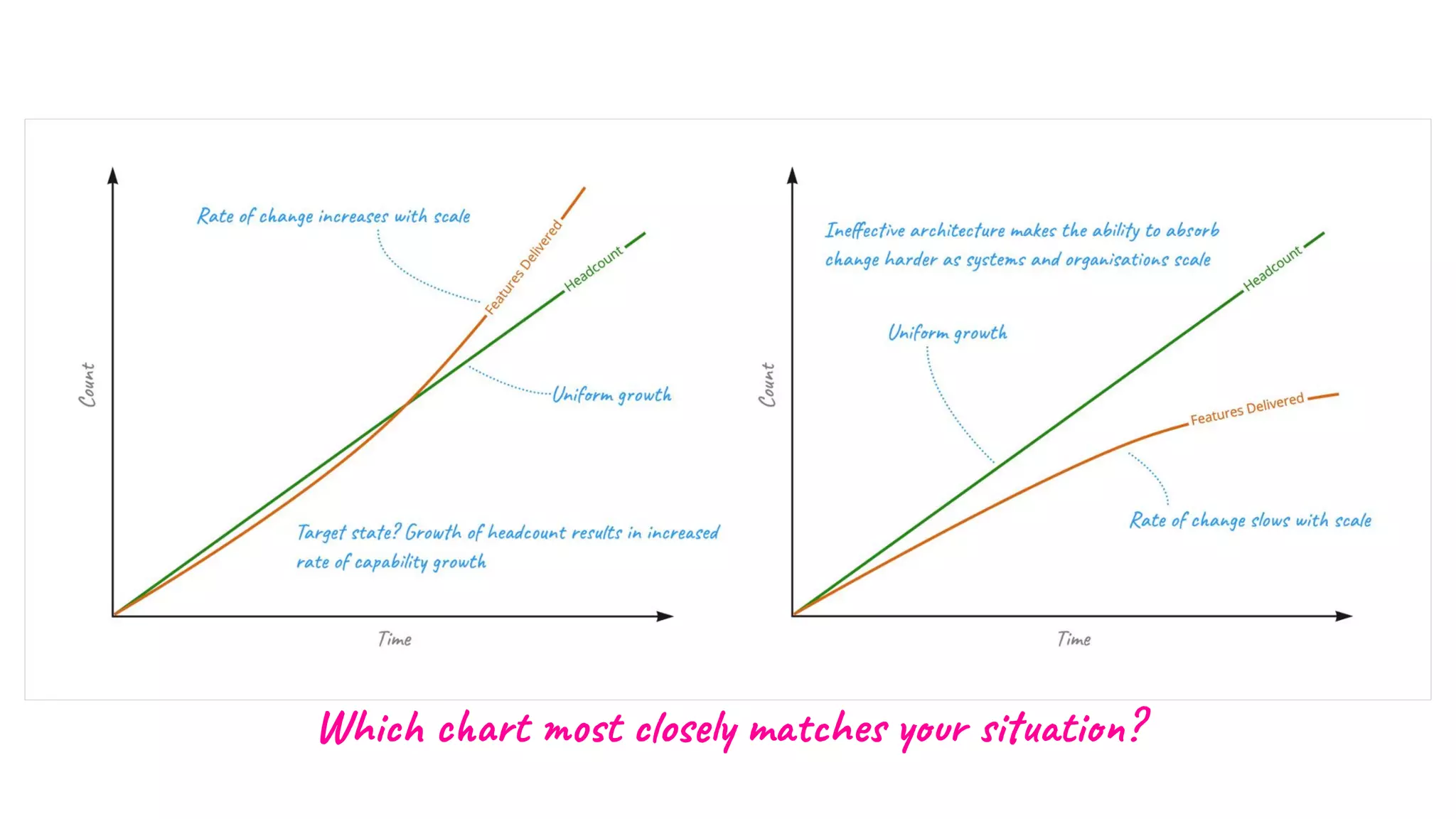

- 17. Which chart mostclosely matches your situation?
- 18. Which chart mostclosely matches your situation?
- 19.

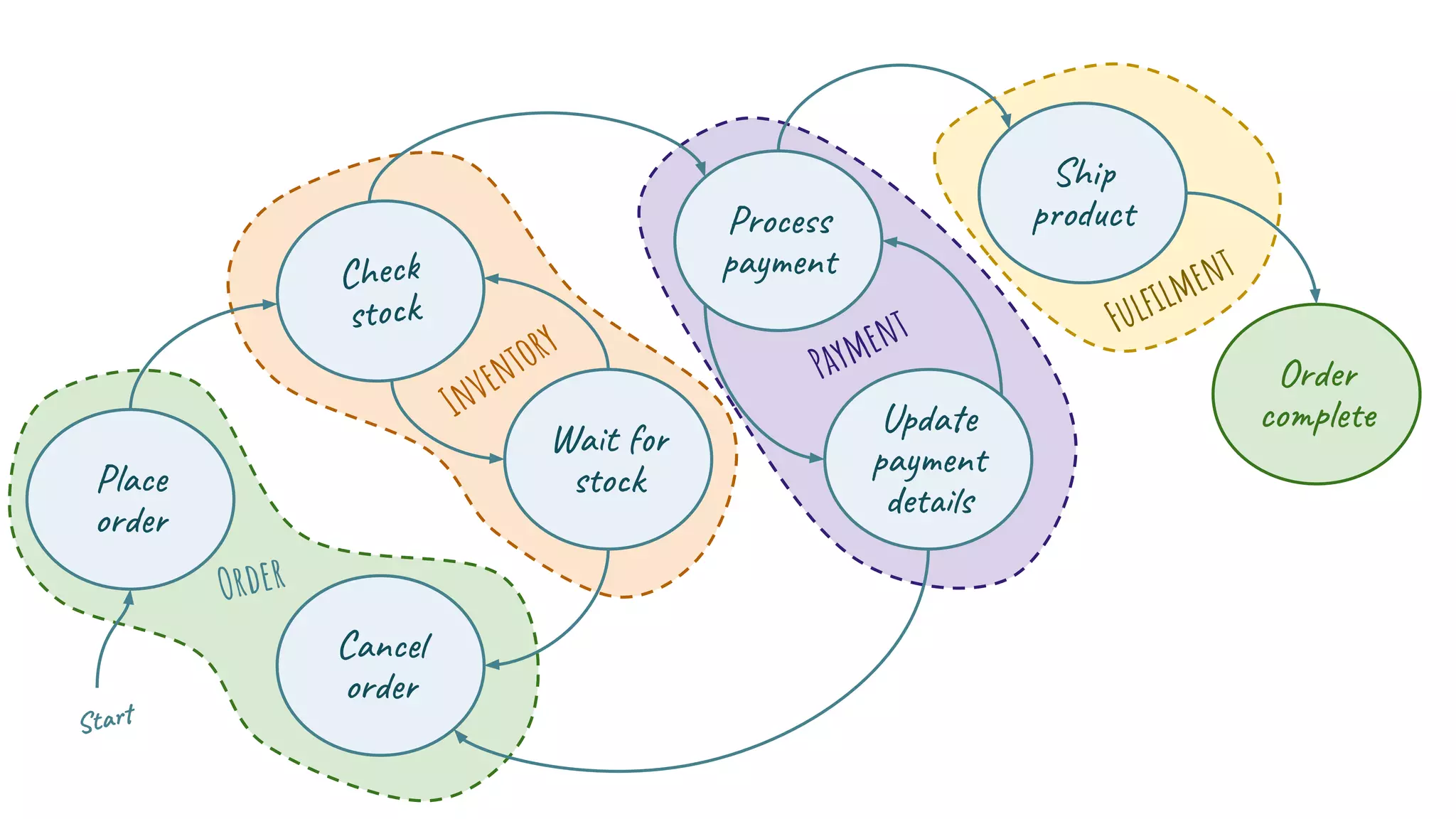

- 20. Place order Check stock Wait for stock Cancel order Process payment Update payment details Ship product Order complete Abyss of shipping support Accepted Unavailable Available AllocatedBilled Delivered N o s h o w Timeout Timeout R e t r y E r r o r Start
- 21.
- 22.
- 23.
- 24.

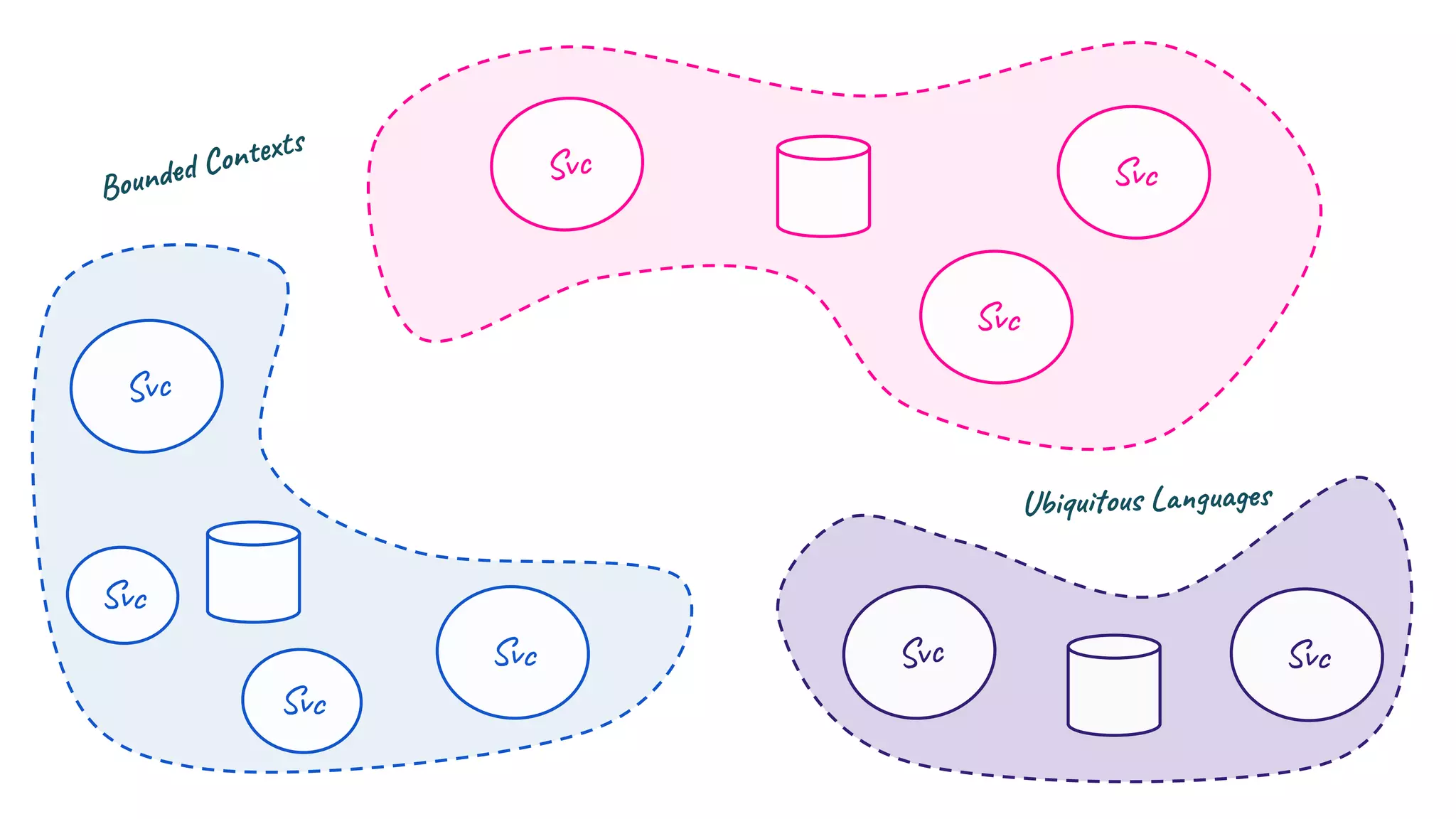

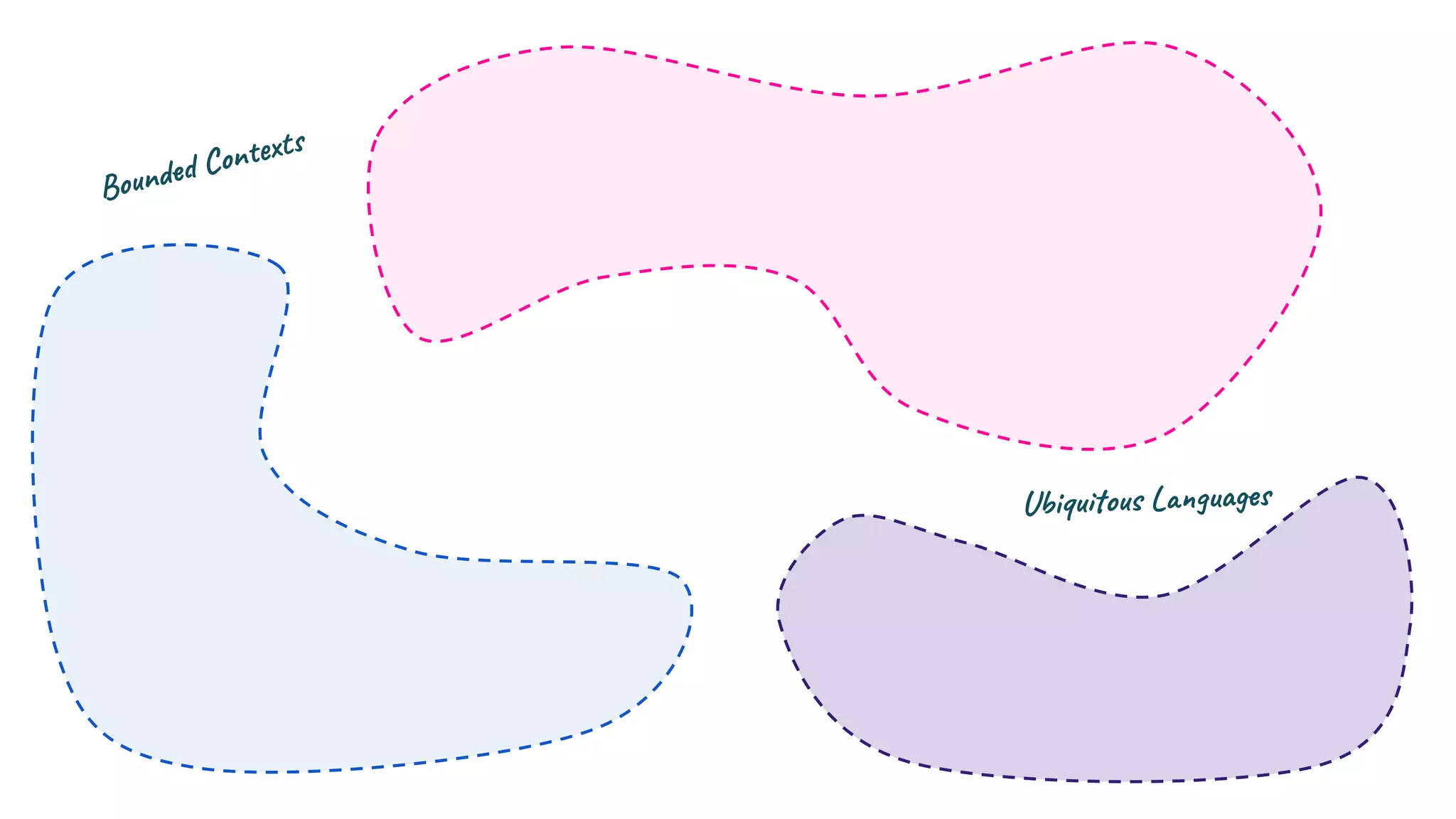

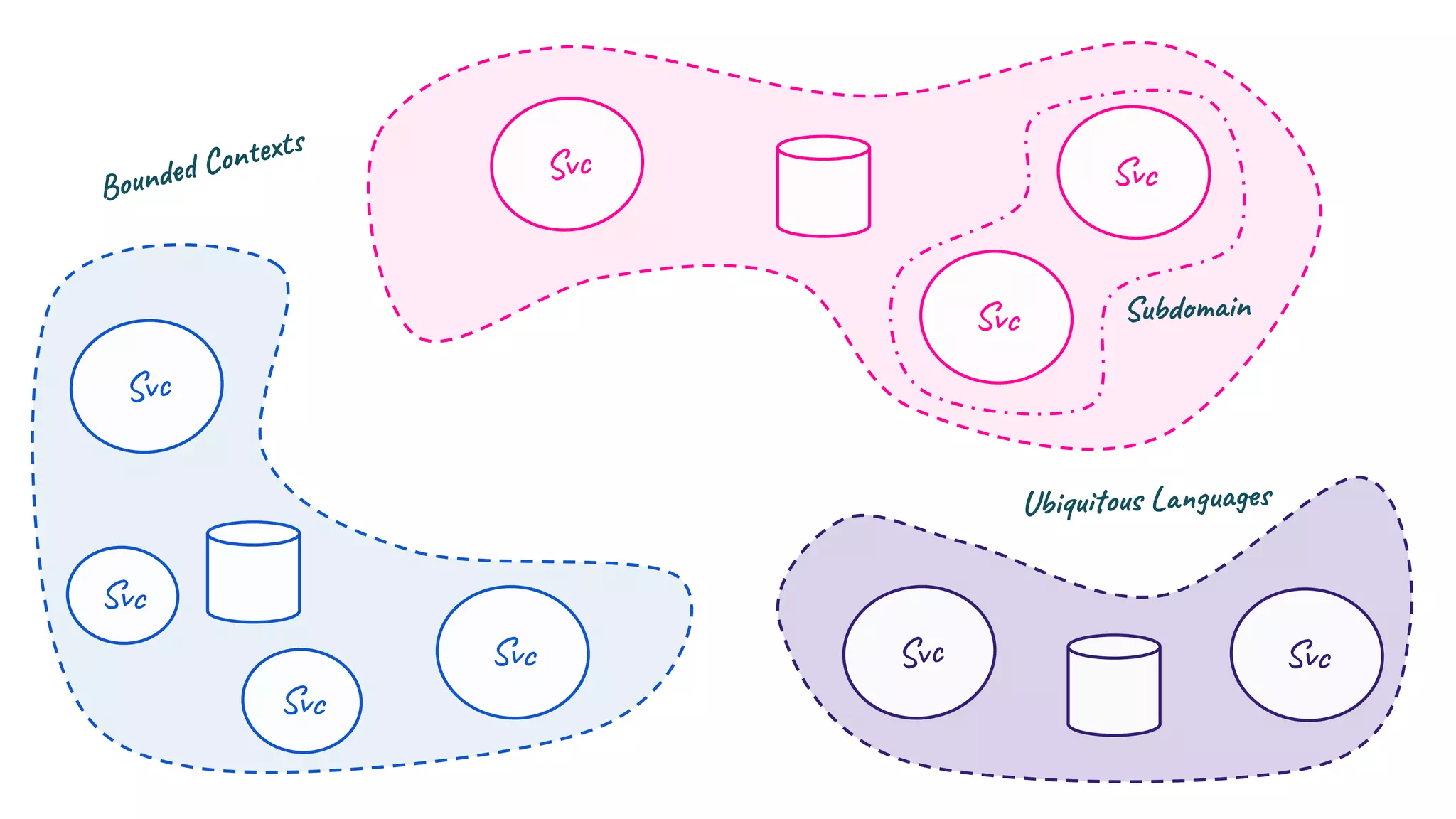

- 25. Bounded Contexts Ubiquitous Languages Svc Svc Svc SvcSvc Svc Svc Svc Svc Subdomain Interchange Contexts
- 26.
- 27.
- 28.
- 33.

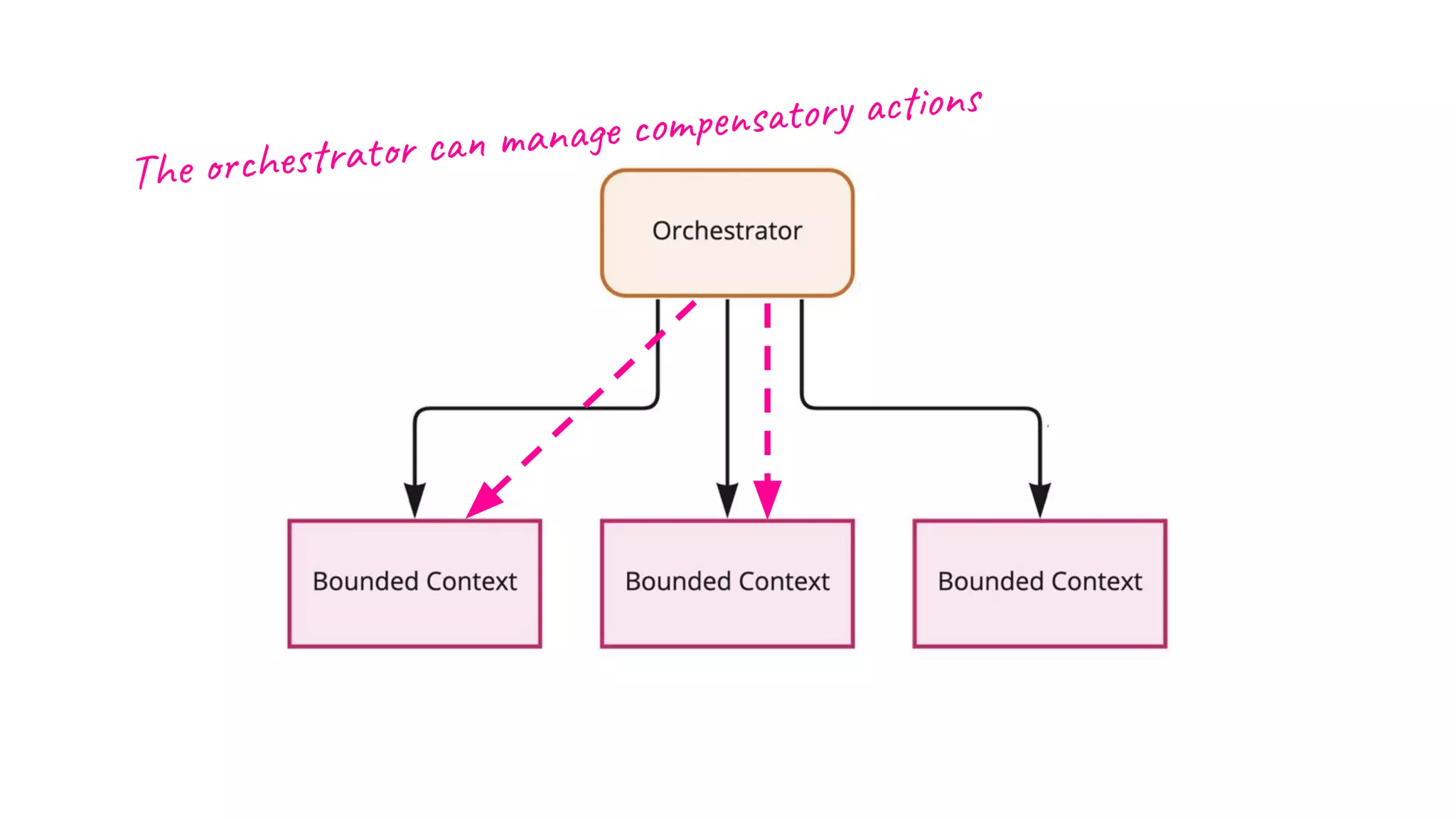

- 35. The orchestrator canmanage compensatory actions ��

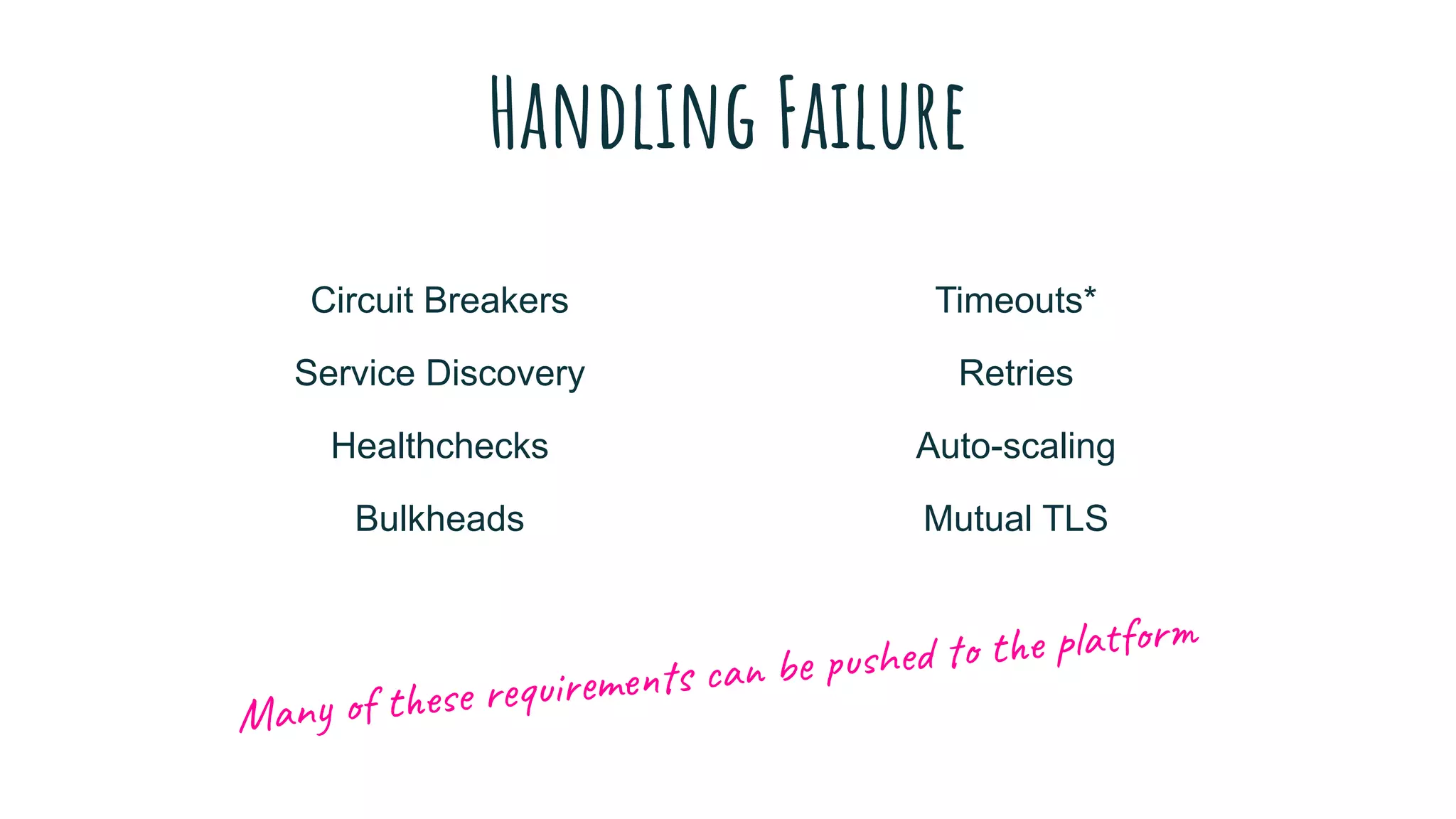

- 36. Circuit Breakers Timeouts* ServiceDiscovery Retries Healthchecks Auto-scaling Bulkheads Mutual TLS Handling Failure Many of these requirements can be pushed to the platform

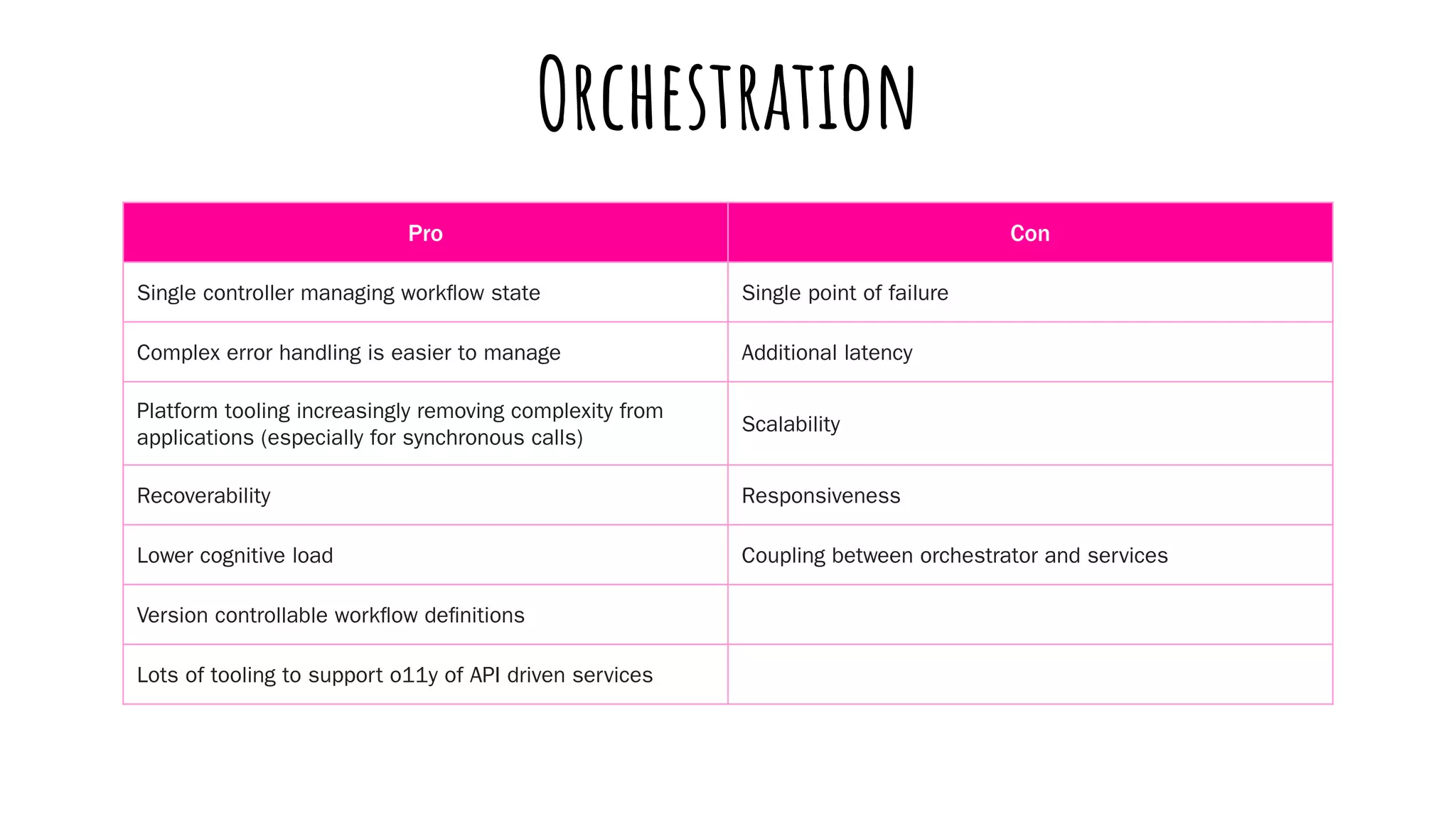

- 38. Orchestration Pro Con Single controllermanaging workflow state Single point of failure Complex error handling is easier to manage Additional latency Platform tooling increasingly removing complexity from applications (especially for synchronous calls) Scalability Recoverability Responsiveness Lower cognitive load Coupling between orchestrator and services Version controllable workflow definitions Lots of tooling to support o11y of API driven services
- 39.
- 42.
- 43.

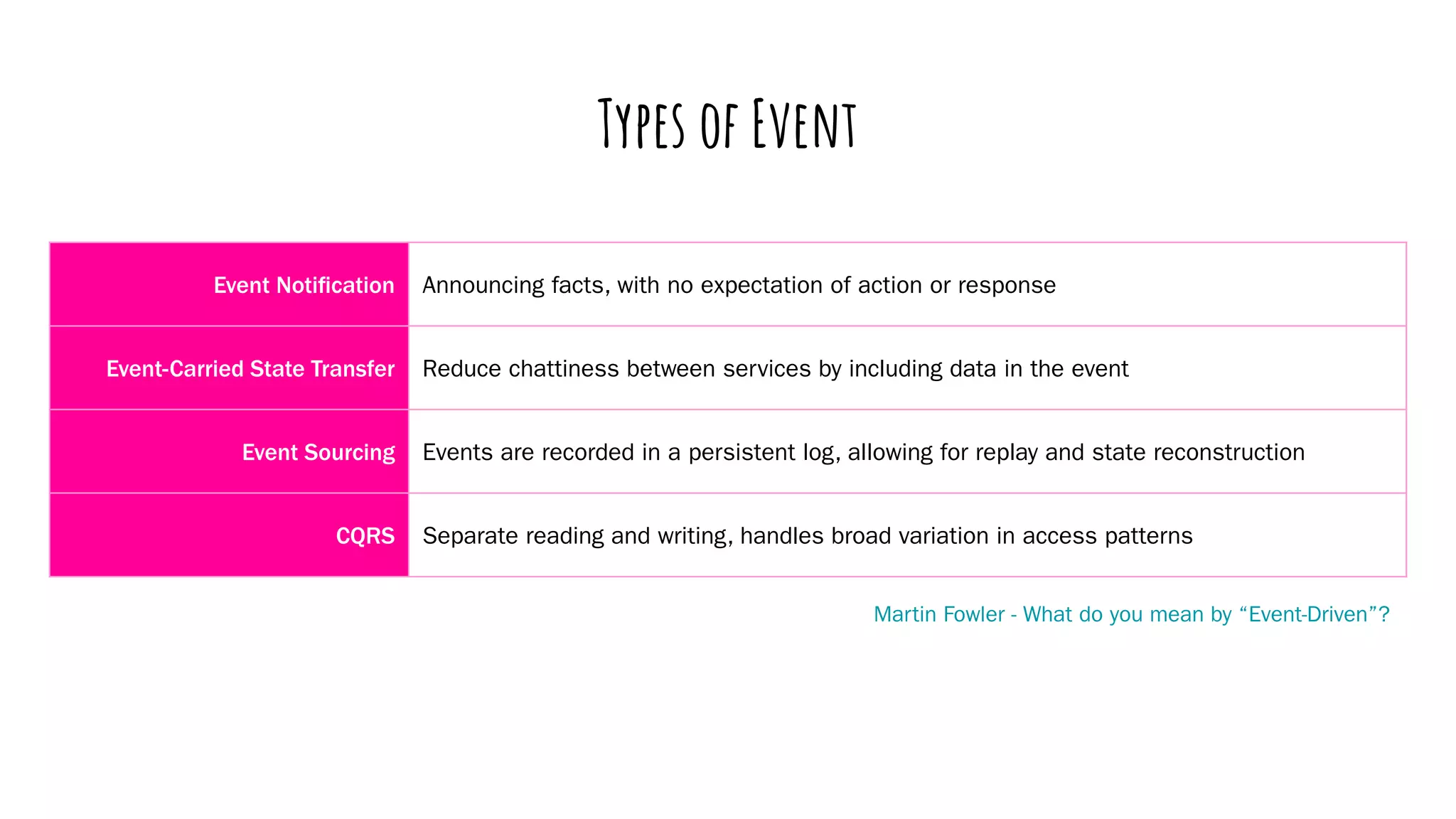

- 44. Types of Event EventNotification Announcing facts, with no expectation of action or response Event-Carried State Transfer Reduce chattiness between services by including data in the event Event Sourcing Events are recorded in a persistent log, allowing for replay and state reconstruction CQRS Separate reading and writing, handles broad variation in access patterns Martin Fowler - What do you mean by “Event-Driven”?

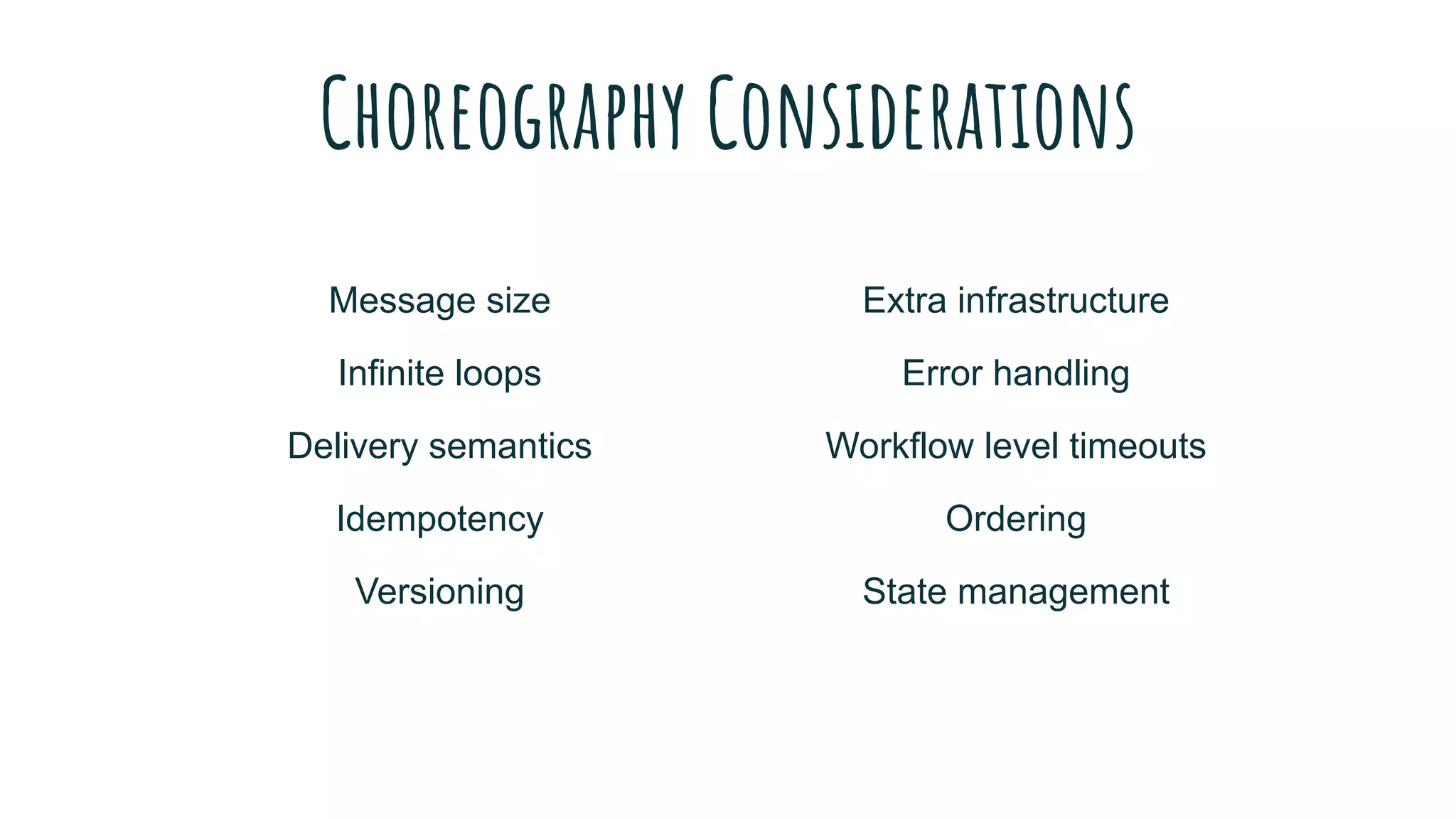

- 51. Message size Extrainfrastructure Infinite loops Error handling Delivery semantics Workflow level timeouts Idempotency Ordering Versioning State management Choreography Considerations

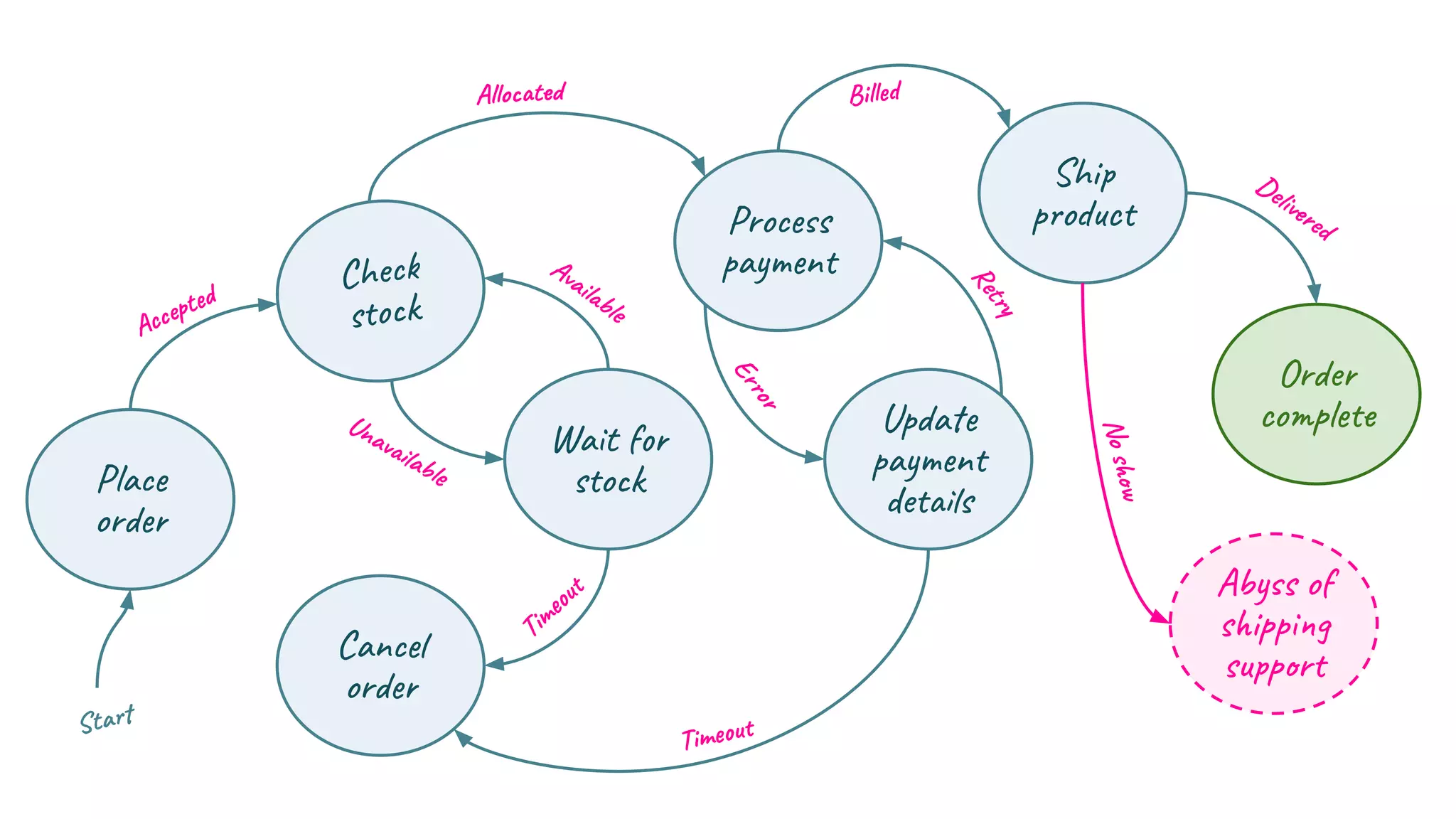

- 52. Place order Check stock Wait for stock Cancel order Process payment Update payment details Ship product Order complete Abyss of shipping support Accepted Unavailable Available AllocatedBilled Delivered N o s h o w Timeout Timeout R e t r y E r r o r Start

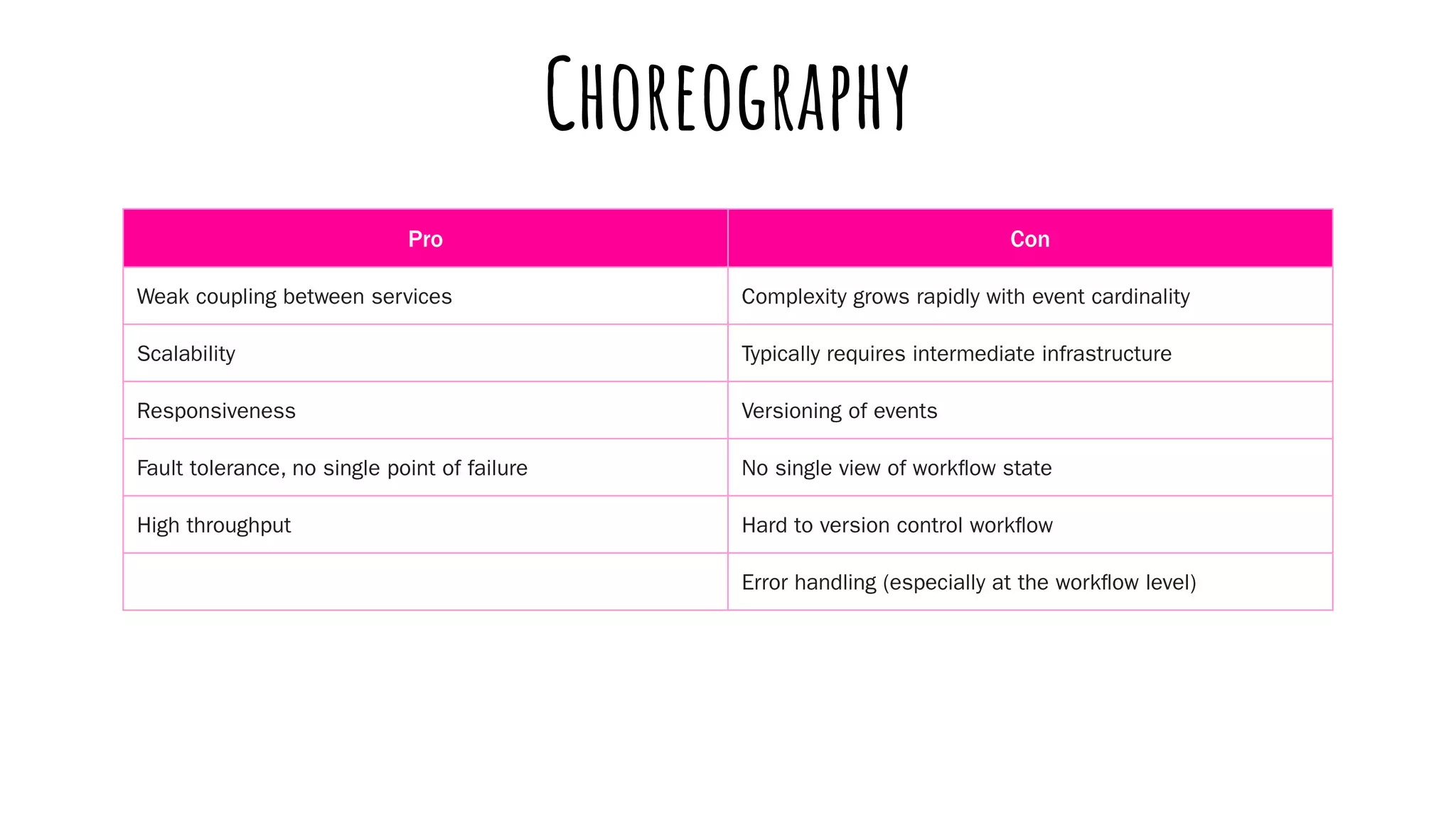

- 53. Choreography Pro Con Weak couplingbetween services Complexity grows rapidly with event cardinality Scalability Typically requires intermediate infrastructure Responsiveness Versioning of events Fault tolerance, no single point of failure No single view of workflow state High throughput Hard to version control workflow Error handling (especially at the workflow level)
- 54.
- 55. …use orchestration withinthe bounded context of a microservice, but use choreography between bounded-contexts. Yan Cui – Choreography vs Orchestration in the land of serverless
- 56. …use orchestration withinthe bounded context of a microservice, but use choreography between bounded-contexts. Yan Cui – Choreography vs Orchestration in the land of serverless
- 57.

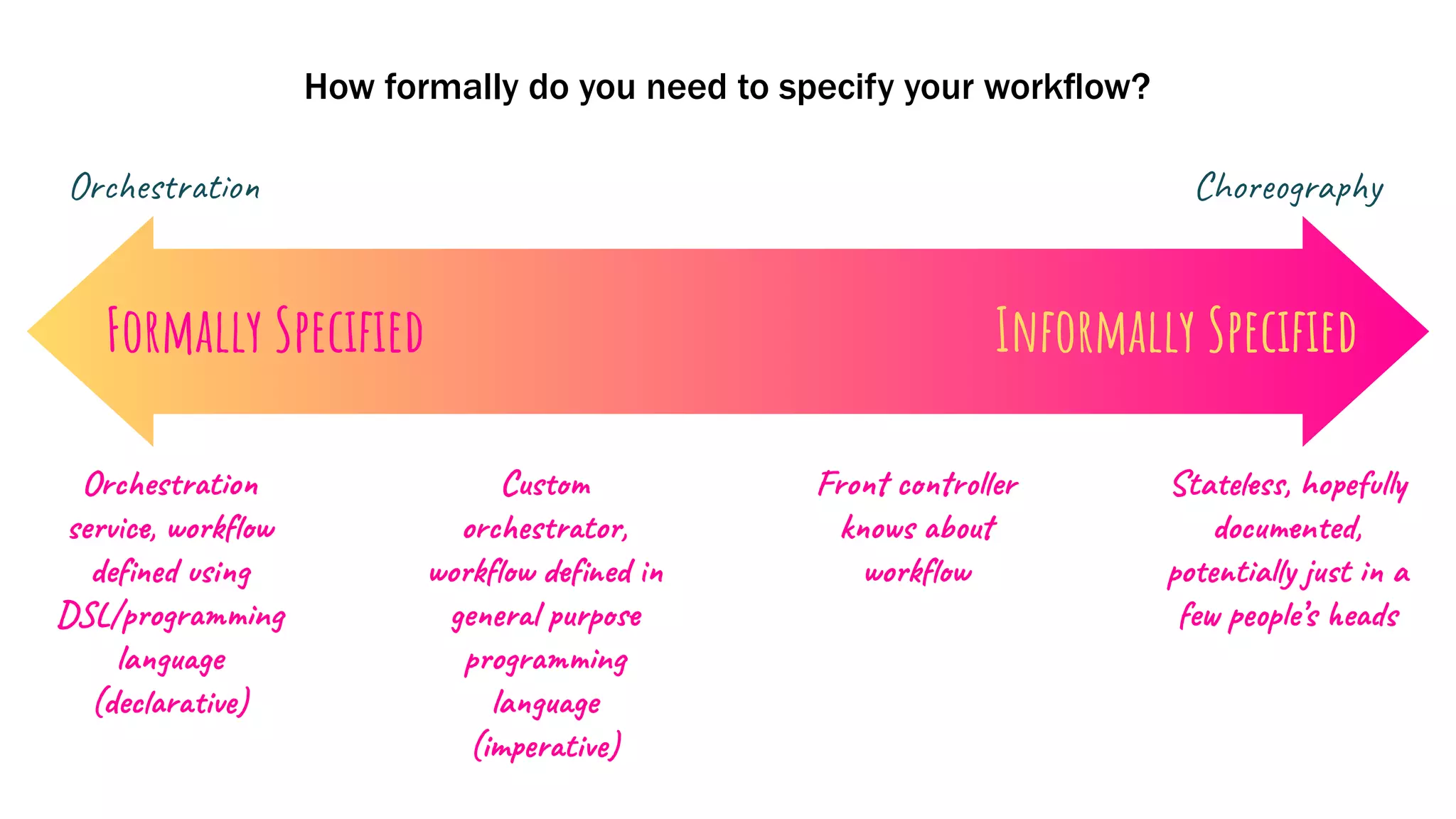

- 58. Formally Specified InformallySpecified How formally do you need to specify your workflow? Orchestration service, workflow defined using DSL/programming language (declarative) Custom orchestrator, workflow defined in general purpose programming language (imperative) Front controller knows about workflow Stateless, hopefully documented, potentially just in a few people’s heads Orchestration Choreography
- 59. An architect cannever reduce semantic coupling via implementation, but they can make it worse. Neal Ford, Mark Richards, Pramod Sadalage & Zhamak Dehghani – Software Architecture: The Hard Parts

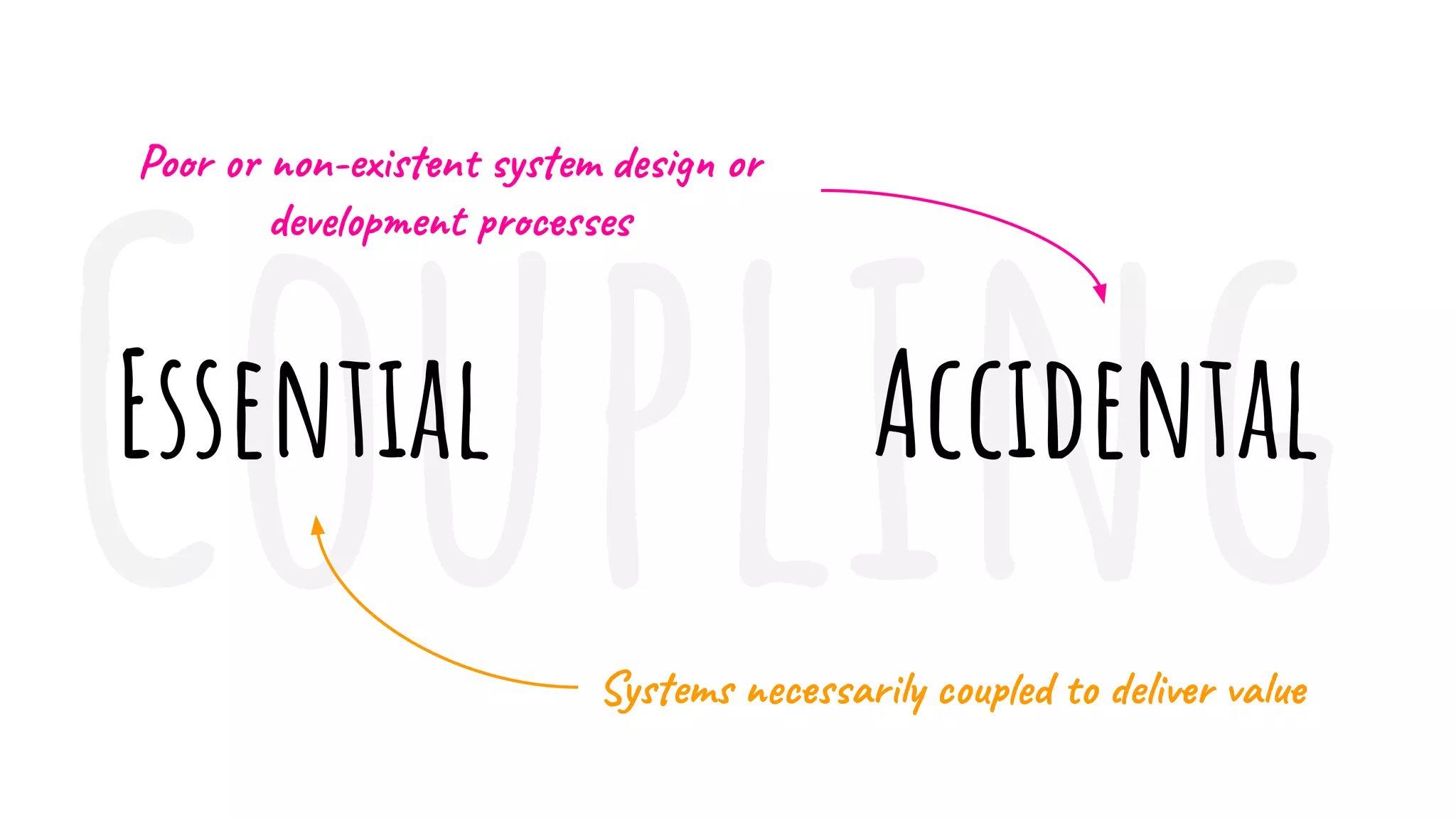

- 60. Coupling Essential Accidental Systems necessarilycoupled to deliver value Poor or non-existent system design or development processes

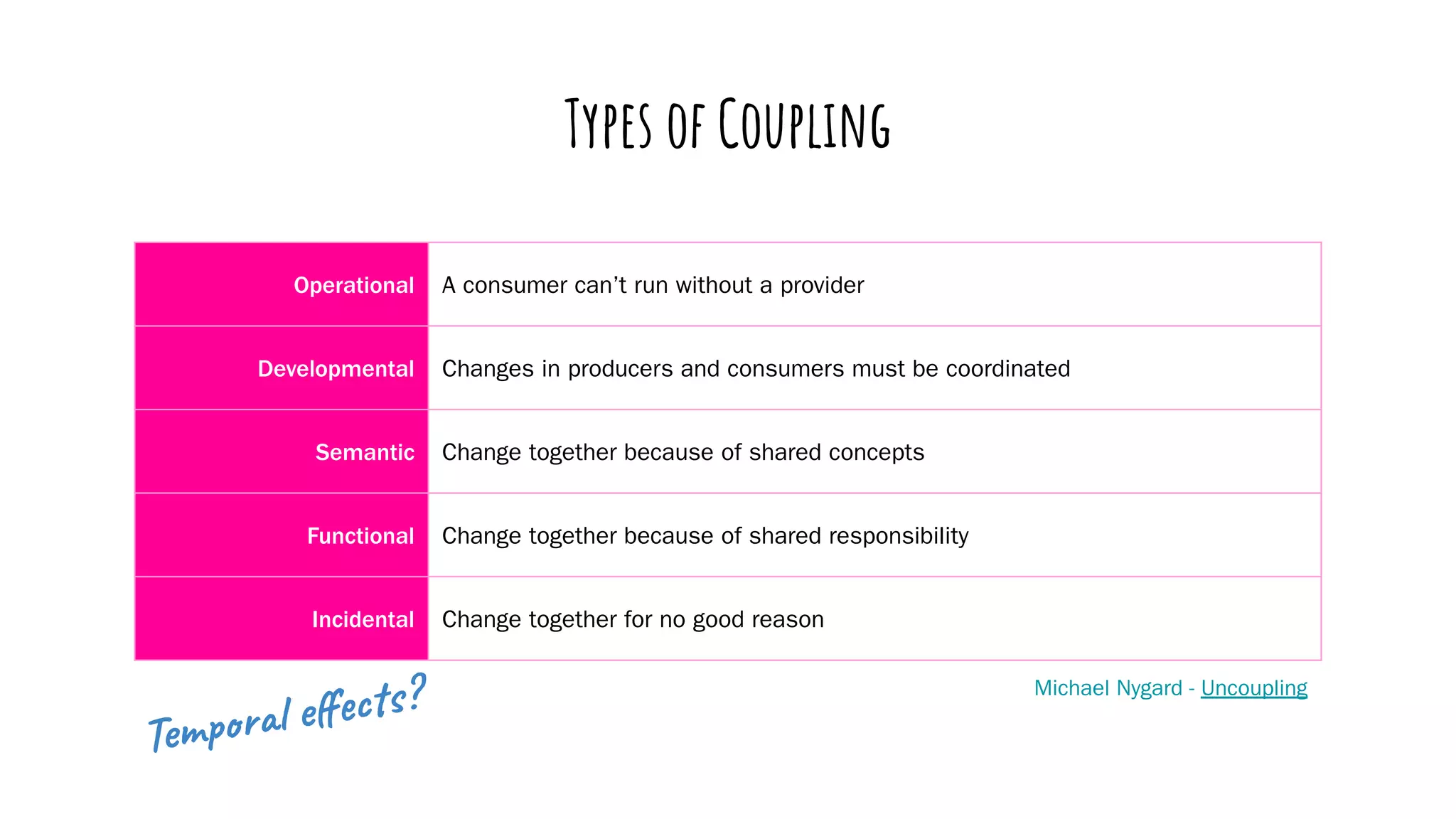

- 61. Types of Coupling OperationalA consumer can’t run without a provider Developmental Changes in producers and consumers must be coordinated Semantic Change together because of shared concepts Functional Change together because of shared responsibility Incidental Change together for no good reason Michael Nygard - Uncoupling Temporal effects?
- 63. Will you beseated?
- 68. What about 3people?

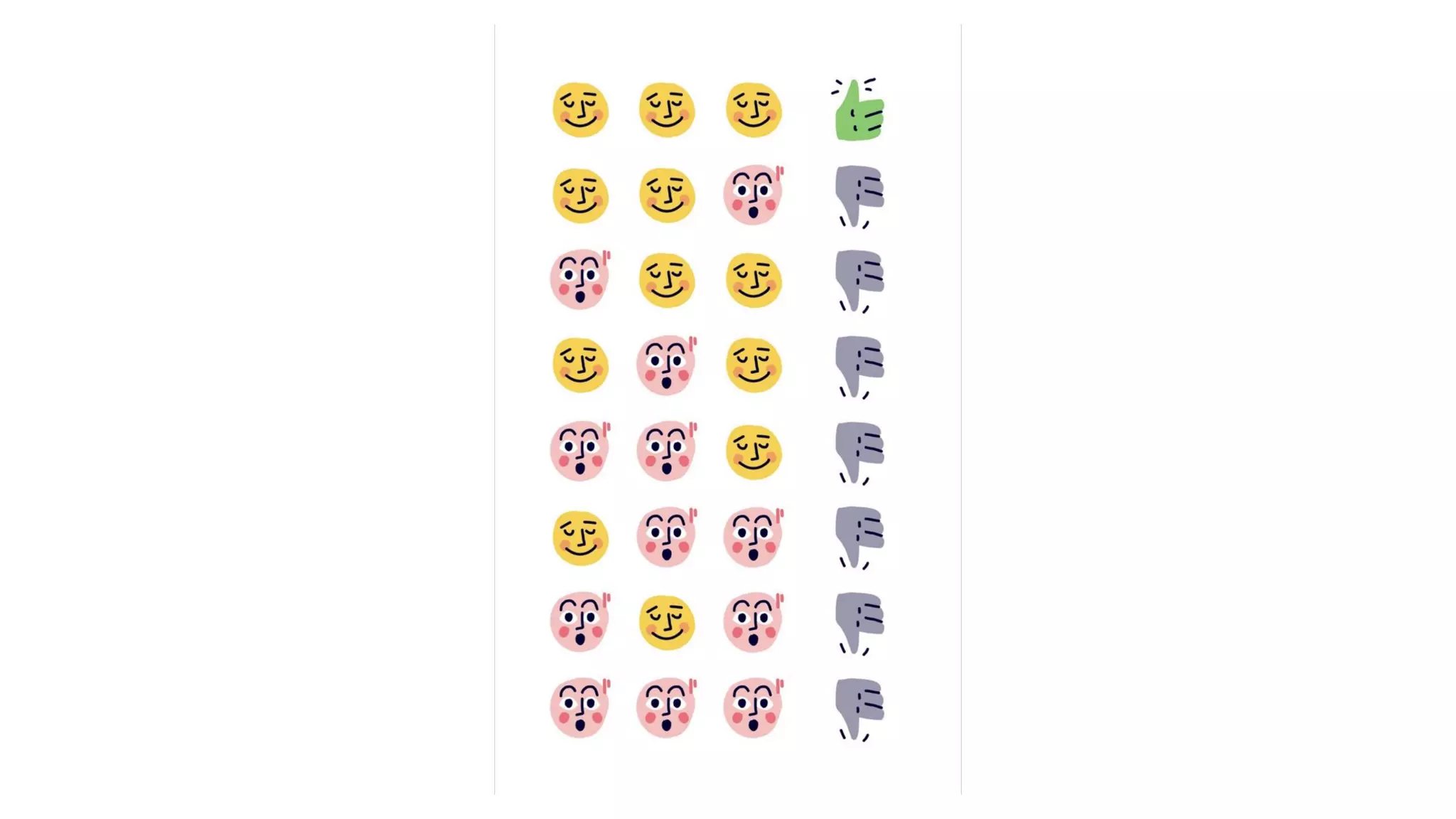

- 70. 12.5% chance ofbeing seated

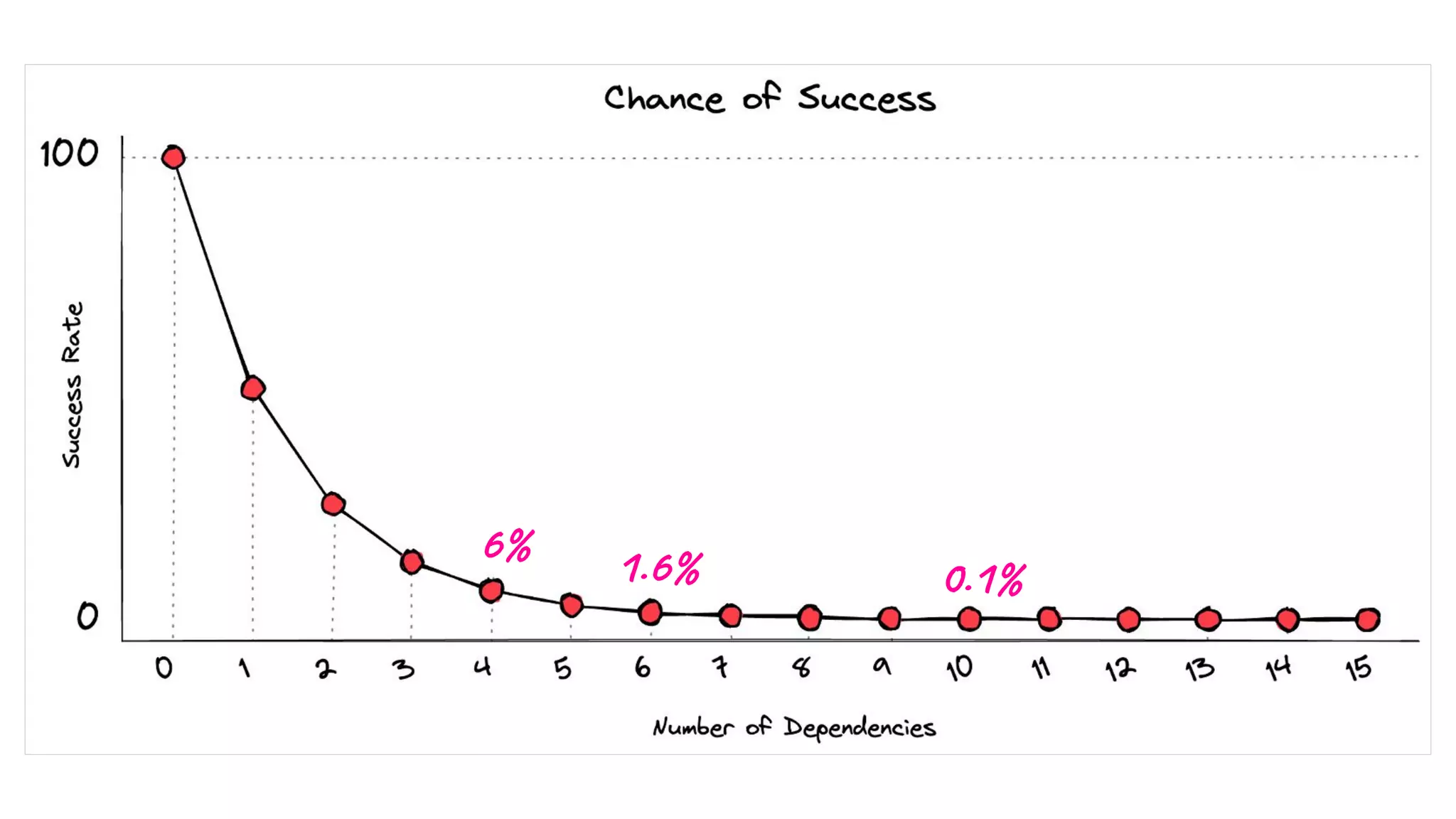

- 71. Adding further peoplequickly reduces your chances of being seated on time to (effectively) 0
- 72. Adding further peoplequickly reduces your chances of being seated on time to (effectively) 0
- 73.

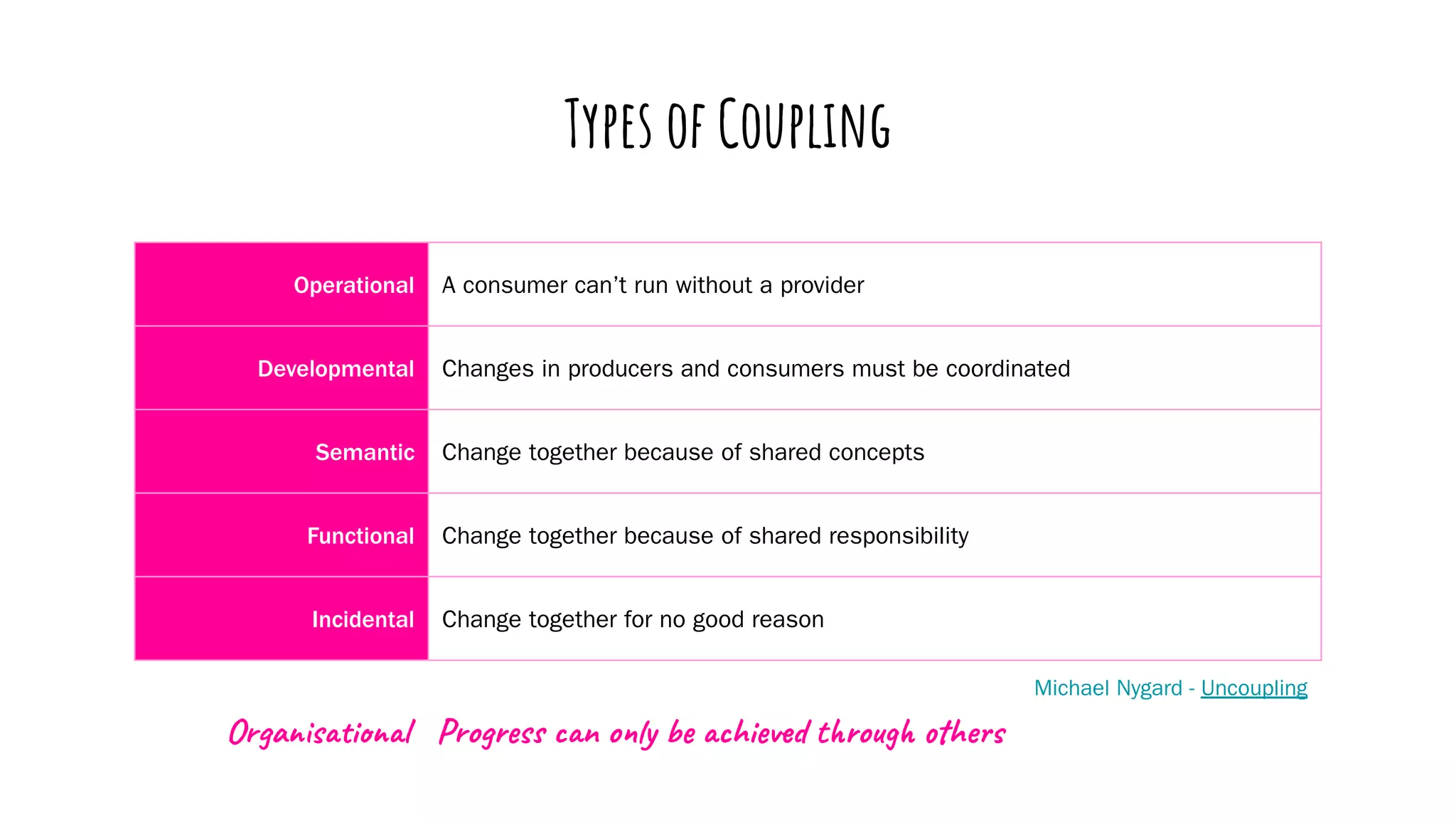

- 74. Types of Coupling OperationalA consumer can’t run without a provider Developmental Changes in producers and consumers must be coordinated Semantic Change together because of shared concepts Functional Change together because of shared responsibility Incidental Change together for no good reason Michael Nygard - Uncoupling Organisational Progress can only be achieved through others
- 75.
- 76. The value oforchestration increases with workflow complexity, notably with complex error scenarios. Comparatively, responsiveness and scalability requirements favour choreography, especially when error handling is minimal.

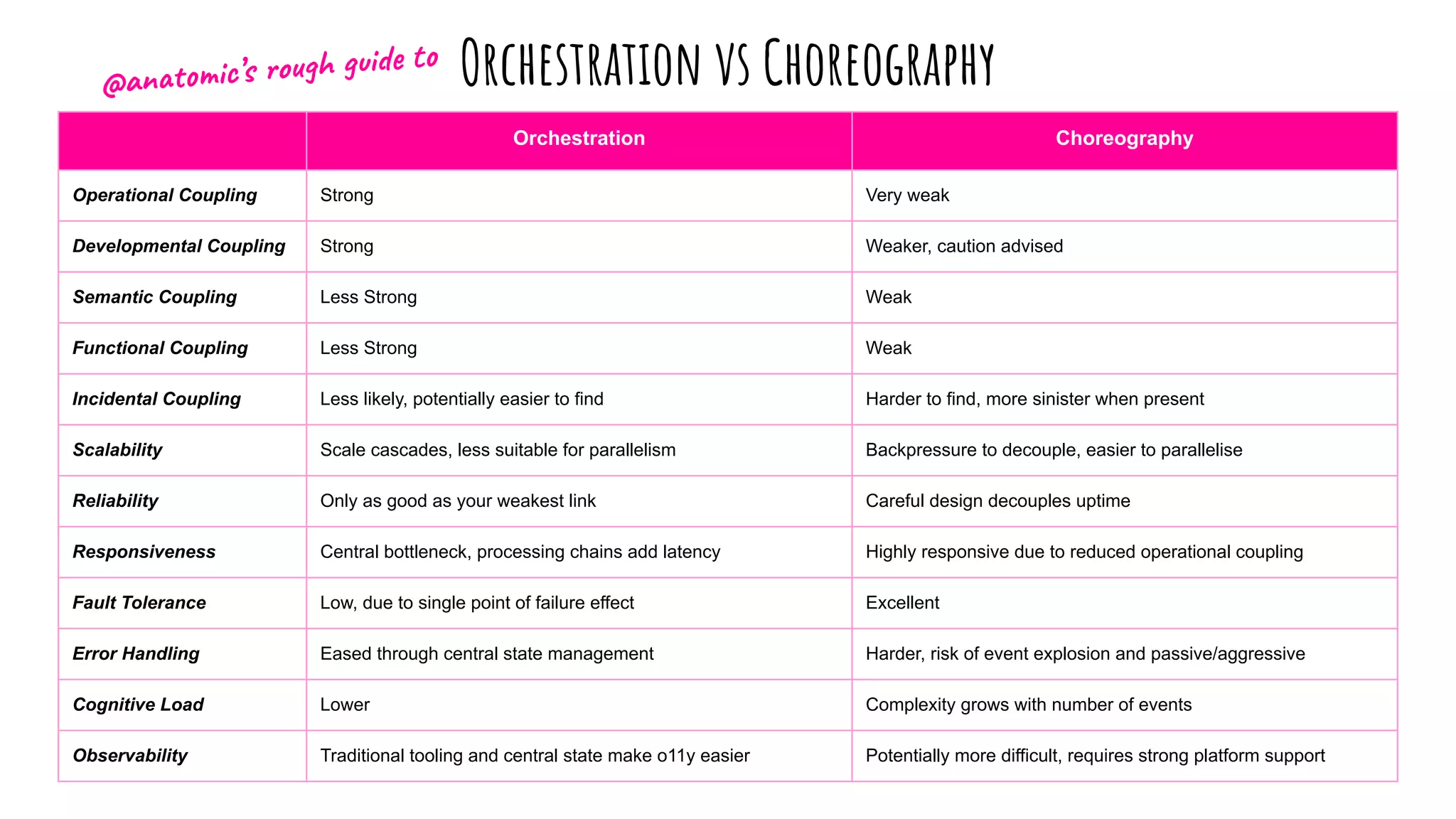

- 77. Orchestration Choreography Operational CouplingStrong Very weak Developmental Coupling Strong Weaker, caution advised Semantic Coupling Less Strong Weak Functional Coupling Less Strong Weak Incidental Coupling Less likely, potentially easier to find Harder to find, more sinister when present Scalability Scale cascades, less suitable for parallelism Backpressure to decouple, easier to parallelise Reliability Only as good as your weakest link Careful design decouples uptime Responsiveness Central bottleneck, processing chains add latency Highly responsive due to reduced operational coupling Fault Tolerance Low, due to single point of failure effect Excellent Error Handling Eased through central state management Harder, risk of event explosion and passive/aggressive Cognitive Load Lower Complexity grows with number of events Observability Traditional tooling and central state make o11y easier Potentially more difficult, requires strong platform support Orchestration vs Choreography @anatomic’s rough guide to
- 78. Making “IT” Work Avoidinggotcha’s, no matter the pattern

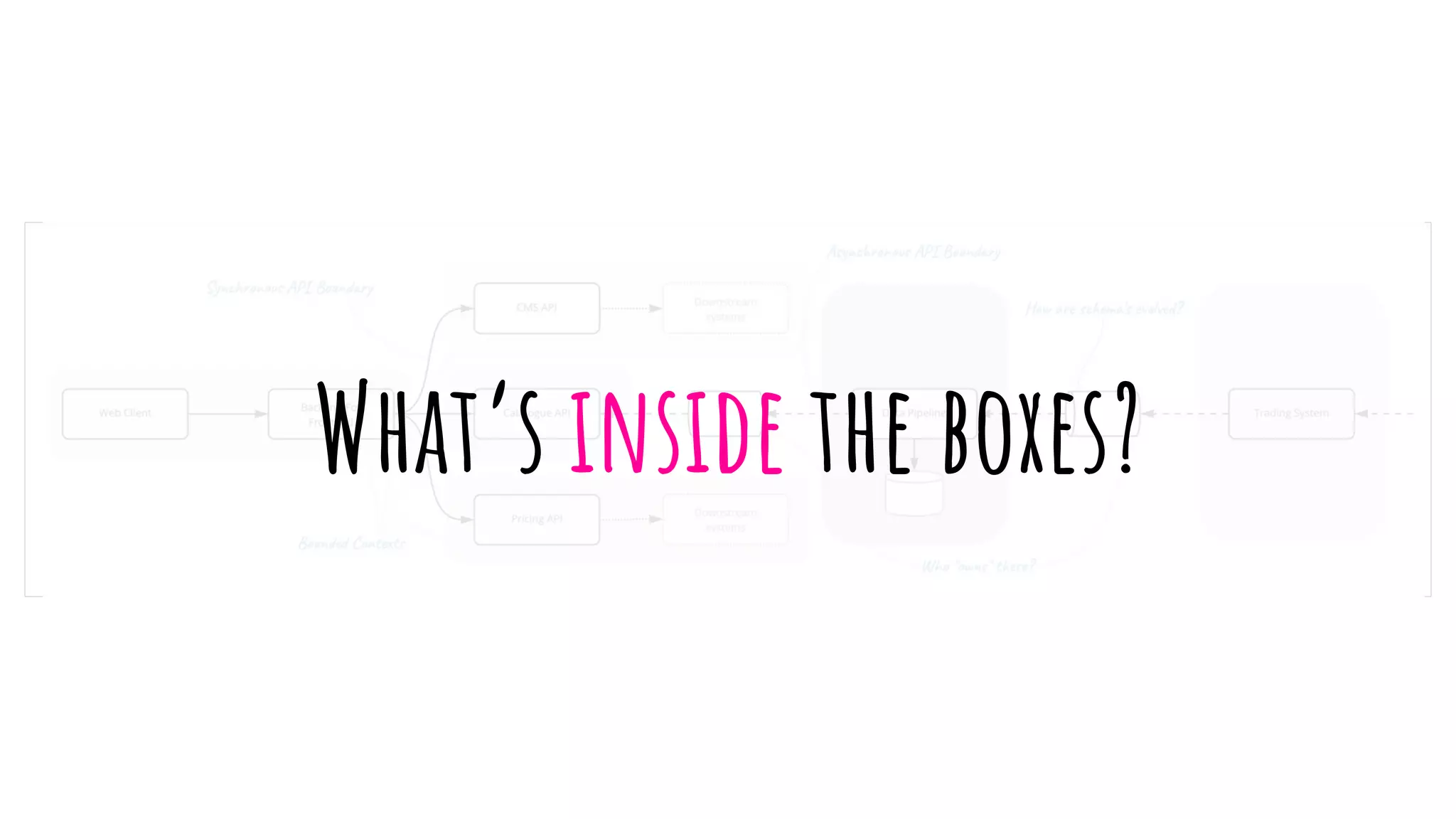

- 80. What’s inside theboxes?

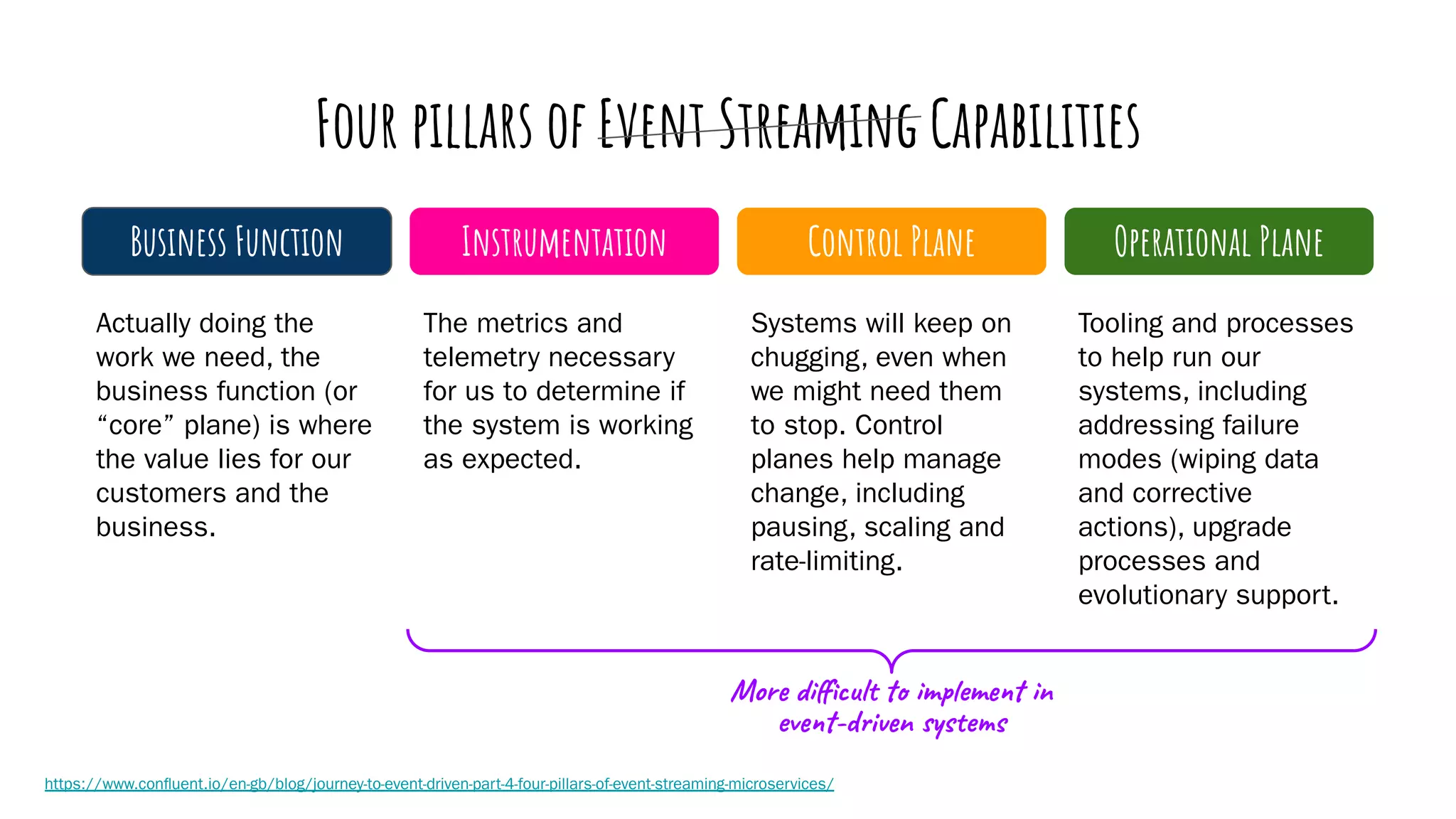

- 81. Four pillars ofEvent Streaming Capabilities Business Function Instrumentation Control Plane Operational Plane Actually doing the work we need, the business function (or “core” plane) is where the value lies for our customers and the business. The metrics and telemetry necessary for us to determine if the system is working as expected. Systems will keep on chugging, even when we might need them to stop. Control planes help manage change, including pausing, scaling and rate-limiting. Tooling and processes to help run our systems, including addressing failure modes (wiping data and corrective actions), upgrade processes and evolutionary support. https://www.confluent.io/en-gb/blog/journey-to-event-driven-part-4-four-pillars-of-event-streaming-microservices/ More difficult to implement in event-driven systems
- 82. What’s between theboxes?

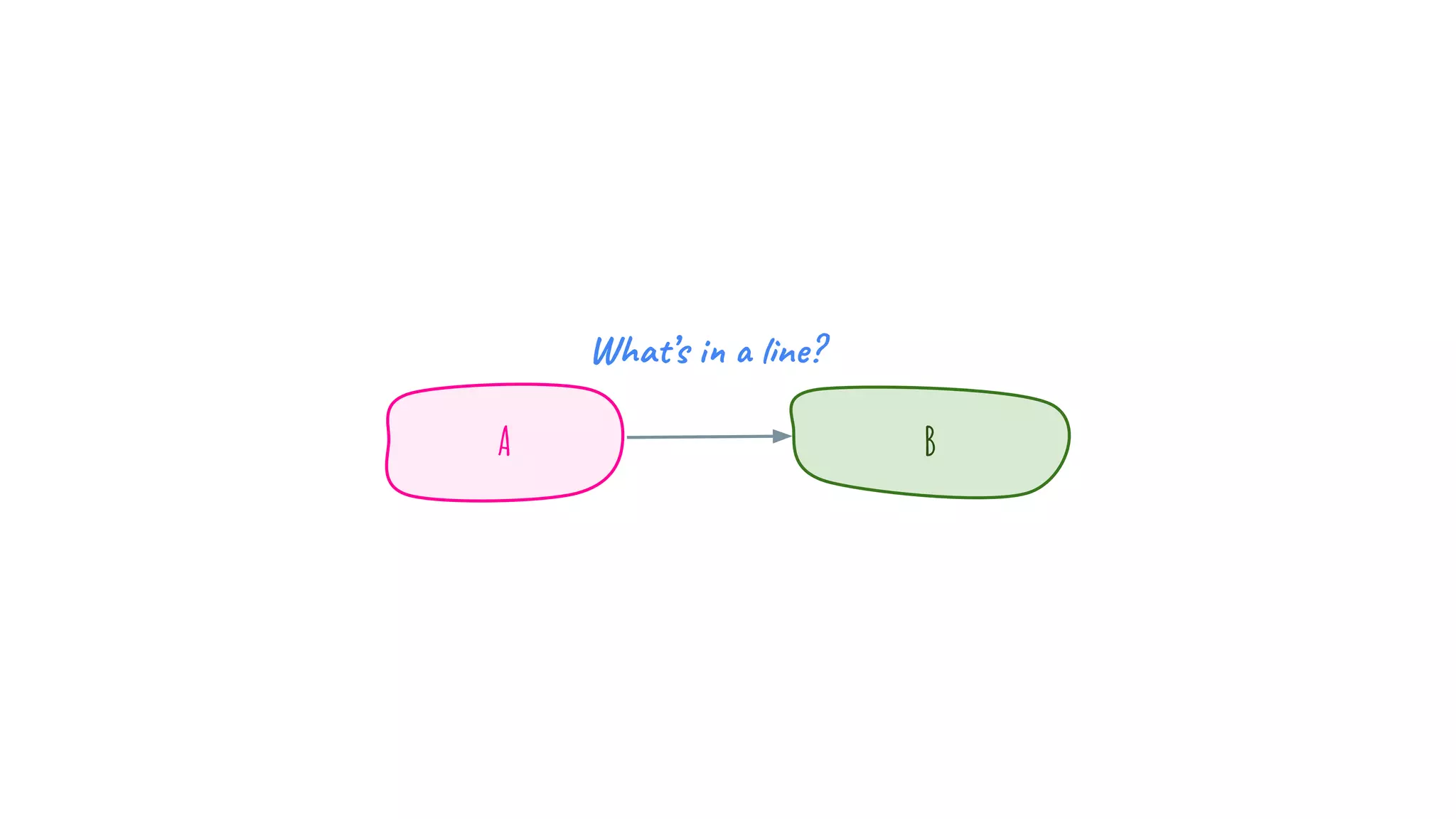

- 83. A B What’s ina line?

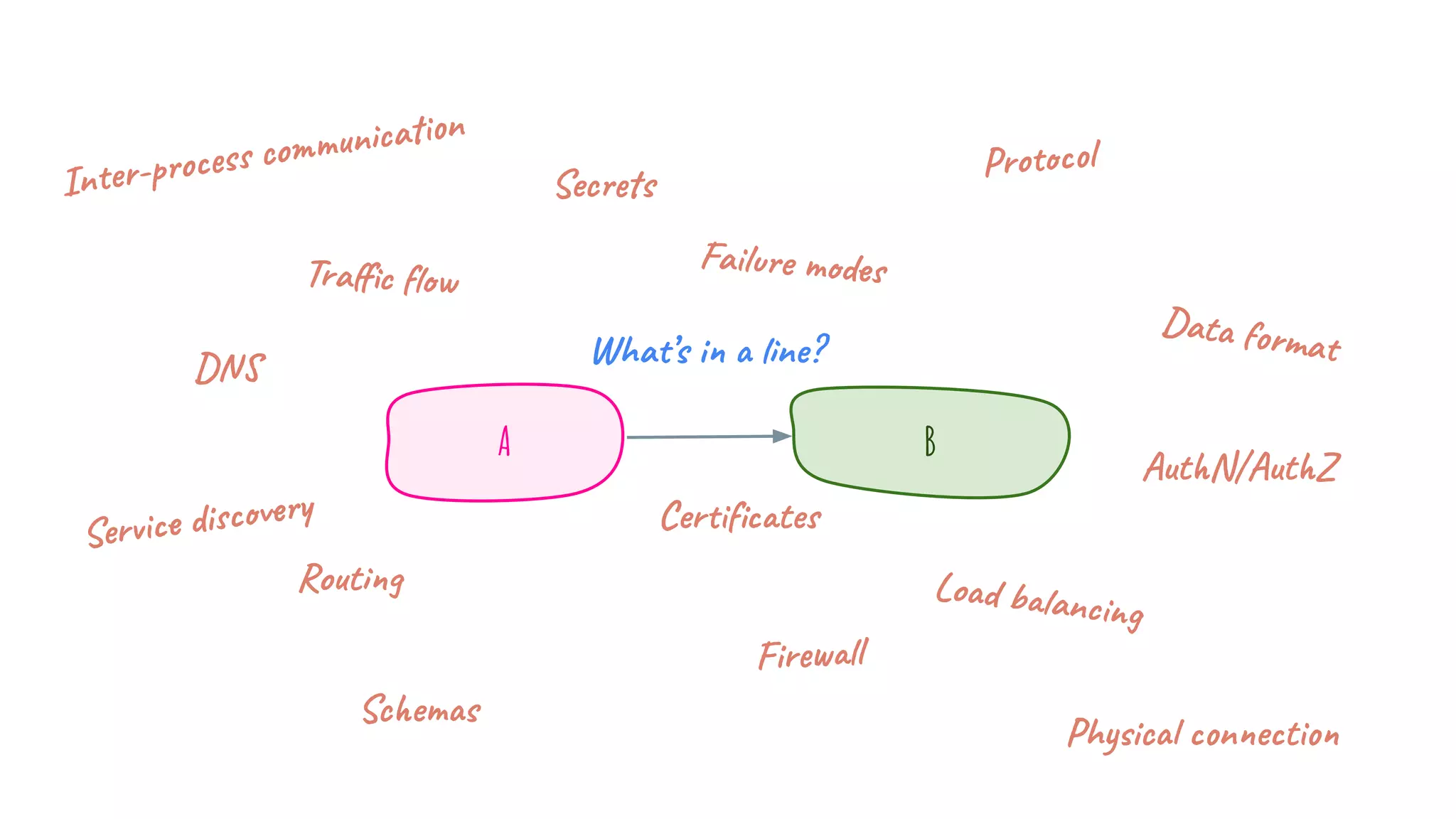

- 84. A B What’s ina line? Inter-process communication Traffic flow DNS Service discovery Routing Schemas Certificates Firewall Physical connection Load balancing AuthN/AuthZ Secrets Data format Protocol Failure modes
- 85. A B What’s ina line? Inter-process communication Traffic flow DNS Service discovery Routing Schemas Certificates Firewall Physical connection Load balancing AuthN/AuthZ Secrets Data format Protocol Failure modes

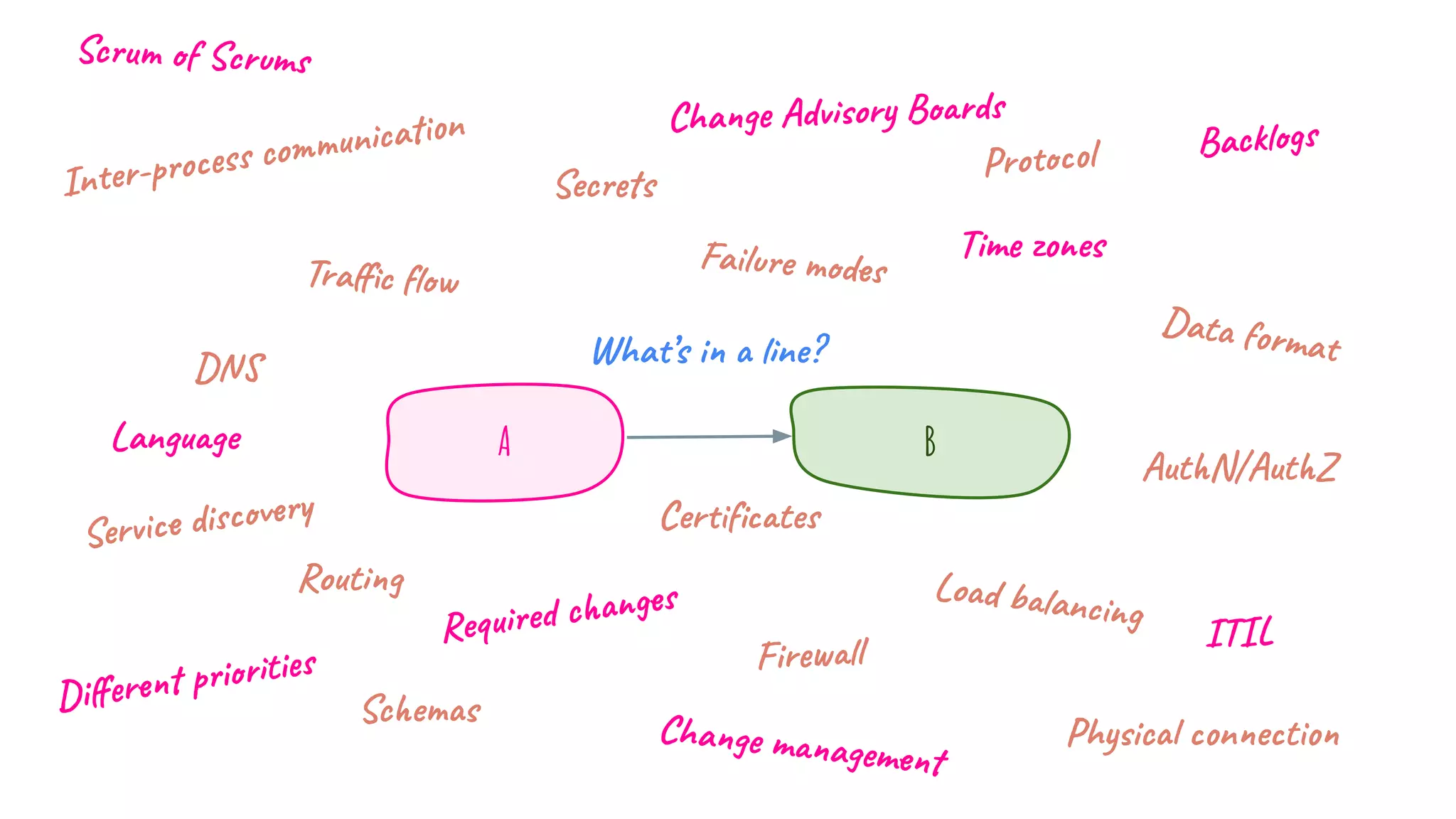

- 86. A B What’s ina line? Inter-process communication Traffic flow DNS Service discovery Routing Schemas Certificates Firewall Physical connection Load balancing AuthN/AuthZ Secrets Data format Protocol Failure modes Different priorities Required changes Change management ITIL Change Advisory Boards Time zones Backlogs Scrum of Scrums Language
- 87. A B What’s ina line? Inter-process communication Traffic flow DNS Service discovery Routing Schemas Certificates Firewall Physical connection Load balancing AuthN/AuthZ Secrets Data format Protocol Failure modes Different priorities Required changes Change management ITIL Change Advisory Boards Time zones Backlogs Scrum of Scrums Language 🤯

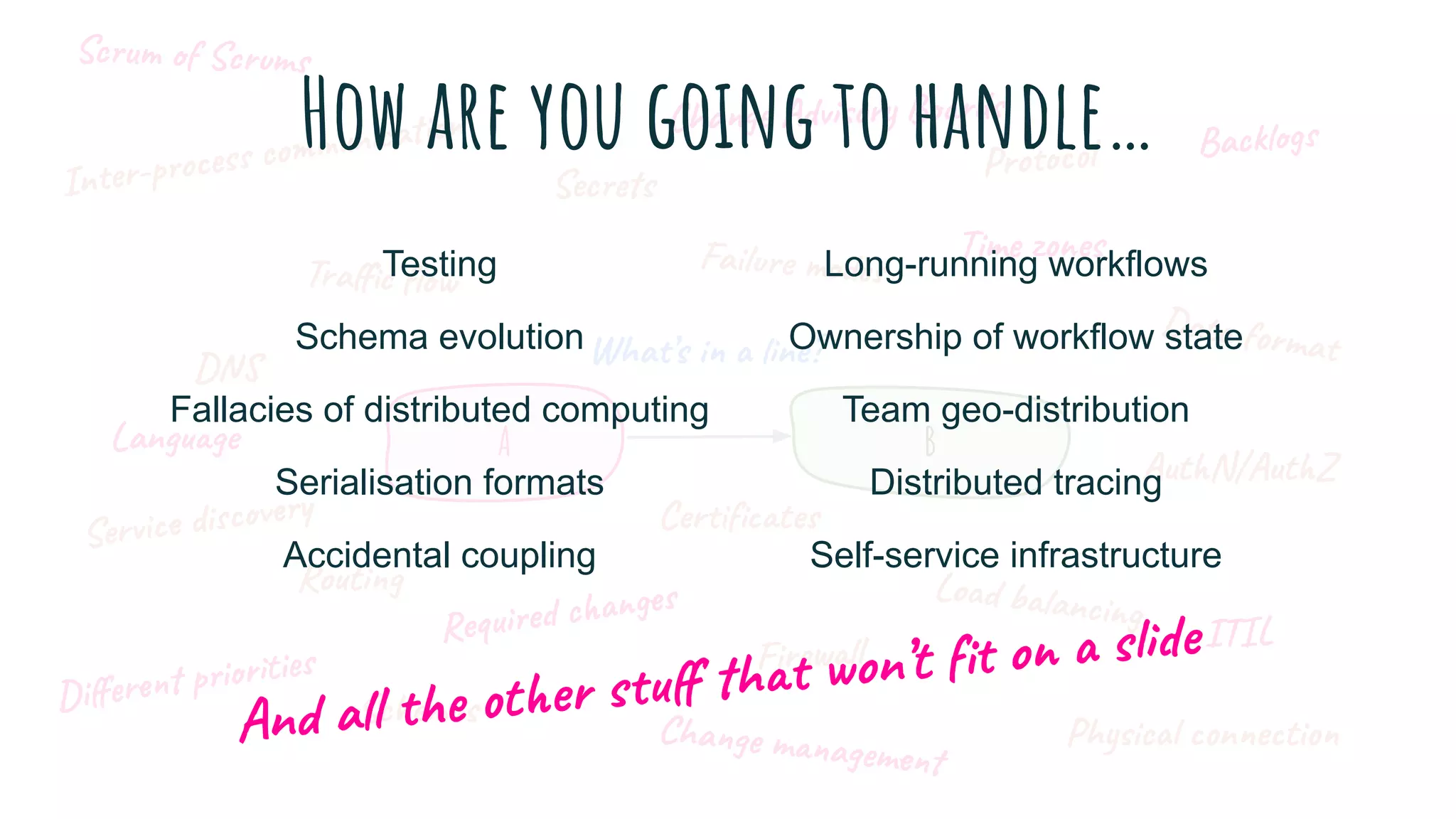

- 88. A B What’s ina line? Inter-process communication Traffic flow DNS Service discovery Routing Schemas Certificates Firewall Physical connection Load balancing AuthN/AuthZ Secrets Data format Protocol Failure modes Different priorities Required changes Change management ITIL Change Advisory Boards Time zones Backlogs Scrum of Scrums Language Testing Long-running workflows Schema evolution Ownership of workflow state Fallacies of distributed computing Team geo-distribution Serialisation formats Distributed tracing Accidental coupling Self-service infrastructure How are you going to handle… And all the other stuff that won’t fit on a slide

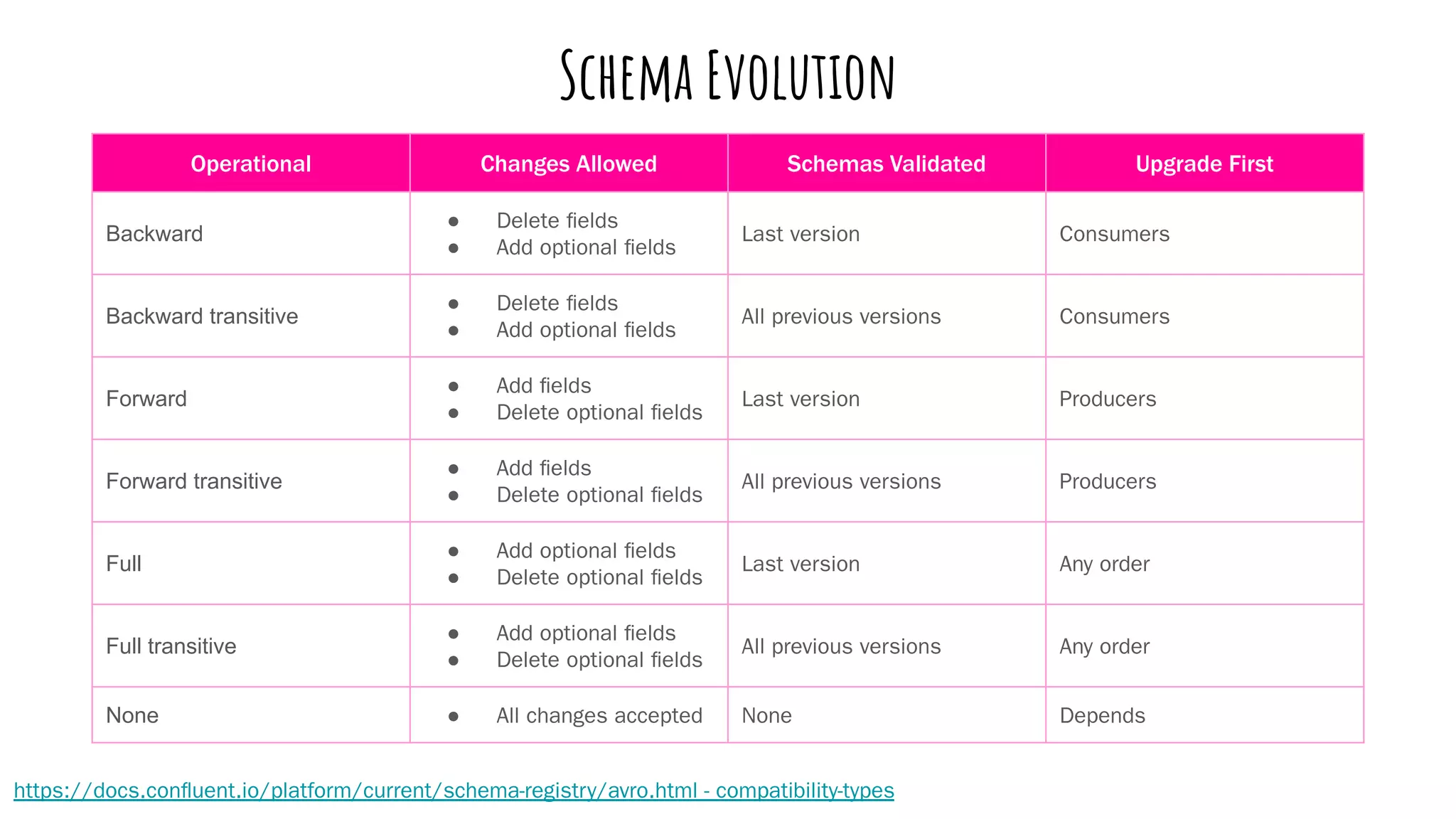

- 90. Schema Evolution Operational ChangesAllowed Schemas Validated Upgrade First Backward ● Delete fields ● Add optional fields Last version Consumers Backward transitive ● Delete fields ● Add optional fields All previous versions Consumers Forward ● Add fields ● Delete optional fields Last version Producers Forward transitive ● Add fields ● Delete optional fields All previous versions Producers Full ● Add optional fields ● Delete optional fields Last version Any order Full transitive ● Add optional fields ● Delete optional fields All previous versions Any order None ● All changes accepted None Depends https://docs.confluent.io/platform/current/schema-registry/avro.html - compatibility-types
- 91. A B What’s ina line? Inter-process communication Traffic flow DNS Service discovery Routing Schemas Certificates Firewall Physical connection Load balancing AuthN/AuthZ Secrets Data format Protocol Failure modes Different priorities Required changes Change management ITIL Change Advisory Boards Time zones Backlogs Scrum of Scrums Language Testing Long-running workflows Schema evolution Ownership of workflow state Fallacies of distributed computing Team geo-distribution Serialisation formats Distributed tracing Accidental coupling Self-service infrastructure How are you going to handle… And all the other stuff that won’t fit on a slide
- 93. Favour orchestration forcomplex workflows, choreography for scalability + weaker coupling Enable long-term changeability through deliberate design + trade-off analysis Complexity breeds in the bits between our systems, handle with care (+ don’t forget about the humans!) www.ian-thomas.net | @anatomic | linkedin.com/in/anatomic
- 94. Thanks 🖖 If you’reinterested in chatting more about any of the topics covered in this talk, come and grab me in the hallway track or virtually through Twitter or LinkedIn. Thank you for coming to hear me speak! www.ian-thomas.net | @anatomic | linkedin.com/in/anatomic 2023
