Orchestrating Cloud Events
KNative Meetup - Sept 2020

2. 2
@Salaboy
Mauricio Salatino
http://salaboy.com
@Camunda / @ZeebeHQ / @LearnK8s

3. 3
Disclaimer
Live, Remote, WebSockets, Kubernetes,
Knative, Cloud Events, Docker, Java, WiFi,
my laptop, what can possibly go wrong?

4. 4

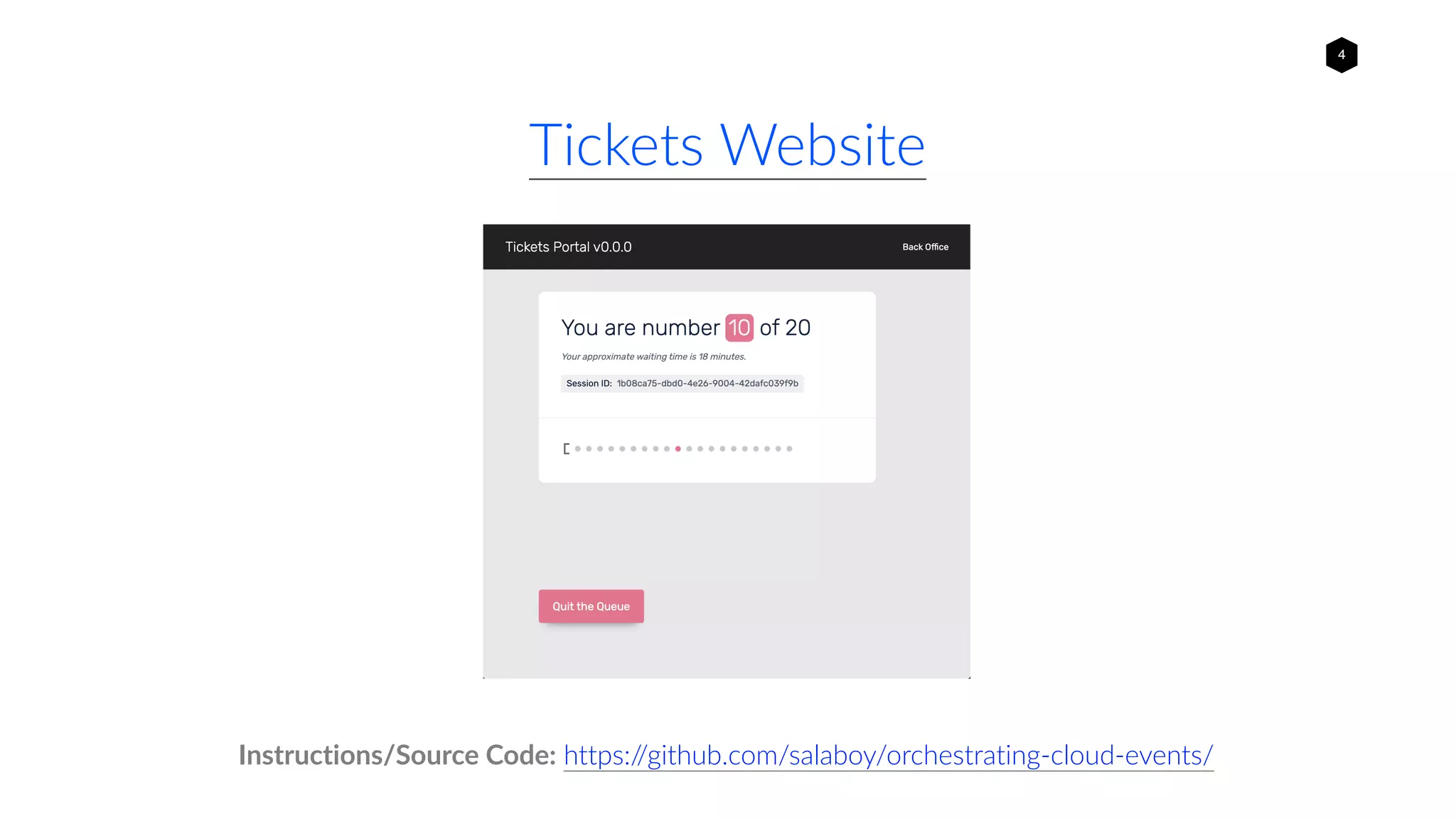

Tickets Website
Instructions/Source Code: https://github.com/salaboy/orchestrating-cloud-events/

5. 5

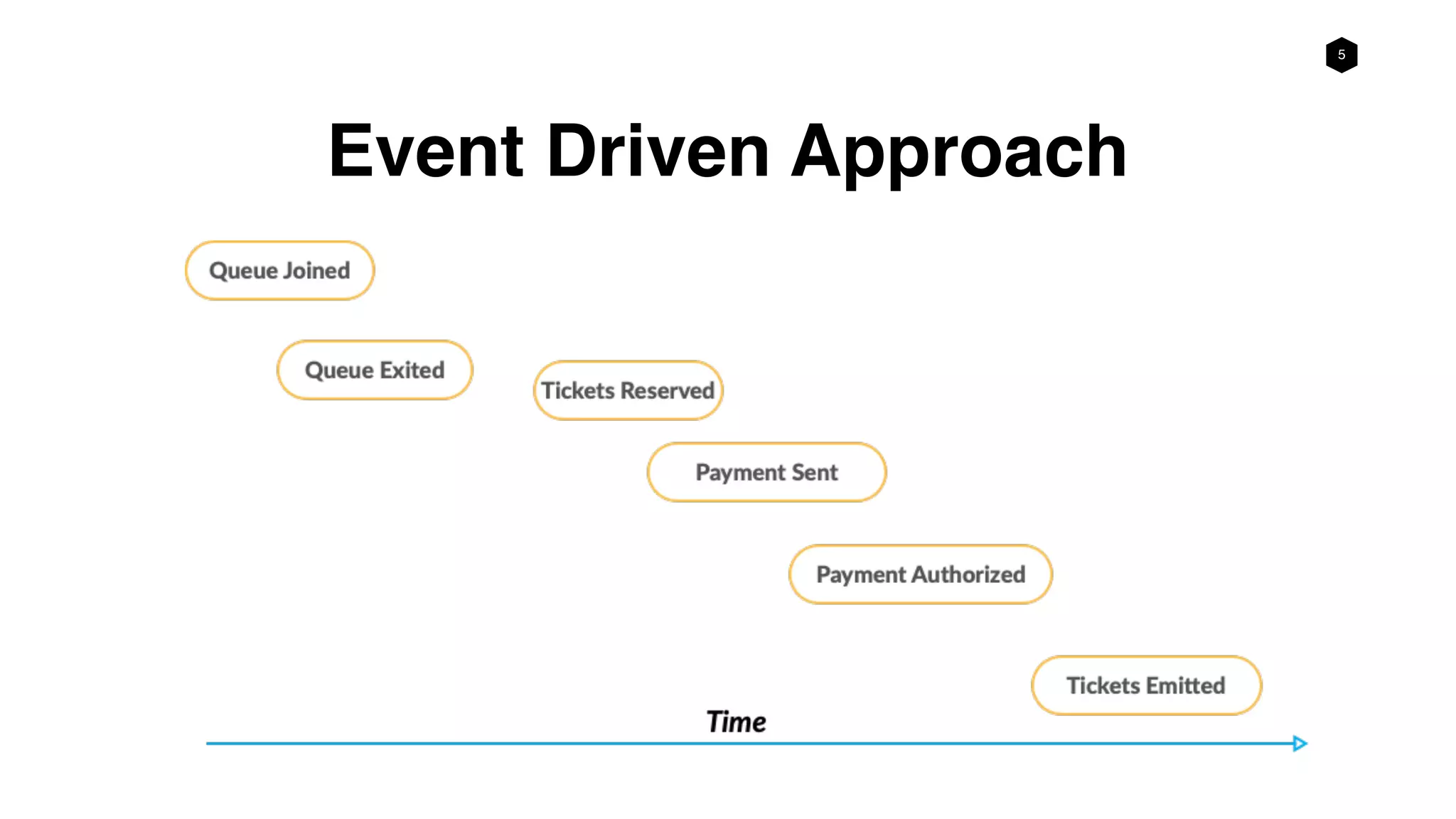

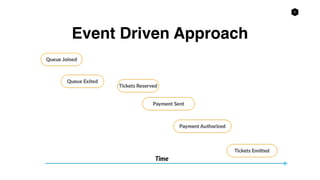

Event Driven Approach

6. 6

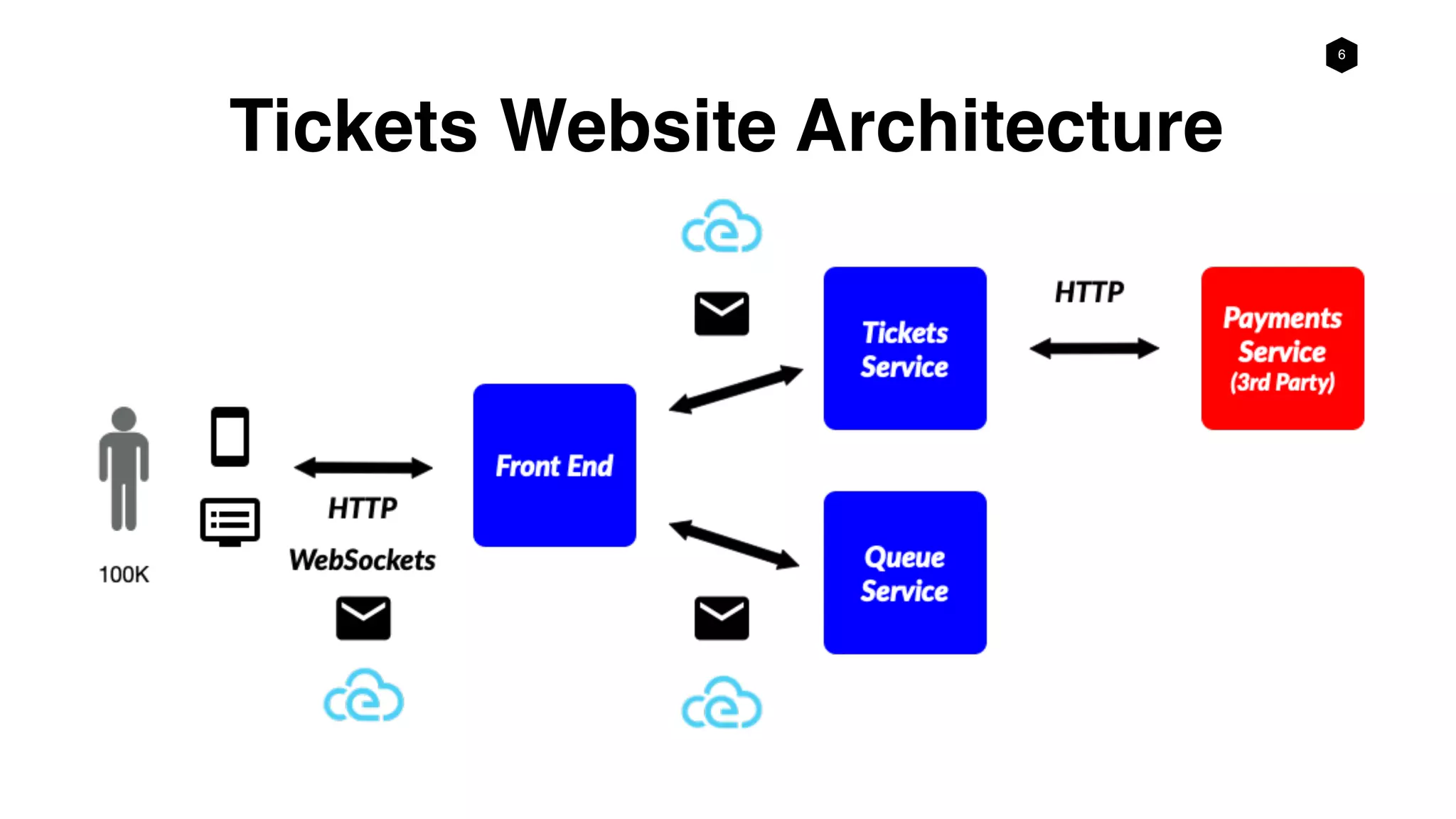

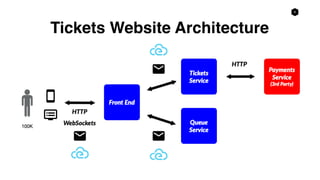

Tickets Website Architecture

7. 7
Knative Serving
Knative Eventing
Universal subscrip/on, delivery, and
management of events.
Run serverless containers on Kubernetes with
ease, Kna/ve takes care of the details of
networking, autoscaling (even to zero), and
revision tracking.

8. 8

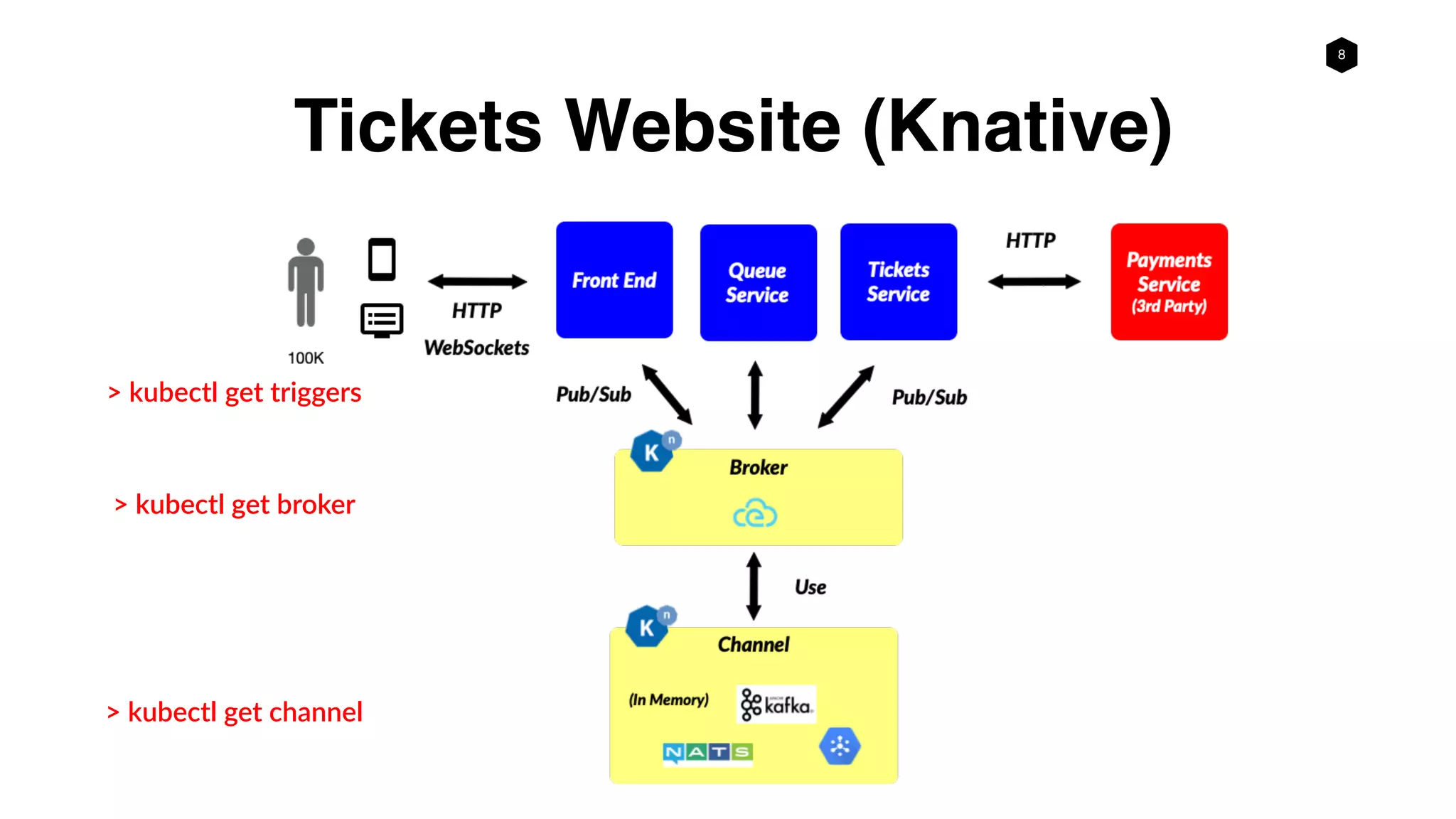

Tickets Website (Knative)
> kubectl get channel
> kubectl get broker
> kubectl get triggers

9. 9

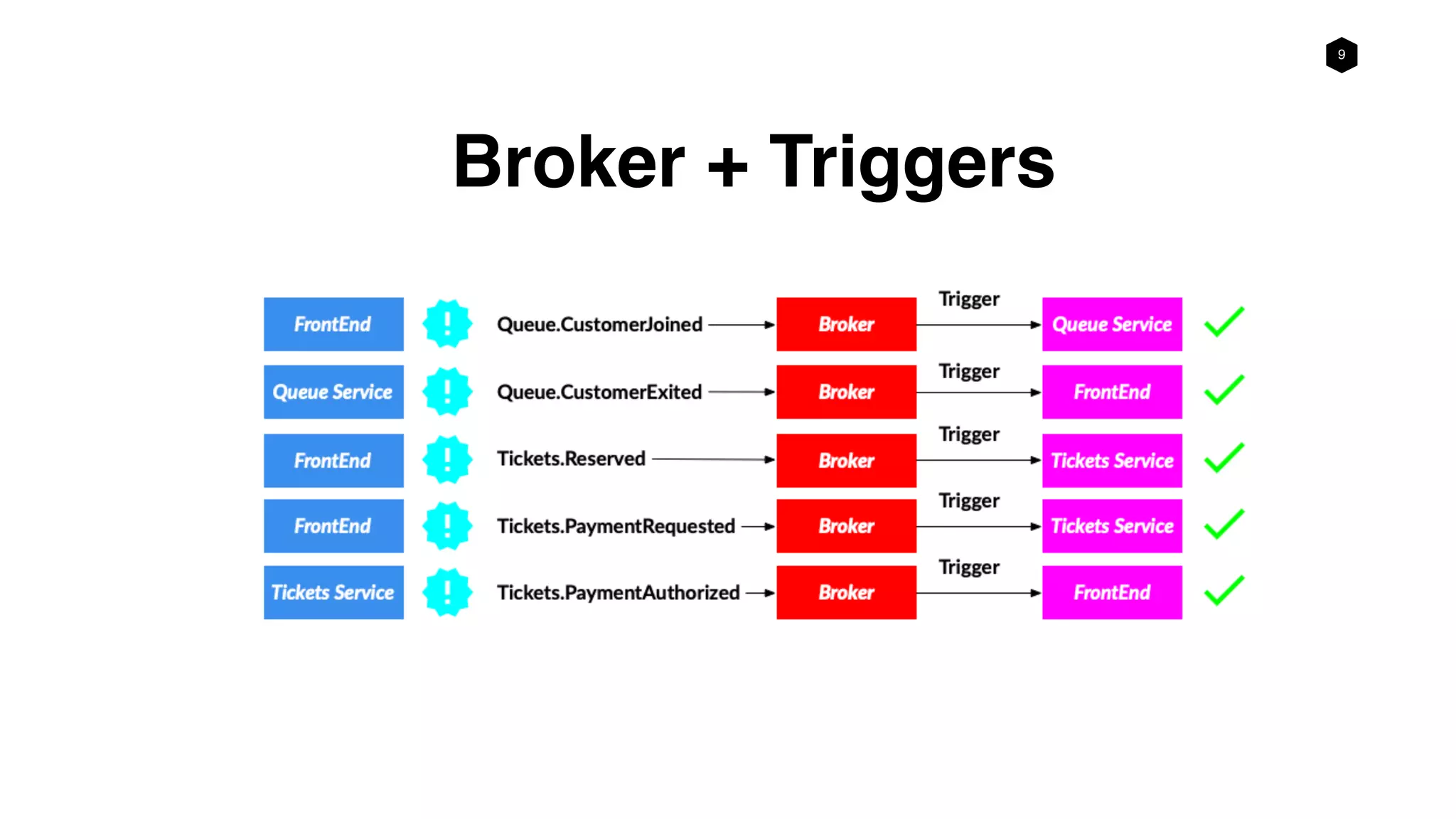

Broker + Triggers

10. 10
➡The sequence of events maCers
➡How do you deal with changes in this sequence?
➡It is hard to see where things are at a given /me
➡It is hard to figure out what to do when things go
wrong
Visibility/Changes?

11. 11

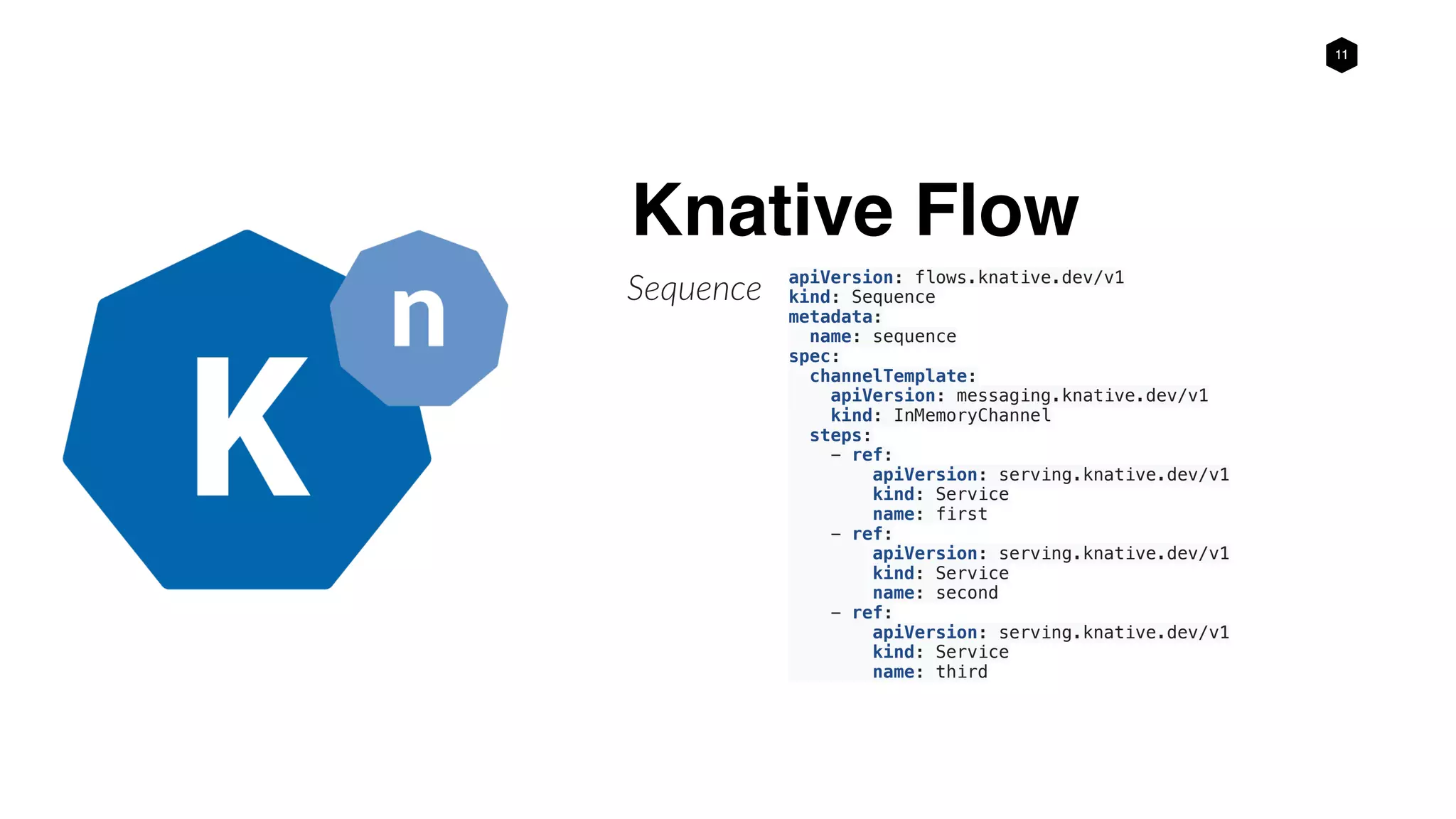

Knative Flow
Sequence apiVersion: flows.knative.dev/v1
kind: Sequence
metadata:
name: sequence
spec:
channelTemplate:
apiVersion: messaging.knative.dev/v1
kind: InMemoryChannel
steps:
- ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: first
- ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: second
- ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: third

12. 12

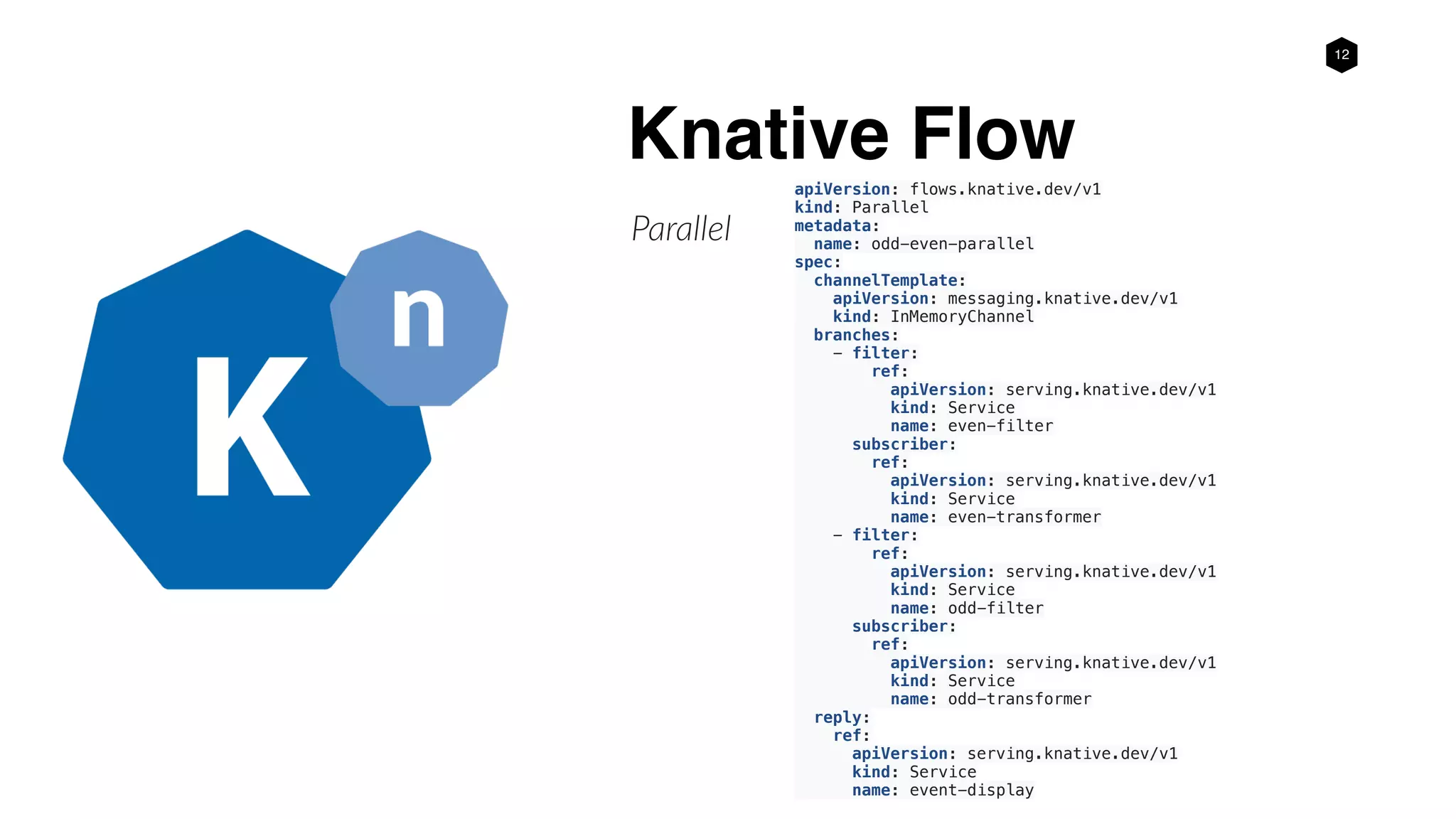

Knative Flow
Parallel
apiVersion: flows.knative.dev/v1
kind: Parallel
metadata:
name: odd-even-parallel
spec:
channelTemplate:
apiVersion: messaging.knative.dev/v1
kind: InMemoryChannel
branches:
- filter:
ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: even-filter
subscriber:
ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: even-transformer
- filter:
ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: odd-filter
subscriber:
ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: odd-transformer
reply:
ref:
apiVersion: serving.knative.dev/v1
kind: Service
name: event-display

13. 13
Zeebe
Workflow Engine
• Microservices and Events Orchestration
•Available as
•SaaS (console.cloud.camunda.io)
•On-Prem (helm.zeebe.io)@ZeebeHQ
http://zeebe.io

14. 14

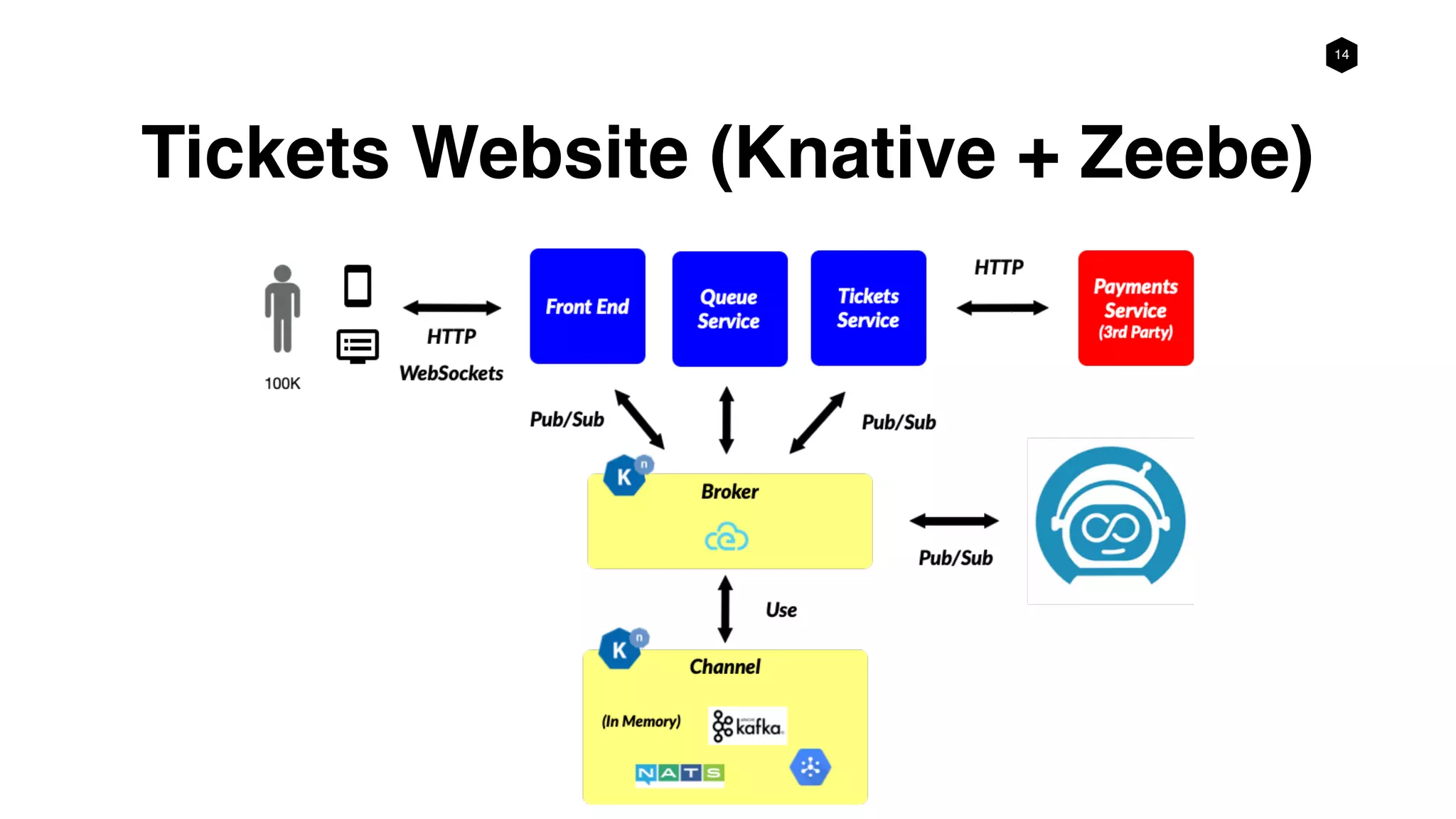

Tickets Website (Knative + Zeebe)

15. 15

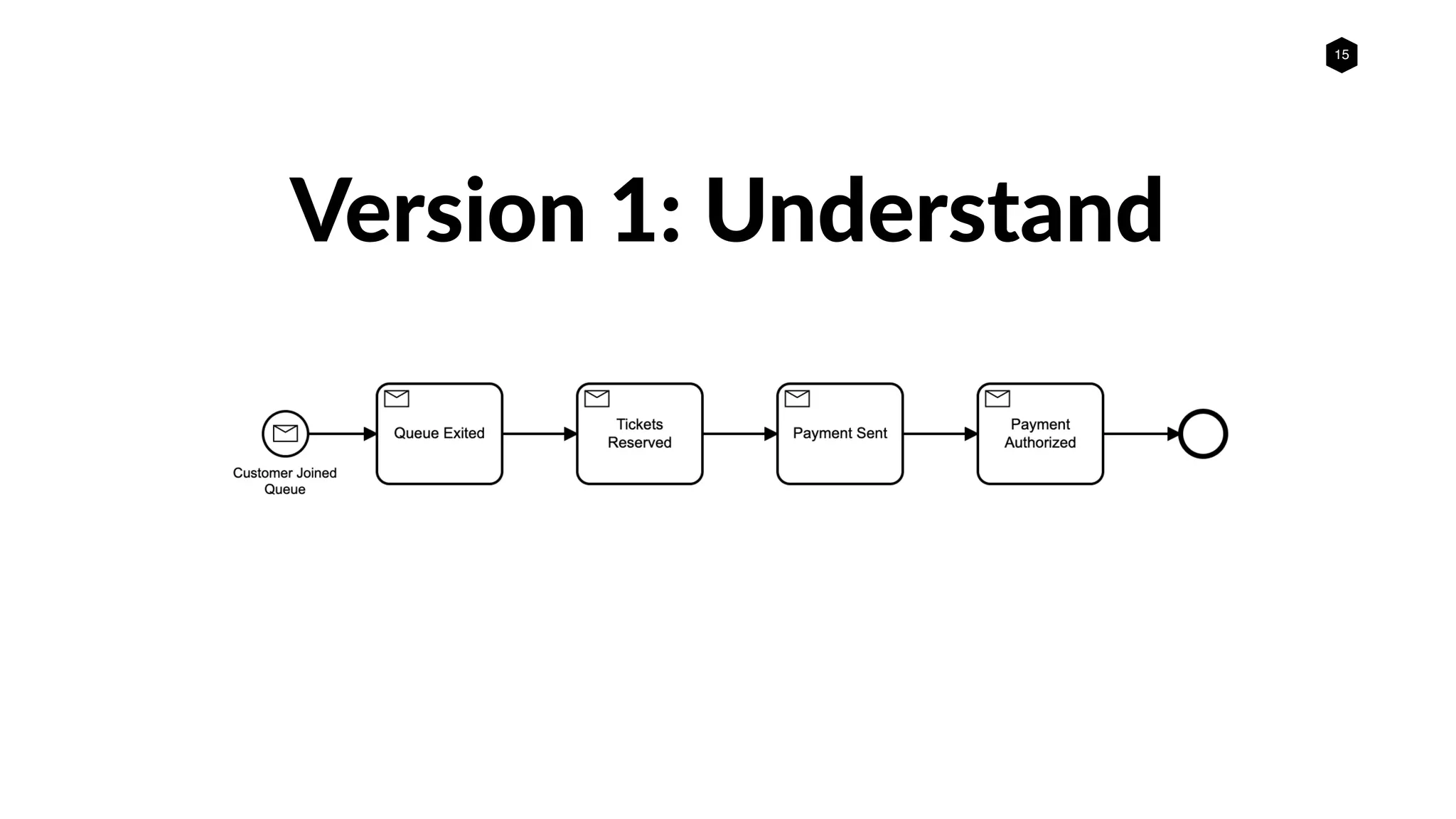

Version 1: Understand

16. 16

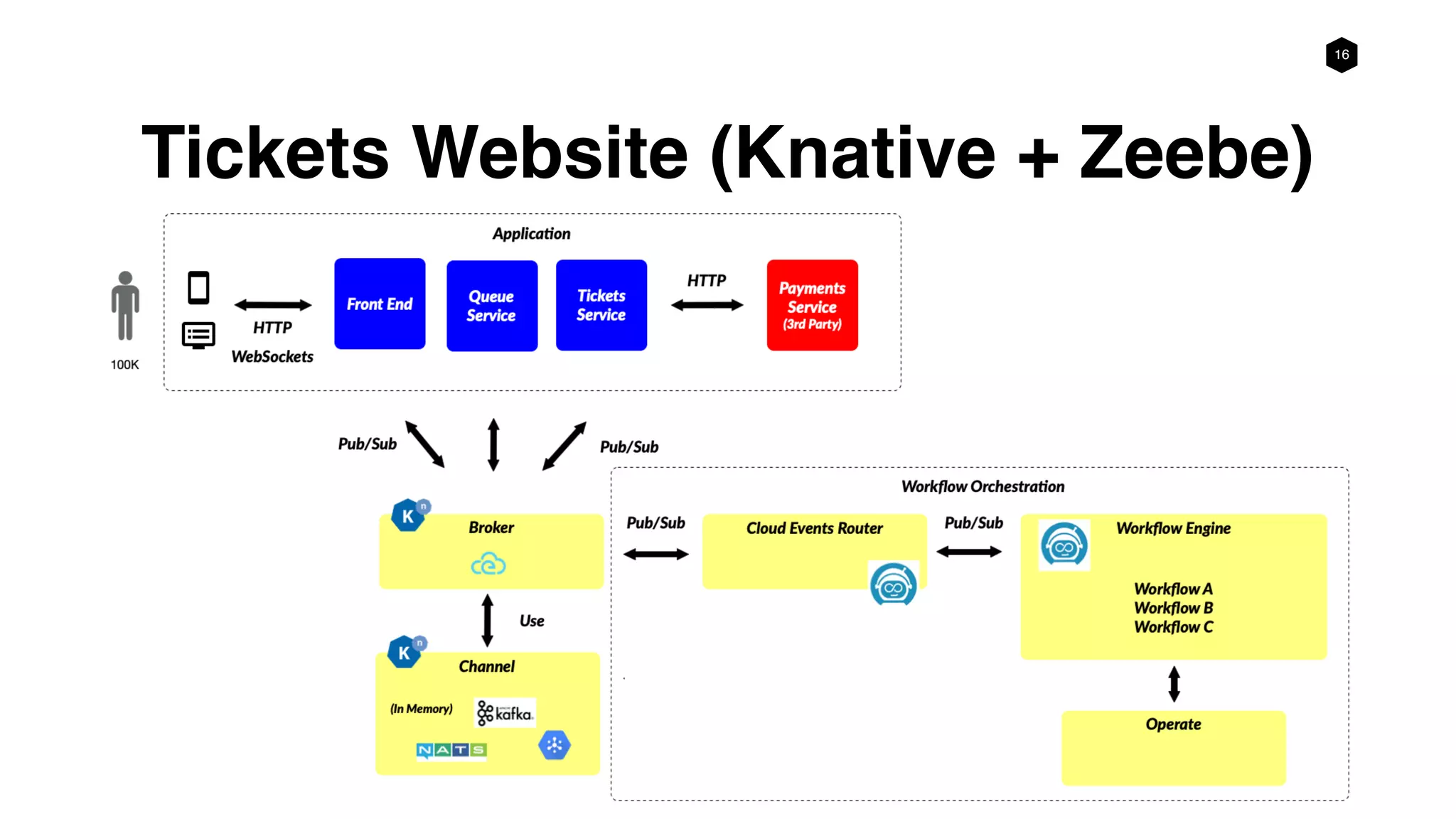

Tickets Website (Knative + Zeebe)

17. 17

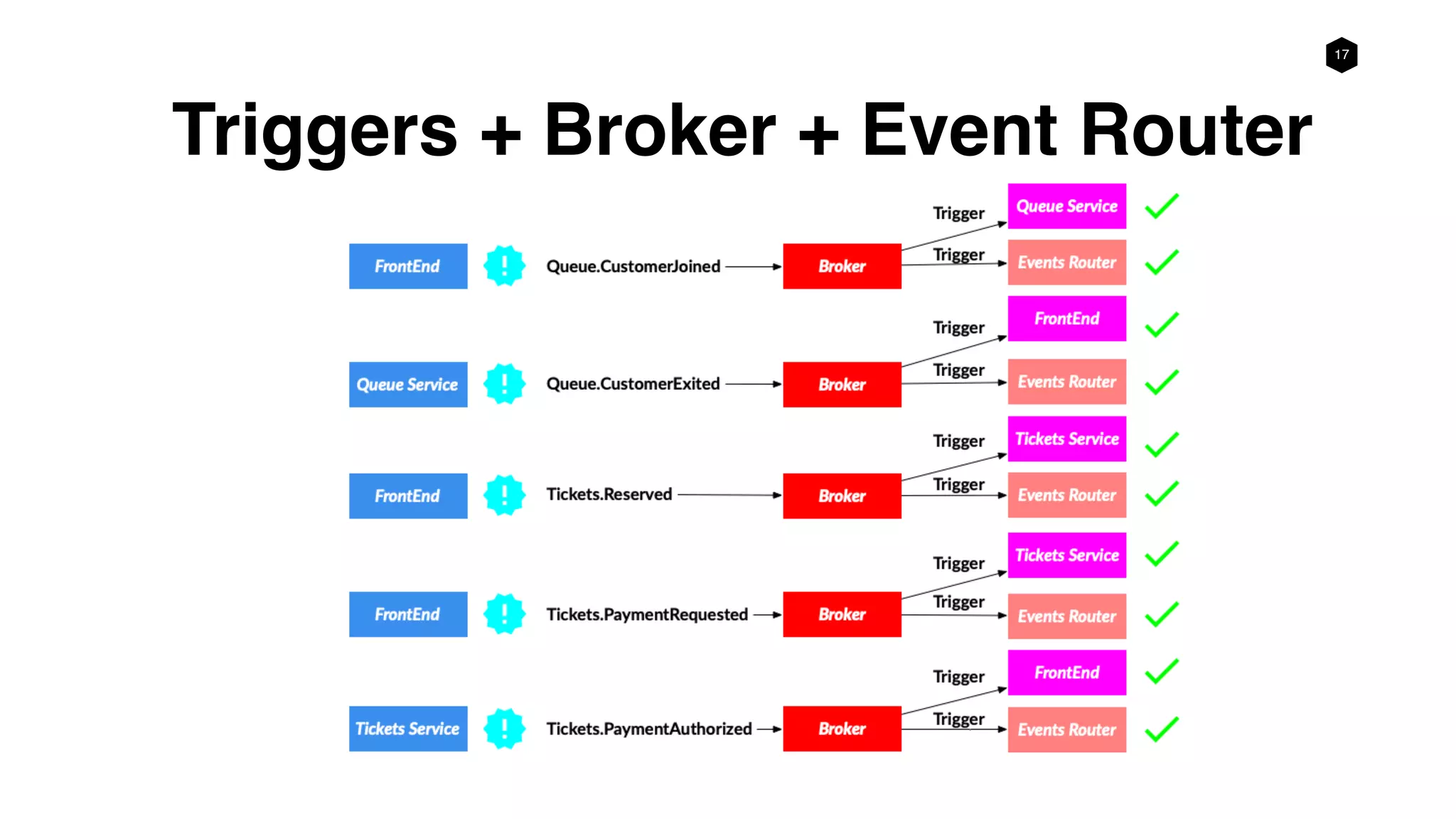

Triggers + Broker + Event Router

18. 18

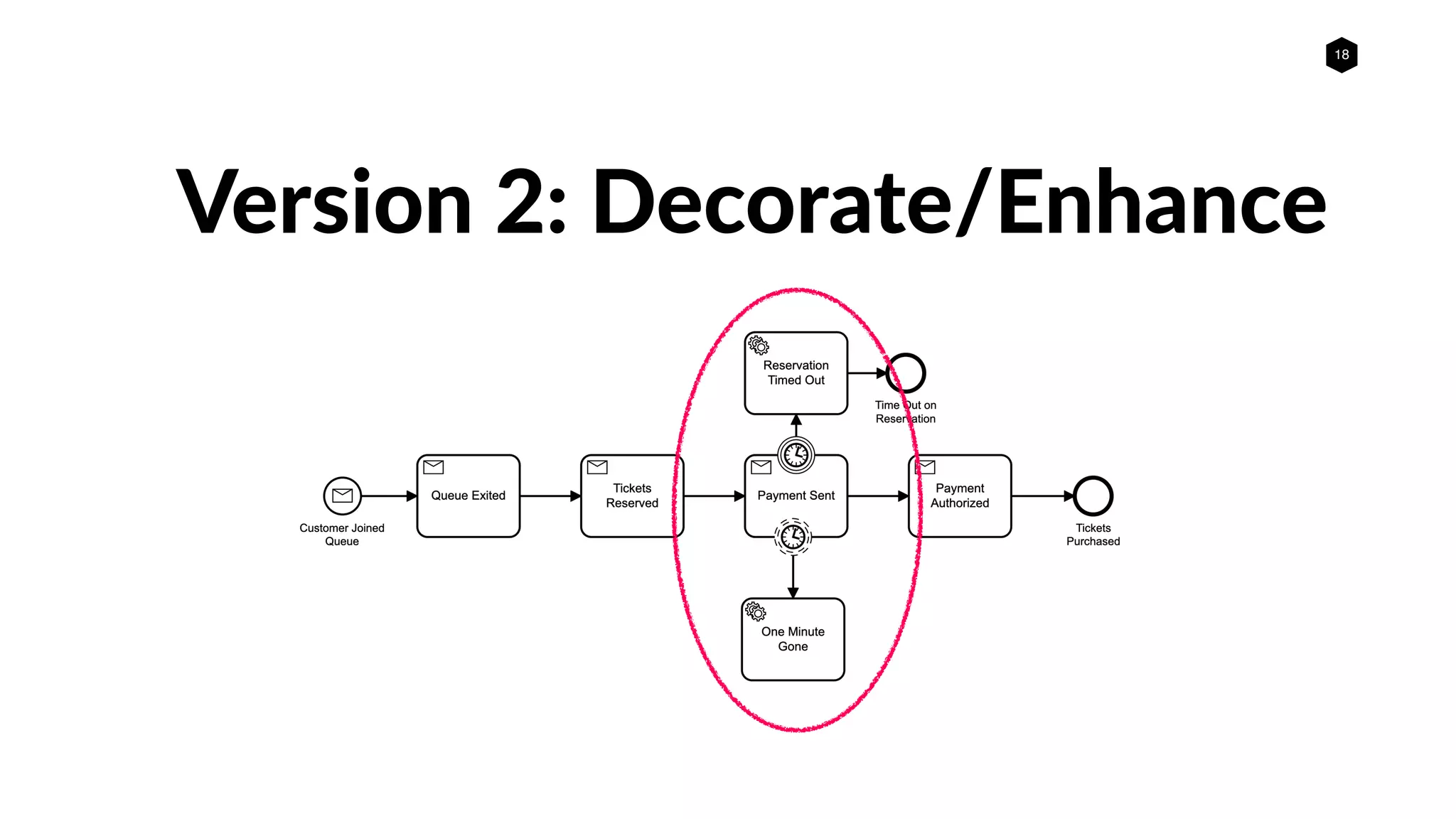

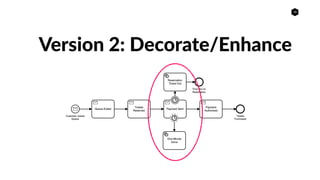

Version 2: Decorate/Enhance

19. 19

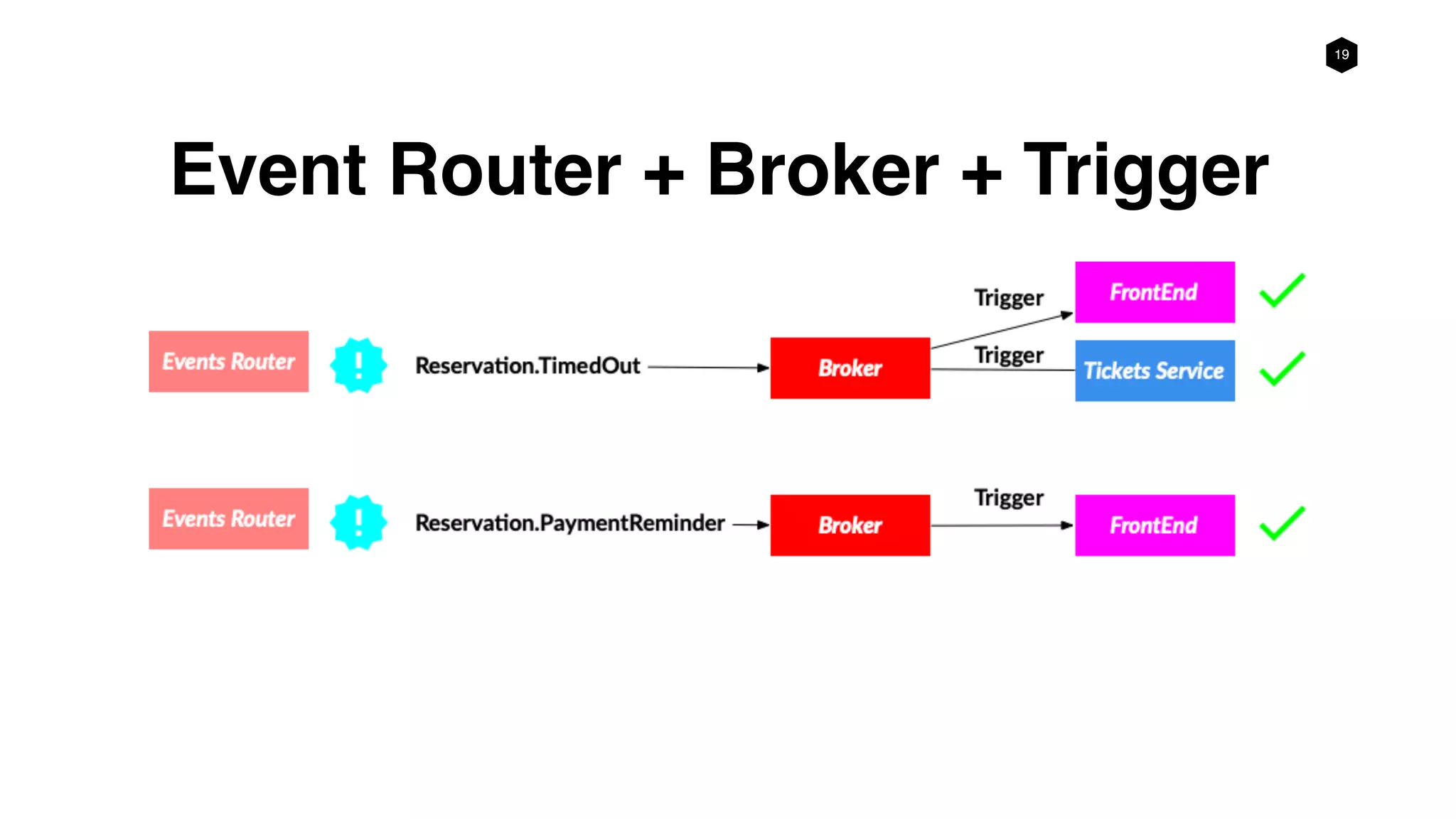

Event Router + Broker + Trigger

20. 20

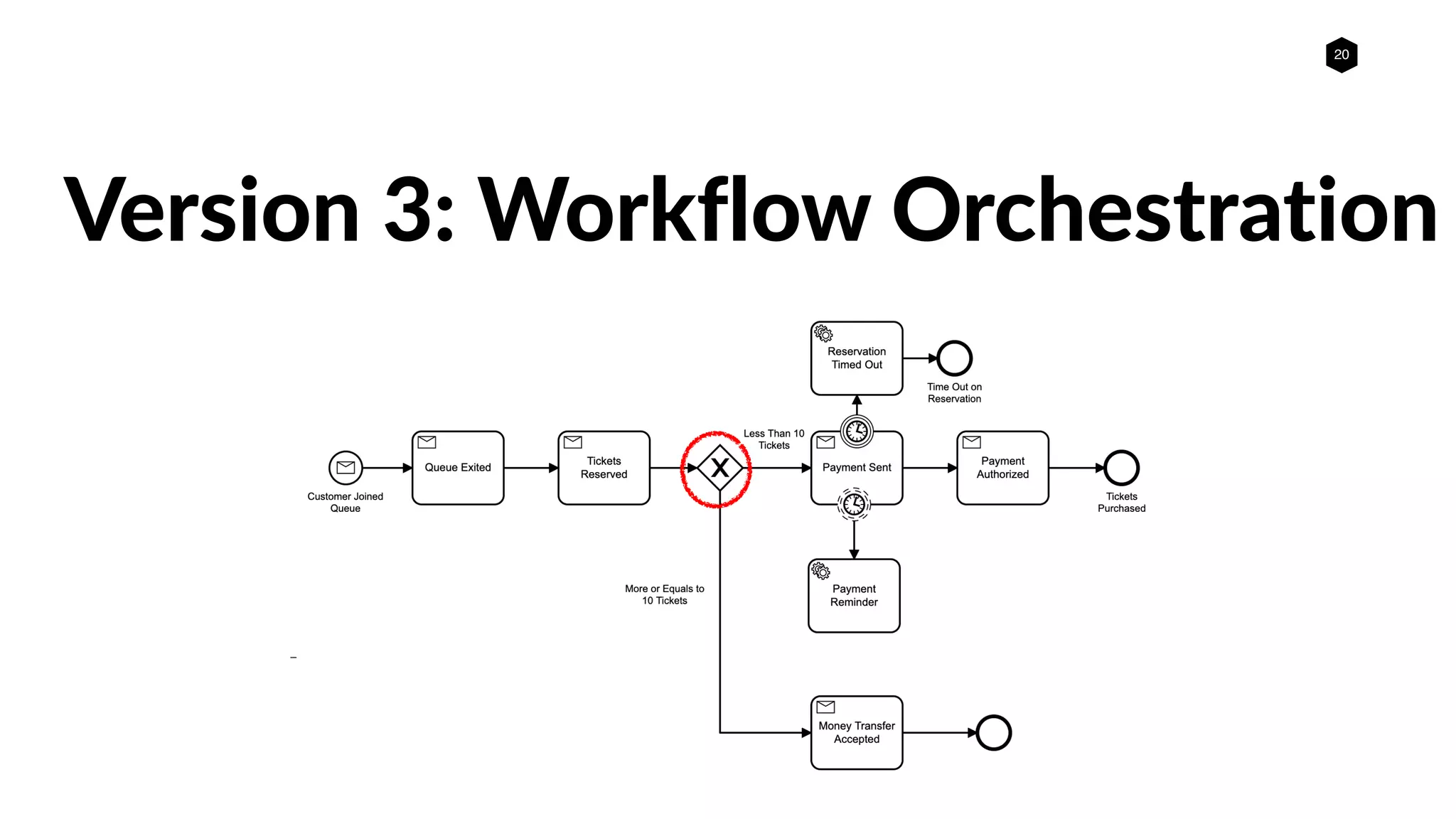

Version 3: Workflow Orchestration

21. 21

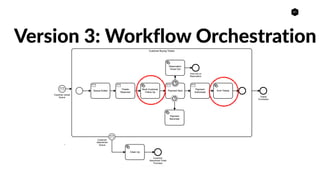

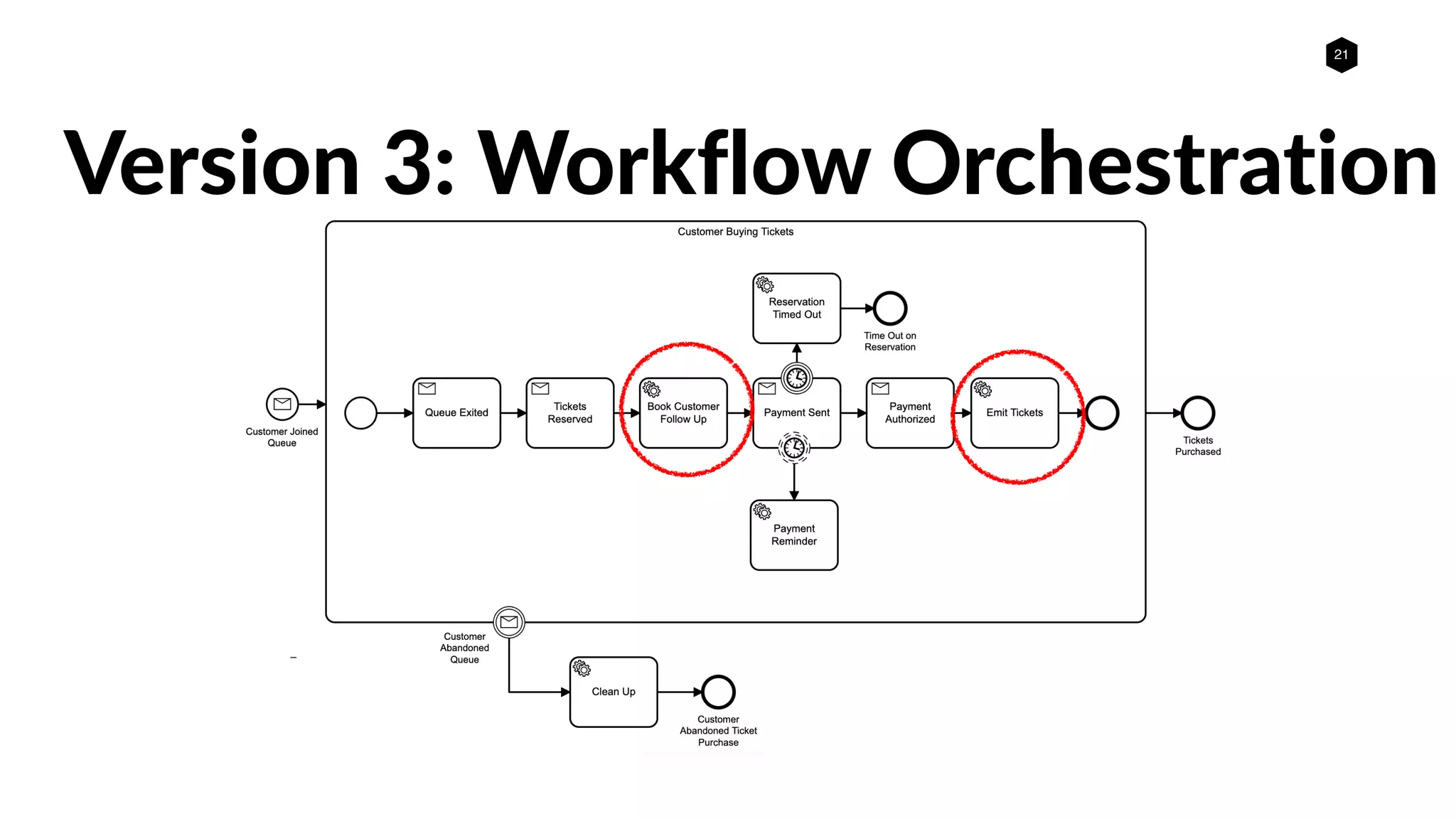

Version 3: Workflow Orchestration

22. 22

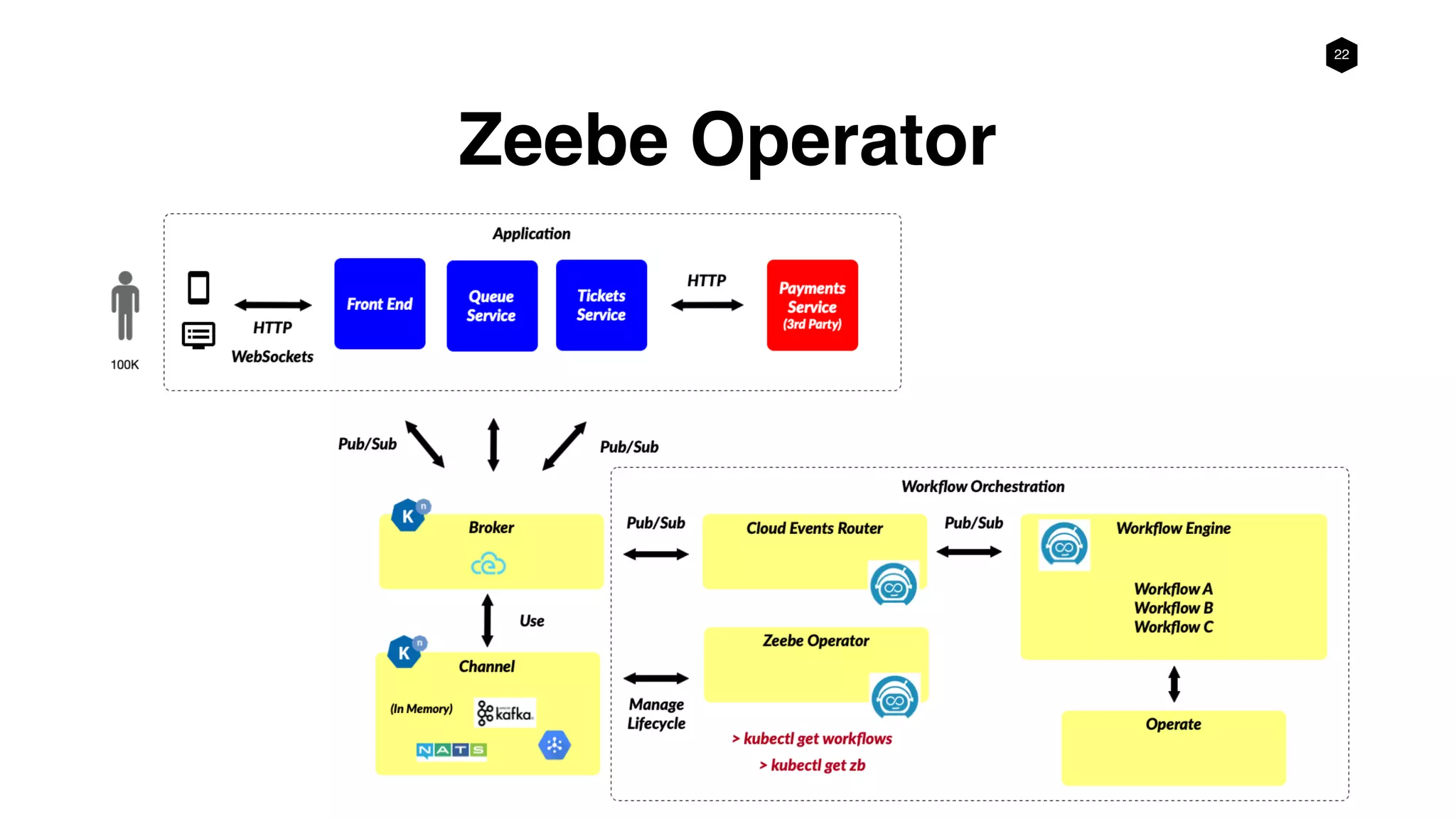

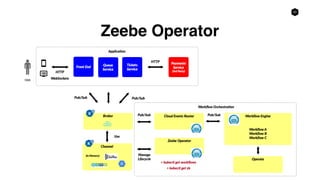

Zeebe Operator

23. 23
Next Steps
• Templated channels creation on deploy
• Demo with Human Interactions
• Separate WebSocket component using STOMP,
probably look into RSocket
@ZeebeHQ
http://zeebe.io

24. 24
Questions?
https://github.com/salaboy/orchestrating-cloud-events/
@Salaboy
