1. Multi-tenant Architecture
at Scale with Serverless
July 2018

2. About Us
Emmanuel Kong
Engineering Lead
Pim Ampompun
Senior Devops Engineer
Sumesh Suvarna
Senior Consultant

3. We @ orchestrated.io
We're a boutique consultancy that's been helping
large organisations transform their culture,
using a sensible mix of modern business &
engineering practices.

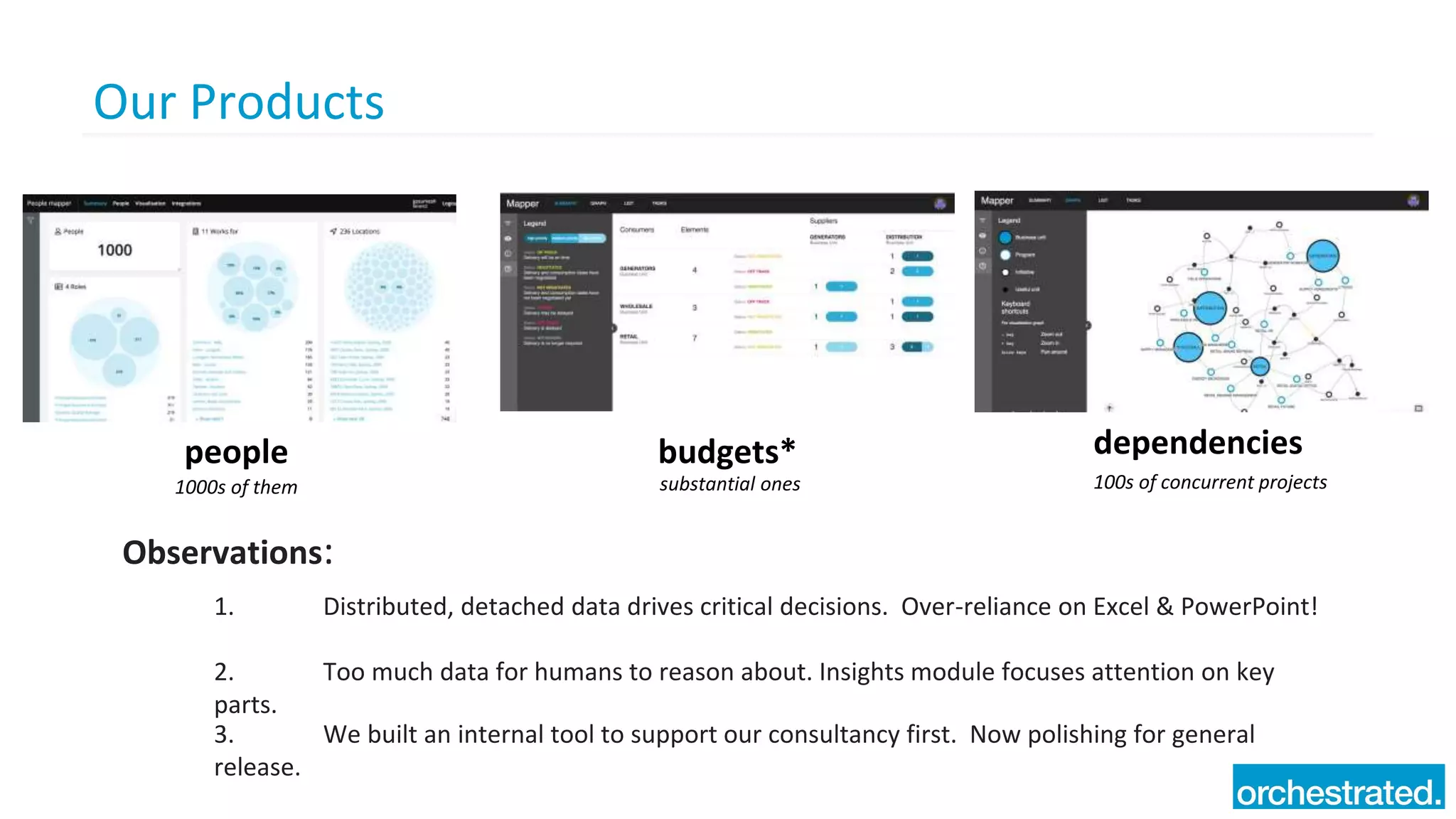

4. Our Products
people
1000s of them
dependencies
100s of concurrent projects
budgets*
substantial ones
1. Distributed, detached data drives critical decisions. Over-reliance on Excel & PowerPoint!
2. Too much data for humans to reason about. Insights module focuses attention on key
parts.
3. We built an internal tool to support our consultancy first. Now polishing for general
release.
Observations:

5. Our Principles
Customer
focus
Automation
Of
everything
SecurityIs a first-class citizen
Cloud 1st
That’s what you're here for

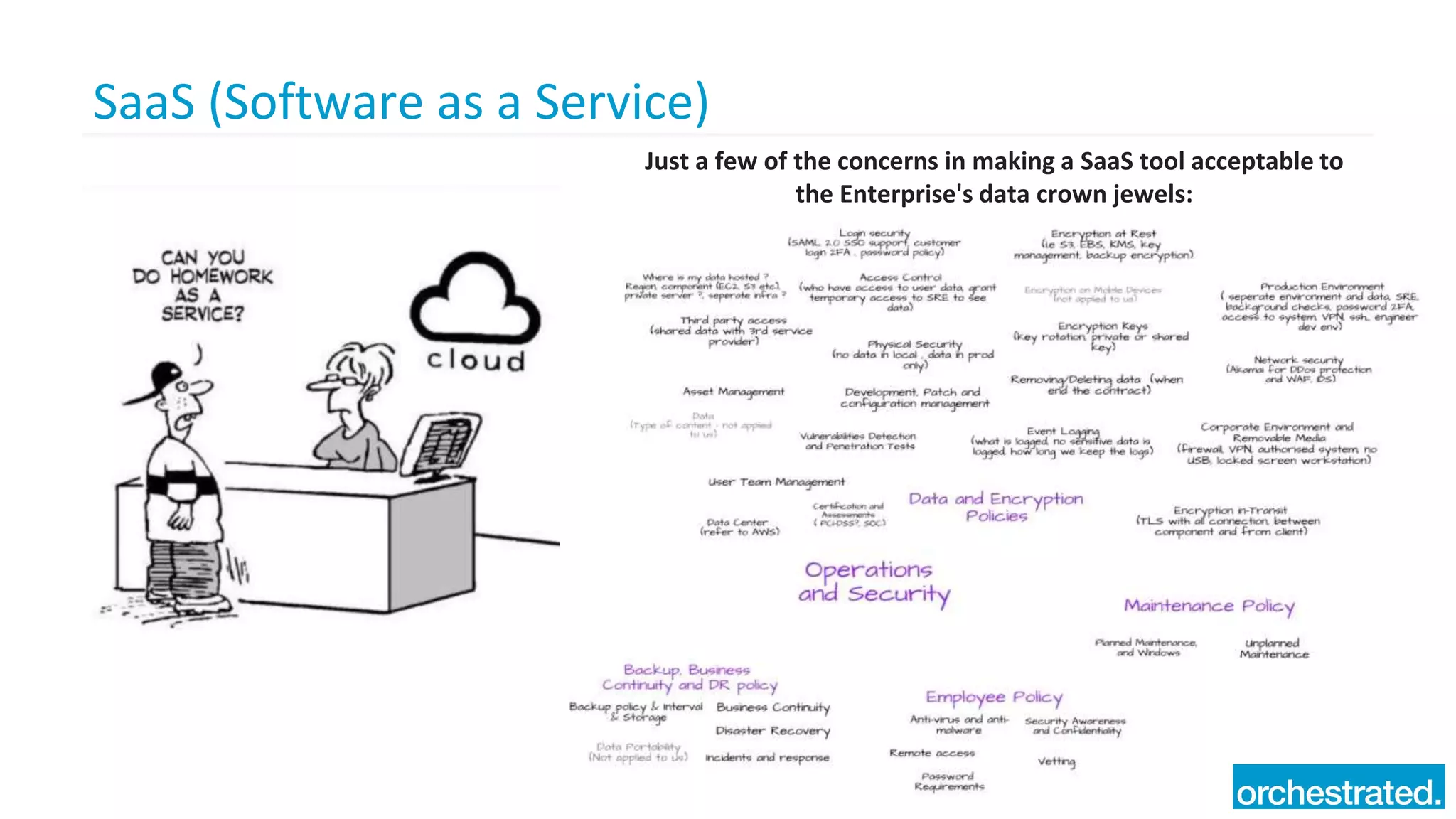

6. SaaS (Software as a Service)
Just a few of the concerns in making a SaaS tool acceptable to
the Enterprise's data crown jewels:

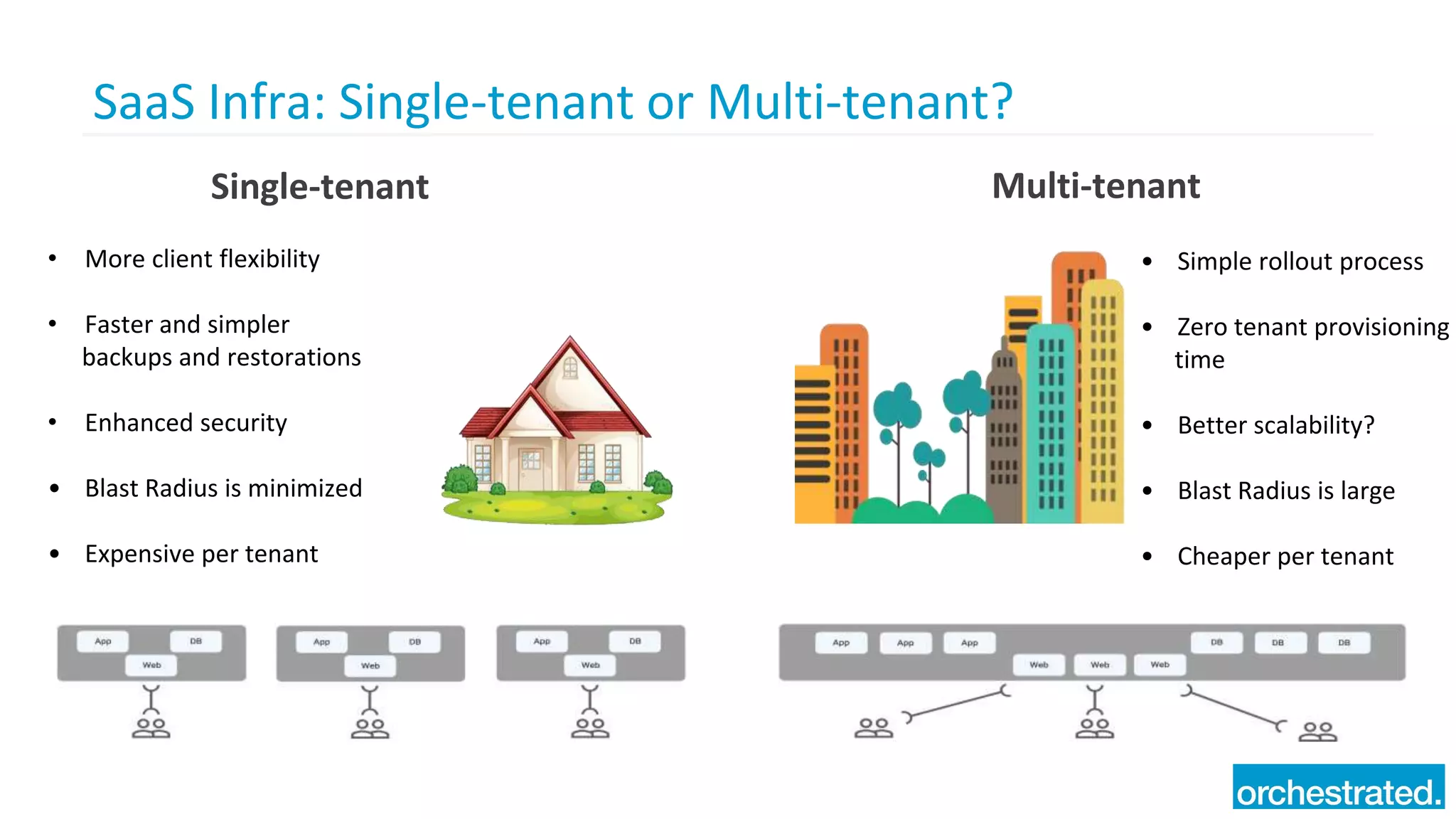

7. SaaS Infra: Single-tenant or Multi-tenant?
• More client flexibility
• Faster and simpler
backups and restorations
• Enhanced security
• Blast Radius is minimized
• Expensive per tenant
• Simple rollout process
• Zero tenant provisioning
time
• Better scalability?
• Blast Radius is large
• Cheaper per tenant
Single-tenant Multi-tenant

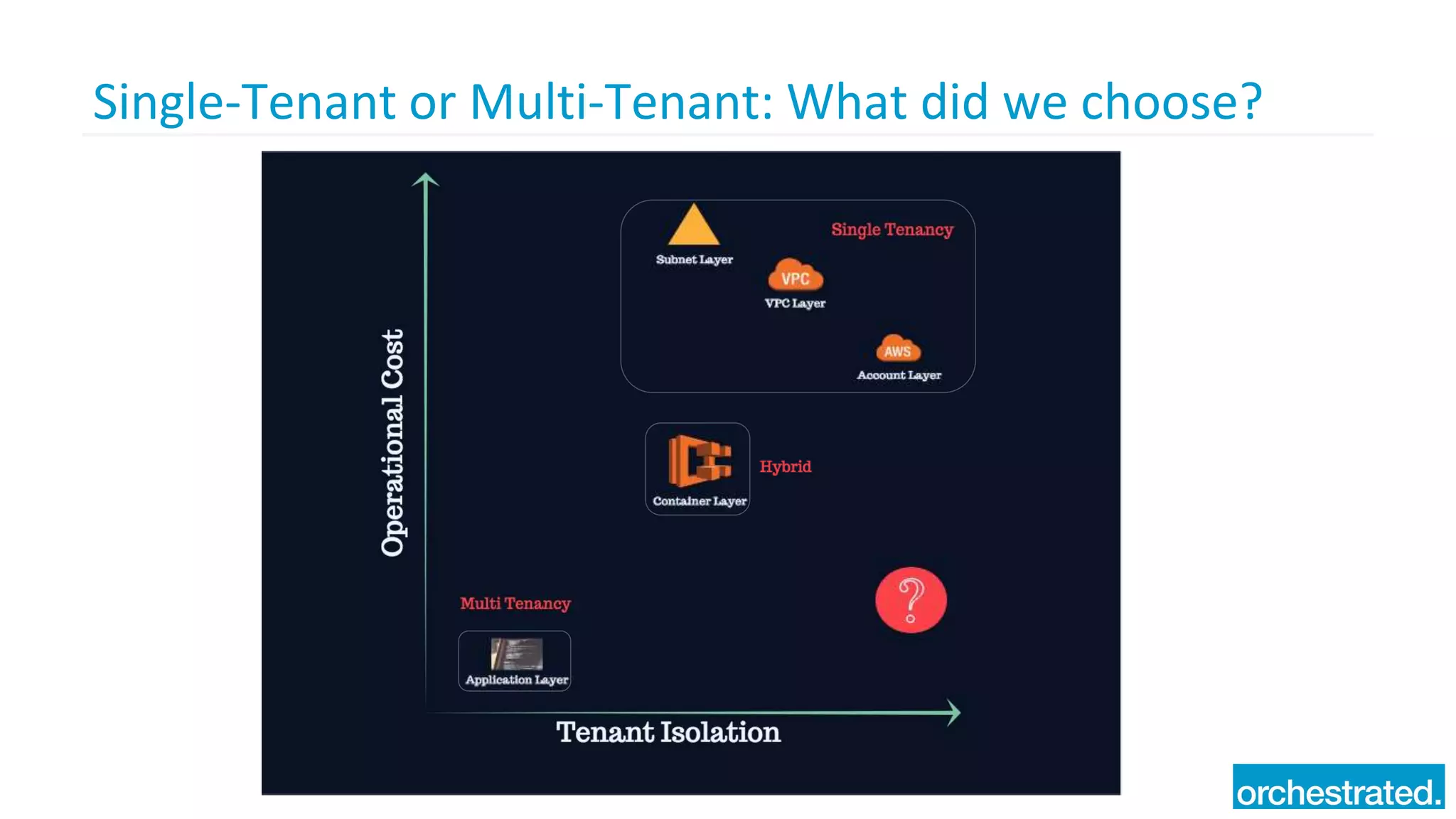

8. Single-Tenant or Multi-Tenant: What did we choose?

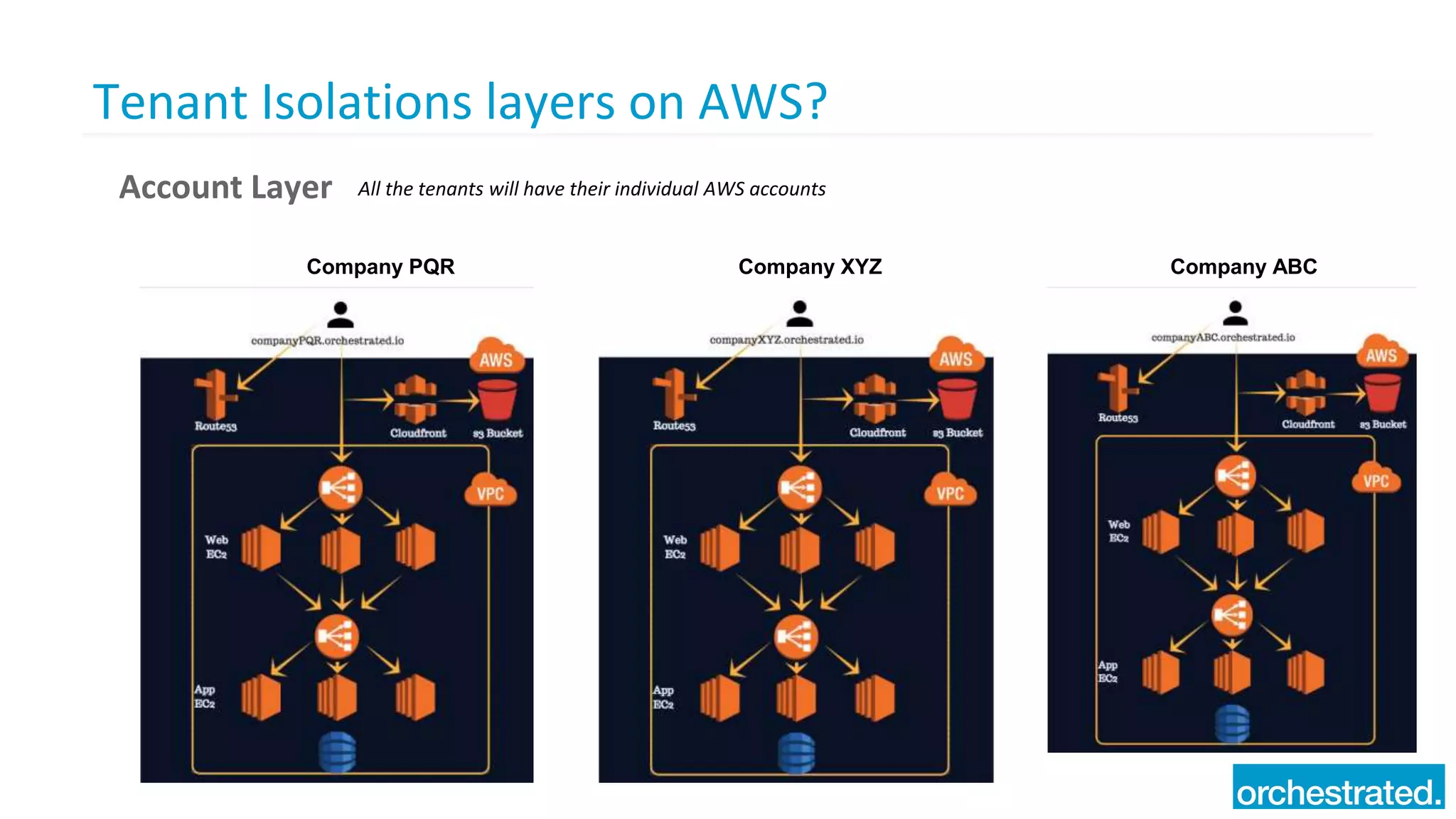

9. Tenant Isolations layers on AWS?
Account Layer All the tenants will have their individual AWS accounts
Company XYZCompany PQR Company ABC

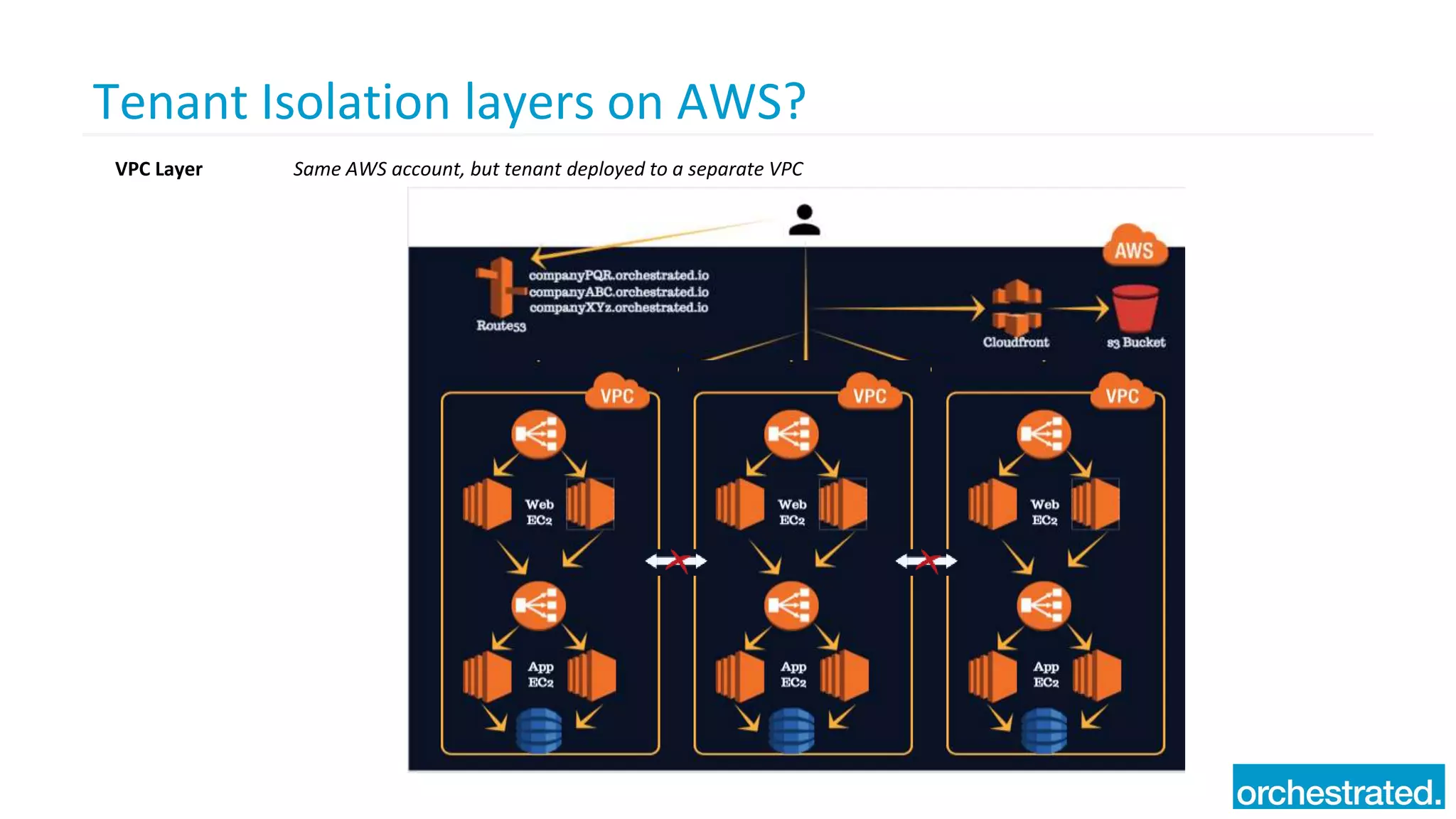

10. Tenant Isolation layers on AWS?
VPC Layer Same AWS account, but tenant deployed to a separate VPC

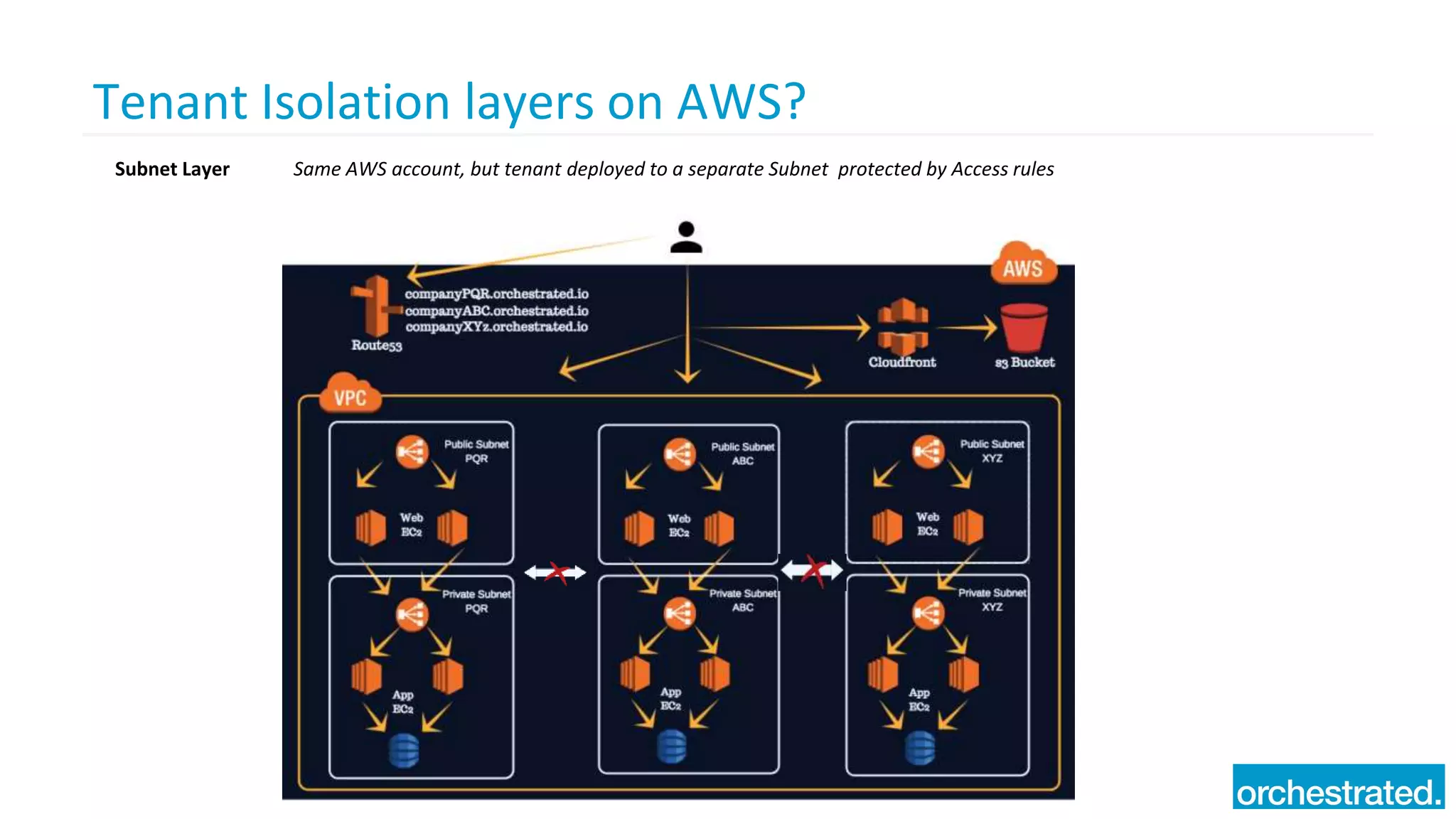

11. Tenant Isolation layers on AWS?
Subnet Layer Same AWS account, but tenant deployed to a separate Subnet protected by Access rules

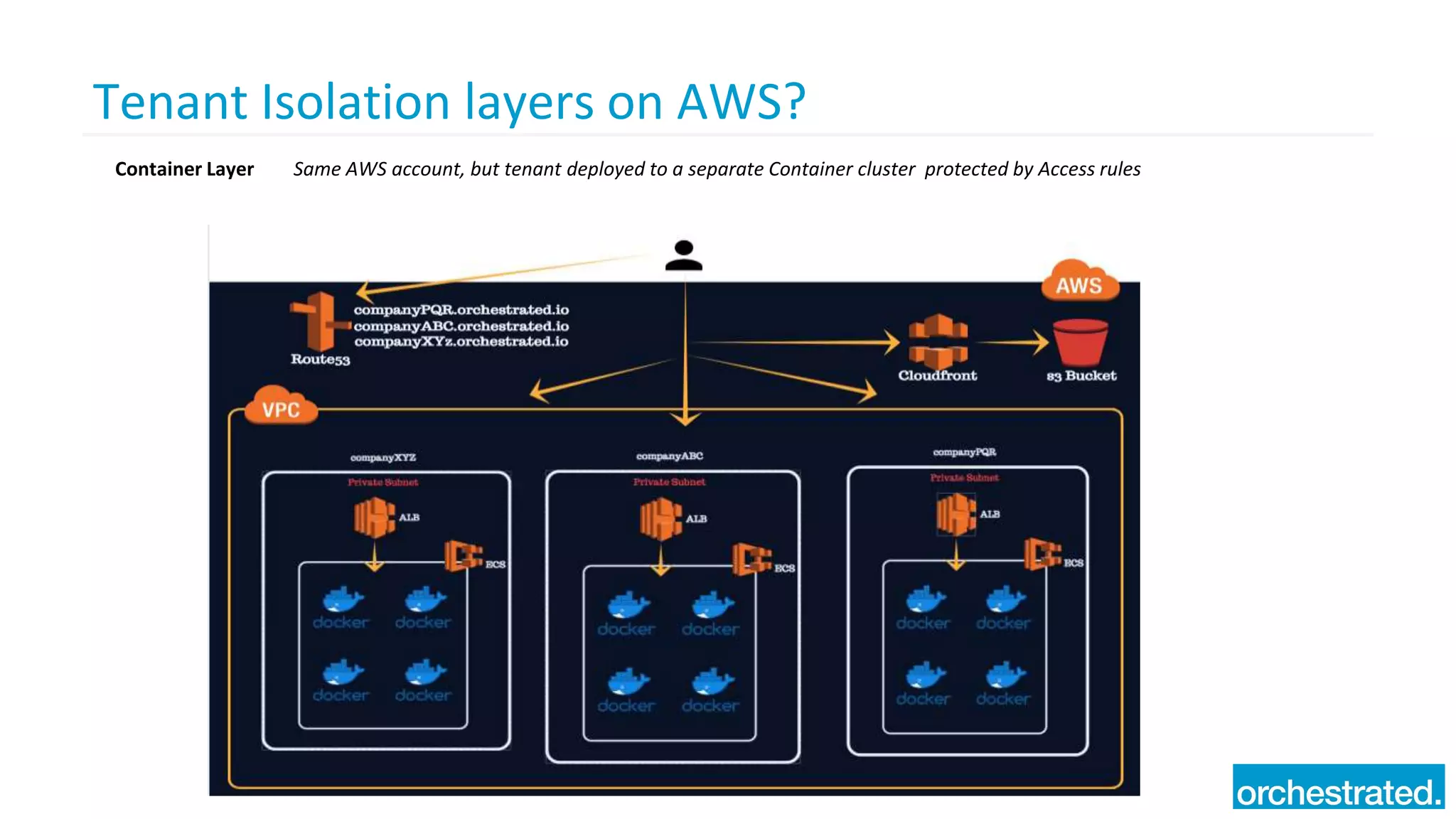

12. Tenant Isolation layers on AWS?
Container Layer Same AWS account, but tenant deployed to a separate Container cluster protected by Access rules

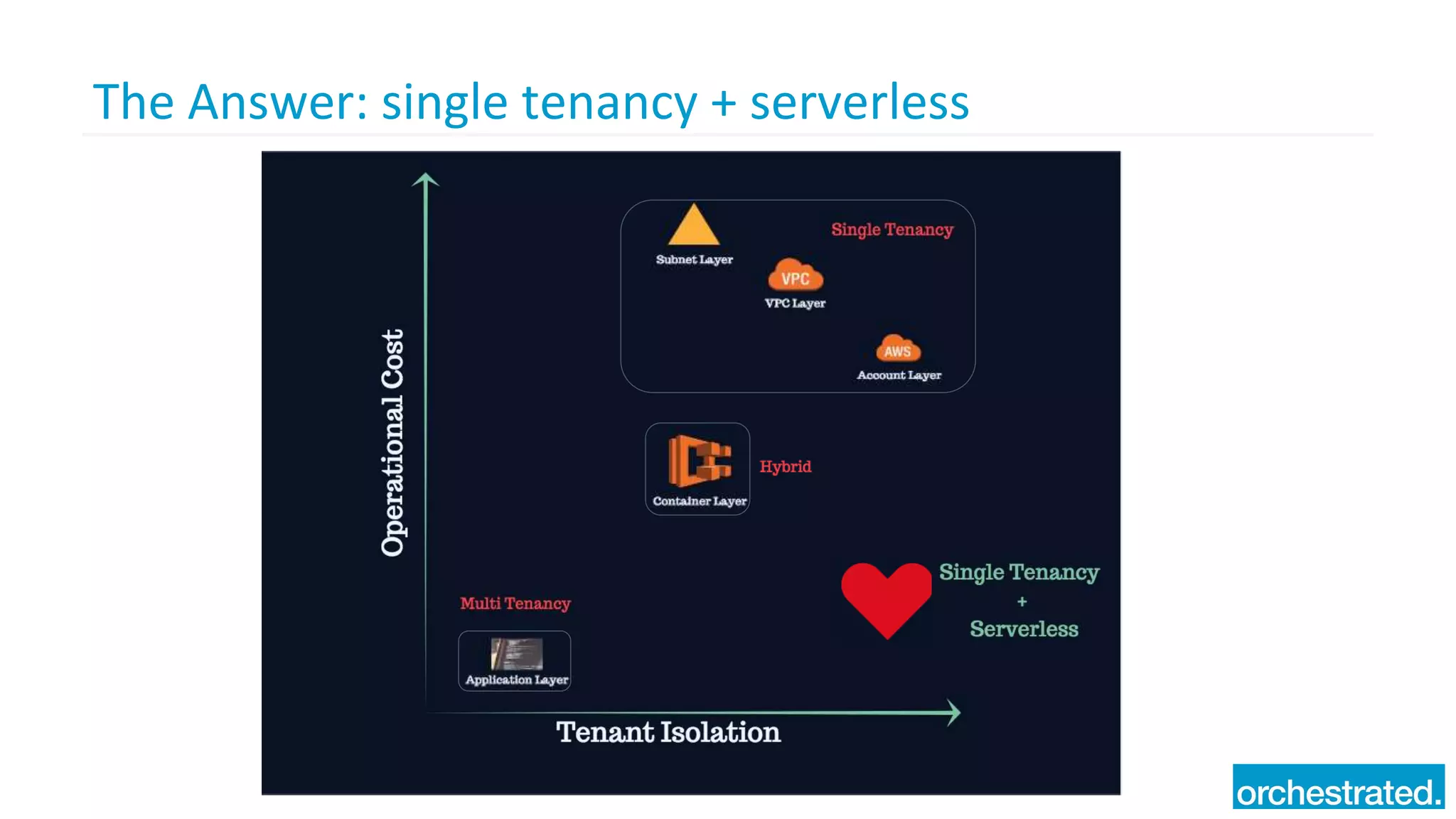

13. The Answer: single tenancy + serverless

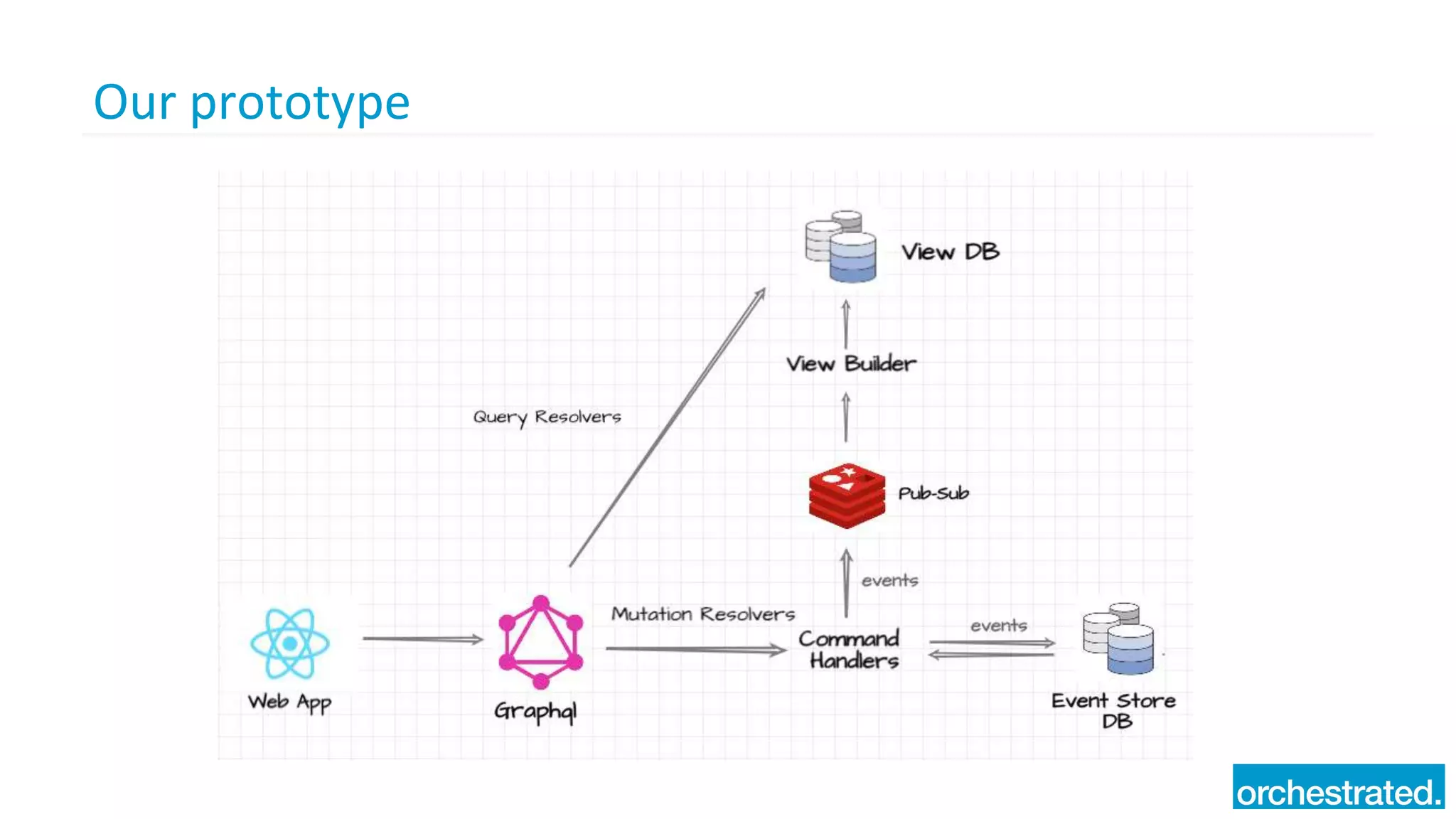

15. Our prototype

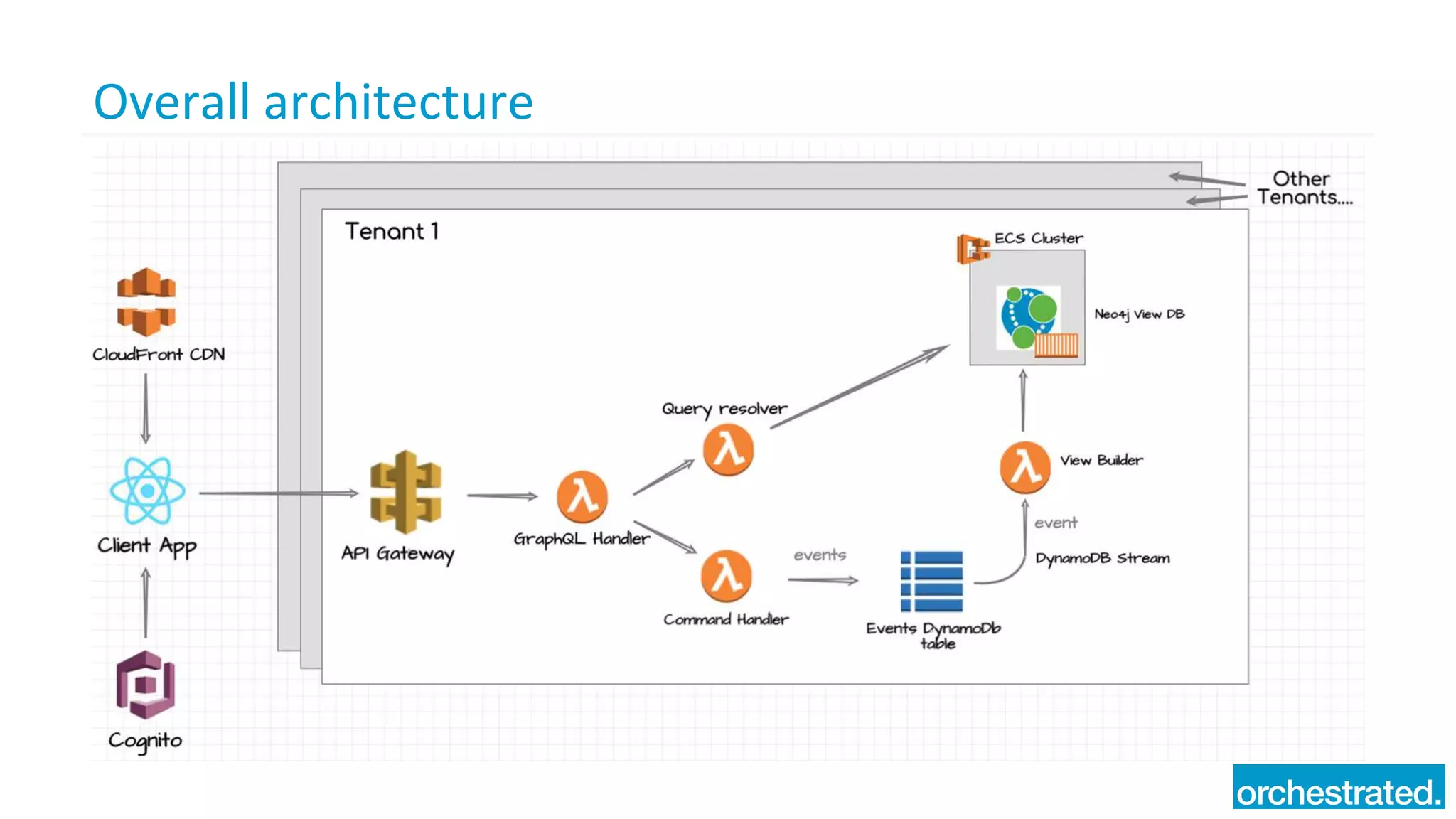

16. Overall architecture

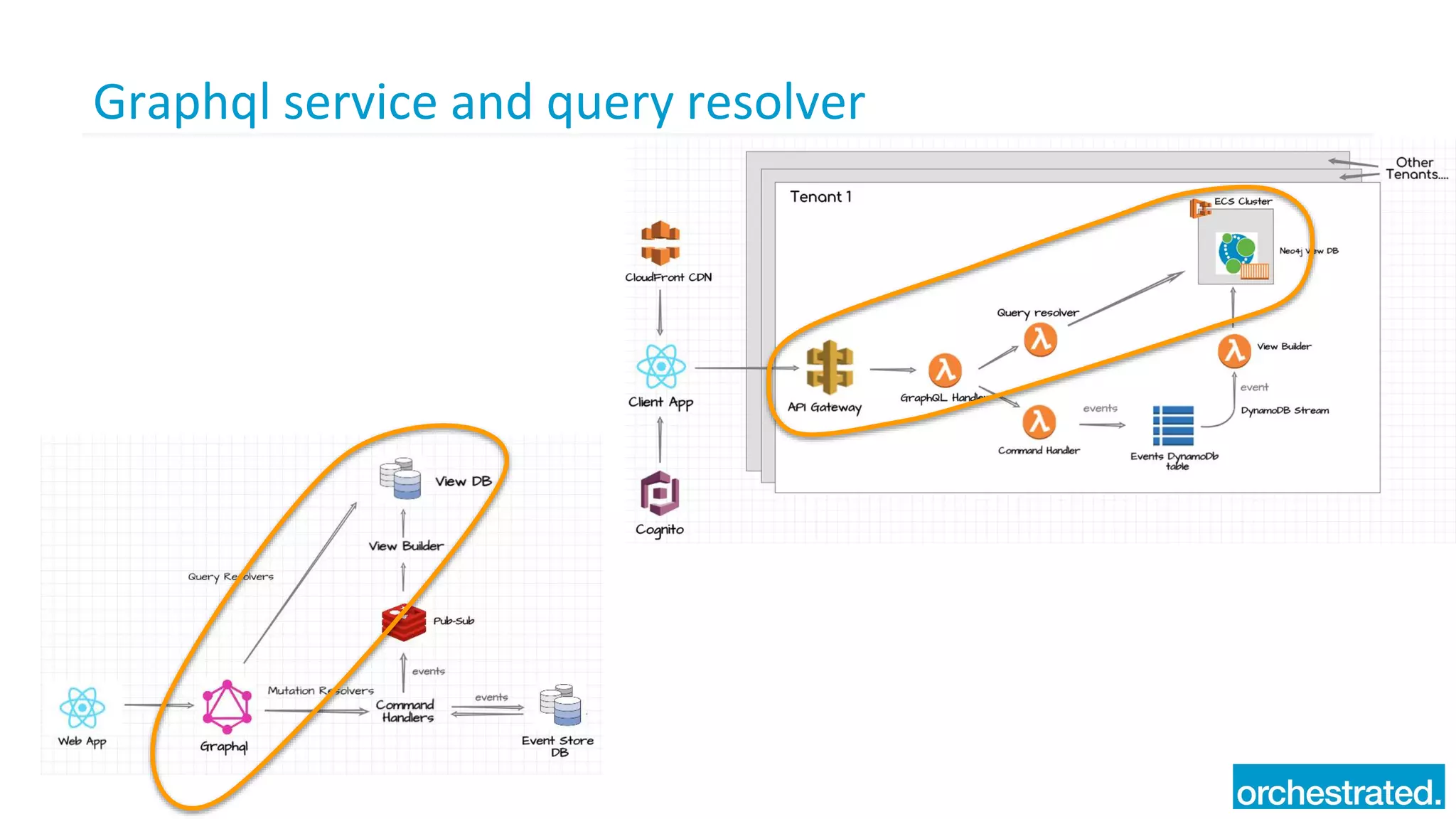

17. Graphql service and query resolver

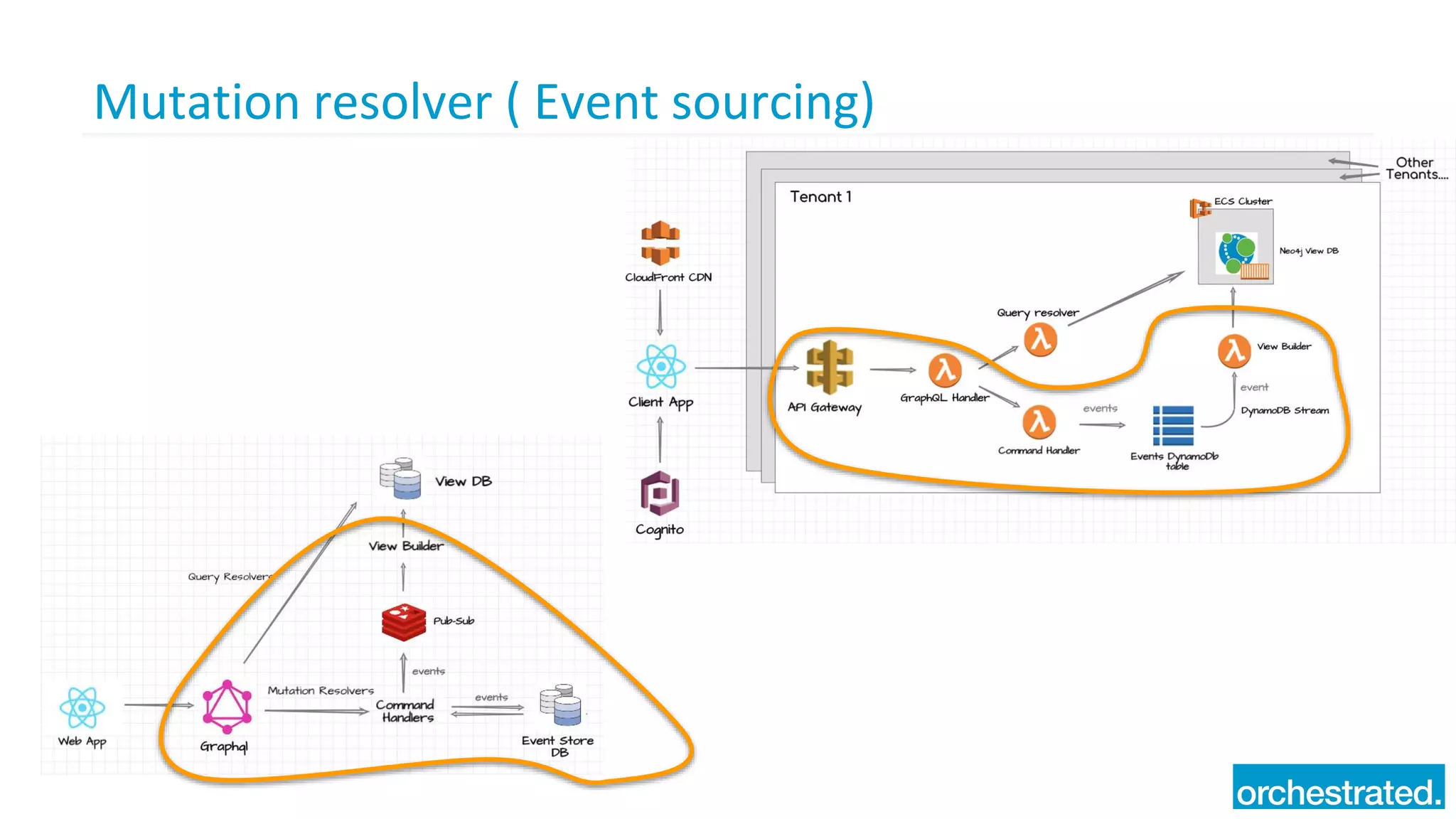

18. Mutation resolver ( Event sourcing)

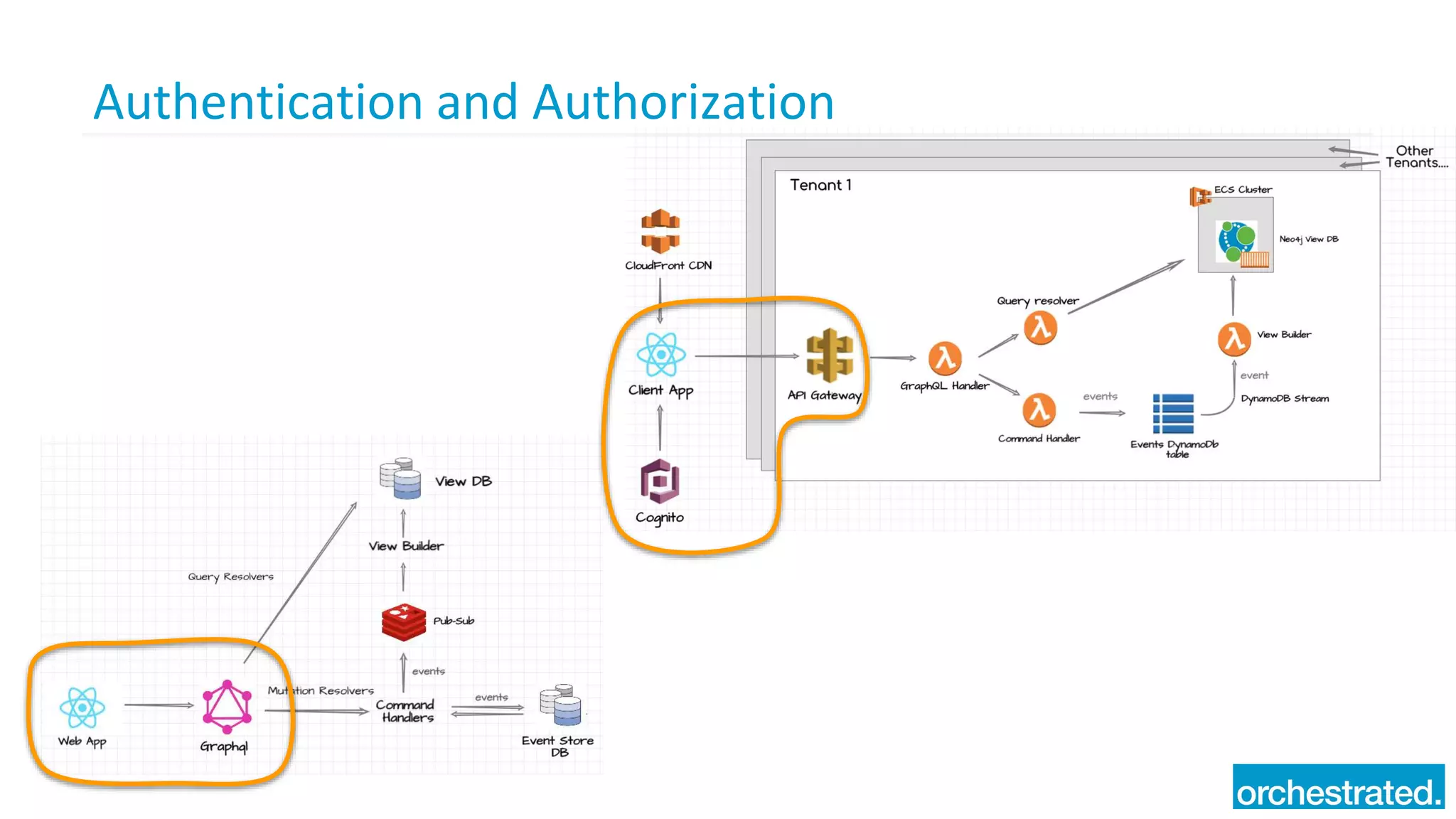

19. Authentication and Authorization

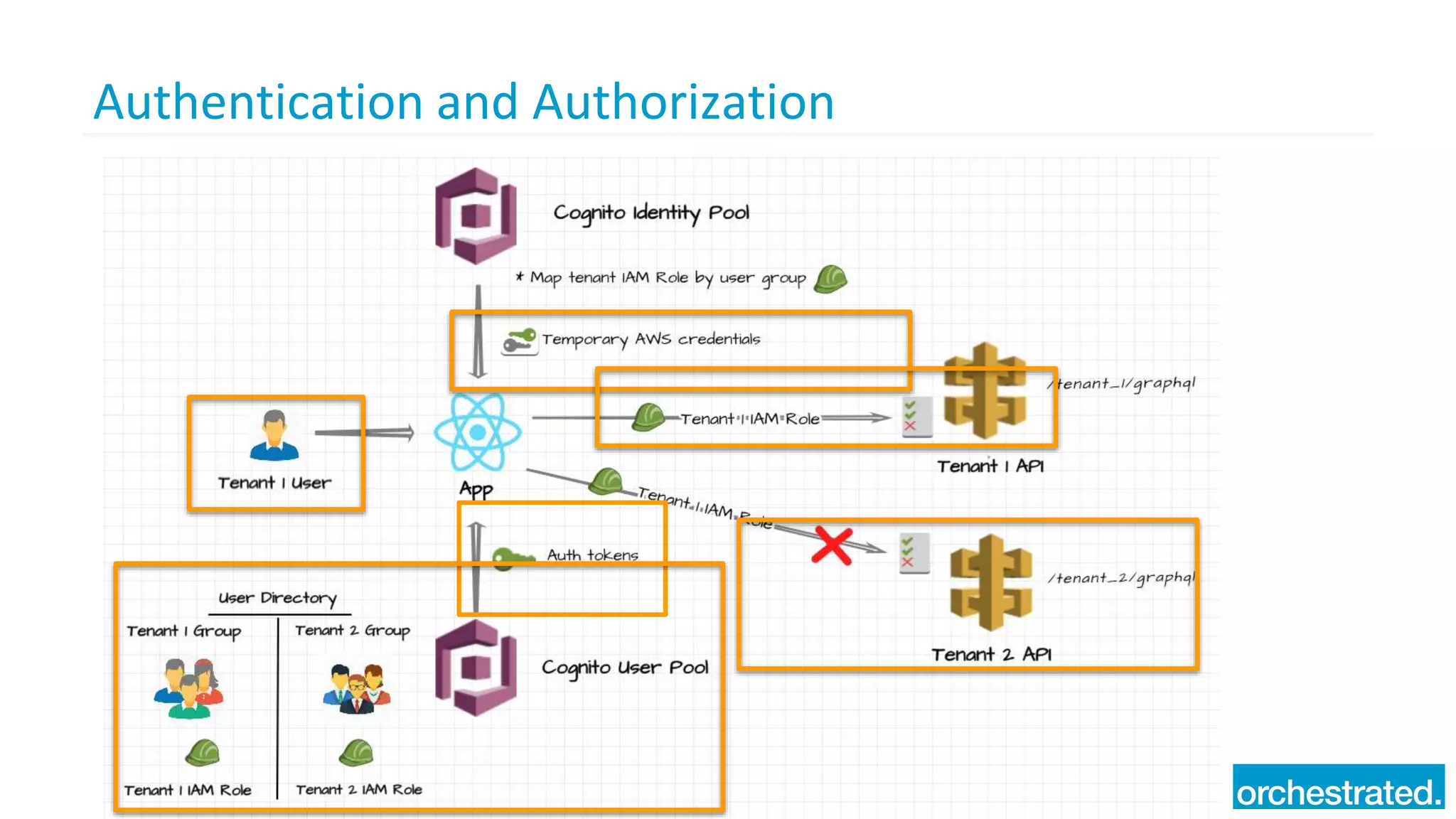

20. Authentication and Authorization

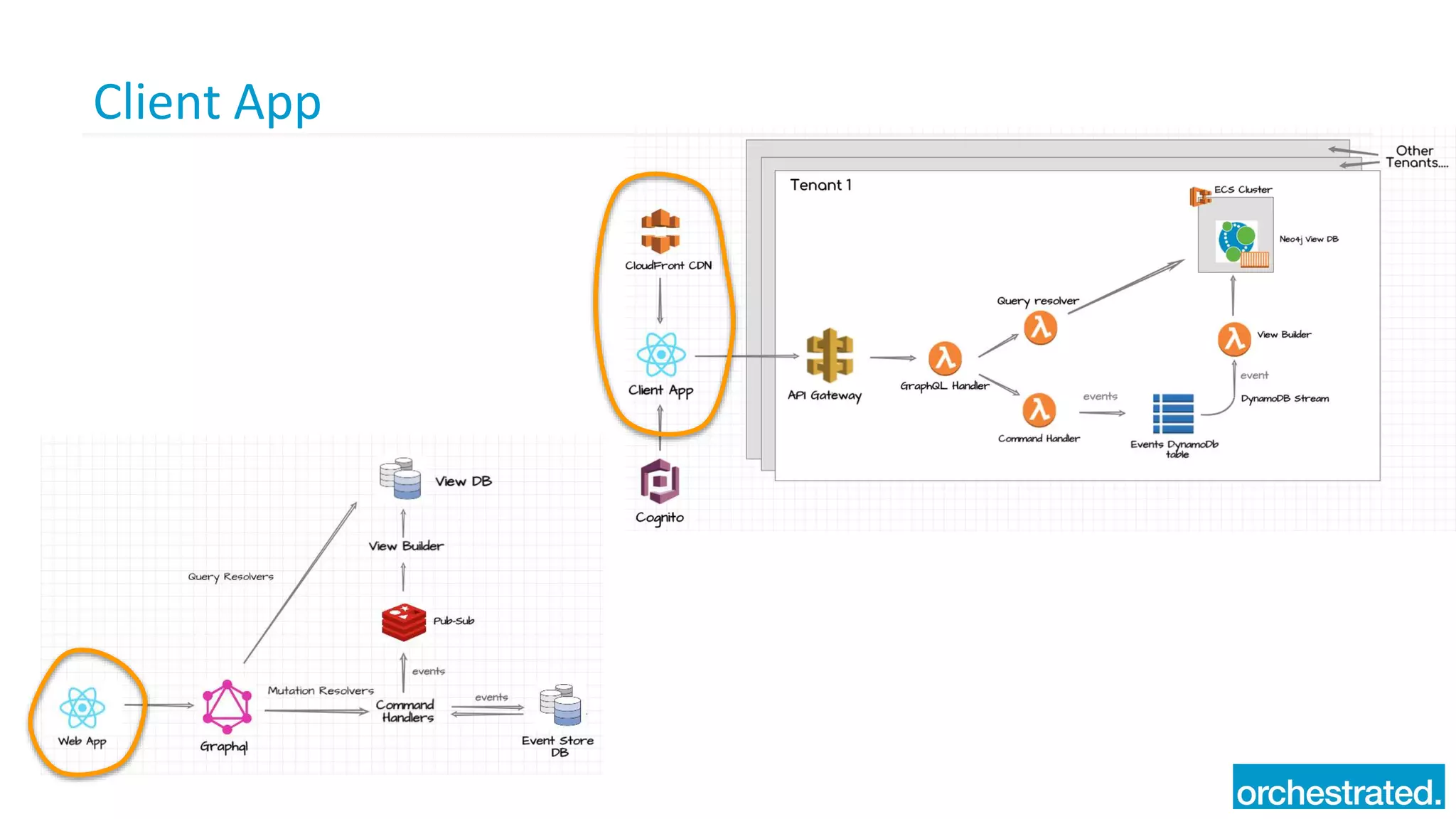

21. Client App

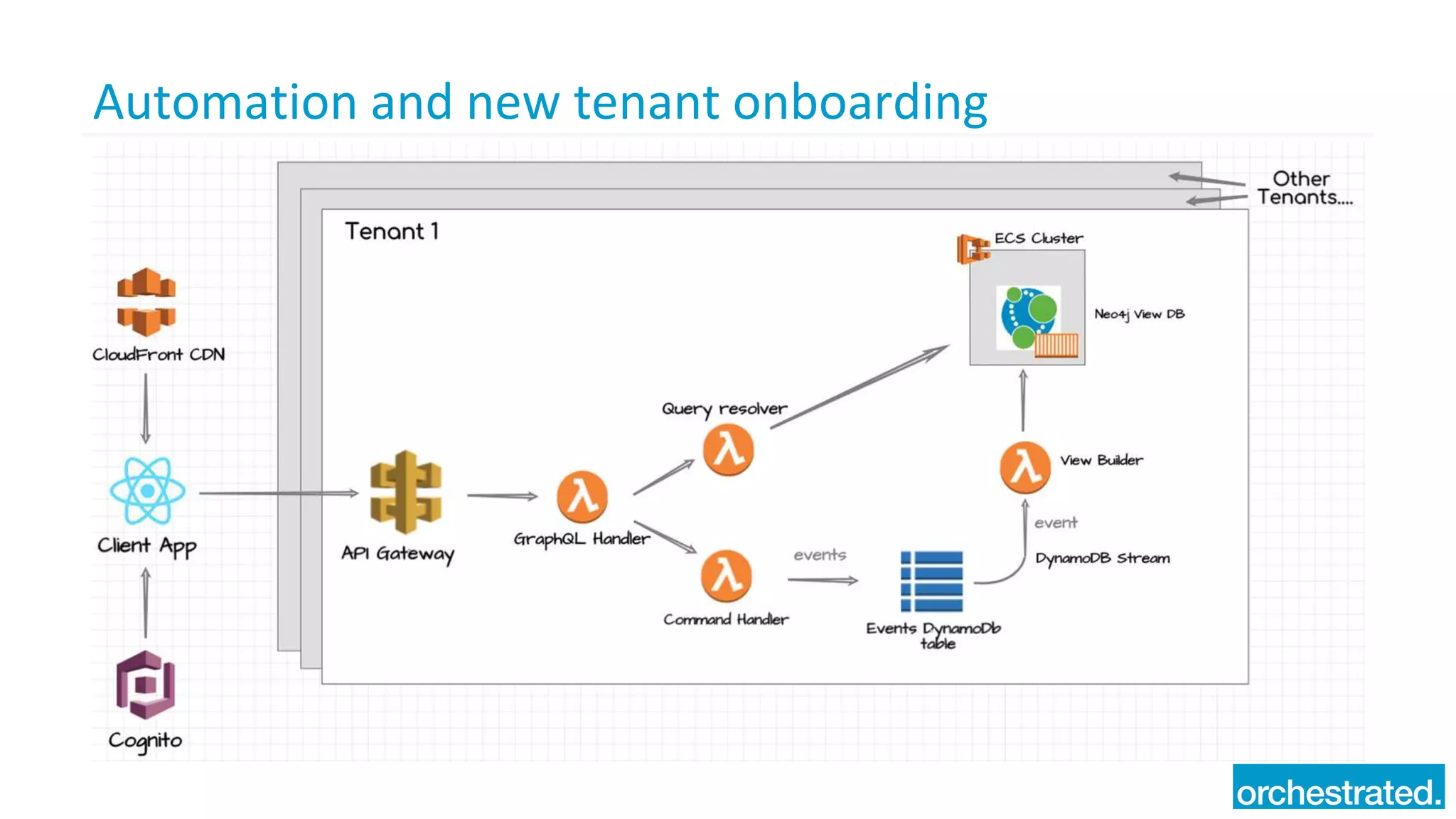

22. Automation and new tenant onboarding

23. Tighten up the screws

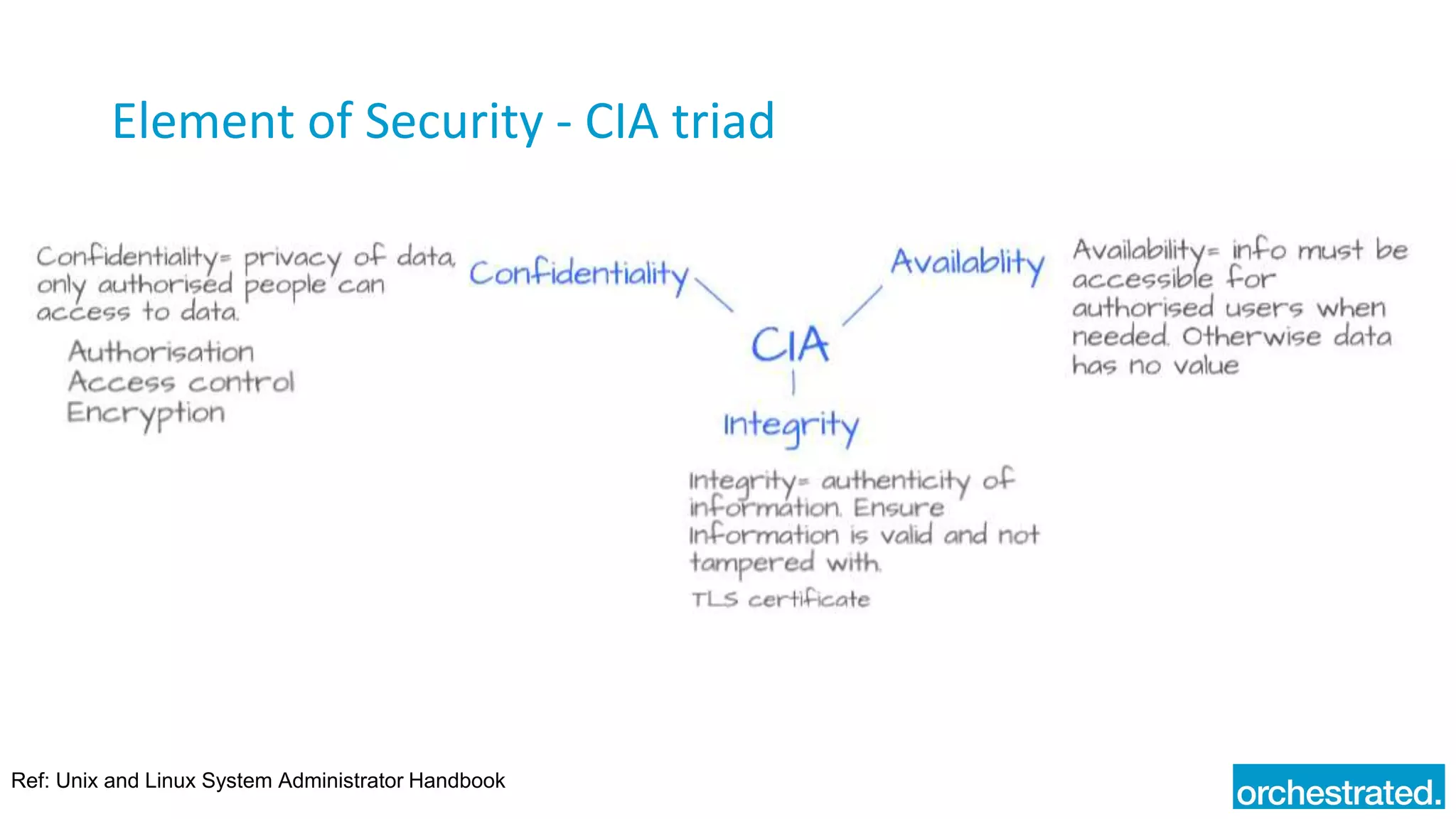

24. Element of Security - CIA triad
Ref: Unix and Linux System Administrator Handbook

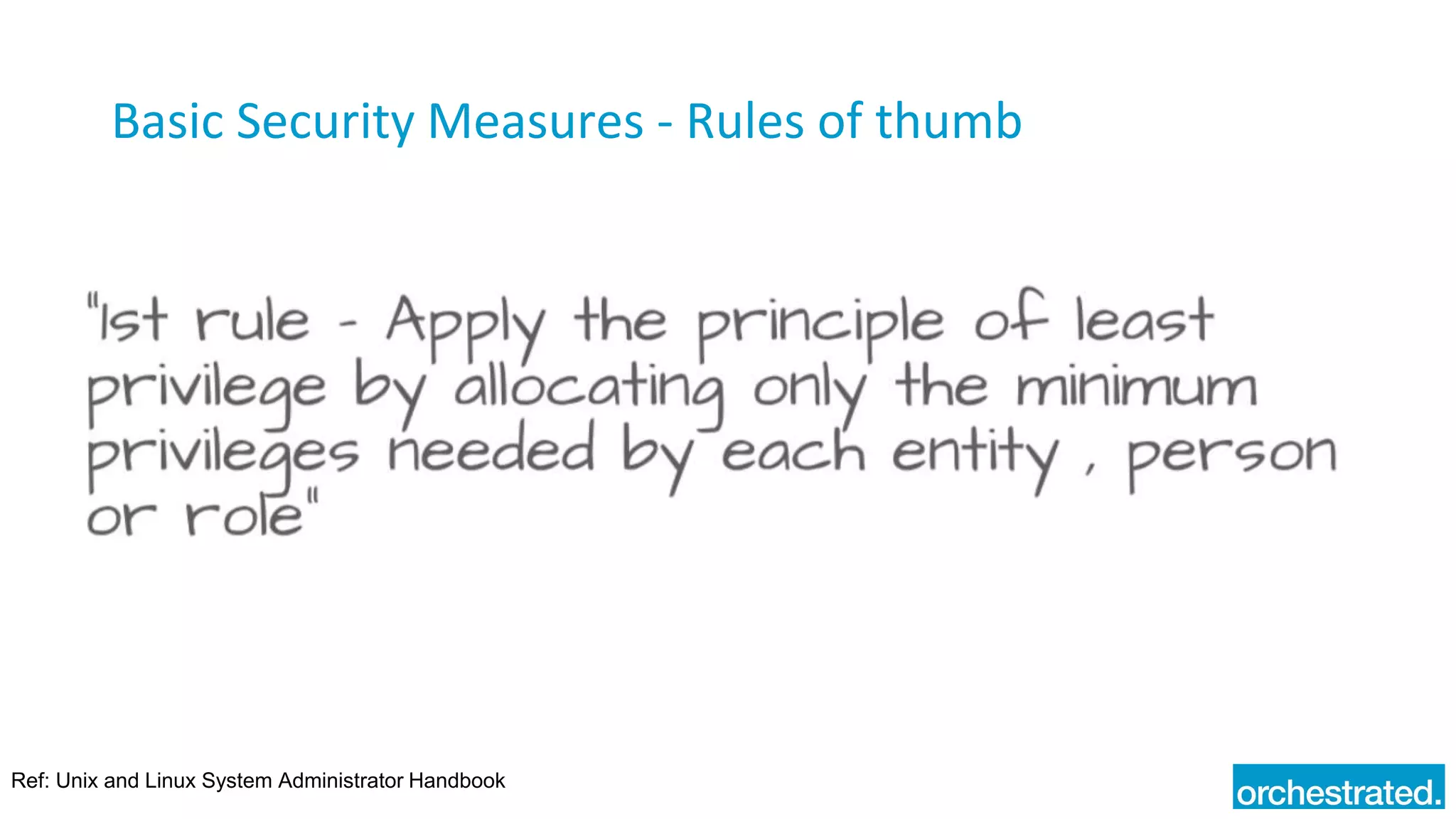

25. Basic Security Measures - Rules of thumb
Ref: Unix and Linux System Administrator Handbook

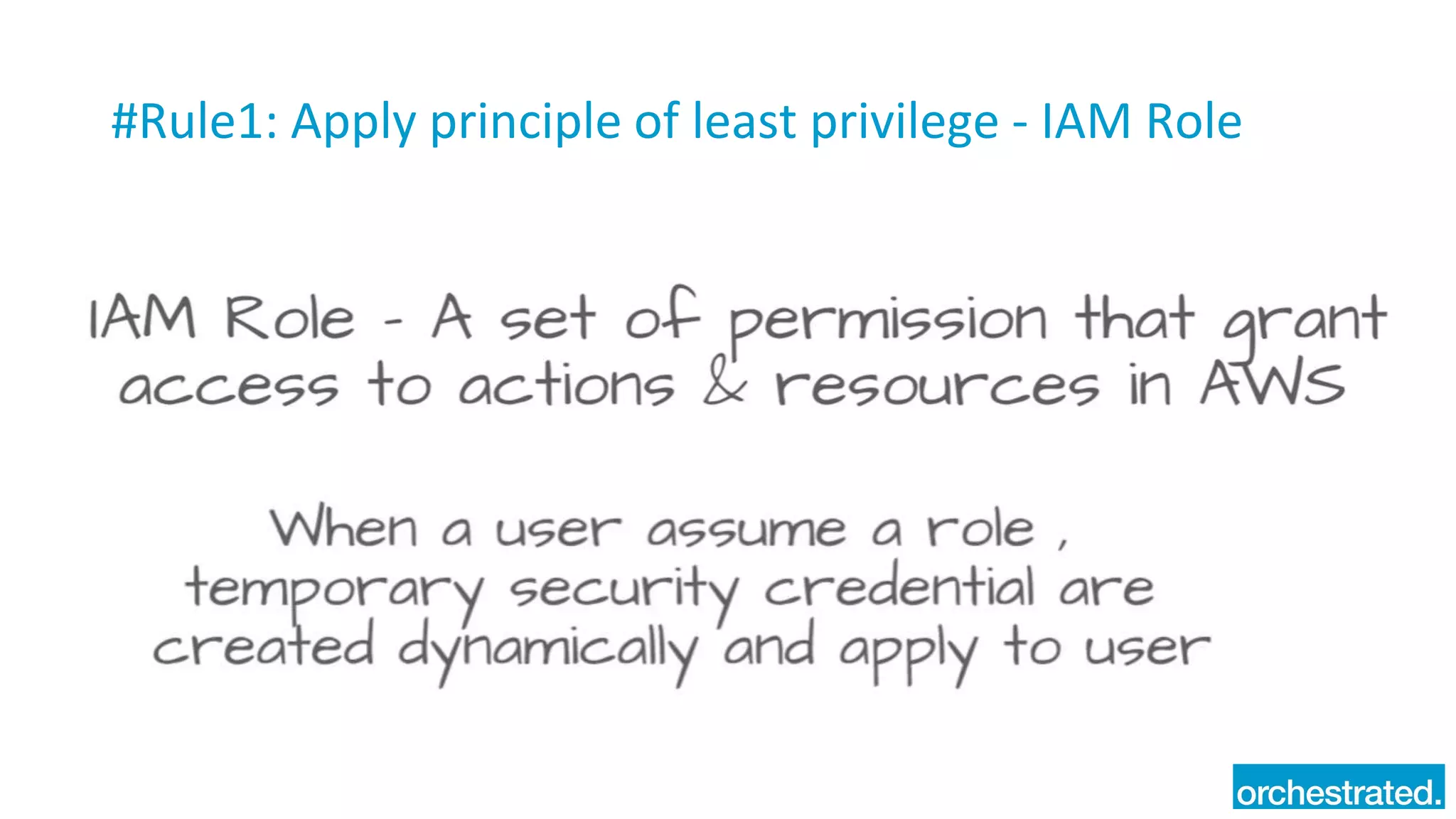

26. #Rule1: Apply principle of least privilege - IAM Role

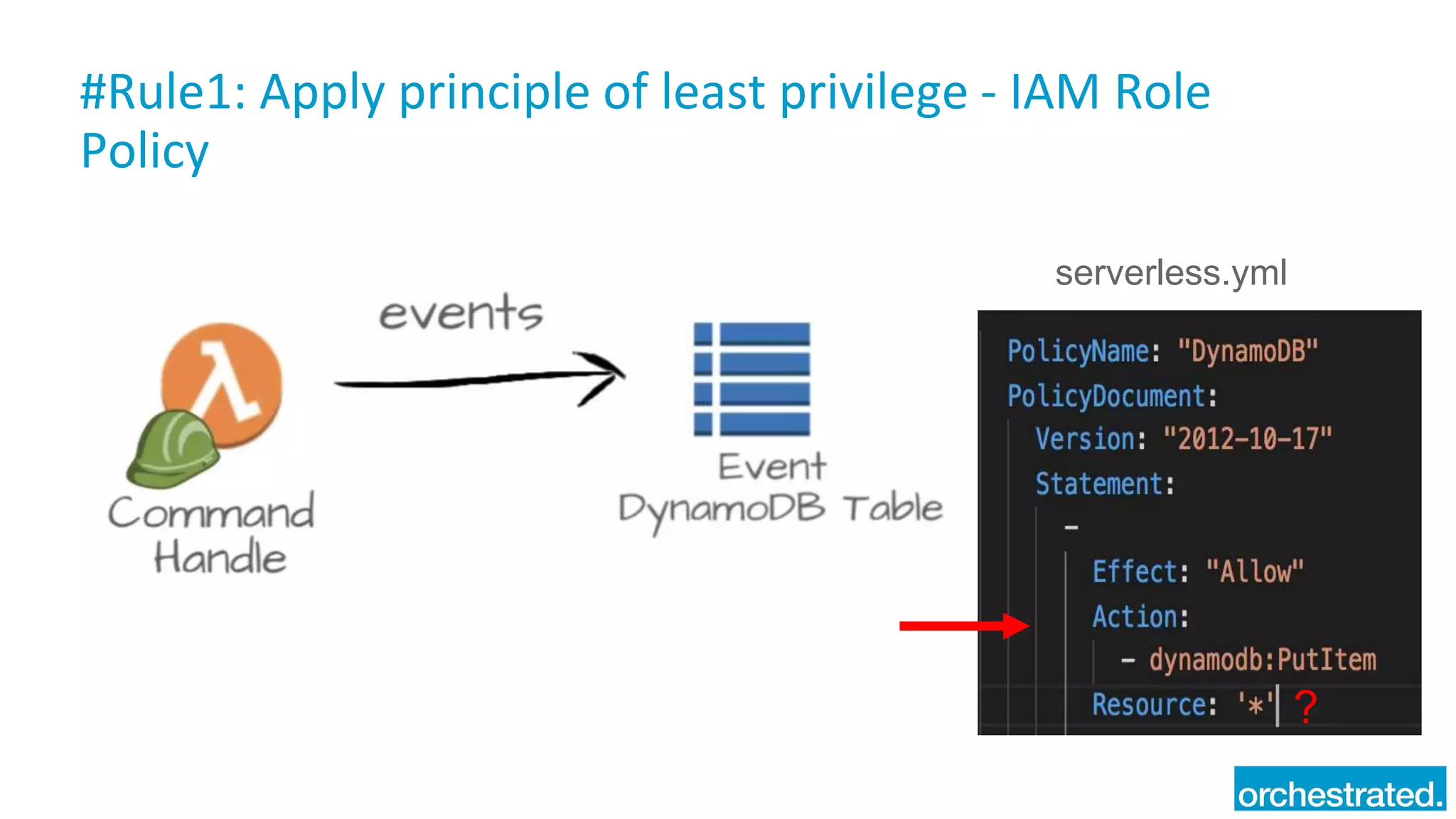

27. #Rule1: Apply principle of least privilege - IAM Role
Policy
serverless.yml
?

28. #Rule1: Apply principle of least privilege - Lambda roles
-Multi-tenants

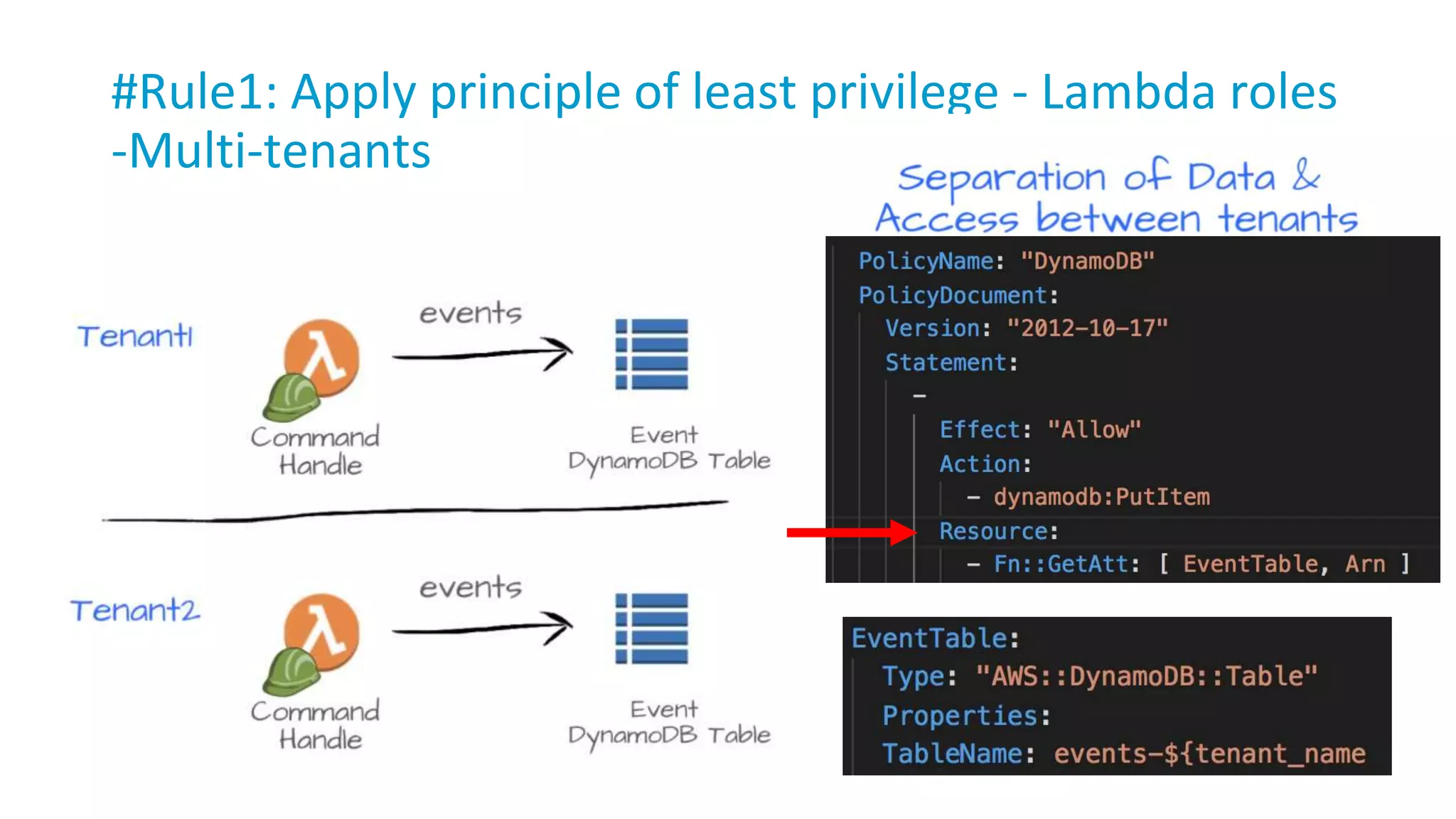

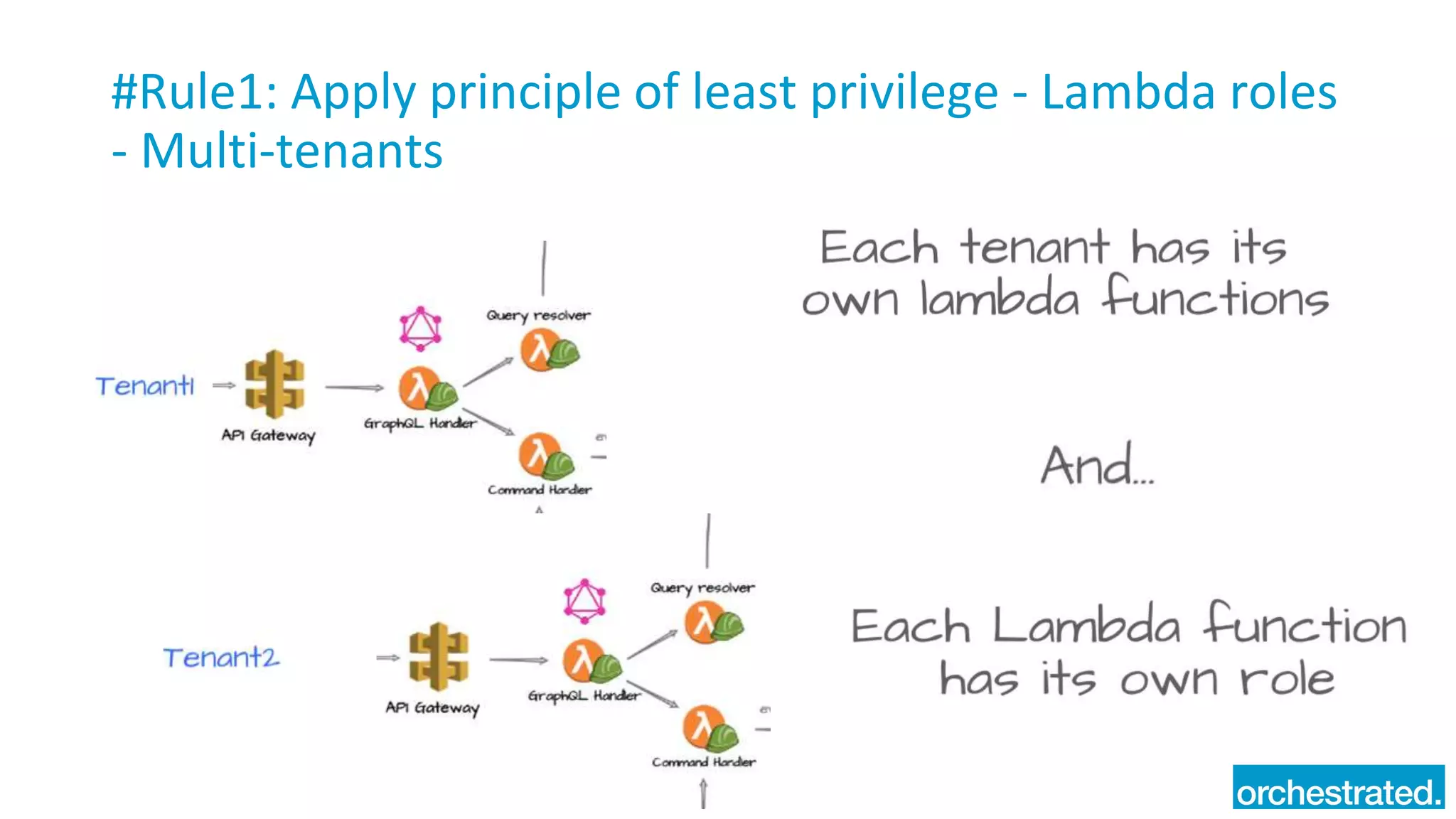

29. #Rule1: Apply principle of least privilege - Lambda roles
- Multi-tenants

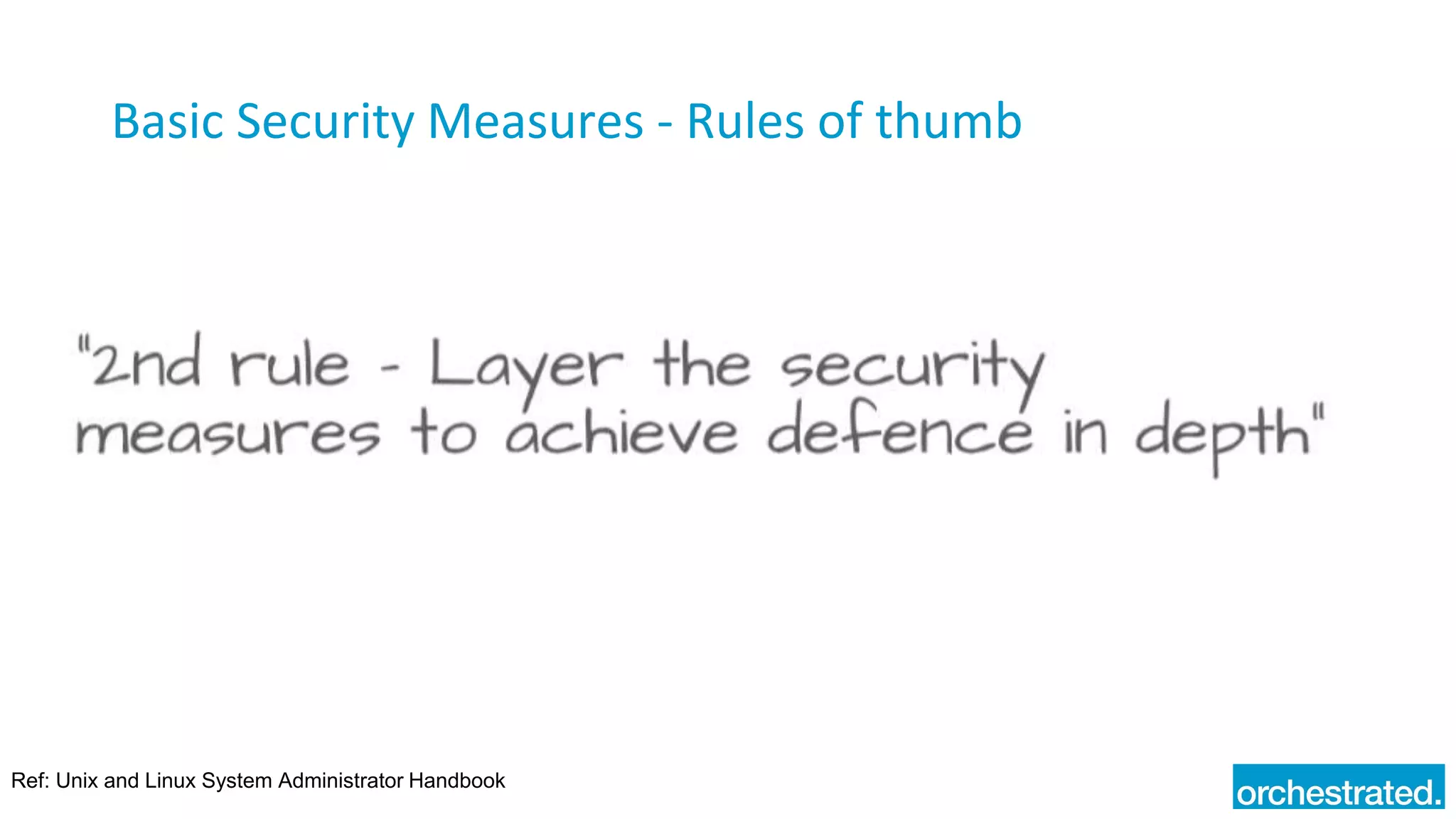

30. Basic Security Measures - Rules of thumb
Ref: Unix and Linux System Administrator Handbook

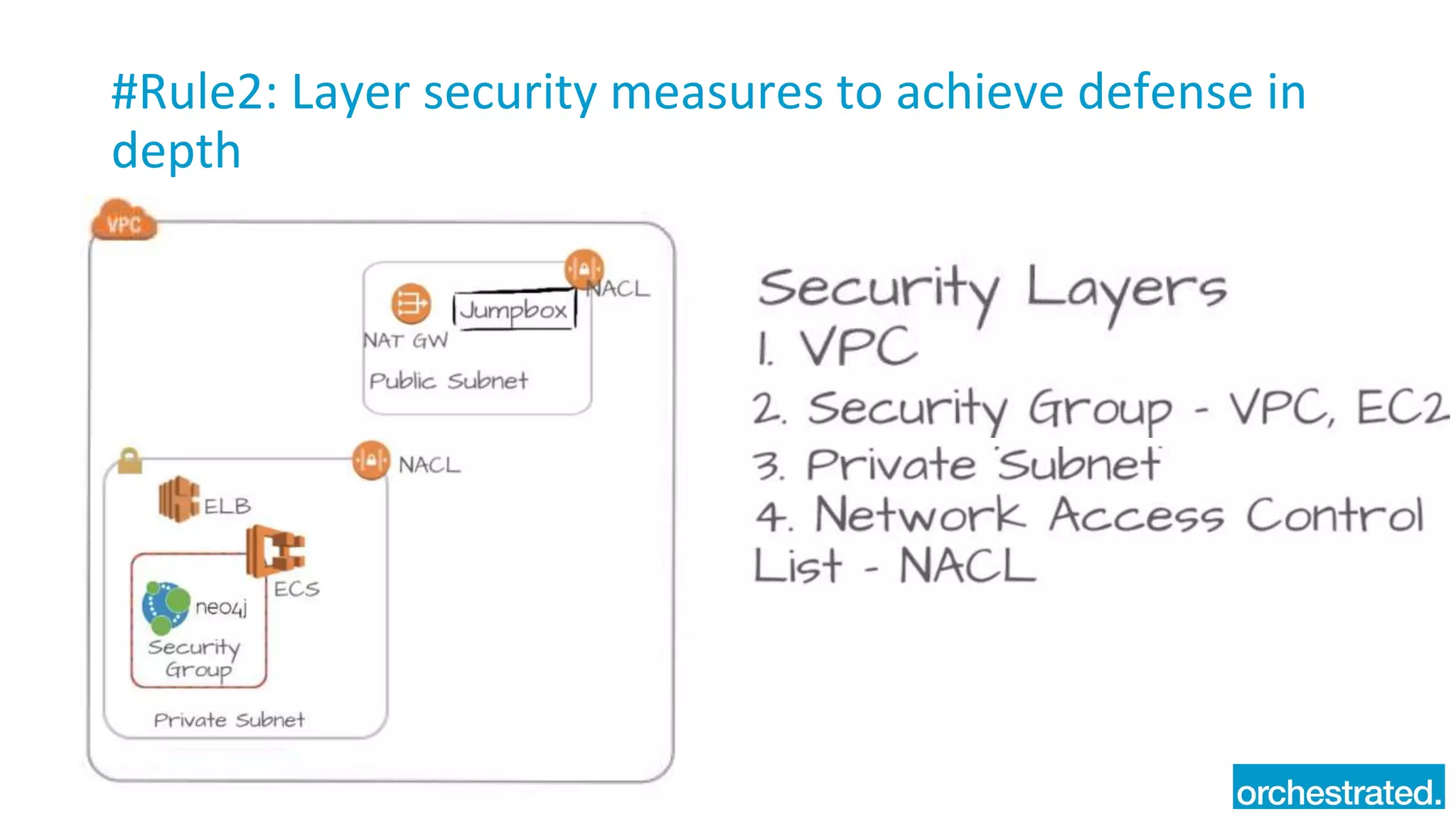

31. #Rule2: Layer security measures to achieve defense in
depth

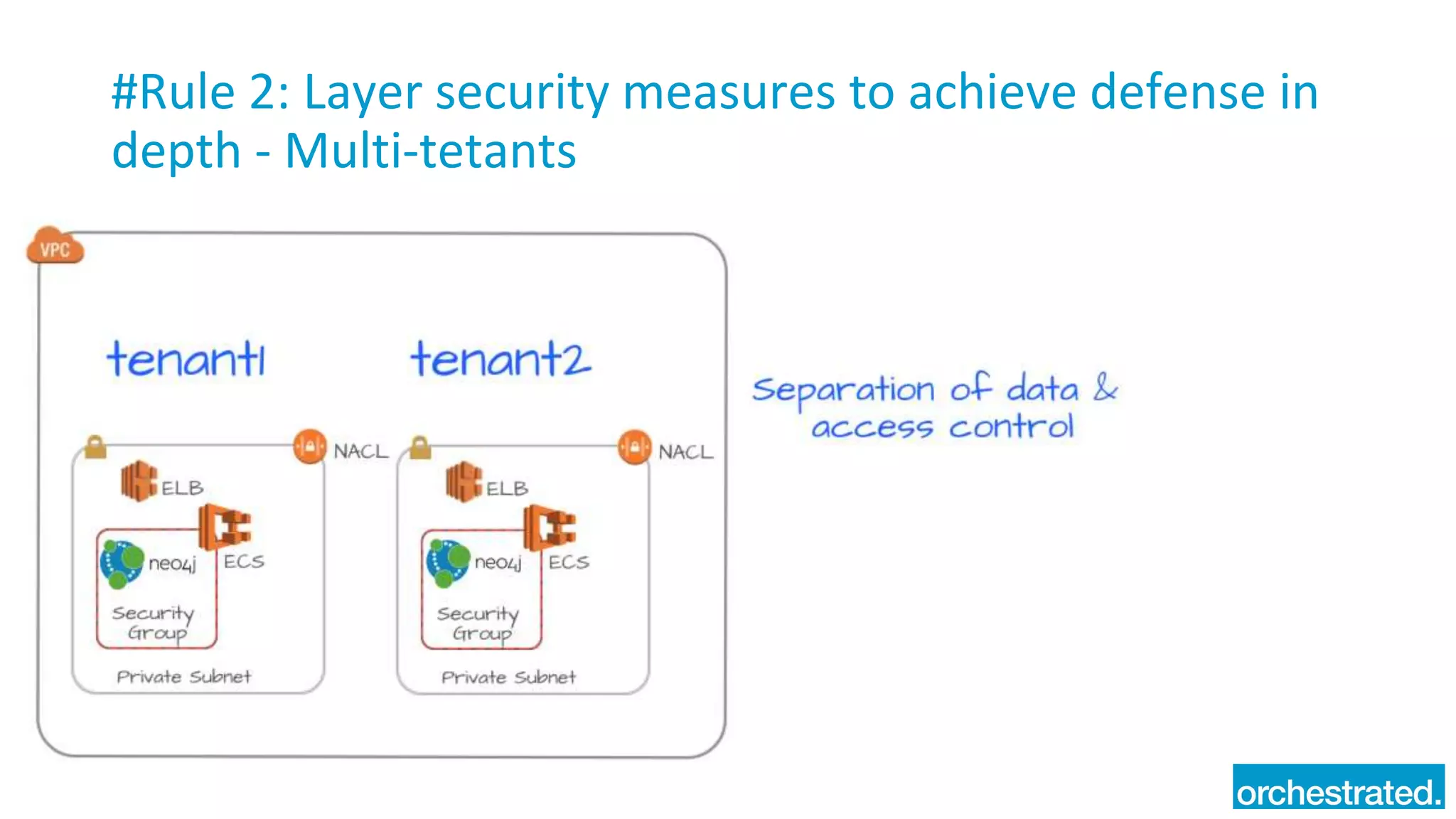

32. #Rule 2: Layer security measures to achieve defense in
depth - Multi-tetants

33. Basic Security Measures - Rules of thumb
Ref: Unix and Linux System Administrator Handbook

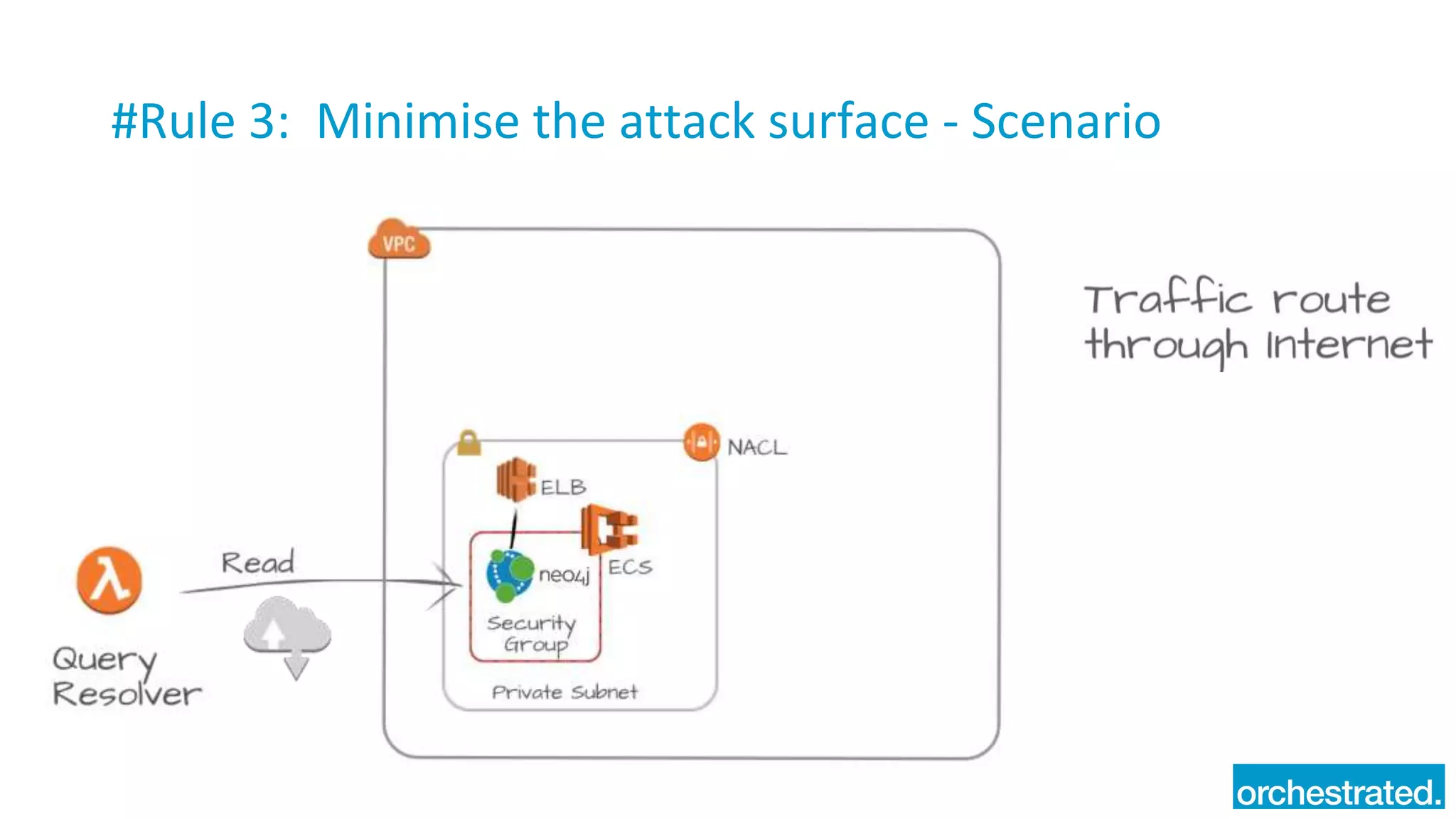

34. #Rule 3: Minimise the attack surface - Scenario

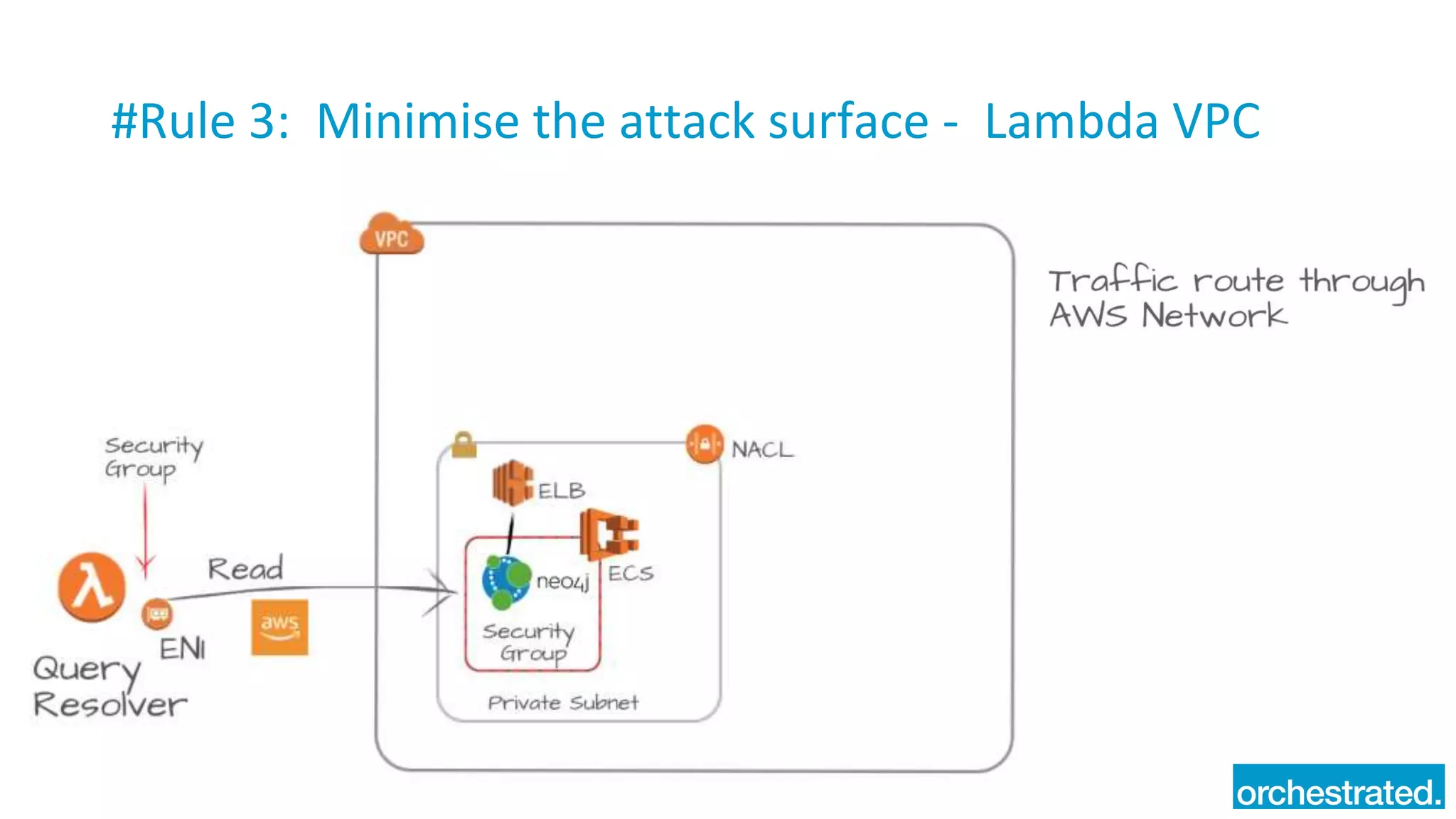

35. #Rule 3: Minimise the attack surface - Lambda VPC

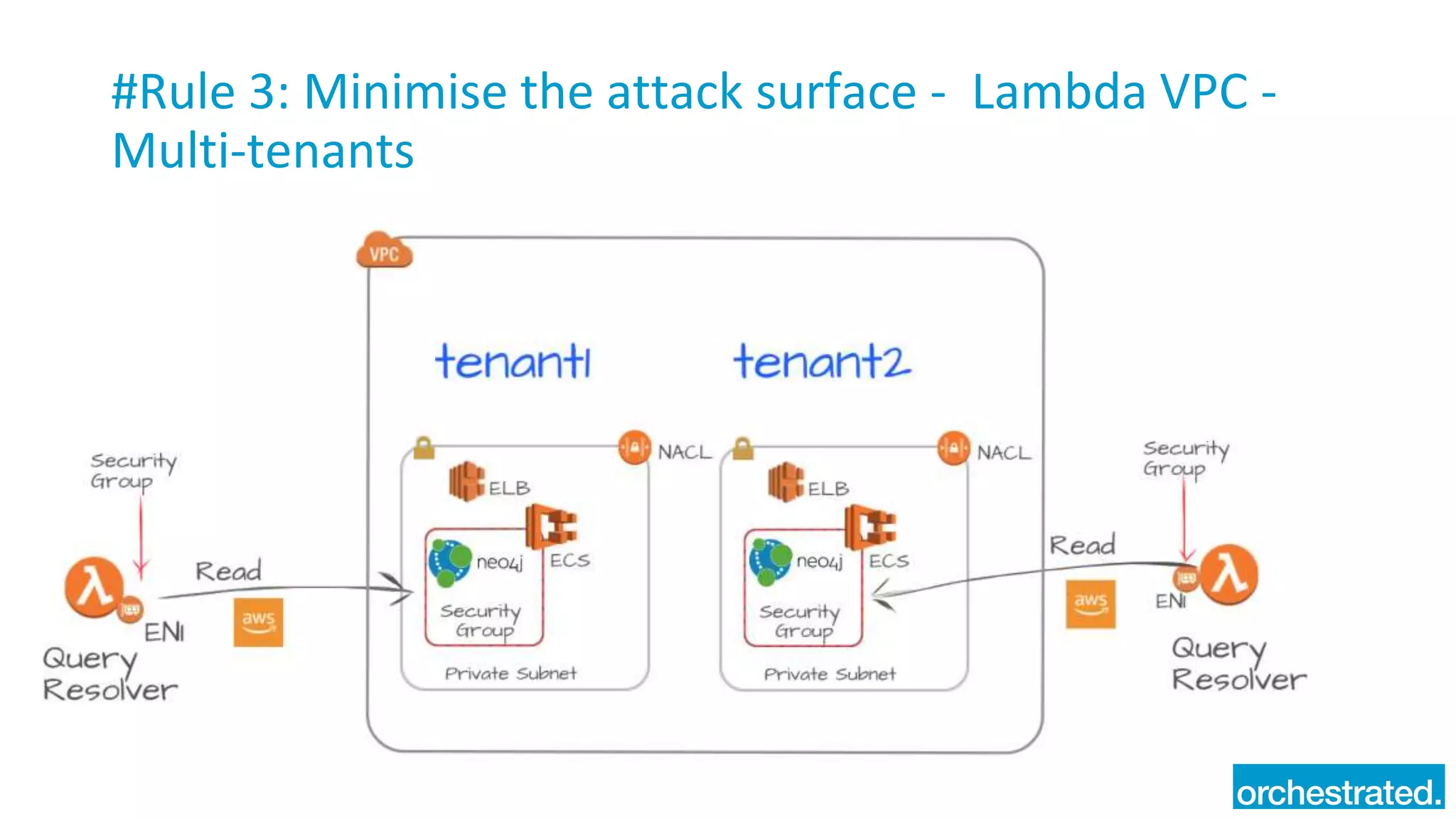

36. #Rule 3: Minimise the attack surface - Lambda VPC -
Multi-tenants

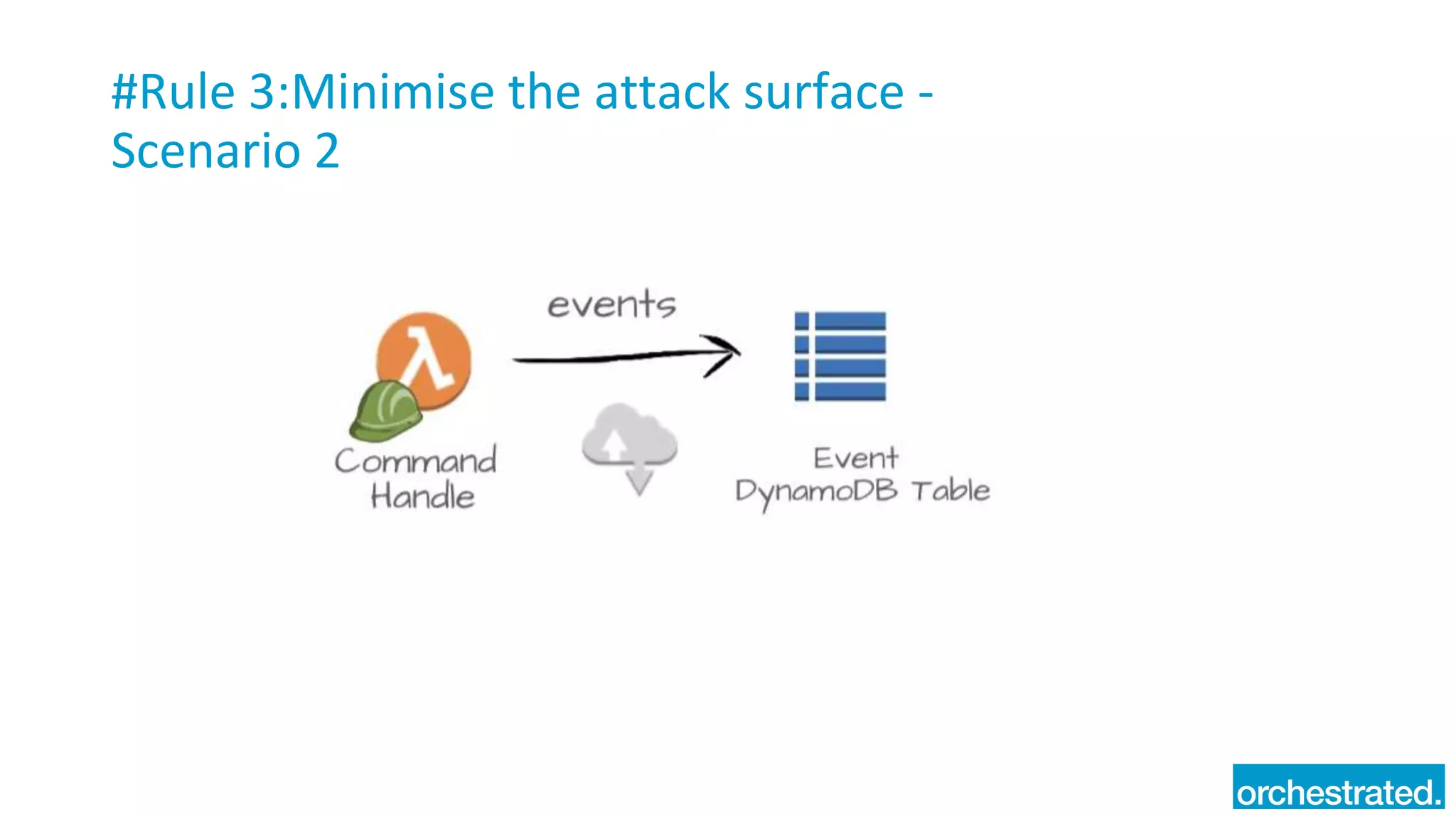

37. #Rule 3:Minimise the attack surface -
Scenario 2

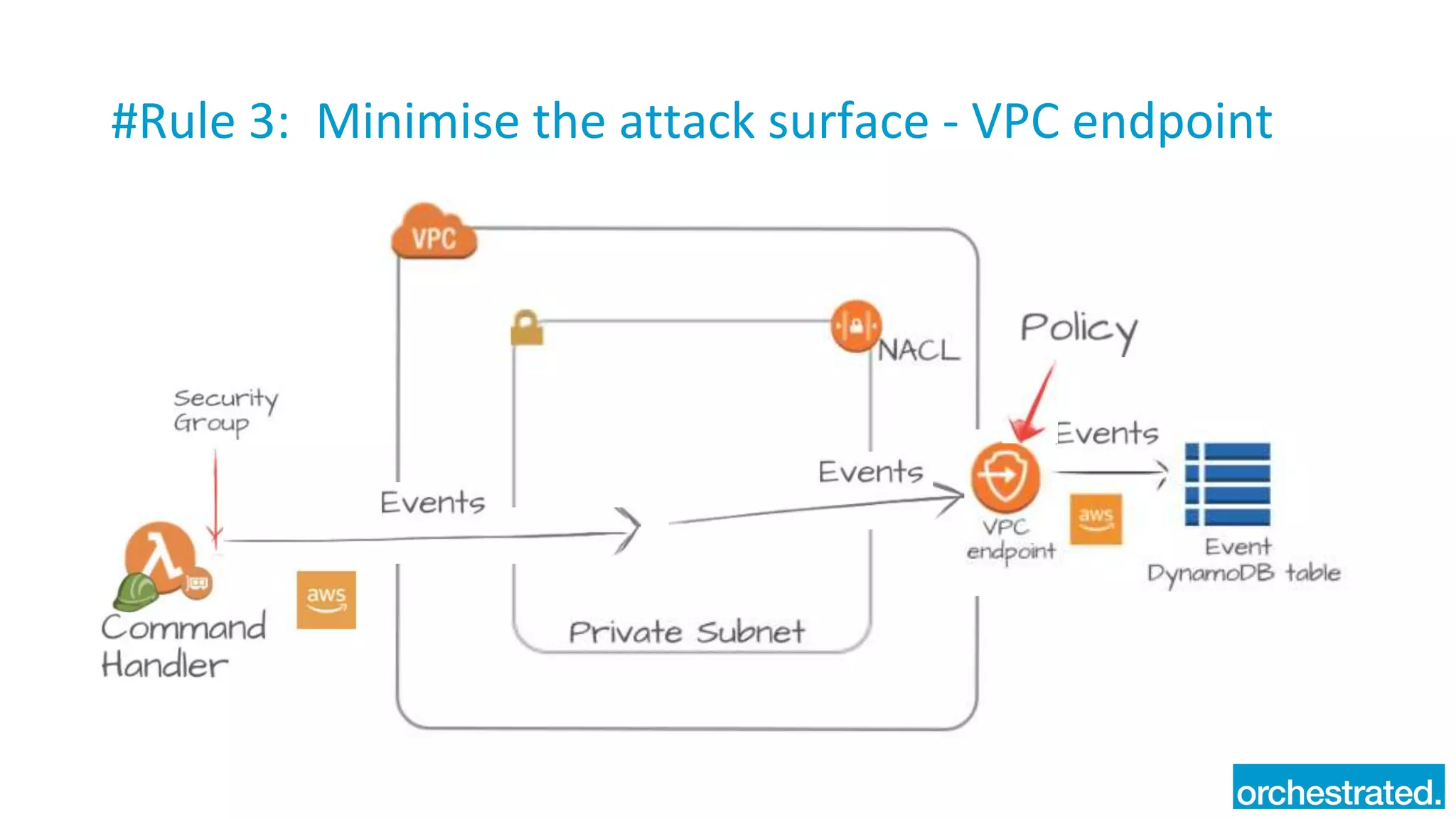

38. #Rule 3: Minimise the attack surface - VPC endpoint

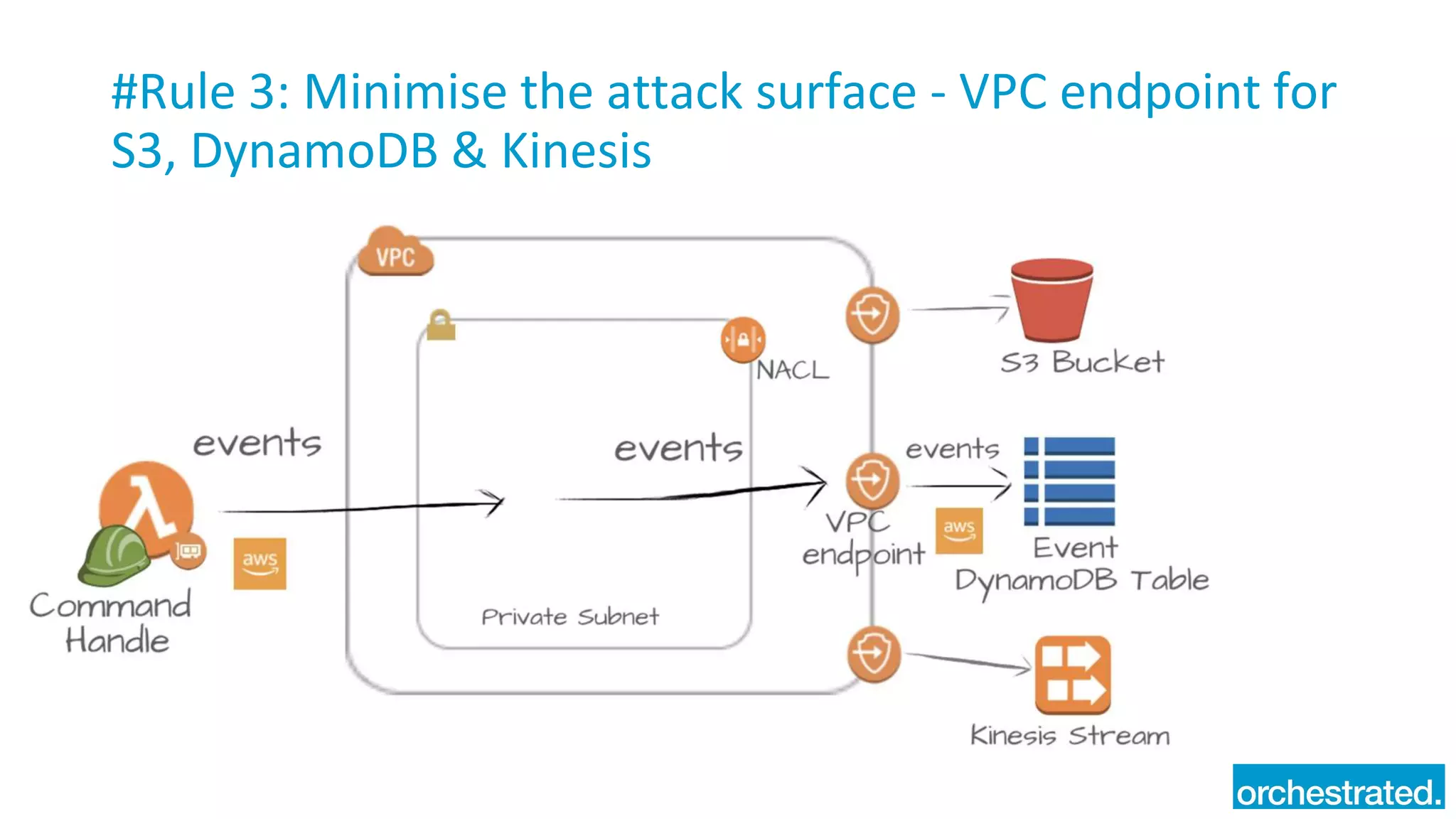

39. #Rule 3: Minimise the attack surface - VPC endpoint for
S3, DynamoDB & Kinesis

40. Basic Security Measures - Rules of thumb
Ref: Unix and Linux System Administrator Handbook

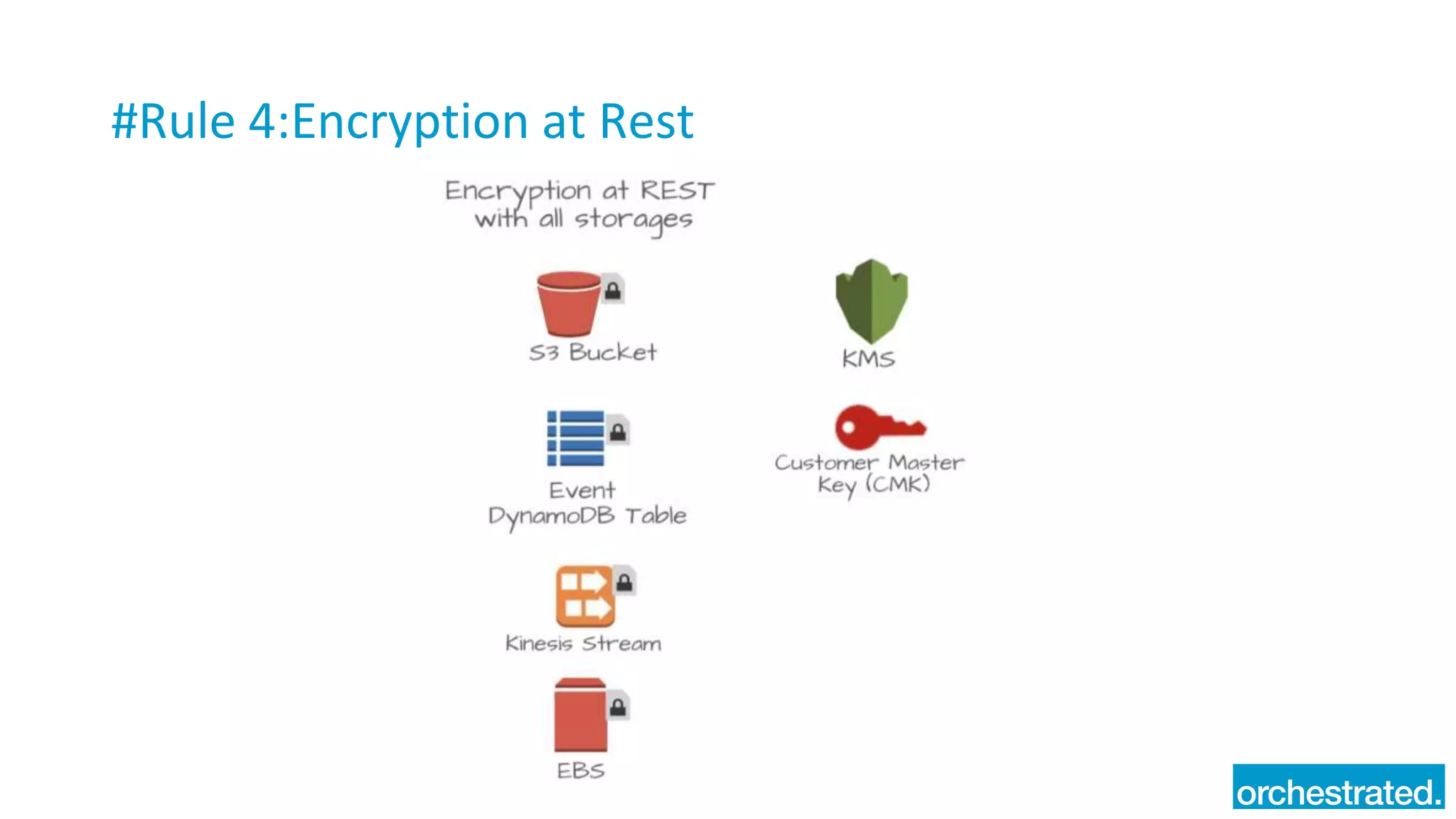

41. #Rule 4:Encryption at Rest

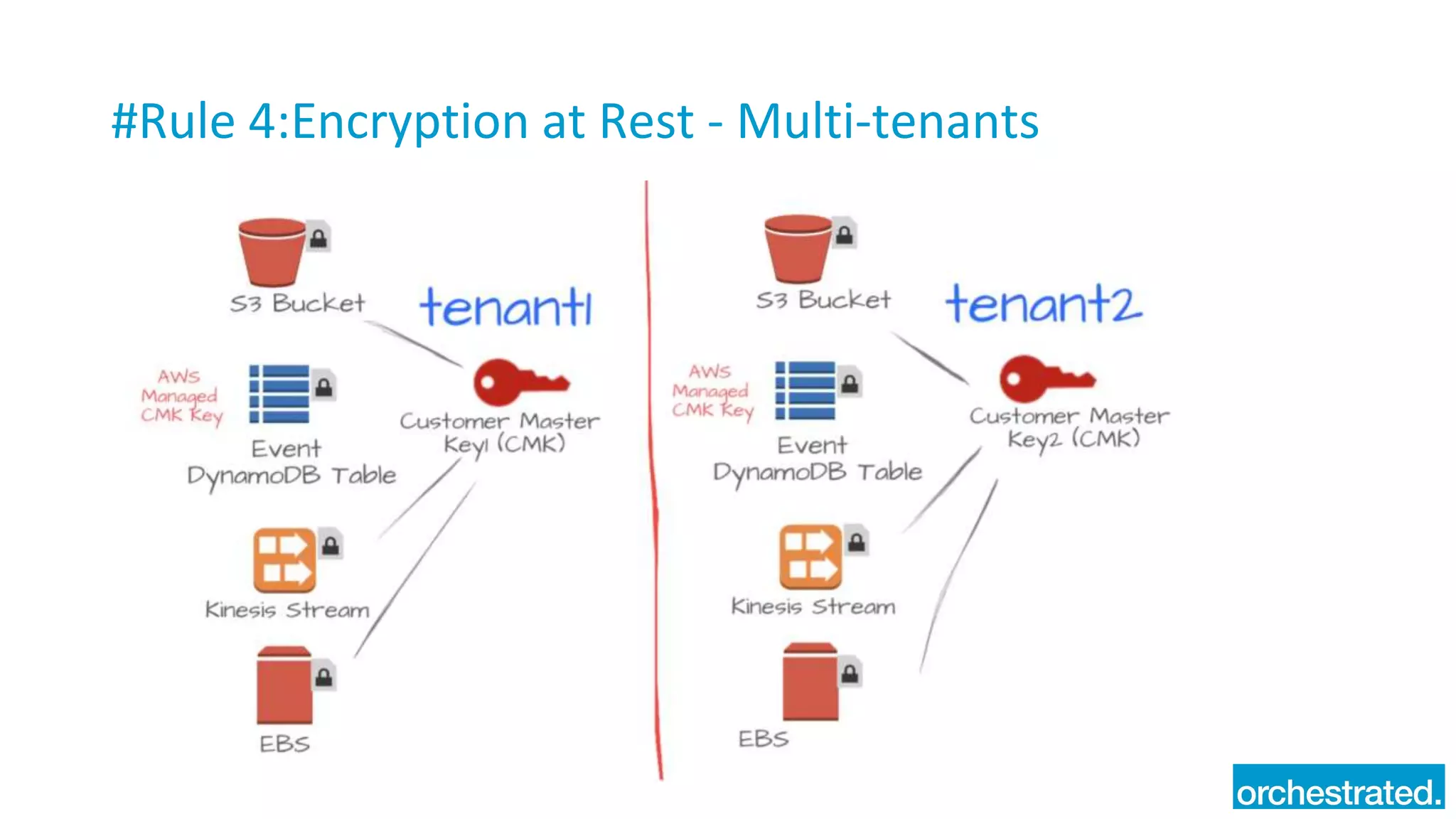

42. #Rule 4:Encryption at Rest - Multi-tenants

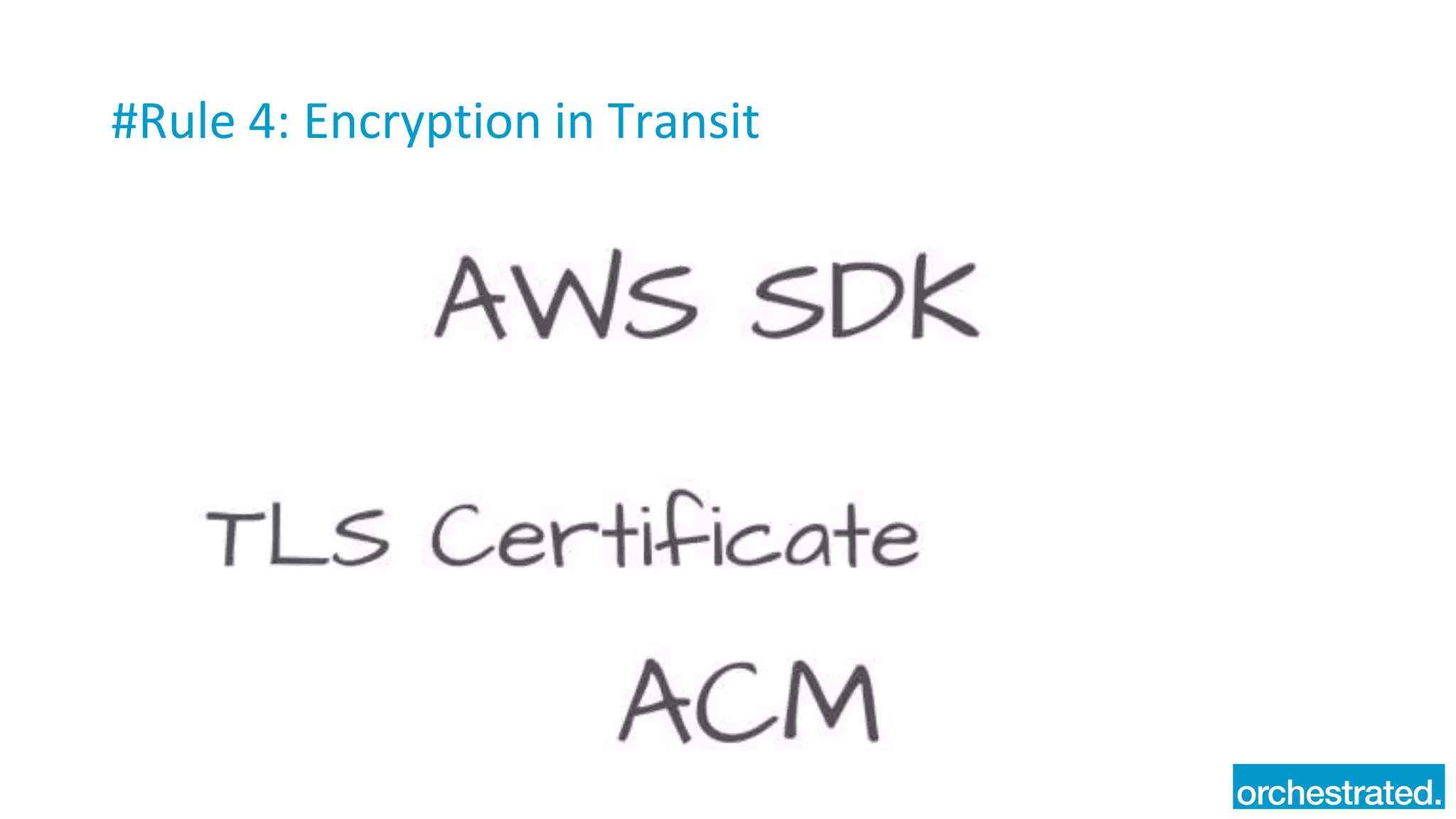

43. #Rule 4: Encryption in Transit

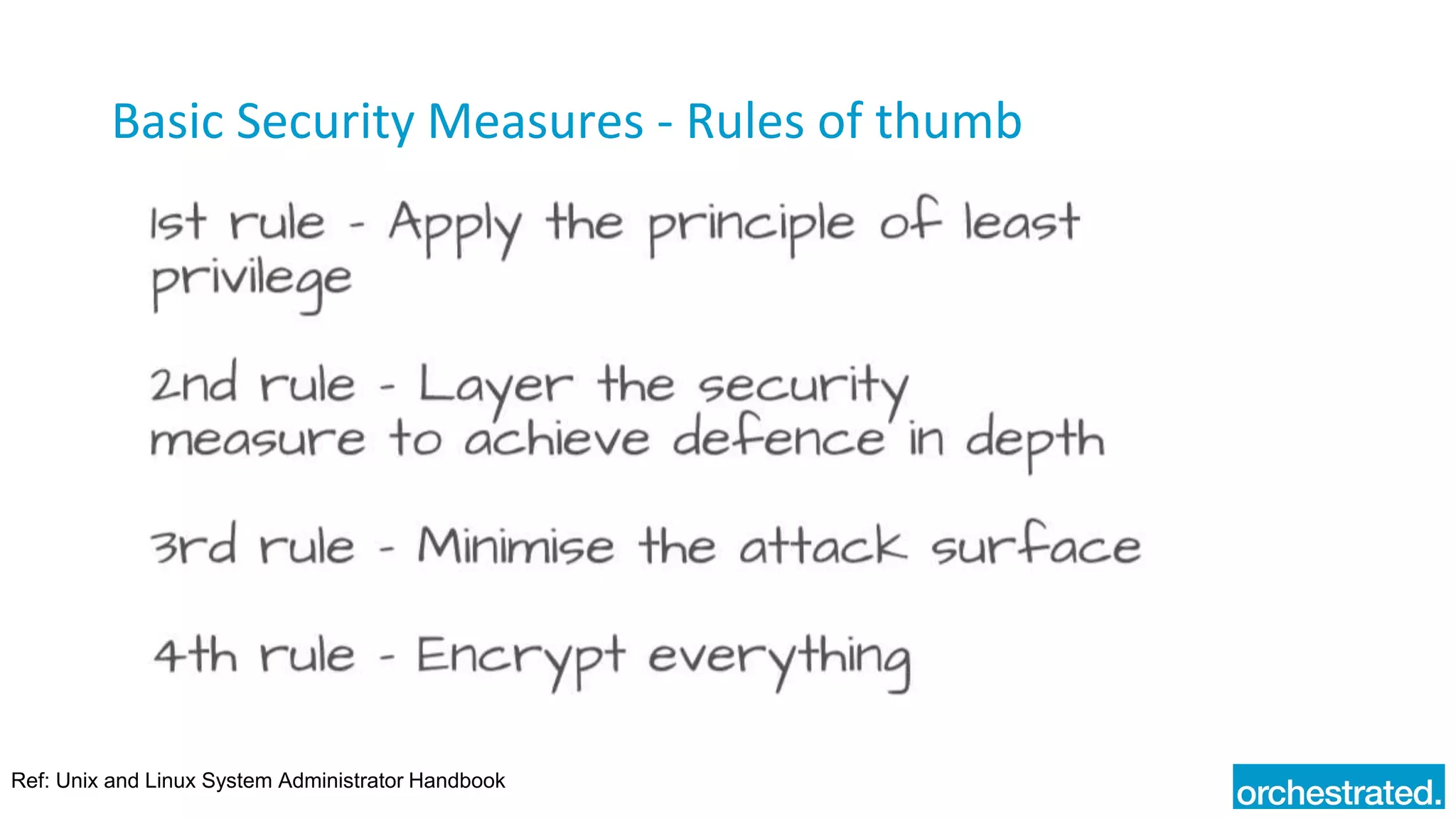

44. Basic Security Measures - Rules of thumb
Ref: Unix and Linux System Administrator Handbook

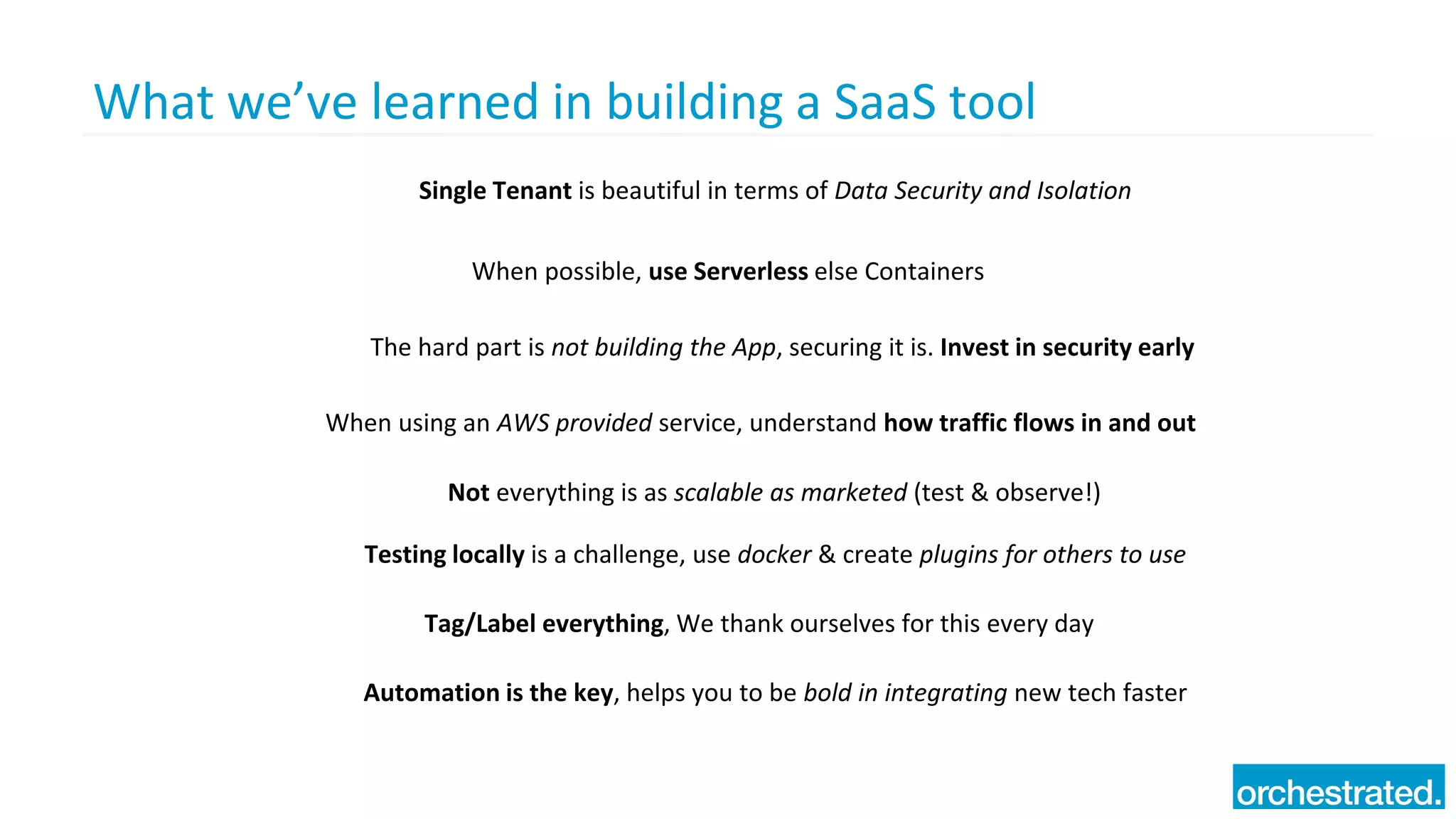

45. What we’ve learned in building a SaaS tool
Single Tenant is beautiful in terms of Data Security and Isolation
Not everything is as scalable as marketed (test & observe!)
When possible, use Serverless else Containers
Tag/Label everything, We thank ourselves for this every day
The hard part is not building the App, securing it is. Invest in security early
When using an AWS provided service, understand how traffic flows in and out
Testing locally is a challenge, use docker & create plugins for others to use
Automation is the key, helps you to be bold in integrating new tech faster

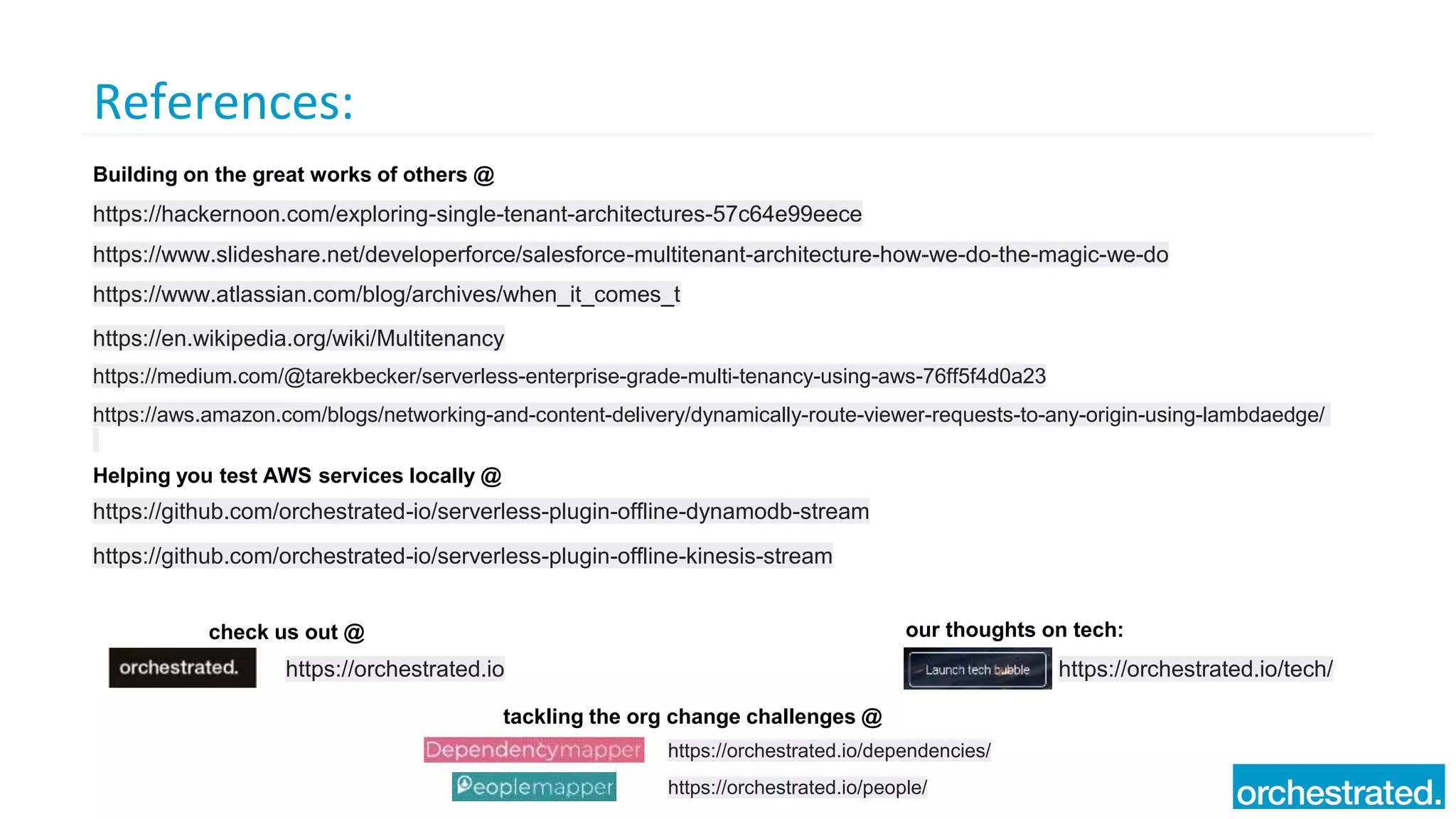

46. References:
https://hackernoon.com/exploring-single-tenant-architectures-57c64e99eece
https://www.slideshare.net/developerforce/salesforce-multitenant-architecture-how-we-do-the-magic-we-do
https://www.atlassian.com/blog/archives/when_it_comes_t
https://en.wikipedia.org/wiki/Multitenancy
https://medium.com/@tarekbecker/serverless-enterprise-grade-multi-tenancy-using-aws-76ff5f4d0a23
https://orchestrated.io
check us out @
https://orchestrated.io/tech/
our thoughts on tech:
https://orchestrated.io/dependencies/
tackling the org change challenges @
https://orchestrated.io/people/
https://aws.amazon.com/blogs/networking-and-content-delivery/dynamically-route-viewer-requests-to-any-origin-using-lambdaedge/
Building on the great works of others @
Helping you test AWS services locally @
https://github.com/orchestrated-io/serverless-plugin-offline-dynamodb-stream
https://github.com/orchestrated-io/serverless-plugin-offline-kinesis-stream

47. Thanks!

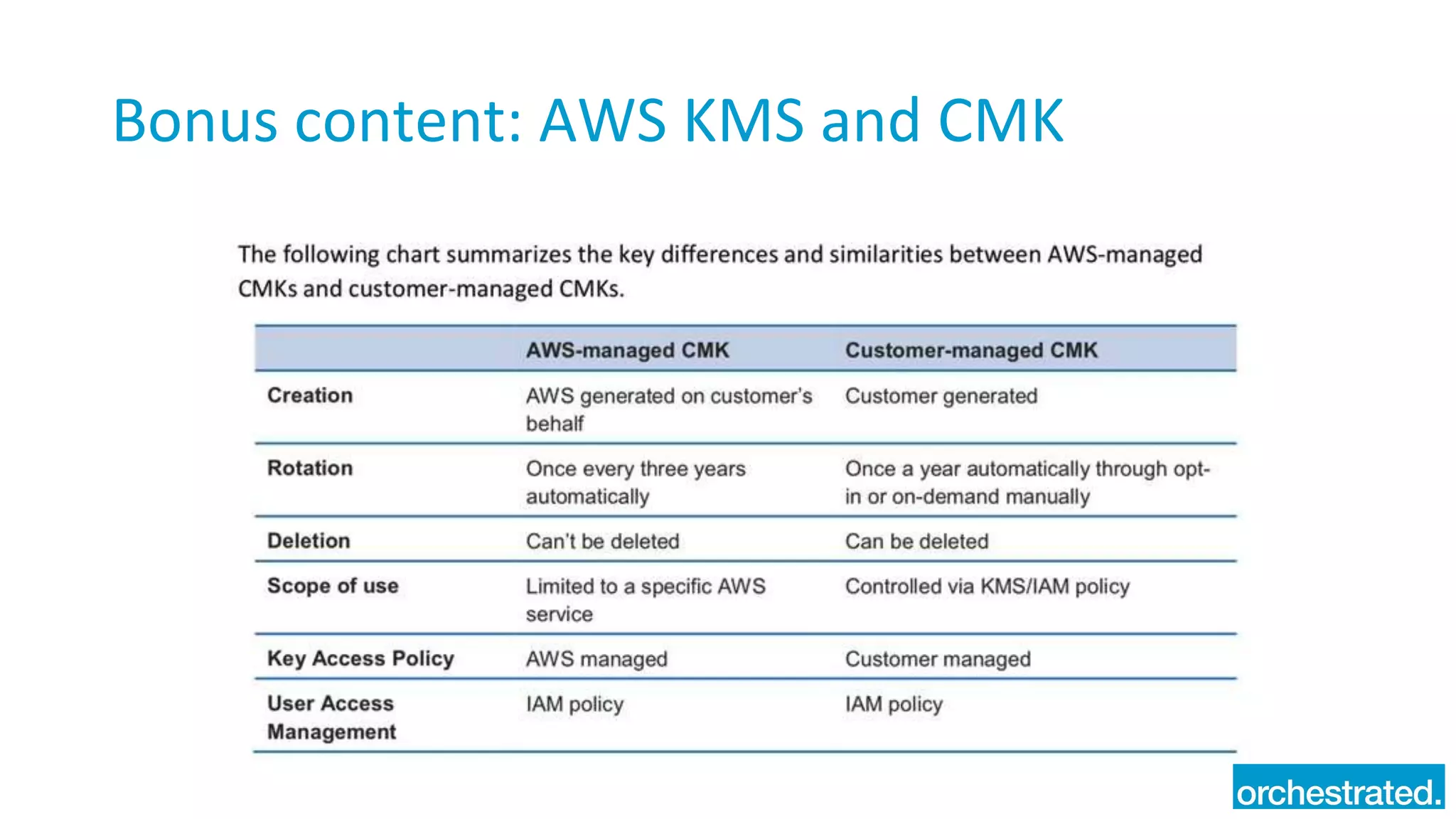

48. Bonus content: AWS KMS and CMK
