This document provides a summary of Oracle OpenWorld 2014 discussions on database cloud, in-memory database, native JSON support, big data, and Internet of Things (IoT) technologies. Key points include: - Database Cloud on Oracle offers pay-as-you-go pricing and self-service provisioning similar to on-premise databases. - Oracle Database 12c includes an in-memory option that can provide up to 100x faster analytics queries and 2-4x faster transaction processing. - Native JSON support in 12c allows storing and querying JSON documents within the database. - Big data technologies like Oracle Big Data SQL and Oracle Big Data Discovery help analyze large and diverse data sets from sources like

1. Review Oracle OpenWorld 2014
Part Three – PaaS - Database
Team AMIS
16th October 2014

2. 2

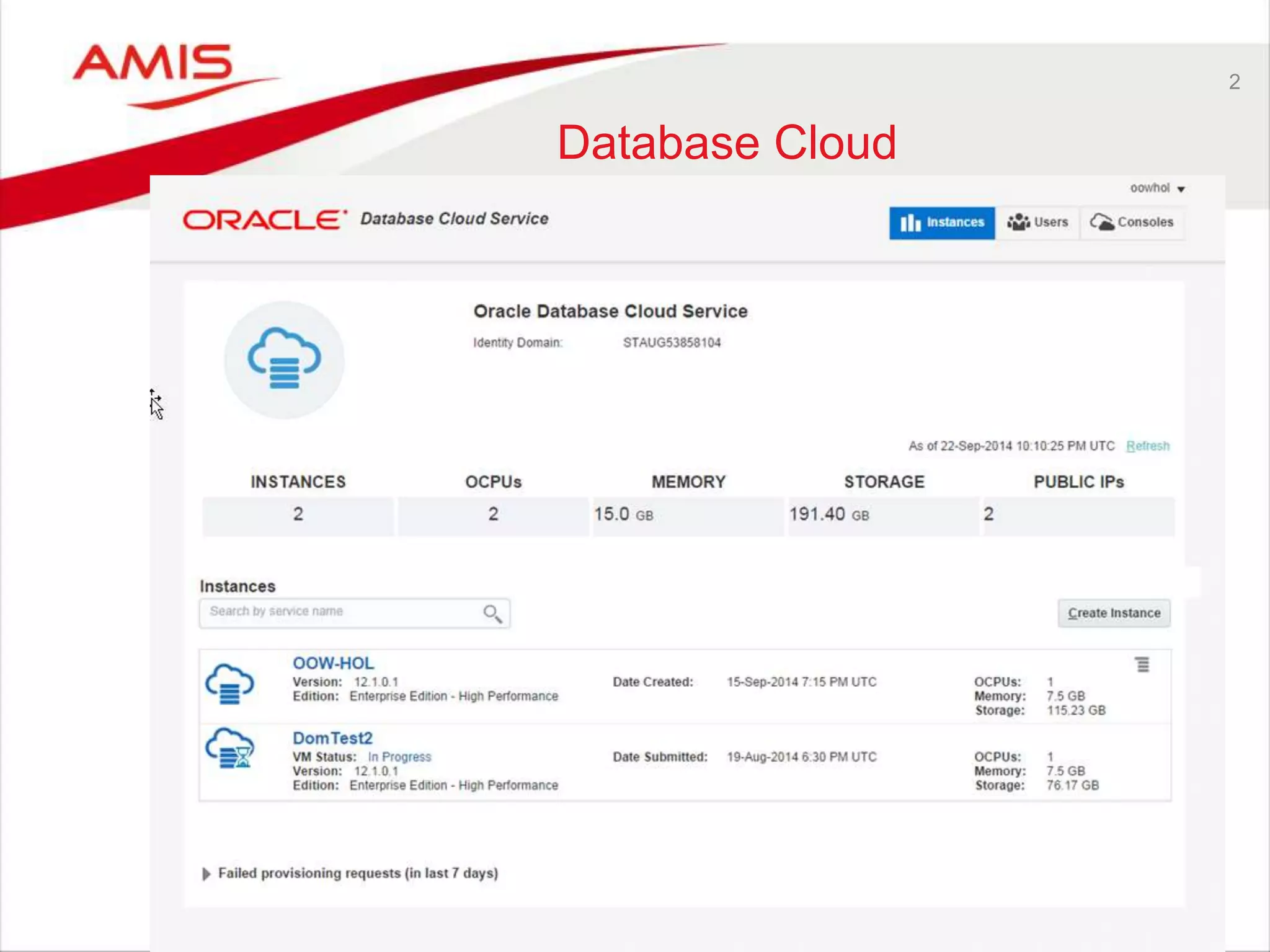

Database Cloud

3. 3

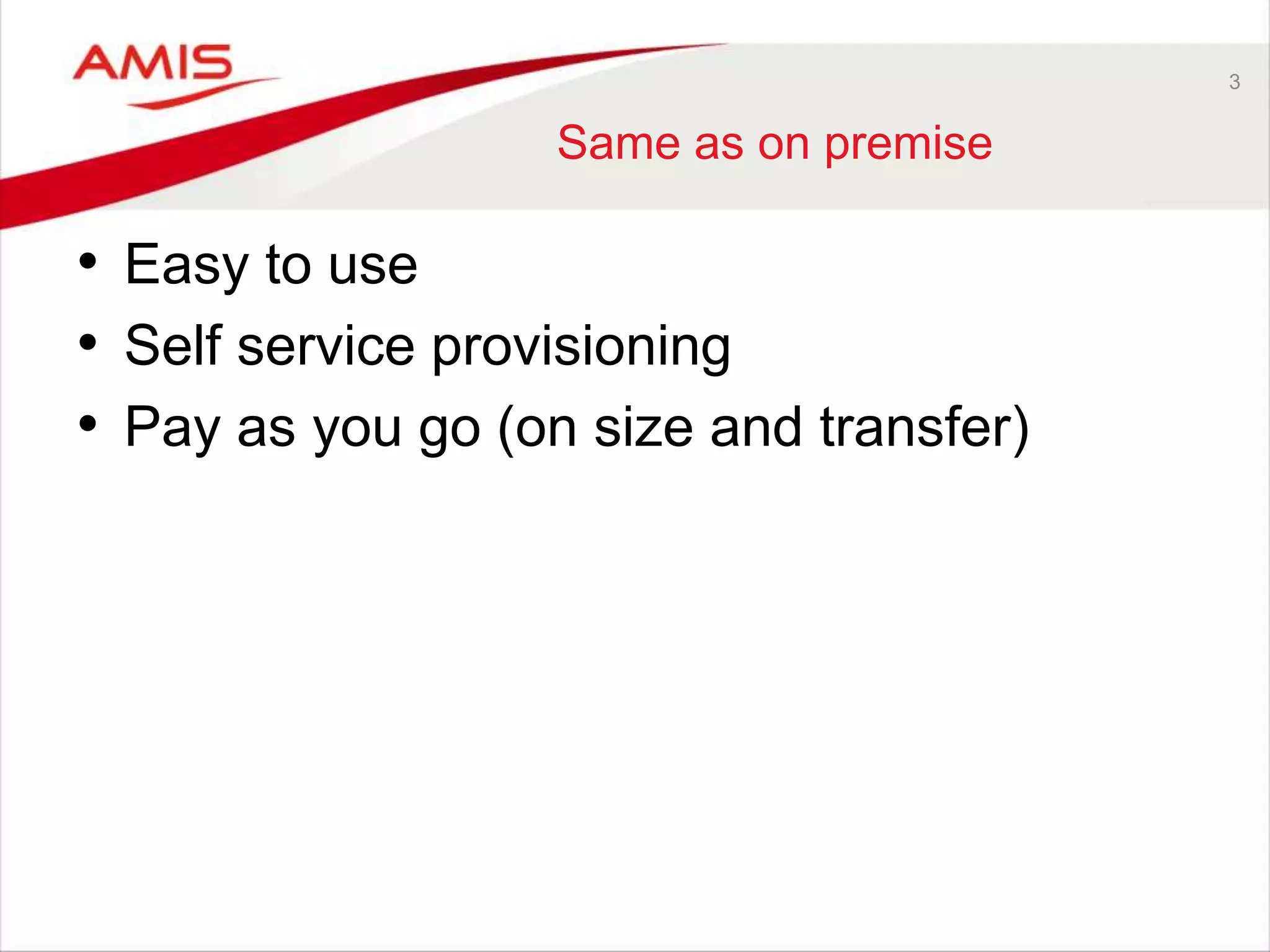

Same as on premise
• Easy to use
• Self service provisioning
• Pay as you go (on size and transfer)

4. 4

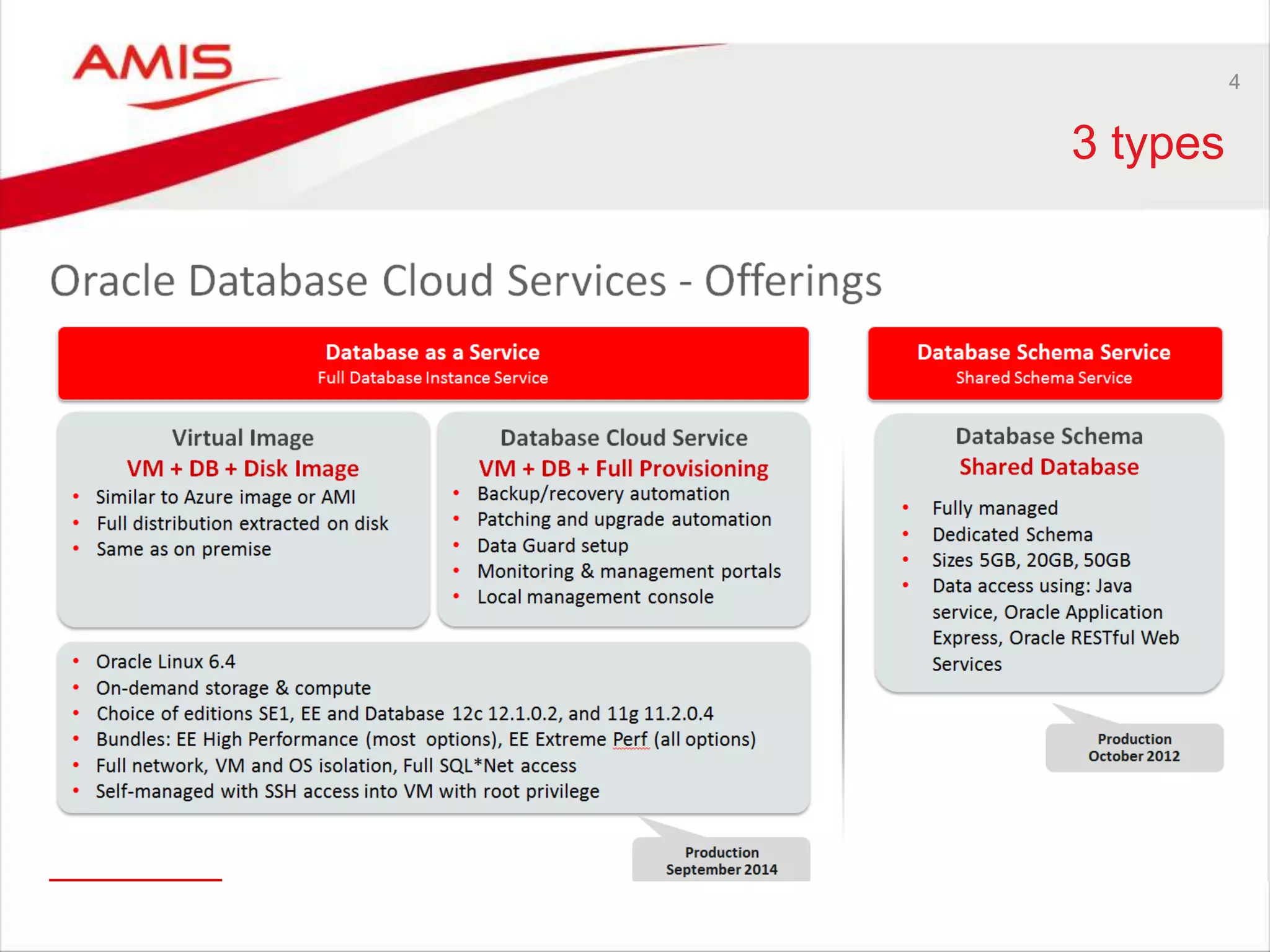

3 types

5. 5

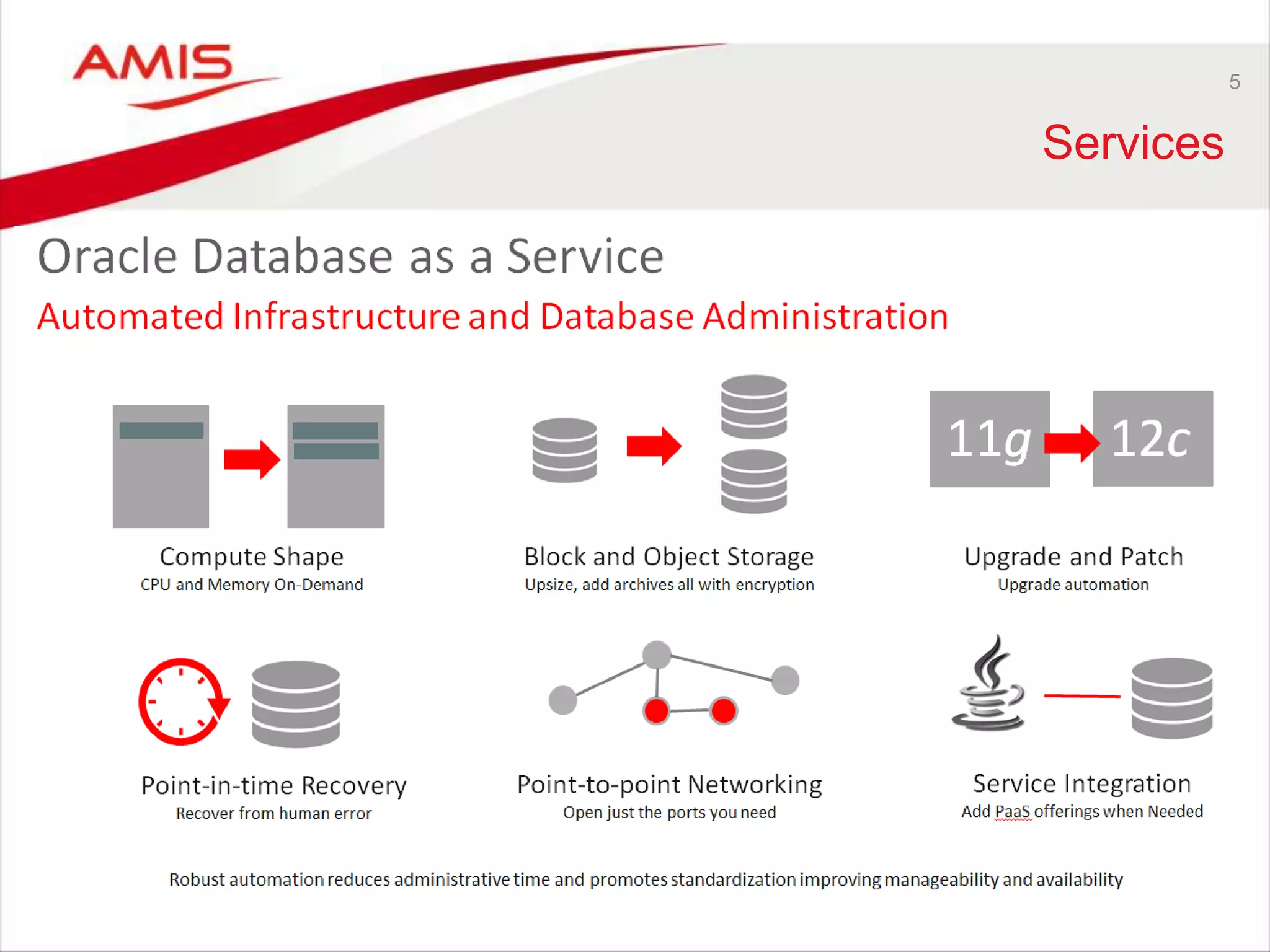

Services

6. 6

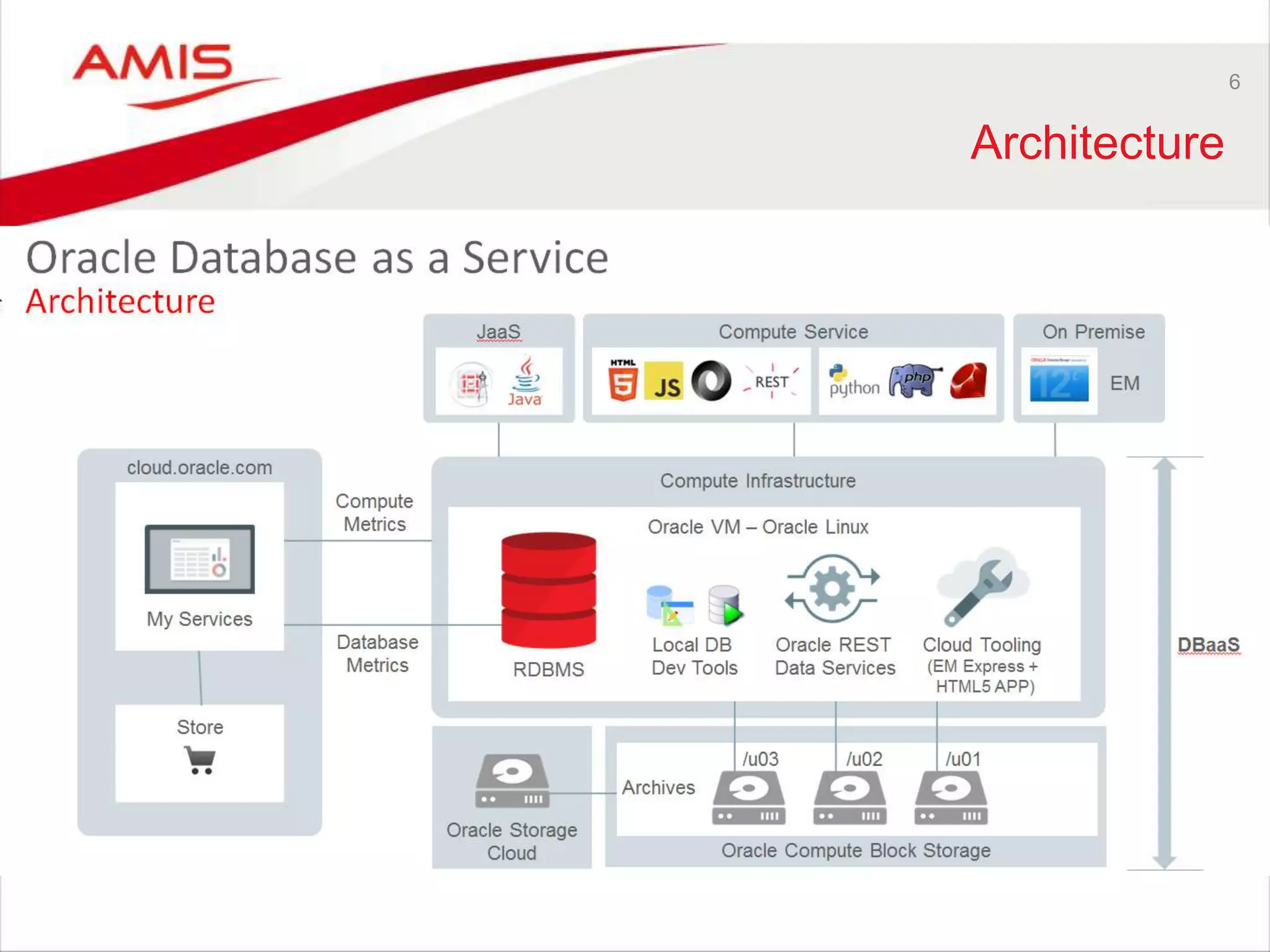

Architecture

7. 7

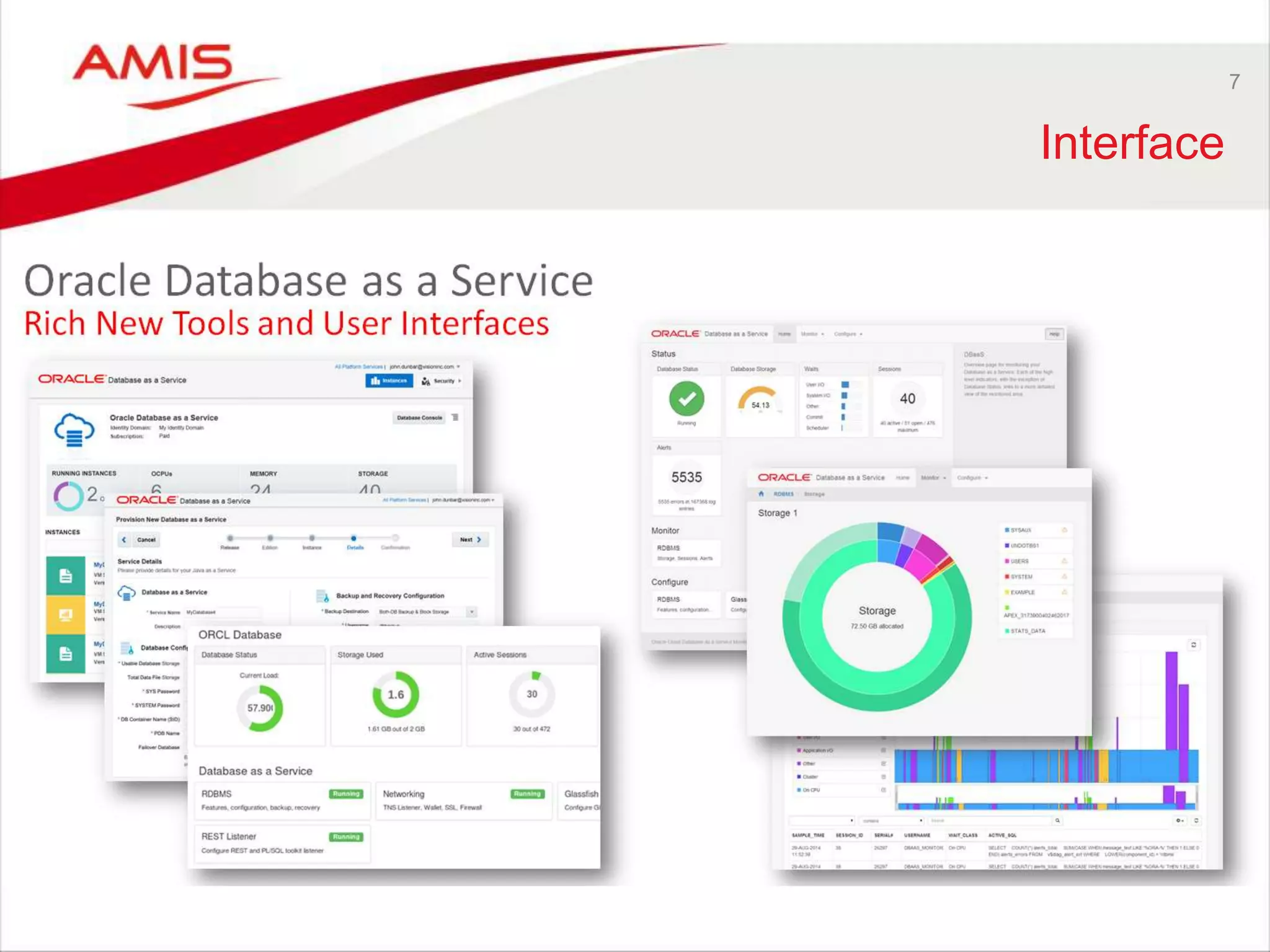

Interface

8. 8

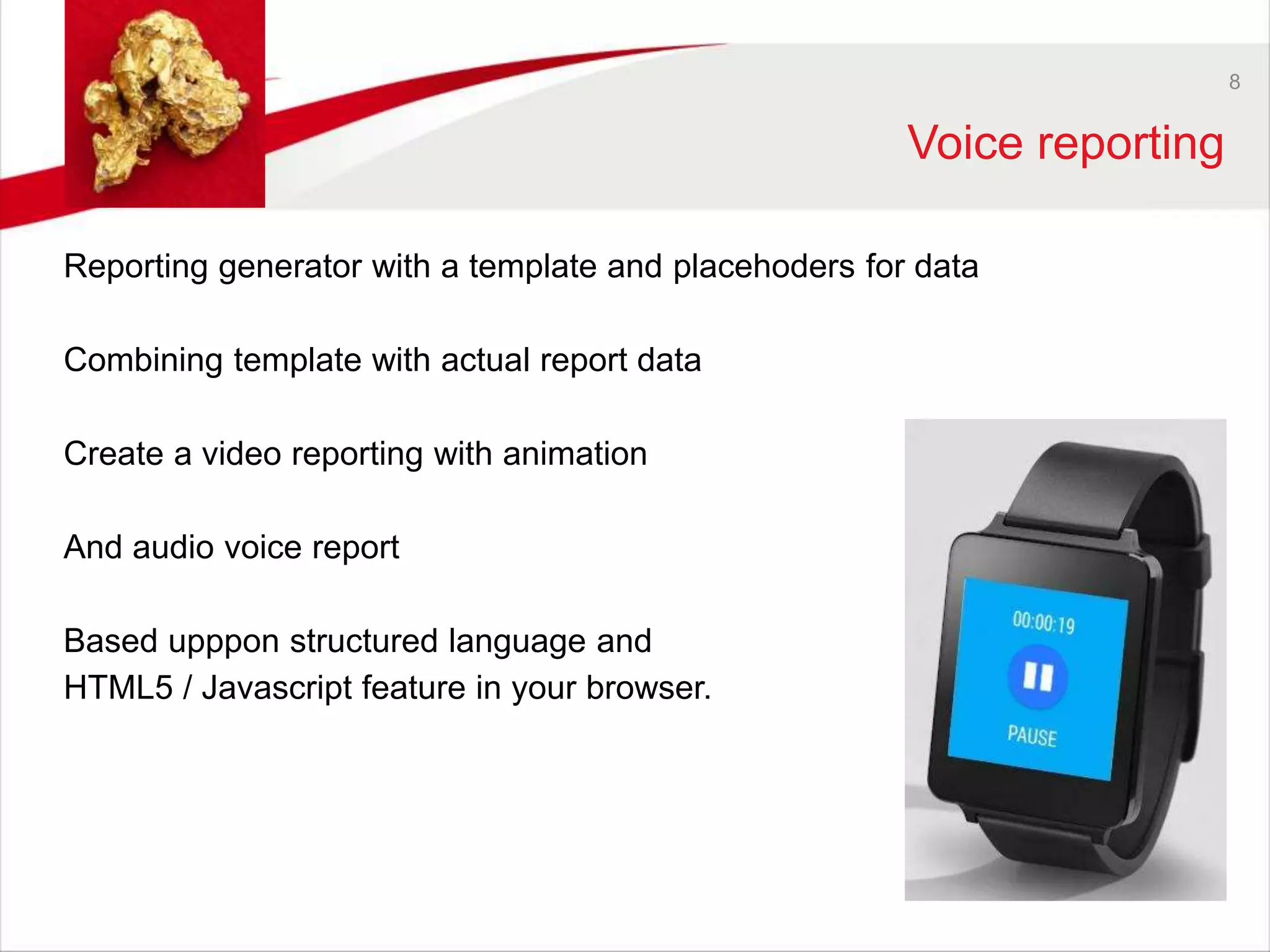

Voice reporting
Reporting generator with a template and placehoders for data
Combining template with actual report data
Create a video reporting with animation
And audio voice report
Based upppon structured language and
HTML5 / Javascript feature in your browser.

9. 9

10. 10

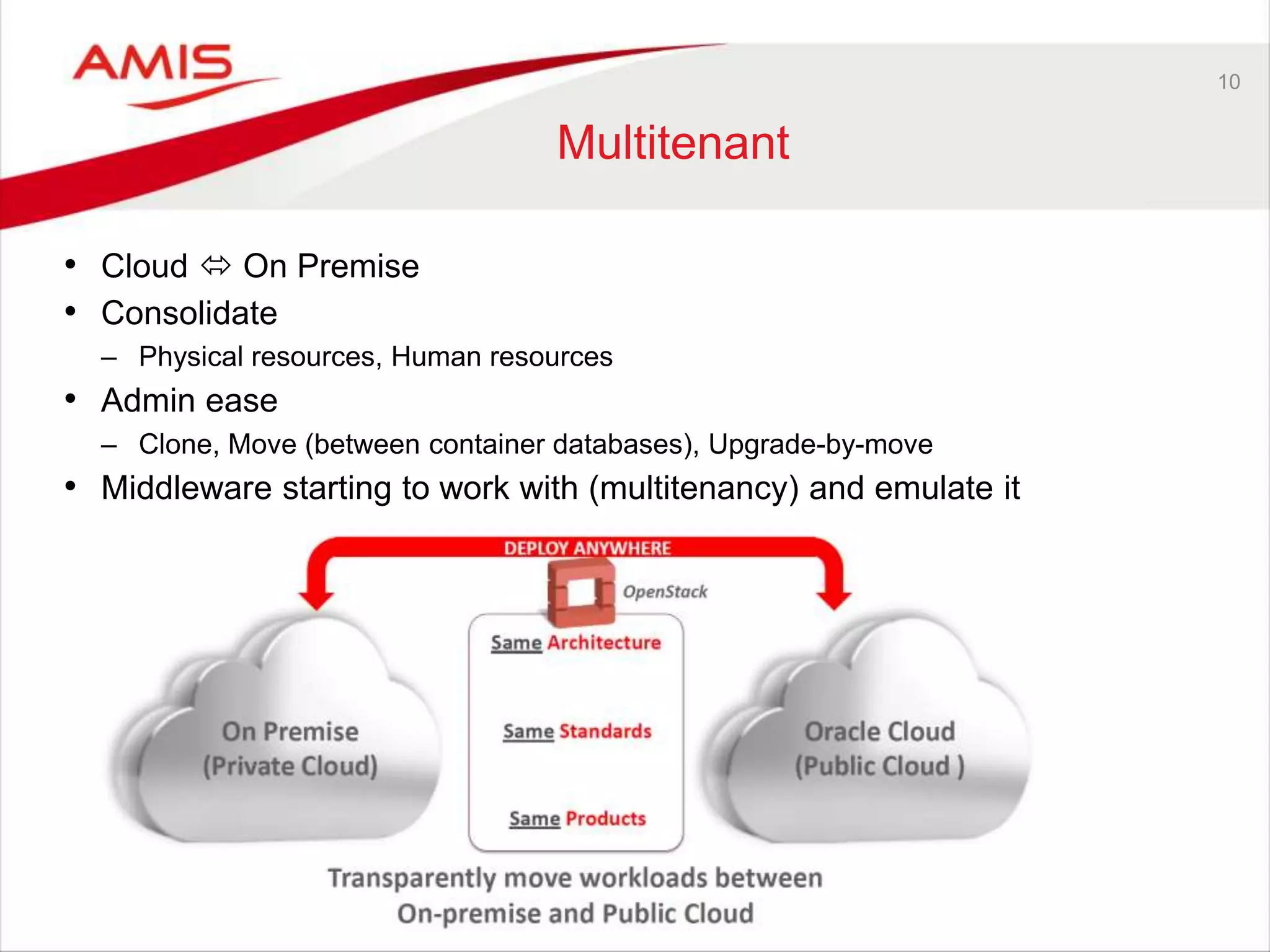

Multitenant
• Cloud  On Premise
• Consolidate
– Physical resources, Human resources
• Admin ease
– Clone, Move (between container databases), Upgrade-by-move
• Middleware starting to work with (multitenancy) and emulate it

11. 11

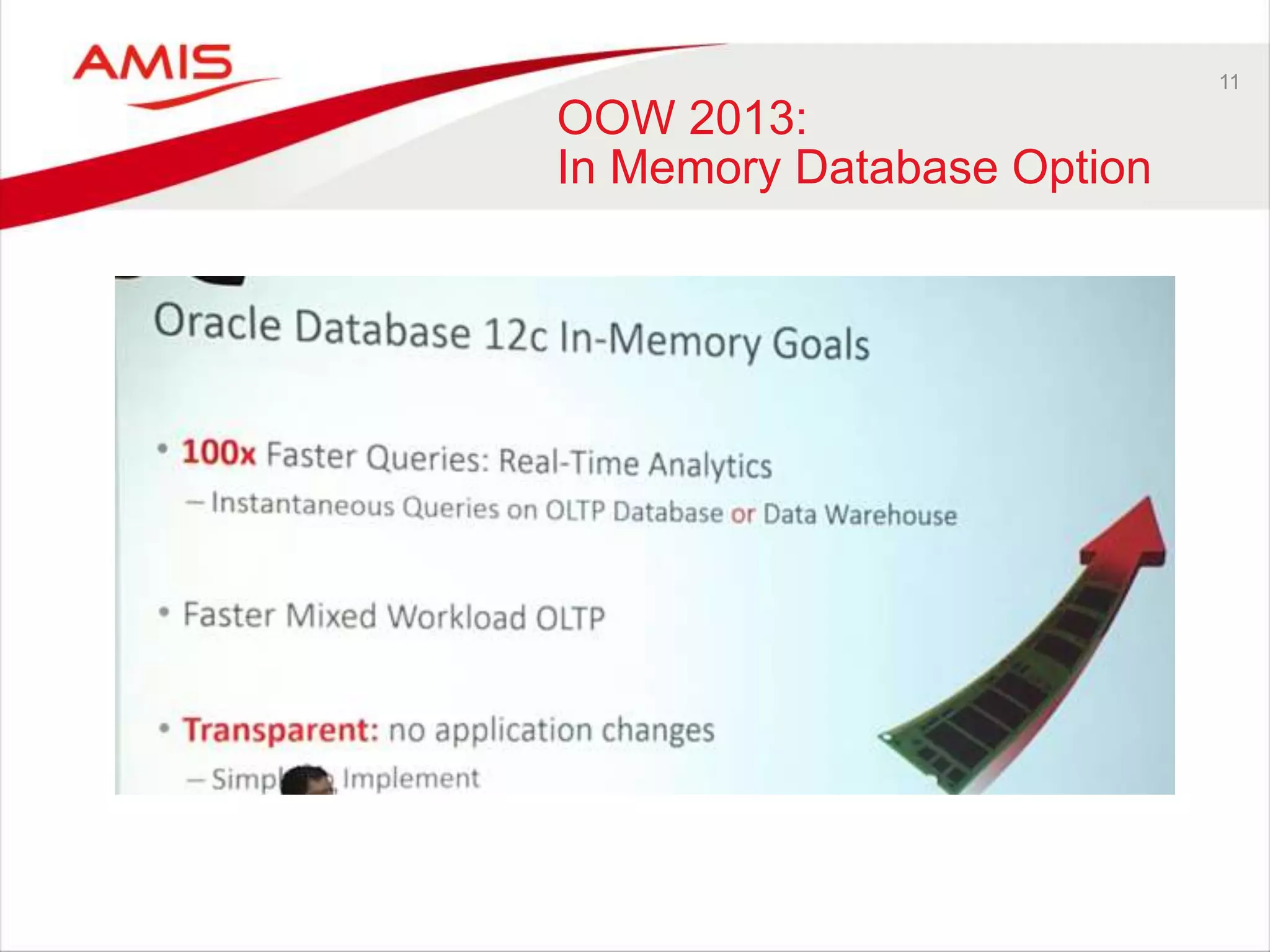

OOW 2013:
In Memory Database Option

12. 12

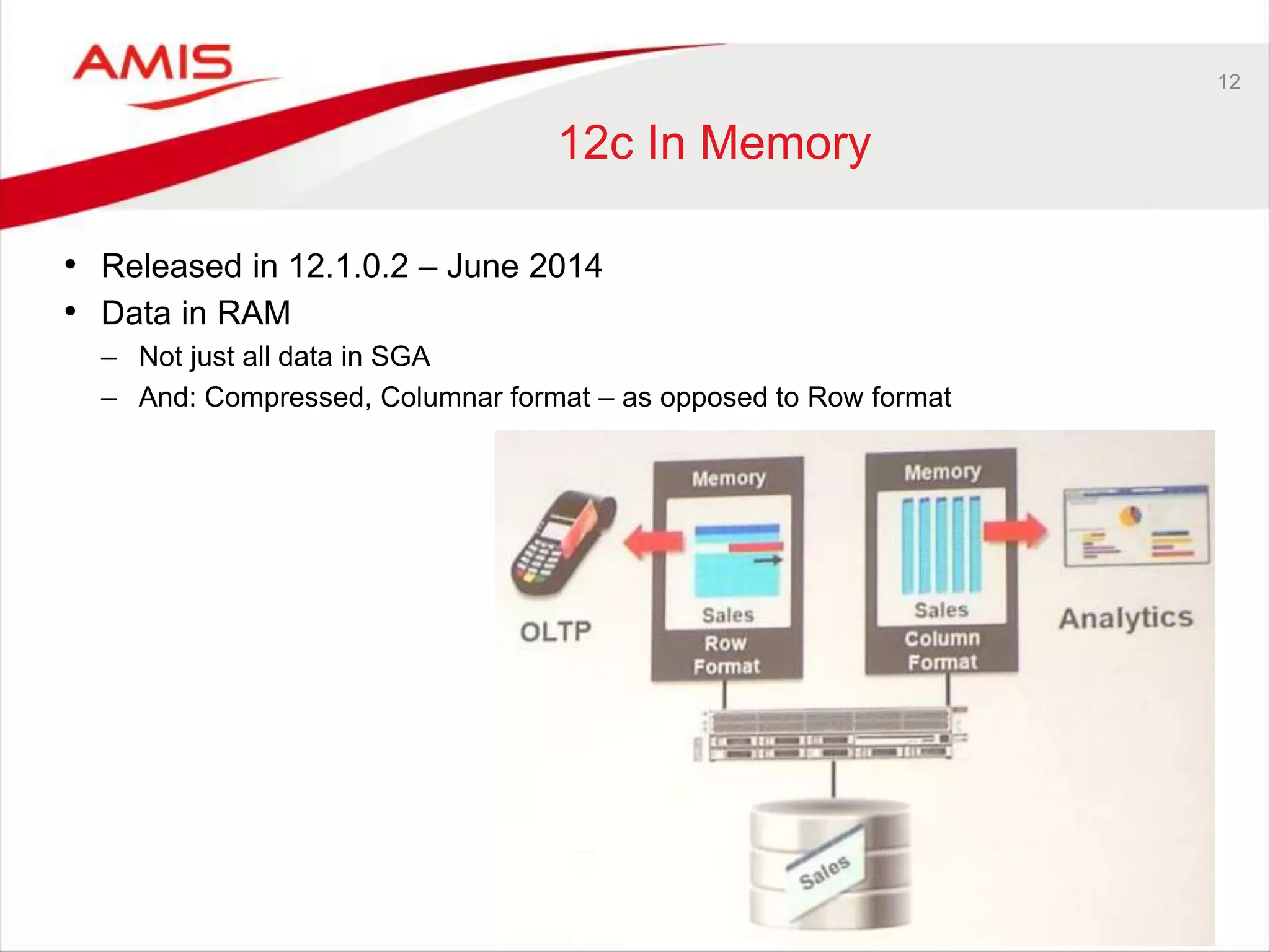

12c In Memory
• Released in 12.1.0.2 – June 2014
• Data in RAM
– Not just all data in SGA
– And: Compressed, Columnar format – as opposed to Row format

13. 13

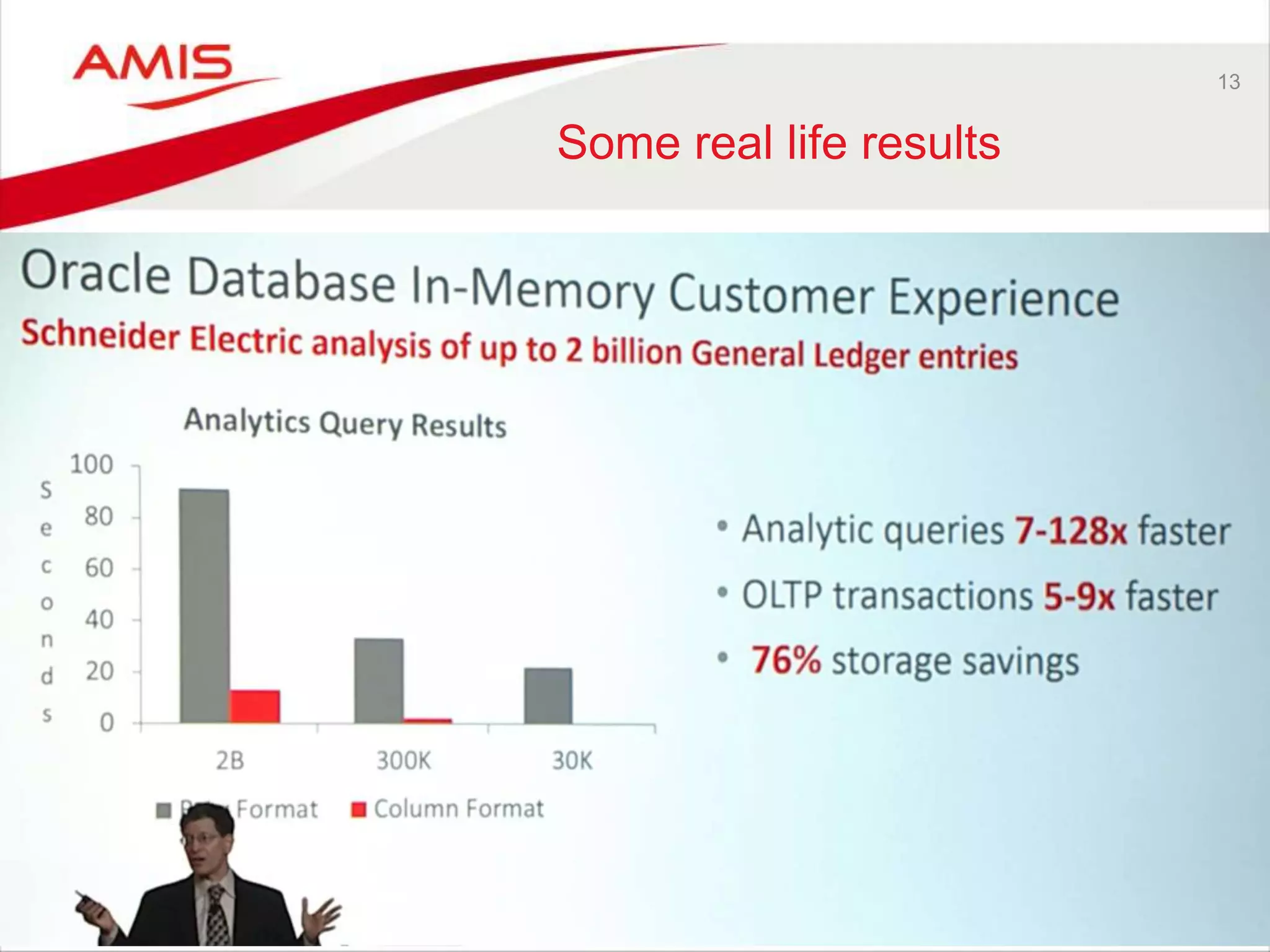

Some real life results

14. 14

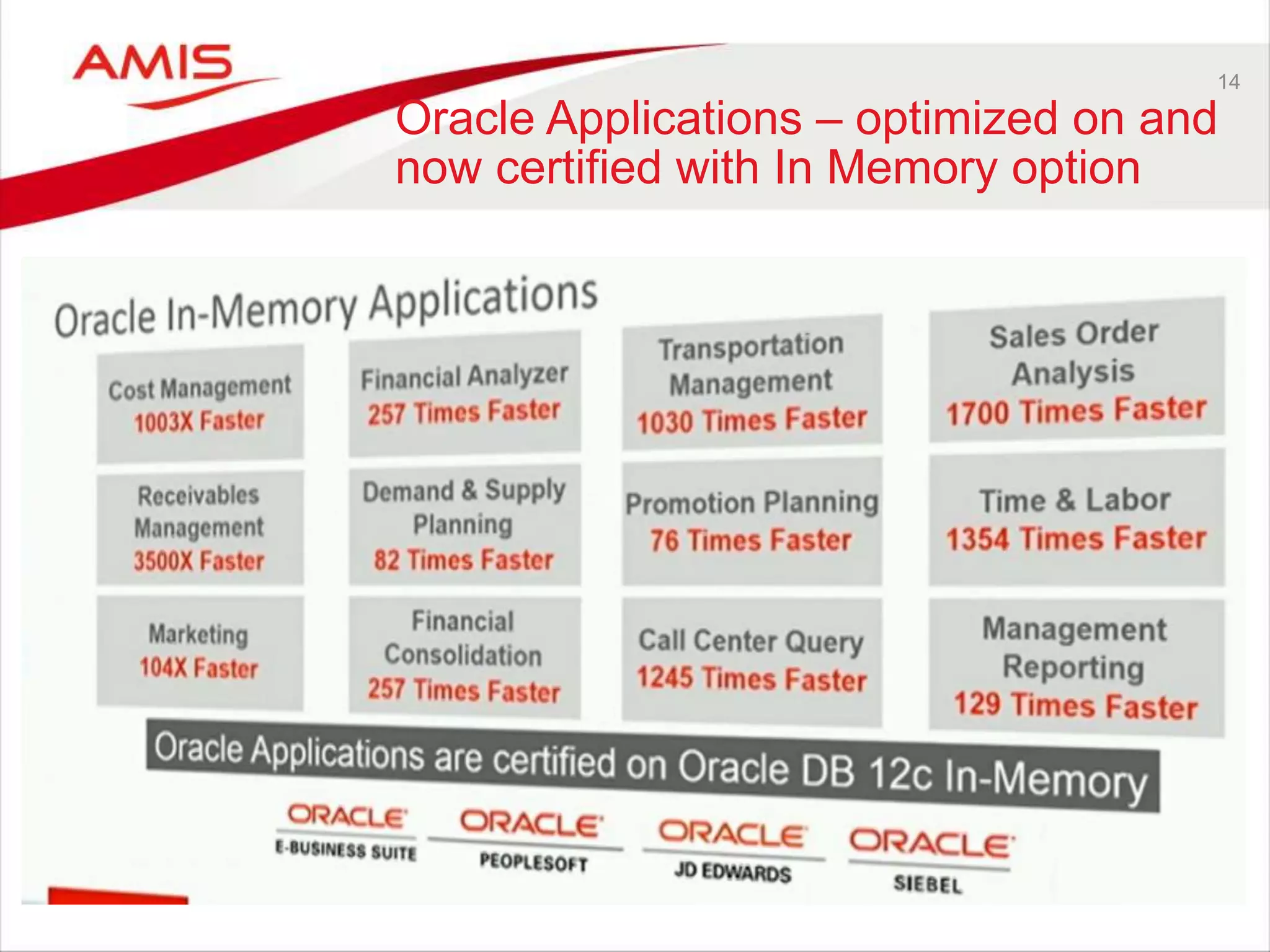

Oracle Applications – optimized on and
now certified with In Memory option

15. 16

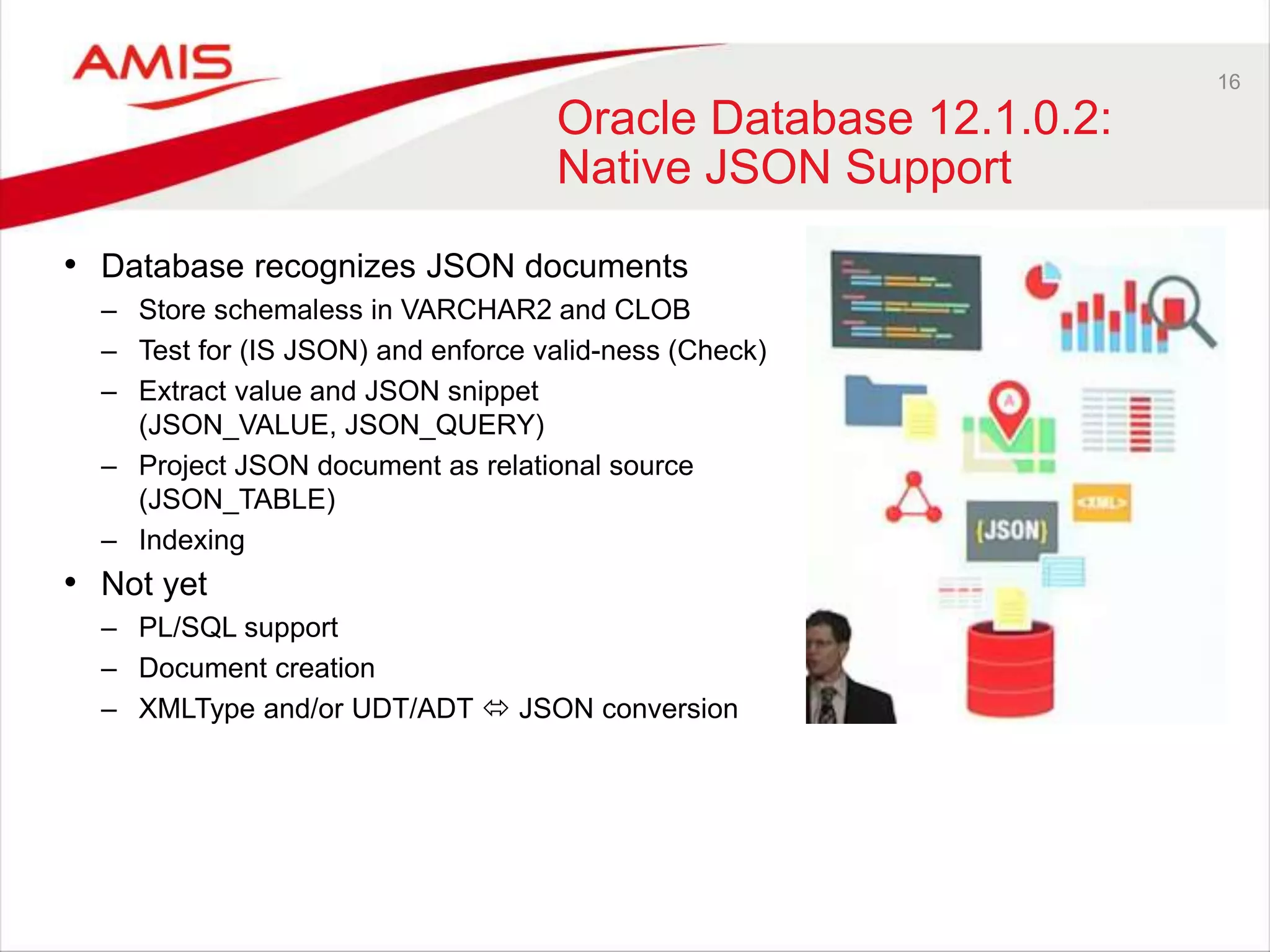

Oracle Database 12.1.0.2:
Native JSON Support
• Database recognizes JSON documents
– Store schemaless in VARCHAR2 and CLOB
– Test for (IS JSON) and enforce valid-ness (Check)
– Extract value and JSON snippet
(JSON_VALUE, JSON_QUERY)
– Project JSON document as relational source
(JSON_TABLE)
– Indexing
• Not yet
– PL/SQL support
– Document creation
– XMLType and/or UDT/ADT  JSON conversion

16. 17

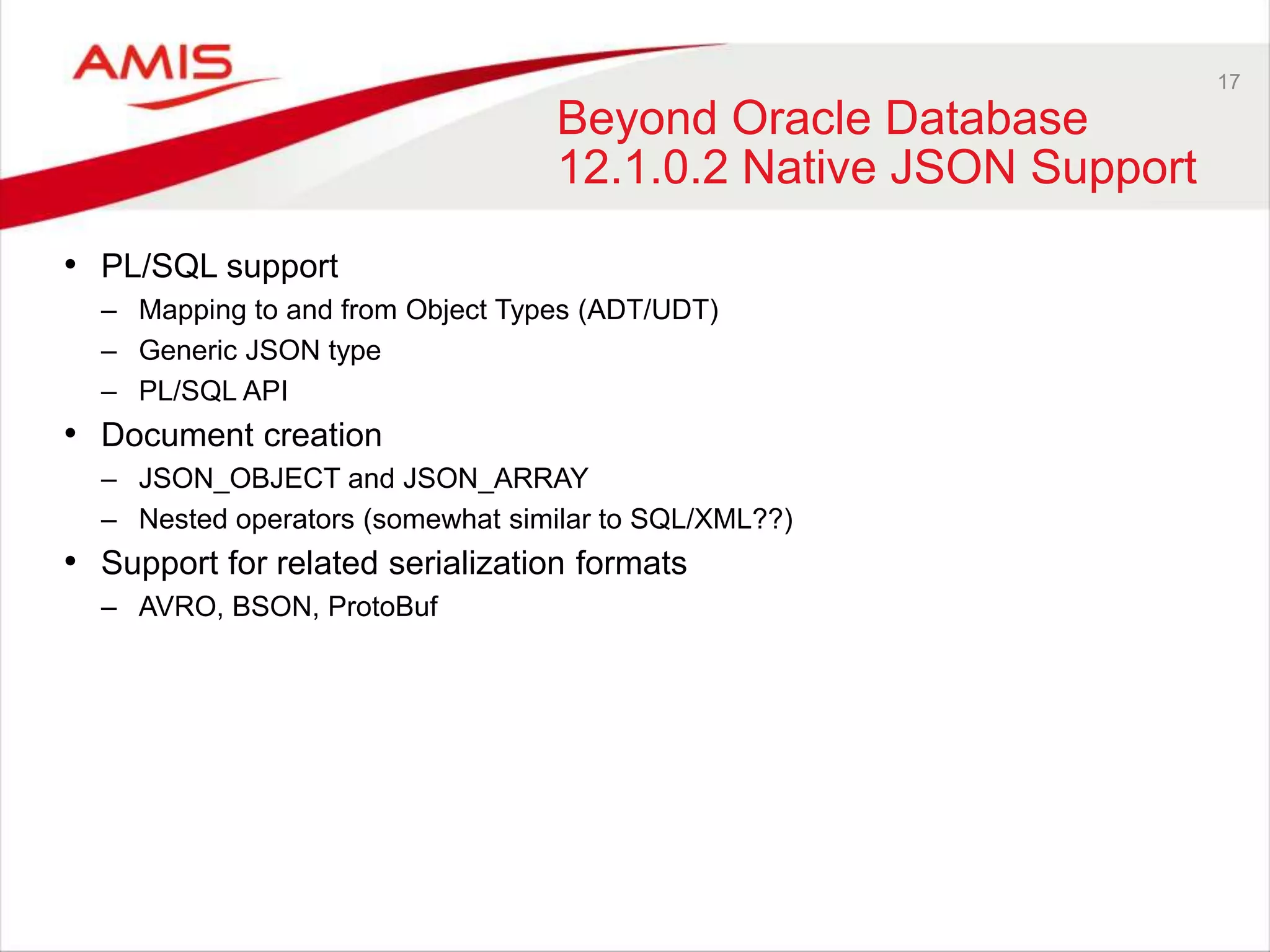

Beyond Oracle Database
12.1.0.2 Native JSON Support
• PL/SQL support
– Mapping to and from Object Types (ADT/UDT)
– Generic JSON type
– PL/SQL API
• Document creation
– JSON_OBJECT and JSON_ARRAY
– Nested operators (somewhat similar to SQL/XML??)
• Support for related serialization formats
– AVRO, BSON, ProtoBuf

17. 18

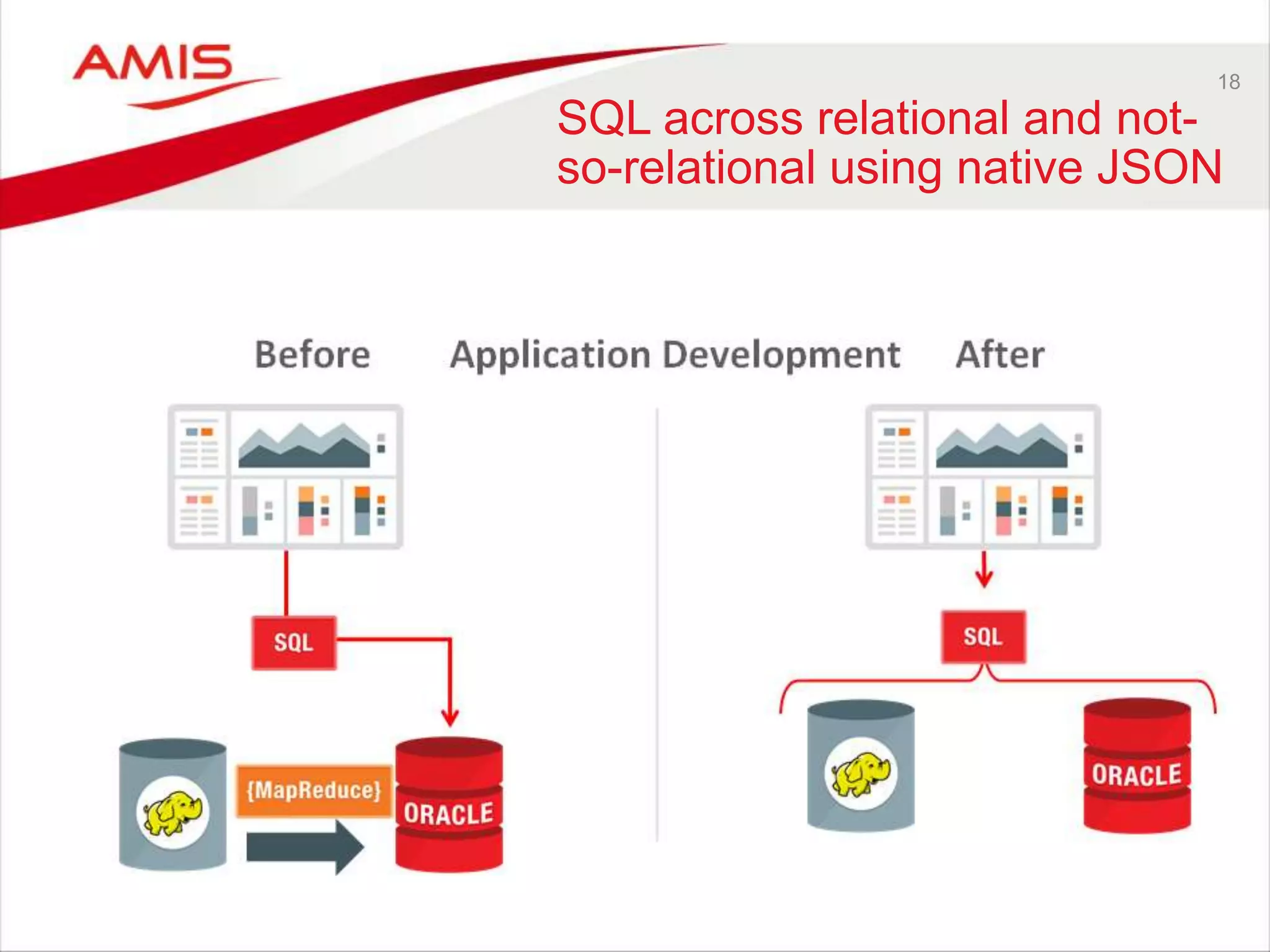

SQL across relational and not-so-
relational using native JSON

18. 19

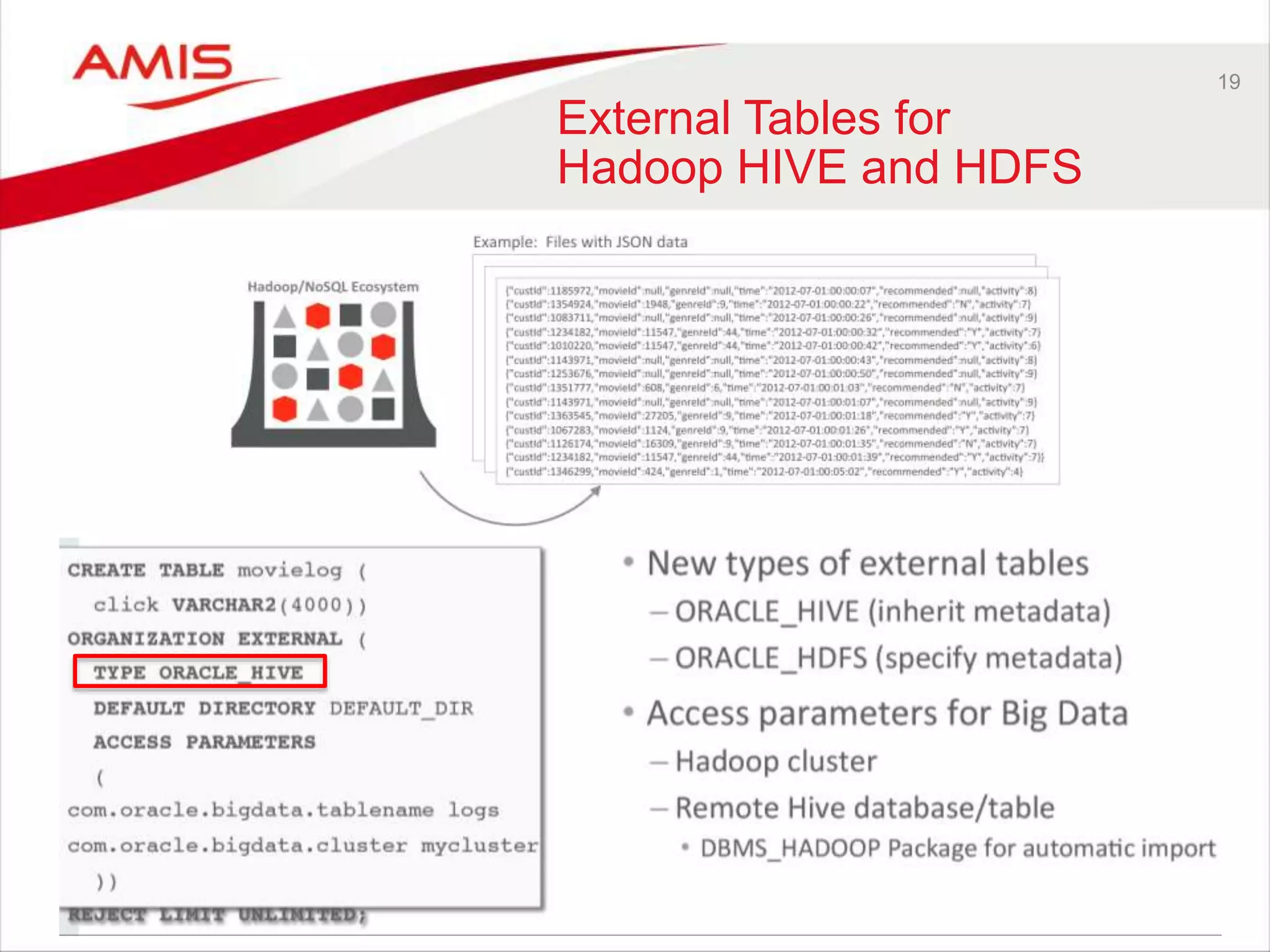

External Tables for
Hadoop HIVE and HDFS

19. 20

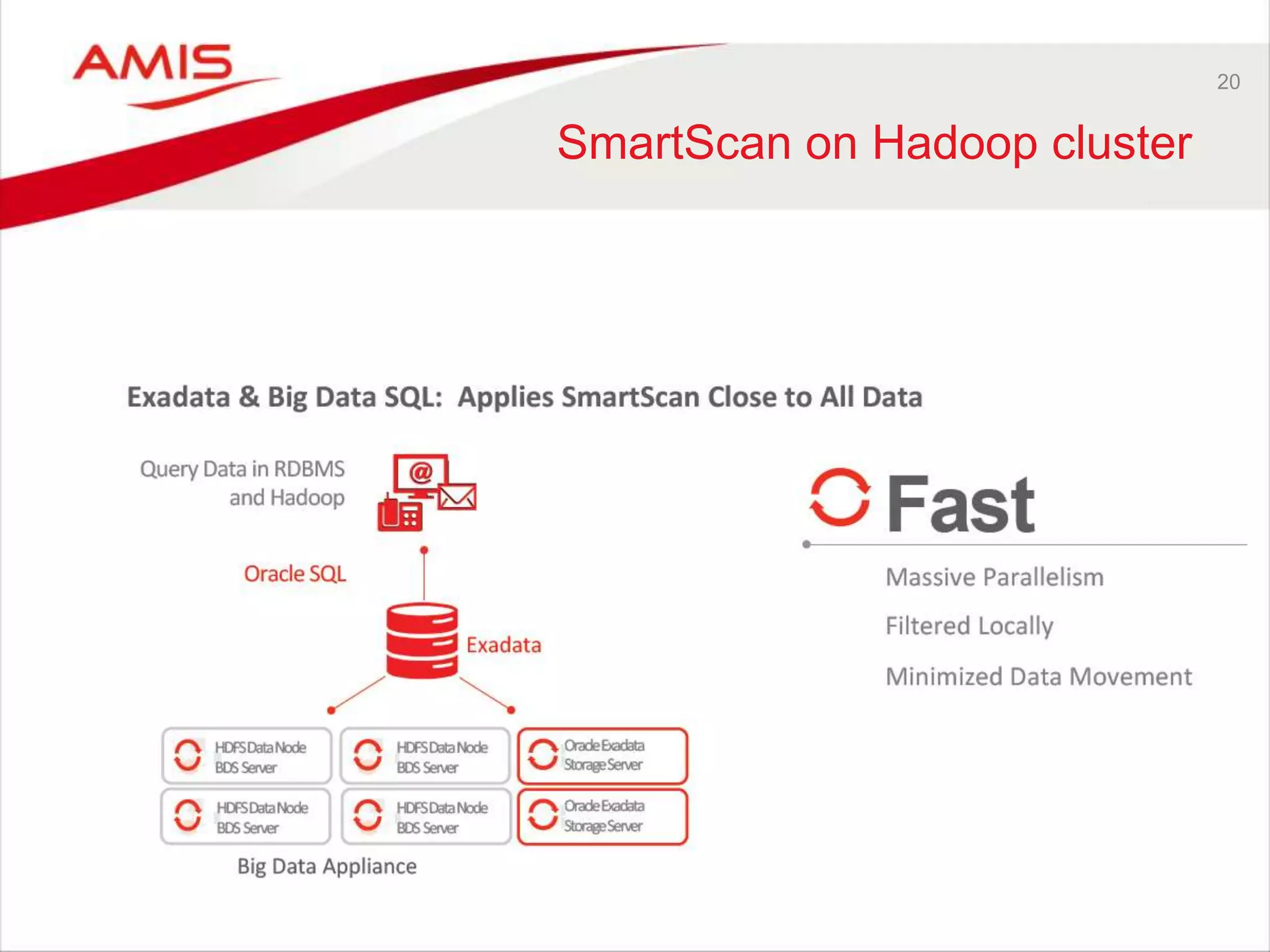

SmartScan on Hadoop cluster

20. 21

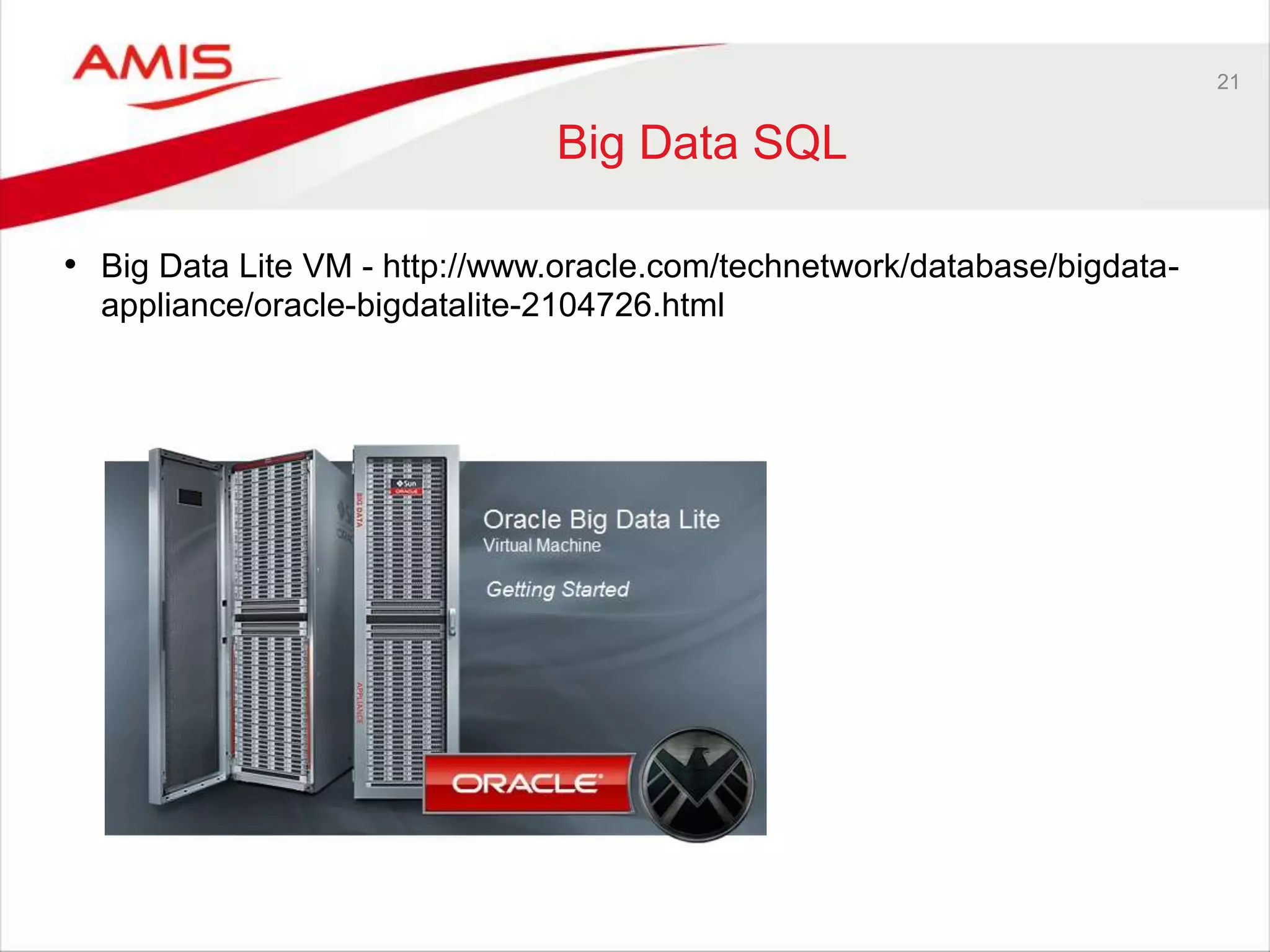

Big Data SQL
• Big Data Lite VM - http://www.oracle.com/technetwork/database/bigdata-appliance/
oracle-bigdatalite-2104726.html

21. 22

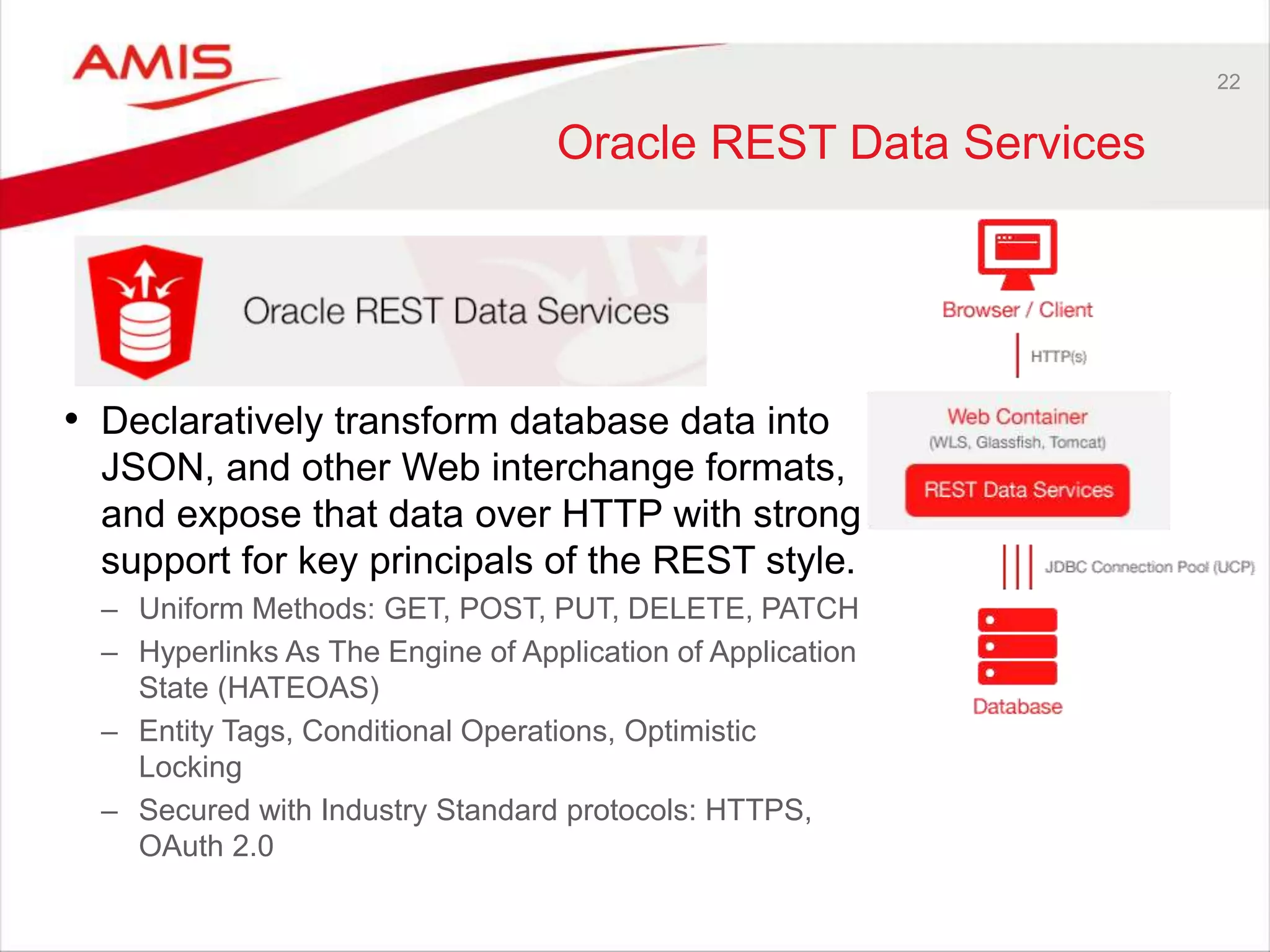

Oracle REST Data Services
• Declaratively transform database data into
JSON, and other Web interchange formats,
and expose that data over HTTP with strong
support for key principals of the REST style.
– Uniform Methods: GET, POST, PUT, DELETE, PATCH
– Hyperlinks As The Engine of Application of Application
State (HATEOAS)
– Entity Tags, Conditional Operations, Optimistic
Locking
– Secured with Industry Standard protocols: HTTPS,
OAuth 2.0

22. 23

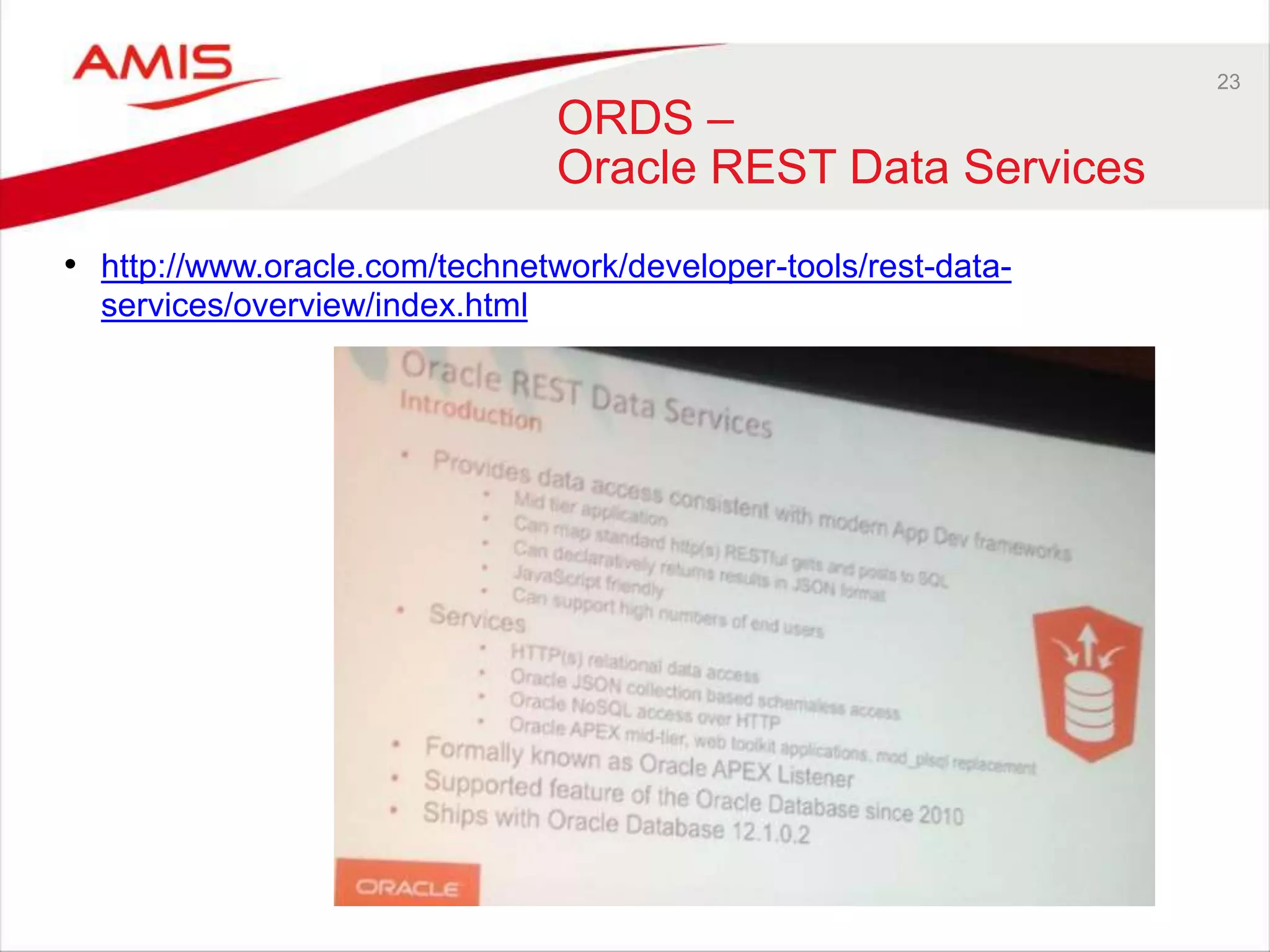

ORDS –
Oracle REST Data Services
• http://www.oracle.com/technetwork/developer-tools/rest-data-services/
overview/index.html

23. 24

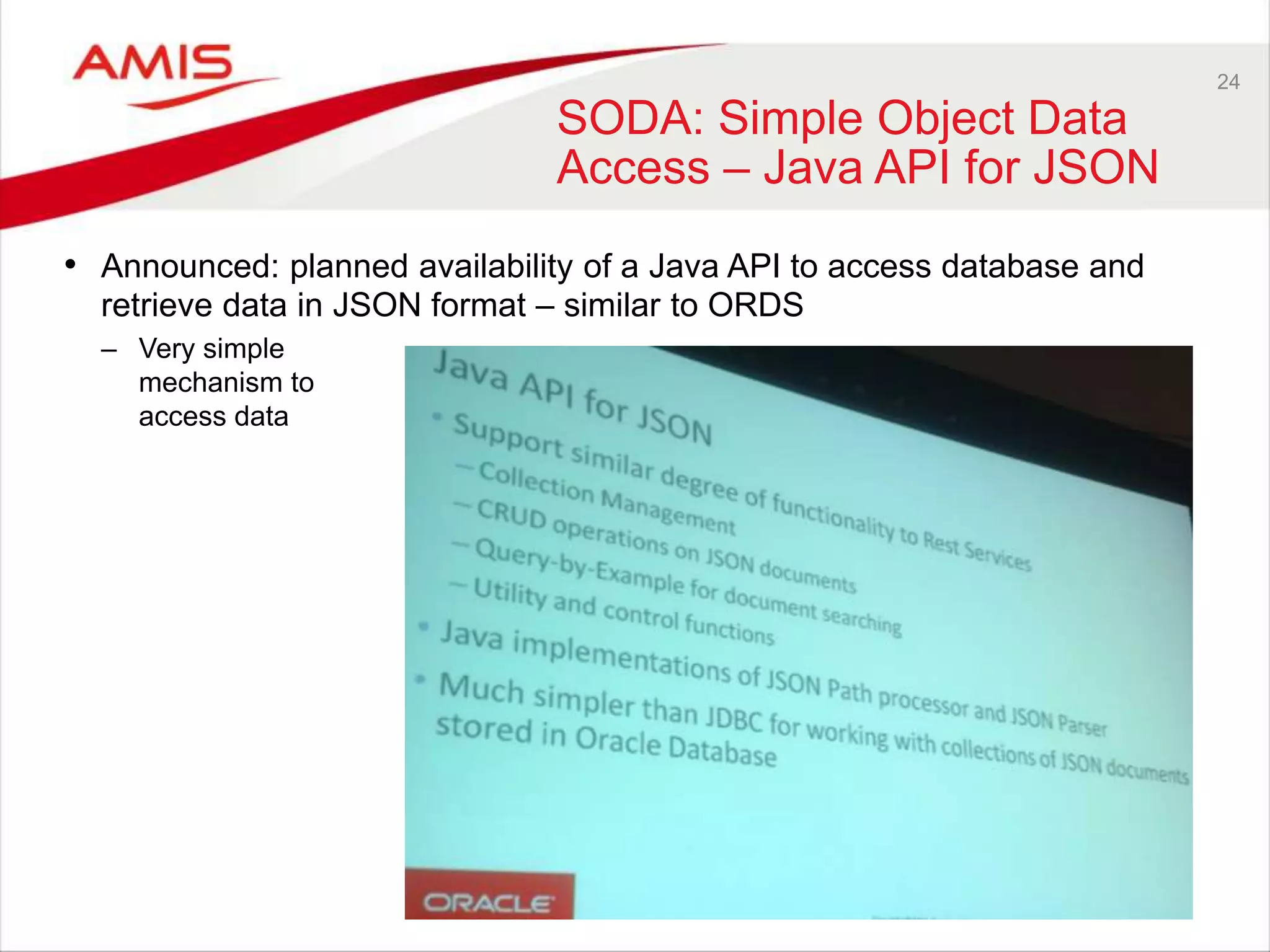

SODA: Simple Object Data
Access – Java API for JSON
• Announced: planned availability of a Java API to access database and
retrieve data in JSON format – similar to ORDS
– Very simple
mechanism to
access data

24. 25

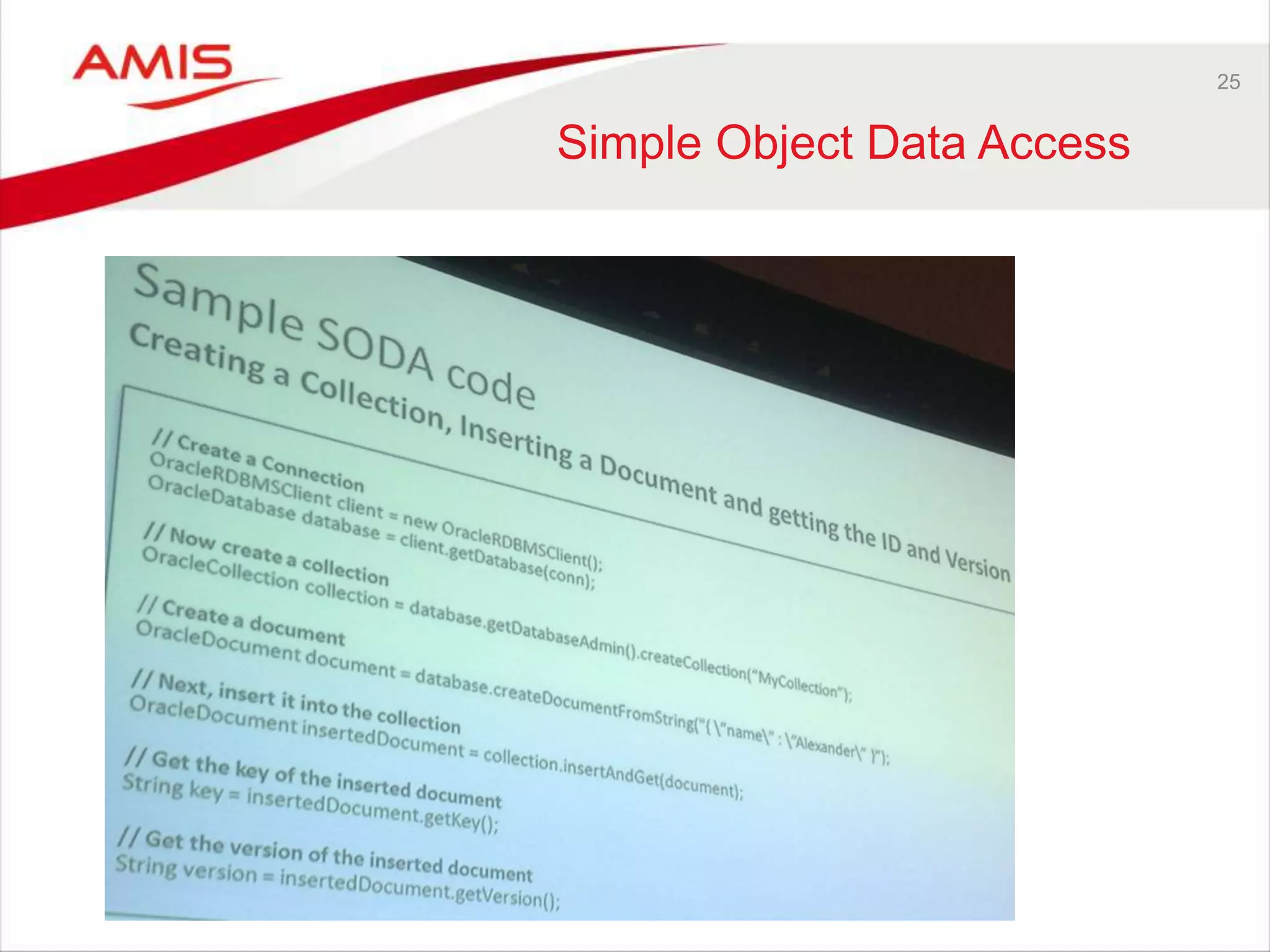

Simple Object Data Access

25. 26

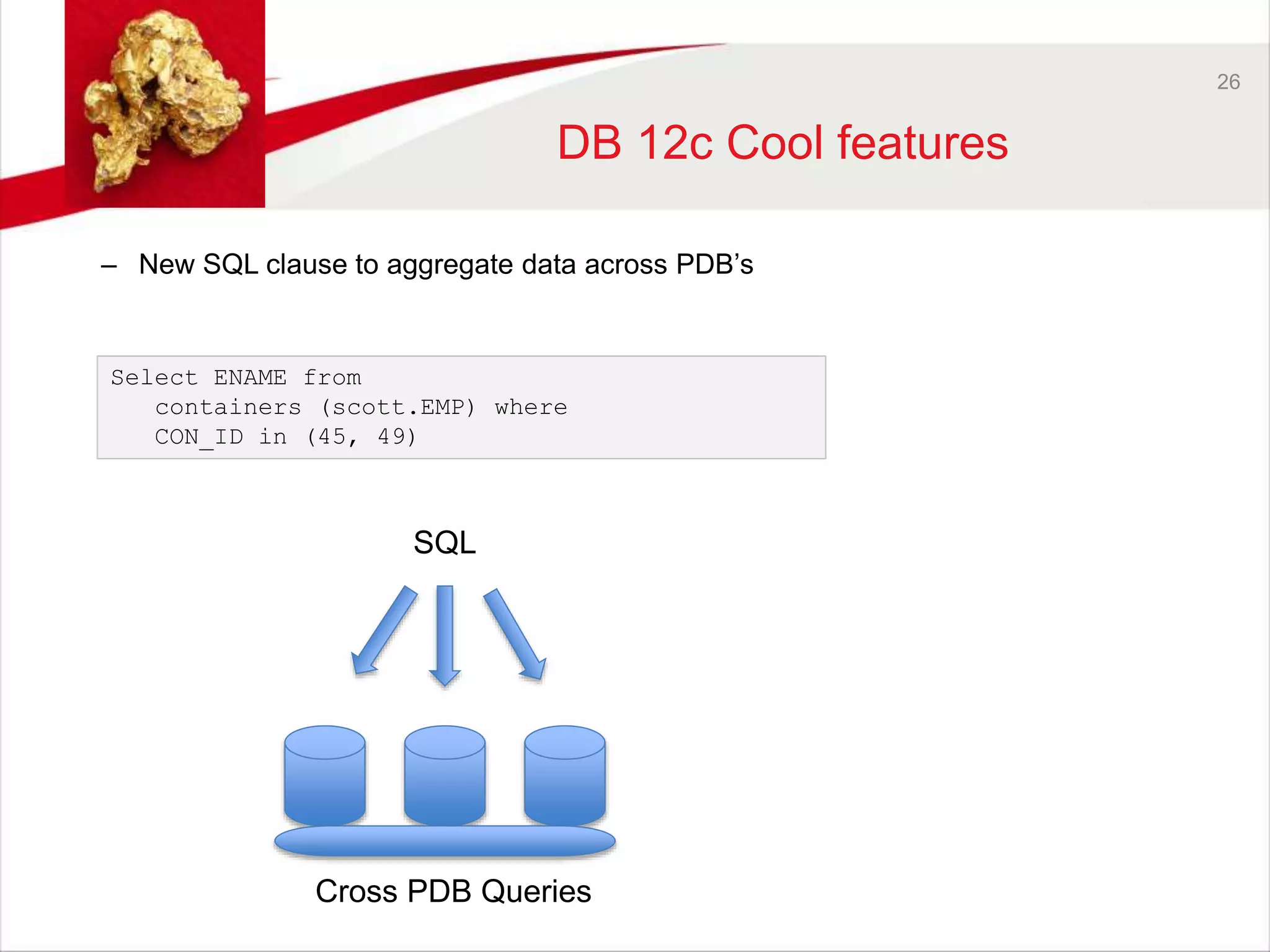

DB 12c Cool features
– New SQL clause to aggregate data across PDB’s
Select ENAME from
containers (scott.EMP) where
CON_ID in (45, 49)
SQL
Cross PDB Queries

26. 27

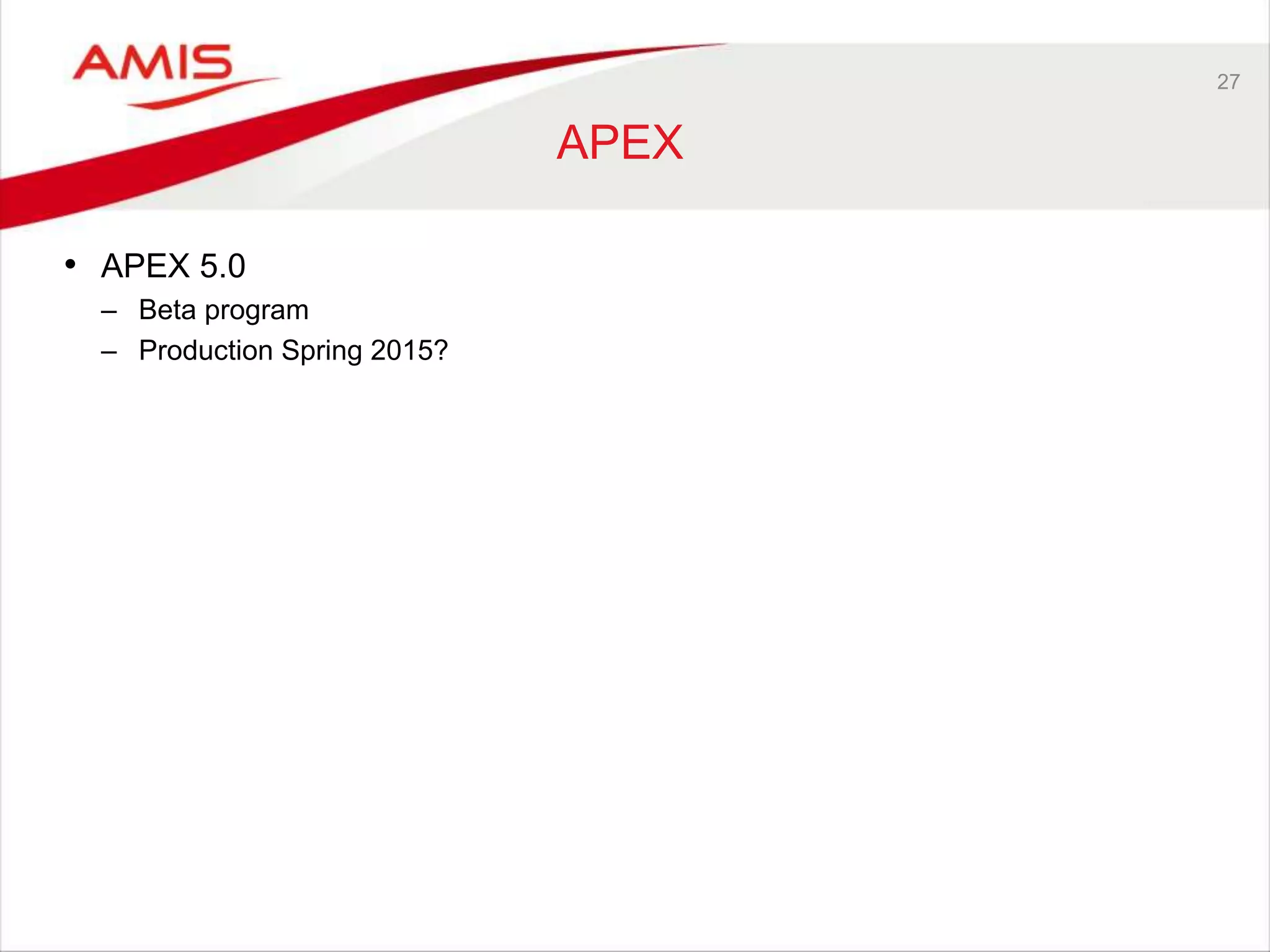

APEX
• APEX 5.0
– Beta program
– Production Spring 2015?

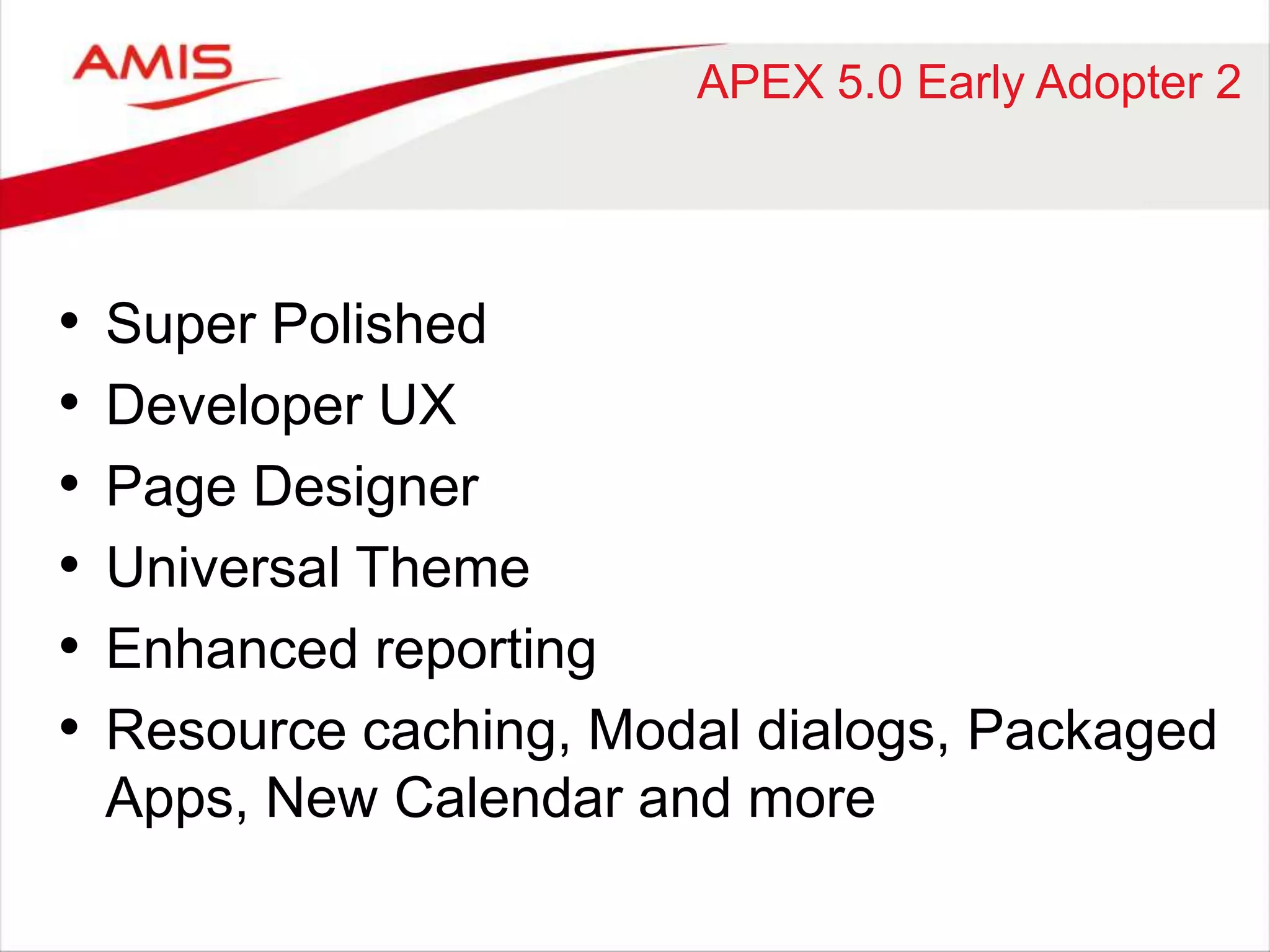

27. APEX 5.0 Early Adopter 2
• Super Polished
• Developer UX
• Page Designer
• Universal Theme
• Enhanced reporting
• Resource caching, Modal dialogs, Packaged
Apps, New Calendar and more

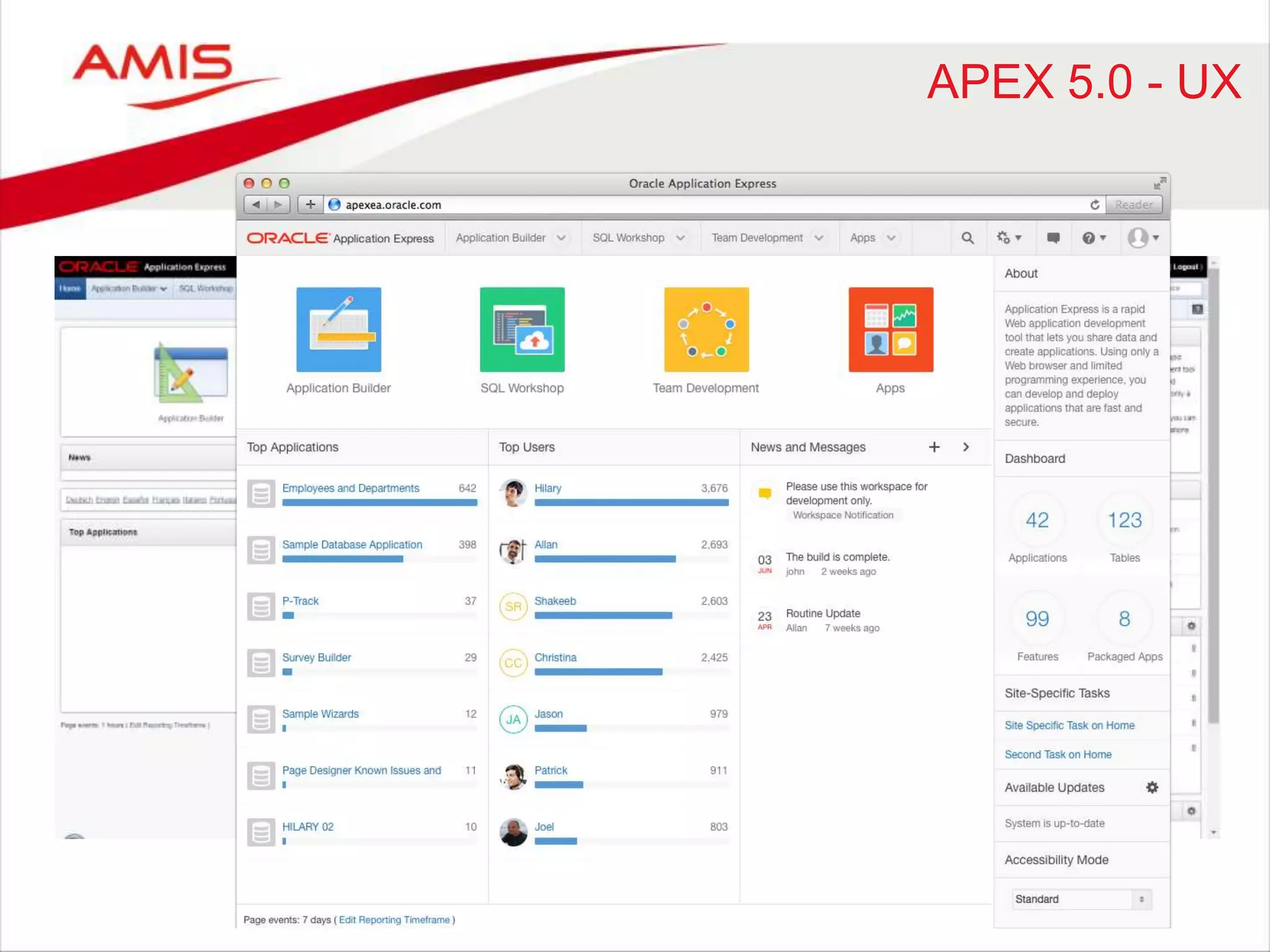

28. APEX 5.0 - UX

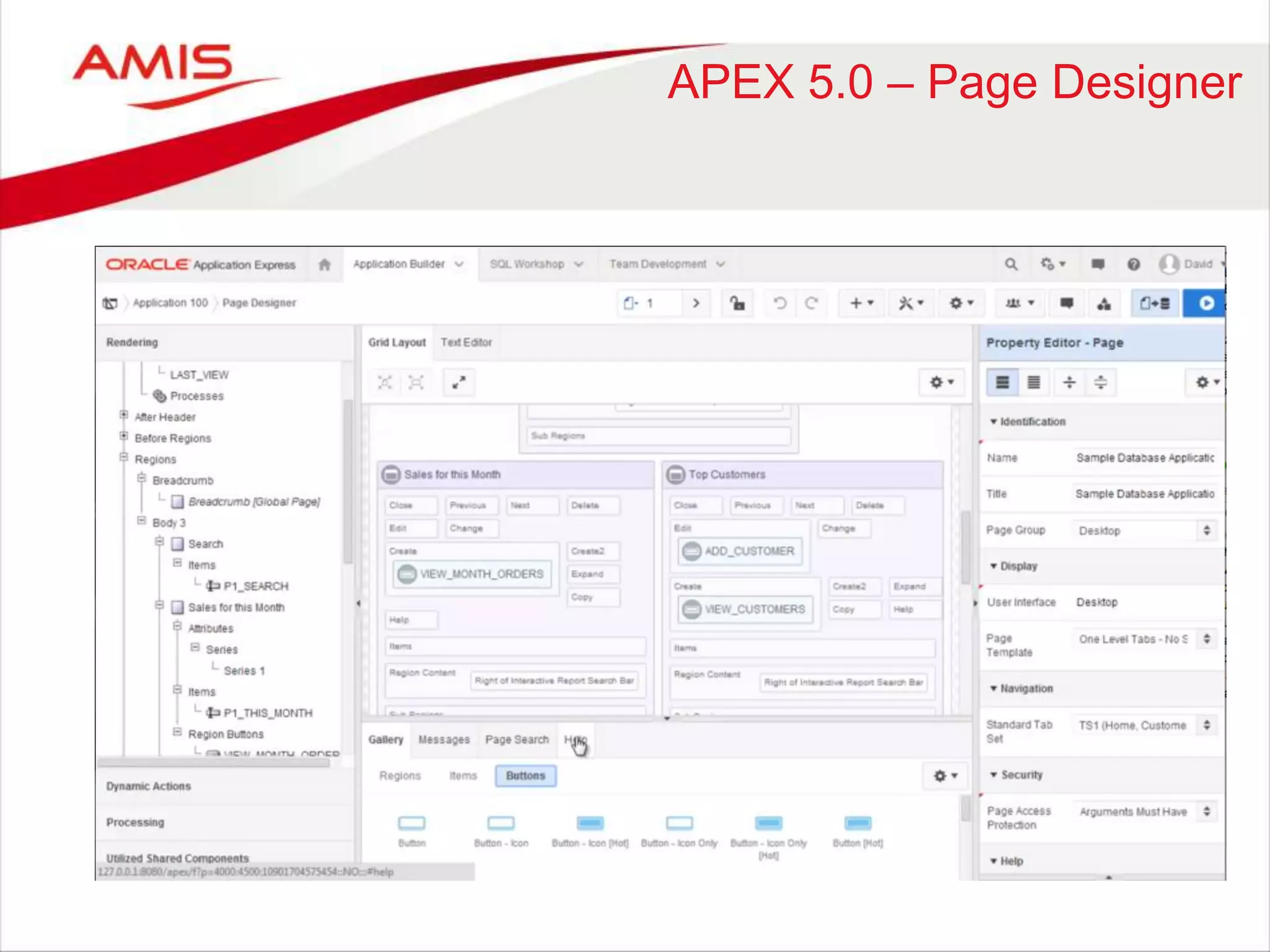

29. APEX 5.0 – Page Designer

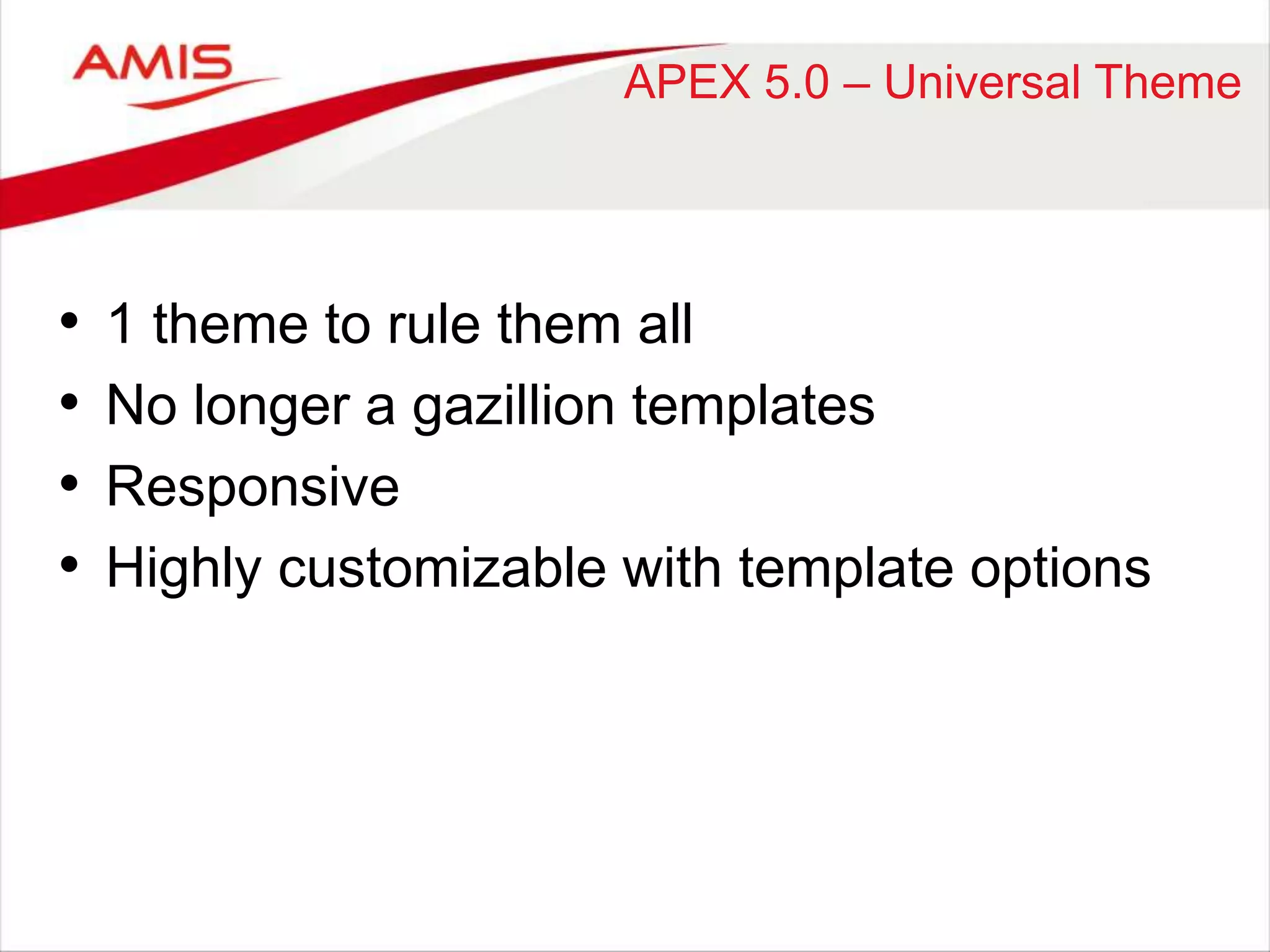

30. APEX 5.0 – Universal Theme
• 1 theme to rule them all
• No longer a gazillion templates
• Responsive
• Highly customizable with template options

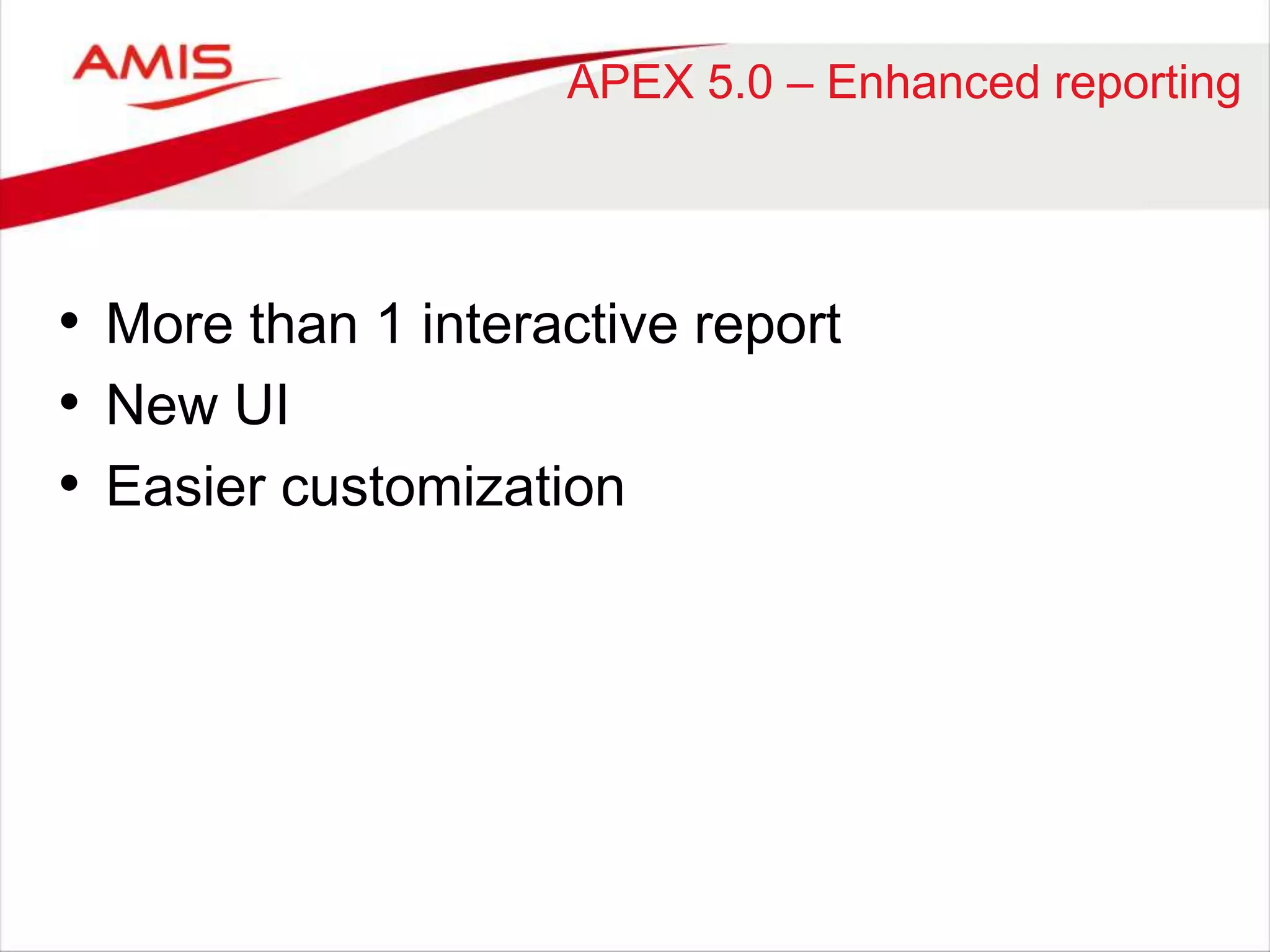

31. APEX 5.0 – Enhanced reporting
• More than 1 interactive report
• New UI
• Easier customization

32. APEX 5.0
• Polish
• Polish
• Polish
• Coming soon to a database near you

33. A

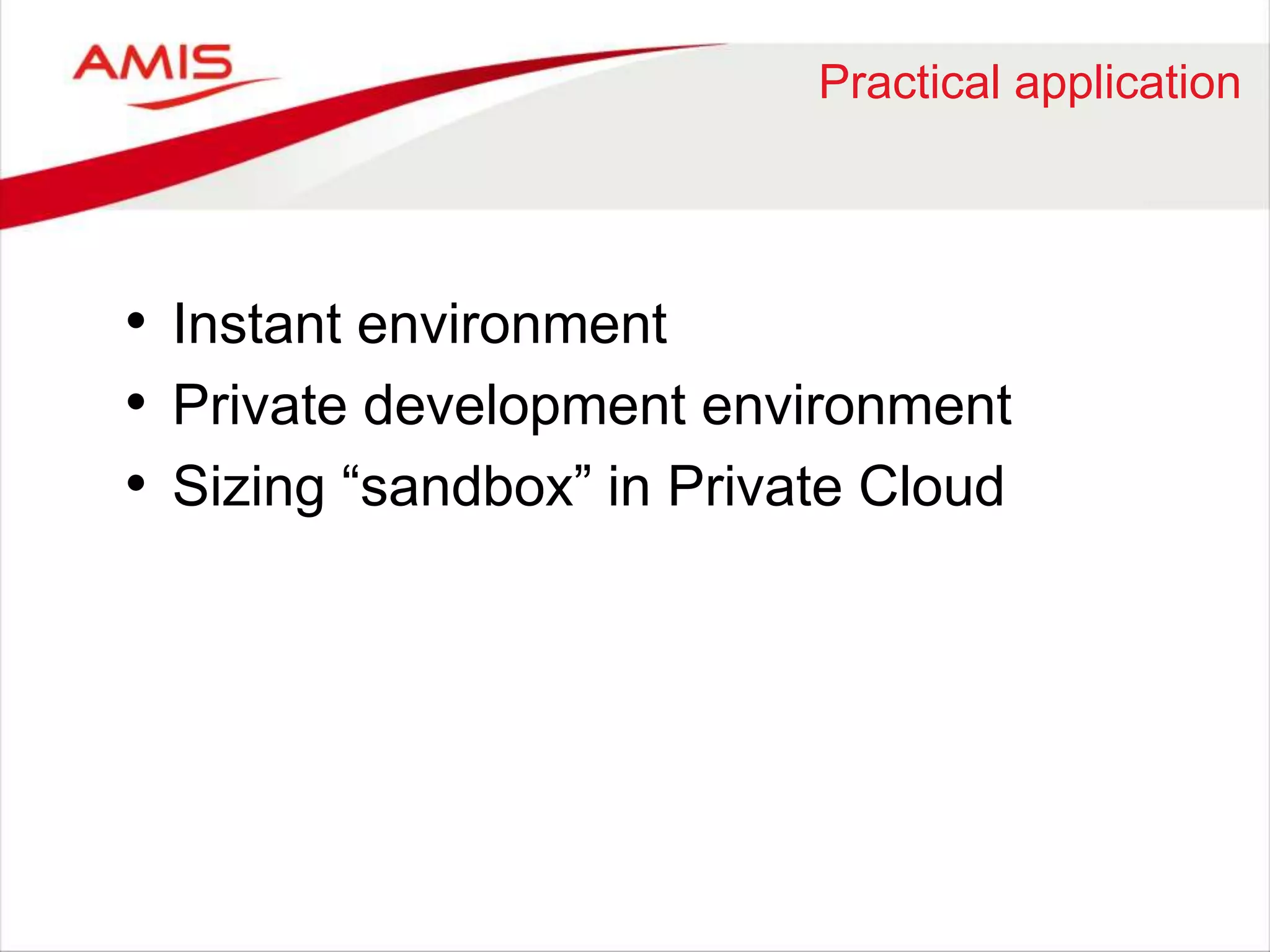

34. Practical application
• Instant environment
• Private development environment
• Sizing “sandbox” in Private Cloud

35. 36

36. 37

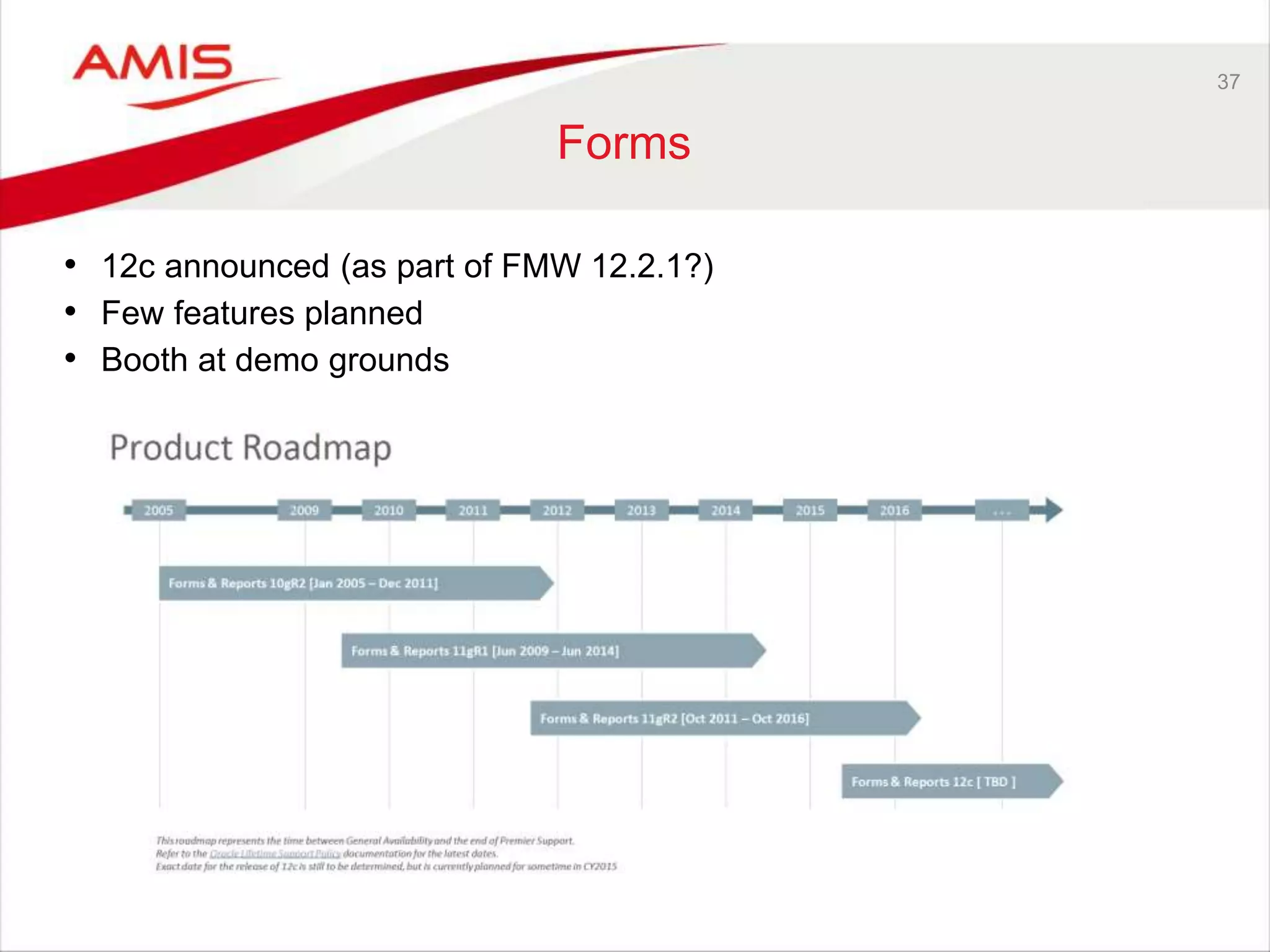

Forms
• 12c announced (as part of FMW 12.2.1?)
• Few features planned
• Booth at demo grounds

37. 38

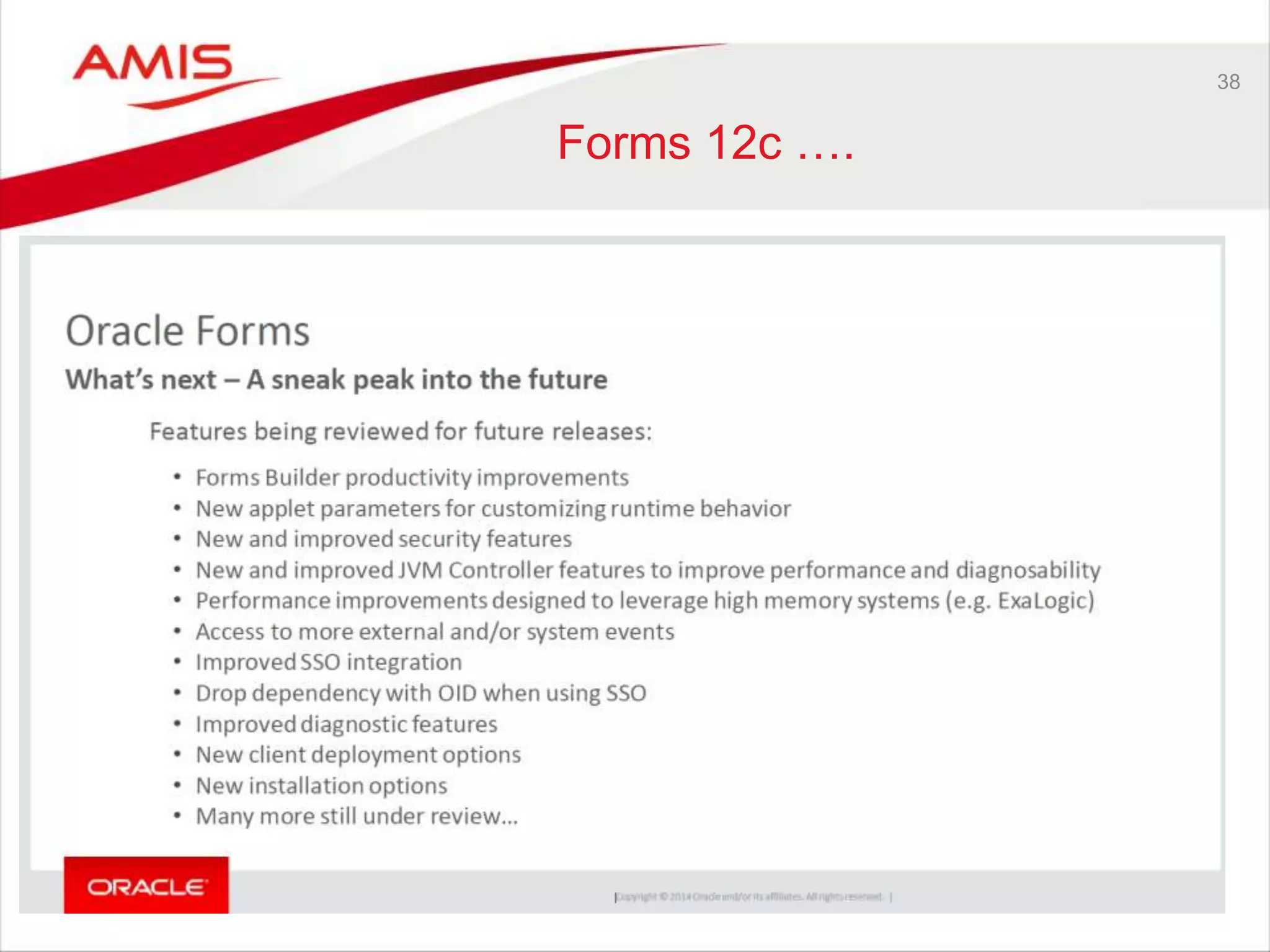

Forms 12c ….

38. 39

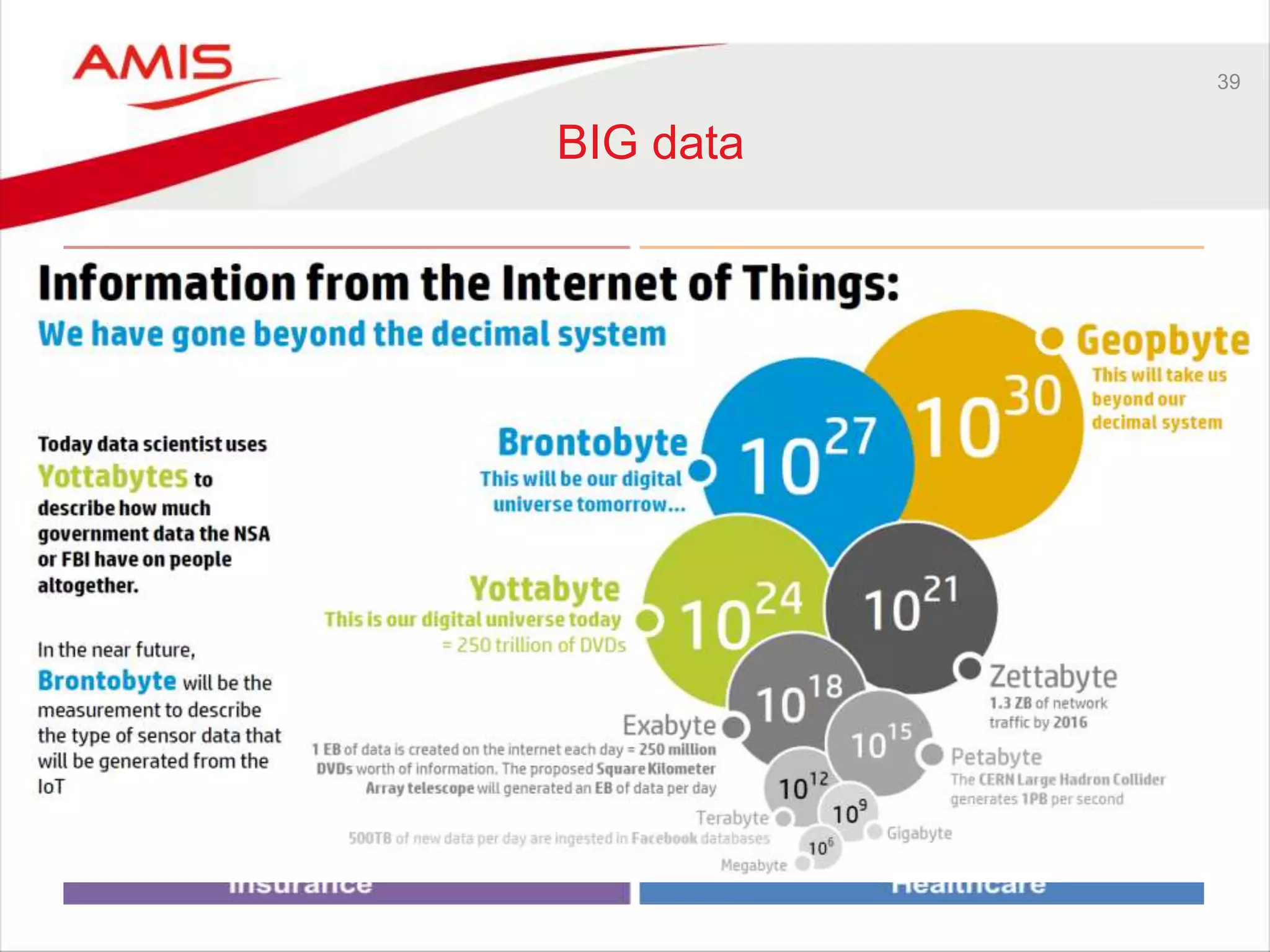

BIG data

39. 40
BIG data ……..

40. 41

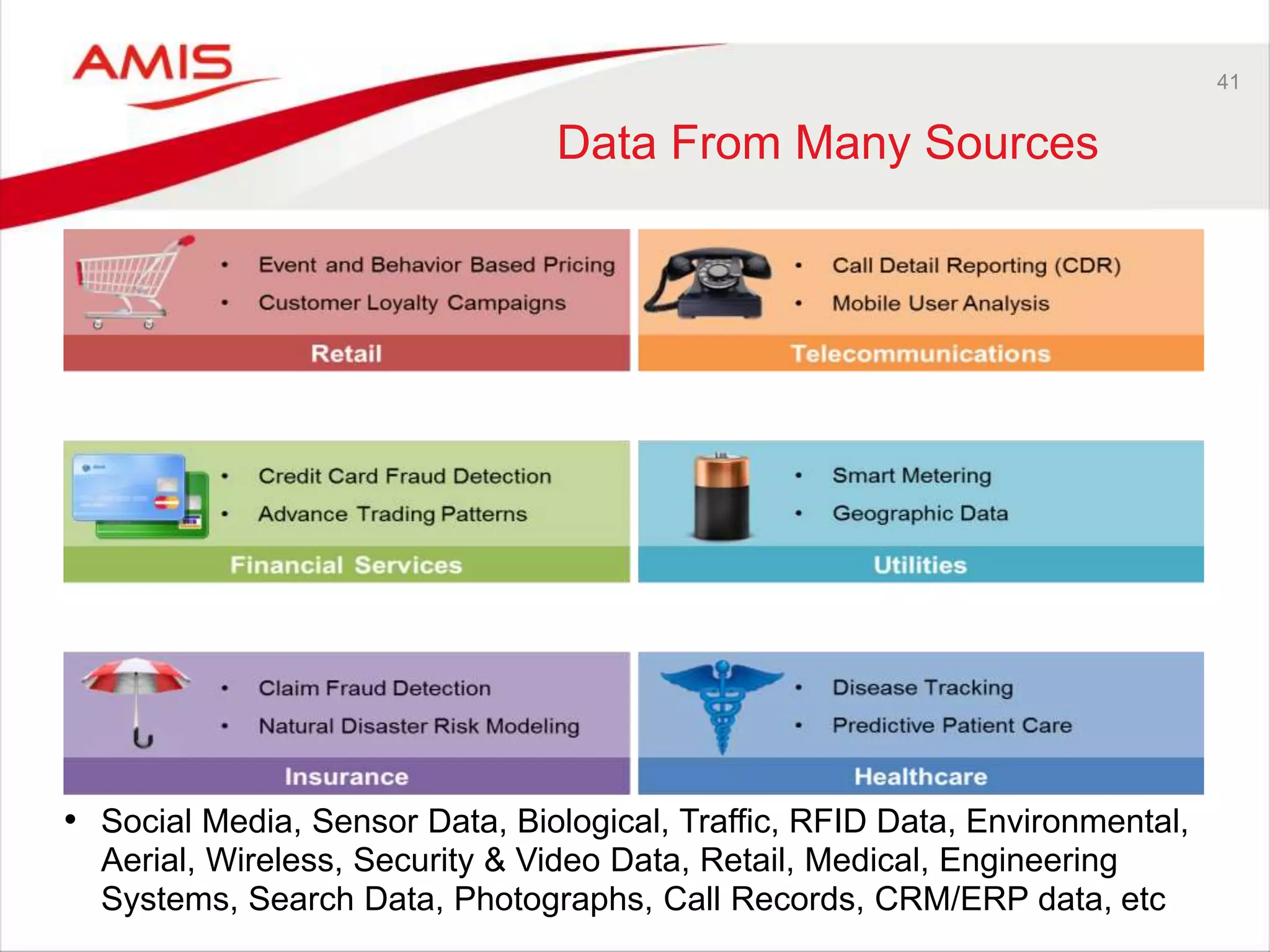

Data From Many Sources
• Social Media, Sensor Data, Biological, Traffic, RFID Data, Environmental,
Aerial, Wireless, Security & Video Data, Retail, Medical, Engineering
Systems, Search Data, Photographs, Call Records, CRM/ERP data, etc

41. 42

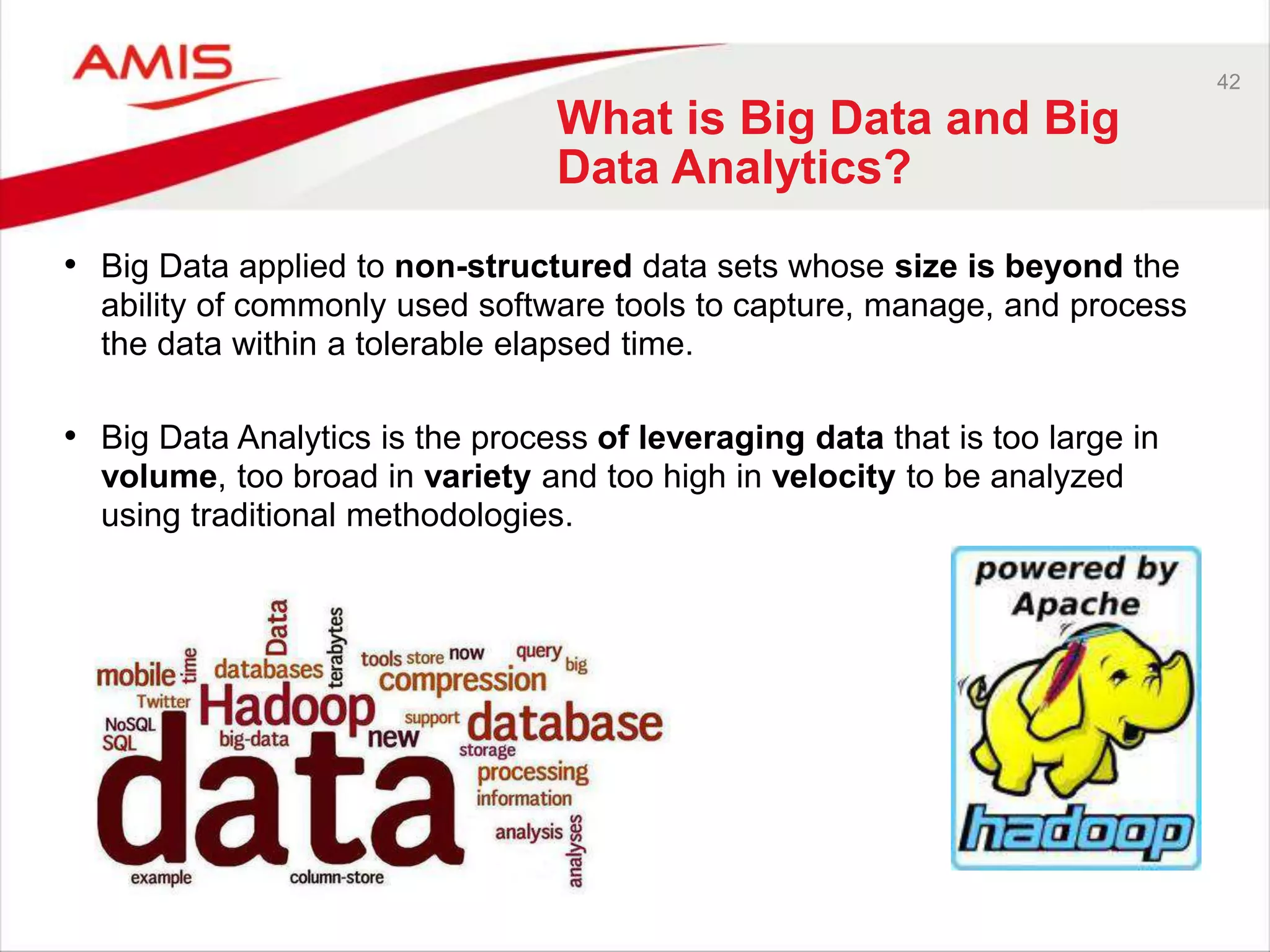

What is Big Data and Big
Data Analytics?
• Big Data applied to non-structured data sets whose size is beyond the
ability of commonly used software tools to capture, manage, and process
the data within a tolerable elapsed time.
• Big Data Analytics is the process of leveraging data that is too large in
volume, too broad in variety and too high in velocity to be analyzed
using traditional methodologies.

42. 43

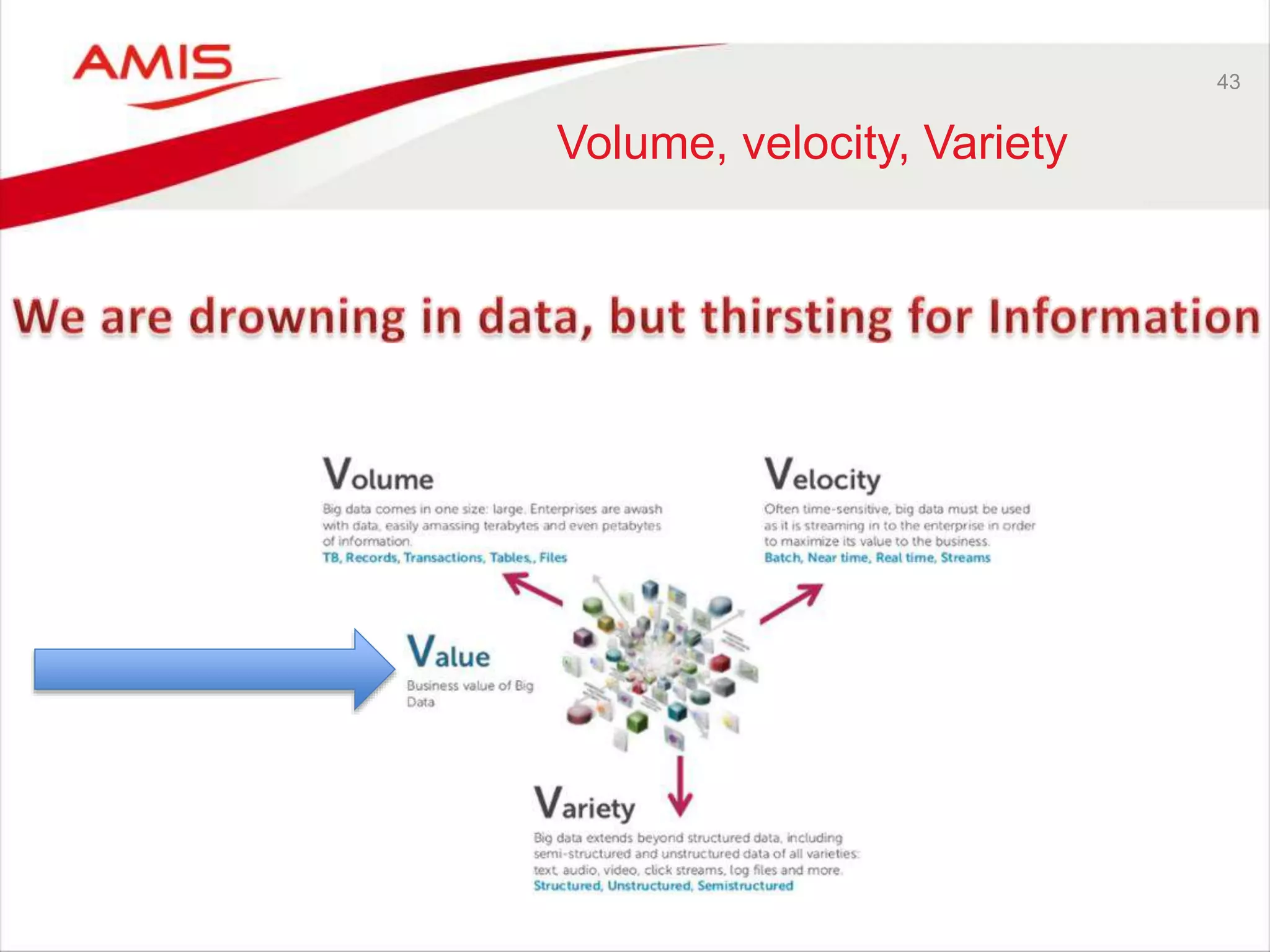

Volume, velocity, Variety

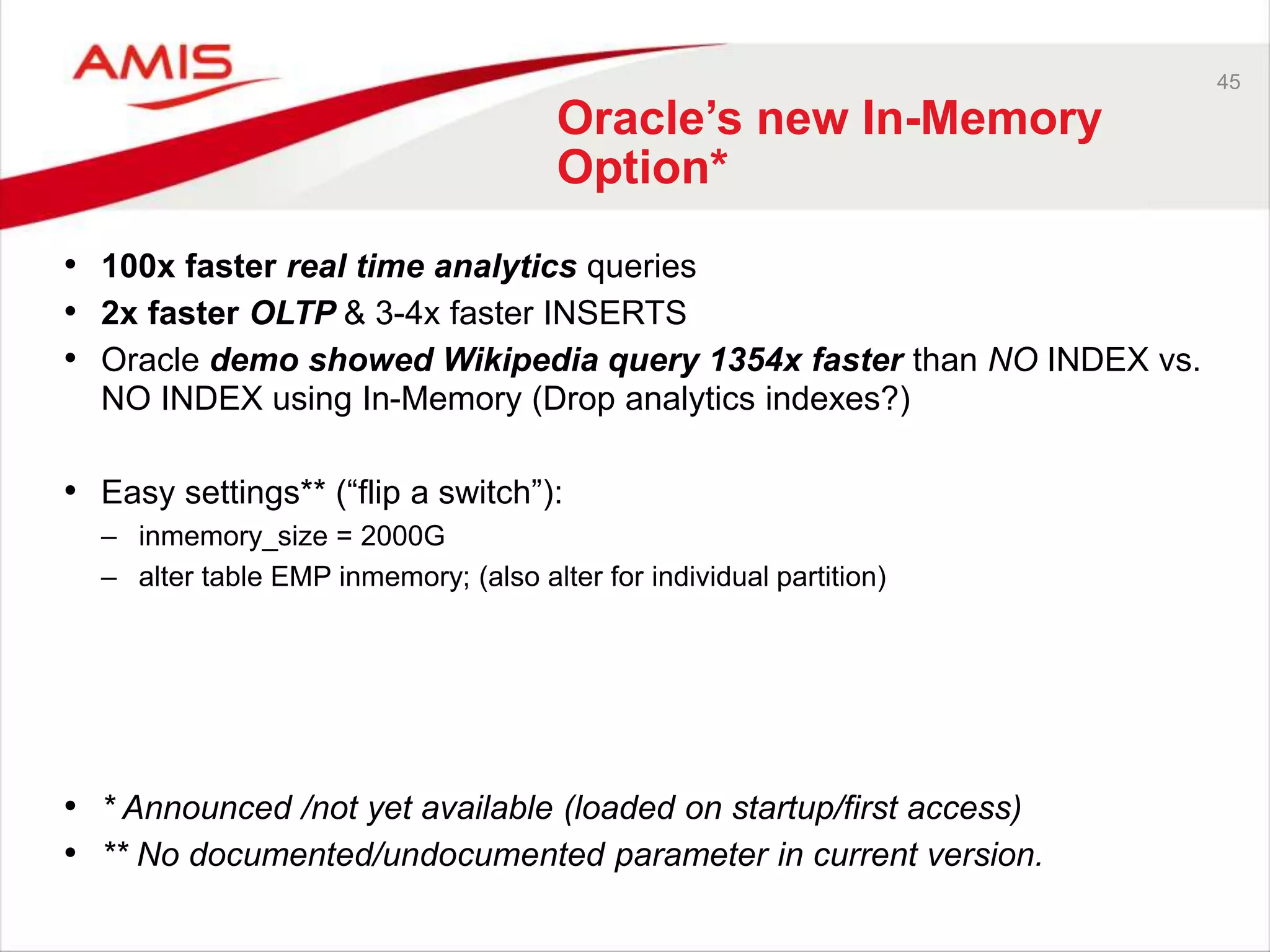

43. 45
Oracle’s new In-Memory
Option*
• 100x faster real time analytics queries
• 2x faster OLTP & 3-4x faster INSERTS
• Oracle demo showed Wikipedia query 1354x faster than NO INDEX vs.
NO INDEX using In-Memory (Drop analytics indexes?)
• Easy settings** (“flip a switch”):
– inmemory_size = 2000G
– alter table EMP inmemory; (also alter for individual partition)
• * Announced /not yet available (loaded on startup/first access)
• ** No documented/undocumented parameter in current version.

44. 46

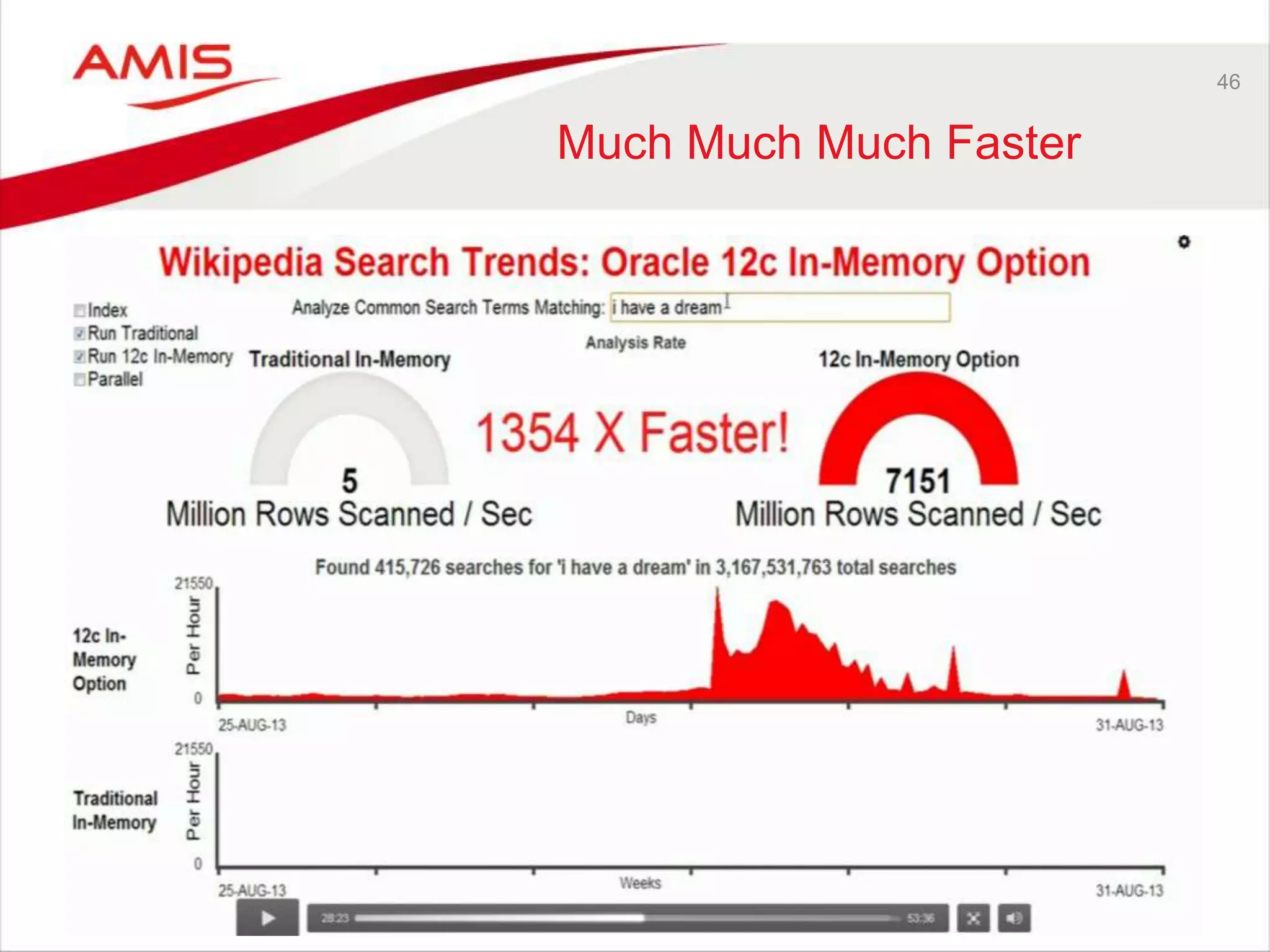

Much Much Much Faster

45. 47

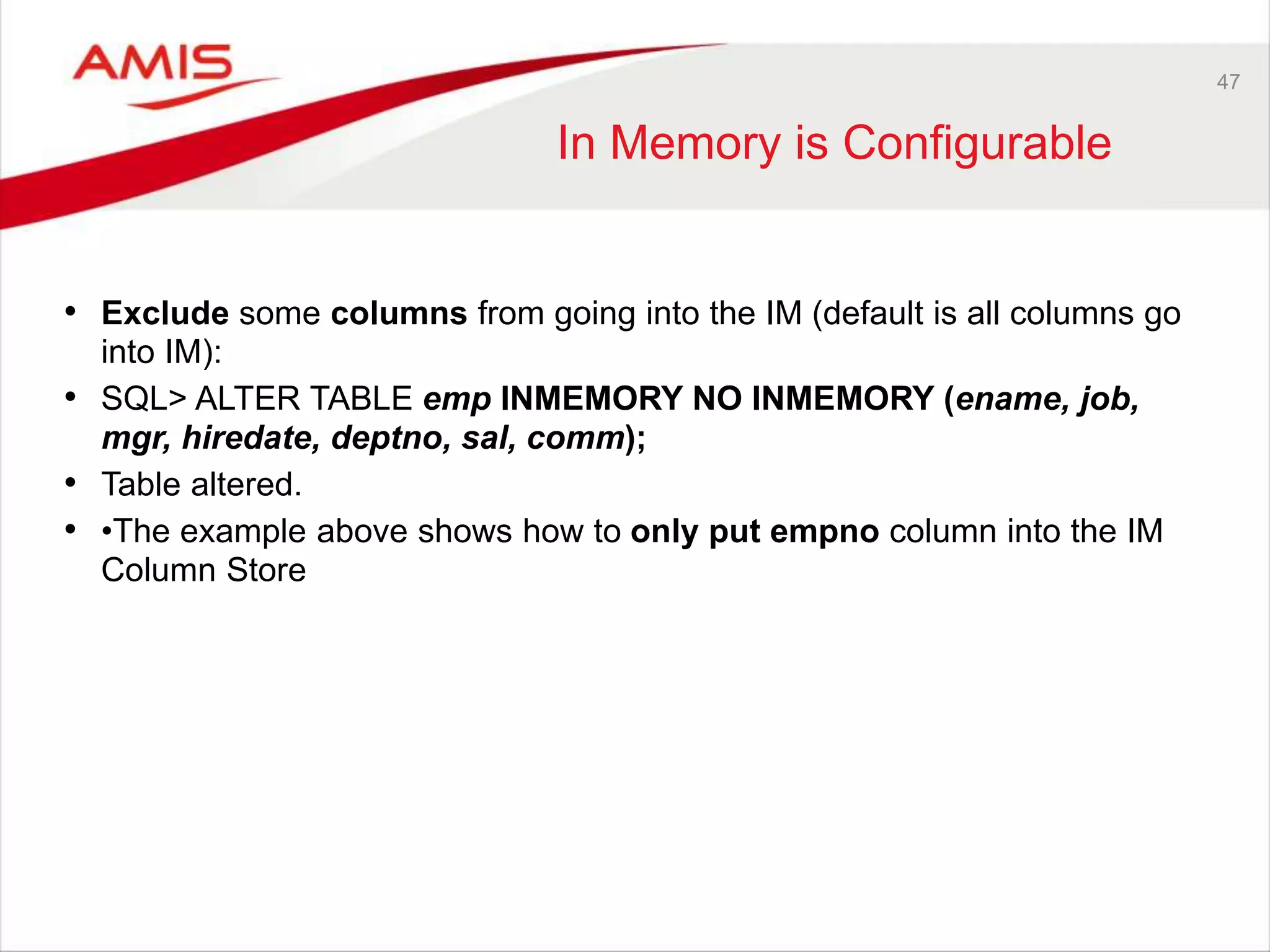

In Memory is Configurable
• Exclude some columns from going into the IM (default is all columns go
into IM):
• SQL> ALTER TABLE emp INMEMORY NO INMEMORY (ename, job,
mgr, hiredate, deptno, sal, comm);
• Table altered.
• •The example above shows how to only put empno column into the IM
Column Store

46. 49

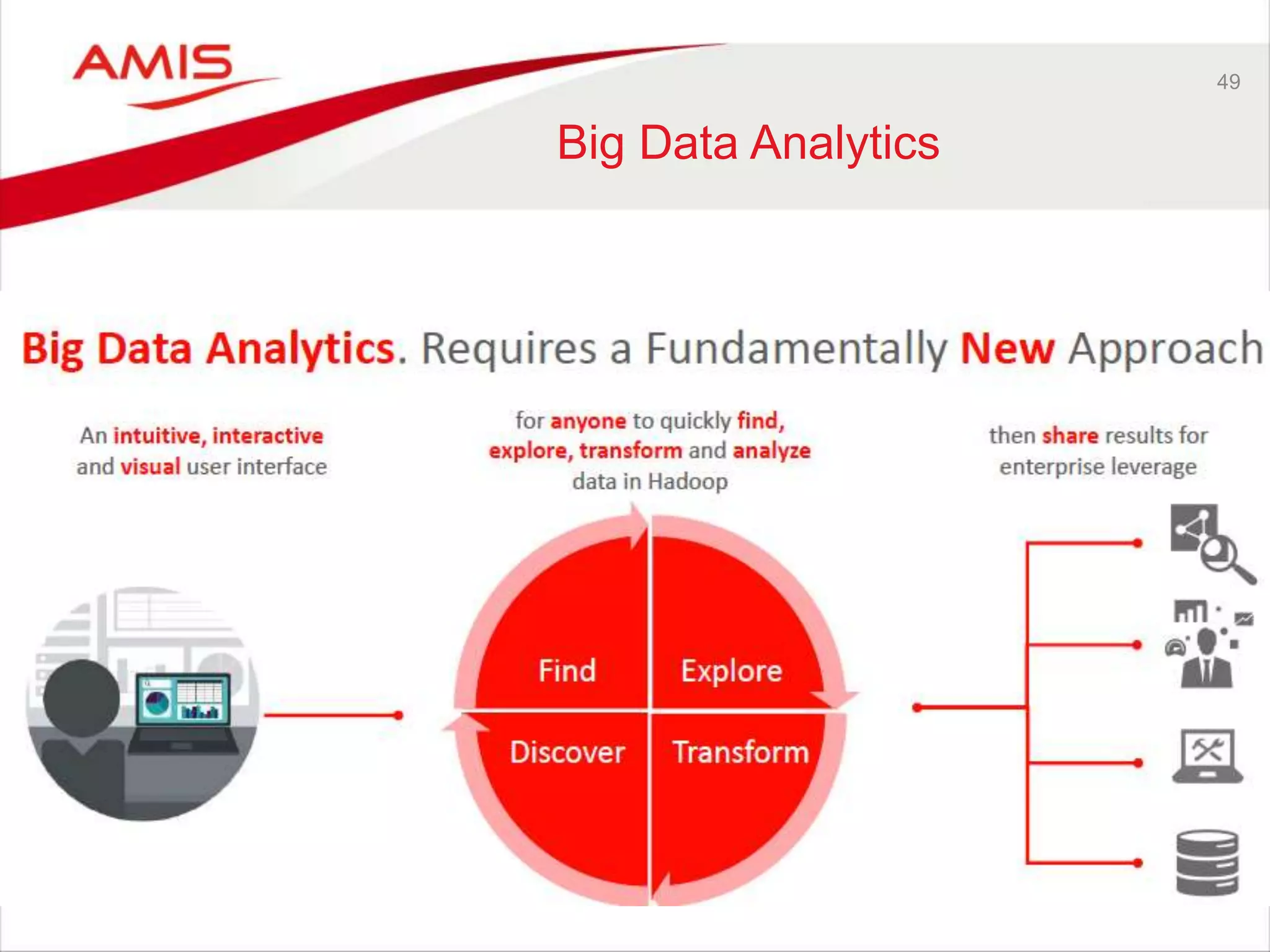

Big Data Analytics

47. 50

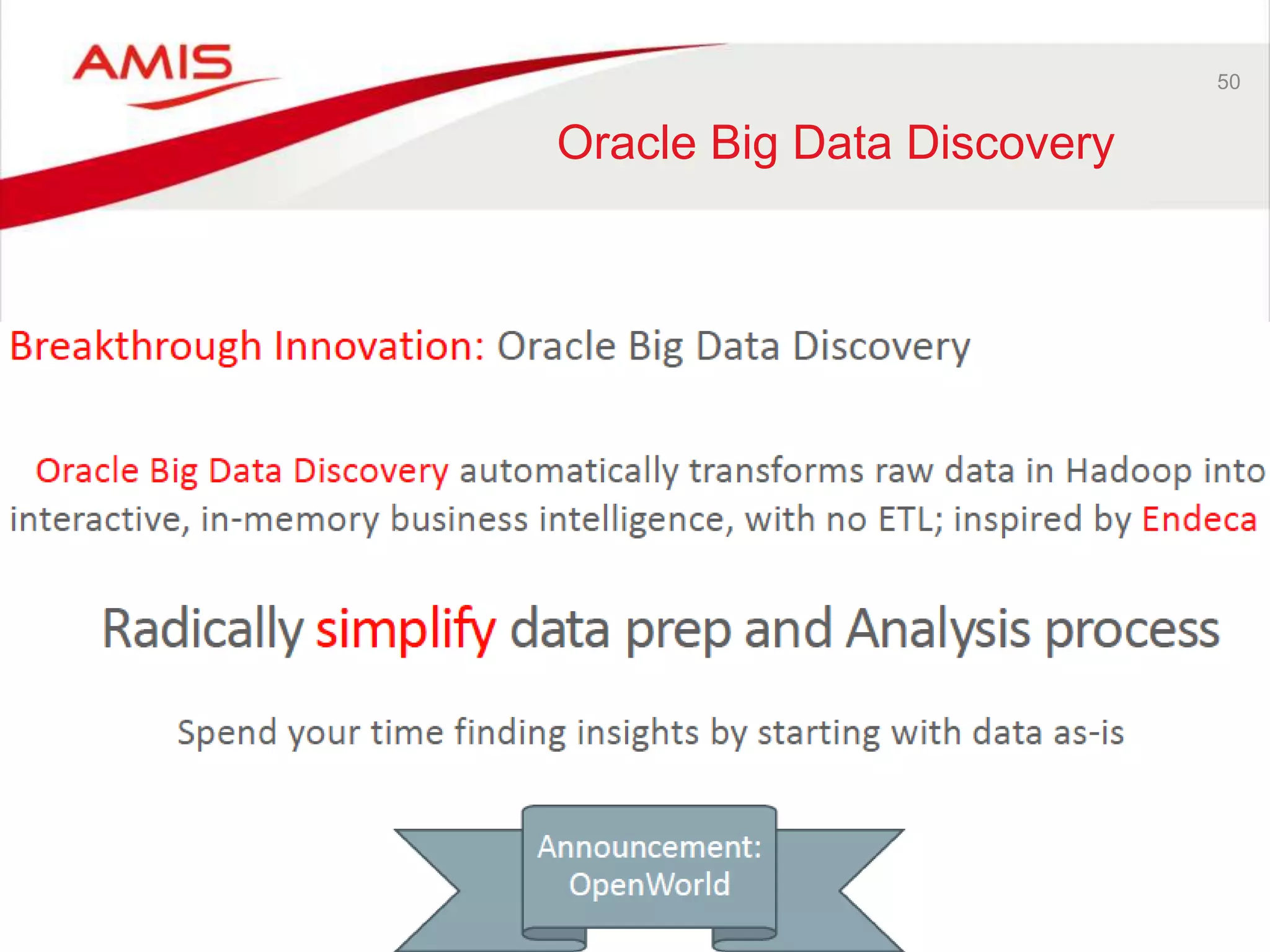

Oracle Big Data Discovery

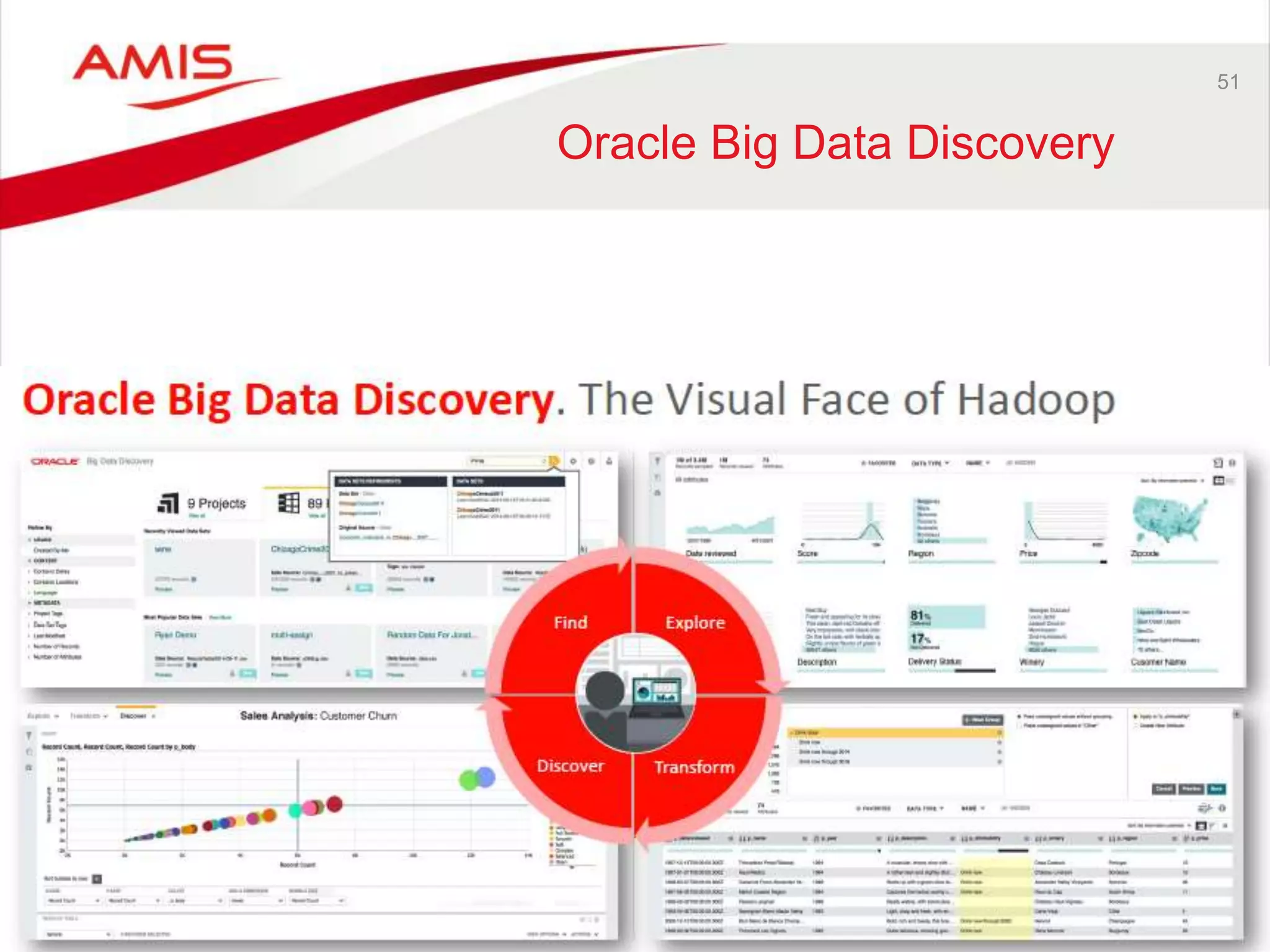

48. 51
Oracle Big Data Discovery

49. 52

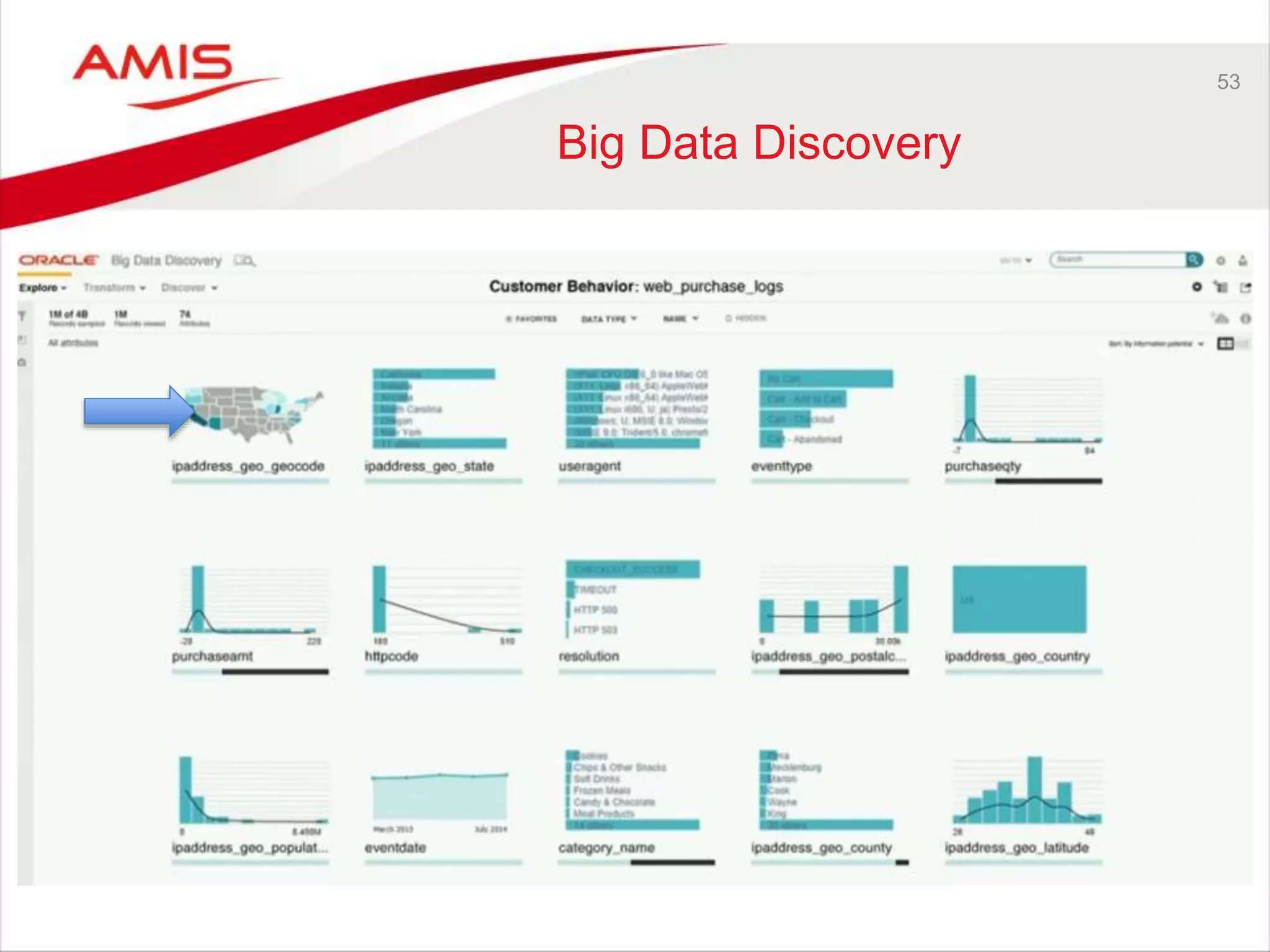

Big Data Discovery

50. 53

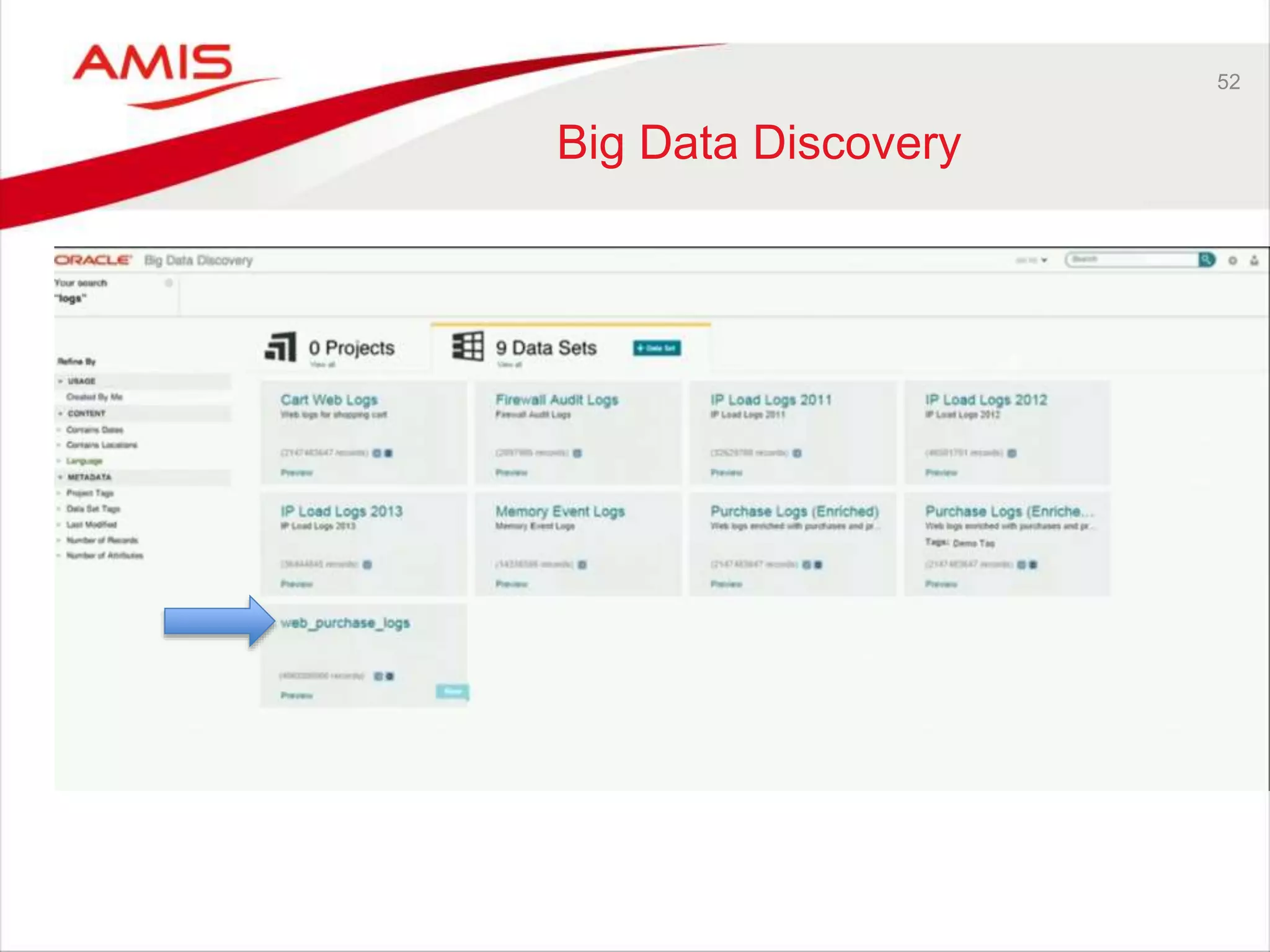

Big Data Discovery

51. 54

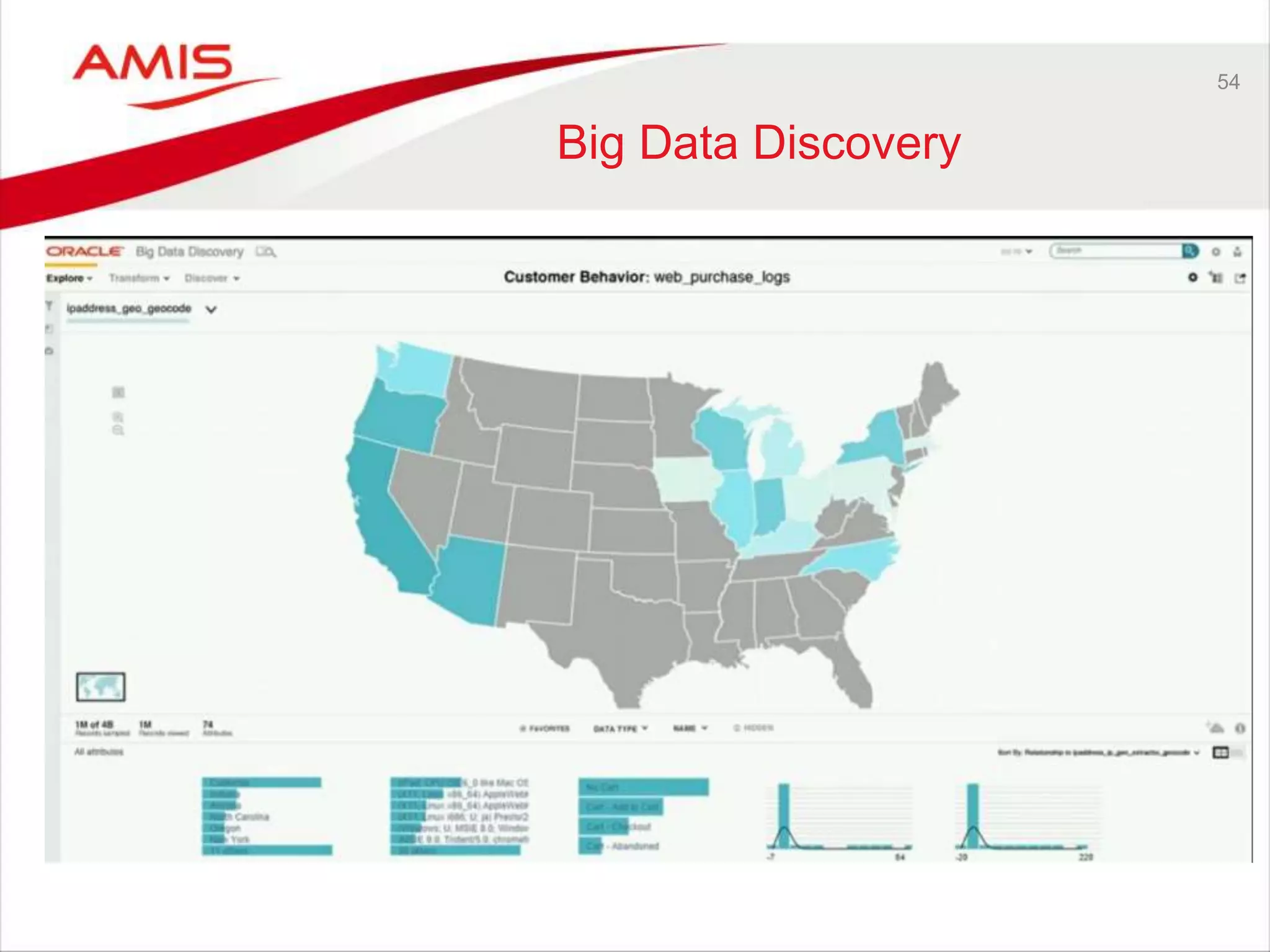

Big Data Discovery

52. 55

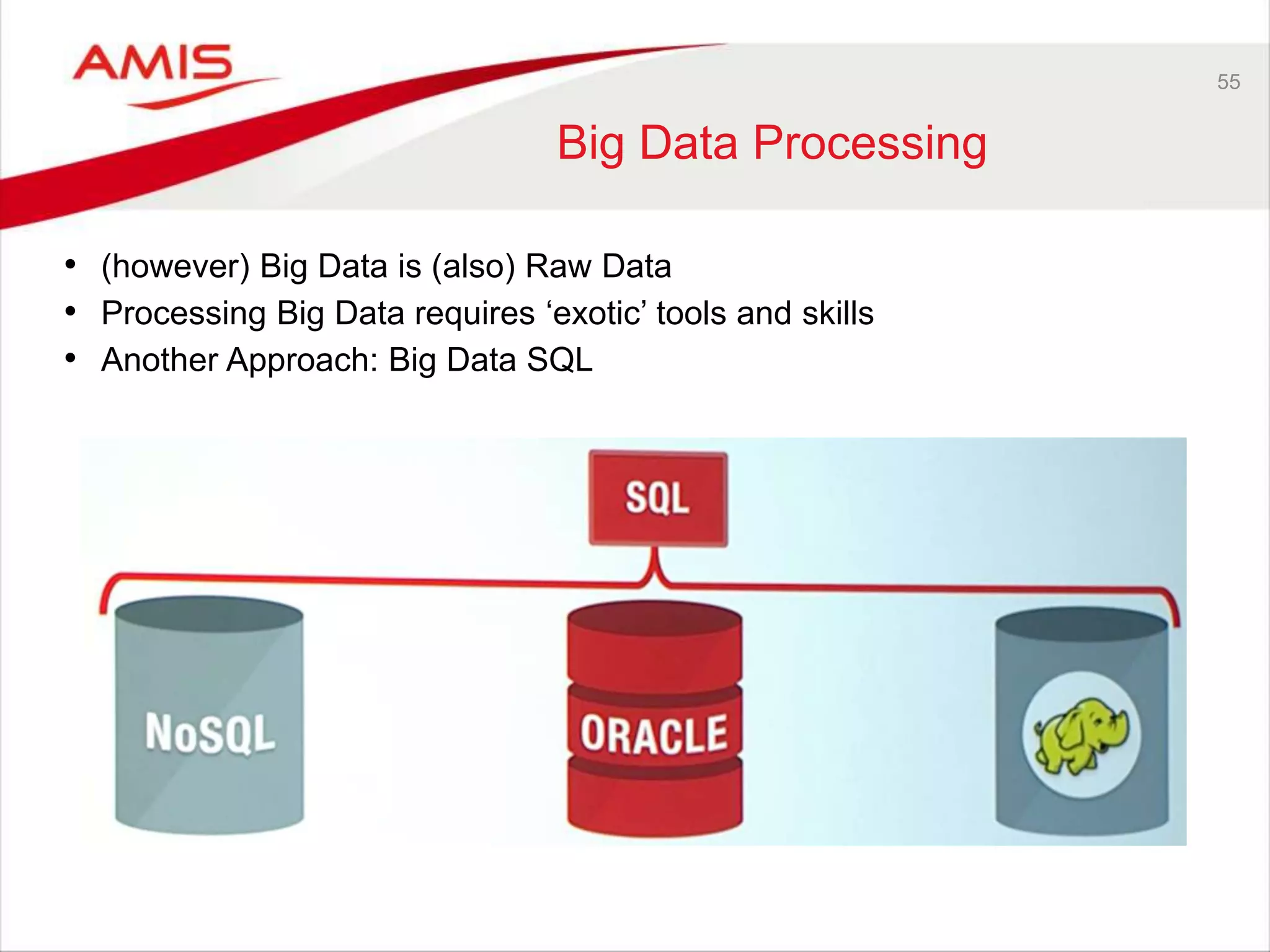

Big Data Processing
• (however) Big Data is (also) Raw Data
• Processing Big Data requires ‘exotic’ tools and skills
• Another Approach: Big Data SQL

53. 56

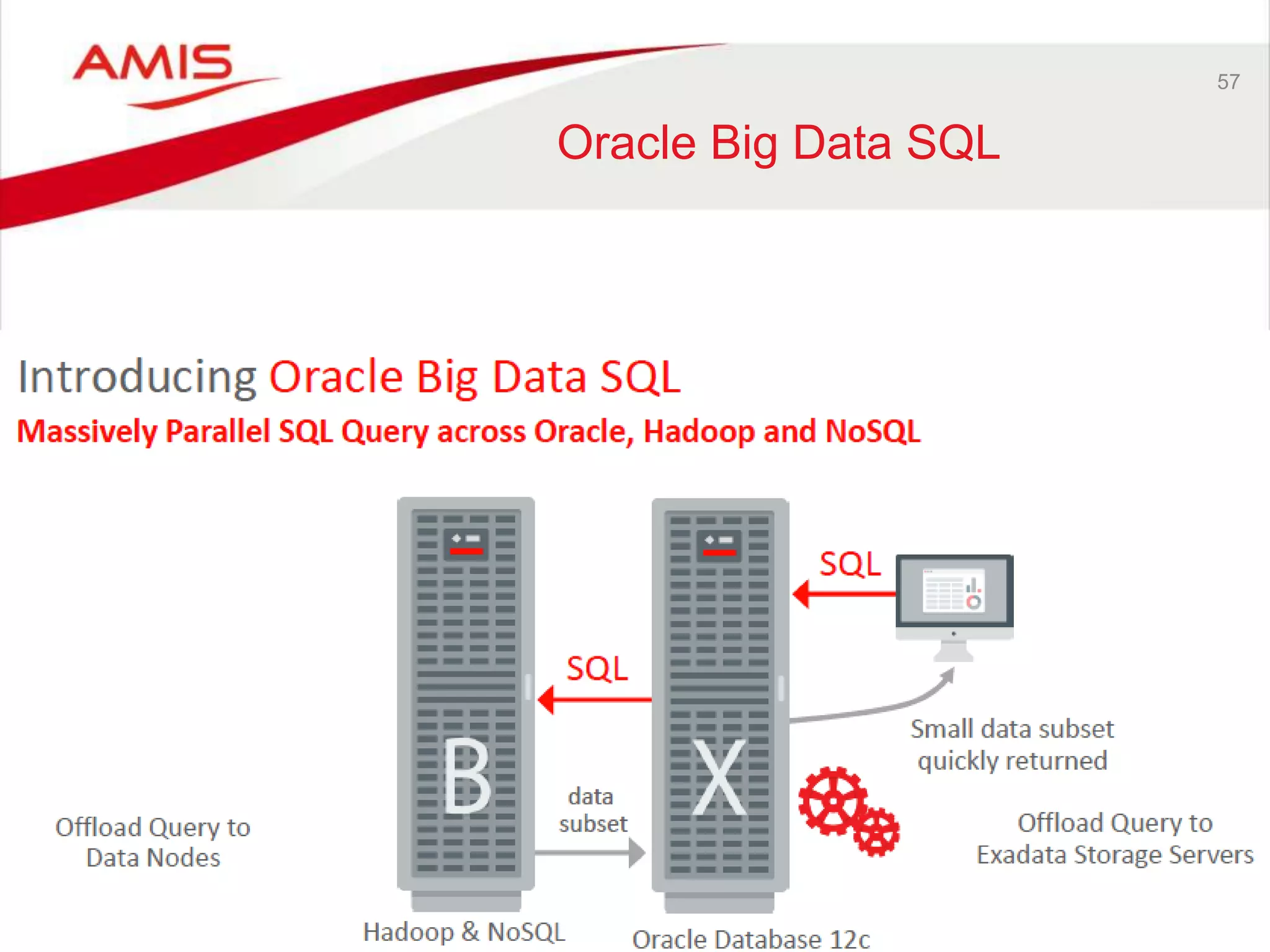

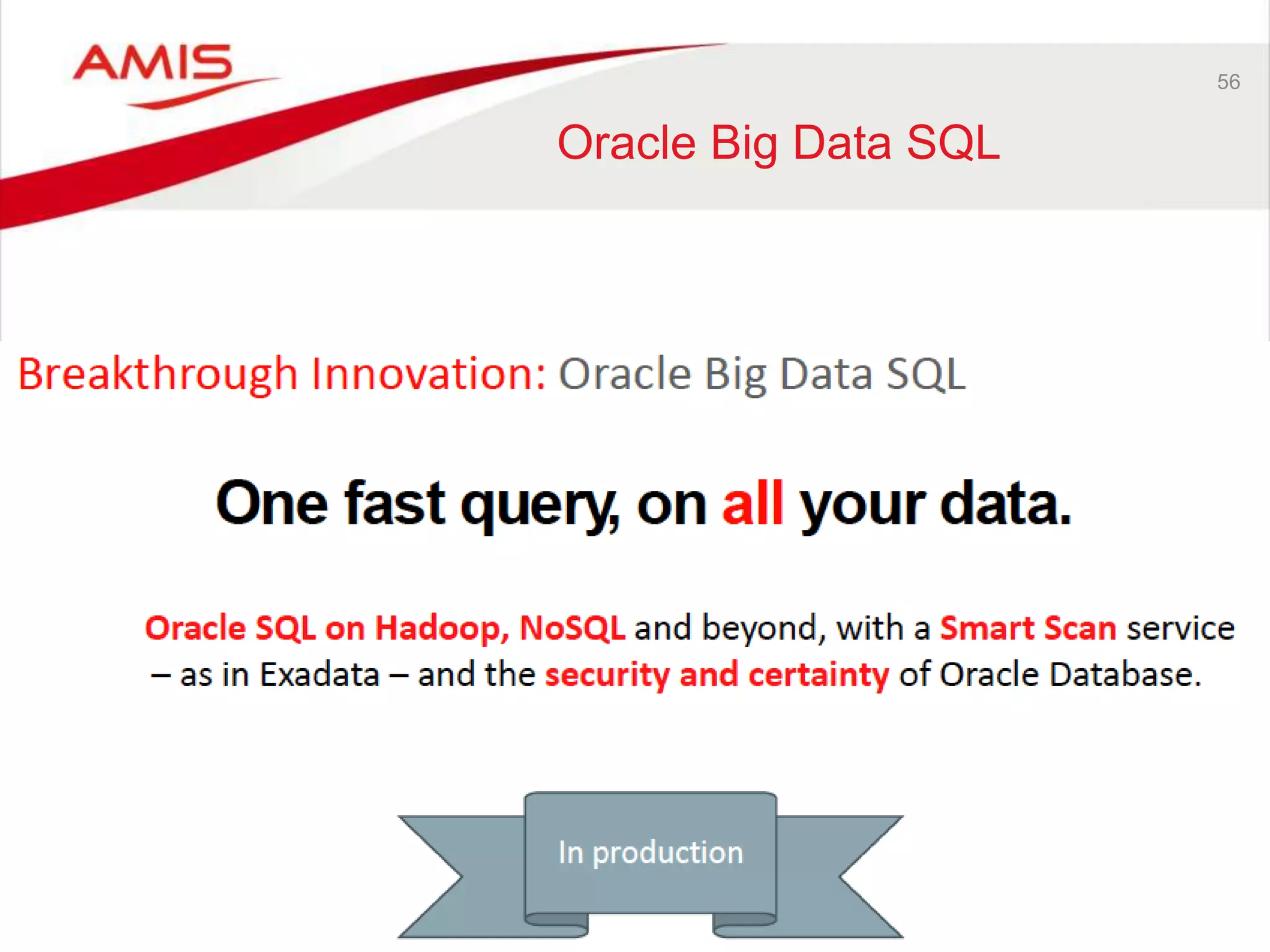

Oracle Big Data SQL

54. 57
Oracle Big Data SQL

55. 58

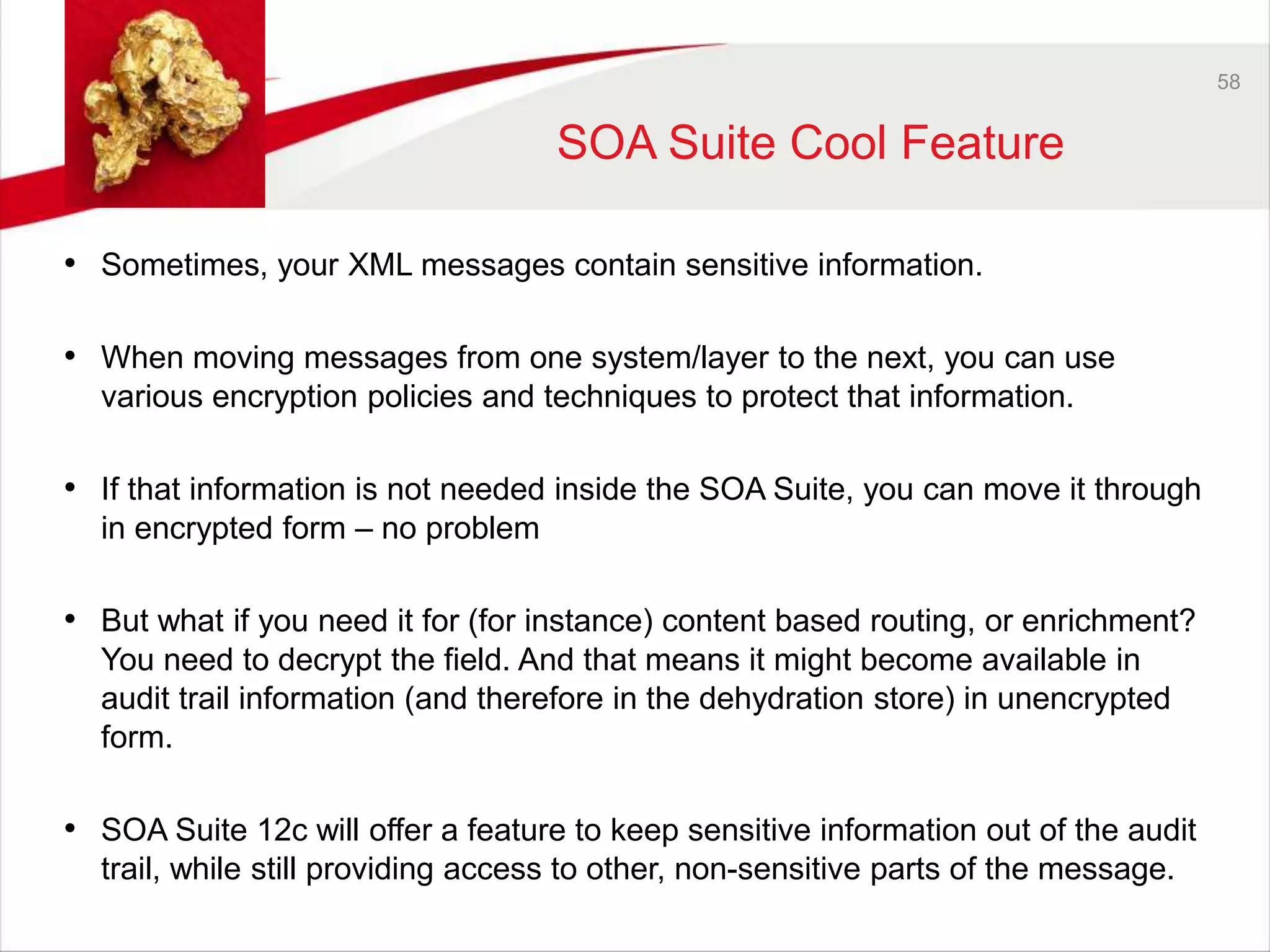

SOA Suite Cool Feature
• Sometimes, your XML messages contain sensitive information.
• When moving messages from one system/layer to the next, you can use
various encryption policies and techniques to protect that information.
• If that information is not needed inside the SOA Suite, you can move it through
in encrypted form – no problem
• But what if you need it for (for instance) content based routing, or enrichment?
You need to decrypt the field. And that means it might become available in
audit trail information (and therefore in the dehydration store) in unencrypted
form.
• SOA Suite 12c will offer a feature to keep sensitive information out of the audit
trail, while still providing access to other, non-sensitive parts of the message.

56. 59

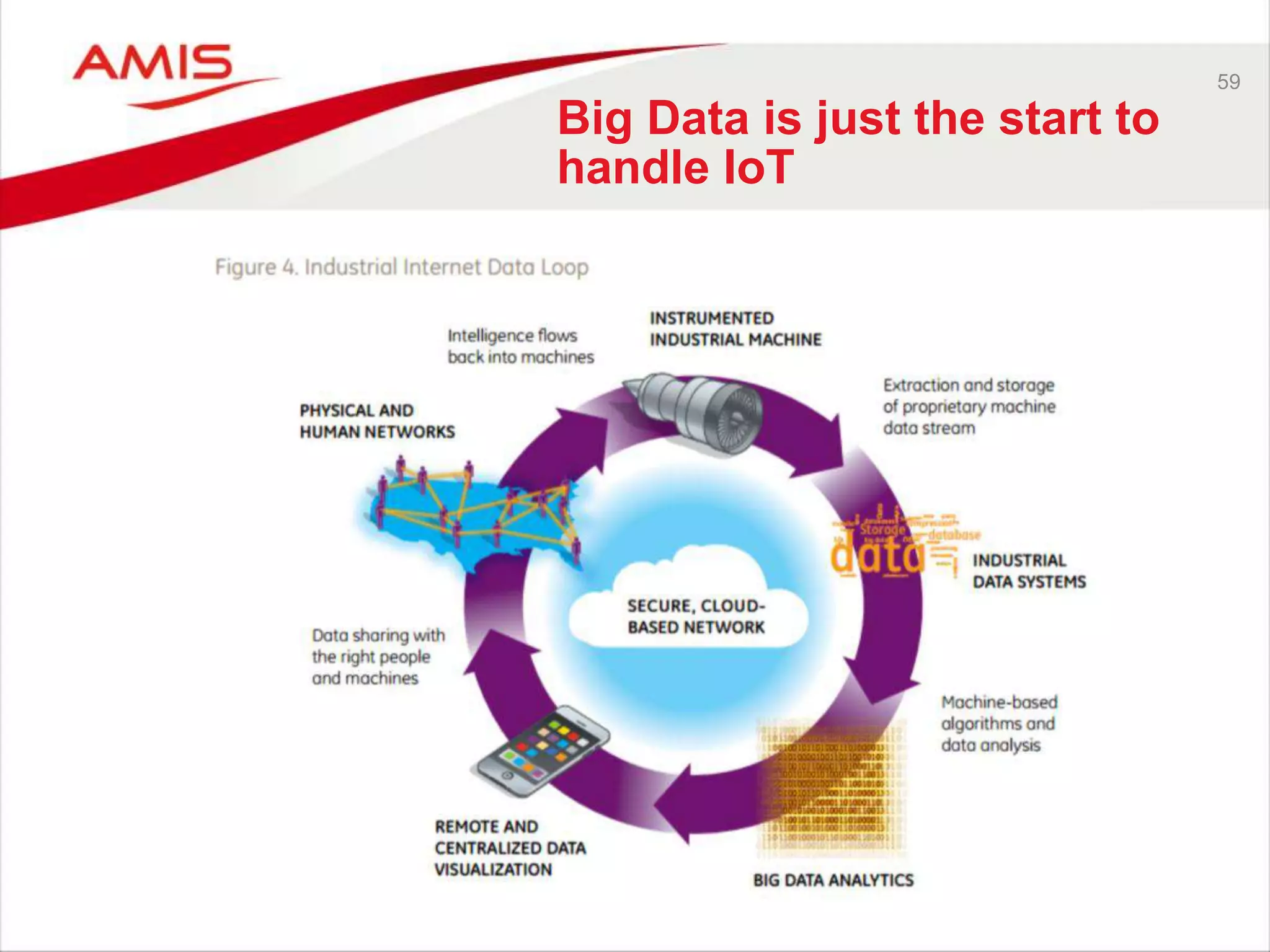

Big Data is just the start to
handle IoT

57. 60

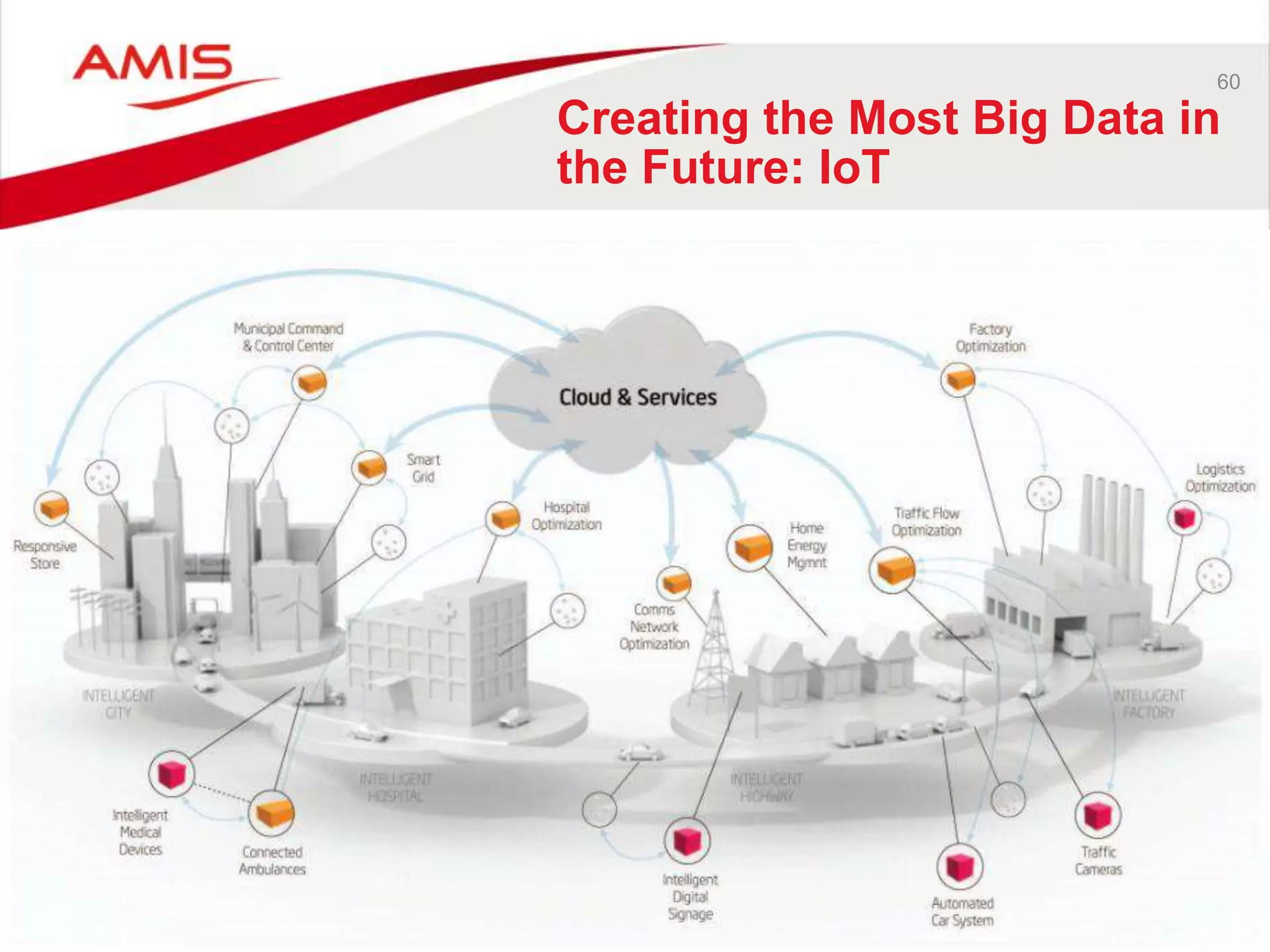

Creating the Most Big Data in
the Future: IoT
•

58. 61

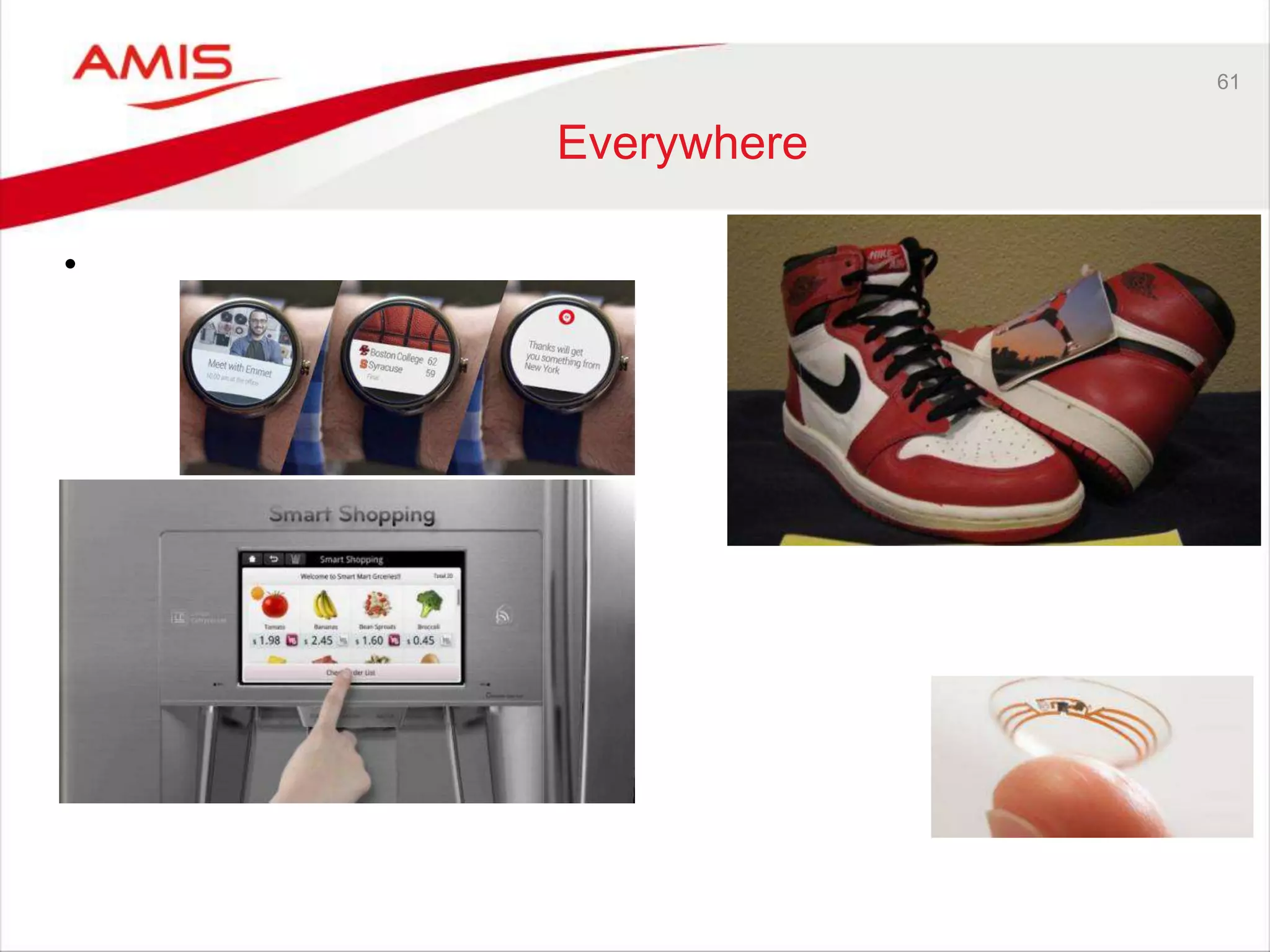

Everywhere
•

59. 62

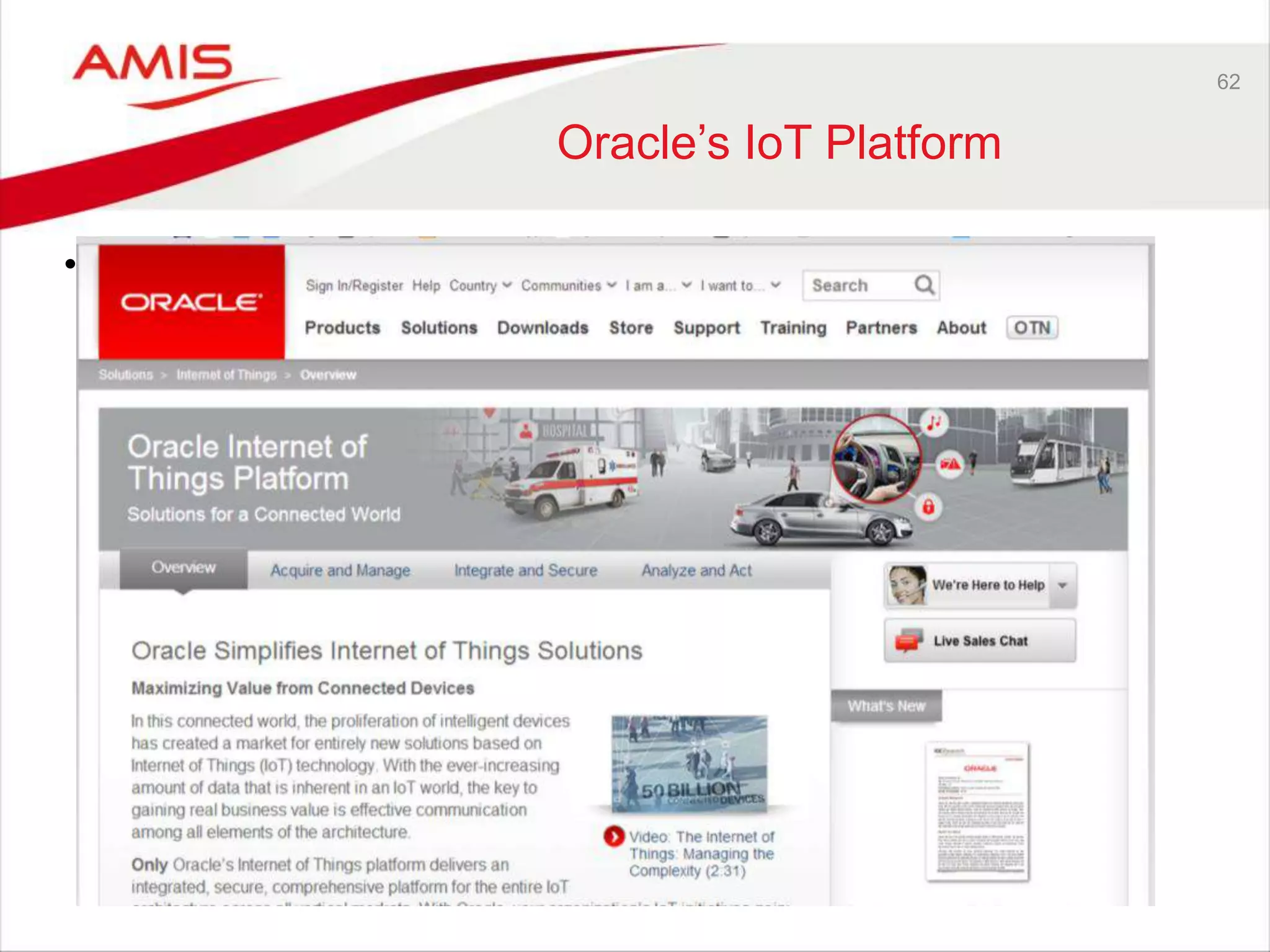

Oracle’s IoT Platform
•

60. 63

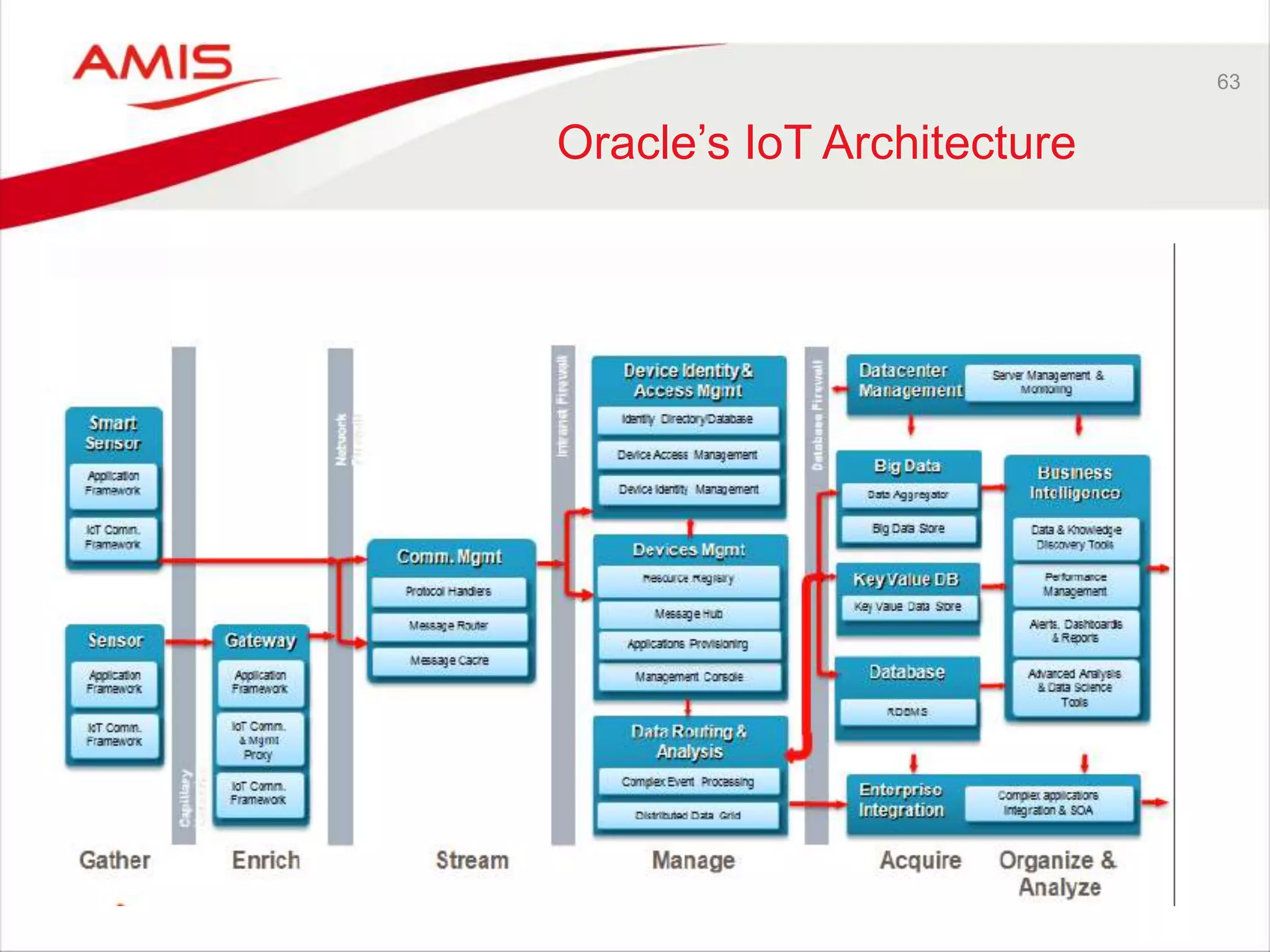

Oracle’s IoT Architecture
•

61. 64

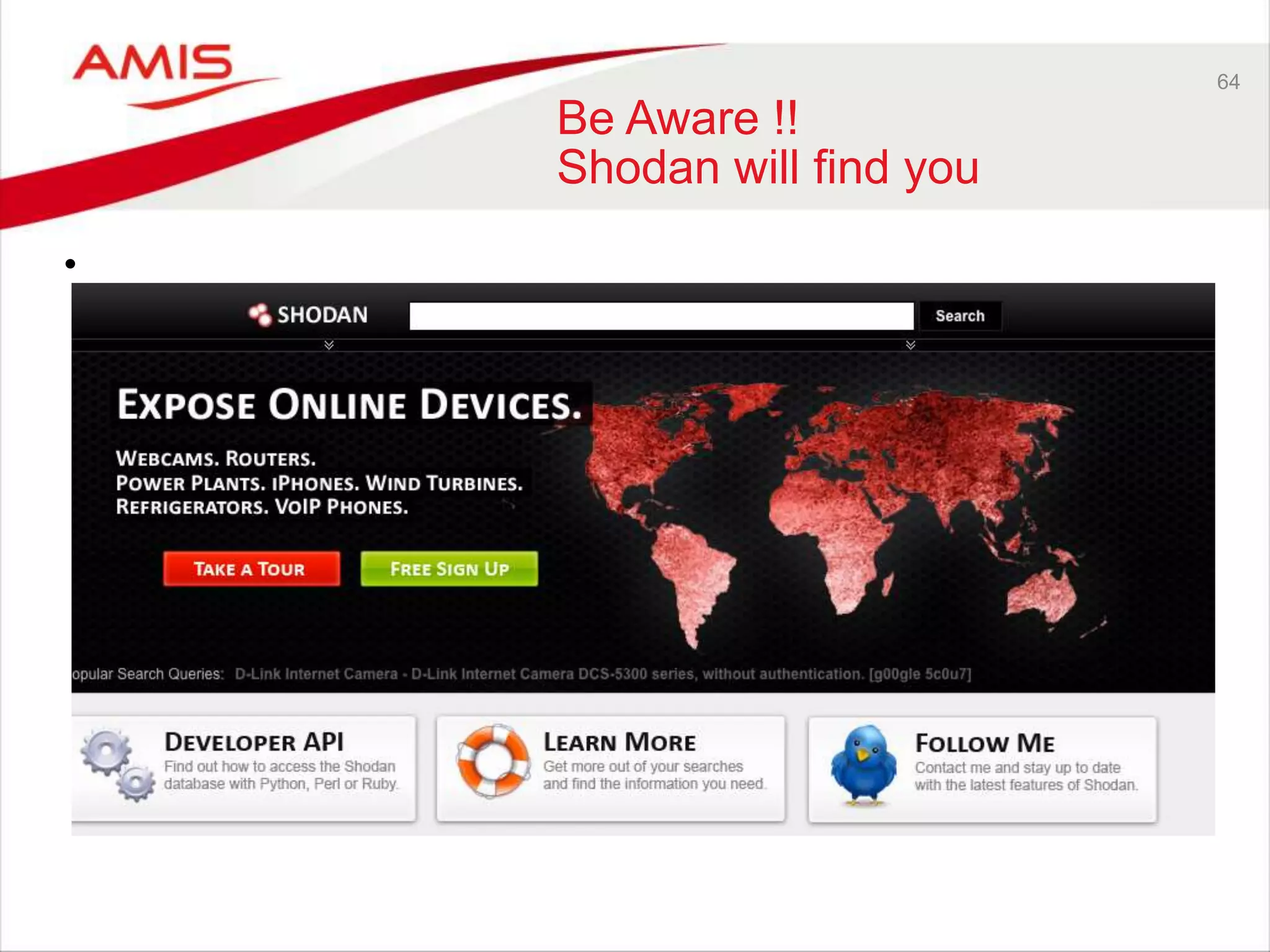

Be Aware !!
Shodan will find you
•

62. 65

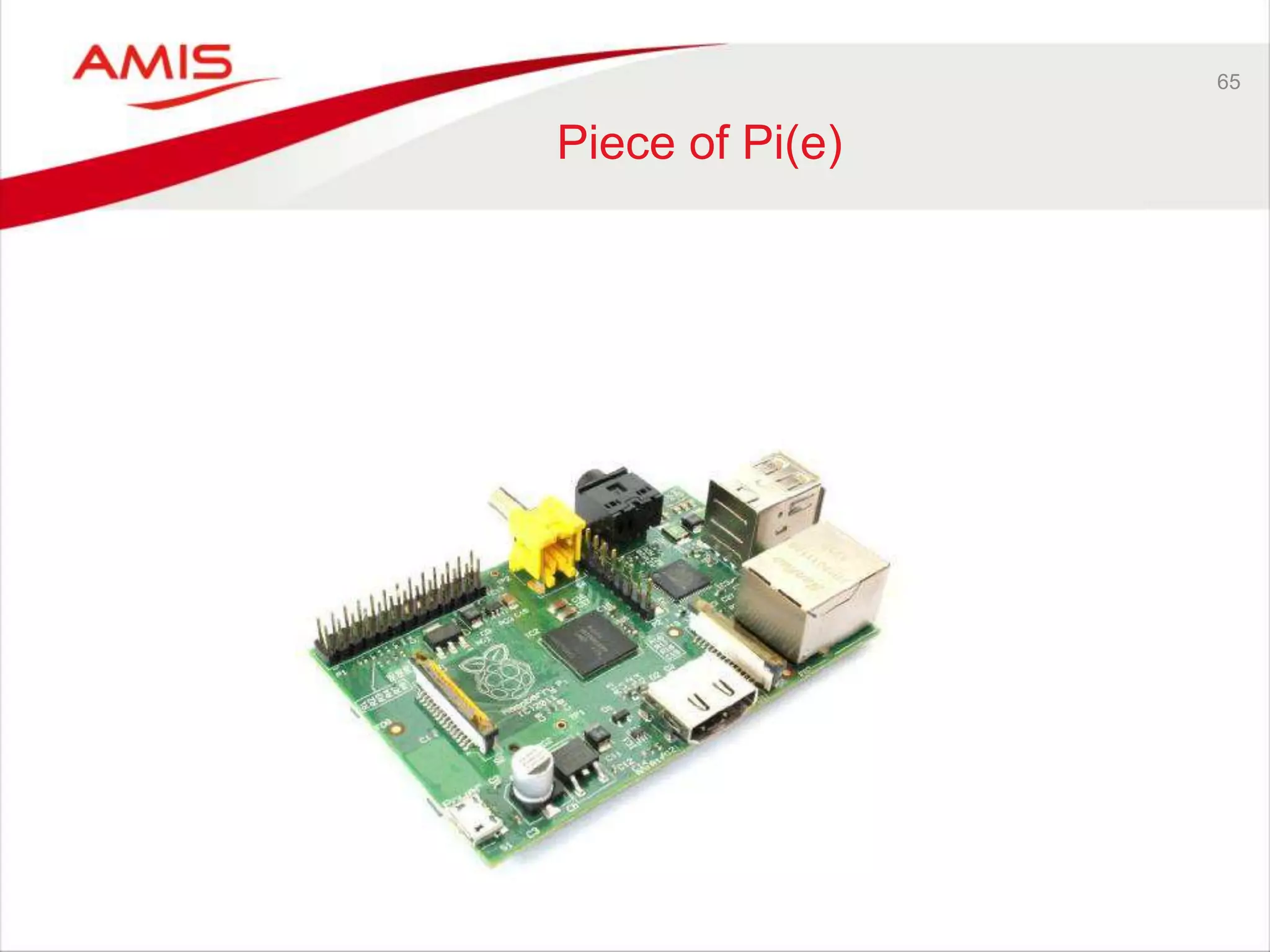

Piece of Pi(e)

63. 66

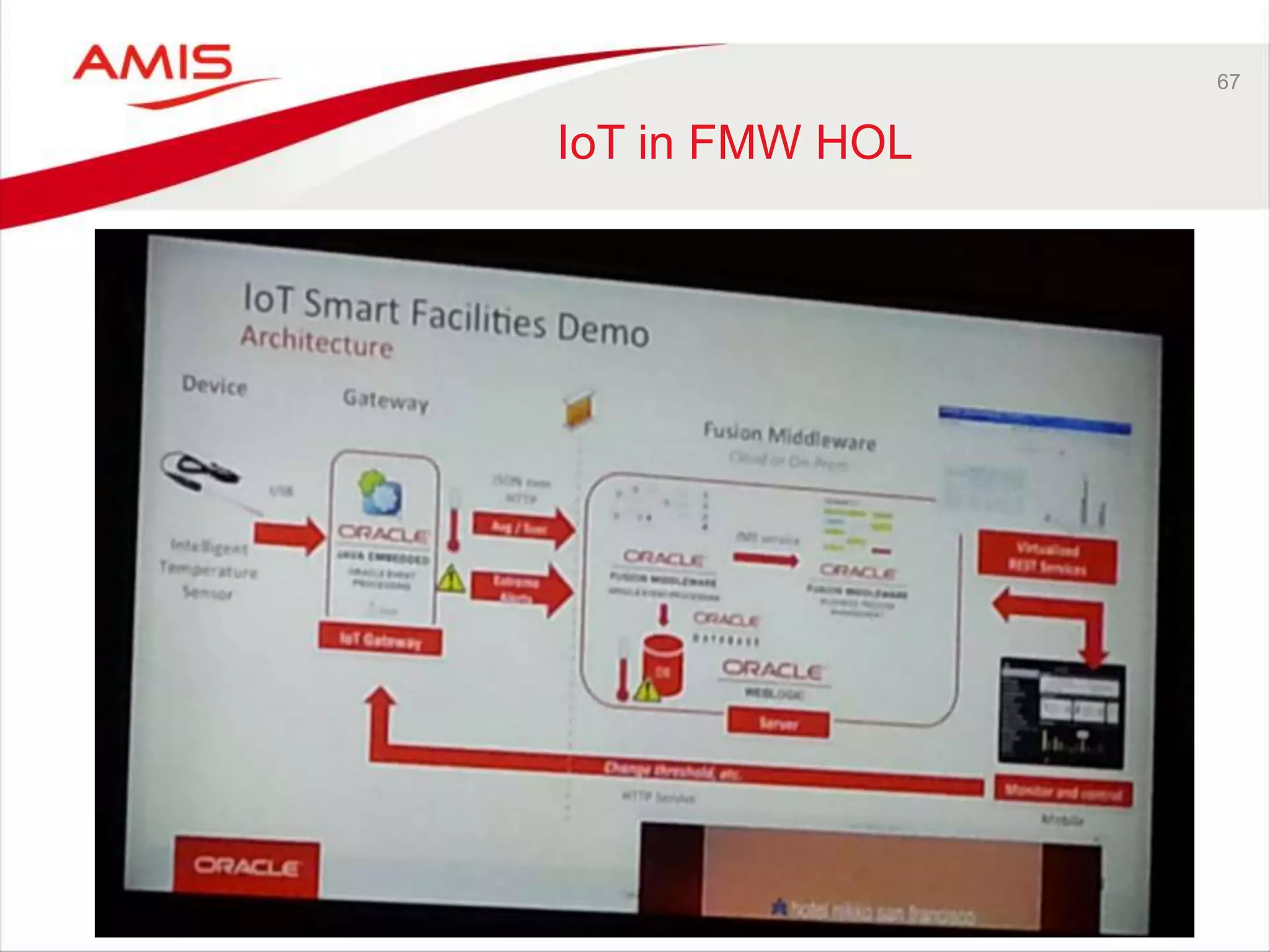

IoT in FMW HOL

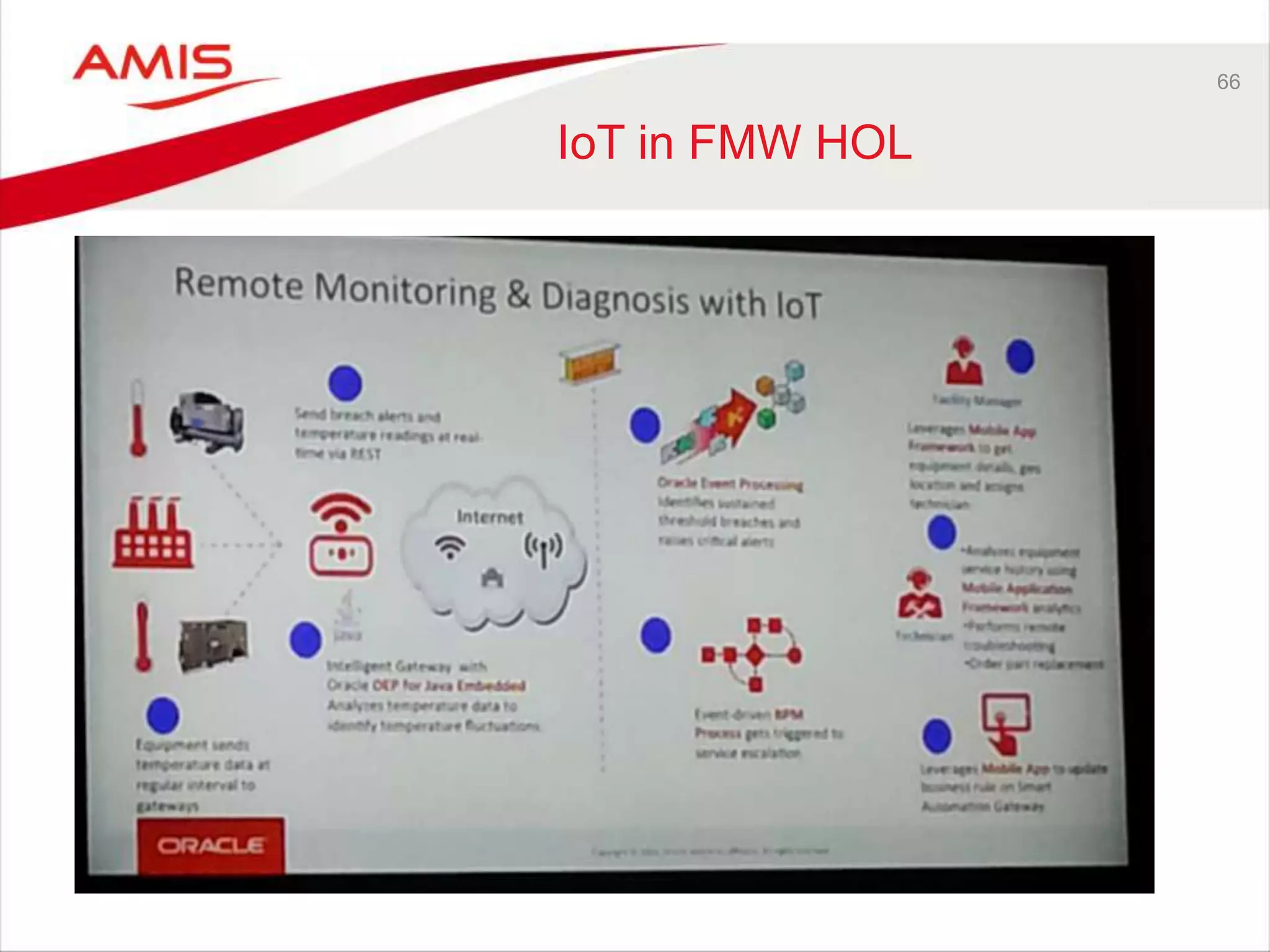

64. 67
IoT in FMW HOL
