Optimizing your SparkML pipelines using the latest features in Spark 2.3

Optimizing your SparkML
pipelines using the latest
features in Spark 2.3
IBM Center for Open-Source Data & AI Technologies (http://codait.org)
DBG / June 5, 2018 / © 2018 IBM Corporation

Open Source @ IBM
Center for Open Source Data & AI
Technologies (CODAIT)
Model Tuning in Spark
PySpark Vectorized UDFs
Q&A

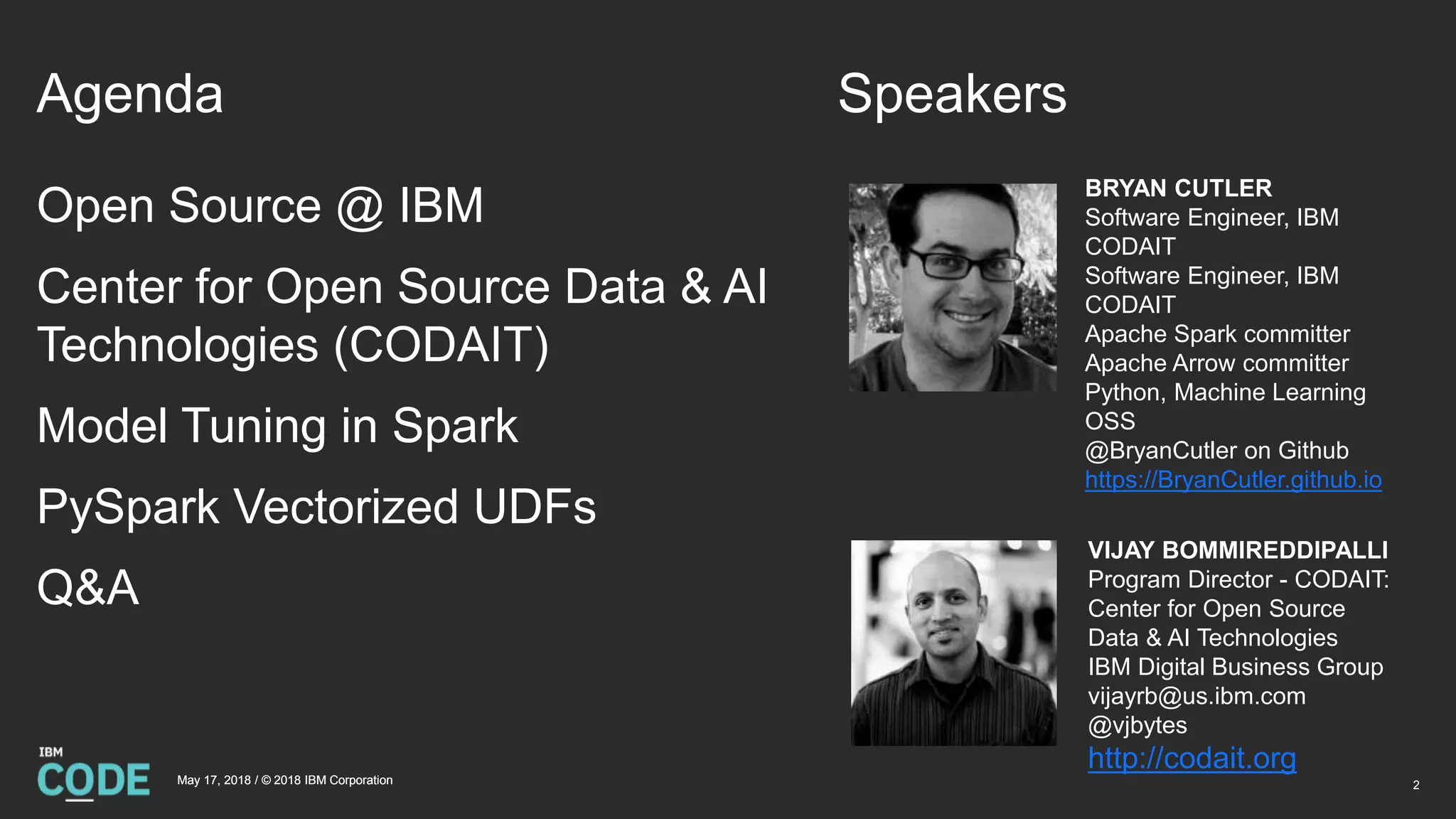

Agenda Speakers
2May 17, 2018 / © 2018 IBM Corporation
BRYAN CUTLER
Software Engineer, IBM
CODAIT
Software Engineer, IBM
CODAIT
Apache Spark committer
Apache Arrow committer
Python, Machine Learning
OSS
@BryanCutler on Github
https://BryanCutler.github.io
May 17, 2018 / © 2018 IBM Corporation
VIJAY BOMMIREDDIPALLI
Program Director - CODAIT:
Center for Open Source
Data & AI Technologies
IBM Digital Business Group
vijayrb@us.ibm.com
@vjbytes
http://codait.org

3
IBM’s history of strong AI leadership
1997: Deep Blue
• Deep Blue became the first machine to beat a world chess
champion in tournament play
2011: Jeopardy!
• Watson beat two top
Jeopardy! champions
1968, 2001: A Space Odyssey
• IBM was a technical
advisor
• HAL is “the latest in
machine intelligence”
2018: Open Tech, AI & emerging
standards
• New IBM centers of gravity for AI
• OS projects increasing exponentially
• Emerging global standards in AI
May 17, 2018 / © 2018 IBM CorporationMay 17, 2018 / © 2018 IBM Corporation

Data and AI Technologies
CODAIT
codait.org
codait (French)
= coder/coded
https://m.interglot.com/fr/en/codait
CODAIT aims to make AI solutions
dramatically easier to create, deploy,
and manage in the enterprise
Relaunch of the Spark Technology
Center (STC) to reflect expanded
mission
4

CODAIT by the numb3rs
CODAIT
codait.org
codait (French)
= coder/coded
https://m.interglot.com/fr/en/codait
The team contributes to over 10 open source projects. These
projects include - Spark, Tensorflow, Keras, SystemML, Arrow,
Bahir, Toree, Livy, Zeppelin, R4ML, Stocator, Jupyter Enterprise
Gateway
17 committers and many contributors in Apache projects- Spark,
Arrow, systemML, Bahir, Toree, Livy
Over 997 JIRAs and 55,000 lines of code committed to Apache
Spark itself, and Over 65,000 LoC into SystemML
• Established IBM as the number 1 contributor to Spark
Machine Learning in Spark 2.0 release
Over 25 product lines within IBM leveraging Apache Spark in
some form or another. CODAIT engineers have interacted and
interlocked with many of them.
Speakers at over 100 conferences, MeetUps, un-conferences etc.
5
Spark code contribution growth by
week

Data and AI Technologies
codait (French)
= coder/coded
https://m.interglot.com/fr/en/codaitCode - Build and improve practical frameworks to
enable more developers to realize immediate
value (e.g. FfDL, Tensorflow Jupyter, Spark)
Content – Showcase solutions to complex and
real world AI problems
Community – Bring developers and data
scientists to engage with IBM (e.g. MAX)
Improving Enterprise AI lifecycle in Open Source
Gather
Data
Analyze
Data
Machine
Learning
Deep
Learning
Deploy
Model
Maintain
Model
Python
Data Science
Stack
Fabric for
Deep Learning
(FfDL)
Mleap +
PFA
Scikit-LearnPandas
Apache
Spark
Apache
Spark
Jupyter
Model
Asset
eXchange
Keras +
Tensorflow
CODAIT
codait.org
6

Fabric for Deep Learning
https://github.com/IBM/FfDL
FfDL provides a scalable, resilient, and fault
tolerant deep-learning framework
FfDL Github Page
https://github.com/IBM/FfDL
FfDL dwOpen Page
https://developer.ibm.com/code/open/projects/fabri
c-for-deep-learning-ffdl/
FfDL Announcement Blog
http://developer.ibm.com/code/2018/03/20/fabric-
for-deep-learning
FfDL Technical Architecture Blog
http://developer.ibm.com/code/2018/03/20/democr
atize-ai-with-fabric-for-deep-learning
Deep Learning as a Service within Watson Studio
https://www.ibm.com/cloud/deep-learning
Research paper: “Scalable Multi-Framework
Management of Deep Learning Training Jobs”
http://learningsys.org/nips17/assets/papers/paper_
29.pdf
• Fabric for Deep Learning or FfDL (pronounced as ‘fiddle’) is an open source
project which aims at making Deep Learning easily accessible to the people
it matters the most i.e. Data Scientists, and AI developers.
• FfDL Provides a consistent way to deploy, train and visualize Deep Learning
jobs across multiple frameworks like TensorFlow, Caffe, PyTorch, Keras etc.
• FfDL is being developed in close collaboration with IBM Research and IBM
Watson. It forms the core of Watson`s Deep Learning service in open
source.
FfDL
7

Jupyter Enterprise
Gateway
March 30 2018 / © 2018 IBM Corporation
Jupyter Enterprise Gateway at IBM Code
https://developer.ibm.com/code/openprojects/jupyter-enterprise-gateway/
Jupyter Enterprise Gateway source code at GitHub
https://github.com/jupyter-incubator/enterprise_gateway
Jupyter Enterprise Gateway Documentation
http://jupyter-enterprise-gateway.readthedocs.io/en/latest/
8
A lightweight, multi-tenant, scalable and
secure gateway that enables Jupyter
Notebooks to share resources across an
Apache Spark or Kubernetes cluster for
Enterprise/Cloud use cases
Kernel
Kernel
Kernel
Kernel
Kernel
KernelKernel

Fast data analysis and transformation are the prerequisite of
ML/DL within the whole enterprise AI life cycle. Apache Spark
answers it.
9
Apache Spark
A unified analytics engine for large-scale data
processing.
Various IBM Cloud and Service products are dependent on
or distribute Apache Spark:
• IBM Analytics Engine
• IBM Apache Spark service
• IBM Spectrum Conductor
• Apache Spark on IBM POWER
• IBM Open Data Analytics for z/OS
• IBM Watson Studio
• IBM SQL Query
• IBM Watson Machine Learning
• IBM Db2 EventStore
• IBM Explorys ….. many more
Apache Spark Github page:
https://github.com/apache/s
park
IBM Related blogs:
https://developer.ibm.com/co
de/category/spark/
Gather
Data
Analyze
Data
Machine
Learning
Deep
Learning
Deploy
Model
Maintain
Model
Python
Data Science
Stack
Fabric for
Deep Learning
(FfDL)
Mleap +
PFA
Scikit-LearnPandas
Apache
Spark
Apache
Spark
Jupyter
Model
Asset
eXchange
Keras +
Tensorflow

CODAIT: Enabling End-to-End AI in the Enterprise
10May 17, 2018 / © 2018 IBM Corporation
Gather
Data
Analyze
Data
Machine
Learning
Deep
Learning
Deploy
Model
Maintain
Model
Python
Data Science
Stack
Fabric for
Deep Learning
(FfDL)
Mleap +
PFA
Scikit-LearnPandas
Apache
Spark
Apache
Spark
Jupyter
Model
Asset
eXchange
Keras +
Tensorflow

What’s next in this talk …
Take a deeper look into:
• Model Tuning in Spark
• Scaling Model Tuning
• Optimizing Pipelines
• PySpark Vectorized UDFs
• Apache Arrow
• Using in a Pipeline

Model selection: workflow within a workflow
Ingest
Data
Processing
Feature
Engineering
Model
Selection
Final Model
Candidate
models
Train
Evaluate
Adjust

Pipeline cross-validation
Tokenizer CountVectorizer LogisticRegression
Spark ML Pipeline
# features:
10
# features:
100
regParam:
0.001
regParam:
0.1
Parameters

# features:
10
# features:
100
regParam:0
.001
regParam:
0.1
Tokenizer CountVectorizer LogisticRegression

Tokenizer
CountVectorizer
# features: 10
LogisticRegression
regParam: 0.001
# features:
10
Tokenizer
CountVectorizer
# features: 10
LogisticRegression
regParam: 0.1
Tokenizer
CountVectorizer
# features: 100
LogisticRegression
regParam: 0.001
Tokenizer
CountVectorizer
# features: 100
LogisticRegression
regParam: 0.1
# features:
100
regParam:0
.001
regParam:
0.1

Cross-validation is expensive!
• 5 x 5 x 5 hyperparameters = 125 pipelines
• ... across 4 machine learning models = 500
• If training & evaluation does not fully utilize
available cluster resources then that waste is
compounded for each model
Based on XKCD comic: https://xkcd.com/303/
& https://github.com/mislavcimpersak/xkcd-excuse-generator

Parallel model evaluation
Scaling Model Tuning
• Added in SPARK-19357 and SPARK-
21911 (PySpark)
• Parallelism parameter governs the
maximum # models to be trained at once

Tokenizer
CountVectorizer
# features: 10
LogisticRegression
regParam: 0.001
# features:
10
Tokenizer
CountVectorizer
# features: 10
LogisticRegression
regParam: 0.1
Tokenizer
CountVectorizer
# features: 100
LogisticRegression
regParam: 0.001
Tokenizer
CountVectorizer
# features: 100
LogisticRegression
regParam: 0.1
# features:
100
regParam:0
.001
regParam:
0.1

Implementation considerations
• Parallelism parameter sets the size of
threadpool under the hood
• Dedicated ExecutionContext created to
avoid deadlocks with using the default
threadpool
• Used Futures instead of parallel
collections – more flexible
• Model-specific parallel fitting
implementations not supported
• SPARK-22126

Performance tests
• Compared parallel CV to serial CV with
varying number of samples
• Simple LogisticRegression with regParam
and fitIntercept; parameter grid size 12
• Measure elapsed time for cross-validation
• Data size: 100,000 -> 5,000,000
• Number features: 10
• Number partitions: 10
• Number CV folds: 5
• Parallelism: 3
• Standalone cluster with 30 cores

Results
• ±2.4x speedup
• Stays roughly constant as #
samples increases

Best practices
• Simple integer parameter is the only thing
you can set (for now)
• Too low => under-utilize resources
• Too high => could lead to memory issues or
overloading cluster
• Rough rule: # cores / # partitions
• But depends on data and model sizes
• Mid-sized cluster probably <= 10

Optimizing Tuning for
Pipeline Models

Challenges
Optimizing Tuning for Pipeline Models
• Multi-stage, complex pipelines
• Parameter grid with hyperparameters from
different stages
• Easy to have huge number of candidate
parameter combinations
• Model parallelism helps, but can we do
better?

End up Duplicating Work
• Each Pipeline treated
independently
• Depending on parameter grid
and pipeline stages
• Fit the same model multiple
times
• Perform same transformations
multiple times

Optimize with a DAG
• A node is an estimator/transformer with a
set of hyperparameters
• A path in the graph is a single pipeline
model
Tokenizer
Count
Vectorizer
nfeat=10
Count
Vectorizer
nfeat=100
LR
reg=0.1
LR
reg=0.01
LR
reg=0.1
LR
reg=0.01

Parallelize in breadth-first order
• Example with parallelism parameter set to
2
• Tokenizer is only a transform, proceed to fit
CountVectorizer nodes
Tokenizer
Count
Vectorizer
nfeat=10
Count
Vectorizer
nfeat=100
LR
reg=0.1
LR
reg=0.01
LR
reg=0.1
LR
reg=0.01

Fit estimators
• Cache the result and proceed to fit the first
2 LogisticRegression models Tokenizer
Count
Vectorizer
nfeat=10
Count
Vectorizer
nfeat=100
LR
reg=0.1
LR
reg=0.01
LR
reg=0.1
LR
reg=0.01
Cache result

Fit estimators
• Unpersist when child tasks done
• Fit final 2 LR models Tokenizer
Count
Vectorizer
nfeat=10
Count
Vectorizer
nfeat=100
LR
reg=0.1
LR
reg=0.01
LR
reg=0.1
LR
reg=0.01
Unpersist
cached
dataframe
Cache
result

Fit estimators
• All 4 LR models fitted
Tokenizer
Count
Vectorizer
nfeat=10
Count
Vectorizer
nfeat=100
LR
reg=0.1
LR
reg=0.01
LR
reg=0.1
LR
reg=0.01
Unpersist
cached
dataframe

Evaluate models
• Evaluate models using similar method
• CountVectorizerModel is now a transformer
• Cache transform result
Tokenizer
CVModel
nfeat=10
CVModel
nfeat=100
LRModel
reg=0.1
LRModel
reg=0.01
LRModel
reg=0.1
LRModel
reg=0.01
Cache,
Unpersist
when done

Evaluate models
• All models evaluated for this fold
Tokenizer
CVModel
nfeat=10
CVModel
nfeat=100
LRModel
reg=0.1
LRModel
reg=0.01
LRModel
reg=0.1
LRModel
reg=0.01
Cache,
unpersist
when done
Metrics: 0.62 0.62 0.72 0.66

Select best model
• Average the metrics from all folds and
select the best PipelineModel Tokenizer
CVModel
nfeat=10
CVModel
nfeat=100
LRModel
reg=0.1
LRModel
reg=0.01
LRModel
reg=0.1
LRModel
reg=0.01
Avg
Metrics: 0.64 0.64 0.71 0.65

Performance tests
• Compared to Standard Spark CV with
parallelism enabled
• Pipeline:
MinMaxScaler → PCA → LinearRegression
• Measure elapsed time for cross-validation
varying size of parameter grid from 36 to
80 models to evaluate
• Data size: 1,000,000
• Number features: 50
• Number partitions: 16
• Number CV folds: 4
• Parallelism: 3
• Standalone cluster with 30 cores

Results
• Up to 3.25x speedup
• Increases with more models …
• … and more complex pipelines
• Check out:
https://github.com/BryanCutler/PipelineTuning
Experimental!
• Watch SPARK-19071 0
200
400
600
800
1000
1200
36 48 60 80
# models
Elapsed time for DAG CV vs Simple Parallel CV
Parallel DAG Parallel

PySpark
Vectorized UDFs
with
Apache Arrow

Python in Big Data
Vectorized UDFs
• Spark successful, partly because integration of tools that traditionally require separate
systems
• e.g. in the same system you can do SQL and ML
• Most big data tools work on the JVM, but many people use Python for analytics and
ML – how do we connect them?
• Pickling, JSON, XML, Strings, etc.
• Lots of serialization and data copying!!!

PySpark – Python Interface to Spark
Vectorized UDFs
• Provides a wrapper around Spark App JVMs
• Driver uses Py4J to run JVM commands
• Workers start a Python process and pipe data to/from
• Data is transferred in Pickle format, leads to double serialization costs
• Spark DataFrames can avoid serialization by staying in the JVM
• Achieve performance almost as good as pure Scala/Java
• Running any custom Python code leads back to costly serialization

Worker 1
Worker N
Driver
Python App Worker Interaction
Vectorized UDFs
socket
Py4J
pipe
pipe

Wordcount with DataFrames (in JVM)
Vectorized UDFs
df = sqlCtx.read.load(src)
split_words = df.select(split(df.text, ’ ‘).alias("word_list"))
words = split_words.select(explode(split_words.word_list).alias("word"))
word_count = words.groupBy("word").count()
word_count.write.format("parquet").save("wc.parquet")
Fast as long as using
built-in functions

Apache Arrow introduced in Spark 2.3
Vectorized UDFs
• Standard format to transfer data between systems
• Impl: Java, C/C++, Python, Rust, JS
• Optimized for fast data processing
• Avoid costly serialization
• Efficiently uses chunked array data
• Helps Spark when transferring data between the JVM and a Python
process
• Particularly useful for Python UDFs, @pandas_udf

Arrow in Big Data
Vectorized UDFs
Common data layer between systems
* Logos trademarks of their respective projects

Apache Arrow Adoption
Vectorized UDFs
@kstirman

Scalar Pandas UDF Example
Vectorized UDFs
@pandas_udf("integer", PandasUDFType.SCALAR)
def add_one(x):
return x + 1

How a Python Worker Looks with Arrow
Vectorized UDFs

Pandas UDF vs. Standard UDF Performance
Vectorized UDFs
*Source: https://databricks.com/blog/2017/10/30/introducing-vectorized-udfs-for-pyspark.html

Improved Tokenization with Spacy
NLP python package https://spacy.io/
Vectorized UDFs
@pandas_udf(returnType=ArrayType(StringType()))
def spacy_tokenize(input_series):
import spacy
# Just set `input_lang` to support non-English language tokenization!!
nlp = spacy.load(input_lang)
def tokenize_elem(elem):
return map(lambda token: token.text, nlp(unicode(elem)))
return input_series.apply(tokenize_elem)

Pandas UDF --> Pipeline Stage
Vectorized UDFs
• With some boilerplate code, can wrap your UDF into a Spark ML pipeline
stage
• Then can use it in the with the rest of Spark ML framework
• Kind of a pain!
• Sparkling ML is an open-source project that extends Spark ML
• Makes it easy to plugin your Pandas UDF to create a Python estimator/transformer,
or
• Plays nice with the rest of Spark ML
• Repo at: https://github.com/sparklingpandas/sparklingml

Text Classification Pipeline
Mixed Language ML Pipeline
Vectorized UDFs
Spark ML
Cross-
Validation
Spark SQL
Spacy
Tokenizer
(Python)
Count
Vectorizer
(JVM)
Logistic
Regression
(JVM)

Call for Code inspires developers
to solve pressing global
problems with sustainable
software solutions, delivering
on their vast potential to do good.
Bringing together NGOs, academic
institutions, enterprises, and
startup developers to compete
build effective disaster mitigation
solutions, with a focus on health
and well-being.
International Federation of Red
Cross/Red Crescent, The
American Red Cross, and the
United Nations Office of Human
Rights combine for the Call for
Code Award to elevate the profile
of developers.
Award winners will receive long-term
support through open source
foundations, financial prizes, the
opportunity to present their solution
to leading VCs, and will deploy their
solution through IBM’s Corporate
Service Corps.
Developers will jump-start their project
with dedicated IBM Code Patterns,
combined with optional enterprise
technology to build projects over the
course of three months.
Judged by the world’s most renowned
technologists, the grand prize will be
presented in October at an Award
Event.
developer.ibm.com/callforcode

Thank you!
codait.org
github.com/BryanCutler
developer.ibm.com/code
http://github.com/codait
FfDL
Try out DSX Local with Hortonworks Data Platform
http://www.ibmbigdatahub.com/blog/exciting-data-
science-experience-hortonworks-data-platform
Sign up for IBM Cloud and try Watson Studio!
https://datascience.ibm.com/
MAX

Optimizing your SparkML pipelines using the latest features in Spark 2.3

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Optimizing your SparkML pipelines using the latest features in Spark 2.3

Similar to Optimizing your SparkML pipelines using the latest features in Spark 2.3 (20)

More from DataWorks Summit

More from DataWorks Summit (20)

Recently uploaded

Recently uploaded (20)

Optimizing your SparkML pipelines using the latest features in Spark 2.3

Editor's Notes
