Optimization of computer vision algorithms in codesign methodologies
The document discusses the optimization of computer vision algorithms for advanced driver assistance systems (ADAS) using co-design methodologies. It details various vehicle detection prototypes, addressing challenges and solutions that improved performance, leading to a tenfold speed-up without extensive code optimization. The conclusions highlight the benefits of parallel hardware and software development and iterative redesign for reducing time-to-market for computer vision systems.
Optimization of computer vision algorithms in codesign methodologies
- 1. Optimization of computervision algorithms in codesign methodologies Marcos Nieto, Juan Diego Ortega, Oihana Otaegui, Andoni Cortés Vicomtech-IK4 September 8, 2014 1 1 - ITS World Congress 2014, September 8 -
- 2. Overview • Motivation- ADAS • Computer vision for ADAS • Codesign Methodology • Test case – Vehicle detection Prototype #1 – Vehicle detection Prototype #2 – Vehicle detection Prototype #3 • Results • Conclusions September 8, 2014 2 1
- 3. Motivation - ADAS • Advanced Driver Assistance Systems (ADAS) ↑ Safety ↑ Traffic Mobility ↓ Energy Consumption ADAS Advanced Driver Assistance Systems September 8, 2014 3 2

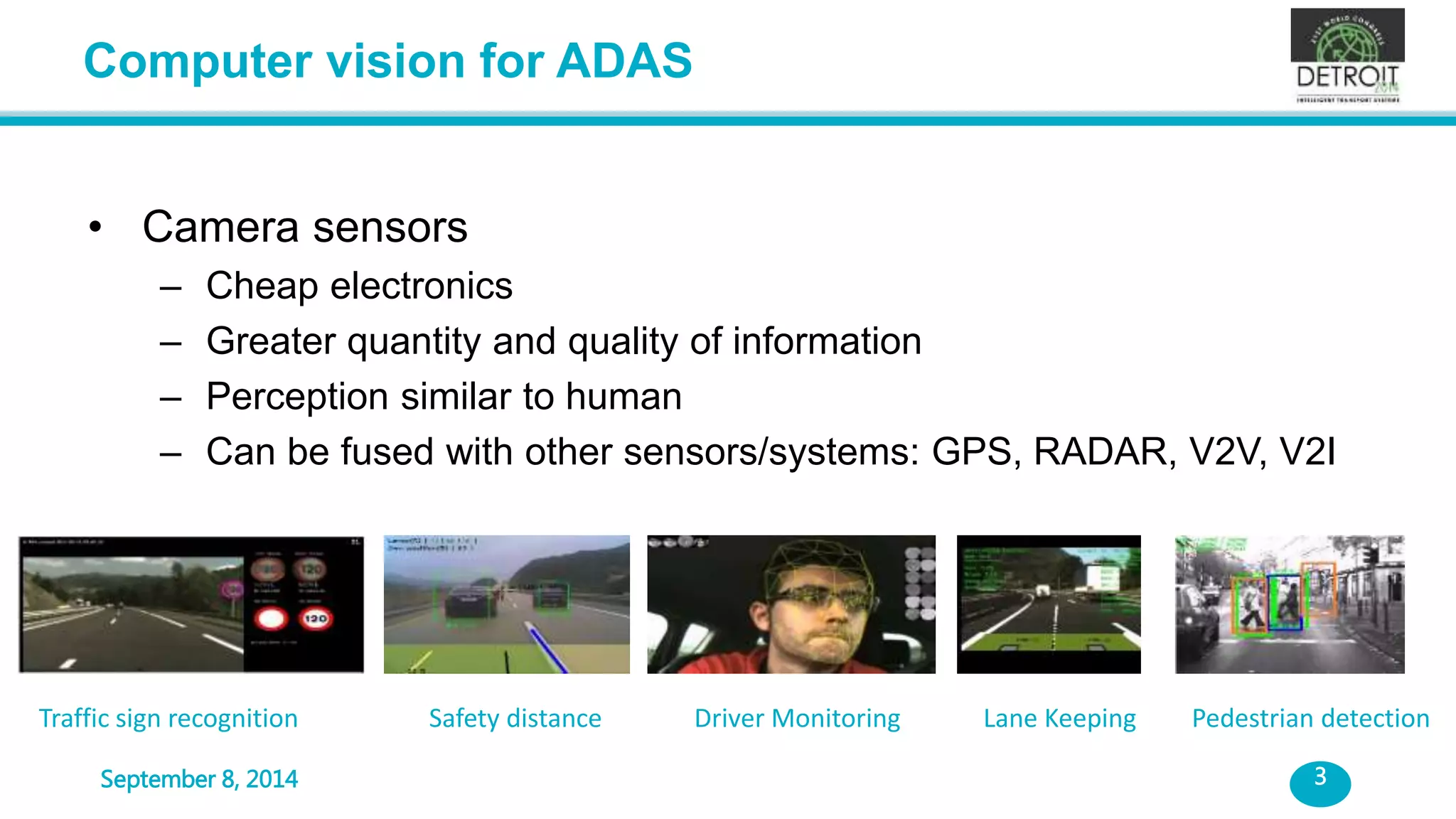

- 4. Computer vision forADAS • Camera sensors – Cheap electronics – Greater quantity and quality of information – Perception similar to human – Can be fused with other sensors/systems: GPS, RADAR, V2V, V2I Traffic sign recognition Safety distance Driver Monitoring Lane Keeping Pedestrian detection September 8, 2014 4 3
- 5. Computer vision forADAS • Embedding computer vision algorithms is a challenge – (HW) Specify (camera, illumination, algorithm...) – (SW) Optimize algorithm – (HW) Select target processor – (SW/HW) Fine tune algorithm parameters – (SW/HW) Optimize code • Fit process flow to HW capabilities • Exploit massive parallelization HW C++ C, Assembly (ARM) C++ VHDL, CUDA (FPGA, GPU) – (SW/HW) Add installation / calibration / maintenance / data logging procedures September 8, 2014 5 4

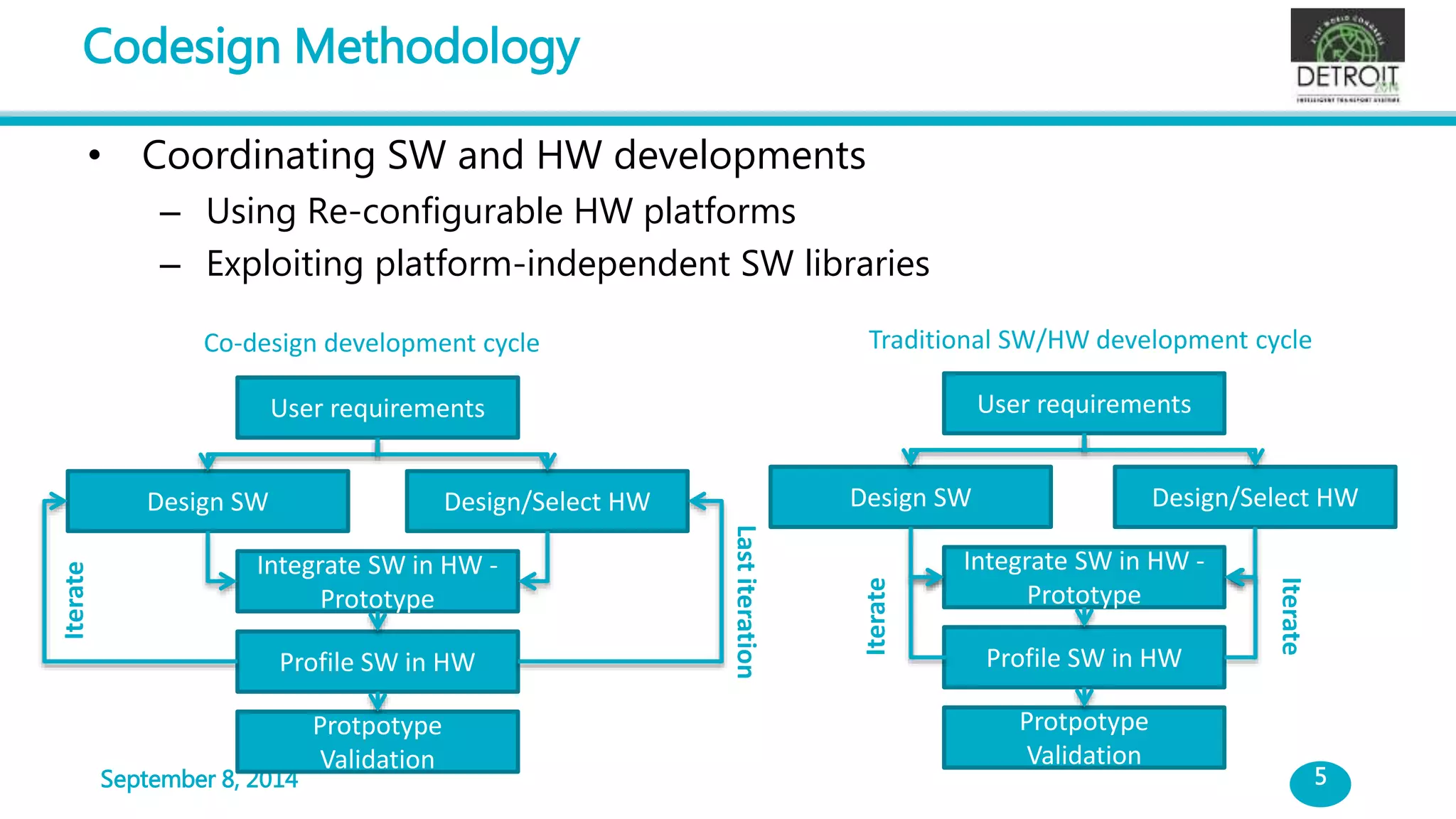

- 6. Codesign Methodology •Coordinating SW and HW developments – Using Re-configurable HW platforms – Exploiting platform-independent SW libraries Co-design development cycle Traditional SW/HW development cycle User requirements Design SW Design/Select HW Integrate SW in HW - Prototype Profile SW in HW Protpotype Validation September 8, 2014 6 User requirements Design SW Design/Select HW Integrate SW in HW - Prototype Profile SW in HW Protpotype Validation Iterate Last iteration Iterate Iterate 5
- 7. Codesign Methodology •SW and HW developments can run in parallel – More efficient joint development – SW design can be revised after profiling reports in target HW – Expensive code migration/optimization is significantly minimized “It is better to revise the algorithm rather than spend months optimizing the code” • The development cycle – First SW prototype can be directly tested in HW – Profiling provides bottleneck information – Revision of SW design solves detected bottleneck – Iterate until SW and HW meet requirements – Optimize final SW in target HW September 8, 2014 7 6
- 8. Vehicle detection Prototype#1 • Multiscale scanning and detection-by-classification – Traditional (and successful) approach in computer vision – A car model is trained with a large dataset of example images – New images are scanned at different scales and each candidate region is Multiscale HOG compared with the model September 8, 2014 8 Adaboost Clustering SVM 1.0 Tracking Shadows, edges, symmetry Training Training Images Brute-force Multiscale Scanning 7
- 9. Vehicle detection Prototype#2 • Bottleneck #1: – It can propose absurd hypotheses according to size and position that are anyway compared with the model • Solution: – Exploit perspective information to create a grid of possible locations of vehicles September 8, 2014 9 Training Training Perspective Adaboost Clustering SVM 2.0 Tracking HOG Shadows, edges, symmetry Images 8

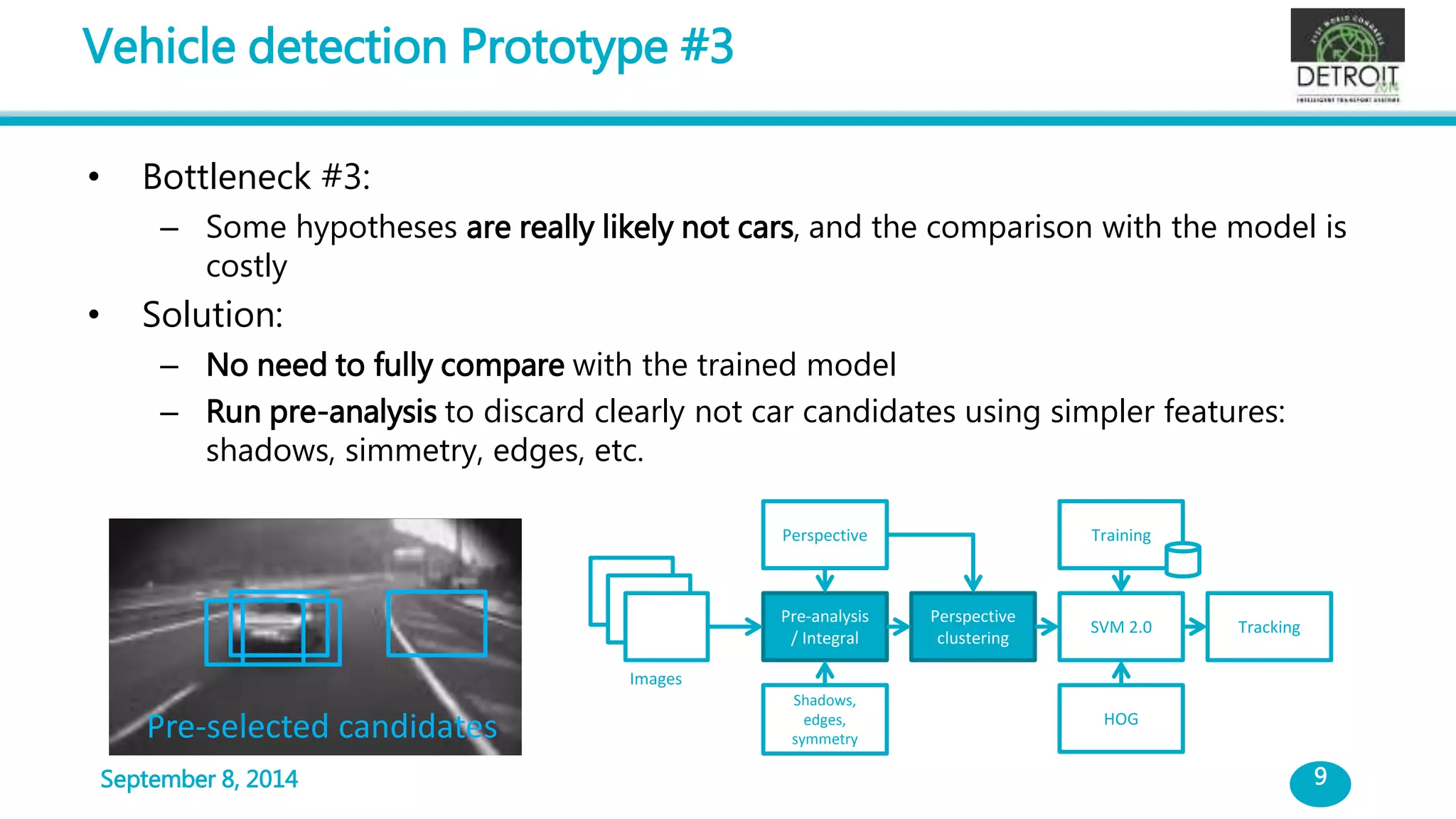

- 10. Vehicle detection Prototype#3 • Bottleneck #3: – Some hypotheses are really likely not cars, and the comparison with the model is costly • Solution: – No need to fully compare with the trained model – Run pre-analysis to discard clearly not car candidates using simpler features: shadows, simmetry, edges, etc. September 8, 2014 10 Perspective Training Pre-analysis / Integral SVM 2.0 Tracking Perspective clustering HOG Shadows, edges, symmetry Images Pre-selected candidates 9

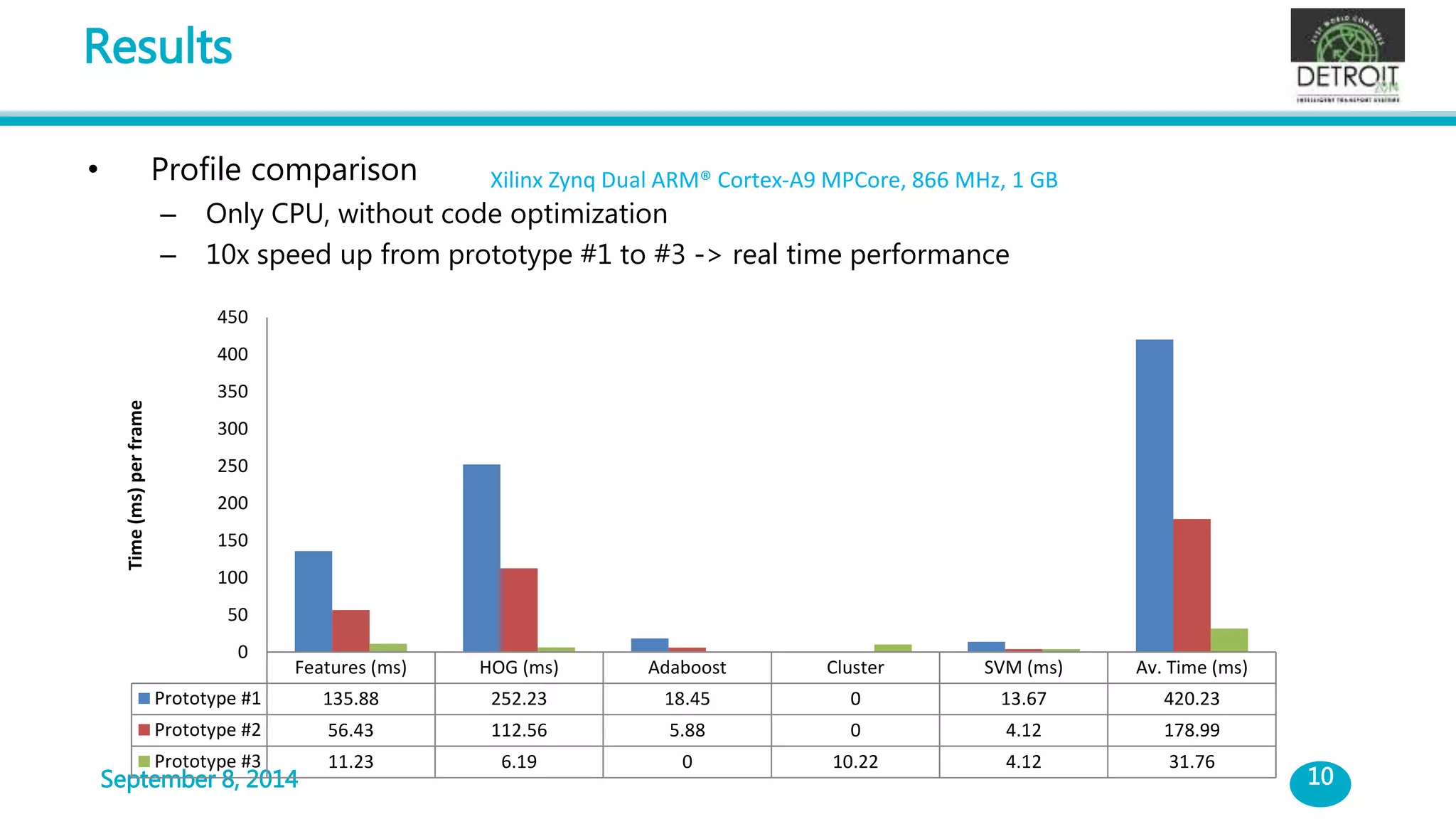

- 11. Results • Profilecomparison Xilinx Zynq Dual ARM® Cortex-A9 MPCore, 866 MHz, 1 GB – Only CPU, without code optimization – 10x speed up from prototype #1 to #3 -> real time performance 450 400 350 300 250 200 150 100 50 0 September 8, 2014 11 10 Features (ms) HOG (ms) Adaboost Cluster SVM (ms) Av. Time (ms) Prototype #1 135.88 252.23 18.45 0 13.67 420.23 Prototype #2 56.43 112.56 5.88 0 4.12 178.99 Prototype #3 11.23 6.19 0 10.22 4.12 31.76 Time (ms) per frame
- 12. Results • Samplevideo(s) PETS 2001 dataset September 8, 2014 12 11 Frontal camera Rear camera
- 13. Conclusions • Co-designstrategies can reduce time-to-market for computer vision systems • It allows SW and HW teams work in parallel • Iterative SW re-design is possible • We have shown a vehicle detection example • Three prototypes with x10 speed-up without code optimization nor use of special HW September 8, 2014 13 12
- 14. Live Demo atour booth: Booth 3008 Thank You! September 8, 2014 14 13
Editor's Notes
