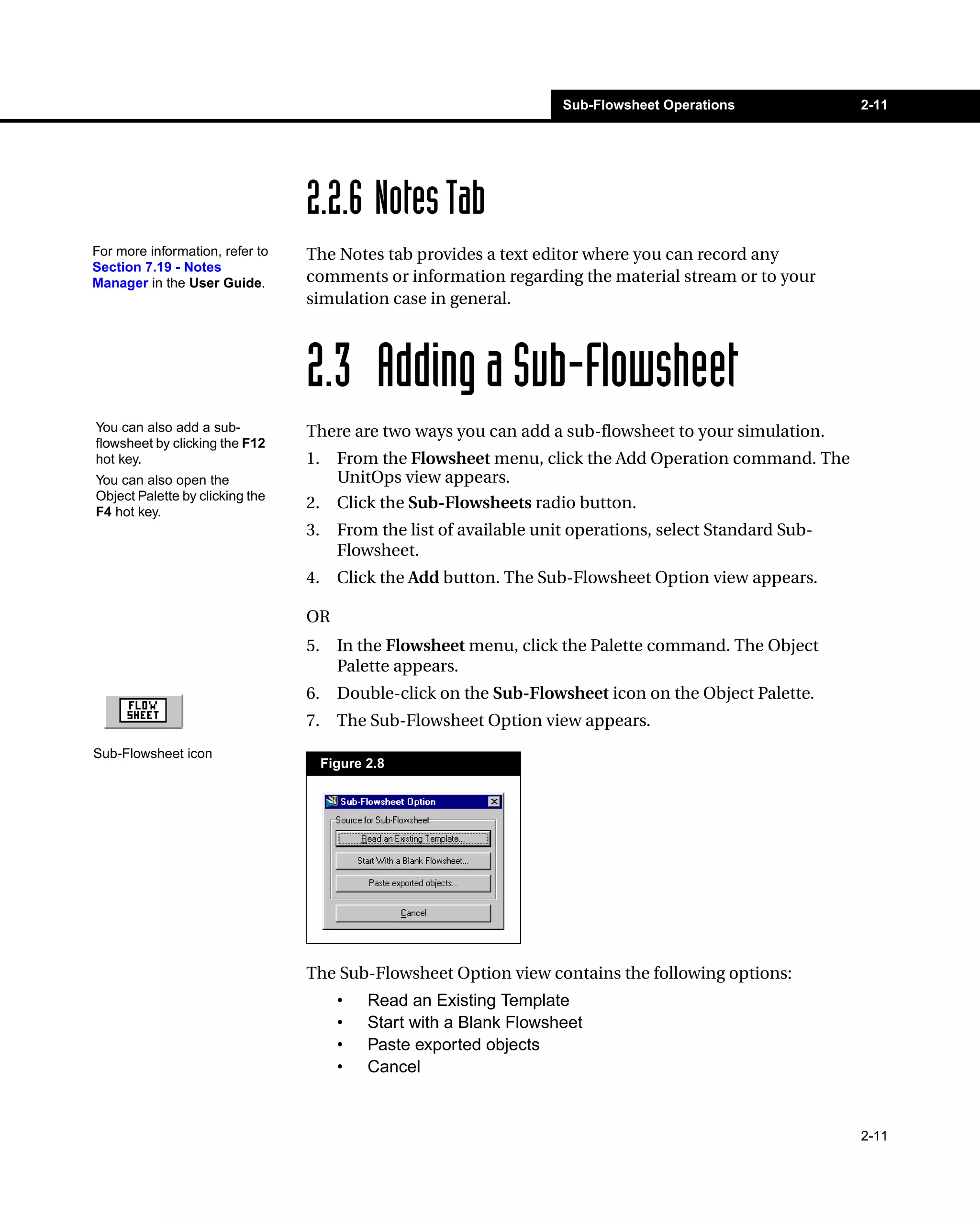

1. Sub-Flowsheet Operations 2-11
2-11
2.2.6 Notes Tab
The Notes tab provides a text editor where you can record any
comments or information regarding the material stream or to your
simulation case in general.
2.3 Adding a Sub-Flowsheet
There are two ways you can add a sub-flowsheet to your simulation.
1. From the Flowsheet menu, click the Add Operation command. The
UnitOps view appears.
2. Click the Sub-Flowsheets radio button.
3. From the list of available unit operations, select Standard Sub-
Flowsheet.
4. Click the Add button. The Sub-Flowsheet Option view appears.
OR
5. In the Flowsheet menu, click the Palette command. The Object
Palette appears.
6. Double-click on the Sub-Flowsheet icon on the Object Palette.
7. The Sub-Flowsheet Option view appears.
Figure 2.8
The Sub-Flowsheet Option view contains the following options:
• Read an Existing Template
• Start with a Blank Flowsheet
• Paste exported objects
• Cancel
For more information, refer to
Section 7.19 - Notes
Manager in the User Guide.
You can also add a sub-flowsheet
by clicking the F12
hot key.
You can also open the
Object Palette by clicking the
F4 hot key.
Sub-Flowsheet icon
