2. USE CASE-1
Humidity and Temperature Monitoring using Arduino
(Ref: Electronics For You, Feb, 2017)
Page 2 Of 19

3. DHT-11
Sensor Network ShieldArduino UNO
Micro Controller
Cloud
Monitoring

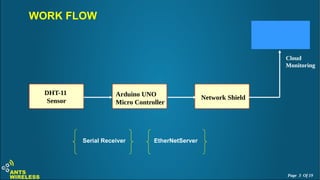

WORK FLOW
Serial Receiver EtherNetServer
Page 3 Of 19

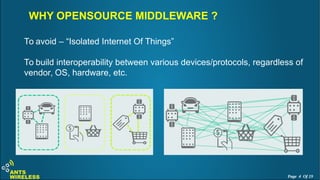

4. WHY OPENSOURCE MIDDLEWARE ?
To avoid – “Isolated Internet Of Things”
To build interoperability between various devices/protocols, regardless of
vendor, OS, hardware, etc.
Page 4 Of 19

5. Device Discovery
Data Processing
Application
Interfaces
Data
Interfaces
Device
Management
Communicatio
n
Interfaces
Security – Access management/Authentication
User/Admin Applications
Services
Page 5 Of 19

6. OpenSource IoT Middleware frameworks
Page 6 Of 19

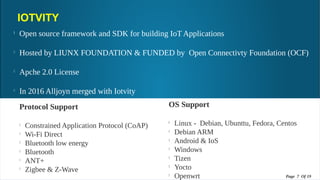

7. IOTVITY
l
Open source framework and SDK for building IoT Applications
l
Hosted by LIUNX FOUNDATION & FUNDED by Open Connectivty Foundation (OCF)
l
Apche 2.0 License
l
In 2016 Alljoyn merged with Iotvity
l
Written in C , C++ and API's are available in C , C++, & Java
OS Support
l
Linux - Debian, Ubunttu, Fedora, Centos
l
Debian ARM
l
Android & IoS
l
Windows
l
Tizen
l
Yocto
l
Openwrt
Protocol Support
l
Constrained Application Protocol (CoAP)
l
Wi-Fi Direct
l
Bluetooth low energy
l
Bluetooth
l
ANT+
l
Zigbee & Z-Wave
Page 7 Of 19Page 7 Of 19

8. OCF SPECIFICATION
Defiens core architecture, core features, and protocols to enable OCF profiles
implementation for Internet of Things (IoT) usages and ecosystems.
The OCF architecture is based on the Resource Orientated REST architectural
style
Bridging specification specifies a framework for translation between devices in
OCF and non-OCF ecosystems.
The OCF offers Resource to AllJoyn Interface Mapping specification provides
detailed mapping information to provide equivalency between AllJoyn defined
Interfaces and OCF defined Resources
Page 8 Of 19

9. IOTVITY FUNCTIONAL ARCHITECTURE
Connectivity Abstraction
Secure Resource Manager
JAVA API's
C ++ API's
C API's
Services Layer
Resource Model
User Application
Page 9 Of 19

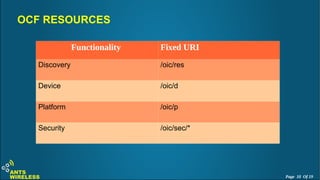

10. OCF RESOURCES
Functionality Fixed URI
Discovery /oic/res
Device /oic/d
Platform /oic/p
Security /oic/sec/*
Page 10 Of 19

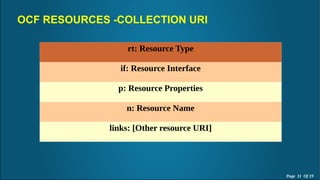

11. OCF RESOURCES -COLLECTION URI
rt: Resource Type
if: Resource Interface
p: Resource Properties
n: Resource Name
links: [Other resource URI]
Page 11 Of 19

12. OCF PROTOCOLS
l
Messaging protocol: CoAP (RFC 7252)
l
Data model: CBOR (RFC 7049) encoding of OCF payloads
l
Security model: DTLS-based authentication, encryption and access control
l
Transport: UDP/IP; being adapted to Bluetooth
Page 12 Of 19

13. USE CASE-2
LIGHT CONTROL -IoTVity(OCF)
Page 13 Of 19

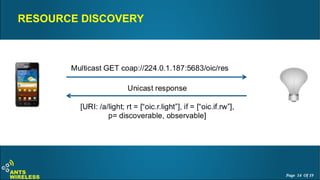

14. RESOURCE DISCOVERY
Page 14 Of 19

15. GET / PUT REQUEST
Page 15 Of 19

16. OBSERVER / NOTIFY
Page 16 Of 19

17. KAA PROJECT
Page 17 Of 19

18. KURA ECLIPSE
open source Java and Application Framework for M2M Service
Gateways in the Eclipse IOT Working Group.
It provides
• Cohesive and integrated app environment
• Modular software components
• HW abstraction layer
• Field protocol libraries
• Cloud connectivity
• Remote app and device management
• Local app and device management
• Built-in Security
• Development tools
Page 18 Of 19
