Imagine if you could build and deploy an end to end complex streaming analytics app on a streaming engine like Storm or Flink that did the following: 1. Joining Streams 2. Aggregations over Windows (Time or Count based) 3. Complex Event Processing 4. Pattern Matching 5. Model scoring. Now imagine implementing and deploying this without writing a single line of code in under 10 mins. Imagine no more; it is indeed here. In this talk, we will discuss an exciting open source project led by Hortonworks on building and deploying streaming applications using a drag and drop paradigm.

1. 1 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Streaming Analytics Manager

2. 2 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Streaming Analytics Manager
 What is it?
• A platform to design, develop, deploy and manage streaming analytics applications using a drag
drop visualize paradigm in minutes
• Allows you to do event correlation, context enrichment, complex pattern matching, analytical
aggregations and alerts/notifications when insights are discovered.
• Agnostic to the underlying streaming engine and can support multiple streaming engines (e.g:
Storm, Spark Streaming, Flink)
• Extensibility is a first class citizen (add sinks, processors, sources as needed)
 Guiding Principle
– Build complex streaming applications easily with minimum code

3. Page3 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

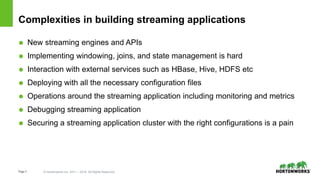

Complexities in building streaming applications
 New streaming engines and APIs
 Implementing windowing, joins, and state management is hard
 Interaction with external services such as HBase, Hive, HDFS etc
 Deploying with all the necessary configuration files
 Operations around the streaming application including monitoring and metrics
 Debugging streaming application
 Securing a streaming application cluster with the right configurations is a pain

4. Page4 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Key challenges that SAM is trying to solve
 Building streaming applications requires specialized skillsets that most enterprise
organizations don’t have today
 Streaming applications require considerable amount of programming, testing and tuning
before deploying to production which takes a significant amount of time
 Key streaming primitives such as joining/splitting streams, aggregations over a window of
time and pattern matching are difficult to implement
 People don’t prefer to code to build complex streaming applications
 No true open source project today solves all of the above challenges
 People don’t care about the streaming engine that powers streaming applications so much as
long challenges above are addressed and doesn’t force them into vendor lock in.

5. Page5 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

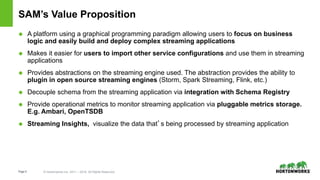

SAM’s Value Proposition
 A platform using a graphical programming paradigm allowing users to focus on business
logic and easily build and deploy complex streaming applications
 Makes it easier for users to import other service configurations and use them in streaming
applications
 Provides abstractions on the streaming engine used. The abstraction provides the ability to
plugin in open source streaming engines (Storm, Spark Streaming, Flink, etc.)
 Decouple schema from the streaming application via integration with Schema Registry
 Provide operational metrics to monitor streaming application via pluggable metrics storage.
E.g. Ambari, OpenTSDB
 Streaming Insights, visualize the data that’s being processed by streaming application

6. Page6 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

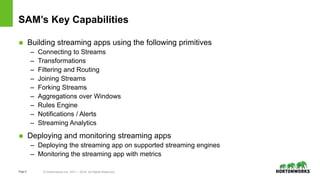

SAM’s Key Capabilities
 Building streaming apps using the following primitives
– Connecting to Streams
– Transformations
– Filtering and Routing
– Joining Streams
– Forking Streams
– Aggregations over Windows
– Rules Engine
– Notifications / Alerts
– Streaming Analytics
 Deploying and monitoring streaming apps
– Deploying the streaming app on supported streaming engines
– Monitoring the streaming app with metrics

7. Page7 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

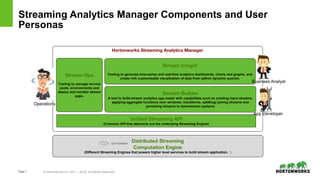

Streaming Analytics Manager Components and User
Personas
Distributed Streaming
Computation Engine
(Different Streaming Engines that powers higher level services to build stream application. )
App Developer
Business Analyst
Operations

8. Page8 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
SAM’s Service Pools and Environments
Stream App 1 Stream App 2
• Service Pool
• A pool of services that can be
used to create different
environments
• Environment
• Consists of a set of services
you choose from 1 or more
service pools.
• Stream App
• The environment is then
associated with a Stream
Application which then uses the
services in that environment for
various configuration

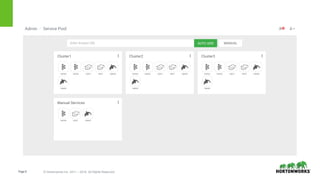

9. Page9 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

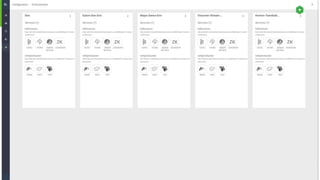

10. Page10 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

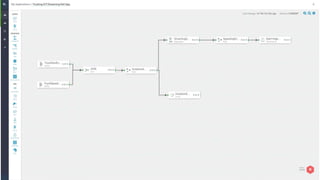

11. Page12 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

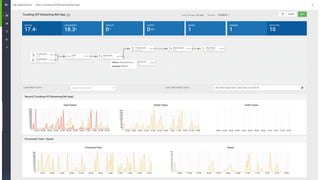

12. Page13 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

13. Page14 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

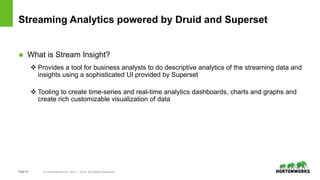

Streaming Analytics powered by Druid and Superset
 What is Stream Insight?
 Provides a tool for business analysts to do descriptive analytics of the streaming data and
insights using a sophisticated UI provided by Superset
 Tooling to create time-series and real-time analytics dashboards, charts and graphs and
create rich customizable visualization of data

14. Page15 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

15. Page16 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Architecture

16. Page17 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
SAM Architecture
Web server
(Jetty)
DB
SAM UI
Storage
Manager
Topology
actions
service
Topology DAG Builder
Topology Lifecycle
Manager
Storm
Runners
(translate SAM DAG
to Streaming Engine
topology)
Flink Spark
Flux
Deploy
DAG
Ambari
(cluster manager)
Streaming computation Engines
(Storm)
Service
Pools
REST
API
Environ
Service
Schema
Registry
SR
Client

17. Page18 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

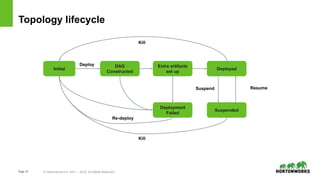

Topology lifecycle
Initial
DAG
Constructed
Extra artifacts
set up
Deployed
Suspended
Deployment
Failed
Deploy
Kill
Suspend
Kill
Resume
Re-deploy

18. Page19 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Topology DAG
Source
Processor 1
Processor 2
Sink 1
Stream 2
Edge
Stream 1
Stream 1
Stream 1
Sink 2
Fields: [
“a”: Int,
“b”:String
…
]

19. Page20 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

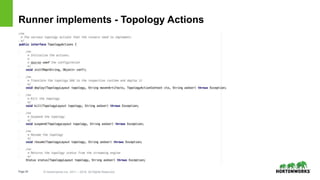

Runner implements - Topology Actions

20. Page21 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

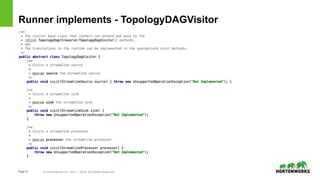

Runner implements - TopologyDAGVisitor

21. Page22 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

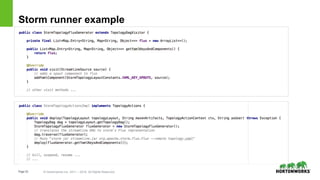

Storm runner example

22. Page23 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
SDK

23. Page24 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Extensibility with SAM SDK
 Custom Processor - allows users to write their own business logic

24. Page25 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

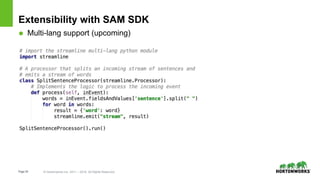

Extensibility with SAM SDK
 Multi-lang support (upcoming)

25. Page26 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

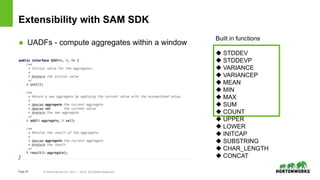

Extensibility with SAM SDK
 UADFs - compute aggregates within a window
Built in functions
 STDDEV
 STDDEVP
 VARIANCE
 VARIANCEP
 MEAN
 MIN
 MAX
 SUM
 COUNT
 UPPER
 LOWER
 INITCAP
 SUBSTRING
 CHAR_LENGTH
 CONCAT

26. Page27 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

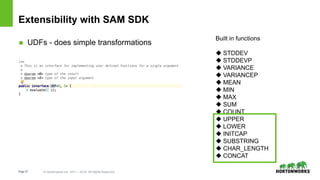

Extensibility with SAM SDK
 UDFs - does simple transformations
Built in functions
 STDDEV
 STDDEVP
 VARIANCE
 VARIANCEP
 MEAN
 MIN
 MAX
 SUM
 COUNT
 UPPER
 LOWER
 INITCAP
 SUBSTRING
 CHAR_LENGTH
 CONCAT

27. Page28 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

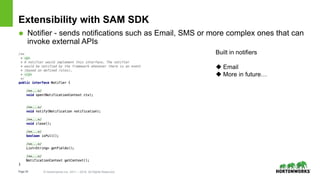

Extensibility with SAM SDK
 Notifier - sends notifications such as Email, SMS or more complex ones that can
invoke external APIs
Built in notifiers
 Email
 More in future…

28. Page29 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

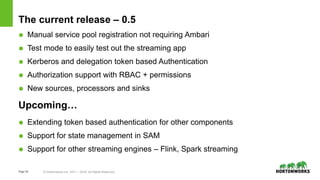

The current release – 0.5
 Manual service pool registration not requiring Ambari
 Test mode to easily test out the streaming app
 Kerberos and delegation token based Authentication
 Authorization support with RBAC + permissions
 New sources, processors and sinks
Upcoming…
 Extending token based authentication for other components
 Support for state management in SAM
 Support for other streaming engines – Flink, Spark streaming

29. 30 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Demo

30. Page31 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

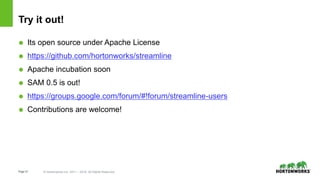

Try it out!
 Its open source under Apache License
 https://github.com/hortonworks/streamline
 Apache incubation soon
 SAM 0.5 is out!
 https://groups.google.com/forum/#!forum/streamline-users
 Contributions are welcome!
