OpenRoaming is a Wi-Fi roaming federation allowing users to connect to Wi-Fi networks worldwide using existing credentials, similar to eduroam. It benefits operators, guest network providers, and identity providers by enhancing authentication, extending network coverage, and enabling monetization opportunities. The Wireless Broadband Alliance coordinates OpenRoaming, which can be implemented independently or through membership, requiring compatible Wi-Fi equipment and specific configurations.

1. OPENROAMING
Wi-Fi Roaming for All

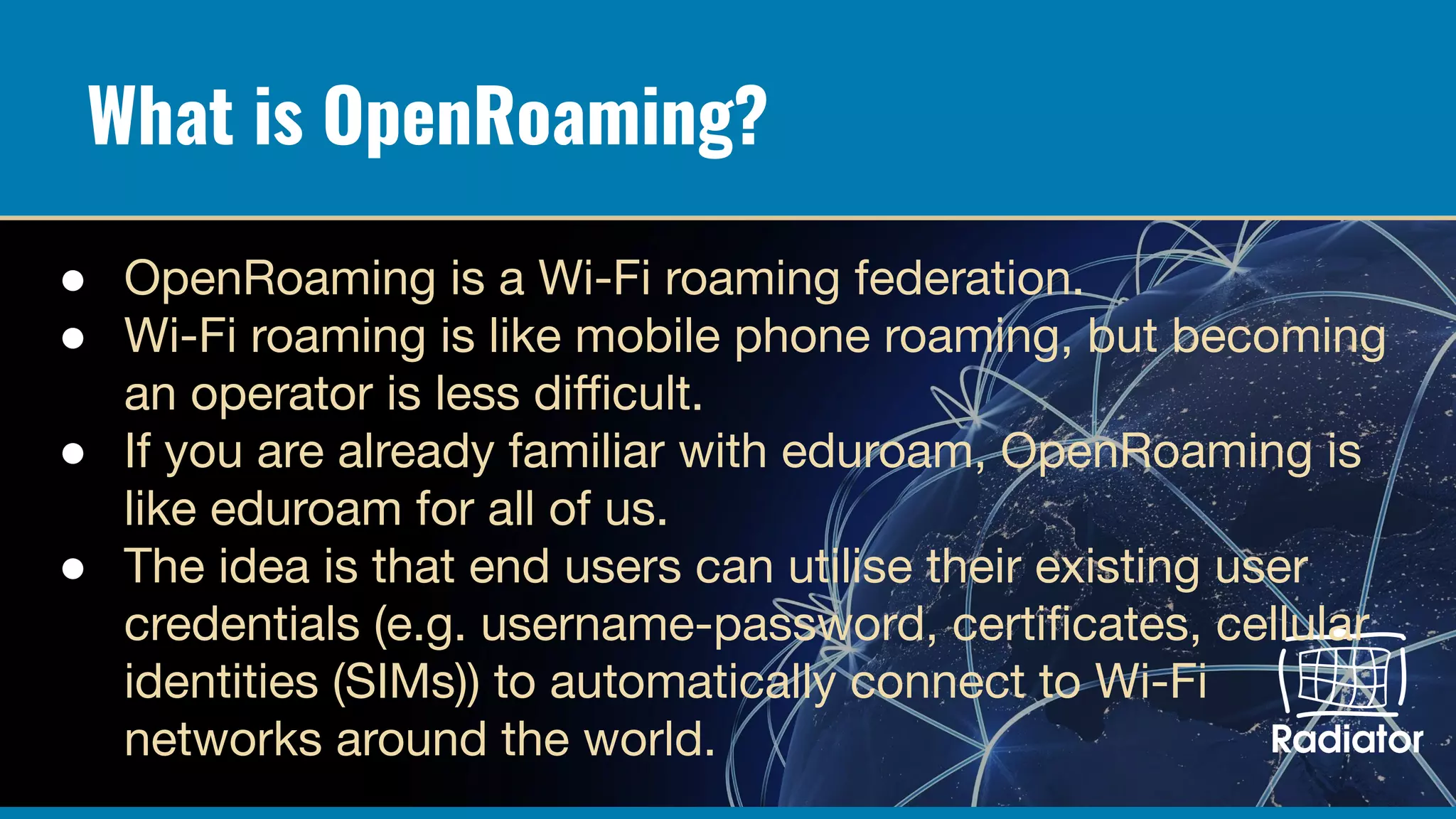

2. What is OpenRoaming?
● OpenRoaming is a Wi-Fi roaming federation.
● Wi-Fi roaming is like mobile phone roaming, but becoming
an operator is less difficult.
● If you are already familiar with eduroam, OpenRoaming is
like eduroam for all of us.
● The idea is that end users can utilise their existing user
credentials (e.g. username-password, certificates, cellular
identities (SIMs)) to automatically connect to Wi-Fi
networks around the world.

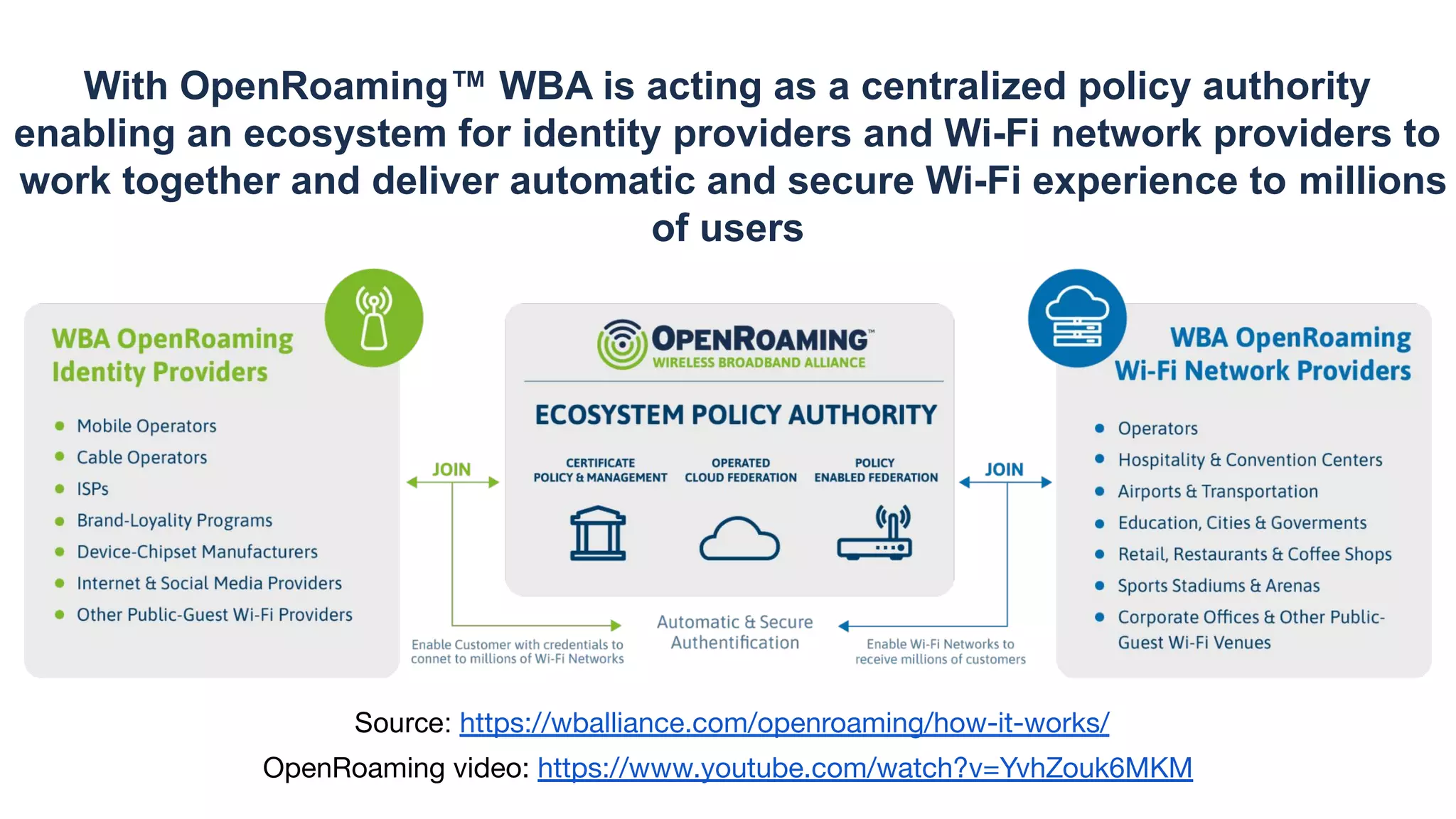

3. With OpenRoaming™ WBA is acting as a centralized policy authority
enabling an ecosystem for identity providers and Wi-Fi network providers to
work together and deliver automatic and secure Wi-Fi experience to millions
of users
Source: https://wballiance.com/openroaming/how-it-works/
OpenRoaming video: https://www.youtube.com/watch?v=YvhZouk6MKM

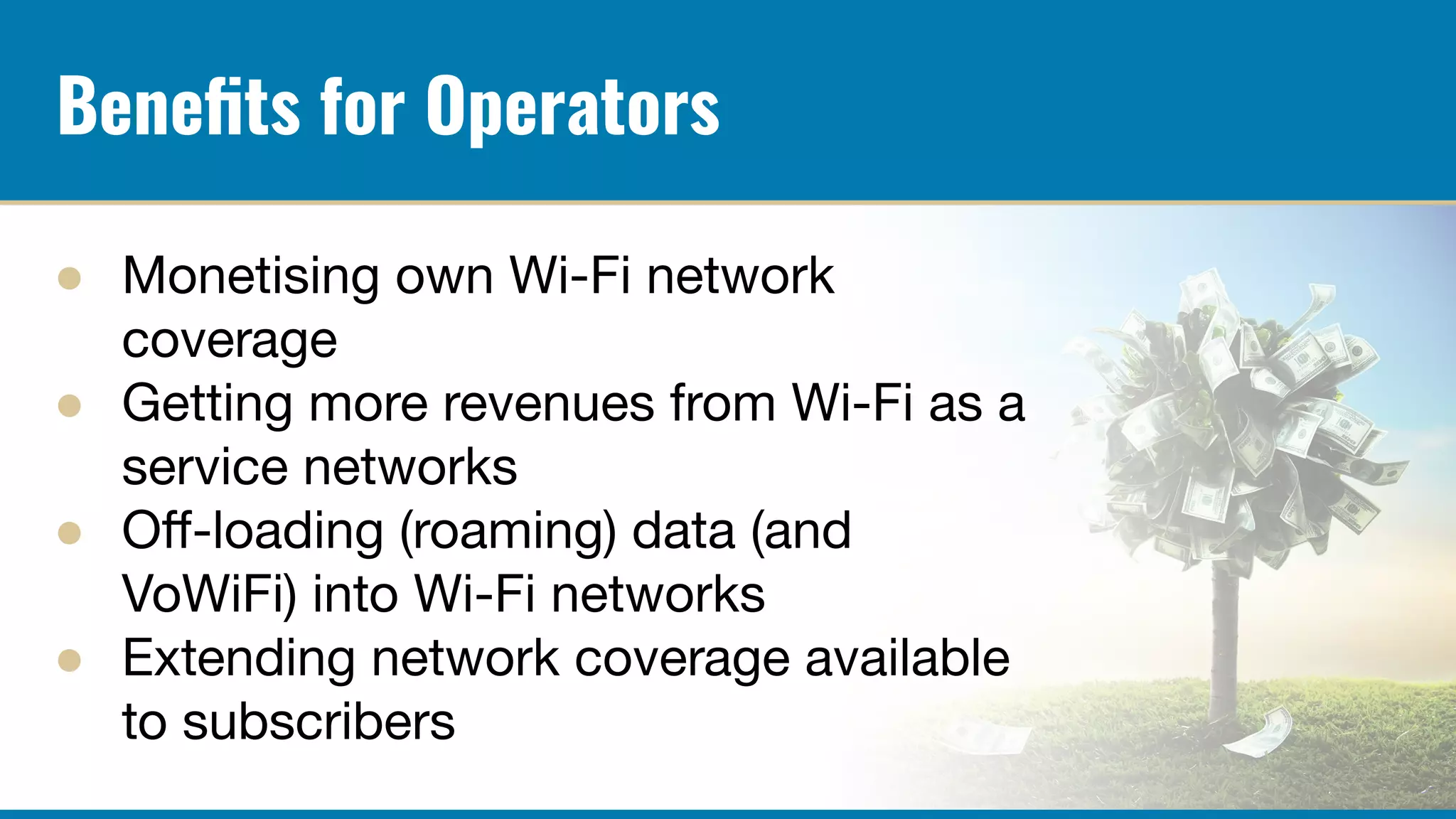

4. Benefits for Operators
● Monetising own Wi-Fi network
coverage
● Getting more revenues from Wi-Fi as a
service networks
● Off-loading (roaming) data (and
VoWiFi) into Wi-Fi networks
● Extending network coverage available
to subscribers

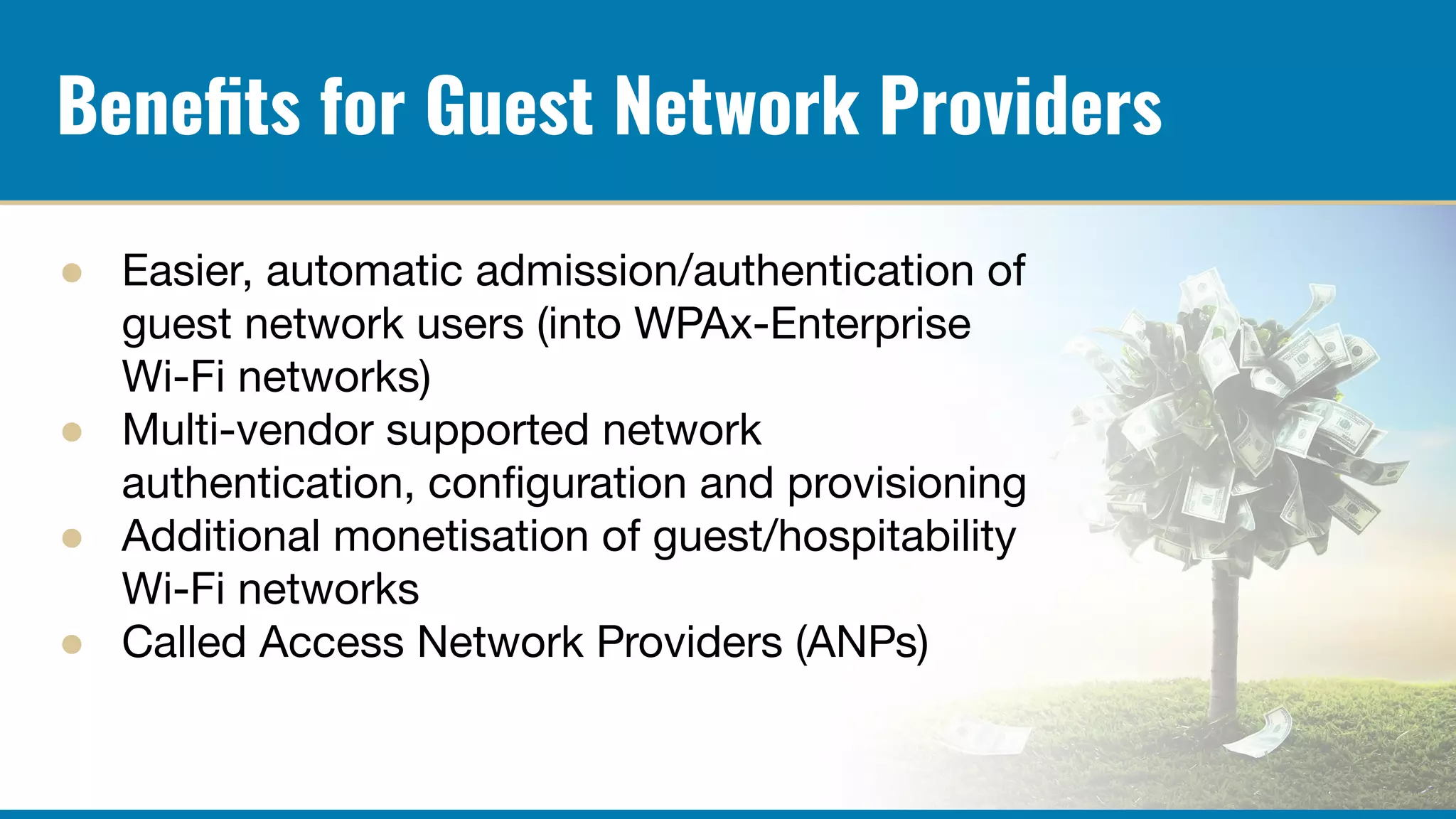

5. Benefits for Guest Network Providers
● Easier, automatic admission/authentication of
guest network users (into WPAx-Enterprise
Wi-Fi networks)
● Multi-vendor supported network
authentication, configuration and provisioning
● Additional monetisation of guest/hospitability
Wi-Fi networks
● Called Access Network Providers (ANPs)

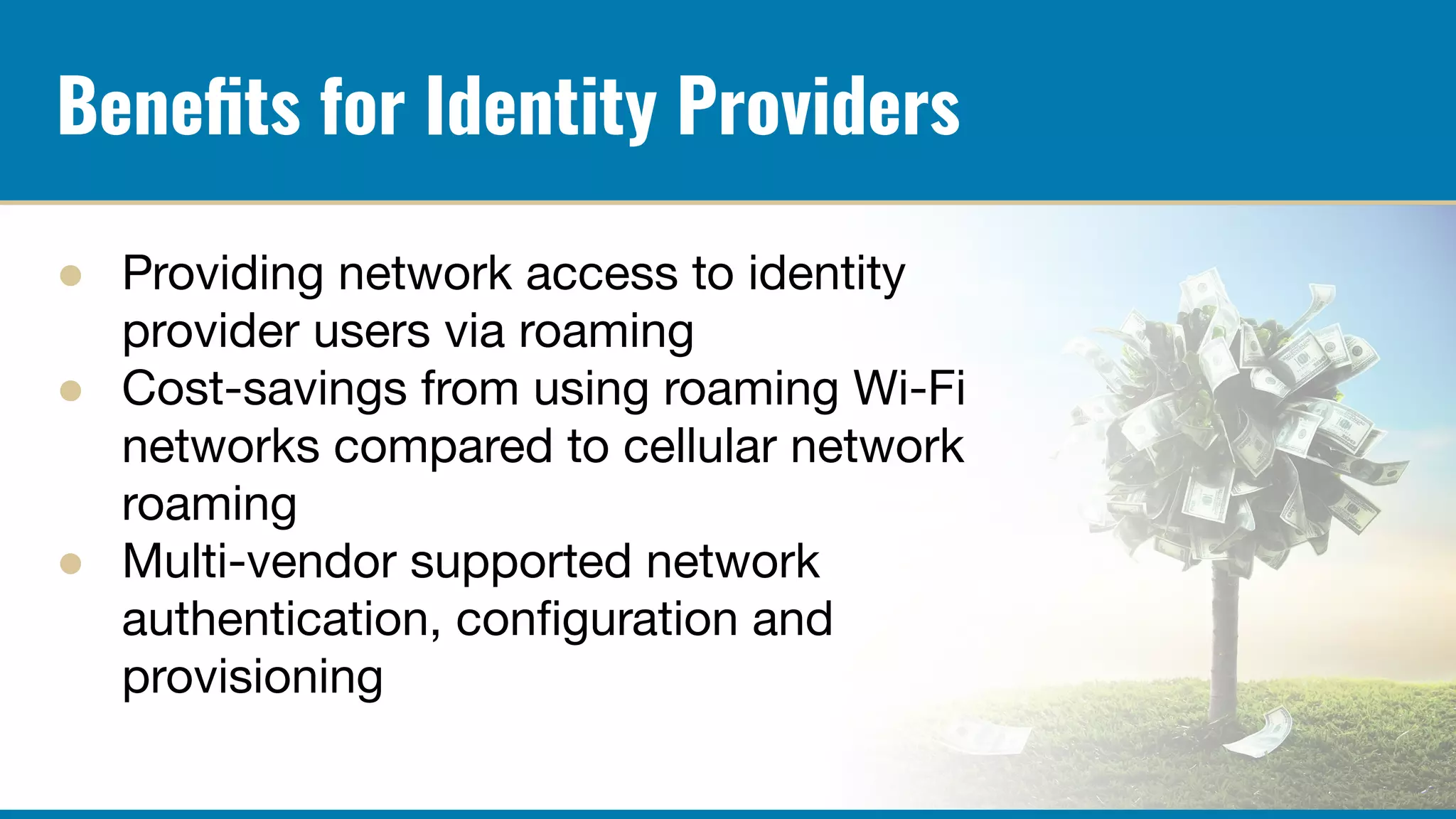

6. Benefits for Identity Providers
● Providing network access to identity
provider users via roaming
● Cost-savings from using roaming Wi-Fi
networks compared to cellular network
roaming
● Multi-vendor supported network
authentication, configuration and
provisioning

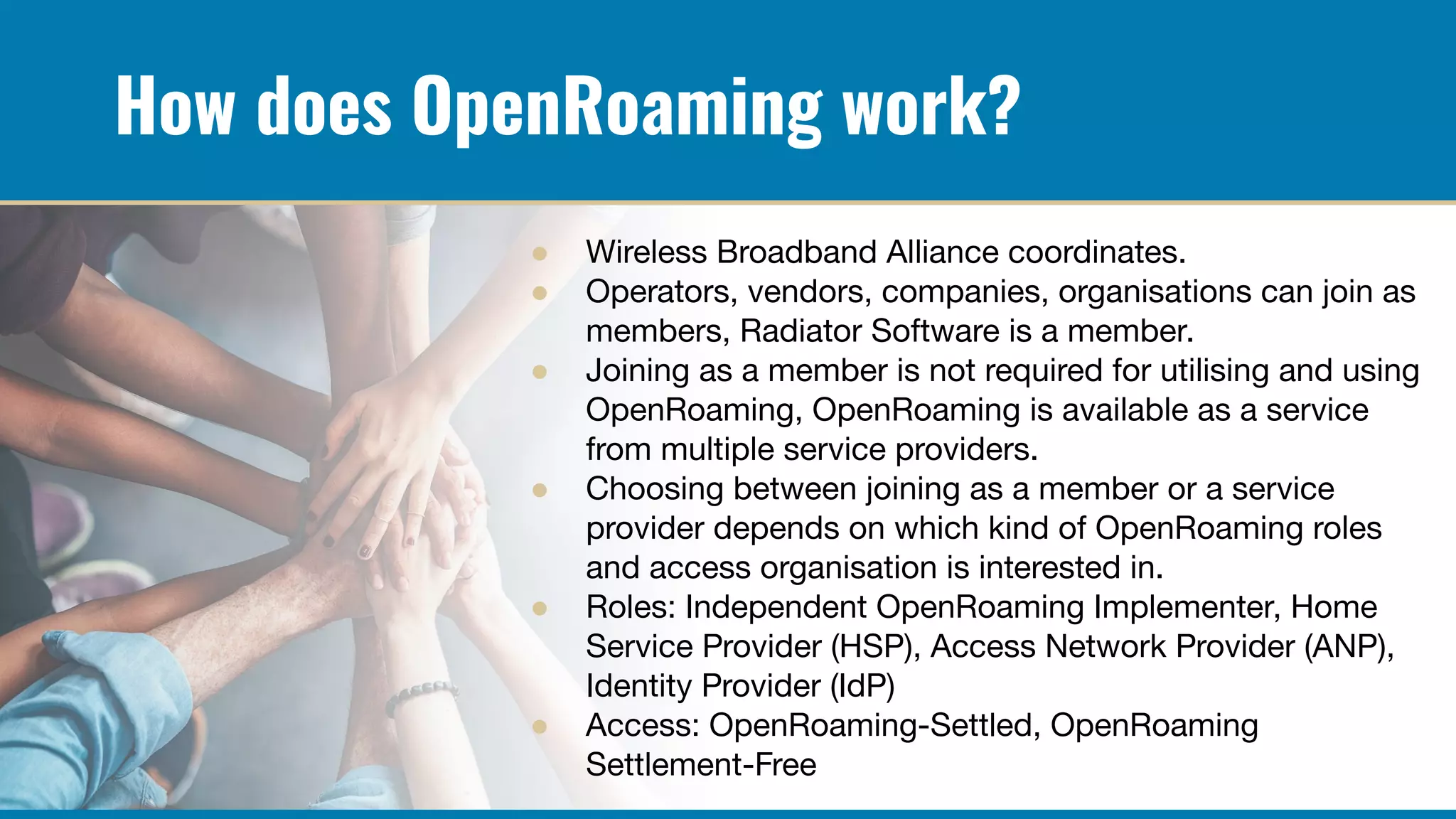

7. How does OpenRoaming work?
● Wireless Broadband Alliance coordinates.
● Operators, vendors, companies, organisations can join as
members, Radiator Software is a member.
● Joining as a member is not required for utilising and using
OpenRoaming, OpenRoaming is available as a service
from multiple service providers.
● Choosing between joining as a member or a service
provider depends on which kind of OpenRoaming roles
and access organisation is interested in.
● Roles: Independent OpenRoaming Implementer, Home
Service Provider (HSP), Access Network Provider (ANP),
Identity Provider (IdP)
● Access: OpenRoaming-Settled, OpenRoaming
Settlement-Free

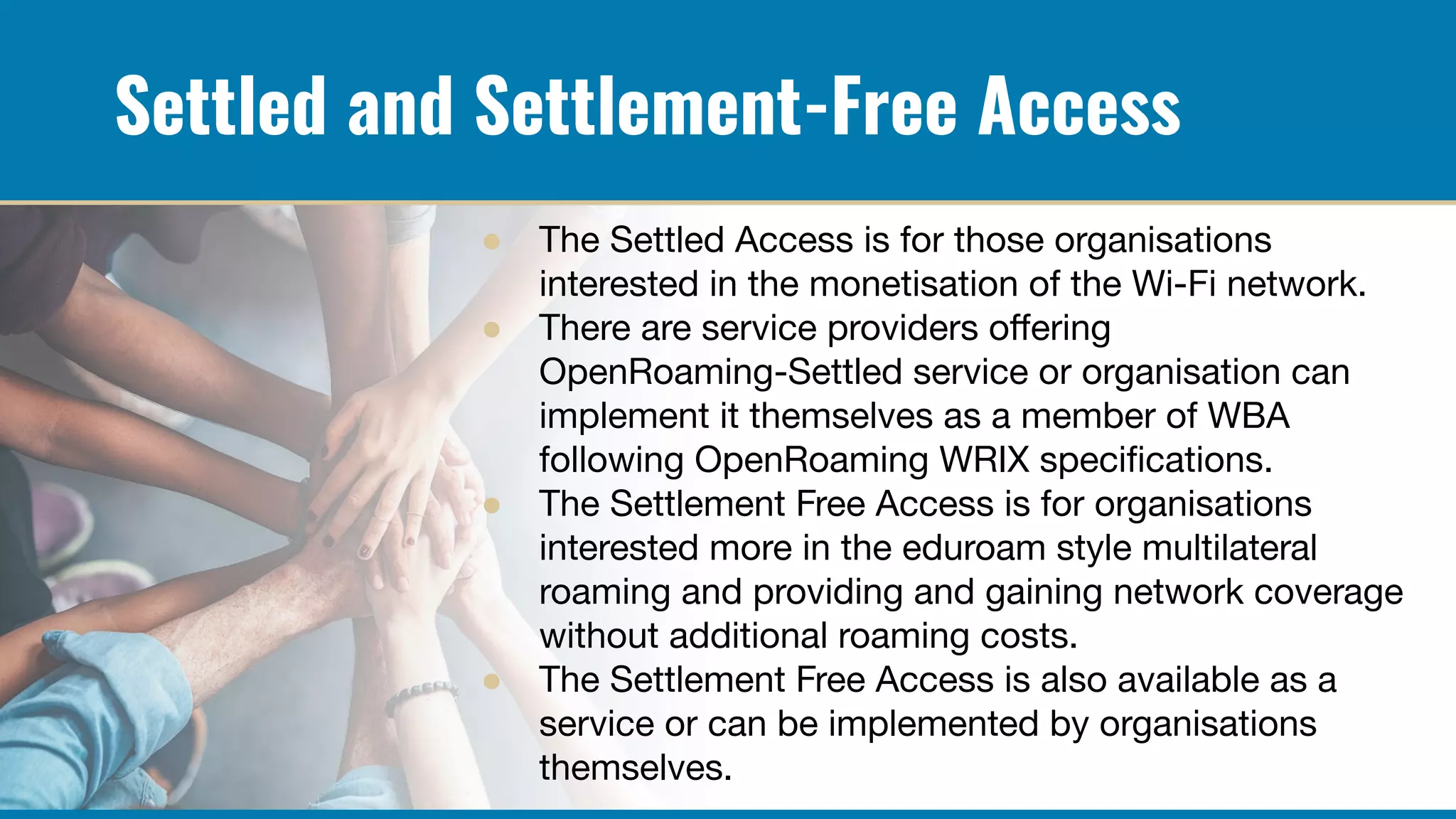

8. Settled and Settlement-Free Access
● The Settled Access is for those organisations
interested in the monetisation of the Wi-Fi network.
● There are service providers offering
OpenRoaming-Settled service or organisation can
implement it themselves as a member of WBA
following OpenRoaming WRIX specifications.
● The Settlement Free Access is for organisations
interested more in the eduroam style multilateral
roaming and providing and gaining network coverage
without additional roaming costs.
● The Settlement Free Access is also available as a
service or can be implemented by organisations
themselves.

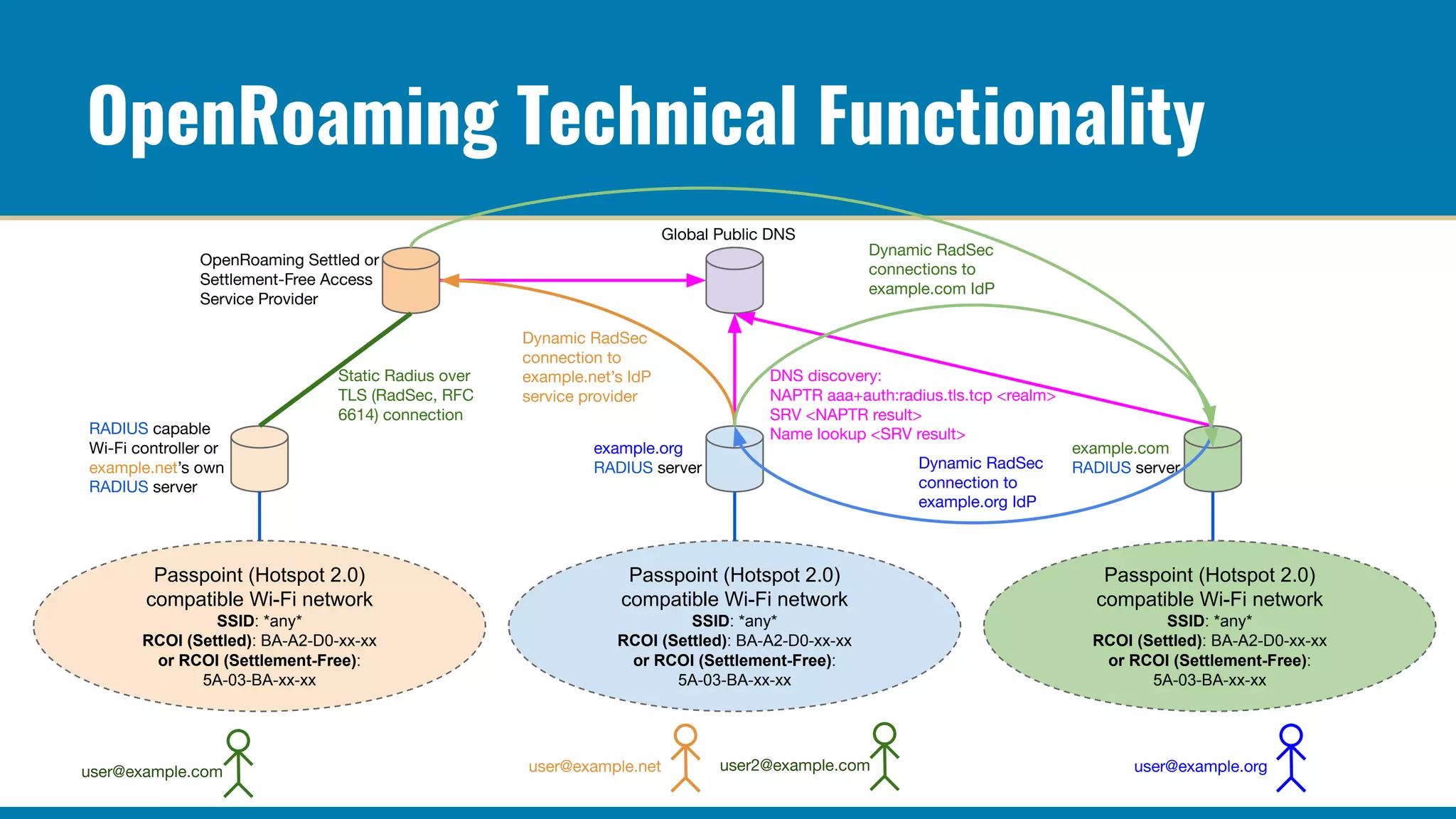

9. example.org
RADIUS server
example.com
RADIUS server
OpenRoaming Technical Functionality
Passpoint (Hotspot 2.0)
compatible Wi-Fi network
SSID: *any*
RCOI (Settled): BA-A2-D0-xx-xx
or RCOI (Settlement-Free):
5A-03-BA-xx-xx
RADIUS capable
Wi-Fi controller or
example.net’s own
RADIUS server
OpenRoaming Settled or
Settlement-Free Access
Service Provider
Static Radius over
TLS (RadSec, RFC
6614) connection
Passpoint (Hotspot 2.0)
compatible Wi-Fi network
SSID: *any*
RCOI (Settled): BA-A2-D0-xx-xx
or RCOI (Settlement-Free):
5A-03-BA-xx-xx
Global Public DNS
Passpoint (Hotspot 2.0)
compatible Wi-Fi network
SSID: *any*
RCOI (Settled): BA-A2-D0-xx-xx
or RCOI (Settlement-Free):
5A-03-BA-xx-xx
DNS discovery:
NAPTR aaa+auth:radius.tls.tcp <realm>
SRV <NAPTR result>
Name lookup <SRV result>
Dynamic RadSec
connection to
example.net’s IdP
service provider
Dynamic RadSec
connections to
example.com IdP
Dynamic RadSec
connection to
example.org IdP
user@example.com user@example.net user2@example.com user@example.org

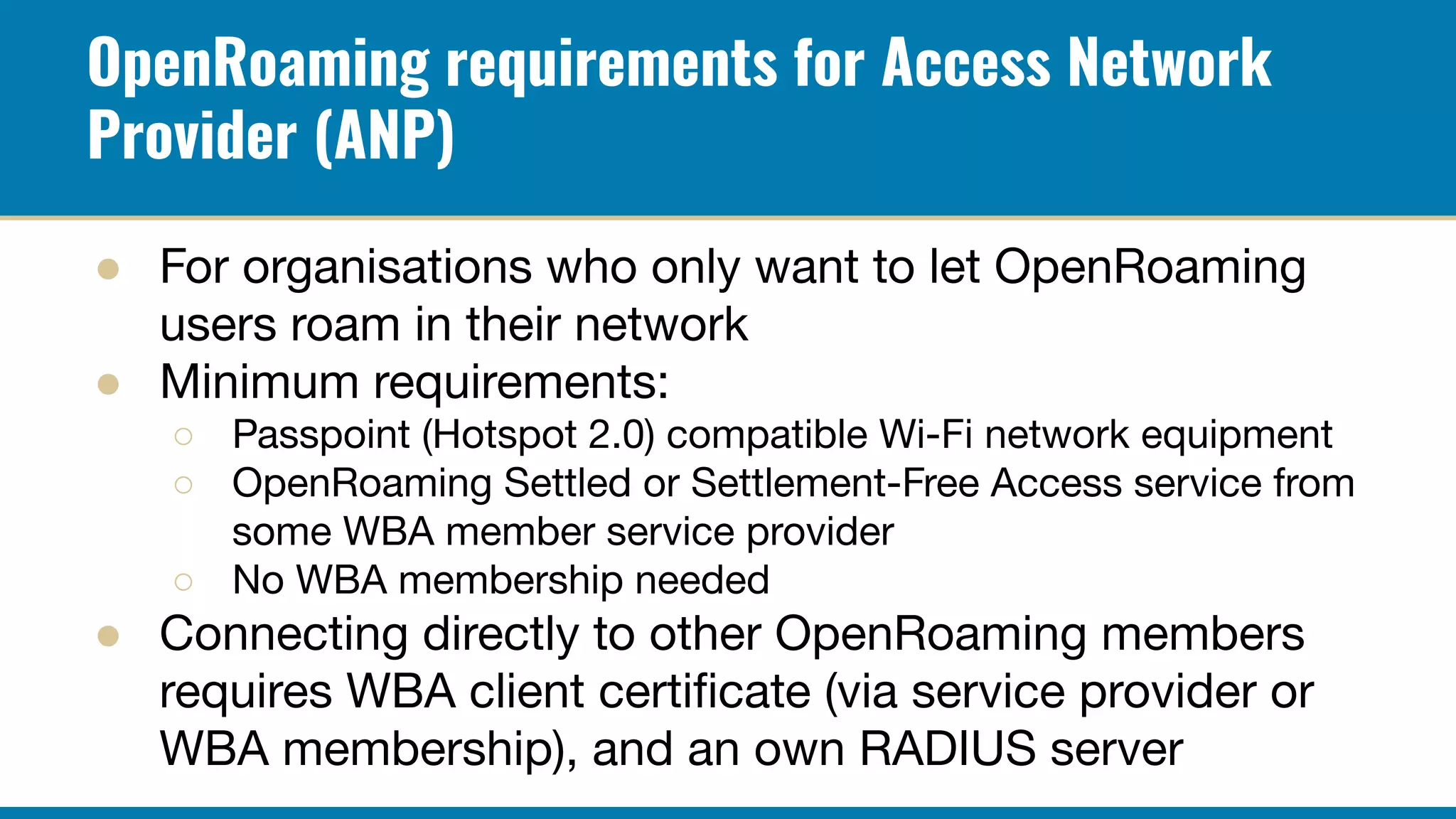

10. OpenRoaming requirements for Access Network
Provider (ANP)
● For organisations who only want to let OpenRoaming
users roam in their network
● Minimum requirements:
○ Passpoint (Hotspot 2.0) compatible Wi-Fi network equipment
○ OpenRoaming Settled or Settlement-Free Access service from
some WBA member service provider
○ No WBA membership needed
● Connecting directly to other OpenRoaming members
requires WBA client certificate (via service provider or
WBA membership), and an own RADIUS server

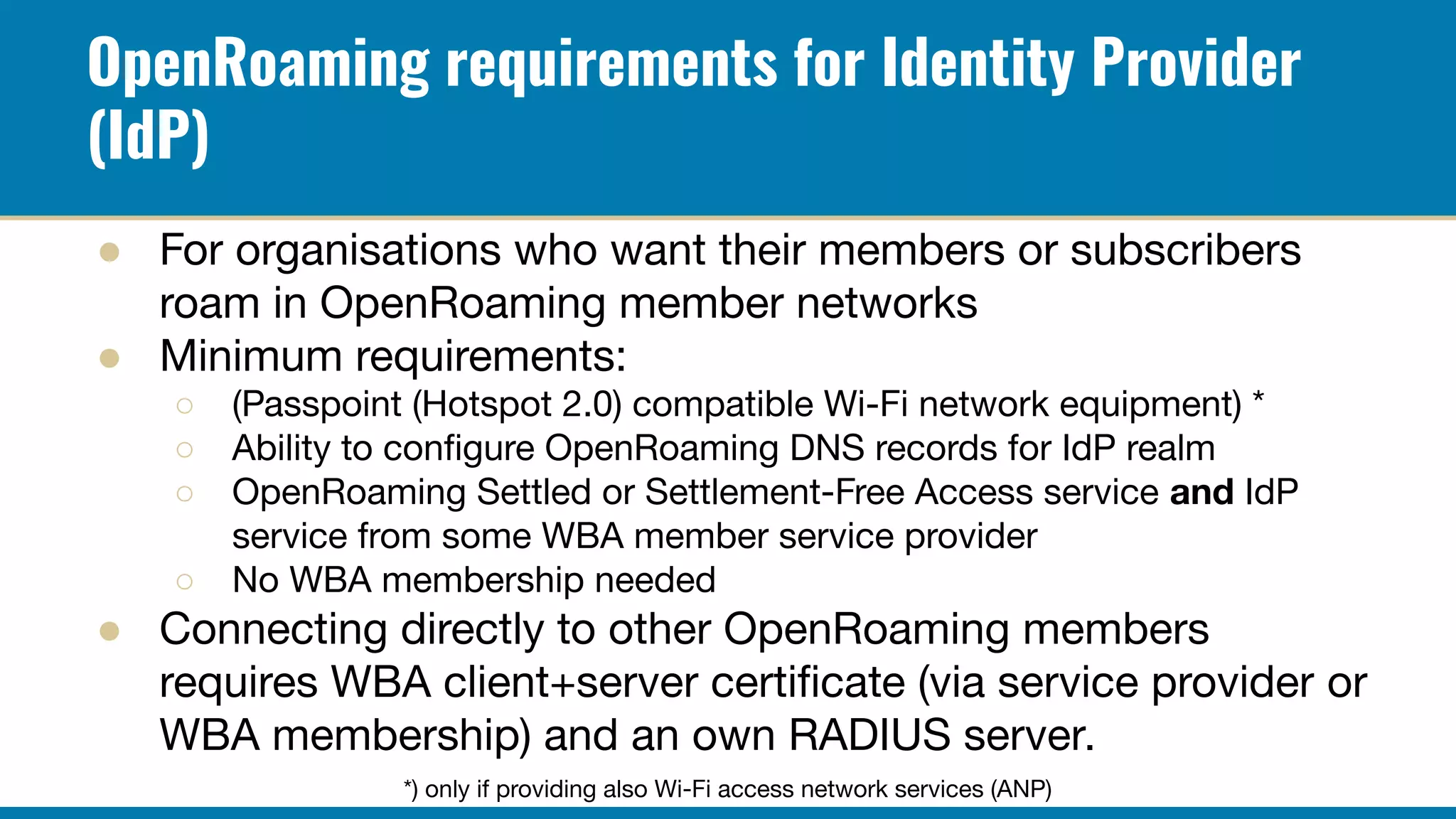

11. OpenRoaming requirements for Identity Provider
(IdP)
● For organisations who want their members or subscribers
roam in OpenRoaming member networks
● Minimum requirements:
○ (Passpoint (Hotspot 2.0) compatible Wi-Fi network equipment) *
○ Ability to configure OpenRoaming DNS records for IdP realm
○ OpenRoaming Settled or Settlement-Free Access service and IdP
service from some WBA member service provider
○ No WBA membership needed
● Connecting directly to other OpenRoaming members
requires WBA client+server certificate (via service provider or
WBA membership) and an own RADIUS server.
*) only if providing also Wi-Fi access network services (ANP)

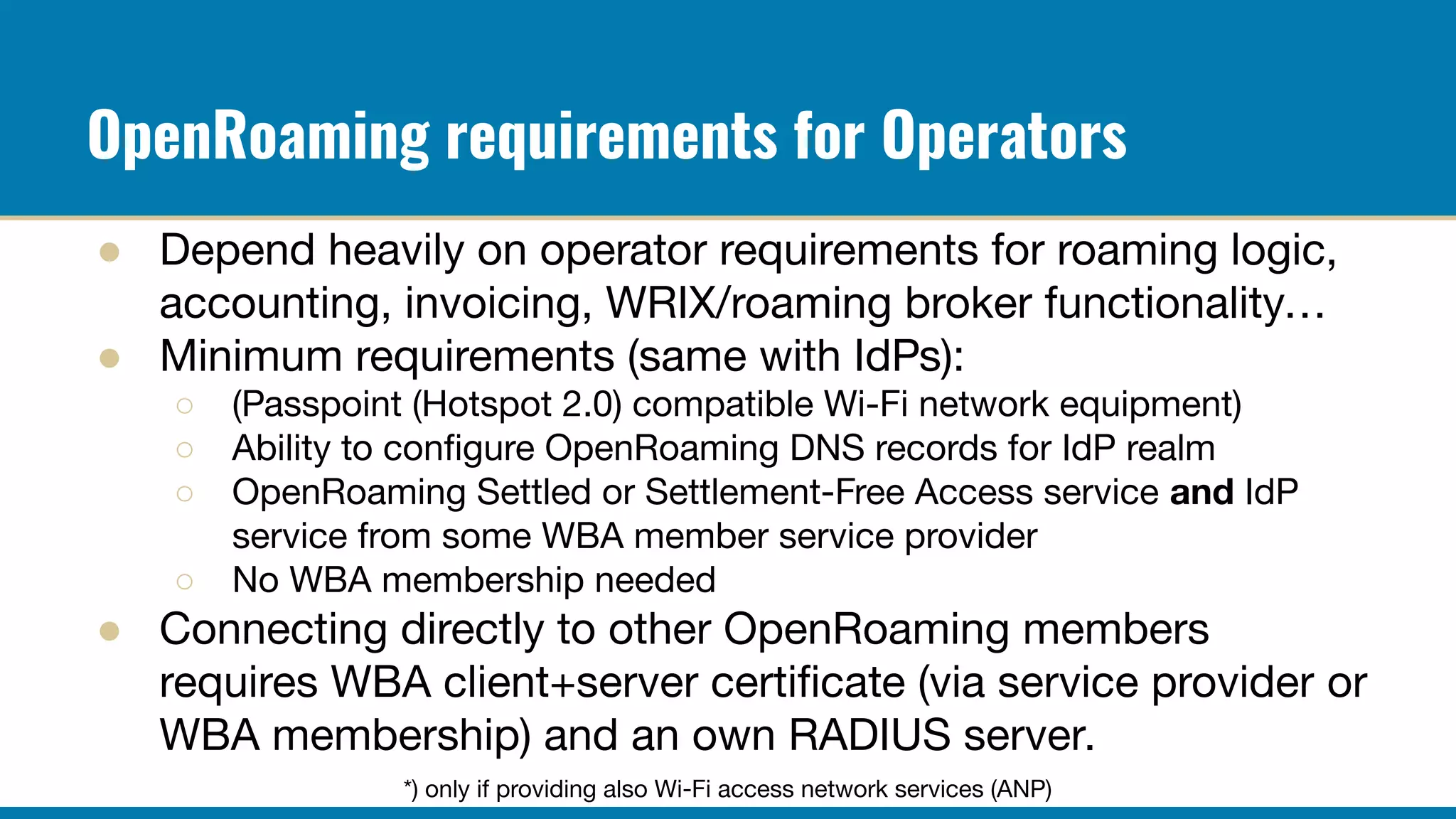

12. OpenRoaming requirements for Operators
● Depend heavily on operator requirements for roaming logic,
accounting, invoicing, WRIX/roaming broker functionality…
● Minimum requirements (same with IdPs):
○ (Passpoint (Hotspot 2.0) compatible Wi-Fi network equipment)
○ Ability to configure OpenRoaming DNS records for IdP realm
○ OpenRoaming Settled or Settlement-Free Access service and IdP
service from some WBA member service provider
○ No WBA membership needed
● Connecting directly to other OpenRoaming members
requires WBA client+server certificate (via service provider or
WBA membership) and an own RADIUS server.
*) only if providing also Wi-Fi access network services (ANP)

13. What can Radiator Software do for you?
● Radiator has all the features needed from RADIUS
server for OpenRoaming.
● In addition Radiator has complementing
functionality such as Diameter and SIM
authentication (with SIM privacy) support.
● Our Radiator Auth.Fi service supports
Settlement-Free OpenRoaming ANP and IdP
roles.
● With Radiator Expert Services we can support
you whether you are interested in building
OpenRoaming-as-a-Service or just deploying or
piloting it in your Wi-Fi network.

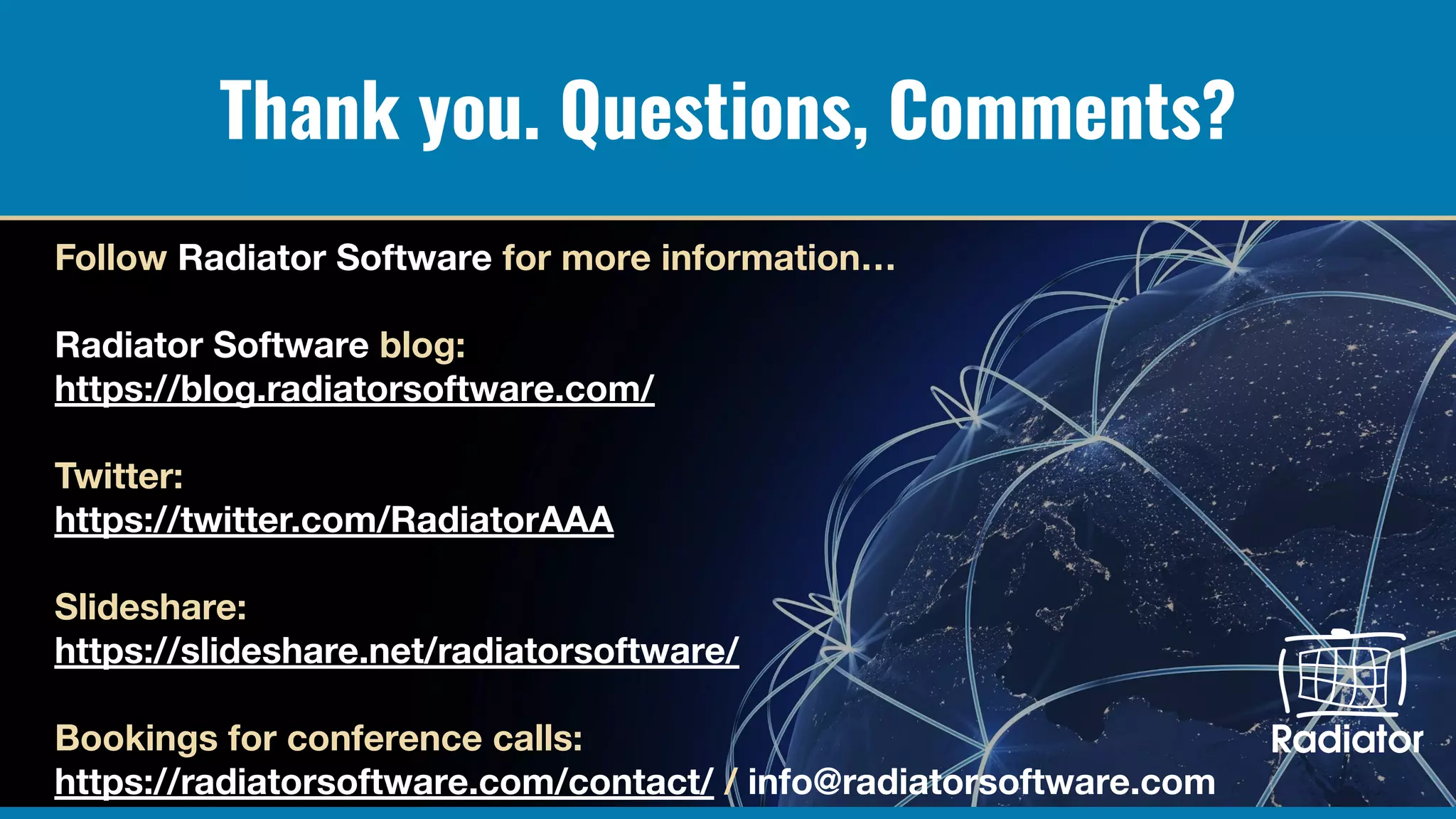

14. Thank you. Questions, Comments?
Follow Radiator Software for more information…
Radiator Software blog:
https://blog.radiatorsoftware.com/
Twitter:
https://twitter.com/RadiatorAAA
Slideshare:
https://slideshare.net/radiatorsoftware/
Bookings for conference calls:
https://radiatorsoftware.com/contact/ / info@radiatorsoftware.com
