OpenID Foundation MODRNA WG update presented at OpenID Foundation Workshop at PayPal in San Jose, CA on Oct. 16, 2017.

1. MODRNA WG
The interface of MODRNA (Mobile Profile of OpenID Connect) and GSMA Mobile
Connect
October 16, 2017
Bjorn Hjelm
Verizon
John Bradley
Yubico
http://openid.net/wg/mobile/

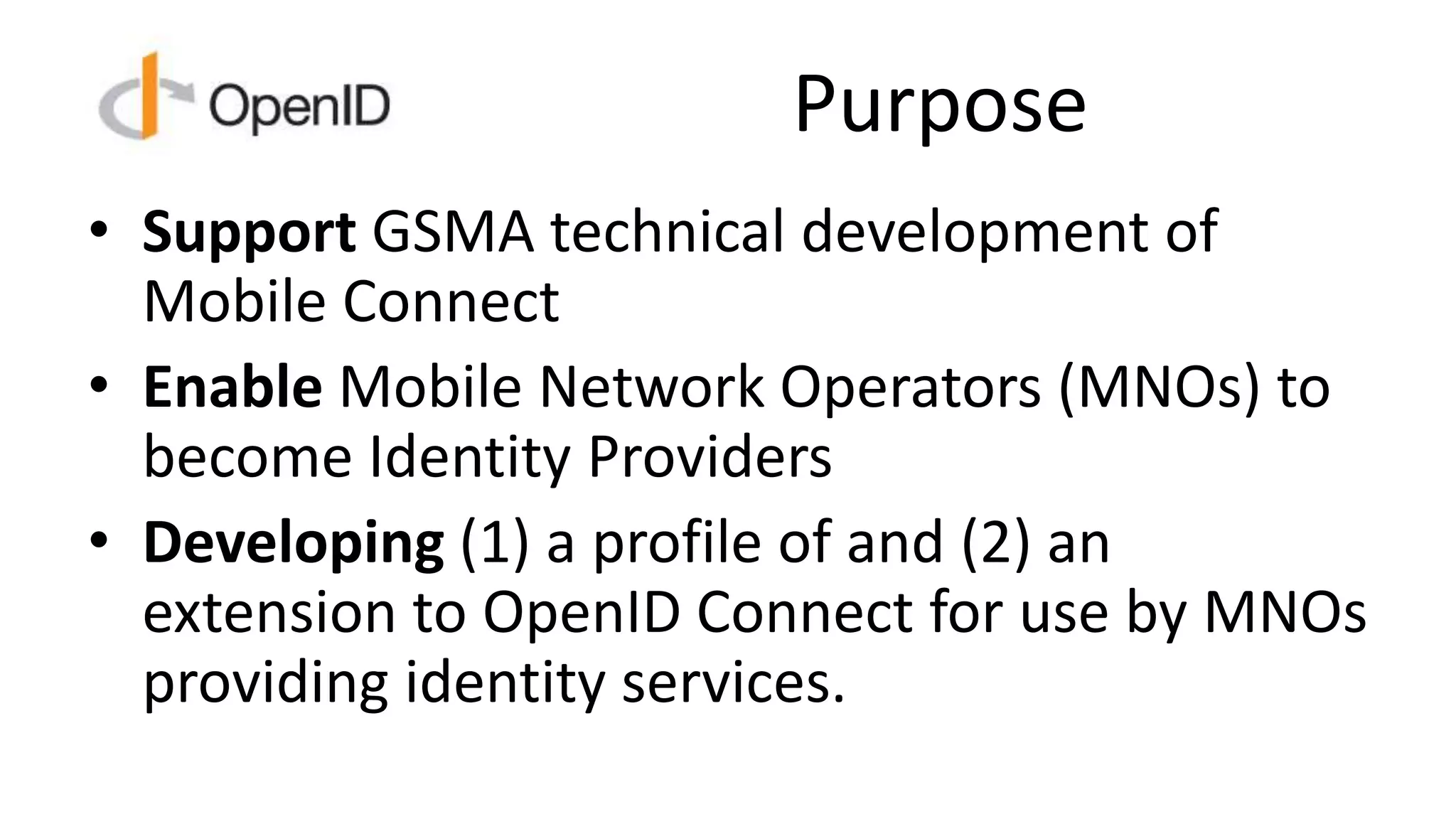

2. Purpose
• Support GSMA technical development of
Mobile Connect
• Enable Mobile Network Operators (MNOs) to
become Identity Providers
• Developing (1) a profile of and (2) an
extension to OpenID Connect for use by MNOs
providing identity services.

3. Participants

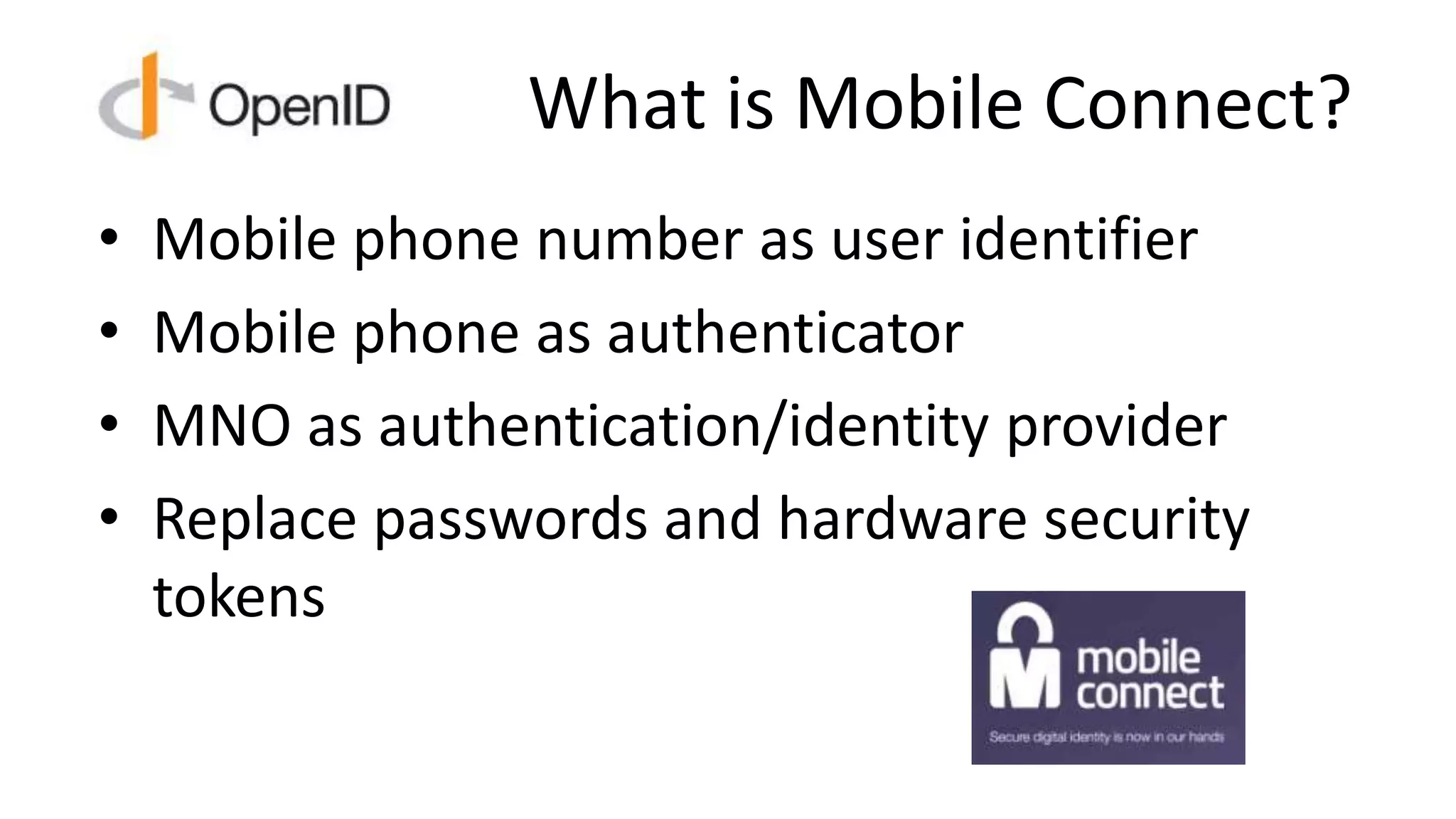

4. What is Mobile Connect?
• Mobile phone number as user identifier
• Mobile phone as authenticator
• MNO as authentication/identity provider
• Replace passwords and hardware security
tokens

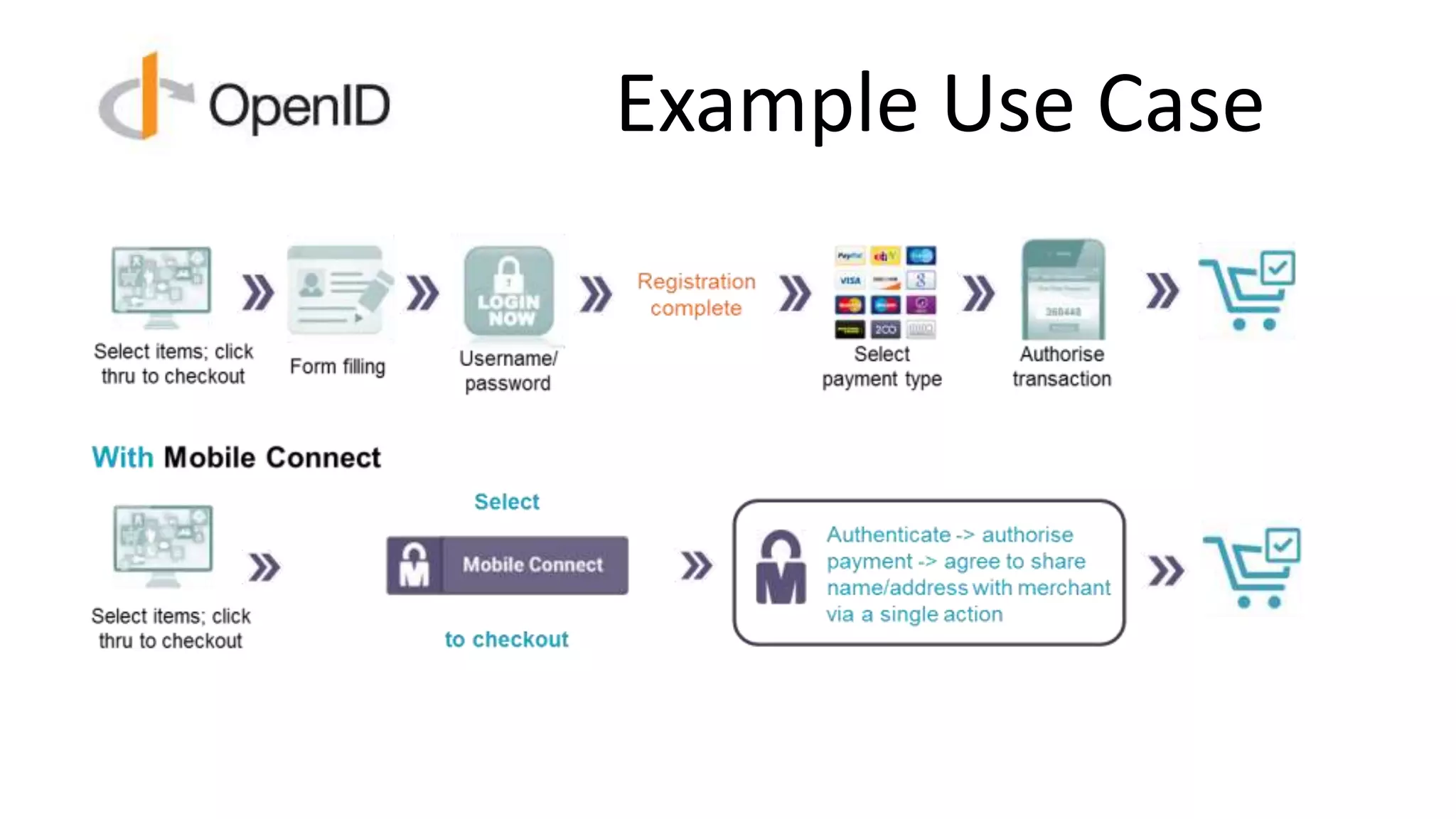

5. Example Use Case

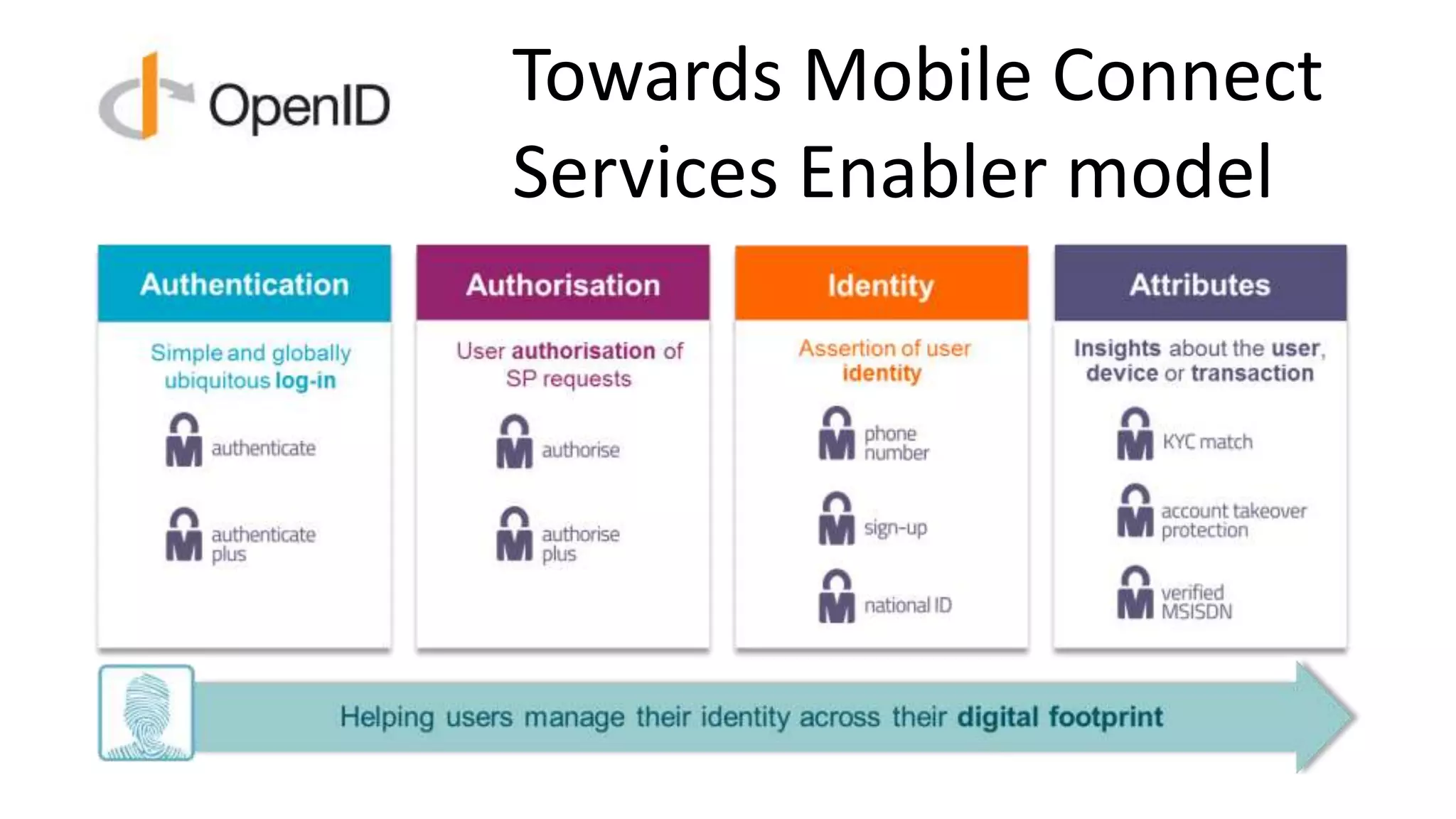

6. Towards Mobile Connect
Services Enabler model

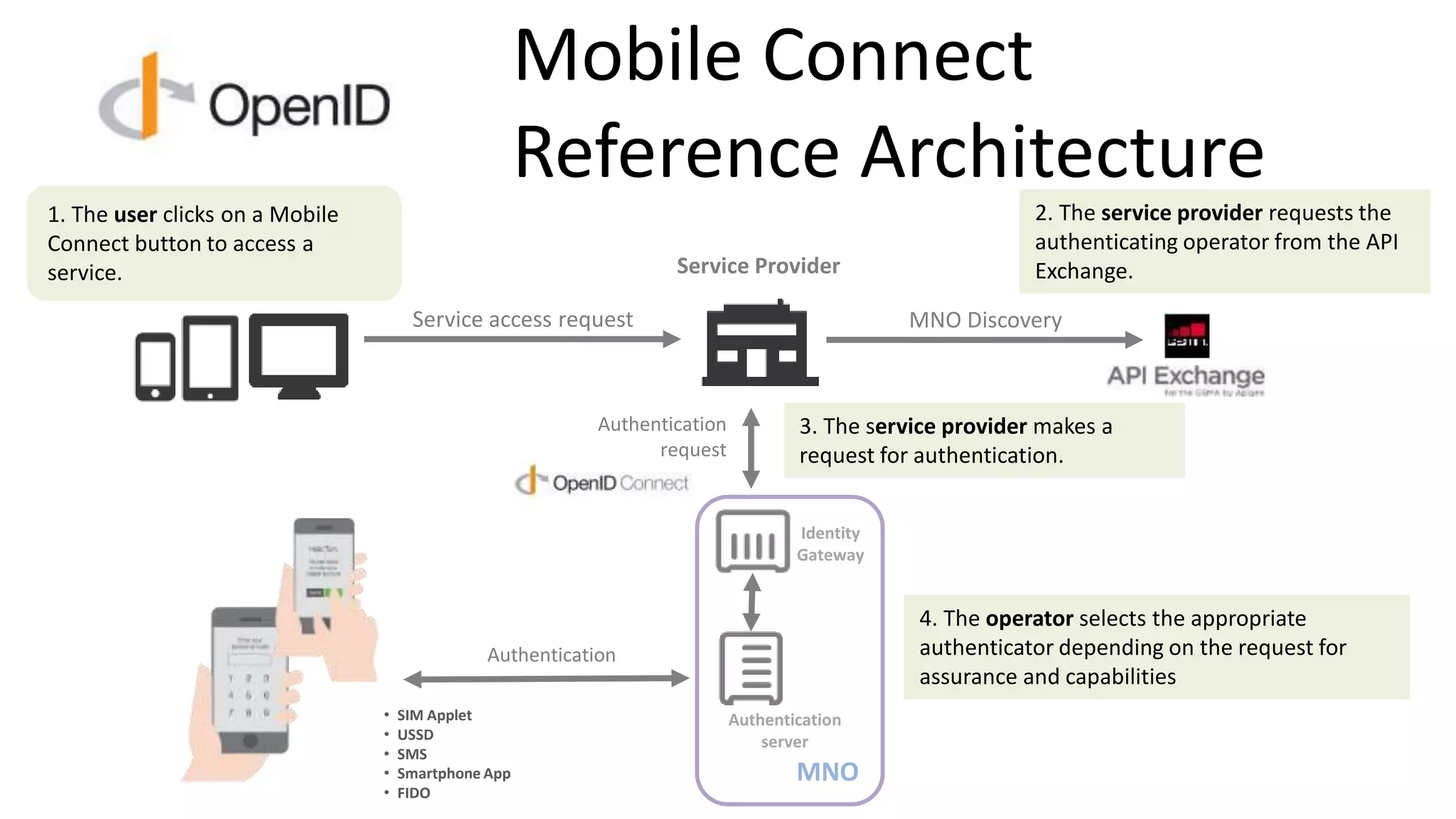

7. Mobile Connect
Reference Architecture
2. The service provider requests the
authenticating operator from the API
Exchange.
3. The service provider makes a
request for authentication.
4. The operator selects the appropriate
authenticator depending on the request for
assurance and capabilities
1. The user clicks on a Mobile
Connect button to access a
service.
• SIM Applet
• USSD
• SMS
• Smartphone App
• FIDO
MNO
Service access request
Authentication
Service Provider
Authentication
request
Authentication
server
Identity
Gateway
MNO Discovery

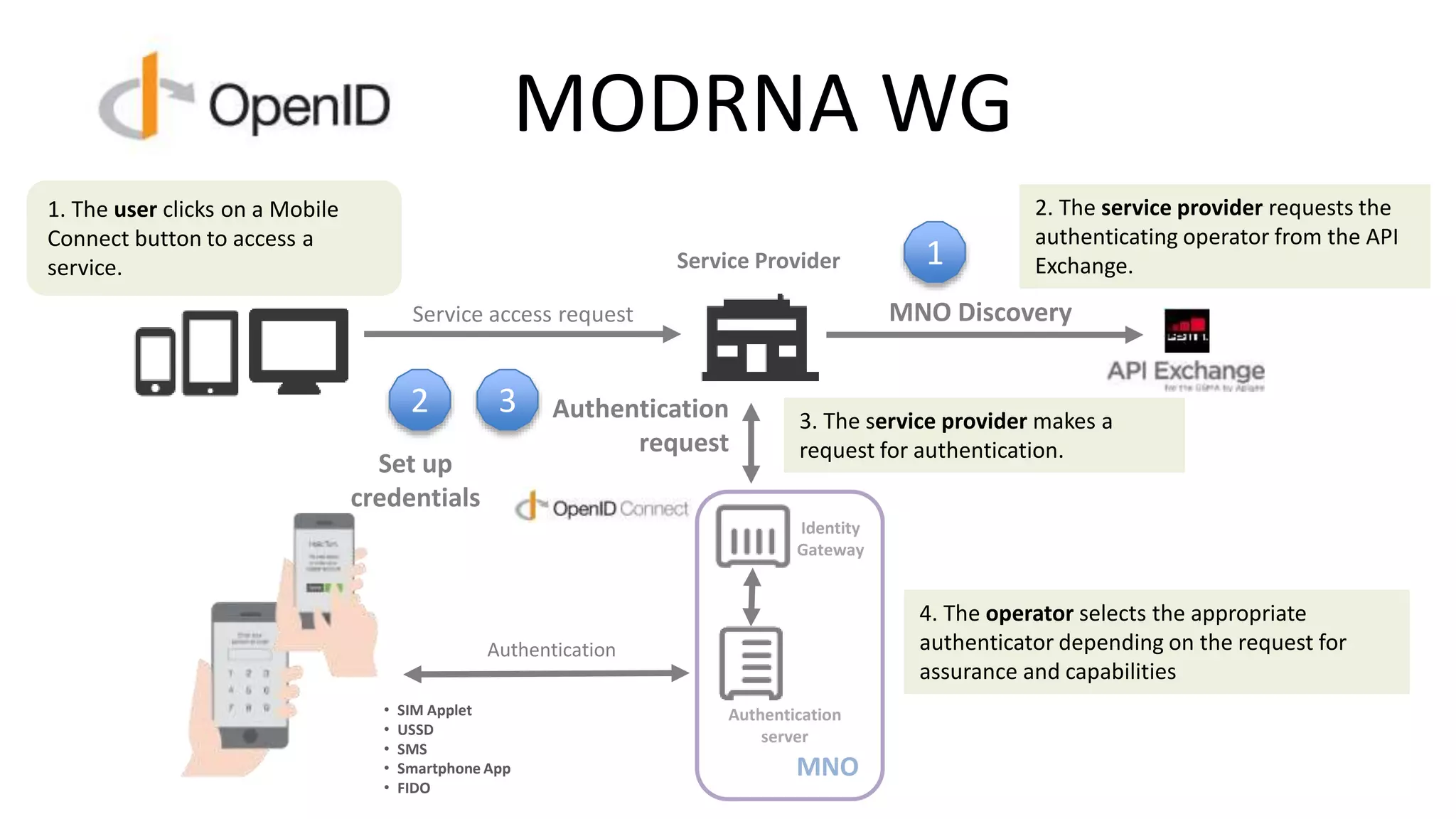

8. MODRNA WG
2. The service provider requests the
authenticating operator from the API
Exchange.
3. The service provider makes a
request for authentication.
4. The operator selects the appropriate
authenticator depending on the request for
assurance and capabilities
1. The user clicks on a Mobile
Connect button to access a
service.
• SIM Applet
• USSD
• SMS
• Smartphone App
• FIDO
MNO
Service access request
Authentication
Service Provider
Authentication
request
Authentication
server
Identity
Gateway
MNO Discovery
1
2 3
Set up
credentials

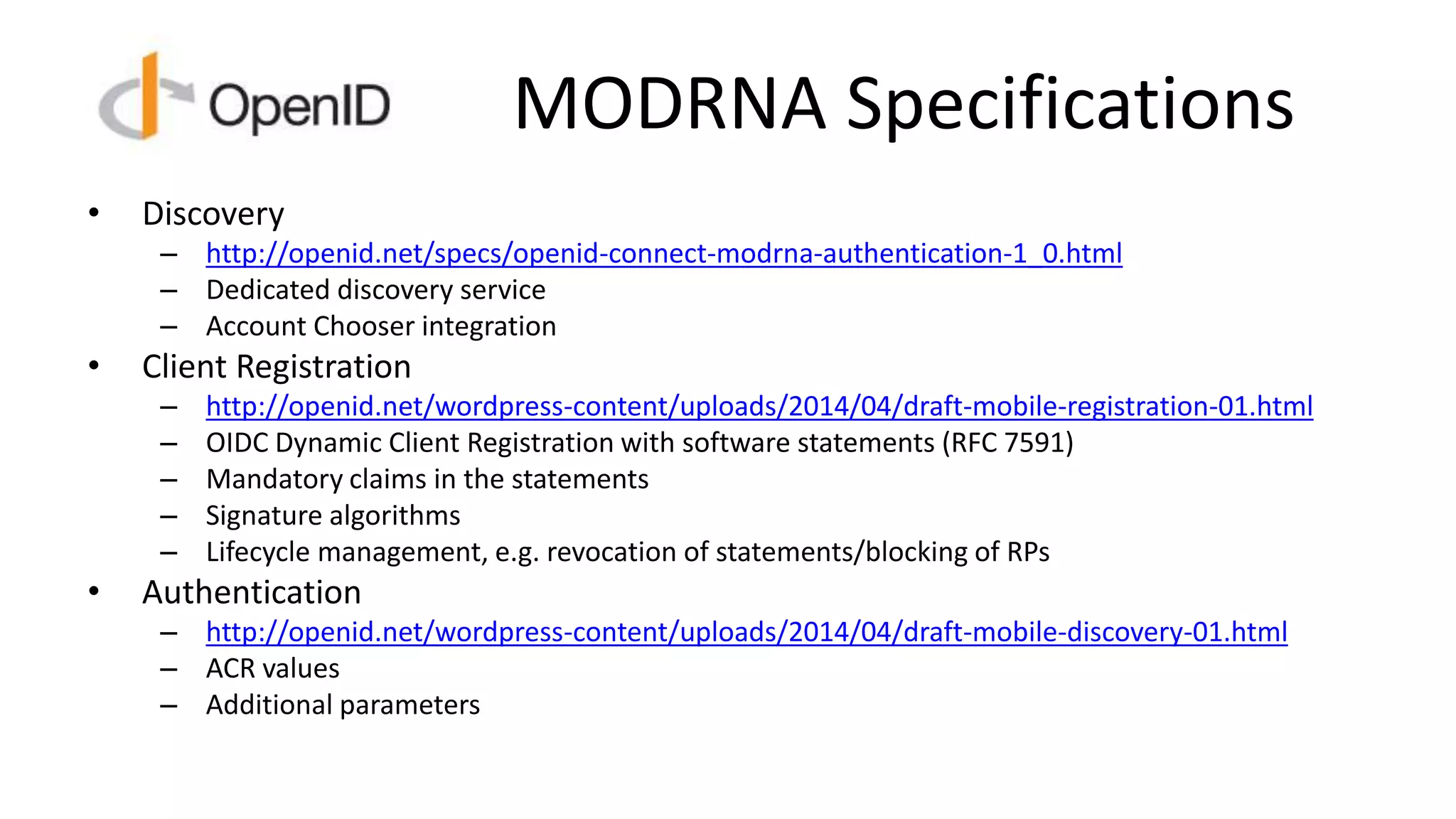

9. MODRNA Specifications
• Discovery
– http://openid.net/specs/openid-connect-modrna-authentication-1_0.html
– Dedicated discovery service
– Account Chooser integration
• Client Registration
– http://openid.net/wordpress-content/uploads/2014/04/draft-mobile-registration-01.html
– OIDC Dynamic Client Registration with software statements (RFC 7591)
– Mandatory claims in the statements
– Signature algorithms
– Lifecycle management, e.g. revocation of statements/blocking of RPs
• Authentication
– http://openid.net/wordpress-content/uploads/2014/04/draft-mobile-discovery-01.html
– ACR values
– Additional parameters

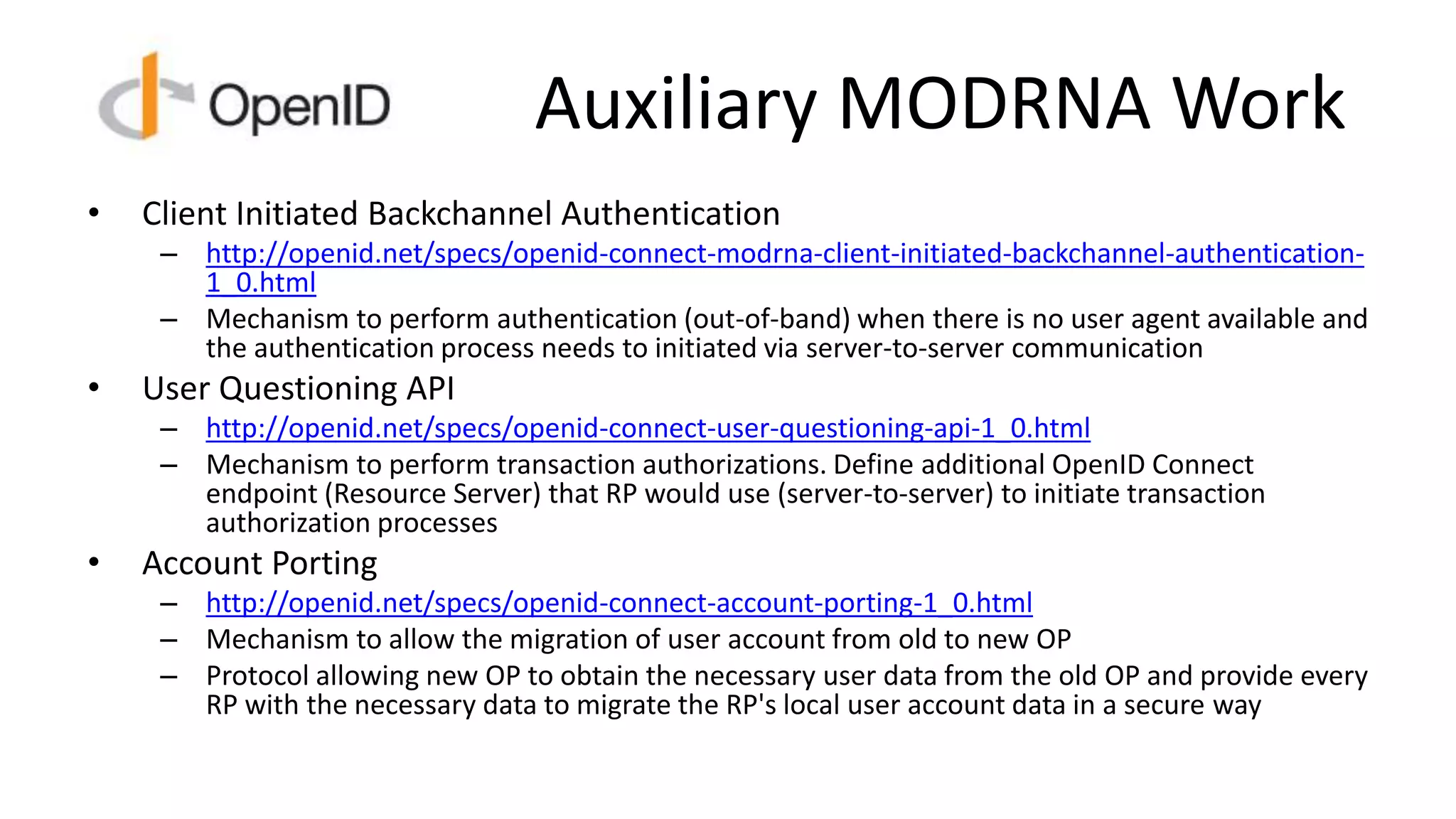

10. Auxiliary MODRNA Work
• Client Initiated Backchannel Authentication
– http://openid.net/specs/openid-connect-modrna-client-initiated-backchannel-authentication-
1_0.html
– Mechanism to perform authentication (out-of-band) when there is no user agent available and
the authentication process needs to initiated via server-to-server communication
• User Questioning API
– http://openid.net/specs/openid-connect-user-questioning-api-1_0.html
– Mechanism to perform transaction authorizations. Define additional OpenID Connect
endpoint (Resource Server) that RP would use (server-to-server) to initiate transaction
authorization processes
• Account Porting
– http://openid.net/specs/openid-connect-account-porting-1_0.html
– Mechanism to allow the migration of user account from old to new OP
– Protocol allowing new OP to obtain the necessary user data from the old OP and provide every
RP with the necessary data to migrate the RP's local user account data in a secure way

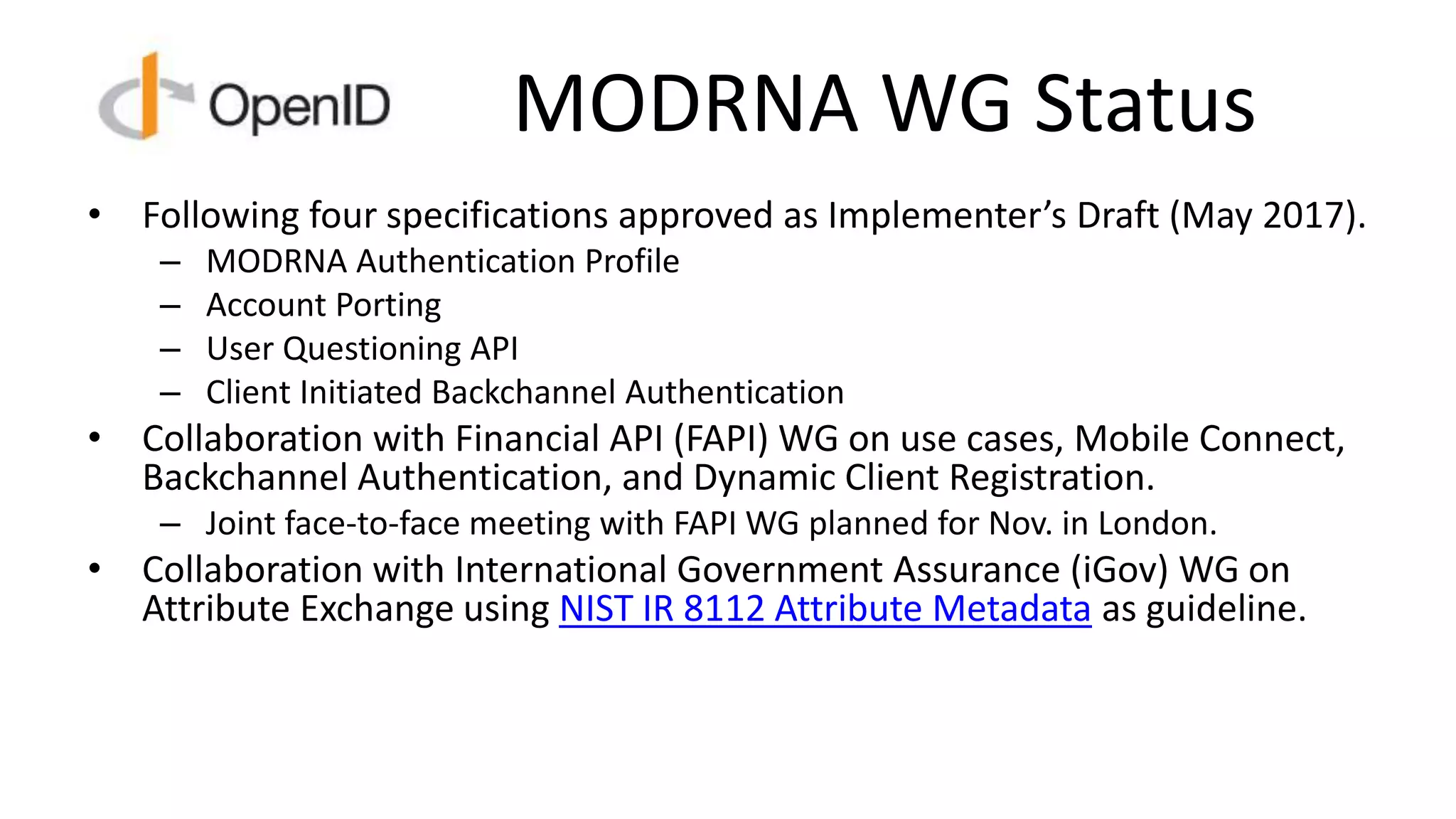

11. MODRNA WG Status
• Following four specifications approved as Implementer’s Draft (May 2017).
– MODRNA Authentication Profile
– Account Porting
– User Questioning API
– Client Initiated Backchannel Authentication
• Collaboration with Financial API (FAPI) WG on use cases, Mobile Connect,
Backchannel Authentication, and Dynamic Client Registration.
– Joint face-to-face meeting with FAPI WG planned for Nov. in London.
• Collaboration with International Government Assurance (iGov) WG on
Attribute Exchange using NIST IR 8112 Attribute Metadata as guideline.

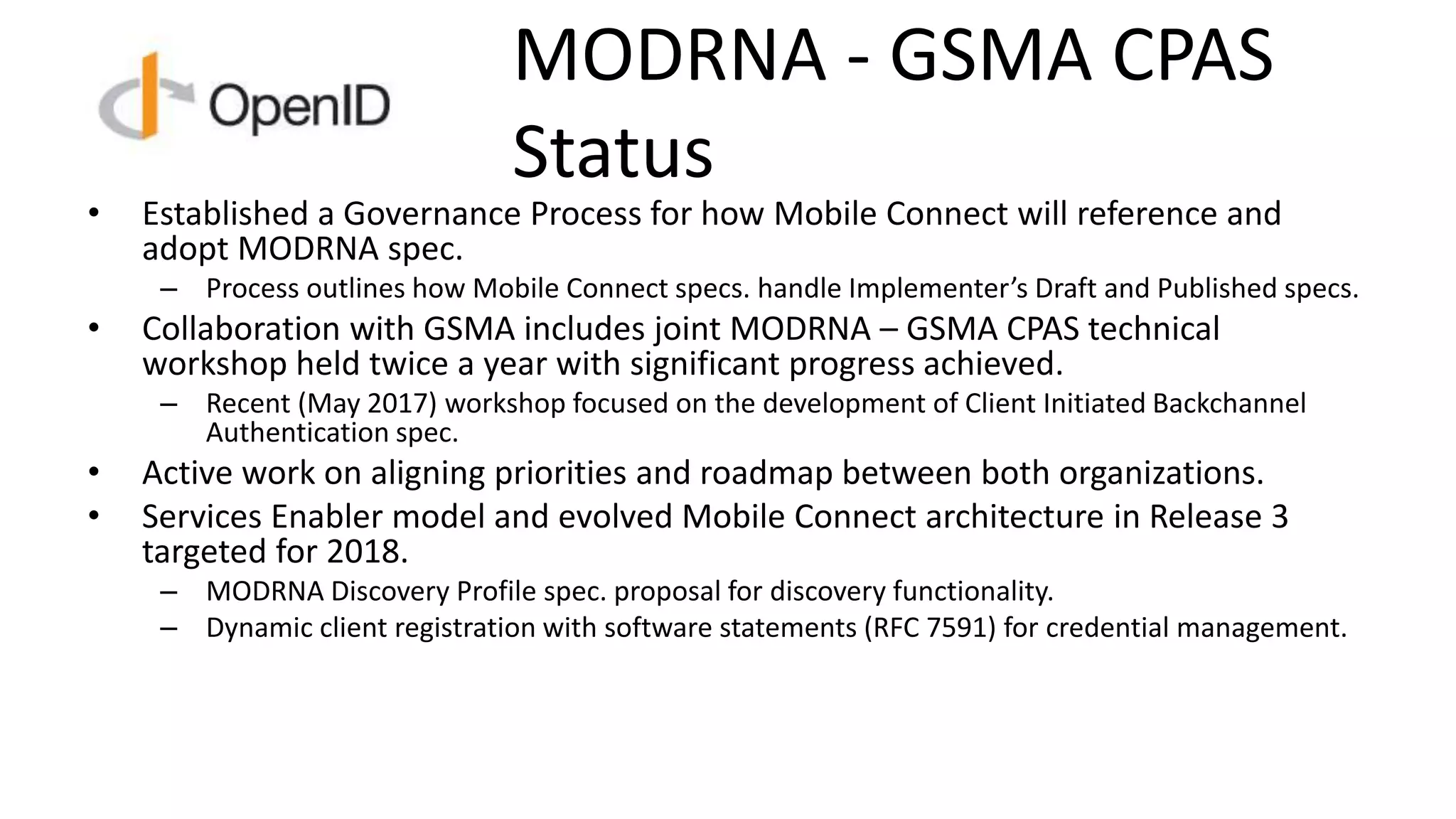

12. MODRNA - GSMA CPAS
Status
• Established a Governance Process for how Mobile Connect will reference and
adopt MODRNA spec.
– Process outlines how Mobile Connect specs. handle Implementer’s Draft and Published specs.
• Collaboration with GSMA includes joint MODRNA – GSMA CPAS technical
workshop held twice a year with significant progress achieved.
– Recent (May 2017) workshop focused on the development of Client Initiated Backchannel
Authentication spec.
• Active work on aligning priorities and roadmap between both organizations.
• Services Enabler model and evolved Mobile Connect architecture in Release 3
targeted for 2018.
– MODRNA Discovery Profile spec. proposal for discovery functionality.
– Dynamic client registration with software statements (RFC 7591) for credential management.

13. Thank you
http://openid.net/wg/mobile/
