OpenCms 8.5 added the CMIS interface that allows standardized access to the contents located in the OpenCms repository. OpenCms 9 takes the concept of standardized access to the repository one step further by allowing OpenCms folders to be mounted as Windows (or Samba) shared network drives. With OpenCms 9 shared folders, content managers can manage images and documents in the OpenCms repository simply on their local desktop. This is especially appealing if OpenCms is used in the Intranet. In this workshop, Georg will show how to set up OpenCms folders so that they can be shared with Windows. He will also explain how to access and manage resources in an OpenCms module directly from an IDE such as Eclipse.

1. Georg Westenberger, Alkacon Software
Workshop Track
Using OpenCms 9 folders
as a network drive
09.10.2013

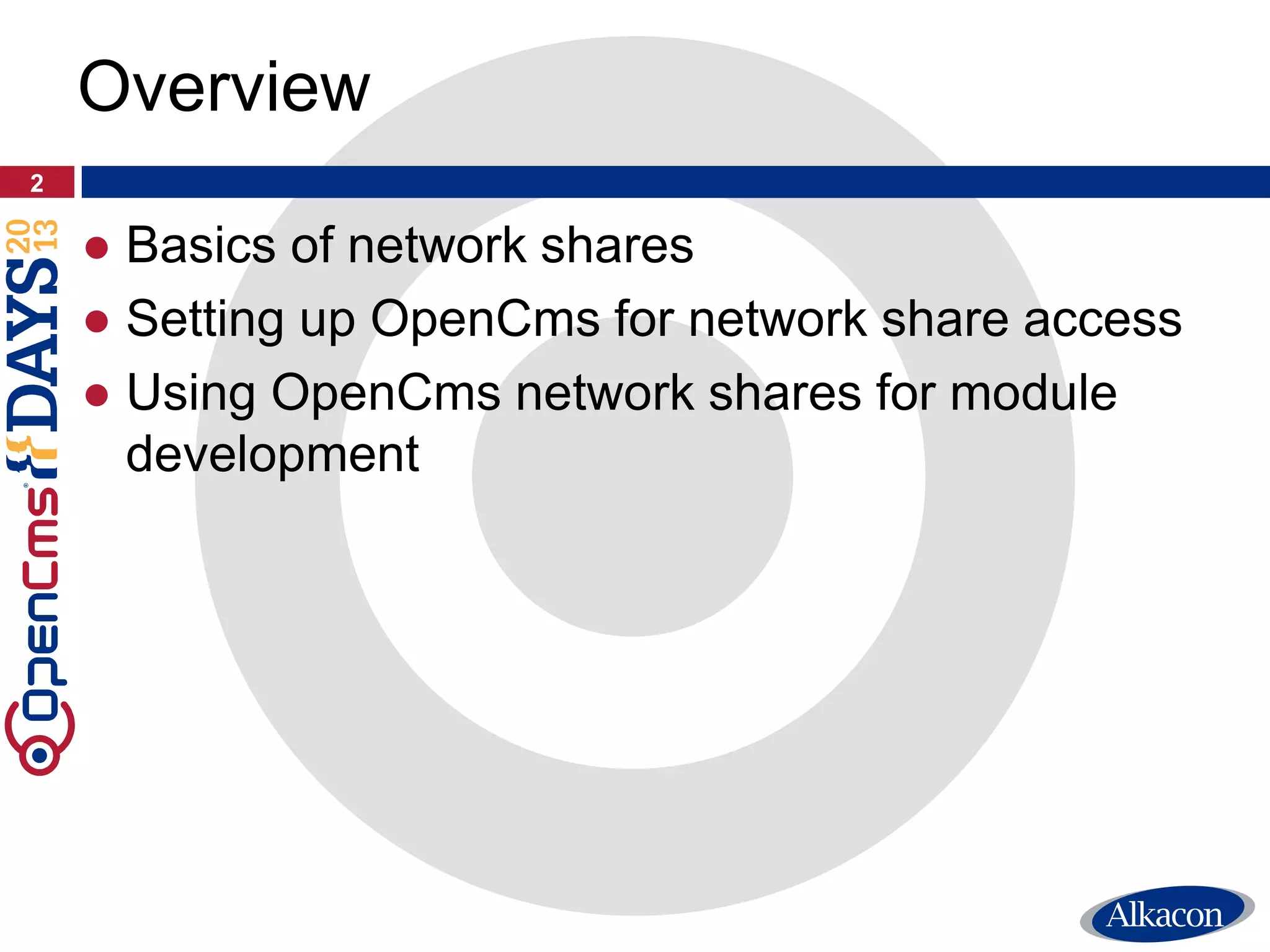

2. ● Basics of network shares
● Setting up OpenCms for network share access
● Using OpenCms network shares for module
development
2
Overview

3. ● Network shares (SMB) allows users to connect
to remote file systems and use them as if they
were a „normal“ file system on their computer
●  no special client programs necessary!
● Used natively by Windows
● Can also connect from other OSes (e.g. with
fs-cifs on Linux)
● OpenCms 9 can expose (part of) its VFS as a
network share
3
Network share basics

4. SMB CMIS
Distinct protocol on port 445 Web service (over HTTP)
Simple data model (like a
„normal“ PC file system)
Richer data model (resource
types, properties, searches…)
OS/driver support  Can use
any program to access files
Special clients must be used
For template developers or
other users who want to edit
plain text or binary resources.
For programmers wanting to
access OpenCms file system
functions as a web service
4
SMB vs. CMIS

5. ● Live Demo
5
Live Demo
Demo
Demo Demo
Demo
デモ

6. ● SMB: Not running over HTTP, but uses its own
port (445)
● No other process or thread must be listening on
port 445
● Can‘t use multiple OpenCms instances with network
shares on the same server
● Can‘t use e.g. Samba on the same server as OpenCms
when using network shares
● You may need to change your network
configuration (Firewalls, etc.)
6
Server setup

7. ● Depending on the server‘s OS, copy WEB-
INF/config/jlanConfig.xml.{linux,windows} to
jlanConfig.xml
● Windows 7: Disable „Server“ service and
restart to free up port 445
● Linux: Default configuration for Linux uses port
1445 (because special permissions are needed
for ports below 1024)
● Forward port 445 to 1445 (e.g. using socat or
iptables)
7
Server setup (2)

8. <repository name=“MYSHARE" class="org.opencms.jlan.CmsJlanRepository">
<params>
<!– Make all modifications in the Offline project. -->
<param name="project">Offline</param>
<!– Mount the /system/modules folder -->
<param name="root">/system/modules</param>
<!– Do not add byte order marks -->
<param name="addBOM">false</param>
<param name="wrapper„>
org.opencms.file.wrapper.CmsResourceWrapperReplaceDeleted
</param>
</params>
</repository>
8
Configuring shares in opencms-
importexport.xml

9. ● When the network drive is connected, you can
use e.g. Eclipse to edit resources in OpenCms
directly
● You don‘t need to use the OpenCms code
editor
● Use „linked folders“ in Eclipse to reference
network shares in your Eclipse project
● No need for switching sites after changing files
when trying out if the changes work
9
Template development using
Eclipse with a network share

10. ● Live Demo
10
Live Demo
Demo
Demo Demo
Demo
デモ

11. ● Connect to hostnameSHARENAME (Windows)
or smb://hostname/SHARENAME
● Users can log in using their normal OpenCms
user name / password
● OpenCms permissions apply
● Connecting to a share requires „View“
permissions on the configured root folder
● Users can‘t see resources for which they don‘t
have „View“ permissions
11
Authentication and permissions

12. ● As a workplace replacement
● No functions like Undo, Publish, setting
permissions
● To edit XML content
● Use the Acacia editor in OpenCms instead
● Over the internet
● Protocol requires low-latency network to work
efficiently
12
When/how not to use OpenCms
network shares

13. ● Network shares have no concept of file types or
properties
● File types for new files are determined by
extension
●  Copying is different from copying in the workplace;
more like downloading and re-uploading
● No concept of properties, either
● Wrapper class:
● org.opencms.file.wrapper.CmsResourceWrapperPropertyFile
● Edit properties and resource files through special
„virtual“ files
13
Properties and resource types

14. ● Live Demo
14
Live Demo
Demo
Demo Demo
Demo
デモ

15. ● Any Questions?
15
Any Questions?
Fragen?
Questions ?
Questiones?
¿Preguntas?質問

16. Georg Westenberger
Alkacon Software GmbH
http://www.alkacon.com
http://www.opencms.org
Thank you very much for your
attention!
