1. Michael Emmerich, Alkacon Software
Workshop track Updating to OpenCms 9.5
03.11.2014

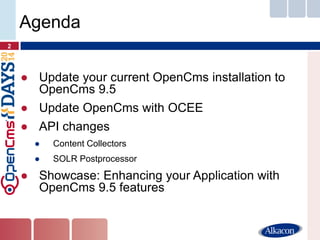

2. ●Update your current OpenCms installation to OpenCms 9.5
●Update OpenCms with OCEE
●API changes
●Content Collectors
●SOLR Postprocessor
●Showcase: Enhancing your Application with OpenCms 9.5 features
2
Agenda

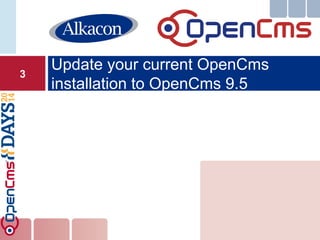

3. Update your current OpenCms installation to OpenCms 9.5
3

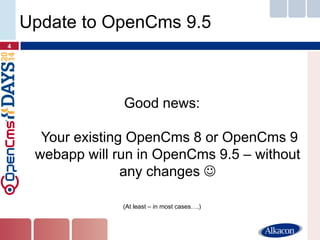

4. Good news: Your existing OpenCms 8 or OpenCms 9 webapp will run in OpenCms 9.5 – without any changes 
(At least – in most cases….)
4
Update to OpenCms 9.5

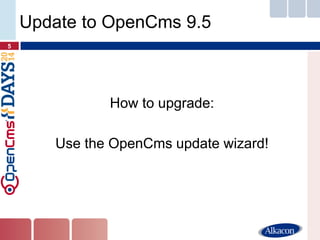

5. How to upgrade:
Use the OpenCms update wizard!
5
Update to OpenCms 9.5

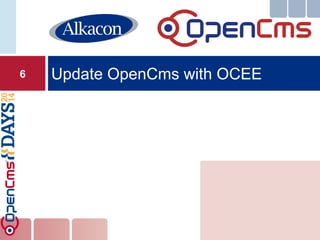

6. Update OpenCms with OCEE
6

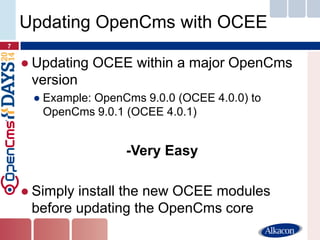

7. ●Updating OCEE within a major OpenCms version
●Example: OpenCms 9.0.0 (OCEE 4.0.0) to OpenCms 9.0.1 (OCEE 4.0.1)
-Very Easy
●Simply install the new OCEE modules before updating the OpenCms core
7
Updating OpenCms with OCEE

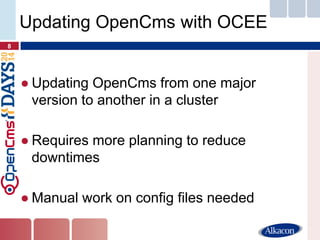

8. ●Updating OpenCms from one major version to another in a cluster
●Requires more planning to reduce downtimes
●Manual work on config files needed
8
Updating OpenCms with OCEE

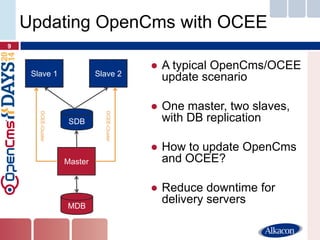

9. 9
Updating OpenCms with OCEE
Master
MDB
SDB
Slave 1
Slave 2
●A typical OpenCms/OCEE update scenario
●One master, two slaves, with DB replication
●How to update OpenCms and OCEE?
●Reduce downtime for delivery servers
OCEE-Cluster
OCEE-Cluster

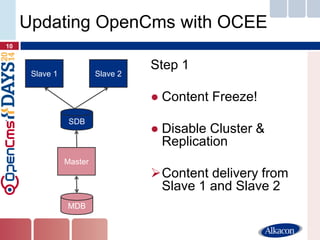

10. 10
Updating OpenCms with OCEE
Master
MDB
SDB
Slave 1
Slave 2
Step 1
●Content Freeze!
●Disable Cluster & Replication
Content delivery from Slave 1 and Slave 2

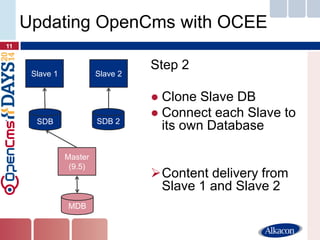

11. 11
Updating OpenCms with OCEE
Master (9.5)
MDB
Step 2
●Clone Slave DB
●Connect each Slave to its own Database
Content delivery from Slave 1 and Slave 2
SDB 2
Slave 1
Slave 2
SDB

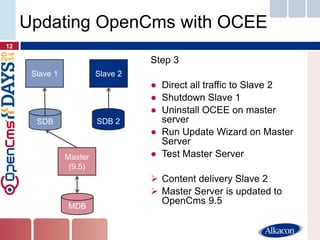

12. 12
Updating OpenCms with OCEE
Master (9.5)
MDB
Step 3
●Direct all traffic to Slave 2
●Shutdown Slave 1
●Uninstall OCEE on master server
●Run Update Wizard on Master Server
●Test Master Server
Content delivery Slave 2
Master Server is updated to OpenCms 9.5
SDB 2
Slave 1
Slave 2
SDB

13. 13
Updating OpenCms with OCEE
Master (9.5)
MDB
SDB 2
Slave 1
Slave 2
Step 4
●Install new OCEE on master
Content delivery from Slave 2
Master Server is updated to OpenCms 9.5
SDB

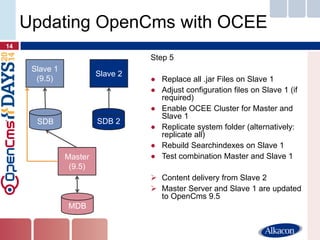

14. 14
Updating OpenCms with OCEE
Master (9.5)
MDB
SDB 2
Slave 1 (9.5)
Slave 2
Step 5
●Replace all .jar Files on Slave 1
●Adjust configuration files on Slave 1 (if required)
●Enable OCEE Cluster for Master and Slave 1
●Replicate system folder (alternatively: replicate all)
●Rebuild Searchindexes on Slave 1
●Test combination Master and Slave 1
Content delivery from Slave 2
Master Server and Slave 1 are updated to OpenCms 9.5
SDB

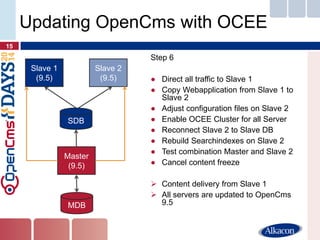

15. 15
Updating OpenCms with OCEE
Master (9.5)
MDB
Slave 1 (9.5)
Slave 2 (9.5)
Step 6
●Direct all traffic to Slave 1
●Copy Webapplication from Slave 1 to Slave 2
●Adjust configuration files on Slave 2
●Enable OCEE Cluster for all Server
●Reconnect Slave 2 to Slave DB
●Rebuild Searchindexes on Slave 2
●Test combination Master and Slave 2
●Cancel content freeze
Content delivery from Slave 1
All servers are updated to OpenCms 9.5
SDB

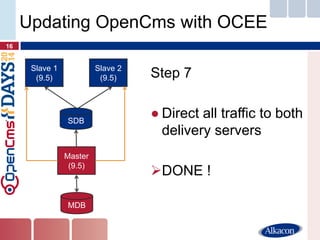

16. 16
Updating OpenCms with OCEE
Master (9.5)
MDB
Slave 1 (9.5)
Slave 2 (9.5)
Step 7
●Direct all traffic to both delivery servers
DONE !
SDB

17. API Changes
17

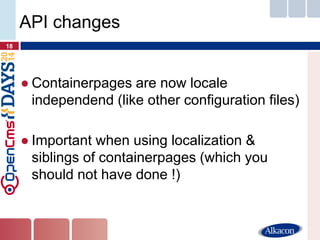

18. ●Containerpages are now locale independend (like other configuration files)
●Important when using localization & siblings of containerpages (which you should not have done !)
18
API changes

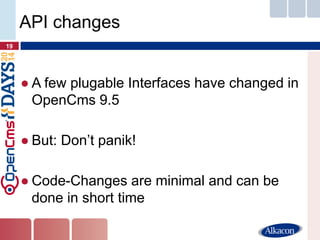

19. ●A few plugable Interfaces have changed in OpenCms 9.5
●But: Don’t panik!
●Code-Changes are minimal and can be done in short time
19
API changes

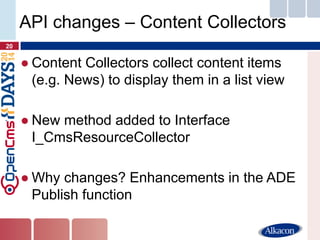

20. ●Content Collectors collect content items (e.g. News) to display them in a list view
●New method added to Interface I_CmsResourceCollector
●Why changes? Enhancements in the ADE Publish function
20
API changes – Content Collectors

21. ●How to change my own collectors?
●Add additional getResult Method:
21
API changes - Content Collectors
List<CmsResource>
getResults(CmsObject cms,
String collectorName,
String params,
int numResults)
throws CmsException;

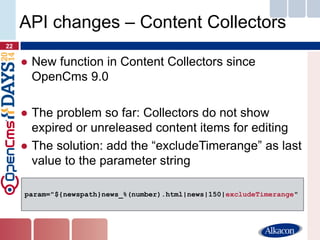

22. ●New function in Content Collectors since OpenCms 9.0
●The problem so far: Collectors do not show expired or unreleased content items for editing
●The solution: add the “excludeTimerange” as last value to the parameter string
22
API changes – Content Collectors
param="${newspath}news_%(number).html|news|150|excludeTimerange"

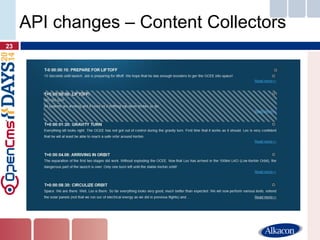

23. 23
API changes – Content Collectors

24. ●The Solr PostProcessor allows to manipulate Solr results
●New method added to Interface I_CmsSolrPostSearchProcessor
●Why changes? To allow new options in post-proccessing
24
API changes – Solr PostProcessor

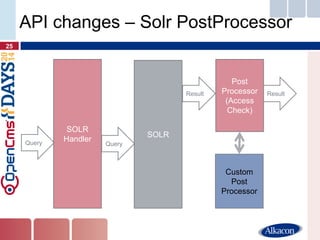

25. 25
API changes – Solr PostProcessor
SOLR Handler
SOLR
Post Processor (Access Check)
Custom Post Processor
Query
Result
Query
Result

26. ●How to change my own post processors?
●Add additional init() method:
●The method is called for each new Solr query
26
API changes – Solr PostProcessor
void init();

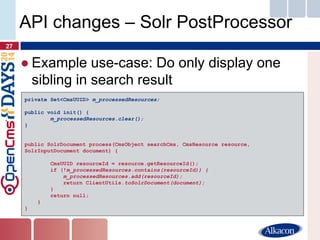

27. ●Example use-case: Do only display one sibling in search result
27
API changes – Solr PostProcessor
private Set<CmsUUID> m_processedResources;
public void init() {
m_processedResources.clear();
}
public SolrDocument process(CmsObject searchCms, CmsResource resource, SolrInputDocument document) {
CmsUUID resourceId = resource.getResourceId();
if (!m_processedResources.contains(resourceId)) {
m_processedResources.add(resourceId);
return ClientUtils.toSolrDocument(document);
}
return null;
}
}

28. Extending your application with OpenCms 9.5 features
28

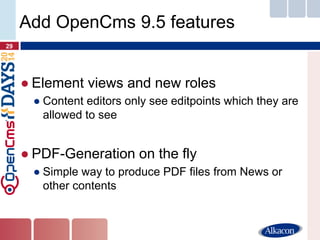

29. ●Element views and new roles
●Content editors only see editpoints which they are allowed to see
●PDF-Generation on the fly
●Simple way to produce PDF files from News or other contents
29
Add OpenCms 9.5 features

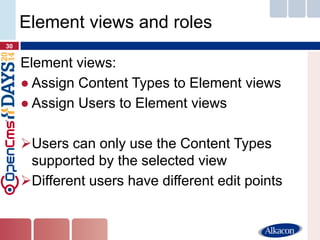

30. Element views:
●Assign Content Types to Element views
●Assign Users to Element views
Users can only use the Content Types supported by the selected view
Different users have different edit points
30
Element views and roles

31. New OpenCms 9.5 roles:
●So far: Editors had to be “Workplace User”
●Now: Finer subdivision
●Element author
●Editor
●Category Editor
●Gallery Editor
●Workplace user
31
Element views and roles

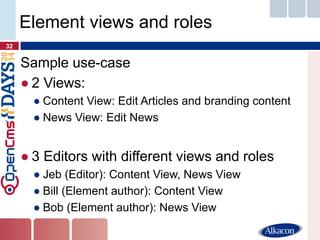

32. Sample use-case
●2 Views:
●Content View: Edit Articles and branding content
●News View: Edit News
●3 Editors with different views and roles
●Jeb (Editor): Content View, News View
●Bill (Element author): Content View
●Bob (Element author): News View
32
Element views and roles

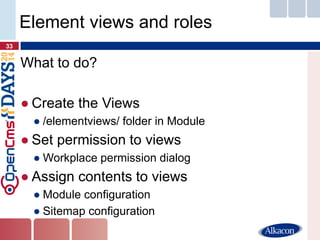

33. What to do?
●Create the Views
●/elementviews/ folder in Module
●Set permission to views
●Workplace permission dialog
●Assign contents to views
●Module configuration
●Sitemap configuration
33
Element views and roles

34. ●Live Demo
34
Element views and roles
Demo
Demo
Demo
Demo
デモ

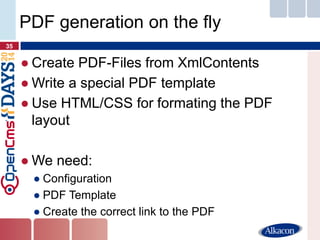

35. ●Create PDF-Files from XmlContents
●Write a special PDF template
●Use HTML/CSS for formating the PDF layout
●We need:
●Configuration
●PDF Template
●Create the correct link to the PDF
35
PDF generation on the fly

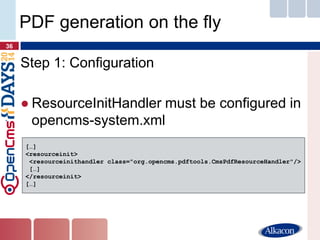

36. Step 1: Configuration
●ResourceInitHandler must be configured in opencms-system.xml
36
PDF generation on the fly
[…]
<resourceinit>
<resourceinithandler class="org.opencms.pdftools.CmsPdfResourceHandler"/>
[…]
</resourceinit>
[…]

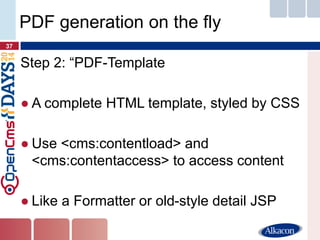

37. Step 2: “PDF-Template
●A complete HTML template, styled by CSS
●Use <cms:contentload> and <cms:contentaccess> to access content
●Like a Formatter or old-style detail JSP
37
PDF generation on the fly

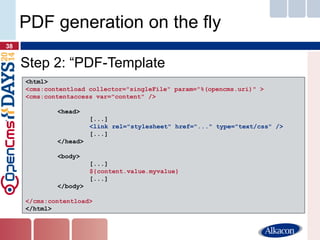

38. Step 2: “PDF-Template
38
PDF generation on the fly
<html>
<cms:contentload collector="singleFile" param="%(opencms.uri)" >
<cms:contentaccess var="content" />
<head>
[...]
<link rel="stylesheet" href="..." type="text/css" />
[...]
</head>
<body>
[...]
${content.value.myvalue}
[...]
</body>
</cms:contentload>
</html>

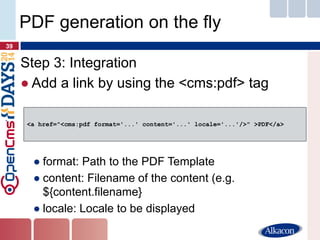

39. Step 3: Integration
●Add a link by using the <cms:pdf> tag
●format: Path to the PDF Template
●content: Filename of the content (e.g. ${content.filename}
●locale: Locale to be displayed
39
PDF generation on the fly
<a href="<cms:pdf format='...' content='...' locale='...'/>" >PDF</a>

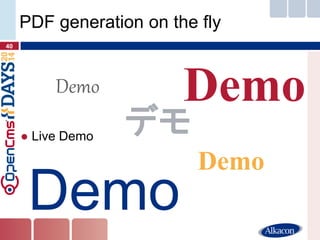

40. ●Live Demo
40
PDF generation on the fly
Demo
Demo
Demo
Demo
デモ

41. ●Any Questions?
41
Any Questions?
Fragen?
Questions ?
Questiones?
¿Preguntas?
質問

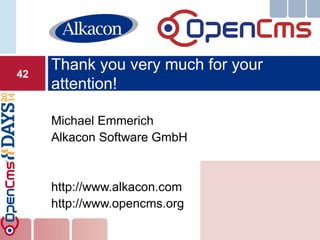

42. Michael Emmerich
Alkacon Software GmbH
http://www.alkacon.com
http://www.opencms.org
Thank you very much for your attention!
42
