1. RESTful Adapter + OpenAPI 2.0
Stay relevant and produtive with REST APIs

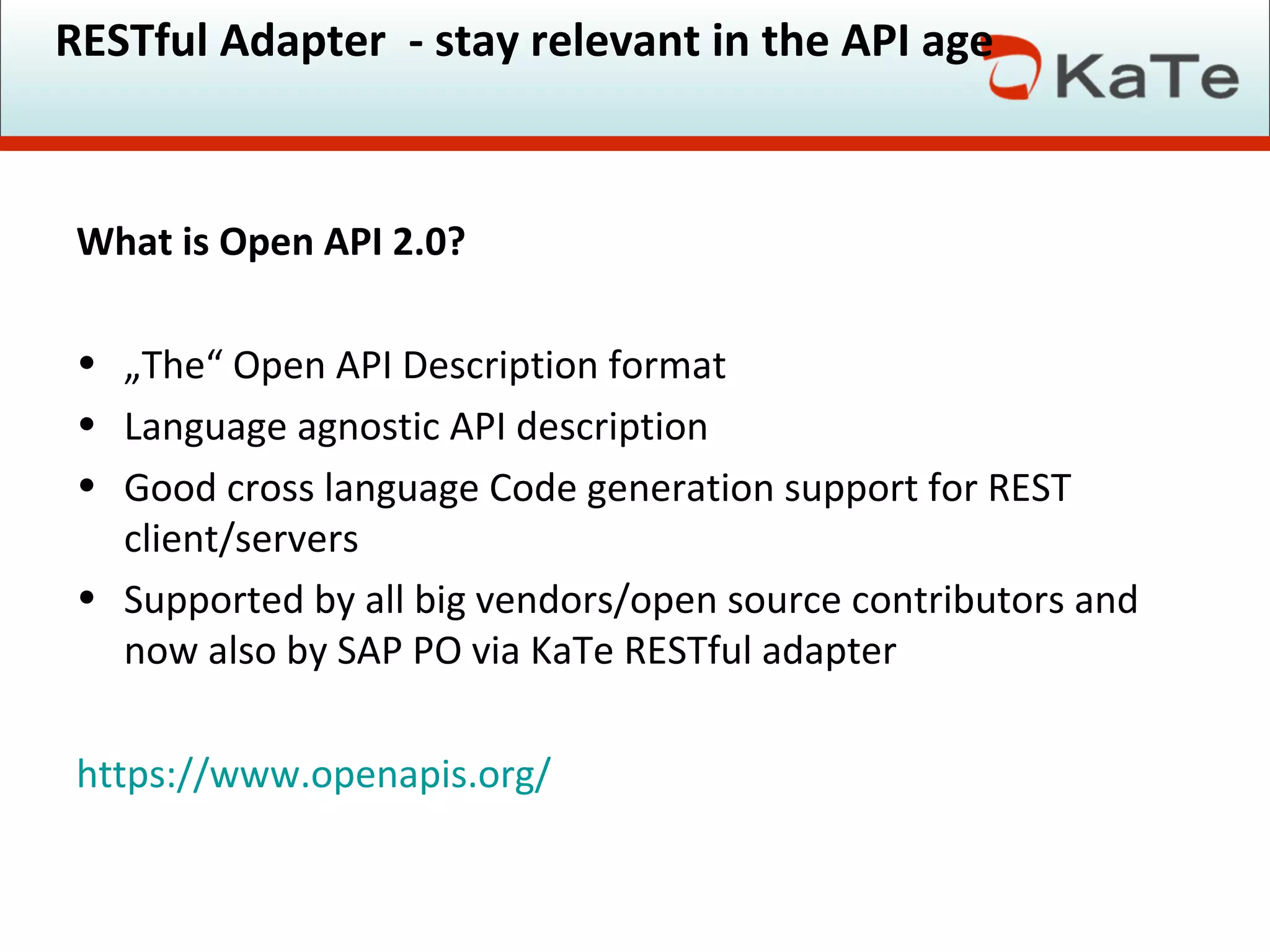

2. RESTful Adapter - stay relevant in the API age
What is Open API 2.0?
• „The“ Open API Description format
• Language agnostic API description
• Good cross language Code generation support for REST
client/servers
• Supported by all big vendors/open source contributors and
now also by SAP PO via KaTe RESTful adapter
https://www.openapis.org/

3. RESTful Adapter - OpenAPI 2.0 Support
KaTe RESTful adapter – OpenAPI 2.0 Support (v 1.0.7)
- Extends „Code Generation“ for OpenAPI to SAP PO/SAP PI*
- WSDL Generation as ESR Content
- No time spent on XML/JSON transformation
- No time spent on path configurations / headers / query attributes
- Works with extension of proven KaTe RESTful Message structures „out
of the box“
- Simply configure a receiver channel and generate the ESR
artefacts for invocation

4. How it works (3 simple steps)
• 1.) Configure the base path of your OpenAPI in a receiver
channel with „Open API“ mode + Authentication
• 2.) Generate the WSDL (or XSD‘s) for your OpenAPI
description
• 3.) Import the generated artefacts to ESR and build your
scenario (or use our Developer tools for first tests)

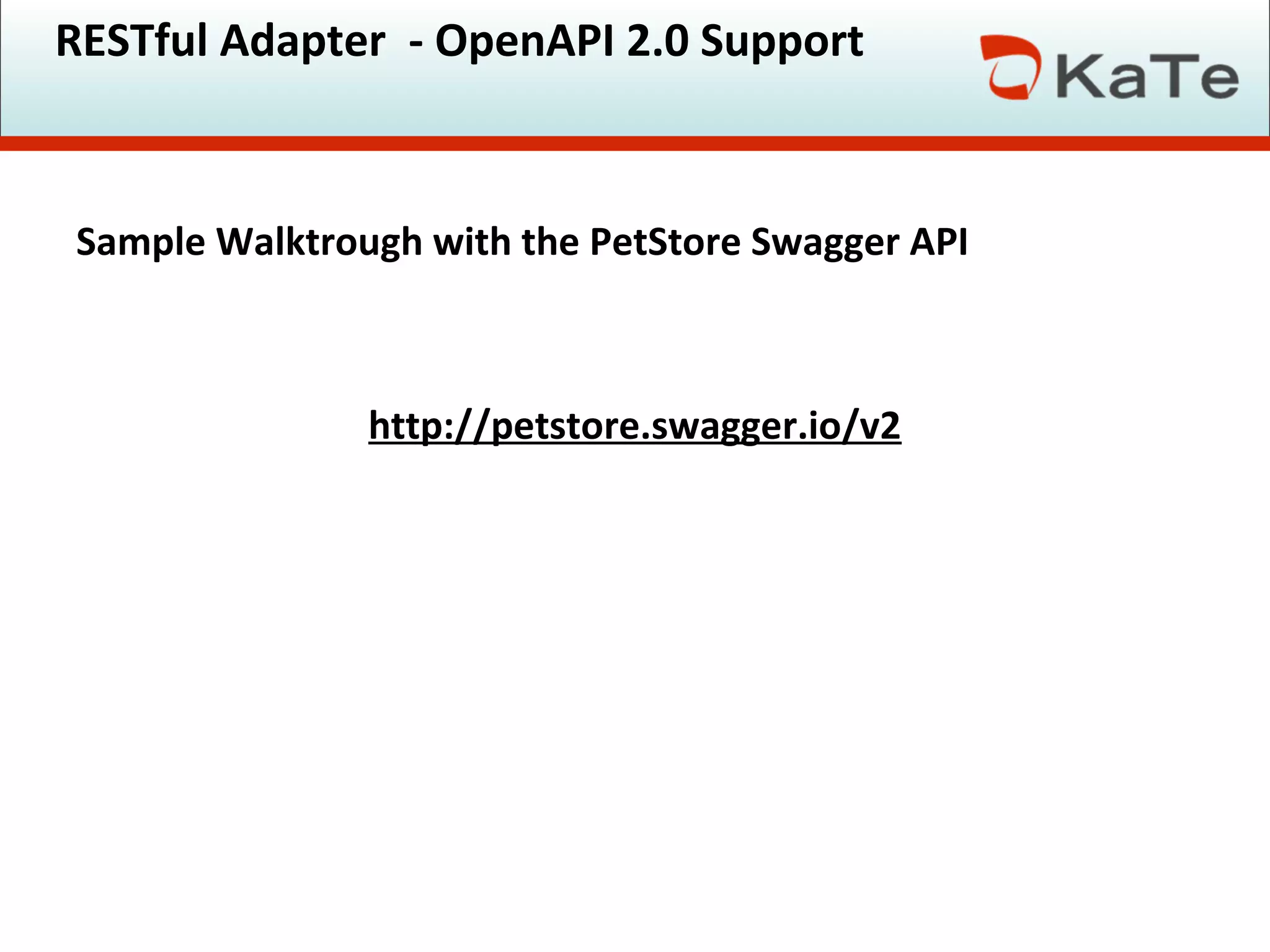

5. RESTful Adapter - OpenAPI 2.0 Support
Sample Walktrough with the PetStore Swagger API
http://petstore.swagger.io/v2

6. RESTful Adapter - OpenAPI 2.0 Support
1.) Create a Open API receiver channel (url + basepath „v2“)

7. RESTful Adapter - OpenAPI 2.0 Support
2 .) Navigate to new Option „Generate WSDL for OpenAPI“

8. RESTful Adapter - OpenAPI 2.0 Support
2 .) Enter all your details (WSDL name/namespace) +
OpenAPI/Swagger Location

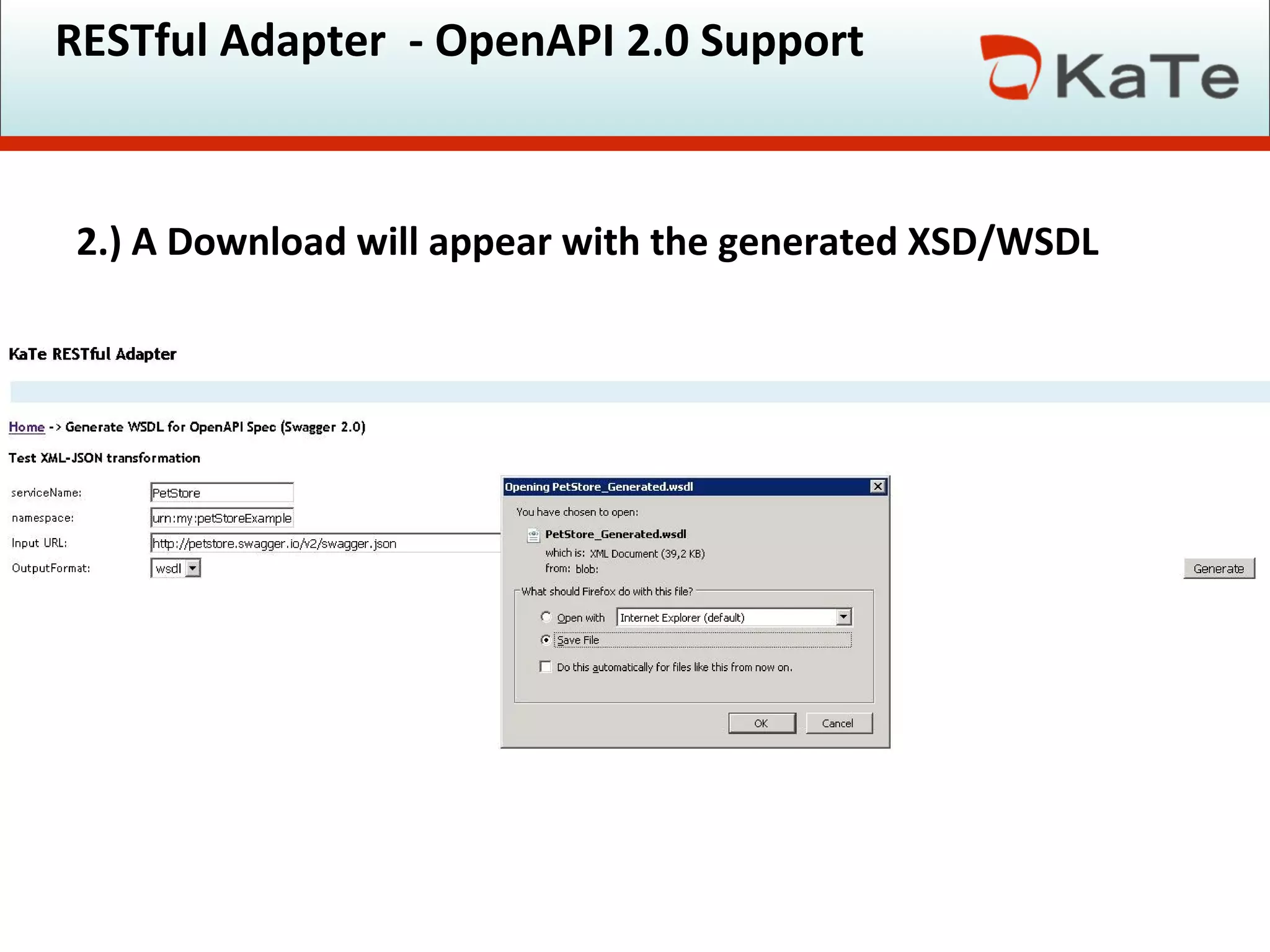

9. RESTful Adapter - OpenAPI 2.0 Support
2.) A Download will appear with the generated XSD/WSDL

10. RESTful Adapter - OpenAPI 2.0 Support
3.) Import the WSDL as Service Interface into ESR

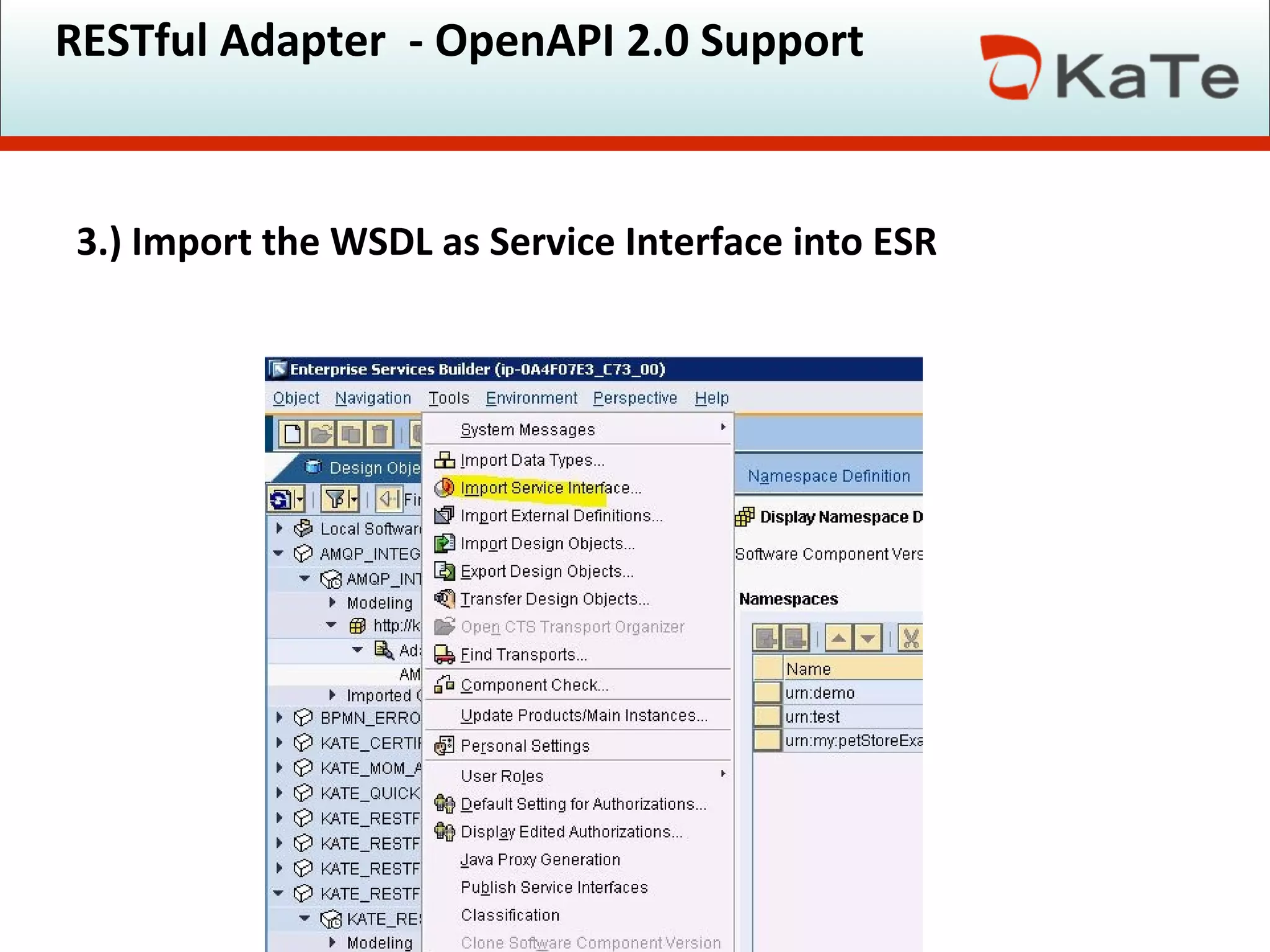

11. RESTful Adapter - OpenAPI 2.0 Support
3.) Import the WSDL as Service Interface into ESR

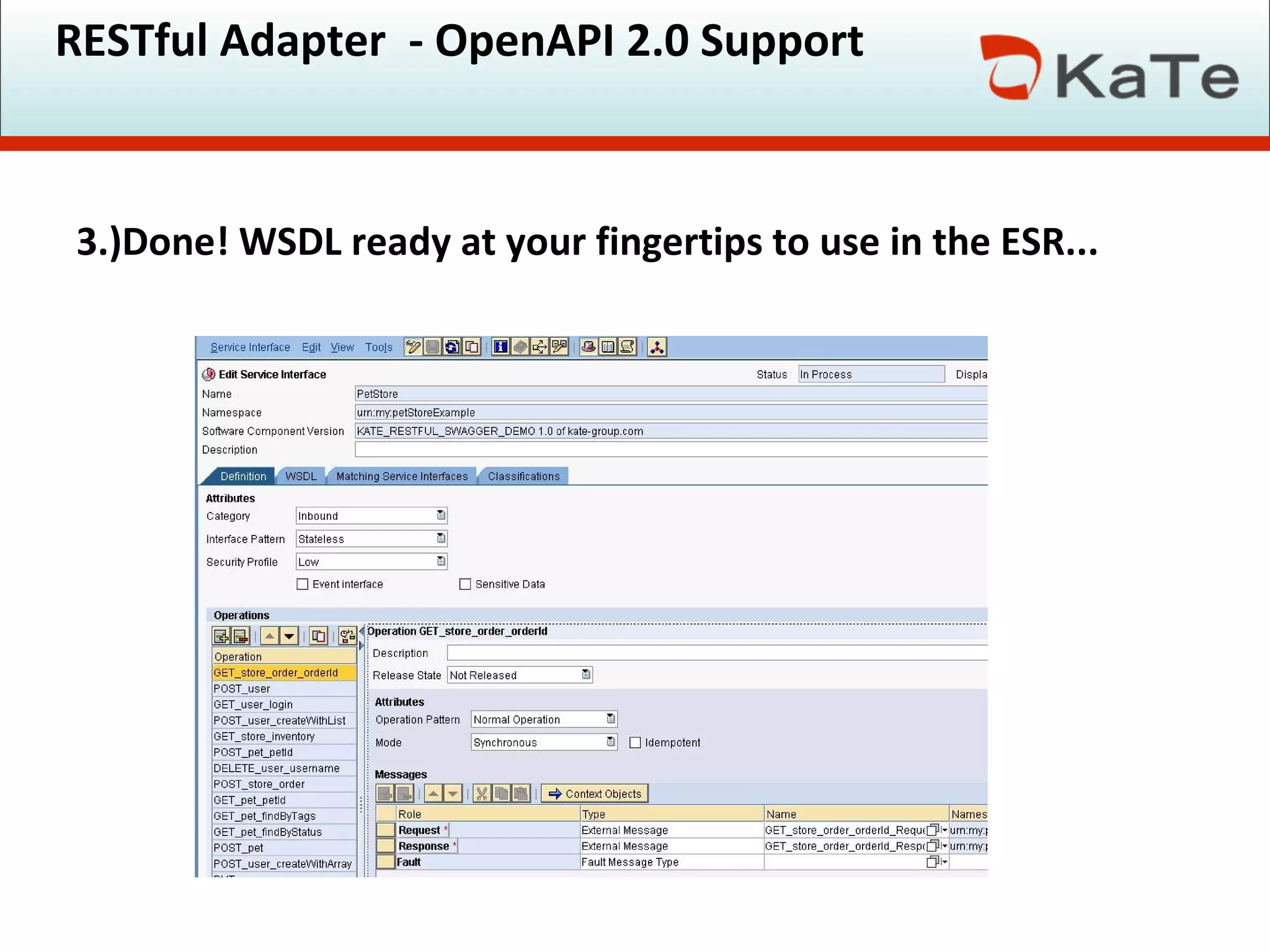

12. RESTful Adapter - OpenAPI 2.0 Support
3.)Done! WSDL ready at your fingertips to use in the ESR...

13. RESTful Adapter - OpenAPI 2.0 Support
Summary
• Simple „1 minute“ integration of OpenAPIs
• No guess work for JSON / Paths / Parameters, ASMA‘s, simply
mapping it with our proven Metadata approach
• The „rest“ is taken care of by our adapter as it should be in a
state of the art API integration extension (XML/JSON, URIs
etc)

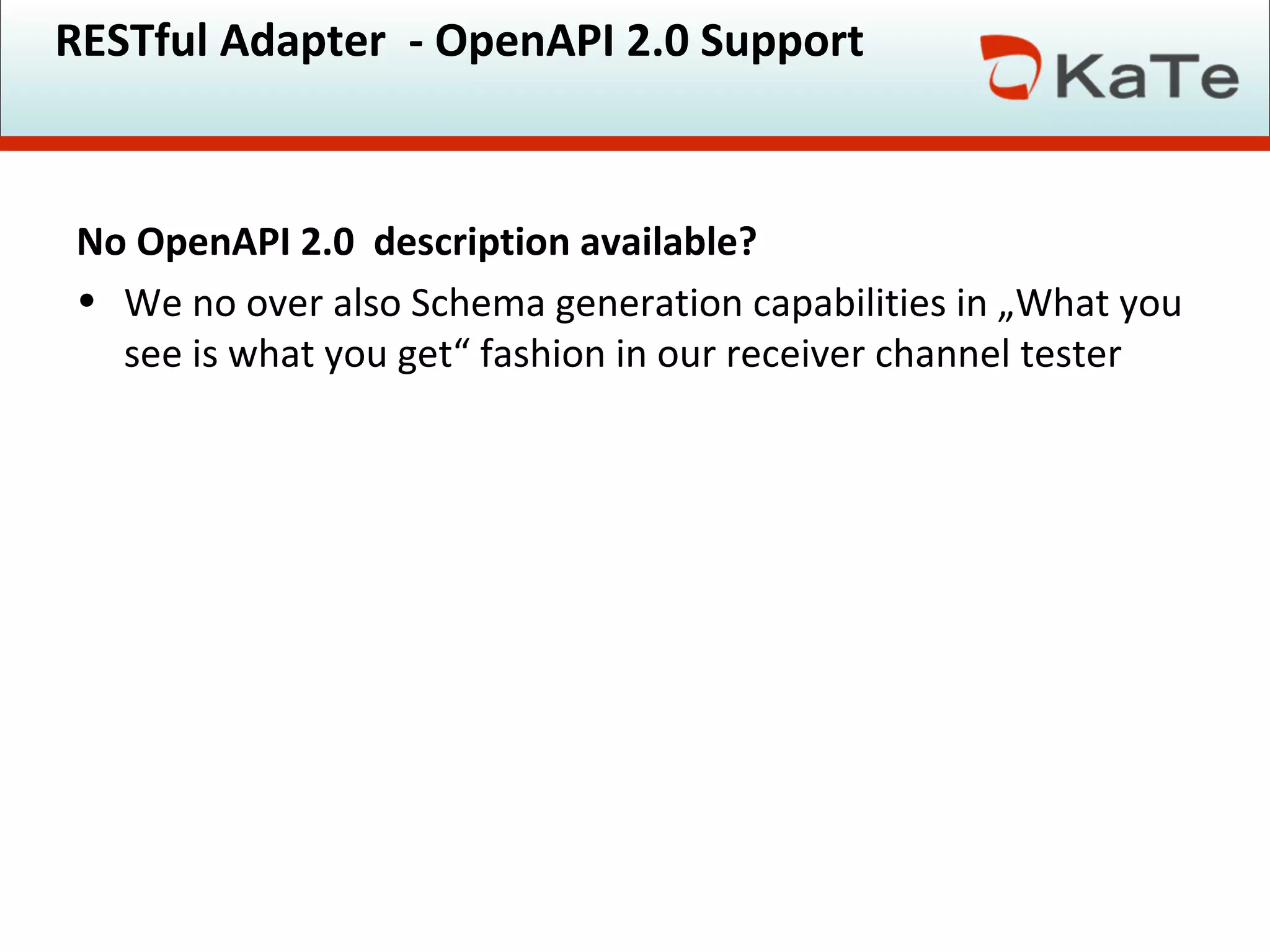

14. RESTful Adapter - OpenAPI 2.0 Support
No OpenAPI 2.0 description available?
• We no over also Schema generation capabilities in „What you
see is what you get“ fashion in our receiver channel tester

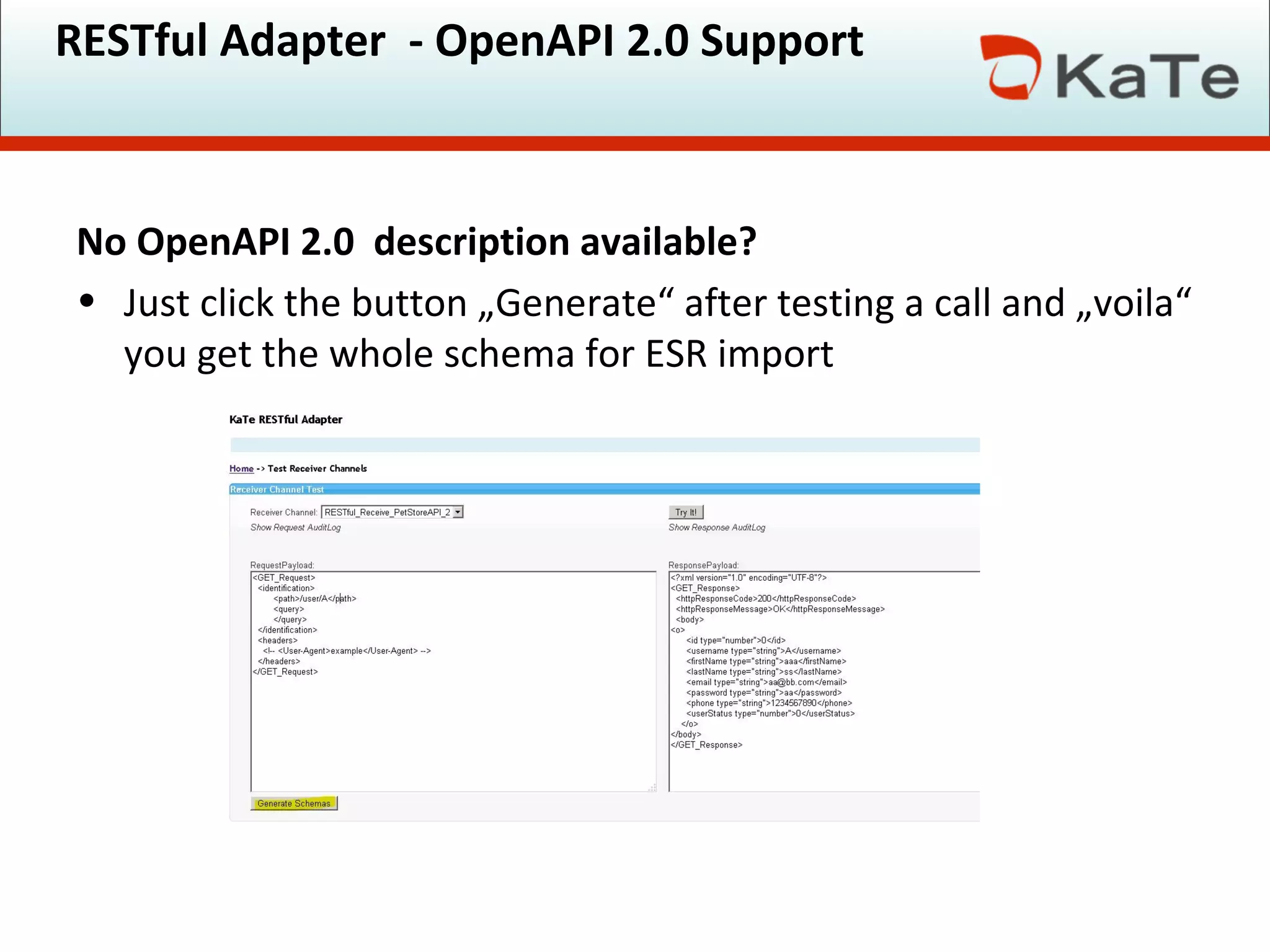

15. RESTful Adapter - OpenAPI 2.0 Support
No OpenAPI 2.0 description available?
• Just click the button „Generate“ after testing a call and „voila“
you get the whole schema for ESR import

16. RESTful Adapter
Interested in our SAP Certified offer?
We are pleased to hear your feedback
30 Day trial of the adapter available!

17. RESTful Adapter
Interested in our SAP Certified offer?
Contact us at :
 WWW: http:www//kate-group.com/
 T +49 711 90 79 64 65
 F +49 711 90 79 64 66
 E info@kate-group.com

18. RESTful Adapter - OpenAPI 2.0 Support
Sample Walktrough Admin UI:
• WSDL ready at your fingertips to use...
