This document evaluates and analyzes several open source simulation software tools - OpenModelica, Hopsan, and Scilab. It describes each tool, including their origins and capabilities. OpenModelica is a Modelica programming language environment from Linkoping University. Hopsan is also from Linkoping University and originally focused on hydraulic systems. Scilab is a Matlab alternative with many additional modules. The document demonstrates simple simulations with each tool and ultimately recommends Scilab as a powerful Matlab alternative, OpenModelica for its simulation capabilities, and Hopsan for hydraulic systems.

1. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 1
Zack Stull
OpenAdaptronik
Evaluation and Adaptation of Open Souce
Development Tools for Mechatronic Systems

2. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 2

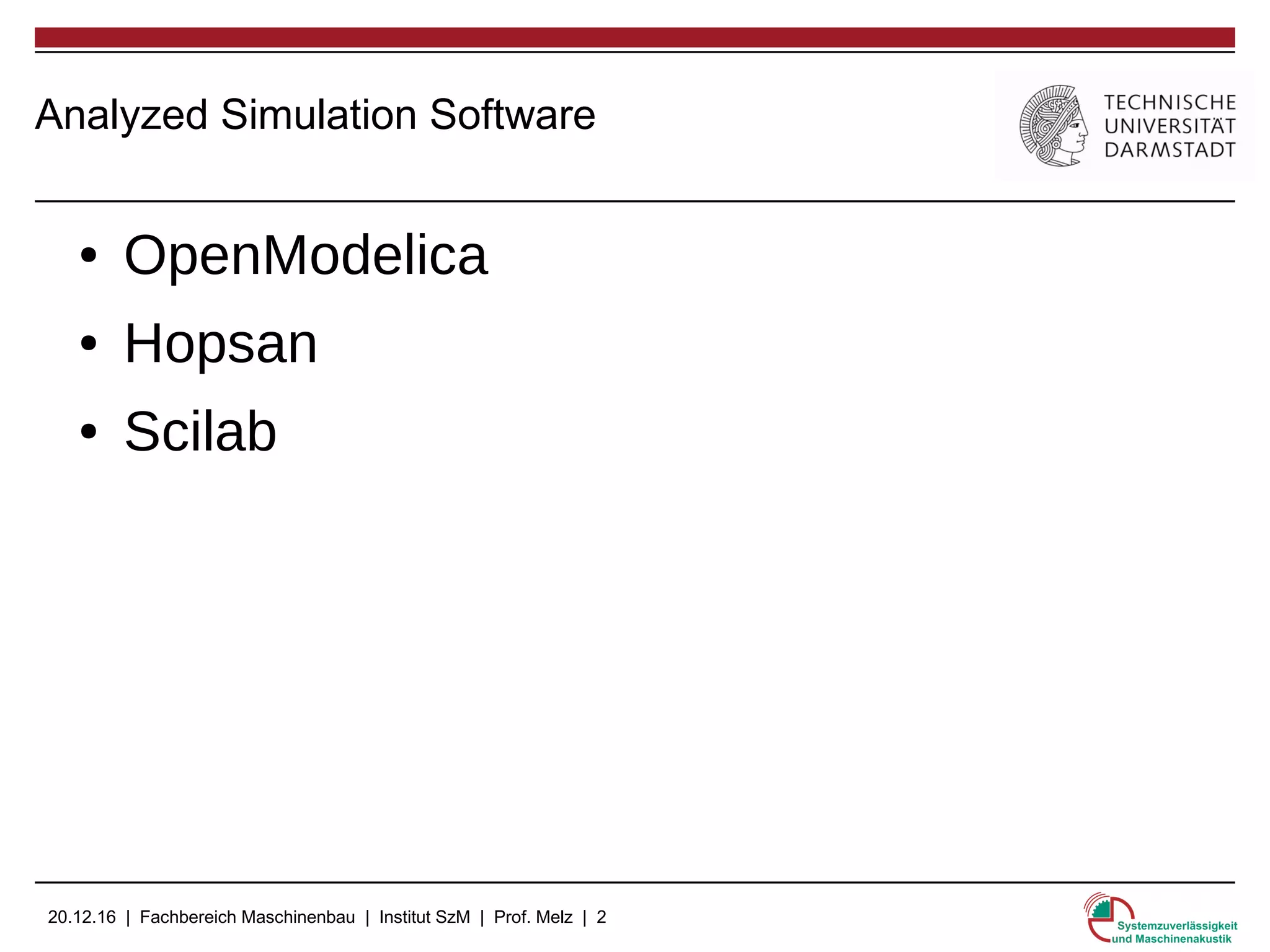

Analyzed Simulation Software
● OpenModelica
● Hopsan
● Scilab

3. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 3

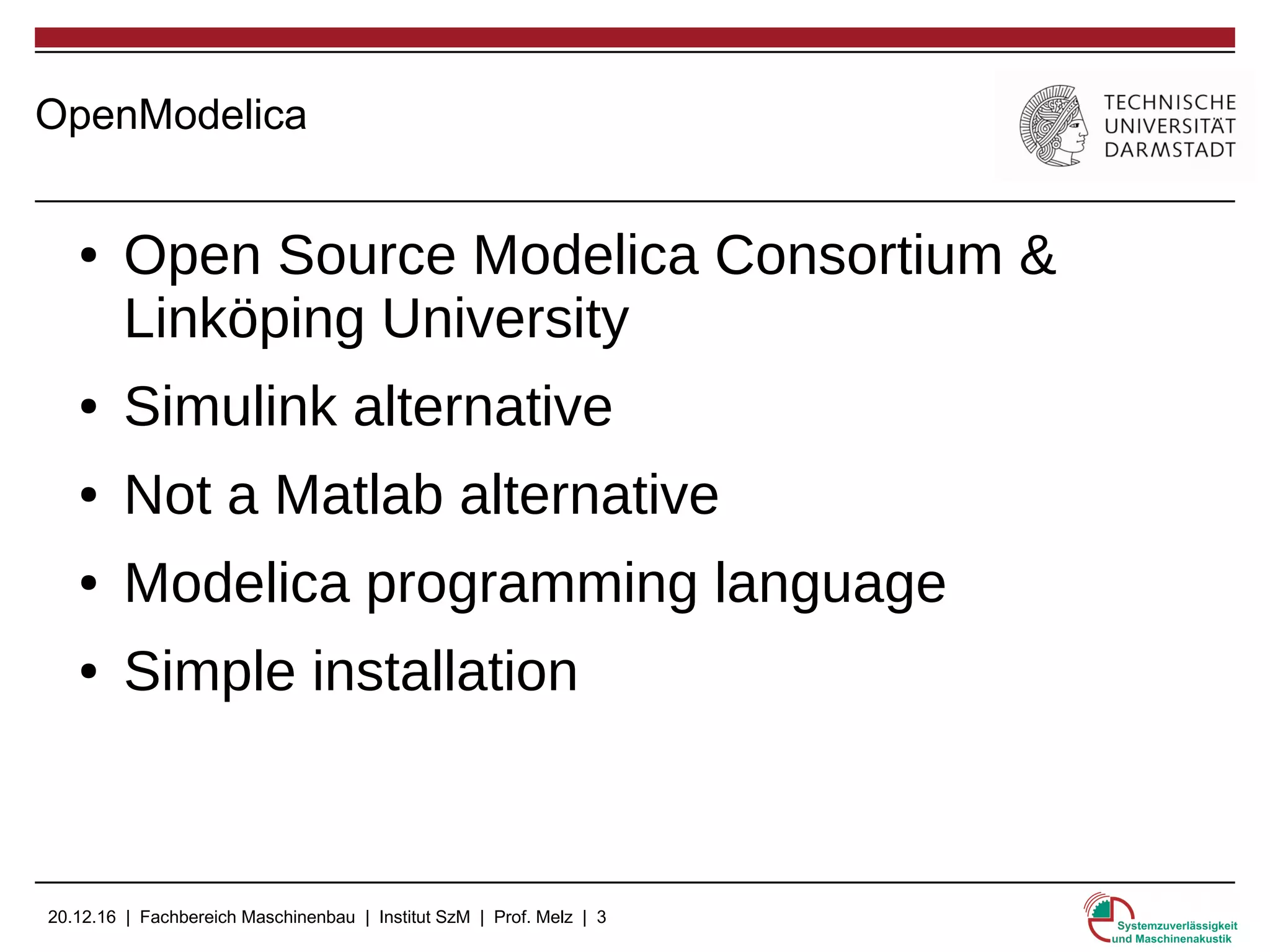

OpenModelica
● Open Source Modelica Consortium &
Linköping University
● Simulink alternative
● Not a Matlab alternative
● Modelica programming language
● Simple installation

4. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 4

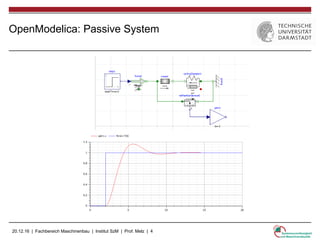

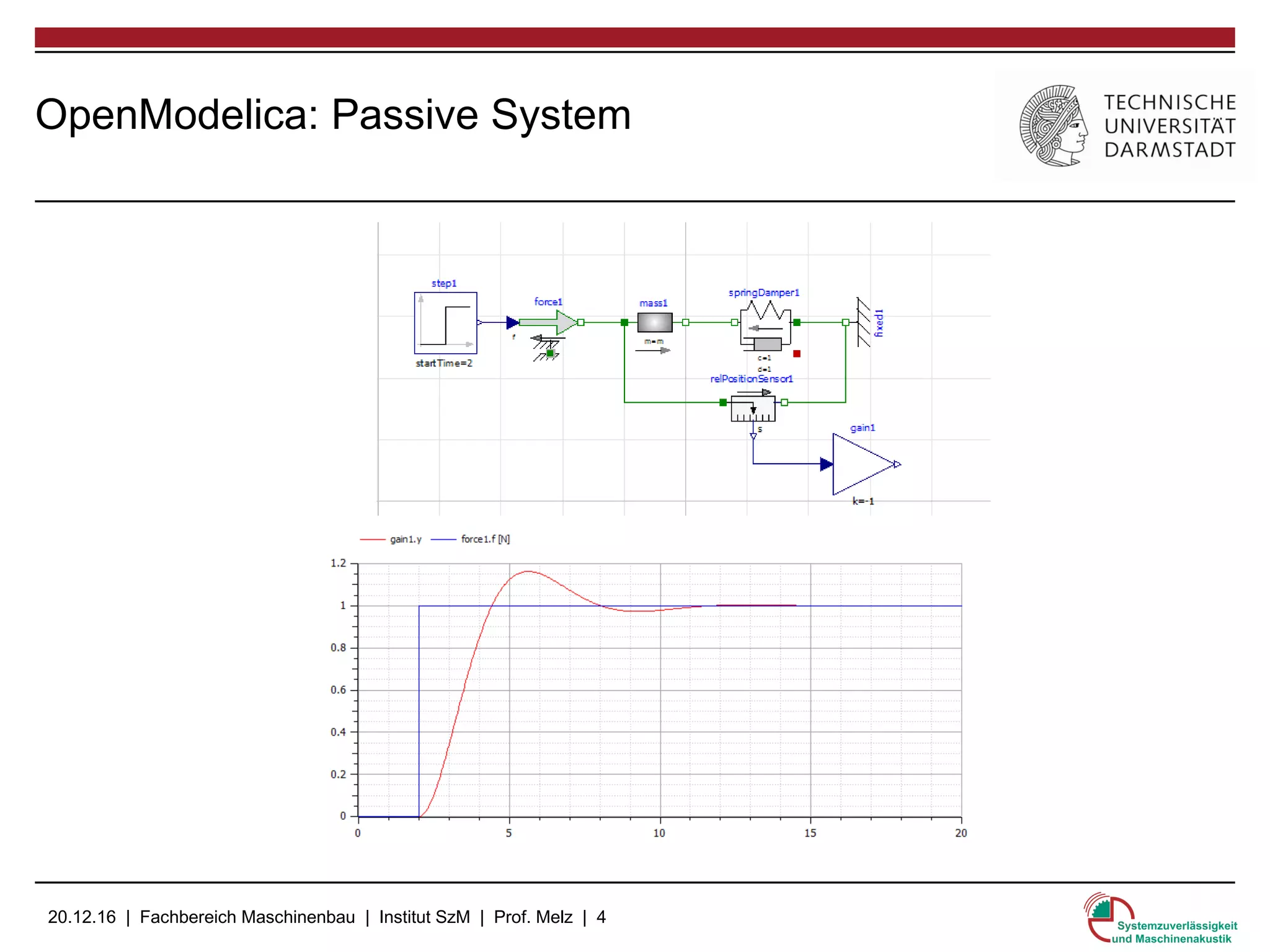

OpenModelica: Passive System

5. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 5
OpenModelica: Velocity Feedback

6. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 6

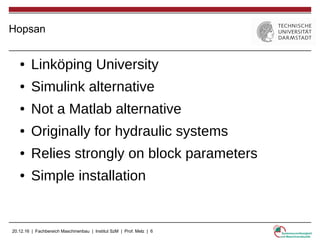

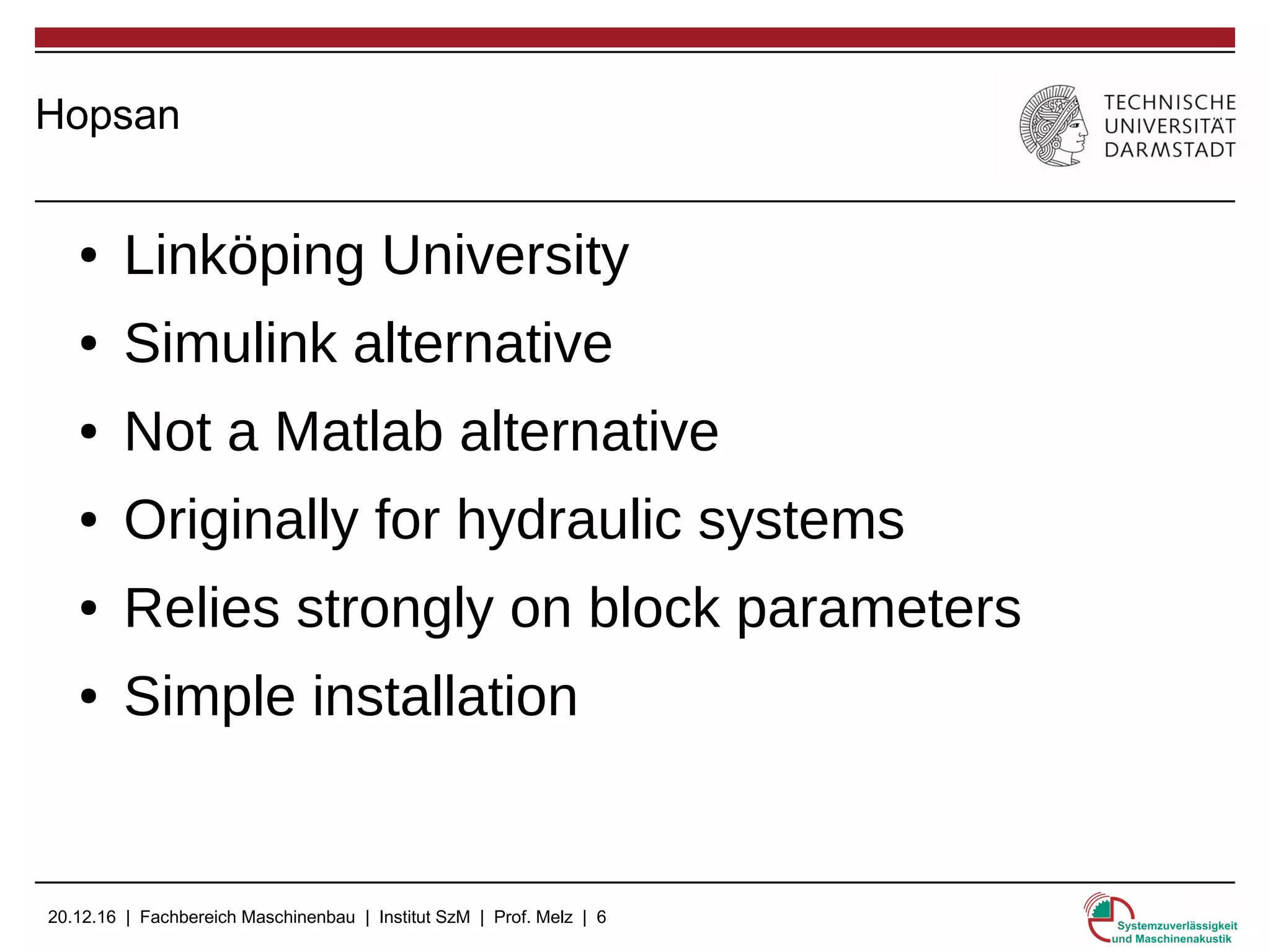

Hopsan
● Linköping University
● Simulink alternative
● Not a Matlab alternative
● Originally for hydraulic systems
● Relies strongly on block parameters
● Simple installation

7. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 7

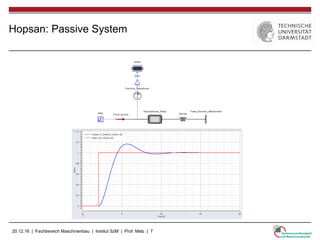

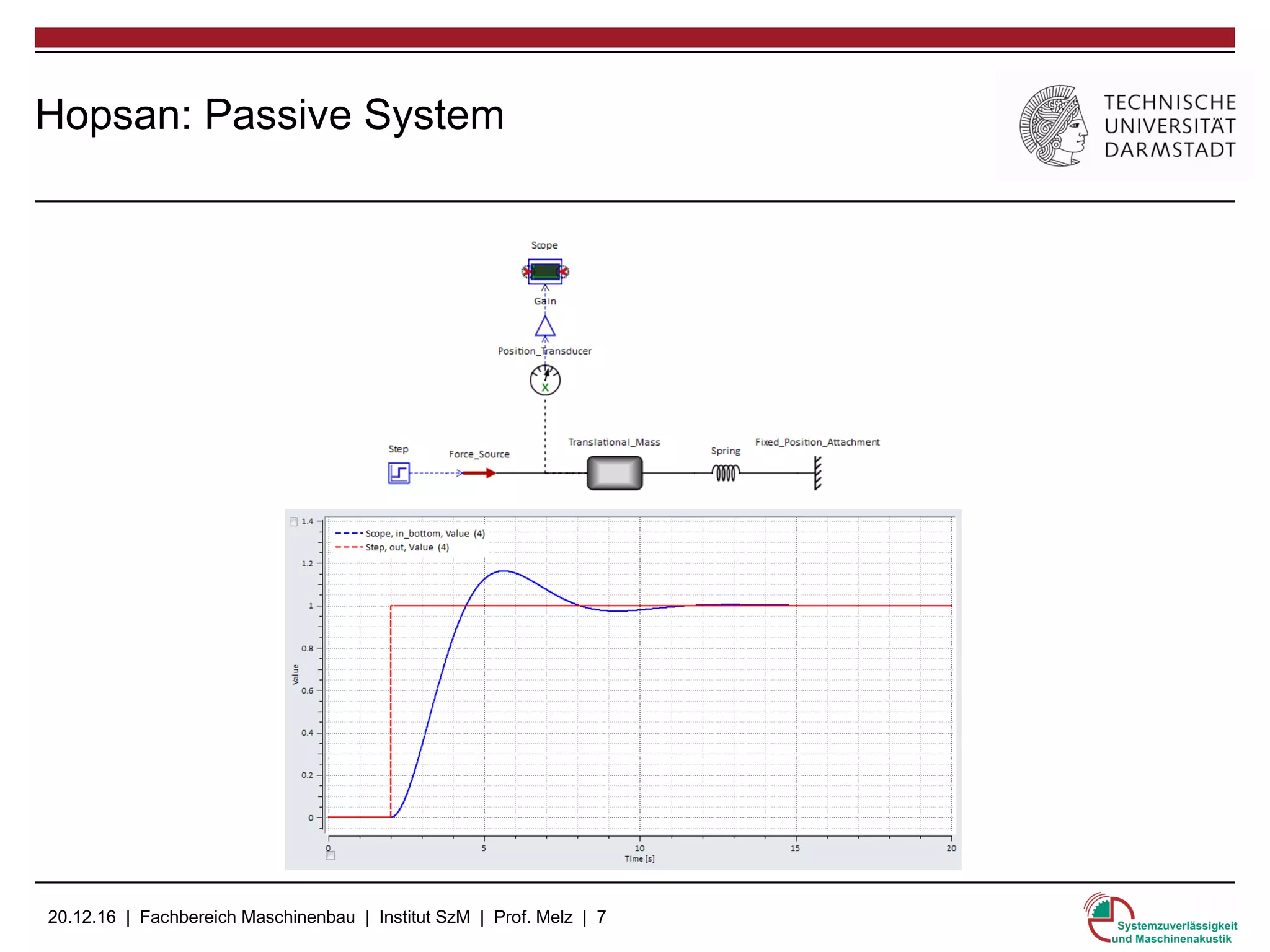

Hopsan: Passive System

8. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 8

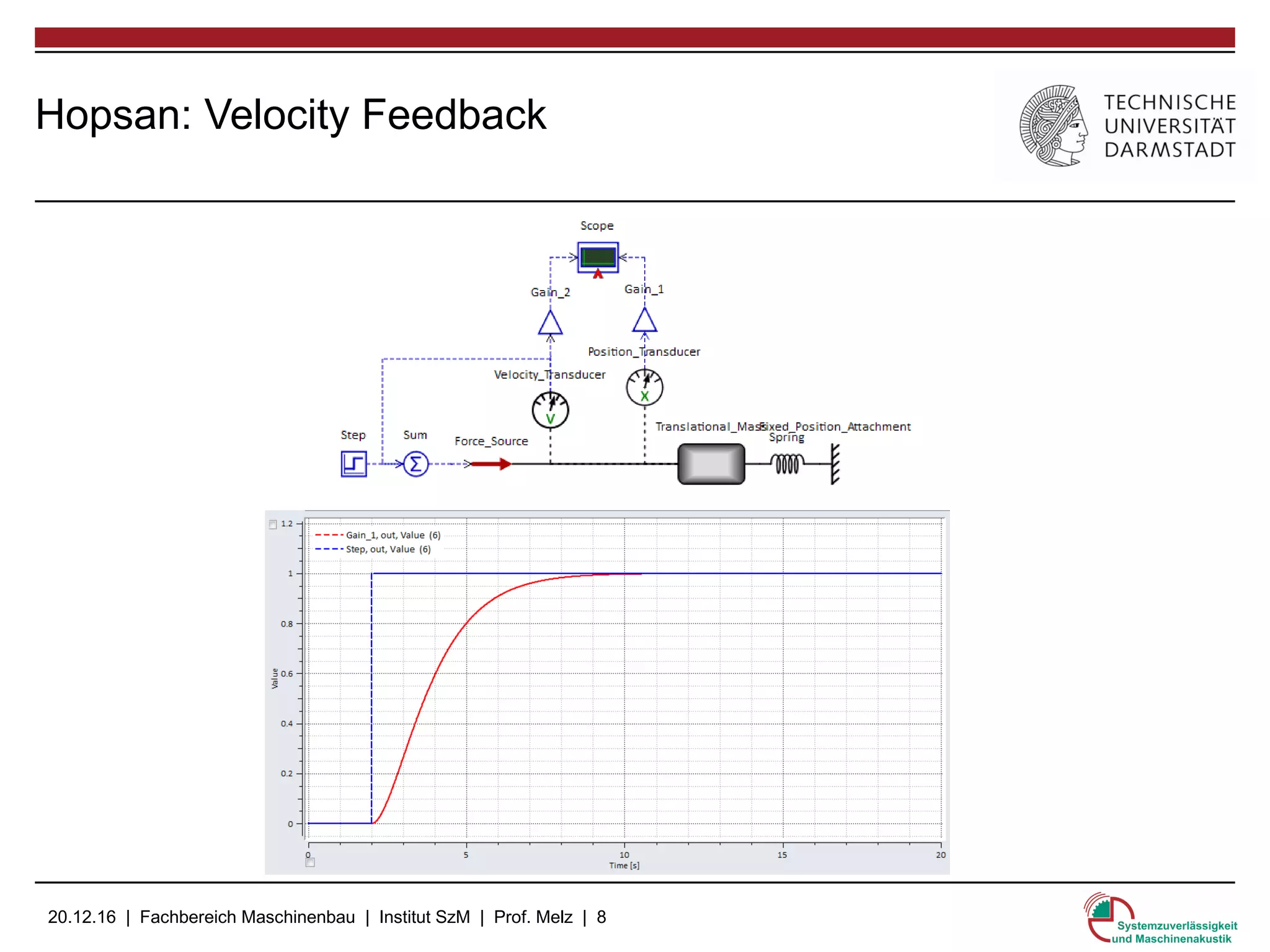

Hopsan: Velocity Feedback

9. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 9

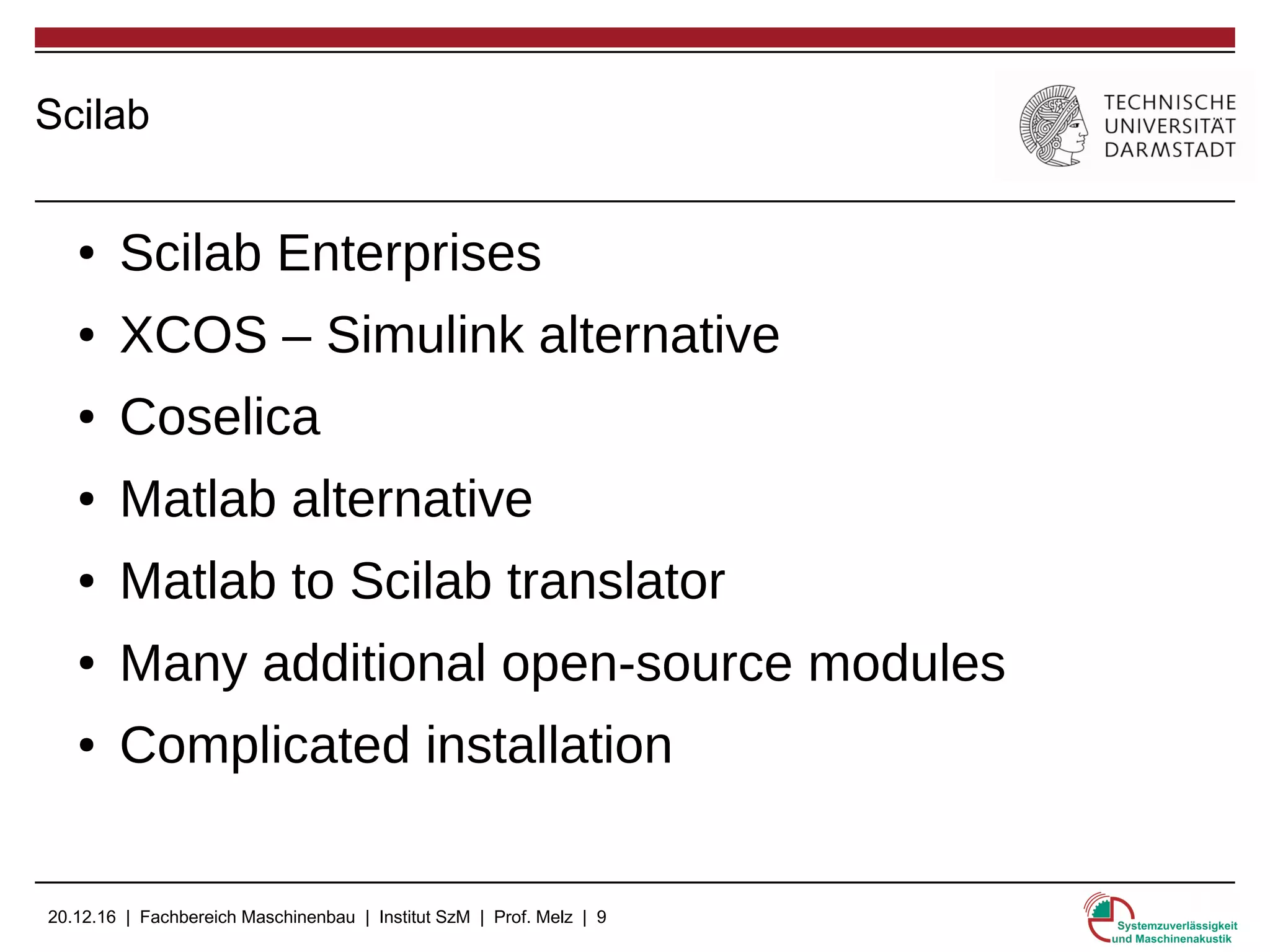

Scilab
● Scilab Enterprises
● XCOS – Simulink alternative
● Coselica
● Matlab alternative
● Matlab to Scilab translator
● Many additional open-source modules
● Complicated installation

10. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 10

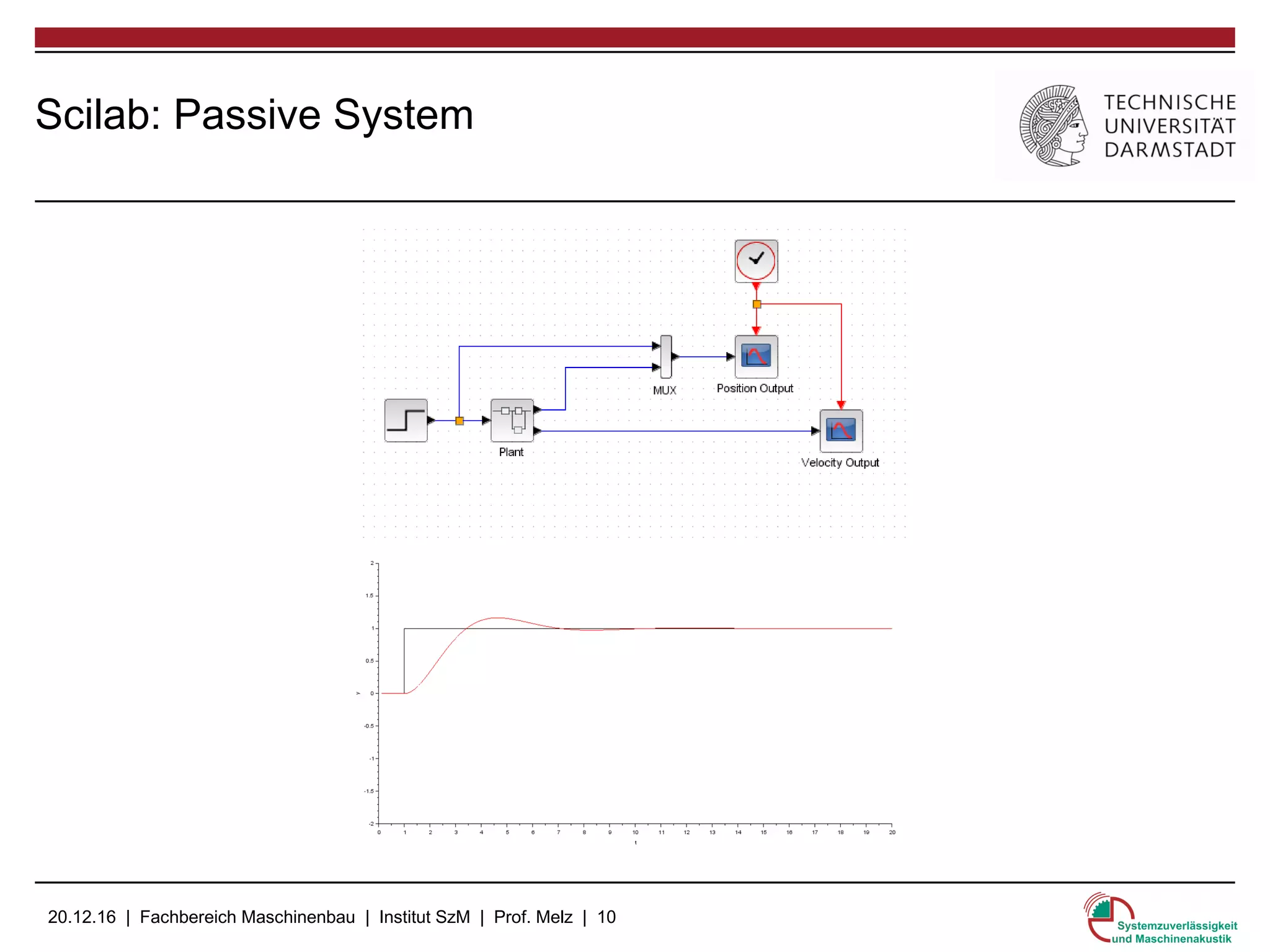

Scilab: Passive System

11. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 11

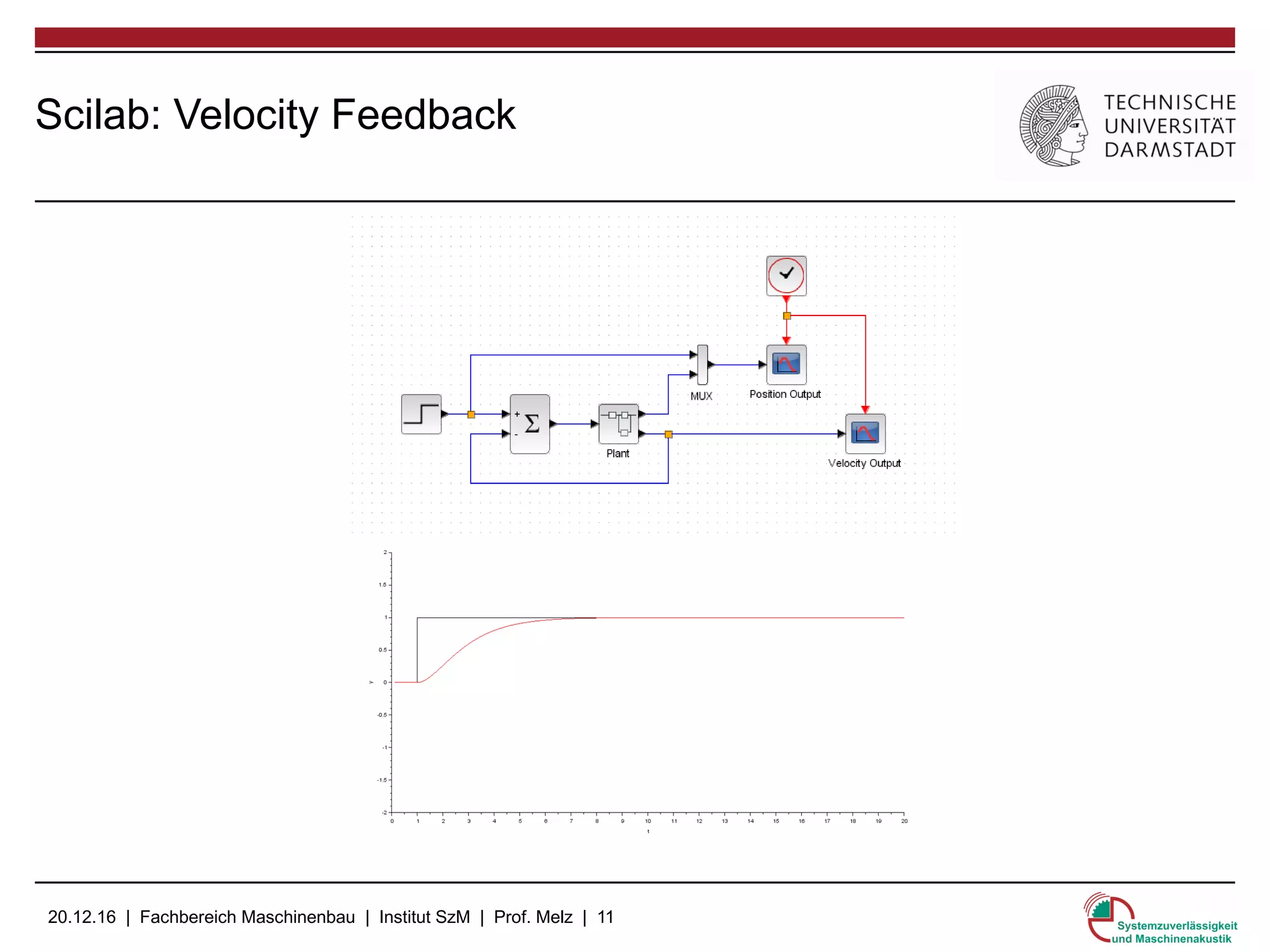

Scilab: Velocity Feedback

12. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 12

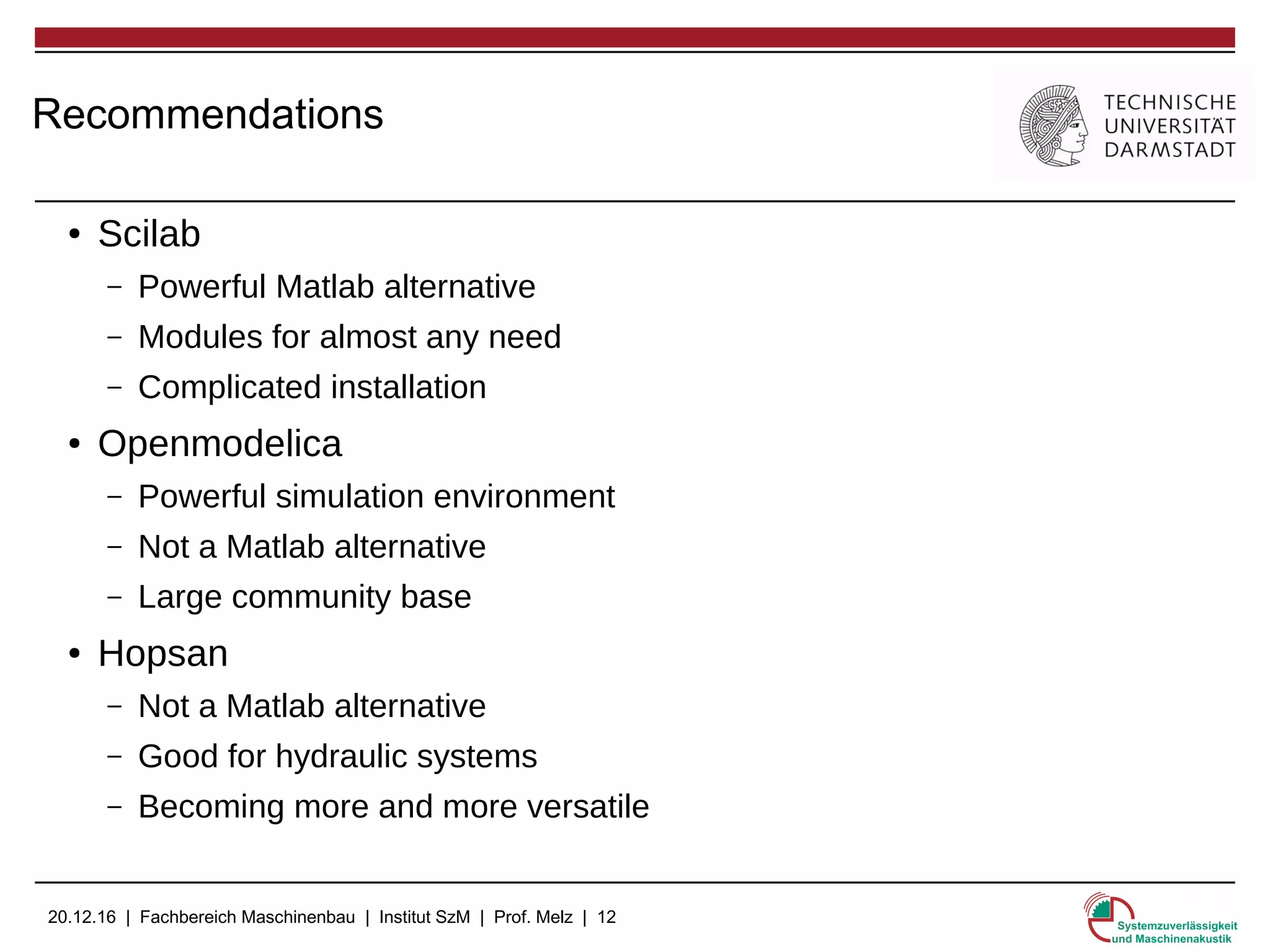

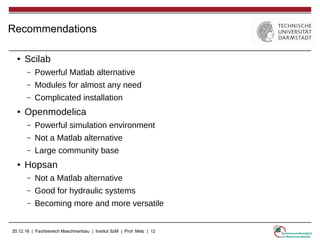

Recommendations
● Scilab
– Powerful Matlab alternative
– Modules for almost any need
– Complicated installation
● Openmodelica
– Powerful simulation environment
– Not a Matlab alternative
– Large community base
● Hopsan
– Not a Matlab alternative
– Good for hydraulic systems
– Becoming more and more versatile

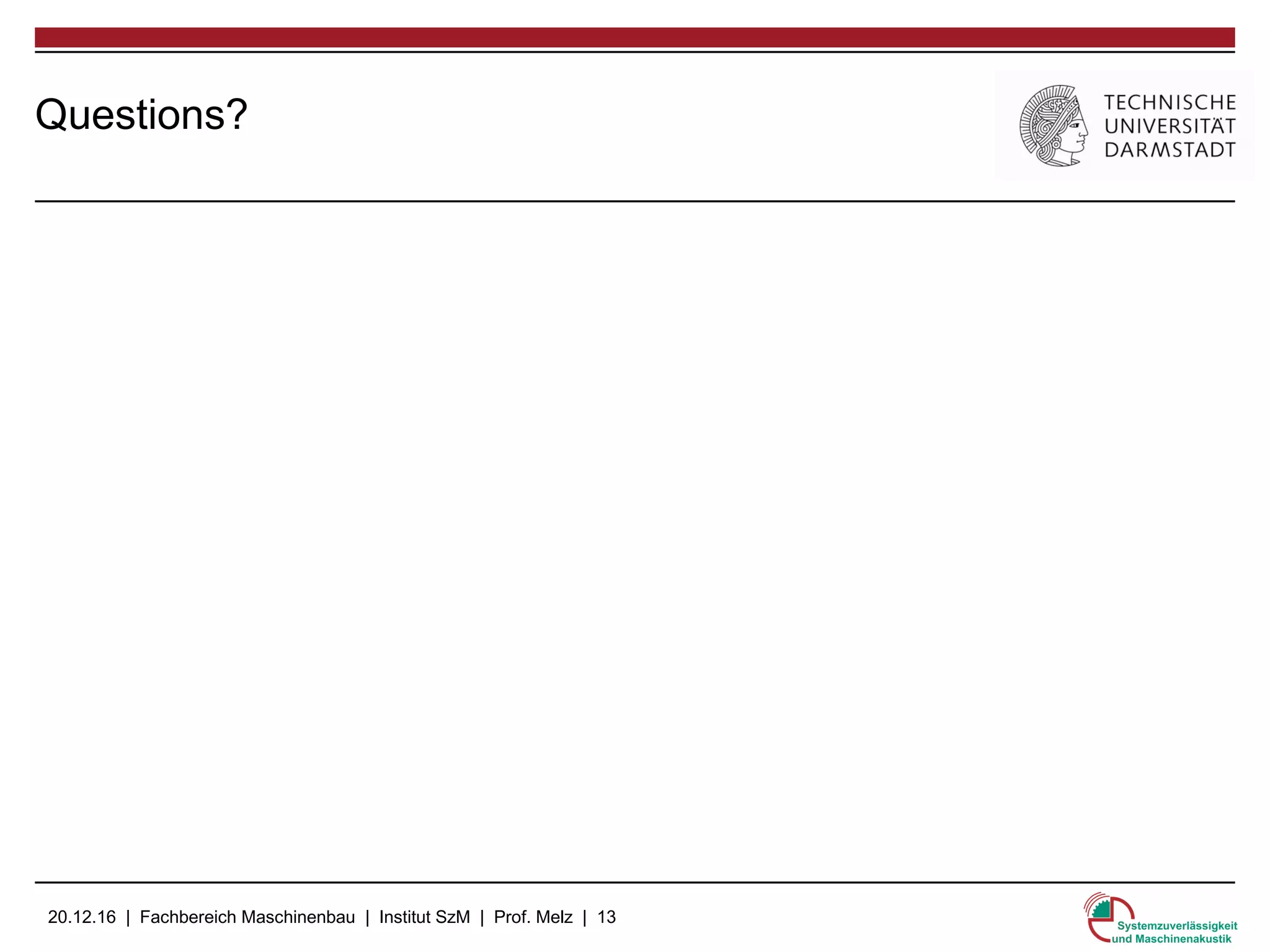

13. 20.12.16 | Fachbereich Maschinenbau | Institut SzM | Prof. Melz | 13

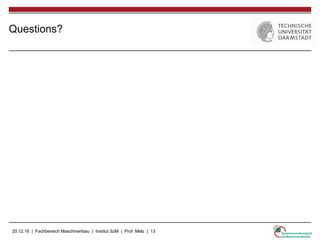

Questions?
