1. Odata Introduction
By Ahmad Dwedar
Andalusia Group
For Medical Services
ADS Department

2.  What is Odata ?
 Features of Odata
 OData Server Platforms
 Querying in Odata
 OData Operators
 Logical Operators
 Arithmetic Operators
 Odata Functions
 String Functions
 Date Functions
 Math Functions
 Odata Practical Example
Agenda
Andalusia Group
For Medical Services
ADS Department

3.  Open Data Protocol (OData) is an open protocol which allows
the creation and consumption of query able and interoperable
Restful APIs in a simple and standard way. Microsoft initiated
OData in 2007.
 The protocol enables the creation and consumption of REST
APIs, which allow Web clients to publish and edit resources,
identified using URLs and defined in a data model, using simple
HTTP messages. OData is not limited to relational databases.
What is Odata ?
Andalusia Group
For Medical Services
ADS Department

4.  Odata supports most of the Http verbs: Get, Post, Put, Delete,
Patch, Merge
 It supports three types of data formatting: Xml, Json, and Json
light
 It is platform and language independent
 No need to create proxy classes which we used to do it in web
service. We don't need to serialize the output data manually,
OData does the serialization for us
 open source, simple, flexible and light-weight
Features of Odata
Andalusia Group
For Medical Services
ADS Department

5.  WCF Data Services
 ASP.NET Web API
 Share Point
 MS SQL Server Reporting Services
 Windows Azure
 PHP, Java, IBM WebSphere/DB2/Informix
 For the entire list visit http://www.odata.org/ecosystem/
OData Server Platforms
Andalusia Group
For Medical Services
ADS Department

6. Querying in Odata
Option Example
$FILTER http://HMS:80/Api/EmployeesApi?$Filter=id eq 10
$SELECT http://HMS:80/Api/EmployeesApi?$Select=id,name,salary
$TOP http://HMS:80/Api/EmployeesApi?$Top=10
$SKIP http://HMS:80/Api/EmployeesApi?$Skip=5
$ORDERBY http://HMS:80/Api/EmployeesApi?$OrderBy=name desc
$INLINECOUNT http://HMS:80/Api/EmployeesApi?$Inlinecount
Andalusia Group
For Medical Services
ADS Department

7. Operator Explanation Example
AND And Operation http://HMS:80/Api/EmployeesApi?$Filter=Age gt 25 and IsActive eq true
OR Or Operation http://HMS:80/Api/EmployeesApi?$Filter=JobID eq 5 or JobID eq 8
NOT Not Operation http://HMS:80/Api/EmployeesApi?$Filter=not endswith(name,‘dwedar')
EQ Equal Check http://HMS:80/Api/EmployeesApi?$Filter=Salary eq 1000
NE Not Equal Check http://HMS:80/Api/EmployeesApi?$Filter=JobID ne 2
LT Less Than Check http://HMS:80/Api/EmployeesApi?$Filter=Salary lt 3000
GT Greater Than Check http://HMS:80/Api/EmployeesApi?$Filter=Salary gt 3000
LE Less Than Equal http://HMS:80/Api/EmployeesApi?$Filter=Age le 30
GE Greater Than Equal http://HMS:80/Api/EmployeesApi?$Filter=Age ge 21
OData Operators
Andalusia Group
For Medical Services
ADS Department
Logical Operators

8. Operator Explanation Example
Add Addition http://HMS:80/Api/Products?$filter=Price add 5 gt 10
Sub Subtraction http://HMS:80/Api/Products?$filter=Price sub 5 gt 10
Mul Multiplication http://HMS:80/Api/Products?$filter=Price mul 2 gt 2000
Div Division http://HMS:80/Api/Products?$filter=Price div 2 gt 4
Mod Modulo http://HMS:80/Api/Products?$filter=Price mod 2 eq 0
Grouping Precedence grouping http://HMS:80/Api/Products?$filter=(Price sub 5) gt 10
OData Operators
Andalusia Group
For Medical Services
ADS Department
Arithmetic Operators

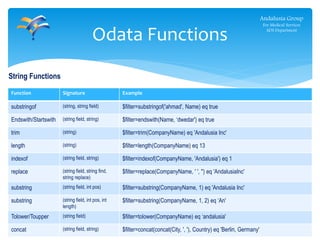

9. Function Signature Example
substringof (string, string field) $filter=substringof('ahmad', Name) eq true
Endswith/Startswith (string field, string) $filter=endswith(Name, ‘dwedar') eq true
trim (string) $filter=trim(CompanyName) eq 'Andalusia Inc'
length (string) $filter=length(CompanyName) eq 13
indexof (string field, string) $filter=indexof(CompanyName, 'Andalusia') eq 1
replace (string field, string find,
string replace)
$filter=replace(CompanyName, ' ', '') eq 'AndalusiaInc'
substring (string field, int pos) $filter=substring(CompanyName, 1) eq 'Andalusia Inc'
substring (string field, int pos, int
length)
$filter=substring(CompanyName, 1, 2) eq ‘An'
Tolower/Toupper (string field) $filter=tolower(CompanyName) eq ‘andalusia'
concat (string field, string) $filter=concat(concat(City, ', '), Country) eq 'Berlin, Germany'
Odata Functions
Andalusia Group
For Medical Services
ADS Department
String Functions

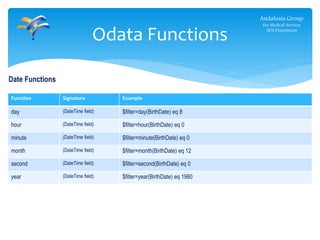

10. Function Signature Example
day (DateTime field) $filter=day(BirthDate) eq 8
hour (DateTime field) $filter=hour(BirthDate) eq 0
minute (DateTime field) $filter=minute(BirthDate) eq 0
month (DateTime field) $filter=month(BirthDate) eq 12
second (DateTime field) $filter=second(BirthDate) eq 0
year (DateTime field) $filter=year(BirthDate) eq 1980
Odata Functions
Andalusia Group
For Medical Services
ADS Department
Date Functions

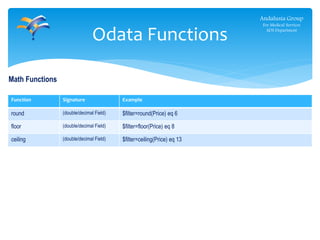

11. Function Signature Example
round (double/decimal Field) $filter=round(Price) eq 6
floor (double/decimal Field) $filter=floor(Price) eq 8
ceiling (double/decimal Field) $filter=ceiling(Price) eq 13
Odata Functions
Andalusia Group
For Medical Services
ADS Department
Math Functions

12. Odata
Andalusia Group
For Medical Services
ADS Department
Odata Practical
Example

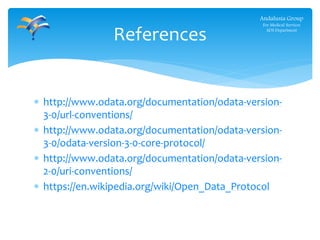

13. References
Andalusia Group
For Medical Services
ADS Department
 http://www.odata.org/documentation/odata-version-
3-0/url-conventions/
 http://www.odata.org/documentation/odata-version-
3-0/odata-version-3-0-core-protocol/
 http://www.odata.org/documentation/odata-version-
2-0/uri-conventions/
 https://en.wikipedia.org/wiki/Open_Data_Protocol
