1. Objective: Binary Search Tree traversal (2 points)
Use traversal.pptx as guidance to write a program to build a binary search tree Dictionary. Input
records from inventory.txt. Both key and Element of BST have the same data from each input
record.
public interface BinNode {
/** Get and set the element value */
public E element();
public void setElement(E v);
/** @return The left child */
public BinNode left();
/** @return The right child */
public BinNode right();
/** @return True if a leaf node, false otherwise */
public boolean isLeaf();
}
import java.lang.Comparable;
/** Binary Search Tree implementation for Dictionary ADT */
class BST, E>
implements Dictionary {
private BSTNode root; // Root of the BST
int nodecount; // Number of nodes in the BST
/** Constructor */
BST() { root = null; nodecount = 0; }
/** Reinitialize tree */
public void clear() { root = null; nodecount = 0; }
/** Insert a record into the tree.
@param k Key value of the record.
@param e The record to insert. */
public void insert(Key k, E e) {
root = inserthelp(root, k, e);
nodecount++;
}
// Return root
public BSTNode getRoot()
{

2. return root;
}
/** Remove a record from the tree.
@param k Key value of record to remove.
@return The record removed, null if there is none. */
public E remove(Key k) {
E temp = findhelp(root, k); // First find it
if (temp != null) {
root = removehelp(root, k); // Now remove it
nodecount--;
}
return temp;
}
/** Remove and return the root node from the dictionary.
@return The record removed, null if tree is empty. */
public E removeAny() {
if (root == null) return null;
E temp = root.element();
root = removehelp(root, root.key());
nodecount--;
return temp;
}
/** @return Record with key value k, null if none exist.
@param k The key value to find. */
public E find(Key k) { return findhelp(root, k); }
/** @return The number of records in the dictionary. */
public int size() { return nodecount; }
private E findhelp(BSTNode rt, Key k) {
if (rt == null) return null;
if (rt.key().compareTo(k) > 0)
return findhelp(rt.left(), k);
else if (rt.key().compareTo(k) == 0) return rt.element();
else return findhelp(rt.right(), k);
}

3. /** @return The current subtree, modified to contain
the new item */
private BSTNode inserthelp(BSTNode rt,
Key k, E e) {
if (rt == null) return new BSTNode(k, e);
if (rt.key().compareTo(k) > 0)
rt.setLeft(inserthelp(rt.left(), k, e));
else
rt.setRight(inserthelp(rt.right(), k, e));
return rt;
}
/** Remove a node with key value k
@return The tree with the node removed */
private BSTNode removehelp(BSTNode rt,Key k) {
if (rt == null) return null;
if (rt.key().compareTo(k) > 0)
rt.setLeft(removehelp(rt.left(), k));
else if (rt.key().compareTo(k) < 0)
rt.setRight(removehelp(rt.right(), k));
else { // Found it
if (rt.left() == null) return rt.right();
else if (rt.right() == null) return rt.left();
else { // Two children
BSTNode temp = getmin(rt.right());
rt.setElement(temp.element());
rt.setKey(temp.key());
rt.setRight(deletemin(rt.right()));
}
}
return rt;
}
private BSTNode getmin(BSTNode rt) {
if (rt.left() == null) return rt;
return getmin(rt.left());
}

4. private BSTNode deletemin(BSTNode rt) {
if (rt.left() == null) return rt.right();
rt.setLeft(deletemin(rt.left()));
return rt;
}
private void printhelp(BSTNode rt) {
if (rt == null) return;
printhelp(rt.left());
printVisit(rt.element());
printhelp(rt.right());
}
private StringBuffer out;
public String toString() {
out = new StringBuffer(400);
printhelp(root);
return out.toString();
}
private void printVisit(E it) {
out.append(it + " ");
}
}
class BSTNode implements BinNode {
private Key key; // Key for this node
private E element; // Element for this node
private BSTNode left; // Pointer to left child
private BSTNode right; // Pointer to right child
/** Constructors */
public BSTNode() {left = right = null; }
public BSTNode(Key k, E val)
{ left = right = null; key = k; element = val; }
public BSTNode(Key k, E val,
BSTNode l, BSTNode r)
{ left = l; right = r; key = k; element = val; }
/** Get and set the key value */
public Key key() { return key; }
public void setKey(Key k) { key = k; }

5. /** Get and set the element value */
public E element() { return element; }
public void setElement(E v) { element = v; }
/** Get and set the left child */
public BSTNode left() { return left; }
public void setLeft(BSTNode p) { left = p; }
/** Get and set the right child */
public BSTNode right() { return right; }
public void setRight(BSTNode p) { right = p; }
/** @return True if a leaf node, false otherwise */
public boolean isLeaf()
{ return (left == null) && (right == null); }
}
public interface Dictionary {
/** Reinitialize dictionary */
public void clear();
/** Insert a record
@param k The key for the record being inserted.
@param e The record being inserted. */
public void insert(Key k, E e);
/** Remove and return a record.
@param k The key of the record to be removed.
@return A maching record. If multiple records match
"k", remove an arbitrary one. Return null if no record
with key "k" exists. */
public E remove(Key k);
/** Remove and return an arbitrary record from dictionary.
@return the record removed, or null if none exists. */
public E removeAny();
/** @return A record matching "k" (null if none exists).
If multiple records match, return an arbitrary one.
@param k The key of the record to find */
public E find(Key k);
/** @return The number of records in the dictionary. */
public int size();
};

6. //
inventory.txt
traverse
CT16C1288B
DT14B1225F
MI15B1250A
MI15B1251A
HO03N1095A
HY07D1095BQ
KI04D2593C
DG12A1240AQ
HY03G2593BQ
TO30A1310A
HO03N1095AQ
HO01H1351C
HO01H1350C
FT18A1288B
LR15A1000A
BM12E1000A
VW02B3113A
NI23H1230AQ
LX03D2503A
LX03D2502A
LX03D2502A
VW22A3113B
VW22B3113A
Solution
public class BST implements Dictionary {
BSTNode root; // the root of the BST.
// constructor
public BST() {
this(null);
}

7. // parametrized constructor
public BST(BSTNode root) {
this.root = root;
}
// arranging nodes when cases like deleting node
public BSTNode MinAttach(BSTNode right, BSTNode left) {
if(right.getLeft() == null) {
right.setLeft(left);
return right;
}
else {
right.setLeft(MinAttach(right.getLeft(), left));
return right;
}
}
// deleting entry ..passing key
public void delete(K key) {
this.root = deleteNodeRecursively(root, key);
}
// deleting nodes
public BSTNode DeleteDoubNode(BSTNode node) {
if(node.getLeft() == null) {
//at the bottom of the nodes.
return node.getRight();
}
else {
//set the left node as the right of the one we found at the bottom.
node.setLeft(DeleteDoubNode(node.getLeft()));
}
return node;
}
// recursively deleting node
public BSTNode deleteNodeRecursively(BSTNode node, K key) {
// check right node to delete
if(key.compareTo(node.getKey()) == 0) {
// check for leaf

8. if((node.getLeft() == null) && (node.getRight() == null)) {
return null;
}
//check node with right child
else if((node.getLeft() == null) && (node.getRight() != null)) {
return node.getRight();
}
//check node with left child
else if((node.getLeft() != null) && (node.getRight() == null)) {
return node.getLeft();
}
// check node with two children
else if((node.getLeft() != null) && (node.getRight() != null)) {
BSTNode replacementNode = findMin(node.getRight());
BSTNode backupLeft = node.getLeft();
replacementNode.setRight(DeleteDoubNode(node.getRight()));
replacementNode.setLeft(backupLeft);
return replacementNode;
}
else {
return node;
}
}
//check key is less than
else if(key.compareTo(node.getKey()) < 0) {
if(node.getLeft() != null) {
node.left = deleteNodeRecursively(node.getLeft(), key);
return node;
}
}
//check key is greater than
else {
if(node.getRight() != null) {
node.right = deleteNodeRecursively(node.getRight(), key);
return node;
}

9. }
return node;
}
// returns depth of tree
public int depth() {
return depthPostOrder(root, 0);
}
// find minimum value of BST
public BSTNode findMin(BSTNode node) {
while(node.getLeft() != null) {
node = node.getLeft();
}
return node;
}
// BST inorder
public void inorder(BSTNode node) {
if(node != null) {
inorder(node.getLeft()); //get first left keys
System.out.println("key: " + node.getKey().toString() + " element: " +
node.getElement().toString());
inorder(node.getRight());
}
}
// inserting new element
public void insert(K key, E element) {
if(root == null) {
root = new BSTNode(key, element, null, null);
}
else {
insertBelow(root, key, element);
}
}
// recursive preorder depth
int depthPostOrder(BSTNode node, int current_depth) {
if(node != null) {return Math.max(depthPostOrder(node.getLeft(), current_depth+1),

10. depthPostOrder(node.getRight(), current_depth+1));
}
else return current_depth;
}
// printing whole tree
public void printTree() {
//printing recursively
System.out.println(" Outputting BSTree...");
inorder(root);
}
// serach method
public E search(K key) {
BSTNode nodeFound;
nodeFound = searchingNode(key);
if(nodeFound == null) {
return null; //not found
}
else return searchingNode(key).getElement(); //call another helper method.
}
// searching node
public BSTNode searchingNode(K key) {
if(key == null) {
return null;
}
if(root == null) {
return null; //if empty tree
}
//if both keys are equal
if(key.compareTo(root.getKey()) == 0) {
return root;
}
//less than root key
else if(key.compareTo(root.getKey()) < 0) {
return searchBelow(root.getLeft(), key); //call the recursive search method.
}

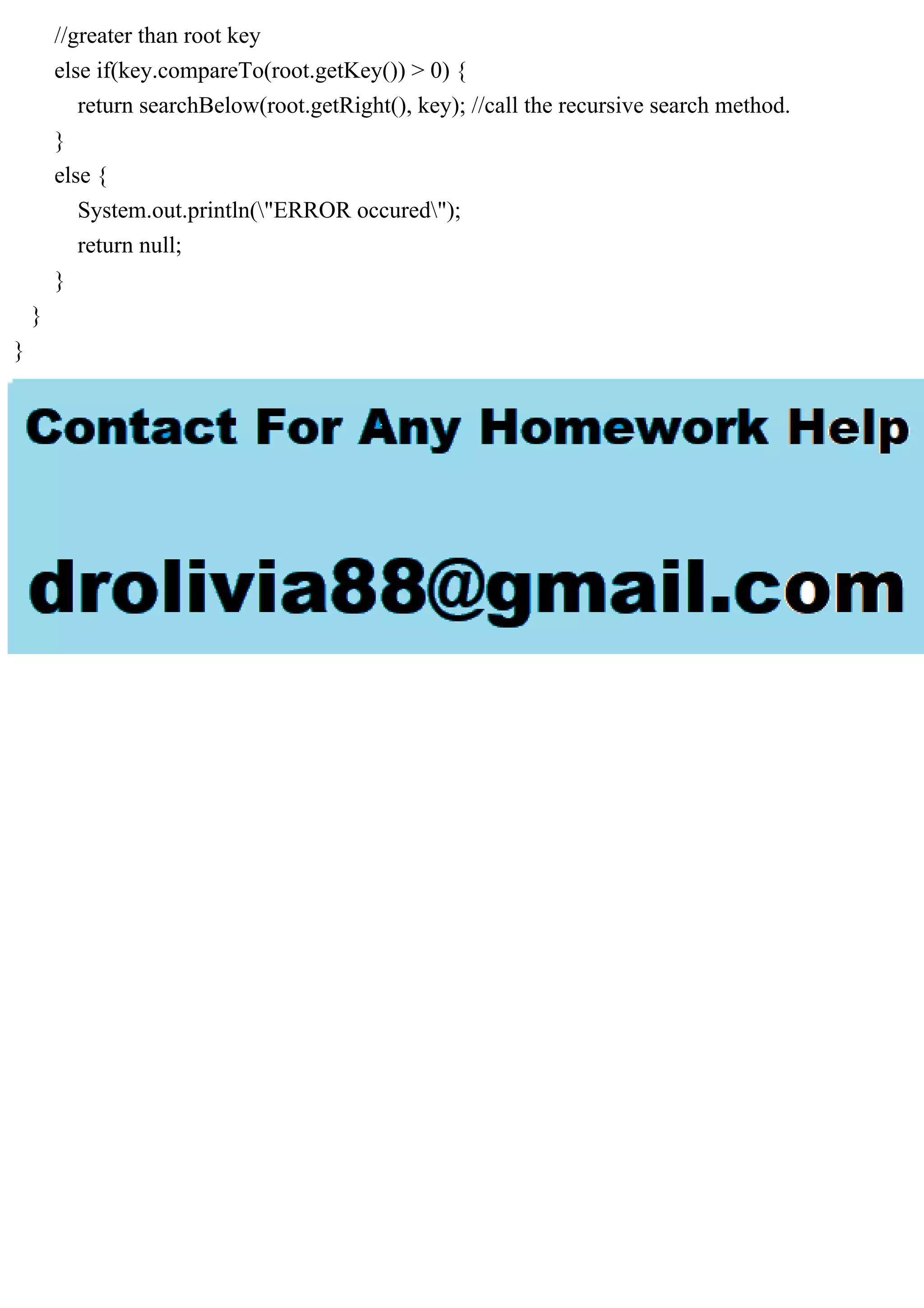

11. //greater than root key
else if(key.compareTo(root.getKey()) > 0) {
return searchBelow(root.getRight(), key); //call the recursive search method.
}
else {
System.out.println("ERROR occured");
return null;
}
}
}
