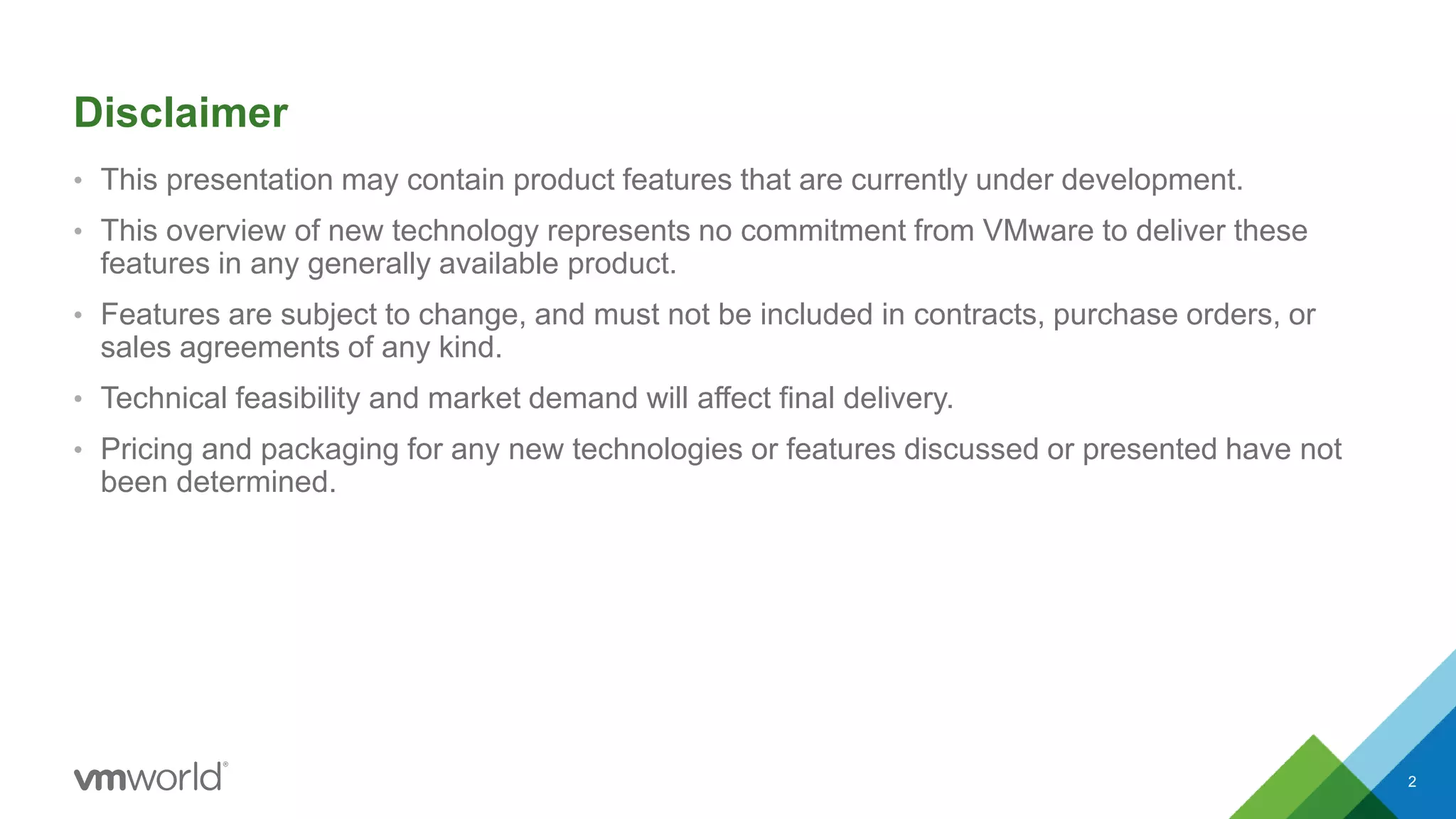

2. • This presentation may contain product features that are currently under development.
• This overview of new technology represents no commitment from VMware to deliver these
features in any generally available product.
• Features are subject to change, and must not be included in contracts, purchase orders, or
sales agreements of any kind.
• Technical feasibility and market demand will affect final delivery.
• Pricing and packaging for any new technologies or features discussed or presented have not
been determined.
Disclaimer
2

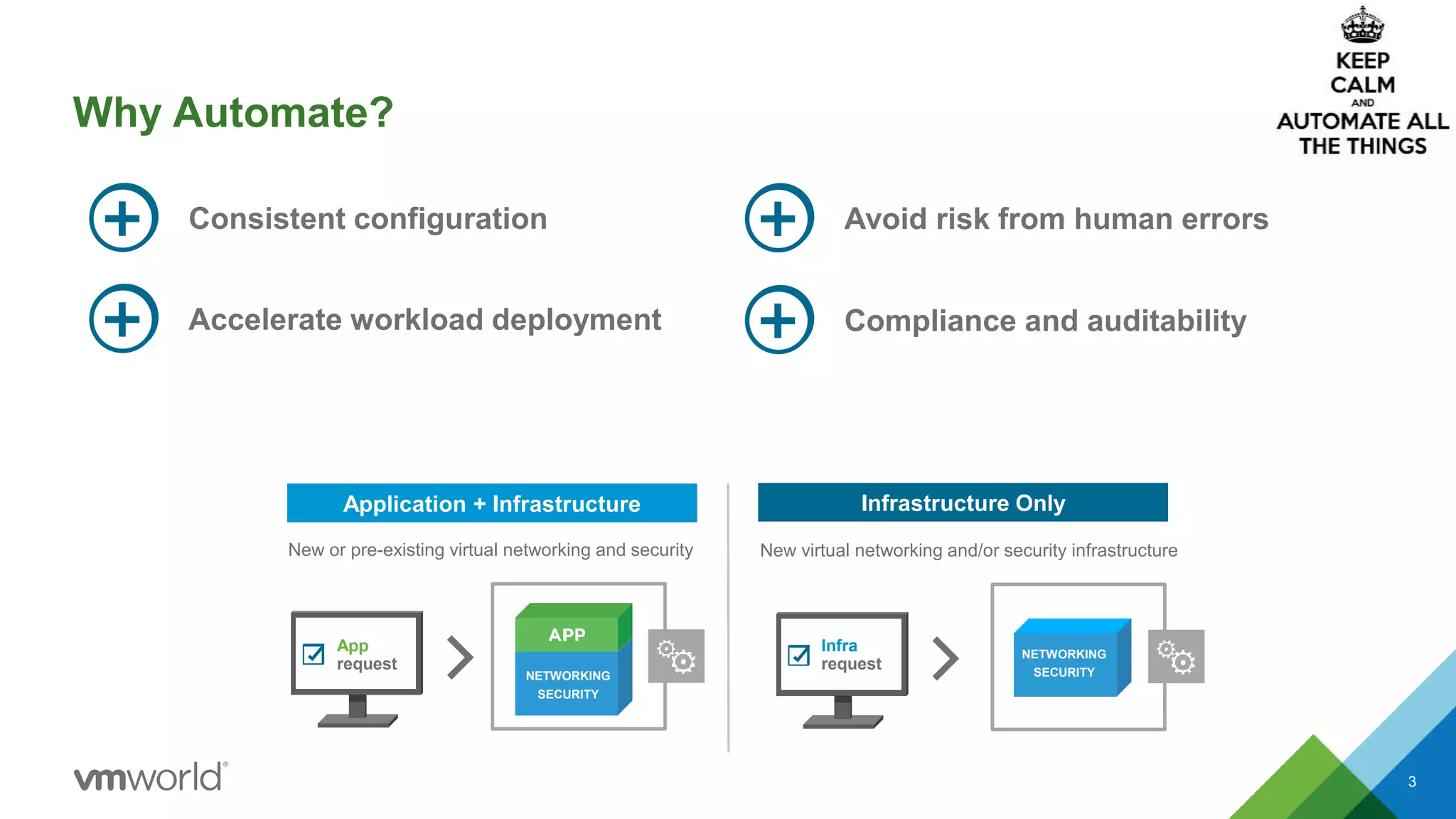

3. Why Automate?
Application + Infrastructure
App
request
NETWORKING
SECURITY
New or pre-existing virtual networking and security
Infrastructure Only
Infra
request
NETWORKING
SECURITY
New virtual networking and/or security infrastructure
3
Consistent configuration
Accelerate workload deployment
Avoid risk from human errors
Compliance and auditability

4. NSX Manager
NSX REST API

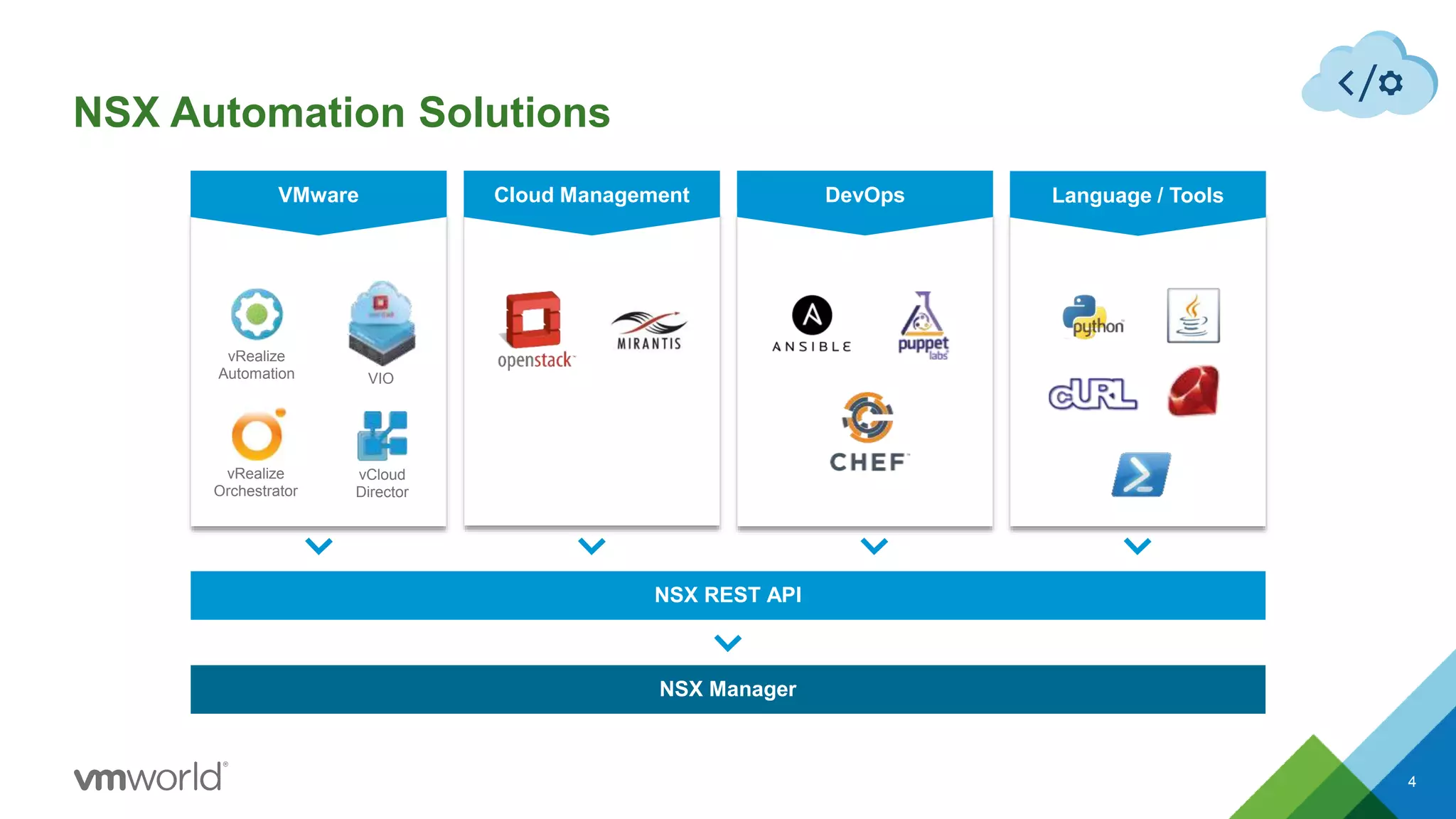

NSX Automation Solutions
4
vRealize
Automation
vCloud
Director
vRealize
Orchestrator
VIO
VMware Cloud Management DevOps Language / Tools

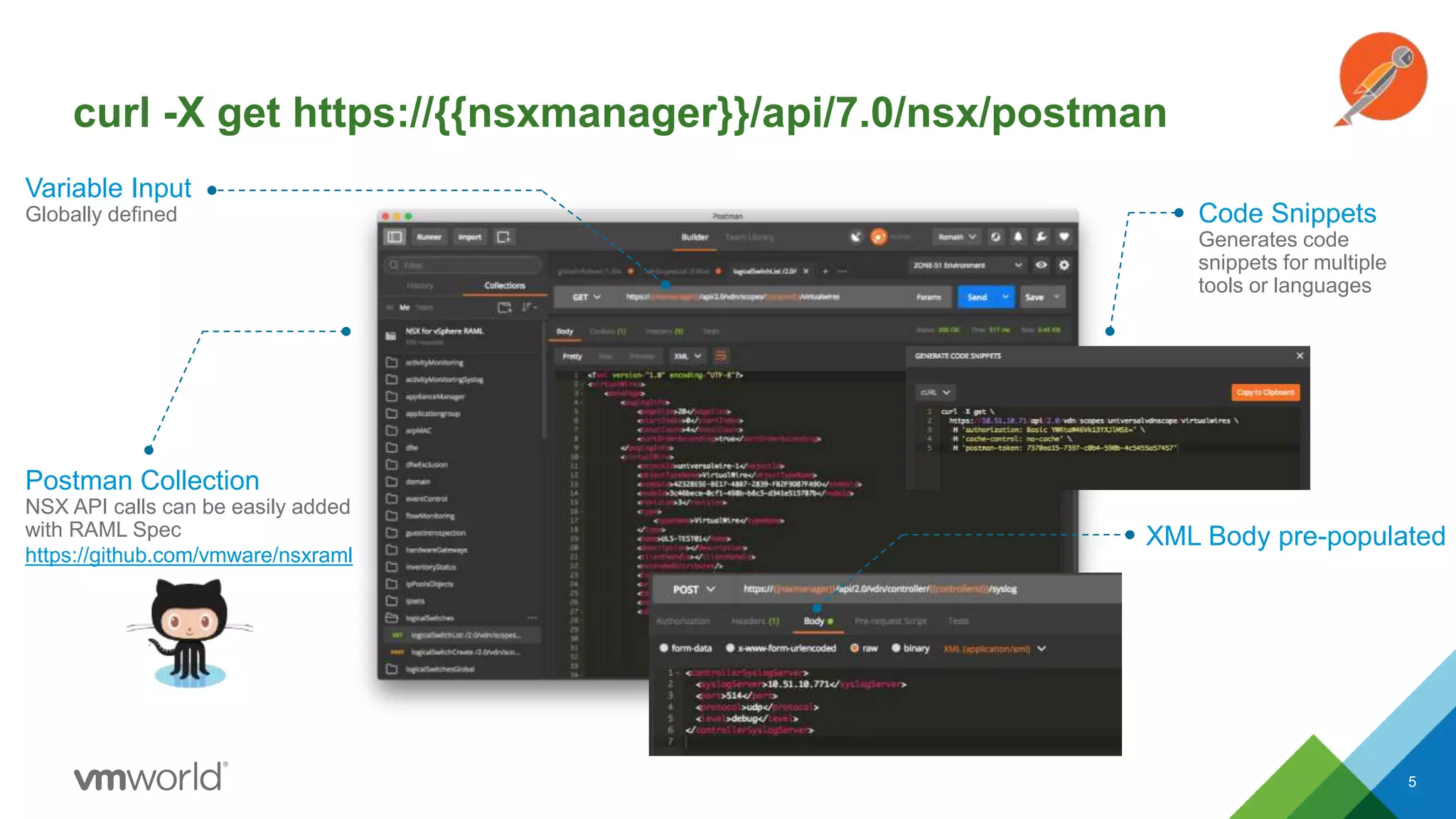

5. curl -X get https://{{nsxmanager}}/api/7.0/nsx/postman
5
Postman Collection
NSX API calls can be easily added
with RAML Spec
https://github.com/vmware/nsxraml
Variable Input
Globally defined
XML Body pre-populated
Code Snippets
Generates code
snippets for multiple
tools or languages

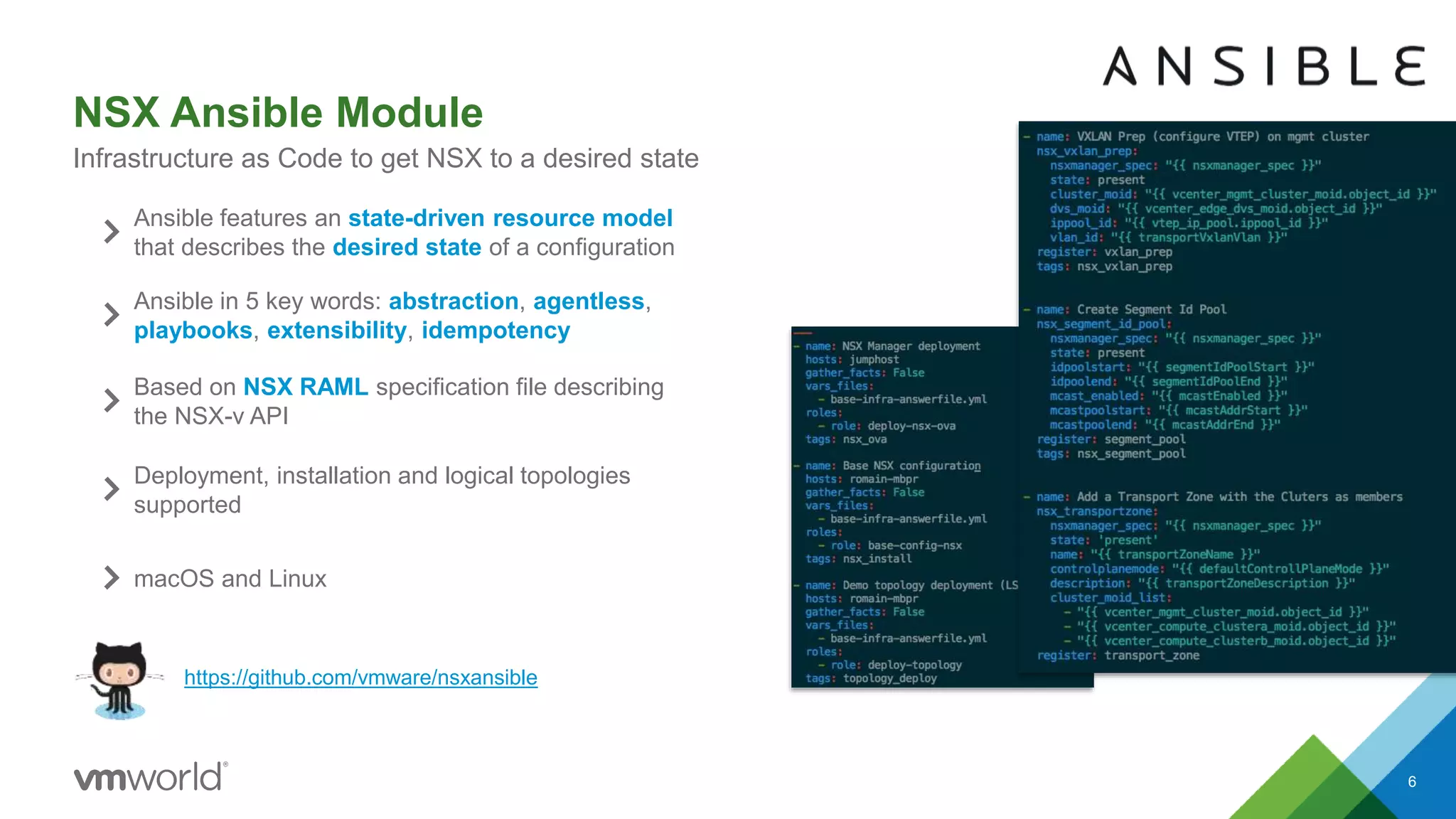

6. NSX Ansible Module
6
Infrastructure as Code to get NSX to a desired state
https://github.com/vmware/nsxansible
Ansible features an state-driven resource model
that describes the desired state of a configuration
Ansible in 5 key words: abstraction, agentless,
playbooks, extensibility, idempotency
Based on NSX RAML specification file describing
the NSX-v API
Deployment, installation and logical topologies
supported
macOS and Linux

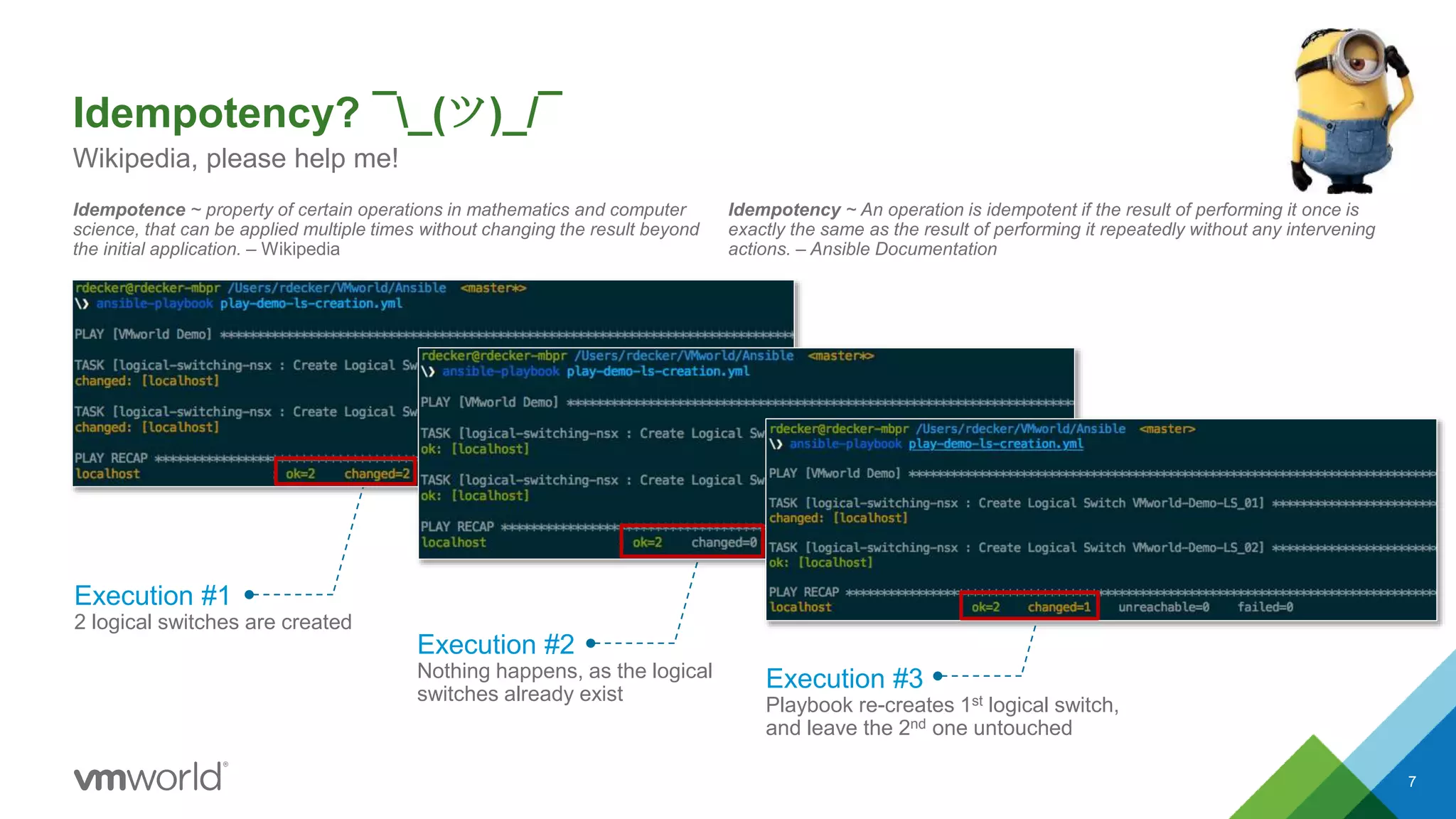

7. Execution #1
2 logical switches are created
Execution #2
Nothing happens, as the logical
switches already exist
Execution #3
Playbook re-creates 1st logical switch,
and leave the 2nd one untouched
Idempotency? ¯_(ツ)_/¯
Idempotence ~ property of certain operations in mathematics and computer
science, that can be applied multiple times without changing the result beyond
the initial application. – Wikipedia
7
Wikipedia, please help me!
Idempotency ~ An operation is idempotent if the result of performing it once is
exactly the same as the result of performing it repeatedly without any intervening
actions. – Ansible Documentation

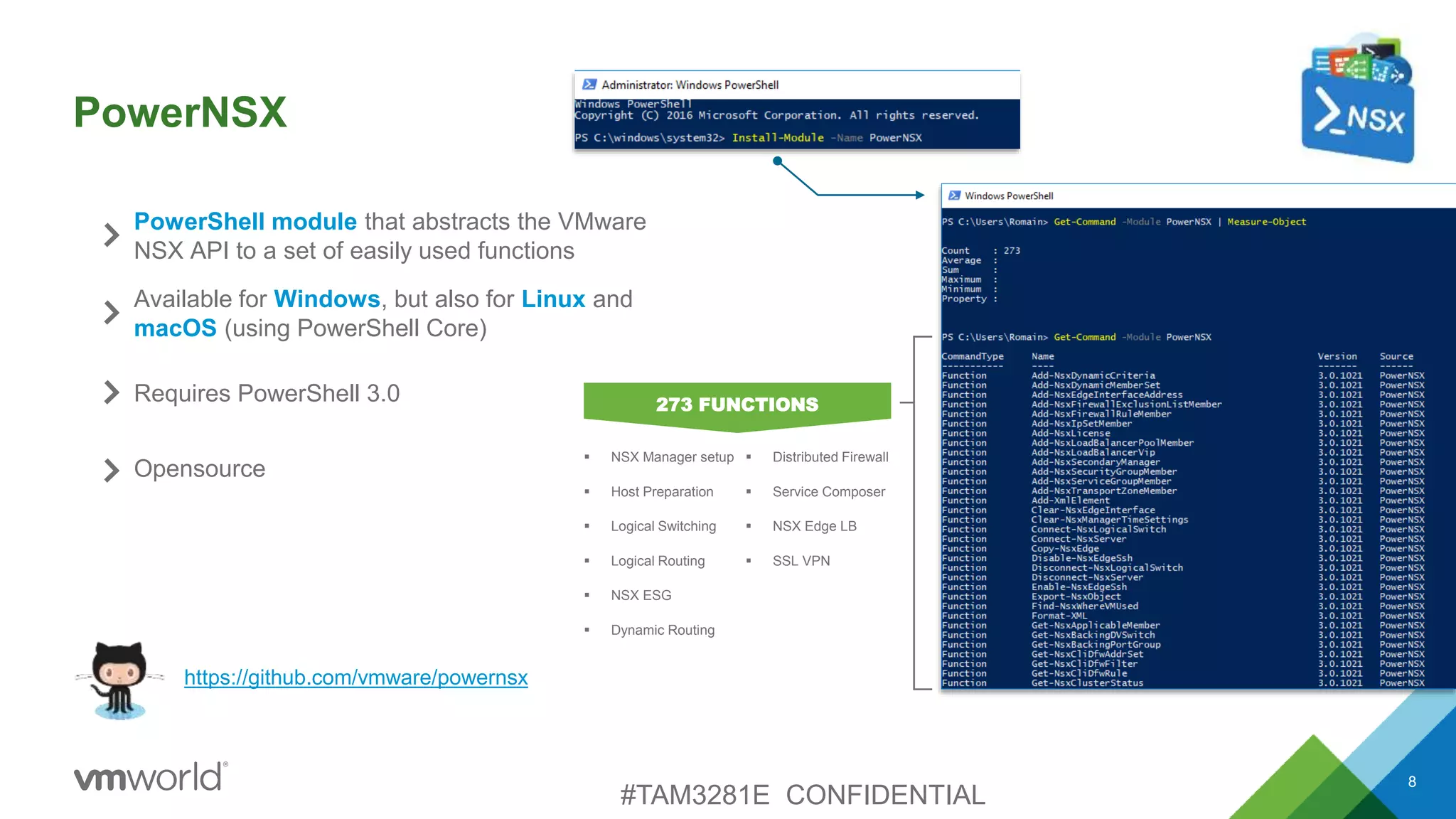

8. PowerNSX
8
PowerShell module that abstracts the VMware
NSX API to a set of easily used functions
https://github.com/vmware/powernsx
Available for Windows, but also for Linux and
macOS (using PowerShell Core)
Requires PowerShell 3.0
Opensource
 NSX Manager setup
 Host Preparation
 Logical Switching
 Logical Routing
 NSX ESG
 Dynamic Routing
273 FUNCTIONS
 Distributed Firewall
 Service Composer
 NSX Edge LB
 SSL VPN
#TAM3281E CONFIDENTIAL

9. Which Tools Should I Use?
9
Meet Kevin, Stuart and Bob
Bob: Cloud AdminKevin: Network / Security AdminStuart: VMware Admin

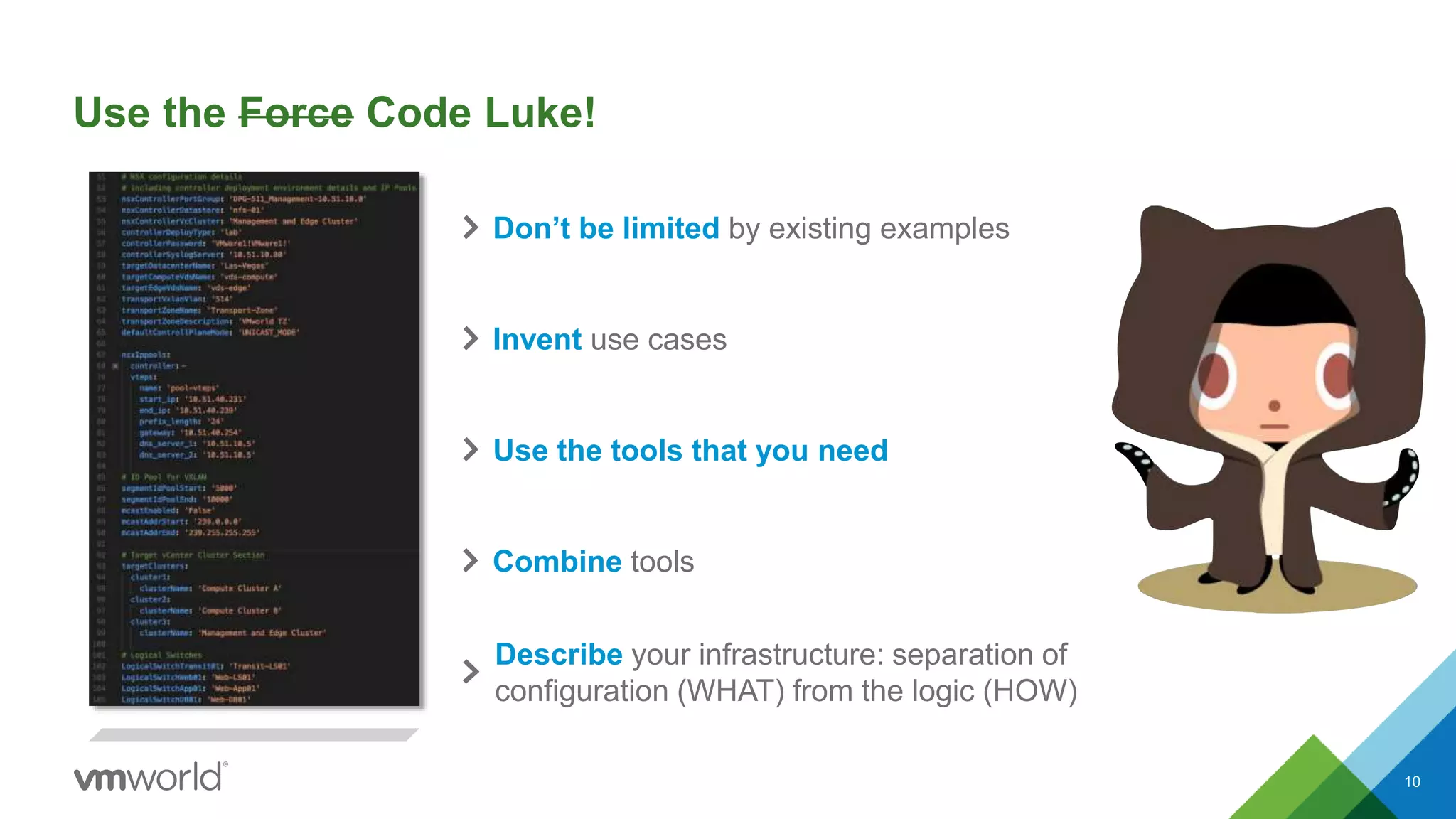

10. Use the Force Code Luke!
10
Don’t be limited by existing examples
Invent use cases
Use the tools that you need
Combine tools
Describe your infrastructure: separation of
configuration (WHAT) from the logic (HOW)

11. More Resources
11
Automating NSX for vSphere with
PowerNSX
CONFIDENTIAL
PowerNSX in Hands on Labs
VMware Github
https://github.com/vmware/nsxansible
https://github.com/vmware/nsxraml
https://github.com/vmware/powernsx
https://github.com/vmware/pynsxv
