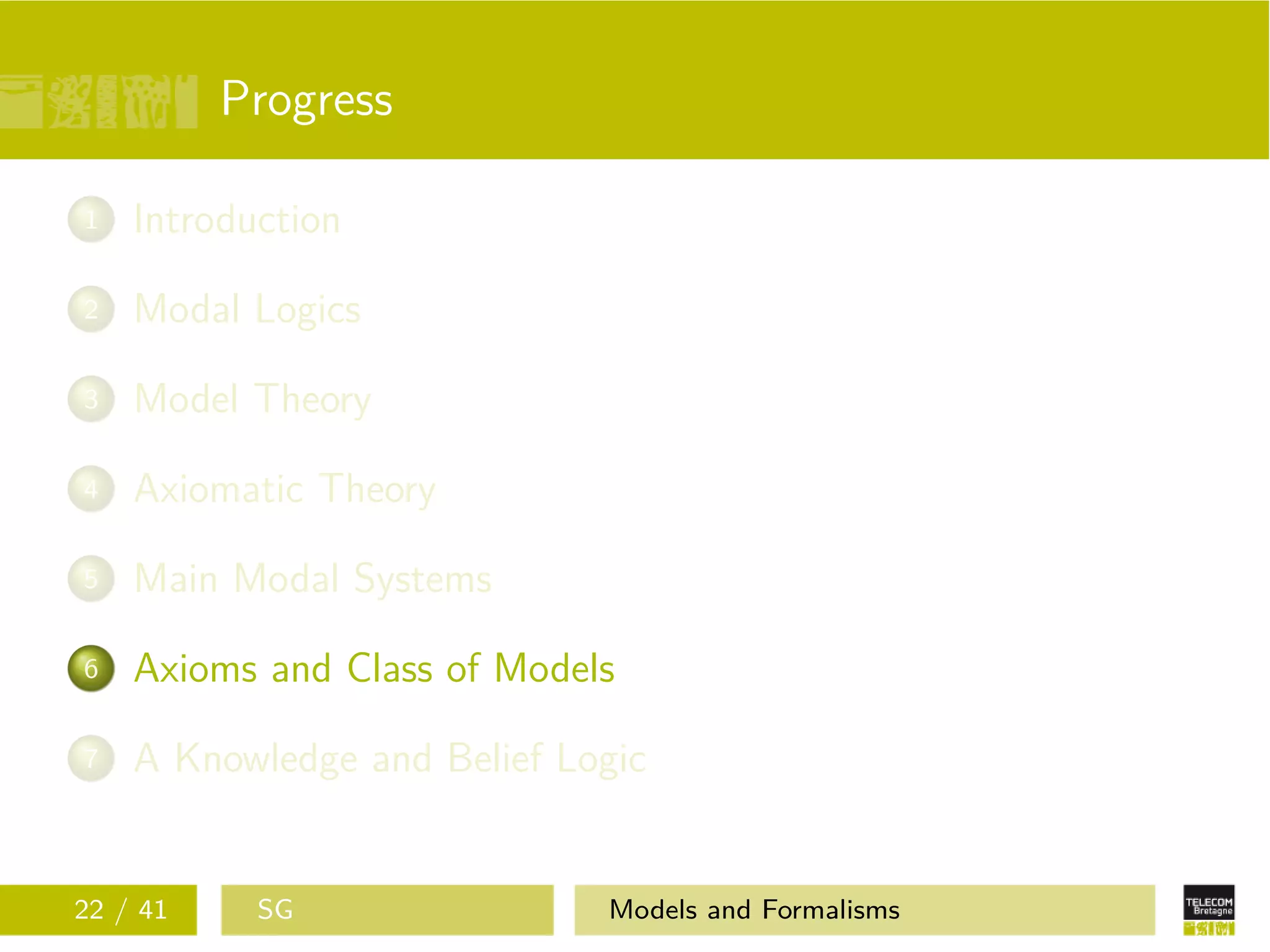

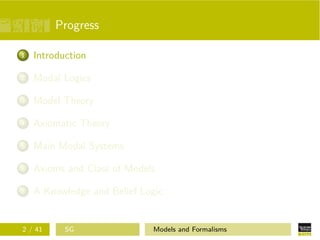

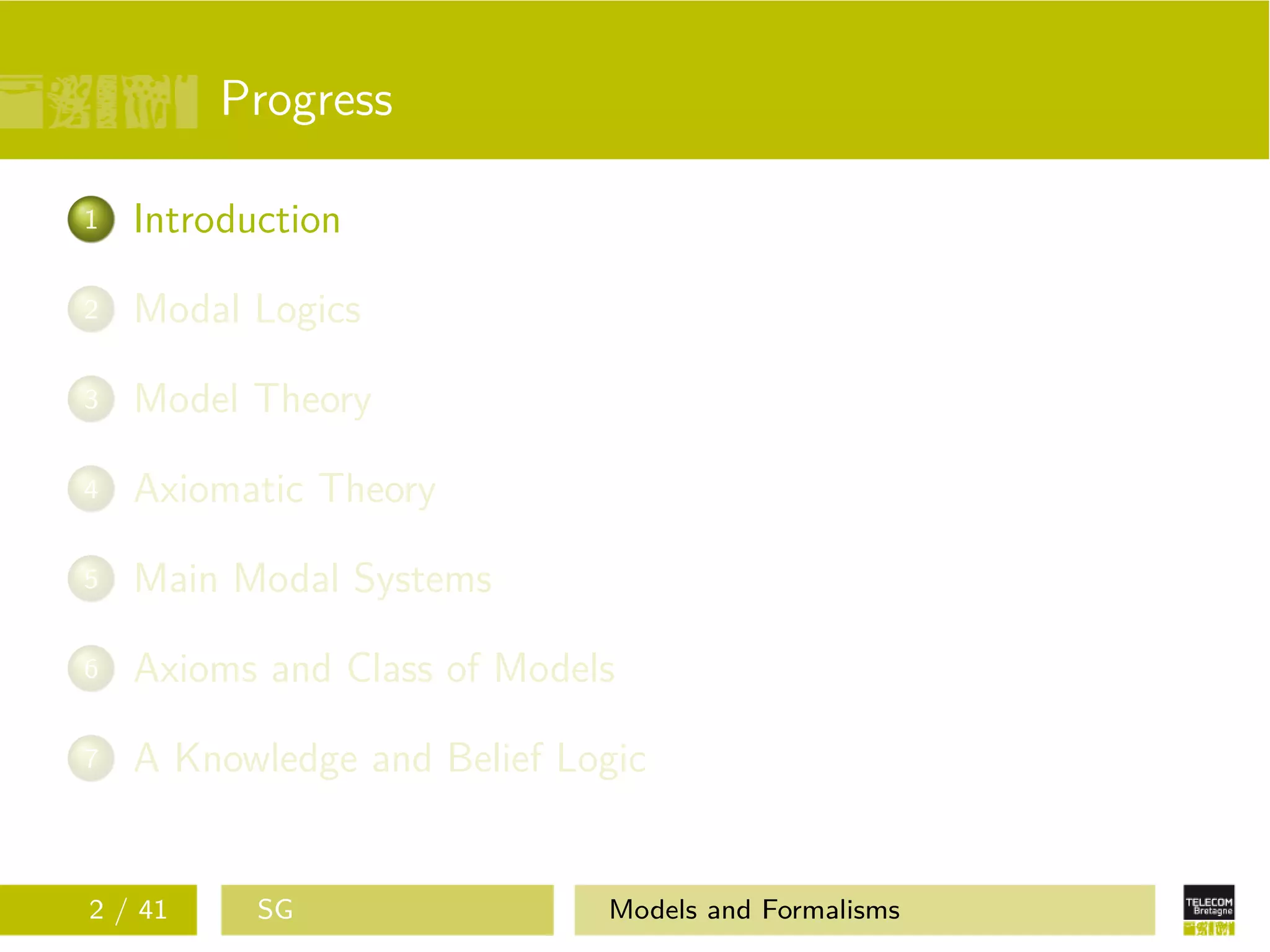

2. Progress
1 Introduction
2 Modal Logics
3 Model Theory
4 Axiomatic Theory
5 Main Modal Systems
6 Axioms and Class of Models
7 A Knowledge and Belief Logic
2 / 41 SG Models and Formalisms

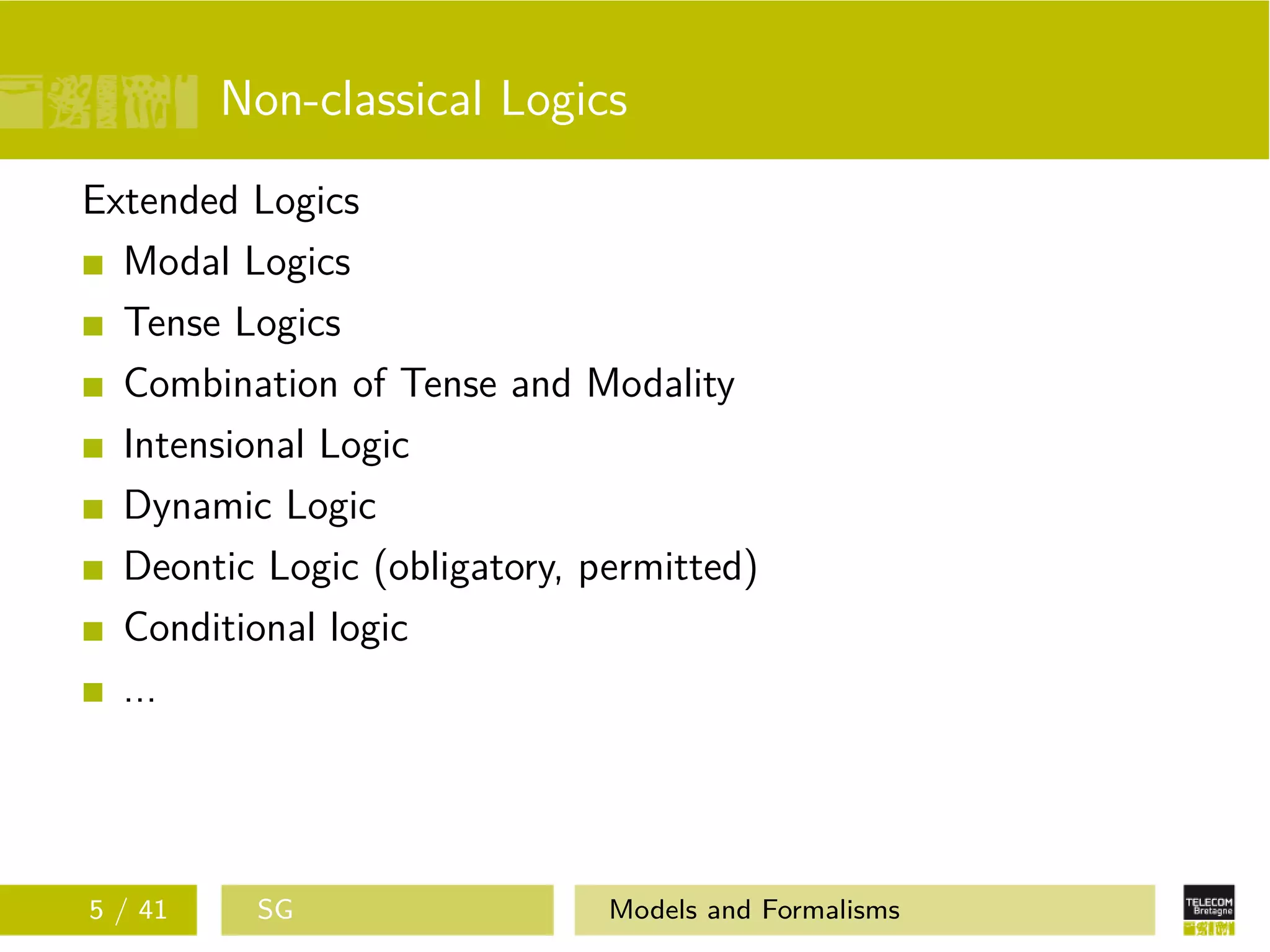

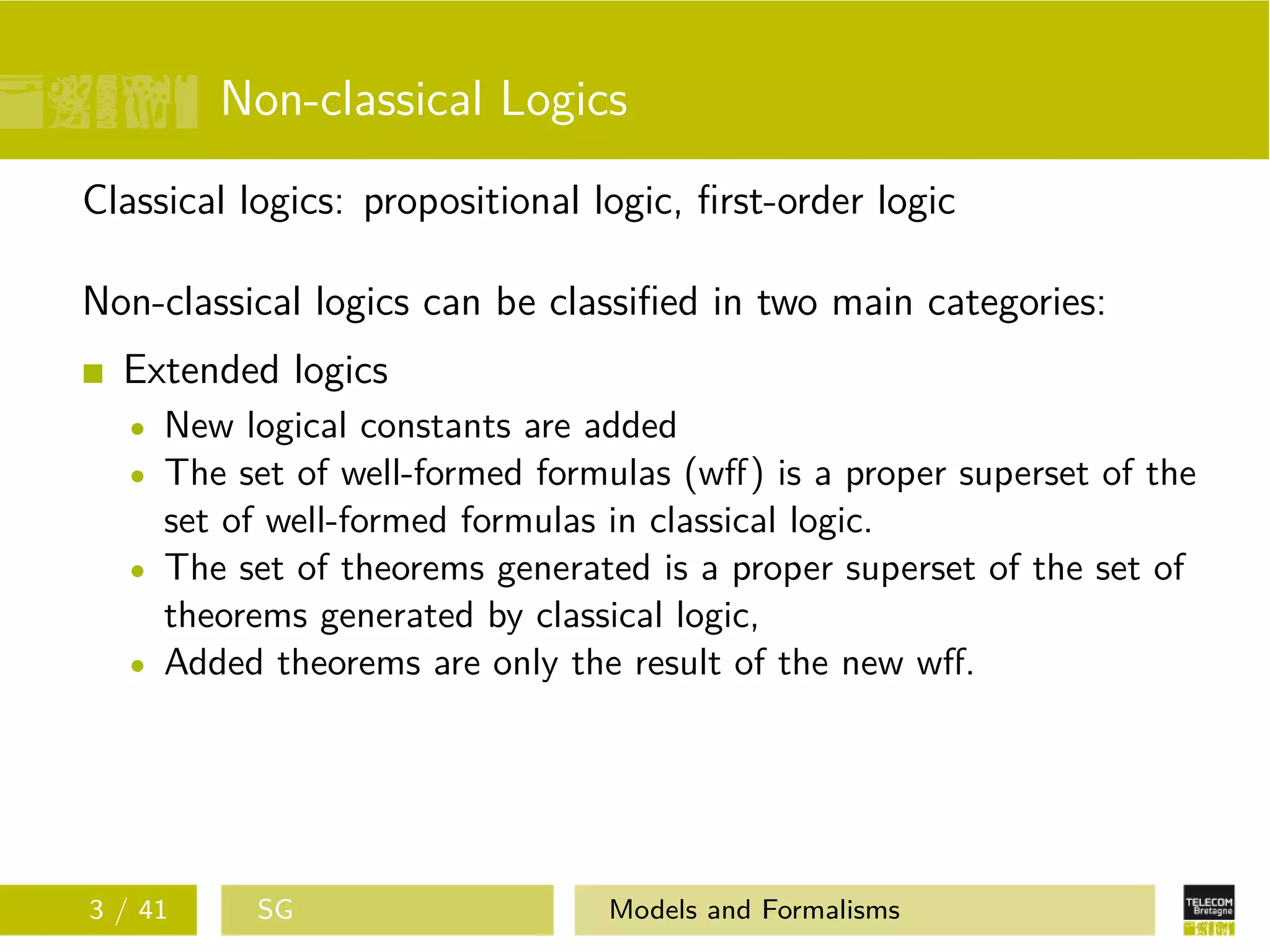

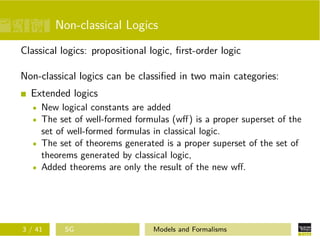

3. Non-classical Logics
Classical logics: propositional logic, first-order logic
Non-classical logics can be classified in two main categories:
Extended logics
New logical constants are added
The set of well-formed formulas (wff) is a proper superset of the
set of well-formed formulas in classical logic.
The set of theorems generated is a proper superset of the set of
theorems generated by classical logic,
Added theorems are only the result of the new wff.
3 / 41 SG Models and Formalisms

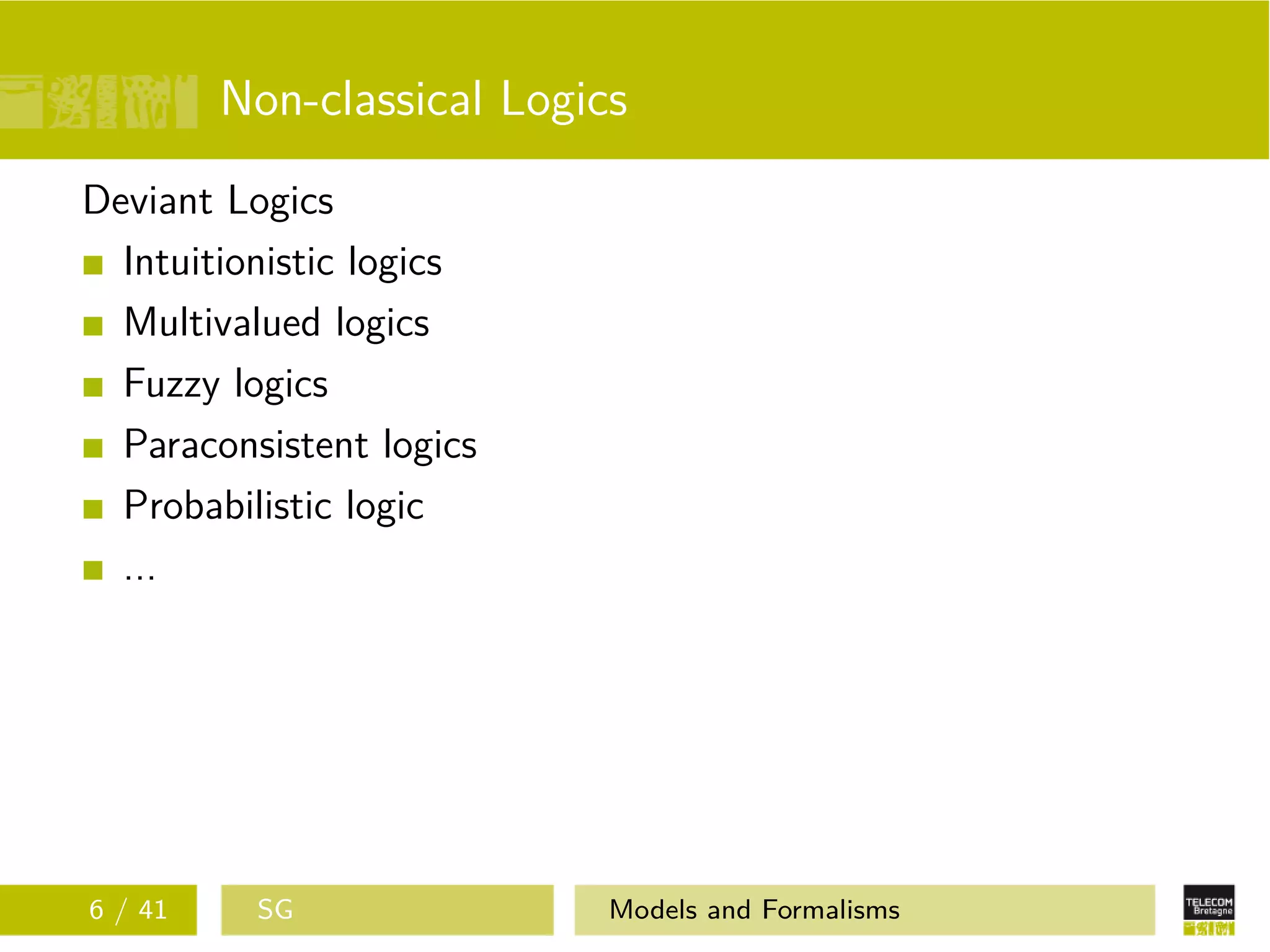

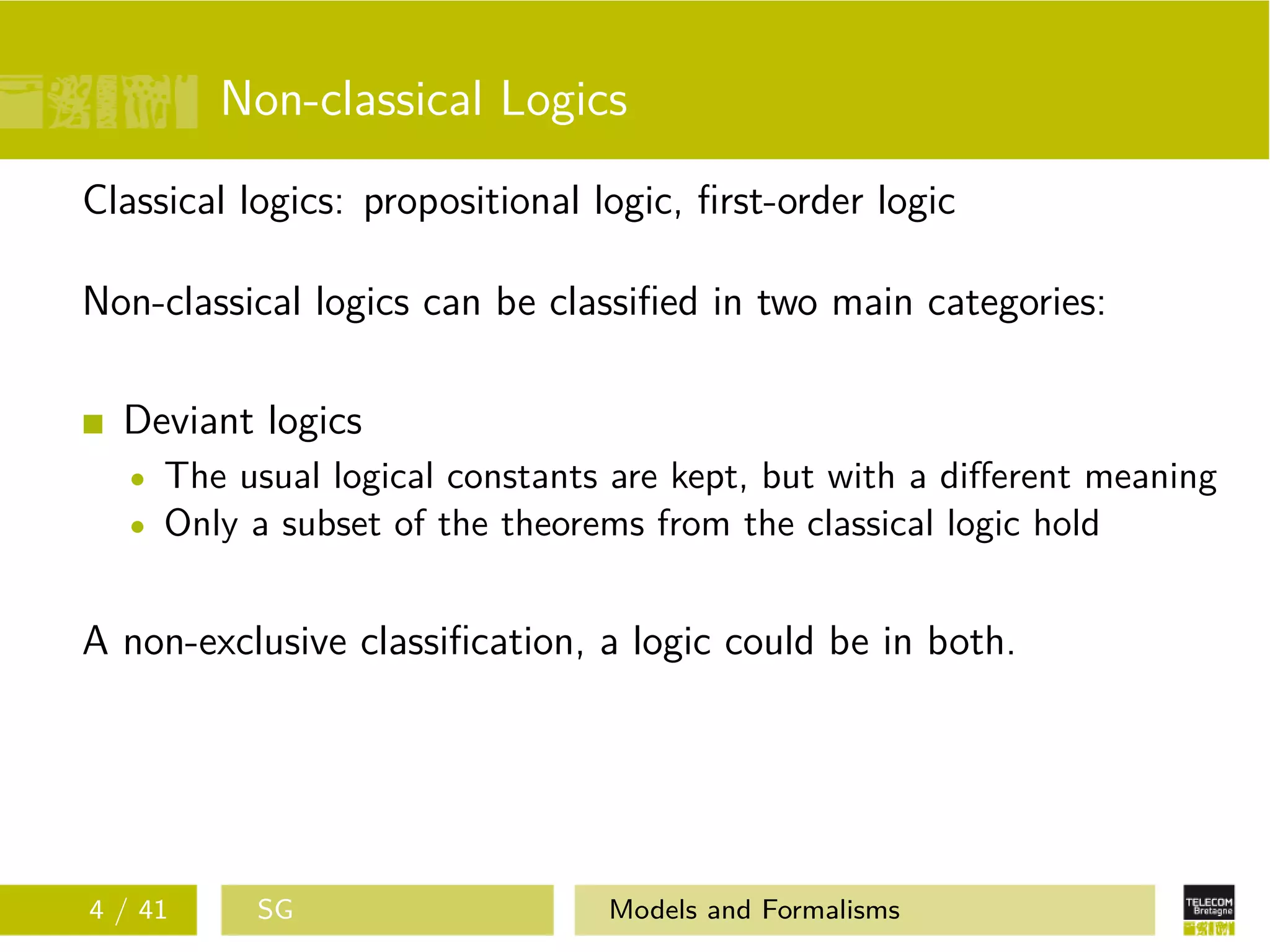

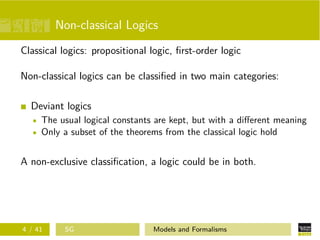

4. Non-classical Logics
Classical logics: propositional logic, first-order logic
Non-classical logics can be classified in two main categories:
Deviant logics
The usual logical constants are kept, but with a different meaning
Only a subset of the theorems from the classical logic hold
A non-exclusive classification, a logic could be in both.
4 / 41 SG Models and Formalisms

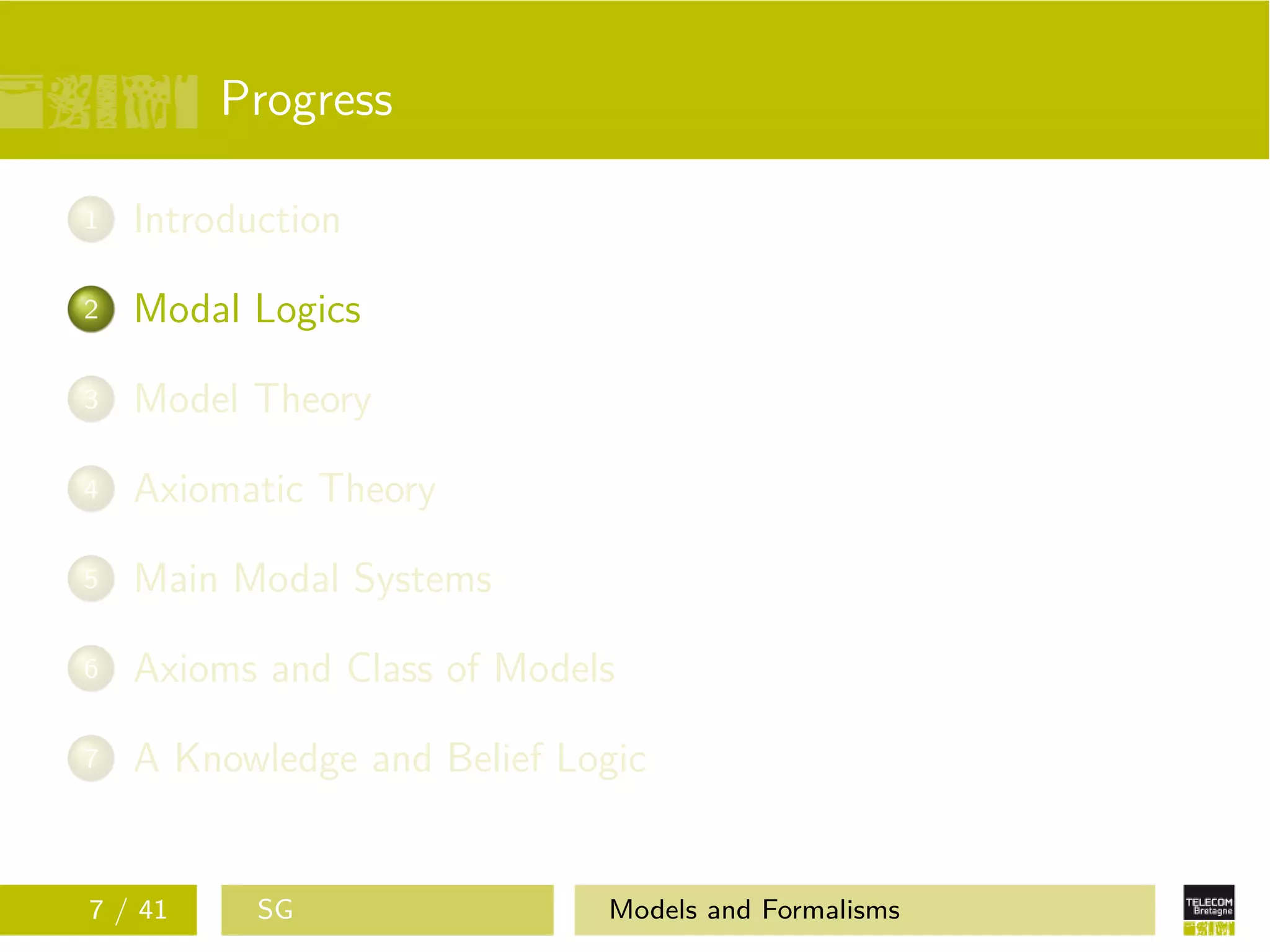

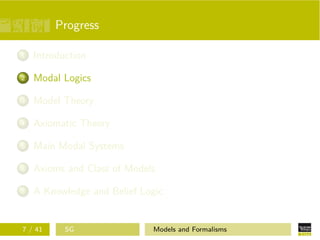

7. Progress
1 Introduction
2 Modal Logics
3 Model Theory
4 Axiomatic Theory
5 Main Modal Systems
6 Axioms and Class of Models
7 A Knowledge and Belief Logic
7 / 41 SG Models and Formalisms

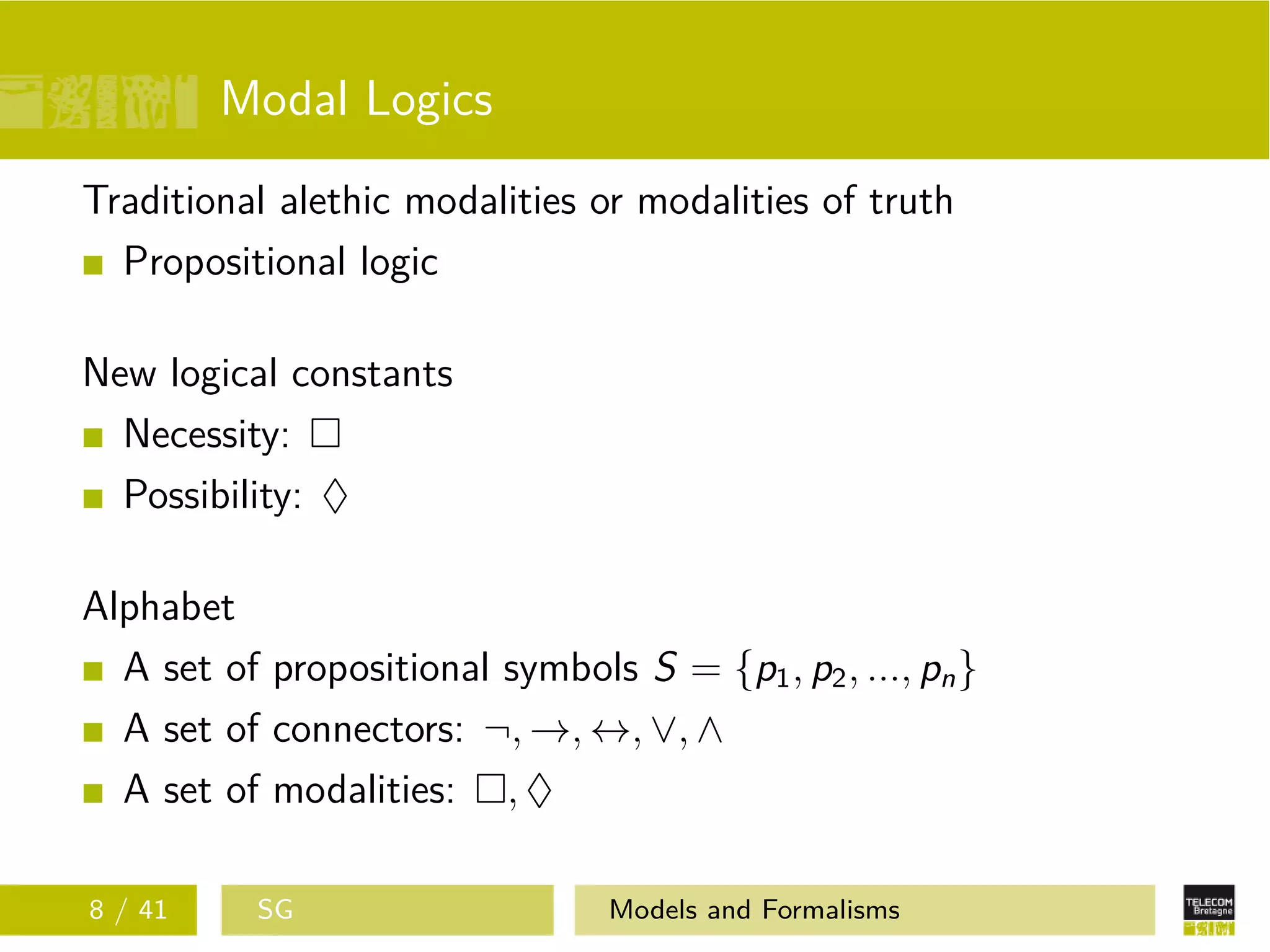

8. Modal Logics
Traditional alethic modalities or modalities of truth
Propositional logic
New logical constants
Necessity:
Possibility: ♦
Alphabet
A set of propositional symbols S = {p1, p2, ..., pn}
A set of connectors: ¬, →, ↔, ∨, ∧
A set of modalities: , ♦
8 / 41 SG Models and Formalisms

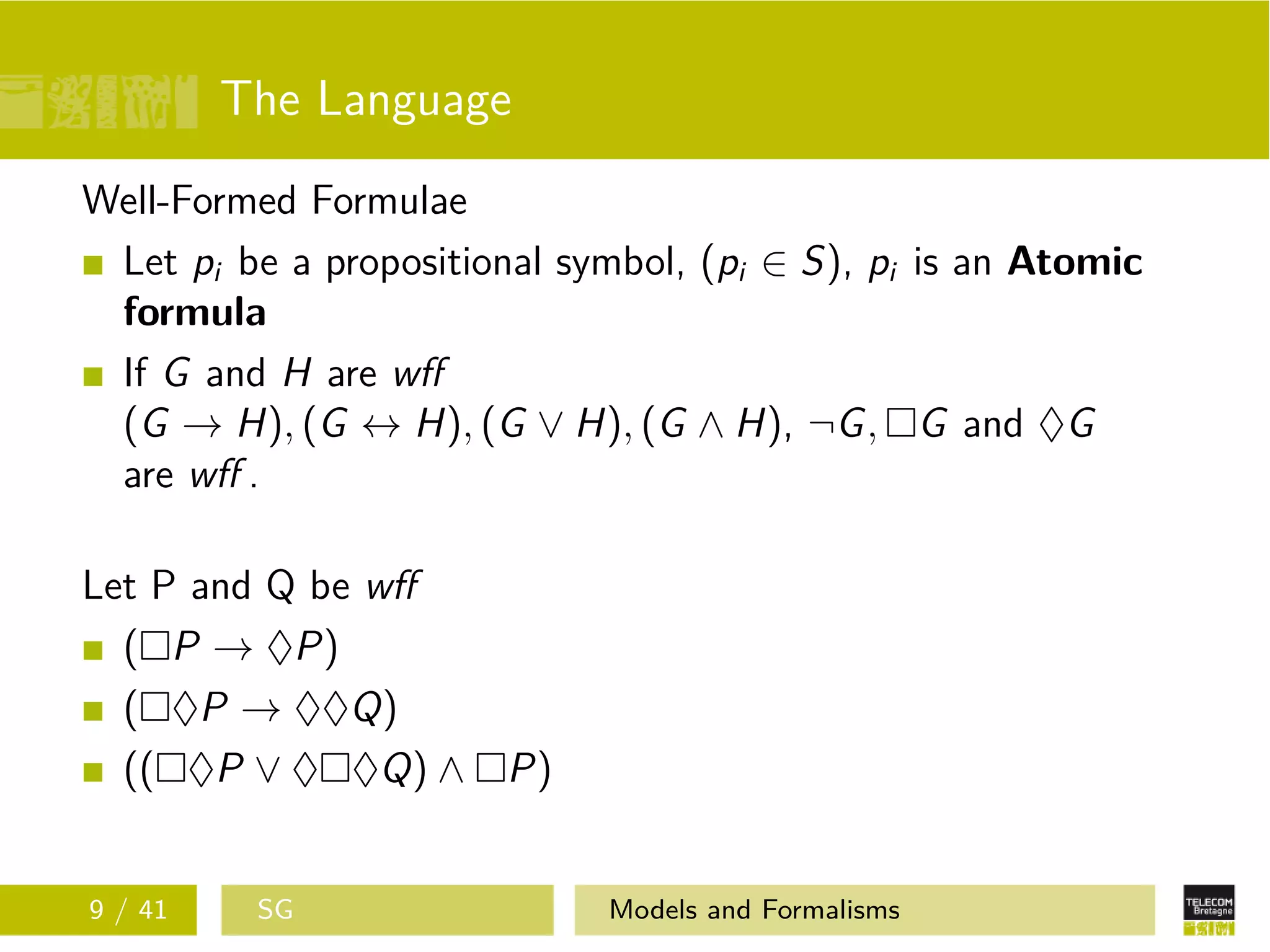

9. The Language
Well-Formed Formulae
Let pi be a propositional symbol, (pi ∈ S), pi is an Atomic
formula
If G and H are wff
(G → H), (G ↔ H), (G ∨ H), (G ∧ H), ¬G, G and ♦G
are wff .
Let P and Q be wff
( P → ♦P)
( ♦P → ♦♦Q)
(( ♦P ∨ ♦ ♦Q) ∧ P)
9 / 41 SG Models and Formalisms

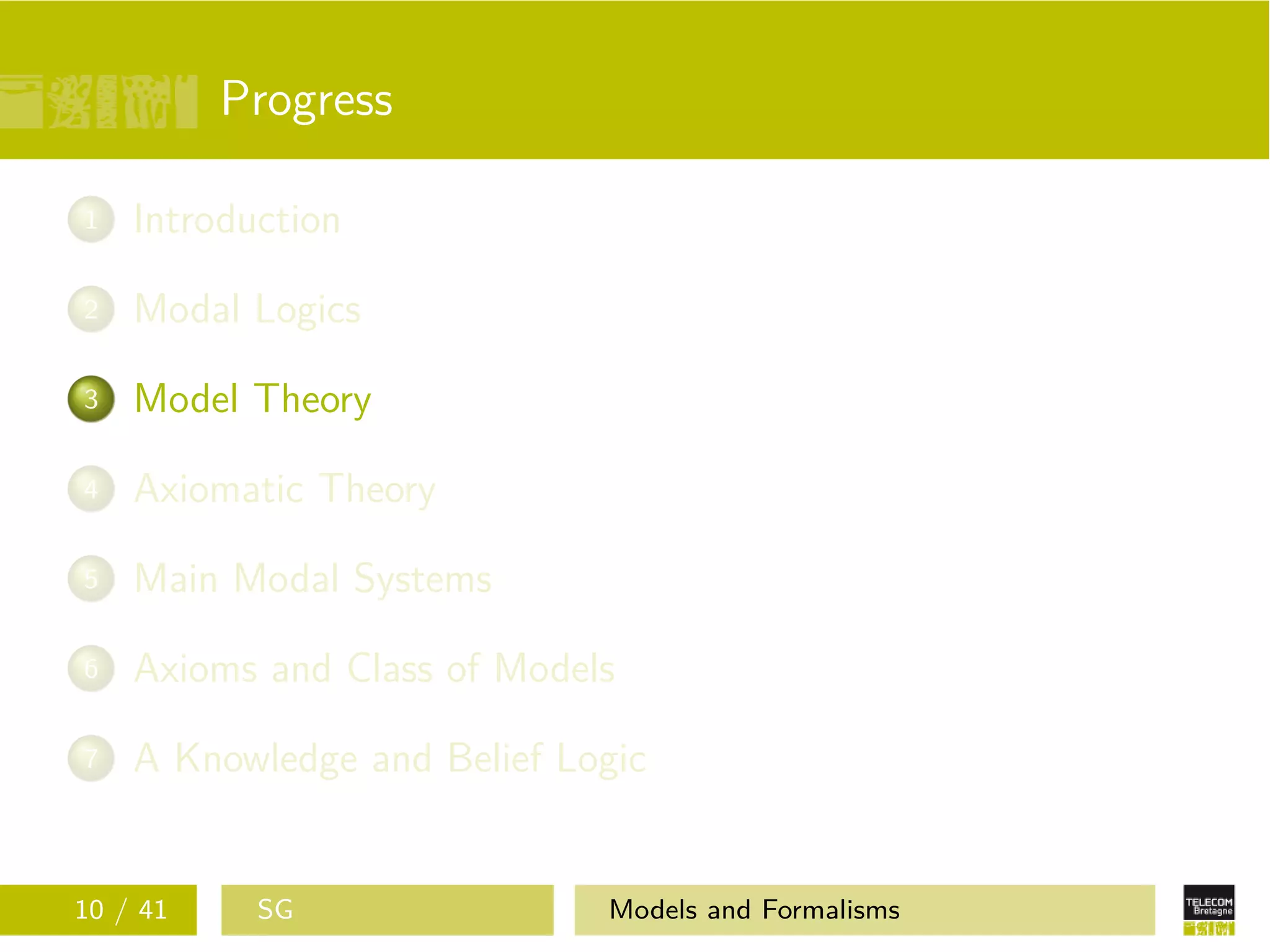

10. Progress
1 Introduction
2 Modal Logics
3 Model Theory
4 Axiomatic Theory
5 Main Modal Systems
6 Axioms and Class of Models
7 A Knowledge and Belief Logic
10 / 41 SG Models and Formalisms

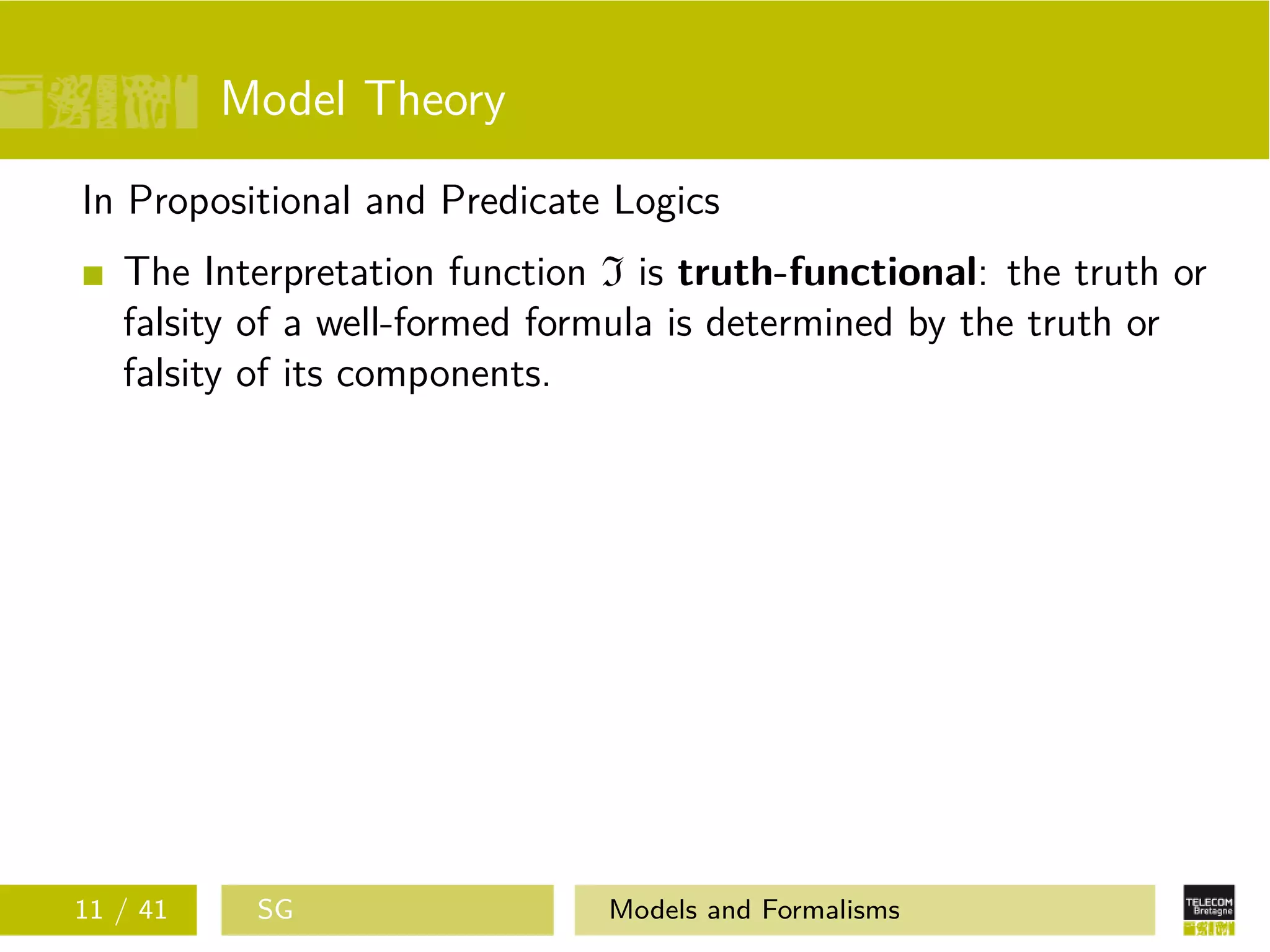

11. Model Theory
In Propositional and Predicate Logics
The Interpretation function I is truth-functional: the truth or
falsity of a well-formed formula is determined by the truth or
falsity of its components.
11 / 41 SG Models and Formalisms

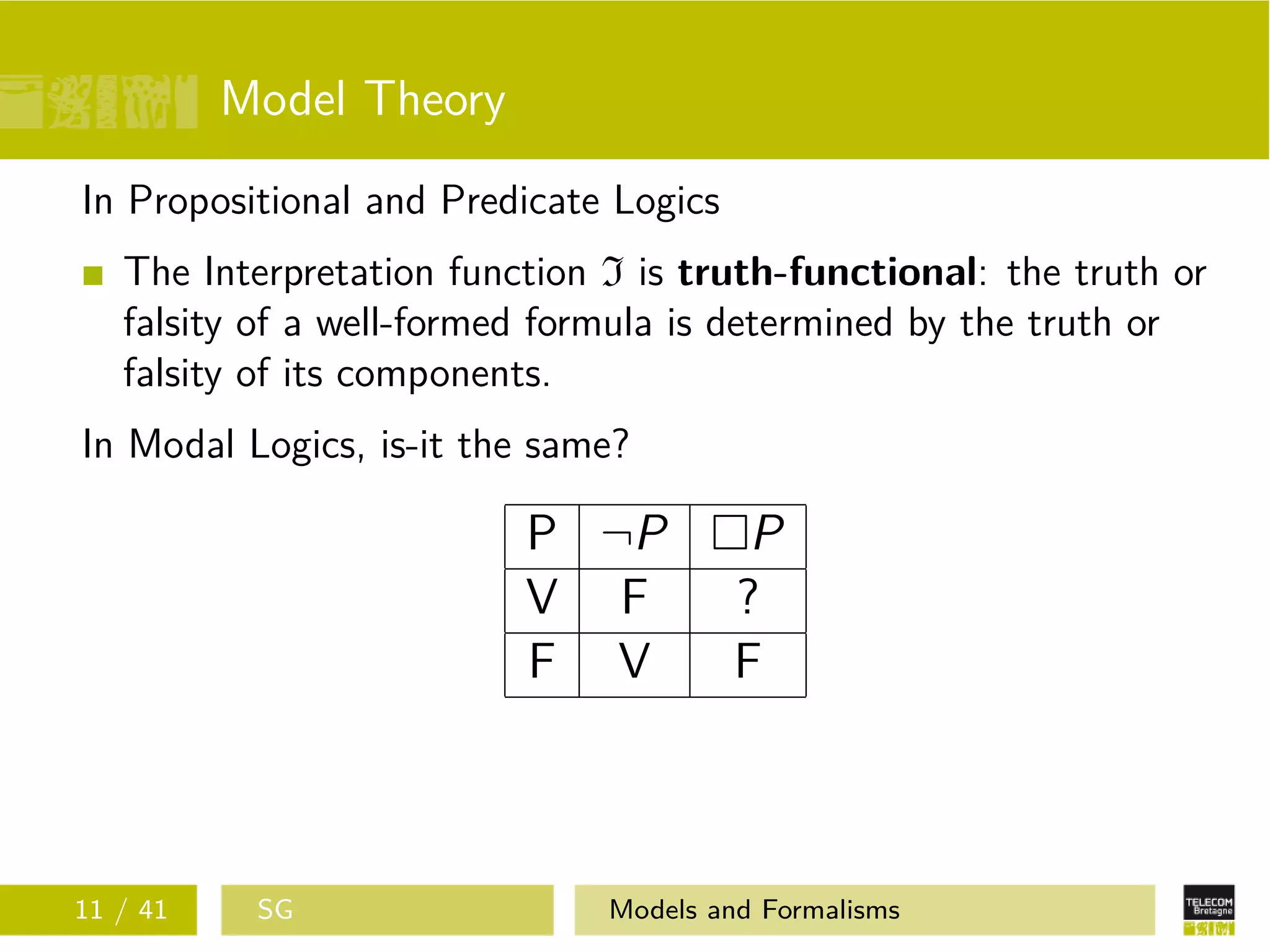

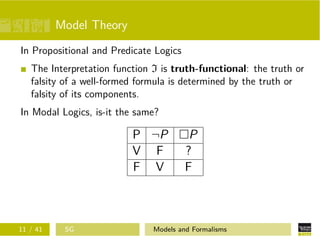

12. Model Theory
In Propositional and Predicate Logics
The Interpretation function I is truth-functional: the truth or
falsity of a well-formed formula is determined by the truth or
falsity of its components.
In Modal Logics, is-it the same?
P ¬P P
V F ?
F V F
11 / 41 SG Models and Formalisms

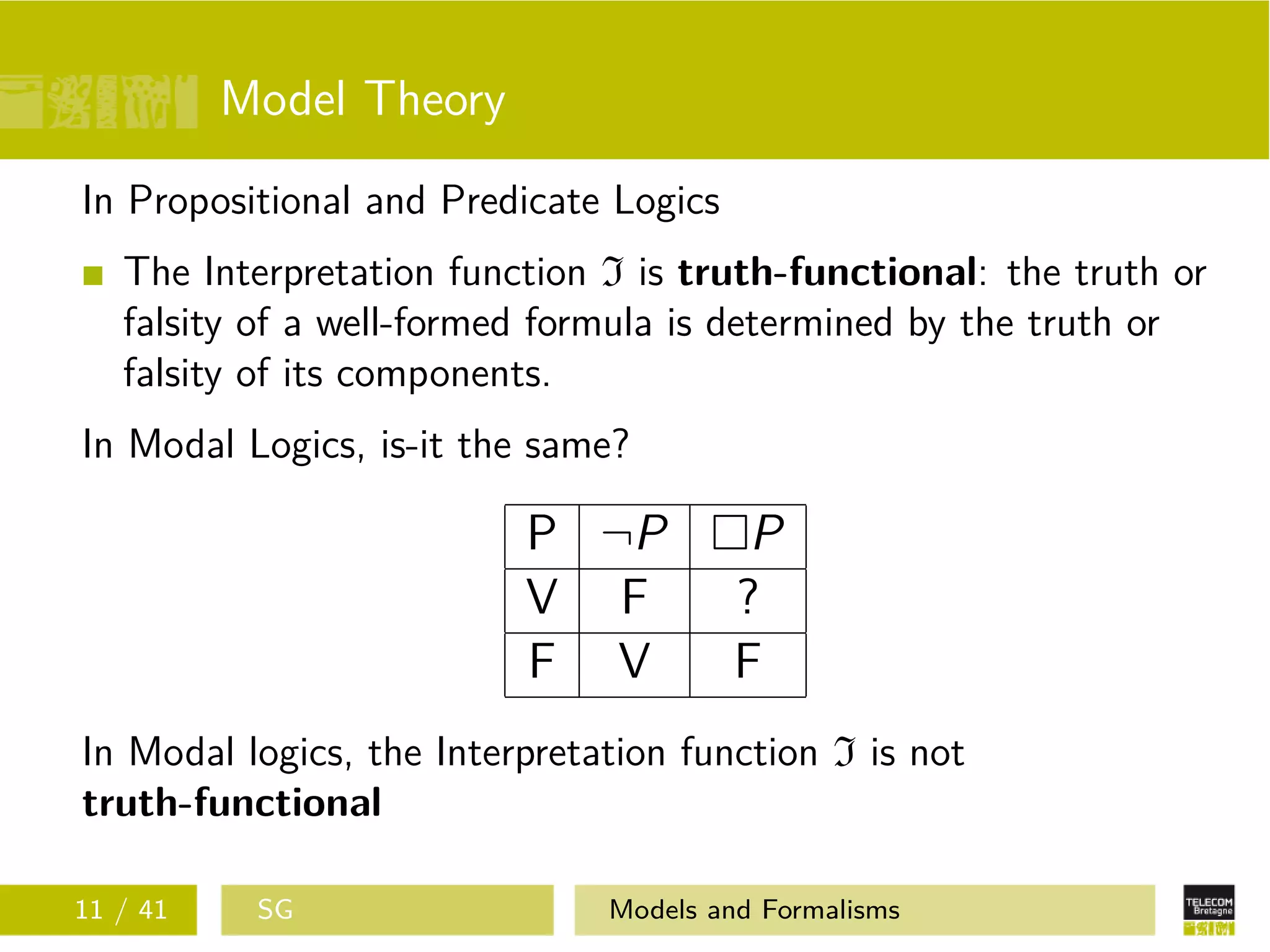

13. Model Theory
In Propositional and Predicate Logics
The Interpretation function I is truth-functional: the truth or
falsity of a well-formed formula is determined by the truth or
falsity of its components.
In Modal Logics, is-it the same?
P ¬P P
V F ?
F V F
In Modal logics, the Interpretation function I is not
truth-functional
11 / 41 SG Models and Formalisms

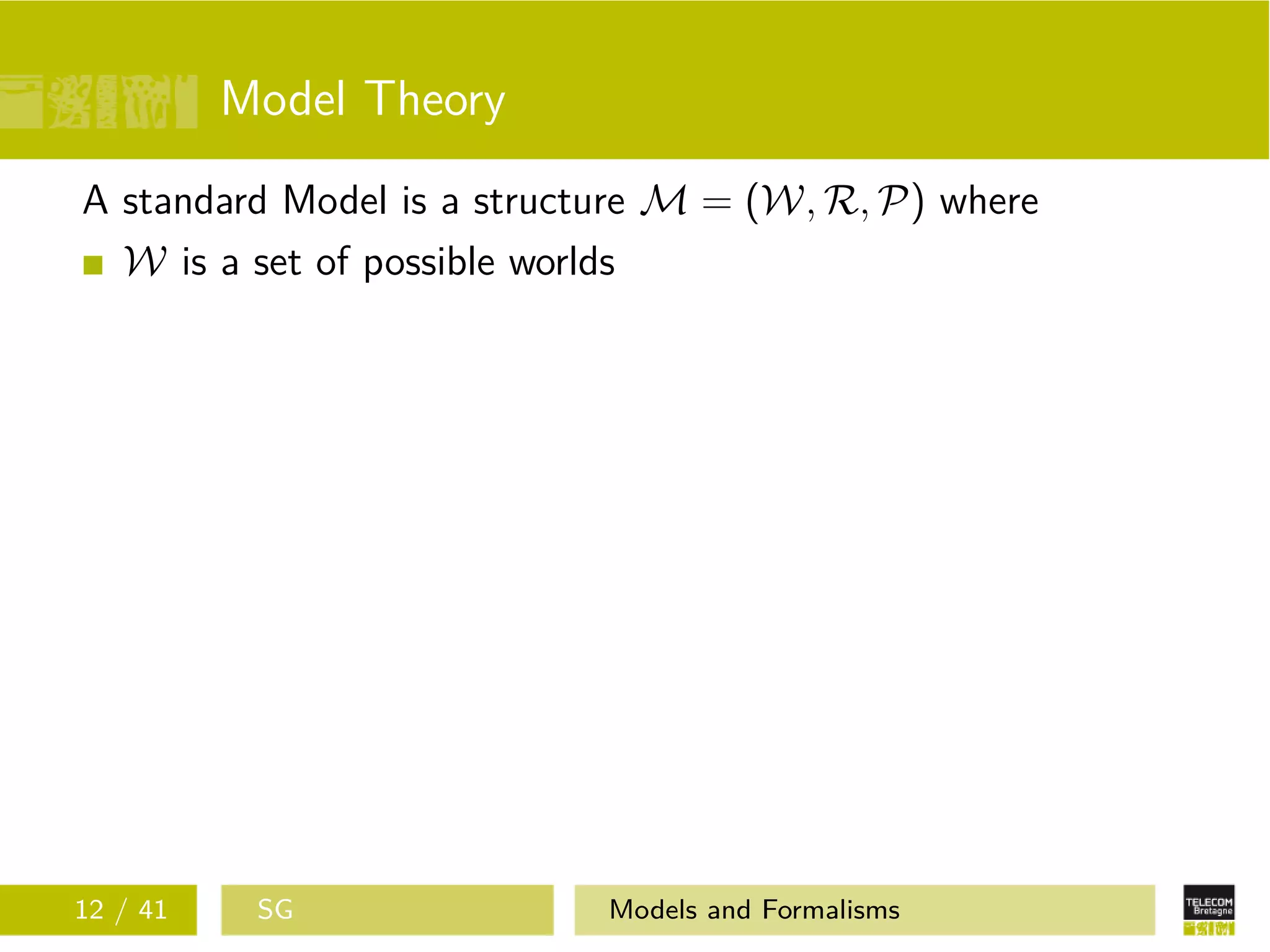

14. Model Theory
A standard Model is a structure M = (W, R, P) where
W is a set of possible worlds
12 / 41 SG Models and Formalisms

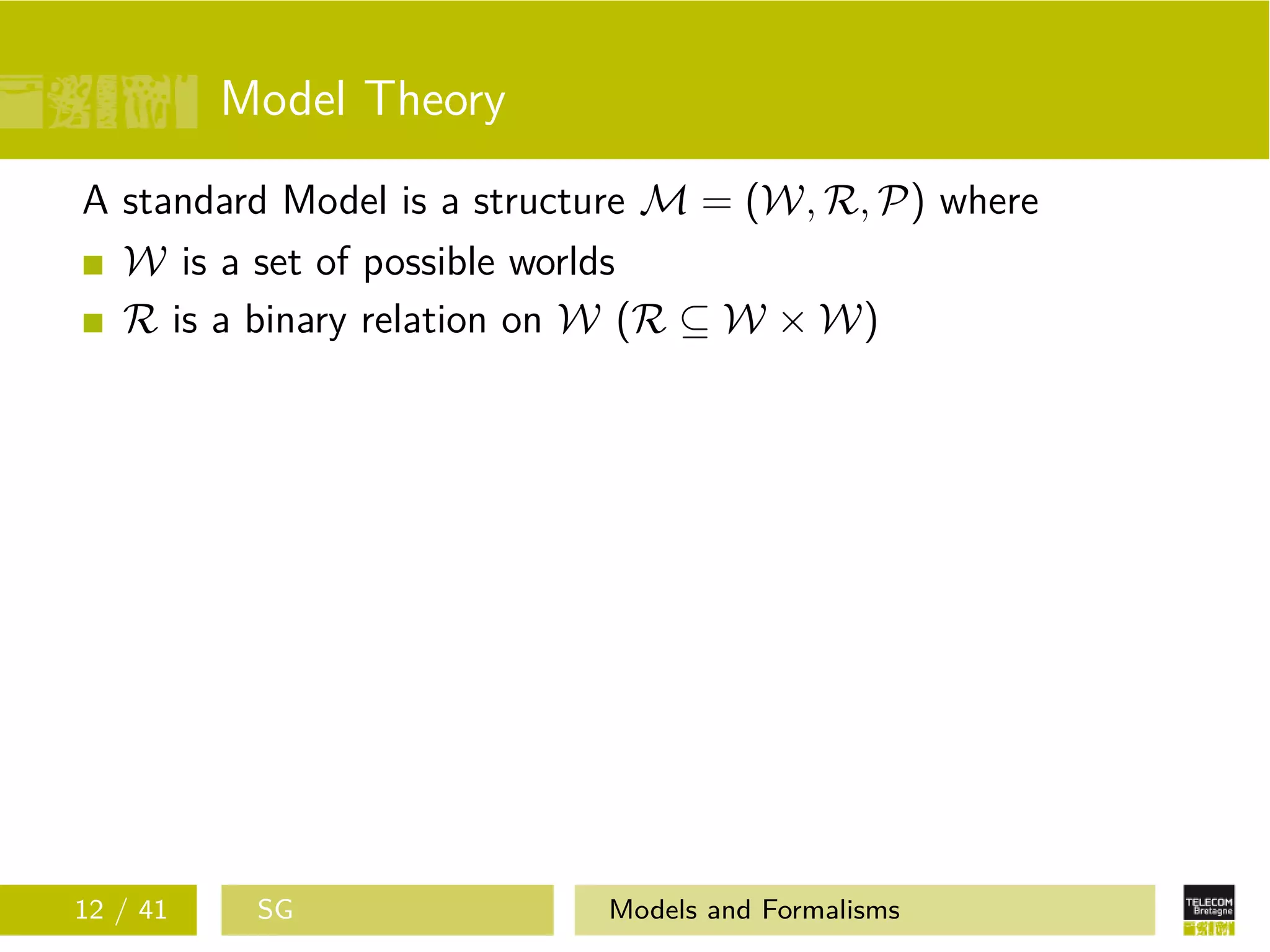

15. Model Theory
A standard Model is a structure M = (W, R, P) where
W is a set of possible worlds
R is a binary relation on W (R ⊆ W × W)
12 / 41 SG Models and Formalisms

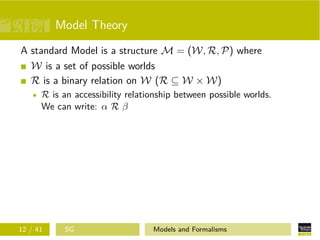

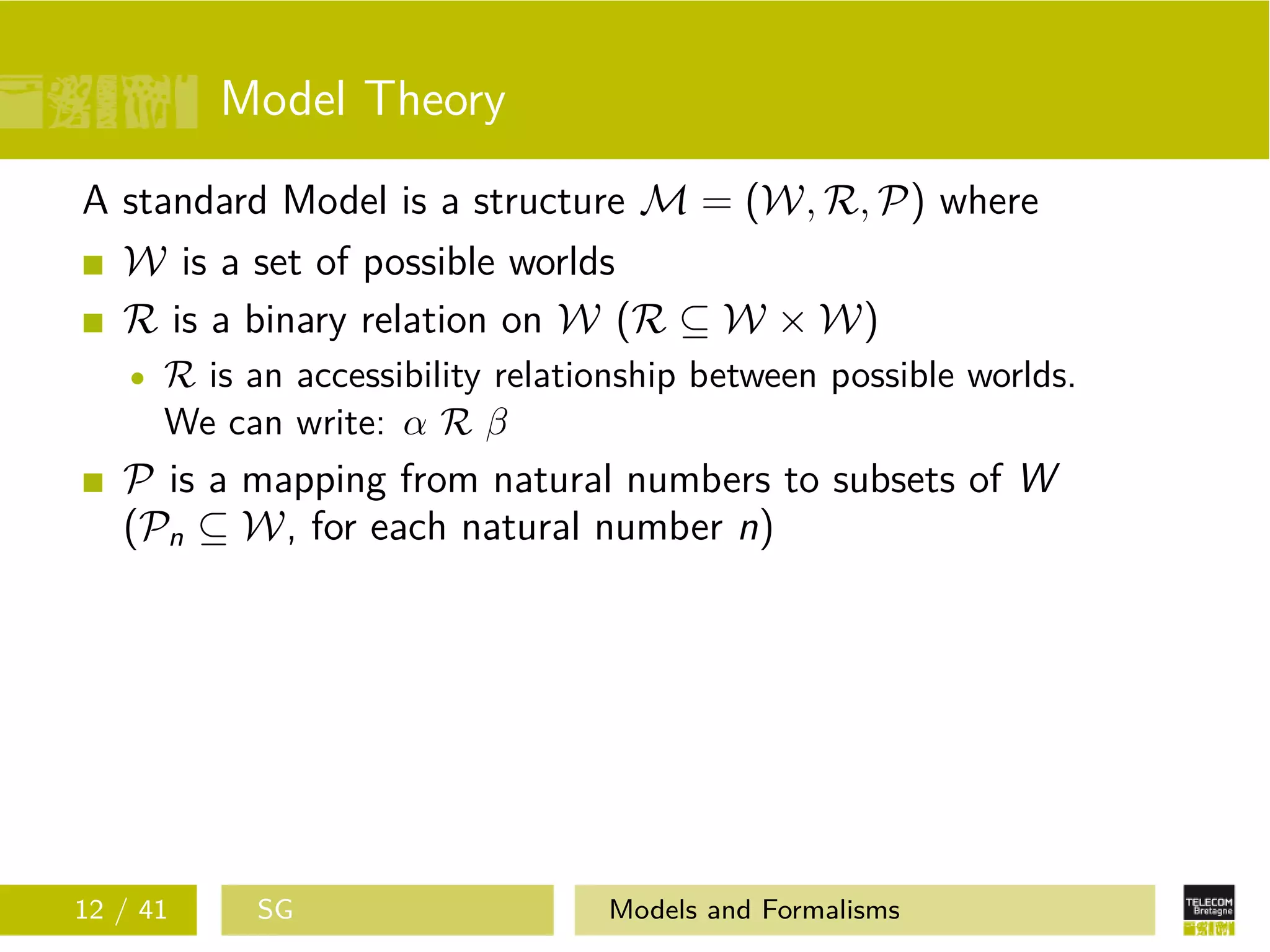

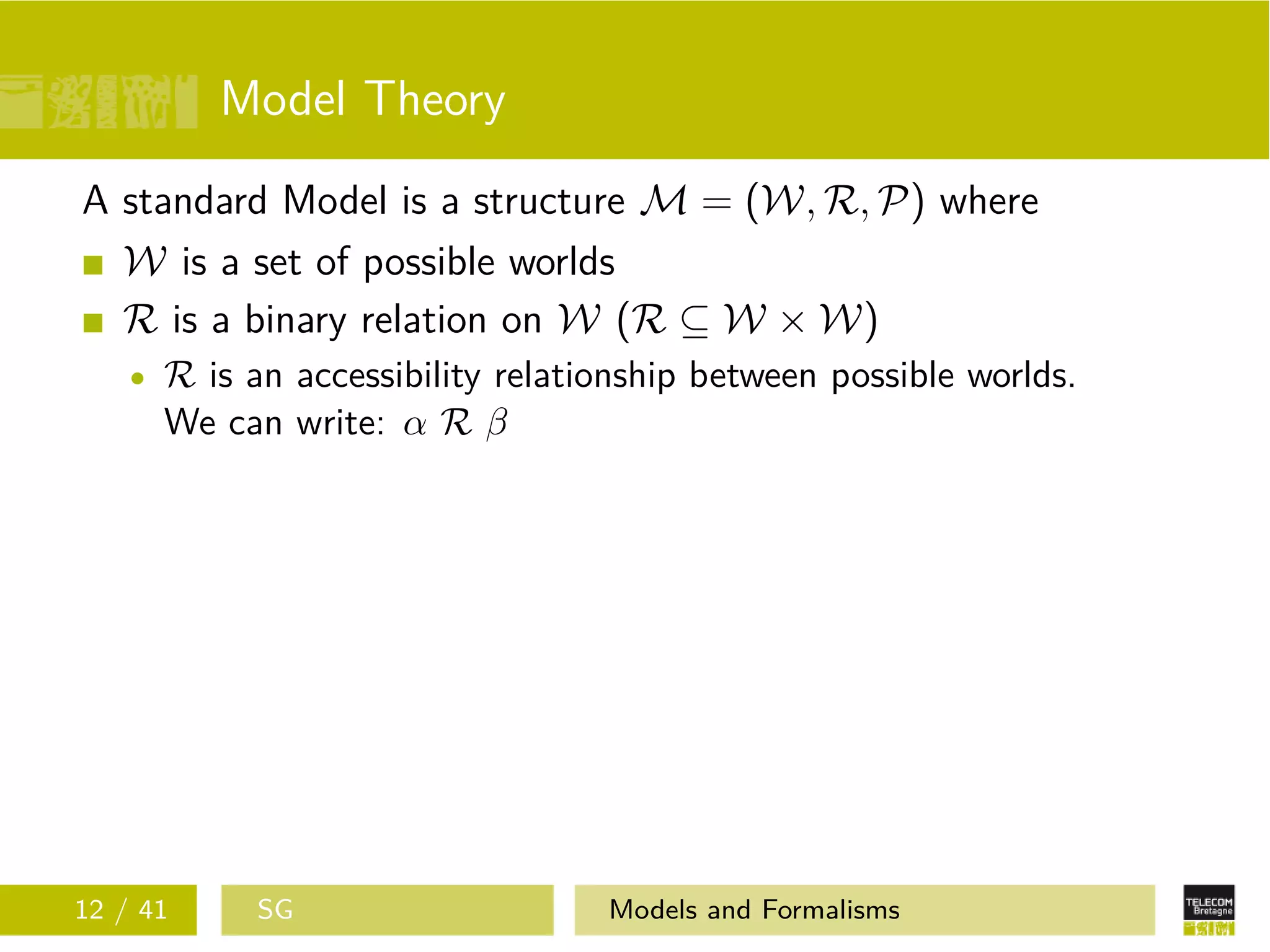

16. Model Theory
A standard Model is a structure M = (W, R, P) where
W is a set of possible worlds
R is a binary relation on W (R ⊆ W × W)
R is an accessibility relationship between possible worlds.
We can write: α R β
12 / 41 SG Models and Formalisms

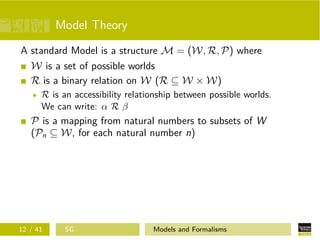

17. Model Theory
A standard Model is a structure M = (W, R, P) where
W is a set of possible worlds
R is a binary relation on W (R ⊆ W × W)
R is an accessibility relationship between possible worlds.
We can write: α R β
P is a mapping from natural numbers to subsets of W
(Pn ⊆ W, for each natural number n)
12 / 41 SG Models and Formalisms

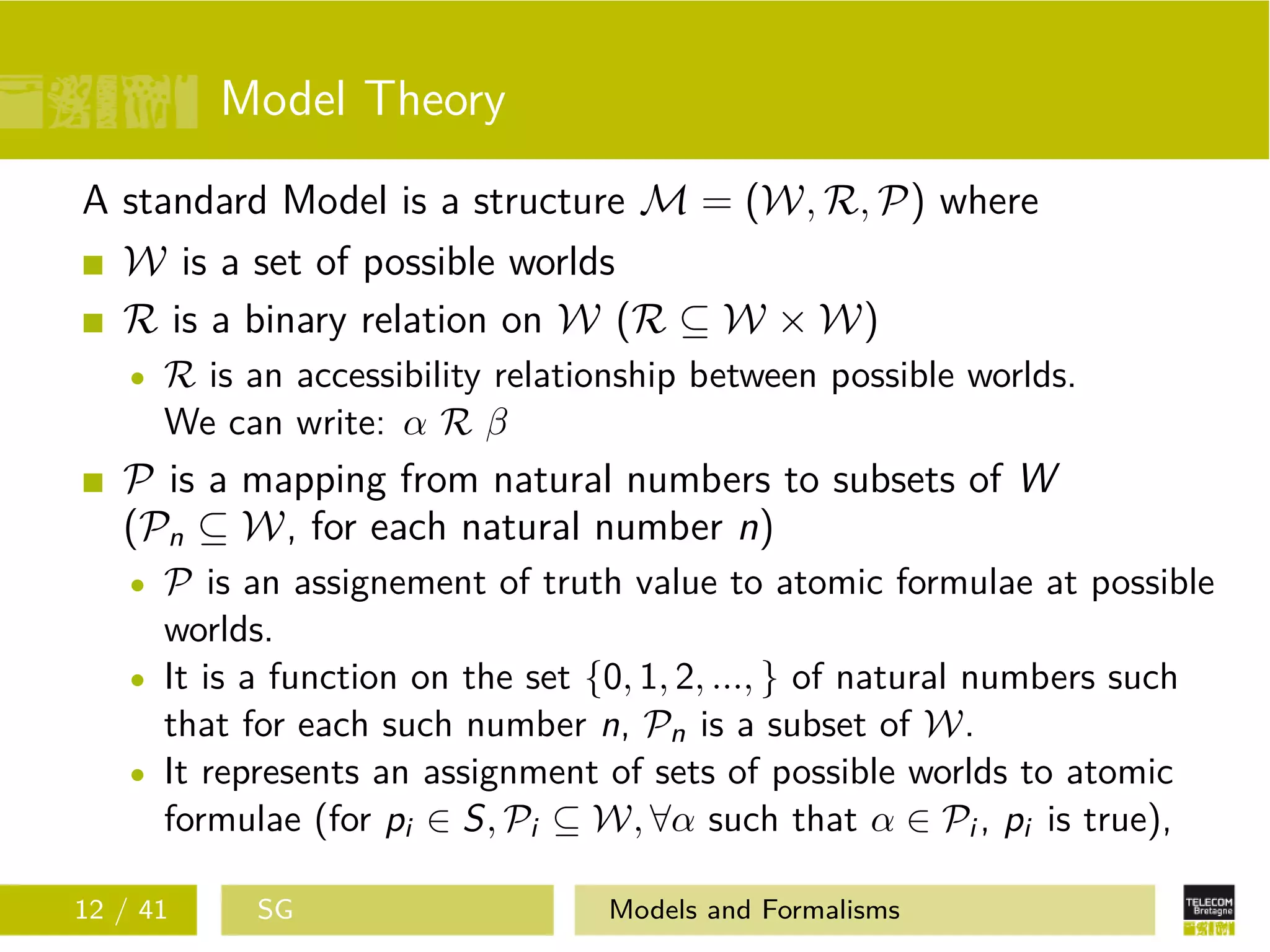

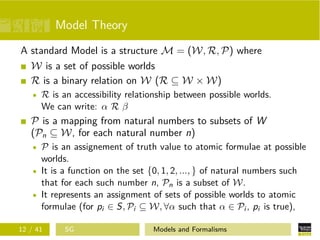

18. Model Theory
A standard Model is a structure M = (W, R, P) where
W is a set of possible worlds
R is a binary relation on W (R ⊆ W × W)
R is an accessibility relationship between possible worlds.
We can write: α R β
P is a mapping from natural numbers to subsets of W
(Pn ⊆ W, for each natural number n)
P is an assignement of truth value to atomic formulae at possible
worlds.
It is a function on the set {0, 1, 2, ..., } of natural numbers such
that for each such number n, Pn is a subset of W.
It represents an assignment of sets of possible worlds to atomic
formulae (for pi ∈ S, Pi ⊆ W, ∀α such that α ∈ Pi , pi is true),
12 / 41 SG Models and Formalisms

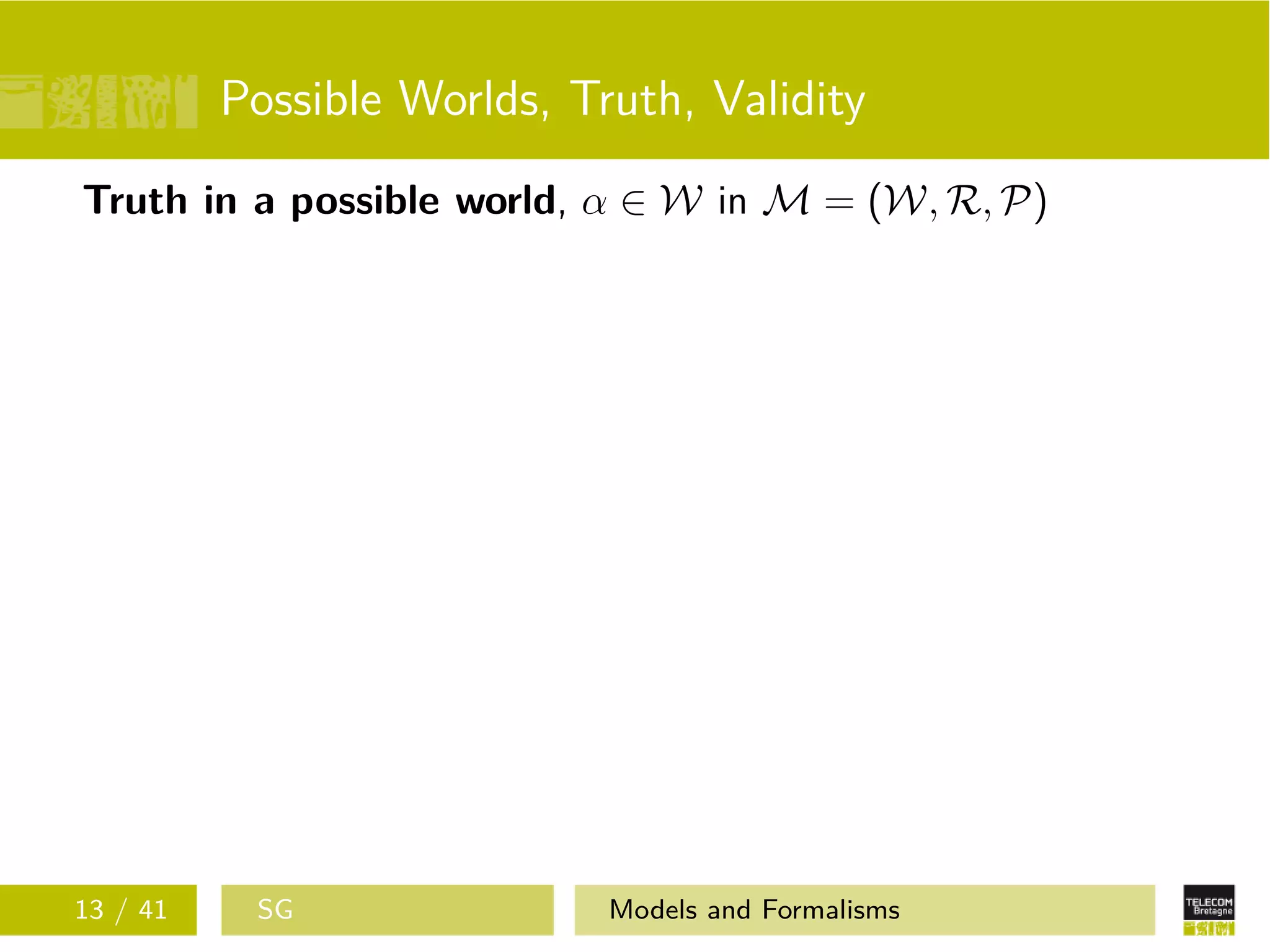

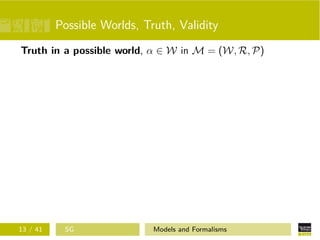

19. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
13 / 41 SG Models and Formalisms

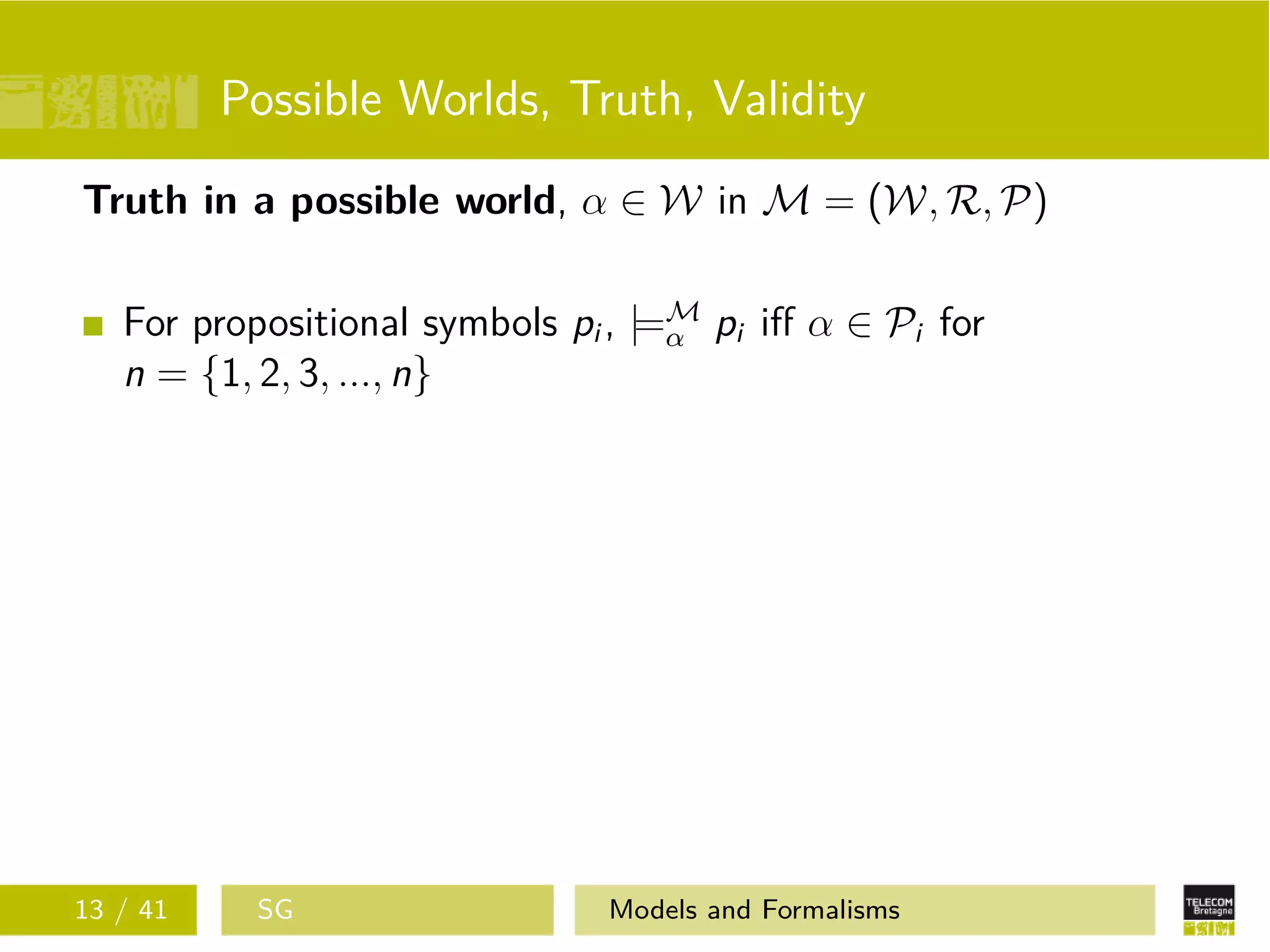

20. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
For propositional symbols pi , |=M
α pi iff α ∈ Pi for
n = {1, 2, 3, ..., n}
13 / 41 SG Models and Formalisms

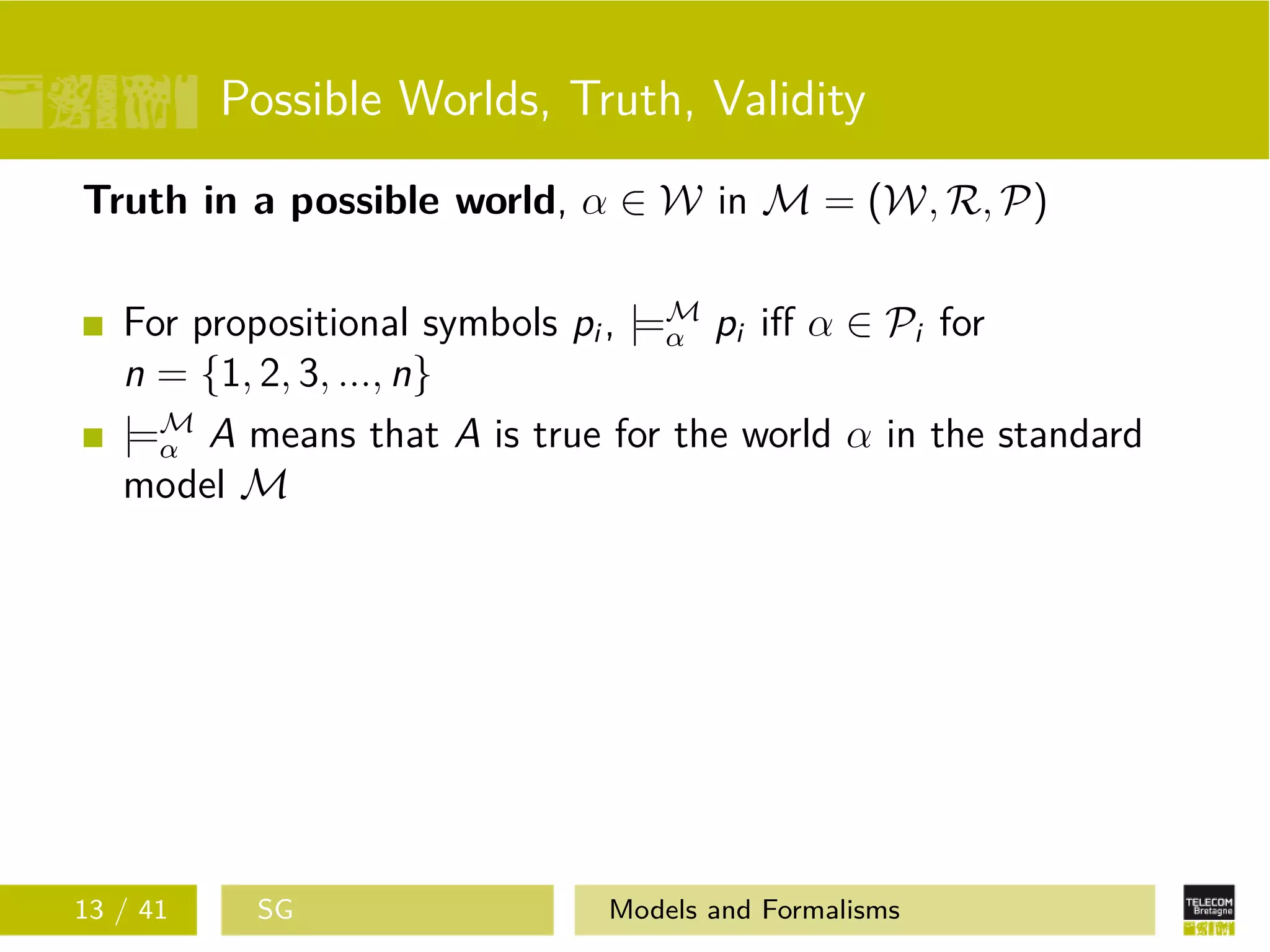

21. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
For propositional symbols pi , |=M
α pi iff α ∈ Pi for
n = {1, 2, 3, ..., n}
|=M
α A means that A is true for the world α in the standard
model M
13 / 41 SG Models and Formalisms

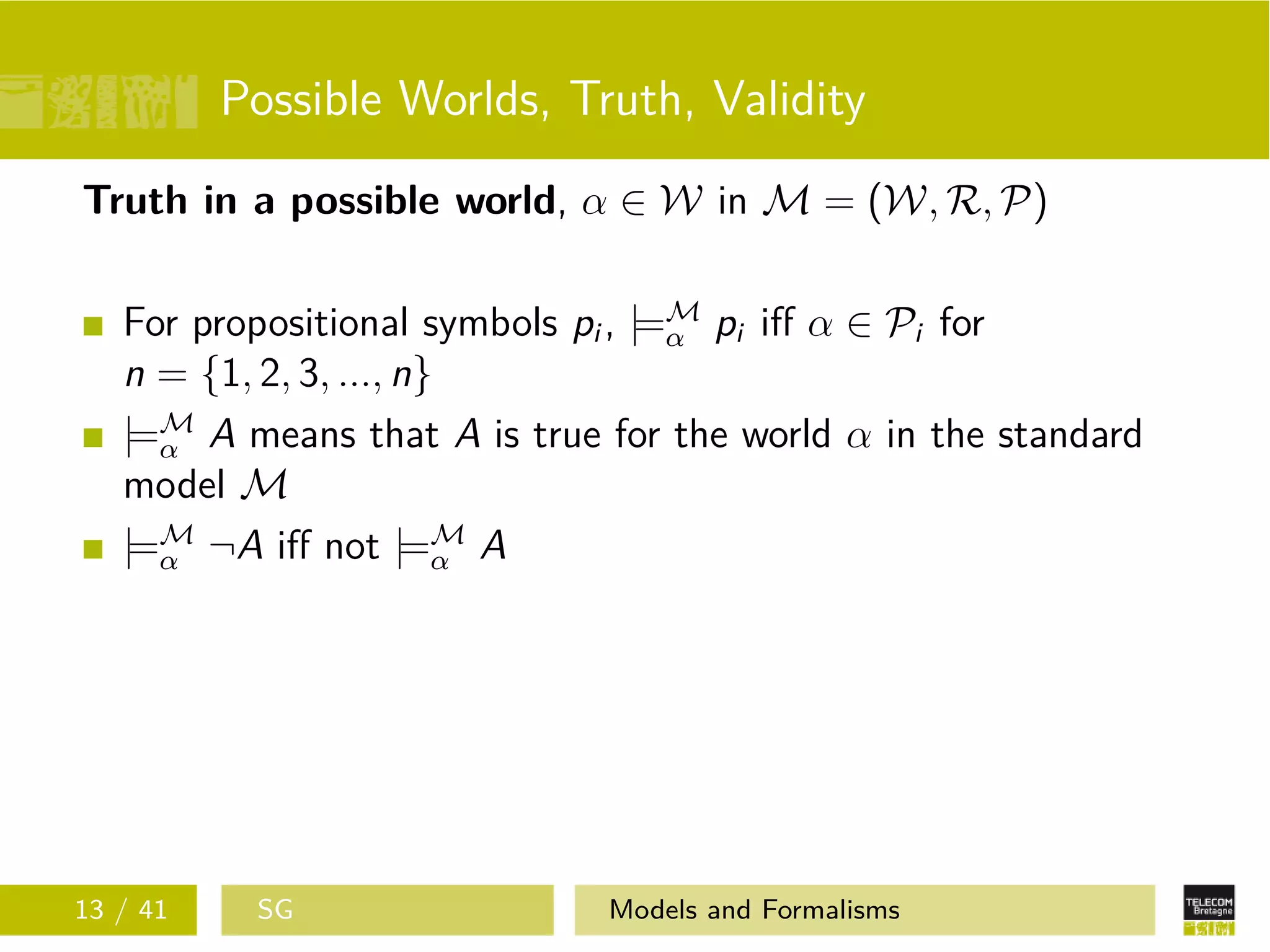

22. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
For propositional symbols pi , |=M
α pi iff α ∈ Pi for
n = {1, 2, 3, ..., n}
|=M
α A means that A is true for the world α in the standard
model M
|=M
α ¬A iff not |=M
α A
13 / 41 SG Models and Formalisms

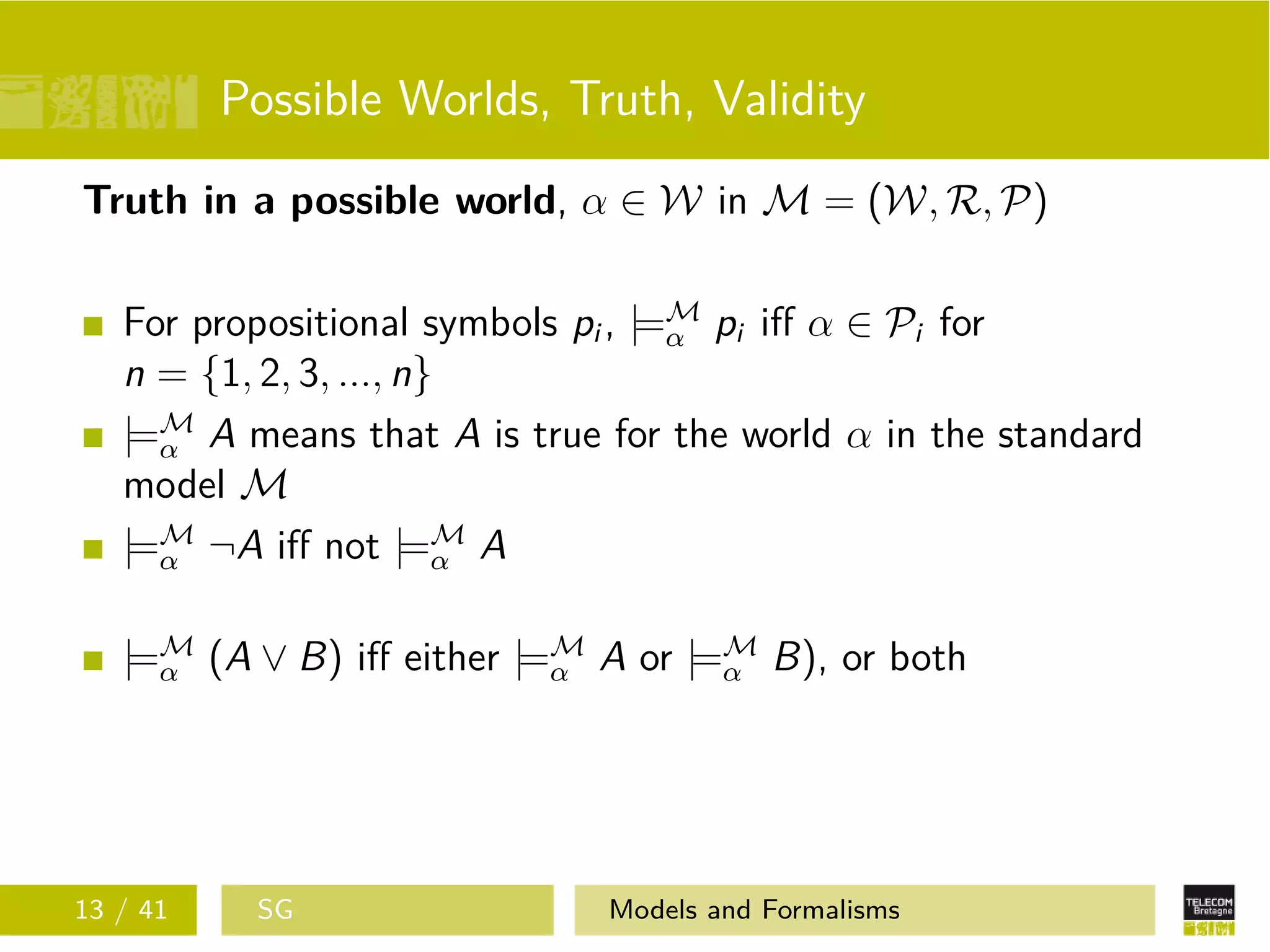

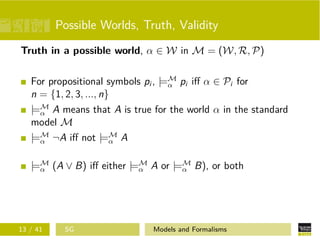

23. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
For propositional symbols pi , |=M
α pi iff α ∈ Pi for
n = {1, 2, 3, ..., n}
|=M
α A means that A is true for the world α in the standard
model M
|=M
α ¬A iff not |=M
α A
|=M
α (A ∨ B) iff either |=M
α A or |=M
α B), or both
13 / 41 SG Models and Formalisms

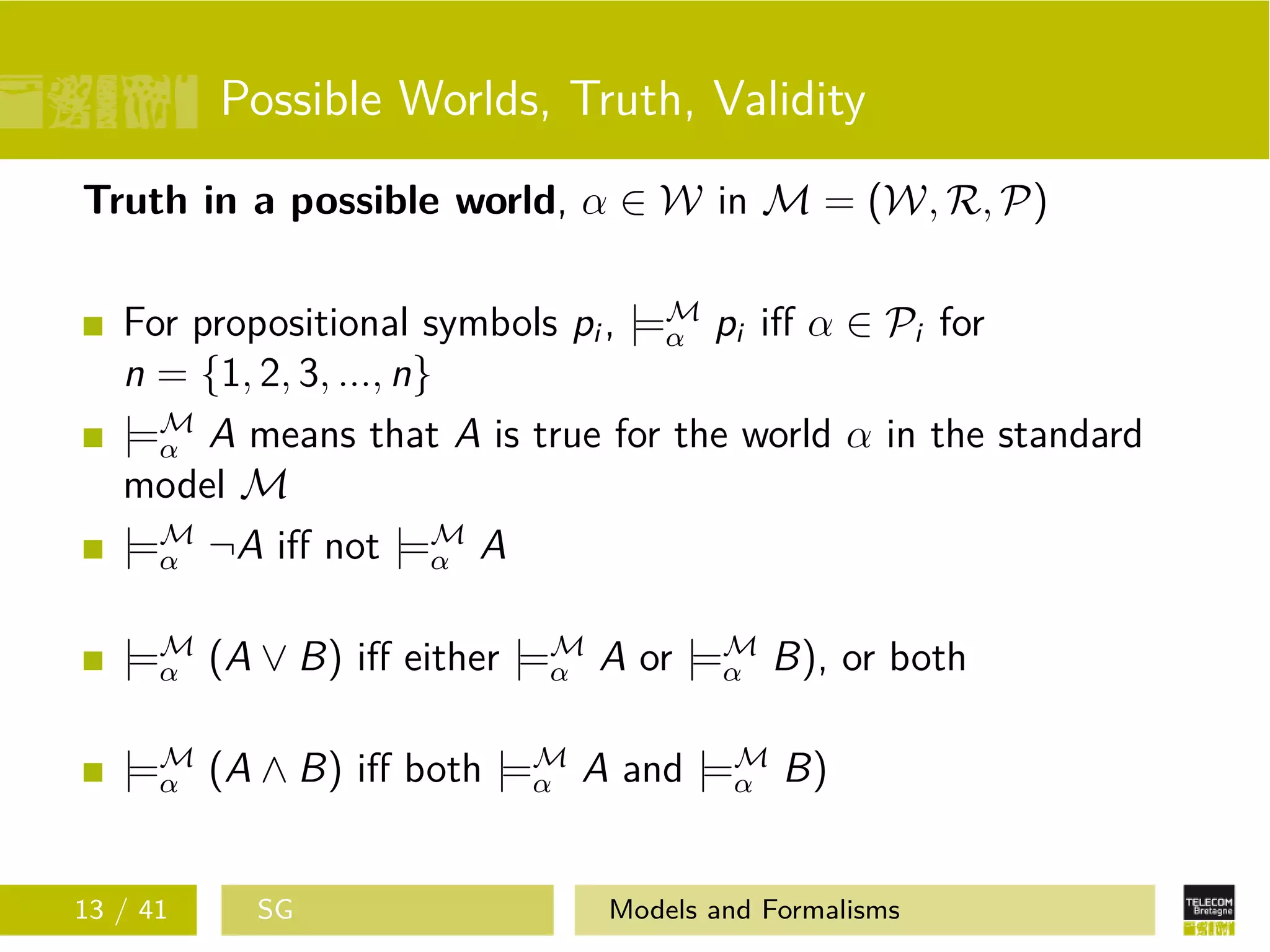

24. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
For propositional symbols pi , |=M
α pi iff α ∈ Pi for
n = {1, 2, 3, ..., n}
|=M
α A means that A is true for the world α in the standard
model M
|=M
α ¬A iff not |=M
α A
|=M
α (A ∨ B) iff either |=M
α A or |=M
α B), or both
|=M
α (A ∧ B) iff both |=M
α A and |=M
α B)
13 / 41 SG Models and Formalisms

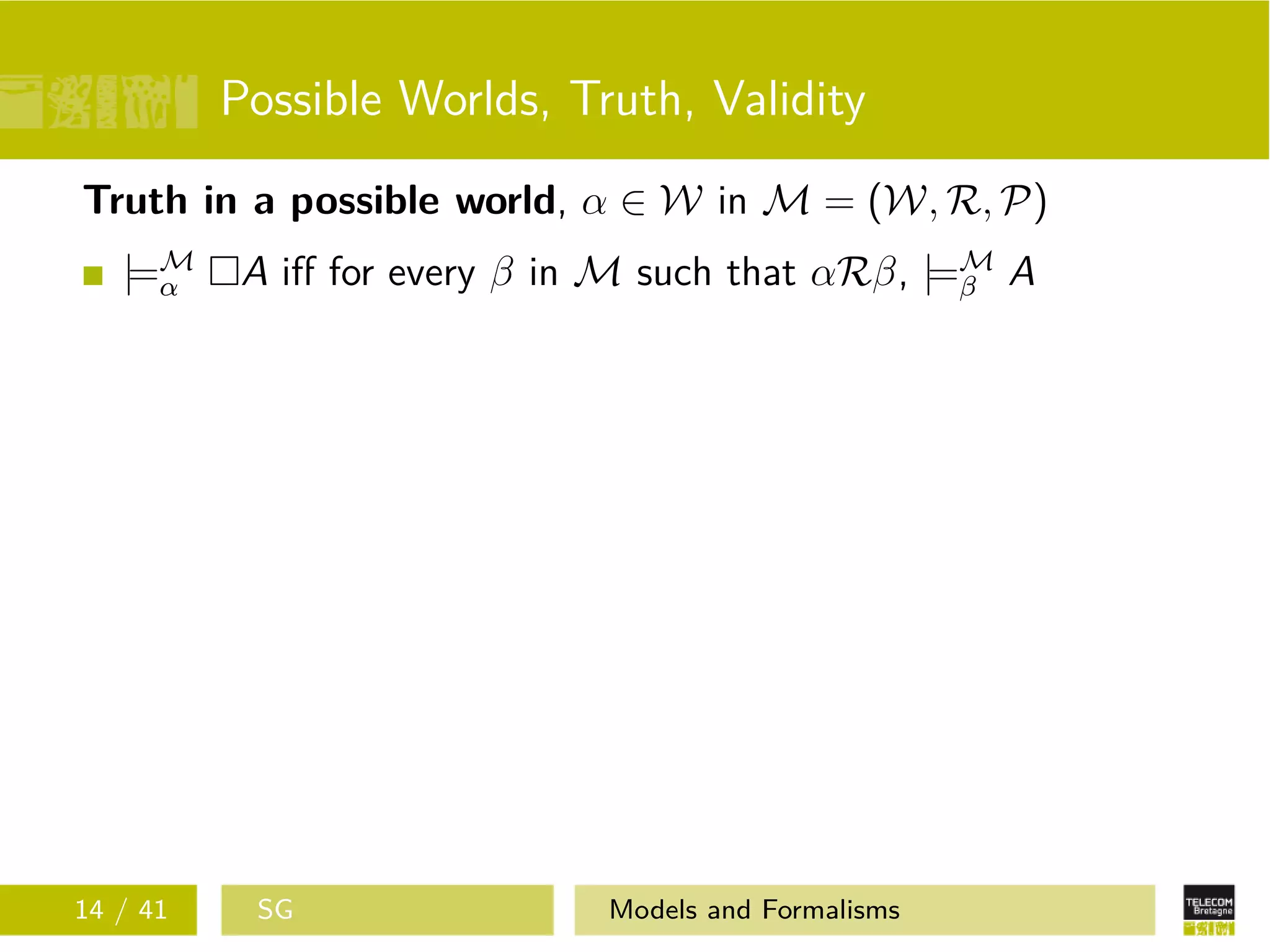

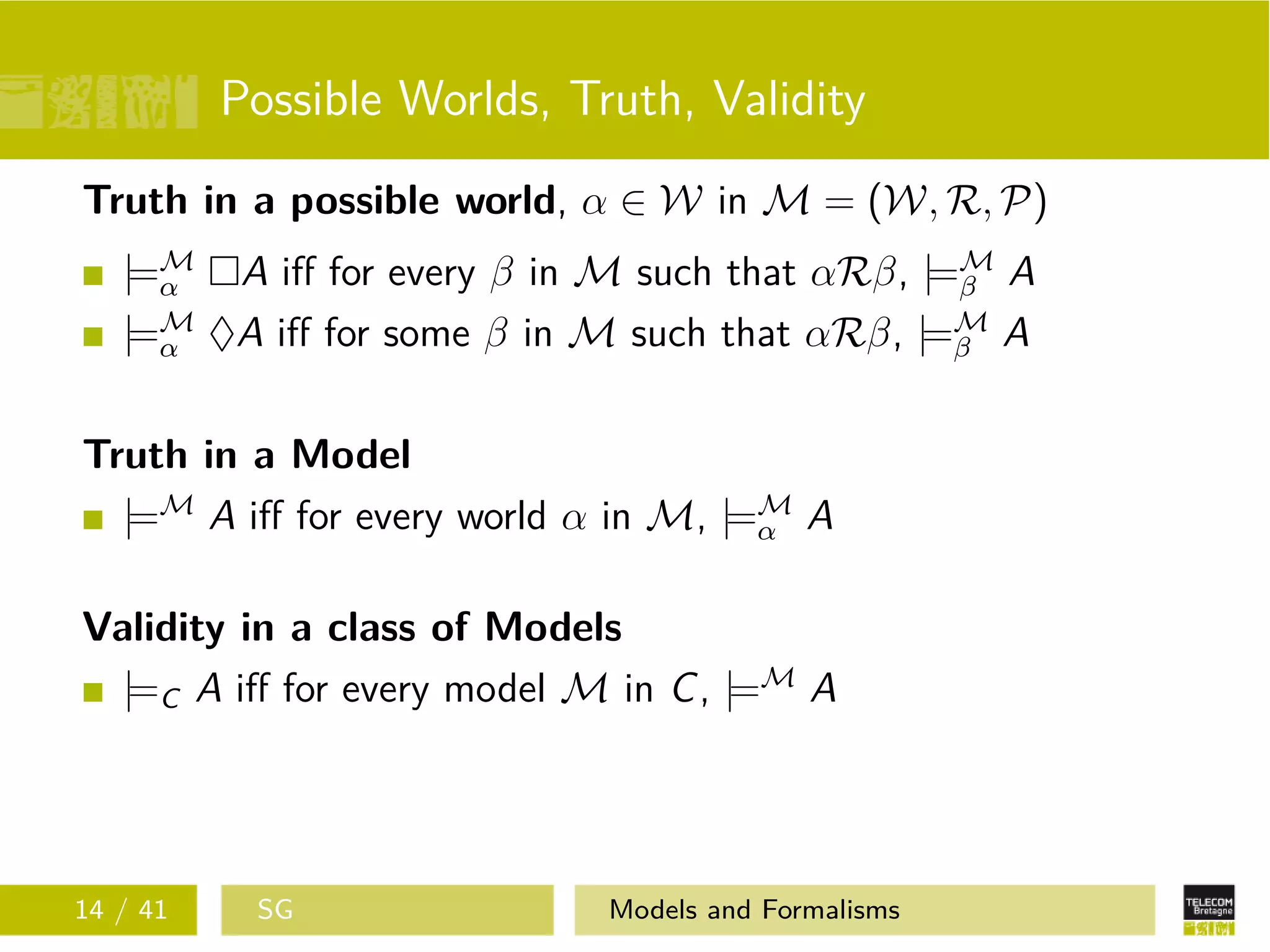

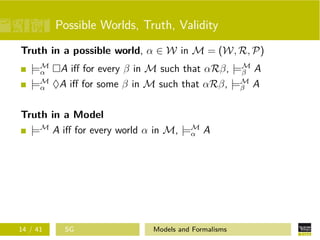

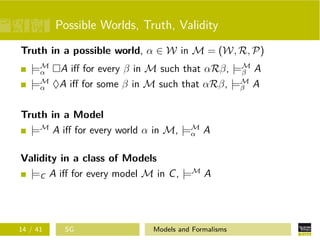

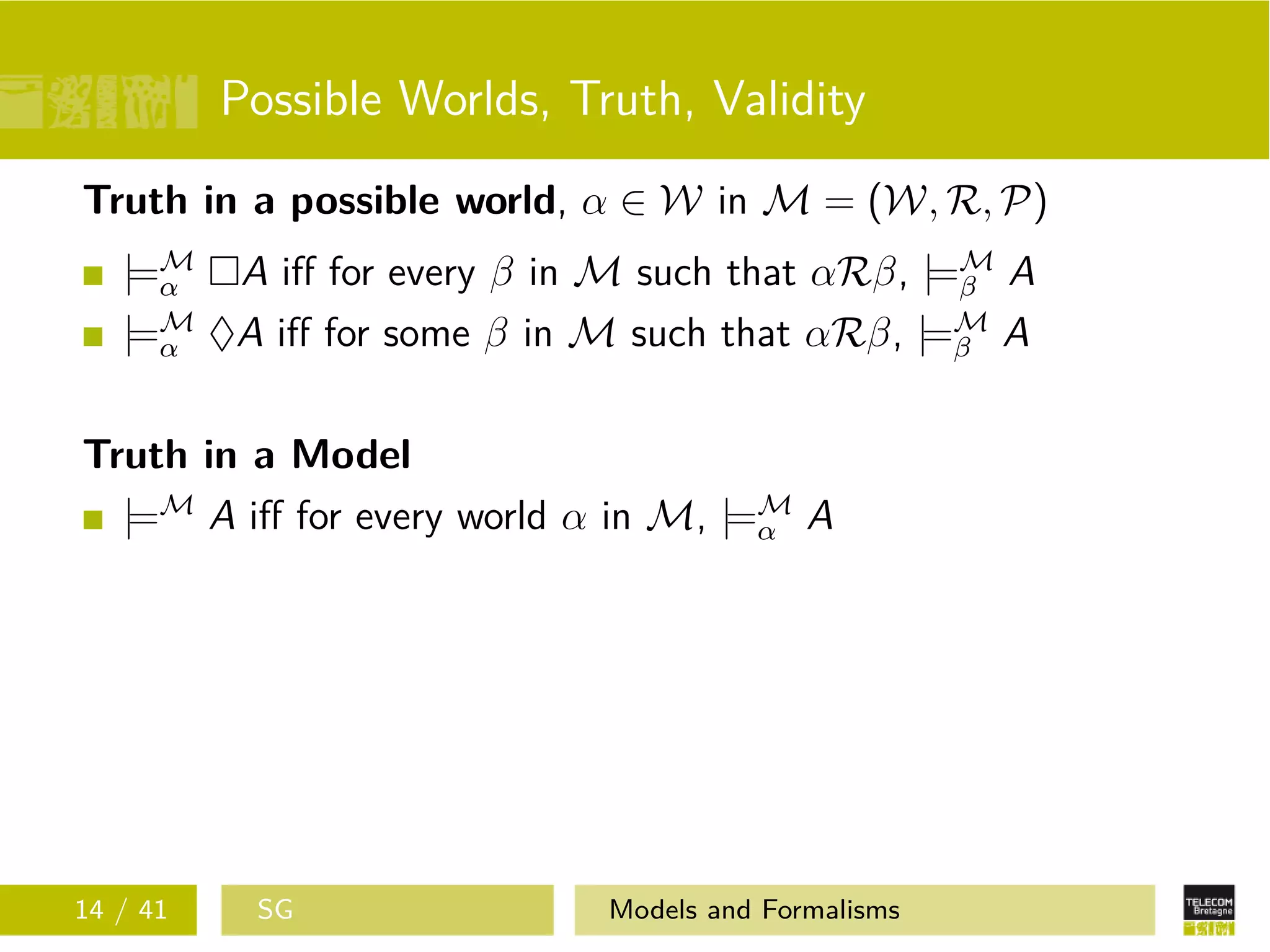

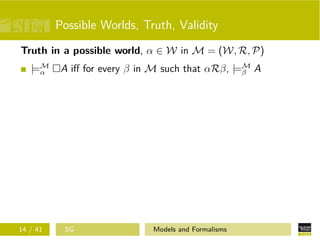

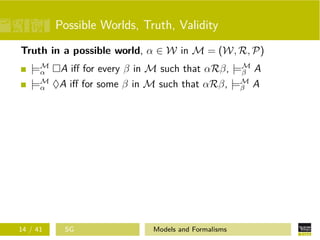

25. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
|=M
α A iff for every β in M such that αRβ, |=M
β A
14 / 41 SG Models and Formalisms

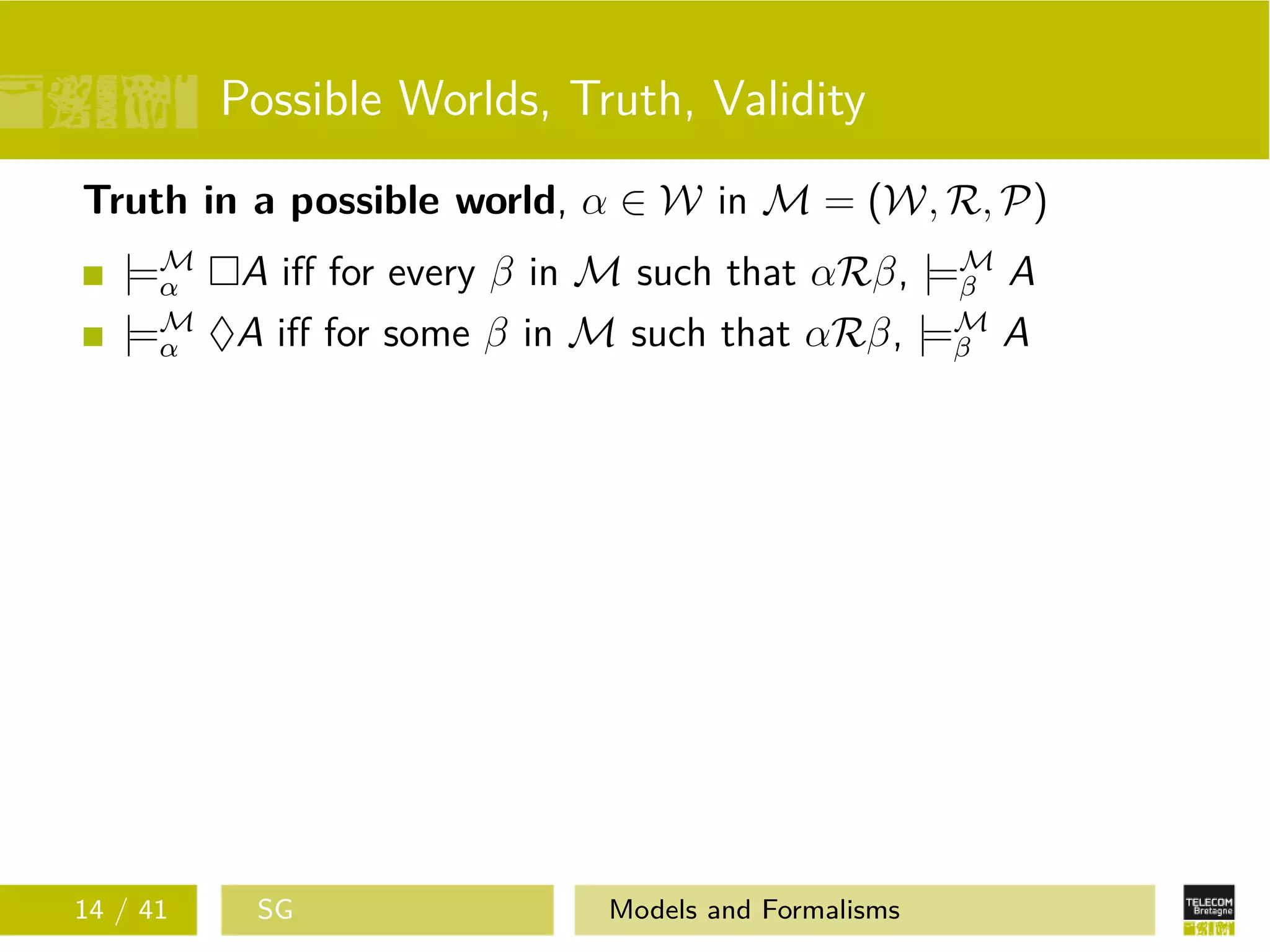

26. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
|=M
α A iff for every β in M such that αRβ, |=M
β A
|=M
α ♦A iff for some β in M such that αRβ, |=M
β A
14 / 41 SG Models and Formalisms
27. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
|=M
α A iff for every β in M such that αRβ, |=M
β A
|=M
α ♦A iff for some β in M such that αRβ, |=M
β A
Truth in a Model
|=M
A iff for every world α in M, |=M
α A
14 / 41 SG Models and Formalisms
28. Possible Worlds, Truth, Validity
Truth in a possible world, α ∈ W in M = (W, R, P)
|=M
α A iff for every β in M such that αRβ, |=M
β A
|=M
α ♦A iff for some β in M such that αRβ, |=M
β A
Truth in a Model
|=M
A iff for every world α in M, |=M
α A
Validity in a class of Models
|=C A iff for every model M in C, |=M
A
14 / 41 SG Models and Formalisms

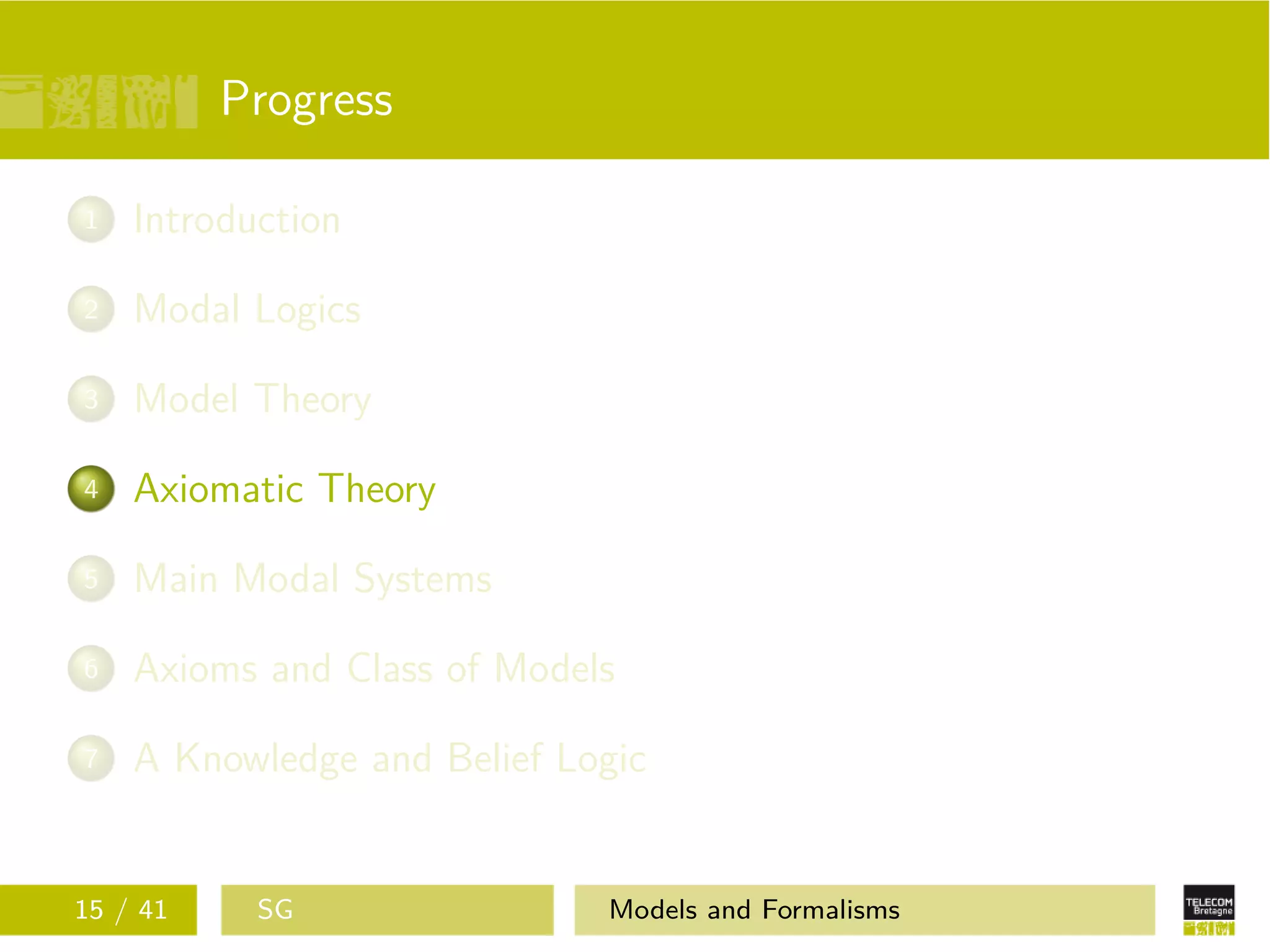

29. Progress
1 Introduction
2 Modal Logics
3 Model Theory
4 Axiomatic Theory
5 Main Modal Systems
6 Axioms and Class of Models
7 A Knowledge and Belief Logic
15 / 41 SG Models and Formalisms

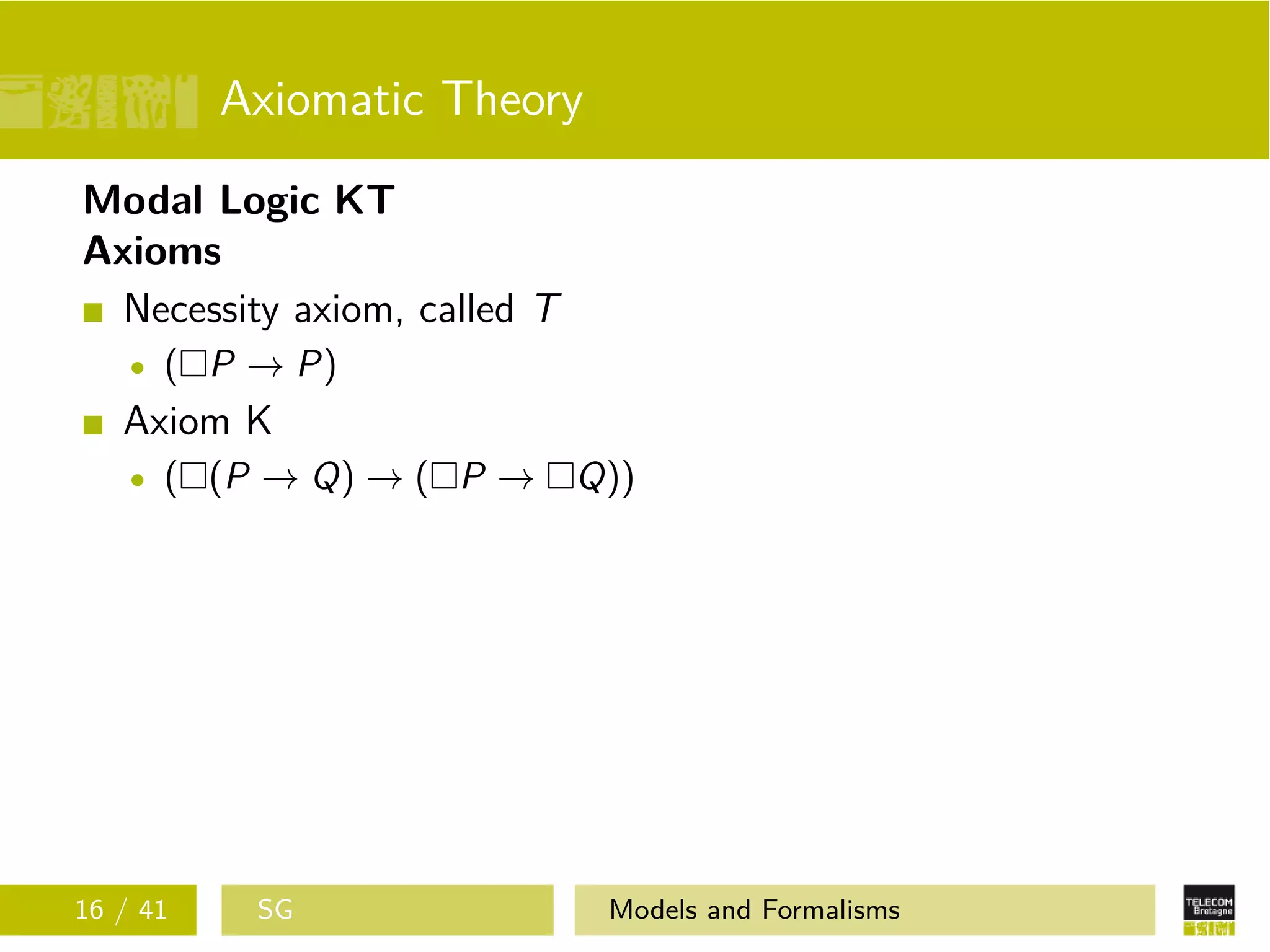

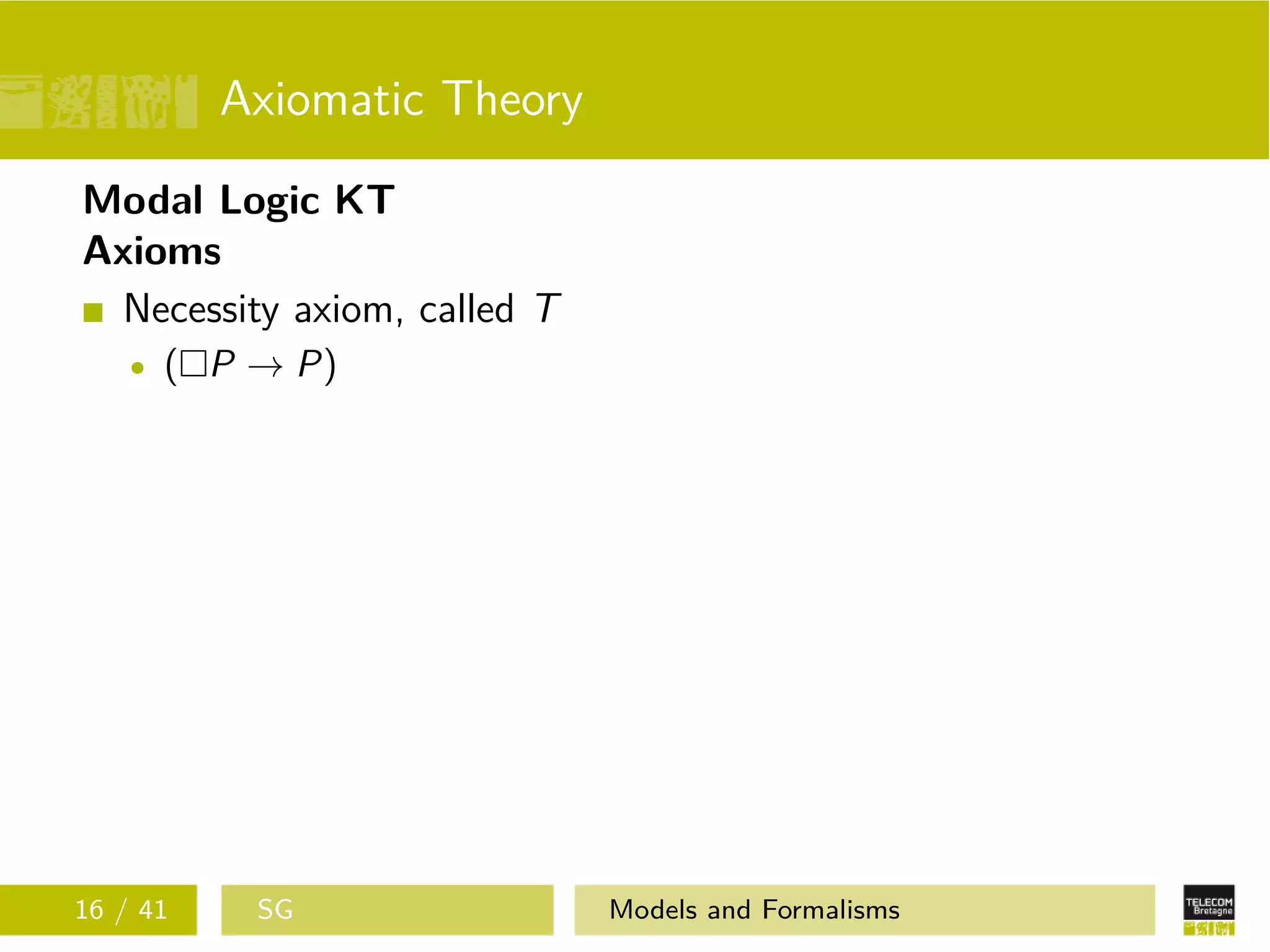

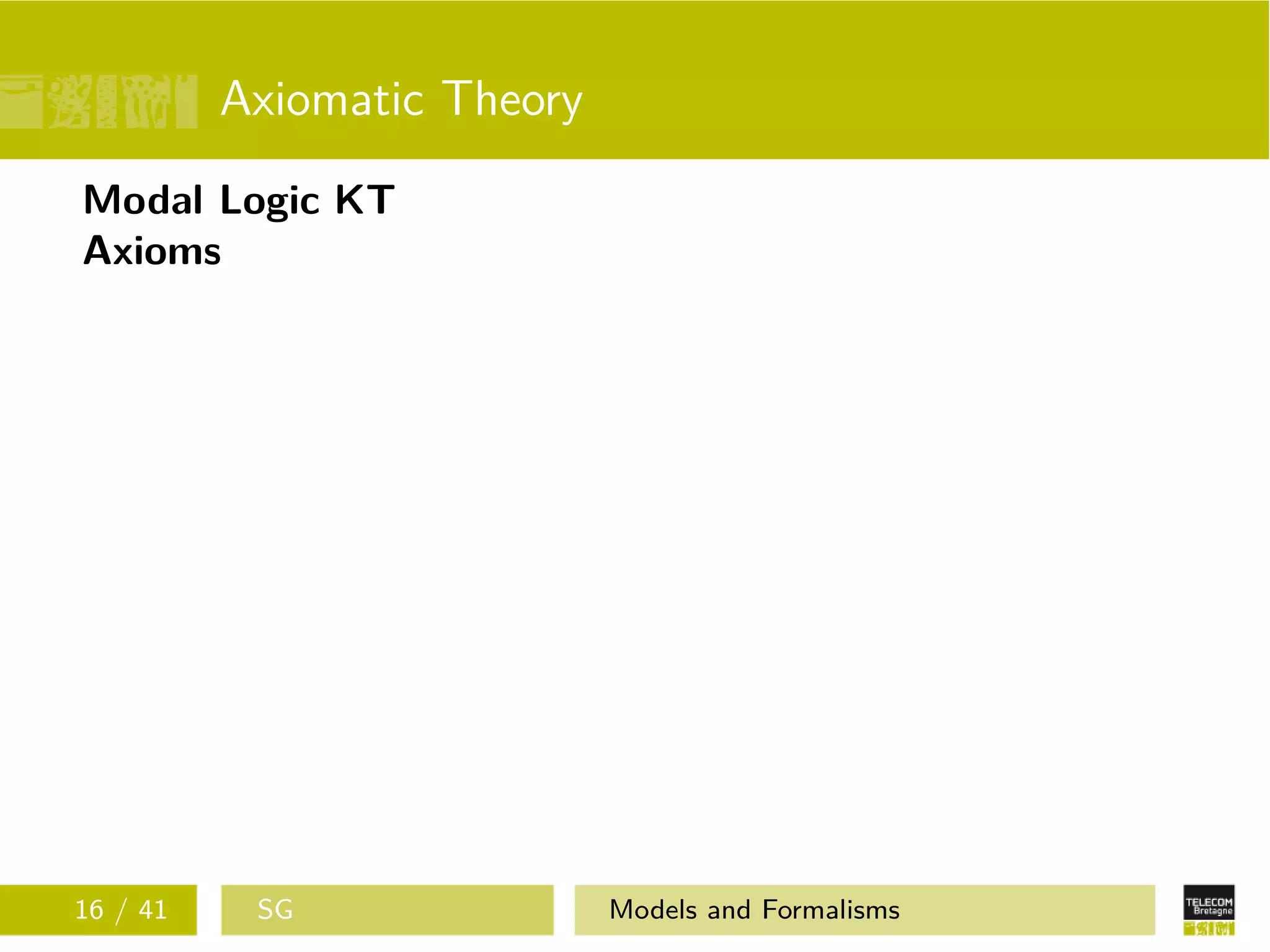

32. Axiomatic Theory
Modal Logic KT
Axioms
Necessity axiom, called T
( P → P)
Axiom K
( (P → Q) → ( P → Q))
16 / 41 SG Models and Formalisms

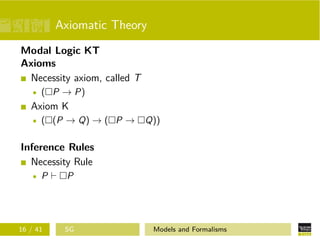

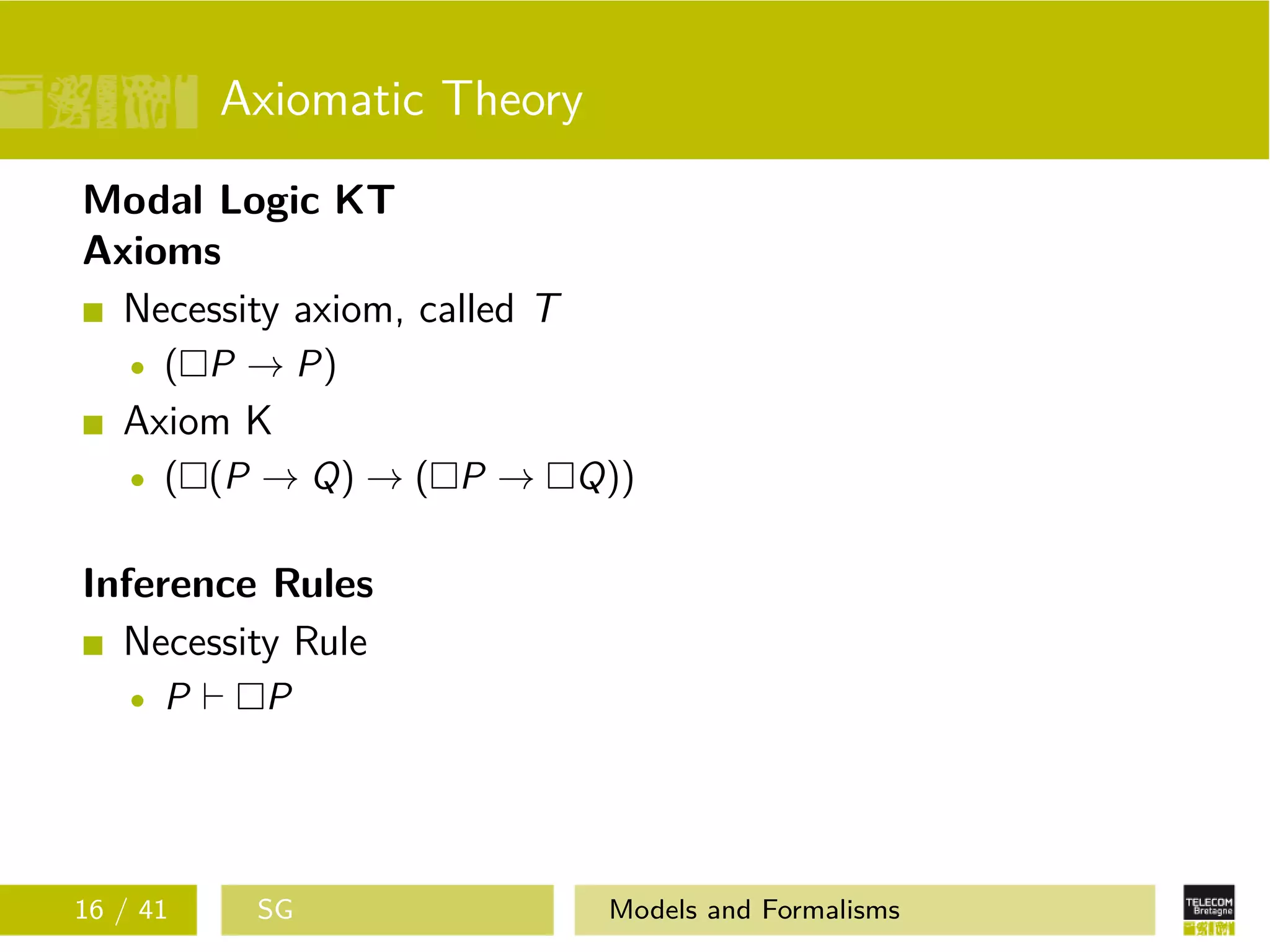

33. Axiomatic Theory
Modal Logic KT
Axioms
Necessity axiom, called T
( P → P)
Axiom K
( (P → Q) → ( P → Q))
Inference Rules
Necessity Rule
P P
16 / 41 SG Models and Formalisms
34. Axiomatic Theory
Modal Logic KT
Axioms
Necessity axiom, called T
( P → P)
Axiom K
( (P → Q) → ( P → Q))
Inference Rules
Necessity Rule
P P
Modus Ponens
P, (P → Q) Q
16 / 41 SG Models and Formalisms

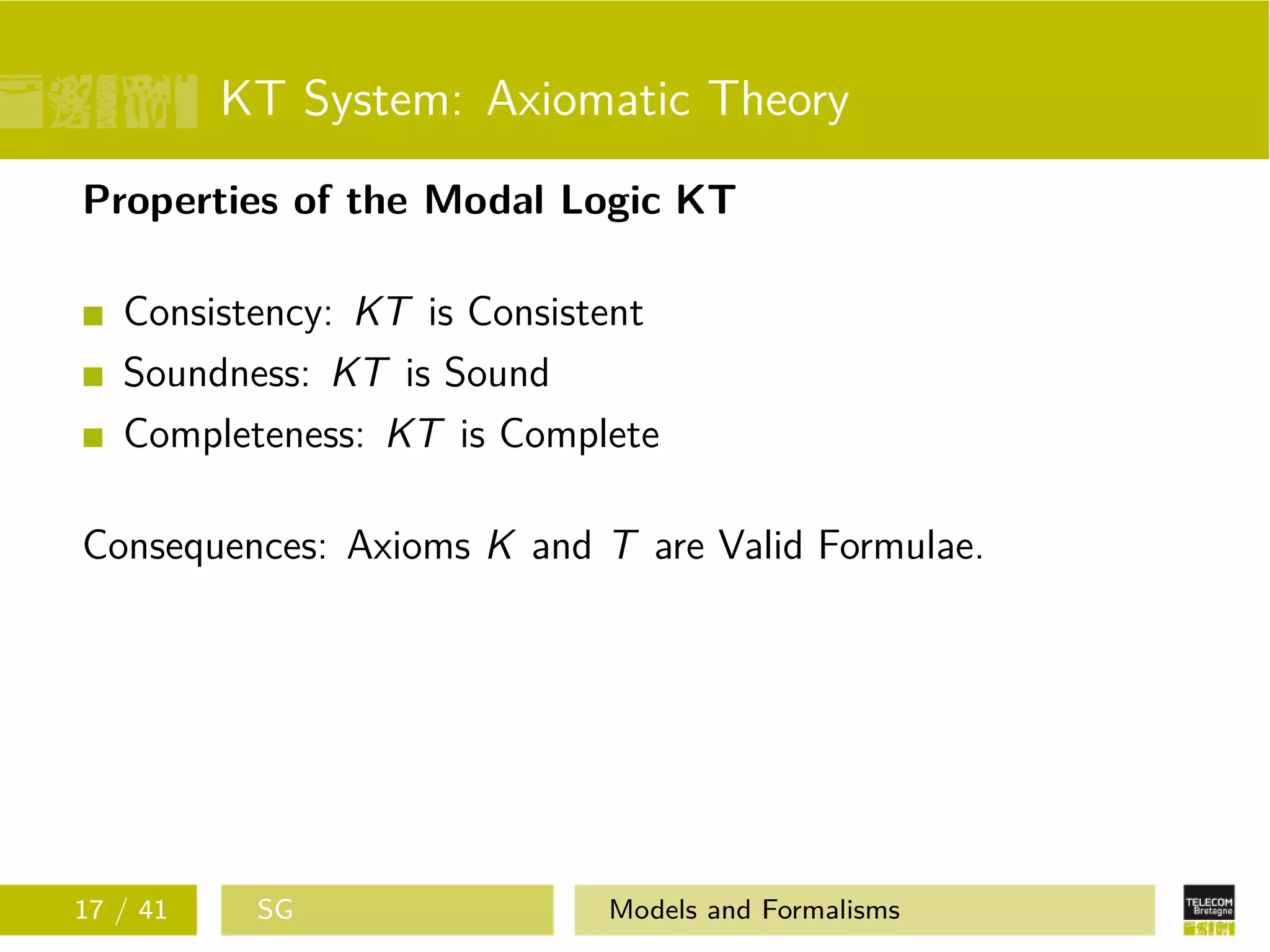

35. KT System: Axiomatic Theory
Properties of the Modal Logic KT
Consistency: KT is Consistent
Soundness: KT is Sound
Completeness: KT is Complete
Consequences: Axioms K and T are Valid Formulae.
17 / 41 SG Models and Formalisms

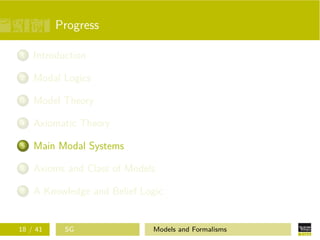

36. Progress
1 Introduction
2 Modal Logics
3 Model Theory
4 Axiomatic Theory
5 Main Modal Systems
6 Axioms and Class of Models
7 A Knowledge and Belief Logic
18 / 41 SG Models and Formalisms
37. Main Modal Systems
The main modal systems are composed from a small set of axioms:
Axiom T: ( P → P)
Axiom D: ( P → ♦P)
Axiom B: (P → ♦P)
Axiom 4: ( P → P)
Axiom 5: (♦P → ♦P)
19 / 41 SG Models and Formalisms

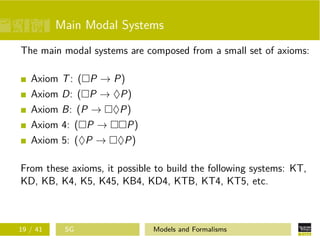

38. Main Modal Systems

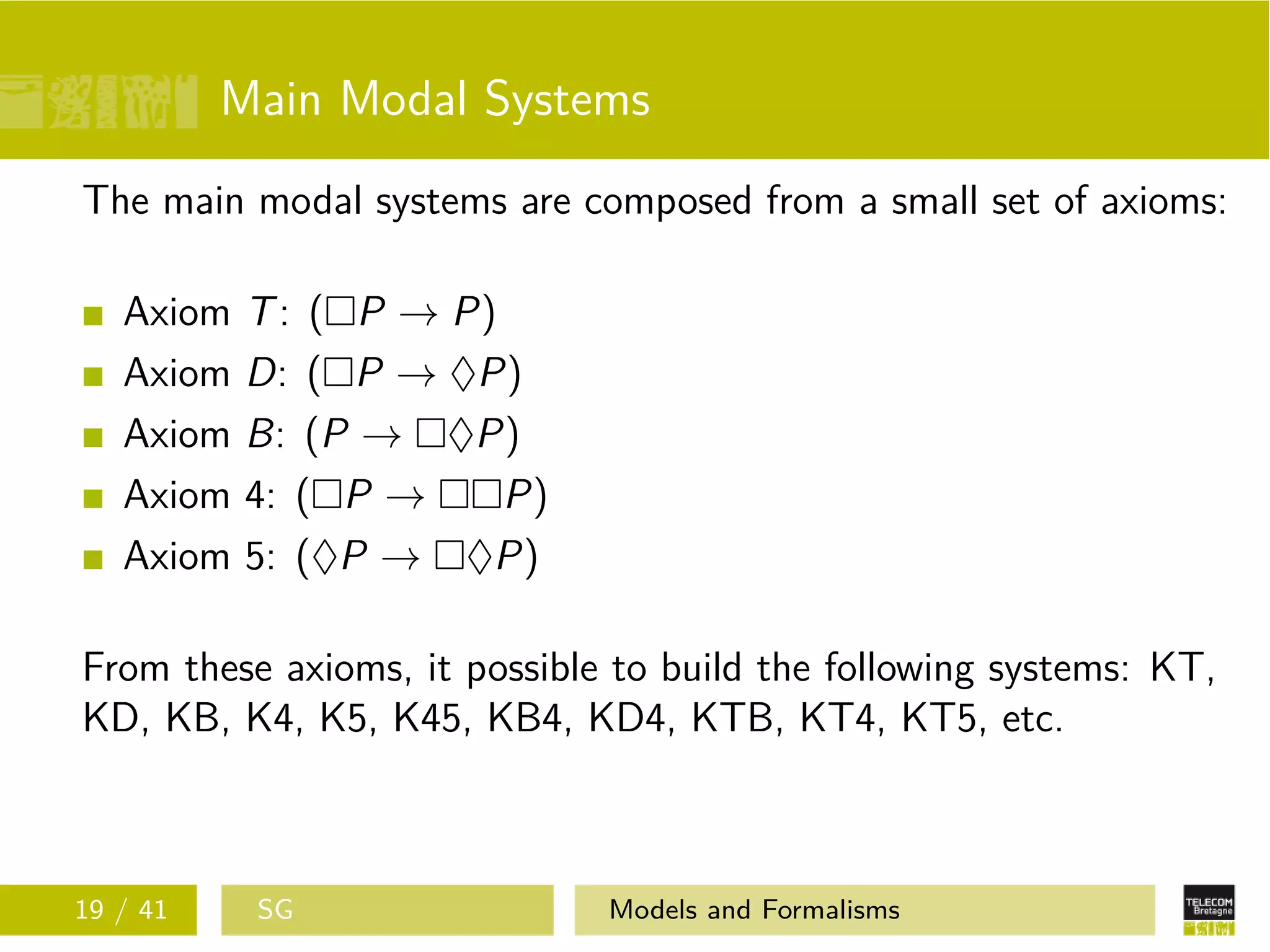

The main modal systems are composed from a small set of axioms:
Axiom T: ( P → P)
Axiom D: ( P → ♦P)
Axiom B: (P → ♦P)
Axiom 4: ( P → P)
Axiom 5: (♦P → ♦P)
From these axioms, it possible to build the following systems: KT,
KD, KB, K4, K5, K45, KB4, KD4, KTB, KT4, KT5, etc.
19 / 41 SG Models and Formalisms

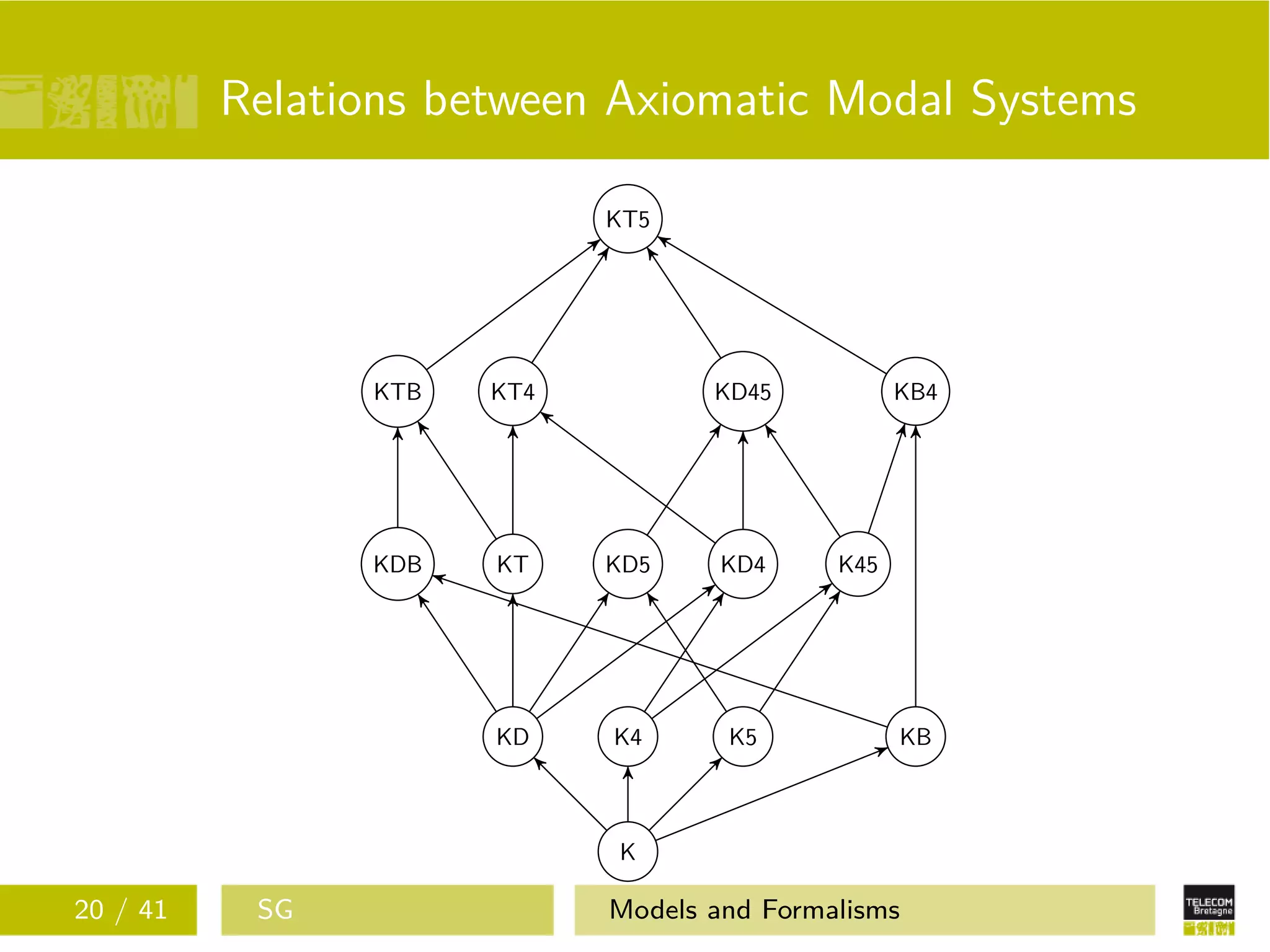

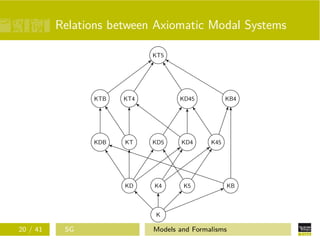

39. Relations between Axiomatic Modal Systems
K
KD K4 K5 KB
KTKDB KD4KD5 K45
KTB KT4 KD45 KB4
KT5
20 / 41 SG Models and Formalisms

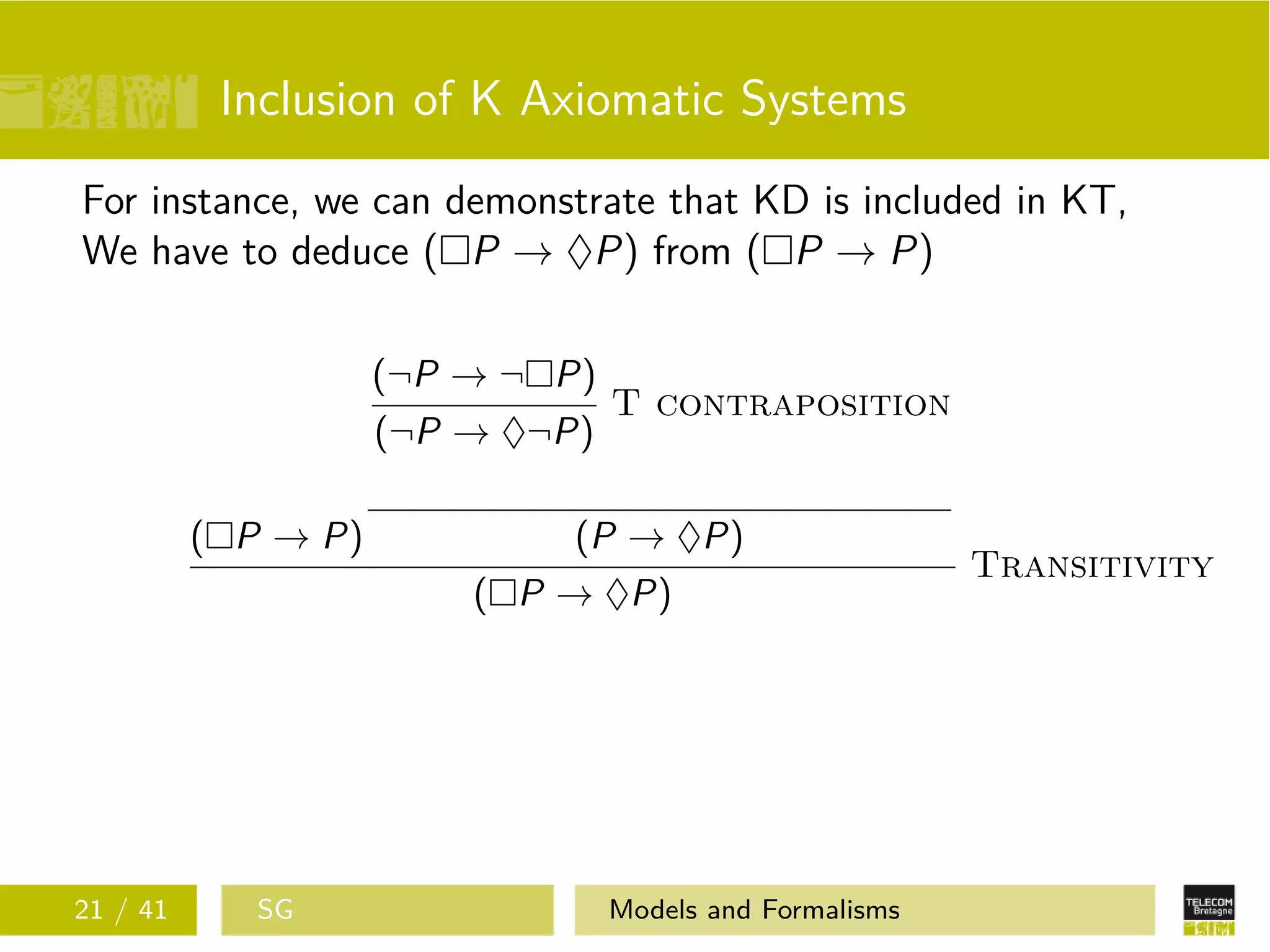

40. Inclusion of K Axiomatic Systems
For instance, we can demonstrate that KD is included in KT,
We have to deduce ( P → ♦P) from ( P → P)
( P → P)
(¬P → ¬ P)
(¬P → ♦¬P)
T contraposition
(P → ♦P)
( P → ♦P)
Transitivity
21 / 41 SG Models and Formalisms
41. Progress
1 Introduction
2 Modal Logics
3 Model Theory
4 Axiomatic Theory
5 Main Modal Systems
6 Axioms and Class of Models
7 A Knowledge and Belief Logic
22 / 41 SG Models and Formalisms

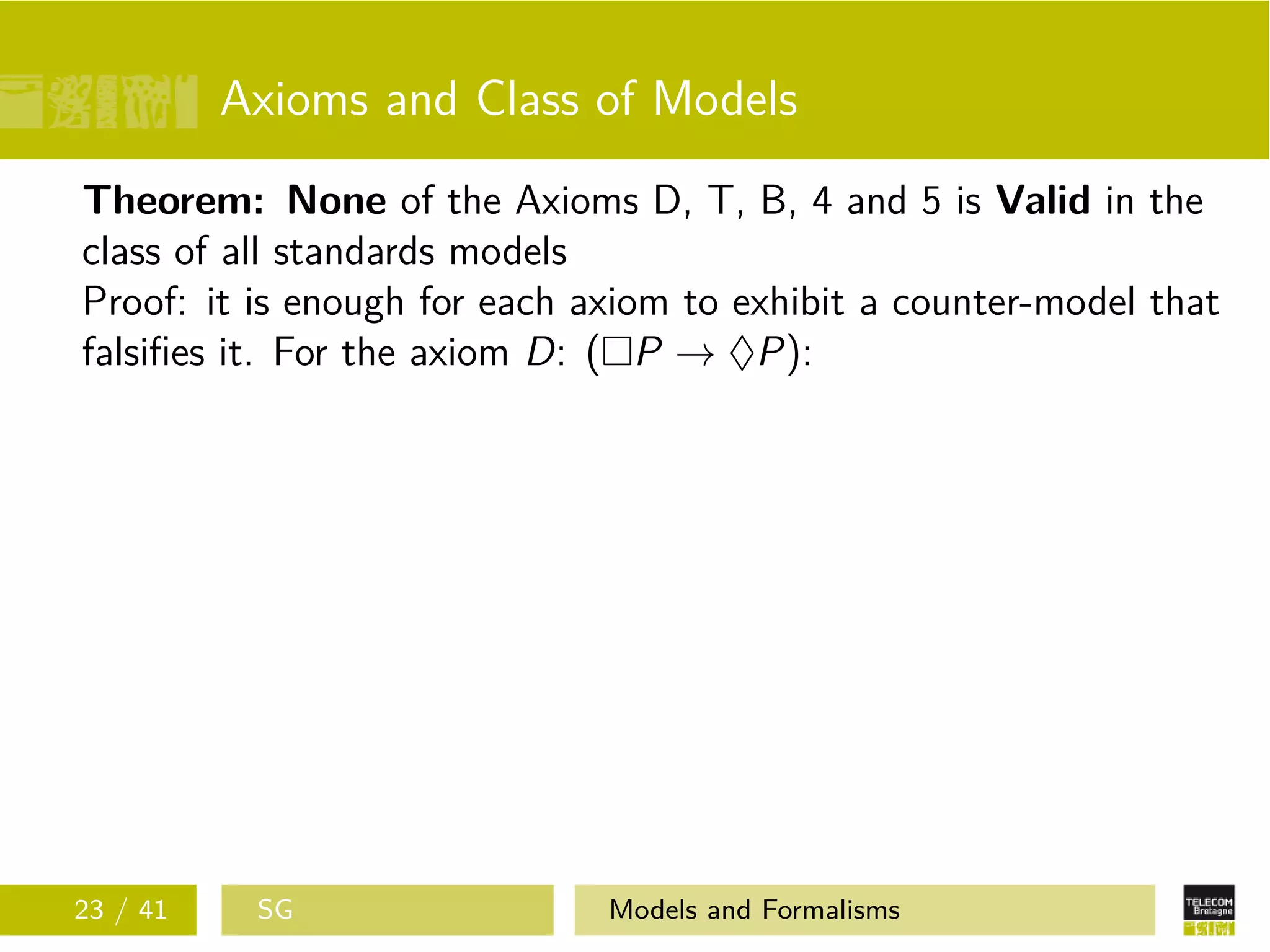

42. Axioms and Class of Models
Theorem: None of the Axioms D, T, B, 4 and 5 is Valid in the
class of all standards models
Proof: it is enough for each axiom to exhibit a counter-model that
falsifies it. For the axiom D: ( P → ♦P):
23 / 41 SG Models and Formalisms

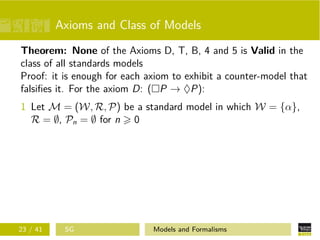

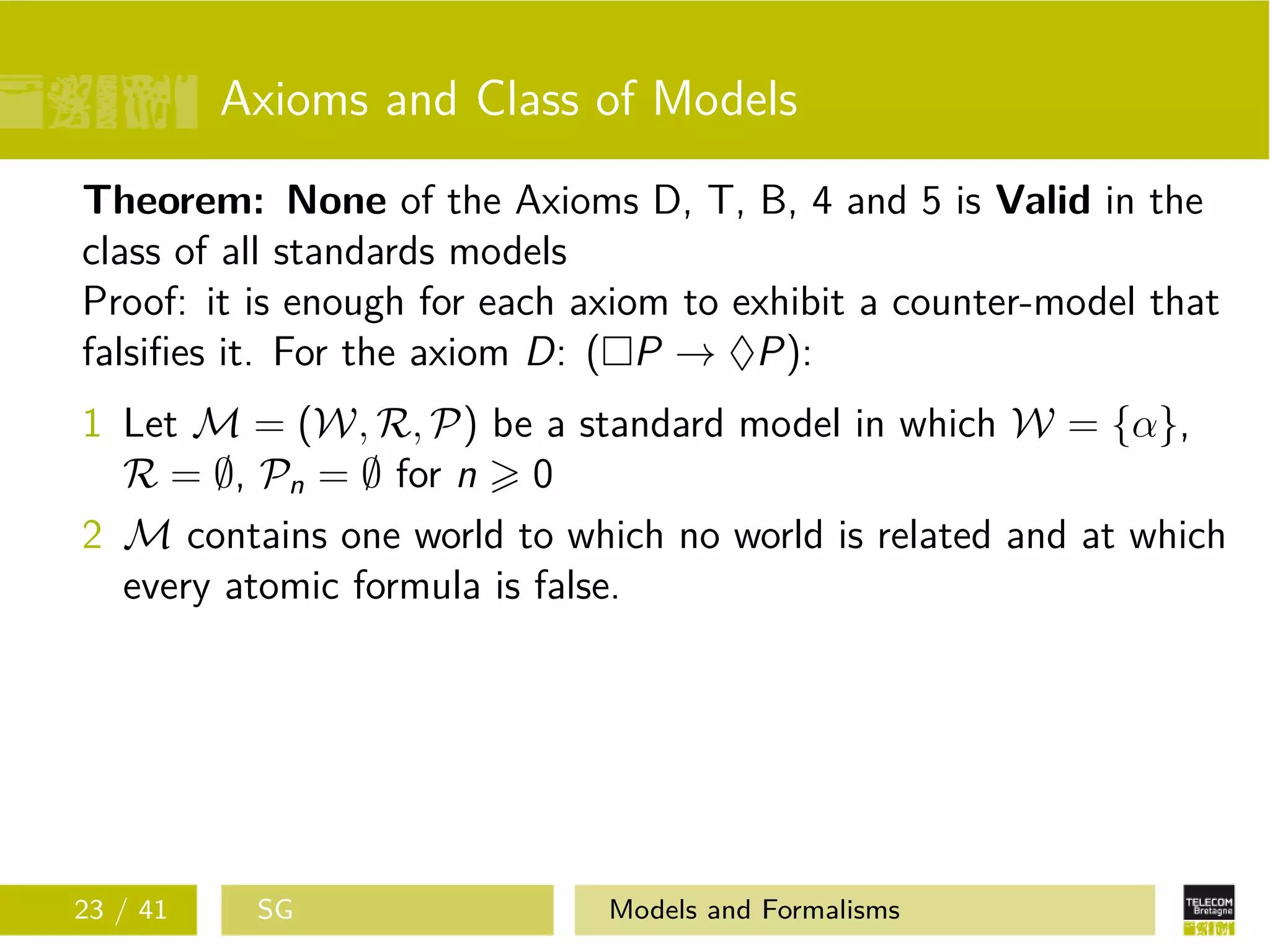

43. Axioms and Class of Models
Theorem: None of the Axioms D, T, B, 4 and 5 is Valid in the
class of all standards models
Proof: it is enough for each axiom to exhibit a counter-model that
falsifies it. For the axiom D: ( P → ♦P):
1 Let M = (W, R, P) be a standard model in which W = {α},
R = ∅, Pn = ∅ for n 0
23 / 41 SG Models and Formalisms
44. Axioms and Class of Models
Theorem: None of the Axioms D, T, B, 4 and 5 is Valid in the
class of all standards models
Proof: it is enough for each axiom to exhibit a counter-model that
falsifies it. For the axiom D: ( P → ♦P):
1 Let M = (W, R, P) be a standard model in which W = {α},
R = ∅, Pn = ∅ for n 0
2 M contains one world to which no world is related and at which
every atomic formula is false.
23 / 41 SG Models and Formalisms

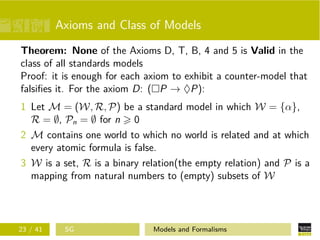

45. Axioms and Class of Models

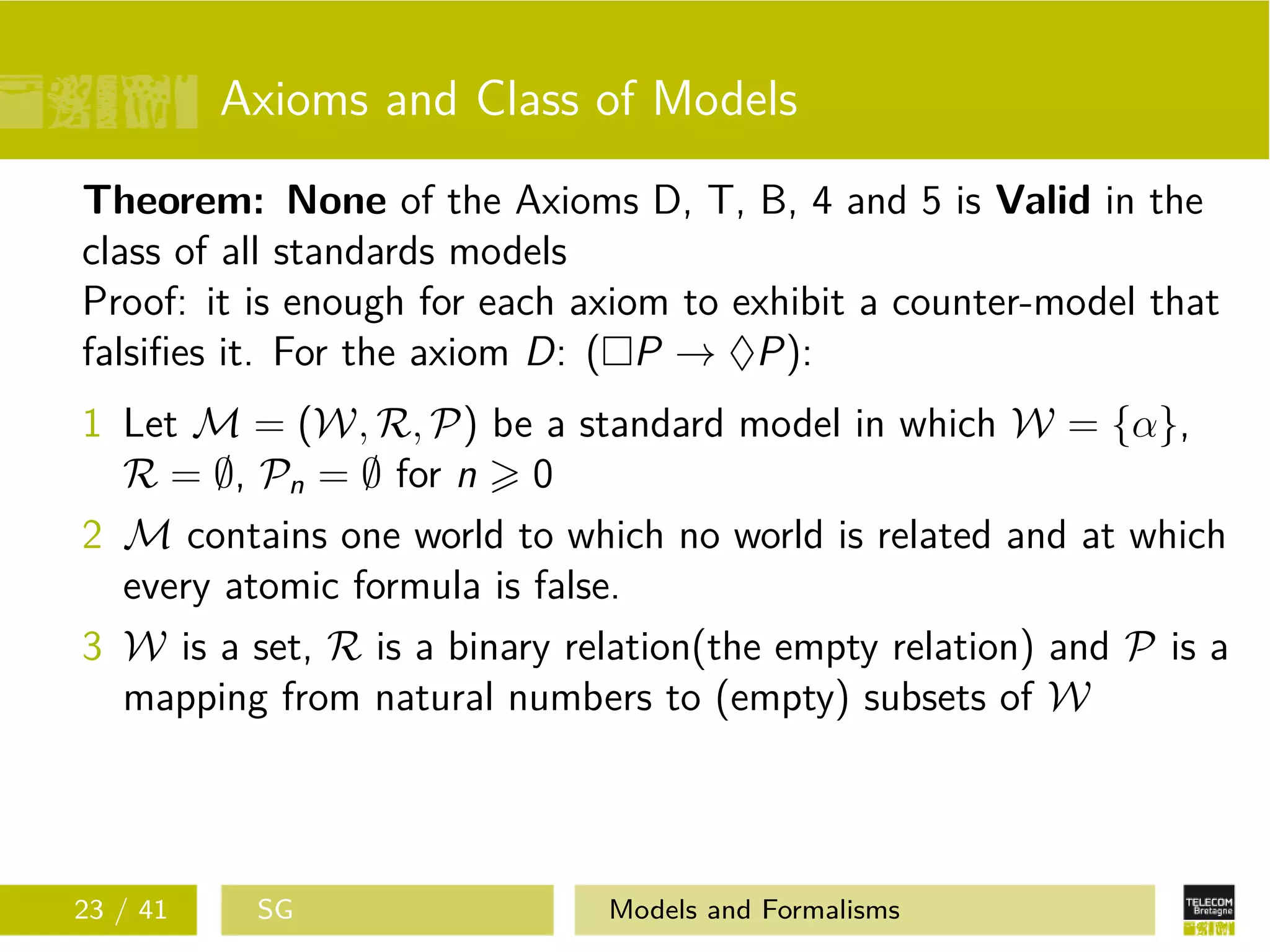

Theorem: None of the Axioms D, T, B, 4 and 5 is Valid in the
class of all standards models
Proof: it is enough for each axiom to exhibit a counter-model that
falsifies it. For the axiom D: ( P → ♦P):
1 Let M = (W, R, P) be a standard model in which W = {α},
R = ∅, Pn = ∅ for n 0
2 M contains one world to which no world is related and at which
every atomic formula is false.
3 W is a set, R is a binary relation(the empty relation) and P is a
mapping from natural numbers to (empty) subsets of W
23 / 41 SG Models and Formalisms
46. Axioms and Class of Models
Theorem: None of the Axioms D, T, B, 4 and 5 is Valid in the
class of all standards models
Proof: it is enough for each axiom to exhibit a counter-model that
falsifies it. For the axiom D: ( P → ♦P):
1 Let M = (W, R, P) be a standard model in which W = {α},
R = ∅, Pn = ∅ for n 0
2 M contains one world to which no world is related and at which
every atomic formula is false.
3 W is a set, R is a binary relation(the empty relation) and P is a
mapping from natural numbers to (empty) subsets of W
4 Every β in M such that αRβ is such that |=M
β P and there is
not some β in M such that αRβ and |=M
β P
23 / 41 SG Models and Formalisms

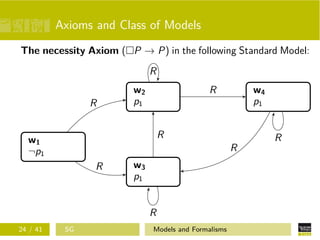

47. Axioms and Class of Models

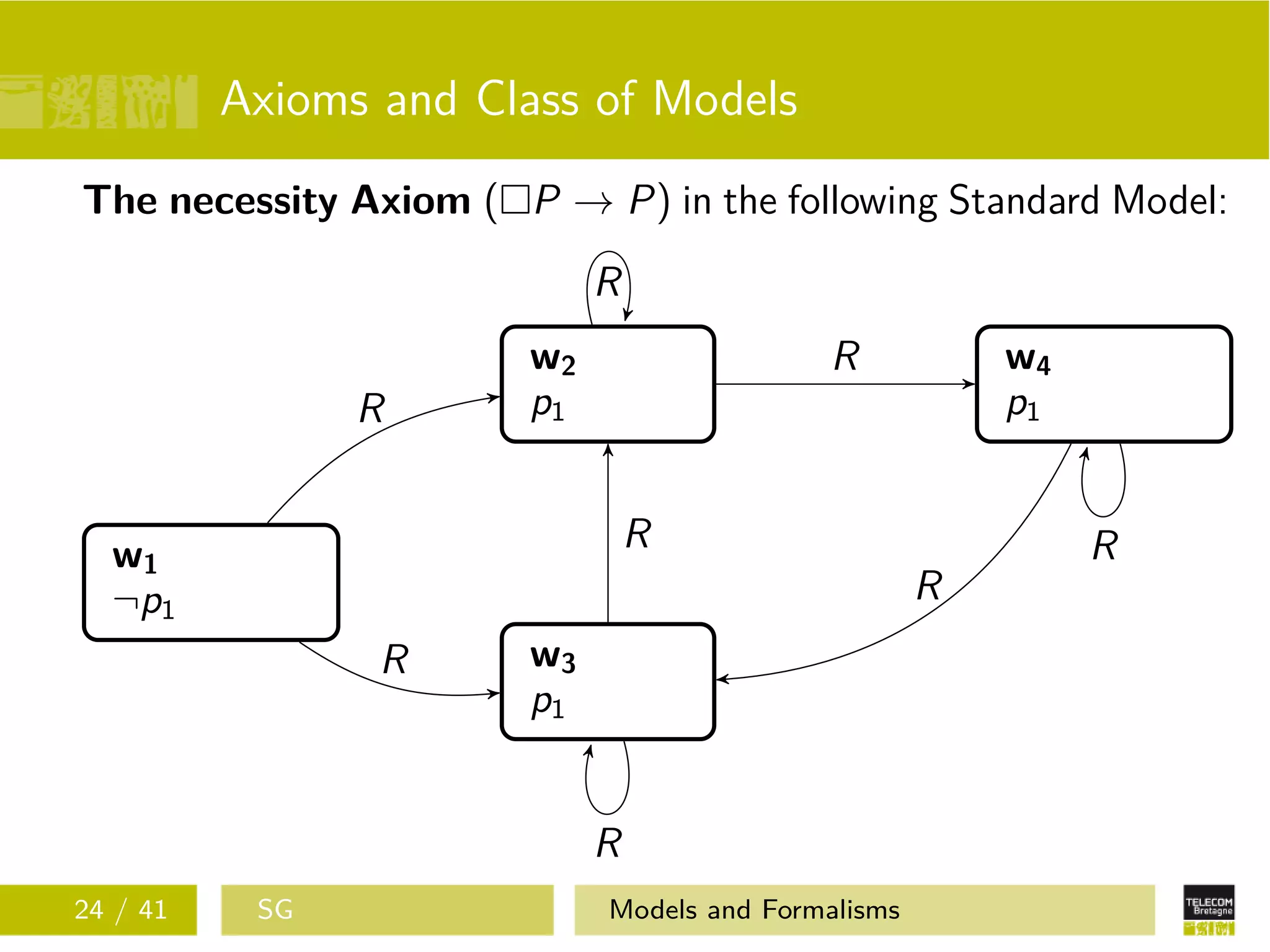

The necessity Axiom ( P → P) in the following Standard Model:
w1
¬p1
w2
p1
w3
p1
w4
p1R
R
R
R
R
R
RR
24 / 41 SG Models and Formalisms

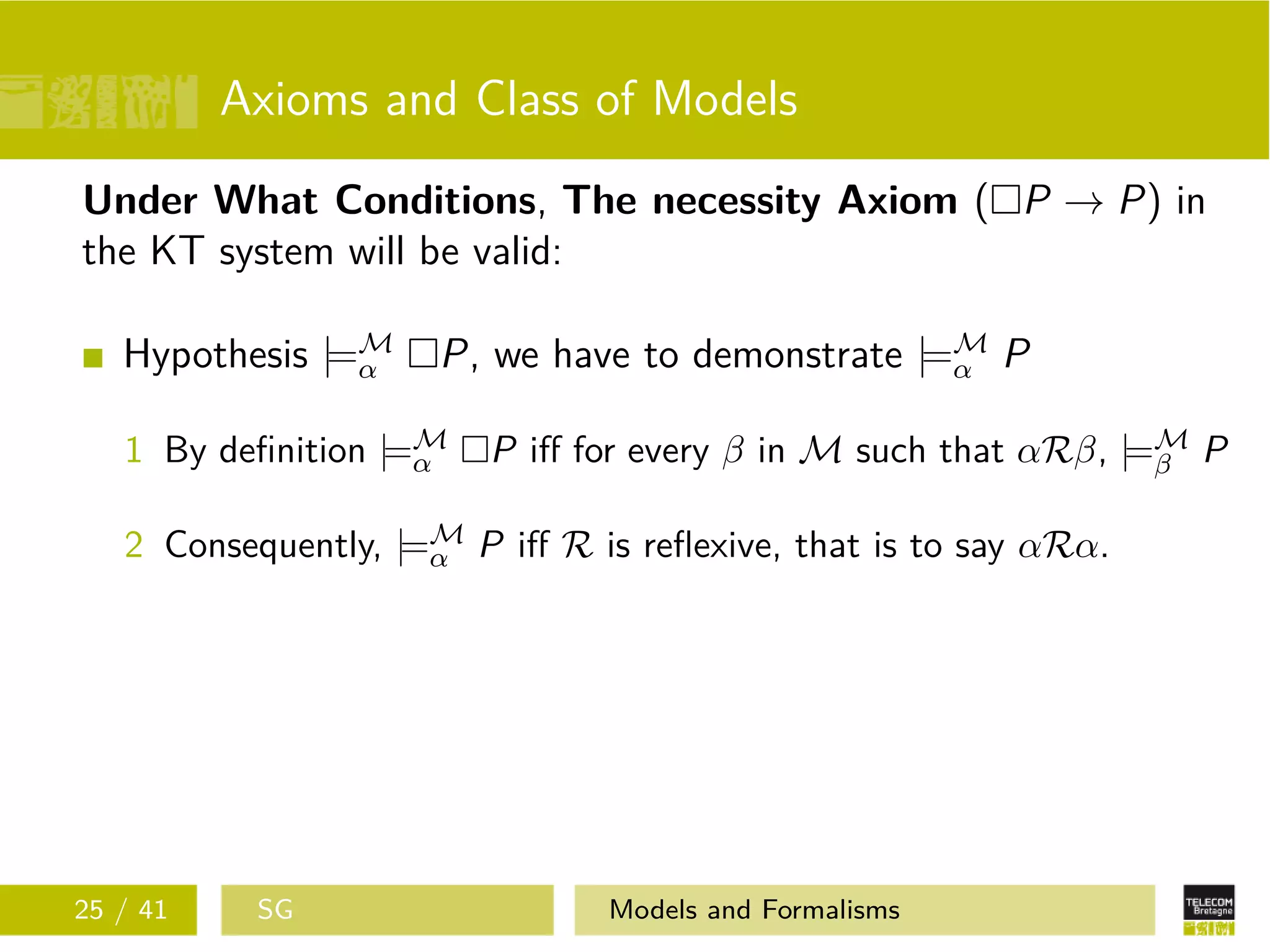

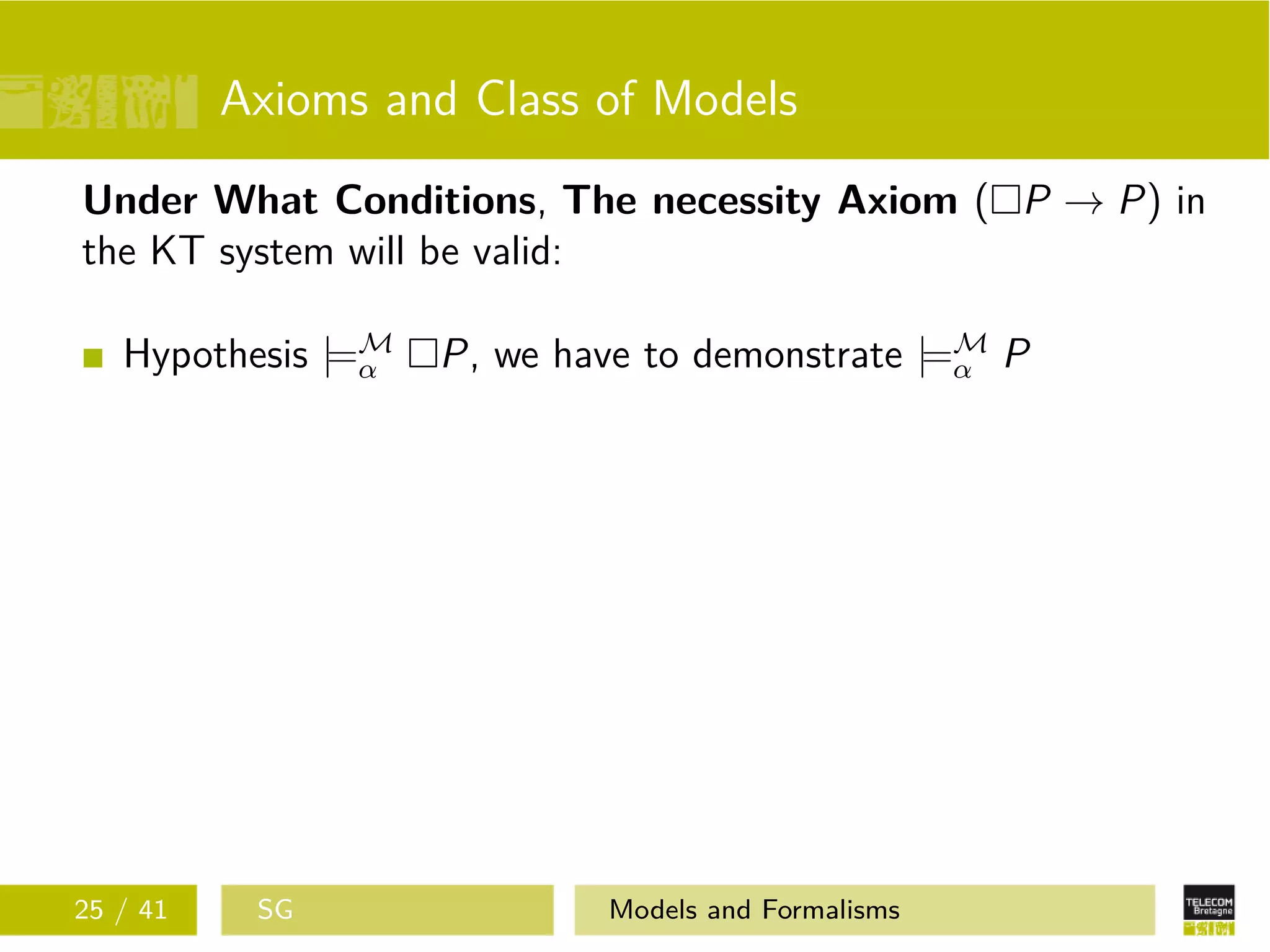

48. Axioms and Class of Models
Under What Conditions, The necessity Axiom ( P → P) in
the KT system will be valid:
Hypothesis |=M
α P, we have to demonstrate |=M
α P
25 / 41 SG Models and Formalisms

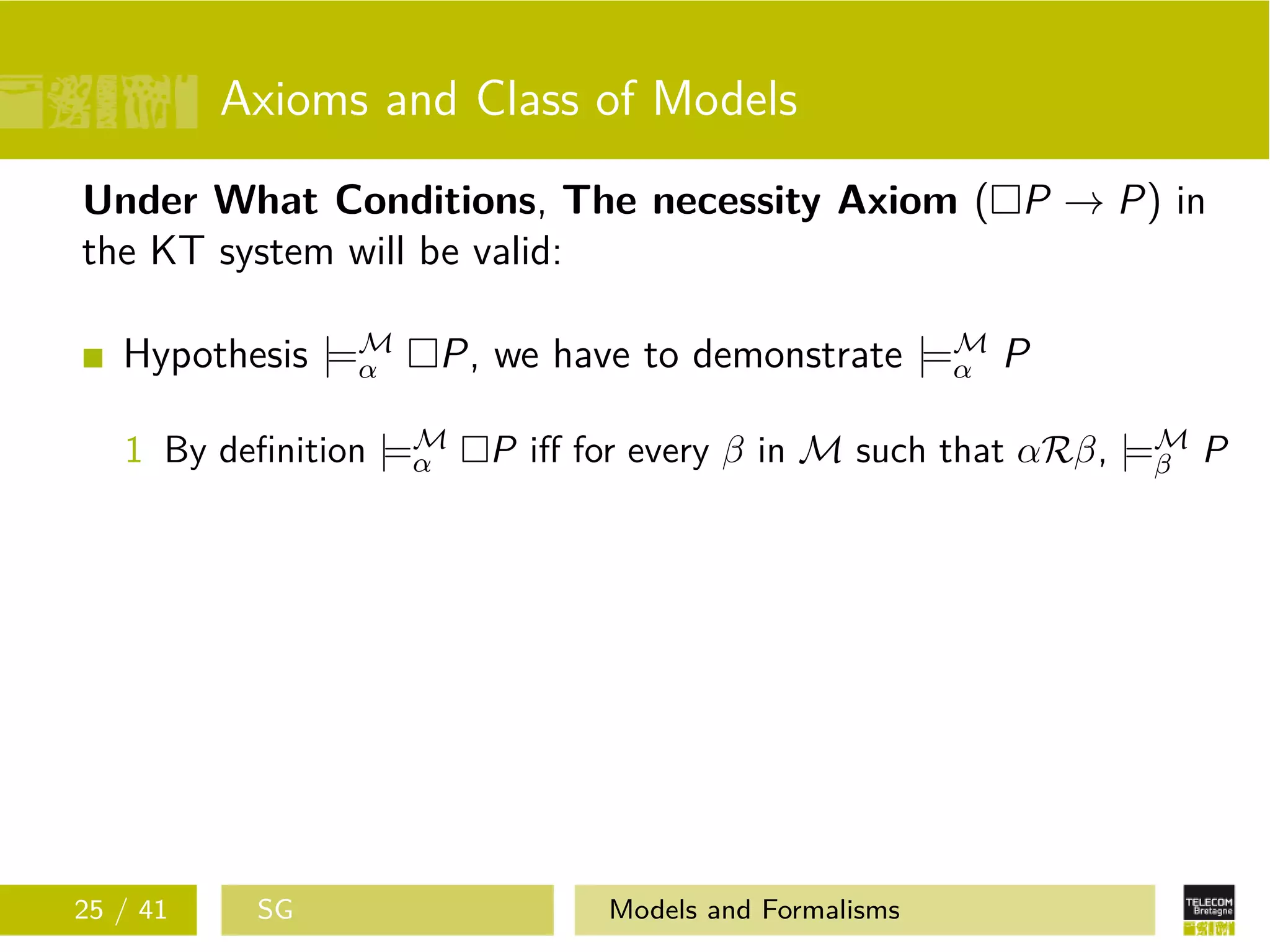

49. Axioms and Class of Models
Under What Conditions, The necessity Axiom ( P → P) in
the KT system will be valid:
Hypothesis |=M
α P, we have to demonstrate |=M
α P
1 By definition |=M
α P iff for every β in M such that αRβ, |=M
β P
25 / 41 SG Models and Formalisms
50. Axioms and Class of Models
Under What Conditions, The necessity Axiom ( P → P) in
the KT system will be valid:
Hypothesis |=M
α P, we have to demonstrate |=M
α P
1 By definition |=M
α P iff for every β in M such that αRβ, |=M
β P
2 Consequently, |=M
α P iff R is reflexive, that is to say αRα.
25 / 41 SG Models and Formalisms

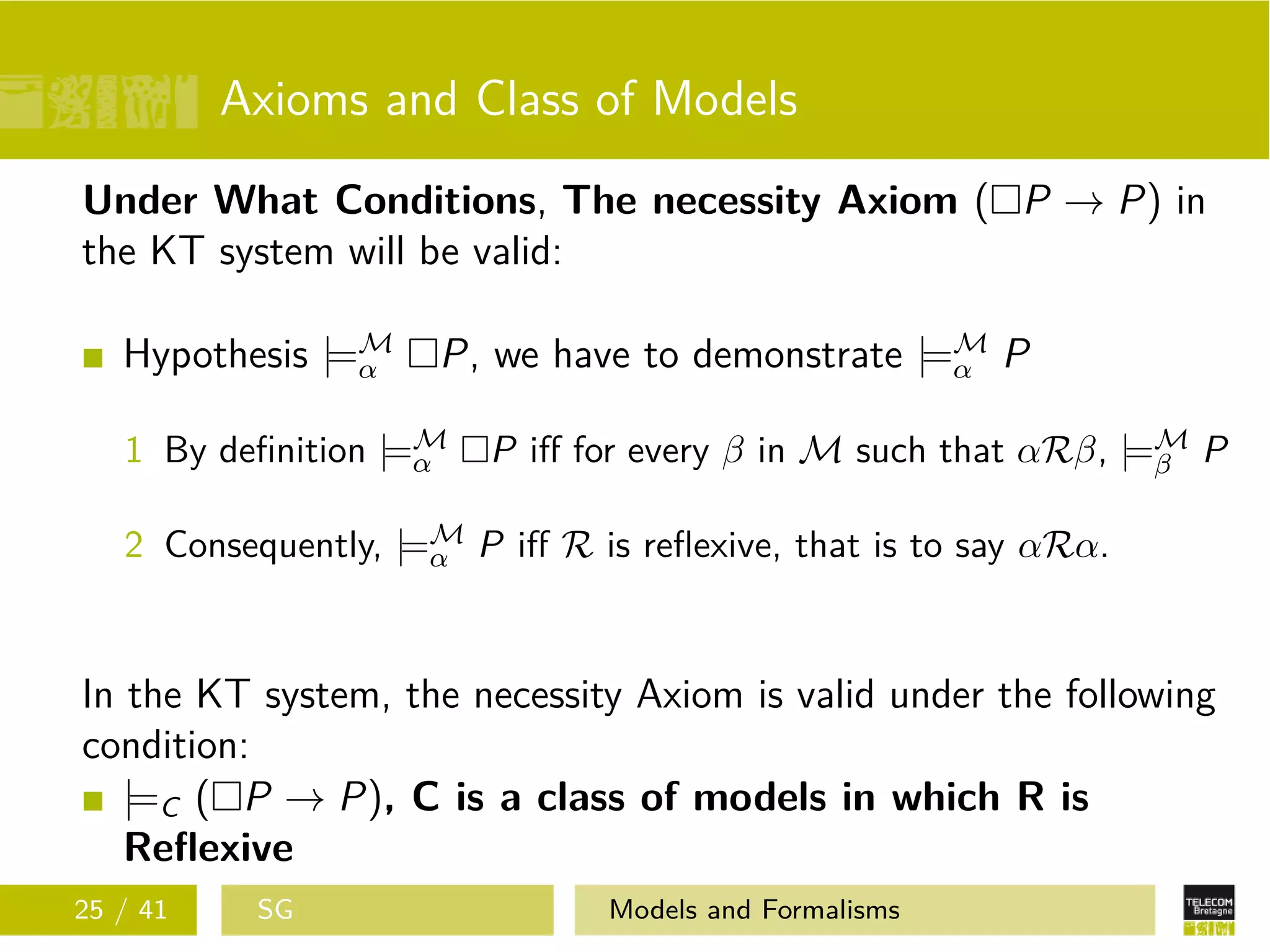

51. Axioms and Class of Models
Under What Conditions, The necessity Axiom ( P → P) in
the KT system will be valid:
Hypothesis |=M
α P, we have to demonstrate |=M
α P
1 By definition |=M
α P iff for every β in M such that αRβ, |=M
β P
2 Consequently, |=M
α P iff R is reflexive, that is to say αRα.
In the KT system, the necessity Axiom is valid under the following
condition:
|=C ( P → P), C is a class of models in which R is
Reflexive
25 / 41 SG Models and Formalisms

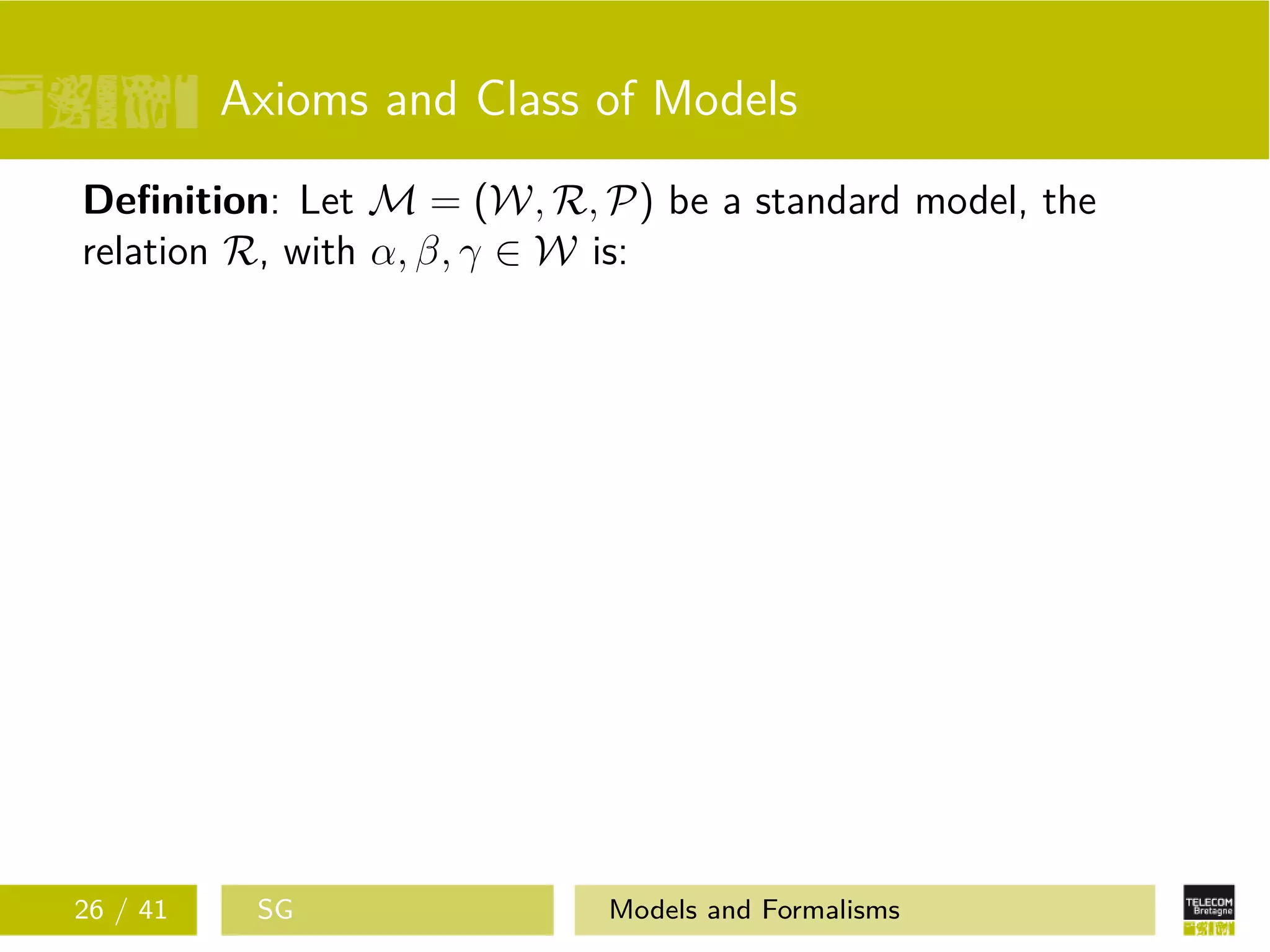

52. Axioms and Class of Models
Definition: Let M = (W, R, P) be a standard model, the
relation R, with α, β, γ ∈ W is:
26 / 41 SG Models and Formalisms

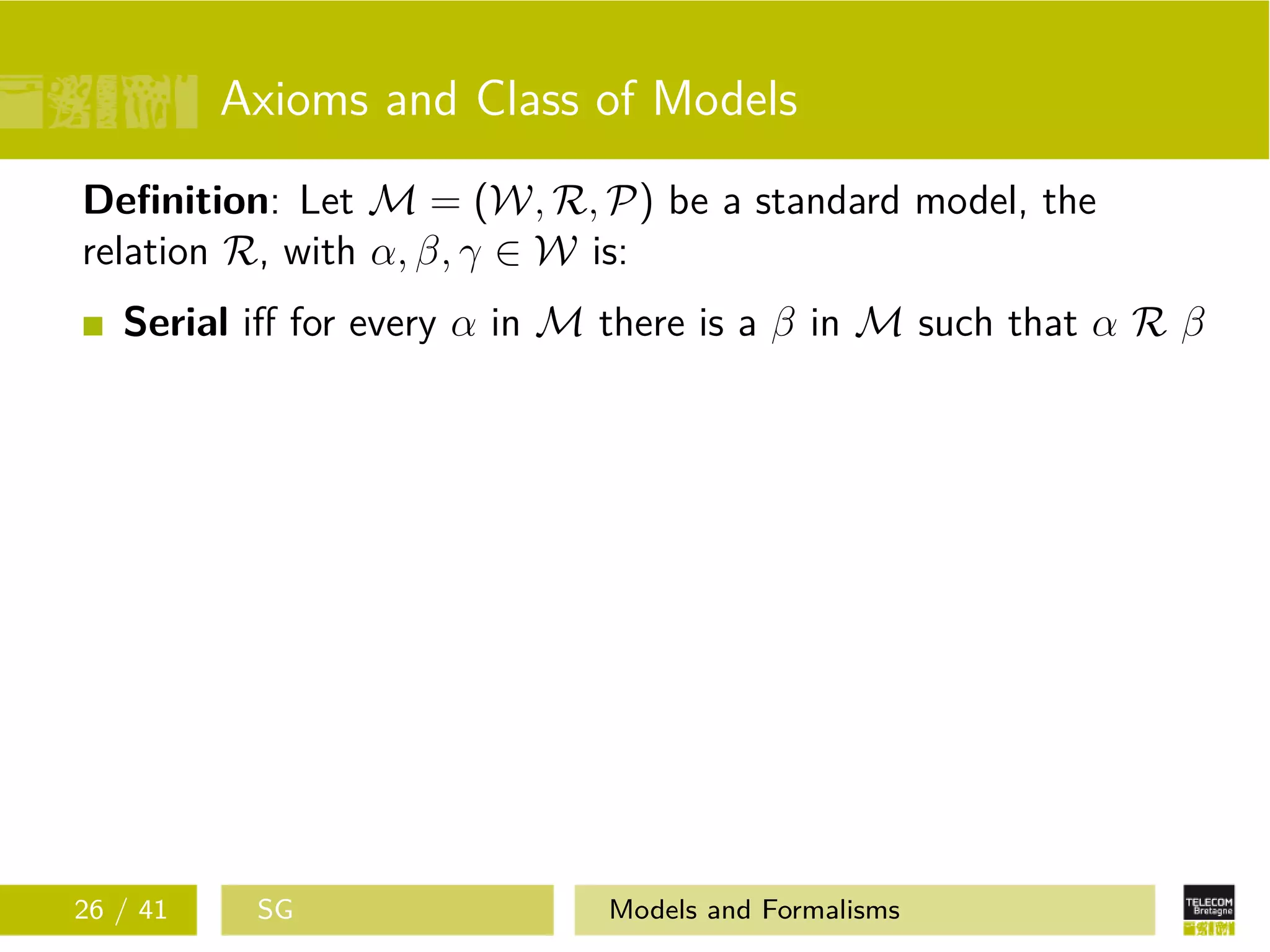

53. Axioms and Class of Models
Definition: Let M = (W, R, P) be a standard model, the
relation R, with α, β, γ ∈ W is:
Serial iff for every α in M there is a β in M such that α R β
26 / 41 SG Models and Formalisms

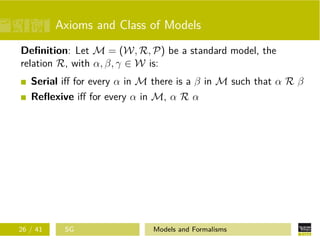

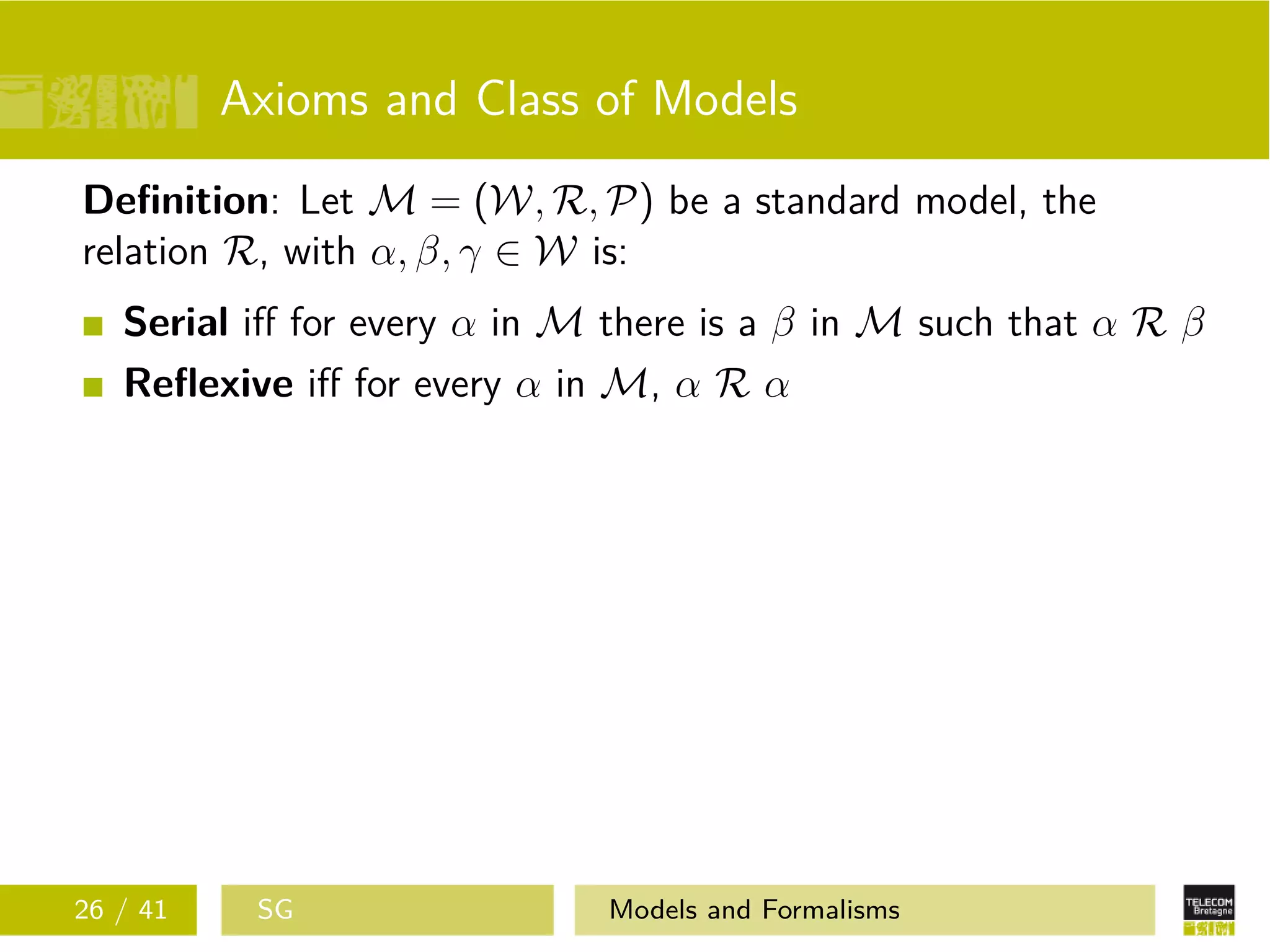

54. Axioms and Class of Models
Definition: Let M = (W, R, P) be a standard model, the
relation R, with α, β, γ ∈ W is:
Serial iff for every α in M there is a β in M such that α R β
Reflexive iff for every α in M, α R α
26 / 41 SG Models and Formalisms
55. Axioms and Class of Models

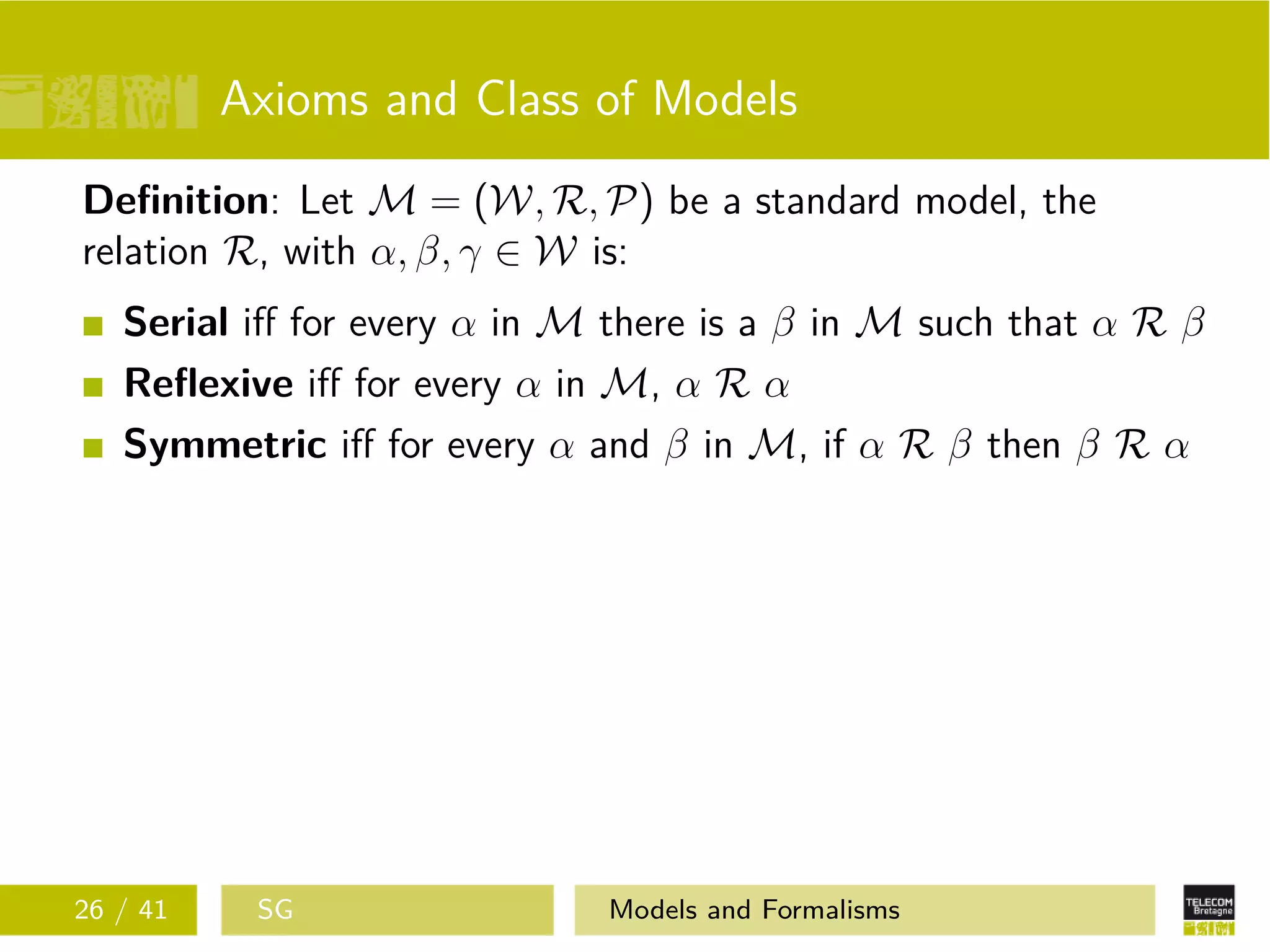

Definition: Let M = (W, R, P) be a standard model, the
relation R, with α, β, γ ∈ W is:
Serial iff for every α in M there is a β in M such that α R β
Reflexive iff for every α in M, α R α
Symmetric iff for every α and β in M, if α R β then β R α
26 / 41 SG Models and Formalisms

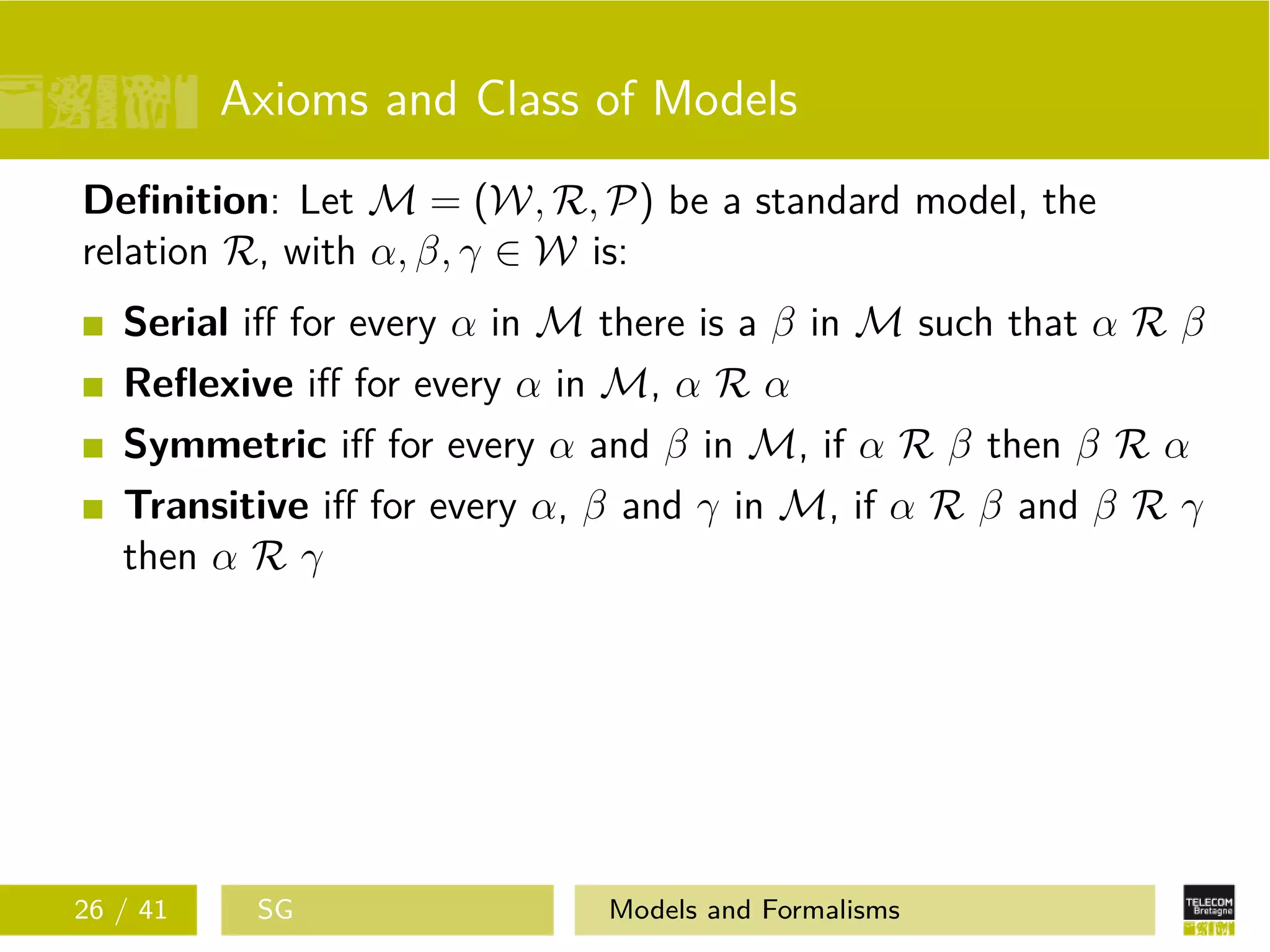

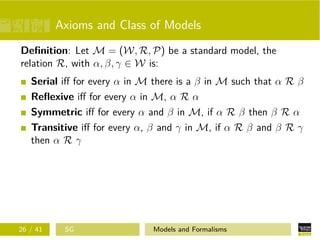

56. Axioms and Class of Models
Definition: Let M = (W, R, P) be a standard model, the
relation R, with α, β, γ ∈ W is:
Serial iff for every α in M there is a β in M such that α R β
Reflexive iff for every α in M, α R α
Symmetric iff for every α and β in M, if α R β then β R α
Transitive iff for every α, β and γ in M, if α R β and β R γ
then α R γ
26 / 41 SG Models and Formalisms
57. Axioms and Class of Models

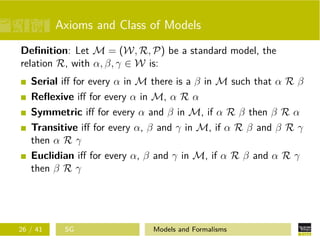

Definition: Let M = (W, R, P) be a standard model, the
relation R, with α, β, γ ∈ W is:
Serial iff for every α in M there is a β in M such that α R β
Reflexive iff for every α in M, α R α
Symmetric iff for every α and β in M, if α R β then β R α
Transitive iff for every α, β and γ in M, if α R β and β R γ
then α R γ
Euclidian iff for every α, β and γ in M, if α R β and α R γ
then β R γ
26 / 41 SG Models and Formalisms

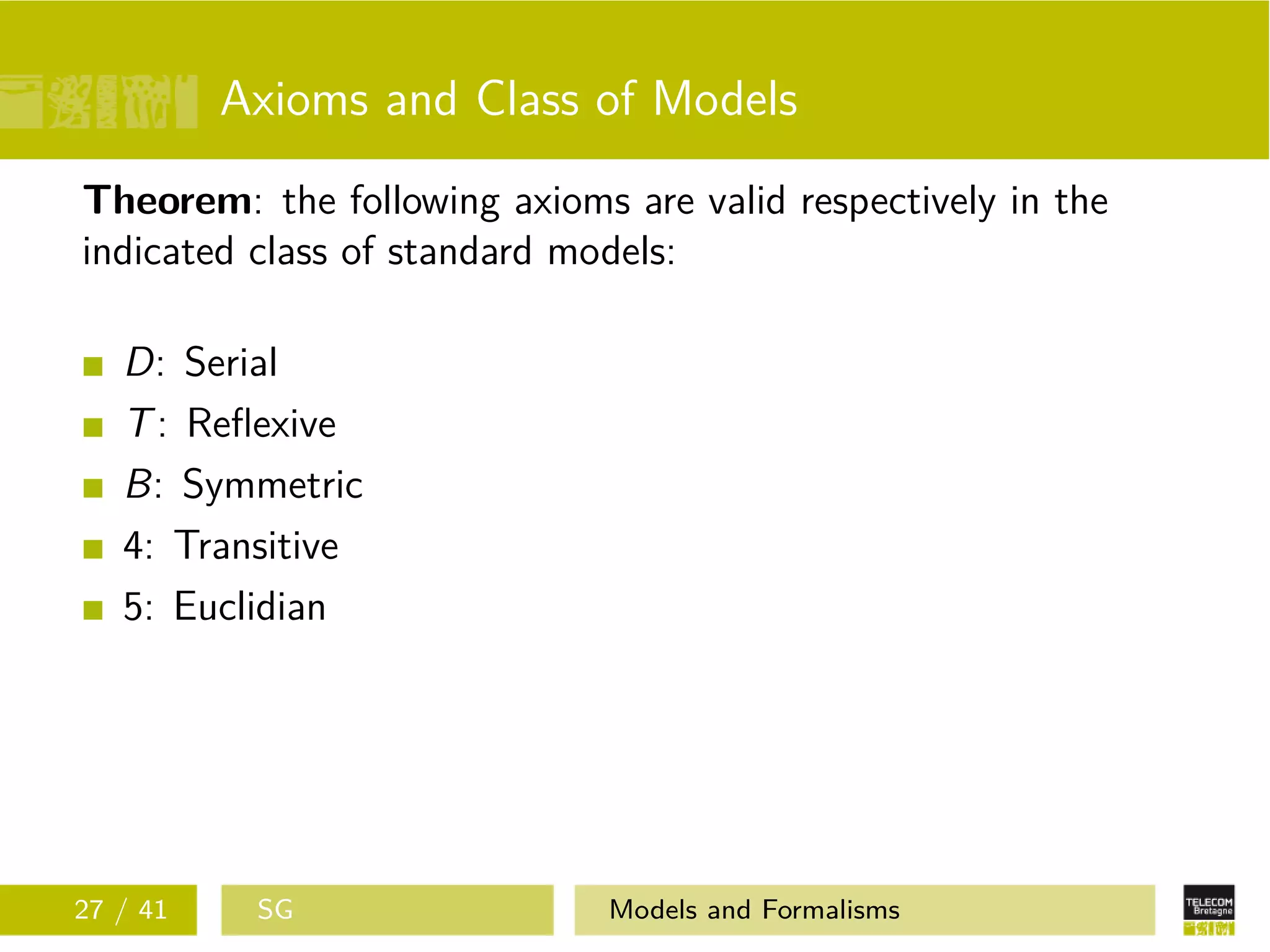

58. Axioms and Class of Models
Theorem: the following axioms are valid respectively in the
indicated class of standard models:
D: Serial
T: Reflexive
B: Symmetric
4: Transitive
5: Euclidian
27 / 41 SG Models and Formalisms

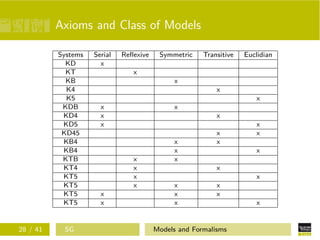

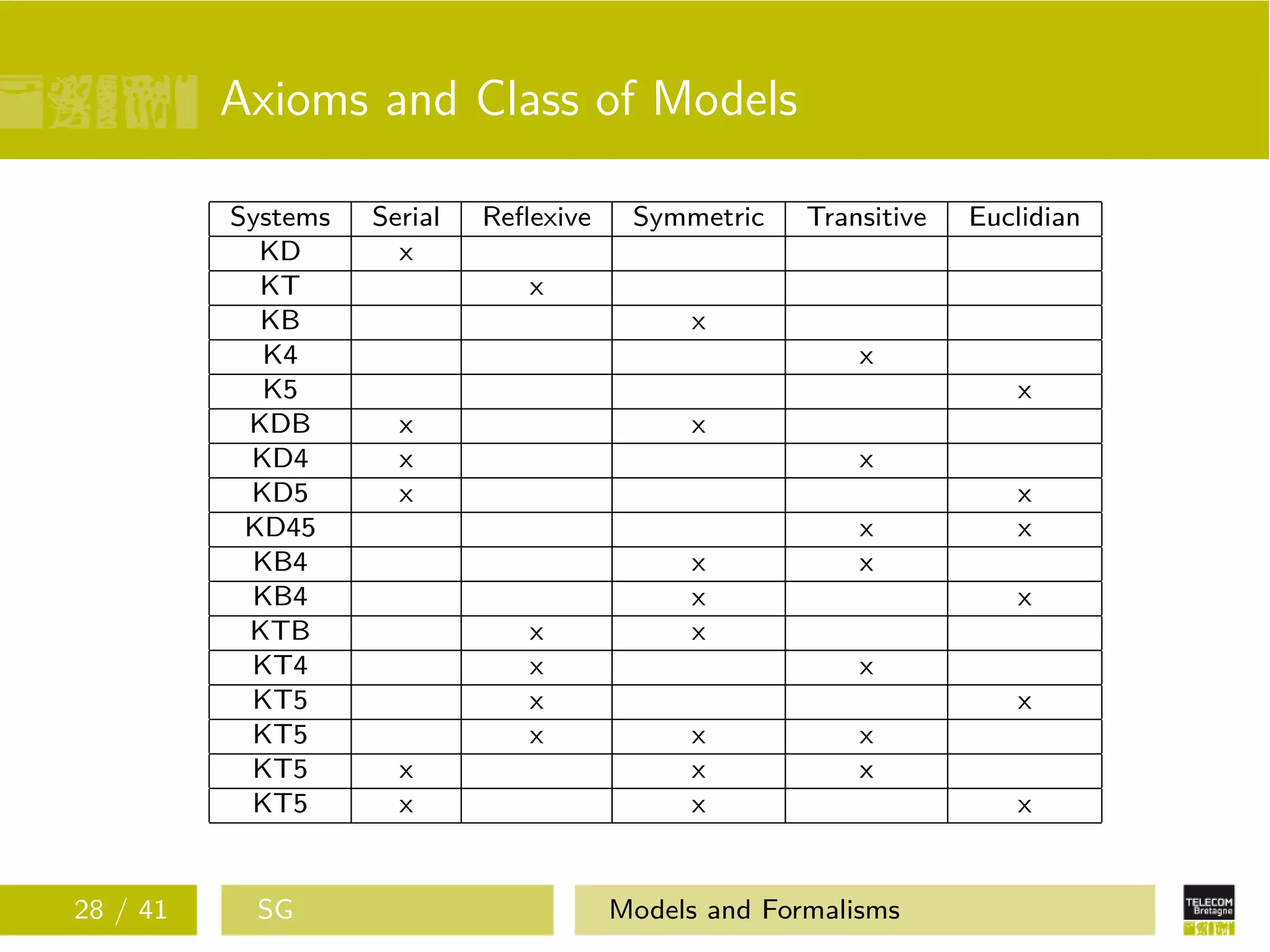

59. Axioms and Class of Models
Systems Serial Reflexive Symmetric Transitive Euclidian
KD x
KT x
KB x
K4 x
K5 x
KDB x x
KD4 x x
KD5 x x
KD45 x x
KB4 x x
KB4 x x
KTB x x
KT4 x x
KT5 x x
KT5 x x x
KT5 x x x
KT5 x x x
28 / 41 SG Models and Formalisms
60. Progress
1 Introduction
2 Modal Logics
3 Model Theory
4 Axiomatic Theory
5 Main Modal Systems
6 Axioms and Class of Models
7 A Knowledge and Belief Logic
29 / 41 SG Models and Formalisms

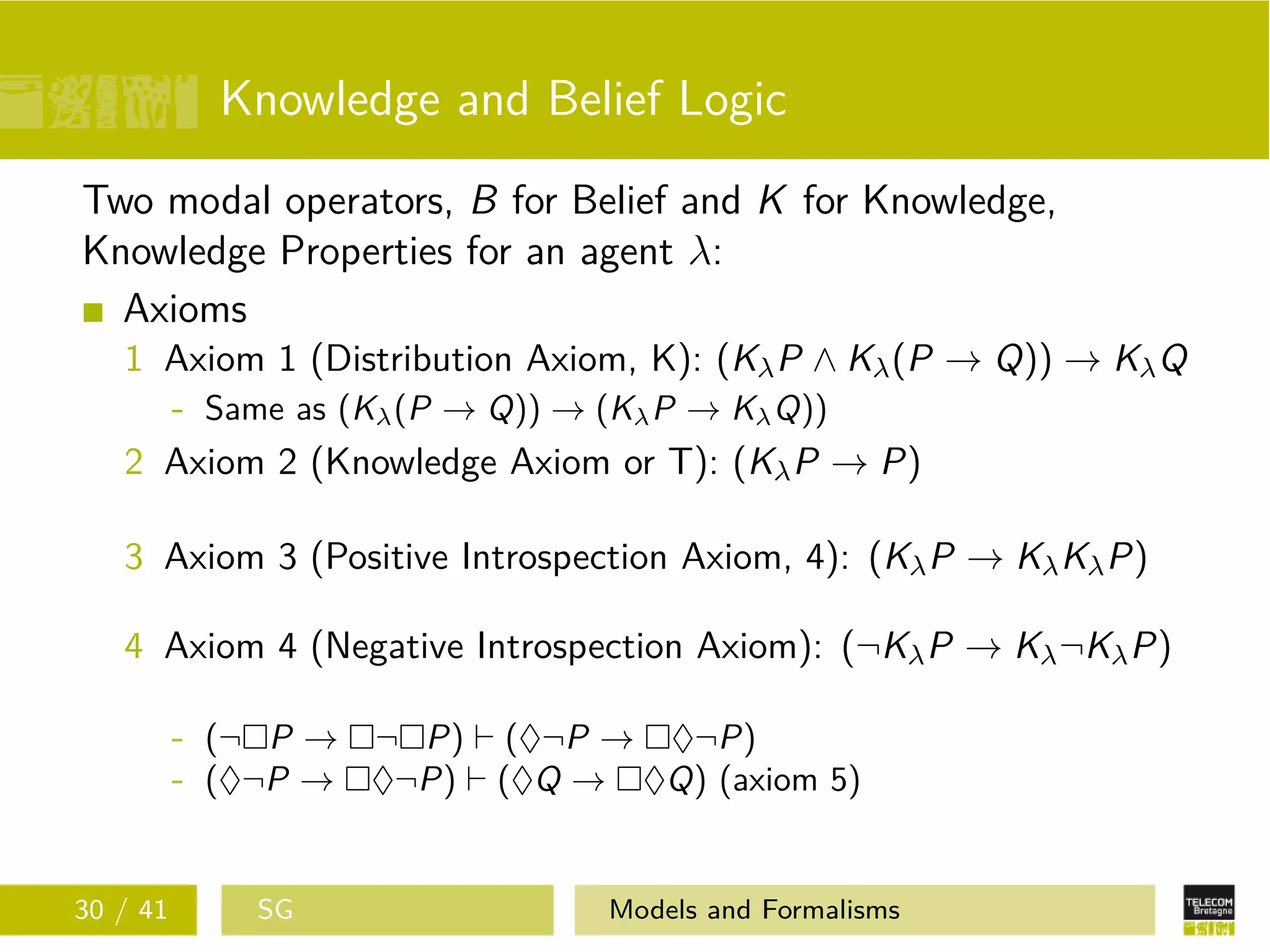

61. Knowledge and Belief Logic
Two modal operators, B for Belief and K for Knowledge,
Knowledge Properties for an agent λ:
Axioms
1 Axiom 1 (Distribution Axiom, K): (KλP ∧ Kλ(P → Q)) → KλQ
- Same as (Kλ(P → Q)) → (KλP → KλQ))
2 Axiom 2 (Knowledge Axiom or T): (KλP → P)
3 Axiom 3 (Positive Introspection Axiom, 4): (KλP → KλKλP)
4 Axiom 4 (Negative Introspection Axiom): (¬KλP → Kλ¬KλP)
- (¬ P → ¬ P) (♦¬P → ♦¬P)
- (♦¬P → ♦¬P) (♦Q → ♦Q) (axiom 5)
30 / 41 SG Models and Formalisms

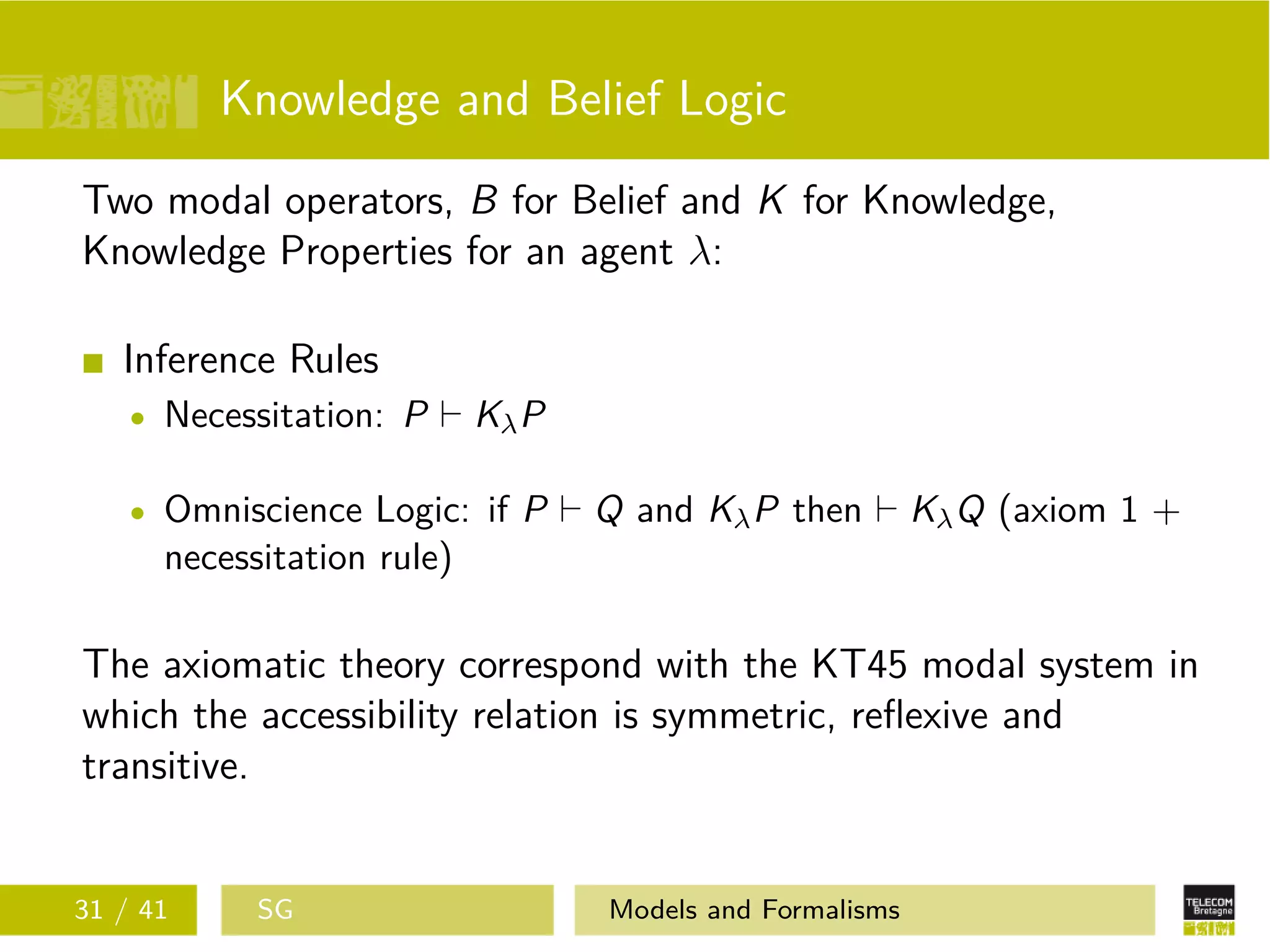

62. Knowledge and Belief Logic
Two modal operators, B for Belief and K for Knowledge,
Knowledge Properties for an agent λ:
Inference Rules
Necessitation: P KλP
Omniscience Logic: if P Q and KλP then KλQ (axiom 1 +
necessitation rule)
The axiomatic theory correspond with the KT45 modal system in
which the accessibility relation is symmetric, reflexive and
transitive.
31 / 41 SG Models and Formalisms

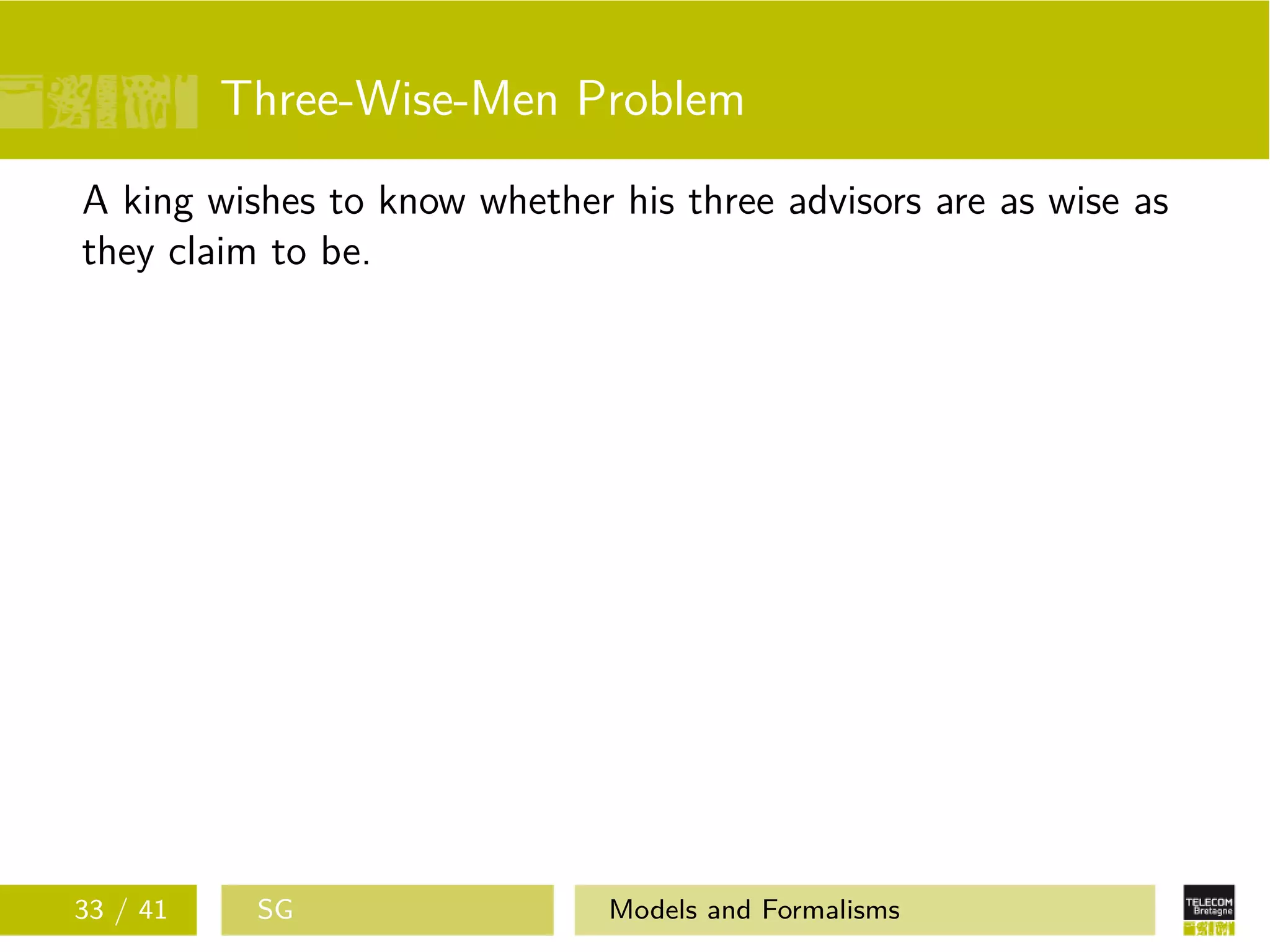

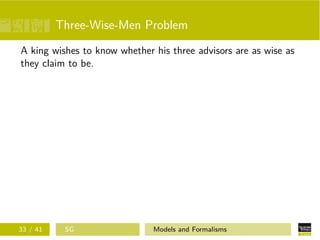

63. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
32 / 41 SG Models and Formalisms

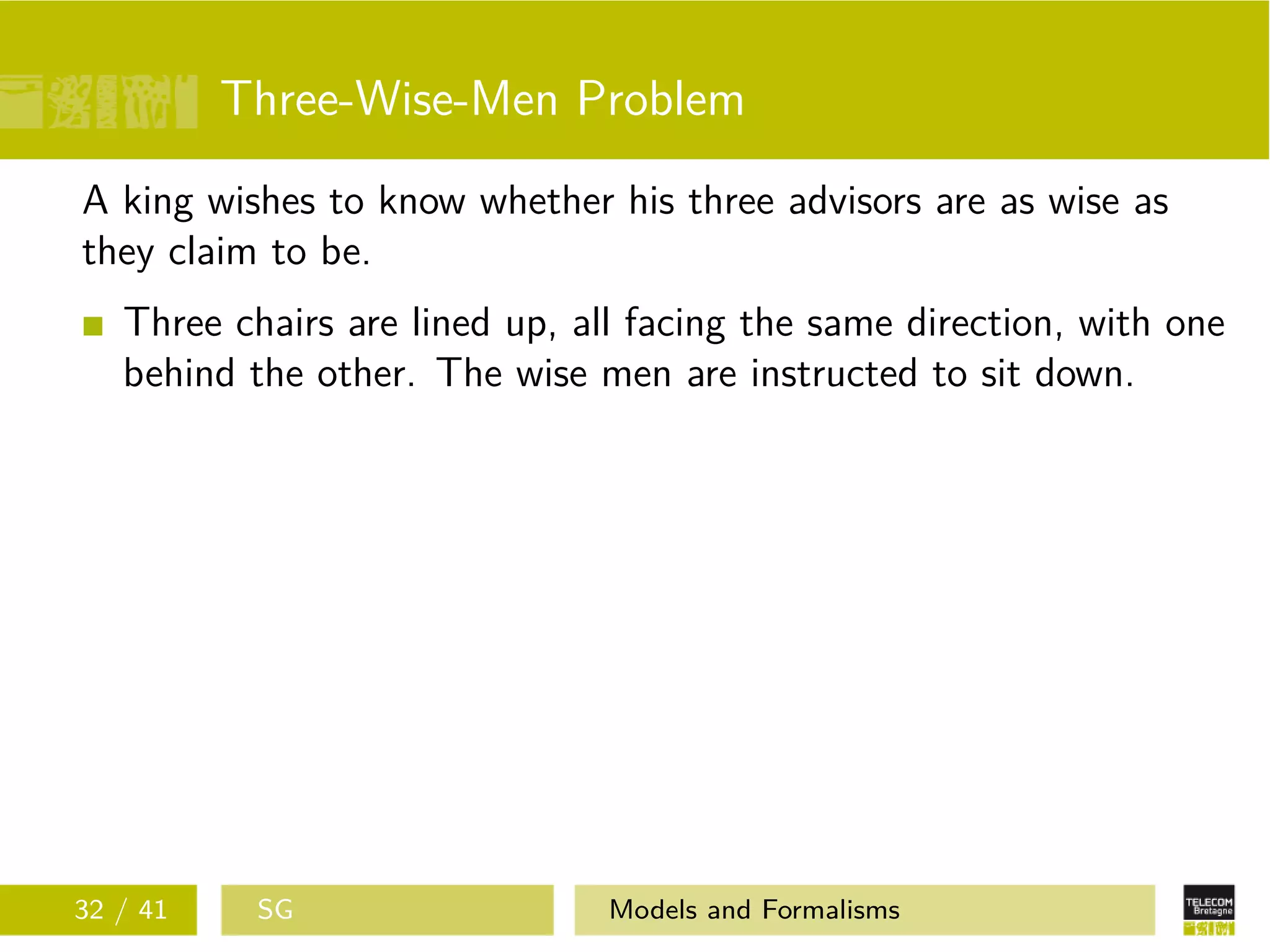

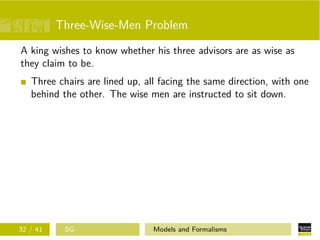

64. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
Three chairs are lined up, all facing the same direction, with one
behind the other. The wise men are instructed to sit down.
32 / 41 SG Models and Formalisms

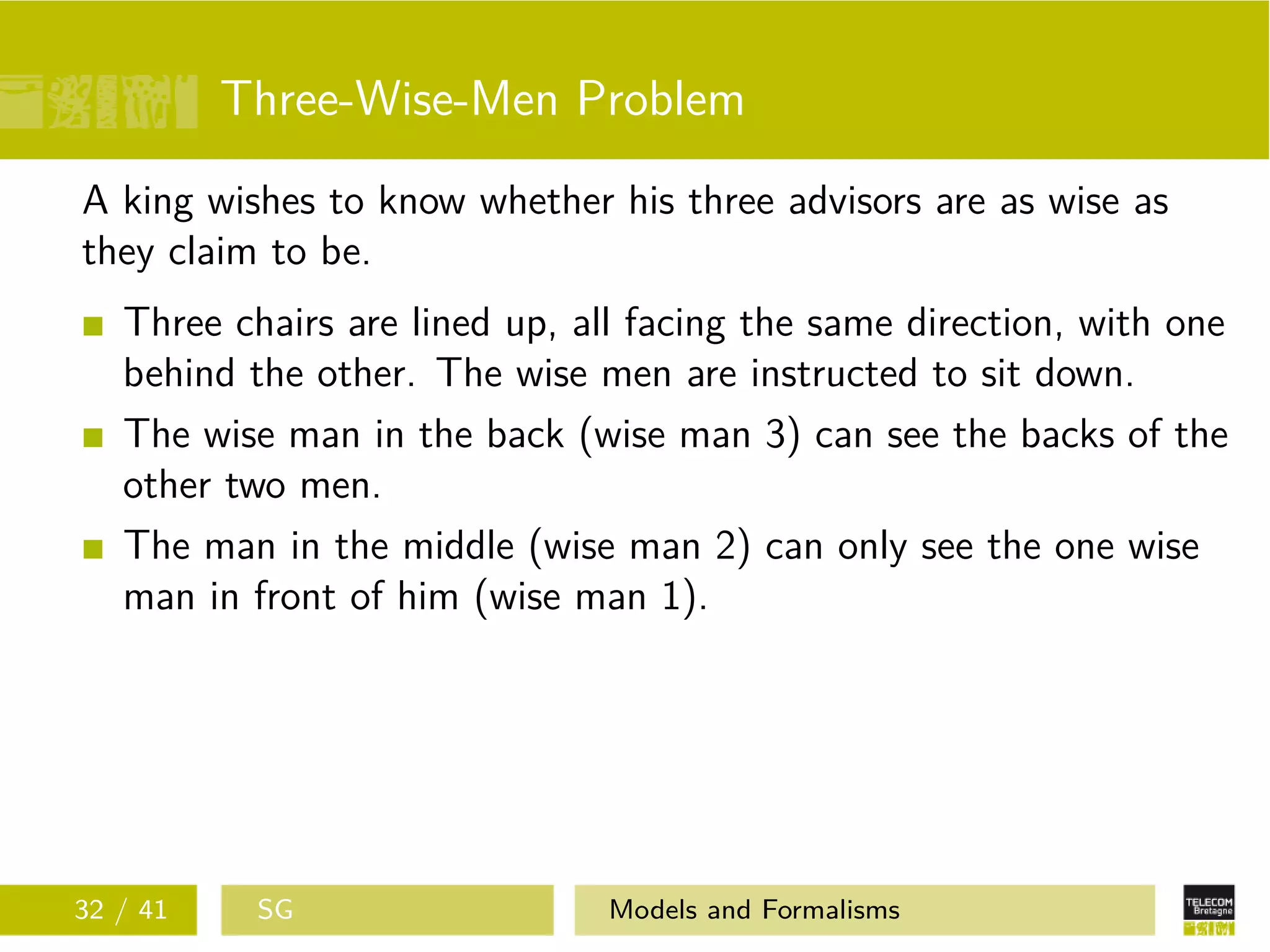

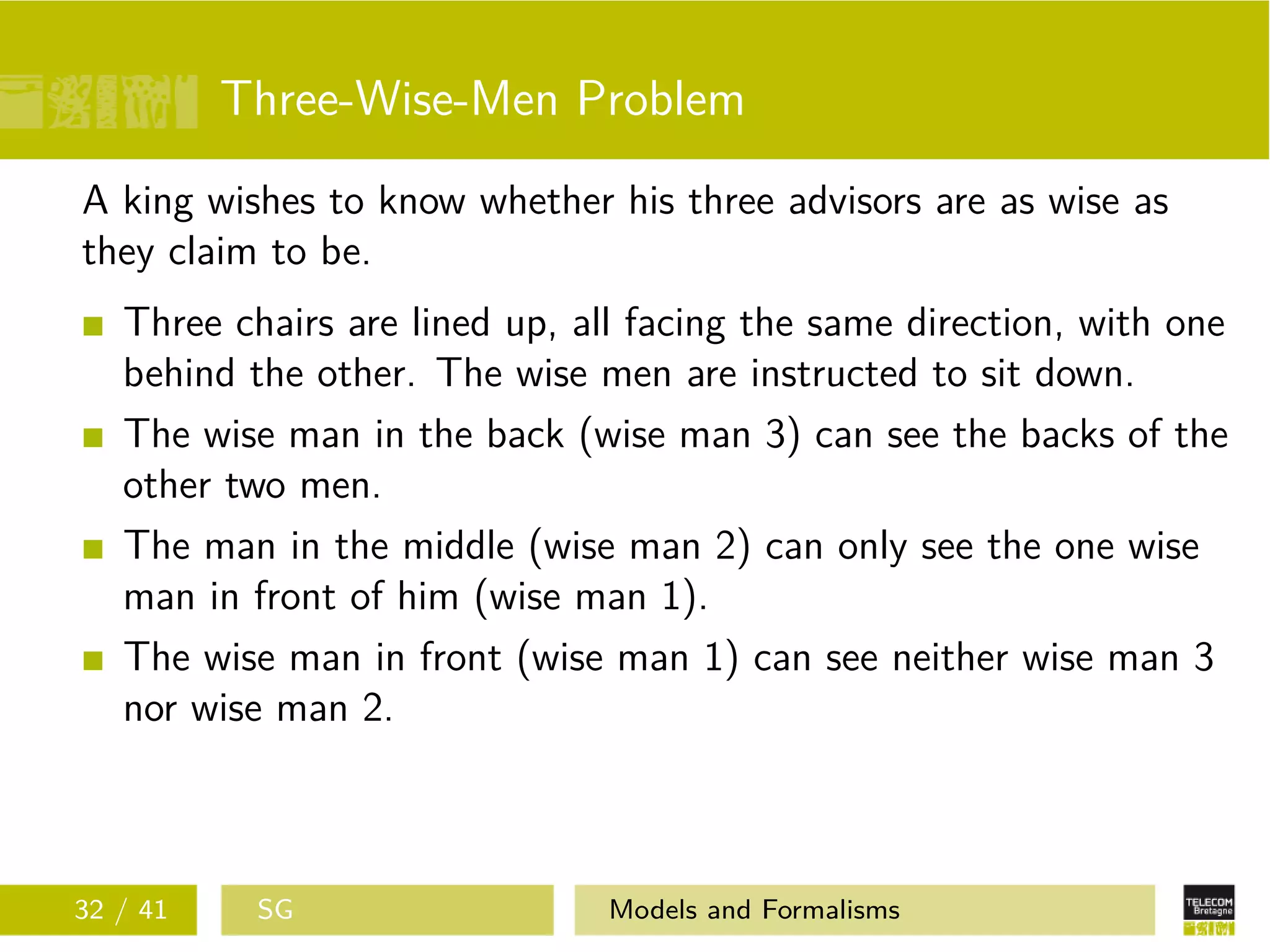

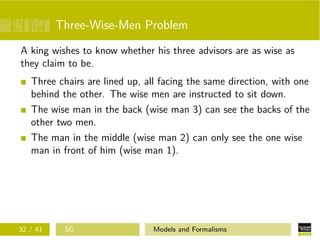

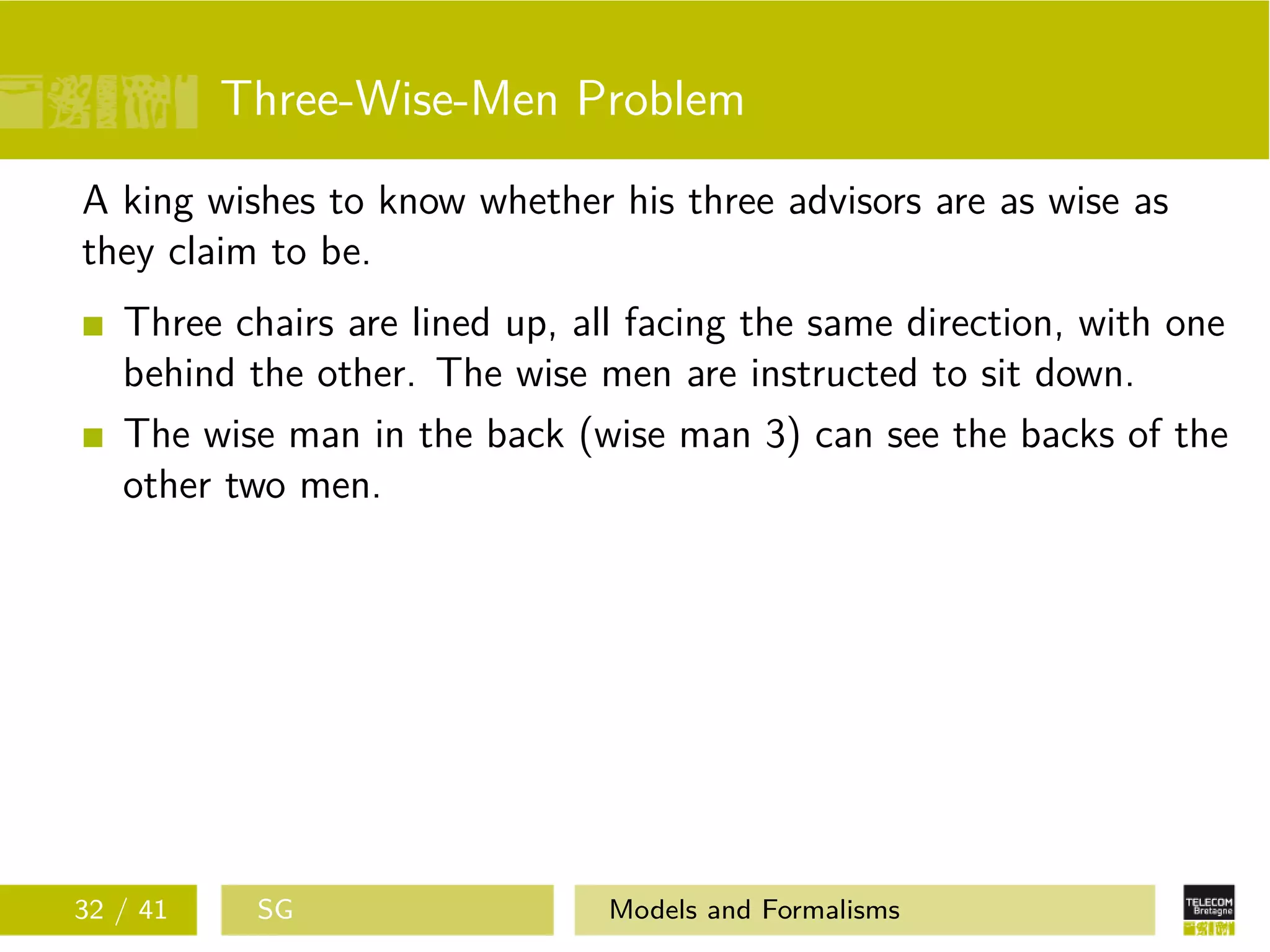

65. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
Three chairs are lined up, all facing the same direction, with one
behind the other. The wise men are instructed to sit down.
The wise man in the back (wise man 3) can see the backs of the
other two men.
32 / 41 SG Models and Formalisms
66. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
Three chairs are lined up, all facing the same direction, with one
behind the other. The wise men are instructed to sit down.
The wise man in the back (wise man 3) can see the backs of the
other two men.
The man in the middle (wise man 2) can only see the one wise
man in front of him (wise man 1).
32 / 41 SG Models and Formalisms
67. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
Three chairs are lined up, all facing the same direction, with one
behind the other. The wise men are instructed to sit down.
The wise man in the back (wise man 3) can see the backs of the
other two men.
The man in the middle (wise man 2) can only see the one wise
man in front of him (wise man 1).
The wise man in front (wise man 1) can see neither wise man 3
nor wise man 2.
32 / 41 SG Models and Formalisms
68. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
33 / 41 SG Models and Formalisms
69. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
The king informs the wise men that he has three cards, all of
which are either black or white, at least one of which is
white. He places one card, face up, behind each of the three
wise men.
33 / 41 SG Models and Formalisms
70. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
The king informs the wise men that he has three cards, all of
which are either black or white, at least one of which is
white. He places one card, face up, behind each of the three
wise men.
Each wise man must determine the color of his own card and
announce what it is as soon as he knows. The first to correctly
announce the color of his own card will be aptly rewarded. All
know that this will happen. The room is silent; then, after
several minutes, wise man 1 says: My card is white!.
33 / 41 SG Models and Formalisms
71. Three-Wise-Men Problem
A king wishes to know whether his three advisors are as wise as
they claim to be.
We assume in this puzzle that the wise men do not lie, that they
all have the same reasoning capabilities, and that they can all think
at the same speed. We then can postulate that the following
reasoning took place.
34 / 41 SG Models and Formalisms

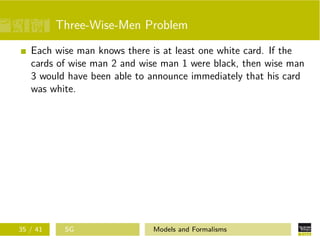

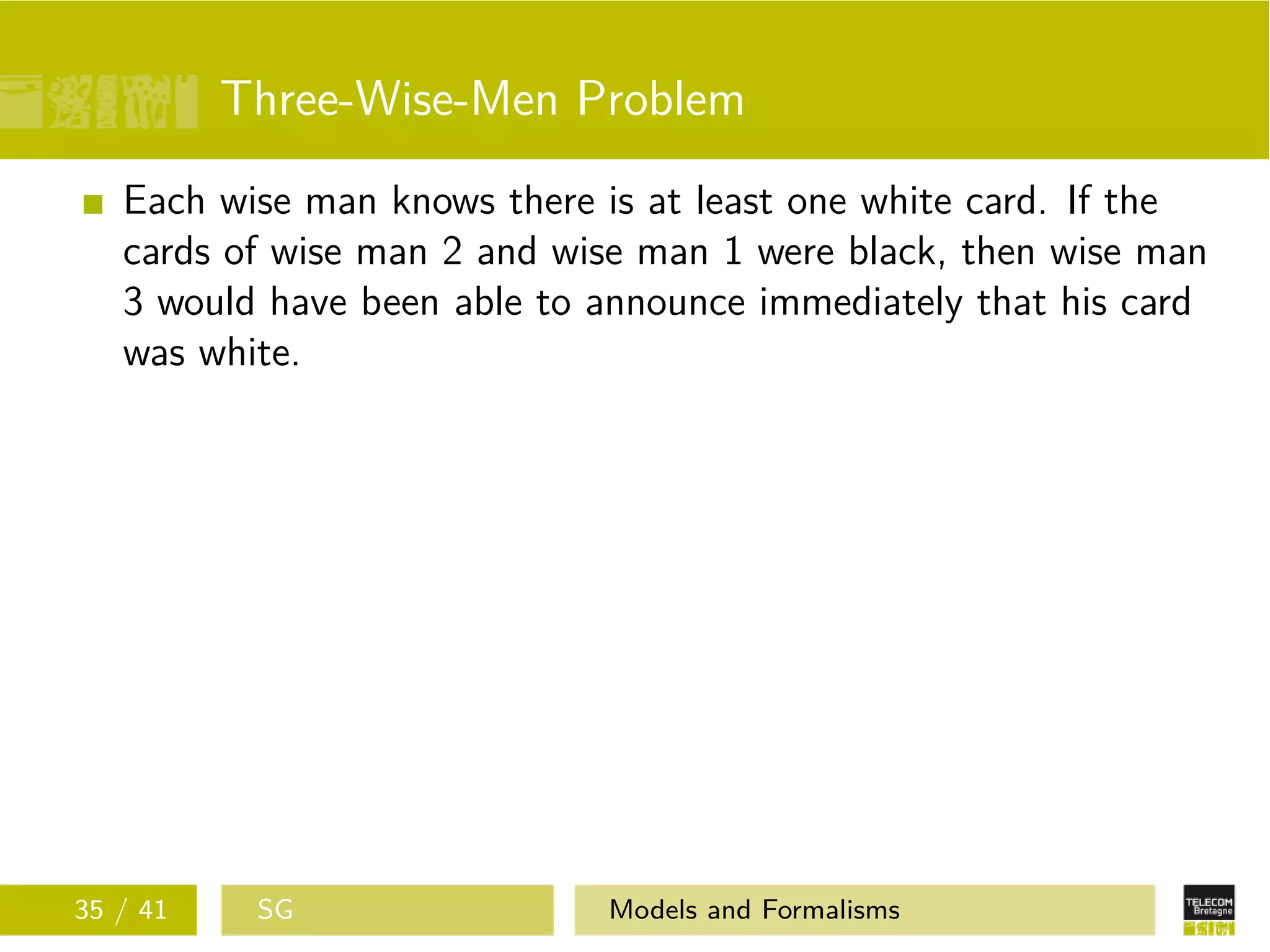

73. Three-Wise-Men Problem
Each wise man knows there is at least one white card. If the
cards of wise man 2 and wise man 1 were black, then wise man
3 would have been able to announce immediately that his card
was white.
35 / 41 SG Models and Formalisms

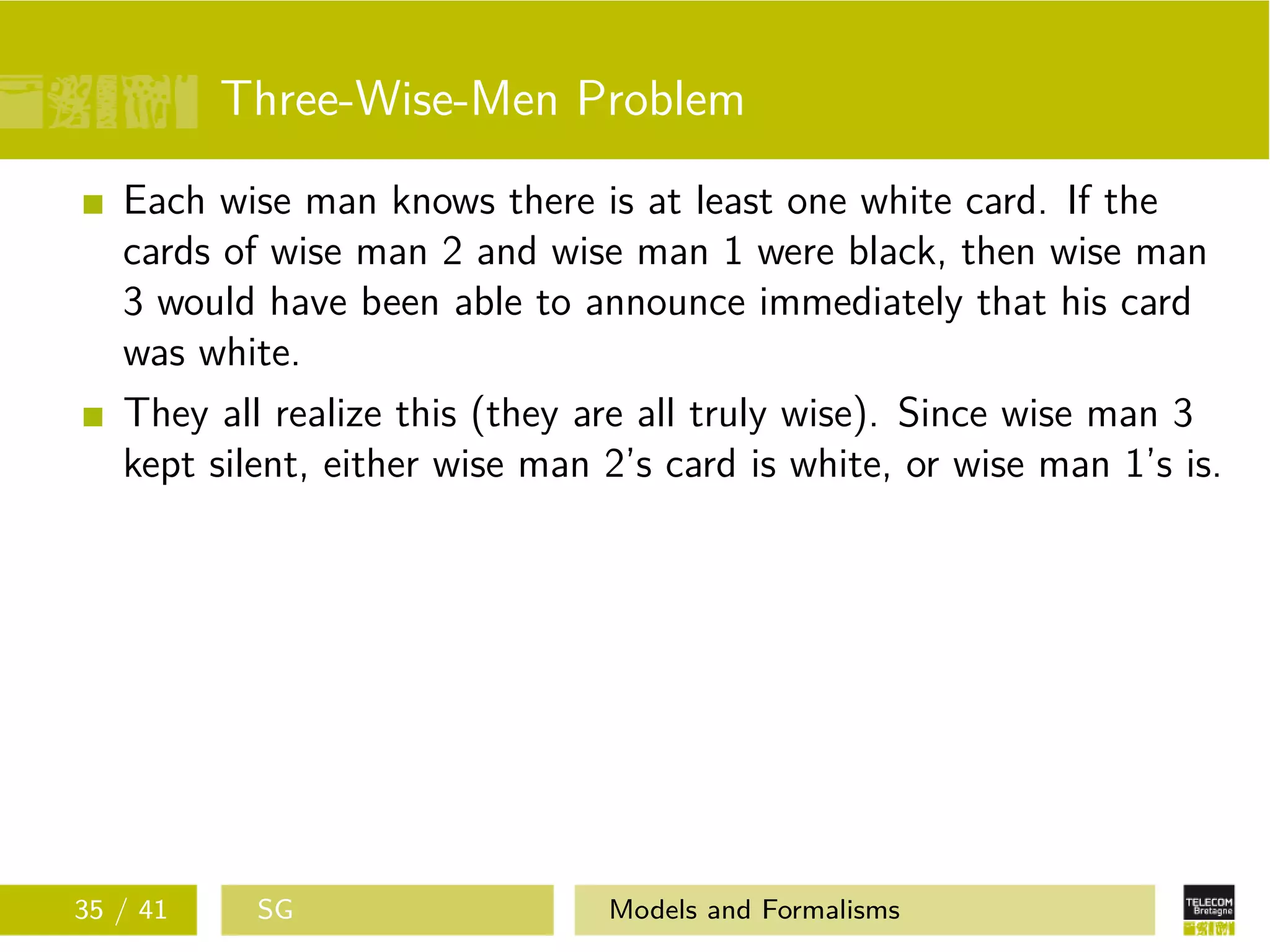

74. Three-Wise-Men Problem
Each wise man knows there is at least one white card. If the
cards of wise man 2 and wise man 1 were black, then wise man
3 would have been able to announce immediately that his card
was white.
They all realize this (they are all truly wise). Since wise man 3
kept silent, either wise man 2’s card is white, or wise man 1’s is.
35 / 41 SG Models and Formalisms

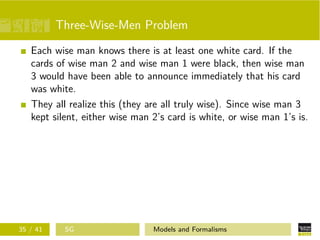

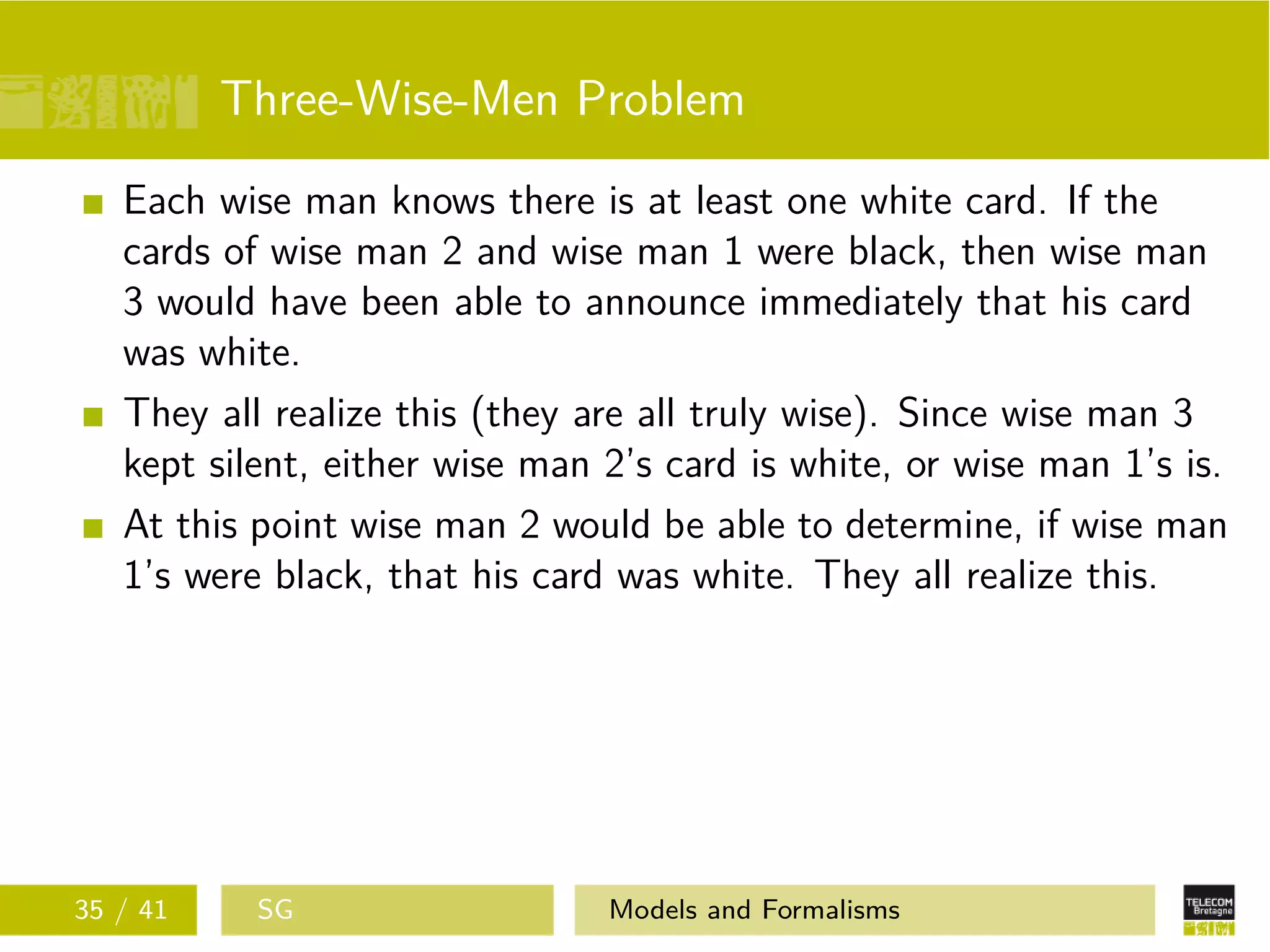

75. Three-Wise-Men Problem
Each wise man knows there is at least one white card. If the
cards of wise man 2 and wise man 1 were black, then wise man
3 would have been able to announce immediately that his card
was white.
They all realize this (they are all truly wise). Since wise man 3
kept silent, either wise man 2’s card is white, or wise man 1’s is.
At this point wise man 2 would be able to determine, if wise man
1’s were black, that his card was white. They all realize this.
35 / 41 SG Models and Formalisms

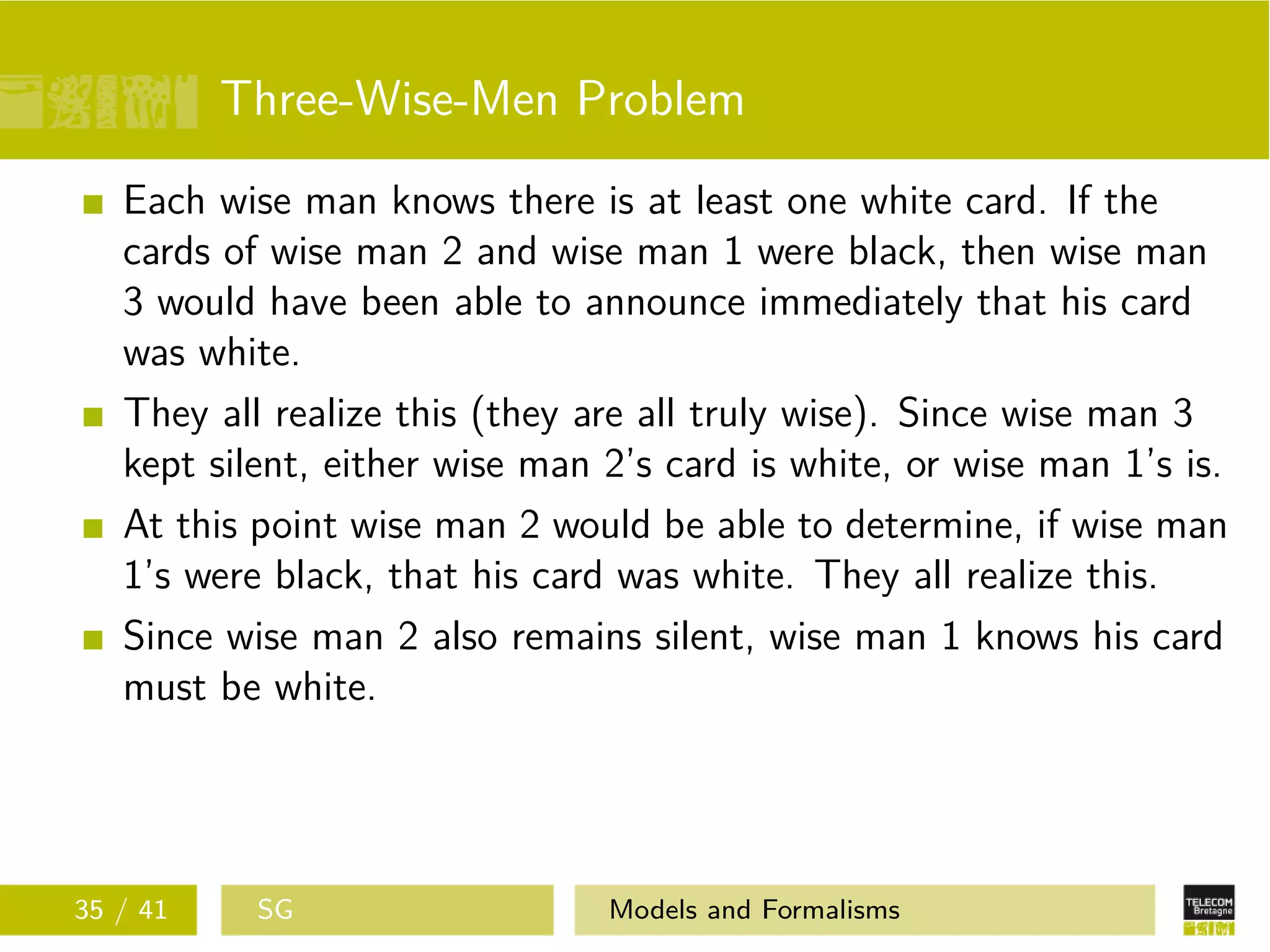

76. Three-Wise-Men Problem
Each wise man knows there is at least one white card. If the
cards of wise man 2 and wise man 1 were black, then wise man
3 would have been able to announce immediately that his card
was white.
They all realize this (they are all truly wise). Since wise man 3
kept silent, either wise man 2’s card is white, or wise man 1’s is.
At this point wise man 2 would be able to determine, if wise man
1’s were black, that his card was white. They all realize this.
Since wise man 2 also remains silent, wise man 1 knows his card
must be white.
35 / 41 SG Models and Formalisms

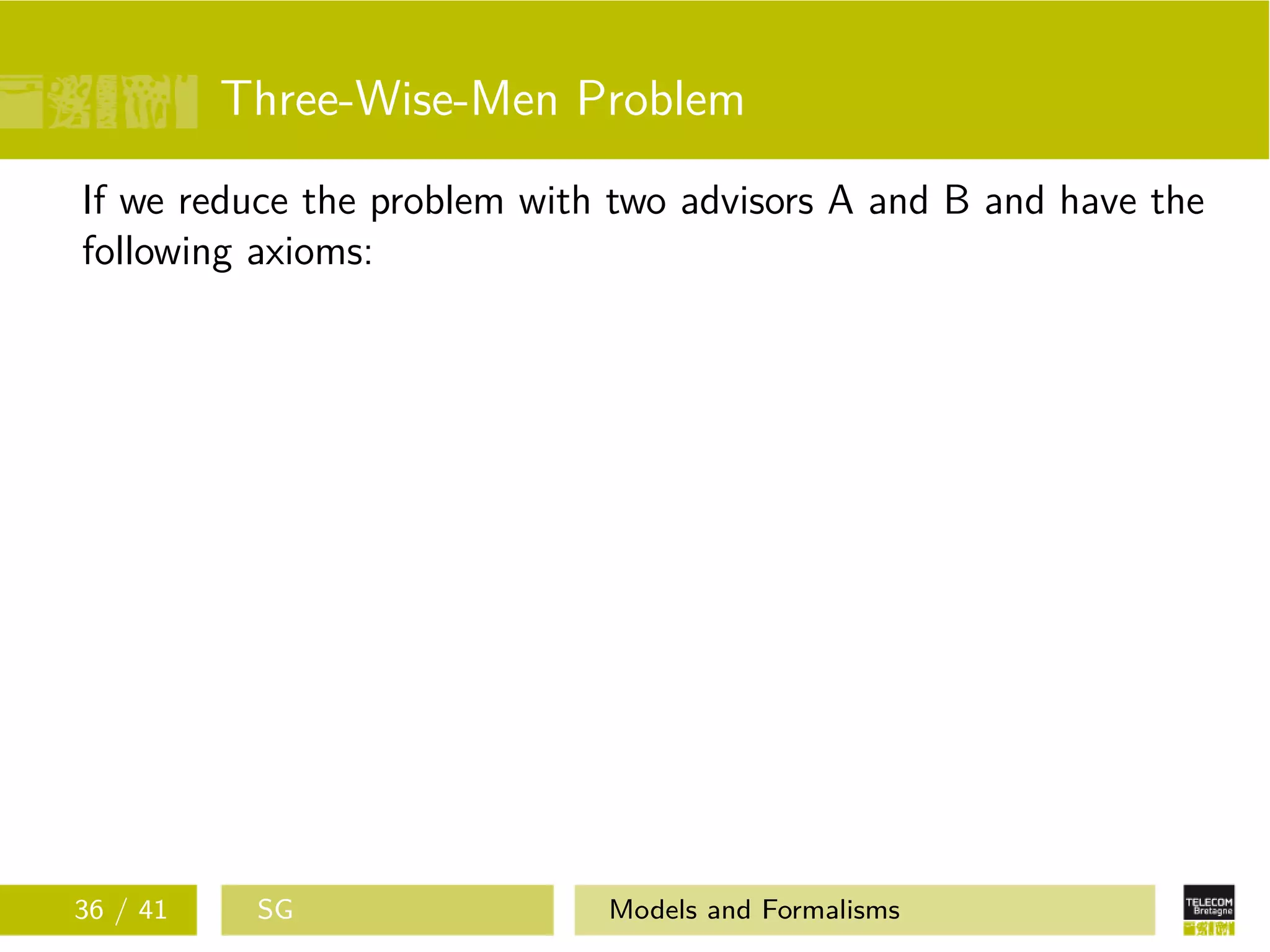

77. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
36 / 41 SG Models and Formalisms

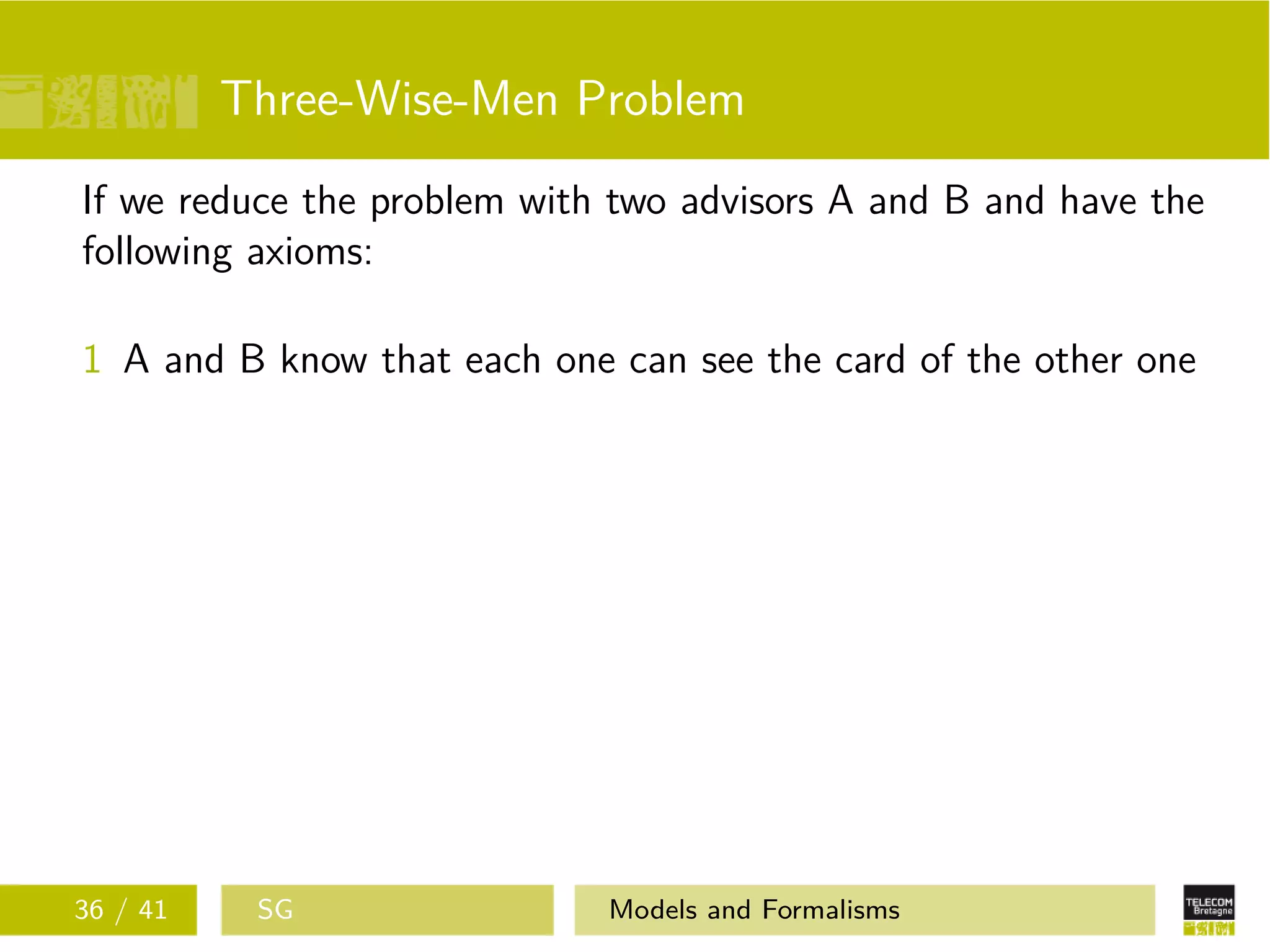

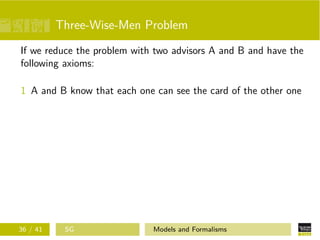

78. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
1 A and B know that each one can see the card of the other one
36 / 41 SG Models and Formalisms

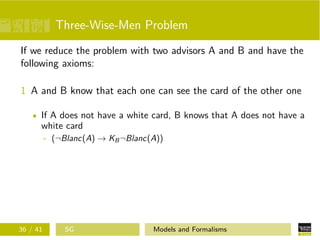

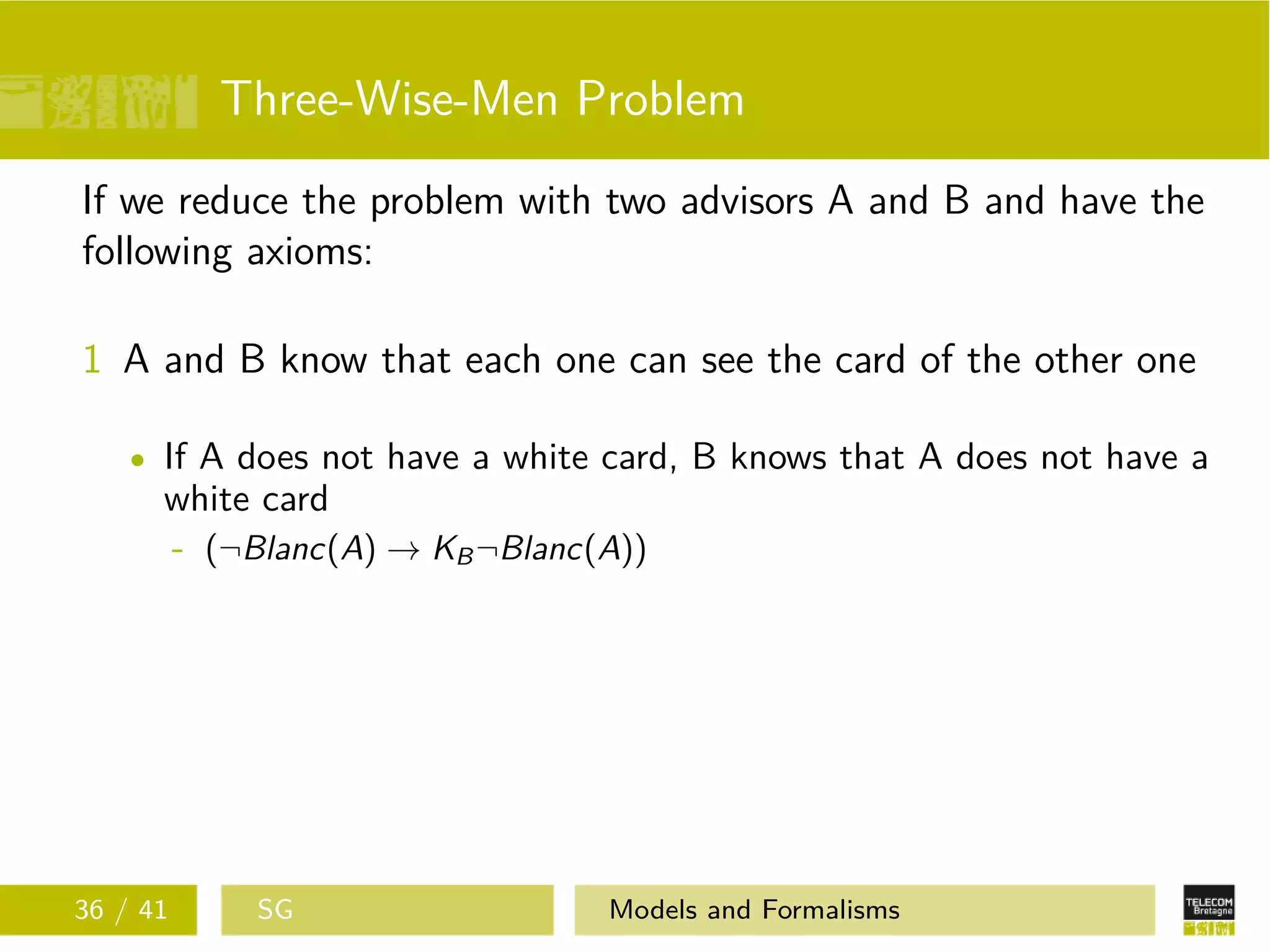

79. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
1 A and B know that each one can see the card of the other one
If A does not have a white card, B knows that A does not have a
white card
- (¬Blanc(A) → KB¬Blanc(A))
36 / 41 SG Models and Formalisms
80. Three-Wise-Men Problem

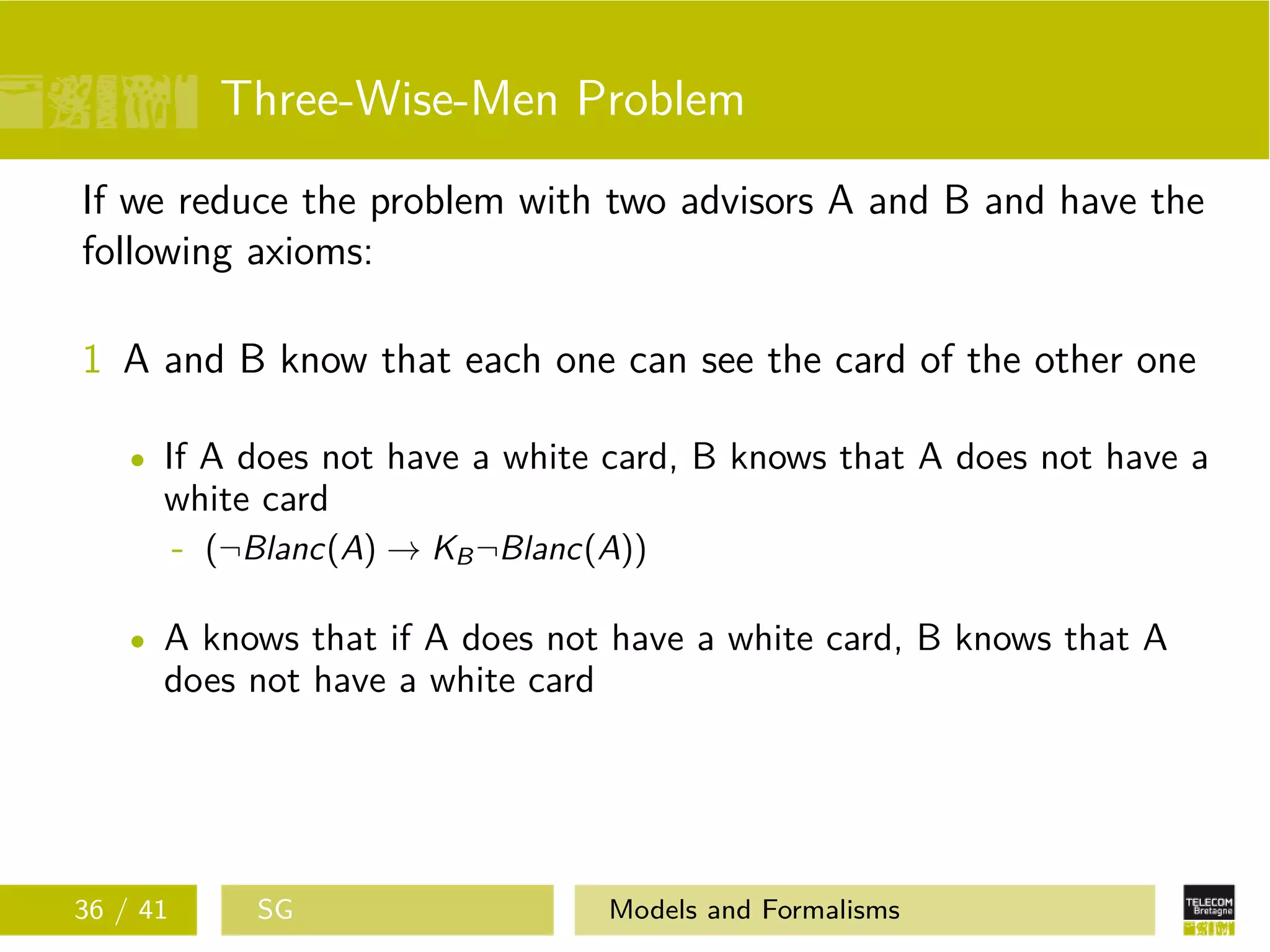

If we reduce the problem with two advisors A and B and have the
following axioms:
1 A and B know that each one can see the card of the other one
If A does not have a white card, B knows that A does not have a
white card
- (¬Blanc(A) → KB¬Blanc(A))
A knows that if A does not have a white card, B knows that A
does not have a white card
36 / 41 SG Models and Formalisms

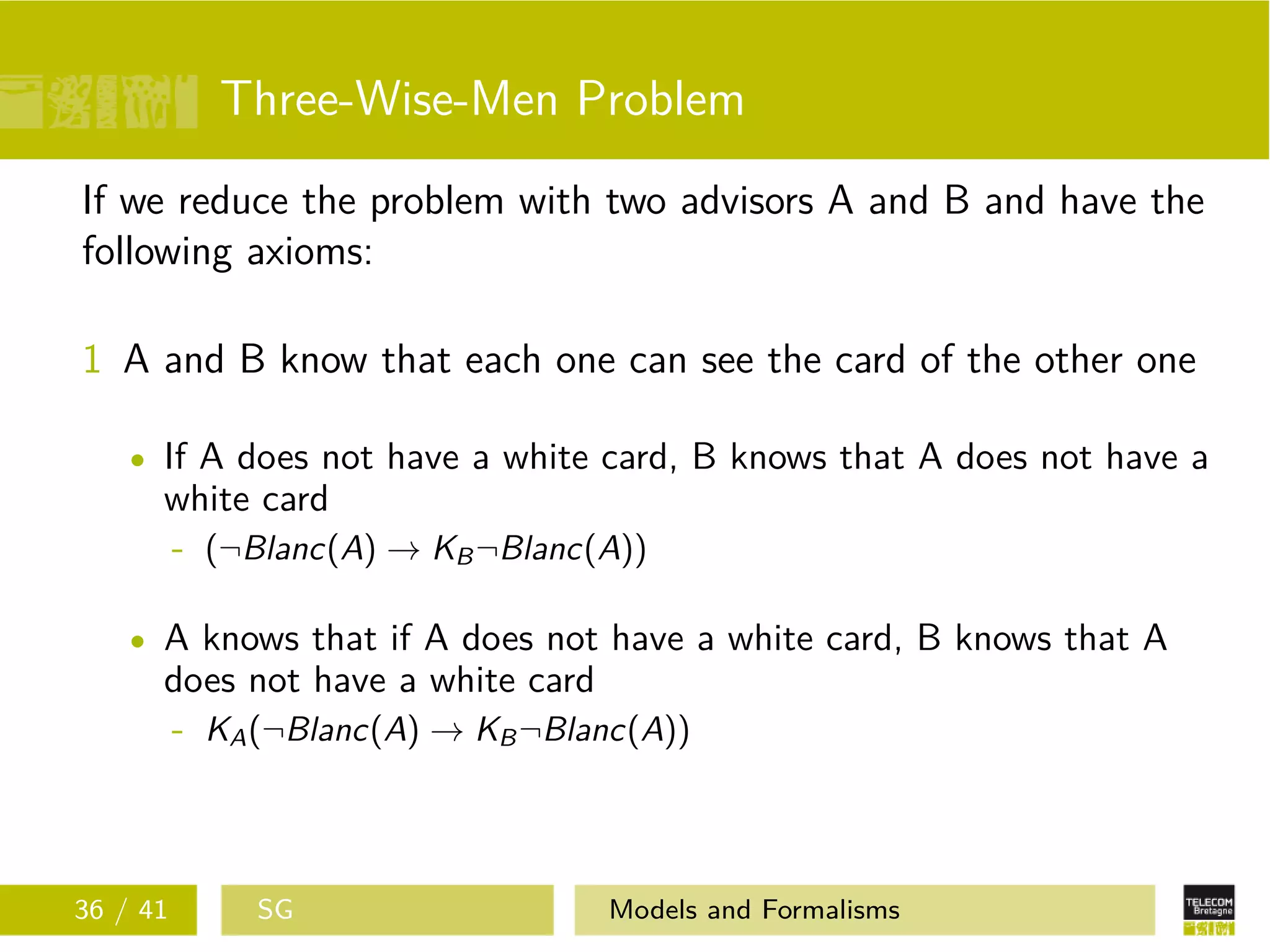

81. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
1 A and B know that each one can see the card of the other one
If A does not have a white card, B knows that A does not have a
white card
- (¬Blanc(A) → KB¬Blanc(A))
A knows that if A does not have a white card, B knows that A
does not have a white card

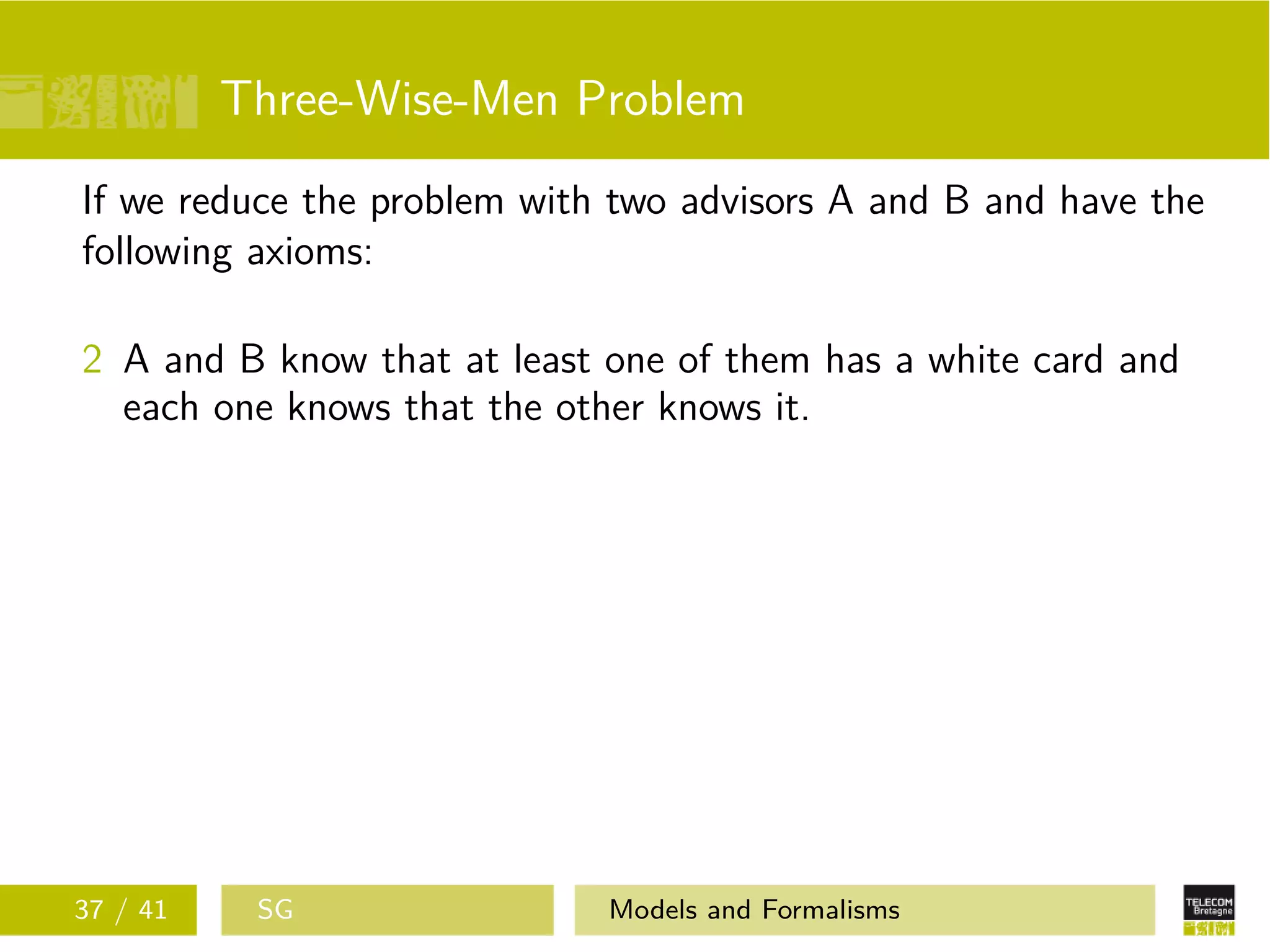

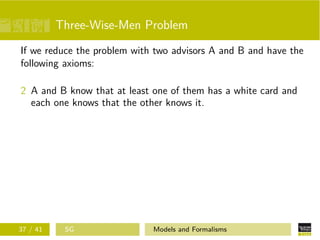

- KA(¬Blanc(A) → KB¬Blanc(A))
36 / 41 SG Models and Formalisms
82. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
2 A and B know that at least one of them has a white card and
each one knows that the other knows it.
37 / 41 SG Models and Formalisms

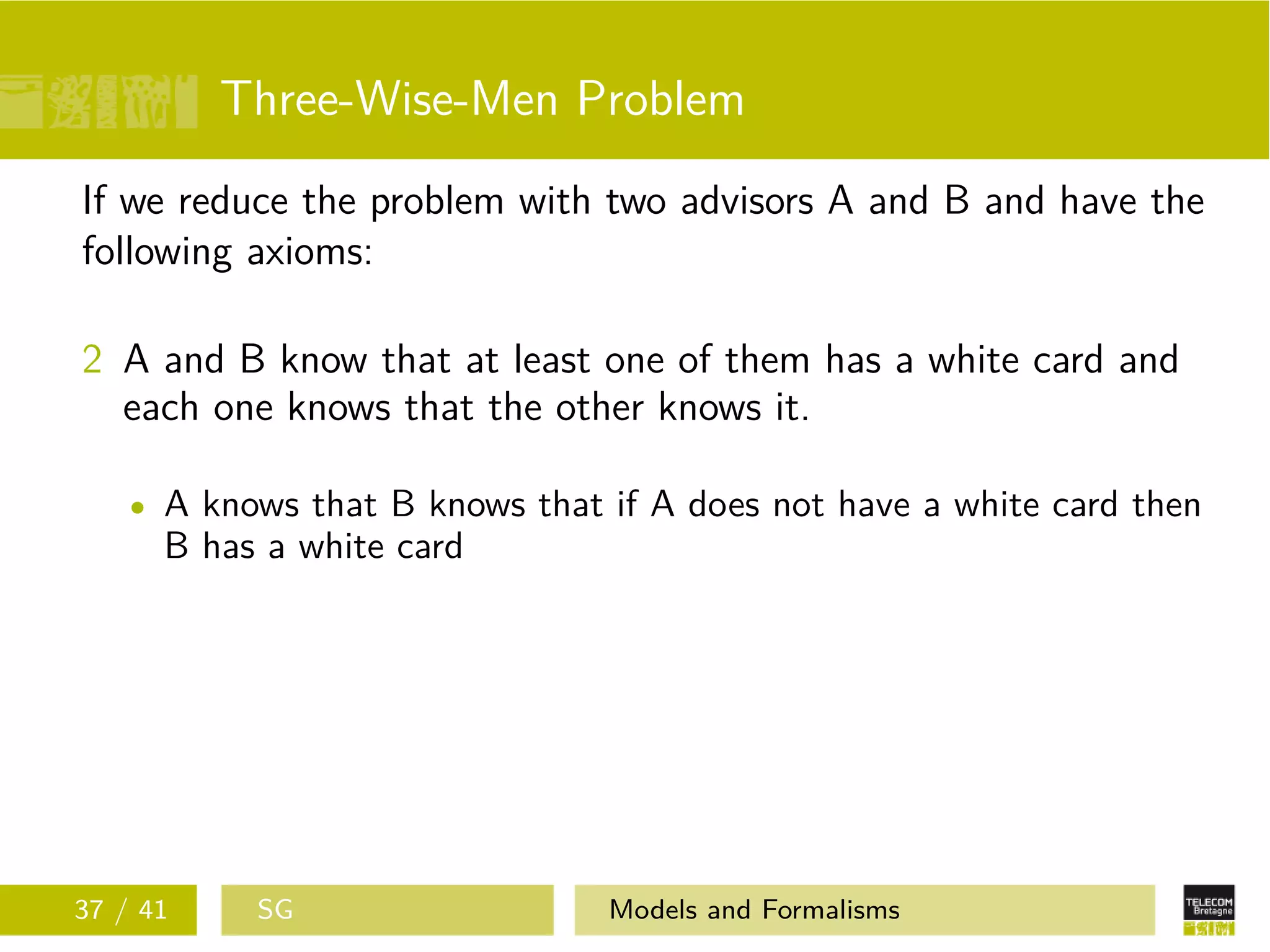

83. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
2 A and B know that at least one of them has a white card and
each one knows that the other knows it.
A knows that B knows that if A does not have a white card then
B has a white card
37 / 41 SG Models and Formalisms

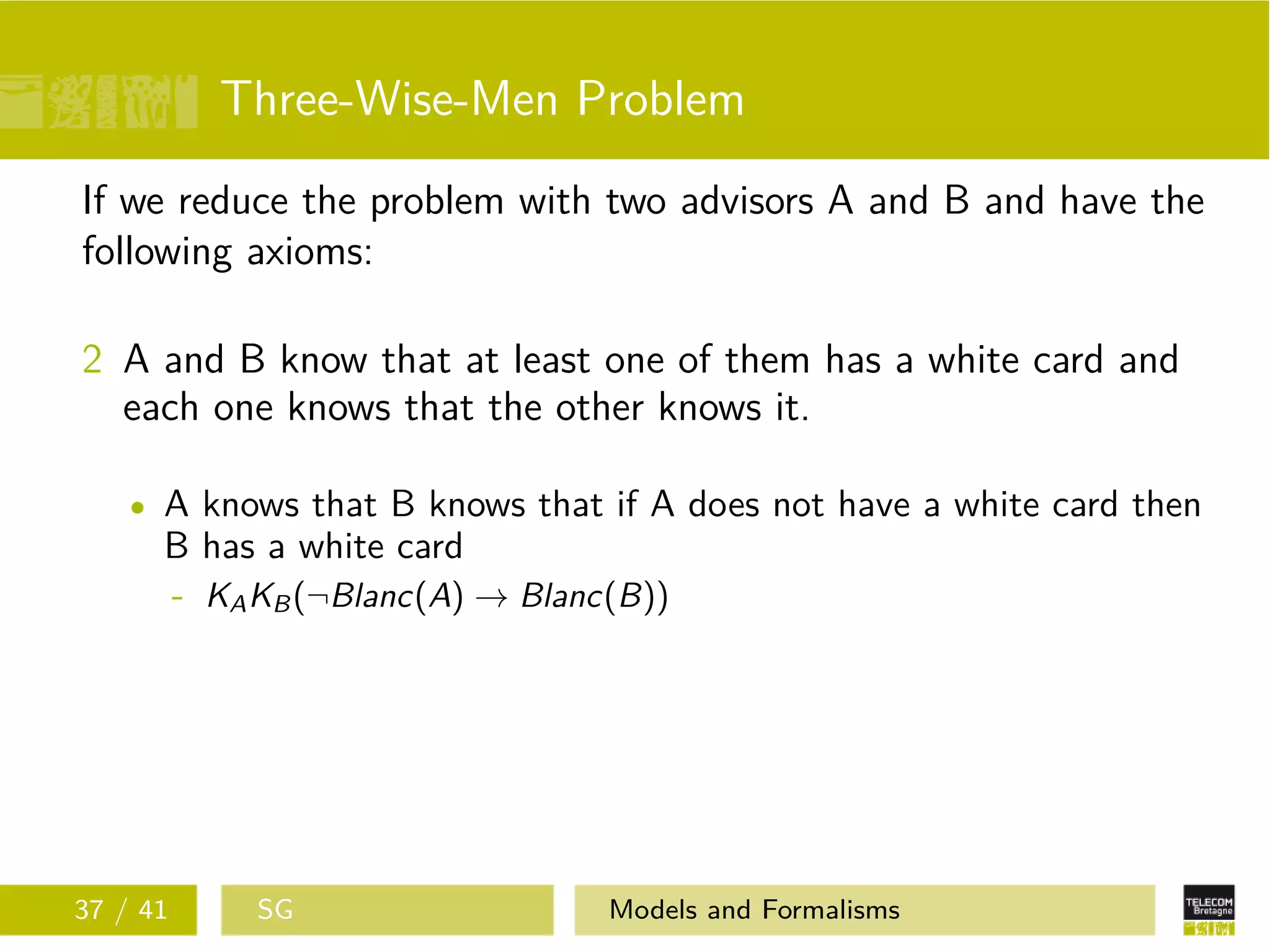

84. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
2 A and B know that at least one of them has a white card and
each one knows that the other knows it.
A knows that B knows that if A does not have a white card then
B has a white card
- KAKB(¬Blanc(A) → Blanc(B))
37 / 41 SG Models and Formalisms

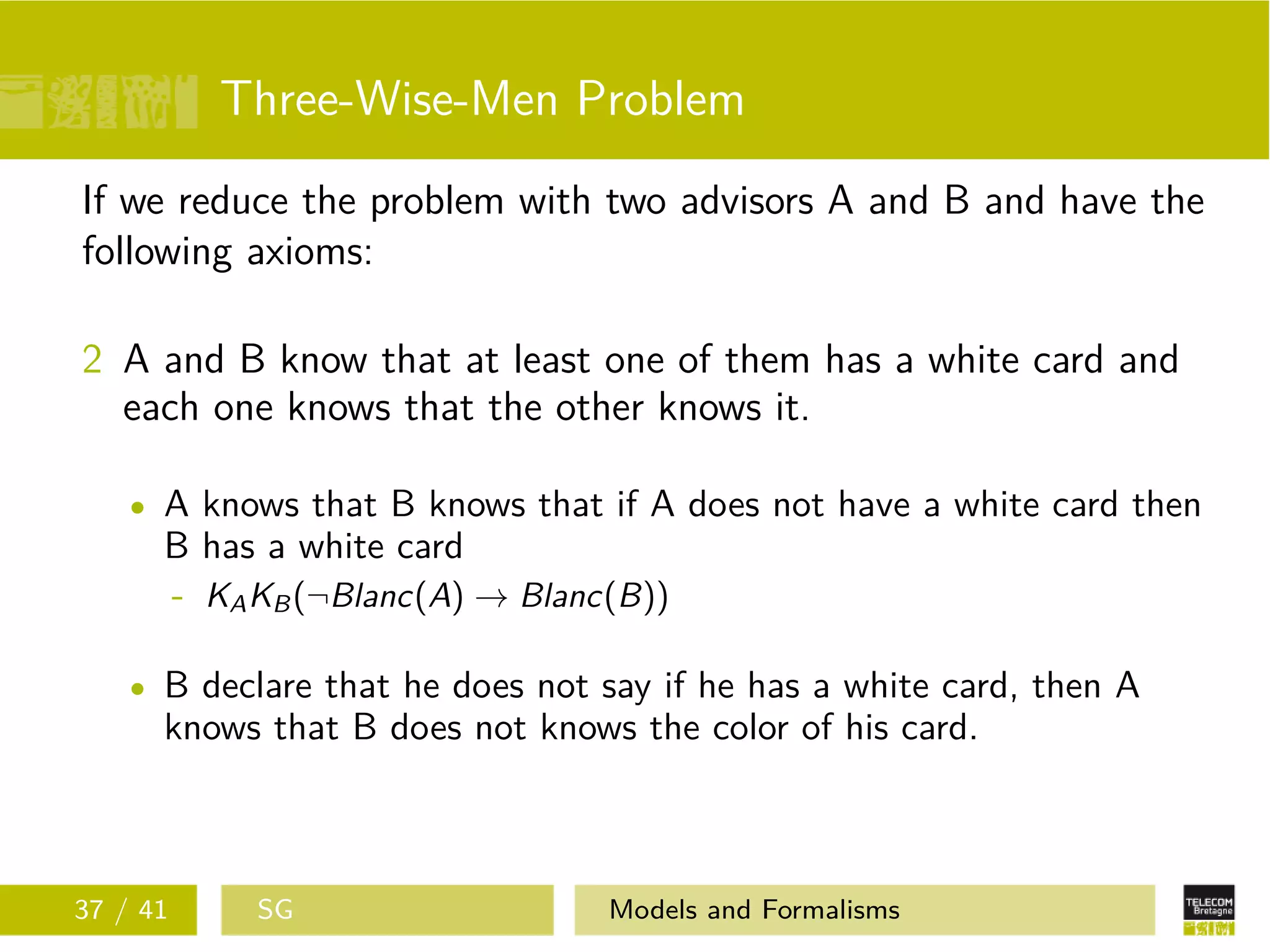

85. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
2 A and B know that at least one of them has a white card and
each one knows that the other knows it.
A knows that B knows that if A does not have a white card then
B has a white card
- KAKB(¬Blanc(A) → Blanc(B))
B declare that he does not say if he has a white card, then A
knows that B does not knows the color of his card.
37 / 41 SG Models and Formalisms

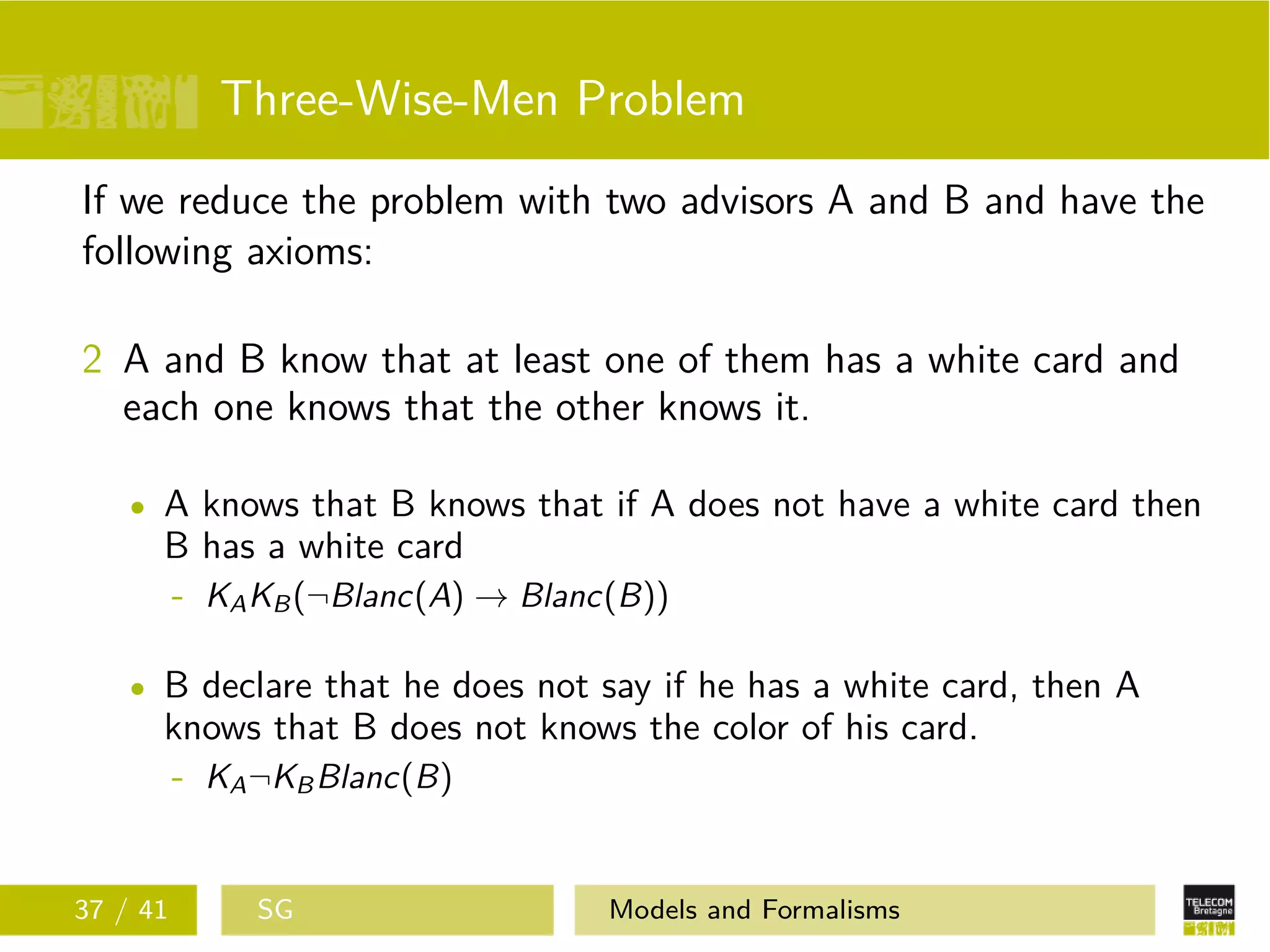

86. Three-Wise-Men Problem
If we reduce the problem with two advisors A and B and have the
following axioms:
2 A and B know that at least one of them has a white card and
each one knows that the other knows it.
A knows that B knows that if A does not have a white card then
B has a white card
- KAKB(¬Blanc(A) → Blanc(B))
B declare that he does not say if he has a white card, then A
knows that B does not knows the color of his card.
- KA¬KBBlanc(B)
37 / 41 SG Models and Formalisms

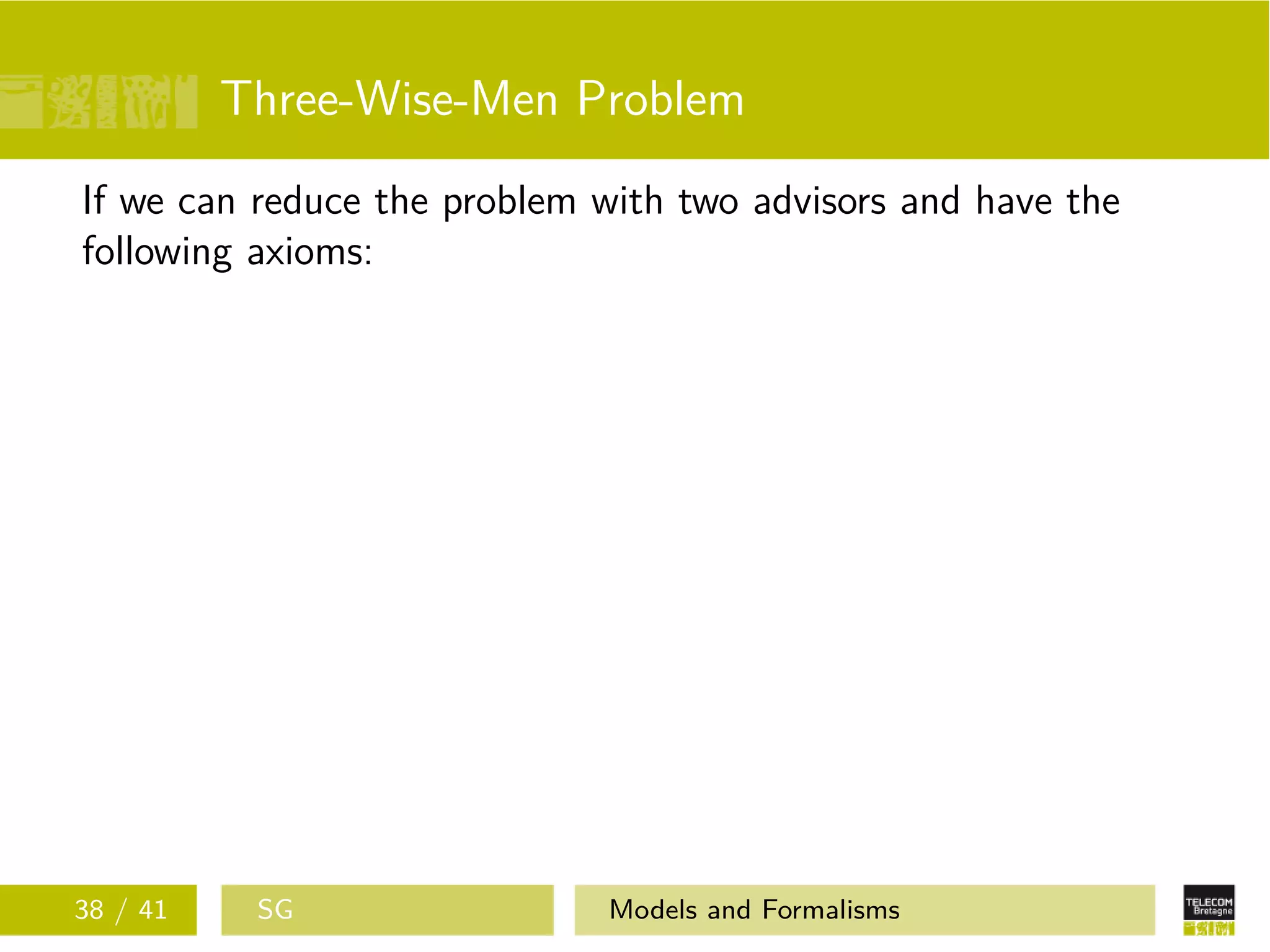

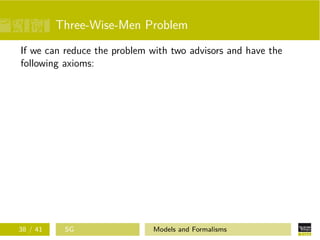

87. Three-Wise-Men Problem
If we can reduce the problem with two advisors and have the
following axioms:
38 / 41 SG Models and Formalisms

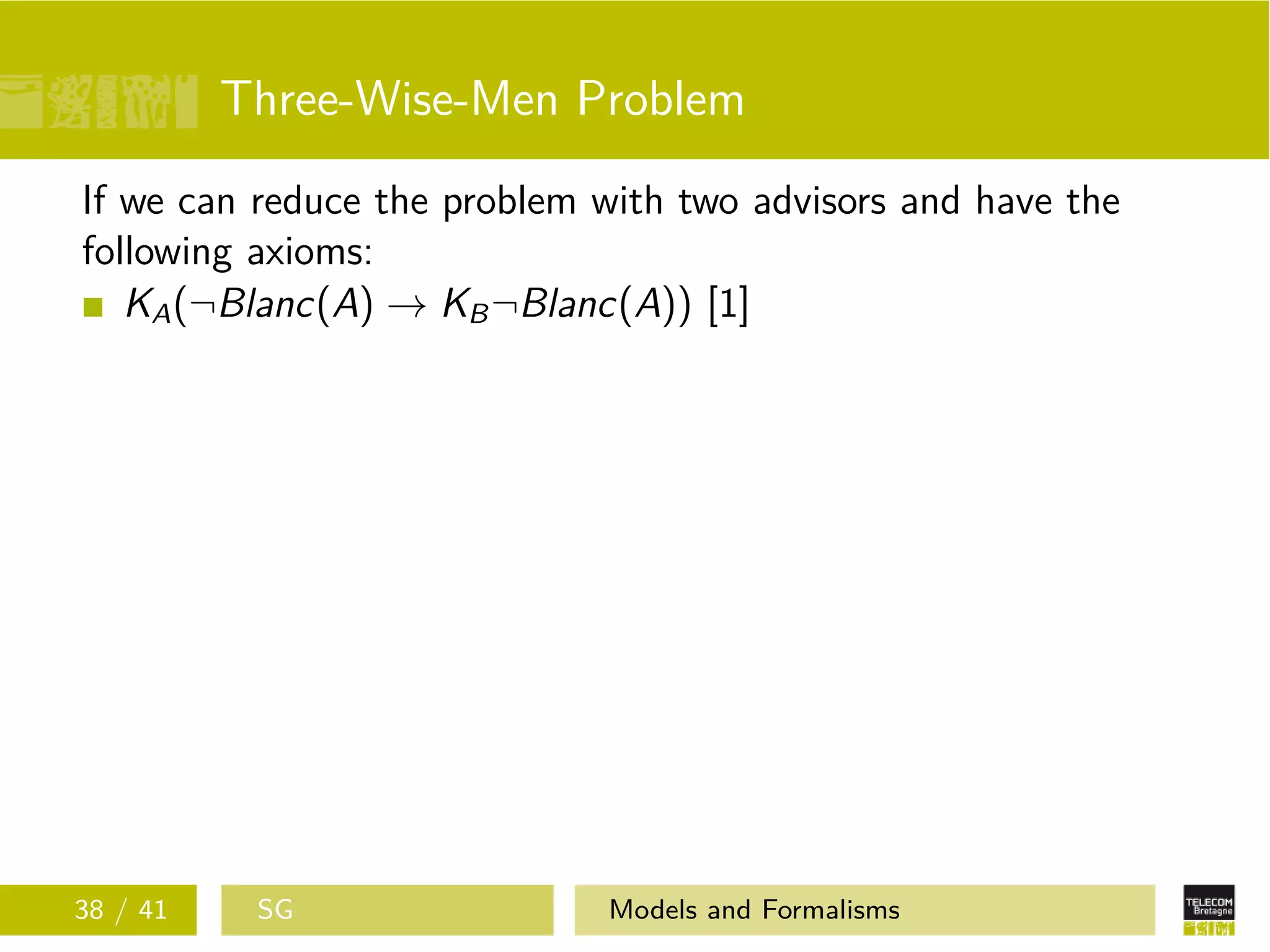

88. Three-Wise-Men Problem
If we can reduce the problem with two advisors and have the
following axioms:
KA(¬Blanc(A) → KB¬Blanc(A)) [1]
38 / 41 SG Models and Formalisms
89. Three-Wise-Men Problem
If we can reduce the problem with two advisors and have the
following axioms:
KA(¬Blanc(A) → KB¬Blanc(A)) [1]
KAKB(¬Blanc(A) → Blanc(B)) [2]
KA¬KBBlanc(B) [3]
38 / 41 SG Models and Formalisms

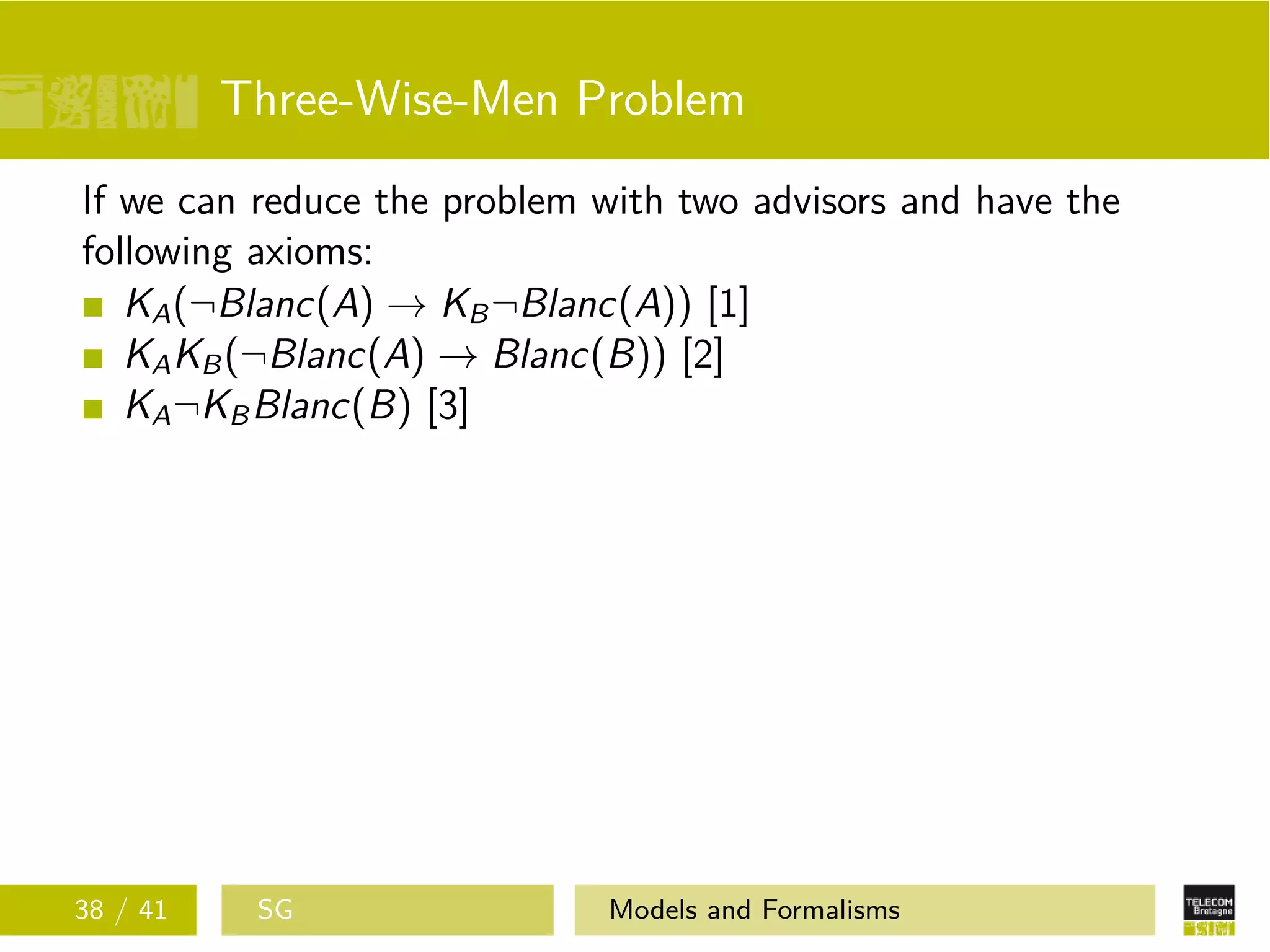

90. Three-Wise-Men Problem
If we can reduce the problem with two advisors and have the
following axioms:
KA(¬Blanc(A) → KB¬Blanc(A)) [1]
KAKB(¬Blanc(A) → Blanc(B)) [2]
KA¬KBBlanc(B) [3]
38 / 41 SG Models and Formalisms

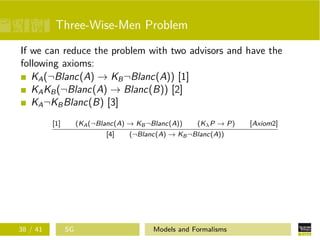

91. Three-Wise-Men Problem
If we can reduce the problem with two advisors and have the
following axioms:
KA(¬Blanc(A) → KB¬Blanc(A)) [1]
KAKB(¬Blanc(A) → Blanc(B)) [2]
KA¬KBBlanc(B) [3]
[1] (KA(¬Blanc(A) → KB¬Blanc(A)) (KλP → P) [Axiom2]
[4] (¬Blanc(A) → KB¬Blanc(A))
38 / 41 SG Models and Formalisms

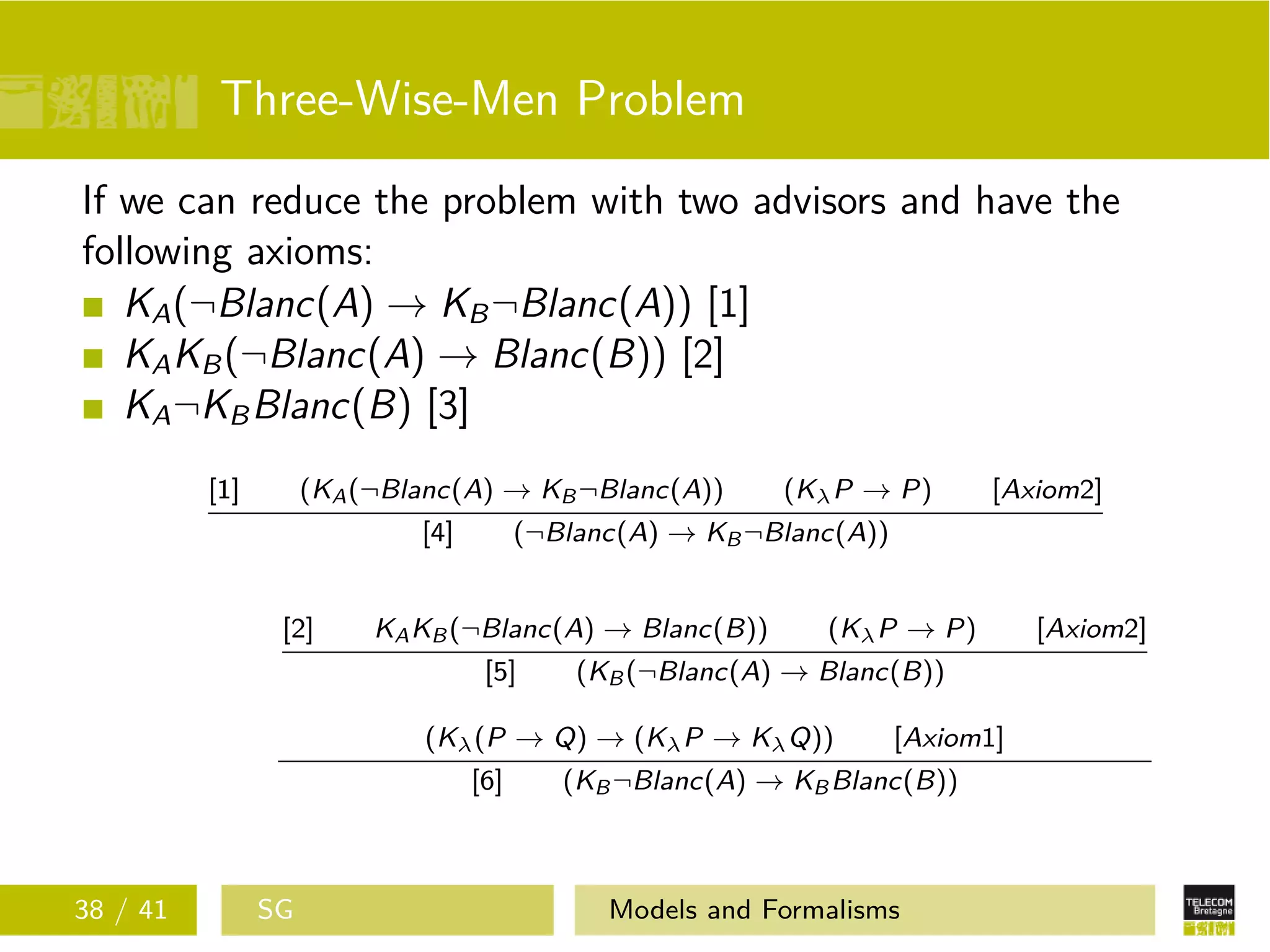

92. Three-Wise-Men Problem
If we can reduce the problem with two advisors and have the
following axioms:
KA(¬Blanc(A) → KB¬Blanc(A)) [1]
KAKB(¬Blanc(A) → Blanc(B)) [2]
KA¬KBBlanc(B) [3]
[1] (KA(¬Blanc(A) → KB¬Blanc(A)) (KλP → P) [Axiom2]
[4] (¬Blanc(A) → KB¬Blanc(A))
[2] KAKB(¬Blanc(A) → Blanc(B)) (KλP → P) [Axiom2]
[5] (KB(¬Blanc(A) → Blanc(B))
(Kλ(P → Q) → (KλP → KλQ)) [Axiom1]
[6] (KB¬Blanc(A) → KBBlanc(B))
38 / 41 SG Models and Formalisms

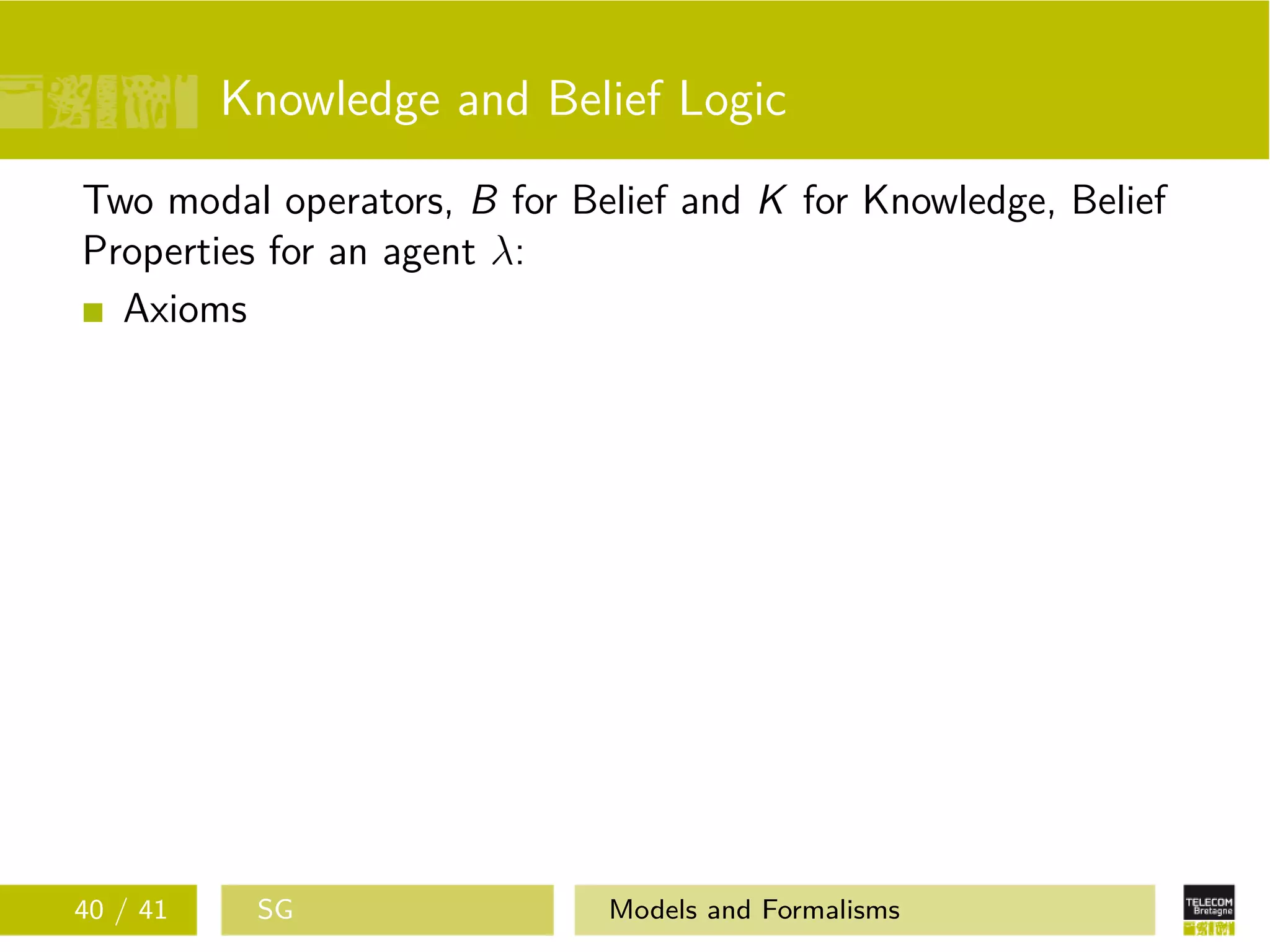

94. Knowledge and Belief Logic
Two modal operators, B for Belief and K for Knowledge, Belief
Properties for an agent λ:
Axioms
40 / 41 SG Models and Formalisms
95. Knowledge and Belief Logic
Two modal operators, B for Belief and K for Knowledge, Belief
Properties for an agent λ:
Axioms
An agent cannot belief a contradiction: ¬Bλ(False)
40 / 41 SG Models and Formalisms

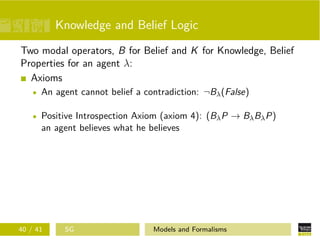

96. Knowledge and Belief Logic
Two modal operators, B for Belief and K for Knowledge, Belief
Properties for an agent λ:
Axioms
An agent cannot belief a contradiction: ¬Bλ(False)
Positive Introspection Axiom (axiom 4): (BλP → BλBλP)
an agent believes what he believes
40 / 41 SG Models and Formalisms

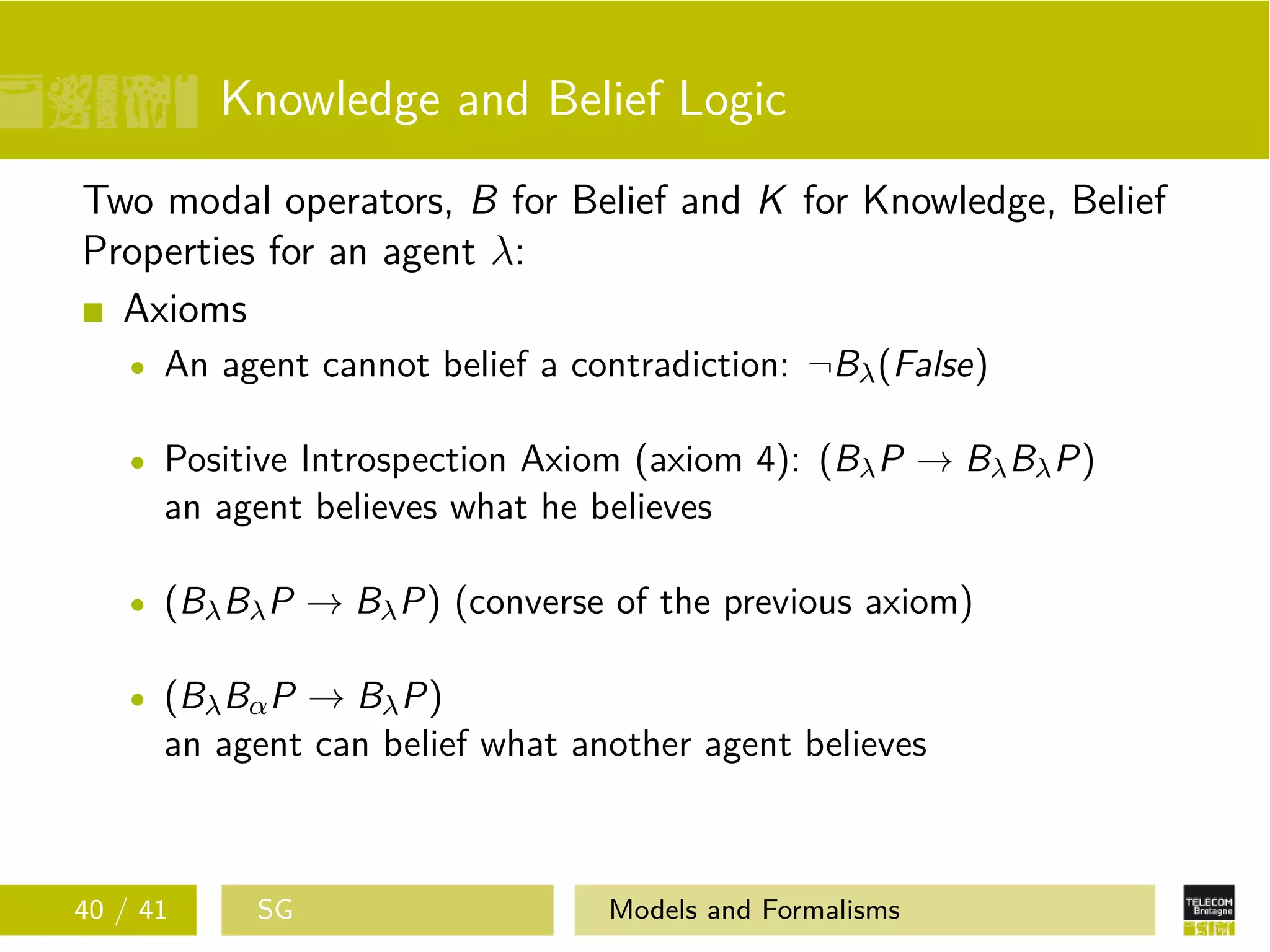

97. Knowledge and Belief Logic
Two modal operators, B for Belief and K for Knowledge, Belief
Properties for an agent λ:
Axioms
An agent cannot belief a contradiction: ¬Bλ(False)
Positive Introspection Axiom (axiom 4): (BλP → BλBλP)
an agent believes what he believes
(BλBλP → BλP) (converse of the previous axiom)
(BλBαP → BλP)
an agent can belief what another agent believes
40 / 41 SG Models and Formalisms

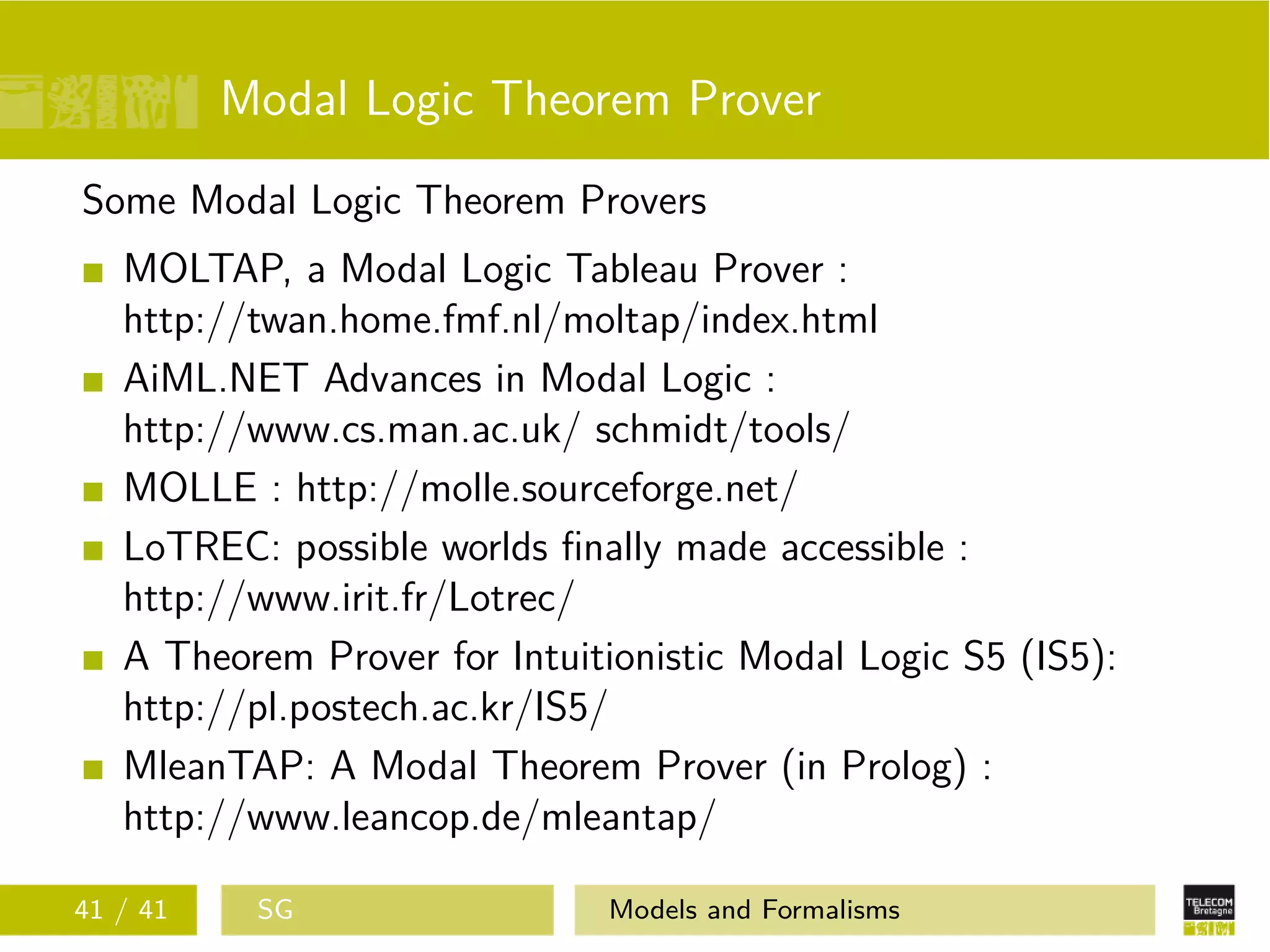

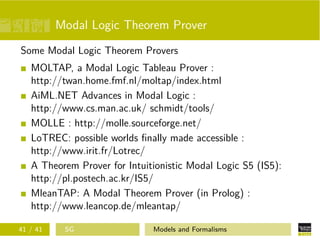

98. Modal Logic Theorem Prover
Some Modal Logic Theorem Provers
MOLTAP, a Modal Logic Tableau Prover :
http://twan.home.fmf.nl/moltap/index.html
AiML.NET Advances in Modal Logic :
http://www.cs.man.ac.uk/ schmidt/tools/
MOLLE : http://molle.sourceforge.net/
LoTREC: possible worlds finally made accessible :
http://www.irit.fr/Lotrec/
A Theorem Prover for Intuitionistic Modal Logic S5 (IS5):
http://pl.postech.ac.kr/IS5/
MleanTAP: A Modal Theorem Prover (in Prolog) :
http://www.leancop.de/mleantap/
41 / 41 SG Models and Formalisms
