This document provides an overview of NoSQL databases, including what they are, how they differ from relational databases, and examples like HBase and Cassandra. NoSQL databases are designed for huge data sizes, high performance, scalability, and availability. They use techniques like partitioning, eventual consistency, flexible data models, and log-structured storage. HBase is based on BigTable and runs on Hadoop, while Cassandra is based on Dynamo and works across platforms. Both are open-source and widely adopted.

1. Anotomy of NoSQL Databases
Date: 11/10/13
Amit Kumar

2. 2

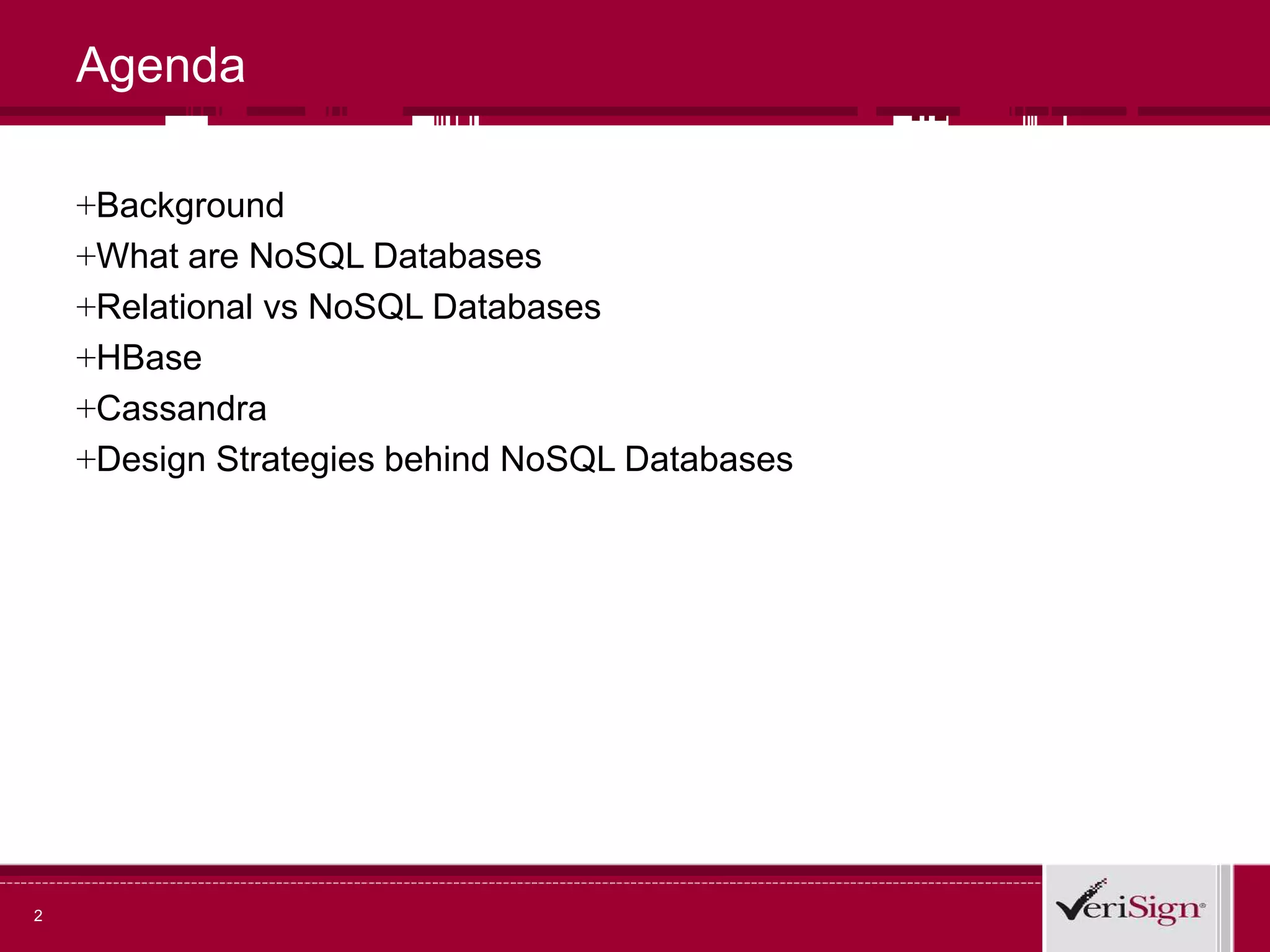

Agenda
+Background
+What are NoSQL Databases
+Relational vs NoSQL Databases
+HBase
+Cassandra
+Design Strategies behind NoSQL Databases

3. 3

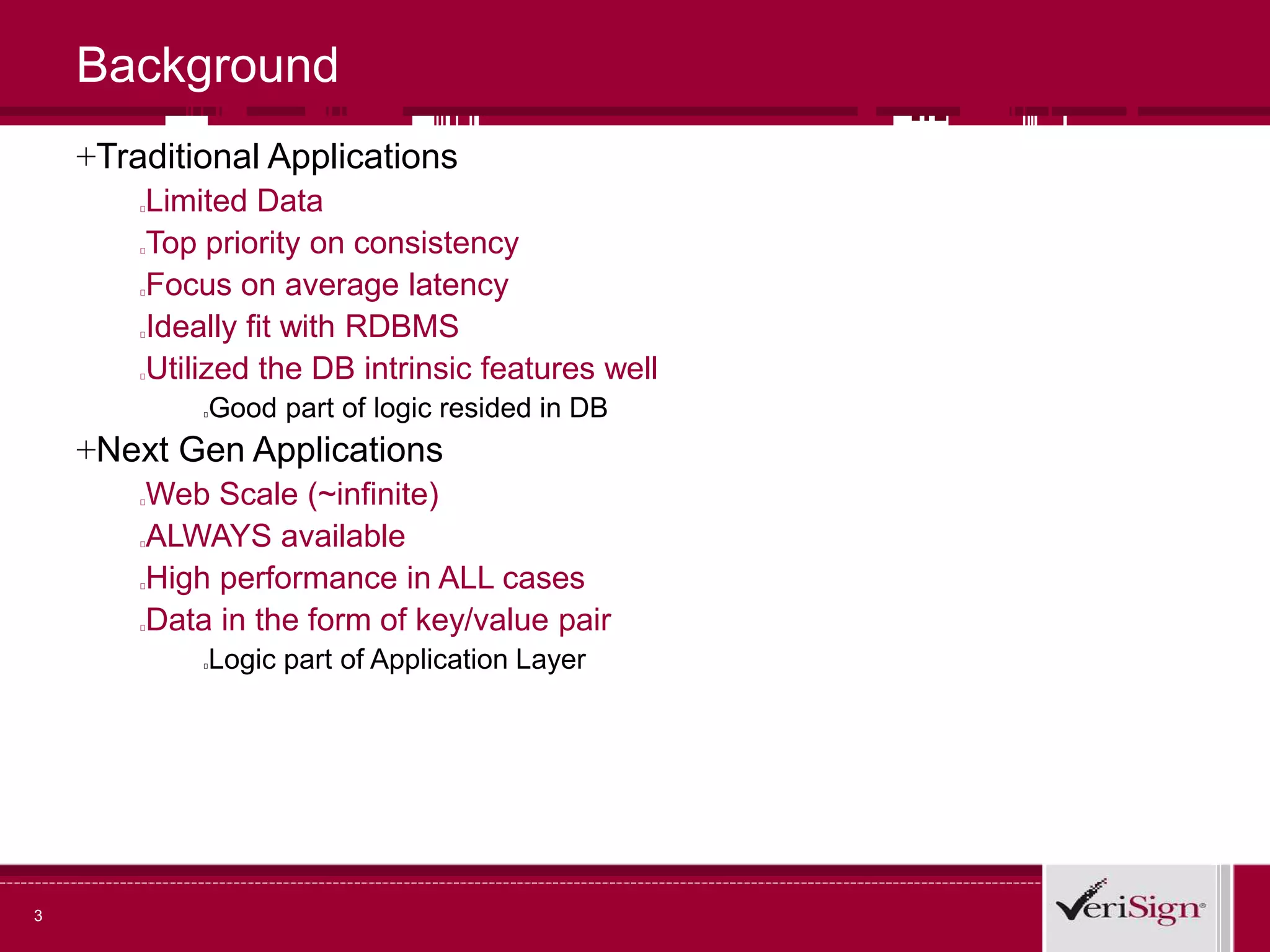

Background
+Traditional Applications
Limited Data
Top priority on consistency
Focus on average latency
Ideally fit with RDBMS
Utilized the DB intrinsic features well
Good part of logic resided in DB
+Next Gen Applications
Web Scale (~infinite)
ALWAYS available
High performance in ALL cases
Data in the form of key/value pair
Logic part of Application Layer

4. 4

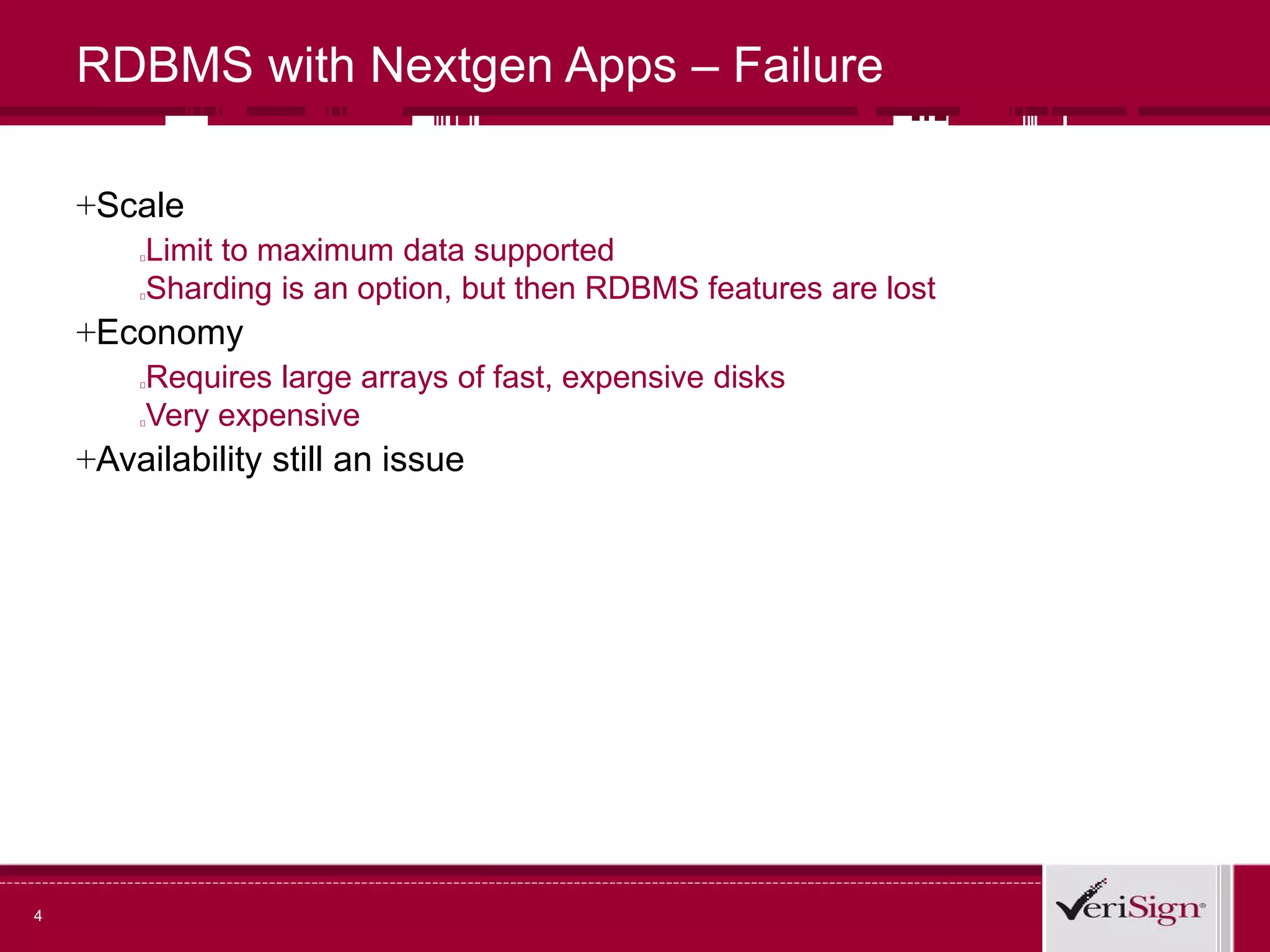

RDBMS with Nextgen Apps – Failure
+Scale
Limit to maximum data supported
Sharding is an option, but then RDBMS features are lost
+Economy
Requires large arrays of fast, expensive disks
Very expensive
+Availability still an issue

5. 5

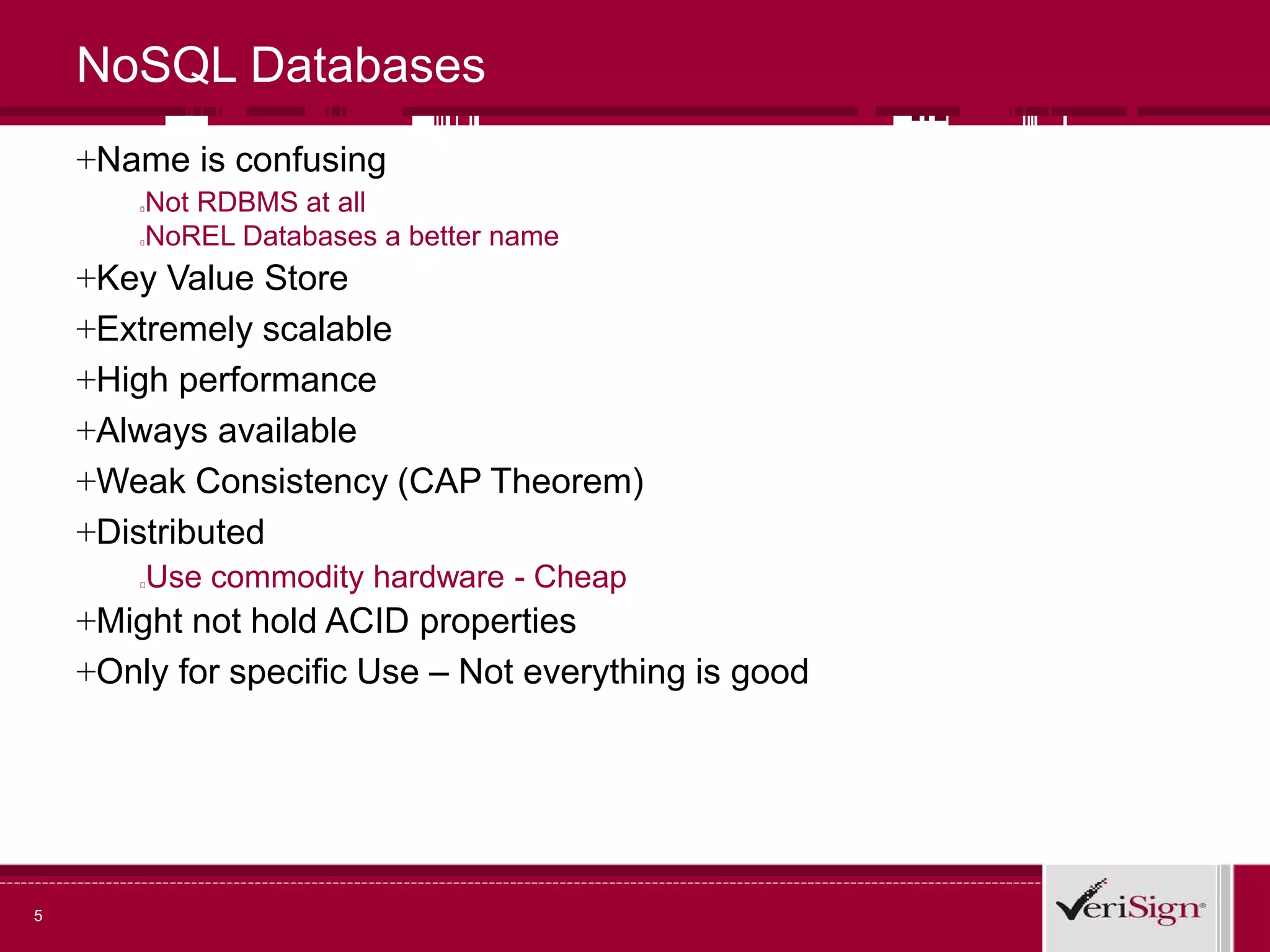

NoSQL Databases
+Name is confusing
Not RDBMS at all
NoREL Databases a better name
+Key Value Store
+Extremely scalable
+High performance
+Always available
+Weak Consistency (CAP Theorem)
+Distributed
Use commodity hardware - Cheap
+Might not hold ACID properties
+Only for specific Use – Not everything is good

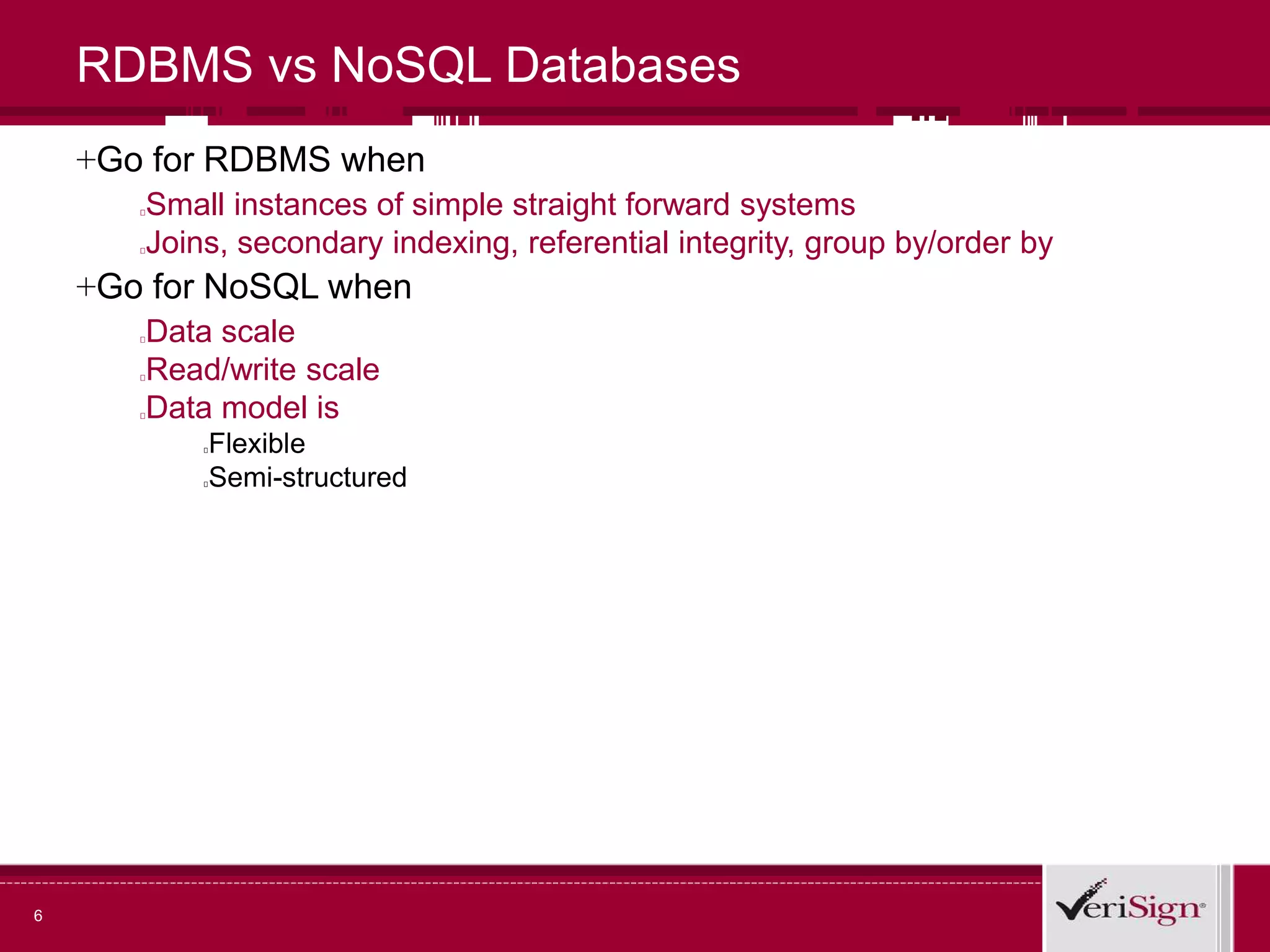

6. RDBMS vs NoSQL Databases
+Go for RDBMS when
Small instances of simple straight forward systems
Joins, secondary indexing, referential integrity, group by/order by
+Go for NoSQL when
Data scale
Read/write scale
Data model is
Flexible
Semi-structured
6

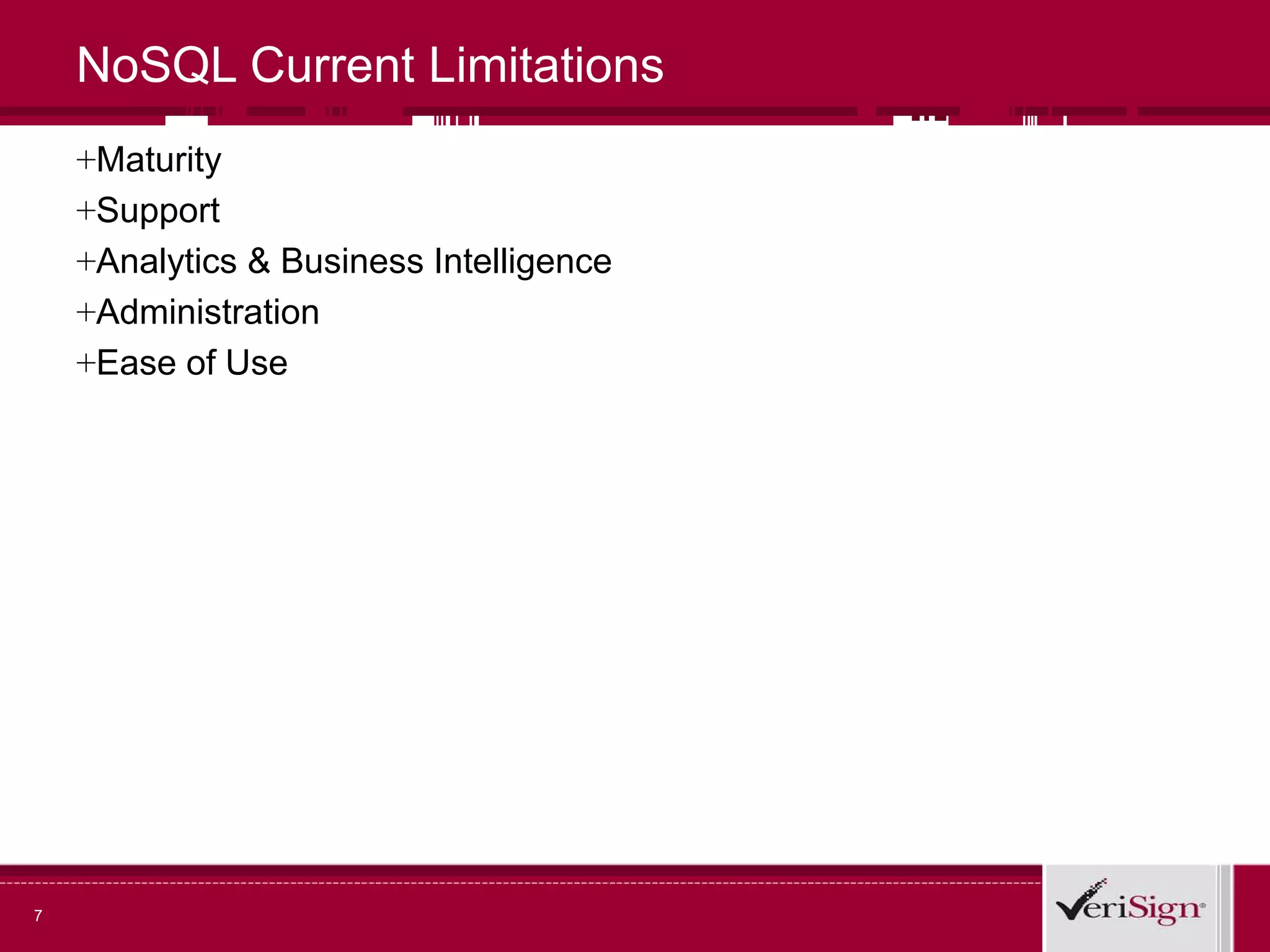

7. NoSQL Current Limitations
+Maturity
+Support
+Analytics & Business Intelligence
+Administration
+Ease of Use
7

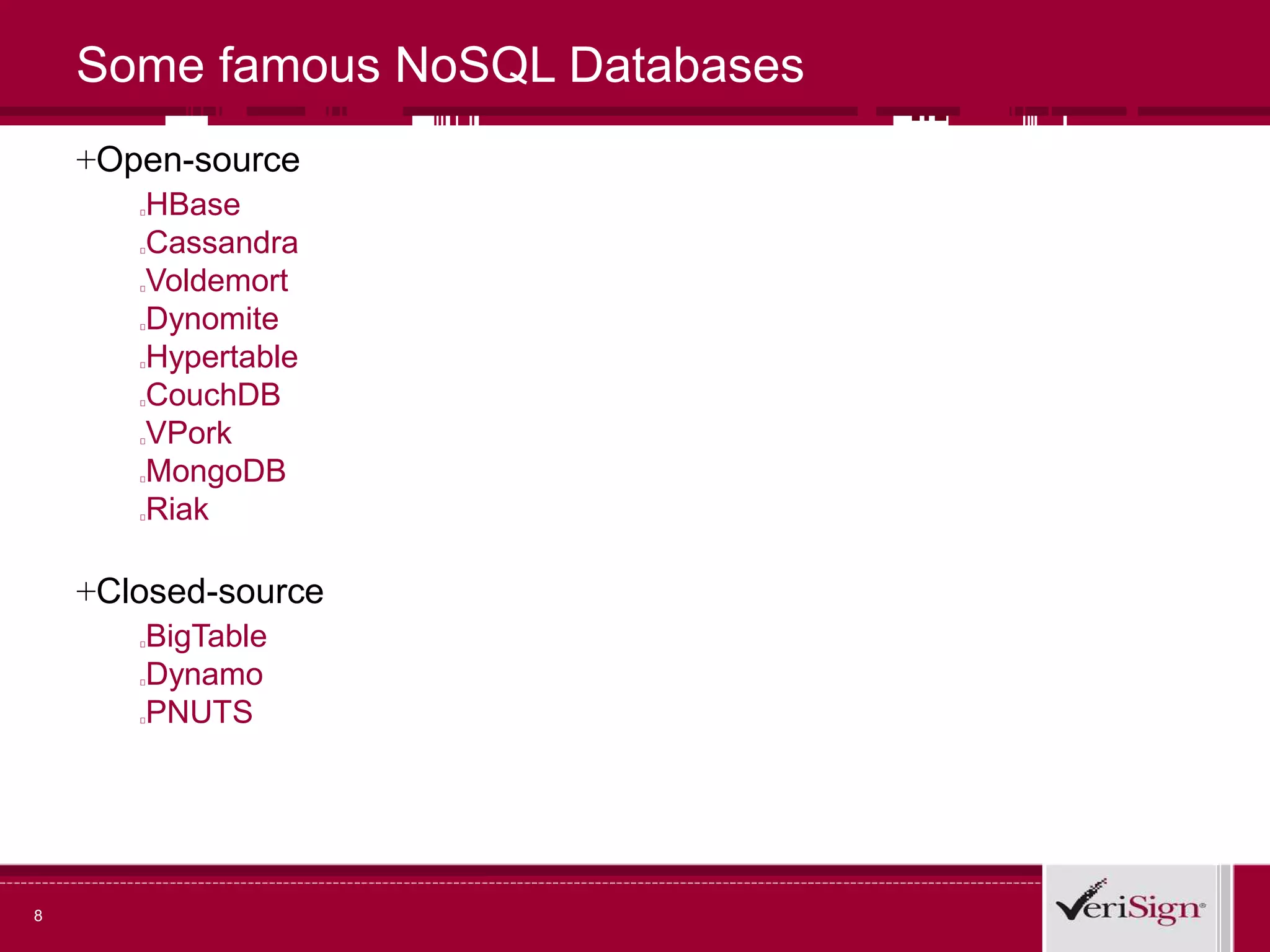

8. Some famous NoSQL Databases
+Open-source
HBase
Cassandra
Voldemort
Dynomite
Hypertable
CouchDB
VPork
MongoDB
Riak
+Closed-source
BigTable
Dynamo
PNUTS
8

9. 9

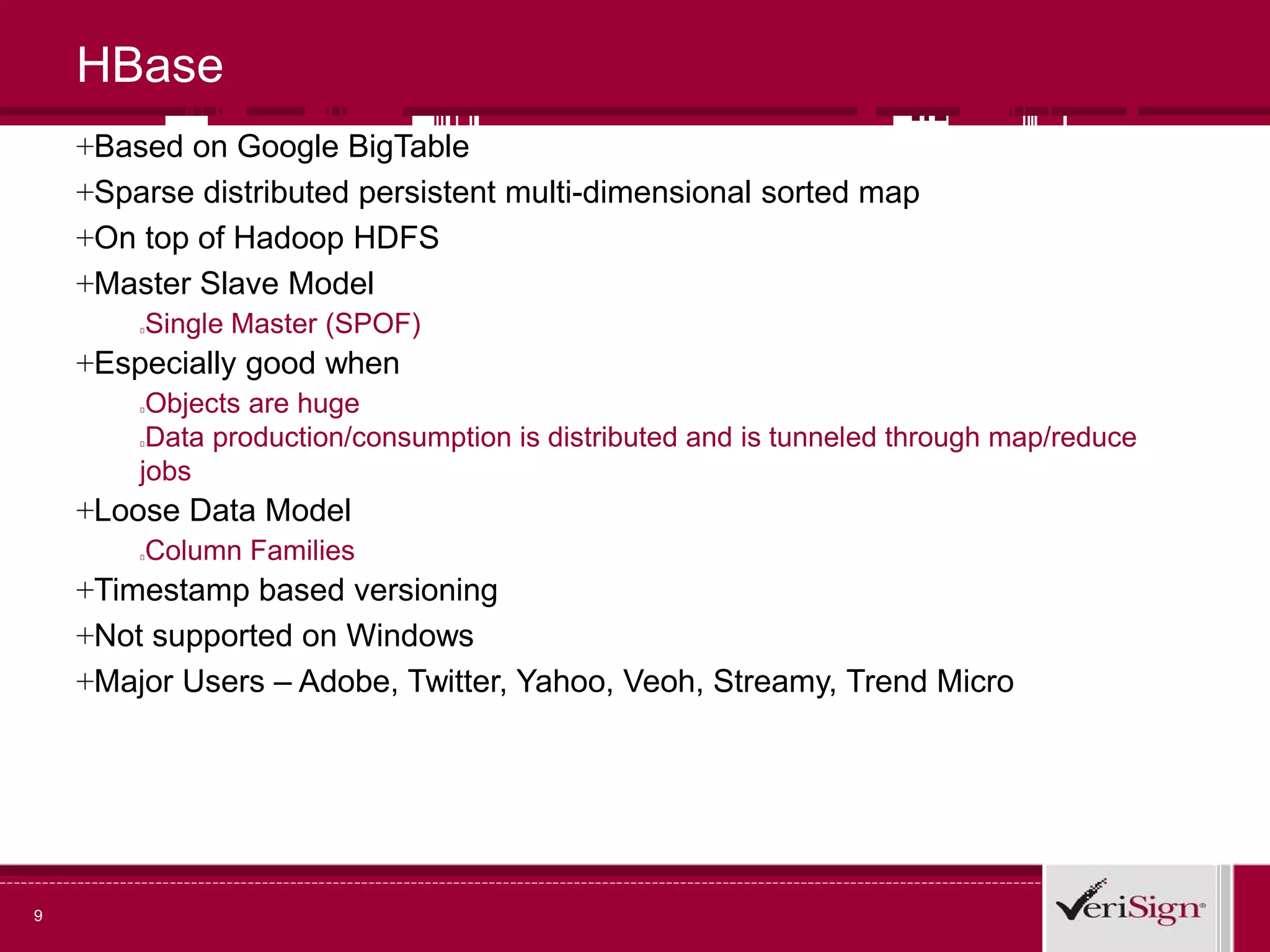

HBase
+Based on Google BigTable
+Sparse distributed persistent multi-dimensional sorted map
+On top of Hadoop HDFS
+Master Slave Model
Single Master (SPOF)
+Especially good when
Objects are huge
Data production/consumption is distributed and is tunneled through map/reduce
jobs
+Loose Data Model
Column Families
+Timestamp based versioning
+Not supported on Windows
+Major Users – Adobe, Twitter, Yahoo, Veoh, Streamy, Trend Micro

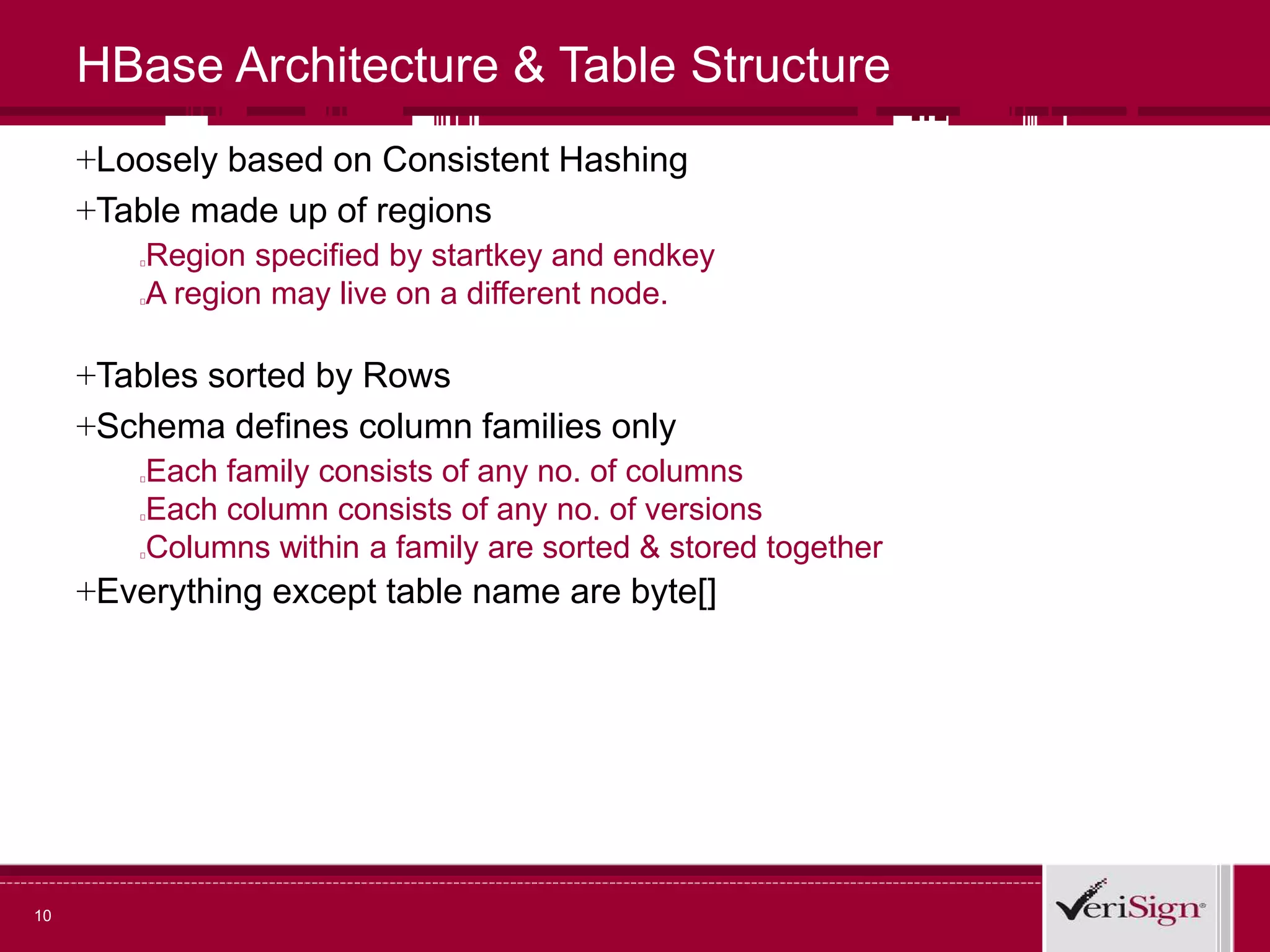

10. HBase Architecture & Table Structure
+Loosely based on Consistent Hashing
+Table made up of regions
Region specified by startkey and endkey
A region may live on a different node.
+Tables sorted by Rows
+Schema defines column families only
Each family consists of any no. of columns
Each column consists of any no. of versions
Columns within a family are sorted & stored together
+Everything except table name are byte[]
10

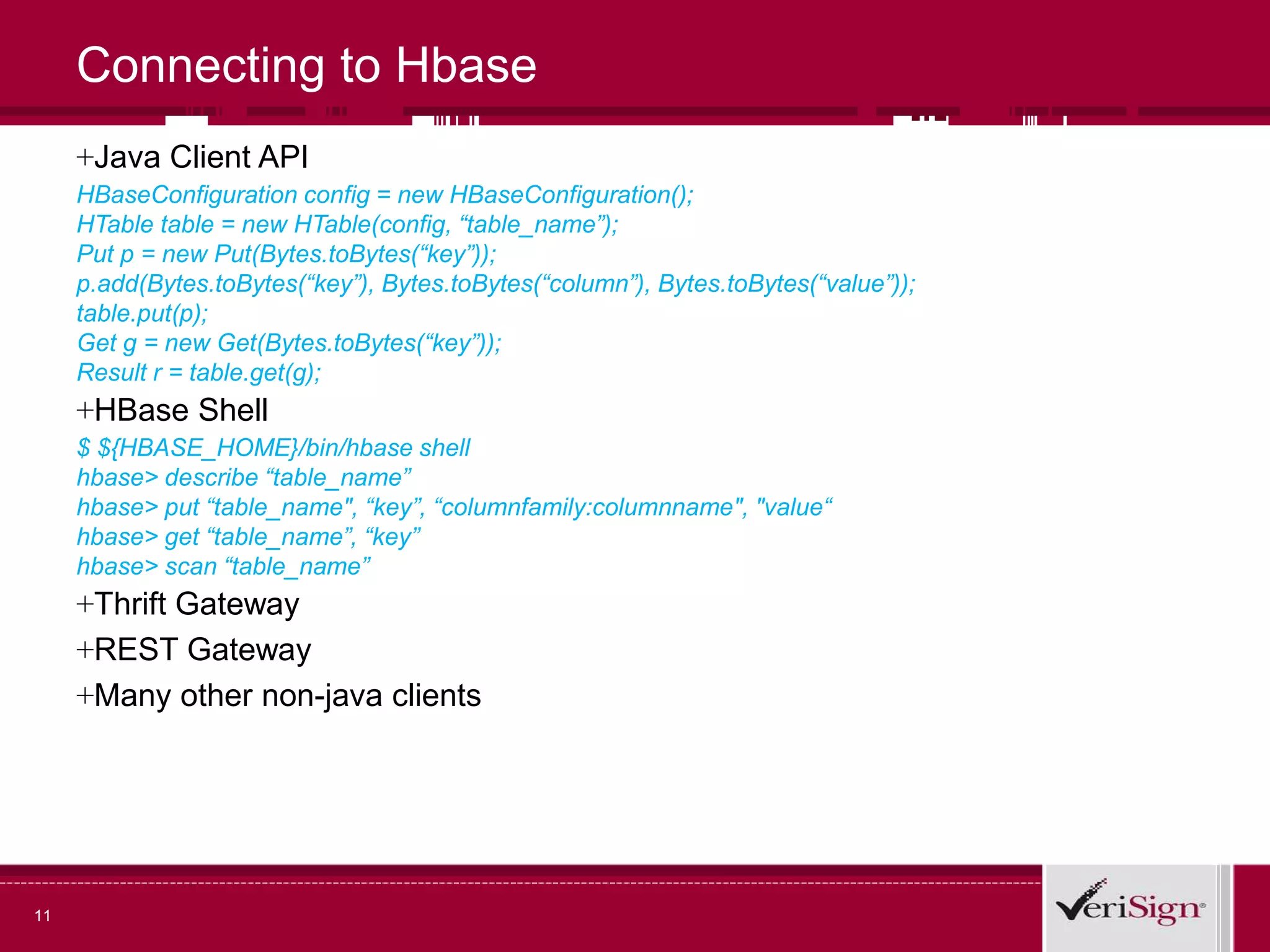

11. Connecting to Hbase
+Java Client API
HBaseConfiguration config = new HBaseConfiguration();
HTable table = new HTable(config, “table_name”);
Put p = new Put(Bytes.toBytes(“key”));
p.add(Bytes.toBytes(“key”), Bytes.toBytes(“column”), Bytes.toBytes(“value”));
table.put(p);
Get g = new Get(Bytes.toBytes(“key”));
Result r = table.get(g);
+HBase Shell
$ ${HBASE_HOME}/bin/hbase shell
hbase> describe “table_name”
hbase> put “table_name", “key”, “columnfamily:columnname", "value“
hbase> get “table_name”, “key”
hbase> scan “table_name”
+Thrift Gateway
+REST Gateway
+Many other non-java clients
11

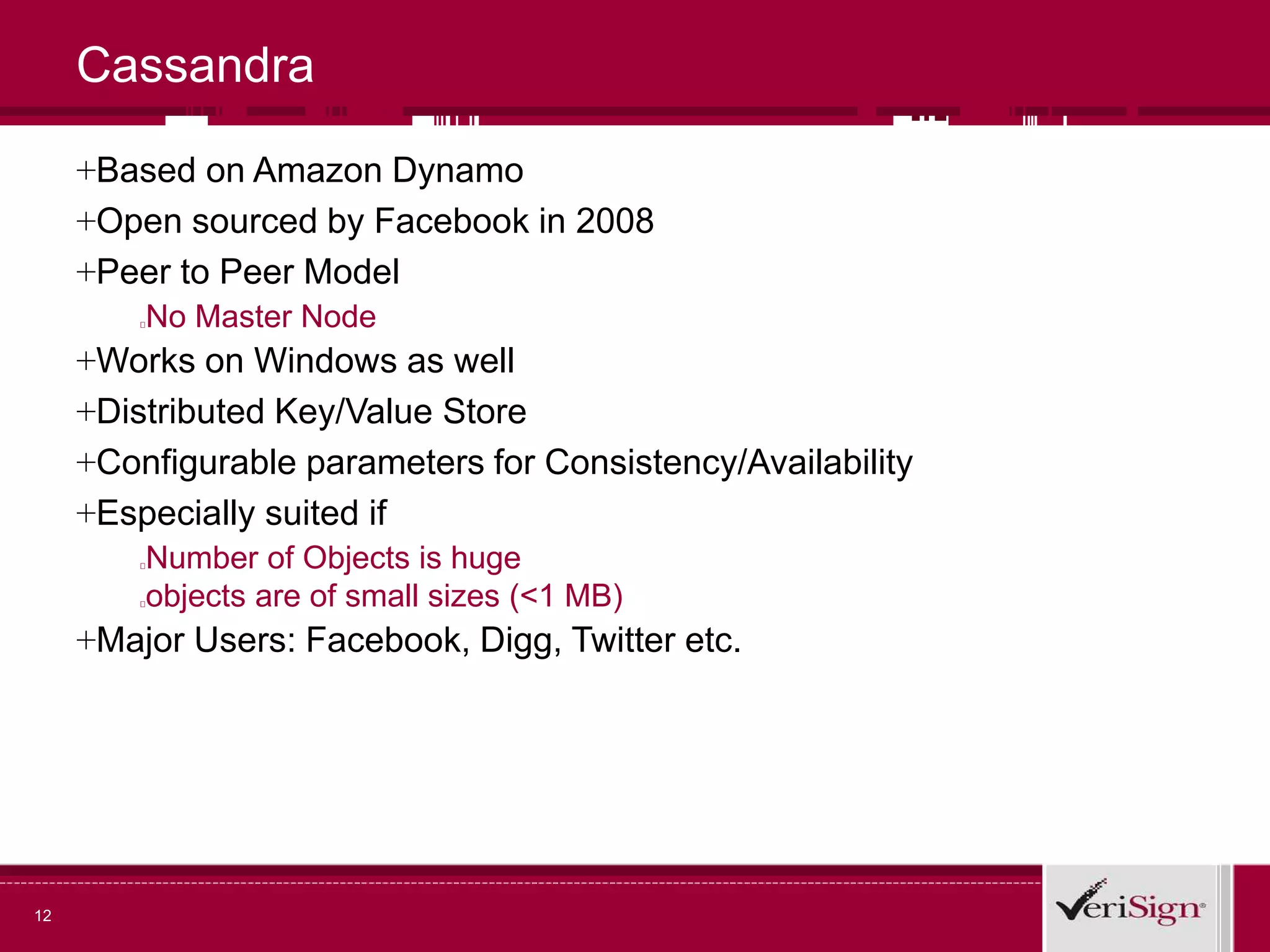

12. Cassandra
+Based on Amazon Dynamo
+Open sourced by Facebook in 2008
+Peer to Peer Model
No Master Node
+Works on Windows as well
+Distributed Key/Value Store
+Configurable parameters for Consistency/Availability
+Especially suited if
Number of Objects is huge
objects are of small sizes (<1 MB)
+Major Users: Facebook, Digg, Twitter etc.
12

13. 13

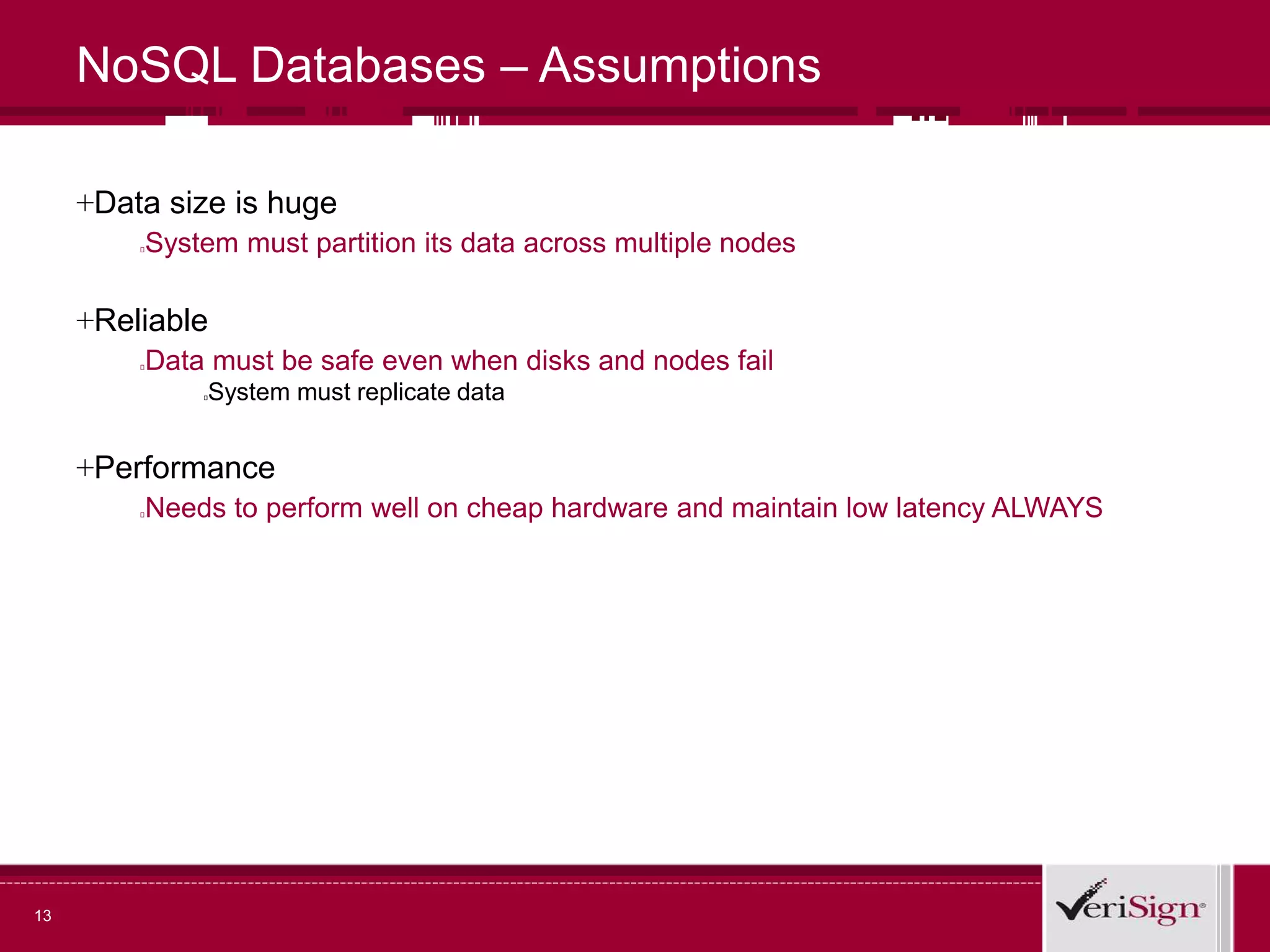

NoSQL Databases – Assumptions
+Data size is huge
System must partition its data across multiple nodes
+Reliable
Data must be safe even when disks and nodes fail
System must replicate data
+Performance
Needs to perform well on cheap hardware and maintain low latency ALWAYS

14. 14
NoSQL Databases – Design Strategies
+Complex Distributed System
+Partitioning
Consistent Hashing
+Consistency
Eventual Consistency
Vector Clocks
+Data Models
Primary Key -> Value
Value can be semi-structured
Multi-version Storage
+Storage Layouts
Column storage with Locality groups
Log structured Merge Trees
+Cluster Management
Peer to Peer vs Master/Slave approach
Gossip

15. 15

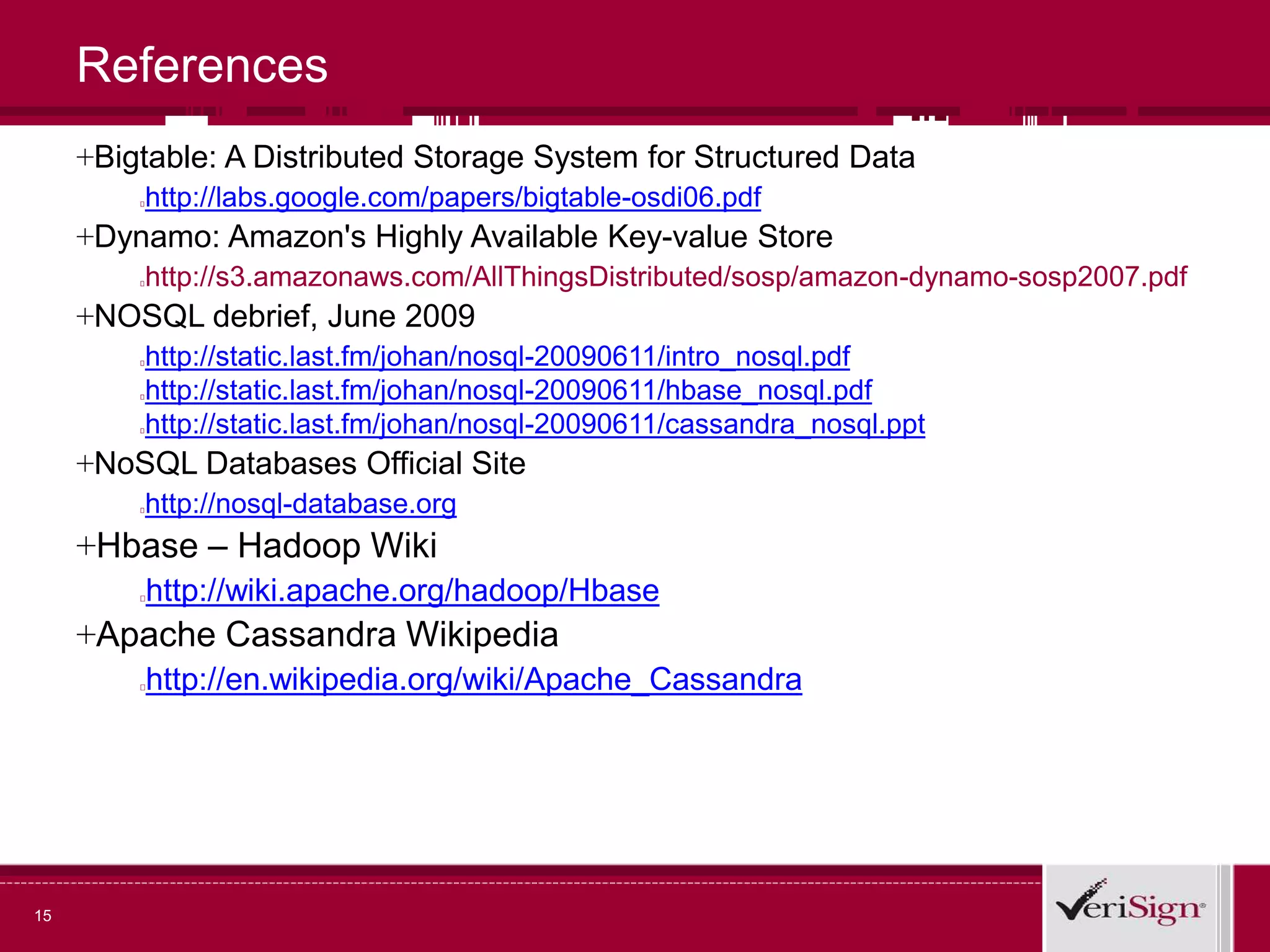

References
+Bigtable: A Distributed Storage System for Structured Data
http://labs.google.com/papers/bigtable-osdi06.pdf
+Dynamo: Amazon's Highly Available Key-value Store
http://s3.amazonaws.com/AllThingsDistributed/sosp/amazon-dynamo-sosp2007.pdf
+NOSQL debrief, June 2009
http://static.last.fm/johan/nosql-20090611/intro_nosql.pdf
http://static.last.fm/johan/nosql-20090611/hbase_nosql.pdf
http://static.last.fm/johan/nosql-20090611/cassandra_nosql.ppt
+NoSQL Databases Official Site
http://nosql-database.org
+Hbase – Hadoop Wiki
http://wiki.apache.org/hadoop/Hbase
+Apache Cassandra Wikipedia
http://en.wikipedia.org/wiki/Apache_Cassandra

16. 16
Questions + Answers

17. Thank You
