1. PUSHING THE LIMITS OF LABVIEW
Beyond State Machines:
Building Modular Applications in LabVIEW Using
Public & Private Events
Justin Goeres
Senior Engineer & Product Marketing Manager
JKI
Monday, August 8, 11

2. Rules
1. Vote with your feet.
2. Please turn on your smartphones.
@JustinGoeres is going Beyond
State Machines at #niweek!
PUSHING THE
2 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

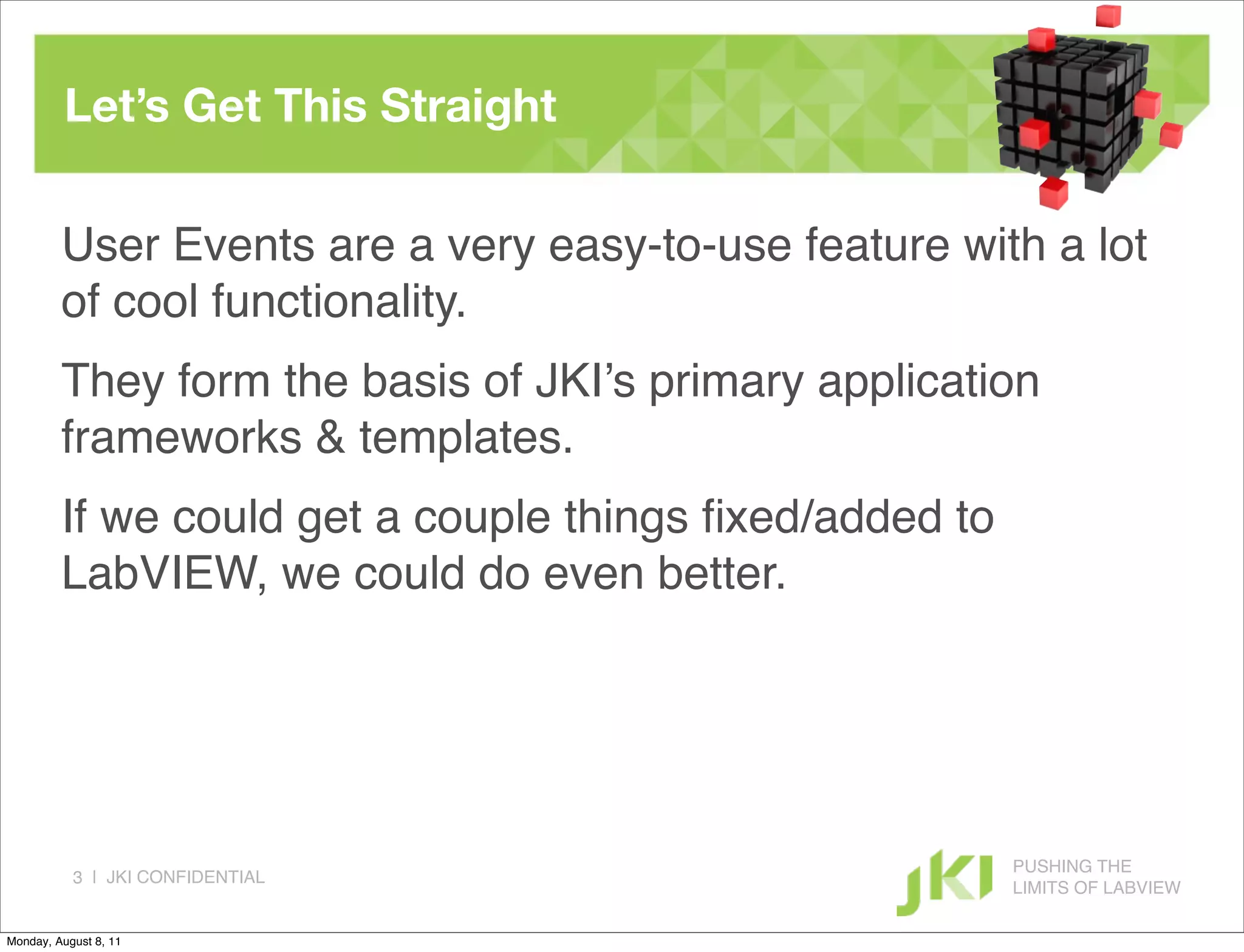

3. Let’s Get This Straight
User Events are a very easy-to-use feature with a lot
of cool functionality.
They form the basis of JKI’s primary application
frameworks & templates.
If we could get a couple things fixed/added to
LabVIEW, we could do even better.
PUSHING THE
3 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

4. A Public & Private Events Framework
PUSHING THE
4 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

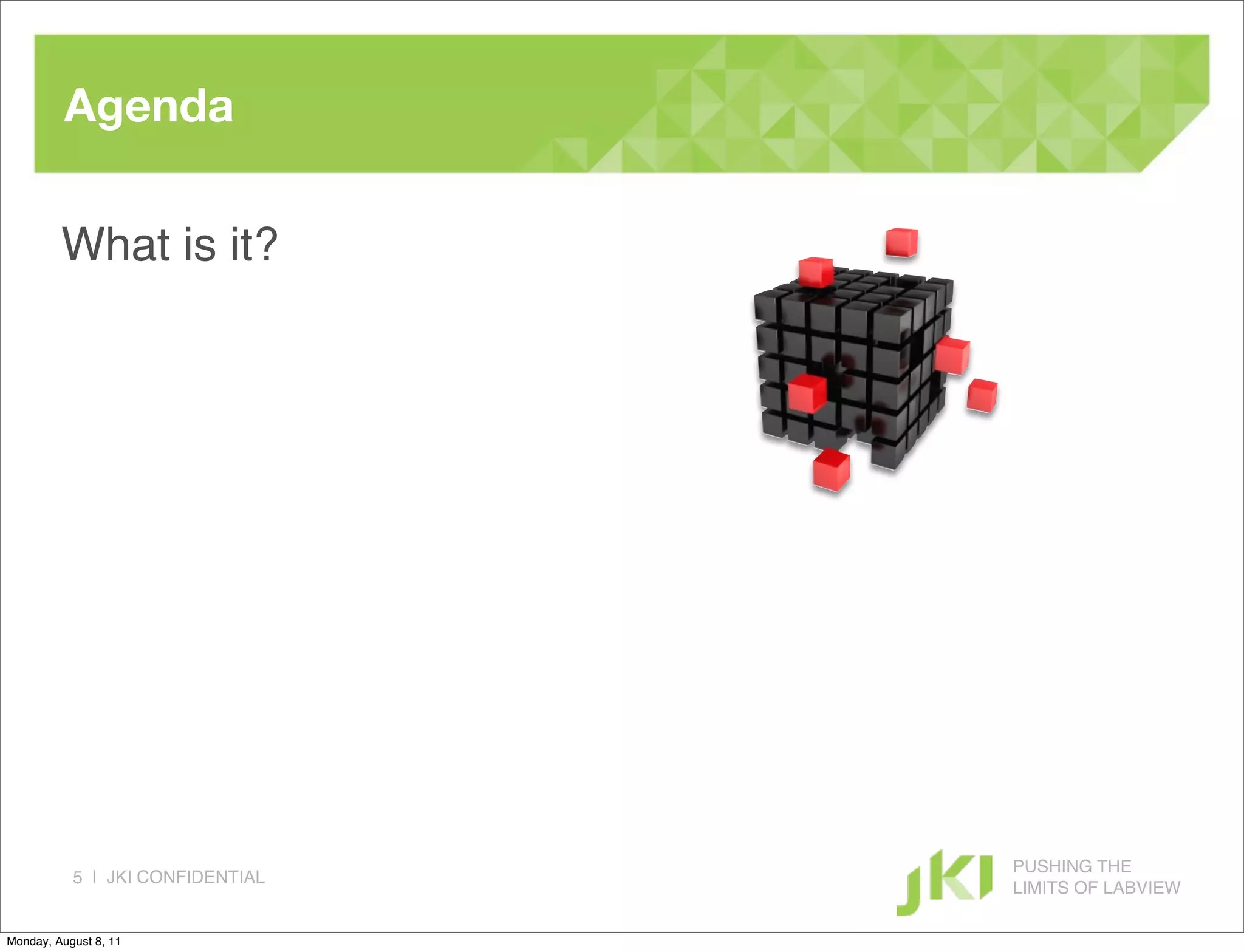

5. Agenda
What is it?
PUSHING THE
5 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

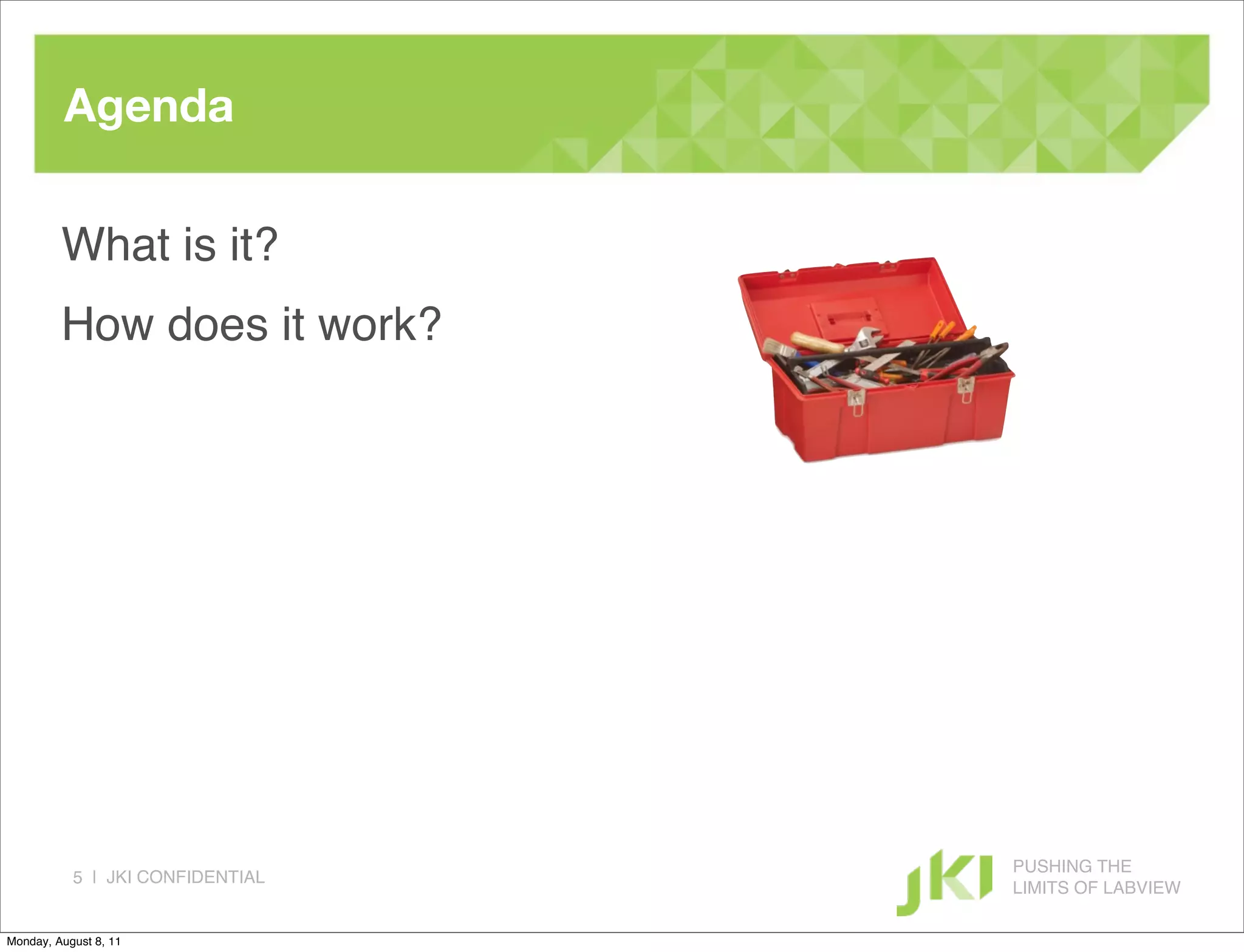

6. Agenda
What is it?
How does it work?
PUSHING THE
5 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

7. Agenda
What is it?
How does it work?
What’s it good for?
PUSHING THE
5 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

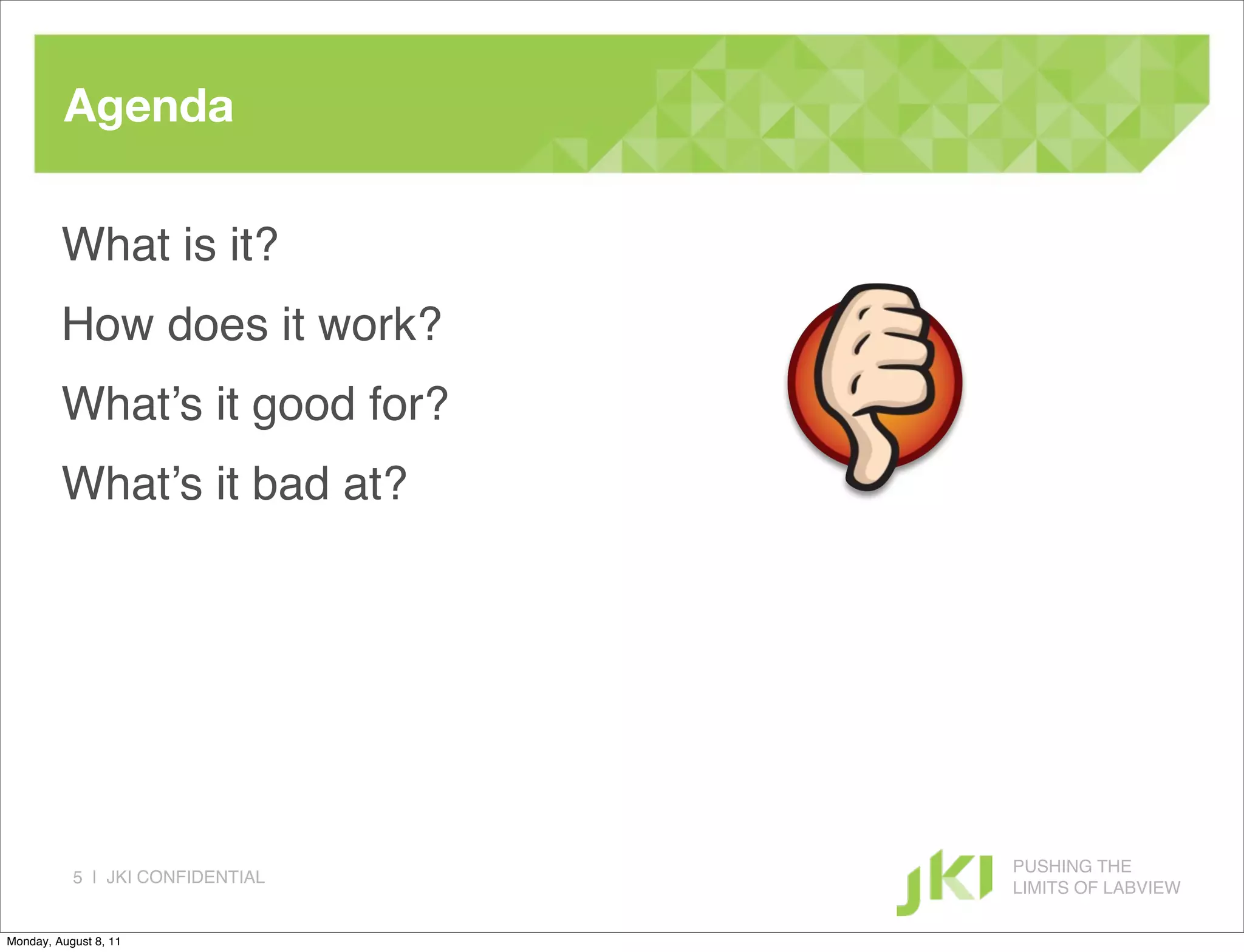

8. Agenda
What is it?
How does it work?
What’s it good for?
What’s it bad at?
PUSHING THE
5 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

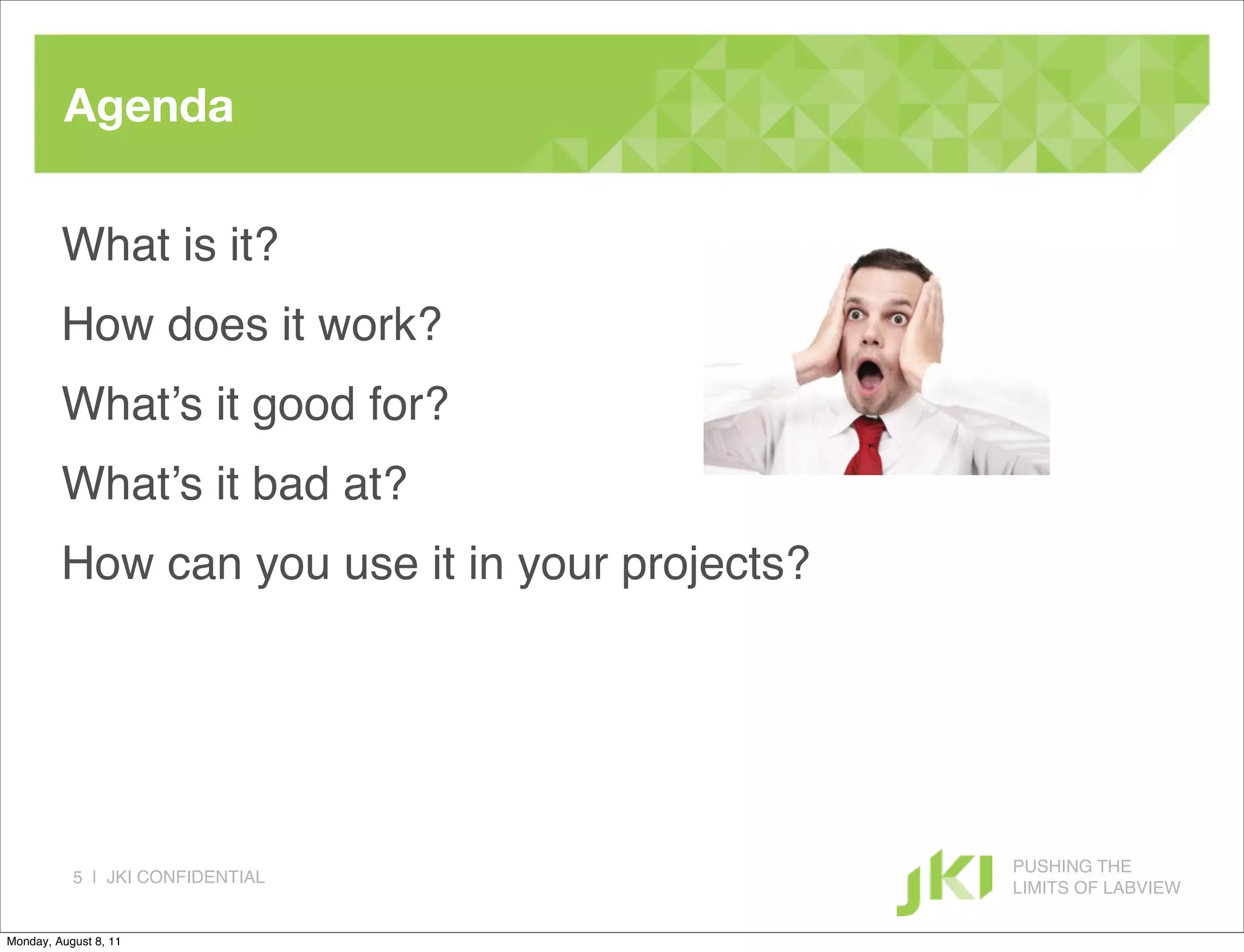

9. Agenda
What is it?
How does it work?
What’s it good for?
What’s it bad at?
How can you use it in your projects?
PUSHING THE
5 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

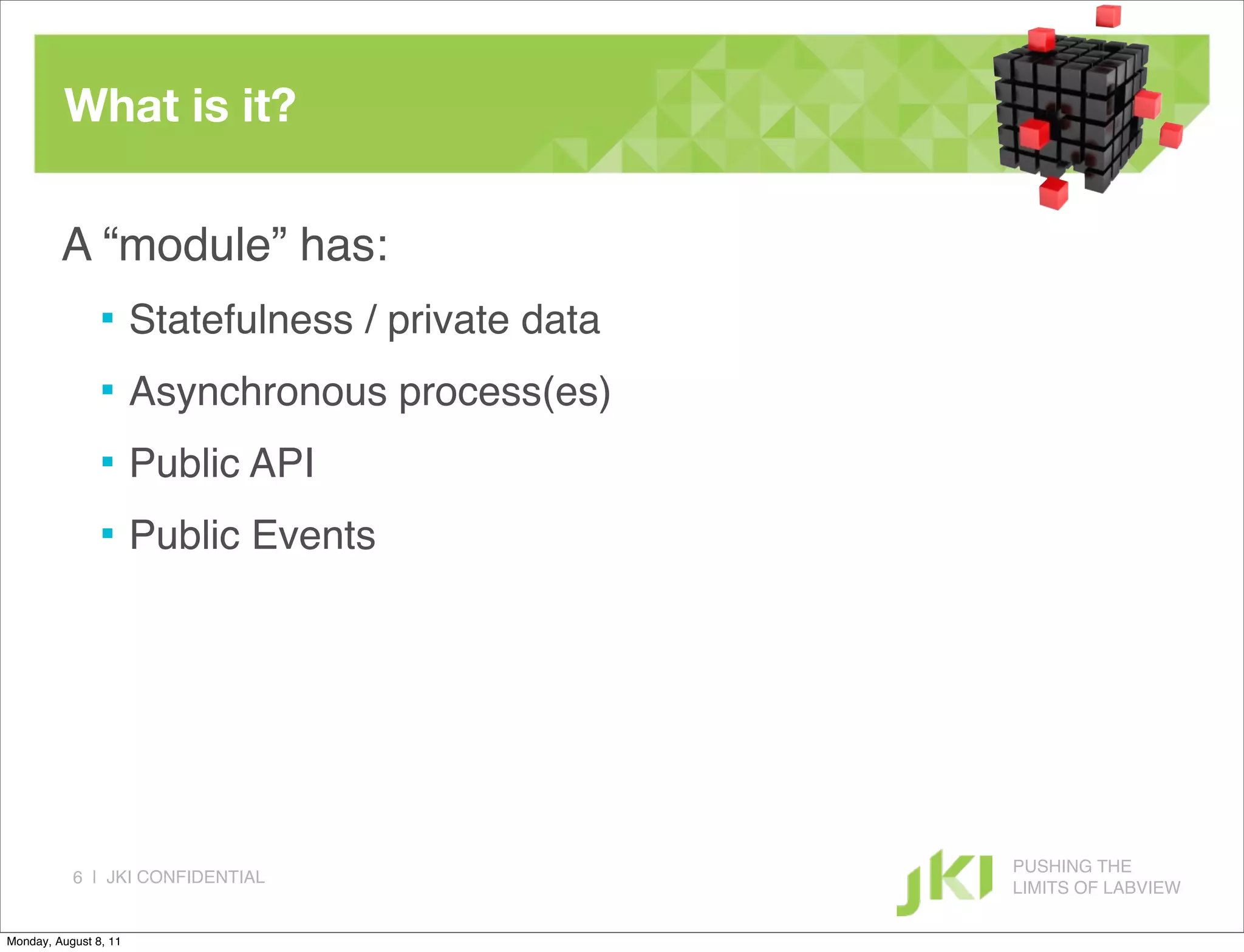

10. What is it?
A “module” has:
 Statefulness / private data
 Asynchronous process(es)
 Public API
 Public Events
PUSHING THE
6 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

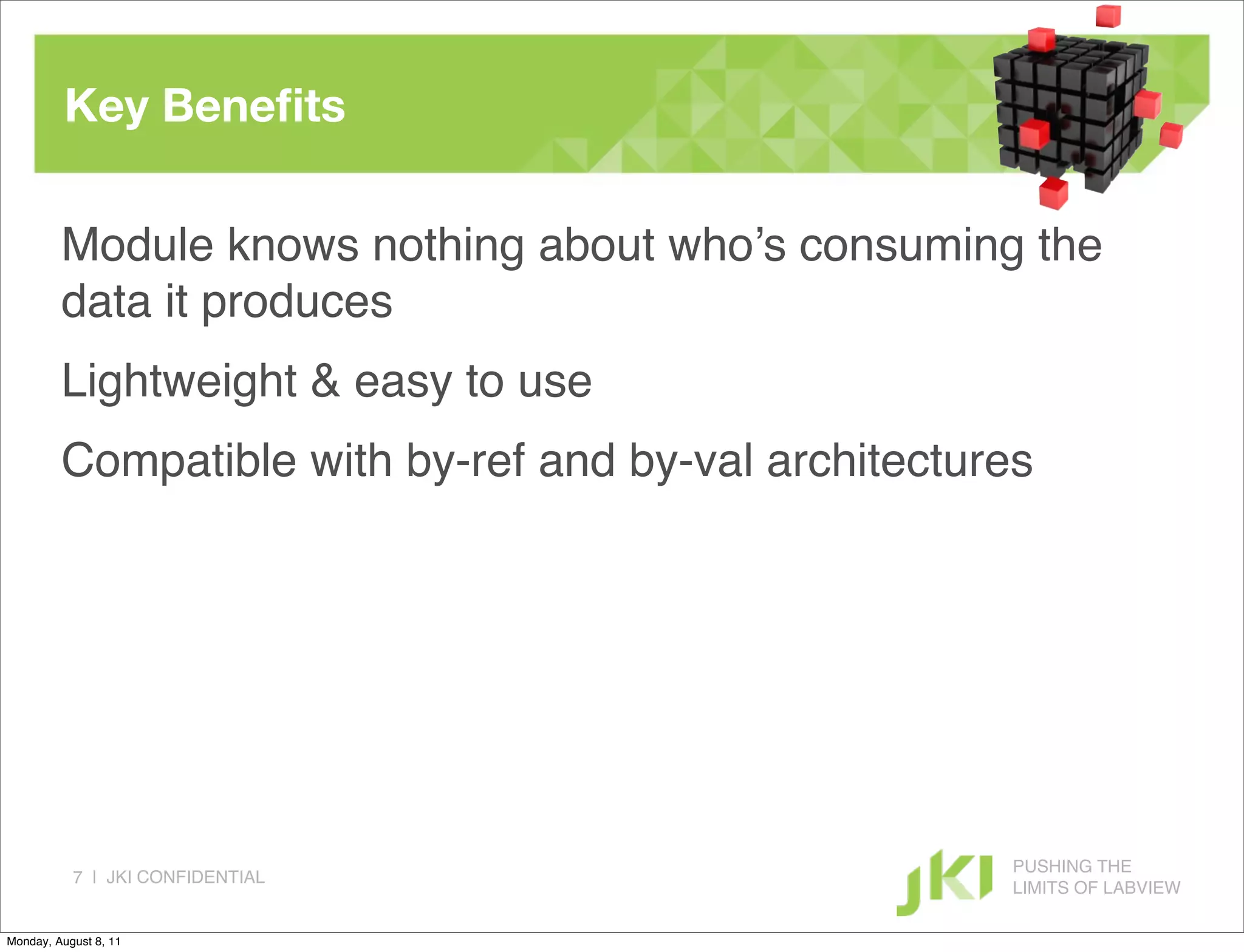

11. Key Benefits
Module knows nothing about who’s consuming the
data it produces
Lightweight & easy to use
Compatible with by-ref and by-val architectures
PUSHING THE
7 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

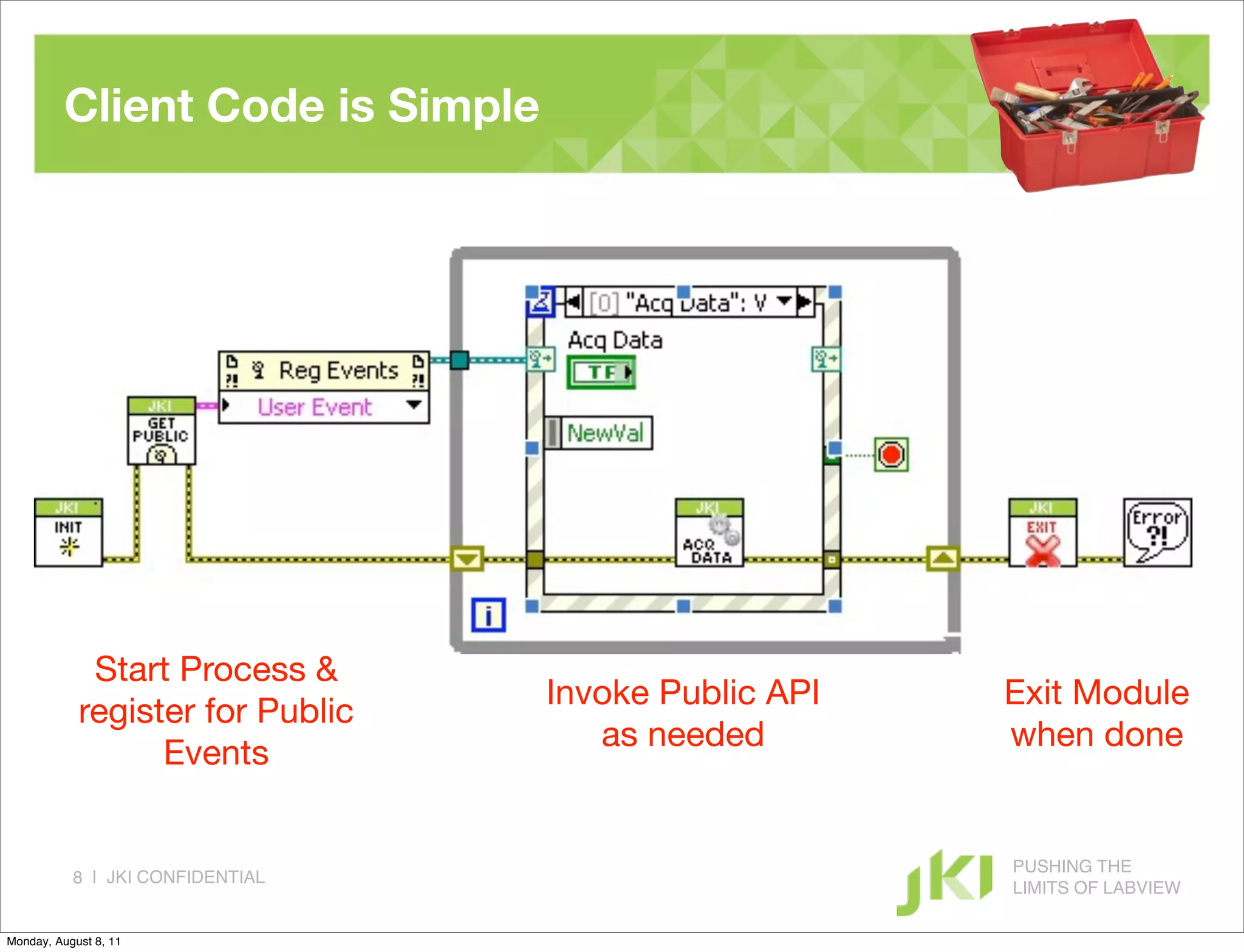

12. Client Code is Simple
Start Process &
Invoke Public API Exit Module
register for Public
as needed when done
Events
PUSHING THE
8 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

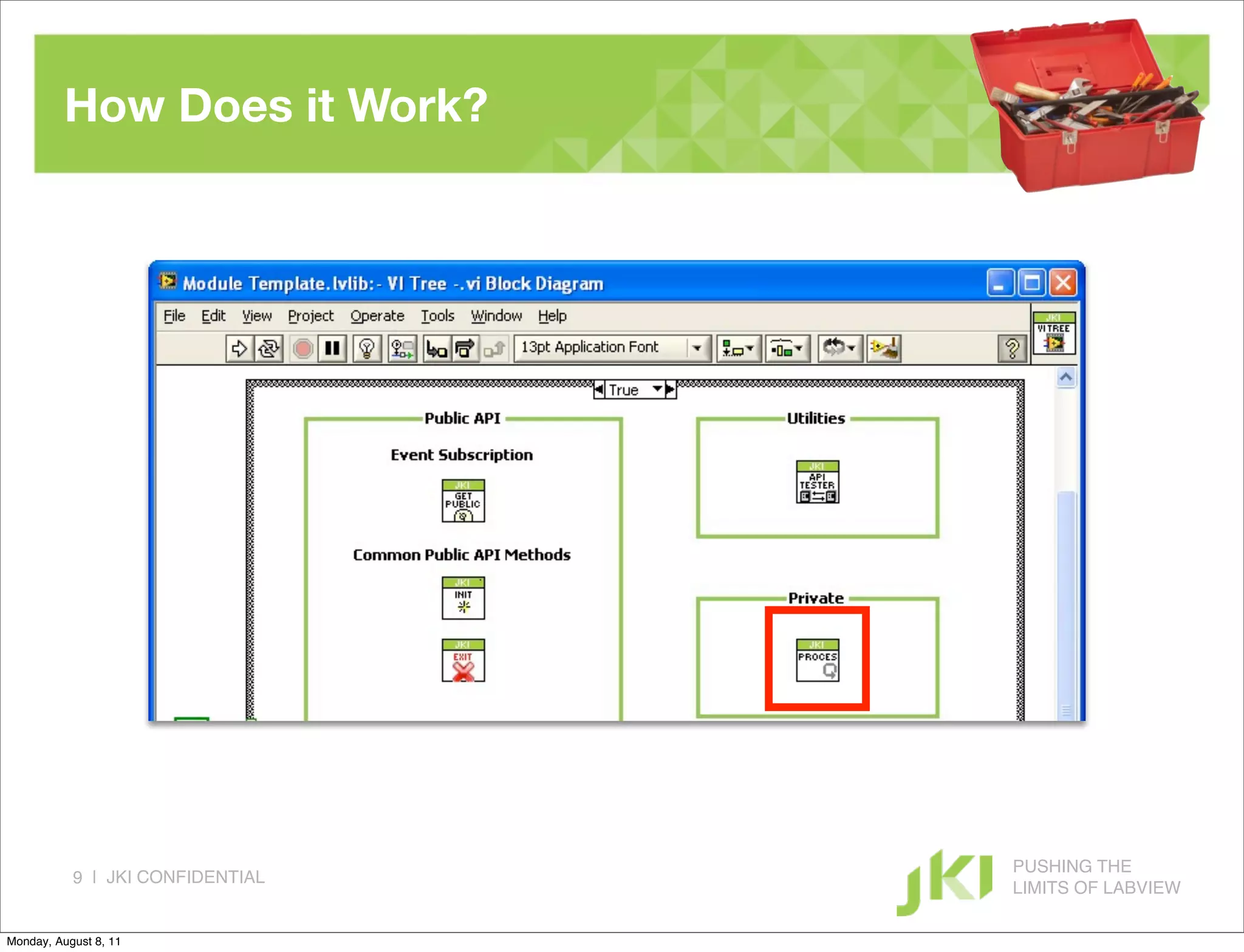

13. How Does it Work?
PUSHING THE
9 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

14. Process VI & Public Events
PUSHING THE
10 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

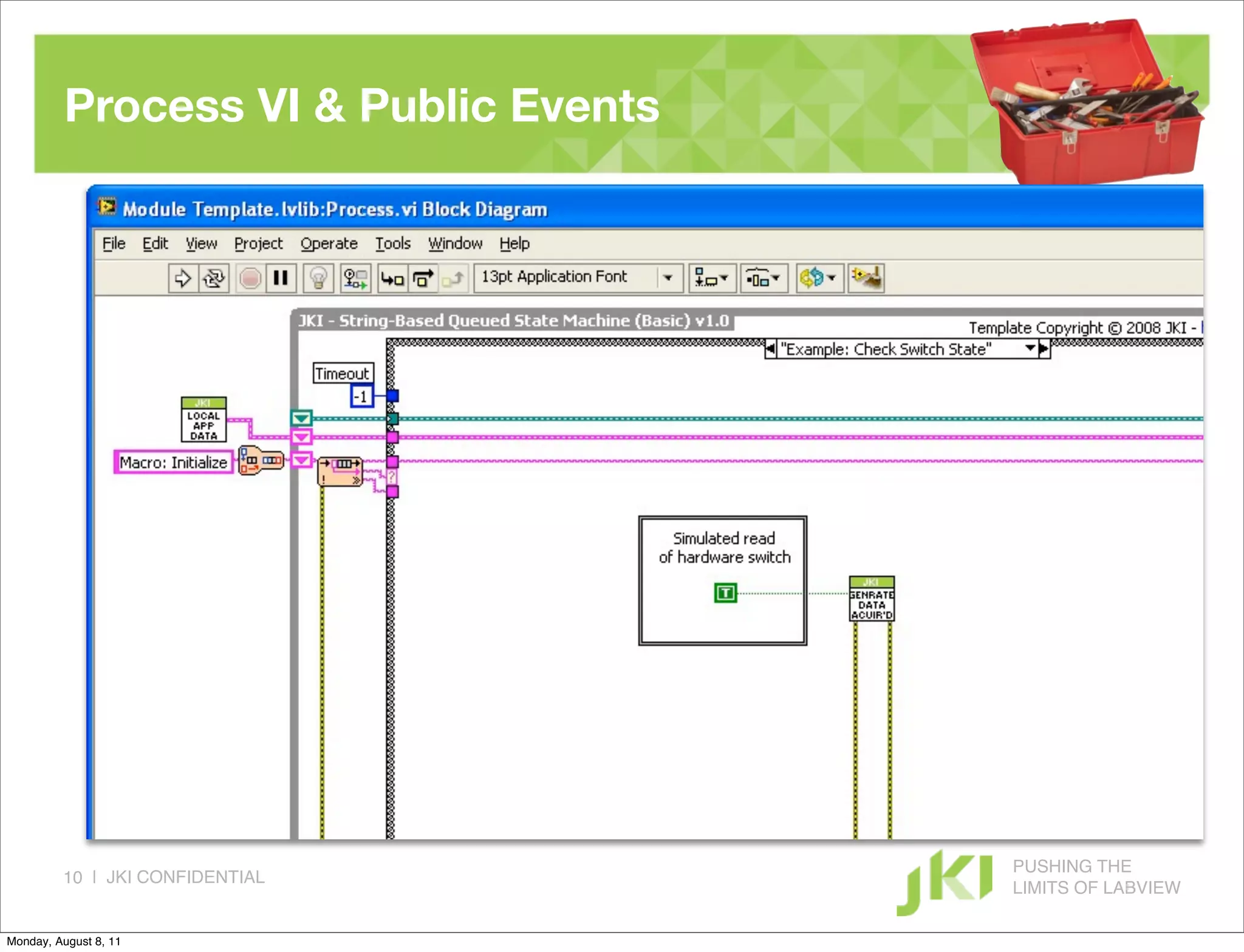

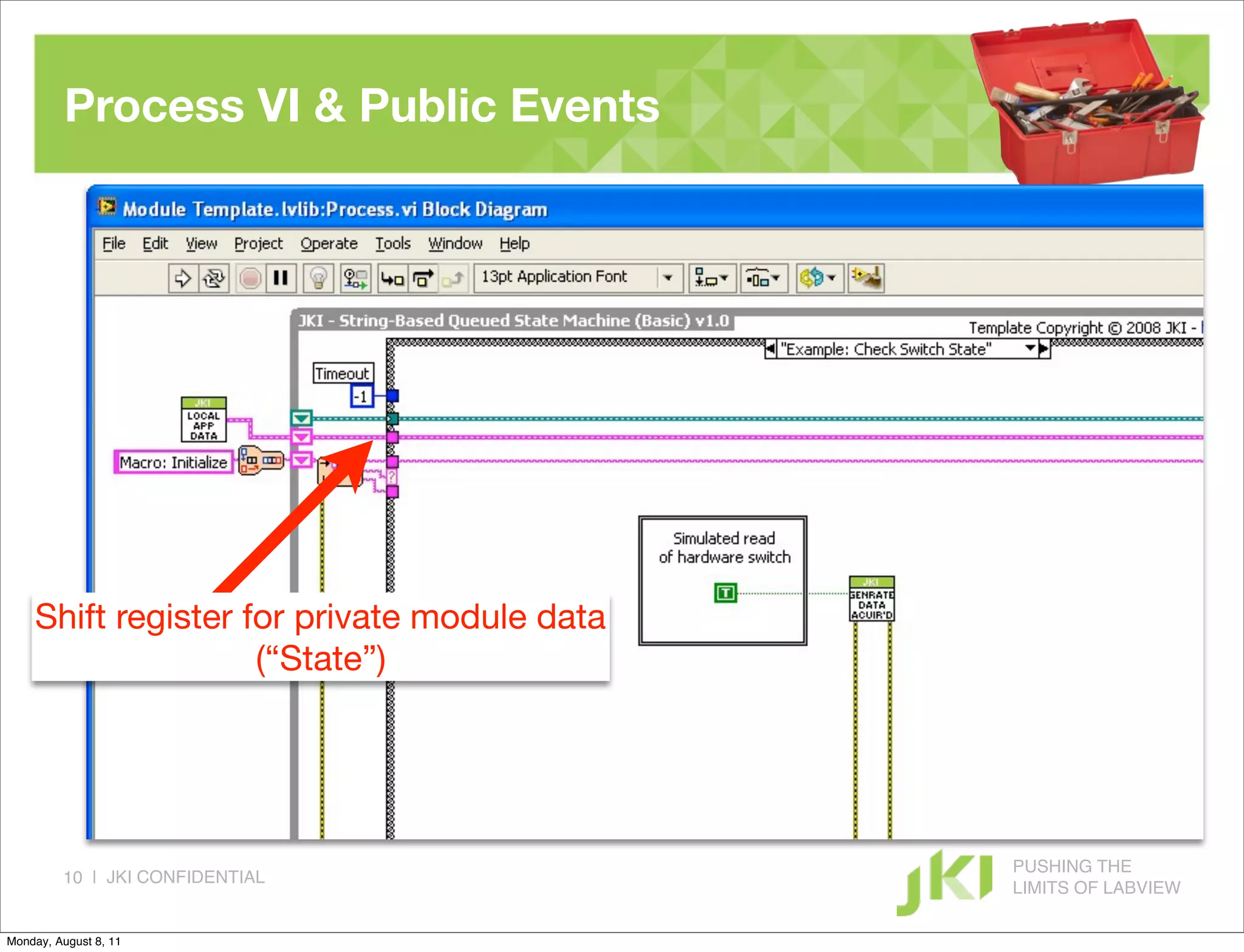

15. Process VI & Public Events
Shift register for private module data
(“State”)
PUSHING THE
10 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

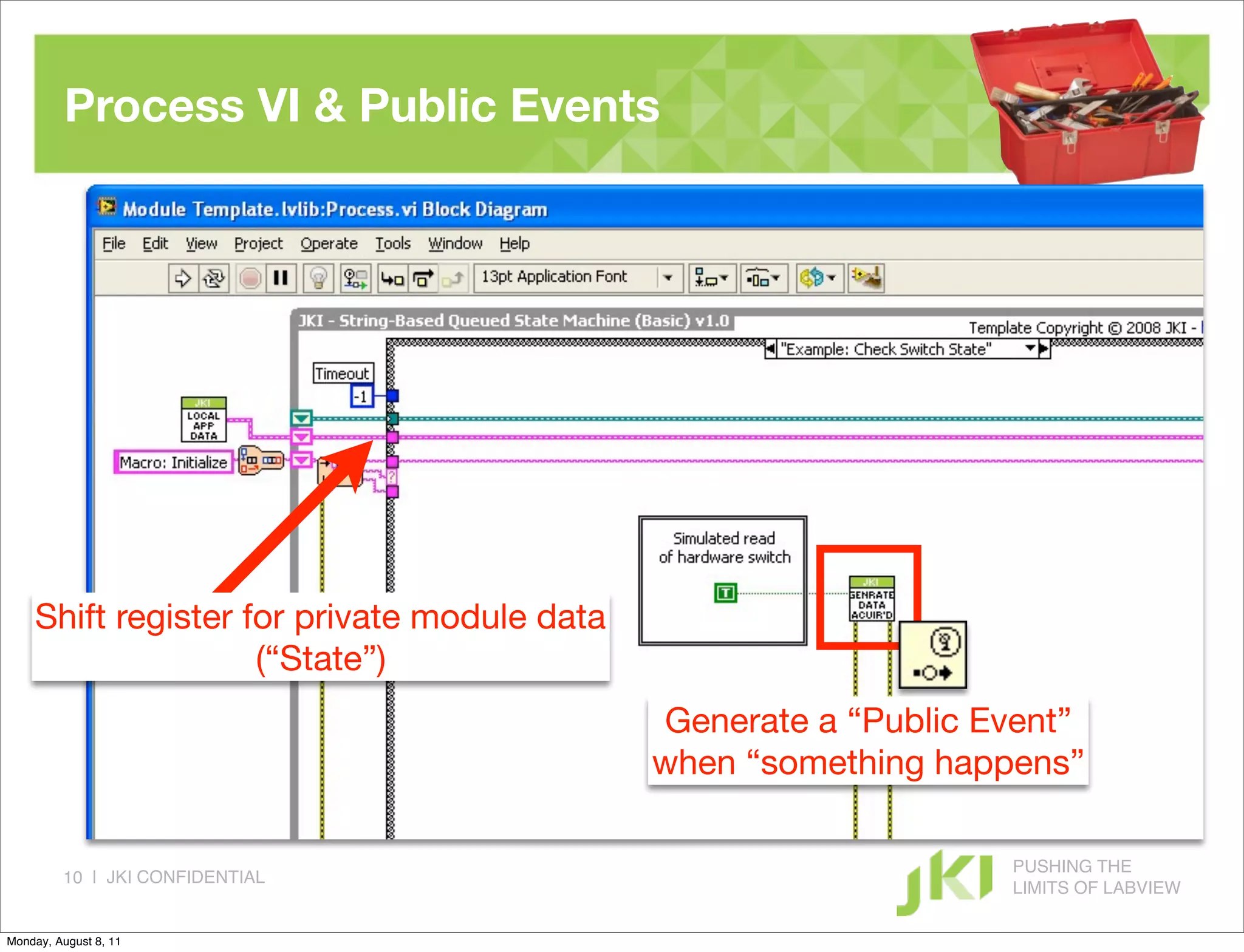

16. Process VI & Public Events
Shift register for private module data
(“State”)
Generate a “Public Event”
when “something happens”
PUSHING THE
10 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

17. Public Events: Sending Information OUT
Process VI generates a Public Event...
PUSHING THE
11 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

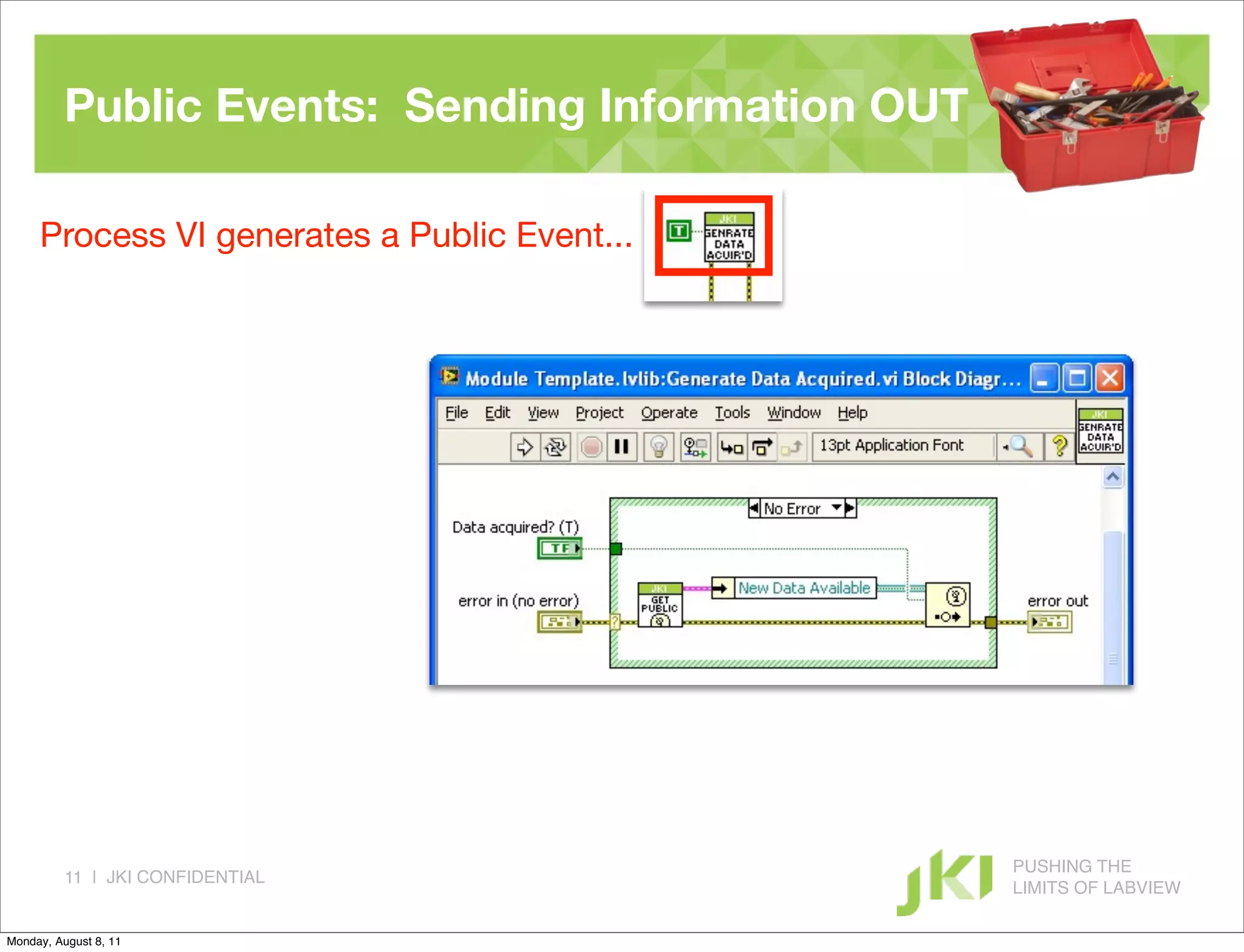

18. Public Events: Sending Information OUT
Process VI generates a Public Event...
PUSHING THE
11 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

19. Public Events: Sending Information OUT
Process VI generates a Public Event...
PUSHING THE
11 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

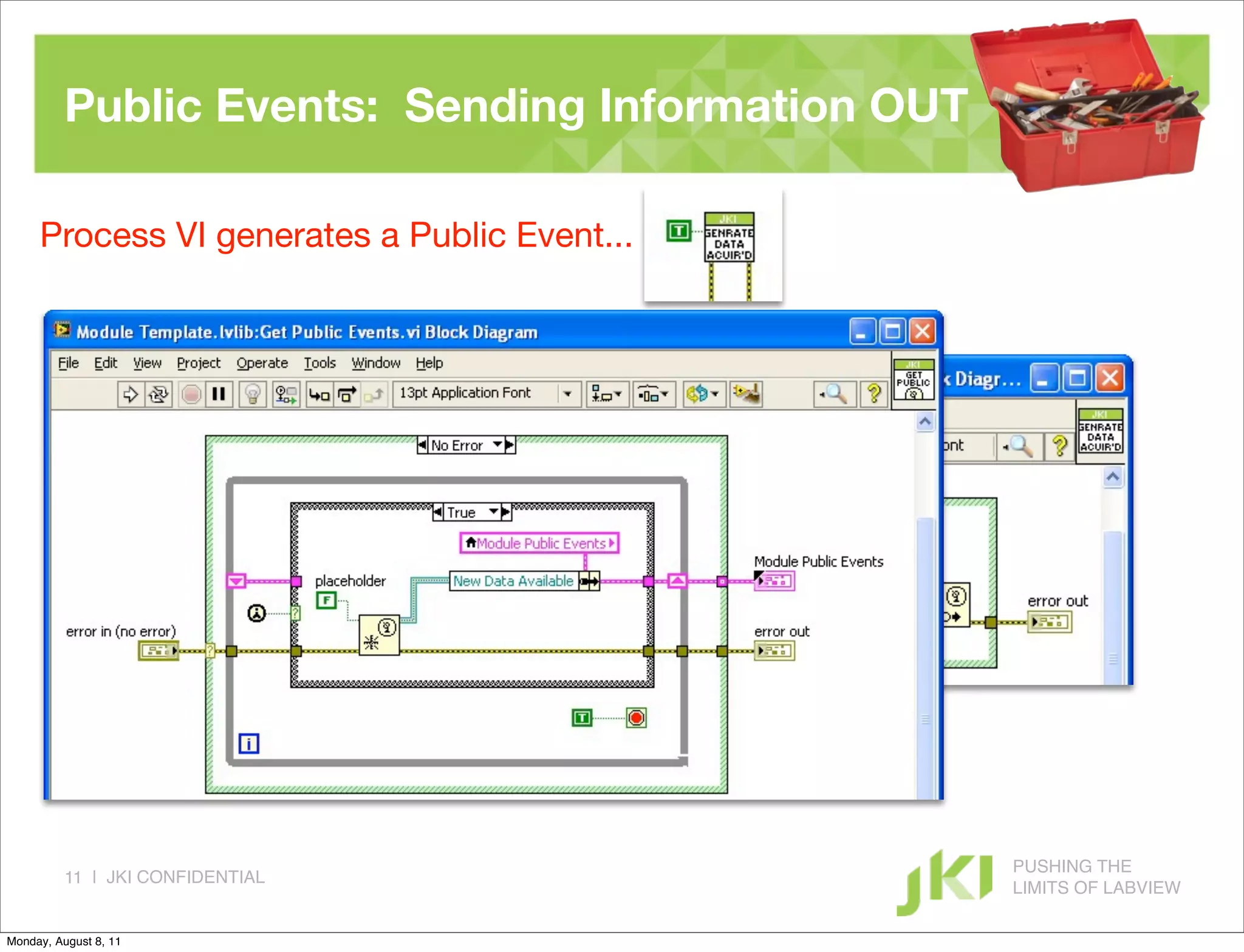

20. Public Events: Sending Information OUT
Process VI generates a Public Event...
PUSHING THE
11 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

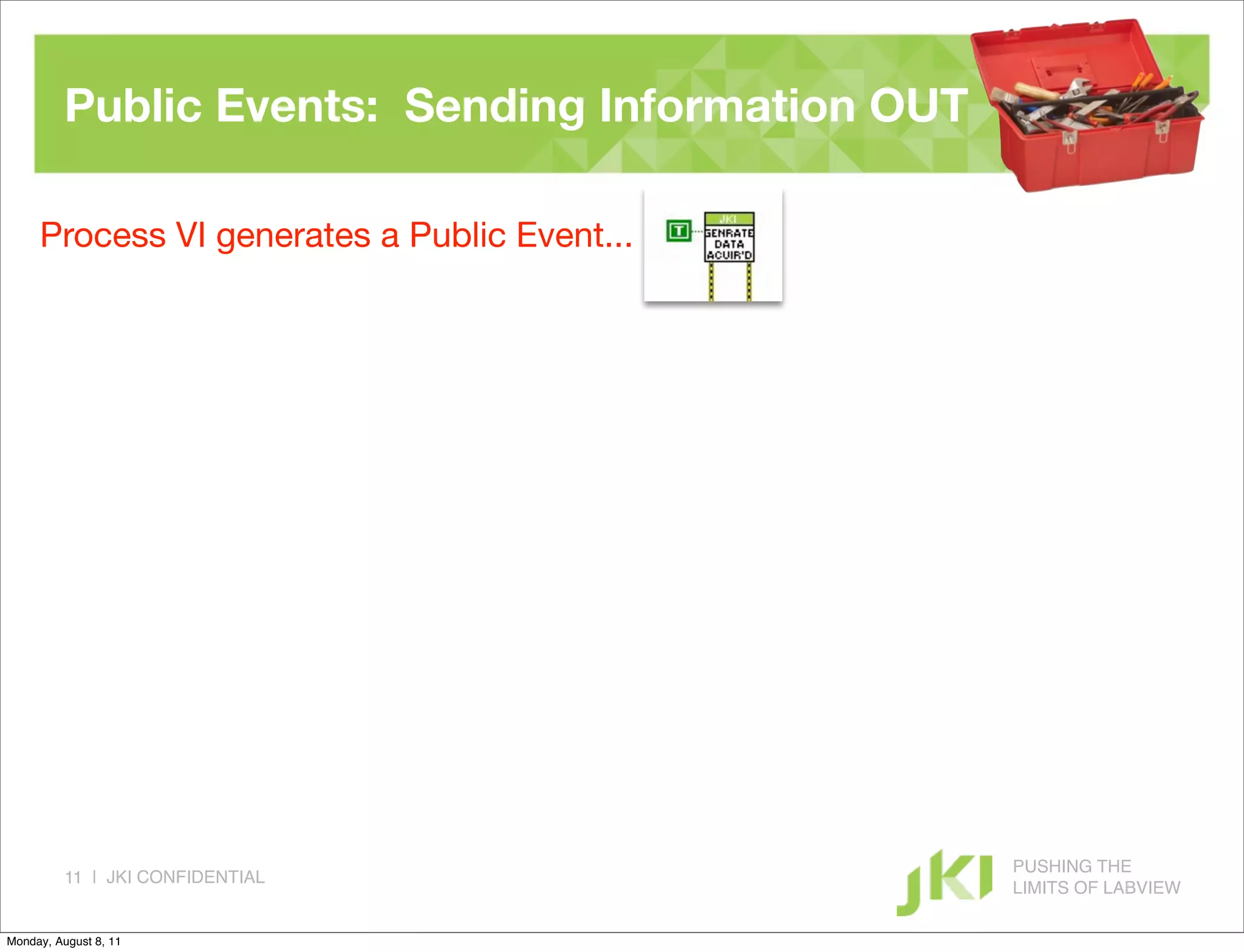

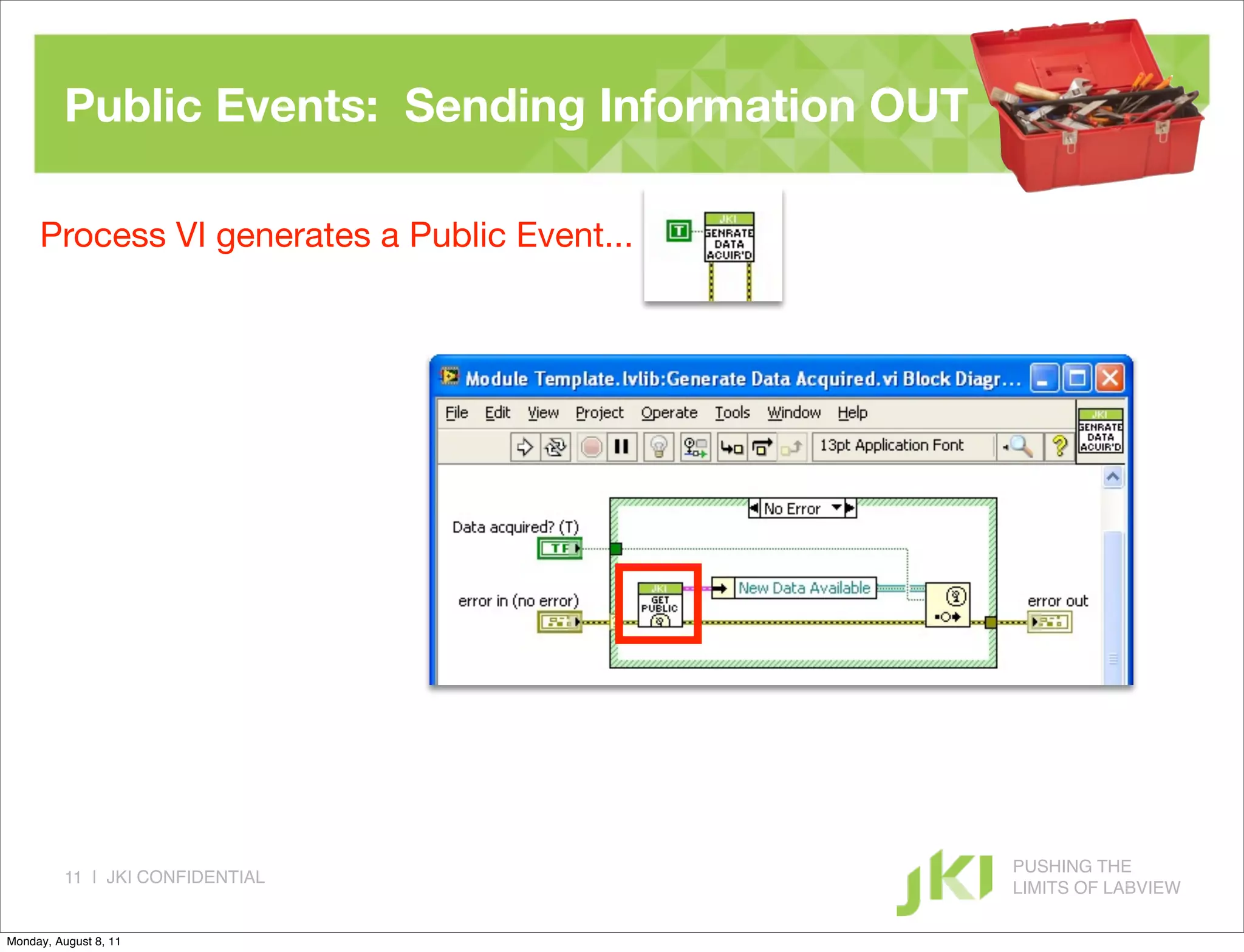

21. Public Events: Sending Information OUT
Process VI generates a Public Event...
PUSHING THE
11 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

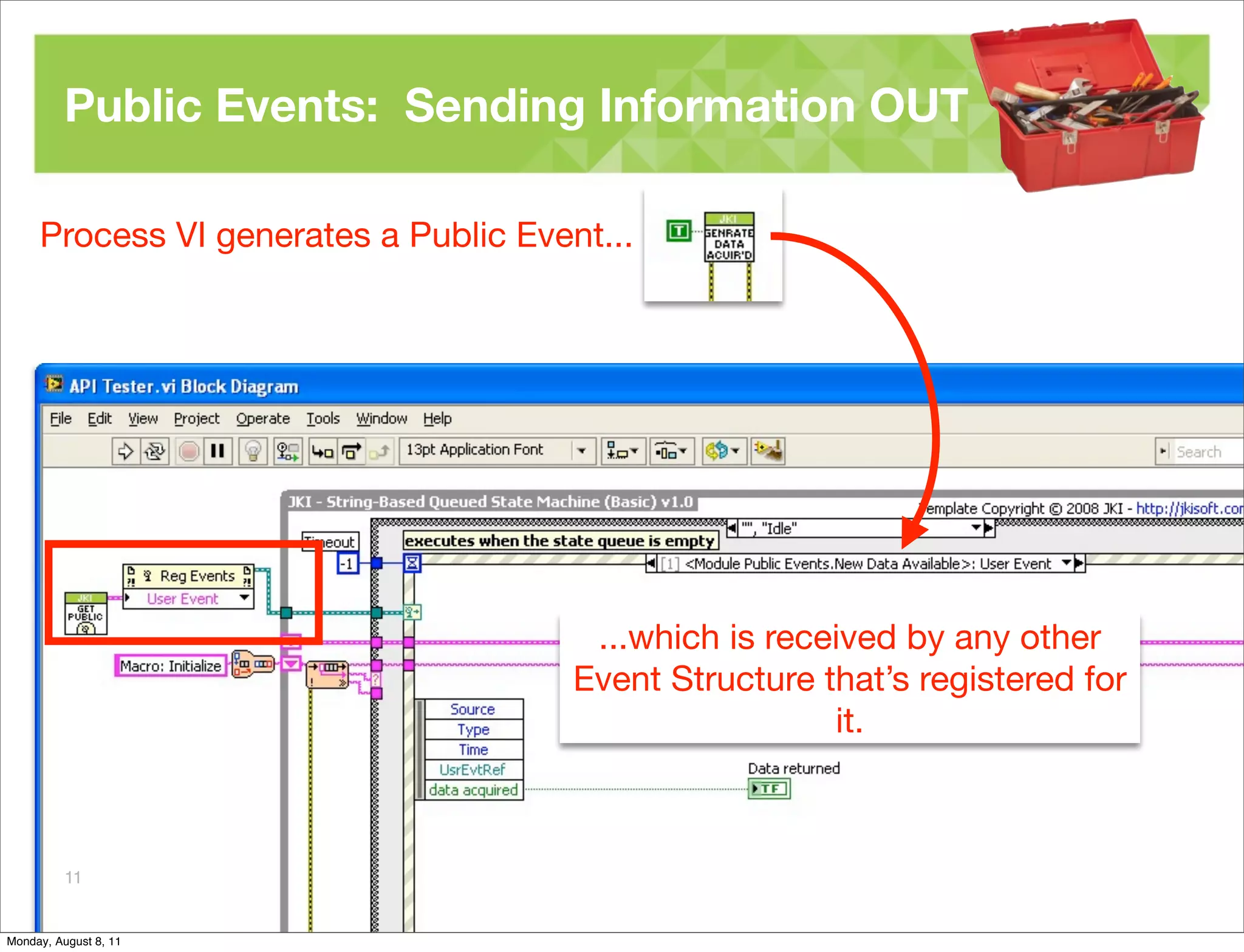

22. Public Events: Sending Information OUT
Process VI generates a Public Event...
...which is received by any other
Event Structure that’s registered for
it.
PUSHING THE
11 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

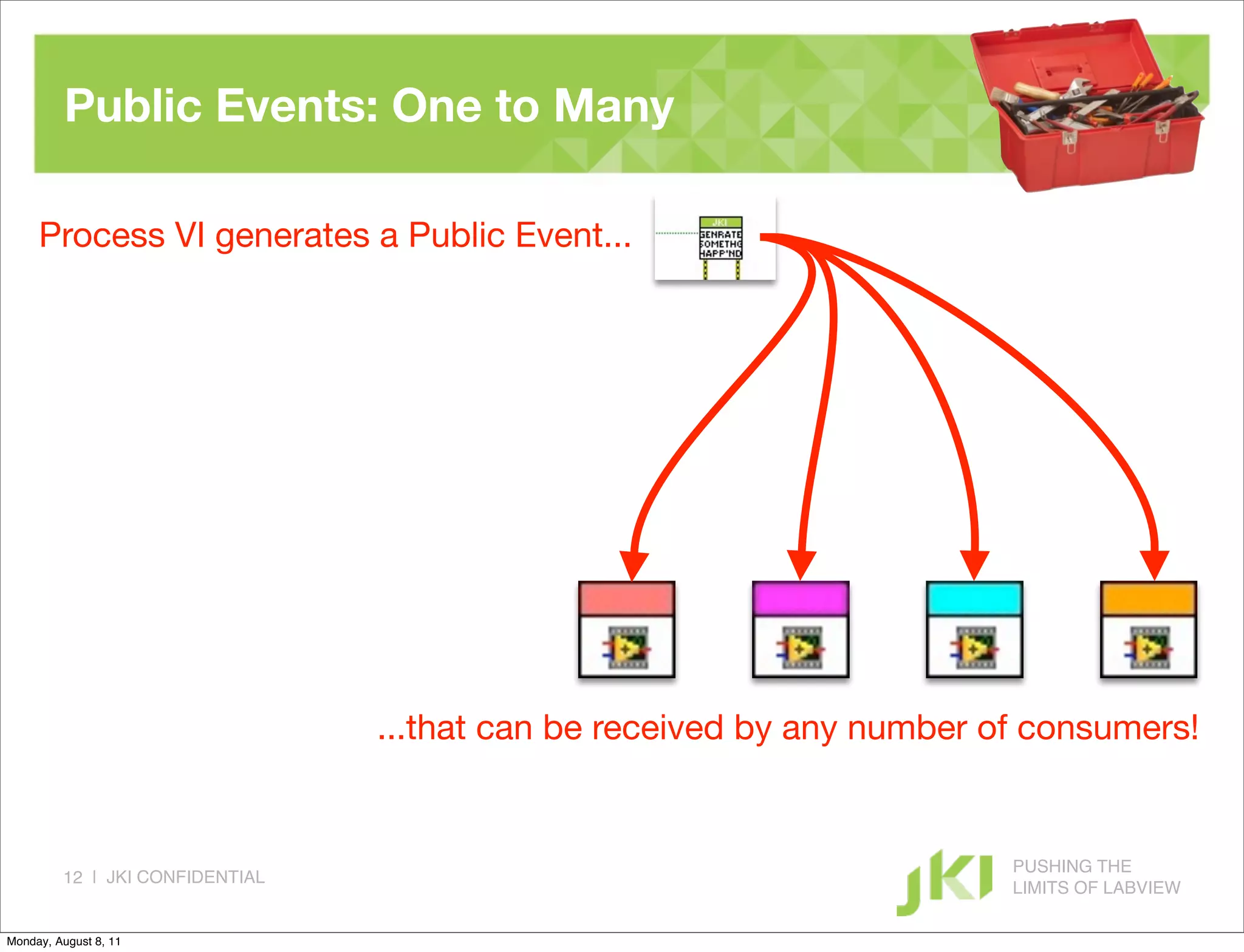

23. Public Events: One to Many
Process VI generates a Public Event...
...that can be received by any number of consumers!
PUSHING THE
12 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

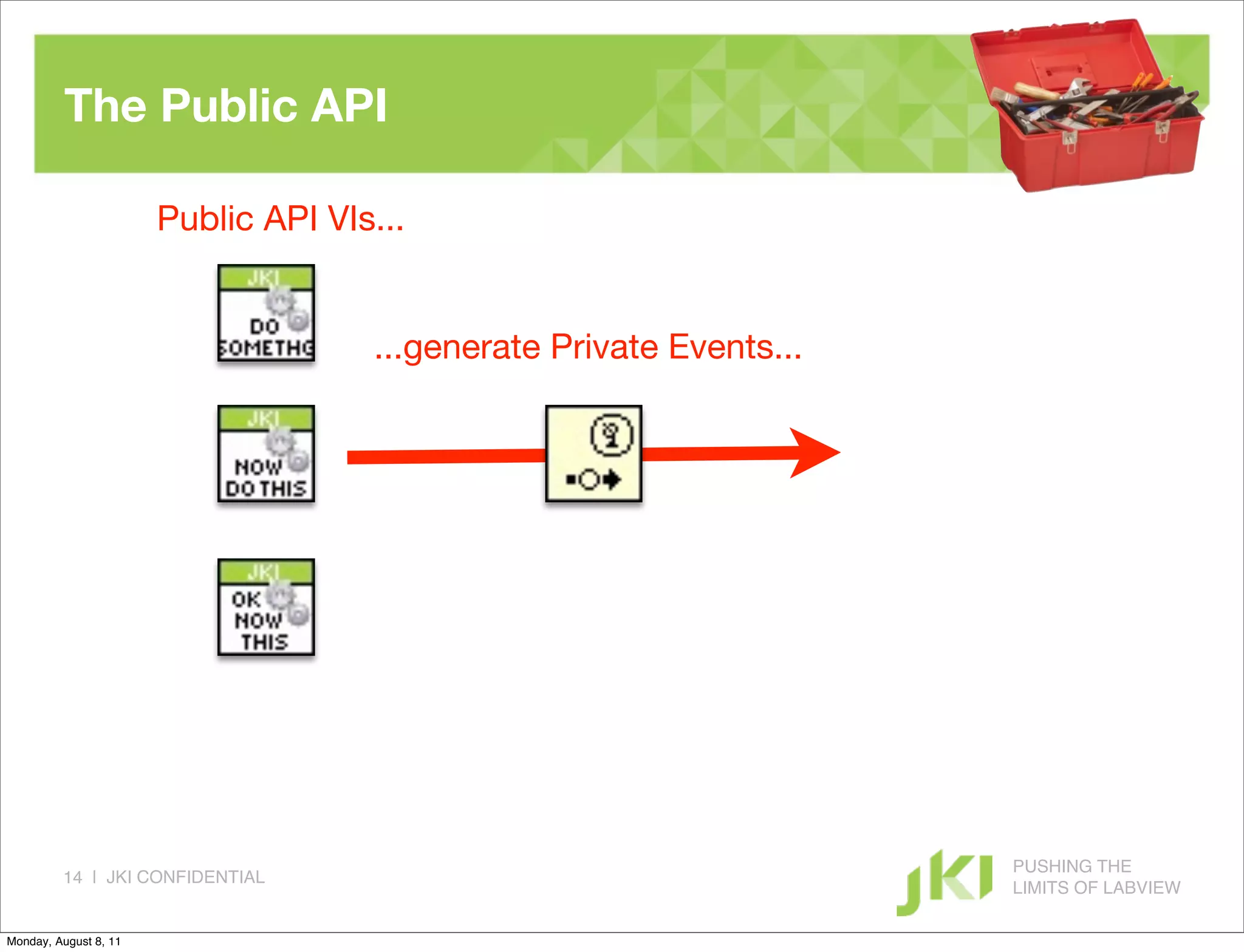

24. The Public API
Public API VIs...
...generate Private Events...
PUSHING THE
14 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

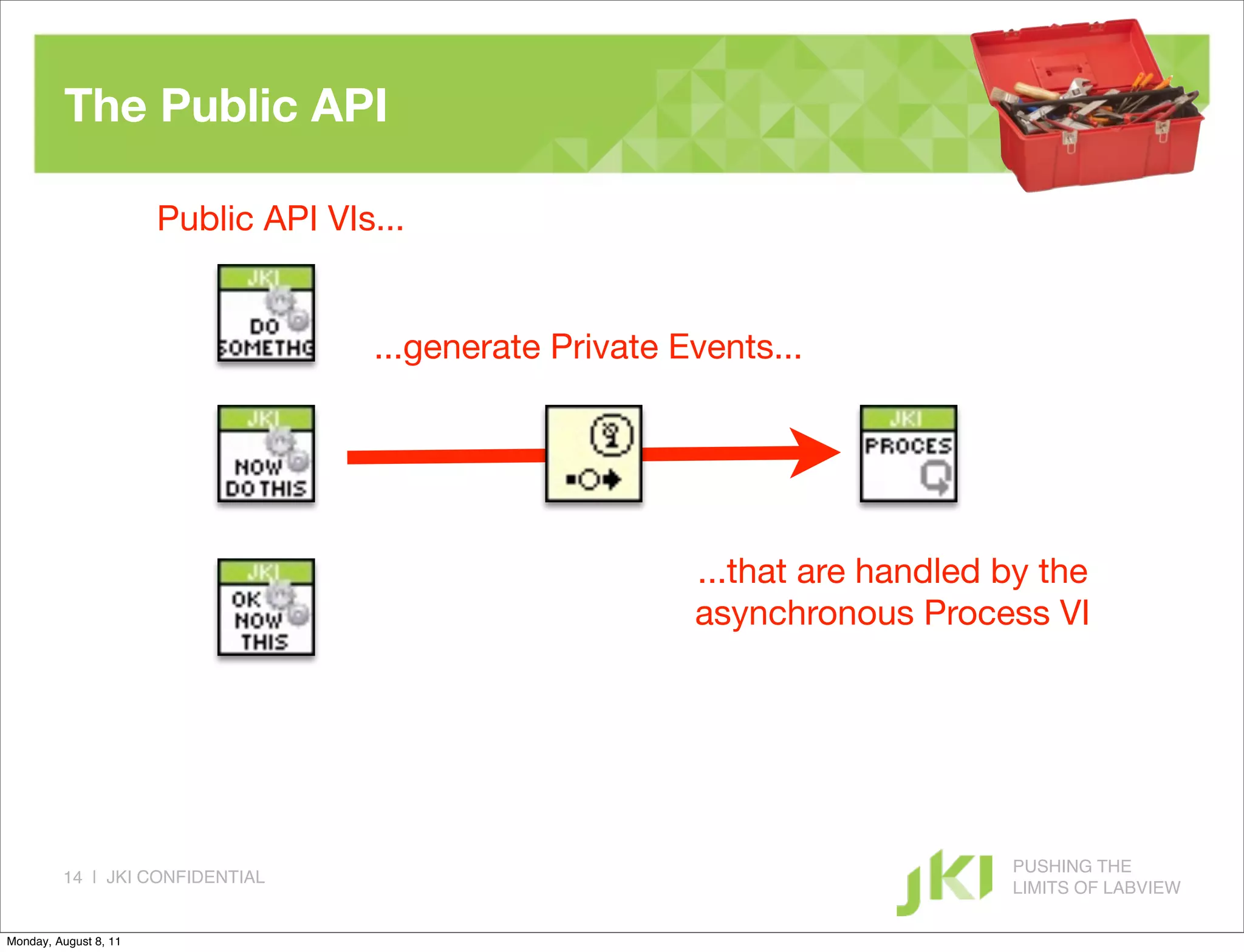

25. The Public API
Public API VIs...
...generate Private Events...
...that are handled by the
asynchronous Process VI
PUSHING THE
14 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

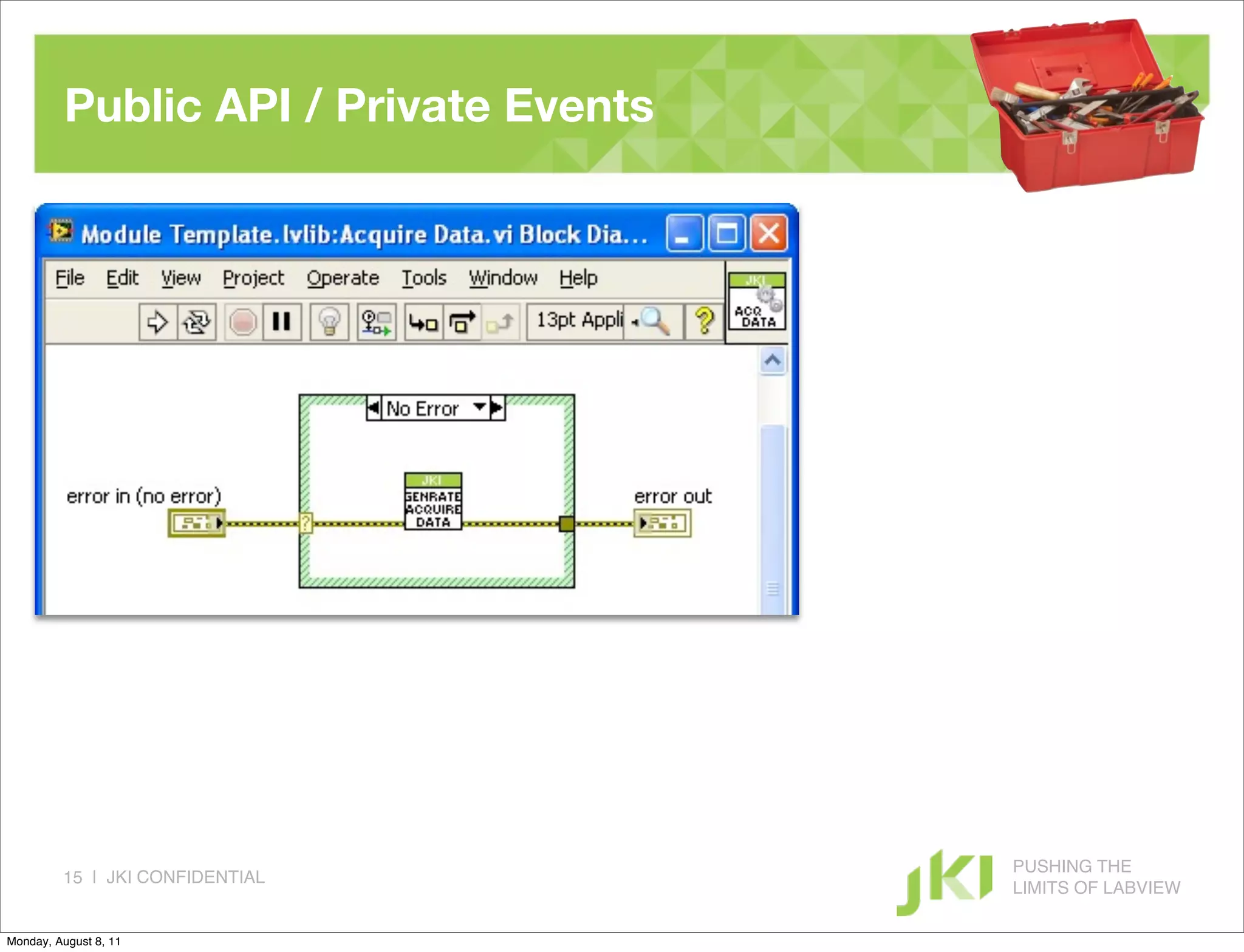

26. Public API / Private Events
PUSHING THE
15 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

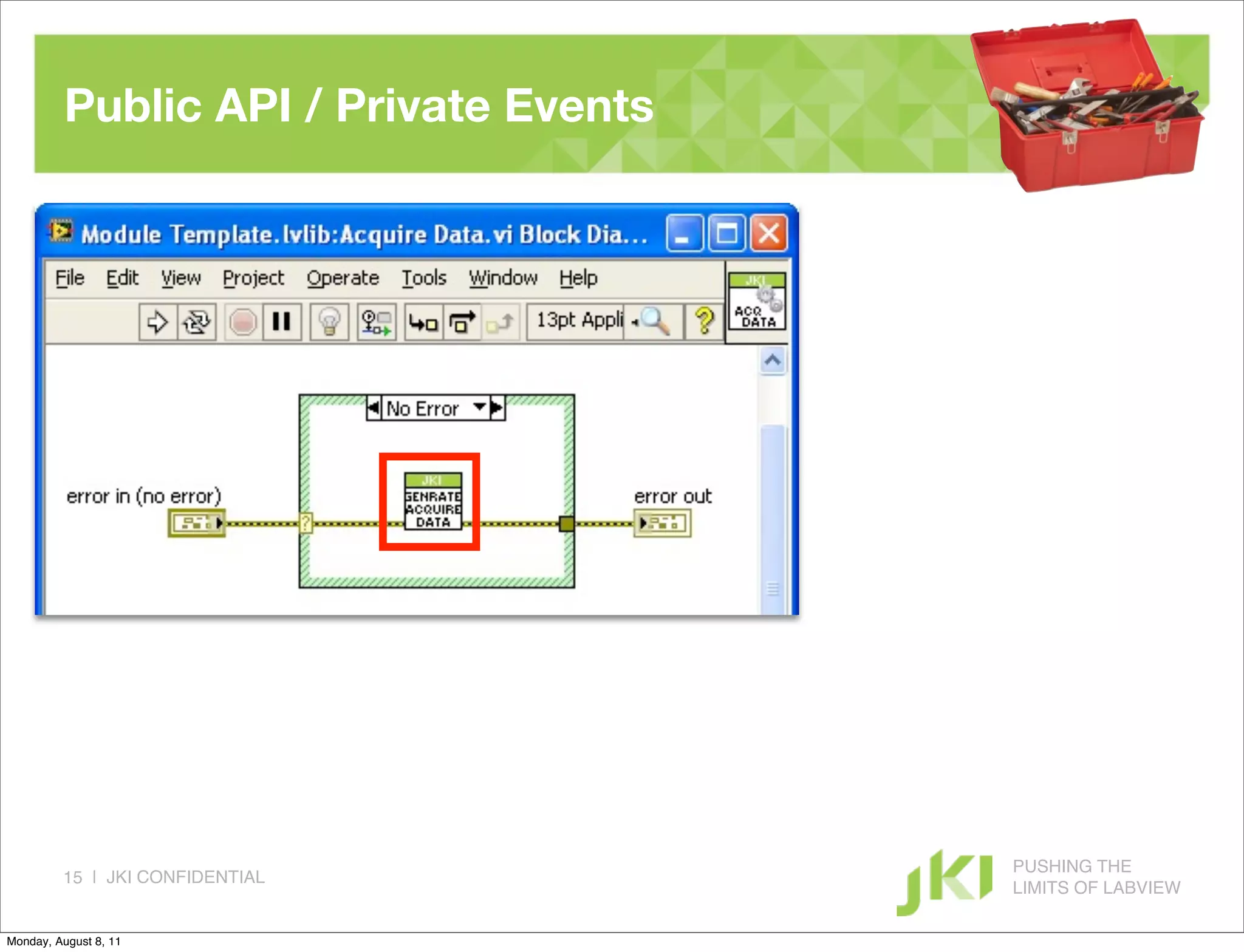

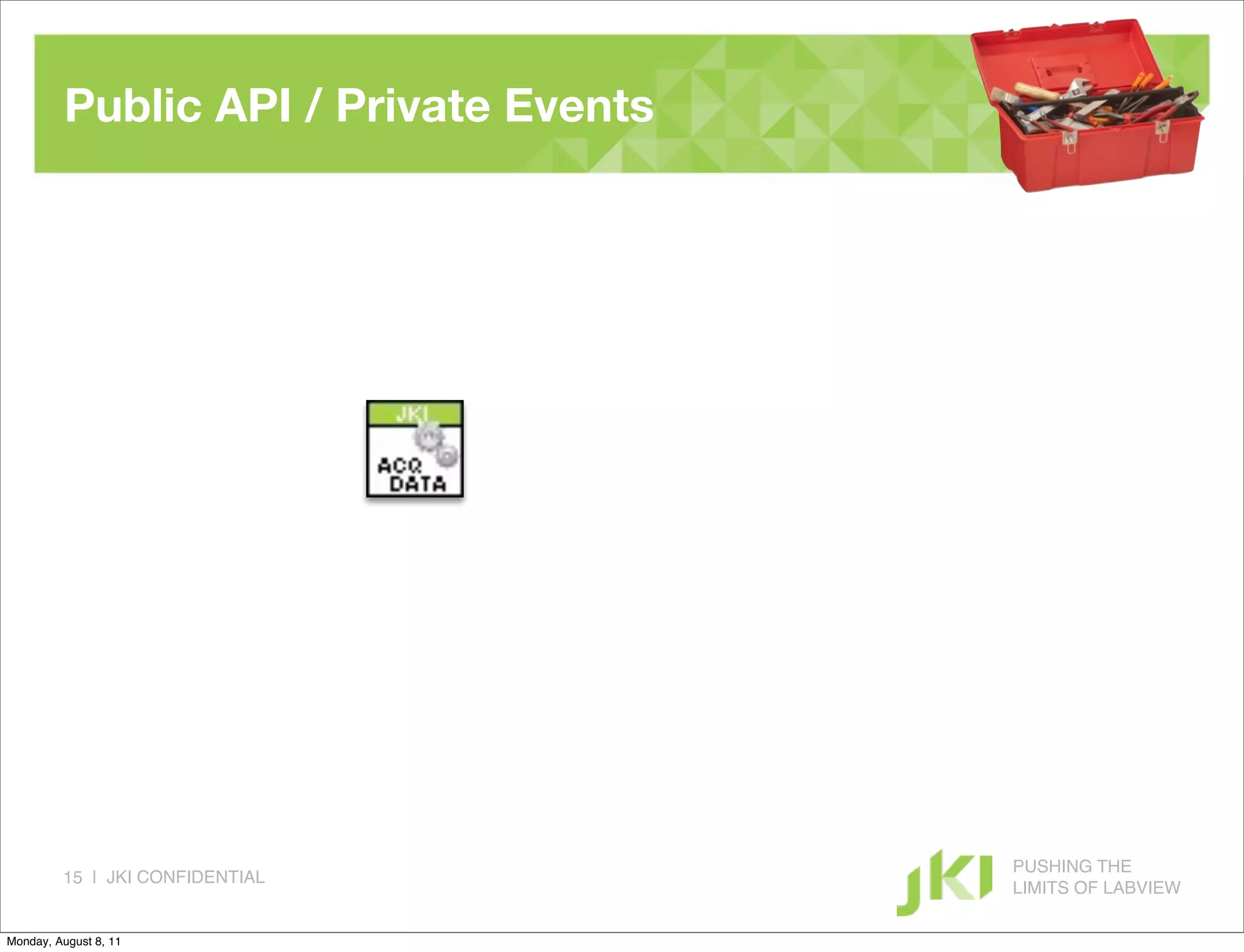

27. Public API / Private Events
PUSHING THE
15 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

28. Public API / Private Events
PUSHING THE
15 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

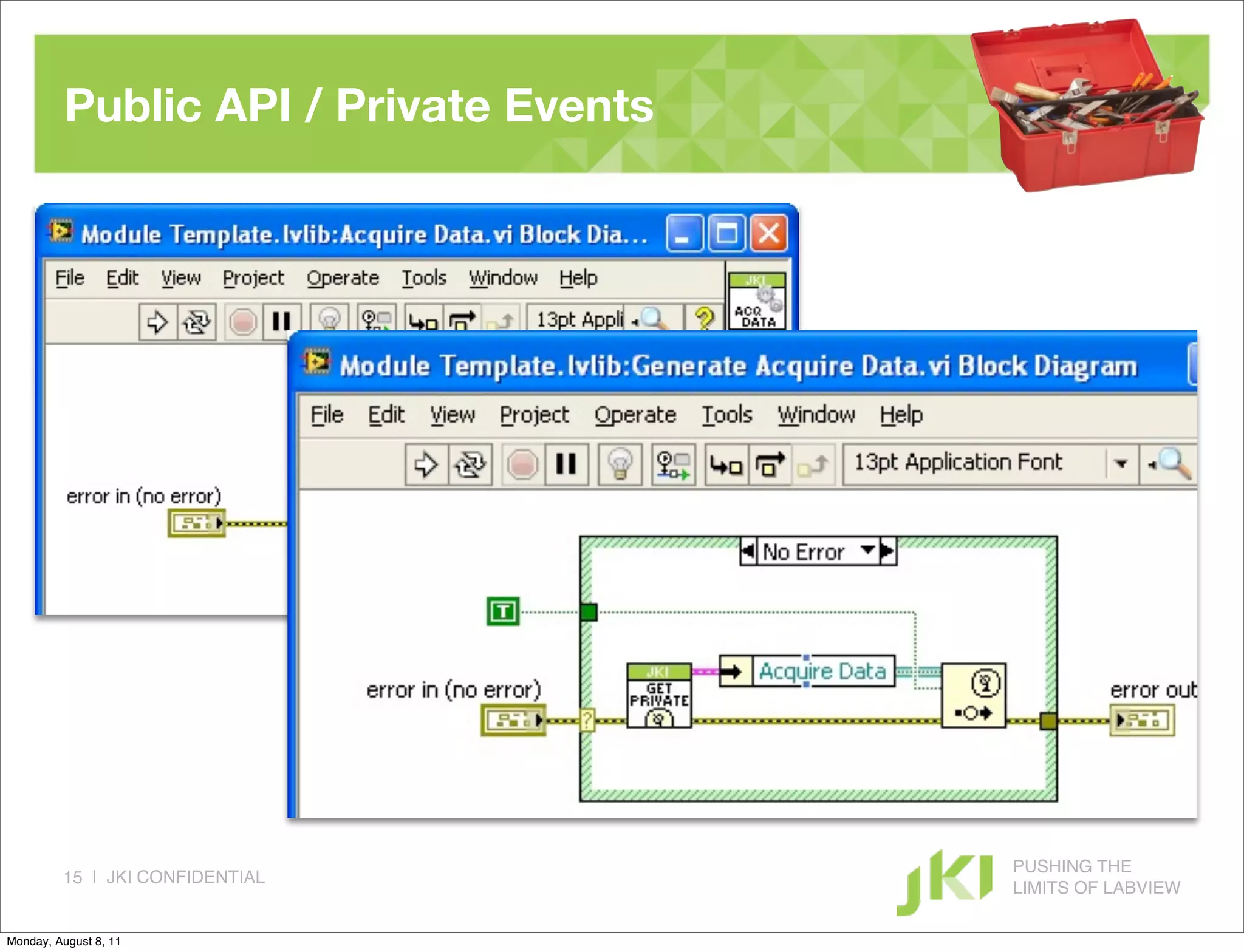

29. Public API / Private Events
PUSHING THE
15 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

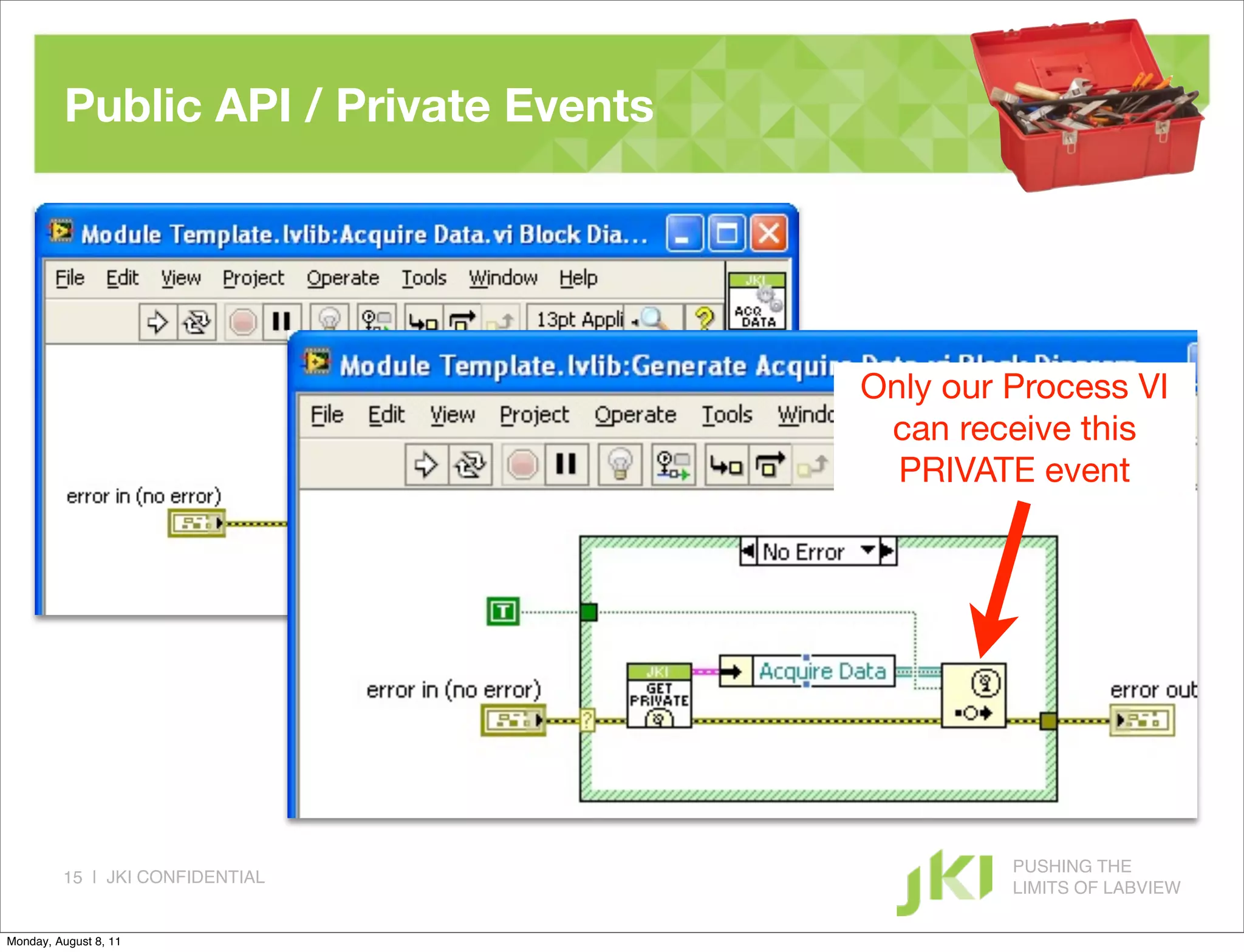

30. Public API / Private Events
Only our Process VI
can receive this
PRIVATE event
PUSHING THE
15 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

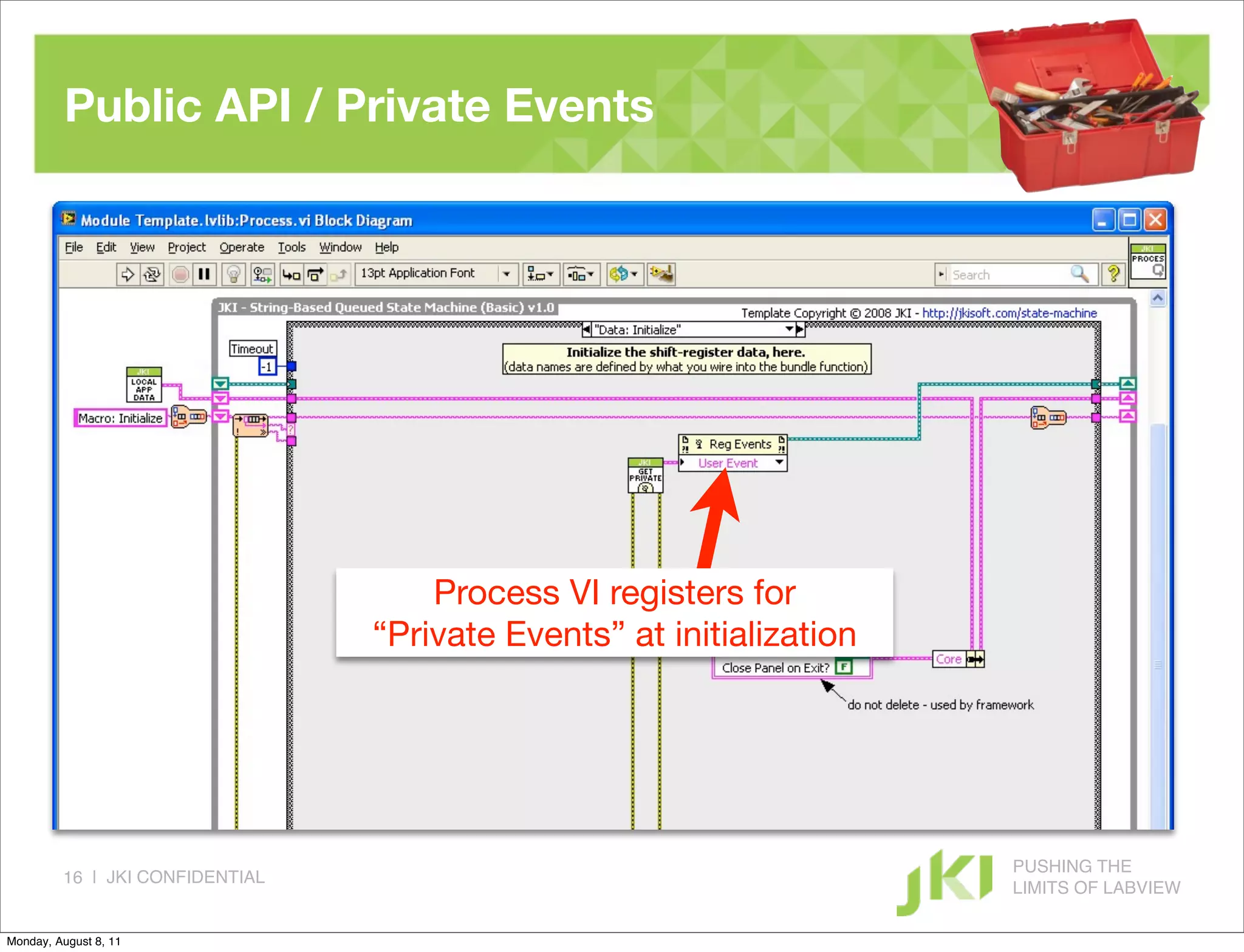

31. Public API / Private Events
Process VI registers for
“Private Events” at initialization
PUSHING THE
16 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

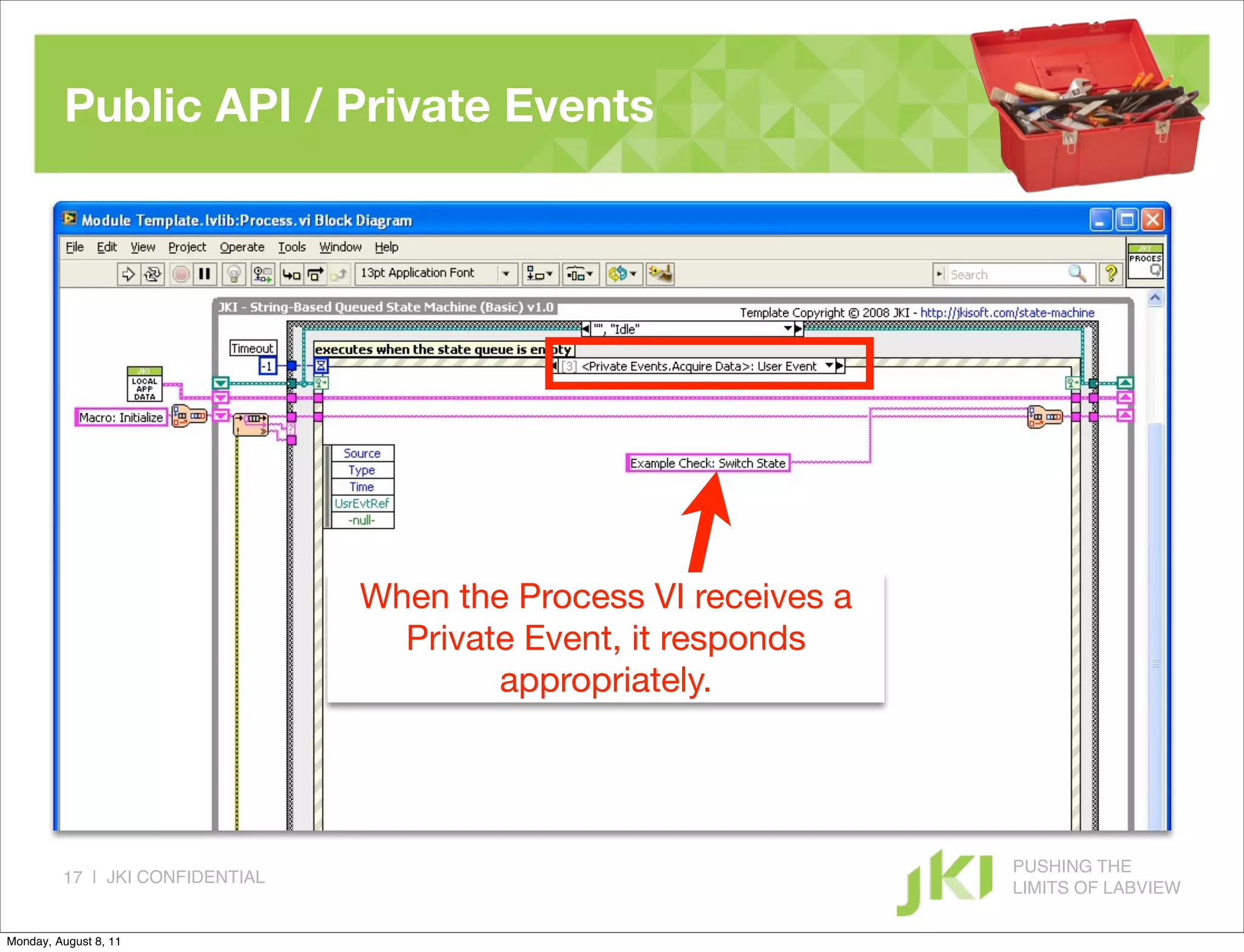

32. Public API / Private Events
When the Process VI receives a
Private Event, it responds
appropriately.
PUSHING THE
17 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

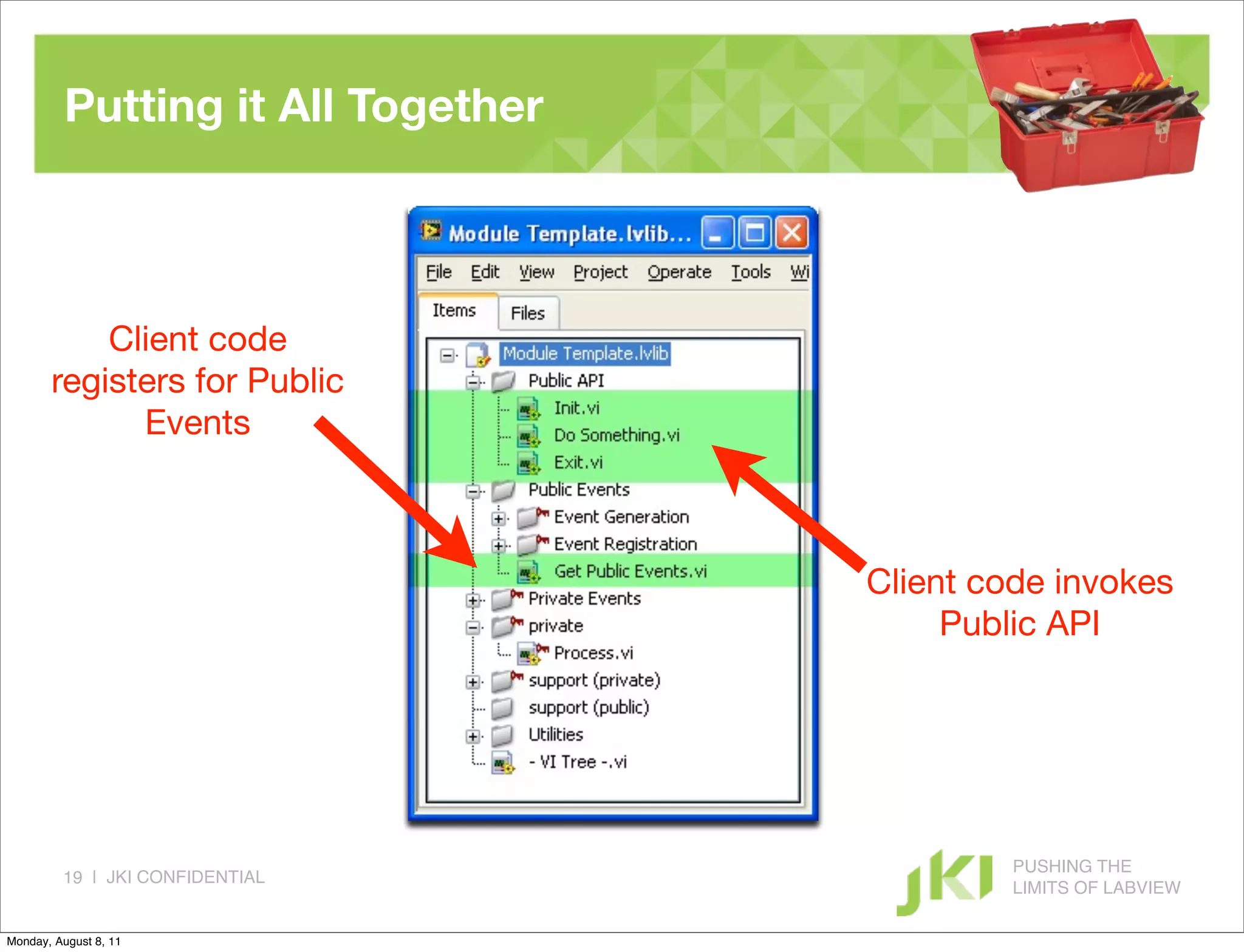

33. Putting it All Together
Client code
registers for Public
Events
Client code invokes
Public API
PUSHING THE
19 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

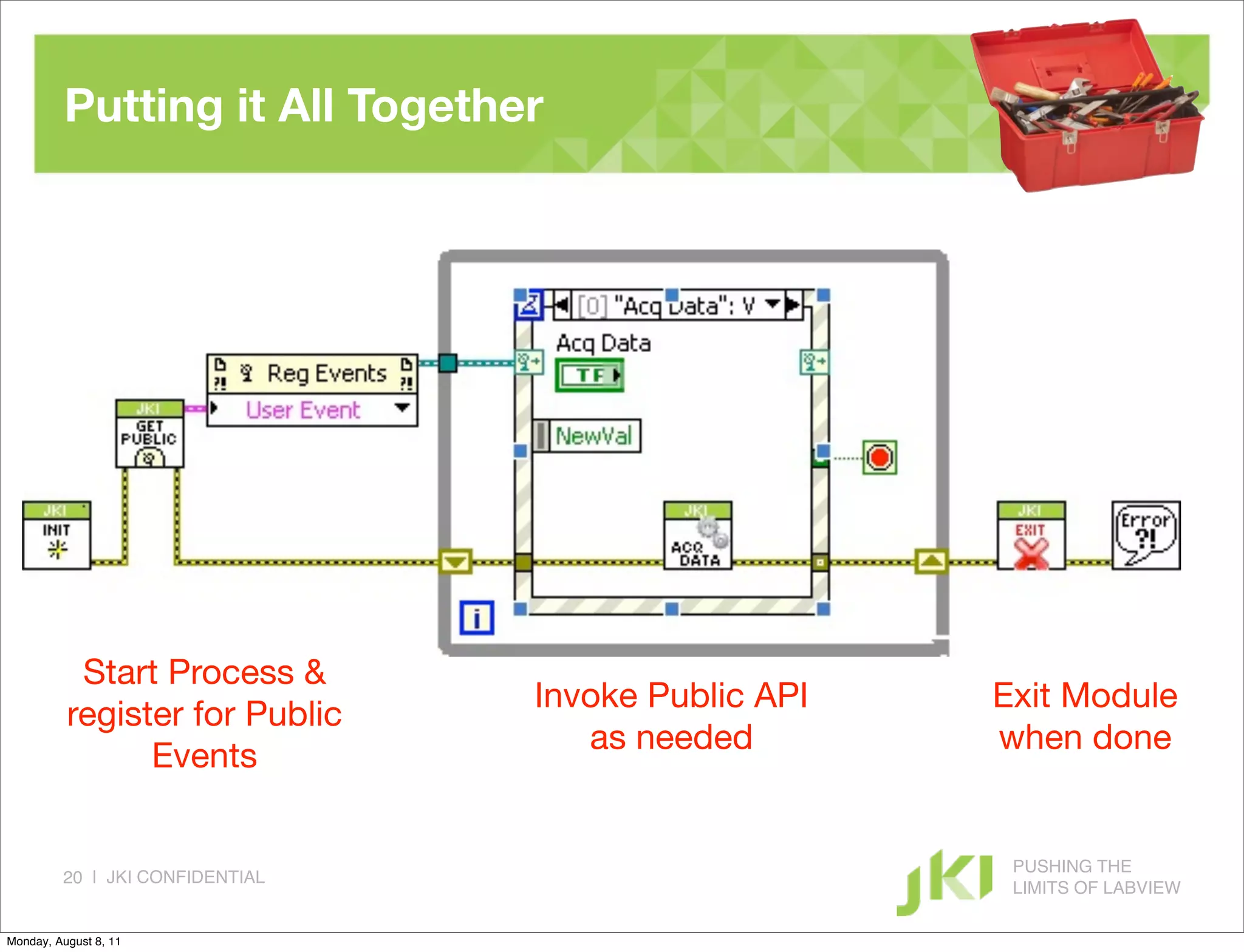

34. Putting it All Together
Start Process &
Invoke Public API Exit Module
register for Public
as needed when done
Events
PUSHING THE
20 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

35. Everything is a Module
Main
App
EKG Leak
Analysis Detection
Analog Motor
Input Controller
PUSHING THE
21 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

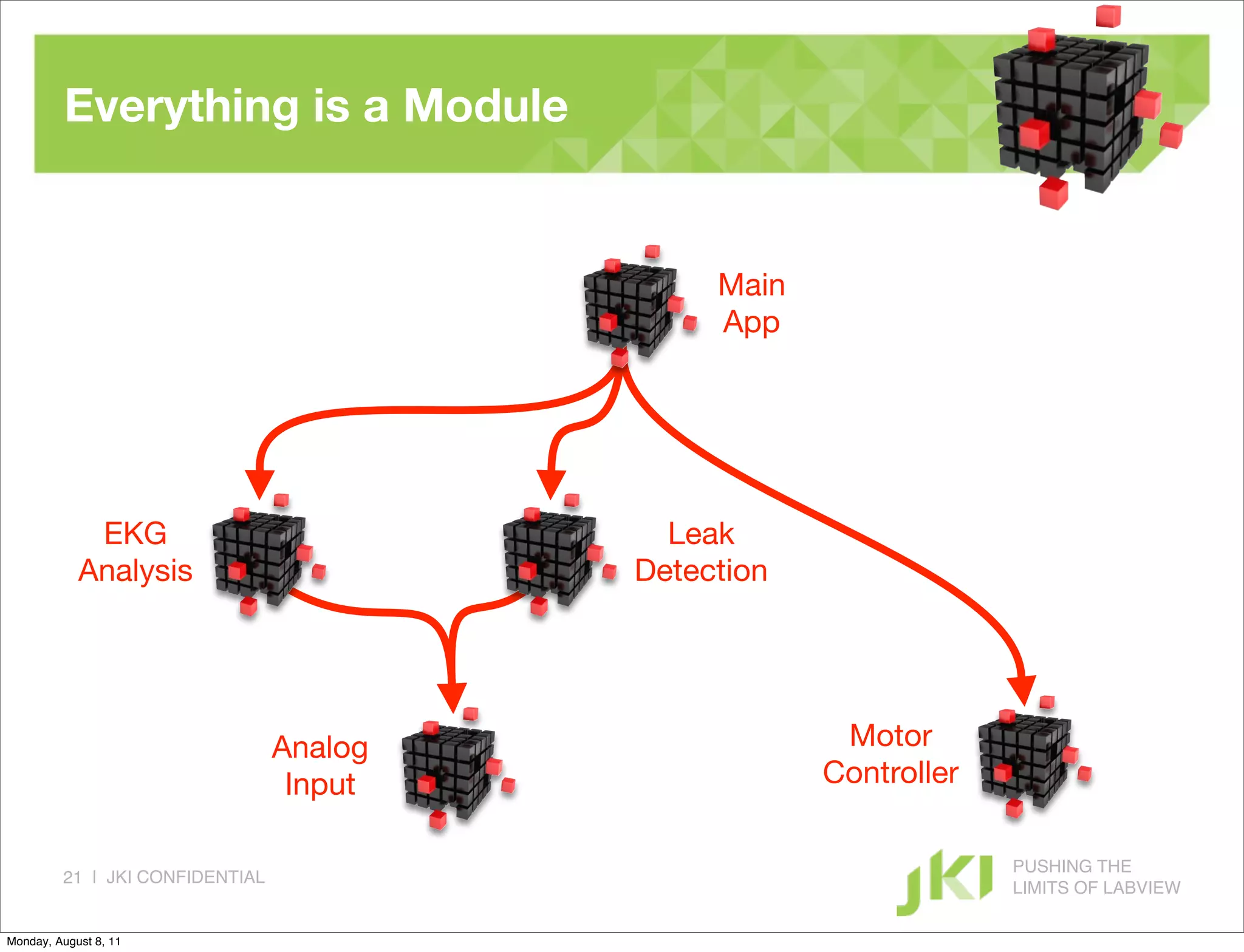

36. Everything is a Module
Main
App
EKG Leak
Analysis Detection
Analog Motor
Input Controller
PUSHING THE
21 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

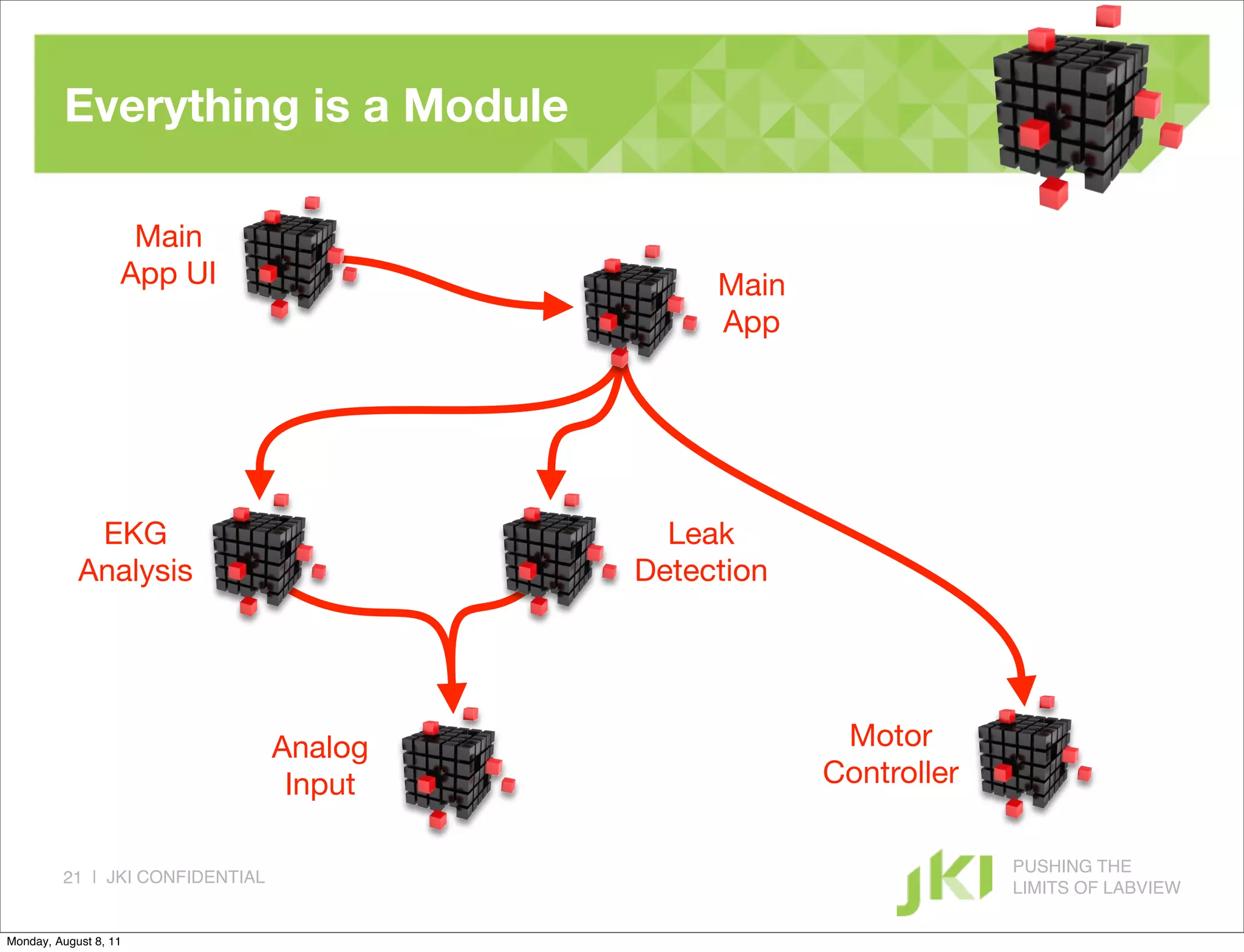

37. Everything is a Module
Main
App UI Main
App
EKG Leak
Analysis Detection
Analog Motor
Input Controller
PUSHING THE
21 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

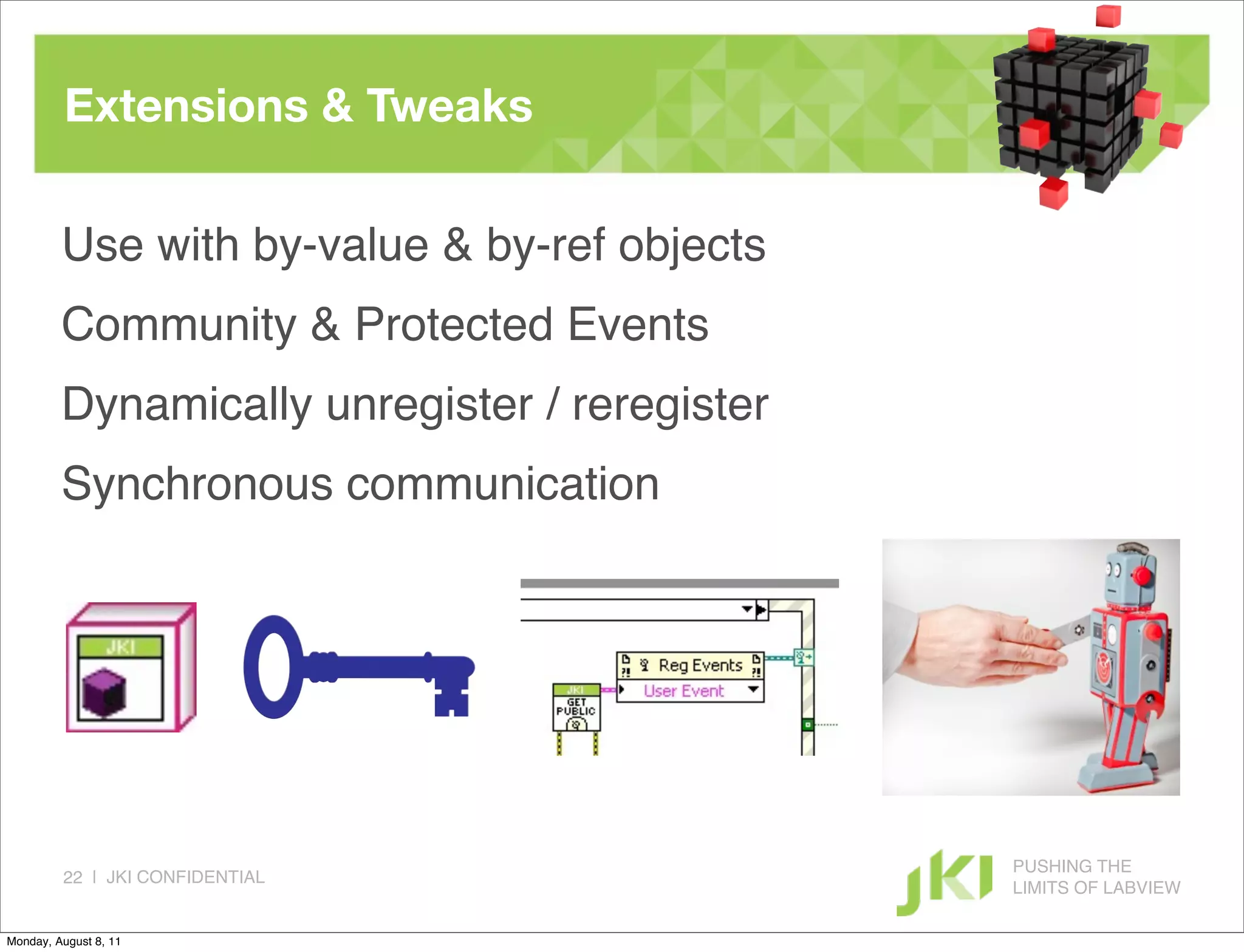

38. Extensions & Tweaks
Use with by-value & by-ref objects
Community & Protected Events
Dynamically unregister / reregister
Synchronous communication
PUSHING THE
22 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

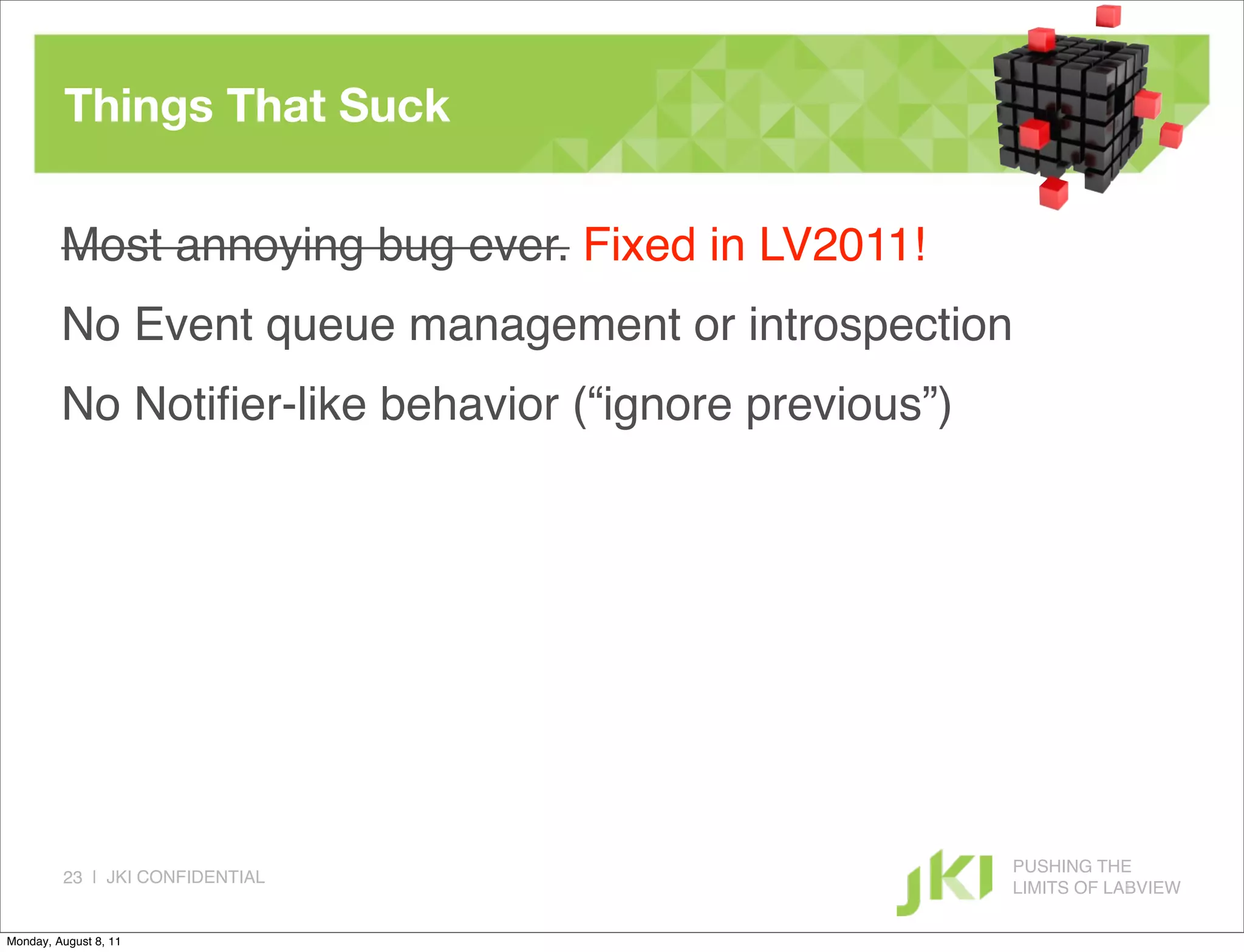

39. Things That Suck
Most annoying bug ever. Fixed in LV2011!
No Event queue management or introspection
No Notifier-like behavior (“ignore previous”)
PUSHING THE
23 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

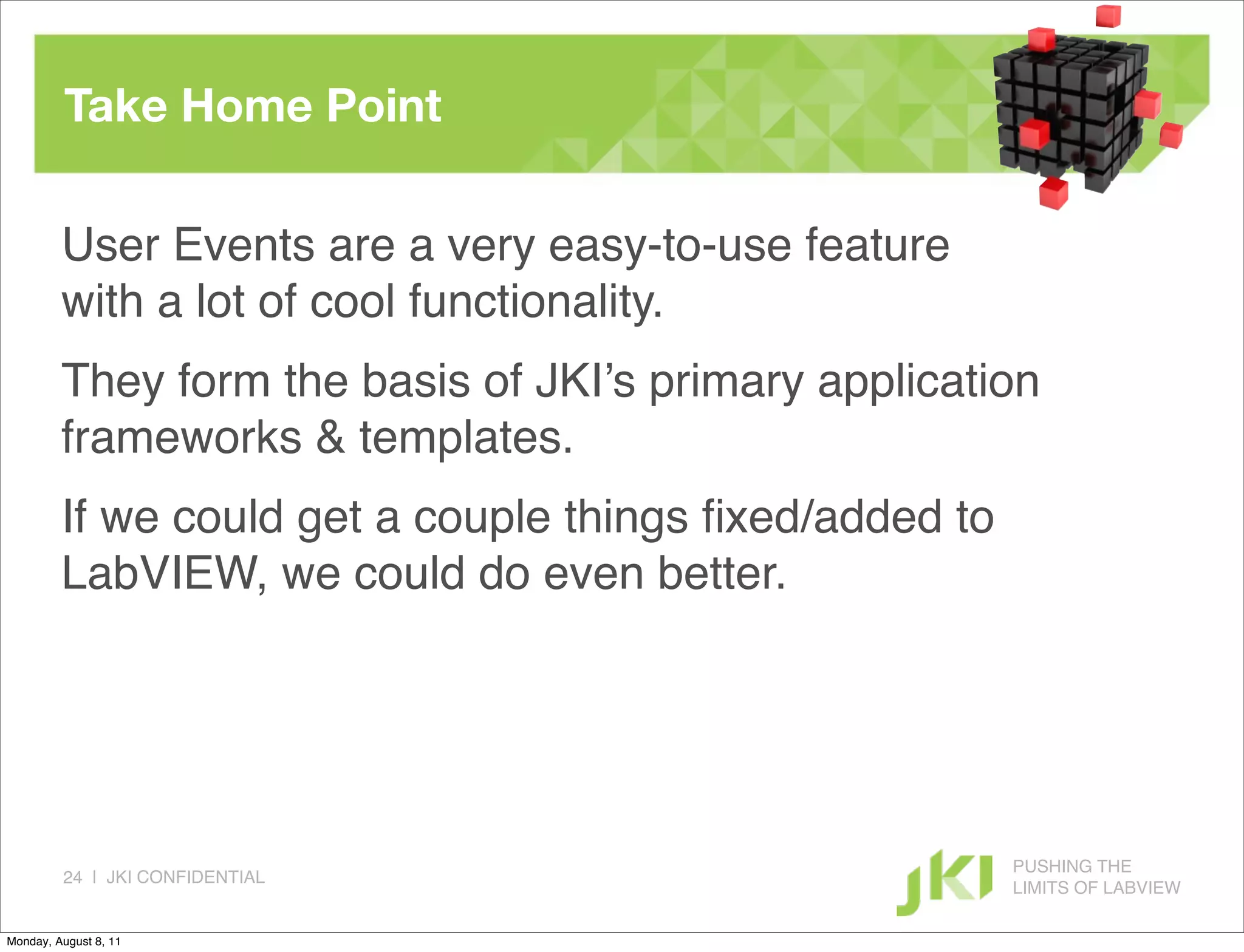

40. Take Home Point
User Events are a very easy-to-use feature
with a lot of cool functionality.
They form the basis of JKI’s primary application
frameworks & templates.
If we could get a couple things fixed/added to
LabVIEW, we could do even better.
PUSHING THE
24 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11

41. The End!
Discussion!
PUSHING THE
25 | JKI CONFIDENTIAL
LIMITS OF LABVIEW
Monday, August 8, 11
