1. Creating Knowledge out of Interlinked Data
Pisa – 2012/10/05 – Page 1 http://lod2.eu
NIF 2.0 Draft
http://slideshare.net/kurzum
http://nlp2rdf.org
http://lod2.eu
Sebastian Hellmann
AKSW, Universität Leipzig
LOD2 Presentation . 02.09.2010 . Page http://lod2.eu

2. Pisa – 2012/10/05 – Page 2 http://lod2.eu

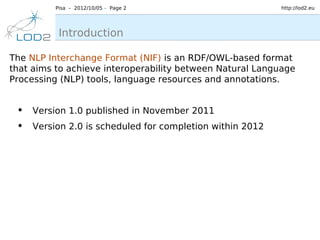

Introduction
The NLP Interchange Format (NIF) is an RDF/OWL-based format
that aims to achieve interoperability between Natural Language
Processing (NLP) tools, language resources and annotations.
• Version 1.0 published in November 2011
• Version 2.0 is scheduled for completion within 2012

3. Pisa – 2012/10/05 – Page 3 http://lod2.eu
NIF Introduction

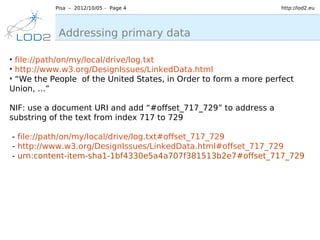

4. Pisa – 2012/10/05 – Page 4 http://lod2.eu
Addressing primary data
●
file://path/on/my/local/drive/log.txt
●
http://www.w3.org/DesignIssues/LinkedData.html
●
“We the People of the United States, in Order to form a more perfect
Union, ...”
NIF: use a document URI and add “#offset_717_729” to address a
substring of the text from index 717 to 729
- file://path/on/my/local/drive/log.txt#offset_717_729
- http://www.w3.org/DesignIssues/LinkedData.html#offset_717_729
- urn:content-item-sha1-1bf4330e5a4a707f381513b2e7#offset_717_729

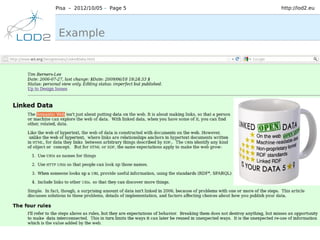

5. Pisa – 2012/10/05 – Page 5 http://lod2.eu
Example

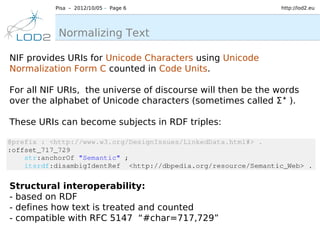

6. Pisa – 2012/10/05 – Page 6 http://lod2.eu
Normalizing Text
NIF provides URIs for Unicode Characters using Unicode
Normalization Form C counted in Code Units.
For all NIF URIs, the universe of discourse will then be the words
over the alphabet of Unicode characters (sometimes called Σ ∗ ).
These URIs can become subjects in RDF triples:
Structural interoperability:
- based on RDF
- defines how text is treated and counted
- compatible with RFC 5147 “#char=717,729”

7. Pisa – 2012/10/05 – Page 7 http://lod2.eu
As a Web Service

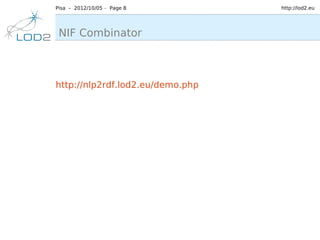

8. Pisa – 2012/10/05 – Page 8 http://lod2.eu
NIF Combinator
http://nlp2rdf.lod2.eu/demo.php

9. Pisa – 2012/10/05 – Page 9 http://lod2.eu

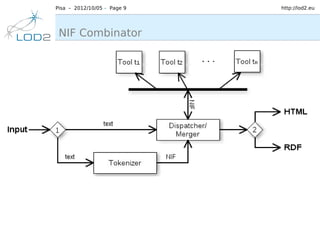

NIF Combinator

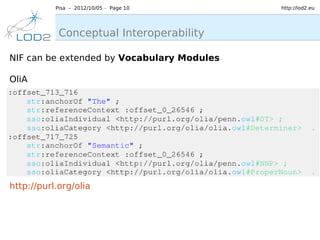

10. Pisa – 2012/10/05 – Page 10 http://lod2.eu
Conceptual Interoperability
NIF can be extended by Vocabulary Modules
OliA
http://purl.org/olia

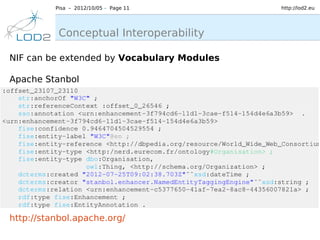

11. Pisa – 2012/10/05 – Page 11 http://lod2.eu
Conceptual Interoperability
NIF can be extended by Vocabulary Modules
Apache Stanbol
http://stanbol.apache.org/

12. Pisa – 2012/10/05 – Page 12 http://lod2.eu

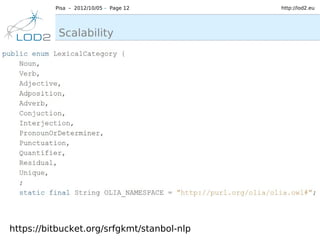

Scalability
https://bitbucket.org/srfgkmt/stanbol-nlp

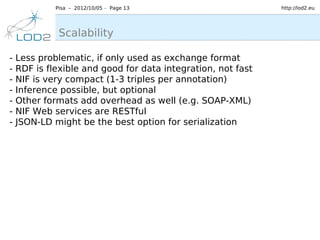

13. Pisa – 2012/10/05 – Page 13 http://lod2.eu
Scalability
- Less problematic, if only used as exchange format
- RDF is flexible and good for data integration, not fast
- NIF is very compact (1-3 triples per annotation)
- Inference possible, but optional
- Other formats add overhead as well (e.g. SOAP-XML)
- NIF Web services are RESTful
- JSON-LD might be the best option for serialization

14. Pisa – 2012/10/05 – Page 14 http://lod2.eu

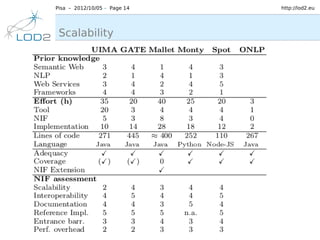

Scalability

15. Pisa – 2012/10/05 – Page 15 http://lod2.eu
NIF 2.0 - plans
• NIF 2.0 tries to be compatible to (Vocabulary Module):
• FISE used in Apache Stanbol (IKS-EU Project)
• LAF/GrAF XML – ISO standard, recently published
• Fragment Identifiers by IETF and W3C
• Lemon ontology from Monnet EU Project
• NERD ontology from EURECOM and LinkedTV EU Project
• Xpointer/XPath URI scheme

16. Pisa – 2012/10/05 – Page 16 http://lod2.eu

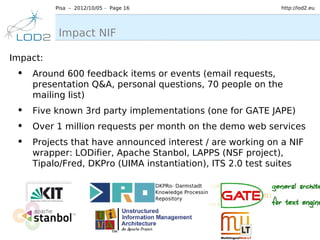

Impact NIF
Impact:
• Around 600 feedback items or events (email requests,
presentation Q&A, personal questions, 70 people on the
mailing list)
• Five known 3rd party implementations (one for GATE JAPE)
• Over 1 million requests per month on the demo web services
• Projects that have announced interest / are working on a NIF
wrapper: LODifier, Apache Stanbol, LAPPS (NSF project),
Tipalo/Fred, DKPro (UIMA instantiation), ITS 2.0 test suites

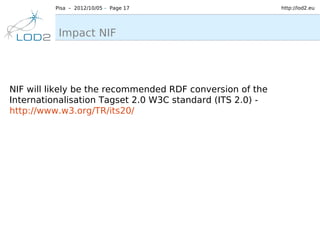

17. Pisa – 2012/10/05 – Page 17 http://lod2.eu
Impact NIF
NIF will likely be the recommended RDF conversion of the
Internationalisation Tagset 2.0 W3C standard (ITS 2.0) -
http://www.w3.org/TR/its20/

18. Pisa – 2012/10/05 – Page 18 http://lod2.eu

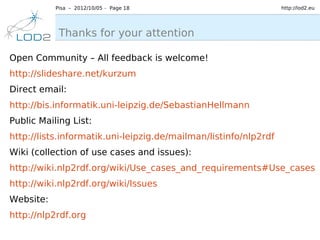

Thanks for your attention
Open Community – All feedback is welcome!
http://slideshare.net/kurzum
Direct email:
http://bis.informatik.uni-leipzig.de/SebastianHellmann
Public Mailing List:
http://lists.informatik.uni-leipzig.de/mailman/listinfo/nlp2rdf
Wiki (collection of use cases and issues):
http://wiki.nlp2rdf.org/wiki/Use_cases_and_requirements#Use_cases
http://wiki.nlp2rdf.org/wiki/Issues
Website:
http://nlp2rdf.org
